USER MANUAL HS-500 Vevor

Affordable. Reliable. Home Improvement.

Sheet Metal Plate Shear

MODEL:HS-500/HS-1000

VEVOR

Affordable. Reliable. Home Improvement.

Sheet Metal Plate Sheet

MODEL: HS-500 / HS-1000

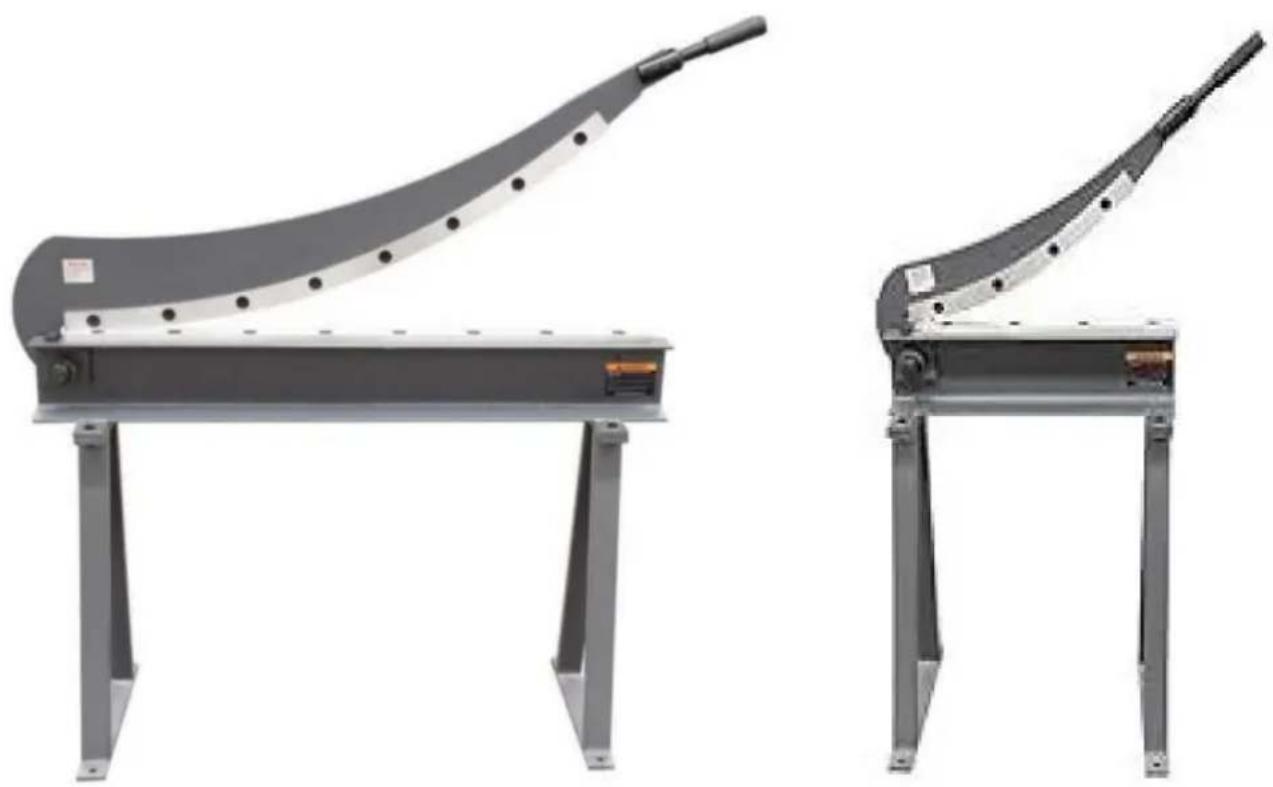

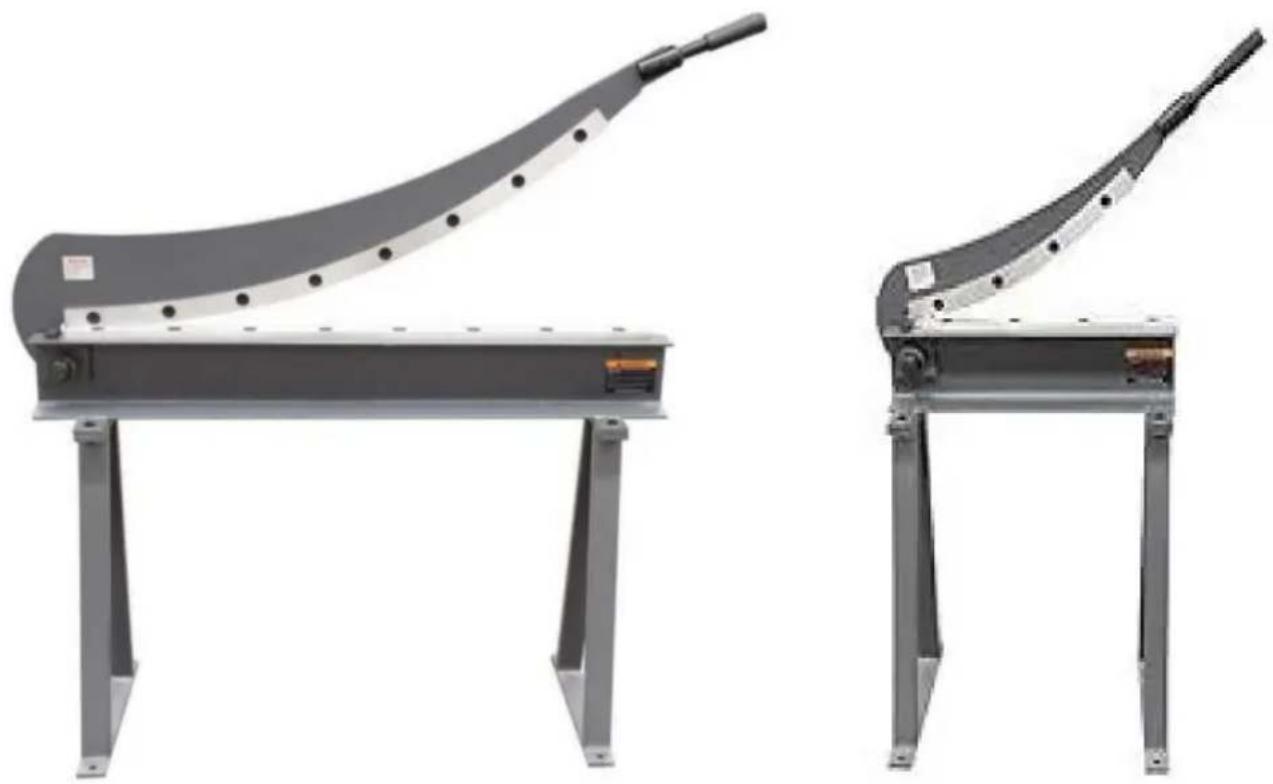

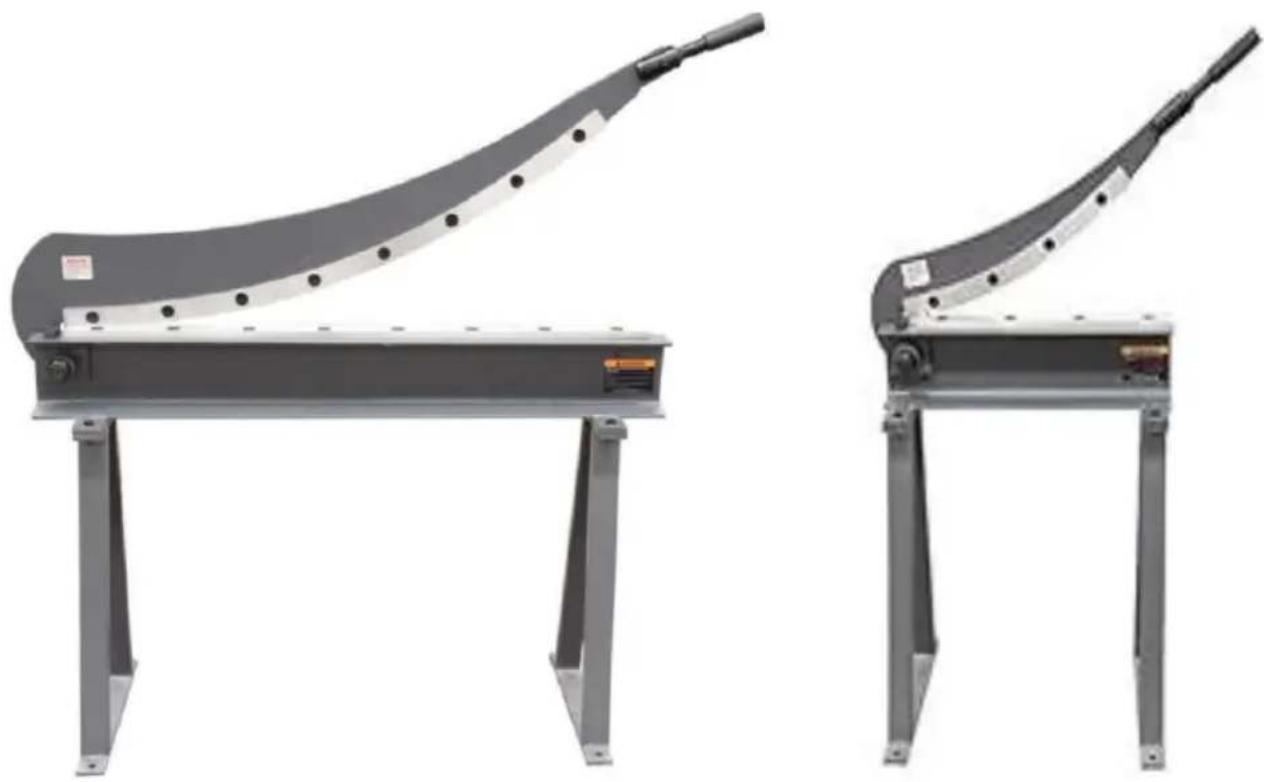

Vevor HS-500 - VEVOR - 1

natural_image Two industrial mechanical components with curved metal beams and mounting supports, shown from different angles (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

USAGE

This is suitable for Sheet metal and Steel plate

1. Main technical specification

ModelHS-500HS-1000
Bed width(mm)5001000
Shearing thickness / low carbon stee1.5mm1.5mm

2. Installation and caution

2.1 Installation

2.1.1 Please check whether the part of this machine is fully equipped not damaged according to the parts list or parts figure.
2.1.2 This machine should be mounted on hard ground or specific sta
2.1.3 Please leave plenty of room around the machine for your easy operating, in order to avoid injury.
2.1.4 Please remove the anti-rust grease on processing surface and parts included with kerosene.

3.2 Caution

3.2.1 Please read this manual before operating and make yourself understand its structure and principle completely.
3.2.2 Please don't operate the material width and thickness than table max range.
3.2.3 When you shear the plate or bar which list in above table, y be used lengthening handle in order to increase force. (not supplied)
3.2.4 Please don't touch the blade during operation.

  1. Lubricate the rotating parts of the machine every day

  2. Standard accessories

PART NO.DESCRIPTIONQTY
1Stand2
2Screw4
3Nut4
3Washer8
  1. Machine assembly

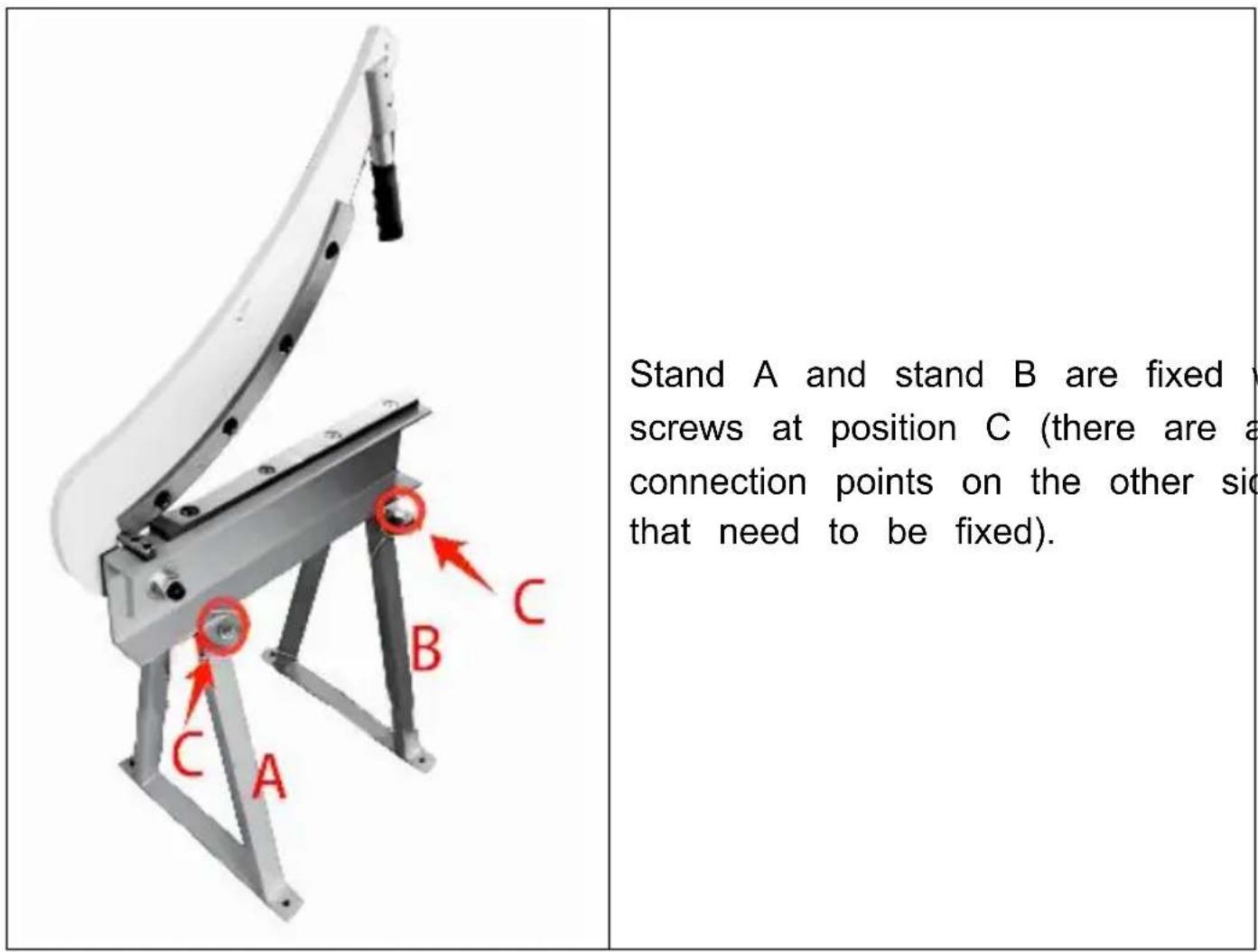

Stand A and stand B are fixed screws at position C (there are a connection points on the other sid that need to be fixed).

7. Parts list

PartsDescriptionQuantityPartDescriptionQuantity
1Lower blade112Screw4
2Bolt413Pin2
3Stand114Cover1
4Base115Screw4
5Shaft116Board1
6Washer417Screw4
7Nut418Upper blade1
8Leg219Screw2
9Spring120Handle1
10Washer121Handle sleeve1
11Nut1

ASSEMBLY DRAWING

Technical schematic diagram of a mechanical assembly with numbered components and labeled parts

Note: This manual is only for your reference. Owing to the continued improvement of the machines, changes may be made at any time with obligation on notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
