USER MANUAL AY490-2 Vevor

Affordable. Reliable. Home Improvement.

FOOD CHOPPER

Model:AY490-1/ AY490-2

Technical Support and E-Warranty Certificate

www.vevor.com/support

Model: AY490-1/ AY490-2

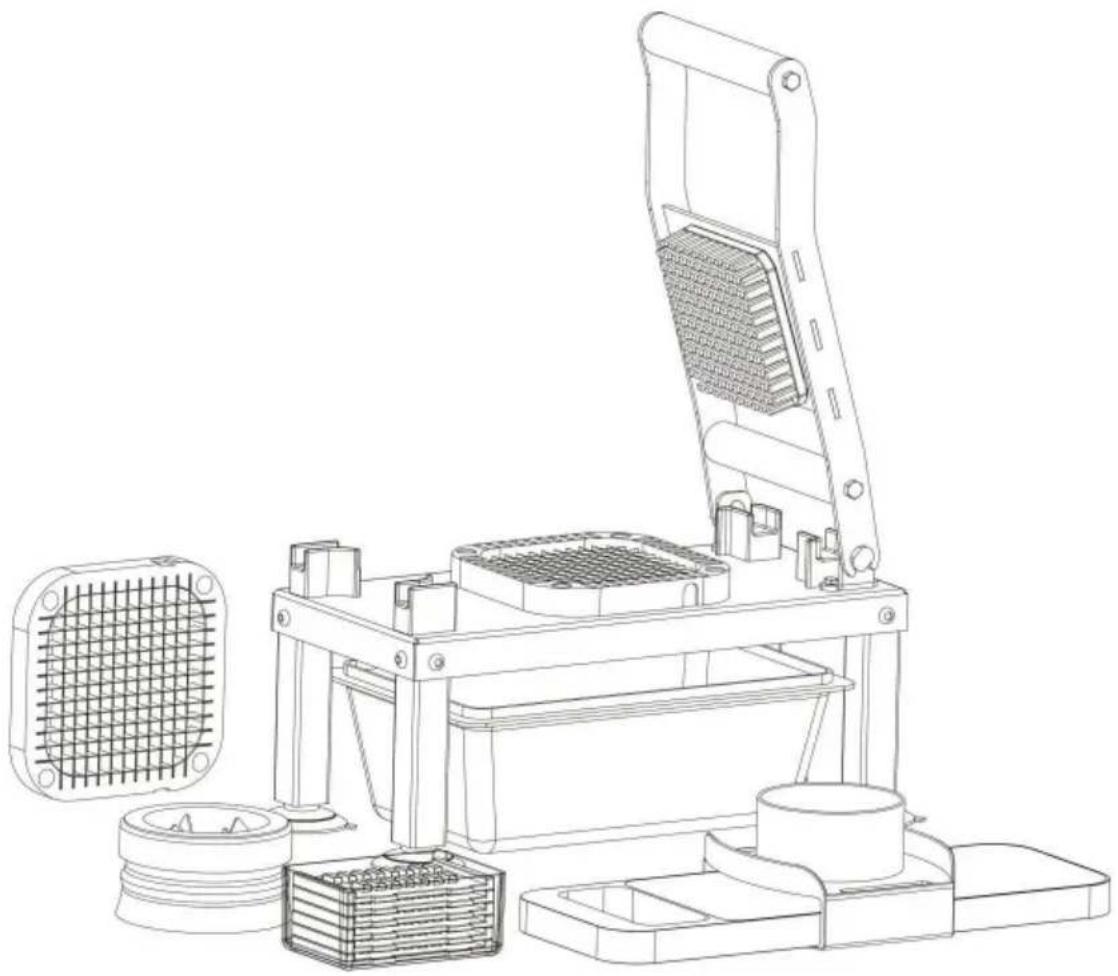

Technical line drawing of a mechanical device with multiple components and a grid-patterned cover (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

GENERAL SAFETY RULES

READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS

PRIOR TO USING THIS UNIT. YOUR SAFETY IS MOST

IMPORTANT!

FAILURE TO COMPLY WITH PROCEDURES AND SAFEGUARDS MA RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE. REMBER: YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY!

1. KEEP FINGERS always CLEAR of the Cutting Blade. NEVER hold a product with your hands in line of the Cutting Blade. Failure to keep and hands away from the Cutting Blade may result in personal injury
2. Keep the child away. Never leave the vegetable chopper unattended

3. Check for damaged parts. Before using the shredder, please check components are working properly and performing the expected function. Check the alignment of moving parts, binding of moving parts, installa and any other conditions that may affect operation

4. When handling the Cutting Plate, it is HIGHLY RECOMMENDED to cut-resistant Kevlar gloves.

5. The Manufacturer declines any responsibility in the case of improper of this machine.

6. Ensure that the vegetable chopper remains stable during use. Please install all The suction cup should be placed on a smooth and flat w surface, and the machine should not move during the cutting process.

7. Do not use this machine for freezing food, removing bones, fish, or anything other than food.

8. The cutting machine should not be installed on uneven surfaces. I can only be installed on sturdy and smooth surfaces, such as marble countertop.

9. Do not use vegetable chopper under the influence of drugs or alcohol

COMPONENT LIST

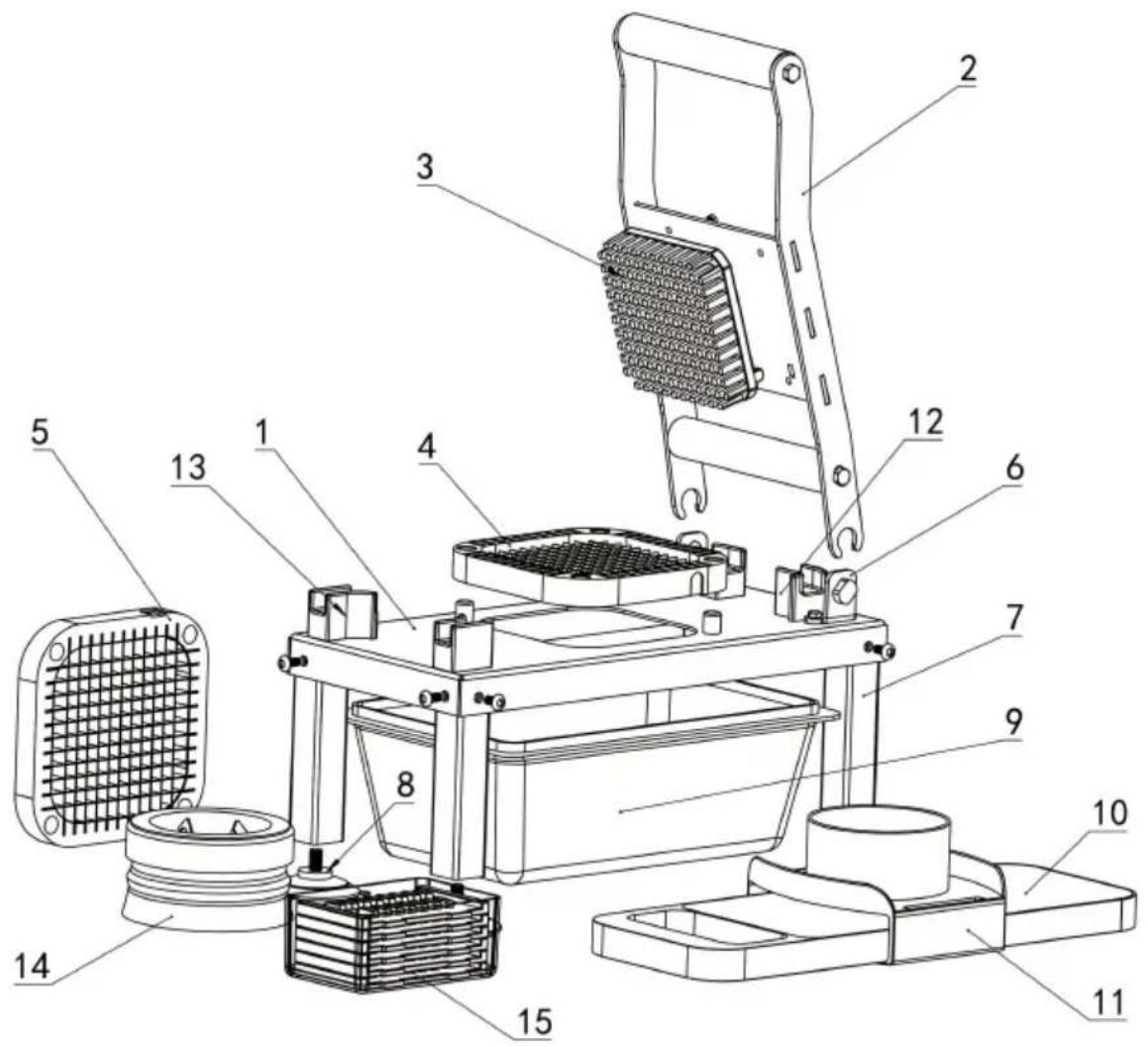

DIAGRAM NUMBER	PART DISCRIPTION	PART QUANTITY
		AY490-1	AY490-2
1	Chopper body	1	1
2	sucker	4	4
3	Blade storage box (include blades: Thin/Thick/Fine/Coarse/ Pattern/Grinding/)	1	1
4	1 "2 blade	1	1
5	1" 4 blade	1	1
6	Tandem Knife Plate	1	0
7	container	1	1
8	cutting board	1	1
9	Hand guard	1	1
10	Clean fork	1	1
11	Manual	1	1

INSTRUCTIONS

(YZZO)

CAUTION! Use extreme care when handling the Cutting Plates and the Blades!The Blades are extremely SHARP! It is suggested that wear cut-resistant Gloves when handling the Cutting Pla

1. Remove the vegetable chopper from the packaging and confirm rece of all components.
2. Installation of the lower pressure plate: Insert the slots on both sides

the lower pressure plate into the protruding rotating shafts on the rotat brackets on both sides of the base (pay attention to the angle). Che can move normally and if there is any stagnation (as shown in Figur

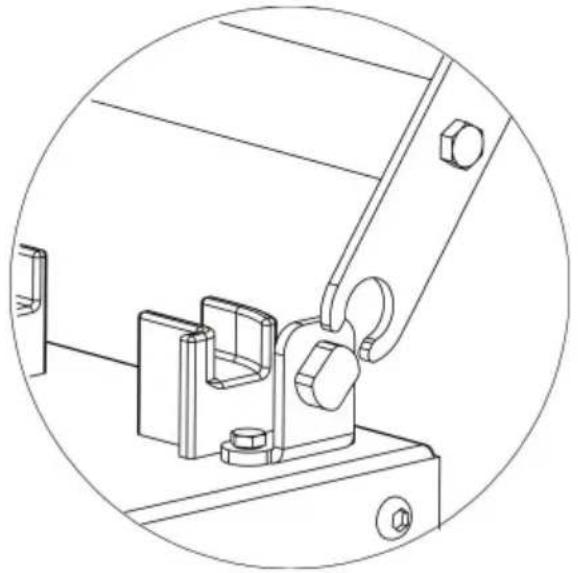

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Figure 1

1. Install the push head: Align the two protruding blocks on both sides push head with the two slots on the lower pressure plate, and fix the four holes around them with screws

2. Installation of blade components: Install the holes on the blade components into the columns on the bottom plate, Make sure the blade facing upwards. (When replacing blade components, place your hand or the diagonal edge of the column and lift it horizontally upwards for disassembly.) (as shown in Figure 2)

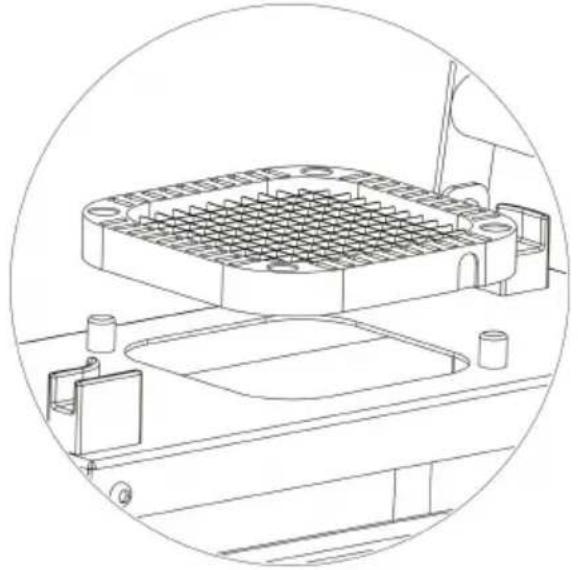

Technical line drawing of a mechanical component with grid-like structure and mounting brackets (no text or symbols)

Figure 2

1. Suction cup installation: Install the suction cups into the holes at the bottom of the machine legs.

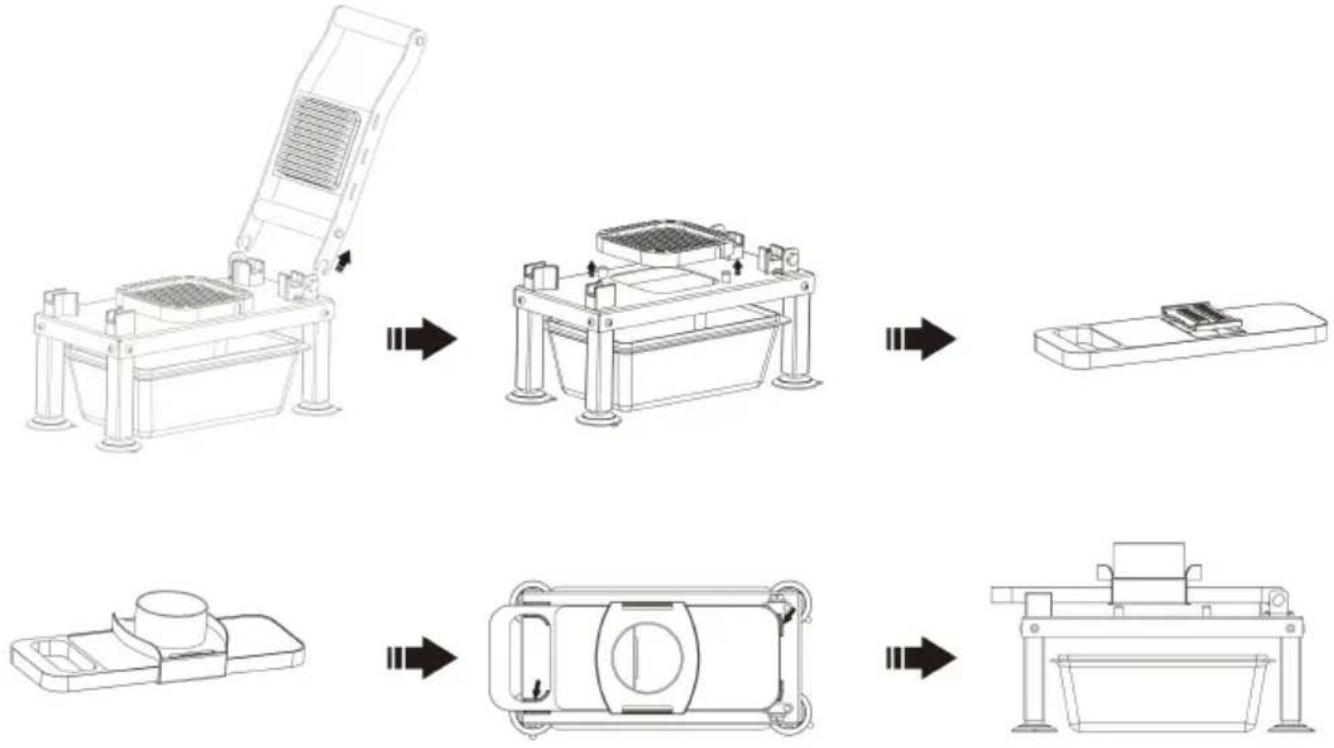

Slicer installation

1. Disassemble the lower pressure plate on the vegetable chopper
2. Disassemble the blade (grasp the diagonal of the blade by hand ar parallel)
3. Install the required blade onto the cutting board (simply align with the and press down)
4. Clamp the protective plate onto the cutting board.
5. Place the cutting board into the bracket on the bottom plate to cor the installation.

About the blade

Multi functional food chopper: The vegetable chopper is equipped with following blade specifications: 1 "2"/1 "4/thin/thick/fine/coarse/wavy blade/grinding blade/series blade. It can effectively cut various ingredient into uniform cubes or thick strips, such as onions, potatoes, cucumber tomatoes, carrots, etc. Say goodbye to onion tears and easily enhance dining experience of family members. The blades of the vegetable choice

are made of stainless steel material, which is more sturdy and cuts vegetables faster. When using the blades, pay attention to distinguishing between front and back; Please be cautions as the front of the blade sharp.

Model	Blade specifications	Number of blade
AY490-1	1 "2/1" 4/Thin/Thick/Fine/Coarse/Pattern/Grinding/Tandem Knife Plat	9 blade plates
AY490-2	1 "2/1" 4/Thin/Thick/Fine/Coarse/Wave/Grinding Blade	8 blade plates

Pure grid pattern with rounded corners and mounting holes, no text or symbols present

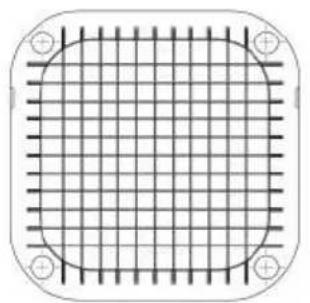

1 "4 blade set

Pure geometric diagram of a rounded square frame with grid lines and corner markers (no text or symbols)

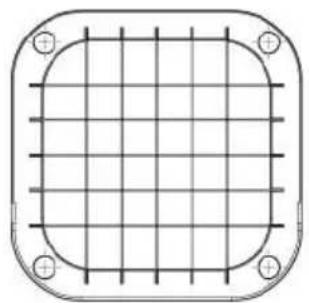

1 "2 blade set

Line drawing of a mechanical component with concentric layers and internal features (no text or symbols)

Connecting knives

Two vertical striped bars with white circular markers, no text or symbols present

filament

Cropped image showing two vertical grayscale bars with white text, likely from a document or label.

crin

Close-up of a striped fabric or paper strip with no visible text or symbols

Flower shaped

Simple white vertical line on a plain background (no text or symbols)

thin sheet

Simple white cylindrical object on a plain background (no text or symbols)

thick slice

Plain white rectangular panel with evenly spaced circular holes (no text or symbols)

Grinding knife

SUCTION CUP MOUNTING INSTRUCTIONS

To install the suction cup feet onto the vegetable chopper, place the each suction cup into the holes on the machine feet.

Press the vegetable chopper firmly to create suction between the workbench and the French fryer. Be certain to place the chopper on

surface.

on smooth, clean horizontal surfaces. To create more of suction, a dar cloth can be swiped across the Suction Cup prior to adhering.

Technical diagram of a refrigerator internal components with numbered labels

CLEAN

[Stainless steel blades, easy to clean] Several blades of the vegetable chopper are made of stainless steel material, which is more sturdy and cuts vegetables faster. The cleaning process after using a vegetable chopper is very important as it can affect your next use. Simply use included cleaning brush and scraper to clean the blades.

Warm tips: 1. Blade sharp, please do not directly grasp the blade and when switching blades! 2. It is not recommended to put the vegetable chopper in the dishwasher for cleaning.

The entire body is made of stainless steel and can be disassembled comprehensive cleaning, it's easy and reliable for cleanliness. Use the clean fork to clean the corners, remember to put the body and knife to the ventilated and shaded area. Make sure store it dry, otherwise be rust easily.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
