TILE CUTTER

MODEL:8103E-2/17"

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

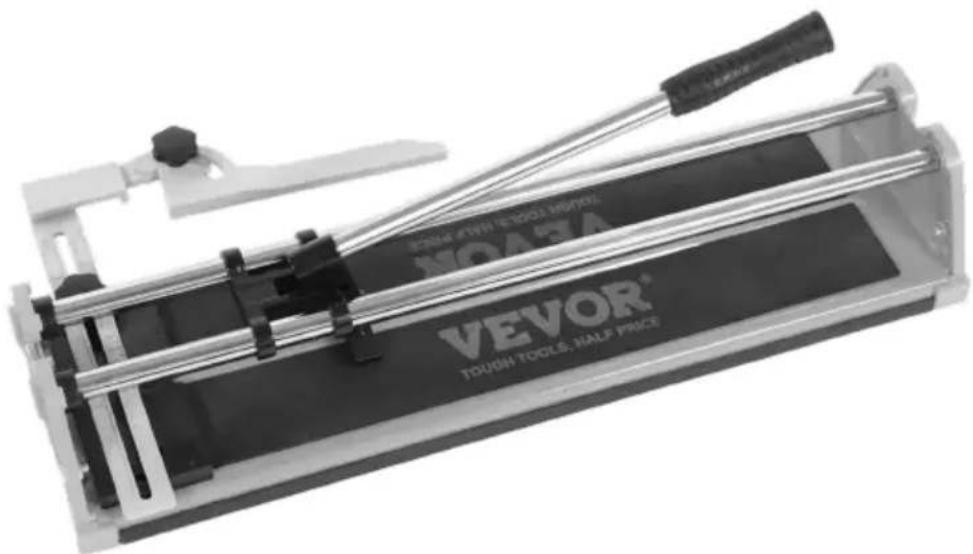

Tile Cutter

8103E-2/17"

8103E-2/17"

Exterior view of a Vevor Touch Tool (HALF PRICE) mechanical tool with metal frame and handle (no readable text beyond branding)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SPECIFICATIONS

Maximum Cutting Length	430mm
Maximum Cutting Thickness	12mm
Cutting Wheel Size	Φ15*Φ6*1.5mm

SAFETY INFORMATION

Symbol	Symbol Description
	Warning - To reduce the risk of injury, user must read in manual carefully.
	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may an accident. To reduce the risk of injury, fire, or electro please follow the recommendation below.
	Warning- Be sure to wear eye protectors when using this
	Warning- Be sure to wear gloves when using this pro

Warning

Read and understand all instructions before using this tile cutter. The operator must follow basic precautions to reduce the risk of personal injury a damage to the equipment.

Please familiarize yourself with the hazard notices found in this manual. A

is an alert that there is a possibility of property damage, injury or death if instructions are not followed.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit and of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the area.
3. Store new tools properly in a safe and dry location to prevent rust or da Lock tile cutter away and keep out of the reach of children.
4. Always place the tile cutting machine on a level and firm surface.

PERSONAL SAFETY

WARNING!

Wear personal protective equipment approved by the Canadian Standards Association (CSA) or American National Standards Institute (ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection f eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z8 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.
3. Caution! The edges of cut tiles are sharp.

PERSONAL PRECAUTIONS

Control the tile cutter, personal movement and the work environment to avoid personal injury or damage to tile cutter.

1. Do not operate any tile cutter when tired or under the influence of drugs or medications.
2. Avoid wearing clothes or jewelry that can become entangled with a tool's parts. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

1. The tile cutting machine is fitted with replaceable circular blade. Keep the cutter and blade away from children.
2. Use the correct tile cutter for the job. This tile cutter was designed for a function. Do not modify or alter this tile cutter or use it for an unintended p
3. After use, the machine must be stored in a safe and dry place.
4. This machine has been designed for cutting and breaking ceramic, glazed, porcelain, and polished tile, and which surface must be flat. Shall not be used for any other purpose.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated use) restrict adherence to the tile cutter safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

WARNING!

Direct exposure of pressurized air or fluids to skin could result in severe blood injury.

SAVE THESE INSTRUCTIONS

Exterior view of a VEVOR Touch Tool (Half-Press) device with labeled parts (no text beyond labels)

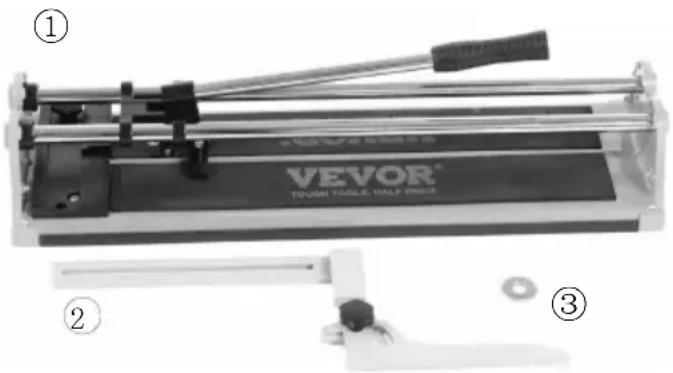

① Machine *1PCS
② Ruler *1PCS
③ Spare Cutting Wheel Φ15xΦ6x1.5mm

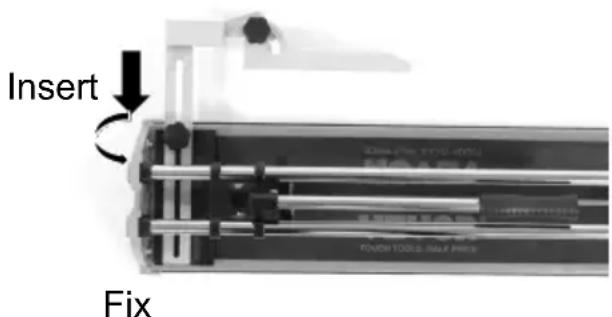

Insert Fix

Operation

Straight Cutting

1

Mechanical device with lever and handle, no visible text or symbols

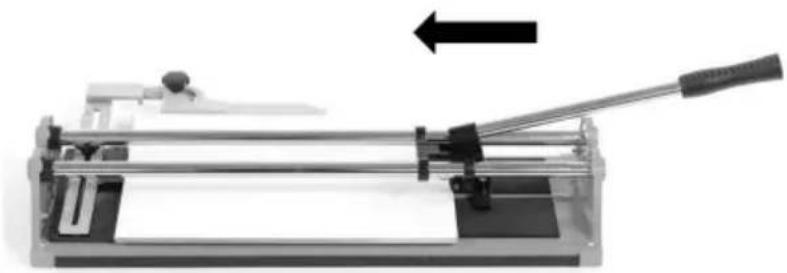

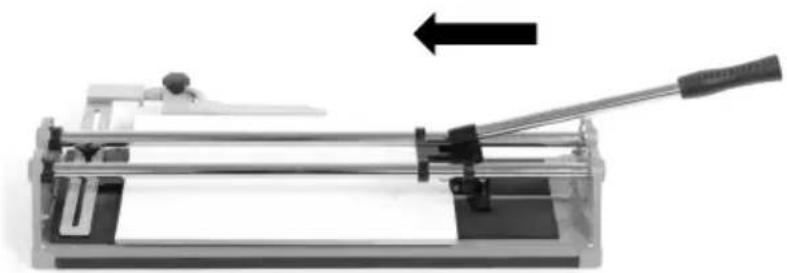

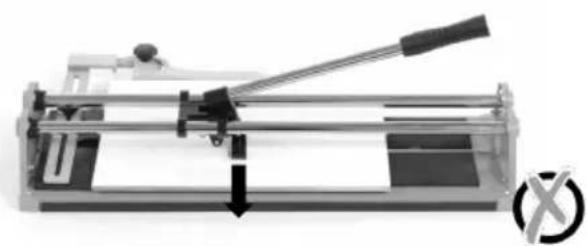

Place the cutting wheel on the rear edge of the tile.

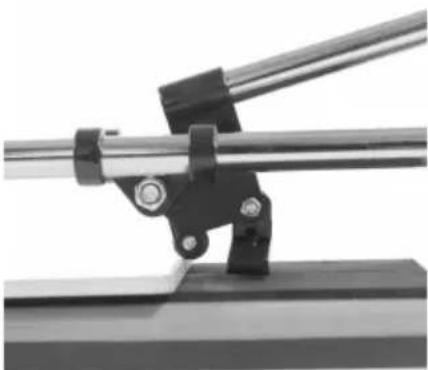

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting brackets (no visible text or symbols)

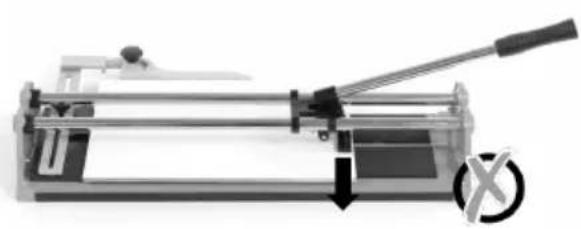

Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward.

It is important to make one continuous motion, scoring the surface only once time.

2

Mechanical device with lever and paper sheet, no visible text or symbols

After scoring and without moving the tile position, the breaker is slightly in the edge of the tile and front stop.

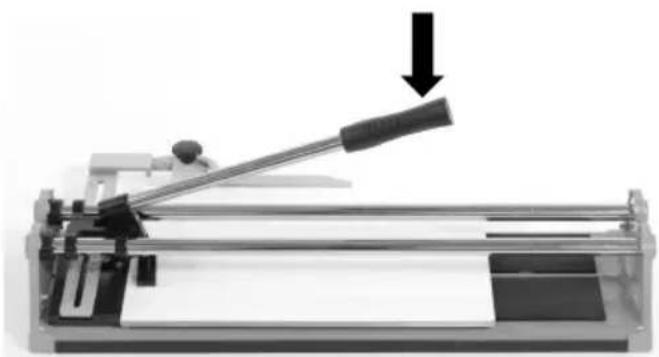

Apply increasing pressure on the handle until the tile snaps along the score

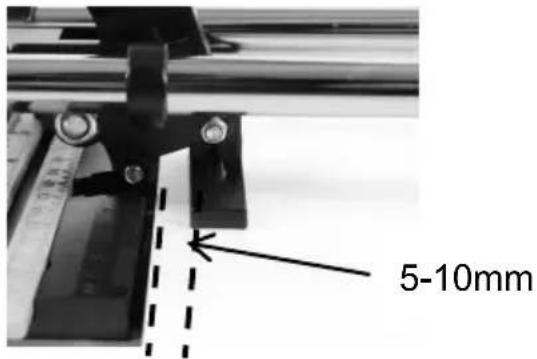

5-10mm

Tips: After scoring, it is better to pull back the handle to let the breaker slip backtrack 5-10mm, it's the best position to break the tile.

Mechanical device with lever and mounting bracket (no visible text or symbols)

Mechanical device with lever and switch mechanism, no visible text or symbols

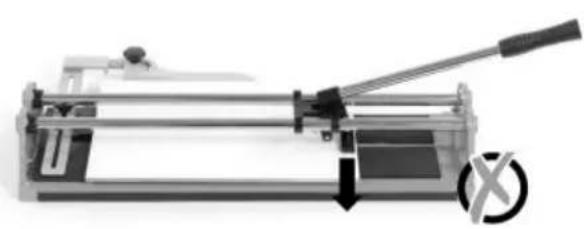

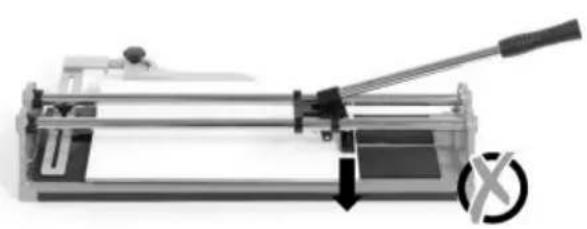

Tips: Do not press in the middle or the end.

Diagonal Cutting

1

Mechanical device with a lever and paper sheet, showing a left-pointing arrow (no text or symbols visible)

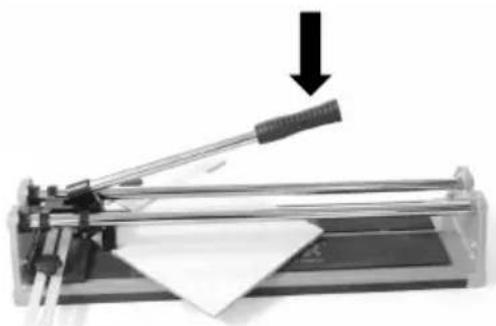

Put tile on the machine against the adjusted angle ruler. Place the cutting wheel on the rear edge of the tile.

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Slide the wheel forward by pushing the handle down with medium pressure.

Scoring the tile surface glaze as the handle is pushed forward.

It is important to make one continuous motion, scoring the surface only once time.

2

Mechanical device with a tool and paper sheet being cut, no visible text or symbols

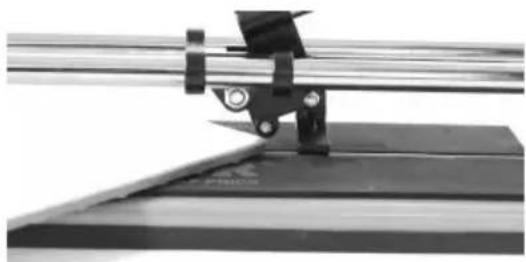

After scoring and without moving the tile position, so that the breaker is slight the front edge of the tile and front stop.

Raise the handle a little and release the breaker so that the breaker is flat tile.

Apply increasing pressure on the handle until the tile snaps along the score

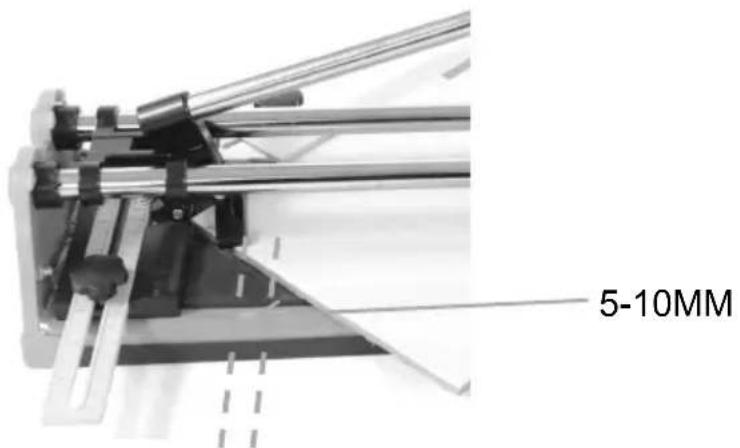

5-10MM

Tips: After scoring, it is better to pull back the handle to let the breaker slide backtrack 5-10mm, it's the best position to break the tile.

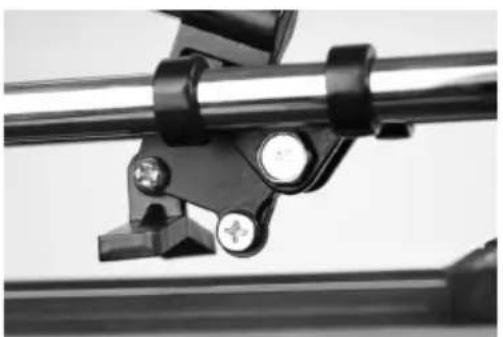

Use Screwdriver to replacement the blade.

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E

RANCHO CUCAMONGA, California, 91730 United States of America

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Support and E-Warranty Certificate

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Association (CSA) ou American National Standards Institute (ANSI).

ÉQUIPEMENT DE PROTECTION INDIVIDUELLE

Exterior view of a Vevor Finer Tugs Half-Price robotic device (no signage or text on the device itself)

Mechanical device with lever and paper holder, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical device with lever and handle, showing mechanical components without any text or symbols

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism (no visible text or symbols)

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

[e-mail]

Exterior view of a Vevor 3D printing press machine (no signage or text on the device itself)

① Maschine * 1 STK
② Lineal * 1 STÜCK
③ Ersatzschneidräder ÿ15 x ÿ6 x 1,5 mm *1 STÜCK

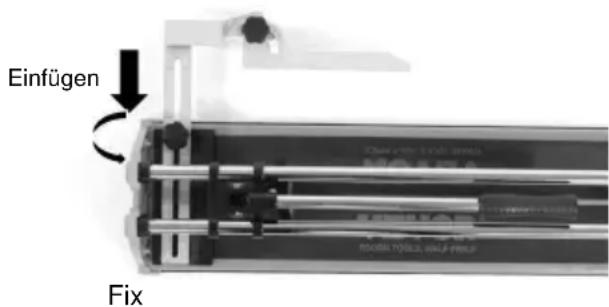

Einfügen Fix

Betrieb

Gerades Schneiden

ÿ1

Mechanical device with lever and paper sheet, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical lever device with a black arrow pointing to the lever handle (no text or symbols visible)

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism (no visible text or symbols)

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Adresse: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

Exterior view of a Vevor 3D printing machine with handle and base components (no text or symbols on the device itself)

Mechanical device with lever and paper holder, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical lever device with a black arrow pointing to the lever handle (no text or symbols visible)

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism (no visible text or symbols)

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Indirizzo: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

elettronica https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

Exterior view of a Vevor Finer TUGS (Half-Price) optical instrument with metal frame and adjustment lever (no text or symbols on the device itself)

Mechanical device with lever and paper sheet, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical device with a lever and handle, showing a black arrow pointing to the lever (no text or symbols visible)

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism, no visible text or symbols

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Exterior view of a Vevor Finer Tugs Half-Price optical instrument (no signage or text beyond branding)

Mechanical device with lever and paper sheet, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical lever device with a black arrow pointing to the lever handle (no text or symbols visible)

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism, no visible text or symbols

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj Importowane do USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, Kalifornia, 91730 Stany Zjednoczone Ameryki

REP WIEL KIEJ BRYTANII

Grupa Pooledas Ltd.

Jednostka 5 Dom Alberta Edwarda, Pawilony

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

HULP NODIG? NEEM CONTACT MET ONS OP!

[e-mail]

Mechanical device labeled 'VEVOR' with a handle and base, showing no visible text or symbols beyond the label and figure number (2) in the corner.

① apparaat *1 STUKS
② Linialen *1PCS
③ Reserve snijwiel ÿ15xÿ6x1,5mm
*1 STUKS

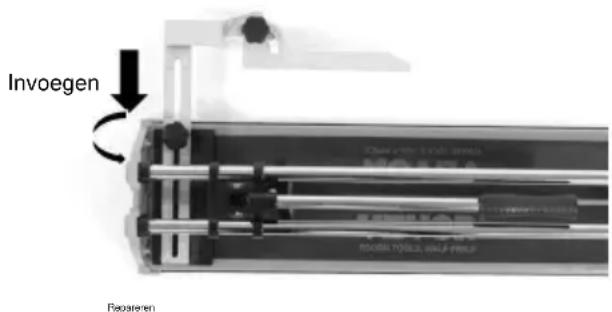

Mechanical device with lever and paper sheet, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical lever device with a black arrow pointing to the lever handle (no text or symbols visible)

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism, no visible text or symbols

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, De Paviljoens

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a VEVOR tough tool holder with metal frame and handle (no signage or text on the device itself)

BEHÖVER HJÄLP? KONTAKTA OSS!

Exterior view of a VEVOR Thinker 1000 precision axis tool (no text or symbols on the device itself)

① maskin *1 st
② Linjal *1st
③ Reserv skärhjul ÿ15xÿ6x1,5 mm *1 st

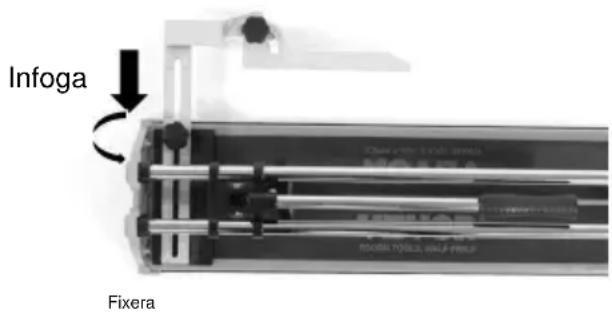

Infoga Fixera

Drift

Rak skärning

ÿ1

Mechanical device with lever and paper sheet, no visible text or symbols

Mechanical assembly with metal rods and mounting bracket (no visible text or symbols)

Mechanical lever device with a black arrow pointing to the lever handle (no text or symbols visible)

Mechanical device with lever and base, no visible text or symbols

Mechanical device with lever and switch mechanism (no visible text or symbols)

Mechanical device with lever and triangular base, no visible text or symbols

Close-up of a mechanical assembly with metal rods and a flat base (no visible text or symbols)

Mechanical device with a lever and paper sheet, showing a downward arrow (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal rods and mounting holes (no visible text or symbols)

Adress: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importerad till USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, Kalifornien, 91730 USA

UK

REP

Pooledas Group Ltd

Enhet 5 Albert Edward House, The Pavilions
