PARAMETER LIST

Model	HS-1000A
Voltage	DC 12V
Working pressure range (psi)	ON: 110 OFF: 160
Storage tank capacity (gal)	2.6
Output sound maximum (dB)	150
Net weight (kg)	9.2

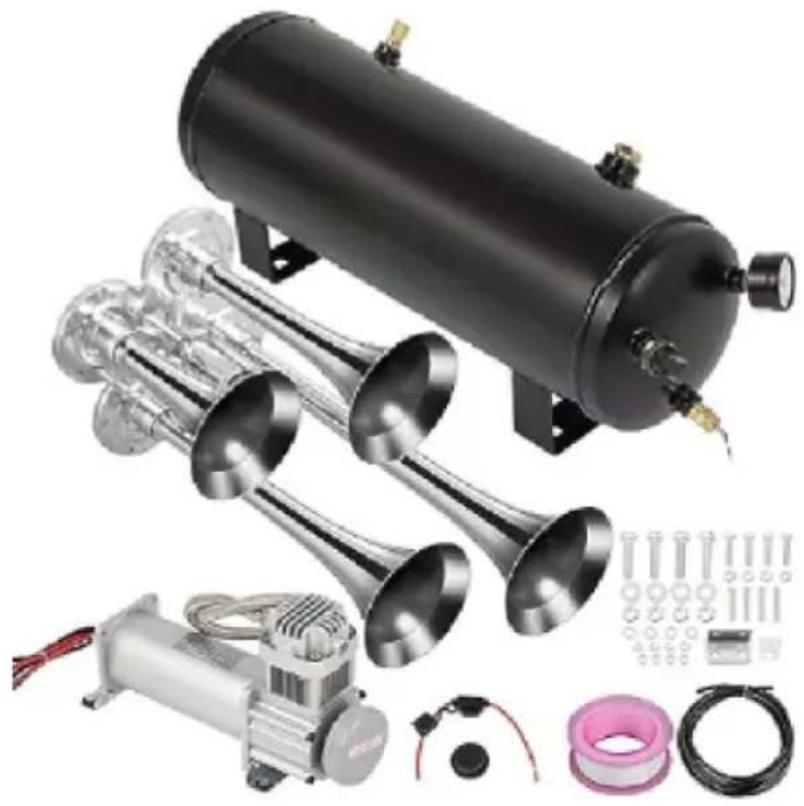

PART LIST

NO	Name	Qty	NO	Name	Qty
1	horn	1	12	compressor	1
2	Rubber pad	4	13	M6 nut	4
3	Filter	1	14	M5 bolt	4
4	Sealing ring	1	15	M5 nut	4
5	Teflon tape	1	16	M5 washer	8
6	Horn switch	1	17	M8 bolt	4
7	Safety mounting seat	1	18	M8 nut	4
8	Fuse	1	19	M8 washer	4
9	Air tube	1	20	M5 spring washer	4
10	Horn mount	1	21	air storage tank	1
11	M6 bolt	4	22	bolt	2

SECURITY & WARNINGS

WARNING: Read this instructions before using this product. Failure to do so result in serious injury. Always observe the rules of safe operation.

1. The temperature of the compressor may be very high during operation or has stopped, so do not touch it with bare skin.

2. Install the system in a level, cool, dry place. Avoid hot and humid areas not wet the compressor motor.

3. The speaker is very loud, so keep your ears away from the speaker to damage to your ears.

4. This product is not a toy. Do not allow children to play with or near this

ASSEMBLY PRECAUTIONS:

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs medication.
6. Product capabilities apply to properly and completely assembled products only
7. Assemble on a flat, level, hard and smooth surface capable of safely support a fully loaded truck air horn.
8. Install the system in a cool dry area. Avoid wet and hot areas

SAVE THESE INSTRUCTIONS

OPERATION

16 AWG Copper core wire 12AWG Copper core wire AIR TANK KTE COMPRESSOR GRORND 30A FUSE AIR HORN GRORND 85 86 87 30 ① PRESSURE SWITCH ② SAFETY VALVE ③ PRESSURE METER ④ 1/2"NPT HEX HEAD MALE PLUG ⑤ WING STYLE DRAIN VALVE ⑥ HORN BUTTON ⑦ PRWER SWITCH (Buy separately) ⑧ TRACHEAL CONNECTOR ⑨ AIR TUBE ⑩ 12V 30A RELAY (Buy separately) ⑪ BATTERY IN THE VEHICLE GRORND

Step 1: Use a 14 mm open wrench or a 14 mm socket v to fix the compressor to the with (4 M8 bolts, 4 nuts, 4 washers, 4 rubber cushions). Install the bolts through the g - compressor support - rubber washers - car frame - nuts.

Simple line drawing of a circular object with a central hole and two hanging bolts at the base (no text or symbols)

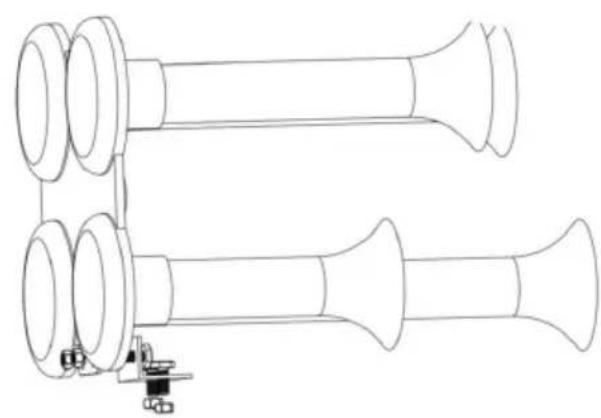

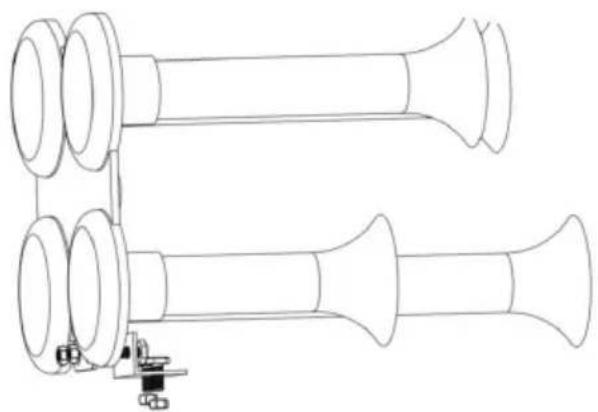

Step 2: Use a 10 mm open or a 10 mm socket wrench to horn support to the horn and using four M6 bolts, four M6 r and one tripod. Install the bolts through the tripod - one end through the horn lock nut, and other end through the car fram lock nut.

Technical line drawing of two cylindrical mechanical components with flanges and a base mount (no text or symbols)

Step 3: Attach the connector nut to both ends of the hose as shown below

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

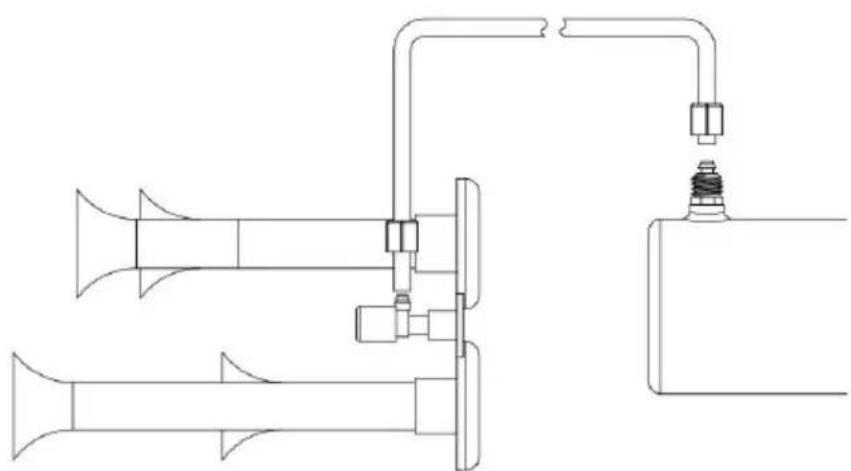

Step 4: Insert hose into connector as sh below (hose will be easier to install after heating)

Technical line drawing of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Step 5: Install and tighten the air pipe n a 12 mm open-end wrench)

Technical line drawing of a mechanical component with no visible text or symbols

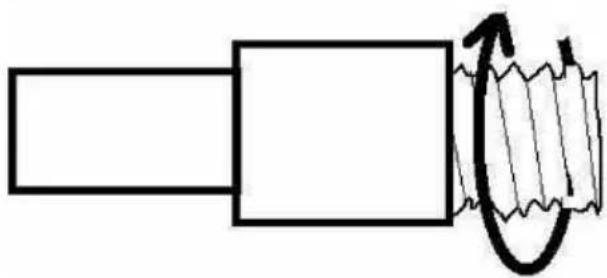

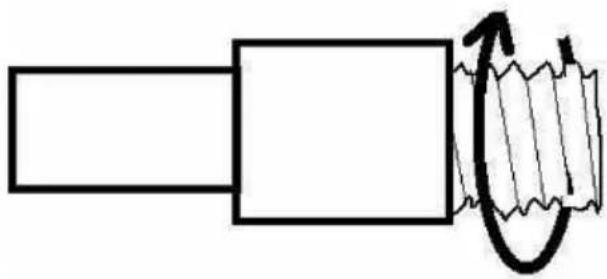

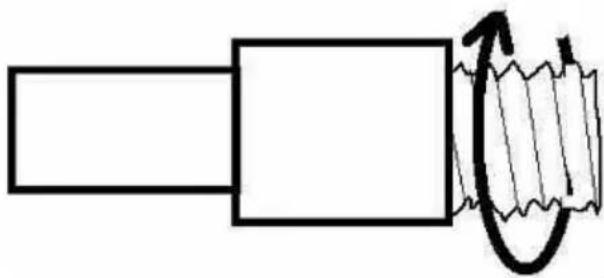

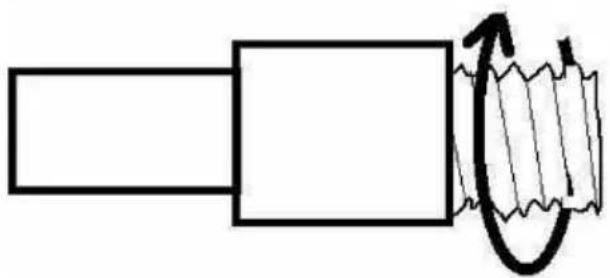

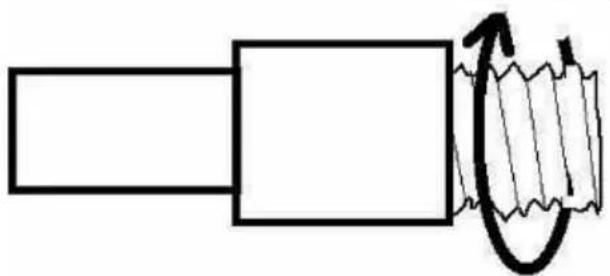

Step 6: Screw the sealing belt around the compressor gas pipe and roll the sealing belt to the for more than 5 laps (if not see the number of laps can be increased until sealed)

Clockwise rotation

The sealing belt is tightly coile on the thread for about 5-10tu

Simple line drawing of a rectangular block connected to a wavy cylindrical object with an arrow (no text or symbols)

After the sealing belt is wrapp it should be tightened at one time, and the thread should no be withdrawn (screwed back otherwise it should be rewound

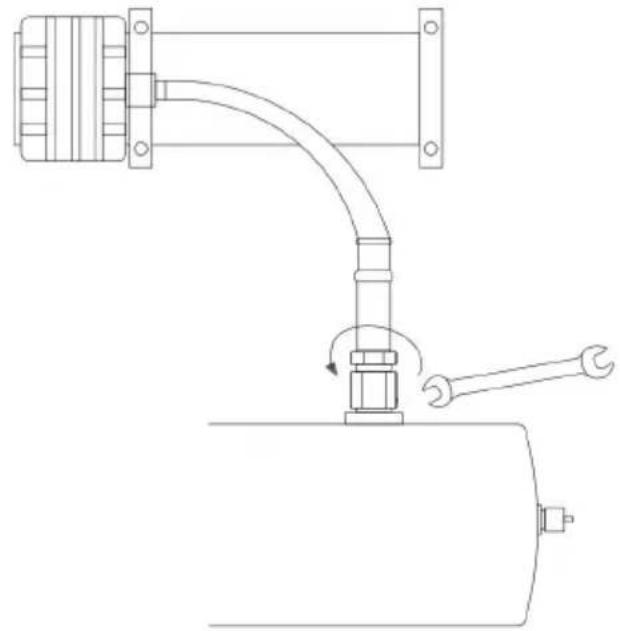

Step 7: Compressor gas pipe is installed on the reservoir (tighter with 17MM open plate)

Technical line drawing of a mechanical assembly with no visible text or symbols

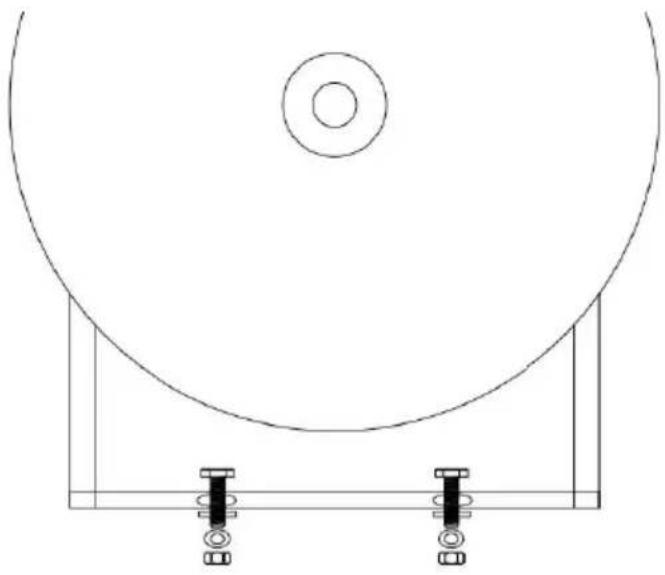

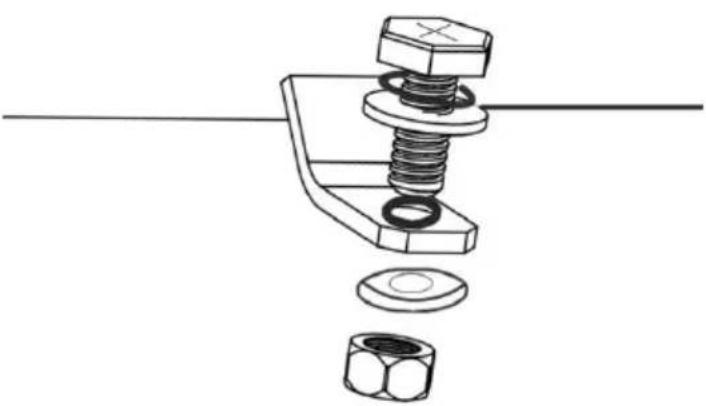

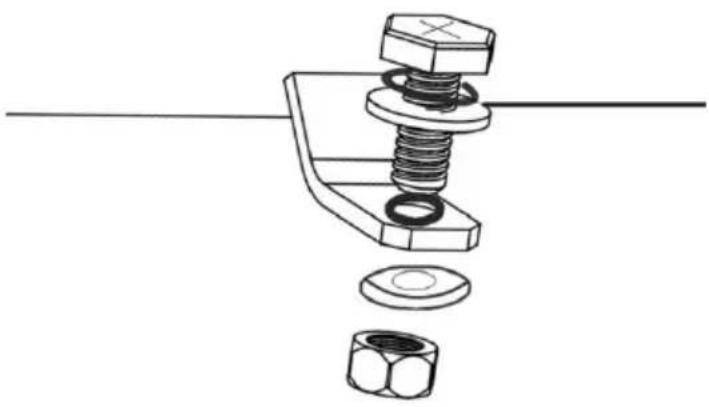

Step 8: Use a Phillips screwdr and an 8MM open or socket wrench to fix the compressor t frame using M5 bolts *4 flat gaskets *8 spring gaskets *4 N nuts *4 Installation sequence: Screw through the spring gasket-flat gasket-compressor bracket - car frame - flat gasket-nut.

Technical line drawing of a mechanical clamp assembly with bolts and nuts (no text or symbols)

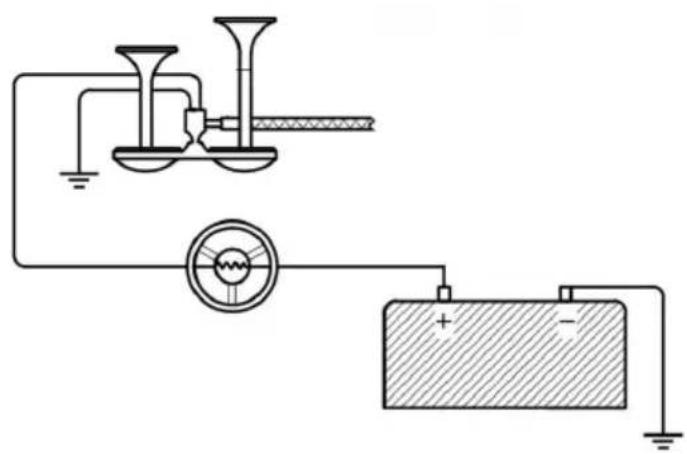

Step 9: Connect the horn line horn has two power lines (regardless of positive and negative): one iron (negative grounding), and the other is connected to the positive power supply after the horn switch. (16AWG and above copper wire are required as connection wire

Pure electrical circuit diagram showing a battery connected to a motor and two pump components (no text or symbols)

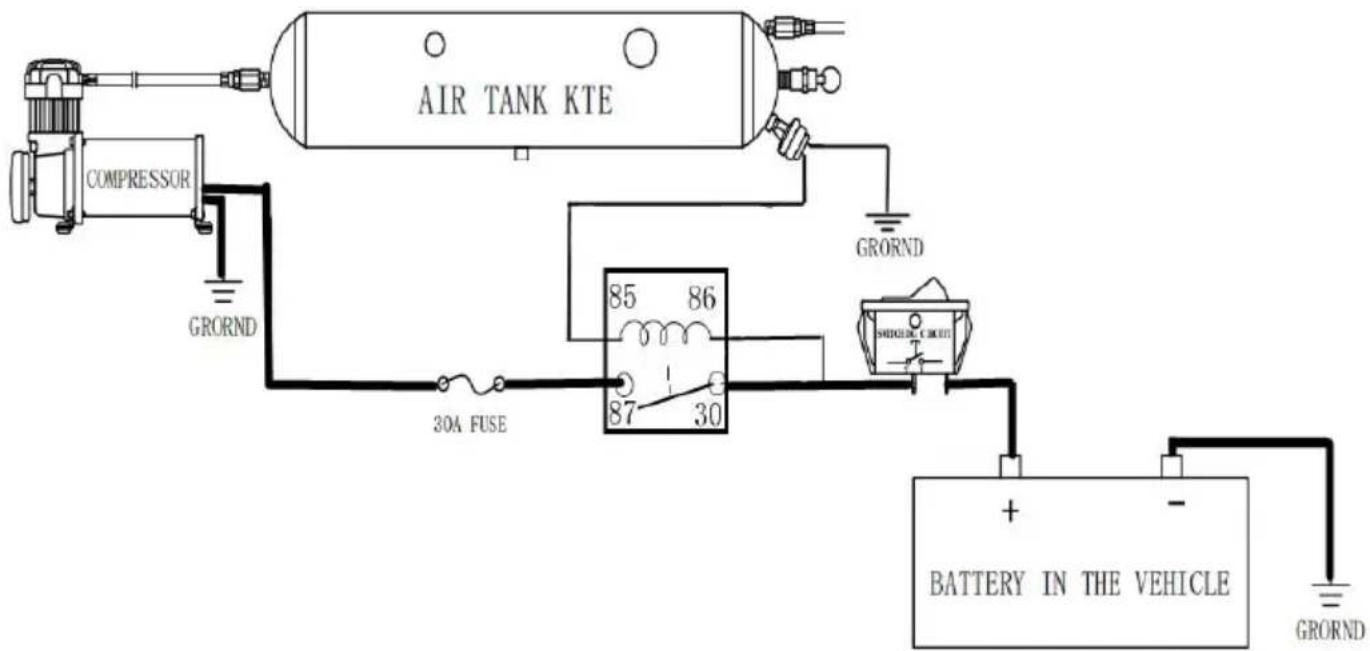

Step 10: Compressor line connection

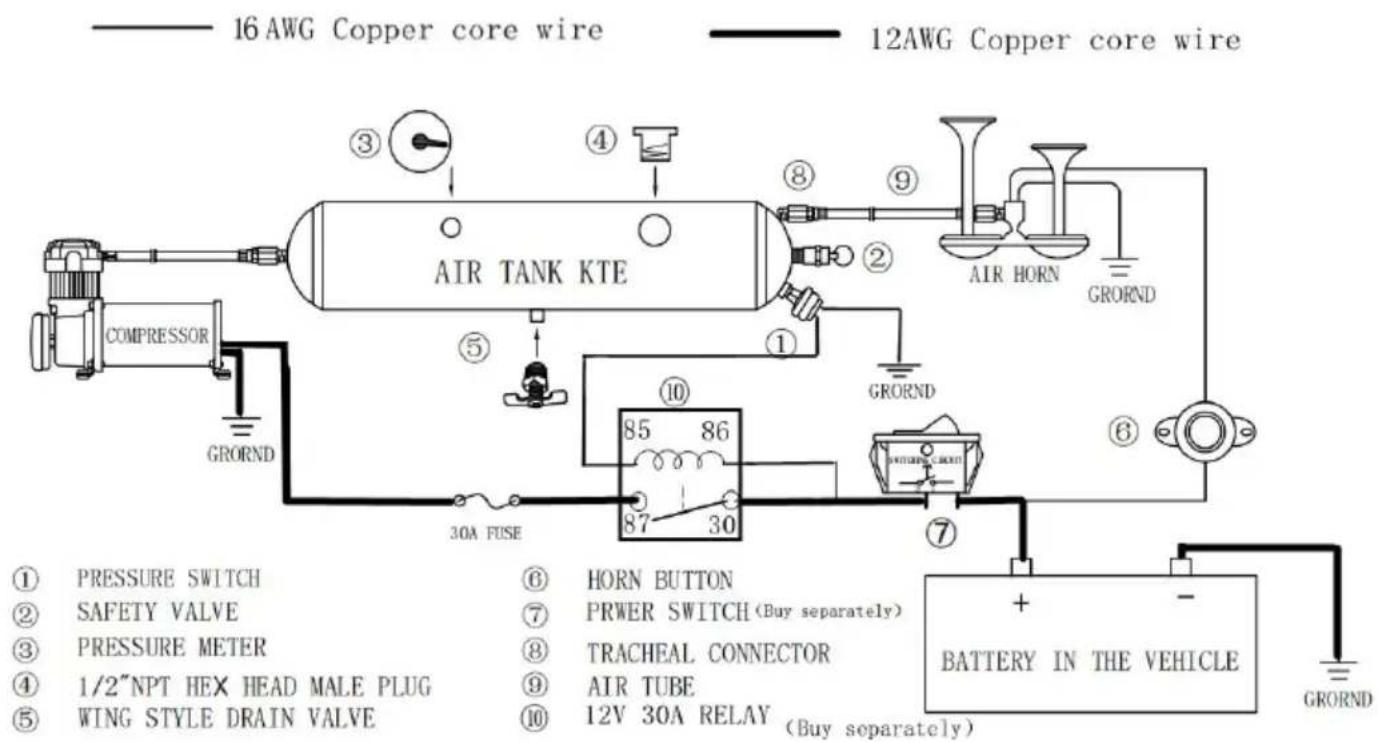

10.1 Compressor main line connection (here, need to use copper wire 12AWG, 12V 30A relay, 30A power switch, 30A safety) compressor b wire (negative), red line through the safety to the relay to port 87, r 30 to the power switch, the power switch to the battery positive term 10.2 Pressure switch circuit connection (Copper wire 16AWG is required here) The pressure switch wiring terminal is connected to two wires (positive and negative), one is connected to the relay port 85, and the port 86 is connected to the output end of the compressor power swi

Installation Instructions Added the method of using the drain plug

1. Regular inspection (generally 5 months), should be adjusted according to the use of dry and wet

(Climate) The container for discharging condensed gas, the air pressure must be less than

Discharge water at 0.1jmpa to avoid danger

Turn the drain valve counterclockwise to open the drain and tighten clockwise (tightening does not require too much force to avoid damage the sealing ring)

Troubleshooting

Automatic Thermal Overload Protection

Your air compressor is equipped with an Automatic thermal overload protector.

This feature is designed to protect the air compressor from overheating and causing permanent damage to your air compressor. The thermal overload

protector will automatically cut power to your air compressor should the intern operating temperature of the air compressor rise above safe levels during

excessive use.

Should at any time during use, your air compressor automatically shut off; dc attempt to restart the air compressor. Turn off power and allow unit to cool about 30 minutes. This will allow the Thermal Overload Protector to reset so can safely resume use of the air compressor.

Compressor runs continuously and air flow lower than normal	1. Excessive air usage2. Loose connections3. Worn piston ring inlet valve.4. Clogged air fitter element	1. Decrease air usage2. Check all connections with soap and water solution and tighten.3. Replace compressor4. Replace air filter element
Compressor runs continuously causing safety valve (if equipped to loosen	1. Faulty pressure switch2. Defective safety valve	1. Replace pressure switch2. Replace safety valve
Excessive moisture in discharge	1. Excessive water in air tank2. High humidity	1. Drain tank, tilt tank to dr Drain tank more frequently2. Move compressor to area with less humidity, or use a ine filter
Compressor will no run	1. No power, or pow switch in OFF positio2. Blown fuse3. Motor overheats4. Faulty pressure switch (if hooked up a pressure switch).	1. Make sure compressor switch is ON2. Disconnect compressor from power source, replace fuse. (Refer to Specifications section for connect3. fuse amperage)4. Let compressor cool off about 30 minutes to allow tmal overload switch to reset5. Replace pressure switch
Thermal overload protector cuts out repeatedy	1. Lack of proper ventilation or ambient temperature is too high2. Compressor valves failed	1. Move compressor to well ventilated area, or area with lower ambient temperature2. Replacement of inlet valve
Excessive knocking or rattling	1. Loose mounting bolts2. Cylinder or piston ring is worn	1. Tighten bolts2. Replace compressor
Horn does not wo	1. The power supply not powered on2. No compressed a3. Insufficient voltage or current4. Solenoid valve failure	1. Connect the circuit correct and turn on the power supp2. Connect the air tube correctly and ensure that the air tube is unblocked3. Shorten or thicken the ho power cord until the fault disappears, and connect the horn power cord directly to automobile battery test4. Replace solenoid valve

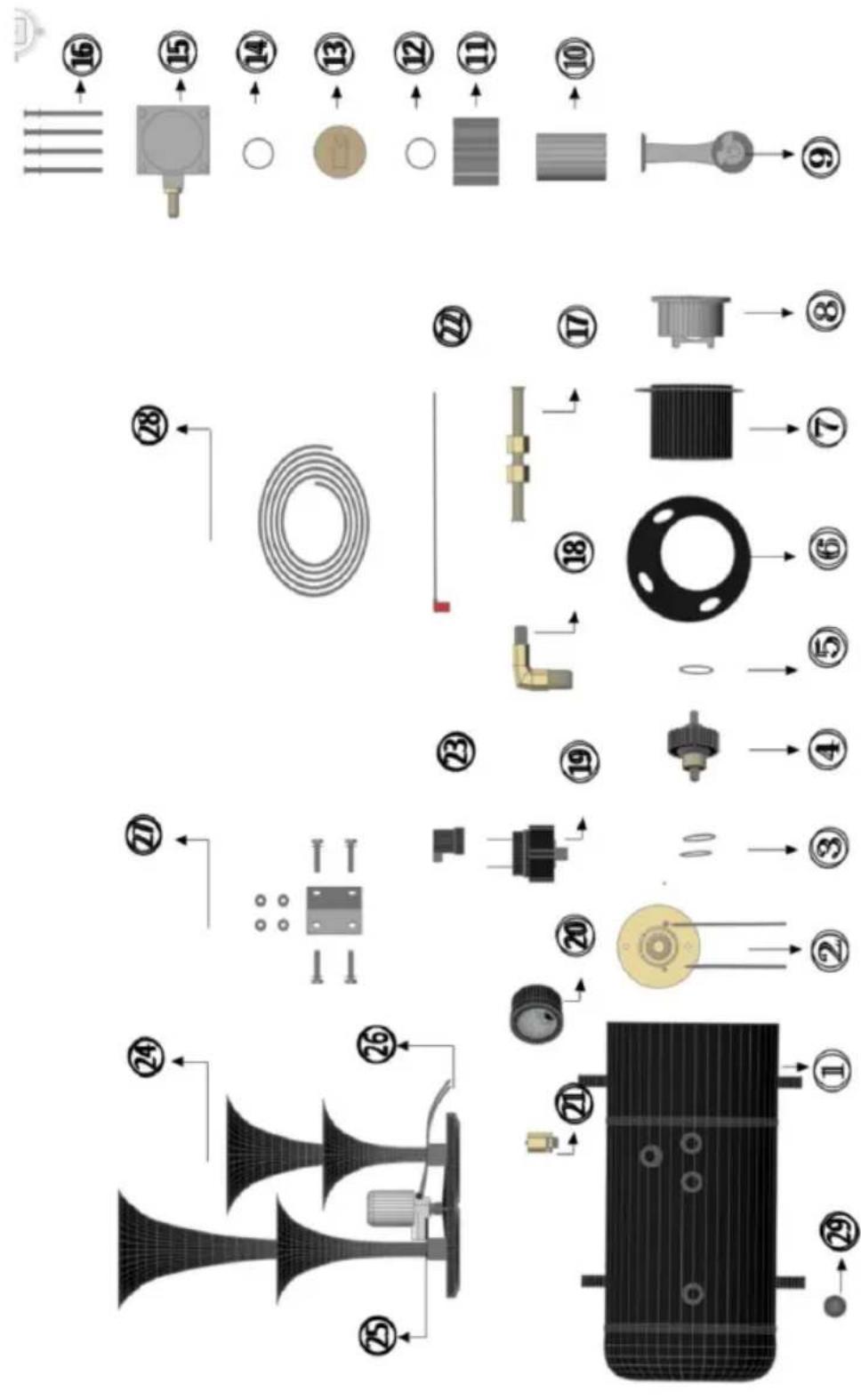

Exploded view diagram of industrial ventilation system components with numbered parts and directional arrows

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn
