TRUCK AIR HORN

MODEL:HS-660/HS-550/HS-661/HS-551

VEVOR Support Center

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODEL: HS-660/HS-550/HS-661/HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	HS-660	HS-550	HS-661	HS-551
Voltage	12	12	12	12
Power (w)	190	170	190	170
Working pressure range (psi)	ON: 90OFF: 120	ON: 90OFF: 120	ON: 90OFF: 120	ON: 90OFF: 120
Storage tank Capacity (gal)	1.6	0.8	1.6	0.8
Output sound maximum (dB)	150	150	150	150
Net weight (kg)	6.1	5.45	4.65	4.5

PART LIST

NO.	Name	HS-660	HS-550	HS-661	HS-551
1	compressor	1	1	1	1
2	horn	2	1	0	0
3	Air tube	1	1	1	1
4	Horn connection	1	0	0	0
5	Horn mount	1	1	0	0
6	Teflon tape	1	1	1	1
7	Rubber pad	4	4	4	4
8	Safety mounting seat	1	1	1	1
9	Fuse	1	1	1	1
10	M6 bolt	12	8	4	4
11	M6 nut	12	8	4	4
12	M6 washer	12	4	4	4
13	Air pipe joint	0	0	1	1

SECURITY & WARNINGS

WARNING: Read the instructions before using this product. Failure to so can result in serious injury. Always observe the rules of safe ope

1. The temperature of the compressor may be very high during operation or after it has stopped, so do not touch it with bare skin.
2. Install the system in a level, cool, dry place. Avoid hot and humid and do not wet the compressor motor.
3. The speaker is very loud, so keep your ears away from the spear prevent damage to your ears.
4. This product is not a toy. Do not allow children to play with or item.

ASSEMBLY PRECAUTIONS:

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting a fully loaded truck air horn.

SAVE THESE INSTRUCTIONS

OPERATION

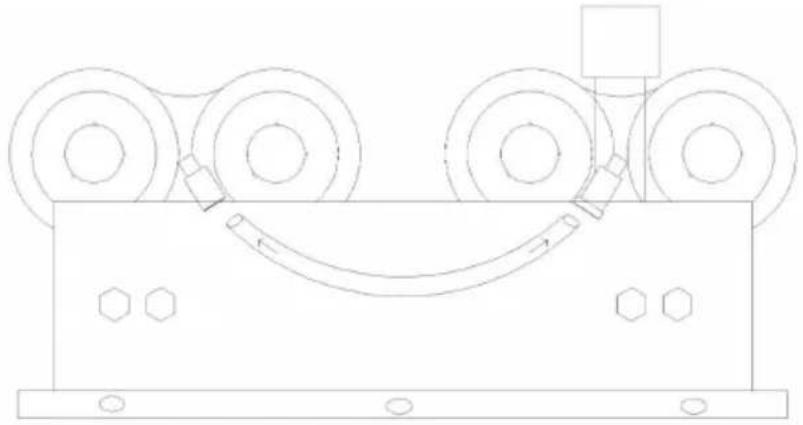

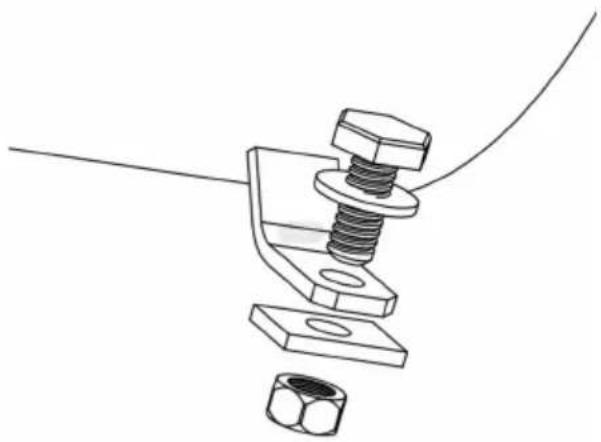

Step 1: Use a 10 mm open wrench to fix the 10 mm socket wrench to fix the compressor to the car using M6 four nuts, four flat washers, and rubber cushion pads. Install the b through the gasket, compressor support, rubber washers, car frame and nuts.

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

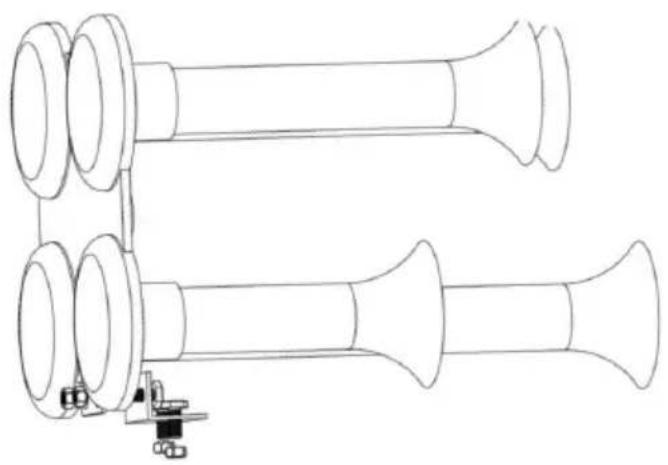

Step 2: Use a 10 mm open v or a 10 mm socket wrench to horn support to the horn and t using four M6 bolts, four M6 n and one tripod. Install the bolts through the tripod - one end th the horn lock nut, and the othe through the car lock nut.

Technical line drawing of two cylindrical mechanical components with flanges and a base mount (no text or symbols)

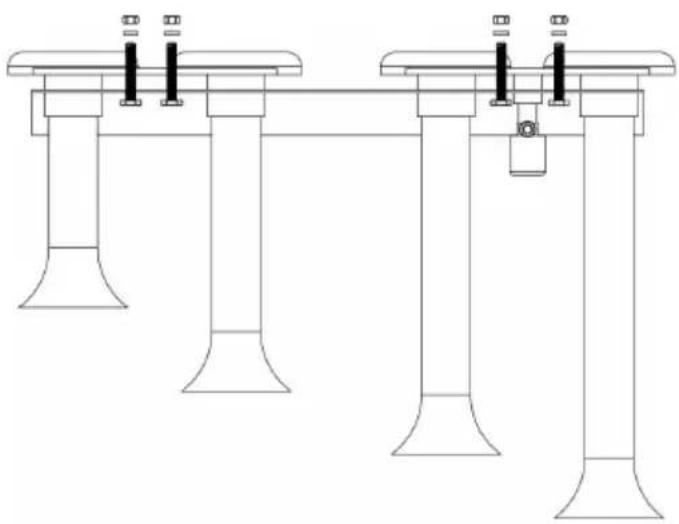

2.1 Model HS-660 Horn assen Step 1: Use a 10mm open w or a 10mm socket wrench to the two horns to the support four M6 bolts, four M6 nuts, M6 gaskets, and one tripod. I the bolts through the tripod - through the horn, through the gasket, and lock the nuts.

Technical line drawing of a dual supports with fluted legs and support posts (no text or symbols)

2.2 Model HS-660 Hc Assembly Step 2: Ins the connectors of the two horns using the fitting hose butt.

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Step 3: Attach the coup nut to both ends of the hose.

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

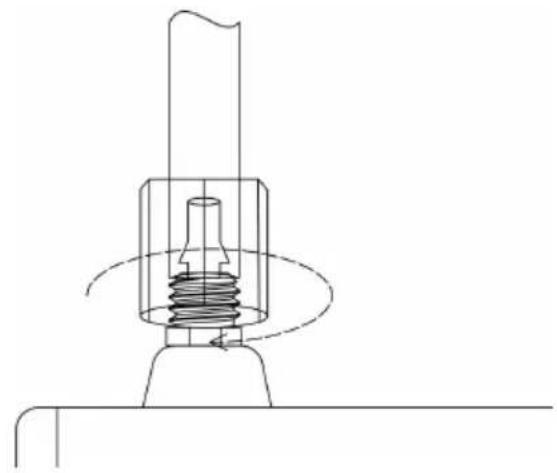

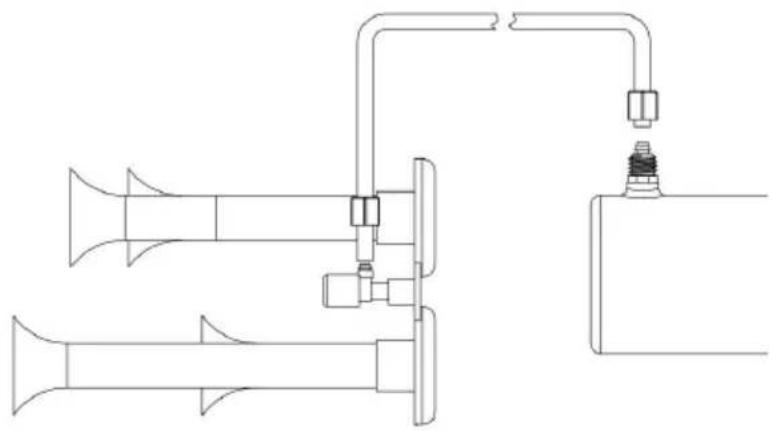

Step 4: Plug the hose into the con (hose will be easier to install after heating)

Technical line drawing of a mechanical assembly with a spring and nut (no text or symbols)

Step 5: Use a 12 mm open-end wire tighten the air pipe nut.

Technical line drawing of a mechanical component with internal spring and housing (no text or symbols)

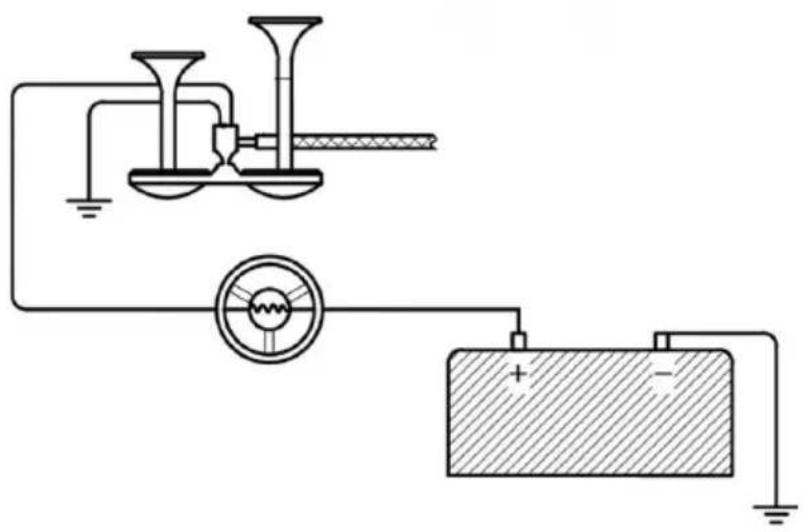

Step 6: Use 16AWG ar above copper wire to connect the horn line, th horn has two power line (regardless of positive ar negative terminals), one base iron (negative terminal), and the other is connected to the pos terminal power supply af the horn switch.

Pure electrical circuit diagram with battery, switch, and bulb components (no text or symbols)

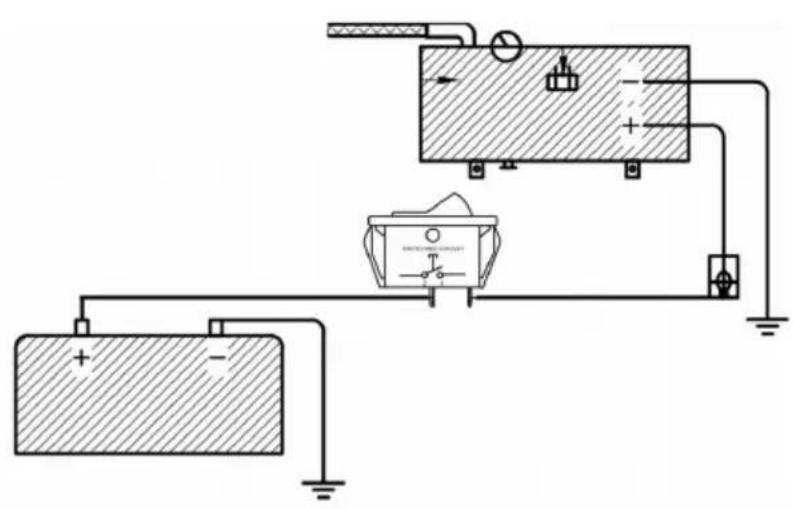

Step 7: Use copper wire 14AWG, 20A power switch 20A insurance, connect the compressor line, the black line of the compressor to iron (negative electrode), red line is connected to positive electrode of the battery through the power switch.

Pure electrical circuit lines without any symbols

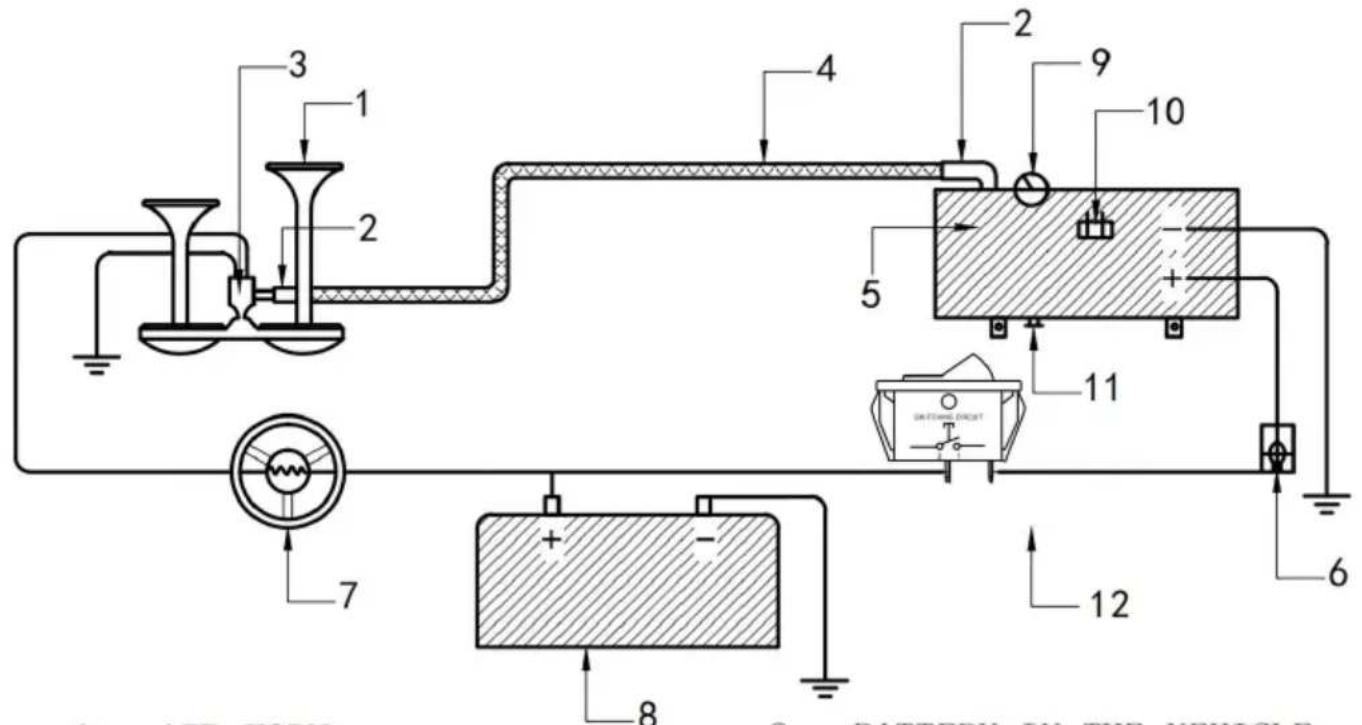

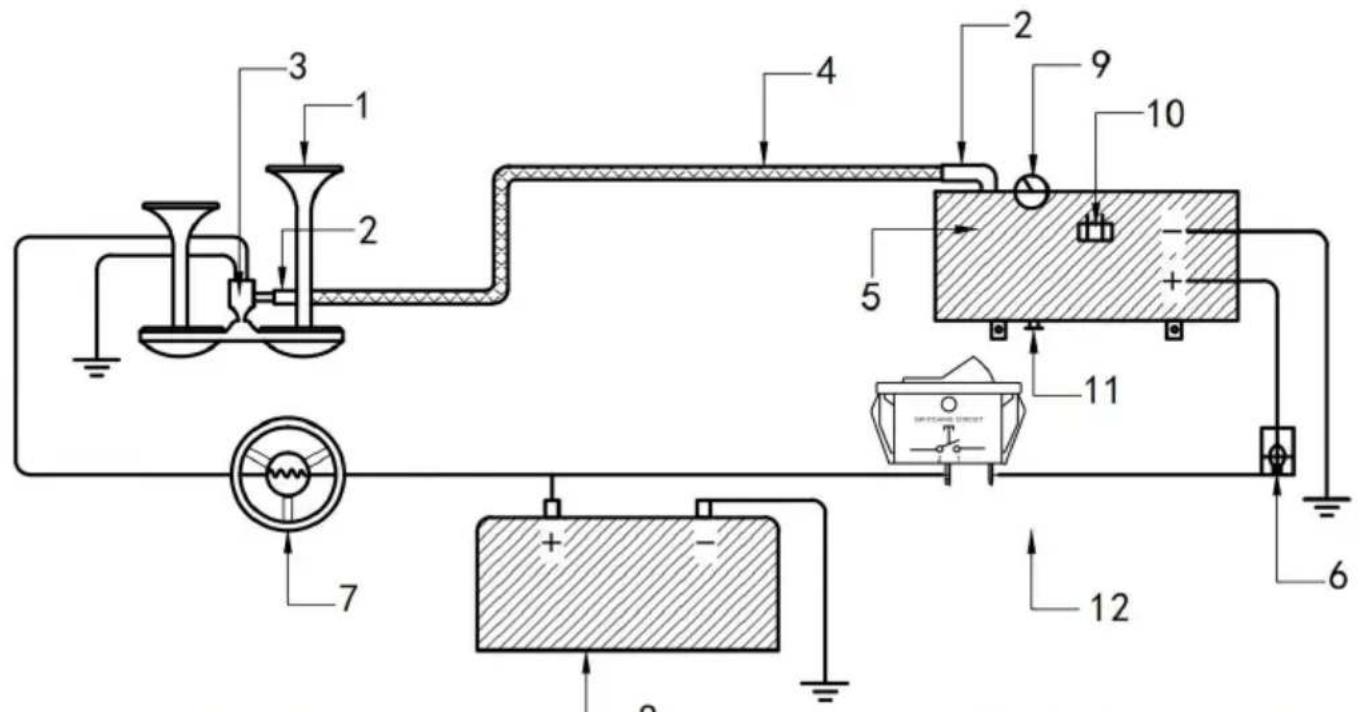

Technical schematic diagram of a fluid or pneumatic system with labeled components and connections

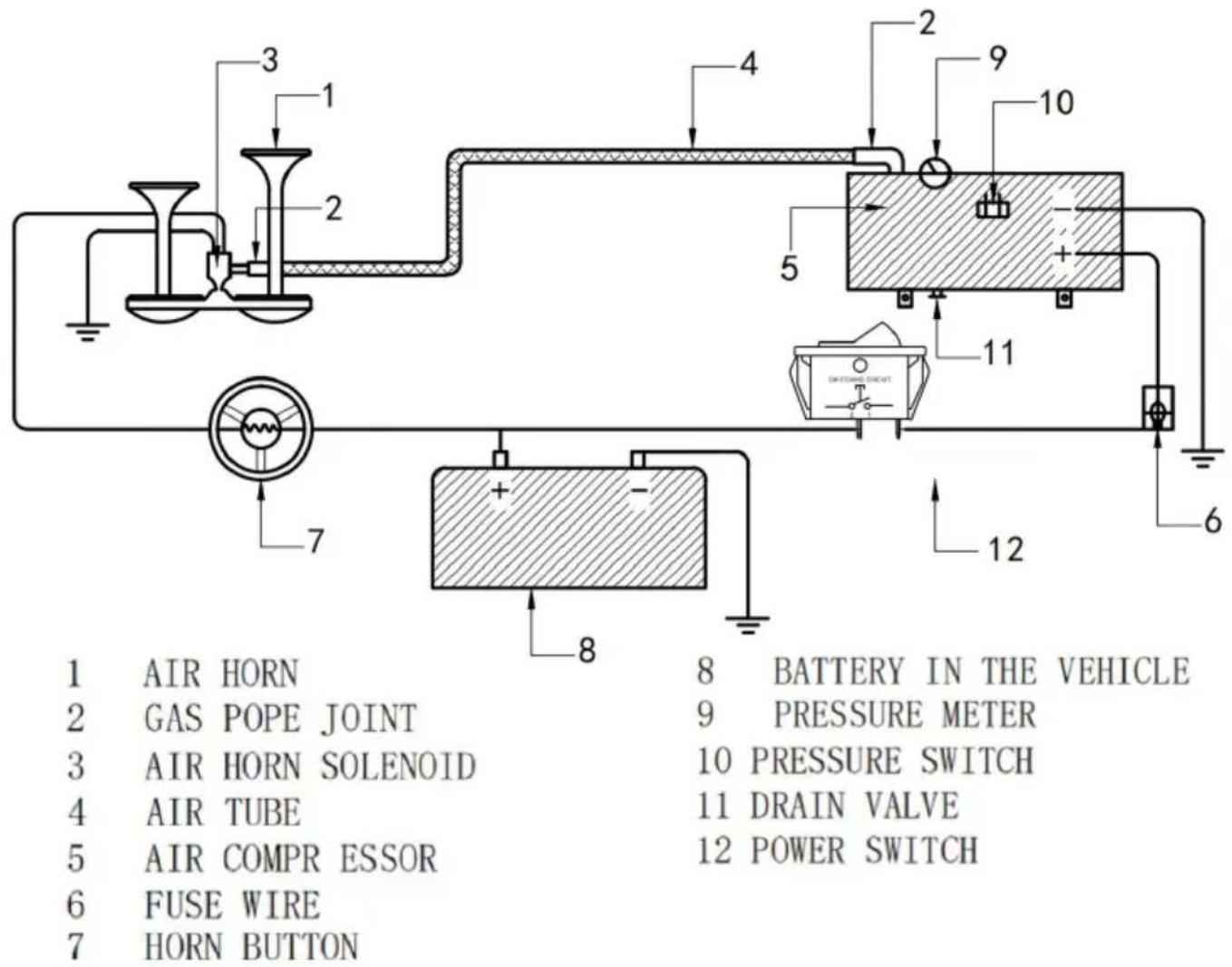

1 AIR HORN
2 GAS POPE JOINT
3 AIR HORN SOLENOID
4 AIR TUBE
5 AIR COMPR ESSOR
6 FUSE WIRE
7 HORN BUTTON

8 BATTERY IN THE VEHICLE
9 PRESSURE METER
10 PRESSURE SWITCH
11 DRAIN VALVE
12 POWER SWITCH

Installation Instructions Added the method of using the drain plug

1. Regular inspection (generally 5 months), should be adjusted according to the use of dry and wet

(Climate) The container for discharging condensed gas, the air pressure must be less than

Discharge water at 0.1jmpa to avoid danger

(During installation, rotate the sealing tape clockwise and tightly wrap around the thread. After about 5-10 turns, seal and tighten the drain screw.)

Troubleshooting

Automatic Thermal Overload Protection

Your air compressor is equipped with an Automatic thermal overload protector. This feature is designed to protect the air compressor from overheating and causing permanent damage to your air compressor. Thermal overload protector will automatically cut power to your air compressor should the internal operating temperature of the air compressor rise above safe levels during excessive use.

Should at any time during use, your air compressor automatically shut do not attempt to restart the air compressor. Turn off power and allow to cool for about 20 minutes. This will allow the Thermal Overload P to reset so you can safely resume use of the air compressor.

lank pressure drops when compressors) shut off	1. Loose drain cock2. Loose connections	1. Wrap the thread with sealing and tighten it2. Check all connections with soap and water solution and tighten
Compressor runs continuously and air flow lower than normal	1. Excessive air usage2. Loose connections3. Worn piston ring inlet valve.	1. Decrease air usage2. Check all connections with soap and water solution and tighten. Wrap the leaked joint threads with sealing tape and tighten the Leak joint Thread wrapped with sealing tape and sealed tighten3. Replacement piston or inlet va
Excessive moisture in discharge	1. Excessive water in air tank2. High humidity	1. Drain tank, tilt tank to drain. I tank more frequently2. Move compressor to area with less humidity, or use air ine filter
Compressor will not run	1. No power, or power switch in OF position2. Blown fuse3. Motor overheats4. Faulty pressure switch (if hooked u to a pressure switch).	1. Make sure compressor switch ON2. Disconnect compressor from power source, replace fuse. (Refe to Specifications section for conne fuse amperage)3. Let compressor cool off for ab 30 minutes to allow thermal overl switch to reset4. Replace pressure switch
Thermal overload protector cuts	1. Lack of proper ventilation or ambient	1. Move compressor to well ventilated area, or area with lowe ambient temperature
Compressor Abnormal sound excessive knocking or rattling	1. Loose mounting bolts2. Cylinder or piston ring is worn	1. Tighten bolts2. Replacement piston or inlet va
Horn does no work	1. The power supply is not powered on2. No compressed a3. Insufficient voltage or current4. Solenoid valve failure	1. Connect the circuit correctly at turn on the power supply2. Connect the air tube correctly ensure that the air tube is unblo3. Shorten or thicken the horn p cord until the fault disappears, ar connect the horn power cord dire to the automobile battery test4. Replace solenoid valve

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly steps.

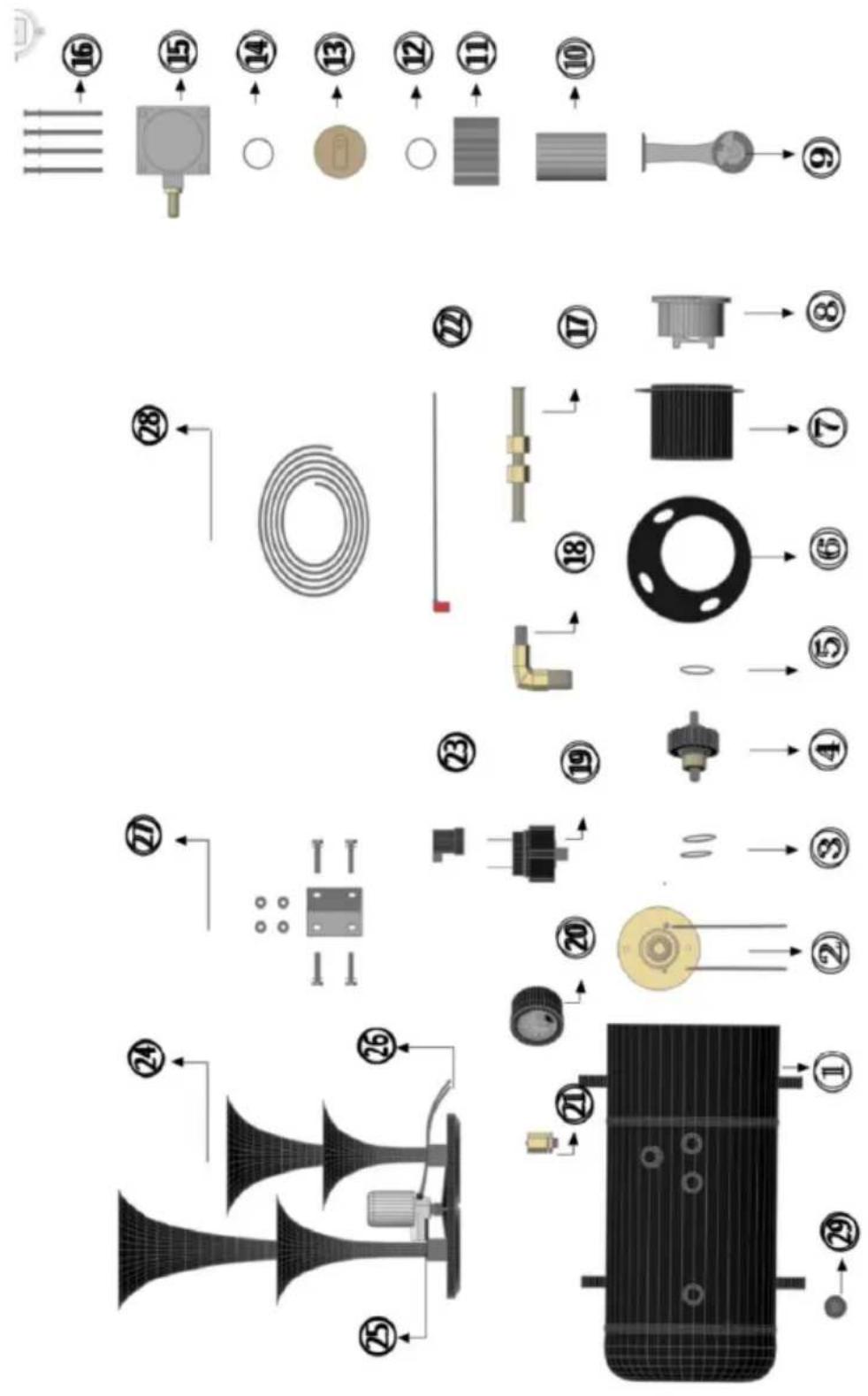

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

CORRECT DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products mark as such may not be discarded with normal domestic waste must be taken to a collection point for recycling electrical and electronic devices.

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODÈLE: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data to where there are any technology or software updates on our product.

PARAMETER LIST

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of two cylindrical mechanical components with flanges and a base mount (no text or symbols)

Technical line drawing of a dual supports with fluted legs and support posts (no text or symbols)

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and nut (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple electrical circuit diagram with battery, switch, and power source (no text or labels)

Pure electrical circuit diagram with battery, switch, and heating element (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly sequence.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

ÉLIMINATION CORRECTE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODELL: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data to where there are any technology or software updates on our product.

PARAMETER LIST

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of a mechanical component with flanged ends and a base mount (no text or symbols)

Technical line drawing of a dual supports with fluted legs and support posts (no text or symbols)

Montage des Horns Modell

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple electrical circuit diagram with battery, switch, and power source (no text or labels)

Pure electrical circuit lines without any symbols

Technical schematic diagram of a fluid or gas system with labeled components and flow paths

1 AIR HORN

2 GAS POPE JOINT

3 AIR HORN SOLENOID

4 AIR TUBE

5 AIR COMPR ESSOR

6 FUSE WIRE

7 HORN BUTTON

8 BATTERY IN THE VEHICLE

9 PRESSURE METER

10 PRESSURE SWITCH

11 DRAIN VALVE

12 POWER SWITCH

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly sequence.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

RICHTIGE ENTSORGUNG

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODELLO: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data to where there are any technology or software updates on our product.

PARAMETER LIST

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of a three-bladed industrial bell tower with mounting base (no text or symbols)

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and housing (no text or symbols)

Technical line drawing of a mechanical component with internal spring and housing (no text or symbols)

Pure electrical circuit diagram showing a battery connected to a motor and two pump devices (no text or symbols)

Pure electrical circuit lines without any symbols

1 AIR HORN 2 GAS POPE JOINT 3 AIR HORN SOLENOID 4 AIR TUBE 5 AIR COMPR ESSOR 6 FUSE WIRE 7 HORN BUTTON 8 BATTERY IN THE VEHICLE 9 PRESSURE METER 10 PRESSURE SWITCH 11 DRAIN VALVE 12 POWER SWITCH

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly sequence.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODELO: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data to where there are any technology or software updates on our product.

PARAMETER LIST

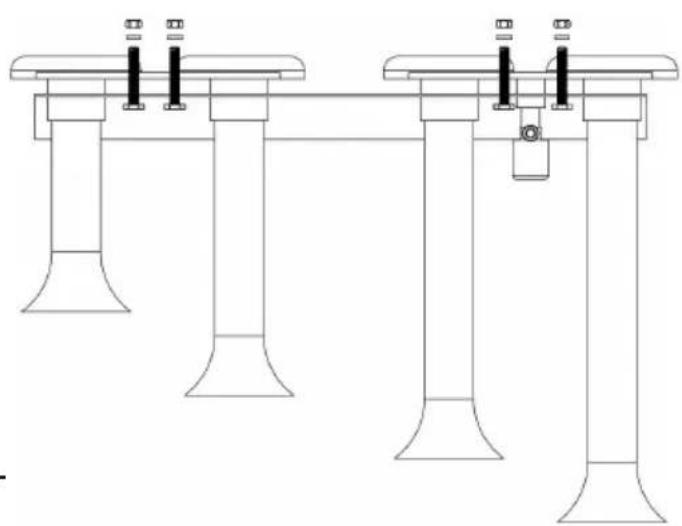

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of a three-tiered tower structure with base platforms and mounting brackets (no text or symbols)

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with internal spring and housing (no text or symbols)

Simple electrical circuit diagram with battery, switch, and power source (no text or labels)

Pure electrical circuit lines without any symbols

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly sequence.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODEL: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of a mechanical component with flanged ends and a base mount (no text or symbols)

Technical line drawing of a dual supports with fluted legs and support posts (no text or symbols)

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical or fluidic device with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and nut (no text or symbols)

Pure electrical circuit diagram with battery, switch, and bulb components (no text or symbols)

Pure electrical circuit lines without any symbols

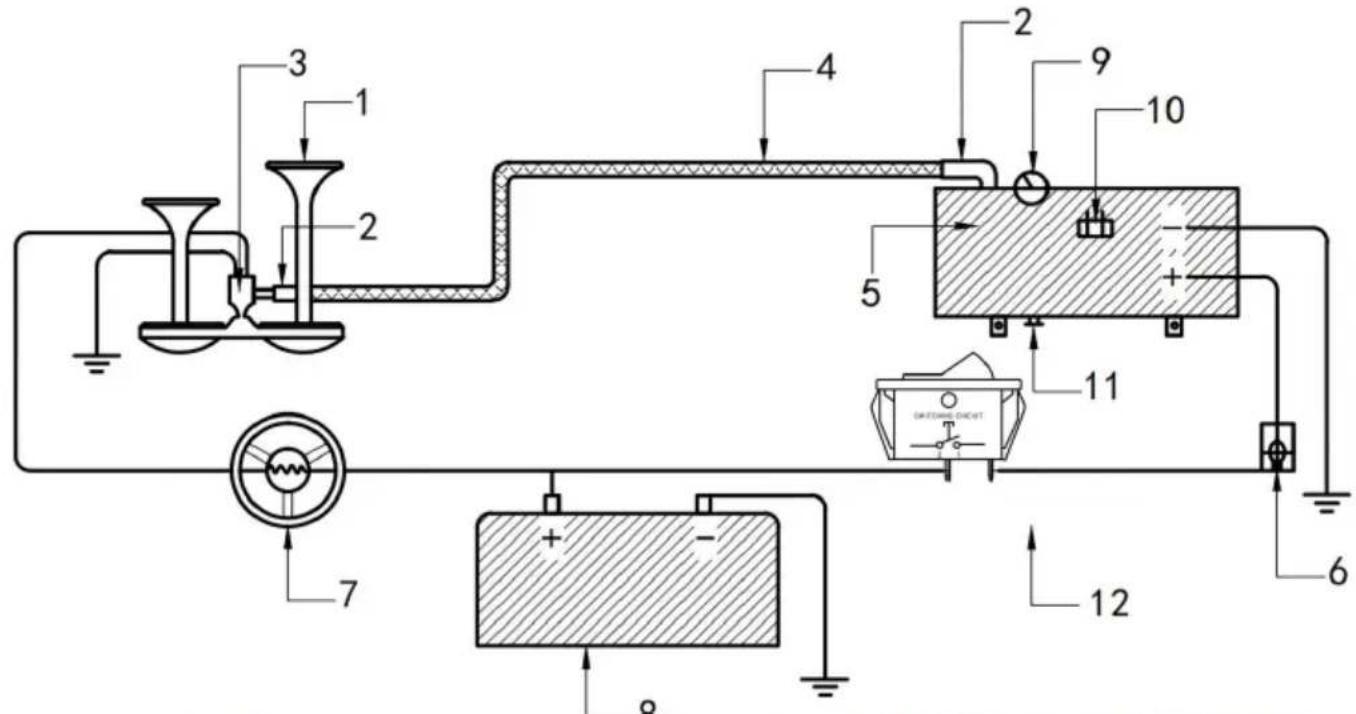

3 1 2 4 2 9 10 5 + - 11 7 8 12 6 SATELLA SWITCH

1 AIR HORN

2 GAS POPE JOINT

3 AIR HORN SOLENOID

4 AIR TUBE

5 AIR COMPR ESSOR

6 FUSE WIRE

7 HORN BUTTON

8 BATTERY IN THE VEHICLE

9 PRESSURE METER

10 PRESSURE SWITCH

11 DRAIN VALVE

12 POWER SWITCH

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly sequence.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

PRAWIDŁOWA UTYLIZACJA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODEL: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	HS-660	HS-550	HS-661	HS-551
Spanning	12	12	12	12
Vermogen (w)	190	170	190	170
Werkdrukbereik (psi)	AAN: 90UIT: 120	AAN: 90UIT: 120	AAN: 90UIT: 120	AAN : 90UIT : 120
Capaciteit opslagtank (gal)	1.6	0,8	1.6	0,8
Maximale geluidsuitvoer (dB)	1 5 0	150	150	150
Nettogewicht (kg)	6.1	5.45	4,65	4.5

PART LIST

NEE .	Naam	HS-660	HS-550	HS-661	HS-551
1	compressor	1	1	1	1
2	hoorn	2	1	0	0
3	Luchtbuis	1	1	1	1
4	Hoornverbinding	1	0	0	0
5	Hoornmontage	1	1	0	0
6	Teflontape	1	1	1	1
7	Rubberen pad	4	4	4	4
8	Veiligheidsmontagestoel	1	1	1	1
9	Samensmelten	1	1	1	1
10	M6 bout	12	8	4	4
11	M6 moer	12	8	4	4
12	M 6 ring	12	4	4	4
13	Luchtpijpverbinding	0	0	1	1

SECURITY & WARNINGS

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of two cylindrical mechanical components with flanges and a base mount (no text or symbols)

Technical line drawing of a dual supports with fluted legs and support brackets (no text or symbols)

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and nut (no text or symbols)

Technical line drawing of a mechanical component with internal spring and housing (no text or symbols)

Simple electrical circuit diagram with battery, switch, and bulb components (no text or labels)

Pure electrical circuit lines without any symbols

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly sequence.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

CORRECTE VERWIJDERING

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

HS-660

QR code image containing encoded data, no visible human-readable text

HS-550

QR code image containing encoded data, no visible human-readable text

HS-661

QR code image containing encoded data, no visible human-readable text

HS-551

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only an estimate of savings you might benefit from buying certain tools with us of the major top brands and does not necessarily mean to cover all categories offered by us. You are kindly reminded to verify carefully when you are placed with us if you are actually saving half in comparison with the top major

MODELL: HS-660/HS-550/HS-661/ HS-551

Four different types of industrial air purifiers and pumps, shown from different angles (no text or labels visible)

HS-660 HS-550 HS-661 HS-551

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

PARAMETER LIST

Modell	HS-660	HS-550	HS-661	HS-551
Spänning	12	12	12	12
Effekt (w)	190	170	190	170
Arbetstryckområde (psi)	PÅ: 90 AV: 120	PÅ: 90 AV: 120	PÅ: 90 AV: 120	PÅ : 90 AV : 120
Lagringstankens kapacitet (gallon)	1.6	0,8	1.6	0,8
Maximalt ljudutgångsvärde (dB)	1 5 0	150	150	150
Nettovikt (kg)	6.1	5,45	4,65	4,5

PART LIST

NO.	Namn	HS-660	HS-550	HS-661	HS-551
1	kompressor	1	1	1	1
2	horn	2	1	0	0
3	Luftslang	1	1	1	1
4	Hornanslutning	1	0	0	0
5	Hornfäste	1	1	0	0
6	Teflontejp	1	1	1	1
7	Gummidyna	4	4	4	4
8	Säkerhetsmonteringssäte	1	1	1	1
9	Säkring	1	1	1	1
10	M 6 bult	12	8	4	4
11	M 6 mutter	12	8	4	4
12	M 6 bricka	12	4	4	4
13	Luftrörskoppling	0	0	1	1

SECURITY & WARNINGS

Technical line drawing of a mechanical clamp assembly with bolts and a nut (no text or symbols)

Technical line drawing of two cylindrical mechanical components with flanges and a base mount (no text or symbols)

Technical line drawing of a dual-panel support structure with flanges and vertical supports (no text or symbols)

Technical line drawing of a mechanical pulley system with rollers and a conveyor belt (no text or symbols)

Pure technical line drawing of a mechanical or fluidic device with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a spring and nut (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit diagram with battery, switch, and bulb components (no text or symbols)

Pure electrical circuit lines without any symbols

3 1 2 4 2 9 10 5 + - 11 7 8 12 6 AIR VENT

1 AIR HORN
2 GAS POPE JOINT
3 AIR HORN SOLENOID
4 AIR TUBE
5 AIR COMPR ESSOR
6 FUSE WIRE
7 HORN BUTTON

8 BATTERY IN THE VEHICLE
9 PRESSURE METER
10 PRESSURE SWITCH
11 DRAIN VALVE
12 POWER SWITCH

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating flow or assembly steps.

1	air receiver	9	Piston connecting rod	17	High pressure copper tube	25	Horn tracheal joint
2	Carbon brush plate	10	cylinder	18	check valve	26	solenoid valve
3	Rotor gasket	11	radiator	19	Automatic pressure switch	27	Horn bracket and screws
4	rotor	12	Cylinder sealing ring	20	pressure gauge	28	hose
5	Rotor gasket	13	Air sheet	21	hose connector	29	drain valve
6	Motor buffer gasket	14	Gas seal ring	22	Motor power cord
7	motor housing	15	The cylinder cover	23	Pressure switch dust cover
8	Motor cover plate	16	Cylinder head fixing screw	24	horn

KORREKT AVFALLSHANTERING

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
