Product Type	Solar Micro-inverter
Brand	Vevor
Model	GT-800
Maximum Output Power	800 W
DC Input Voltage	18 V - 50 V
Maximum Input Current	14 A x 2 (2 MC4 connectors)
Nominal Output Voltage	230 V AC
Nominal Output Current	3.5 A
Output Frequency	50 Hz
Power Factor	≥ 0.99
Total Harmonic Distortion	< 5 %
Maximum Efficiency	95 %
Nominal MPPT Efficiency	99.5 %
Night Consumption	≤ 1 W
Operating Temperature Range	-40 °C to +65 °C
Storage Temperature Range	-40 °C to +85 °C
Dimensions (L x H x D)	490 x 254 x 50 mm
Protection Rating	IP65 / IP67 (according to nameplate)
Communication	WiFi (cloud monitoring)
Protection Functions	Anti-islanding, overvoltage, undervoltage, overfrequency, underfrequency, overheating, overcurrent
Max. Number of Units per Branch (230 V)	3
Maintenance and Cleaning	Keep clean and dry; do not open, no user-serviceable parts
Safety	Mandatory grounding, cut power before maintenance, risk of electric shock
Package Contents	Micro-inverter, AC cable, screws, WiFi antenna, manual
Manufacturer	Shanghaixinmuyeyouxiangonsi, China

Frequently Asked Questions - GT-800 Vevor

How to properly install the GT-800 micro-inverter?

Secure the inverter to the PV rack using the provided screws. Connect the solar panels to the MC4 inputs respecting polarity, then plug the AC output cable into the grid. Ensure the DC input voltage is between 18 V and 50 V.

How many GT-800 inverters can be connected on the same phase?

On a 230 V single-phase network, you can connect up to 3 units GT-800 per branch.

How to set up the WiFi monitoring of the micro-inverter?

Download the Smart Life app from the App Store. Enable Bluetooth on your smartphone, make sure it is on the same WiFi network as the inverter. Follow the steps in the app to add the device.

What to do if the app does not find the micro-inverter?

Check that the WiFi indicator is blinking blue. Enable Bluetooth, check the WiFi signal. If necessary, press the red reset button for more than 5 seconds then reconfigure via the app.

Can I monitor the micro-inverter at night?

No, because at night the solar panels do not produce electricity and the inverter is not powered. It will be offline until sunrise.

How to share access to my micro-inverter with another person?

In the Smart Life app, open the device settings, click on Share Device and follow the instructions to generate a sharing link.

What protections are integrated into the Vevor GT-800?

It features anti-islanding protection, overvoltage/undervoltage, frequency deviations, overheating, and overcurrent protection.

What to do if the WiFi password changes?

You must reconfigure the inverter via the Smart Life app following the same steps as the initial setup.

What are the protection ratings of the GT-800?

The rating is IP65 or IP67 according to the nameplate. It is resistant to dust and water splashes, but should not be submerged.

Where can I find technical support for this product?

Technical support is available at www.vevor.com/support. Also check the manual for importer contact information.

USER MANUAL GT-800 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

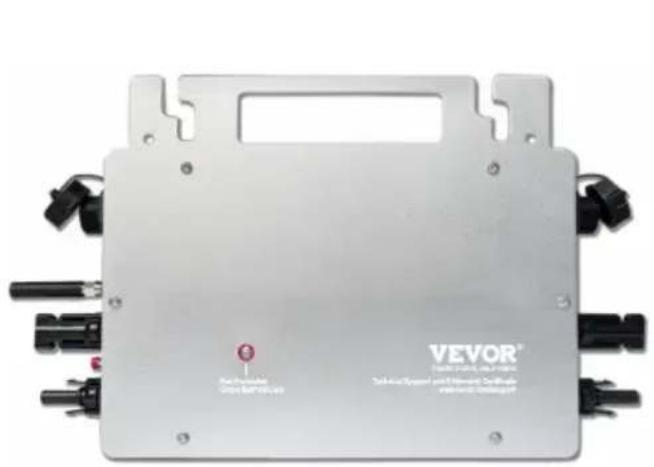

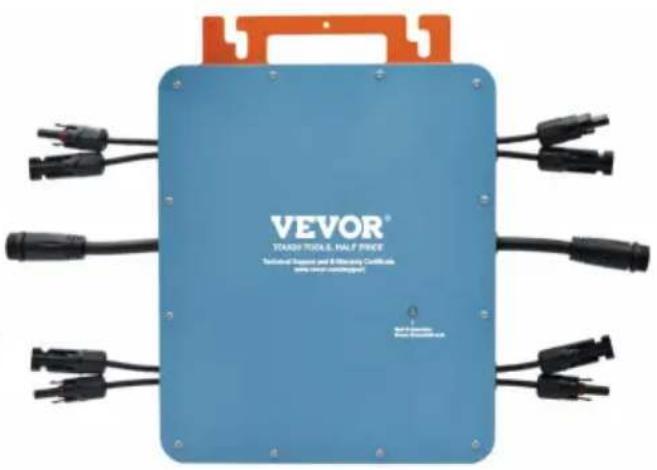

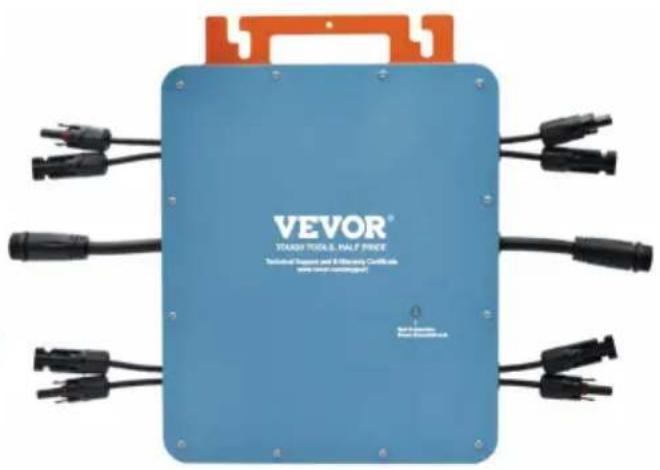

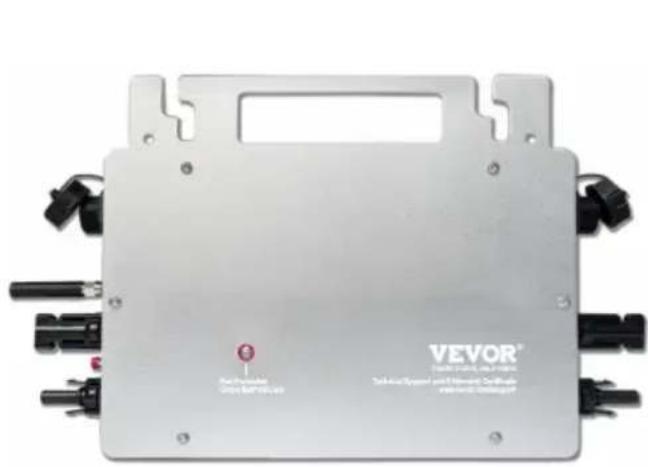

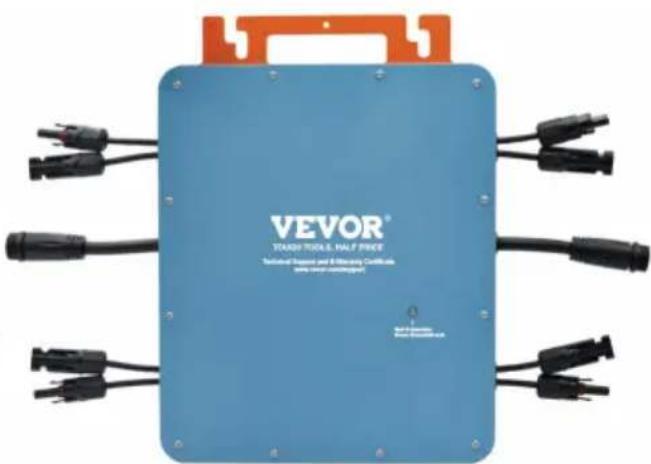

MICRO INVERTER

MODEL:GT-600/GT-800/GT-1200

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL:GT-600/GT-800/GT-1200

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Dir 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products n as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

WARNING: DANGER OF ELECTRICAL SHOCK

The product is used in combination with a permanent energy source (battery). Even if the equipment is switched off, a dangerous electrical voltage can occur at the input and/or output terminals. Always switch the AC power off and disconnect the battery before performing maintenance.

The product contains no internal user-serviceable parts. Do not remove the front panel and do not put the product into operation unless all panels are fitted. All maintenance should be performed by qualified personnel.

Never use the product at sites where gas or dust explosions could occur. Refer to the specifications provided by the manufacturer of the battery to ensure that the battery is suitable for use with this product. The battery manufacturer's safety instructions should always be observed.

WARNING: do not lift heavy objects unassisted.

Installation

Read the installation instructions before commencing installation activities. This product is a safety class I device (supplied with a ground terminal for safety purposes). Its AC input and/or output terminals must be provided with uninterruptible grounding for safety purposes. An additional ground point is located on the outside of the product. If it can be assumed that grounding protection is damaged, the product should be taken out of

operation and prevented from accidentally being put into operation again. Contact qualified maintenance personnel.

Ensure that the connection cables are provided with fuses and circuit breakers. Never replace a protective device with a component of a different type. Refer to the manual for the correct part.

Check before switching the device on whether the available voltage conforms to the configuration settings of the product as described in the manual.

Ensure that the equipment is used under the correct operating conditions. Never operate it in a wet or dusty environment.

Ensure that there is always sufficient free space around the product for ventilation, and that ventilation openings are not blocked.

Install the product in a heatproof environment. Ensure therefore that there are no chemicals, plastic parts, curtains or other textiles, etc.

in the immediate vicinity of the equipment.

Transport and storage

On storage or transport of the product, ensure that the mains supply and battery leads are disconnected.

No liability can be accepted for damage in transit if the equipment is transported in its original packaging.

Store the product in a dry environment; the storage temperature should range from -40°C to 65°C.

Refer to the battery manufacturer's manual for information on transport, storage, charging, recharging and disposal of the battery.

SPECIFICATIONS

You are welcome to choose our micro grid-connected solar inverter products

Specification data	Model
	GT-600	GT-800	GT-1200
Input Data (DC, PV)
Number of Input MC4 Connect	2 sets		4 sets
Operation Voltage Range	DC18V-50V
Maximum input Current	12A*2	14A*2	16A*2
Output Data(AC)
Single-Phase Grid Type	AC230V	AC230V	AC110V or AC230V
Maximum Output Power	600W	800W	1200W
Nominal Output Current	2.6A	3.5A	10.9A or 5.2A
Nominal Output Voltage	AC230V	AC230V	AC110V or AC230V
Output Frequency Range	50Hz	50Hz	60Hz or 50Hz
Power Factor	≥0.99%
Total Harmonic Distortion	THD <5%
Maximum Units per Branch	@230VAC:4units	@230VAC:3units	@110VAC:2units Or @230VAC:3units
Peak Efficiency	95%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	≤1W
Mechanical Data
Operating Ambient Temperature Range	-40°C to +65°C
Storage Temperature Range	-40°C to +85C
Dimensions(W*H *D)	305 * 186 * 44mm		490 * 254 * 50mm
Waterproof Grade	IP67	IP65/IP67(Please refer to the product nameplate information)	IP67
Communication	WIFI(Cloud monitoring)
Protection Functions	Isolated Island Protection,Voltage ProtectionFrequency ProtectionTemperature Protection,Current Protection,etc.

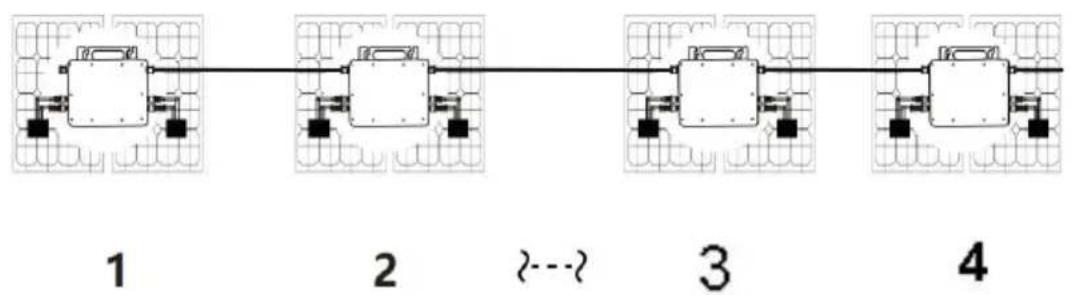

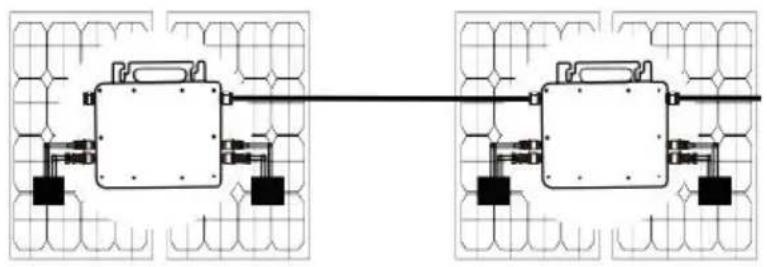

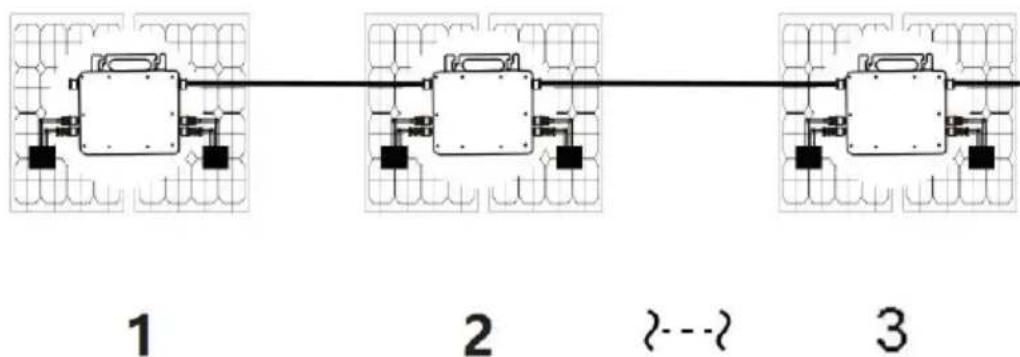

INSTALLATION SCHEMATIC

Single-phase parallel assembly method of micro inverter

GT-600

1. @Single-Phase 230V grid Maximum 4 units 600W Micro inverters per branch
2. The max DC input power of each inverter is 600W (the PV module max power is 2x300W).
3. The VOC of PV modules should not be greater than the max DC input of Micro inverters.

GT-800

1. @Single-Phase 230V grid Maximum 3 units 800W Micro inverters per branch
2. The max DC input power of each inverter is 800W (the PV module max power is 2x400W).
3. The VOC of PV modules should not be greater than the max DC input of Micro inverters.

GT-1200

1

2

1. @Single-Phase 110V grid Maximum 2 units or @Single-Phase 230V grid Maximum 3 units 1200W Micro inverters per branch.
2. The max DC input power of each inverter is 1200W (the PV module max power is 2x600W).
3. The VOC of PV modules should not be greater than the max DC input of Micro inverters.

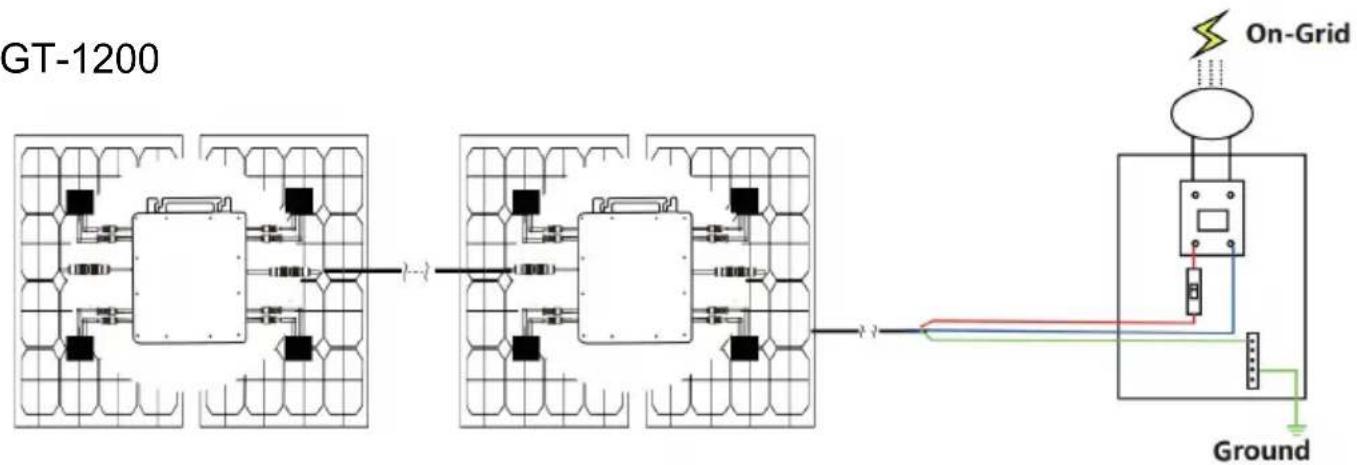

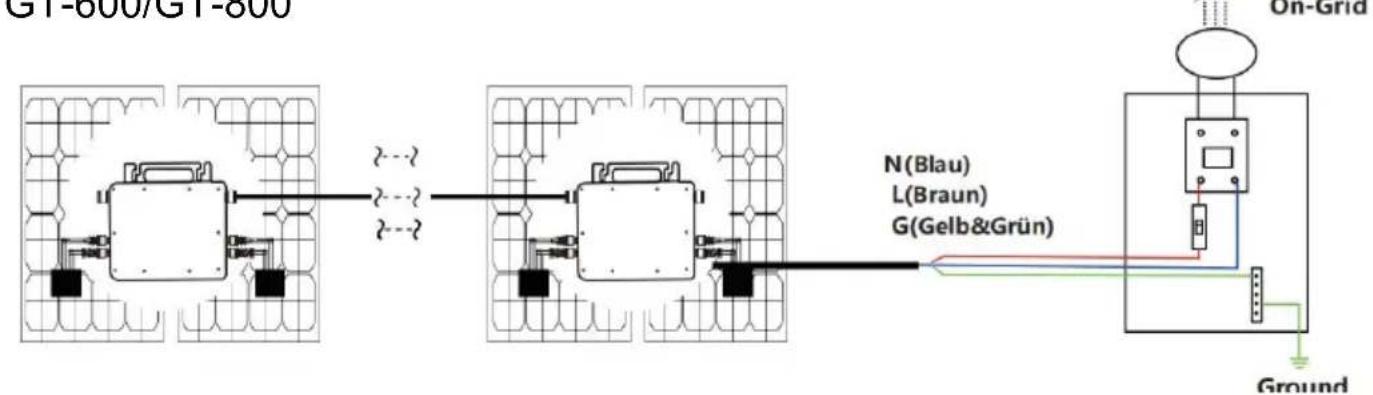

WIRING SCHEMATIC

Single phase connection method of micro inverter GT-600/GT-800

GT-1200

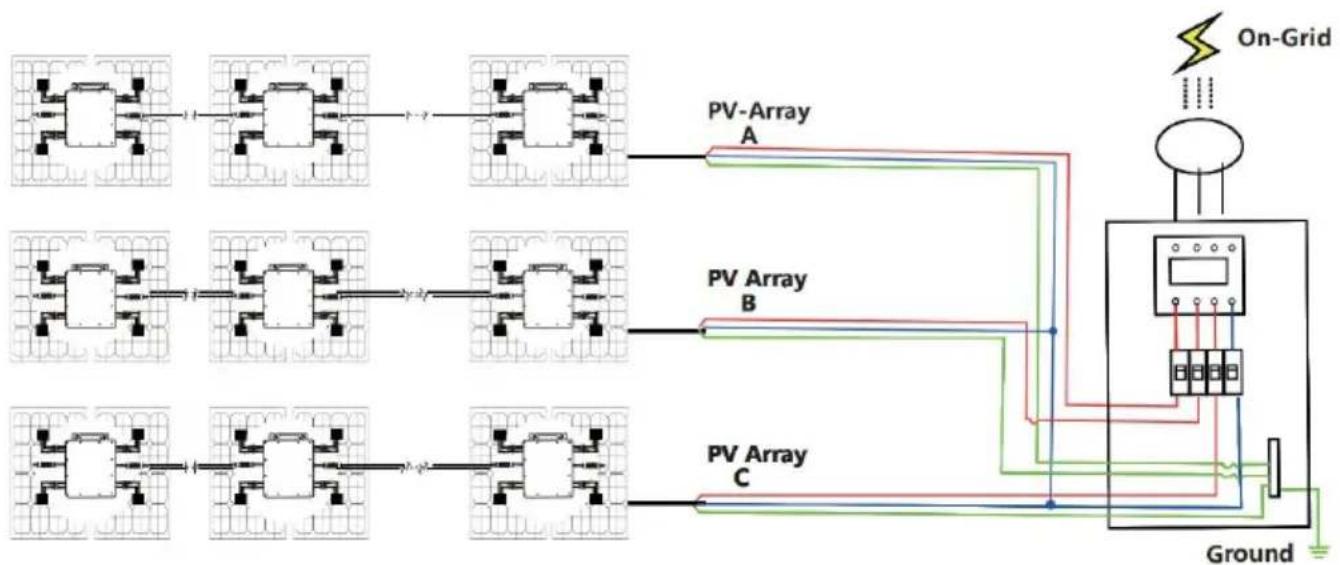

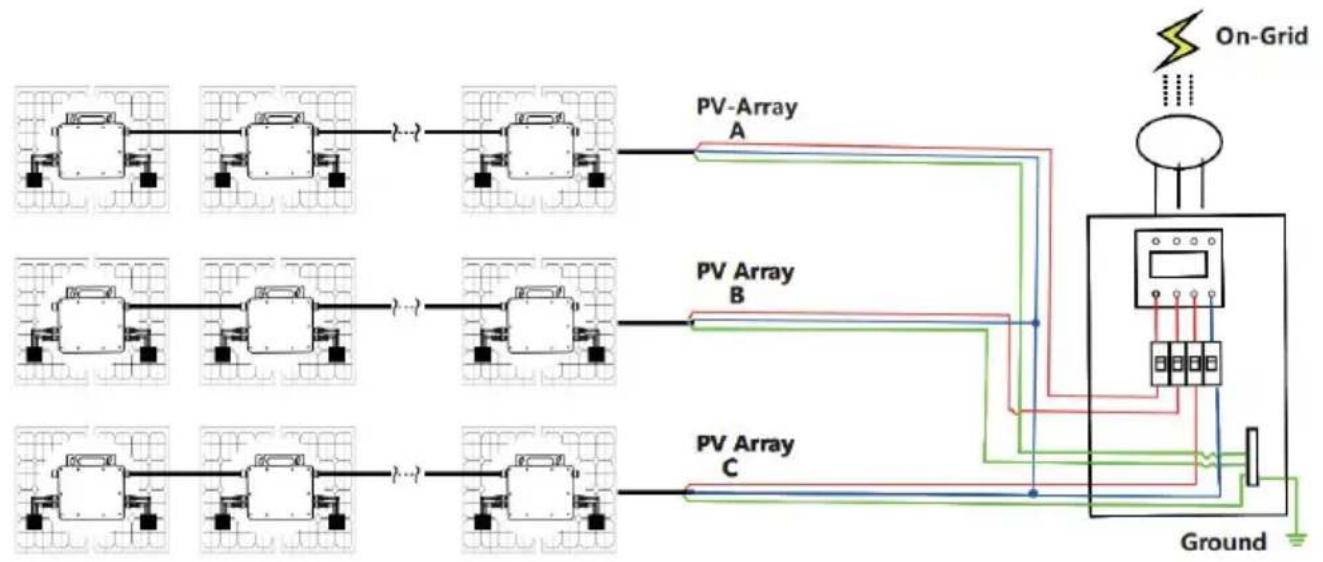

Three phase connection method of micro inverter

GT-600/GT-800

GT-1200

MICRO INVERTER WIFI CLOUD MONITORING

1. Precautions

• Note that there is a risk of electric shock when connecting the micro-inverter!
• The micro-inverter heats up during operation! Protect yourself accordingly from burns!
• Before configuring WiFi cloud monitoring, please correctly install the micro inverter and make it work normally.
• A smart device (smartphone or tablet) with Bluetooth function and Android or iOS system and a wireless network device (e.g., wireless router) that can provide WiFi and Internet service must be available.
• To configure WLAN cloud monitoring, first switch on the Bluetooth function of the smart device.
• Make sure that your smart device uses the same WiFi network as the micro inverter to be configured and that it can connect to wireless network devices and access the internet in the same location of the micro inverter.
• Make sure that the distance between the wireless network device and the micro-inverter does not exceed 20 m and that there are no or few obstacles.

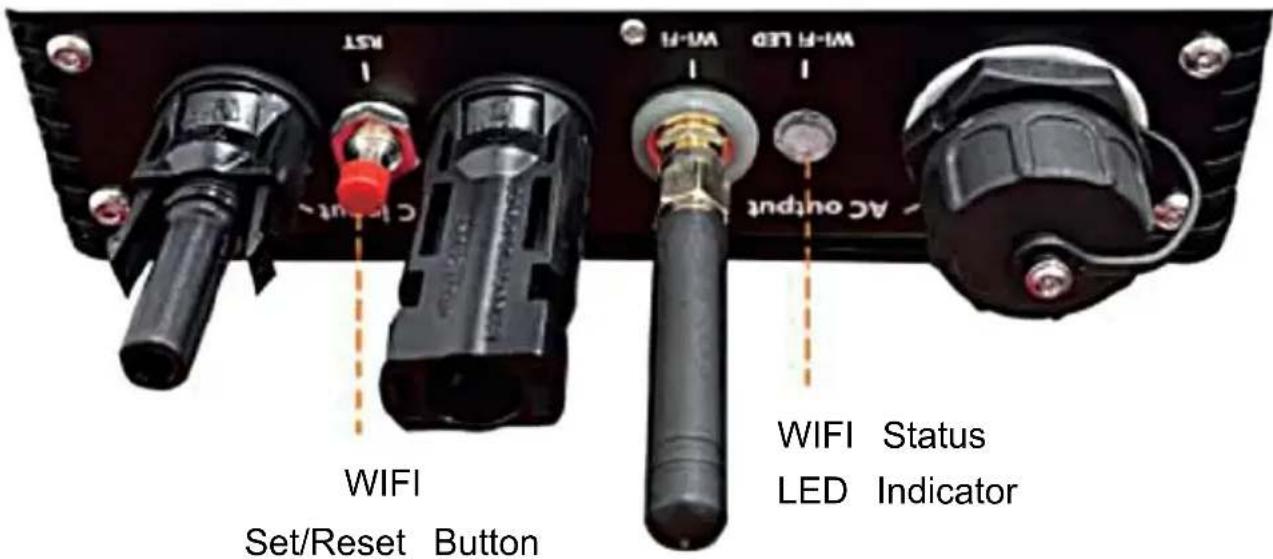

2. Hardware Description

3. WIFI Status LED

• The blue light flashes after always on = the WiFi cloud monitoring module is waiting for configuration.
• The blue light off after always on = the WiFi cloud monitoring module starts and enters the normal working state.
• The blue light flashes = the network is not configured or the network cannot connect to the wireless network device, or the micro inverter has been deleted in the cloud.
• No light = WiFi cloud monitoring is working normally.

4. Preparation Before Configuration And Use

• Install the micro inverter correctly and make it work normally to generate power.
• Download and install the "Smart Life" app by searching for it in the corresponding Android or Apple app store.
• Turn on the Bluetooth function of your smart device.
• Check that your wireless network device (such as wireless router) is working properly and connected to the Internet.
• Use your smart device (with "Smart Life" App installed) at the installation location of micro inverter to connect to the wireless network device. If you can access the Internet normally, follow the instructions for configuration and usage on the next page.

5. Configuration Steps Of WIFI Cloud Monitoring.

1

Download the mobile application: SmartLife or scan the code directly.

2

Register a personal account.

3

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light flashes and the instrument is connected successfully.

4

Add the inverter.

5

Further add confirmation information.

6

Make sure the Bluetooth or Wi-Fi on the phone is on.

7

Enter your home Wi-Fi account information and password.

8

Click Next to install and modify the name and account freely.

9

The interface can control the system switch normally. The connection is successful.

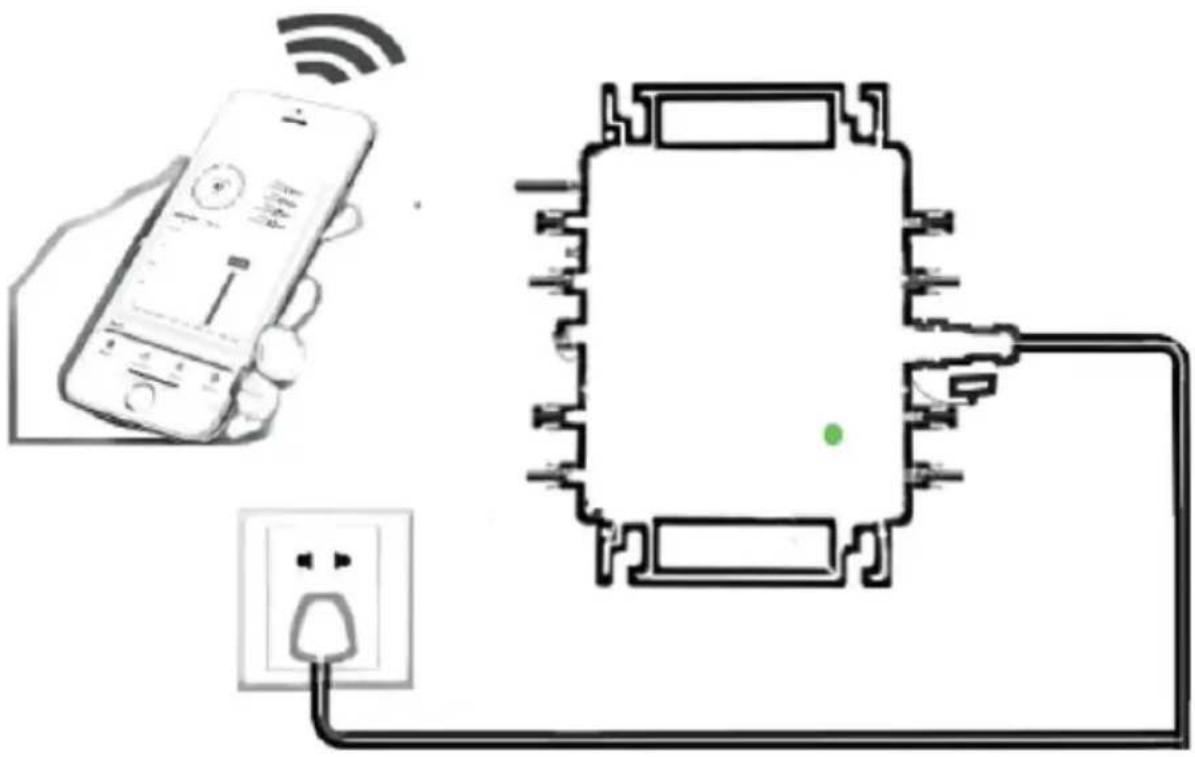

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage.

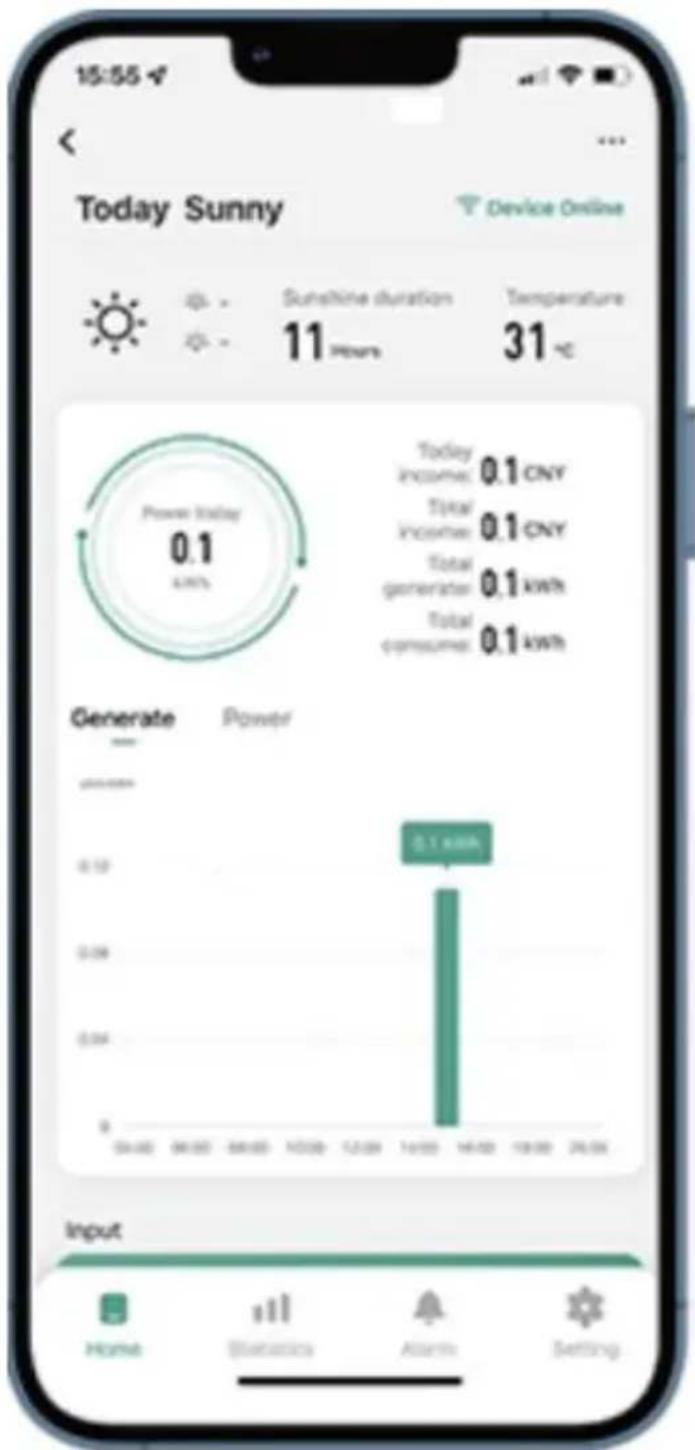

6. Usage of WIFI Cloud Monitoring App.

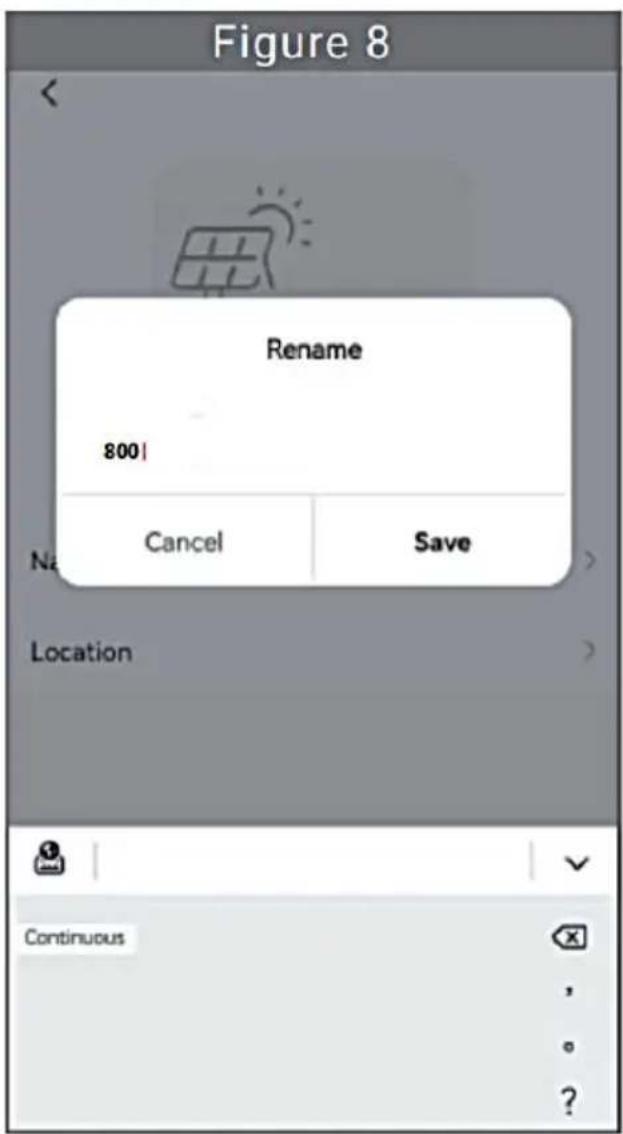

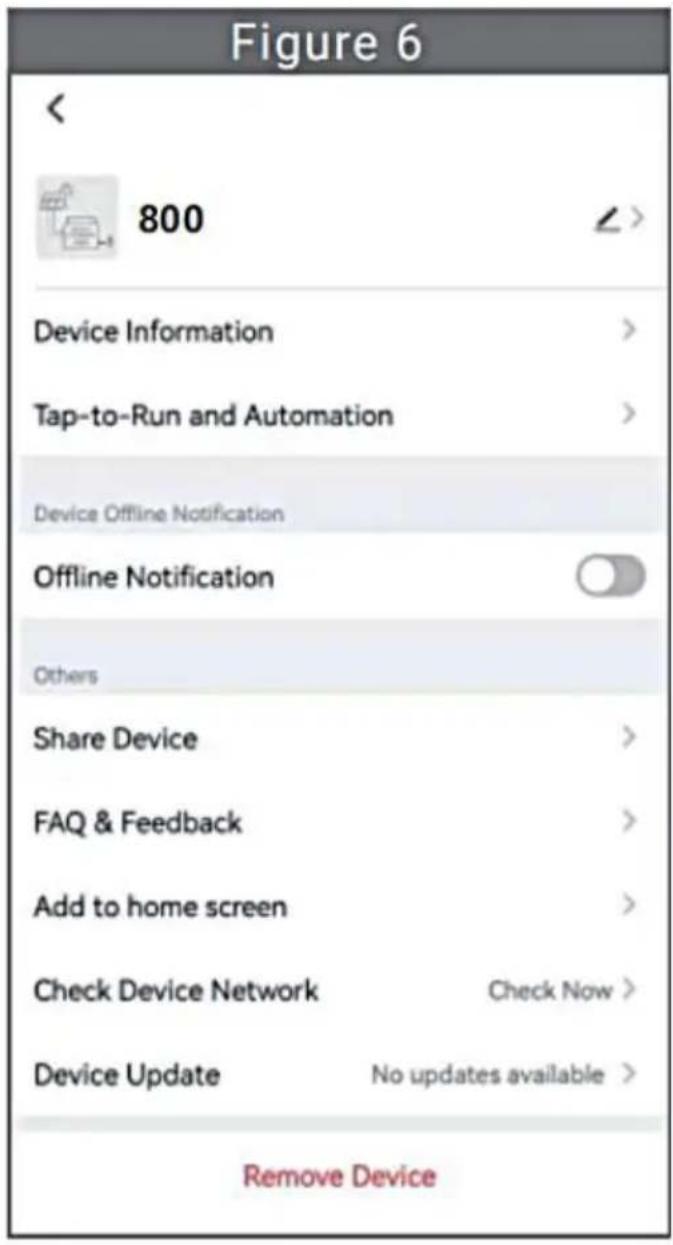

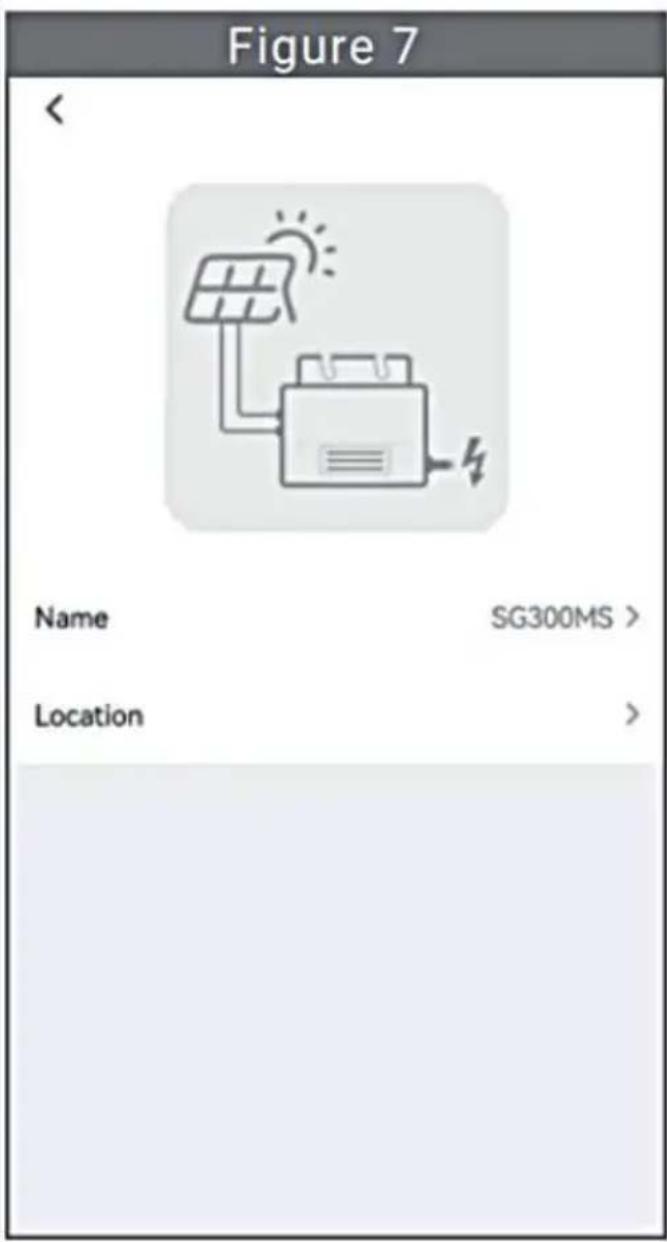

Modify Device Name

• Click the device to be modified in the device list on the home page to enter the device information details page (Figure 5).

• Click the button in the upper right to enter the device setting page (Figure 6). Continue to click the upper button to the page of name & position (Figure 7). Click name item, then enter a new name and save (Figure 8).

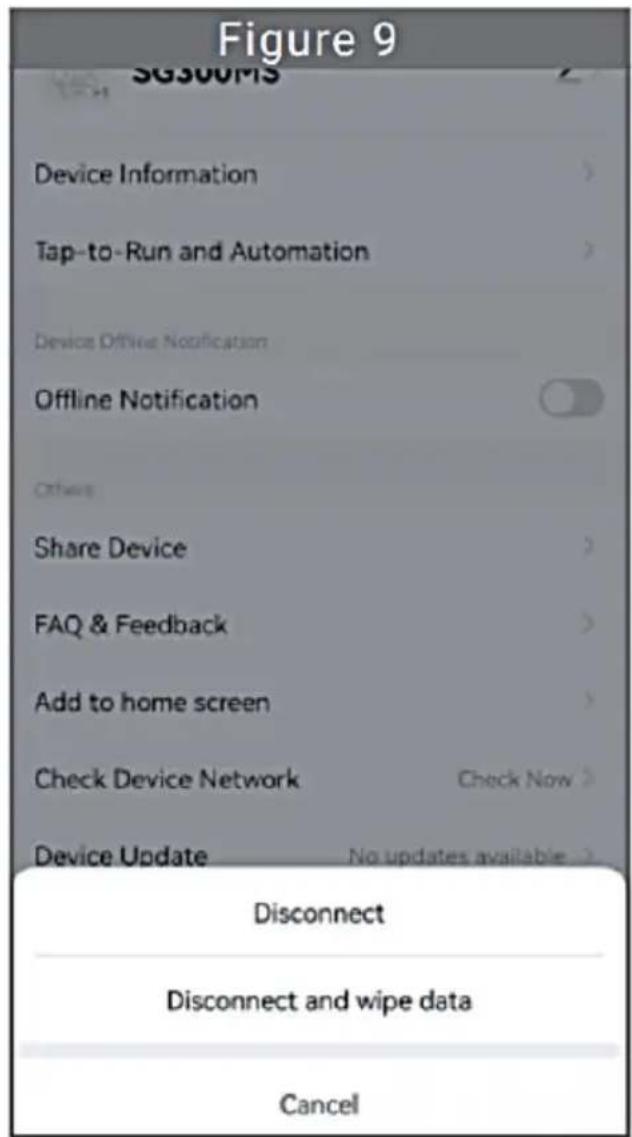

Remove Device

• Click the device to be deleted in the device list on the home page to enter the device information details page (Figure 5).
• Click the button in the upper right to enter the device setting page (Figure 6). Click "Remove Device" button below (Figure 9). Click the "Disconnect" button to remove the device or click the "Disconnect and wipe data" button to remove the device and clear all data saved by the device in the cloud at the same time.

Share Device With Others

• Click the device to be shared in the device list on the home page to enter the device information details page (Figure 5).
• Click the button in the upper right to enter the device setting page (Figure 6).
• Click the "Share Device" item to enter the device sharing page (Figure 10). Click button to enter "Add Sharing" page (Figure 11), and select the best sharing way that you think is most convenient to share the link of micro inverter.

Figure 10 Share Device

When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device.

SG300M5 has not been shared.

Device is not shared, add an account to share it.

Add Sharing

Figure 11

Add Sharing 800

Share with the Account 涤鸦智能

Share with Others

person(s)

WeChat

Mertaget

Copy

M

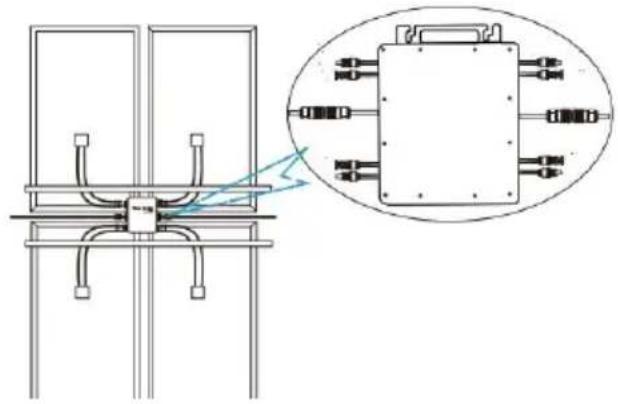

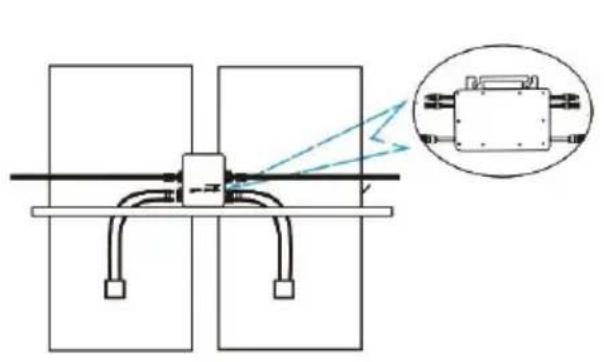

1. The installation process of fixing inverter to PV bracket with mounting screws is as follows:

GT-600/800 GT-1200

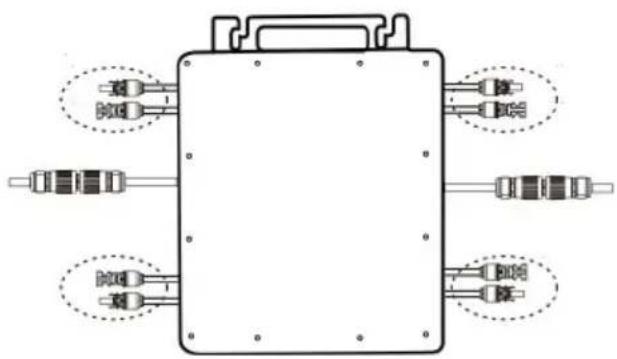

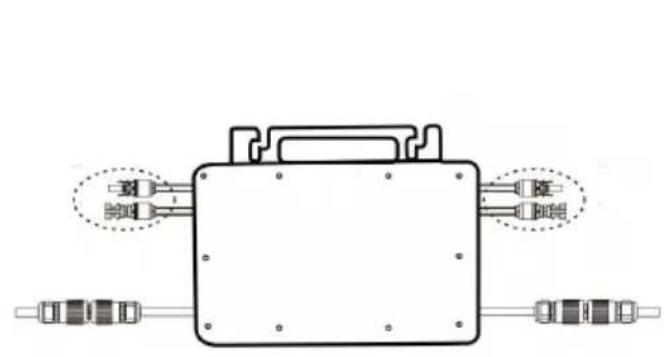

1. Connect the DC of PV to the inverter, and pay attention to distinguish between positive and negative, as shown below:

GT-600/800 GT-1200

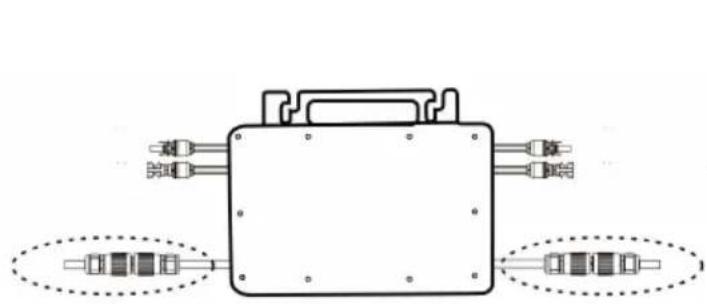

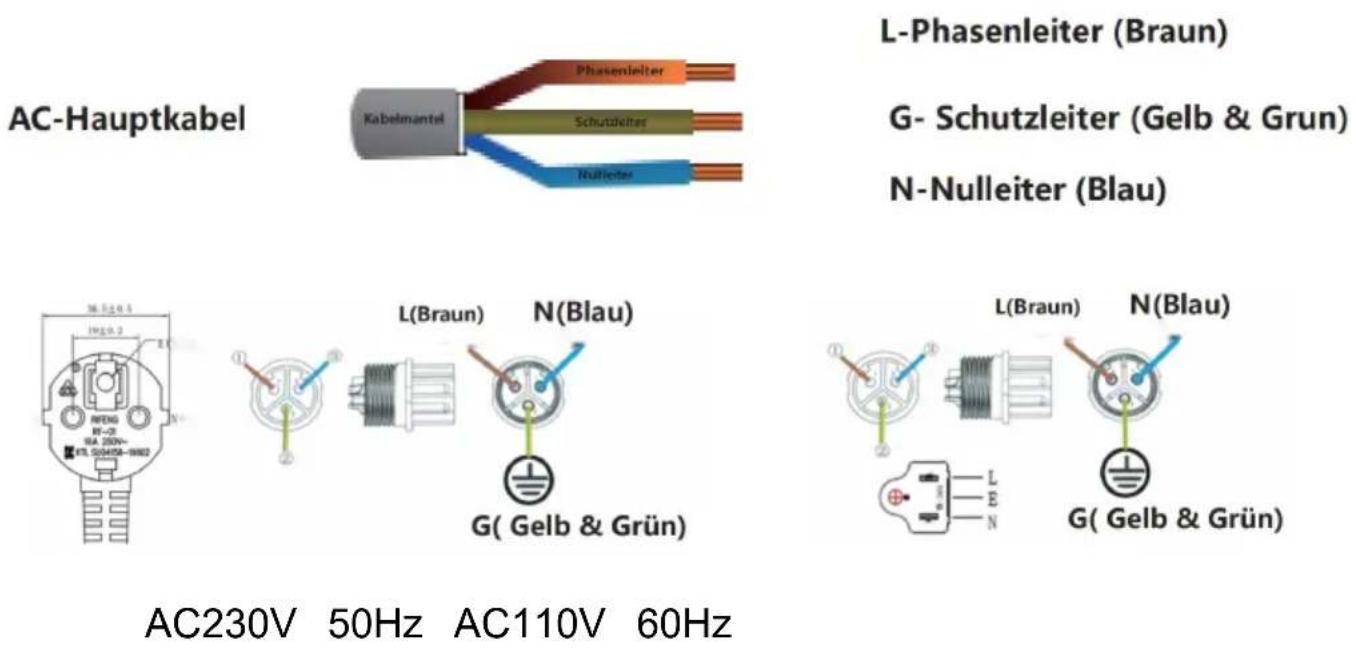

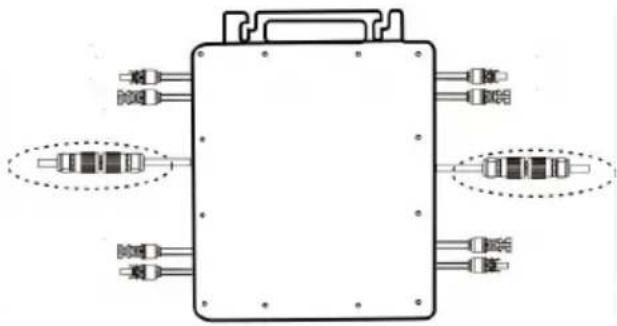

1. Open the waterproof cover on the AC output side of the micro inverter, and then connect it to the AC. As follows:

GT-600/800 GT-1200

1. Repeat steps 1 to 3 to complete the installation of the micro inverter.
2. Connect multiple inverters through AC output cables.
3. The AC main cable is connected to the power grid.

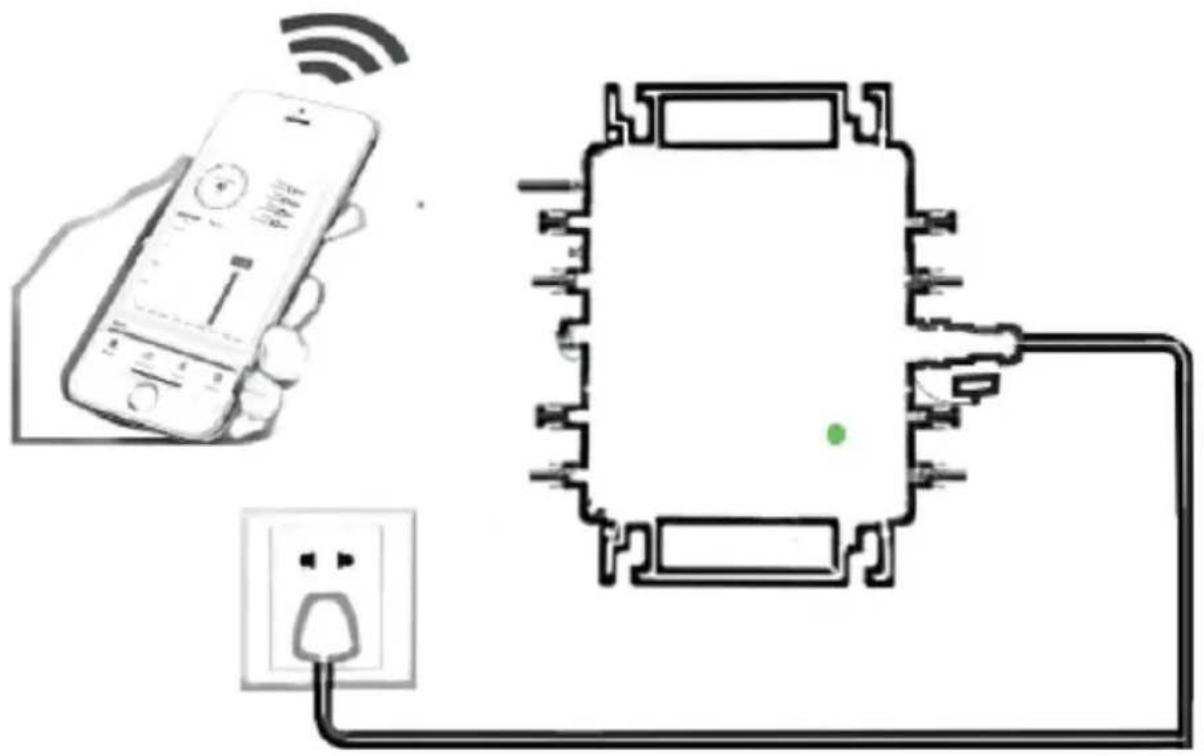

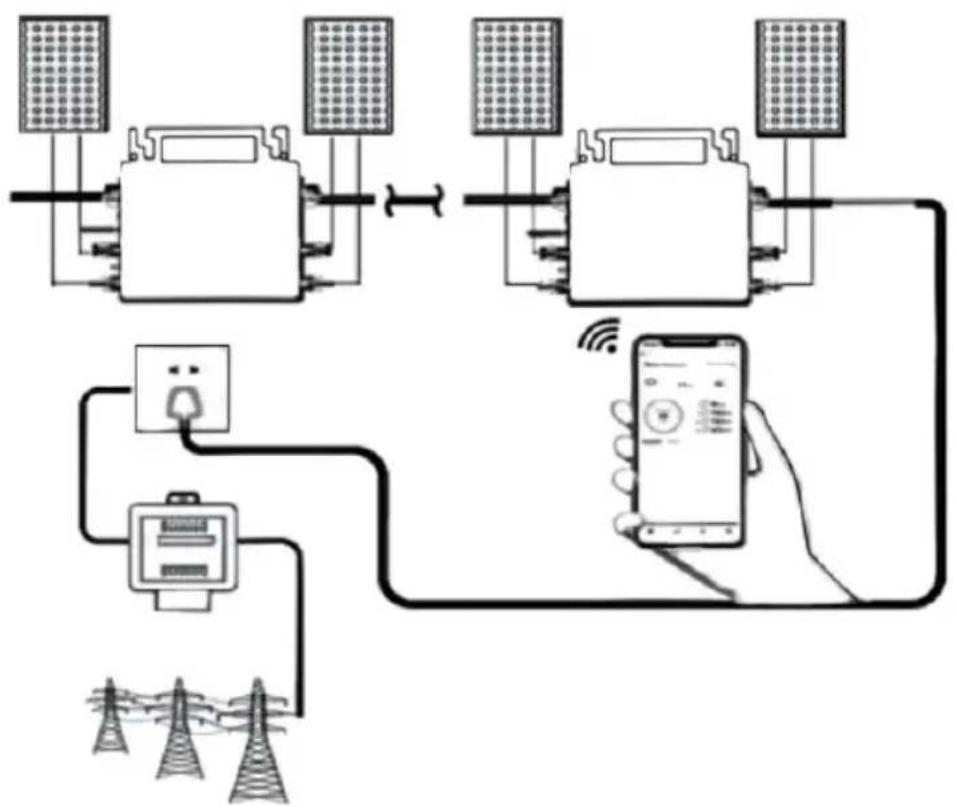

SCHEMATIC DIAGRAM OF THE COMPLETION OF THE INSTALLATION

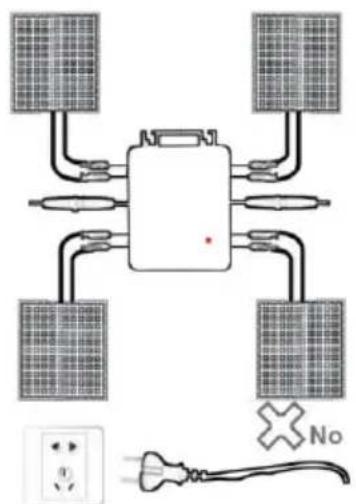

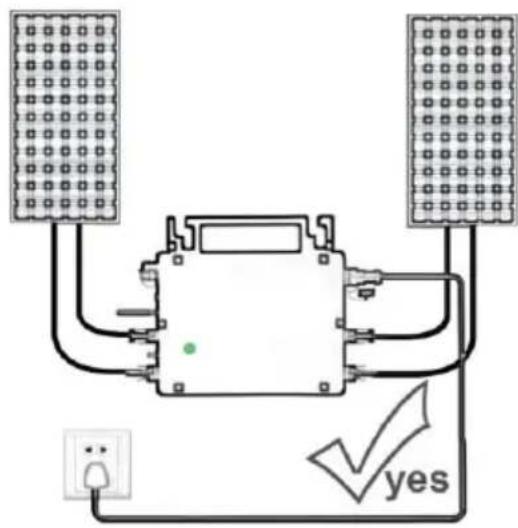

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green. Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-600/800

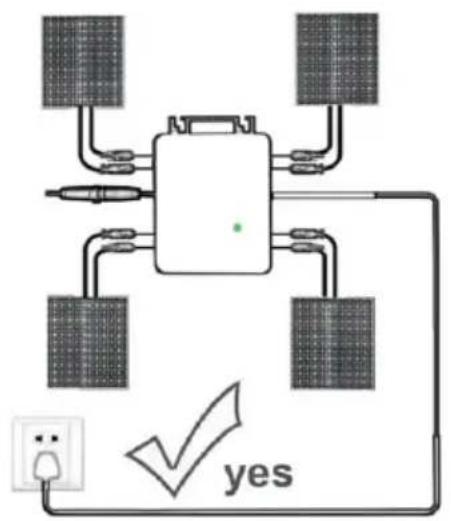

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

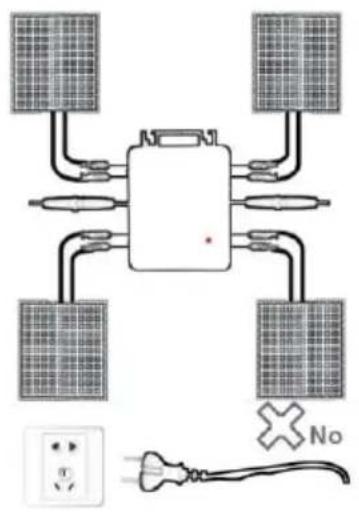

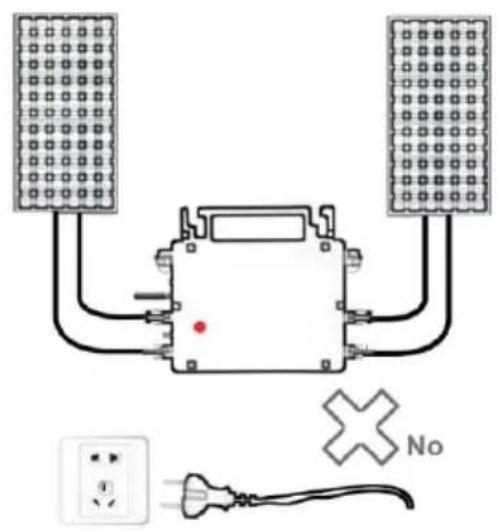

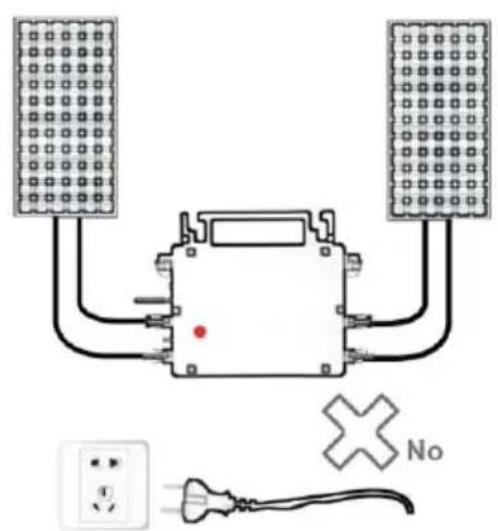

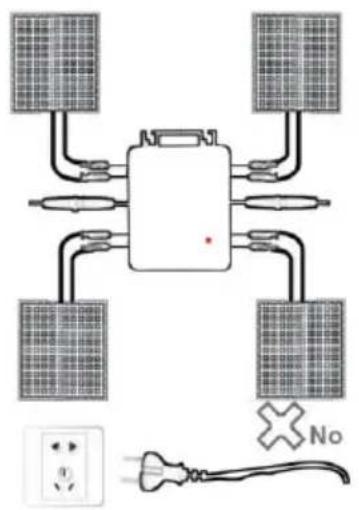

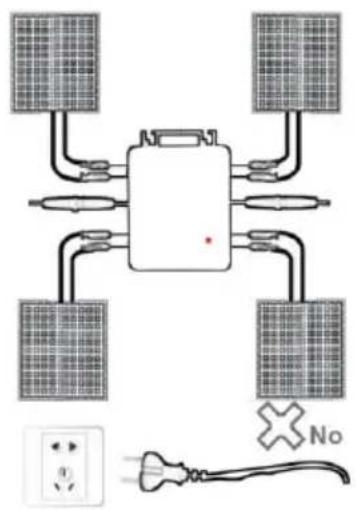

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-1200

Note:

When the inverter is purchased for the first time and connected to the mobile phone for monitoring, it is only necessary to switch on the mains. The blue light beside it flashes, and the inverter can be connected through WiFi or Bluetooth pairing. When the inverter can be controlled through the mobile phone, it indicates that the connection is normal.

1. WHAT TO DO when the Smart-App can't find the micro inverter to be added?

Check the following points:

• Check if the WiFi status indicator of the micro inverter is in the "Blue Flashing" state.
• Check if the Bluetooth function of your smart device is turned on.
• Check if the signal of the wireless network is good.

If all these are the case and the inverter is still not found, press the red button for more than 5 seconds to reset. After the WiFi indicator light flashes blue again, use the "Smart Life" App to reconfigure the network.

1. WHAT TO DO if I have multiple micro inverters to configure?

Install all micro inverters properly and make them work normally to generate power, and then operate according to the configuration and steps. The App can search all inverters to be added at one time and configure them at one time.

1. WHAT TO DO if the SSID of my WiFi network or the password is changed?

Please reconfigure the inverter according to the configuration and usage steps.

1. WHAT TO DO if the WiFi status indicator of the inverter goes out, but the device displayed on the app is not online?

This means that you can connect to the wireless network device, but can't connect to the cloud server. It means that your wireless network device can't connect to the Internet. Make sure that your Internet is working properly.

1. The installation site of the inverter is temporarily not equipped with a router and no WiFi signal?
2. How does the App connect the inverter and detect if the inverter is working properly?
3. You can use an idle smartphone to open the WiFi sharing of mobile phone signal hotspot for connection, and reconfigure the network connection after installing the router.
4. There are multiple WiFi signals around. Can we connect different WiFi signals?

No, the WiFi connected to the micro inverter and the smartphone must be consistent before the network can be configured.

1. Can the App configure the micro inverter in different places? Can I view data in different places?

You can't configure the micro inverter in different places, but you can view data in different places. The inverter uploads the latest status data to the cloud server every 3-5 minutes.

1. After checking that there is no problem, the App still cannot find the micro inverter.
2. Press and hold the inverter red button for more than 5 seconds to reset the inverter.
3. After the WiFi indicator flashes again, use the App to reconfigure the network.
4. WHAT TO DO if I want to monitor the same inverter on two or more smart devices?

You can share the inverter with another phone using the share device feature.

1. Will App data be saved?

Yes, App data will be stored on cloud server. After the network is successfully configured, you can view the data at any time and place.

1. The inverter cannot be connected to the app at night?

At night, because the solar panel does not generate power, the mid-inverter does not have any power input, so it will be offline and it is in

to re-configure the network at night.

ACCESSORIES LIST

1. Operating instructions 1 2. Grid connected power cord 1 3. 8mm diameter, 28mm long hex socket screw+flat washer+spring washer+nut 2 4. 5mm diameter, 13mm long hex socket screw+nut 2 (600W/800W) 4mm diameter, 8mm long hex socket screw 1 (1200W) 5. WiFi antenna 1

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey. TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Download the mobile application: SmartLife or scan the QR code directly.

2

Register a personal account.

3

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully.

4

Add inverter.

5

Further add confirmation information.

6

Make sure the Bluetooth or Wi-Fi in the phone is on.

7

Enter your home Wi-Fi account information and password.

8

Click Next to install and modify the name and account freely.

9

The interface can control the system switch normally. The connection is successful.

10. The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing indicates MPPT is tracking the optimal voltage.

INSTRUCTIONS FOR INSTALLATION WIRING

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green. Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-1200

Note:

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING: RISK OF ELECTRIC SHOCK

Download the mobile application: SmartLife or scan the QR code directly

2

Register a personal account

3

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully.

4

Add inverter

5

Further add confirmation information

6

Make sure the Bluetooth or Wi-Fi on the phone is turned on

7

Enter your home Wi-Fi account information and password

8

Click Next to install and modify the name and account freely

9

The interface can control the system switch normally. The connection is successful

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device.

SG300MS has not been shared.

Device is not shared, add an account to share it

Add Sharing

Figure 11

Add Sharing

800

Share with the Account 涂鸦智能

Share with Others

1 person(s)

WeChat

Mensangk

Copy

M

INSTRUCTIONS FOR INSTALLATION WIRING

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

GT-1200

Note:

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

MODELS GT-600/GT-800/GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Download the mobile application: SmartLife or scan the QR code directly.

2

Register a personal account.

3

Restore factory settings: Press and hold the red key for 5-10 seconds, then release it. The blue light will flash, indicating that the device is connected successfully.

4

Add the inverter.

5

Confirm the additional information.

6

Make sure Bluetooth or Wi-Fi is enabled on your phone.

7

Enter your home Wi-Fi account information and password.

8

Click Next to install, and you can modify the name and account as you wish.

9

The interface can control the system switch normally. The connection is successful.

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage.

Figure 10 Share Device

When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device.

SG300MS has not been shared.

Device is not shared, add an account to share it.

Add Sharing

Figure 11

Add Sharing 800

Share with the Account 涂鸦智能

Share with Others

WeChat

Mensight

Copy

INSTRUCTIONS FOR INSTALLATION WIRING

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

The GT-1200

Note:

Imported in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported in the USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Download the mobile application: SmartLife or scan the QR code directly

2

Register personal account

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully.

Add inverter

4

7

5

Further add confirmation information

6

Make sure the Bluetooth or Wi-Fi on the phone is on.

Enter your home Wi-Fi account information and password.

8

Click Next to install and modify the name and account freely.

9

The interface can control the system switch normally. The connection is successful.

10. The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing indicates the MPPT is tracking the optimal voltage.

Figure 10: Share Device

When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device.

SG300MS has not been shared.

Device is not shared; add an account to share it.

Add Sharing

Figure 11

Add Sharing 800

Share with the Account Tuya Smart

Share with Others

person(s)

WeChat

Mensight

Copy

Figure 1

INSTRUCTIONS FOR INSTALLATION WIRING

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

GT-1200

Note:

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

USER NAME: GT-600/GT-800

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Download the mobile application: SmartLife or scan the QR code directly.

2

Register a personal account.

3

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully.

4

Add inverter.

5

Further add confirmation information.

6

Make sure the Bluetooth or Wi-Fi on the phone is on.

7

Enter your home WiFi account information and password.

8

Click Next to install and modify the name and account freely.

9

The interface can control the system switch normally. The connection is successful.

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage.

INSTRUCTIONS FOR INSTALLATION WIRING

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-1200

Note:

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWO NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-warranty certificate www.vevor.com/support

MICRO-INVERTER

MODEL: GT-600/GT-800/GT-1200

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WAARSCHUWING: GEVAAR VOOR ELEKTRISCHE SCHOK

Download the mobile application: SmartLife or scan the QR code directly

2

Register a personal account

3

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully.

4

Add inverter

5

Further add confirmation information

6

Make sure the Bluetooth or Wi-Fi on the phone is on.

7

Enter your home Wi-Fi account information and password.

8

Click Next to install and modify the name and account freely.

9

The interface can control the system switch normally. The connection is successful.

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage.

Figure 10 Share Device

When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device.

SG300MS has not been shared.

Device is not shared, add an account to share it.

Add Sharing

Figure 11

Add Sharing 800

Share with the Account 涂鸦智能

Share with Others

person(s)

WeChat

Mensight

Copy

Figure

INSTRUCTIONS FOR INSTALLATION WIRING

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

GT-1200

Note:

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings: Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully.

4

Add inverter

5

Further add confirmation information

6

Make sure the Bluetooth or Wi-Fi in the phone is on

7

Enter your home Wi-Fi account information and password

8

Click Next to install and modify the name and account freely

9

The interface can control the system switch normally. The connection is successful.

10. The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing indicates that the MPPT is tracking the optimal voltage.

Figure 10: Share Device

When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device.

SG300M5 has not been shared.

Device is not shared. Add an account to share it.

Add Sharing

Figure 11

Add Sharing 800

Share with the Account 涤鸦智能

Share with Others

person(s)

WeChat

Mertaget Copy

More

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green. Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-600/800

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green.

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally.

GT-1200

Note:

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
