USER MANUAL CS202 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

AUDIO COMPONENT STAND

USER MANUAL

MODEL NO.: CS202

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

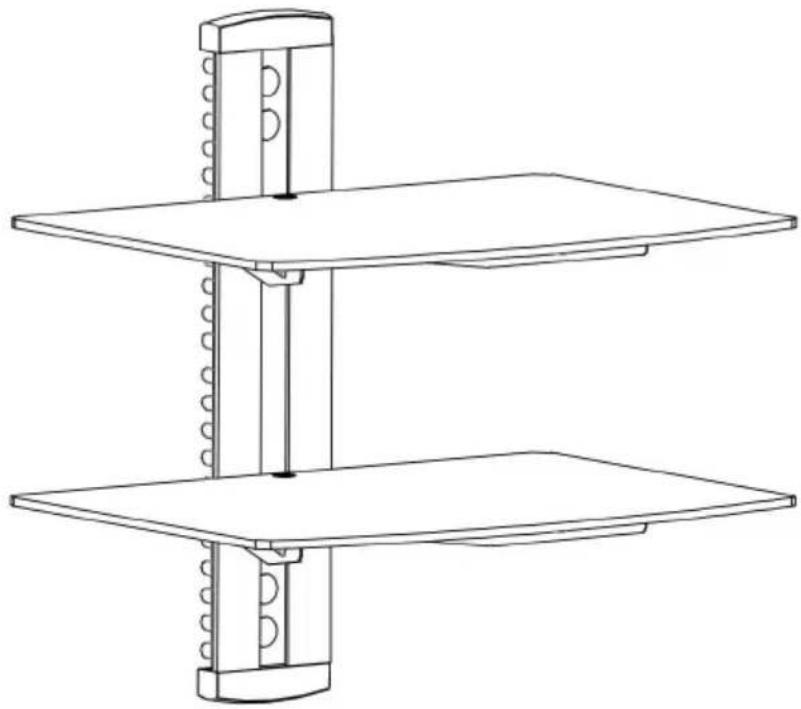

Audio Component Stand

MODEL: CS202

Vevor CS202 - VEVOR® - 1

natural_image Line drawing of a two-tiered shelf assembly with vertical supports and a central platform (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Vevor CS202 - NEED HELP? CONTACT US! - 1

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

- Do not install the product until you have read and understood the instructions and warnings provided in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.

- Please refer to the installation guide for recommended distances from the wall to avoid the risk of property damage.

- This product should only be installed by someone with good mechanical aptitude, experience in basic construction, and a full understanding of the installation process.

● Make sure that the supporting surface will safely support the combi load of the equipment and all attached hardware and components.

- If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an “edge to edge” finder is highly recommended.

● Always use an assistant or mechanical lifting equipment to safely li and position equipment.

● Tighten screws firmly, but do not overtighten. Over tightening can damage the items, greatly reducing their holding power.

- This product intended for indoor use only. Using this product outdoor could lead to product failure and personal injury.

● Never exceed the maximum load capacity.

SAVE THE INSTRUCTION

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

  1. This product is not a toy. Keep children away from this item.
  2. Do not exceed weight capacities before moving.
  3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Audio Component Stand.
  4. Use as intended only. Inspect before every use and do not use i are loose or damaged.

TECHNICAL SPECIFICATIONS

ModelCS202
Product Dimensions (LxWxH)(mm)425*240*320
Packing Size(LxWxH)(mm)410*298*55
Net Weight(kg)About 2.6
Gross Weight(kg)About 3

*Products such as specifications, appearance, and design are subject to modification without prior notice.

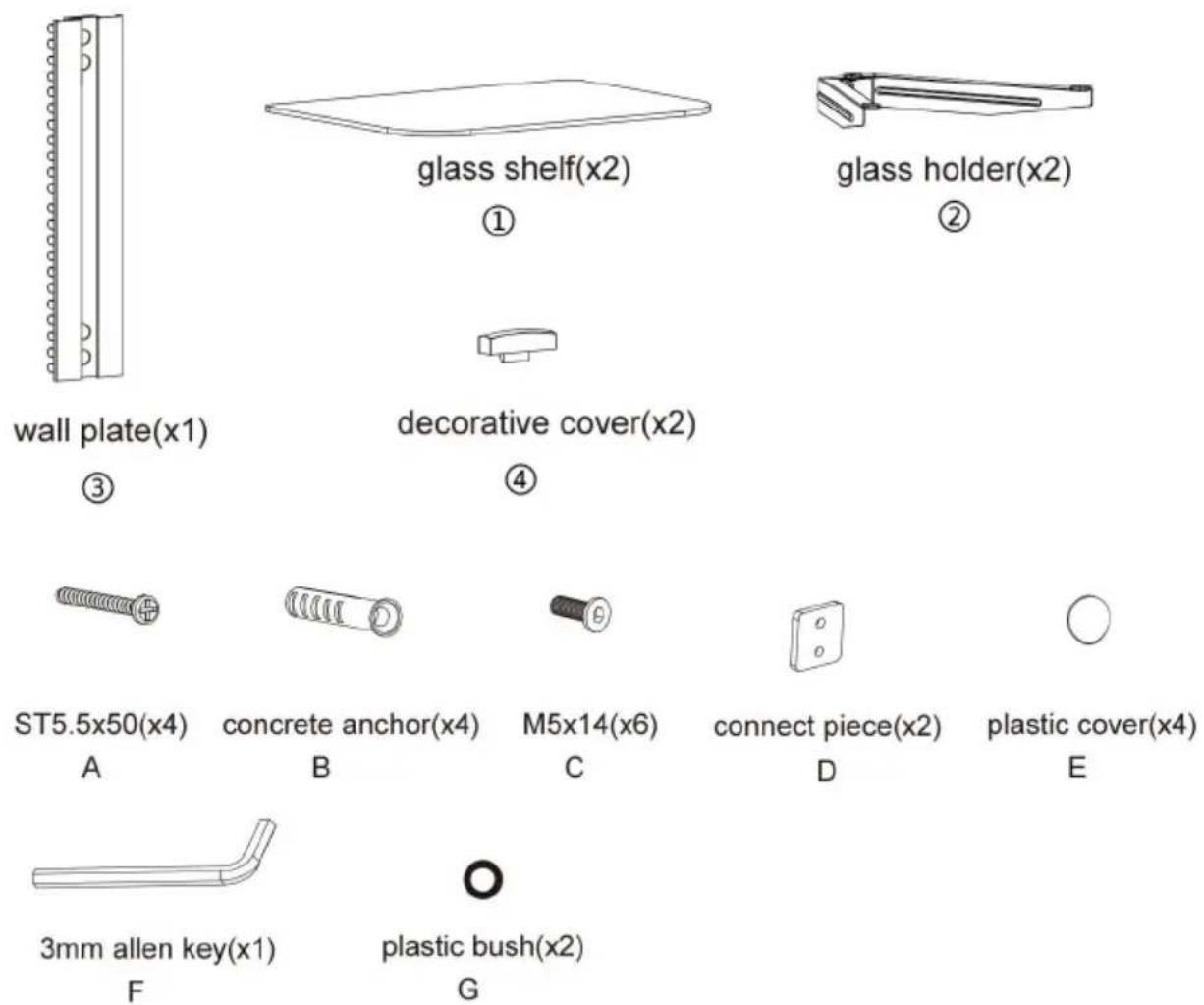

PACKAGE CONTENTS

Vevor CS202 - PACKAGE CONTENTS - 1

text_image glass shelf(x2) ① glass holder(x2) ② wall plate(x1) decorative cover(x2) ③ ST5.5x50(x4) concrete anchor(x4) M5x14(x6) connect piece(x2) plastic cover(x4) A B C D E 3mm allen key(x1) plastic bush(x2) F G

Tools required

  • Phillips Head Screw Driver (Length: 200mm (Excluding the Handle))
    ● Electric Drill and 8mm Masonry Bit for Concrete Wall Installati
  • Marking Pen
  • Hammer

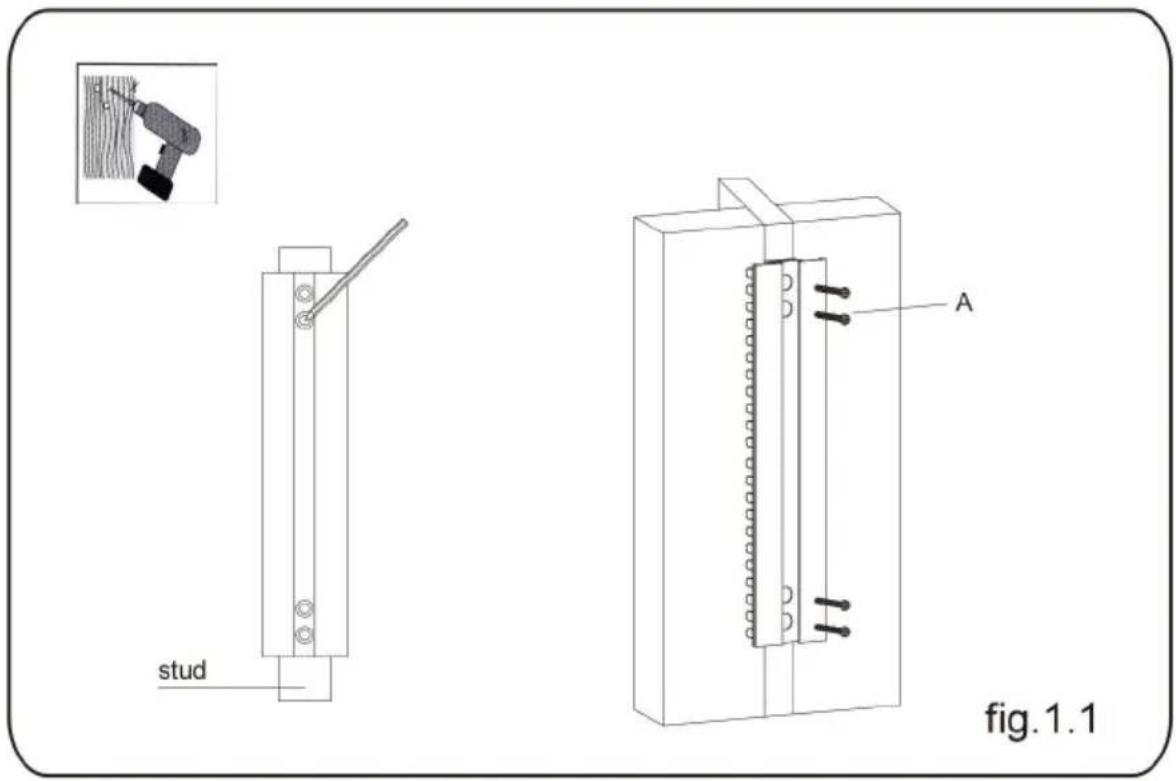

STEP1-a: WOOD STUD WALL MOUNTING:

  • Use a stud finder to locate the edges of the studs. It is high recommended to use an edge-to-edge stud finder. Draw a vertical line down the center of each stud based on their edges.
  • Place wall plate on wall as a template and mark the center of the four mounting holes. Make sure that the mounting holes on the centerline of stud.
  • Drill four 1/8" (3mm) diameter holes 1.2" (30mm) deep. Secur using four screws(A), make sure that the wall plate is level as in fig.1.1.

Vevor CS202 - STEP1-a: WOOD STUD WALL MOUNTING: - 1

text_image stud A fig.1.1

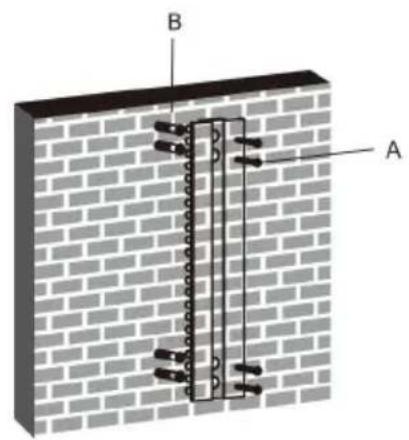

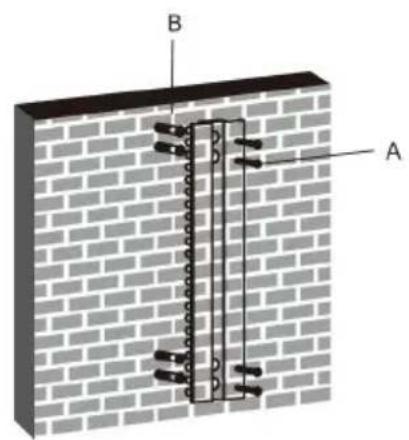

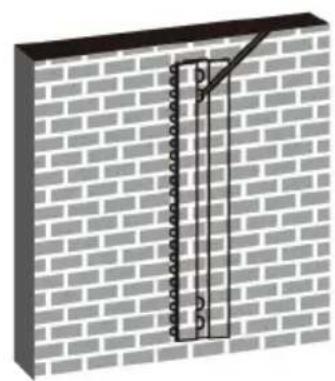

STEP1-b: SOLID BRICK AND CONCRETE BLOCK

MOUNTING:

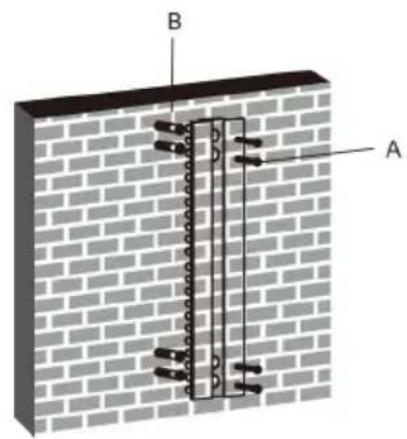

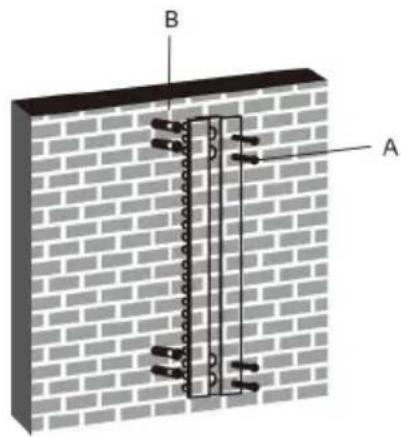

  • Use the wall plate as a template to mark locations of four h the wall as shown in fig.1.2.
  • Pre-drill these holes with a 8mm masonry bit, ensuring a die at least 50mm. Insert a Concrete Anchor(B) into each of these
  • Attach the wall plate to the wall using four screws(A), make that the wall plate is level as shown in fig.1.2.

Vevor CS202 - MOUNTING: - 1

Vevor CS202 - MOUNTING: - 2

natural_image Diagram of a brick wall with a vertical panel and diagonal line, no text or symbols present

Vevor CS202 - MOUNTING: - 3

text_image B A

fig.1.2

STEP2: ASSEMBLING THE GLASS HOLDER

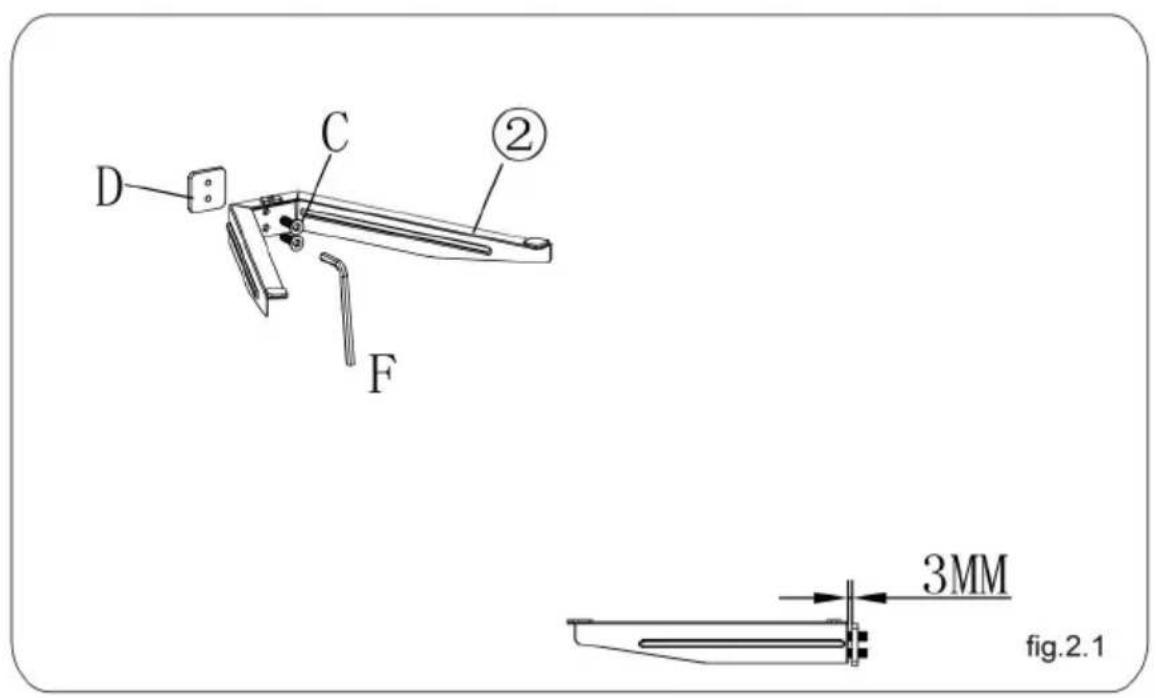

  • Attach the connect piece to the glass holder using two screw leaving a 3mm space as shown in fig.2.1.
  • Repeat the same method to assemble the other glass holder.

Vevor CS202 - STEP2: ASSEMBLING THE GLASS HOLDER - 1

text_image D C ② F 3MM fig.2.1

STEP3: INSTALLING THE GLASS HOLDER

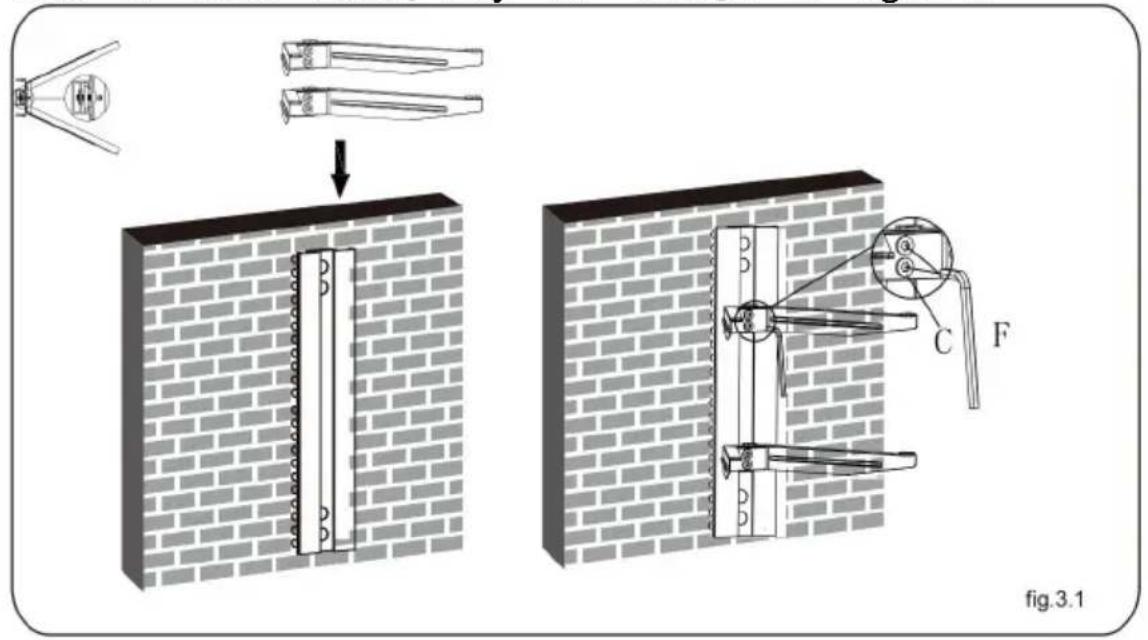

- Insert the two glass holders into the wall plate along the warail at the desired height respectively, and then tighten four screw with a 3mm Allen key as shown in fig.3.1.

Vevor CS202 - STEP3: INSTALLING THE GLASS HOLDER - 1

text_image Diagram illustrating a mechanical assembly process with labeled components and directional arrows, including a magnified view of the component being inserted into a brick wall.

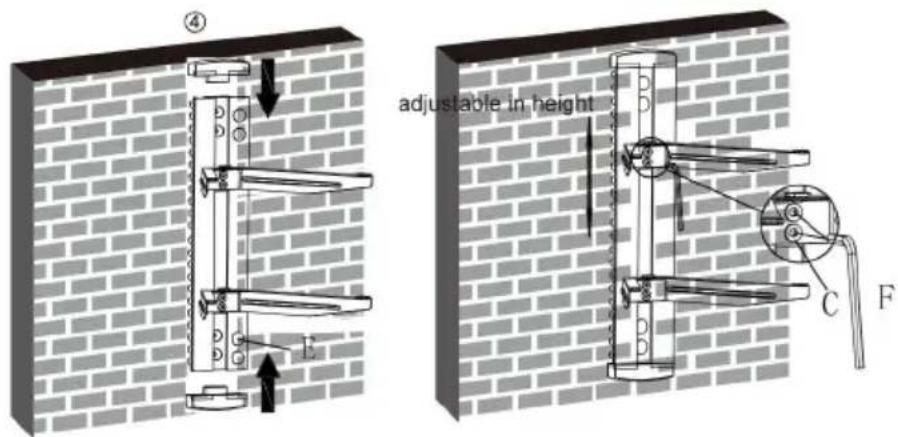

  • Insert two decorative covers to the top and bottom of wall p respectively and install four plastic covers as shown in fig.3.2.
  • You can adjust the height of the glass holders as needed. L the screws with a 3mm Allen key(but not remove) to adjust the

holders at the desired height and then tighten screws with a 3r Allen key as shown in fig.3.2.

Vevor CS202 - STEP3: INSTALLING THE GLASS HOLDER - 2

text_image ④ adjustable in height C F

hide cable
fig.3.2

STEP4: INSTALLING THE GLASS SHELF

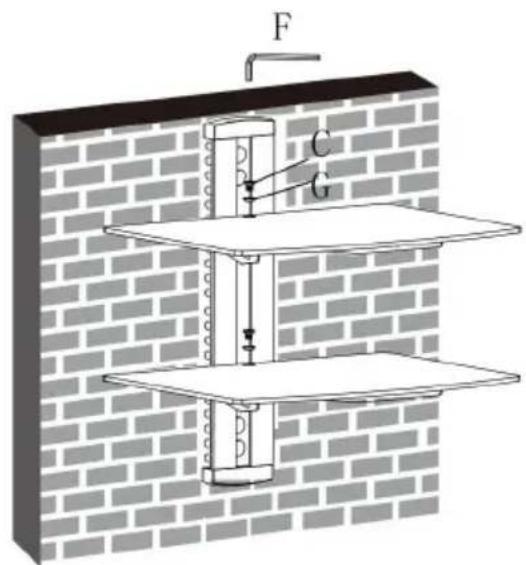

Place the two glass shelf gently on the two glass holders respect Attach the glass shelves to the glass holders using screws and plastic bushes, tightening screws with a 3mm Allen key but not completely at this time. Center the glass shelves over holes, securely tighten screws with a 3mm Allen key as shown in fig.4

Vevor CS202 - STEP4: INSTALLING THE GLASS SHELF - 1

text_image F C G

fig.4.1

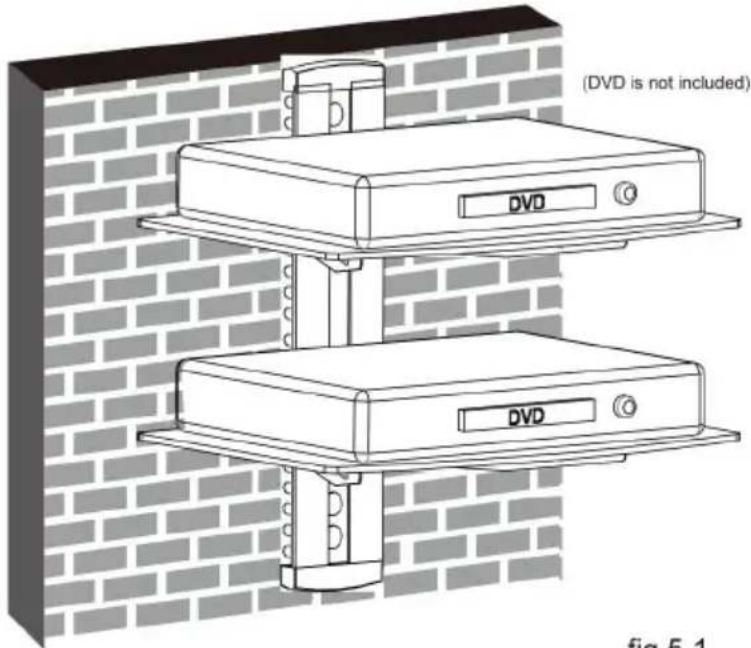

STEP5: CABLE MANAGEMENT

After installing the DVD wall mount, place DVD gently on the mounted glass shelves. Pull out the cable clip. Insert the cable any of the opening of the clip, with one end of the cable inse the clip. Insert the clip into the main pole. Take out the other the cable from another opening of the clip, then push the clip end of the main pole.

Vevor CS202 - STEP5: CABLE MANAGEMENT - 1

text_image (DVD is not included) DVO DVO fig 5.1

fig.5.1

Maintenance

- Once you have mounted the DV bracket, ensure that it is securely fastened and safe to use. Check t tightness of screws every two mont - If you have any doubts regarding installation, please consult our retail or service department for details.

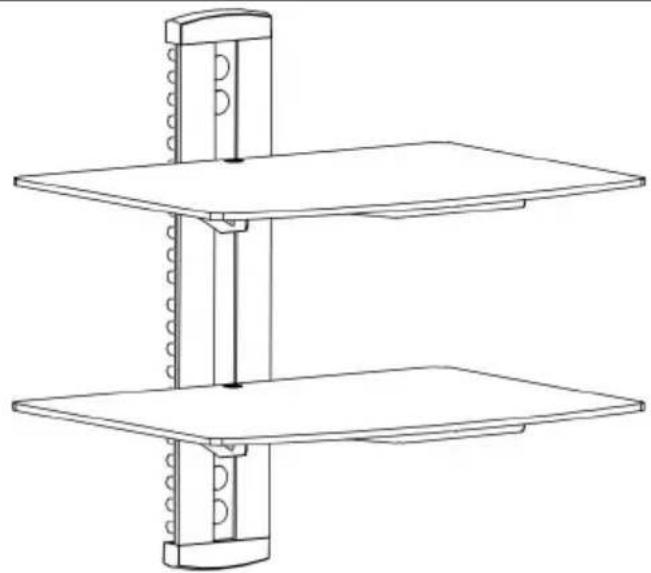

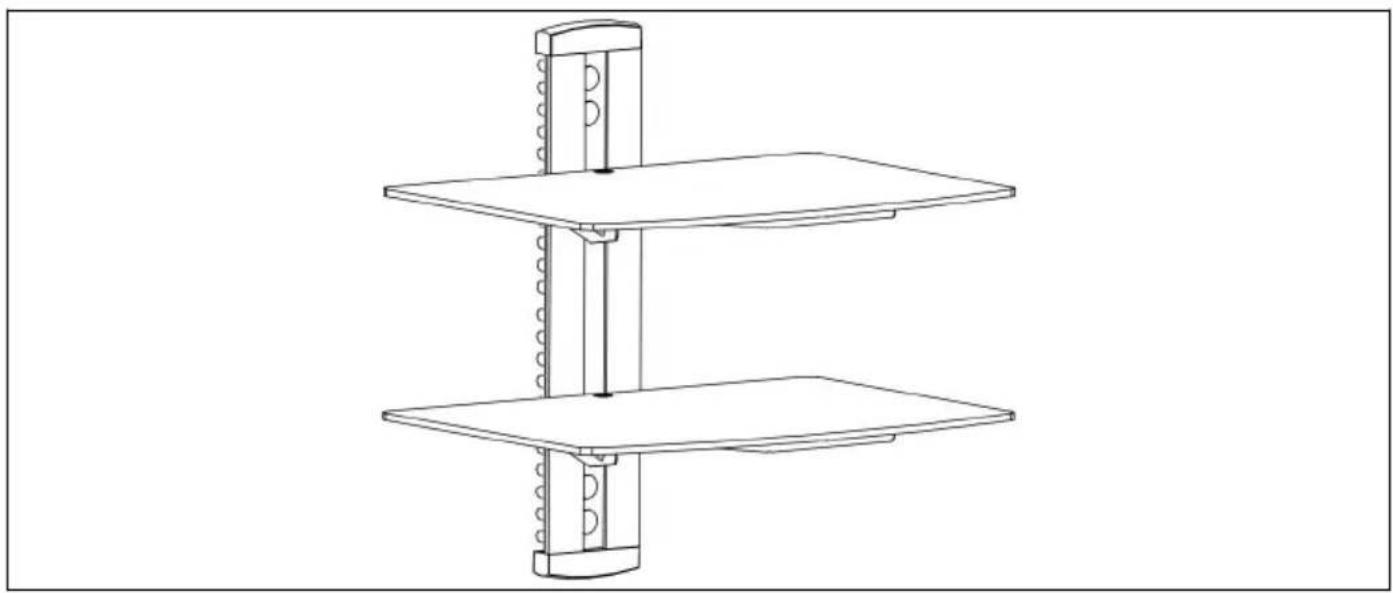

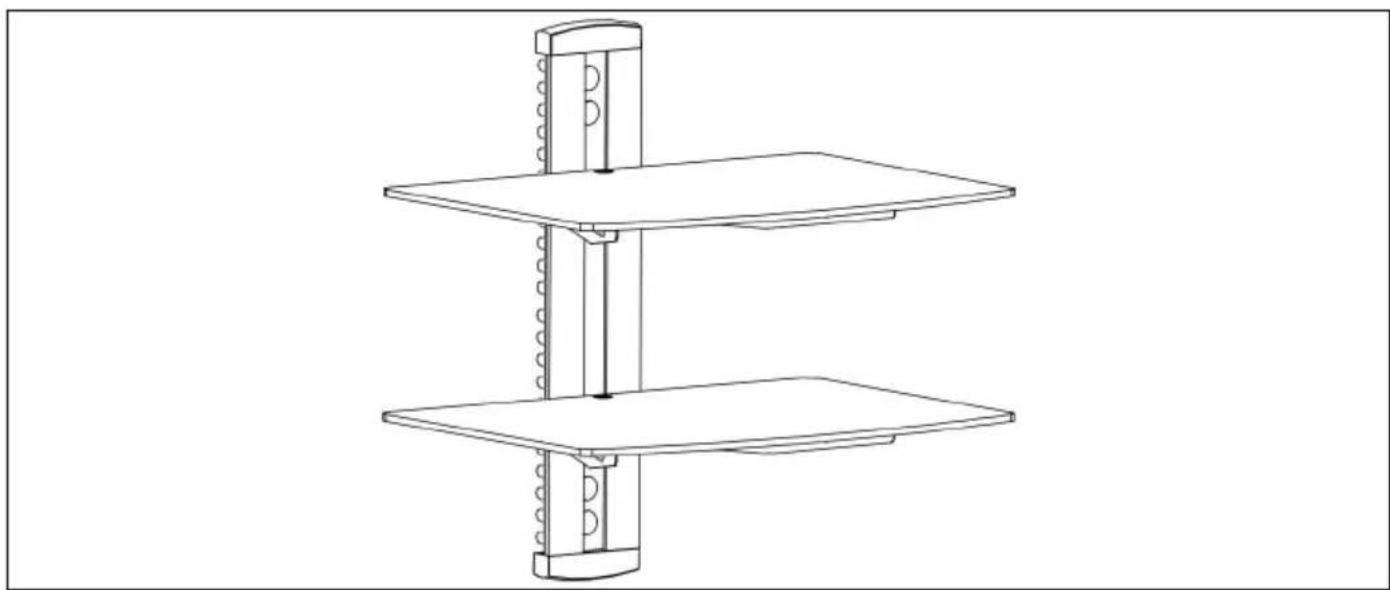

COMPLETION
Vevor CS202 - Maintenance - 1

natural_image Line drawing of a two-tiered shelf assembly with vertical supports and a central vertical mount (no text or symbols)
