USER MANUAL BASIC3500-2-7P Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC TRAILER JACK

MODEL: BASIC3500-2-7P

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

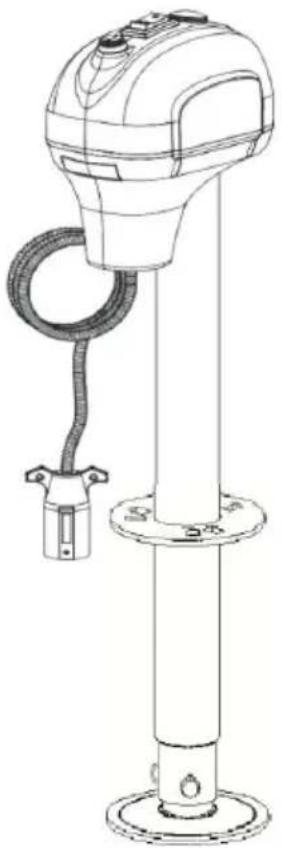

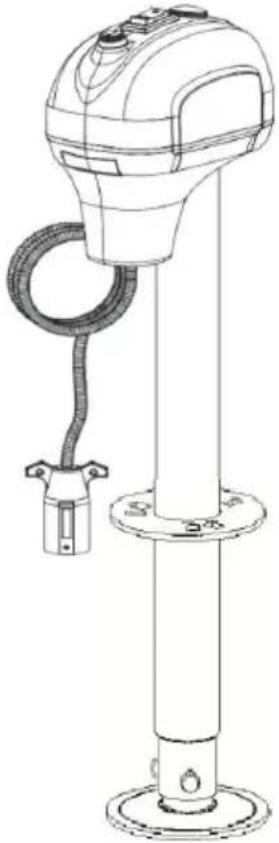

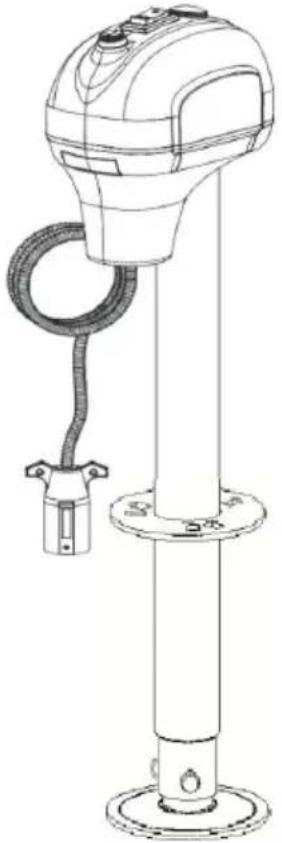

ELECTRIC TRAILER JACK

MODEL:BASIC3500-2-7P

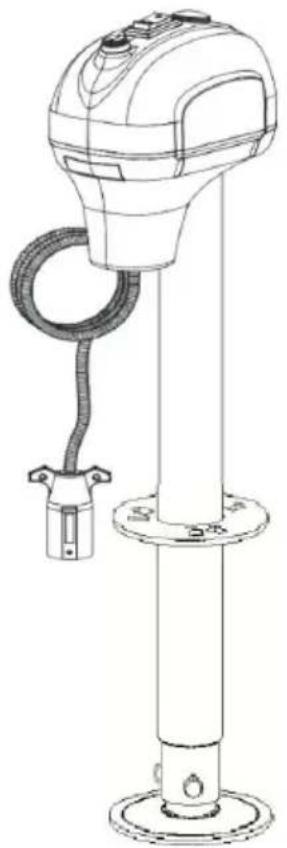

Line drawing of a portable electric vehicle with a cylindrical base and attached cable (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. The “WARNING” symbol above is a sign that a service or maintenance procedure involves a safety risk and may cause death, serious injury if not performed safely and within the parameters so forth in this manual.

2. Always wear eye protection when performing service or maintenance to the vehicle. Other safety equipment to consider would be heart protection, gloves and possibly a full face shield, depending on the nature of the service.

3. Never allow anyone unfamiliar with this product to install, operate or service this product.

4. Never lift or level the trailer without a properly installed footpad.

5. Never crank the jack or couple the trailer without preventing the train from rolling.

6. Never exert excessive side forces on the trailer jack.

7. Never allow anyone, including the operator, to put any body parts under the trailer jack or the supported load during jack operation.

8. Never exceed the load capacity!

9. Never use trailer jack to lift the trailer for service or tire change.

10. Never move the trailer before the trailer jack is fully retracted.

11. Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the jack.

12. Do not use the jack where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. The jack can create sparks, which may ignite the flammable liquid gases, or dust.

13. For use on flat, level, hard surface capable of supporting load.

14. Do not use blocks for additional ground clearance.

15. When using the drop foot or drop leg, make certain the supplied fully inserted through both sides of the inner tube and the drop before using the jack.

16. If the trailer jack has a drop leg, never attempt to adjust the dr

when there is any load on the jack.

Note:

1. The jack is designed for vertical movement of the trailer only.
2. Rapid and continuous lifting is not recommended to avoid gear heating and reduce service life.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a crossed-out wheeled bin indicates that the product requires separate refuse collection in the European Union. This symbol applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste but must be taken to a collection point for recycling electrical and electronic devices.

MODEL AND PARAMETERS

Model	BASIC3500-2-7P
Max. Capacity	3500 lbs
Input	DC 12V
Maximum Current	29 ± 1A
Maximum Power	350W
Mounting Bracket Type	A-Frame Mounting Bracket
Range	9.5-32"
Screw Travel	18"
Drop Leg Travel	4.5"(4-hole)
The Distance between The Two Holes in Drop Leg	1.5"
Height of MountingSupport fromGround(1-hole)	9.5"(lowest) / 27.5"(highest)
Lifting Time	107±2s(No load)
Outer /Inner Tube Dia.	2-1/4" (Black) / 2" (Zinc)
Foot Size	5.5" (Round)
Minimum Product Height	29.7"(Total Product Height)

STRUCTURE DIAGRAM

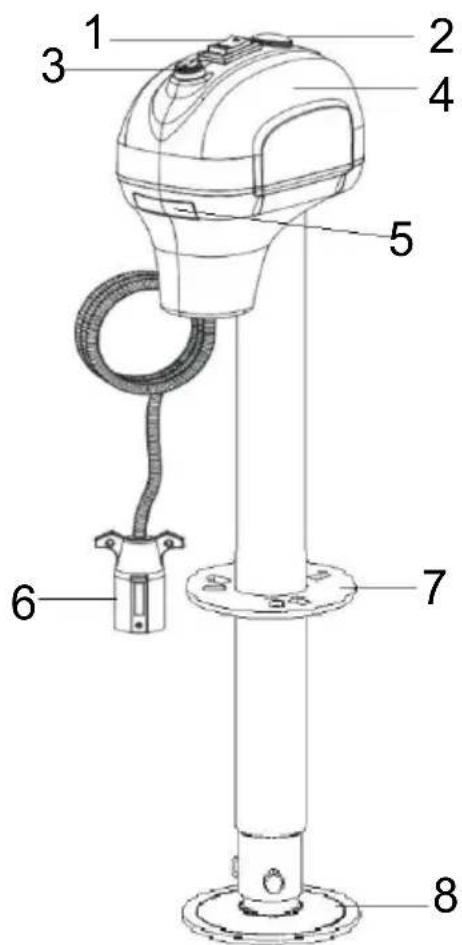

Labeled diagram of a portable electric shock absorber with numbered parts for identification.

1. Up & Down Switch
   2.Rubber Cap over Manual Cran Access
   3.Light Switch

2. Plastic cover

3. LED light
   6.7-way Plug

4. Mounting Plate
5. Extension Foot Pa

COMPONENTS

No.	Picture	Name	Qty
1		Electric Trailer Jack	1
2		Manual Crank Handle	1
3		Waterproof Sunshade Bag	1
4		User Manual	1

ASSEMBLY

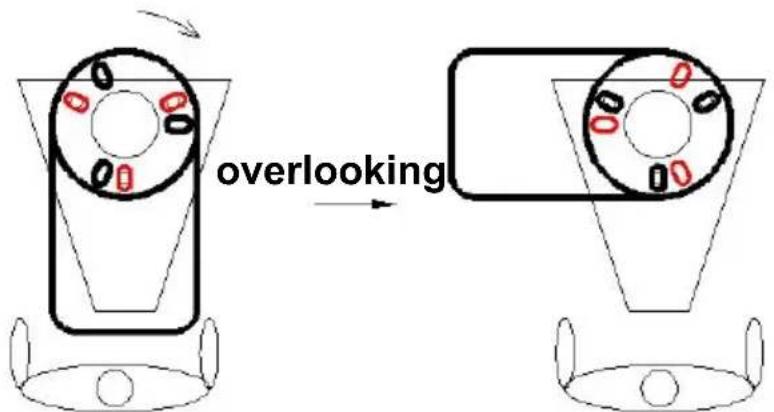

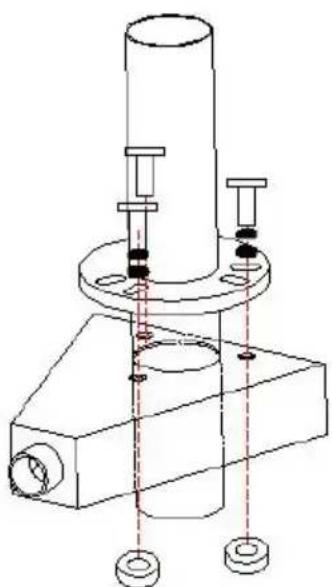

Technical line drawing of a mechanical assembly with cylindrical components and mounting base (no text or symbols)

1. When mounting trailer jack, it is best to hook it up to the tow v make sure the trailer is secure.
2. Mount jack based on drawing shown above. The Motor orientation can be selected as shown below.

overlooking

Rotate 90 (Clockwise)

Note: Select mounting holes as required.(Figure above)

1. Slide A-frame jack through hole on top of A-frame coupler.
2. Line up the three slotted holes on jack mounting plate to the three holes in the coupler.
3. With three bolts and nuts (Must be purchased by the user.) secur jack tightly to the top of the a-frame coupler. (Regularly check to ensure bolts/nuts are tightened securely.)

OPERATION

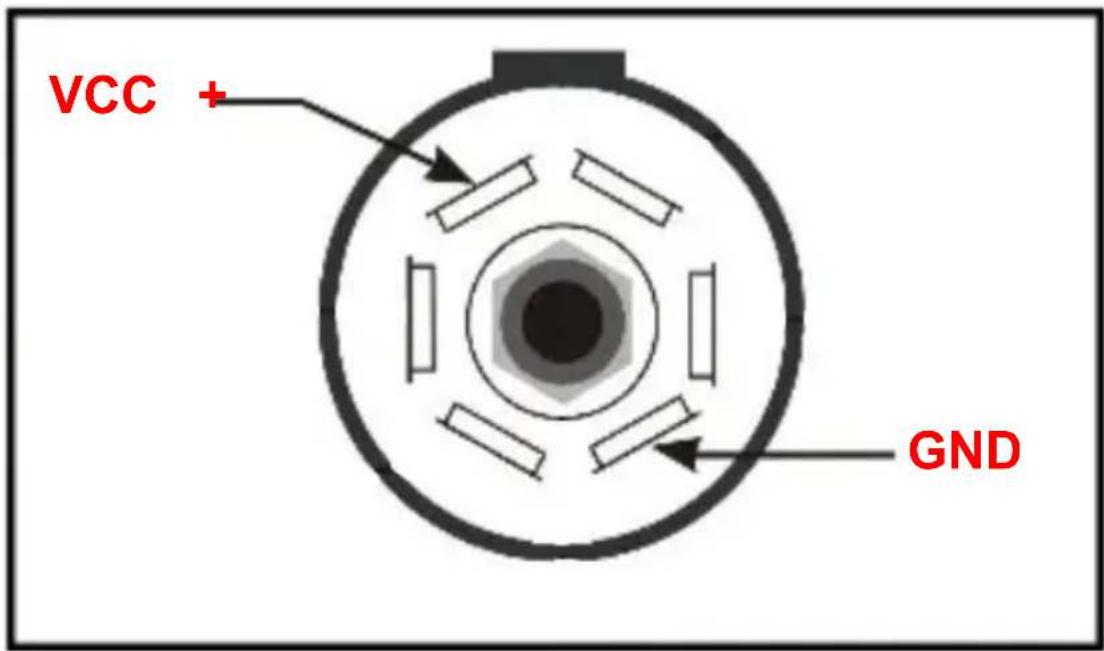

1. The input voltage of this product is DC12V, and the 7-star plug is positive/ground as shown below.

VCC + GND

Warning: Be sure to note that the ground wire corresponds to the g wire of the 7-star plug on the car! If not, adjust the wiring by yours

1. Inching to test light switch and up and down switch.

2. Install foot plate after lifting it to appropriate height.

3D rendering of a conical metal object with perforated holes and a base (no text or symbols)

1. Lower the foot plate onto a hard floor/pad.

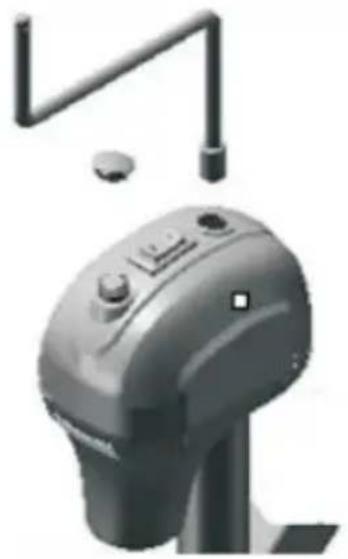

2. If necessary, remove the rubber cover and manually pull up the dry top.

3D rendered image of a gray industrial machine with control buttons and a handle (no visible text or symbols)

Failure	Possible Cause	Corrective Action
Motor will not operate.	No or low voltage.	Check battery and electrical connections. Must have minimum c 10 VDC. If the battery is low, plus trailer cable into the tow vehicle, start the tow vehicle to provide po to the jack.
	Poor grounding.	Clean area between the jack mounting plate and coupler, and ensure paint has been removed by the star washers.Direct metal-to-metal contact must exist between mounting components to ensure good electric contact.
	Loose wires on ON/OFF switch.	Secure wire connections.
	ON/OFF switch is	Replace switch.
	Faulty motor.	Replace motor.
Light doesn’t work.	Loose wires on the ON/OFF switch.	Secure wire connection.
	Bad light bulb.	Replace bulb.

MAINTENANCE

1. Occasional cleaning with mild soap and water along with light oil lubrication of pivot points will prolong peak performance and appearance.
2. Periodically check whether the screws are loose.
3. Before each use, inspect jack tubes and replace them if bent or damaged.
4. If wiring is connected to battery terminal, inspect at least twice each year for corrosion. Clean with a solution of baking soda and water and then apply a thin coat of grease.
5. Maintain the product by adopting a program of conscientious repair and maintenance in accordance with the following recommended procedures. It is recommended that the general condition of any t be examined before it is used. Keep your tool in good repair. Ke handles dry, clean, and free from oil and grease. The following c based on a normal operation schedule.

Maintenance Interval	Maintenance Point
Daily before operating	1.The powered A-frame jack motor is sealed an maintenance-free.2.Before each use, inspect jack tubes and repla them if bent or damaged.3.Ensure all connections are tight and free of corrosion and that the jack is properly ground coupler (metal-to-metal contact).4.If necessary, wash with mild soap and water rinse thoroughly. The motor ground screw and mounting bolts must also be cleaned if a grou continuity problem occurs.
After the first 20 operating hours	Fully extend the jack and clean the inner jack
After the first 50 operating hours or every week	Fully extend the jack and clean the inner jack
Every year	Fully extend the jack and clean the inner jack once per year. After cleaning, coat the tube wilight grease or silicone spray lubricant.
