USER MANUAL BRL-1160 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RED LIGHT THERAPY FOR SHOUIDER NECK

MODEL: BRL-1160

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

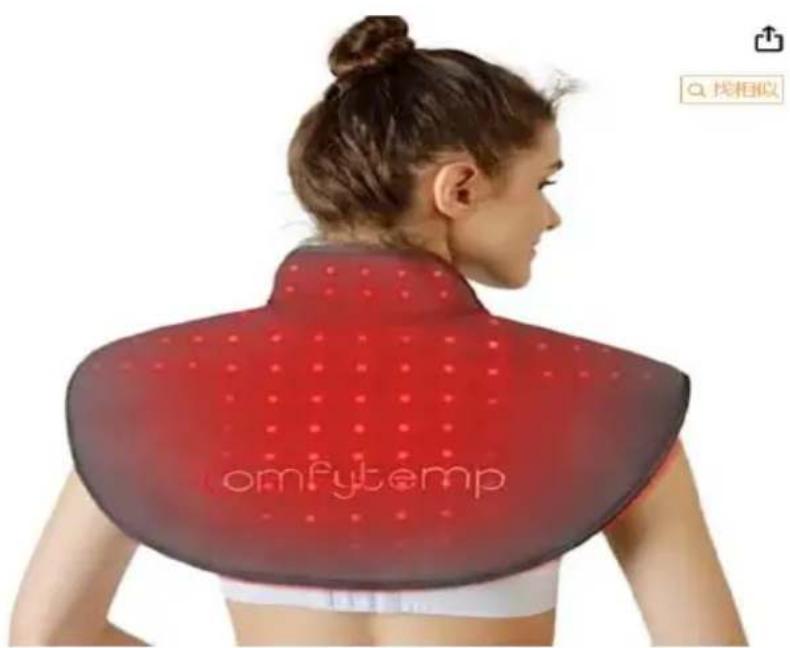

RED LIGHT THERAPY FO

SHOUIDER NECK

MODEL: BRL-1160

omfytemp

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

CORRECT DISPOSAL

This product is subject to the provision of europea Directive 2012/19/EU. The symbol showing a wheel crossed through indicates that the product requires separate refuse collection in the European Union. It applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be to a collection point for recycling electrical and elect devices.

Red Light Therapy for Shoulder Neck User Manual

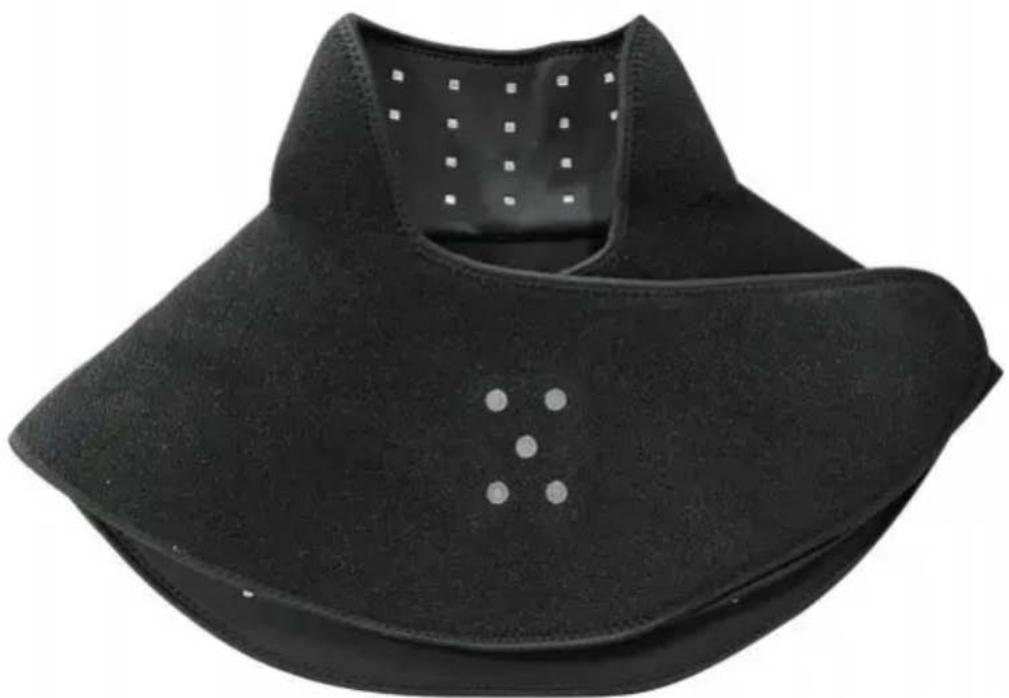

Black textured garment with a circular dot pattern and a grid-patterned top (no text or symbols visible)

Thank you for purchasing our product, please read the manual before use.

INTRODUCTION

Welcome to the world of advanced healing with our Red Light Therap Shoulder Neck. This cutting-edge device employs a combination of 660 red light and 850nm near-infrared light to deliver targeted relief for yc skin, muscles, and joints.

Thank you for choosing us. We hope you will enjoy your new red li therapy device!

This manual contains the information necessary for you to become far with and ensure safe use of the device.

We kindly advise you to read this information carefully before using the device.

Working Principle

Red light therapy devices work by emitting red light at a wavelength 660nm and near-infrared light at a wavelength of 850nm.

These lights penetrate deep into the skin, producing numerous health benefits.

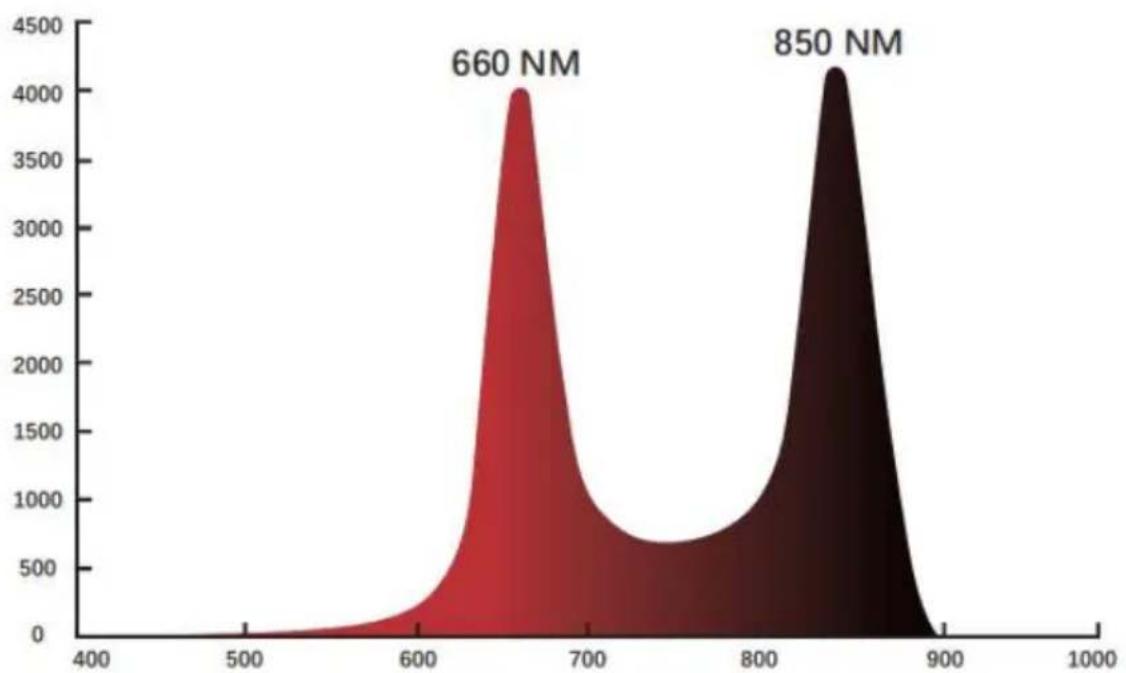

Fig 1. Red and near-infrared spectrometer

Many of these benefits are due to the fact that the red and near-inflight activates various metabolic path ways that lead to increased production of ATP(adenosine triphosphate).

The production of ATP enhances cellular signaling and improves protein synthesis. Red and NIR light therapy has been shown to be effective, wide range of health issues, including but not limited to, the following:

• Repairing skin
• Reducing the formation of scars
• Promoting blood circulation
• Boosting cellular activity Enhancing fitness results
  ● Accelerating wound healing
  ● Relieving muscle soreness and fatigue

Benefits of the Red Light Therapy

Red Light (660nm): Red light penetrates the skin, stimulating cellular activity and enhancing blood circulation. Lt is known for promoting skin health, reducing inflammation, and aiding in wound healing.

PACKING LIST

Black fabric hat with dotted pattern and three dots on front (no text or symbols)

Red Light Therapy for Shoulder Neck

Power controller*1

Type-C power cord*1

Storage Bag*1

SPECIFICATIONS

Size	24 * 21 inch
Power	P1=6W,P2=8W,P3=10W
Led qty	140PCS
Mode	660nm:850nm
Battery capacity	3000mAh
Timer	10/20/30min
Charging parameters	USB-C 5V2A

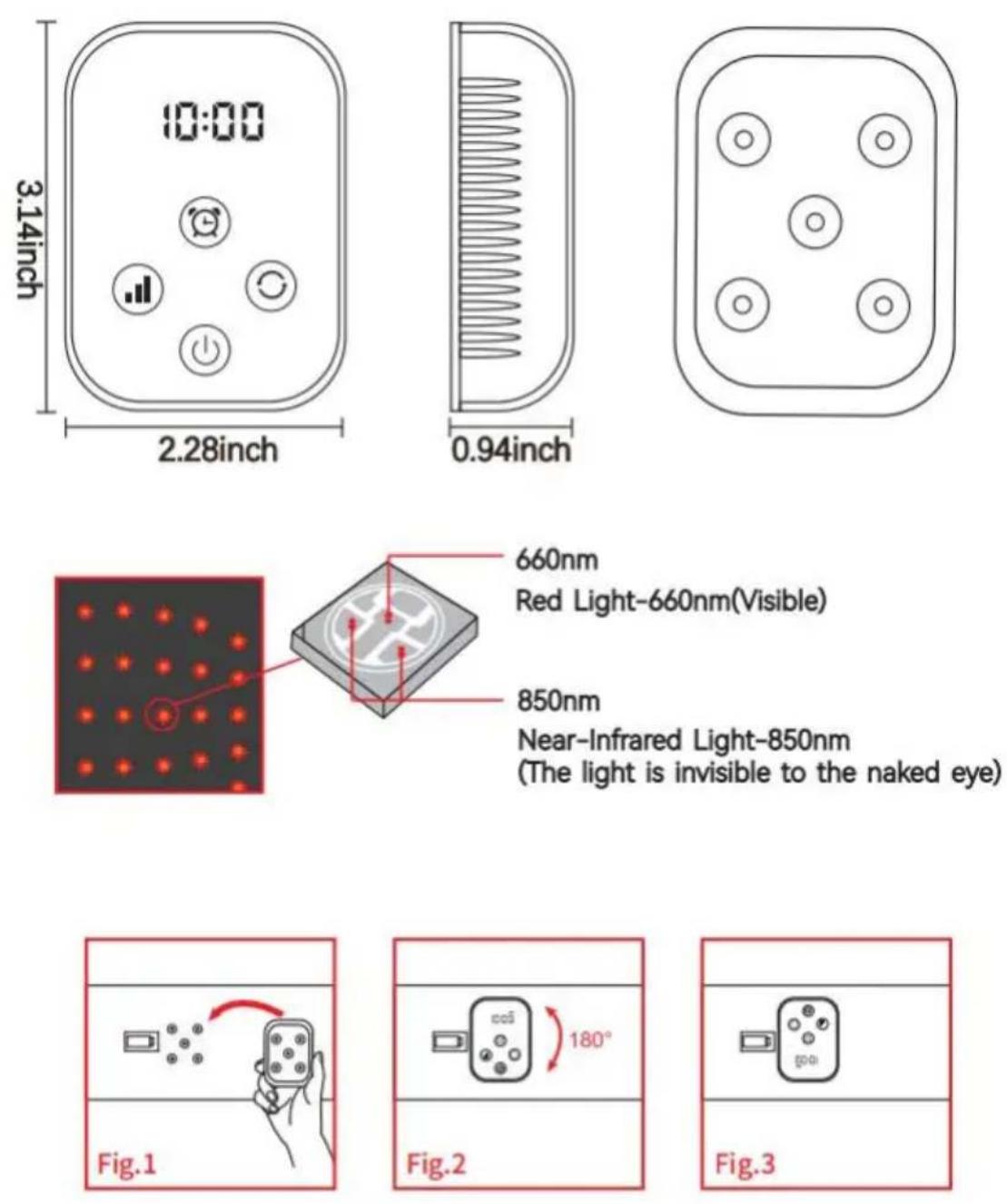

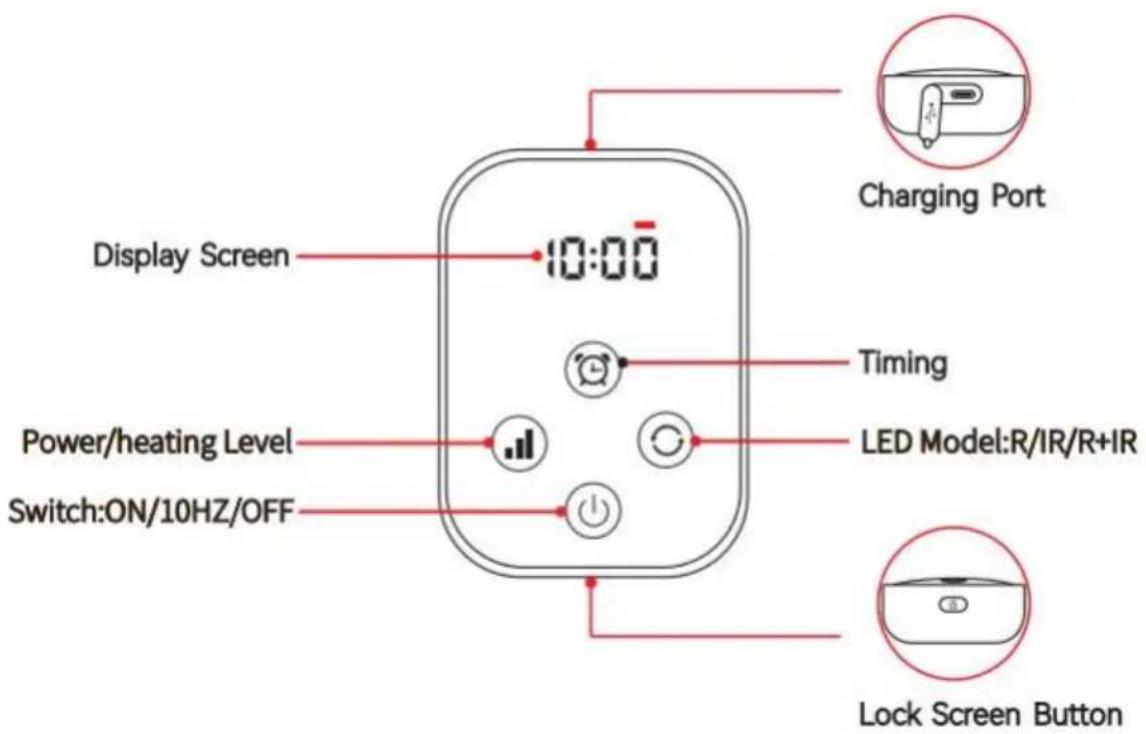

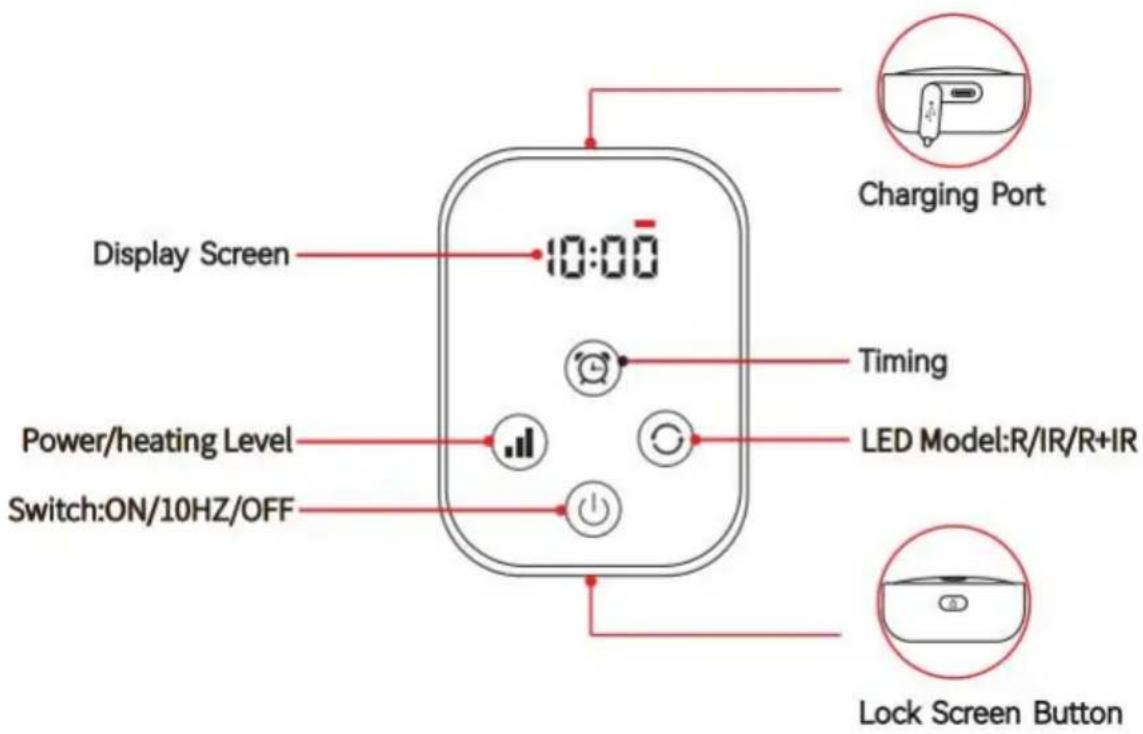

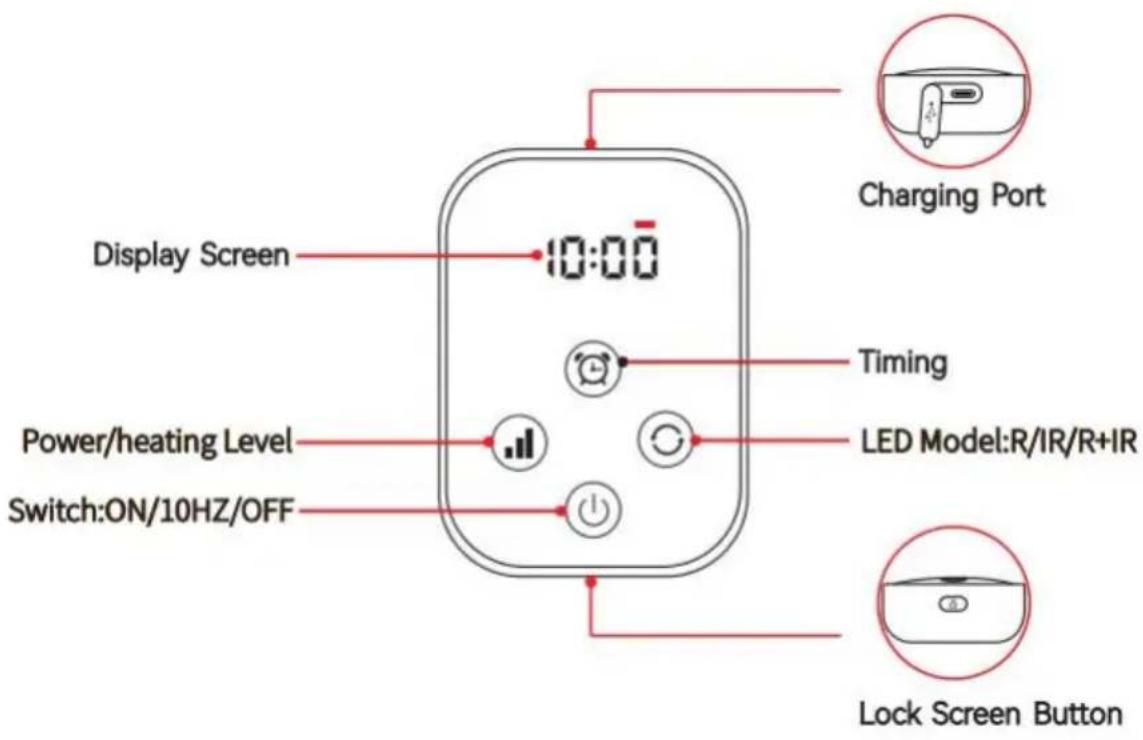

Display Screen 10:00 Timing Power/heating Level Switch:ON/10HZ/OFF LED Model:R/IR/R+IR Charging Port Lock Screen Button

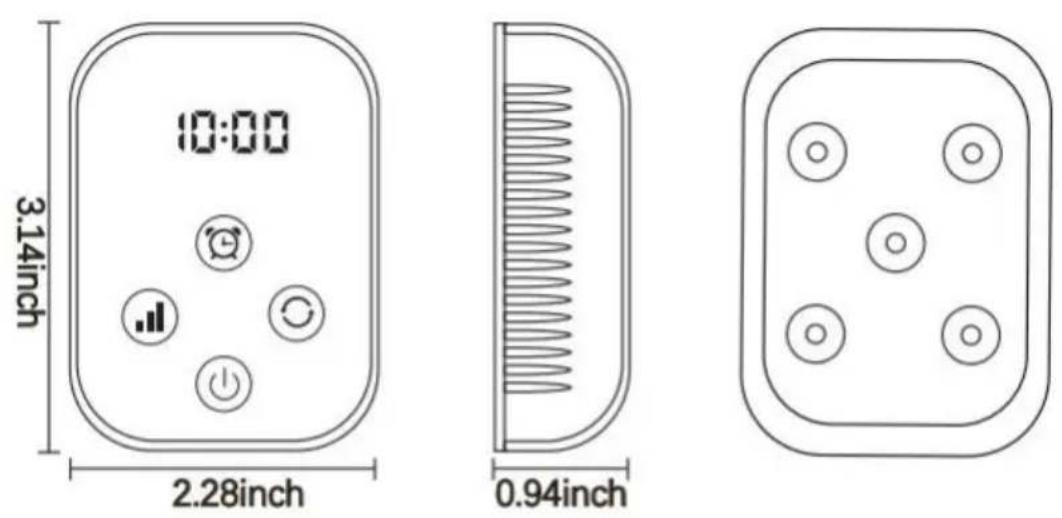

10:00 3.14inch 2.28inch 0.94inch

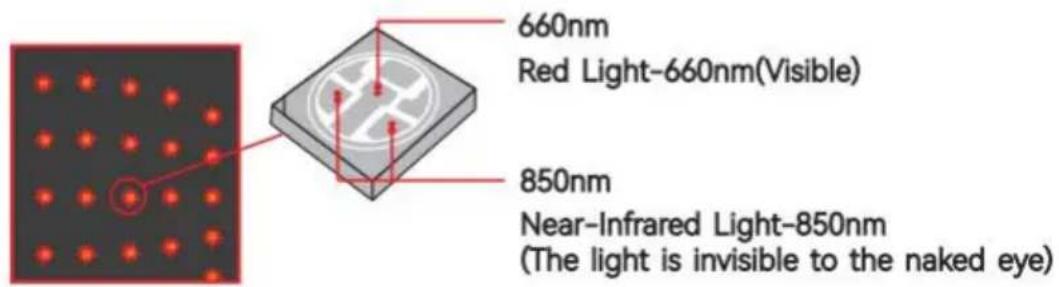

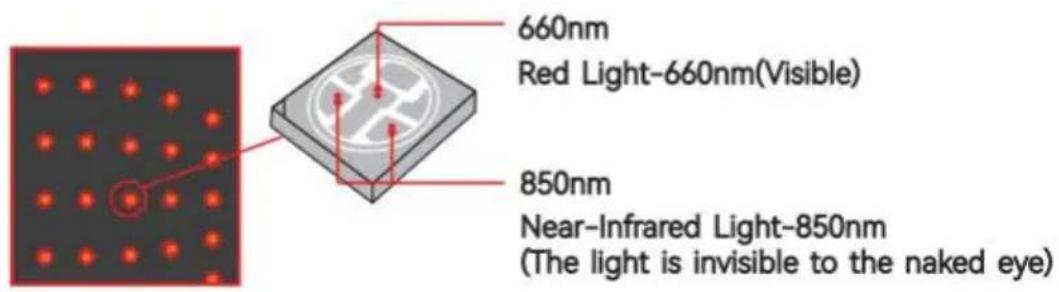

660nm Red Light-660nm(Visible) 850nm Near-Infrared Light-850nm (The light is invisible to the naked eye)

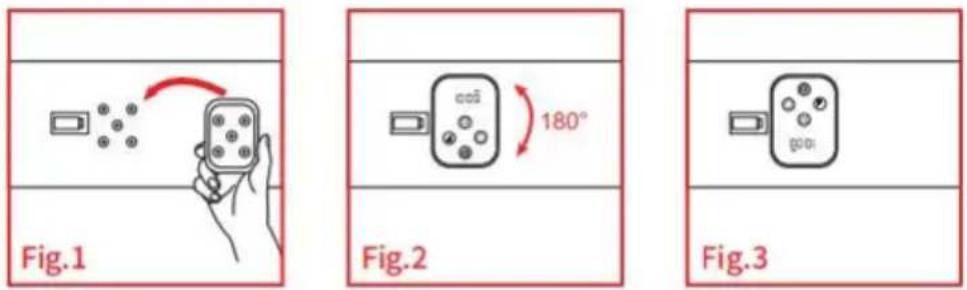

Fig.1 Fig.2 Fig.3

Instructions for Use

1. Charging:

Use the included Type-C cable with a 5V/2A adapter to fully charge device (the red light flashes during charging and turns blue when fully charged).

2. Assembly:

Connect the power controller to the five magnetic buckles on the their pad.

3. Activation:

Press and hold the power button for 2 seconds to switch on the device starts in "ALL Mode," activating both 660nmand 850nm LEDs for 10 minutes.

4. Adjust Settings:

Power Level: Use the level button to select between P1(6W).P2 (8W), P3 (10w).Mode Selection: Toggle between "ALL Mode" and "10HzPulse Mode."Vibration Intensity: Adjust from L1-L3 or turn vibration off.Timer: the session length for 10, 20,or 30 minutes.

5. Shutdown:

Press and hold the power button for 2 seconds to turn off the devic

device will automatically shut down once the timer ends.

6. Lock/Unlock Screen:

Use the lock screen button to prevent accidental touches, Press again unlock.

Notice:

The display screen will automatically switch to the timer after 5second without operation.

The screen will turn off if there is no operation for 10 seconds.

The power indicator remains lit, and the device continues working.

The power controller can light up the screen by pressing any button the screen is off, and pressing a specific button will display the current mode.

The average running time of the device is 1-2 hours, depending on level you use. Charging time is about 2 hours. The power indicator turn when the remaining power is about 20%. Please charge the device promptly. This device cannot be used during charging. Fully charge the device before long-term non-use to protect the battery.

Daily Maintenance

The device will generate a lot of heat energy during use, which can sweating with long-term skin contact. To facilitate cleaning and prevent sweat from eroding the LEDs and shortening their lifespan, it is recommended to simply wipe the surface of the LEDs with a dry tow use. (Please keep the LED panel and power controller out of water.)

Cautions

• Do not look directly into the red light when the device is working. Prolonged exposure to the red light may harm your eyes.
• Do not wear metal accessories in the use area to avoid metal heat

which can burn the skin.

• Do not use the device in combination with ointments, creams or of topical pain relievers that contain febrifuge ingredients.
• Do not expose the equipment to sunlight and keep it away from h and water sources.
• Do not use equipment other than those provided by us. For adult u only. Children should not play with the device without adult supervision.
• Please follow the recommendations in the user manual.
• Do not disassemble or alter the device in any way. Lmproper disassembly or reassembly may result in the risk of short-circuiting electric shock, or exposure to battery chemicals.
• Do not leave the device working unattended.
• For storage and travel, please keep the power off and keep out a reach of children.

To protect the environment, please dispose of this product properly in accordance with local laws and regulations.

Troubleshooting

You may encounter the following problems. If the device still does not after troubleshooting, please contact customer service or the seller for technical support. Please do not attempt to repair it yourself.

Issue	Possible Reason	Solution
Unable to charge	The charger is not compatible.	Make sure to use the original power cord with a 5V/2A adapter.
	The power cord is not plugged in tightly.	Ensure the power cord is securely attached.
Don’t turn on	The battery runs out.	Please charge the device.
	The power controller is not installed properly.	Please check the power controller and ensure it is installed correctly.
Stop working during use	The battery runs out.	Please charge the device.
	The Smart timer turns off the device automatically.	Please turn it on again and adjust to the time you need.
	The power controller contact surface is loose.	Please check the power controller and ensure it is installed correctly.
Battery runs out quickly.	Insufficient battery before use.	Please charge the device.
	The device works under the highest power for a long time.	This is due to the different voltage and current outputs of the battery pack at different power levels. The device lasts for 1 hour at the highest power and up to about 2 hours at the lowest power. Please refer to the suggestions in (Photobiomodulation Guidance) and use it in a reasonable way for better performance.

Some LEDs do not work.	Turn on the ALL (660nm+850nm) modes.	The 850nm wavelengths is invisible to the naked eye in normal environments. It is only a faint red dot at most that can be seen within darker environments. It can actually provide a lot of energy, please feel free to use it.
Button does not respond.	Not pressed correctly.	Make sure to press the button firmly.
	The device crashes.	Please press and hold the lock screen button for 5s to shut down the device forcibly and turn it on again.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
