Product Type	Red Light Therapy Belt
Model	BRL-1150
Brand	Vevor
Wavelengths	660 nm (red light) and 850 nm (near infrared)
Operating Modes	All mode (660+850 nm) and 10 Hz pulse mode
Power Levels	P1, P2, P3 (3 levels)
Timer	10, 20 or 30 minutes
Vibration	L1, L2, L3 or off (LOFF)
Power Supply	5V / 3A adapter
Battery Life	1 to 2 hours depending on level used
Charging Time	About 3 hours
Charge Indicator	Red light flashes during charging, solid blue when fully charged
Cleaning and Maintenance	Wipe the LED surface with a dry towel after use; do not expose to water
Usage Precautions	Do not look directly at LEDs, do not use with metal accessories, do not use with heating ointments or creams
Screen Lock	Long press the lock button to lock/unlock; press and hold >5s to reset
Compliance	FCC Part 15, WEEE Directive 2012/19/EU
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Package Contents	Therapy belt, power controller, power cable with 5V/3A adapter, user manual

Frequently Asked Questions - BRL-1150 Vevor

How to charge the BRL-1150 device?

Use the provided power cable with the 5V/3A adapter. Plug it into the device and a wall outlet. The red light flashes during charging and turns solid blue when the battery is fully charged. Charging time is about 3 hours.

What are the available wavelengths and their benefits?

The device emits two wavelengths: 660 nm (red light) and 850 nm (near infrared). Red light (660 nm) is absorbed by the skin, stimulates blood circulation and collagen production. Near infrared light (850 nm) penetrates deeper into tissues, muscles, and joints to reduce inflammation and relieve pain.

How to adjust the power level?

Press the Level button to cycle through P1, P2, and P3. P1 is the lowest, P3 the highest. Note that light intensity cannot be adjusted in 10 Hz pulse mode.

Can I use the device while charging?

No, the device cannot be used while charging. Please charge it fully before use.

How to clean the therapy belt?

After use, simply wipe the LED surface with a dry towel to remove sweat. Do not let the LED panel or power controller come into contact with water.

What is the battery life?

Average battery life is 1 to 2 hours, depending on the power level used. The battery should be fully charged before long periods of non-use.

How long is a recommended session?

A typical session is 15 to 20 minutes per day. You can set the timer to 10, 20 or 30 minutes according to your needs. Results are visible within three weeks.

What to do if the touch screen stops responding?

If the touch screen fails, press and hold the screen lock button for more than 5 seconds to reset the device.

Can I use the device on an area with piercings or metal jewelry?

No, do not wear metal accessories in the treatment area to prevent the metal from heating and burning the skin.

Where to find help in case of technical issues?

Contact VEVOR technical support via www.vevor.com/support for assistance. Do not attempt to repair the device yourself.

USER MANUAL BRL-1150 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RED LIGHT THERAPY BELT

MODEL: BRL-1000 BRL-1150 BRL-1180

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: BRL-1000 BRL-1150 BRL-1180

Black digital camera with red LED ceiling and digital display showing 1:04, no visible text or symbols on device body

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

CORRECT DISPOSAL

This product is subject to the provision of europea Directive 2012/19/EU. The symbol showing a wheel crossed through indicates that the product requires separate refuse collection in the European Union. It applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be to a collection point for recycling electrical and elect devices.

Red Light Therapy Belt User Manual

Woman performing a stretching exercise outdoors, wearing athletic wear (no visible text or symbols)

INTRODUCTION

Red light therapy has a wide variety of applications and health benefit stimulates cells in the target area non-invasively, promoting blood circulation and alleviating pain and discomfort.

Our belt is designed for targeted treatment of various body areas. Whether you seek muscle recovery, improved skin texture, or enhance energy levels, this product meets your needs. It's amulti-functional solu for holistic well-being, helping you revitalize you rentire body. With our Light Therapy Belt, you can experience myriad therapeutic benefits from the comfort of your own home.

- Red light therapy mode: 660nm red light is absorbed by the skin high rate making it especially effective for improving blood circulation and stimulating collagen and elastin production, which reduces the appearance of fine lines and wrinkles. Red light therapy tightens pc smooths skin tone, and reduces symptoms of eczema and psorias such as redness, itching, flaking, and swelling.

- Near infrared therapy mode: 850nm infrared (IR) light penetrates deeply into tissue, organs, and joints to decrease inflammation,relie pain, and repair cells. Use it every day for 15-20 minutes and so results within three weeks. It is lightweight, folds up small,and sup multiple power options, making it perfect to take with you on the go.Enjoy performance recovery and pain relief anytime,anywhere!

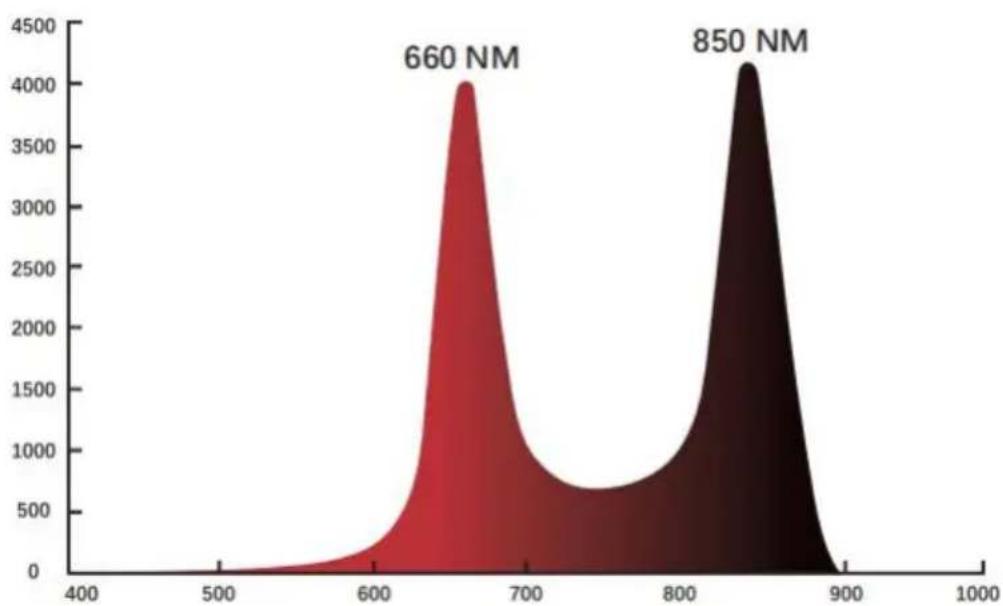

Fig 1. Red and near-infrared spectrometer

Many of these benefits are due to the fact that the red and near-inflight activates various metabolic path ways that lead to increased production of ATP(adenosine triphosphate).

The production of ATP enhances cellular signaling and improves protein synthesis. Red and NIR light therapy has been shown to be effective wide range of health issues, including but not limited to, the following

• Repairing skin
• Reducing the formation of scars
• Promoting blood circulation
• Boosting cellular activity
  ● Enhancing fitness results
• Accelerating wound healing
  ● Relieving muscle soreness and fatigue

Black rectangular object with a central dot pattern and three small dots, resembling a stylized device or sensor (no text or symbols visible)

80pcs LED

Black rectangular object with a small dot pattern on the left side (no text or symbols visible)

105pcs LED

Black rectangular object with three small white dots arranged in a square pattern (no text or symbols visible)

112pcs LED

PACKING LIST

Power controller*1

USB-C power cord*1

SPECIFICATIONS

	80PCS Belt	105PCS Belt	112PCS Belt
Size	125*22cm	125*18cm	125*22cm
Led qty	80PCS	105PCS	112PCS
Power	8W	9W	10W
Mode	660nm:850nm	660nm:850nm	660nm:850nm
Battery capacity	3000mAh	3000mAh	3000mAh
Timer	10/20/30min	10/20/30min	10/20/30min
Charging parameters	USB-C 5V2A	USB-C 5V2A	USB-C 5V2A

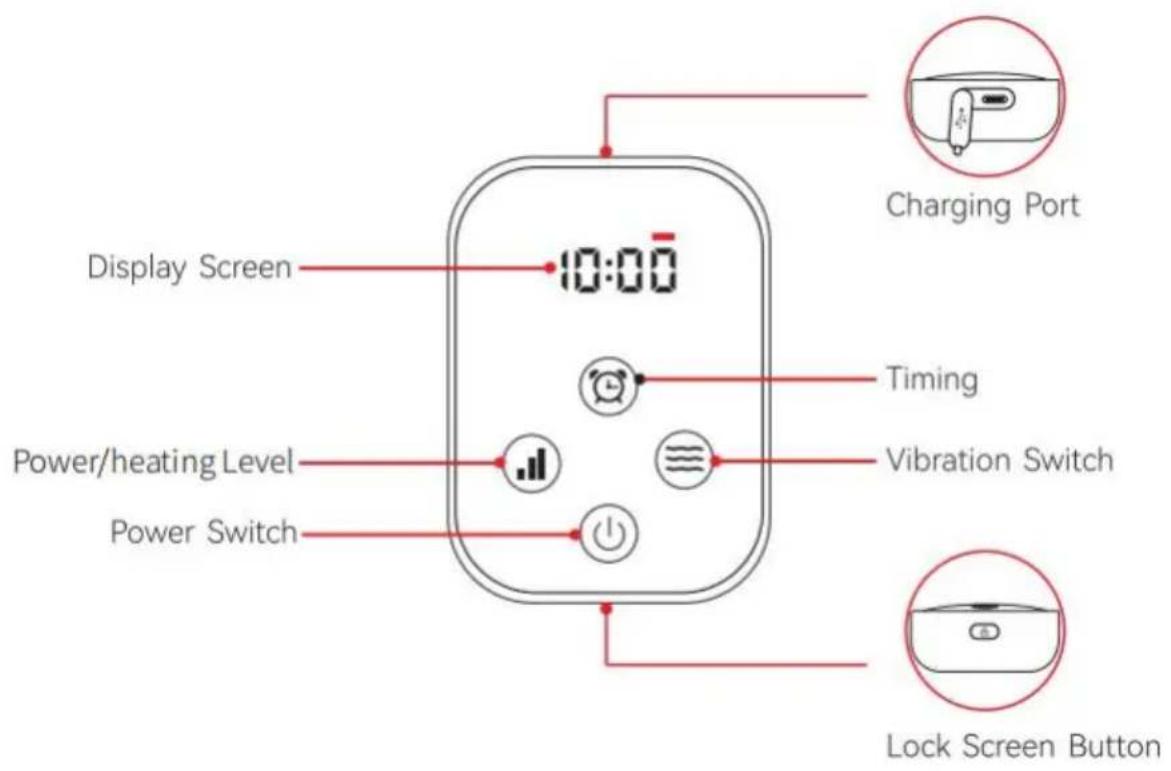

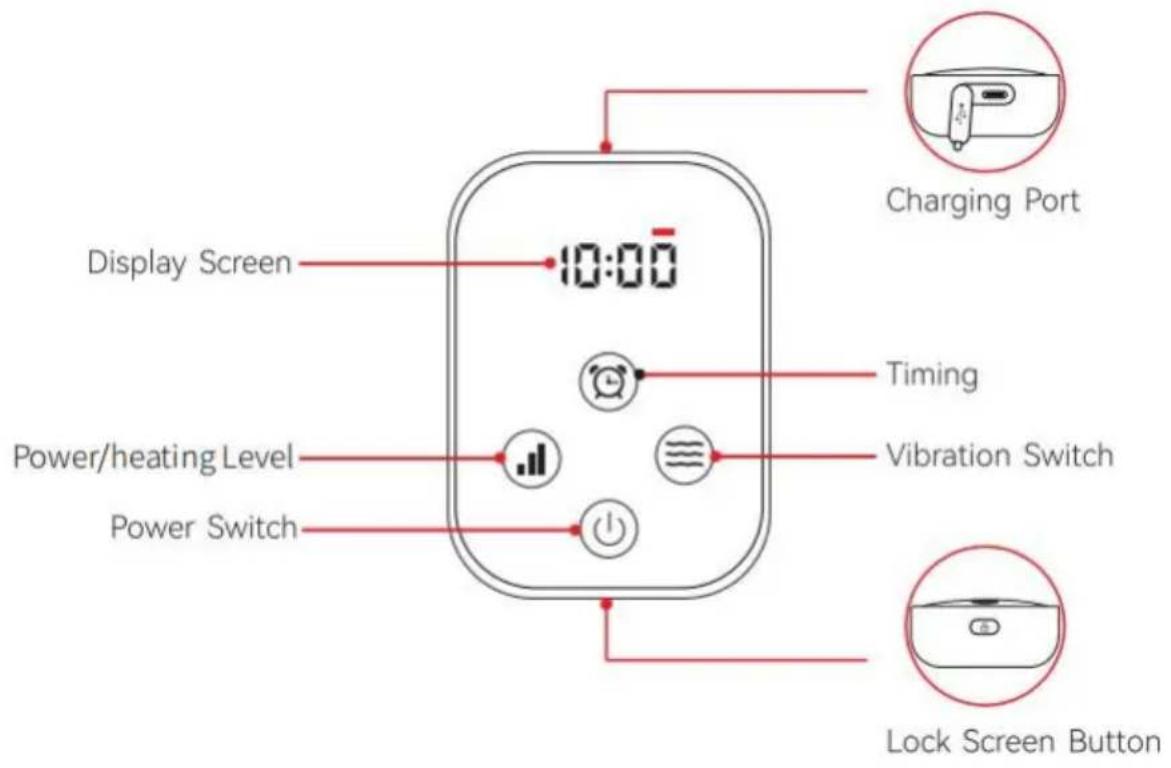

Instructions for Use

1. Before using the device for the first time, please use the included power cord with the 5V/3A adapter to fully charge the device(the red flashes during charging and turns to blue when fully charged.)

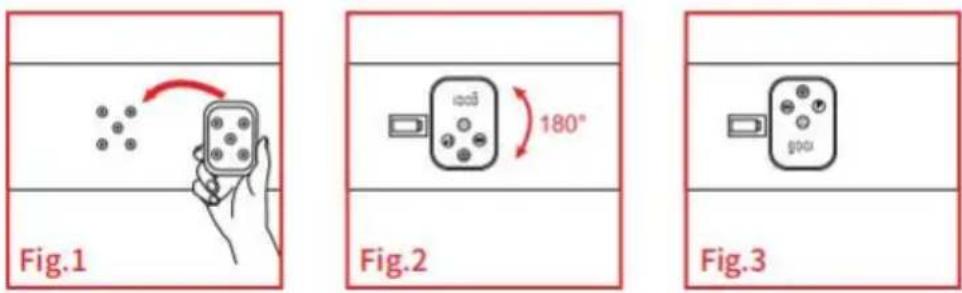

2. Contact the power controller to the six magnetic buckles on the b them in place.
3. Press and hold the power switch for 2 seconds to turn on the device enters ALL Mode by default and the screen shows ALL .(ALL 660nm+850nm LEDs on at the same time, and the default timer turns after 10 minutes in ALL Mode).
4. Press the level button to adjust the power level. It's a P1-P3 cycl
5. Press the mode button to switch the operating mode, which is divided into two modes: ALL/10 Hz pulse. The light intensity cannot be adjusted when the device is in 10 Hz mode.
6. Press the vibration button to adjust the intensity of vibration.L1-L2-L3-LOFF(vibration off).
7. Press the timing adjustment button to adjust the timer according to requirements (10-20-30 minutes).
8. Press and hold the power switch for 2 seconds to turn off the device will turn off automatically after the timer ends. You can re device if needed.
9. The screen can be locked by pressing the lock screen button during use and pressing it again to unlock the screen. If the touch screen fails during use, you can press and hold this button for more than 5 seconds reset the device.

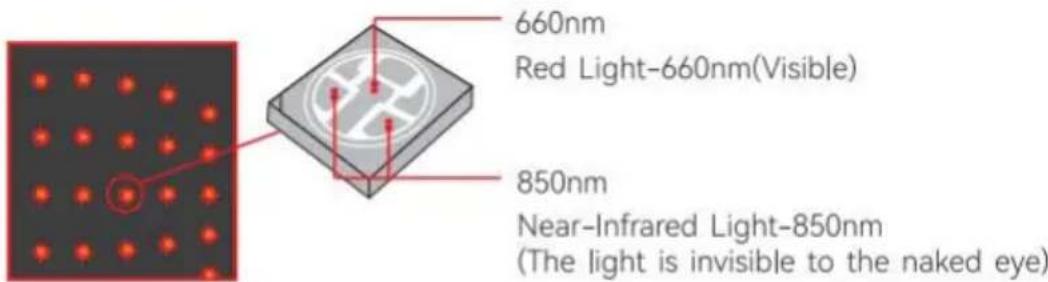

Benefits of the Red Light Therapy

Red Light(660nm):

Red light penetrates the skin, stimulating cellular activity and enhancing blood circulation. It is known for promoting skin health, reducing inflammation, and aiding in wound healing.

Near-Infrared Light (850nm):

Near-infrared light penetrates deeper into the body's tissues, reaching muscles and joints. It helps alleviate muscle pain and stiffness and improves joint health.

Notice

The display screen will automatically switch to the timer after 5second without operation.

The screen will turn off if there is no operation for 10 seconds.

The power indicator remains lit, and the device continues working.

The power controller can light up the screen by pressing any button the screen is off, and pressing a specific button will display the current mode.

The average running time of the device is 1-2 hours, depending on level you use. Charging time is about 2 hours.

The power indicator turns red when the remaining power is about 20%. Please charge the device promptly.

This device cannot be used during charging.

Fully charge the device before long-term non-use to protect the batter

Daily Maintenance

The device will generate a lot of heat energy during use, which can sweating with long-term skin contact.

To facilitate cleaning and prevent sweat from eroding the LEDs and

shortening their lifespan, it is recommended to simply wipe the surface of the LEDs with a dry towel after use. (Please keep the LED panel a power controller out of water.)

Cautions

• Do not look directly into the red light when the device is working. Prolonged exposure to the red light may harm your eyes.
• Do not wear metal accessories in the use area to avoid metal heat which can burn the skin.
• Do not use the device in combination with ointments, creams or of topical pain relievers that contain febrifuge ingredients.
• Do not expose the equipment to sunlight and keep it away from h and water sources.
• Do not use equipment other than those provided by us. For adult u only. Children should not play with the device without adult supervision.
• Please follow the recommendations in the user manual.
• Do not disassemble or alter the device in any way. Improper disassembly or reassembly may result in the risk of short-circuiting electric shock, or exposure to battery chemicals. Do not leave the device working unattended.
• For storage and travel, please keep the power off and keep out reach of children.

To protect the environment, please dispose of this product properly in accordance with local laws and regulations.

Troubleshooting

You may encounter the following problems. If the device still does no after troubleshooting, please contact customer service or the seller for technical support. Please do not attempt to repair it yourself.

Issue	Possible Reason	Solution
Unable to charge	The charger is not compatible.	Make sure to use the original power cord with a 5V/2A adapter.
	The power cord is not plugged in tightly.	Ensure the power cord is securely attached.
Don’t turn on	The battery runs out.	Please charge the device.
	The power controller is not installed properly.	Please check the power controller and ensure it is installed correctly.
Stop working during use	The battery runs out.	Please charge the device.
	The Smart timer turns off the device automatically.	Please turn it on again and adjust to the time you need.
	The power controller contact surface is loose.	Please check the power controller and ensure it is installed correctly.
Battery runs out quickly.	Insufficient battery before use.	Please charge the device.
	The device works under the highest power for a long time.	This is due to the different voltage and current outputs of the battery pack at different power levels. The device lasts for 1 hour at the highest power and up to about 2 hours at the lowest power. Please refer to the suggestions in (Photobiomodulation Guidance) and use it in a reasonable way for better performance.

Some LEDs do not work.	Turn on the ALL (660nm+850nm) modes.	The 850nm wavelengths is invisible to the naked eye in normal environments. It is only a faint red dot at most that can be seen within darker environments. It can actually provide a lot of energy, please feel free to use it.
Button does not respond.	Not pressed correctly.	Make sure to press the button firmly.
	The device crashes.	Please press and hold the lock screen button for 5s to shut down the device forcibly and turn it on again.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

©
