TL09-B - Red light therapy device Vevor - Free user manual and instructions

Product Type	Red Light Therapy Device (Wand)
Brand	Vevor
Model	TL09-B
Dimensions	φ29.5 x 216 mm
Net Weight	0.4 kg
Material	Aluminum Alloy
Wavelengths	630 nm, 660 nm, 710 nm, 850 nm, 900 nm
Irradiance	> 180 mW/cm²
Timer	5 minutes by default
Power	5.4 W
Power Supply	2 rechargeable 18650 batteries (included)
Charging Time	2 to 3 hours
Operating Modes	3 modes (all LEDs, red only, infrared only) + 10 Hz pulsing
Warranty	1 year
Included Accessories	Carrying bag, 2 18650 batteries, charger, USB cable, protective goggles, decorative ring
Cleaning	Soft dry cloth
Storage	Cool and dry place, away from direct light
Safety	Do not look directly at the light, use protective goggles, do not use near water
Compliance	FCC Part 15, Class B

Frequently Asked Questions - TL09-B Vevor

How to use the TL09-B device for the first time?

Before first use, charge the 18650 batteries for 2 to 3 hours. Insert them into the device ensuring correct polarity (positive pole up). Turn on the device by pressing once for Mode1 (all LEDs). Hold the wand about 1 inch (approx. 2.5 cm) from the painful area for 1 to 3 minutes.

What are the different modes of the device?

The device offers 3 modes: Mode1 (all LEDs: 630, 660, 710, 850, 900 nm), Mode2 (red only: 630, 660 nm), and Mode3 (infrared only: 710, 850, 900 nm). Pressing 4 to 6 times activates 10 Hz pulsing for each mode. The 7th press turns off the device.

How long does each treatment session last?

The default timer is 5 minutes. For mild pain, use 1 dose (1 minute) once a day. For moderate pain, 2 doses (2 minutes) two to three times a day. For deep pain, 3 doses (3 minutes) three times a day. Do not exceed 5 consecutive minutes; between areas, turn off the device for at least 1 minute.

How to clean and maintain the device?

Clean the exterior with a soft dry cloth. Never use abrasive cleaners, do not immerse the device in water or any liquid. Store it in a cool, dry place away from direct light. If unused for more than a month, remove the batteries to prevent corrosion.

Can I use the device near the eyes?

No, do not treat near the eyes. Do not look directly at the light; always wear the protective goggles provided during use.

What types of batteries are recommended?

Use only rechargeable 18650 batteries. The provided charger allows recharging in 2 to 3 hours. Do not use other battery types.

What if I don't feel immediate relief?

Some people feel immediate relief, others gradually. Commit to 3 weeks of consistent treatment (3 times a day, 1 to 3 minutes per area). Most users notice a decrease in pain after this period.

Can I stop my other treatments when starting light therapy?

No, do not abruptly stop your other treatments. Start light therapy alongside. Once optimal relief is achieved, you can consult your doctor to gradually reduce other medications.

Is the device compliant with standards?

Yes, this device complies with FCC Part 15 rules. It meets the limits for a Class B digital device. It is subject to European Directive 2012/19/EU on waste electrical and electronic equipment.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for recycling electrical and electronic equipment. Used batteries must be removed and recycled separately in accordance with local regulations.

USER MANUAL TL09-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

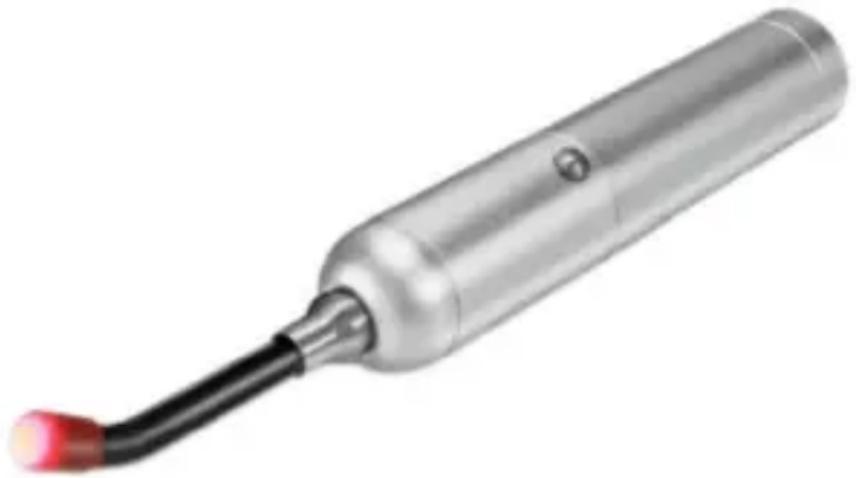

Red Light Therapy Wand

MODEL:TL09-B

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying tools with us compared to the major top brands and does not mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with us are actually saving half in comparison with the top major brand

Model: TL09-B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a interpretation of our user manual. The appearance of the shall be subject to the product you received. Please for that we won't inform you again if there are any technol software updates on our product.

Congratulations on taking control of your pain!

Now you can use the LED Red Light Therapy to provide dire non-addictive, drug free pain relief.

Efficient Cells Can Enhance Health

Uses a combo of red 630nm 660nm and Infrared 710nm 850nm LEDs which is chosen to give the ideal light intensity biological effects anywhere on the body.

1. Included With This Package

1*Red Light Therapy Wand

1*Carry Bag

2*Rechargeable Battery 18650

1*Battery Charger

1*USB Cable, 1*Protective glasses, 1*User Manual, 1*Decorative ring

2. Benefits

Temporary relief of minor muscle and joint pain, arthritis and muscle spasm, relieving stiffness, promoting relaxation of muscle tissue.

3. Directions

1) Commit to a 3-week Treatment Plan. While many people achieve pain relief from Red Light Therapy almost immediately, others experience measurable pain relief incrementally over time. Depending upon injury type, severity, and different pain pathways involved, people vary in therapy response time.

This is why we recommend committing to a 3-week Treatment. If you see results right away, great, continue treating as needed. However, if you do not feel relief as quickly, know that this is normal, so try not to get frustrated. Simply treat your pain consistently with 3 quick treatments per day, for up to minutes each time per treatment spot. After 3 weeks of consistent red light therapy, most people experience a diminishing of the pain.

2) Do not suddenly stop your other treatments upon beginning light therapy. Although you may not be satisfied with current

treatments, they may be having a partial effect on the level of pain. While continuing with your current treatments, start your light therapy, giving your red device time to provide optimal relief. After you have achieved maximum pain relief from your device, you may then consider slowly weaning yourself off other medications or treatments. If you plan to reduce or stop prescription medication, first consult with your physician.

For many people, this works so well that they are able to come off pills completely. Others are able to reduce the amount of pain medications they are on, reducing the risk of drug side effects.

Hold the unit over the painful area at a distance anywhere from touching the skin to 1 inch away from the skin, depending on the depth of treatment desired. The red light penetrates up to inch into your tissues or joints.

Pain Level	Light Pain	Average pain	Deep pain
DOSAGE	1 DOSEPer treatment spot (1 minute treatment)Once a day	2 DOSESPer treatment spot 2 minutes treatmentTwice or 3x a day	3 DOSESPer treatment spot 13 minutes treatment3 times a da

Do not keep the device on for more than 5 minutes at a time. If you want to treat several parts of your body consecutively, turn off the device for at least 1 minute after every 5 minutes on. This will keep the unit from overheating.

It has two ways of use: one, you can use it on your mouth, r

Another way you can remove the Adapter of device, and you use it on your wrist, finger, knee.

For mouth treatment	For ear treatment	For nose treatment
For wrist treatment	For finger treatment	For knee treatment

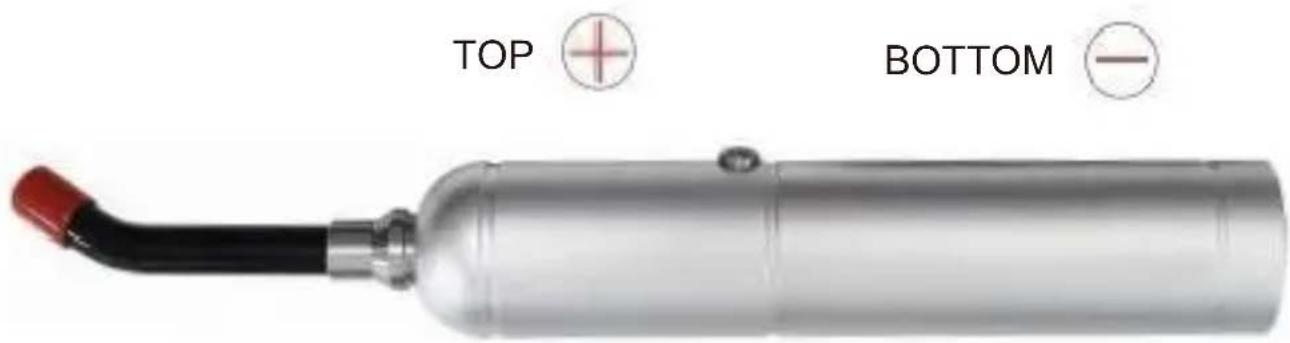

How to install batteries?

Insert the Battery provided on the battery compartment. -Positive Pole against the TOP.

-Negative Pole against the BOTTOM.

*Please only use 18650 batteries.

*18650 batteries can be charged for 2-3 hours.

1. Product Specification

Product Size	φ29.5x H 216mm	Net Weight	0.4kg
Materia	Aluminium alloy	Wavelength	630:660nm710:850:900 nm
Irradiance	Surface:>180mw/cm2	Deiault time	5 minutes
Powe	5.4W	Battery Capacity	2500mAh
Warranty	1 year	Lifespan	50,000 Hours

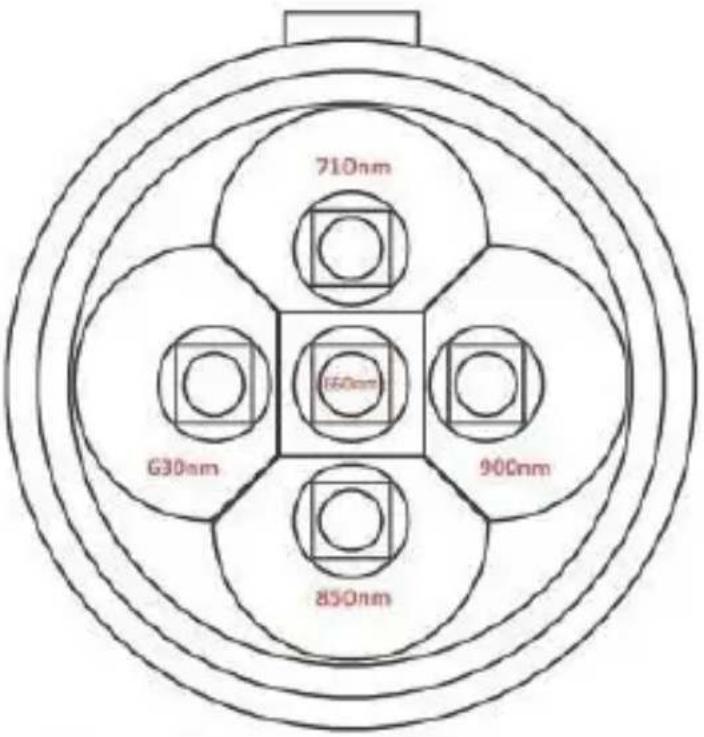

Function Instruction

1. Wavelength: 630nm, 660nm 710nm, 850nm, 900nm
2. Timer: 5minutes default
3. Three modes:

(a) Mode1 (All LEDs working) 630nm, 660nm, 710nm, 850nm 900nm (b) Mode2 (Only red working): 630nm, 660nm; (c) Mode3 (Only Near infrared working): 710nm, 850nm, 900r

1. Support pulsing function.
2. Button operation:

(a) Press first time: Mode1; (b) Press second time: Mode2; (c) Press third time:Mode3; (d) Press fourth time:Mode1+10Hz Pulsing; (e) Press fifth time: Mode2+10Hz Pulsing; (f) Press sixth time: Mode3+10Hz Pulsing; (q) Press seventh time:off.

Research points to a brief "quench period" that takes place in the cells when NIR light is pulsed. Although it lasts only a few milliseconds, this short pause makes a big difference, allowing cells that are under oxidative stress to respond even better to

light. Then it is much better for cells stimulation and recovery with pulsing therapy.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

To minimize hazards to health and the environment at the end of this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and disposal of these in your area.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with limits for a Class B digital device pursuant to Part 15 of the Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

5. Caution

*Don't use the light around water

*Don't stare directly at the light; use protective glasses while using the device

*Don't treat near the eyes

6. Equipment Maintenance

Cleaning And Disinfecting:

Use only a soft dry cloth to clean the exterior. Never use an abrasive cleanser or submerge in water or any other liquid. The device cannot be sterilized by any liquid or autoclave method.

Storage: Store the unit in a cool, dry place, away from direct and extreme heat.

* Warning: Do not allow moisture to come in contact with the or light of the unit. Do not immerse the unit in water.

* Warning: If unit will not be used for an extended period (1 month+), remove the batteries from the unit to avoid their corrosion.
