TL09-A - Red light therapy device Vevor - Free user manual and instructions

Product Type	Red Light Therapy Wand
Brand	Vevor
Model	TL09-A
Dimensions	Φ25.45 x 124 mm
Net Weight	0.39 kg
Material	Stainless Steel
Wavelengths	630 nm, 660 nm, 850 nm
Power	2.26 W
Surface Irradiance	> 180 mW/cm²
Power Supply	2 rechargeable 18650 batteries (included)
Operating Time per Session	5 minutes maximum (auto shut-off)
Charging Time	4 to 5 hours
Warranty	1 year
Package Contents	1 wand, 1 carrying bag, 2 18650 batteries, 1 charger, 1 pair of protective goggles, 1 user manual
Indications	Temporary relief of minor muscle and joint pain, arthritis, spasms, stiffness
Usage Method	Hold 1 inch from skin, treat 1-3 minutes per area, up to 3 times daily
Maintenance	Clean with a soft, dry cloth; do not immerse
Storage	Cool, dry place away from direct light and extreme heat
Safety	Do not look directly at the light; use the provided goggles; do not treat near eyes; do not use near water
Certification	FCC Part 15

Frequently Asked Questions - TL09-A Vevor

How long should I use the device per session?

It is recommended to treat each area for 1-3 minutes, depending on pain level. Do not exceed 5 minutes per session and allow the device to cool for at least 1 minute between areas.

How often can I use the device per day?

You can use the device up to 3 times per day for each treatment area, with a duration of 1-3 minutes per session.

Can I use the device on my face?

It is not recommended to treat near the eyes. For the face, keep a safe distance and avoid the eye area. Always use the provided protective goggles.

Do I need to wear protective goggles?

Yes, it is imperative to wear the included protective goggles to avoid eye damage from the intense light.

How to clean the device?

Use a soft, dry cloth to clean the exterior. Never use abrasive cleaners and do not immerse the device in water or any other liquid.

What type of batteries does the device use?

The device uses two rechargeable 18650 batteries, included with the product. Use only 18650 batteries.

How long does it take to charge the batteries?

The charging time is approximately 4-5 hours with the provided charger.

What is the warranty of the device?

Vevor offers a one-year warranty on this device. For support, visit www.vevor.com/support.

Can I use the device while taking other medications?

It is advised not to abruptly stop your ongoing treatments. Consult your doctor before reducing or stopping any prescription medication. Red light therapy can be used as a supplement.

How long does it take to feel the effects?

Some people experience immediate relief, but for others, effects may appear gradually. A consistent treatment plan of 3 weeks is recommended for optimal results.

USER MANUAL TL09-A Vevor

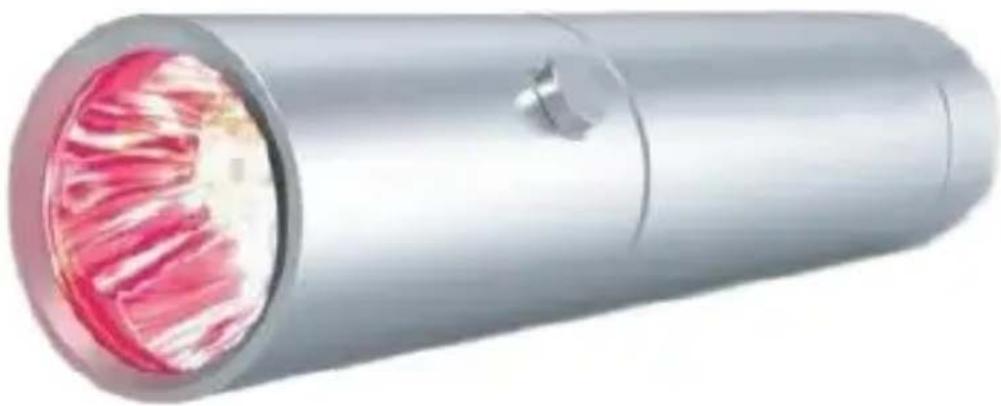

Red Light Therapy Wand

MODEL: TL09-A

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used represent an estimate of savings you might benefit from buying tools with us compared to the major top brands and do not mean to cover all categories of tools offered by us. You are reminded to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

Model: TL09-A

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please note that we won't inform you again if there are any technology or software updates on our product.

Congratulations on taking control of your pain! Now you can use the LED Red Light Therapy to provide direct, non-addictive, drug-free pain relief.

Efficient Cells Can Enhance Health

Please read the instructional manual to get the most out of the device.

Uses a combo of red 630nm, 660nm, and Infrared 850nm LEDs, which is chosen to give the ideal light intensity for biological effects anywhere on the body.

1. Included With This Package

1* Red Light Therapy Wand

1*Carry Bag

2*Rechargeable Battery 18650

1*Battery Charger

1*Protective glasses

1*User Manual

2. Benefits

Temporary relief of minor muscle and joint pain, arthritis and muscle spasm, relieving stiffness, promoting relaxation of muscle tissue.

3. Directions

1) Commit to a 3-week Treatment Plan. While many people achieve pain relief from Red Light Therapy almost immediately, others see measurable pain relief incrementally over time. Depending upon injury type, severity, and different pain pathways involved, people vary in therapy response time.

This is why we recommend committing to a 3-week Treatment Plan. If you see results right away, great, continue treating as needed. However, if you do not feel relief as quickly, know that this is also normal, so try not to get frustrated. Simply treat your pain consistently with 3 quick treatments per day, for 1 to 3 minutes each time per treatment spot. After 3 weeks of consistent red light therapy, most people experience a diminishment of their pain.

2) Do not suddenly stop your other treatments upon beginning light therapy. Although you may not be satisfied with current treatments, they may be having a partial effect on the level of pain. While continuing with your current treatments, start your light therapy, giving your red device time to provide optimal relief. After you have achieved maximum pain relief from your device, you may then consider slowly weaning yourself off

other medications or treatments. If you plan to reduce or stop prescription medication, first consult with your physician.

For many people, it works so well that they are able to come off pain pills completely. Others are able to reduce the amount of medications they are on, reducing the risk of drug side effects.

Hold the unit over the painful area at a distance anywhere from touching the skin to 1 inch away from the skin, depending on depth of treatment desired. The red light penetrates up to 1 inch into your tissues or joints.

Use the Dosage Chart below to find the best dosage to treat injury. Dosage Chart

Pain Level	Light Pain	Average pain	Deep pain
DOSAGE	1 DOSEPer treatment spot 1 minute treatment)Once a day	2 DOSESPer treatment spot 2 minutes treatment)Twice or 3x day	3 DOSESPer treatment spot [3 minute treatment]3 times a day

Do not keep the device on for more than 5 minutes at a time. If you want to treat several parts of your body consecutively, turn off the device for at least 1 minute after every 5 minutes of use to prevent overheating.

The treatment spot is an area covered by the red light beam. A small joint, such as a knuckle of a finger, should have only one treatment spot, because the light shines over the entire affected joint.

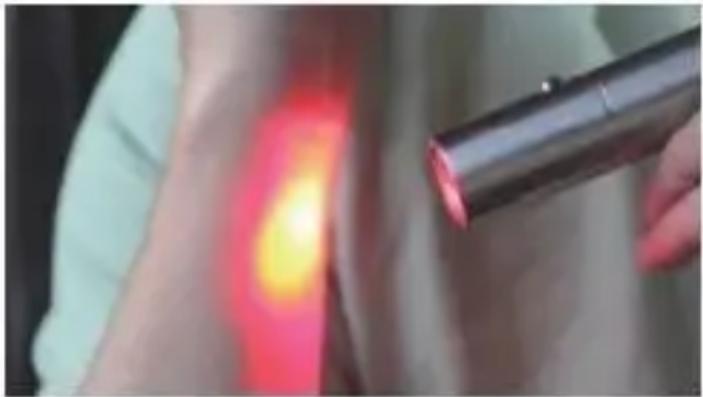

	For wrist treatment

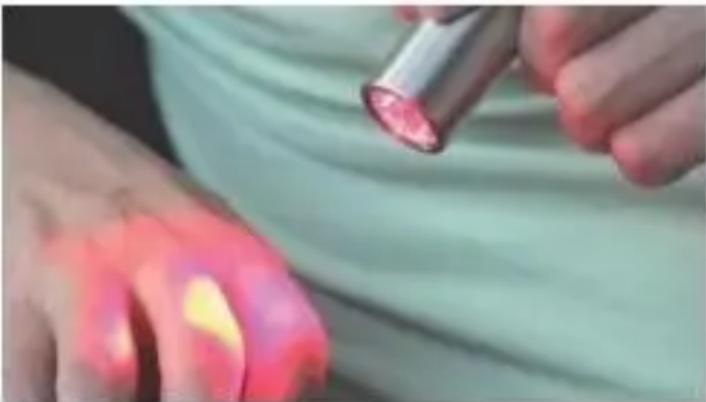

	For finger treatment

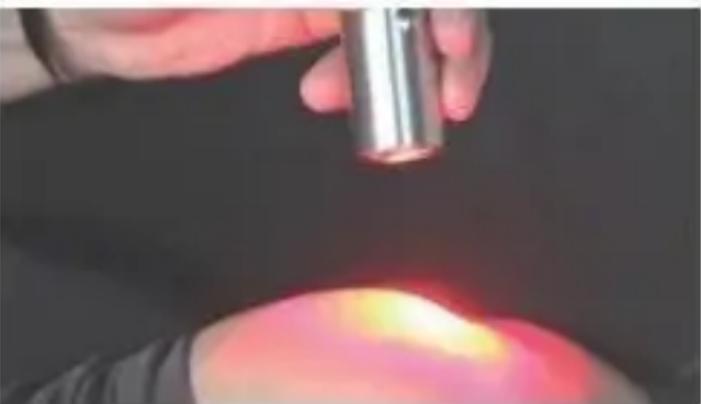

	For knee treatment

How to install batteries?

Insert the battery provided into the battery compartment. Positive pole against the TOP.

• Negative pole against the BOTTOM. * Please only use 18650 batteries.

* 18650 batteries can be charged for 4-5 hours.

4. Product Specification

Product Size	Φ25.4.5x H 124mm	Net Weight	0.39kg
Materia	Stainless Stee	Wavelength	630: 660nm850nm
Irradiance	Surface:>180mw/cm2	Deiault time	5 minutes
Powe	2.26W	Battery Capacity	2500mAh
Warranty	1 year	Lifespan	50,000 Hours

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

To minimize hazards to health and the environment at the end of this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and disposal of these in your area.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

5. Caution

* Don't use the light around water.

* Don't stare directly at the light; use protective glasses while using the device.

* Don't treat near the eyes.

6. Equipment Maintenance

Cleaning And Disinfecting:

Use only a soft dry cloth to clean the exterior. Never use an abrasive cleanser or submerge in water or any other liquid. The device cannot be sterilized by any liquid or autoclave method.

Storage: Store the unit in a cool, dry place, away from direct and extreme heat.

* Warning: Do not allow moisture to come in contact with the or light of the unit. Do not immerse the unit in water.

* Warning: If unit will not be used for an extended period of the month+) remove the batteries from the unit to avoid their Corros
