Product type	Shower column
Brand	Vevor
Model	8108FH
Material	Stainless steel 304, brass, PVC, ABS
Finish	Brushed nickel
Number of modes	6 modes
Bathtub spout	Yes
Temperature display	Yes
LED lamp	Yes
Power supply	Hydro power (AC6V)
Hand shower	Yes, 3 settings
Connection	G1/2"
Mounting	Wall-mounted
Maintenance	Regular cleaning with water or mild detergent, wipe with a soft cloth
Safety	Wear gloves during installation, tighten joints properly
Spare parts	List of parts provided in the manual (shower head, hoses, seals, etc.)

Frequently Asked Questions - 8108FH Vevor

How to install the Vevor 8108FH shower column?

Follow the assembly instructions provided in the manual. Attach the panel to the wall using the supplied screws and wall plugs. Make sure the seals are tightened properly to avoid leaks. Wear gloves to prevent injury during handling.

What water pressure is required for the shower column?

The manual does not specify a minimum pressure, but we recommend a water pressure between 0.3 and 0.8 MPa for optimal performance. Insufficient pressure may reduce the effectiveness of the jets.

How does the LED lighting work?

The LED lamp is powered by hydroelectric energy (AC6V) generated by the water flow. No batteries or external wiring are needed. The LED color or mode may vary depending on the model.

How is the temperature display powered?

The temperature display is also powered by hydroelectric energy (AC6V). It shows the water temperature in real time during use.

How to use the hand shower?

The hand shower has 3 spray settings. Turn the knob on the hand shower to select the desired mode. Use the push button to turn the water flow on/off.

How to clean the shower column?

Clean the surface regularly with water or a mild detergent, then wipe with a soft cloth. Avoid abrasive products that could scratch the brushed nickel finish.

What to do in case of water leakage?

Check that all seals are properly tightened. Inspect the fittings at connection points. If the leak persists, replace the faulty seals. The manual provides a list of spare parts.

Where to find spare parts for the shower column?

Spare parts are available on the Vevor website (www.vevor.com). Refer to the manual for the complete list of parts, including shower head, hoses, seals, etc.

What is the product warranty?

Vevor offers an electronic warranty (electronic warranty certificate). For more details, contact technical support via www.vevor.com/support.

Is the shower column compatible with all fittings?

The connection is made with a standard G1/2 fitting. Ensure your hot and cold water supplies are compatible. It is recommended to clean the pipes before installation to avoid blockages.

User questions about 8108FH Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Shower column in PDF format for free! Find your manual 8108FH - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 8108FH by Vevor.

USER MANUAL 8108FH Vevor

SHOWER PANEL TOWER

MODEL:

Vevor 8108FH - SHOWER PANEL TOWER - 1

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Open subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired open
	This product is subject to the provision of European Direc 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all acces marked with this symbol. Products marked as such may n discarded with normal domestic waste, but must be taken collection point for recycling electrical and electronic device

INSTRUCTIONS

Warning Tips:

During the installation process, it is best to wear gloves to prevent sharp corners on the panel from scratching the palm of the hand.
When installing the shower, ensure that all joints are tightened to avoid water leakage.
Ensure that the red and blue water inlet pipes inside the panel are in a folded state to avoid affecting water pressure.
When the shower is not in use, please close the switch valve of the shower.

Vevor 8108FH - Warning Tips: - 1

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

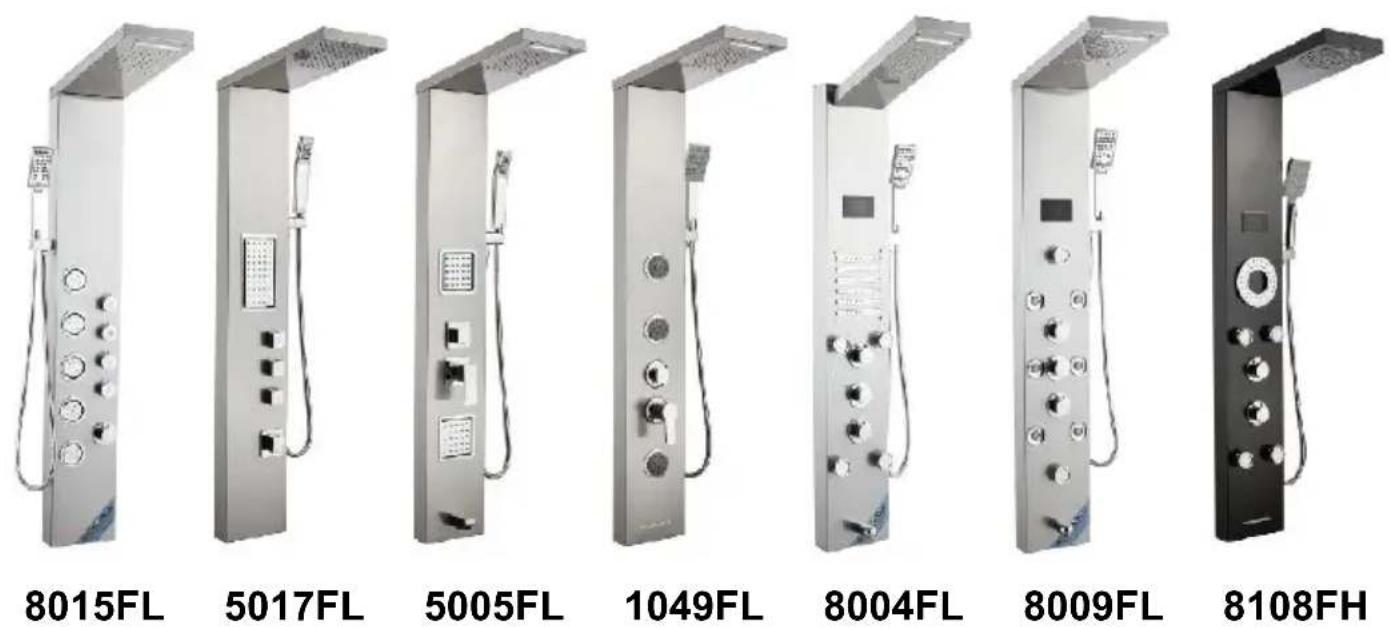

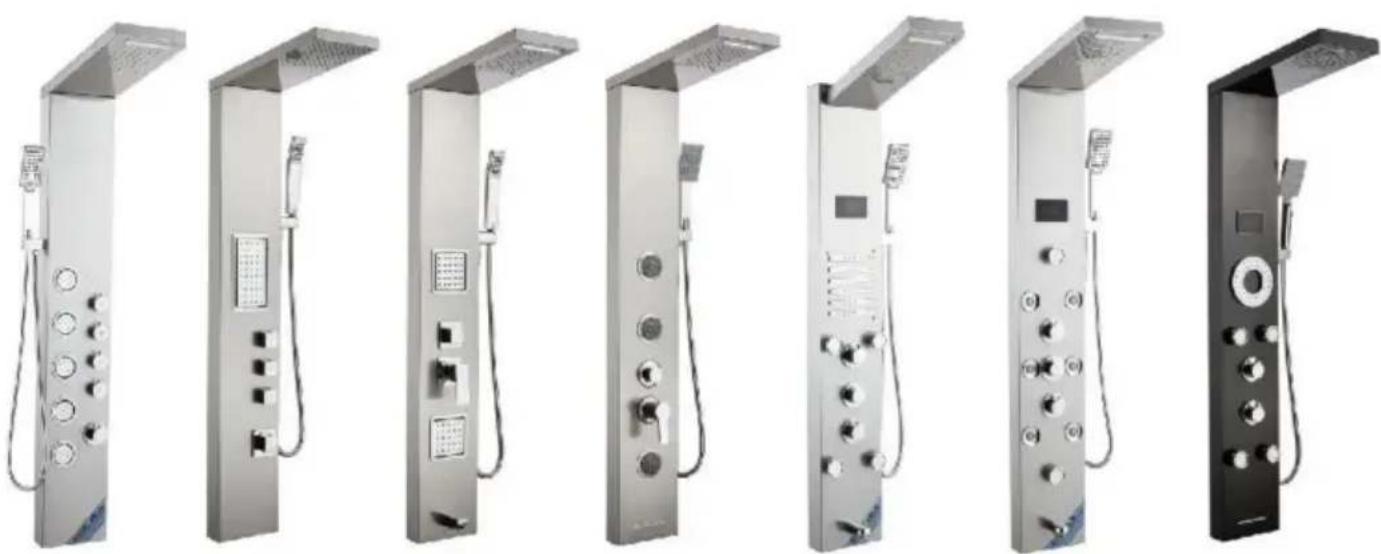

Model	8015FL	5017FL	5005FL	1049FL	8004FL	8009FL	8108FH
Mounting Type	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount
Connection Thread	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functions	Four Modes	Three Modes	Five Modes	Five Modes	Six Modes	Six Modes	Six Modes
Tub Spout	×	×	√	√	√	√	√
Temperature Display	×	×	×	×	√	√	√
LED Lamp	×	×	×	×	√	√	√
Power	×	×	×	×	Hydro Power (AC6V)	Hydro Power (AC6V)	Hydro Power (AC6V)
Hand Shower	3-Setting	1-Setting	1-Setting	1-Setting	3-Setting	3-Setting	3-Setting
Finish	Fingerprint-free Brushed Nickel shower system						Black titanium
Material	304 Stainless Steel, Brass, PVC, ABS

PARTS LIST

MODEL	8015FL 8009FL	1049FL	8004FL	5005FL 5017FL	8108FH
Handheld Shower	1pcs	1pcs	1pcs	1pcs	1pcs
1.5 Meter Hand Spray Hose	1pcs	1pcs	1pcs	1pcs	1pcs
Hand Spray Seat	1pcs	1pcs	1pcs	1pcs	1pcs
1/2 Right Angle Adapter	2pcs	2pcs	2pcs	2pcs	2pcs
4-Point Rubber	2pcs	2pcs	2pcs	2pcs	2pcs
Self Tapping Screw	4pcs	4pcs	4pcs	4pcs	4pcs
Fastener	2pcs	2pcs	2pcs	2pcs	2pcs
Grommet	1pcs	1pcs	1pcs	1pcs	1pcs
Hexagon Nut	1pcs	1pcs	1pcs	1pcs	1pcs
M6 Nut	4pcs	4pcs	0pcs	4pcs	4pcs
M6*10 Screw	4pcs	4pcs	0pcs	4pcs	4pcs
Hose Clamp	2pcs	2pcs	2pcs	2pcs	2pcs
M4*10 Screw	0pcs	0pcs	2pcs	0pcs	0pcs
Panel Cotton Bag	1pcs	1pcs	1pcs	1pcs	1pcs
Top Spray Cotton Bag	1pcs	1pcs	1pcs	1pcs	1pcs

ASSEMBLY INSTRUCTIONS

Model 8015FL/5017FL/5005FL/1049FL

Hand holding a white cable against a plain gray wall, no text or symbols visible.

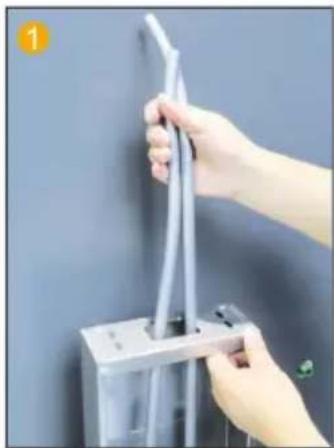

Insert the PVC pipe from the top opening to pierce out.

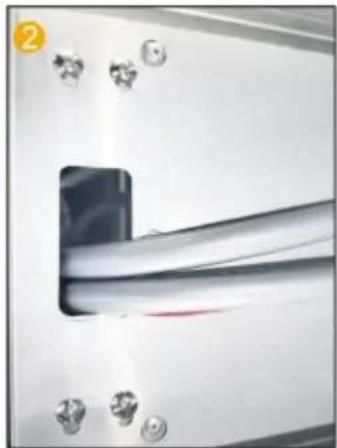

Close-up of a metallic mechanical component with a central rectangular opening and multiple screws, no visible text or symbols.

Fix the motherboard and top spray with pairs of M6 screws and nuts.

Close-up of a metallic cabinet or enclosure with coiled cables, no visible text or symbols.

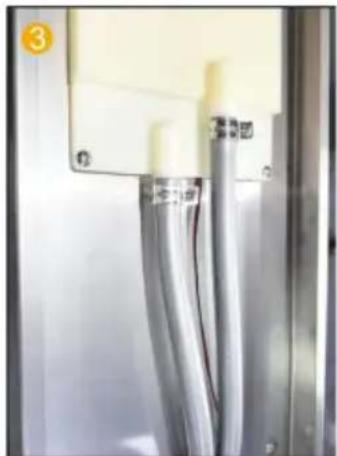

Fix the PVC pipe with a throat clamp on the top spray joint.

Close-up of a metallic threaded connector with red and black wires attached, no visible text or symbols.

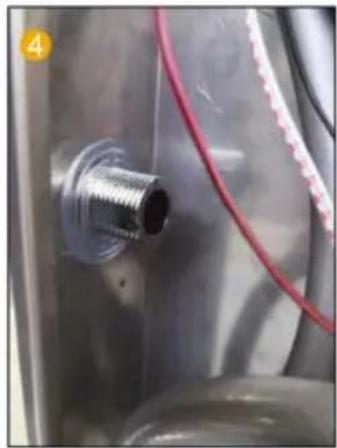

Insert the hand spray nozzle into the panel and install the gasket.

Close-up of industrial electrical equipment with coiled wires and connectors, no visible text or symbols.

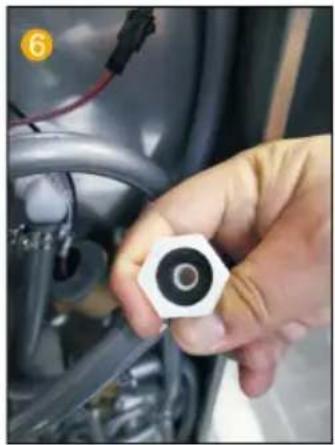

Spray socket with hexagonal nut handle fixed on the panel.

Close-up of a hand holding a hexagonal component with a central hole, next to a car dashboard, no visible text or symbols.

Put the 4-point rubber gasket into the hand spray outlet connector and inside the joint of the hand spray seat joint.

Close-up of white plastic electrical wires and connectors with a red cable, no visible text or symbols.

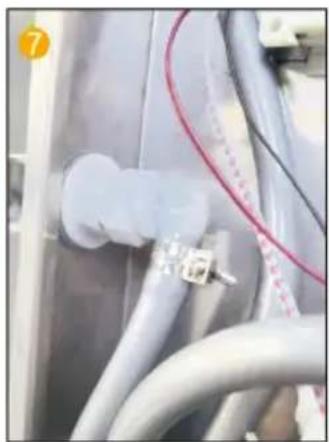

Connect the water outlet connector and hand spray seat joint.

Close-up of a metallic mechanical component with a threaded rod inserted, no visible text or symbols.

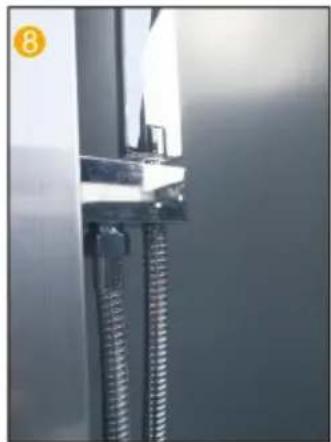

Connect the hand spray hose to the handheld shower head.

MODEL 8108FH 8009FL

Hand holding a white cable or wire attached to a metal enclosure, against a plain gray background, no text or symbols visible.

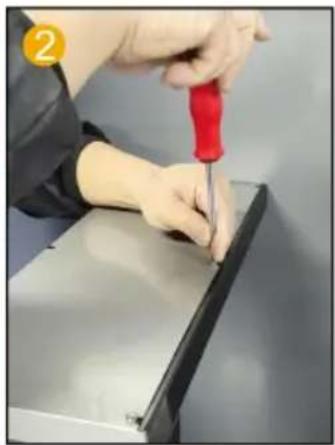

Person using a screwdriver to work on a metal panel, no text or symbols visible.

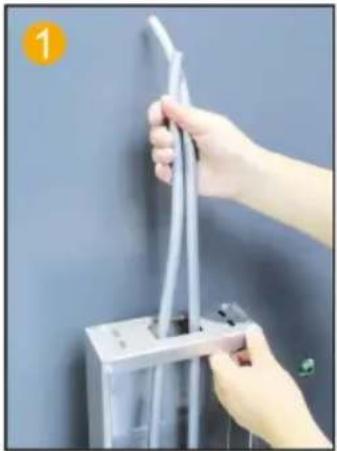

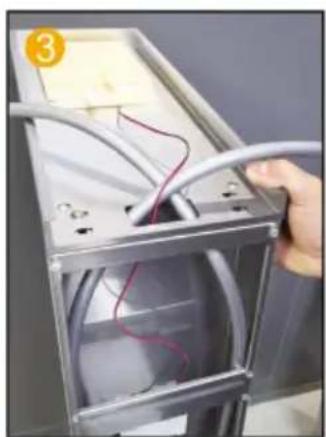

Insert the PVC pipe from the top opening to pierce out. Remove the top spray cover.

Close-up of a hand holding a metallic enclosure with visible wiring and a numbered label (3) in the corner, no text or symbols on the main subject.

Close-up of a metallic mechanical component with a central rectangular opening and four mounting holes, no visible text or symbols.

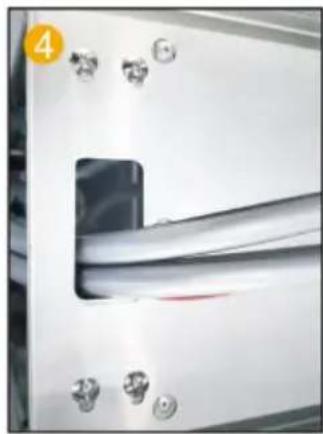

Route the LED light wire along the hole and insert into the motherboard. Fix the motherboard and top spray with pairs of M6 screws and nuts.

Close-up of a metallic electrical panel with coiled wires and a numbered label (5) in the corner, no readable text or symbols on the main subject.

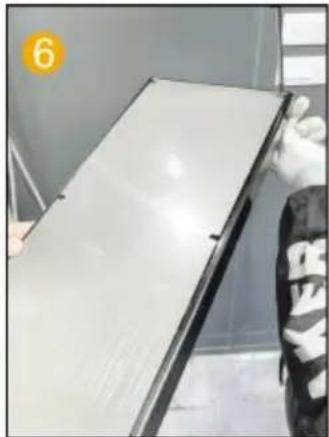

Person holding a large white panel or board, with a numbered badge showing '6' in the corner, no visible text on panel or background.

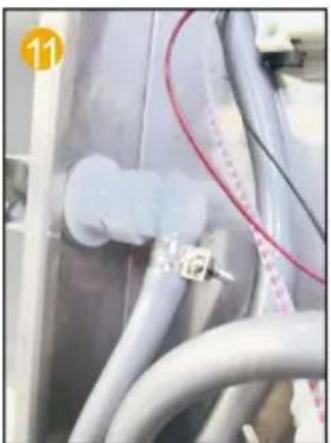

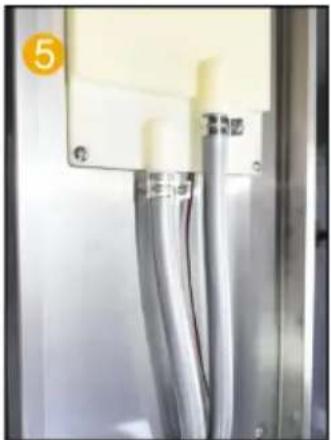

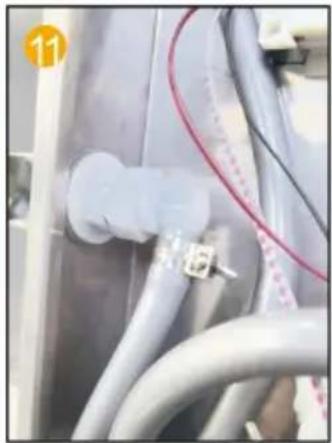

Fix the PVC pipe with a throat clamp on the top spray joint. Fix the top spray cover plate well.

Close-up of hands installing a cable with a red wire, no visible text or symbols.

Close-up of a metallic pipe fitting with a red cable inserted, no visible text or symbols.

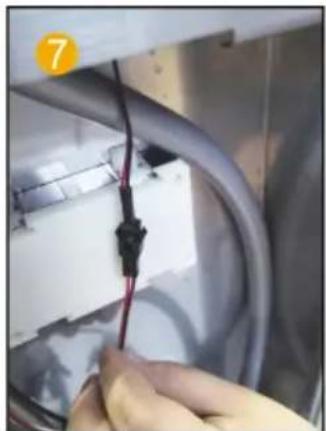

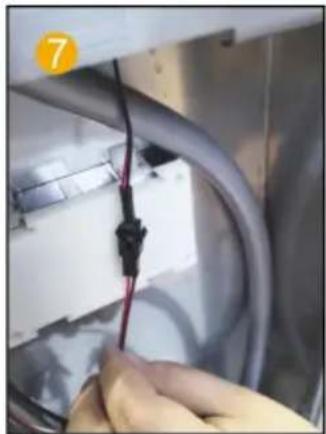

Connect the LED light cable and power supply line. Insert the hand spray nozzle into the panel and install the gasket.

Close-up of industrial equipment with coiled cables and tubing, no visible text or symbols.

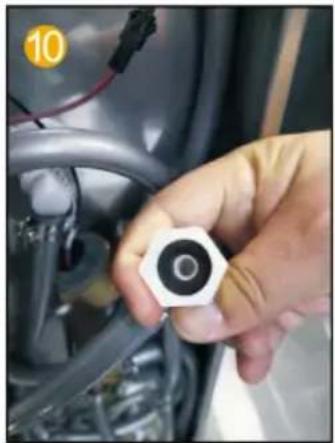

Hand holding a hexagonal nut component in a car dashboard, no visible text or symbols.

Close-up of a white plastic electrical plug connected to coiled cables and wires, no visible text or symbols.

Close-up of a metallic mechanical component with threaded spring and mounting bracket, no visible text or symbols.

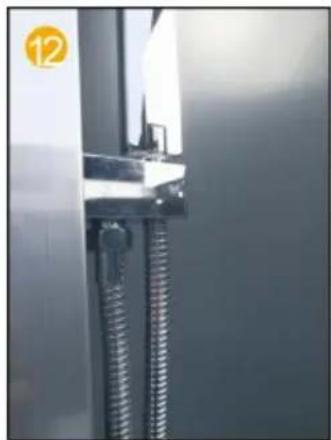

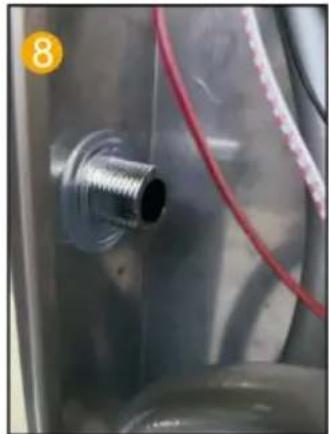

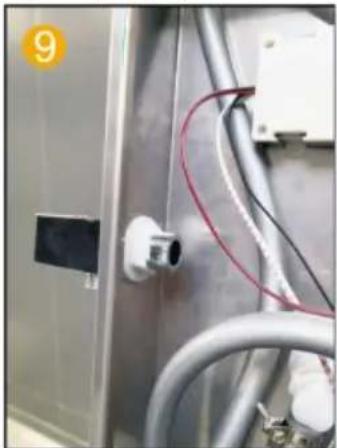

Insert the hand spray nozzle into the panel and install the gasket. Put the 4-point rubber gasket into the hand spray outlet connector and inside the joint of the hand spray seat joint. Connect the hand spray hose to the handheld shower head.

Note: 8009FL has no step 2 and no step 6.

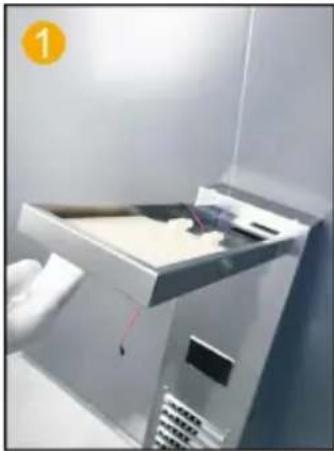

MODEL 8004FL

Interior view of a laboratory or lab equipment setup with a metallic tray and control panel, no visible text or symbols.

Close-up of gloved hands assembling or maintaining a mechanical component with wires and components, no visible text or symbols.

Interior view of a medical or laboratory setup with two white tubing and a yellow circle labeled '3' in the corner, no readable text or symbols.

Person installing or adjusting a white plastic panel with wires, no visible text or symbols.

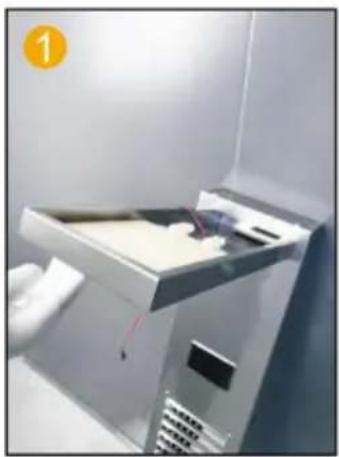

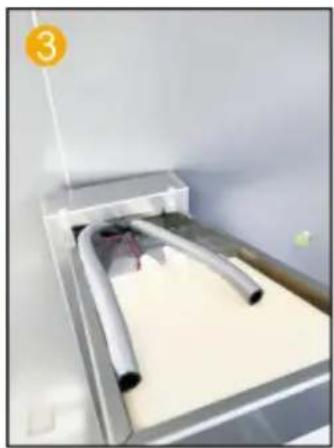

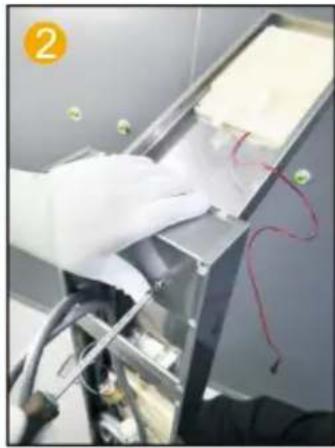

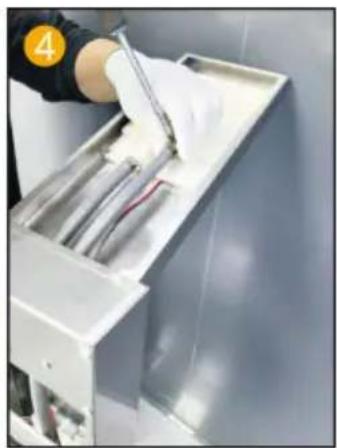

Insert the top spray. Use 2 M4 screws. 1. Connect PVC pipes: Fix the PVC pipe into the mother board, secure the main fixture and LED light wires with a throat clamp on the inside of the hole. Place the plate and top spray thread through the top spray joint hole.

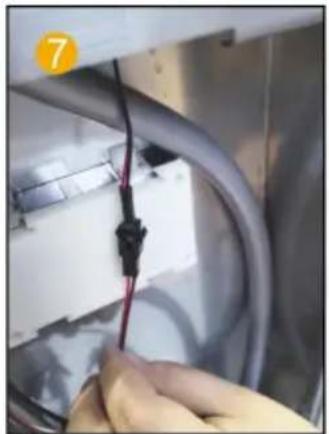

Close-up of gloved hands installing or adjusting a cable with a red wire, next to an open electrical panel, no visible text or symbols.

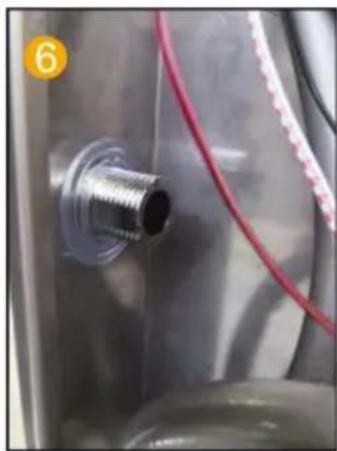

Close-up of a metallic threaded connector with red and black wires attached, no visible text or symbols.

Close-up of industrial equipment with metallic components and wiring, no visible text or symbols.

Close-up of hands installing or adjusting a component inside an appliance, no visible text or symbols.

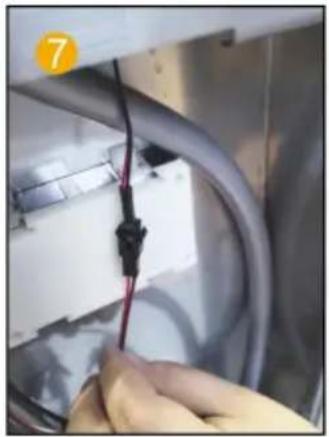

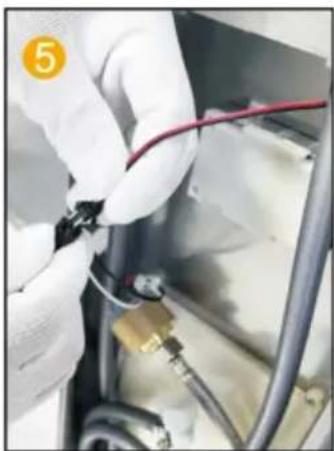

Connect the LED light cable and power supply line.

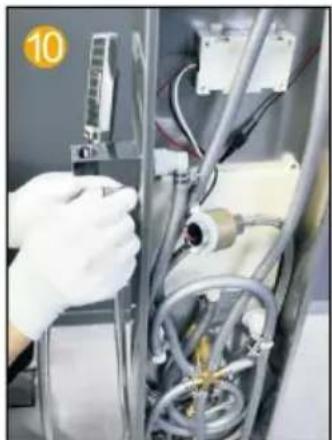

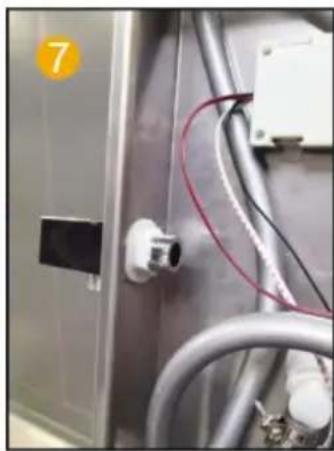

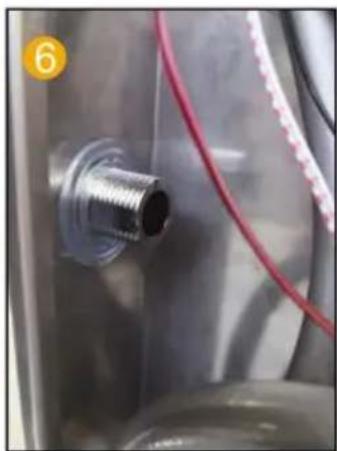

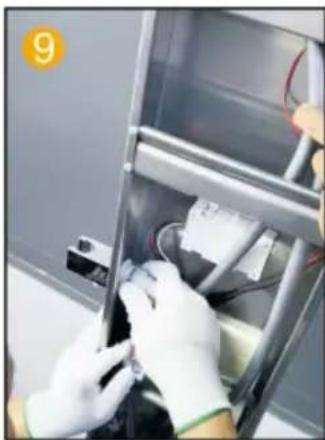

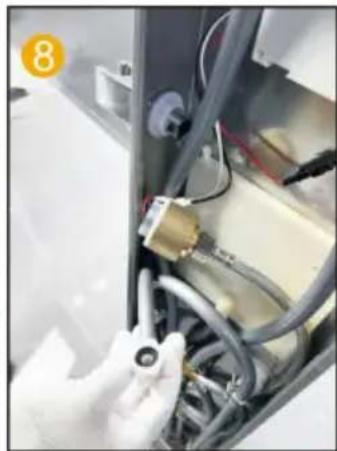

Insert the hand spray. Spray socket with nozzle into the pan, hexagonal nut handle, and install the gasket fixed on the panel.

Spray socket with hexagonal nut handle: fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

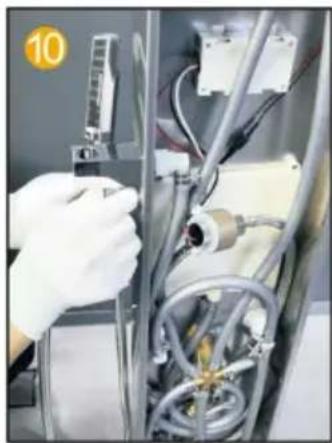

Person in white gloves handling a device inside a metallic enclosure, no visible text or symbols.

Close-up of gloved hands operating a mechanical device with hoses and wiring, no visible text or symbols.

Connect the water. Connect the hand outlet connector and spray hose to the hand spray seat joint, handheld one show head.

INSTALLATION STEPS (GENERAL)

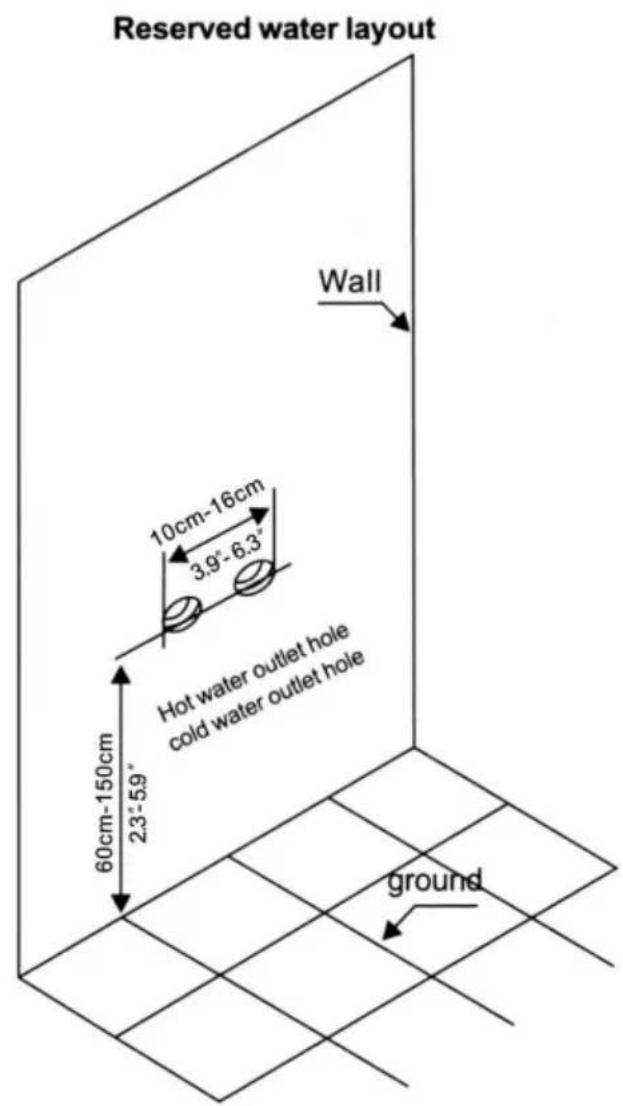

Reserved water layout. Wall. 10cm-16cm. 3.9°-6.3°. Hot water outlet hole. Cold water outlet hole. 60cm-150cm. 23°-5.9°. Ground.

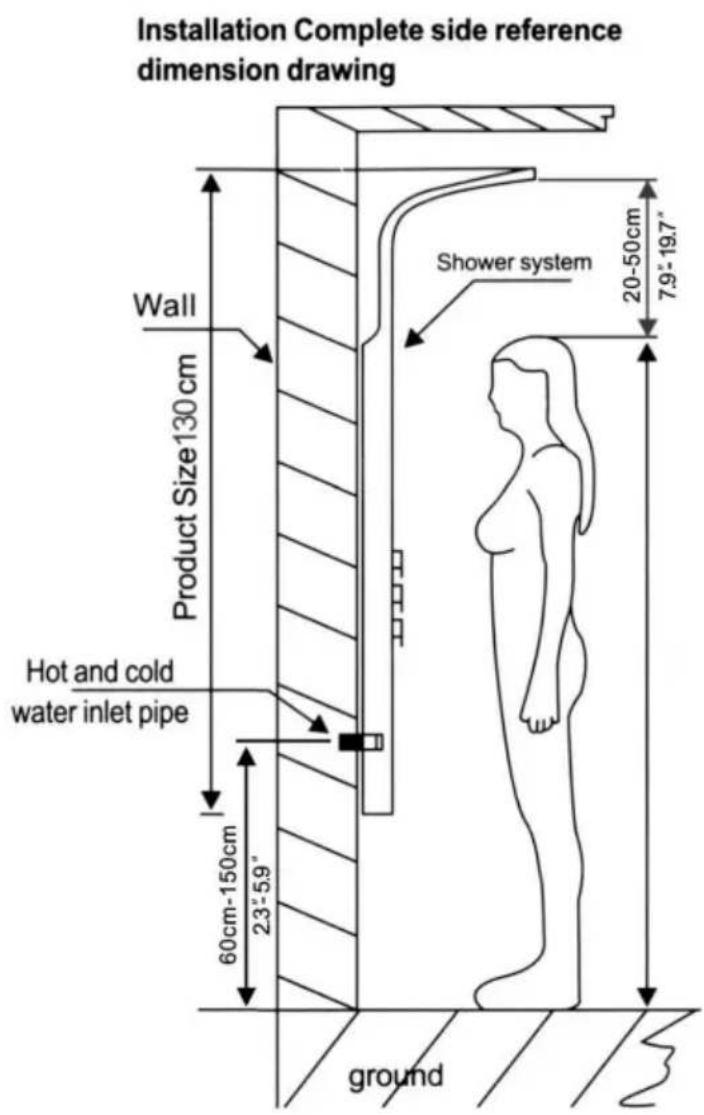

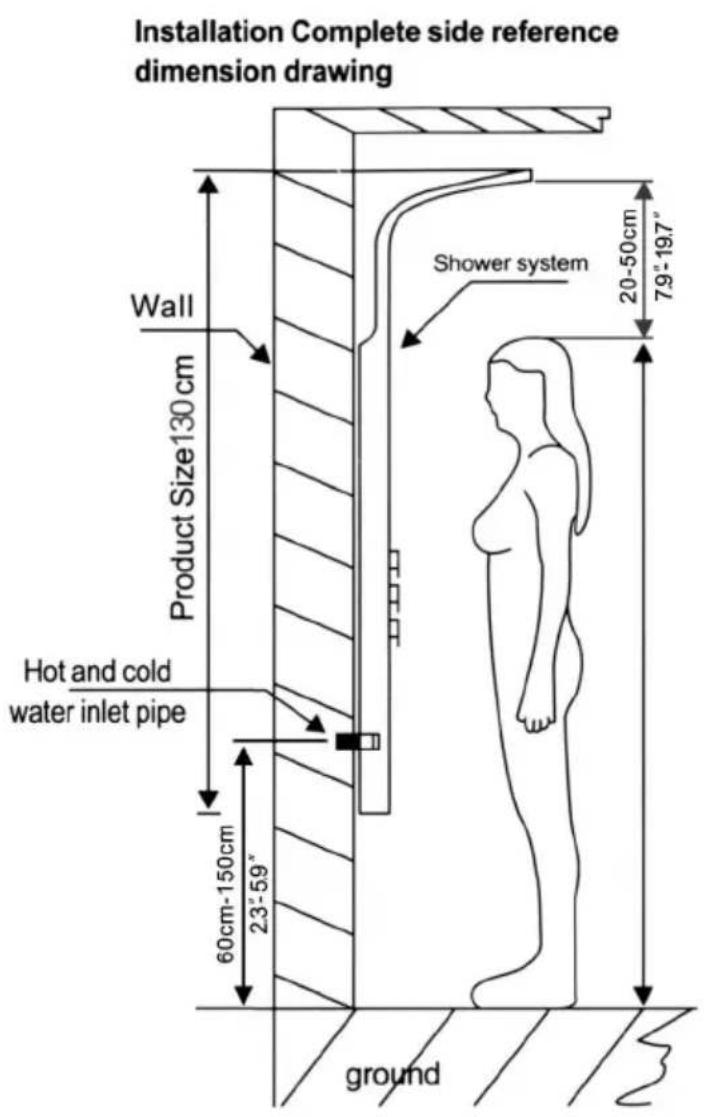

Installation complete side reference dimension drawing. Wall. Product size 130cm. Hot and cold water inlet pipe. 60cm-150cm. 23'-59". Ground. Shower system. 20-50cm. 79'-197".

Installation Notes

According to the height of the family, budget the shower system installation height. Measure the shower system on the back of the bar. Distance, mark a wall, in the corresponding position of the tag fixed hanging iron (up and down one).
Connect the hot and cold water hose (be sure to clean the magazine and dirt in the wall scale so as not to block, affect the water effect).
Shower system hanging on the wall, the upper and lower two cards were clamped in two hanging pastes (Note: after the shower system is on the wall, the main close to the wall is not shaking, do not need to use another glass glue and tools fixed).

Stainless steel shower system maintenance methods:

Regular cleaning of the product in order to keep its appearance bright and clean;
Clean the surface with water or a mild detergent and wipe it with a soft
Note that the clean product of the hidden position, timely cleaning can make products lasting.

SHOWER PANEL SERIES INSTALLATION DIAGRAM

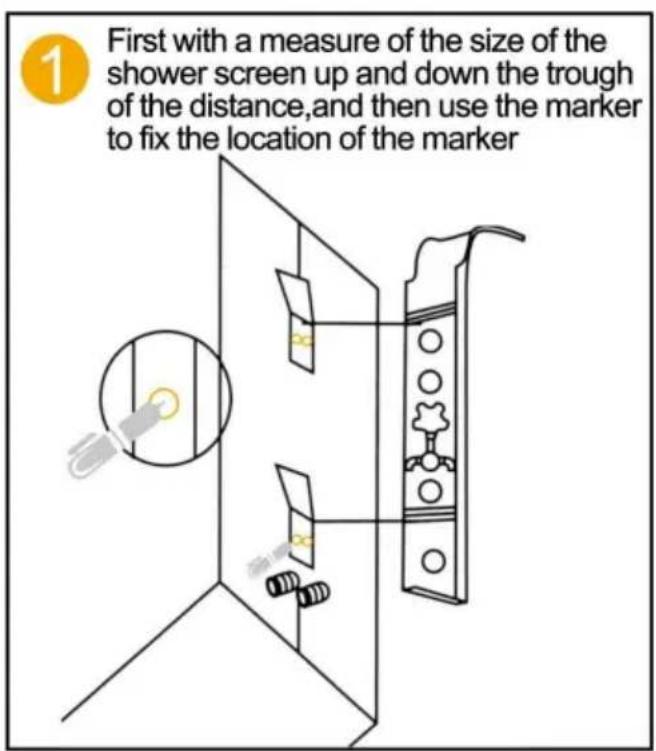

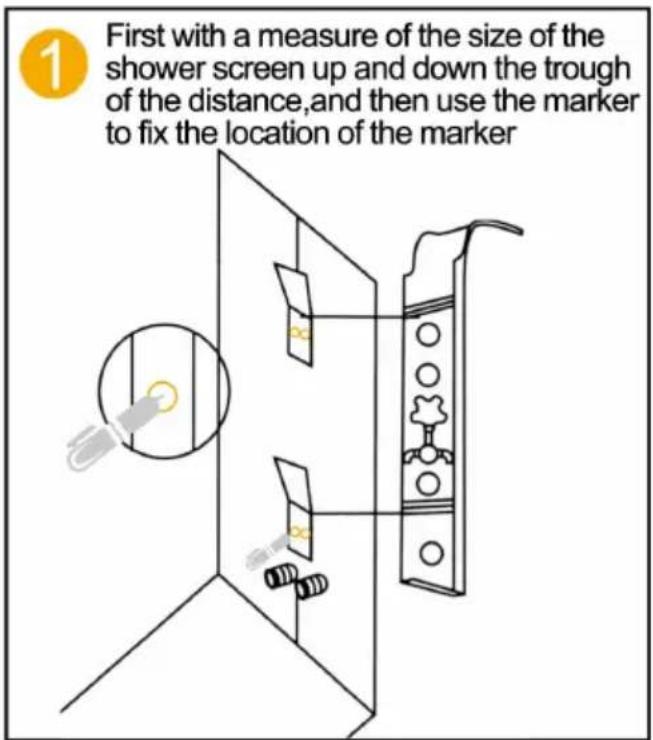

First, measure the distance between the top and bottom troughs of the shower screen, then use a marker to fix the location of the marker.

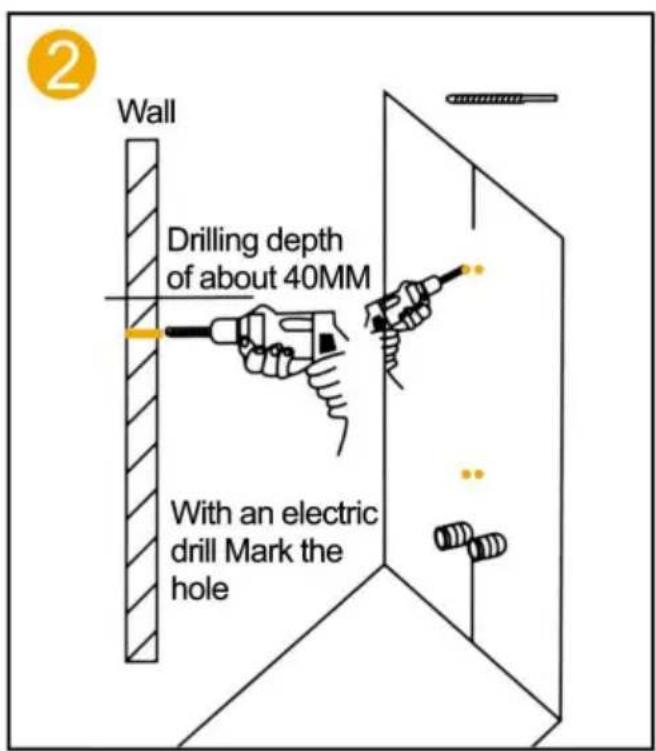

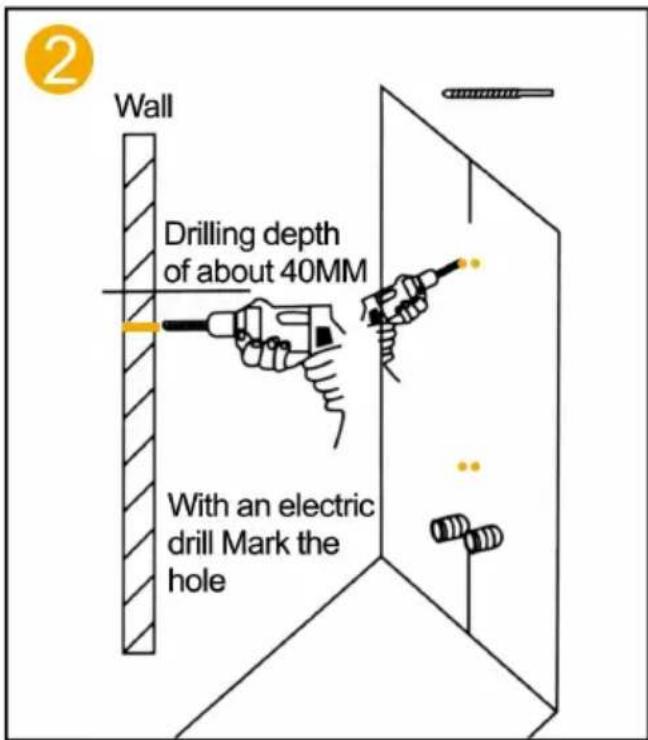

2. Wall. Drilling depth of about 40mm. With an electric drill, mark the hole.

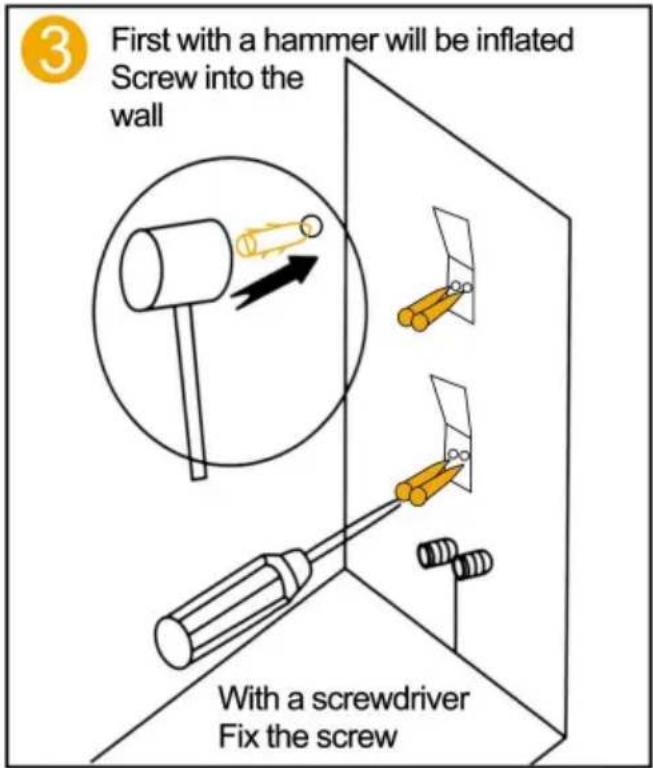

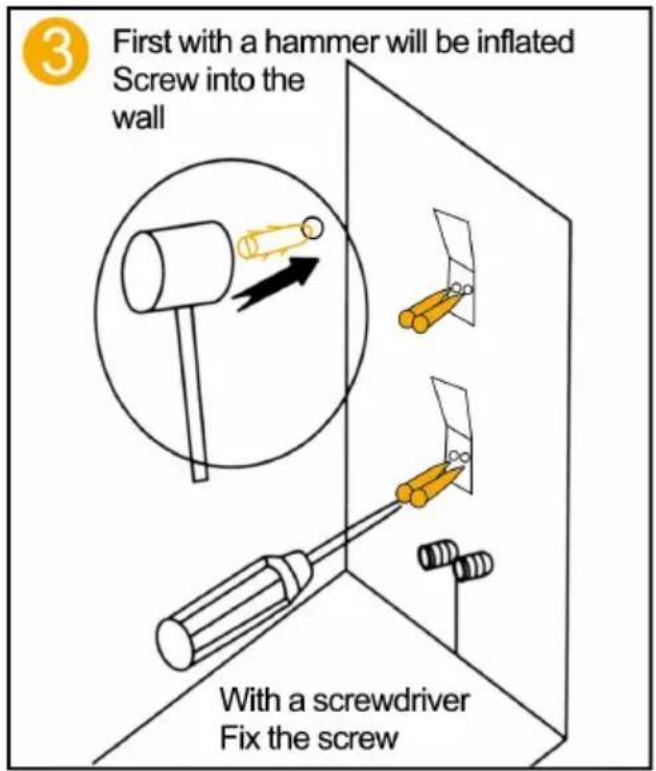

3. First, with a hammer, will be inflated. Screw into the wall. With a screwdriver, fix the screw.

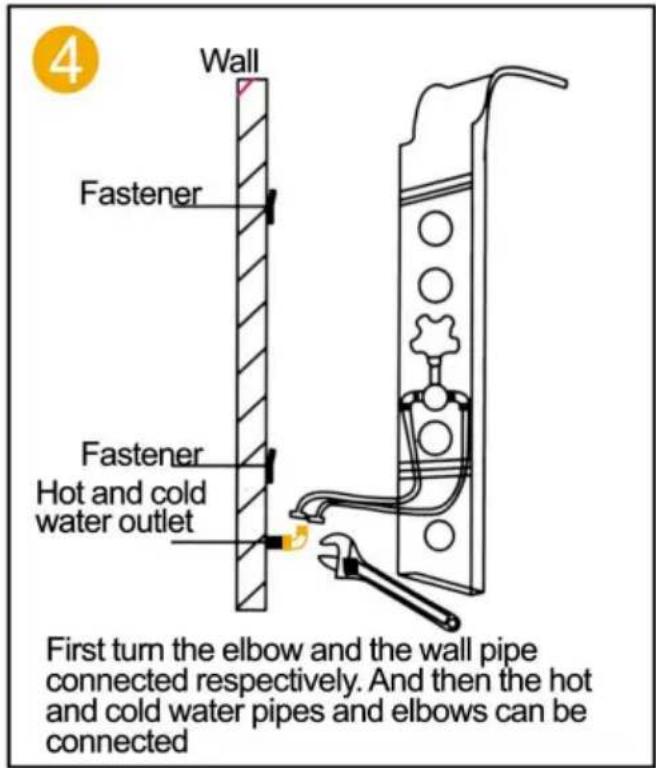

Wall. Fastener. Fastener. Hot and cold water outlet. First turn the elbow and the wall pipe connected respectively. And then the hot and cold water pipes and elbows can be connected.

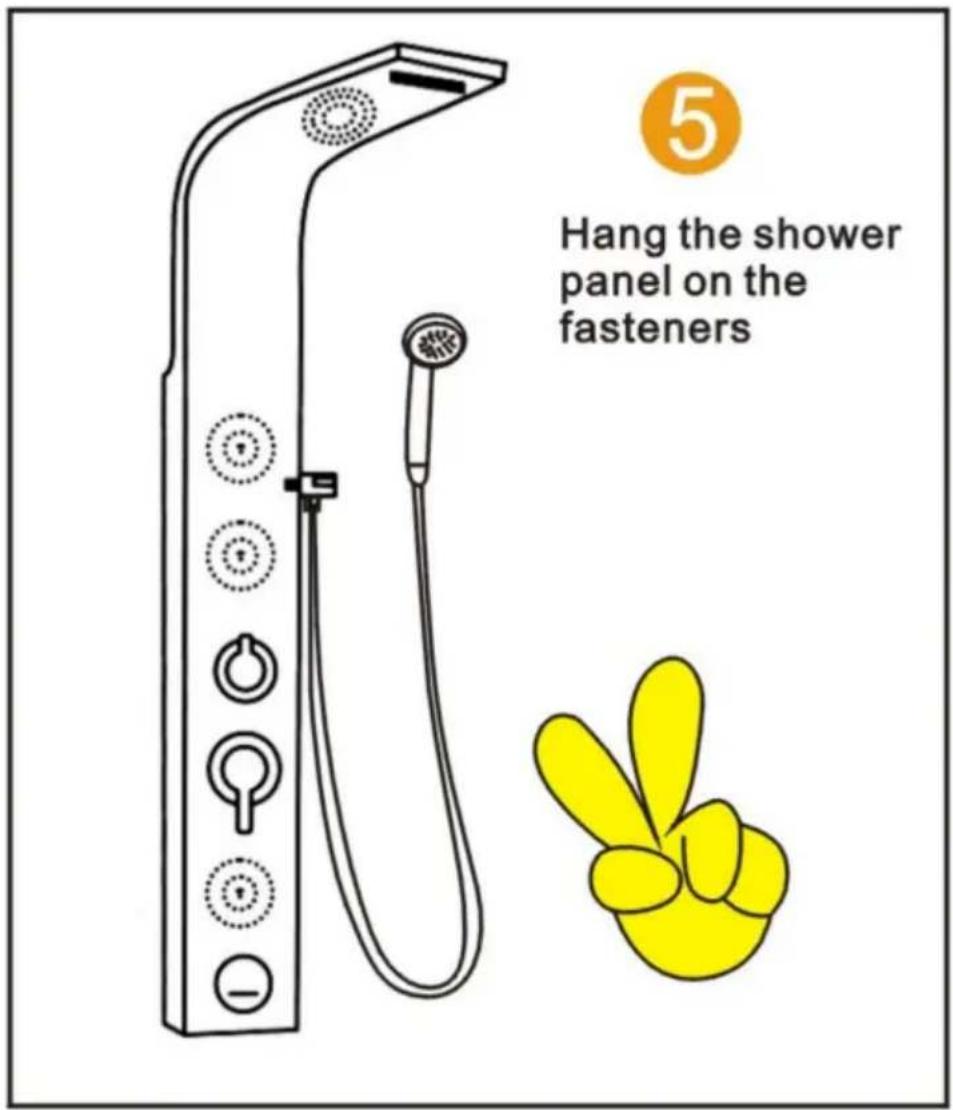

5. Hang the shower panel on the fasteners.

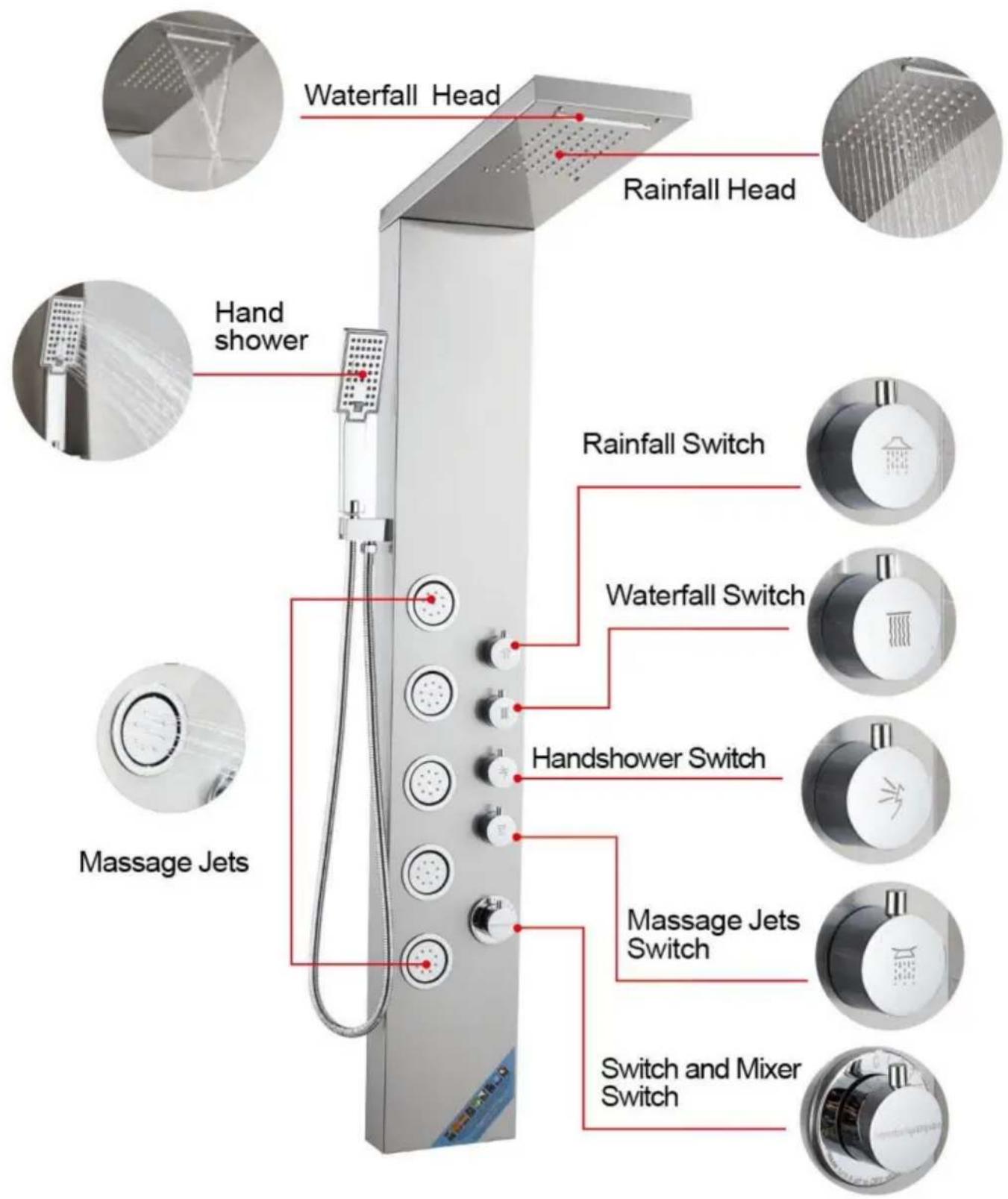

8015FL Waterfall Head. Rainfall Head. Hand shower. Rainfall Switch. Waterfall Switch. Handshower Switch. Massage Jets. Massage Jets Switch. Switch and Mixer Switch.

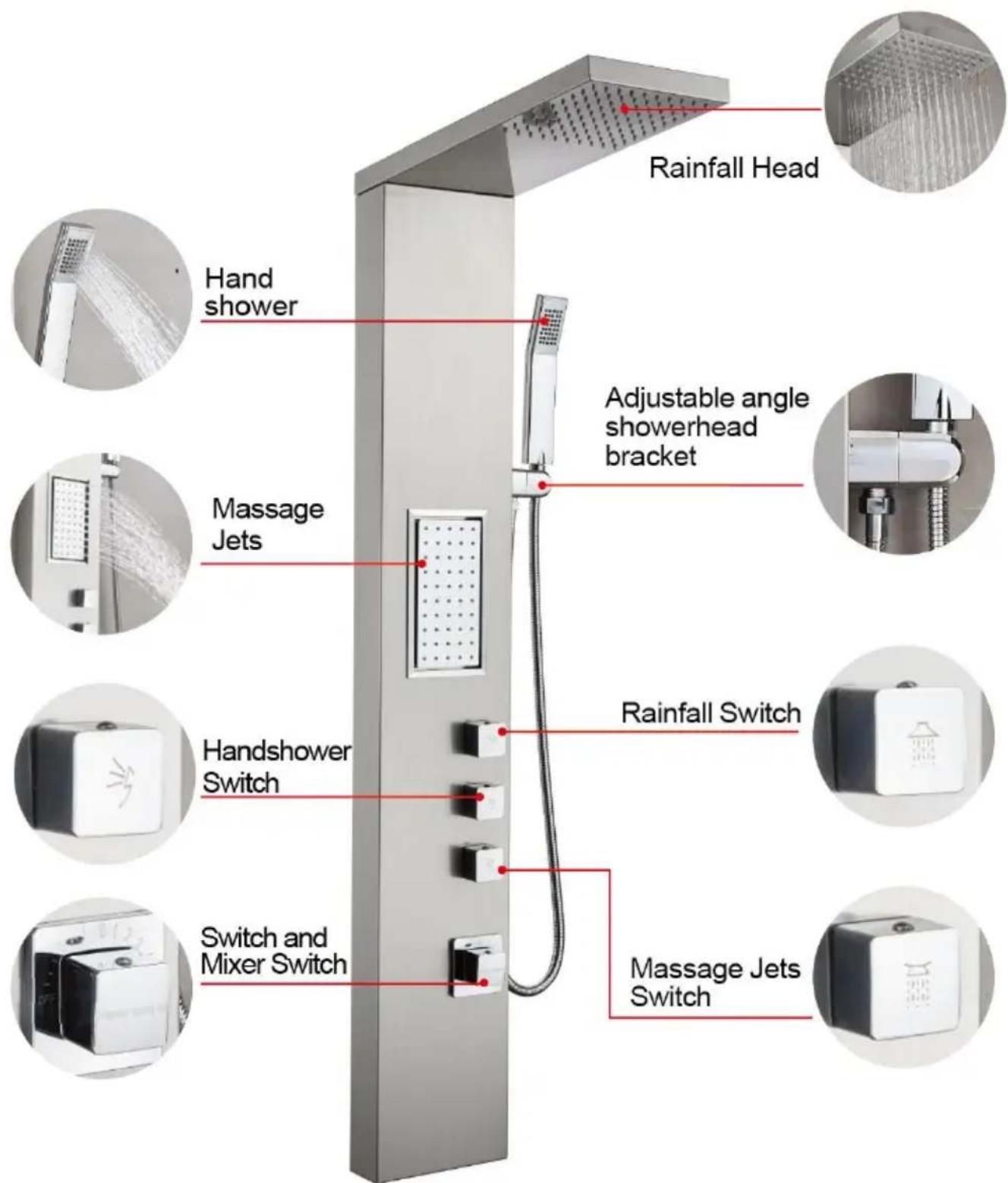

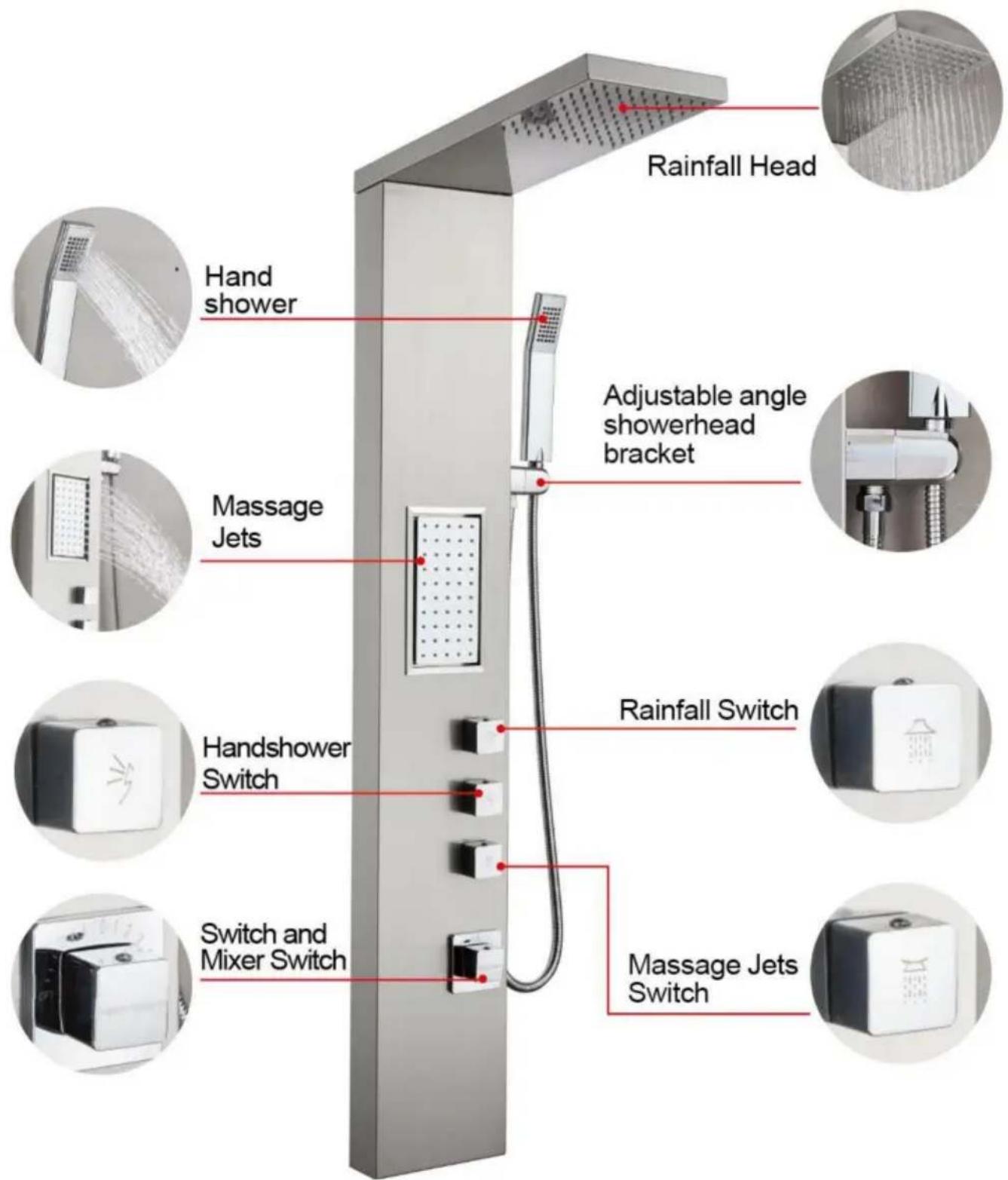

5017FL Rainfall Head. Hand shower. Adjustable angle showerhead bracket. Massage Jets. Handshower Switch. Rainfall Switch. Switch and Mixer Switch. Massage Jets Switch.

5005FL Rainfall Head. Waterfall Head. Hand shower. Adjustable angle showerhead bracket. Mode switching. Massage Jets. Switch and mixing switch.

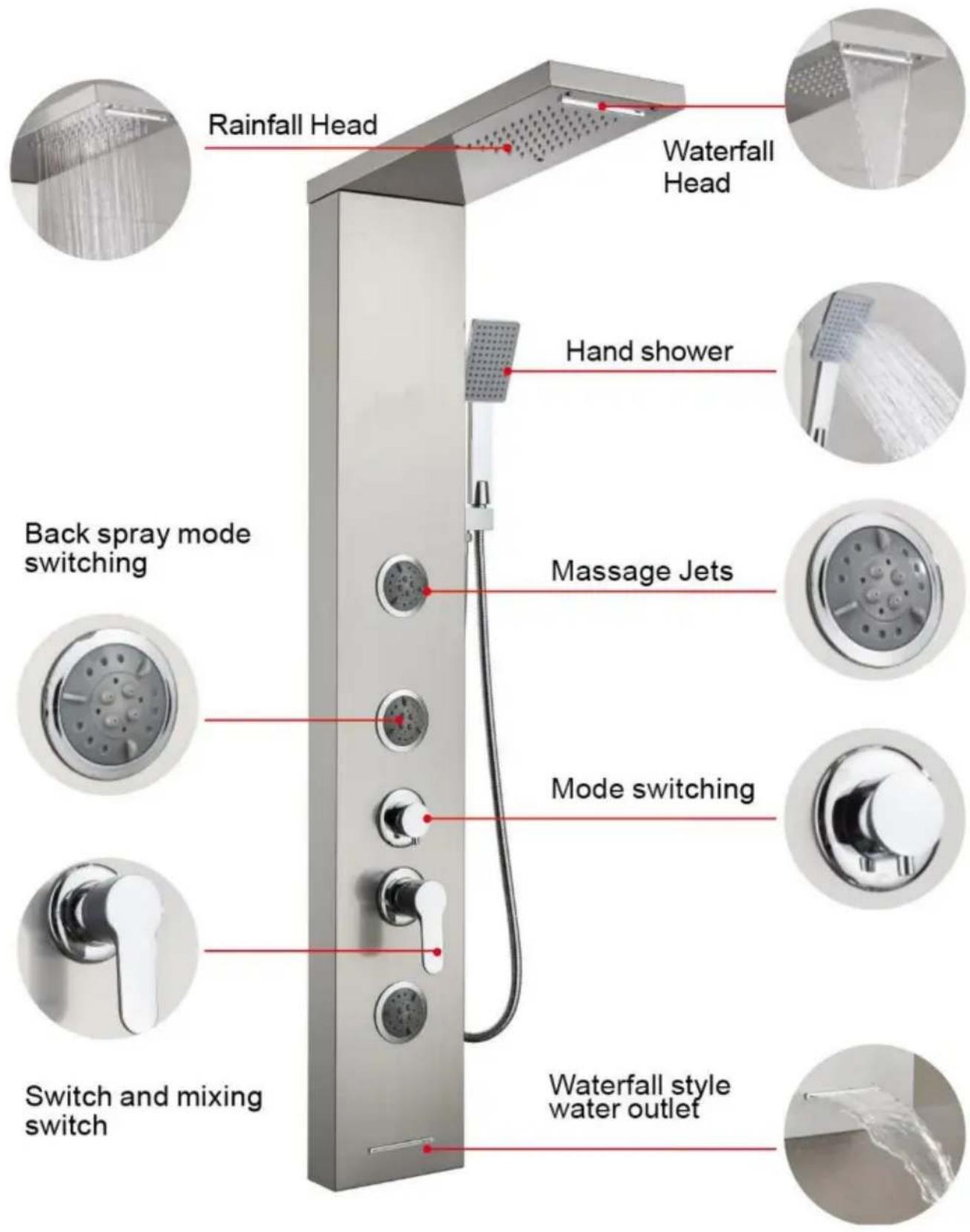

1049FL Rainfall Head. Waterfall Head. Hand shower. Back spray mode switching. Massage Jets. Mode switching. Switch and mixing switch. Waterfall style water outlet.

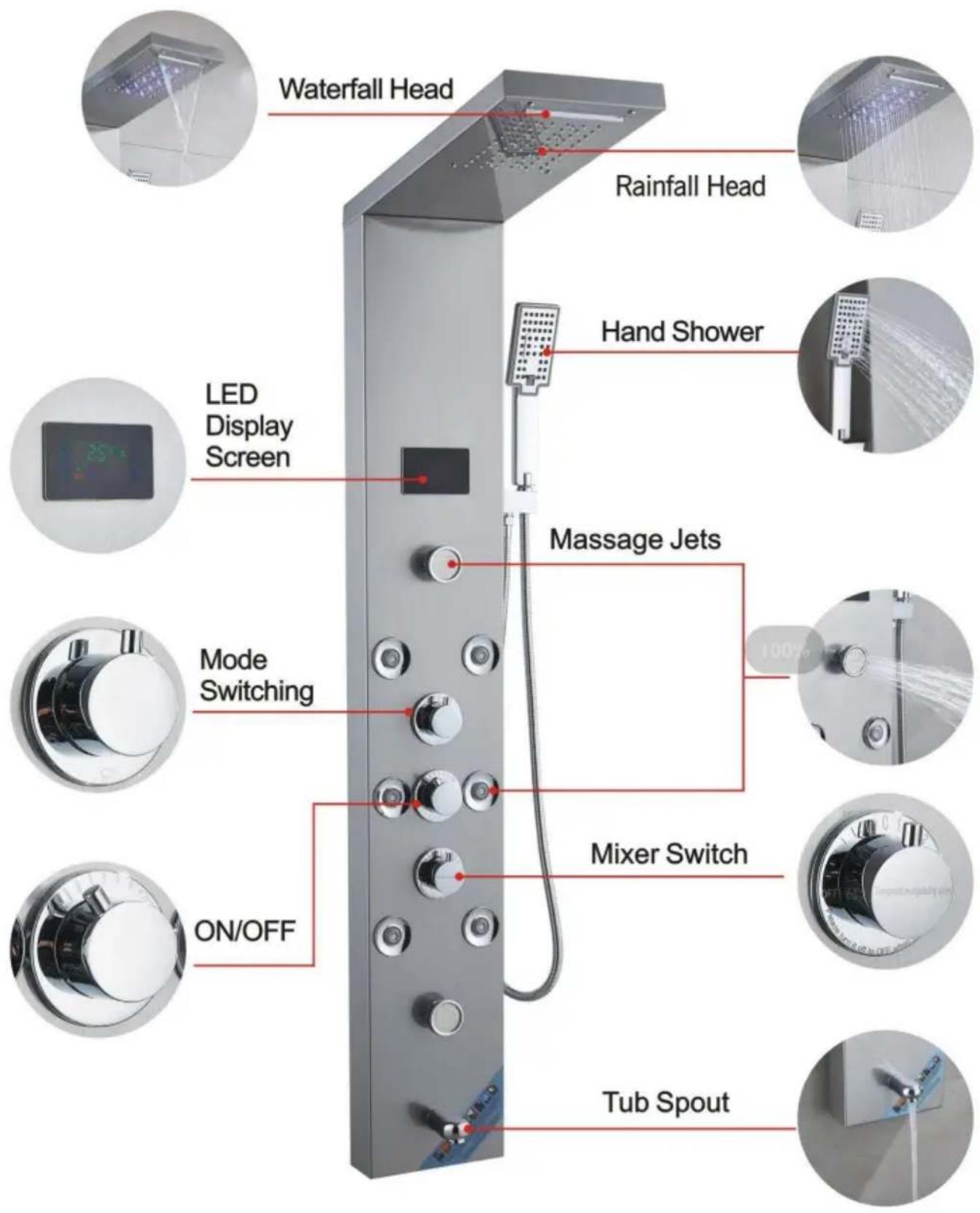

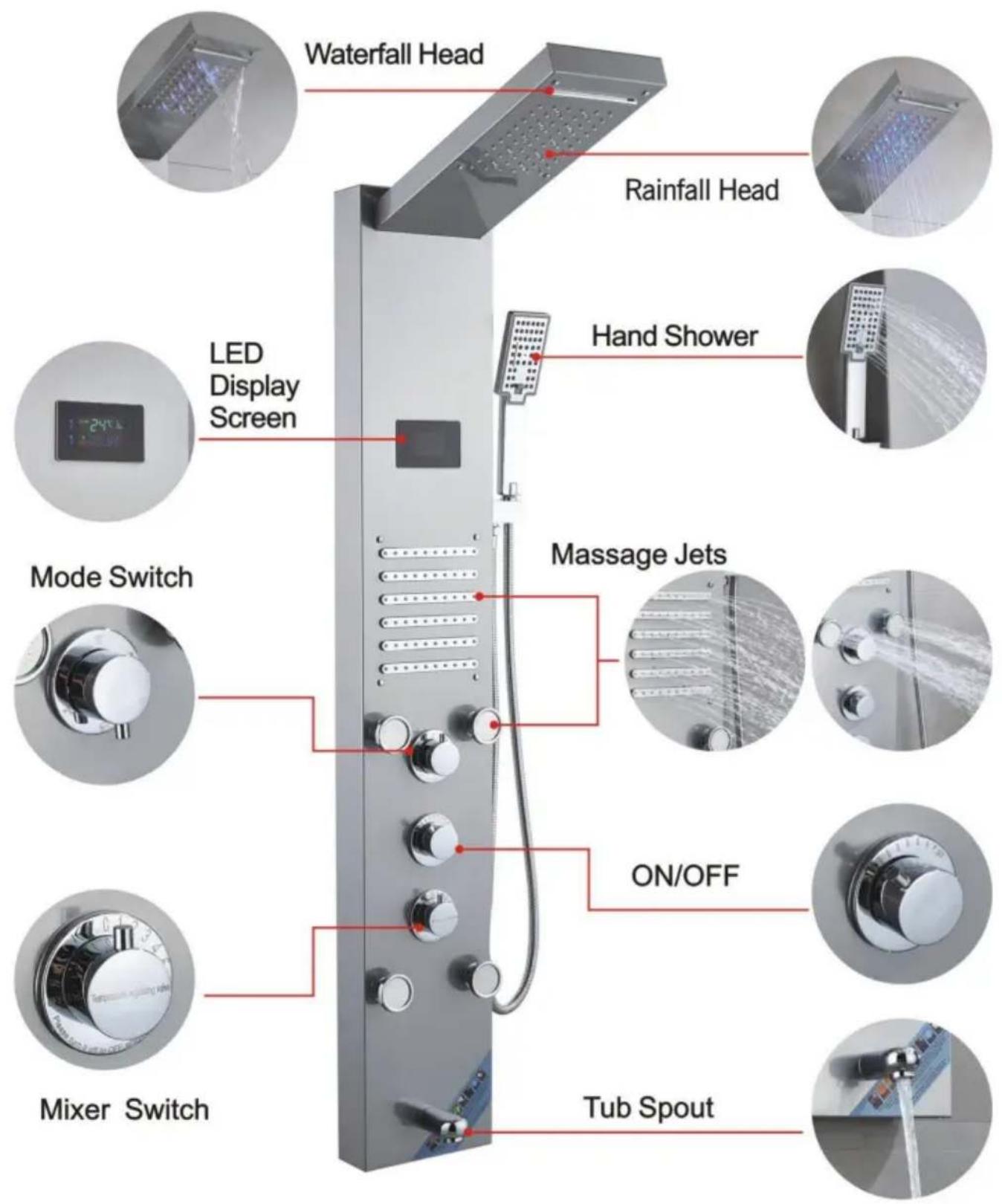

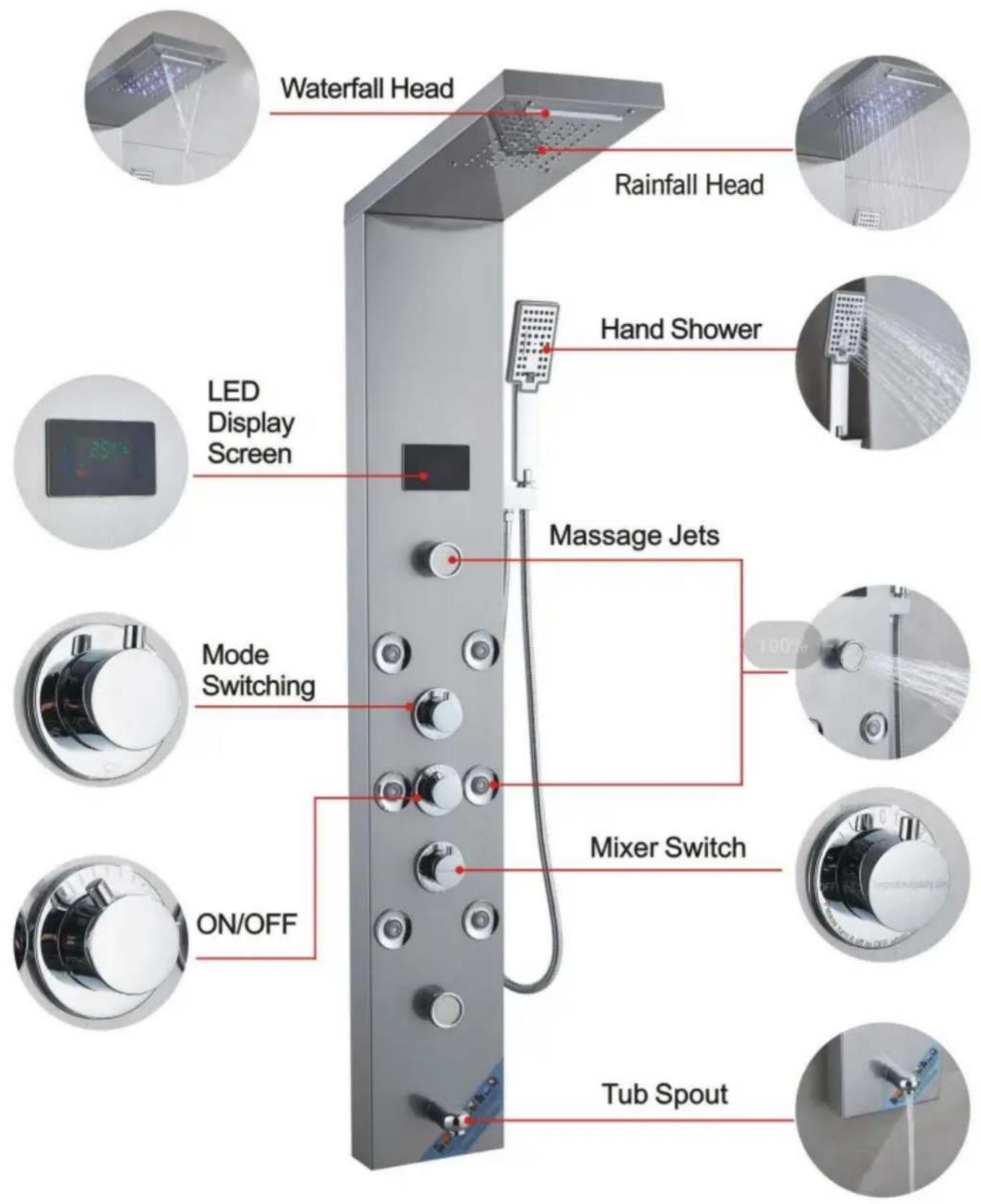

8004FL Waterfall Head. Rainfall Head. LED Display Screen. Hand Shower. Massage Jets. Mode Switch. ON/OFF. Mixer Switch. Tub Spout.

8009FL Waterfall Head. Rainfall Head. Hand Shower. LED Display Screen. Massage Jets. Mode Switching. ON/OFF. Mixer Switch. Tub Spout.

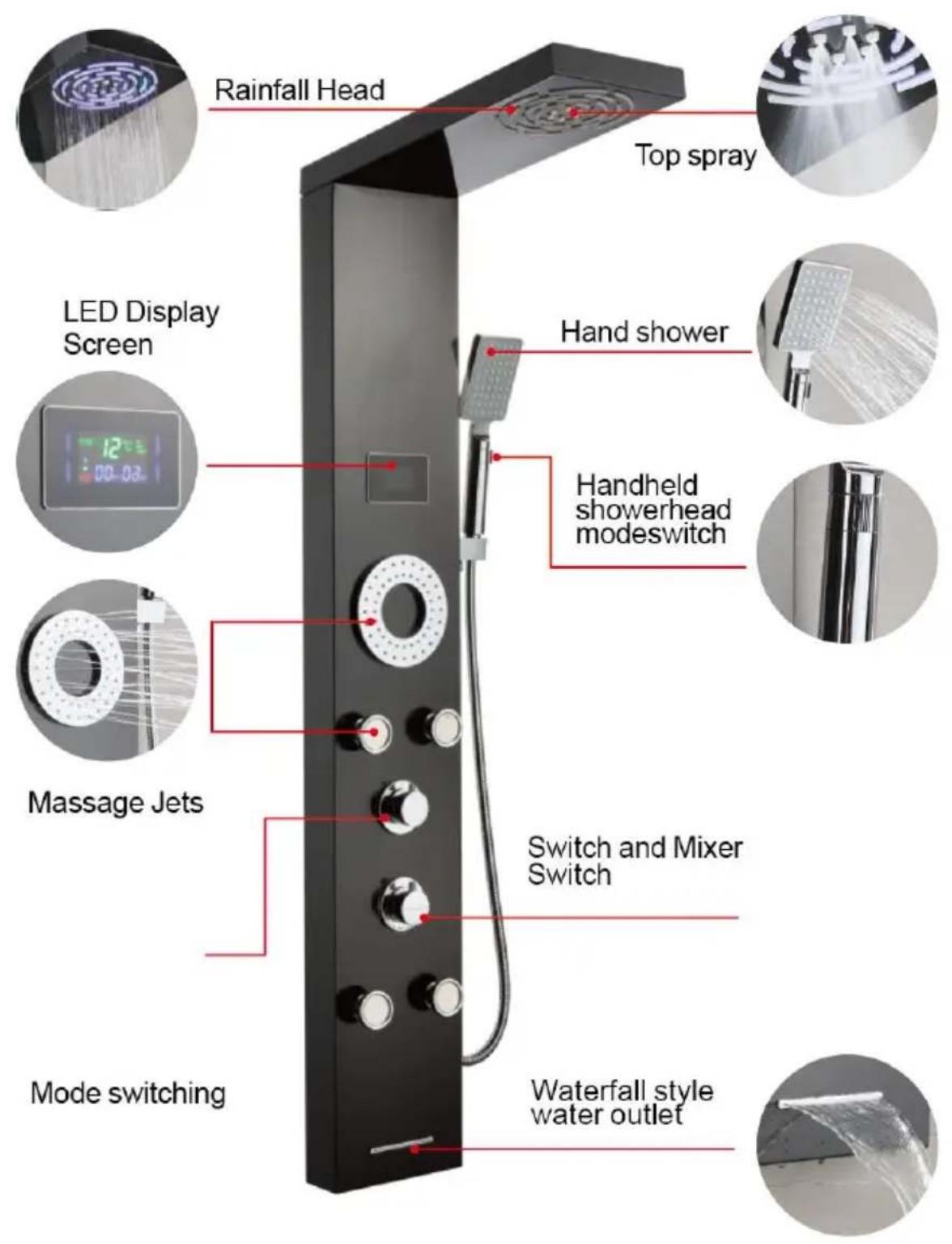

8108FH Rainfall Head. Top spray. LED Display Screen. Hand shower. Handheld showerhead mode switch. Massage Jets. Switch and Mixer Switch. Mode switching. Waterfall style water outlet.

Note: For the detailed installation video, please refer to the corresponding model and scan the QR code below to view.

8015FL QR code image containing encoded data, no visible human-readable text.

5017FL QR code image containing encoded data, no visible human-readable text.

5005FL QR code image containing encoded data, no visible human-readable text.

1049FL QR code image containing encoded data, no visible human-readable text.

8004FL QR code image containing encoded data, no visible human-readable text.

8009FL QR code image containing encoded data, no visible human-readable text.

8108FH QR code image containing encoded data, no visible human-readable text.

Technical Support and E-Warranty Certificate www.vevor.com/support Vevor 8108FH - SHOWER PANEL SERIES INSTALLATION DIAGRAM - 20

VEVOR

Affordable. Reliable. Home Improvement.

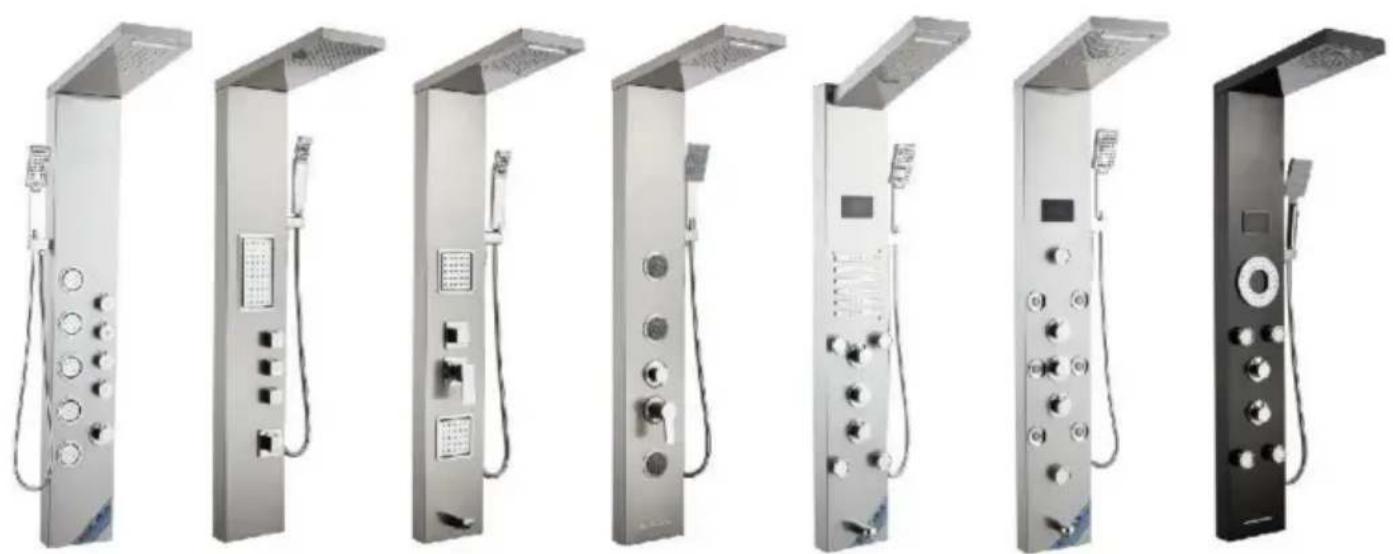

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH

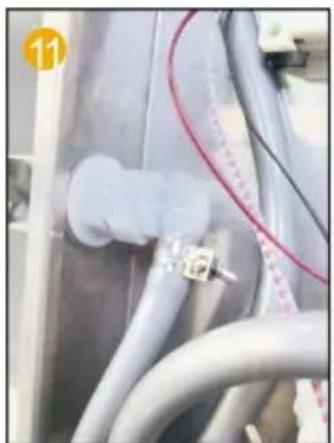

Close-up of a white plastic pipe fitting with red and black cables, no visible text or symbols.

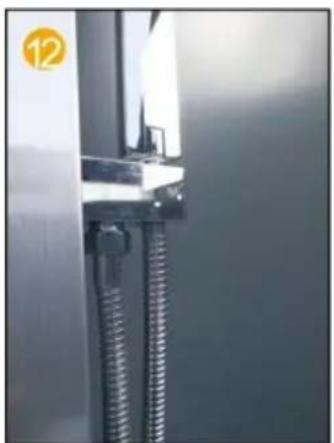

Close-up of a metallic mechanical component with coiled spring and mounting bracket, no visible text or symbols.

Connect the LED

Close-up of a metallic threaded connector attached to a transparent plastic housing, with red cables visible (no text or symbols).

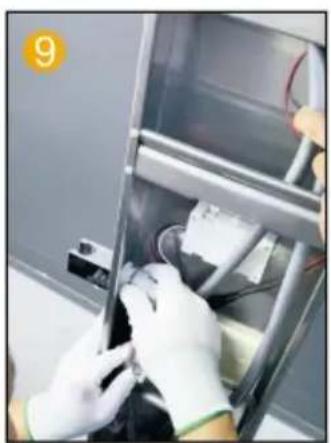

Person in white gloves installing or adjusting a mechanical component inside a metallic enclosure (no visible text or symbols).

INSTALLATION STEPS (GENERAL)

Reserved water layout. Wall. 10cm-16cm (3.9°-6.3°). Hot water outlet hole. Cold water outlet hole. 60cm-150cm (2.3°-5.9°). Ground.

Installation complete side reference dimension drawing. Wall. Product size 130cm. Hot and cold water inlet pipe. 60cm-150cm (23'-59"). Shower system. 20-50cm (7.9'-19.7"). Ground.

2. Wall. Drilling depth of about 40mm. With an electric drill, mark the hole.

3. First, with a hammer, inflate the screw into the wall. With a screwdriver, fix the screw.

Wall. Fastener. Fastener. Hot and cold water outlet. First, turn the elbow and the wall pipe connected respectively. Then the hot and cold water pipes and elbows can be connected.

5. Hang the shower panel on the fasteners.

INTRODUCTION TO FUNCTIONS

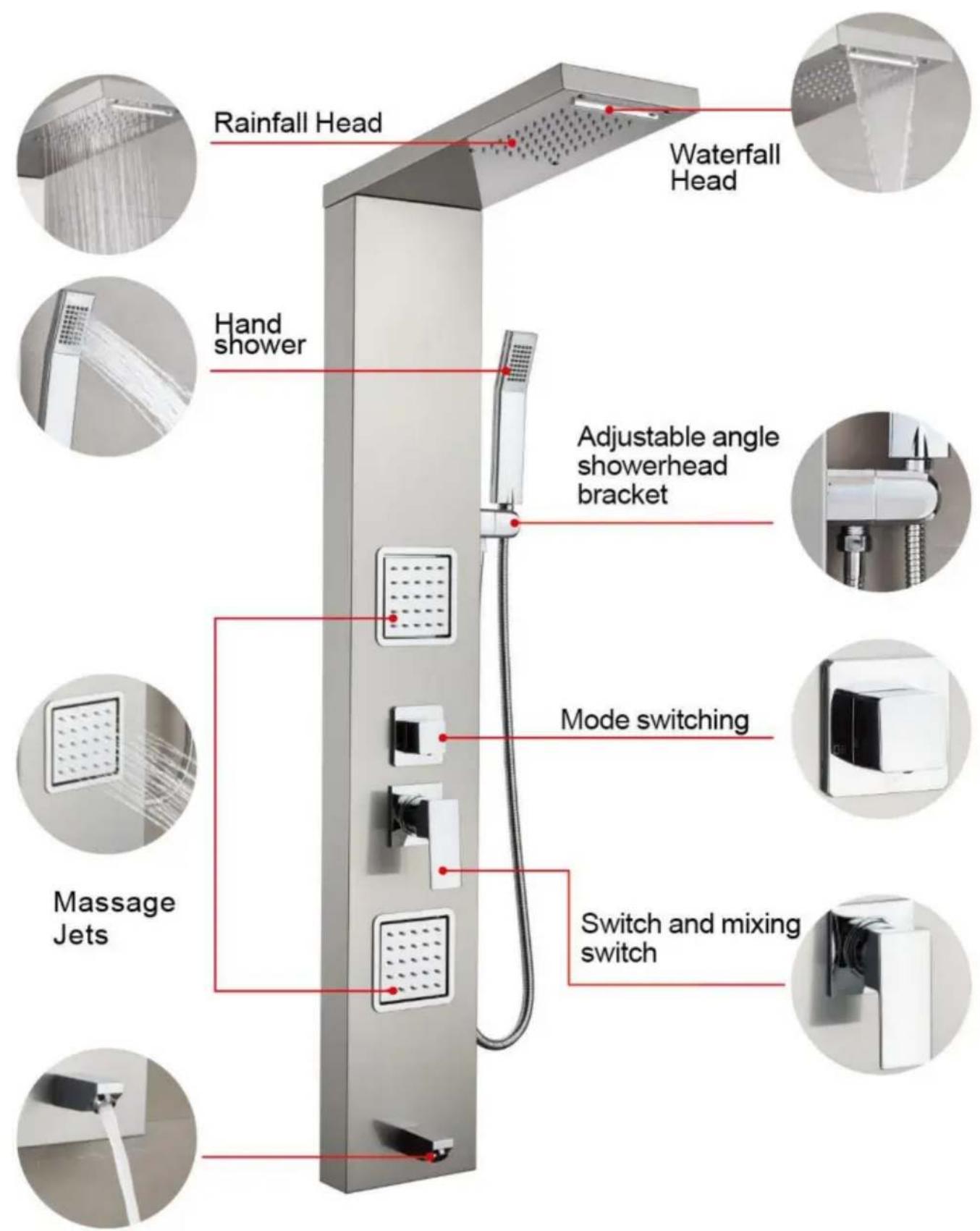

8015FL Waterfall Head, Rainfall Head, Hand shower, Rainfall Switch, Waterfall Switch, Handshower Switch, Massage Jets, Massage Jets Switch, Switch and Mixer Switch

INTRODUCTION TO FUNCTIONS

5017FL Rainfall Head, Hand shower, Adjustable angle showerhead bracket, Massage Jets, Rainfall Switch, Handshower Switch, Switch and Mixer Switch, Massage Jets Switch

INTRODUCTION TO FUNCTIONS

5005FL Rainfall Head, Waterfall Head, Hand shower, Adjustable angle showerhead bracket, Mode switching, Massage Jets, Switch and mixing switch

INTRODUCTION TO FUNCTIONS

1049FL Rainfall Head, Waterfall Head, Hand shower, Back spray mode switching, Massage Jets, Mode switching, Switch and mixing switch, Waterfall style water outlet

INTRODUCTION TO FUNCTIONS

8004FL Waterfall Head, Rainfall Head, LED Display Screen, Hand Shower, Mode Switch, Massage Jets, ON/OFF, Mixer Switch, Tub Spout

INTRODUCTION TO FUNCTIONS

8009FL Waterfall Head, Rainfall Head, Hand Shower, LED Display Screen, Massage Jets, Mode Switching, ON/OFF, Mixer Switch, Tub Spout

INTRODUCTION TO FUNCTIONS

8108FH Rainfall Head, Top spray, LED Display Screen, Hand shower, Handheld showerhead modeswitch, Massage Jets, Switch and Mixer Switch, Mode switching, Waterfall style water outlet

QR code image containing encoded data, no visible human-readable text

8004FL

8009FL1049FL

QR code image containing encoded data, no visible human-readable text

8108FH

QR code image containing encoded data, no visible human-readable text

Vevor 8108FH - INTRODUCTION TO FUNCTIONS - 8

Affordable. Reliable. Home Improvement.

SHOWER PANEL TOWER

MODEL:

8015FL, 5017FL, 5005FL, 1049FL, 8004FL, 8009FL, 8108FH

VEVOR

SHOWER PANEL TOWER

Affordable. Reliable. Home Improvement.

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH Hand holding a white cable against a plain gray wall, no text or symbols visible

Close-up of a white PVC pipe fitting with red and black cables, no visible text or symbols

Close-up of a metallic mechanical component with coiled spring and mounting bracket (no visible text or symbols)

INSTALLATION STEPS (GENERAL)

Reserved water layout. Wall. 10cm-16cm. 3.9°-6.3°. Hot water outlet hole. Cold water outlet hole. 60cm-150cm. 2.3°-5.9°. Ground.

Installation complete side reference dimension drawing. Wall. Product size 130 cm. Hot and cold water inlet pipe. 60cm-150cm. 23'-59". Shower system. 20-50cm. 7.9'-19.7". Ground.

Installation Instructions

SHOWER PANEL SERIES - INSTALLATION DIAGRAM

First, measure the distance between the top and bottom troughs of the shower screen, then use a marker to fix the location of the marker.

2. Wall. Drilling depth of about 40mm. With an electric drill, mark the hole.

3. First, with a hammer, inflate the screw into the wall. With a screwdriver, fix the screw.

Wall. Fastener. Fastener. Hot and cold water outlet. First, turn the elbow and the wall pipe connected respectively. And then the hot and cold water pipes and elbows can be connected.

5. Hang the shower panel on the fasteners.

FUNCTION INTRODUCTION

8015FL Waterfall Head. Rainfall Head. Hand shower. Rainfall Switch. Waterfall Switch. Handshower Switch. Massage Jets. Massage Jets Switch. Switch and Mixer Switch.

FUNCTION INTRODUCTION

5017FL Rainfall Head. Hand shower. Adjustable angle showerhead bracket. Massage Jets. Rainfall Switch. Handshower Switch. Switch and Mixer Switch. Massage Jets Switch.

FUNCTION INTRODUCTION

5005FL Rainfall Head. Waterfall Head. Hand shower. Adjustable angle showerhead bracket. Mode switching. Massage Jets. Switch and mixing switch.

FUNCTION INTRODUCTION

1049FL Rainfall Head. Waterfall Head. Hand shower. Back spray mode switching. Massage Jets. Mode switching. Switch and mixing switch. Waterfall style water outlet.

FUNCTION INTRODUCTION

8004FL Waterfall Head. Rainfall Head. LED Display Screen. Hand Shower. Mode Switch. Massage Jets. ON/OFF. Mixer Switch. Tub Spout.

FUNCTION INTRODUCTION

8009FL Waterfall Head. Rainfall Head. Hand Shower. LED Display Screen. Massage Jets. Mode Switching. ON/OFF. Mixer Switch. Tub Spout.

FUNCTION INTRODUCTION

8108FH Rainfall Head. Top spray. LED Display Screen. Hand shower. Handheld showerhead mode switch. Massage Jets. Switch and Mixer Switch. Mode switching. Waterfall style water outlet.

5017FL QR code image containing encoded data, no visible human-readable text.

5005FL QR code image containing encoded data, no visible human-readable text.

1049FL QR code image containing encoded data, no visible human-readable text.

8004FL 8009FL QR code image containing encoded data, no visible human-readable text.

QR code image containing encoded data, no visible human-readable text.

8108FH QR code image containing encoded data, no visible human-readable text.

Affordable. Reliable. Home Improvement.

SHOWER PANEL TOWER

MODEL:

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH

VEVOR

SHOWER PANEL TOWER

Affordable. Reliable. Home Improvement.

Series of seven different shower unit designs, each with a uniquely labeled panel (no text or symbols visible).

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH

Connect the LED

Close-up of a metallic threaded connector attached to a transparent plastic housing, with red cables visible (no text or symbols)

Person in white gloves installing or adjusting a mechanical component inside a metallic enclosure (no visible text or symbols)

Wall Drilling depth of about 40MM With an electric drill Mark the hole

3 First with a hammer will be inflated Screw into the wall With a screwdriver Fix the screw

Wall Fastener Fastener Hot and cold water outlet First turn the elbow and the wall pipe connected respectively. And then the hot and cold water pipes and elbows can be connected

5 Hang the shower panel on the fasteners

5017FL QR code image containing encoded data, no visible human-readable text

5005FL QR code image containing encoded data, no visible human-readable text

1049FL QR code image containing encoded data, no visible human-readable text

8004FL 8009FL QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

8108FH QR code image containing encoded data, no visible human-readable text

Affordable. Reliable. Home Improvement.

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH Hand holding a white cable against a plain gray wall, no text or symbols visible

Close-up of hands using a tool to connect cables to an electrical panel (no visible text or symbols)

Close-up of a white plastic pipe fitting with red and black cables, no visible text or symbols

Close-up of a metallic mechanical component with a coiled spring and mounting bracket (no visible text or symbols)

Connect the LED

Close-up of a metallic threaded connector attached to a transparent plastic housing, with red cables visible (no text or symbols)

2 Wall Drilling depth of about 40MM With an electric drill Mark the hole

3 First with a hammer will be inflated Screw into the wall With a screwdriver Fix the screw

Wall Fastener Fastener Hot and cold water outlet First turn the elbow and the wall pipe connected respectively. And then the hot and cold water pipes and elbows can be connected

5 Hang the shower panel on the fasteners

1049FL

QR code image containing encoded data, no visible human-readable text

8004FL 8009FL

QR code image containing encoded data, no visible human-readable text

8108FH

QR code image containing encoded data, no visible human-readable text

Affordable. Reliable. Home Improvement.

SHOWER PANEL TOWER

MODEL:

8015FL, 5017FL, 5005FL, 1049FL, 8004FL, 8009FL, 8108FH

VEVOR

Affordable. Reliable. Home Improvement.

SHOWER PANEL TOWER

Series of seven different shower unit designs, each with a uniquely labeled panel and control buttons (no text or symbols visible)

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH

Close-up of hands installing a cable with a red wire, no visible text or symbols.

Close-up of a metallic mechanical component with a coiled spring and mounting bracket. No visible text or symbols.

Connect the LED diode

Close-up of a metallic threaded connector attached to a transparent plastic housing, with red cables visible. No text or symbols.

Person in white gloves operating industrial machinery with hoses and pipes (no visible text or symbols)

Installation complete side reference dimension drawing Wall Product size 130cm Hot and cold water inlet pipe 60cm-150cm 23'-59" Shower system 20-50cm 7.9'-19.7" Ground

Wall Drilling depth of about 40mm With an electric drill, mark the hole

3. First, use a hammer to insert the expansion screw into the wall. With a screwdriver, fix the screw.

Wall Fastener Fastener Hot and cold water outlet First, connect the elbow and the wall pipe respectively. Then the hot and cold water pipes and elbows can be connected.

5. Hang the shower panel on the fasteners.

INTRODUCTION TO FUNCTIONS

8015FL Waterfall Head Rainfall Head Hand shower Rainfall Switch Waterfall Switch Handshower Switch Massage Jets Massage Jets Switch Switch and Mixer Switch

INTRODUCTION TO FUNCTIONS

5017FL Rainfall Head Hand shower Adjustable angle showerhead bracket Massage Jets Rainfall Switch Handshower Switch Switch and Mixer Switch Massage Jets Switch

INTRODUCTION TO FUNCTIONS

5005FL Rainfall Head Waterfall Head Hand shower Adjustable angle showerhead bracket Mode switching Massage Jets Switch and mixing switch

INTRODUCTION TO FUNCTIONS

1049FL Rainfall Head Waterfall Head Hand shower Back spray mode switching Massage Jets Mode switching Switch and mixing switch Waterfall style water outlet

INTRODUCTION TO FUNCTIONS

8004FL Waterfall Head Rainfall Head Hand Shower LED Display Screen Massage Jets Mode Switch ON/OFF Mixer Switch Tub Spout

INTRODUCTION TO FUNCTIONS

8009FL Waterfall Head Rainfall Head Hand Shower LED Display Screen Massage Jets Mode Switching ON/OFF Mixer Switch Tub Spout

INTRODUCTION TO FUNCTIONS

8108FH Rainfall Head Top spray LED Display Screen Hand shower Handheld showerhead mode switch Massage Jets Switch and Mixer Switch Mode switching Waterfall style water outlet

QR code image containing encoded data, no visible human-readable text.

8004FL1049FL 8009FL

QR code image containing encoded data, no visible human-readable text.

8108FH

QR code image containing encoded data, no visible human-readable text.

Vevor 8108FH - INTRODUCTION TO FUNCTIONS - 8

Affordable. Reliable. Home Improvement.

SHOWER PANEL TOWER

MODEL:

8015FL, 5017FL, 5005FL, 1049FL, 8004FL, 8009FL, 8108FH

VEVOR

SHOWER PANEL TOWER

Affordable. Reliable. Home Improvement.

Series of seven different showerdowns with various digital channels and control knobs, shown from different angles (no text or labels visible).

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH

Close-up of hands installing a cable with a red tool. No visible text or symbols.

Close-up of white cables and connectors with red wires. No visible text or symbols.

Close-up of a metallic mechanical component with a coiled spring and mounting bracket. No visible text or symbols.

Connect the LED

Close-up of a metallic threaded connector attached to a transparent plastic housing, with red cables visible (no text or symbols)

Person in white gloves operating a mechanical device with tubing and a pipe (no visible text or symbols)

INSTALLATION STEPS (GENERAL)

Reserved water layout. Wall. 10cm-16cm. 3.9°-6.3°. Hot water outlet hole. Cold water outlet hole. 60cm-150cm. 2.3°-5.9°. Ground.

Installation complete side reference dimension drawing. Wall. Product size 130cm. Hot and cold water inlet pipe. 60cm-150cm. 23'-59". Shower system. 20-50cm. 7.9'-19.7". Ground.

2. Wall. Drilling depth of about 40mm. With an electric drill, mark the hole.

3. First, with a hammer, will be inflated screw into the wall. With a screwdriver, fix the screw.

Wall fastener, fastener, hot and cold water outlet. First connect the elbow and the wall pipe respectively, then the hot and cold water pipes and elbows can be connected.

5. Hang the shower panel on the fasteners.

FUNCTION INTRODUCTION

8015FL Waterfall Head, Rainfall Head, Hand shower, Rainfall Switch, Waterfall Switch, Handshower Switch, Massage Jets, Massage Jets Switch, Switch and Mixer Switch.

FUNCTION INTRODUCTION

5017FL Rainfall Head, Hand shower, Adjustable angle showerhead bracket, Massage Jets, Rainfall Switch, Handshower Switch, Switch and Mixer Switch, Massage Jets Switch.

FUNCTION INTRODUCTION

5005FL Rainfall Head, Waterfall Head, Hand shower, Adjustable angle showerhead bracket, Mode switching, Massage Jets, Switch and mixing switch.

FUNCTION INTRODUCTION

1049FL Rainfall Head, Waterfall Head, Hand shower, Back spray mode switching, Massage Jets, Mode switching, Switch and mixing switch, Waterfall style water outlet.

FUNCTION INTRODUCTION

8004FL Waterfall Head, Rainfall Head, LED Display Screen, Hand Shower, Mode Switch, Massage Jets, ON/OFF, Mixer Switch, Tub Spout.

FUNCTION INTRODUCTION

8009FL Waterfall Head, Rainfall Head, Hand Shower, LED Display Screen, Massage Jets, Mode Switching, ON/OFF, Mixer Switch, Tub Spout.

FUNCTION INTRODUCTION

8108FH Rainfall Head, Top spray, LED Display Screen, Hand shower, Handheld showerhead mode switch, Massage Jets, Switch and Mixer Switch, Mode switching, Waterfall style water outlet.

5017FL QR code image containing encoded data, no visible human-readable text.

5005FL QR code image containing encoded data, no visible human-readable text.

8004FL1049FL 8009FL

QR code image containing encoded data, no visible human-readable text.

8108FH QR code image containing encoded data, no visible human-readable text.

Technical support and e-warranty certificate www.vevor.com/support Vevor 8108FH - FUNCTION INTRODUCTION - 8

VEVOR

Affordable. Reliable. Home Improvement.

SHOWER PANEL TOWER

MODEL:

8015FL, 5017FL, 5005FL, 1049FL, 8004FL, 8009FL, 8108FH

VEVOR

DUSCHPANELTORN

Affordable. Reliable. Home Improvement.

Series of seven different shower unit designs, each showing a showerhead with digital buttons and control knobs (no text or labels visible).

8015FL 5017FL 5005FL 1049FL 8004FL 8009FL 8108FH

Insert the 4-point rubber into the hand spray inside the seat joint.

Close-up of white medical tubing and cables with a red cable, no visible text or symbols.

Close-up of hands installing a cable with a red tool. No visible text or symbols.

Note: 8009FL no step 2, no step 6.

MODEL 8004FL

Interior view of a stainless steel kitchen appliance with a tray and ventilation unit. No visible text or symbols.

Connect the LED

Close-up of a metallic threaded connector attached to a transparent plastic housing, with red cables visible. No text or symbols.

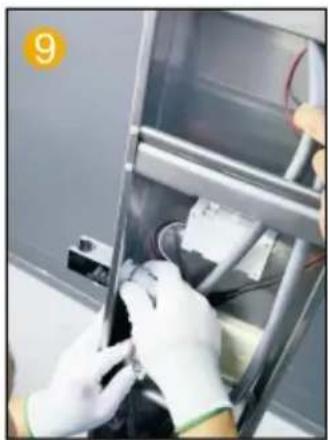

Close-up of gloved hands operating a mechanical device with wires and components (no visible text or symbols)

INSTALLATION STEPS (GENERAL)

Reserved water layout: Wall, 10cm-16cm, 3.9°-6.3°, hot water outlet hole, cold water outlet hole, 60cm-150cm, 2.3°-5.9°, ground

Installation complete side reference dimension drawing: Wall, product size 130cm, hot and cold water inlet pipe, 60cm-150cm, 23'-59", shower system, 20-50cm, 7.9'-19.7", ground

2. Wall: drilling depth of about 40mm. With an electric drill, mark the hole.

3. First, use a hammer to inflate the screw into the wall. With a screwdriver, fix the screw.

Wall: fastener, fastener, hot and cold water outlet. First turn the elbow and the wall pipe connected respectively. Then the hot and cold water pipes and elbows can be connected.

5. Hang the shower panel on the fasteners.

FUNCTION INTRODUCTION

8015FL Waterfall Head, Rainfall Head, Hand shower, Rainfall Switch, Waterfall Switch, Handshower Switch, Massage Jets, Massage Jets Switch, Switch and Mixer Switch

FUNCTION INTRODUCTION

5017FL Rainfall Head, Hand shower, Adjustable angle showerhead bracket, Massage Jets, Rainfall Switch, Handshower Switch, Switch and Mixer Switch, Massage Jets Switch

FUNCTION INTRODUCTION

5005FL Rainfall Head, Waterfall Head, Hand shower, Adjustable angle showerhead bracket, Mode switching, Massage Jets, Switch and mixing switch

FUNCTION INTRODUCTION

1049FL Rainfall Head, Waterfall Head, Hand shower, Back spray mode switching, Massage Jets, Mode switching, Switch and mixing switch, Waterfall style water outlet

FUNCTION INTRODUCTION

8004FL Waterfall Head, Rainfall Head, LED Display Screen, Hand Shower, Mode Switch, Massage Jets, ON/OFF, Mixer Switch, Tub Spout

FUNCTION INTRODUCTION

8009FL Waterfall Head, Rainfall Head, Hand Shower, LED Display Screen, Massage Jets, Mode Switching, ON/OFF, Mixer Switch, Tub Spout

FUNCTION INTRODUCTION

8108FH Rainfall Head, Top Spray, LED Display Screen, Hand Shower, Handheld Showerhead Mode Switch, Massage Jets, Switch and Mixer Switch, Mode Switching, Waterfall Style Water Outlet

5017FL QR code image containing encoded data, no visible human-readable text

5005FL QR code image containing encoded data, no visible human-readable text

8009FL1049FL

8004FL QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

8108FH QR code image containing encoded data, no visible human-readable text

Table of contents Click a title to access it

SHOWER PANEL TOWER
INSTRUCTIONS
WARNING TIPS
SAVE THESE INSTRUCTIONS
PARTS LIST
ASSEMBLY INSTRUCTIONS
MODEL 8015FL/5017FL/5005FL/1049FL
MODEL 8108FH 8009FL
NOTE: 8009FL HAS NO STEP 2 AND NO STEP
MODEL 8004FL
INSTALLATION STEPS (GENERAL)
INSTALLATION NOTES
STAINLESS STEEL SHOWER SYSTEM MAINTENANCE METHODS
SHOWER PANEL SERIES INSTALLATION DIAGRAM
VEVOR
AFFORDABLE. RELIABLE. HOME IMPROVEMENT
INTRODUCTION TO FUNCTIONS
INSTALLATION INSTRUCTIONS
SHOWER PANEL SERIES - INSTALLATION DIAGRAM
FUNCTION INTRODUCTION
DUSCHPANELTORN
NOTE: 8009FL NO STEP 2, NO STEP

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : 8108FH

Category : Shower column
