8004FL - Shower column Vevor - Free user manual and instructions

Product Type	Shower Column
Brand	Vevor
Model	8004FL
Mounting	Wall-Mounted
Connection	G1/2"
Number of Shower Modes	6 modes
Bathtub Spout	Yes
Temperature Display	Yes
LED Light	Yes
Power Supply	Hydroelectric (AC 6V)
Hand Shower	3 settings
Finish	Brushed Anti-Fingerprint Nickel
Materials	Stainless steel, brass, PVC, ABS
Safety Instructions	Wear gloves during installation to avoid cuts; ensure all joints are tightened to prevent leaks; do not bend water inlet hoses
Care and Cleaning	Clean regularly with water or mild detergent, wipe with a soft cloth
FCC Compliance	Part 15, Class B
Technical Support	www.vevor.com/support
Package Contents (main)	3-function hand shower, 1.5 m hose, hand shower holder, adapters, screws, gaskets

Frequently Asked Questions - 8004FL Vevor

How to install the Vevor 8004FL shower column?

Measure the installation height, mark the fixing points on the wall, secure the wall brackets with the provided screws, connect the hot and cold water hoses (pre-clean the ends), then hang the panel on the brackets. Make sure the main body does not wobble. Wear gloves to avoid cuts.

What tools are needed for installation?

You will need a drill, an adjustable wrench, a screwdriver, a spirit level, and possibly a tape measure. Protective gloves are recommended. All mounting accessories are included (screws, wall plugs, adapters).

How to clean and maintain the shower column?

Clean the surface regularly with water or mild detergent, then wipe with a soft cloth to maintain shine. Avoid abrasive cleaners. For hidden areas, quick cleaning extends product durability.

What to do in case of low water pressure?

Check that the water inlet hoses (red and blue) are not kinked. Ensure that the filters on the connections are not clogged with limescale. Clean if necessary. Also check that the shut-off valve is fully open.

How does the temperature display work?

The display is powered by hydroelectricity (AC 6V). It lights up automatically when water flows. It shows the water temperature in real time. No batteries are needed for this function on the 8004FL model.

Is the LED light replaceable?

The LED light is built-in and not intended for user replacement. In case of malfunction, contact Vevor customer service via www.vevor.com/support.

How to maintain the hand shower?

Clean the hand shower nozzles regularly to prevent limescale buildup. You can gently rub them with a soft brush. If flow is uneven, disassemble the hand shower and soak it in diluted white vinegar.

Is there a warranty on this product?

Yes, Vevor offers a warranty. To register your product and get technical support, go to www.vevor.com/support and fill out the electronic warranty certificate form.

Can I use the shower column with a tankless water heater?

Yes, it is possible provided that the water pressure and flow rate are sufficient. Check that your water heater supports the required flow (minimum 8 L/min recommended). See your water heater's manual for details.

How to adjust the water temperature?

Use the mixing valve (not supplied with the column) by turning the handle left for hot water and right for cold water. The displayed temperature helps you adjust precisely. Always close the valve after use.

USER MANUAL 8004FL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

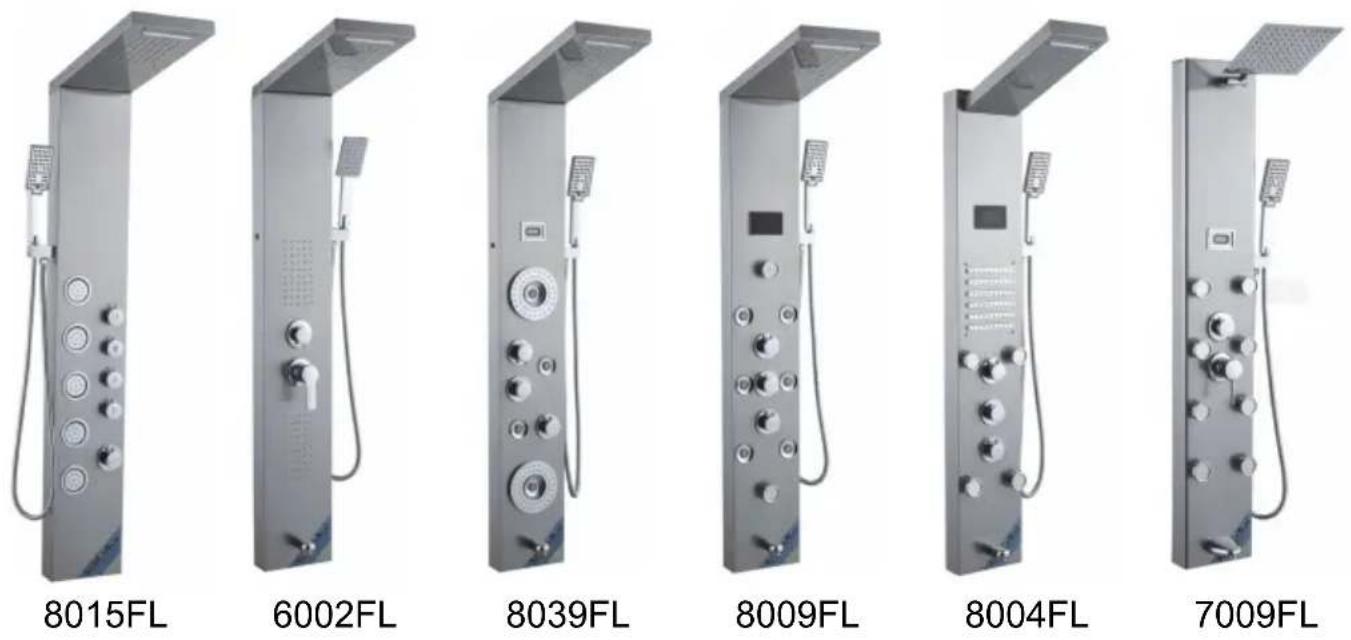

SHOWER PANEL TOWER

MODEL: 8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOWER PANEL TOWER

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PRODUCT INTRODUCTION

Warning-To reduce the risk of injury, user must read in manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices.

Warning Tips:

1. During the installation process, it is best to wear gloves to prevent sharp corners on the panel from scratching the palm of your hand.
2. When installing the shower, ensure that all joints are tightened to avoid water leakage.
3. Ensure that the red and blue water inlet pipes inside the panel are in a folded state to avoid affecting water pressure.
4. When the shower is not in use, please close the switch valve of the shower.

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

INSTALLATION INSTRUCTIONS

Model	8015FL	6002FL	8039FL	8009FL	8004FL	7009FL
Mounting Type	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount
Connection Thread	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functions	Four Modes	Five Modes	Six Modes	Six Modes	Six Modes	Five Modes
Tub Spout	×	√	√	√	√	√
Temperature Display	×	×	√	√	√	√
LED Lamp	×	√	√	√	√	×
Power	×	Dry Cell (DC3V)	Dry Cell (DC3V)	Hydro Power (AC6V)	Hydro Power (AC6V)	Dry Cell (DC3V)
Hand Shower	3-Setting	1-Setting	3-Setting	3-Setting	3-Setting	3-Setting
Finish	Fingerprint-free Brushed Nickel shower system
Material	Stainless Steel, Brass, PVC, ABS

PARTS LIST

MODEL		8015FL8039FL8009FL	6002FL	8004FL	7009FL
M6 nut		4pcs	4pcs	0pcs	0pcs
M6 * 10 screw		4pcs	4pcs	0pcs	0pcs
Hose Clamp		2pcs	2pcs	2pcs	0pcs
M4 * 10 screw		0pcs	0pcs	2pcs	0pcs
Brass shower arm		0pcs	0pcs	0pcs	1pcs
Single function handheld shower		0pcs	1pcs	0pcs	0pcs
Panel cotton bag		1pcs	1pcs	1pcs	1pcs
Top spray cotton bag		1pcs	1pcs	1pcs	0pcs
Three function handheld shower		1pcs	0pcs	1pcs	1pcs
1.5 meter hand spray hose		1pcs	1pcs	1pcs	1pcs
Hand spray seat		1pcs	1pcs	1pcs	1pcs
1/2 right angle adapter		2pcs	2pcs	2pcs	2pcs
4-point rubber		2pcs	2pcs	2pcs	2pcs
Self tapping screw		4pcs	4pcs	4pcs	4pcs
Fastener		2pcs	2pcs	2pcs	2pcs
Grommet		1pcs	1pcs	1pcs	1pcs
Hexagon nut		1pcs	1pcs	1pcs	1pcs

ASSEMBLY INSTRUCTIONS

MODEL 8015FL/6002FL/8039FL/8009FL

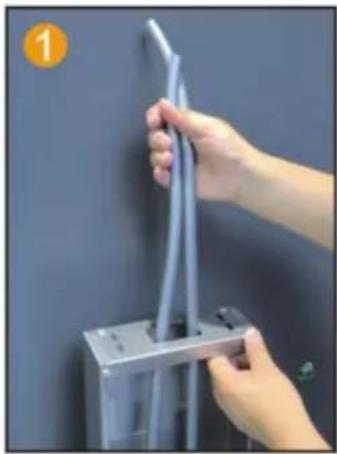

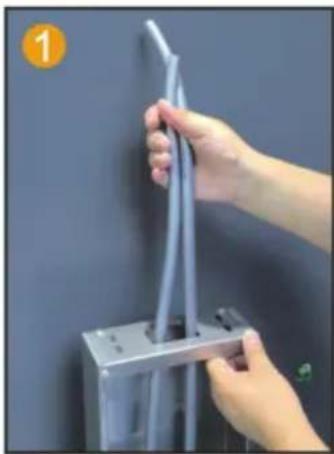

Insert the PVC pipe from the top opening to pierce out.

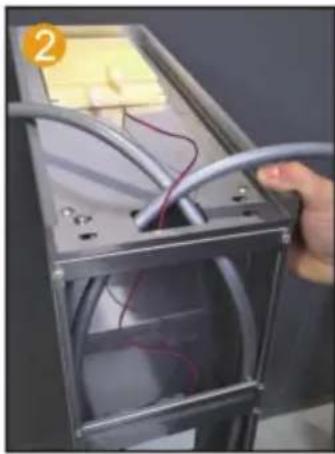

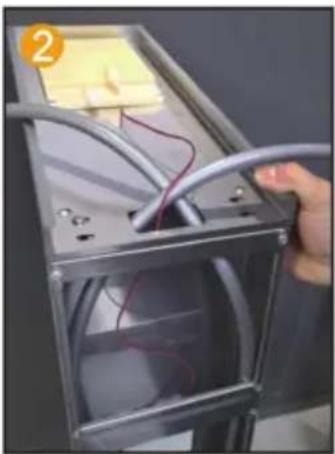

Route the LED light wire along the hole and insert it into the motherboard.

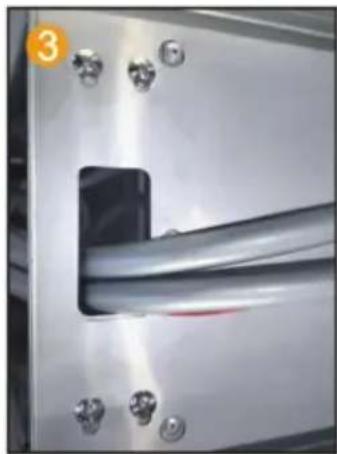

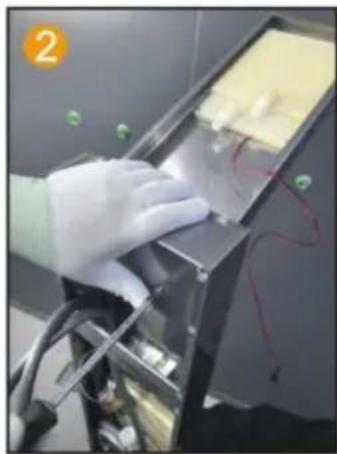

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts.

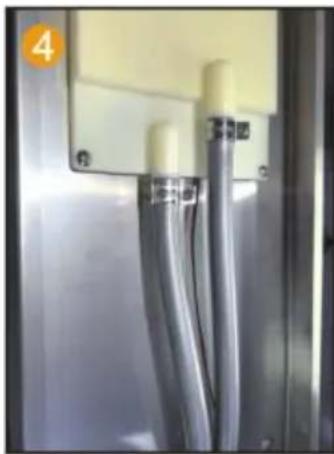

Fix the PVC pipe with a throat clamp on the top spray joint.

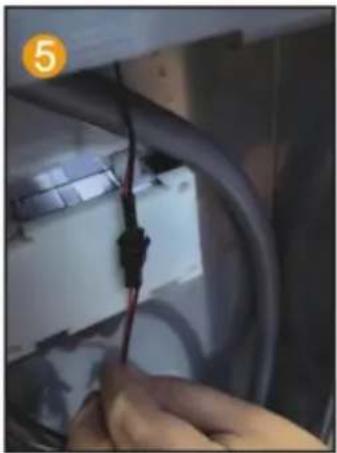

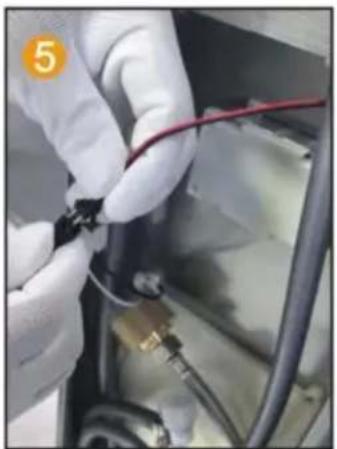

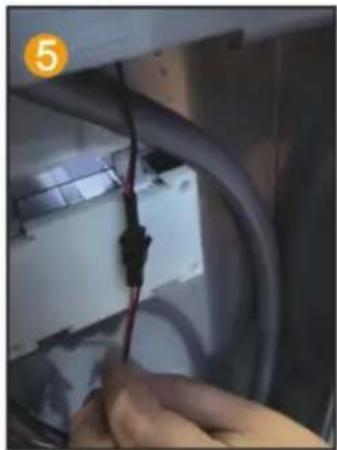

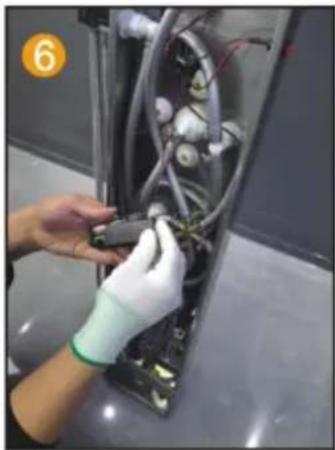

Connect the LED light cable and power supply line.

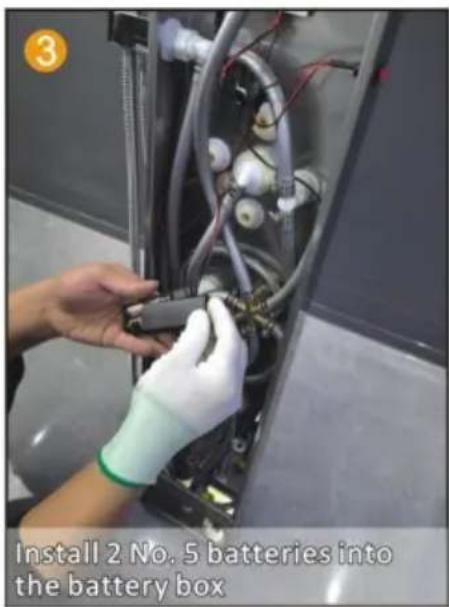

Install 2 No. 5 batteries to charge the pool box.

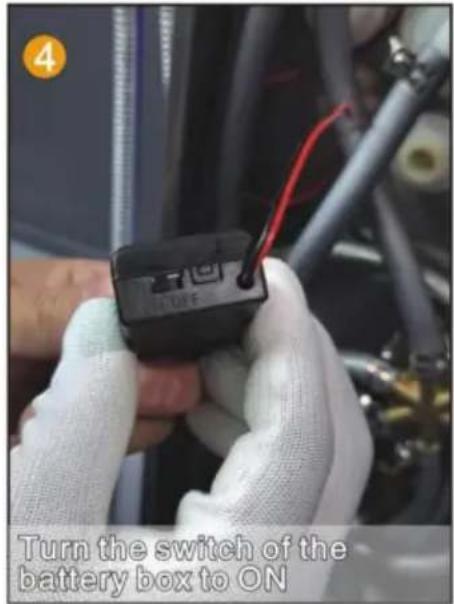

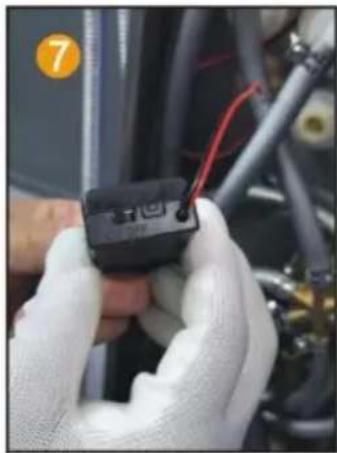

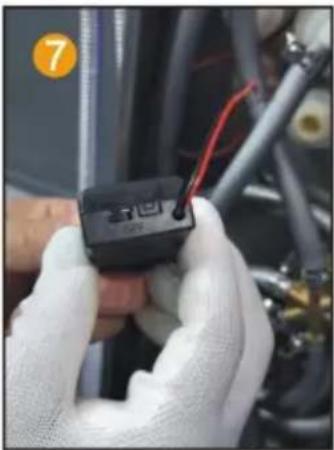

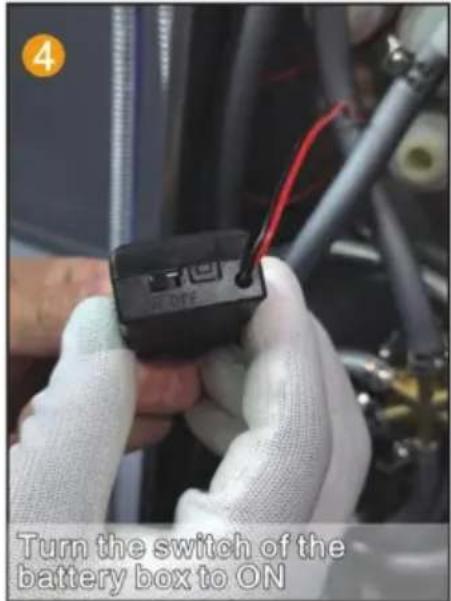

Point the switch of the battery box towards ON.

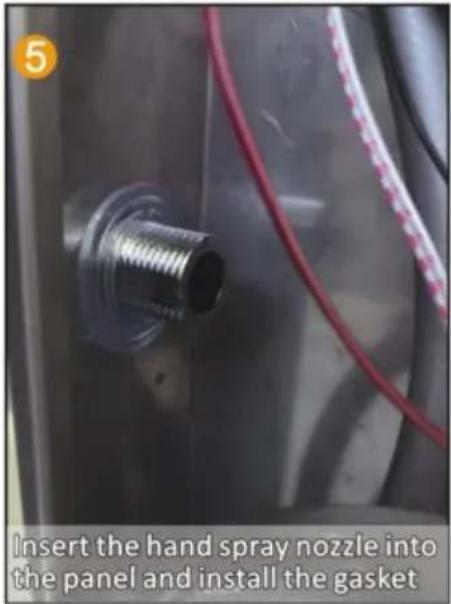

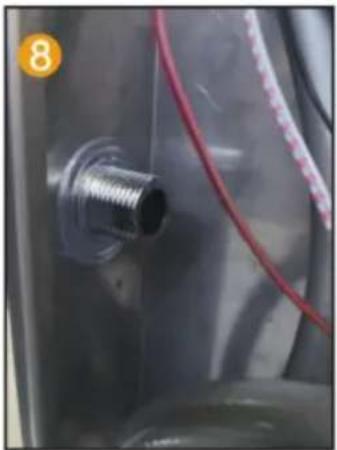

Insert the hand spray nozzle into the panel and install the gasket.

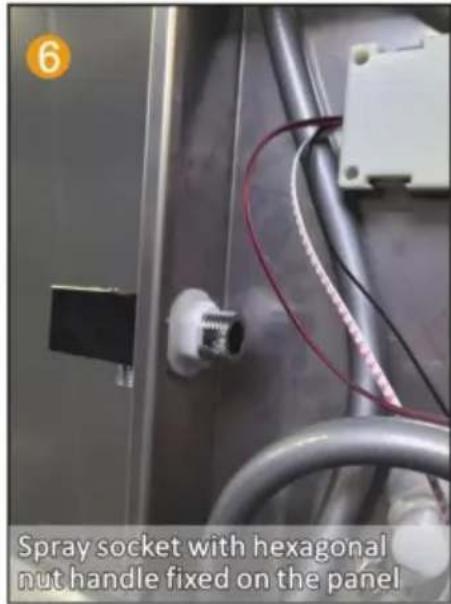

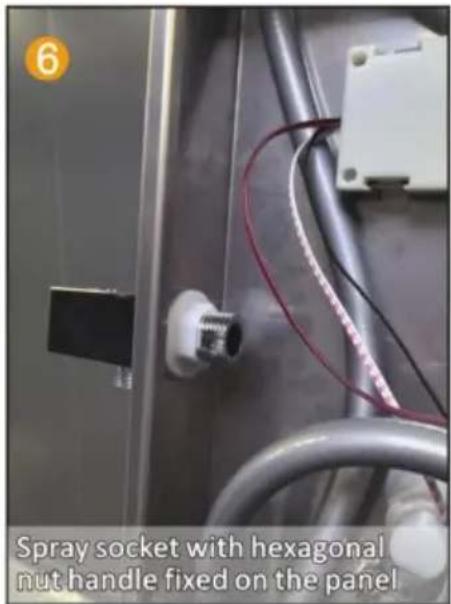

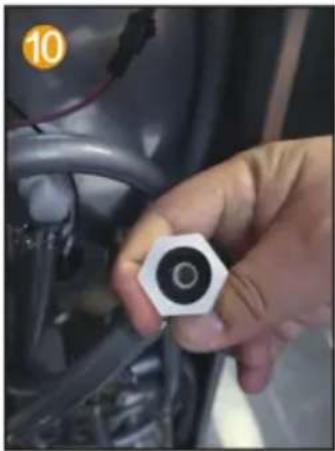

Spray socket with hexagonal nut handle fixed on the panel.

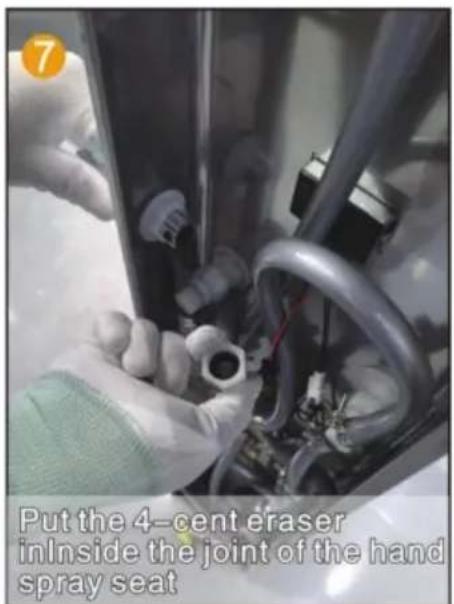

Put the 4-point rubber into the hand spray inside the joint of the seat.

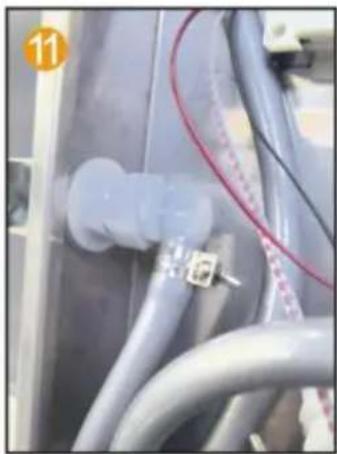

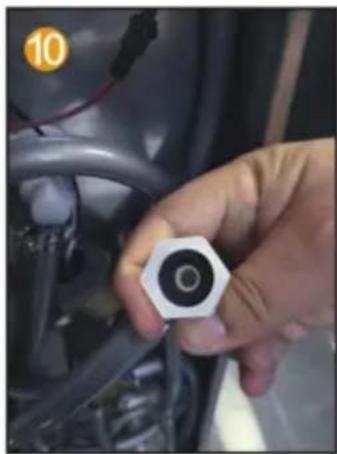

Connect the water outlet connector and hand spray seat joint.

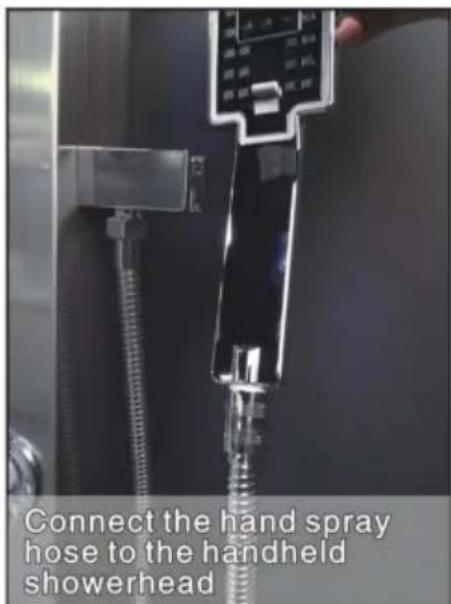

Connect the hand spray hose to the handheld shower head.

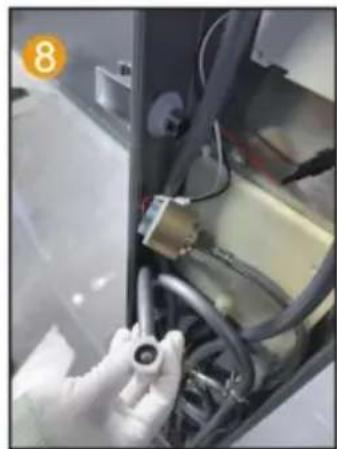

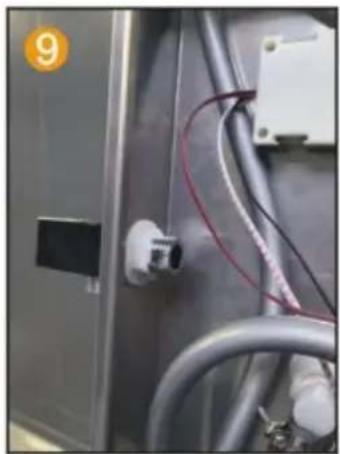

MODEL 8004FL

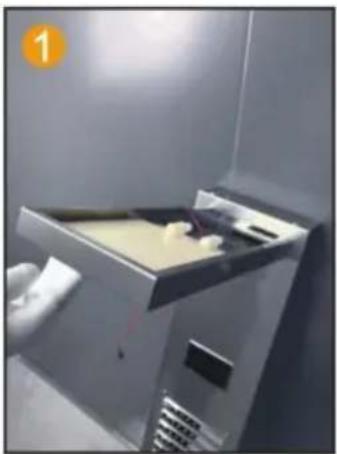

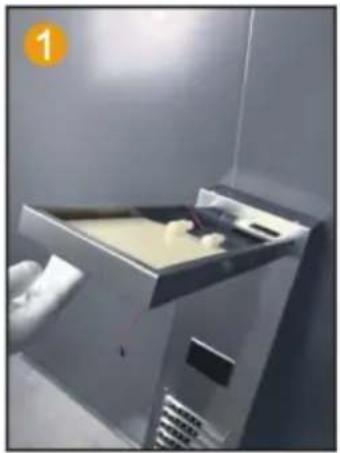

Insert the top spray into the motherboard inside the hole

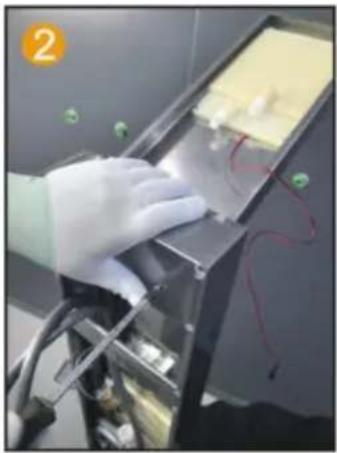

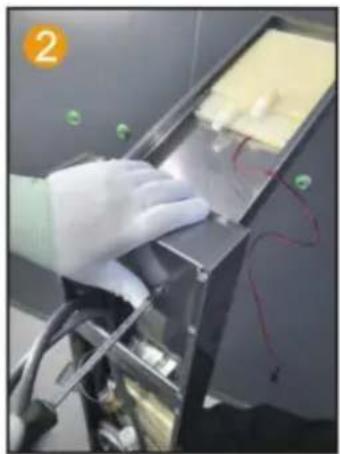

Use 2 M4 screws to secure the main Fixed plate and top spray

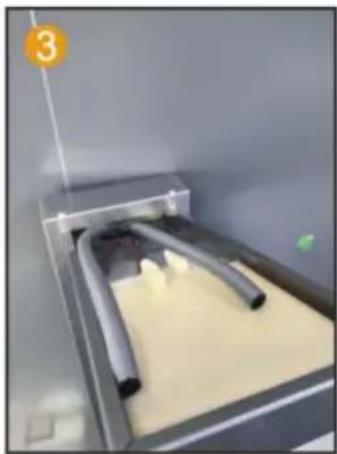

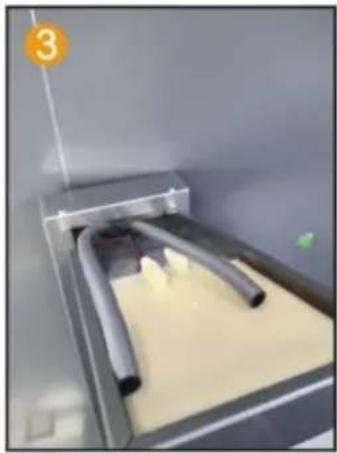

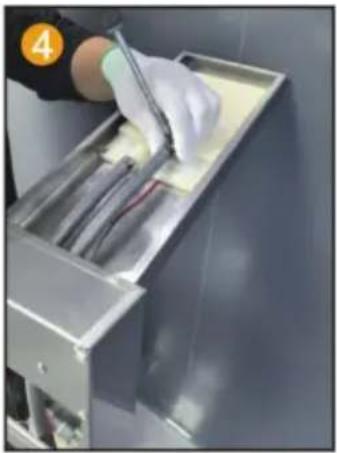

Connect PVC pipes and LED light wires Thread through the hole

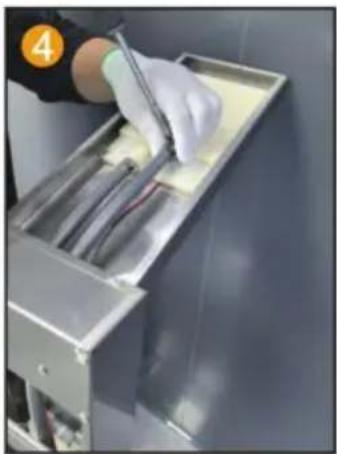

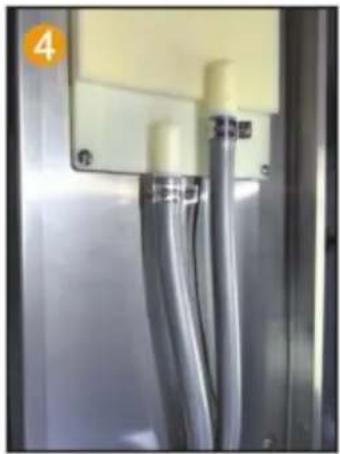

Fix the PVC pipe with a throat clamp On the top spray joint

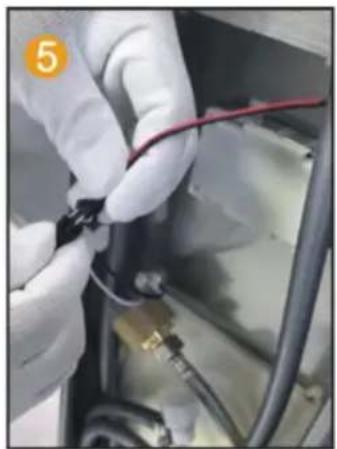

Connect the LED light cable and power supplyline

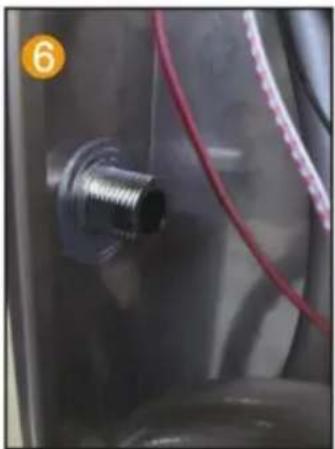

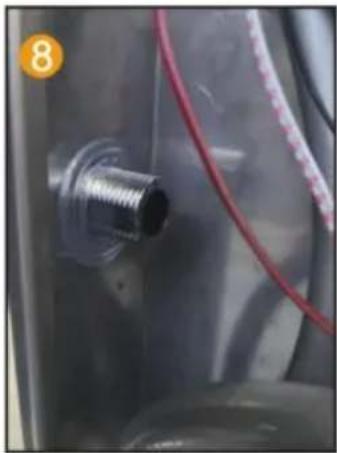

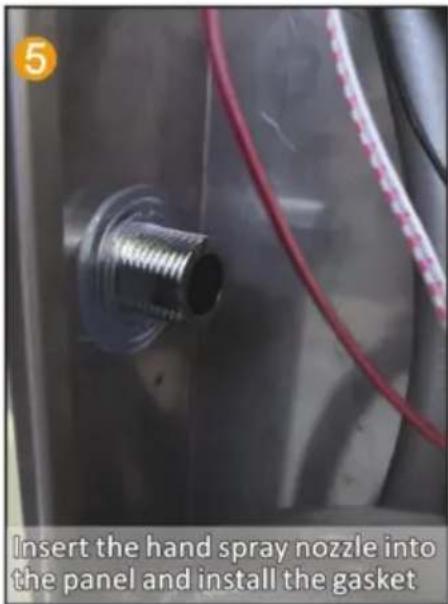

Insert the hand spray nozzle into the panel and install the gasket

Spray socket with hexagonal nut handle Fixed on the panel

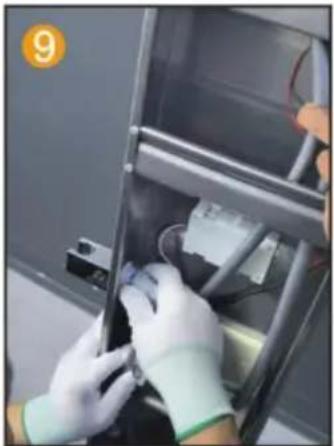

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

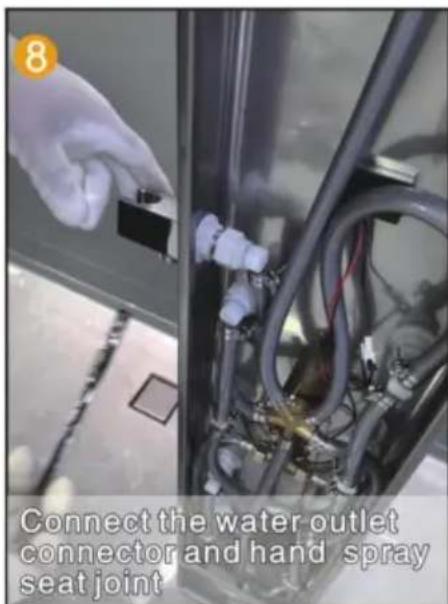

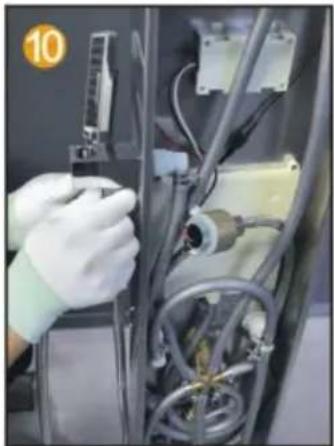

Connect the water outlet connector and hand spray Seat joint

Connect the hand spray hose to the handheld one shower head

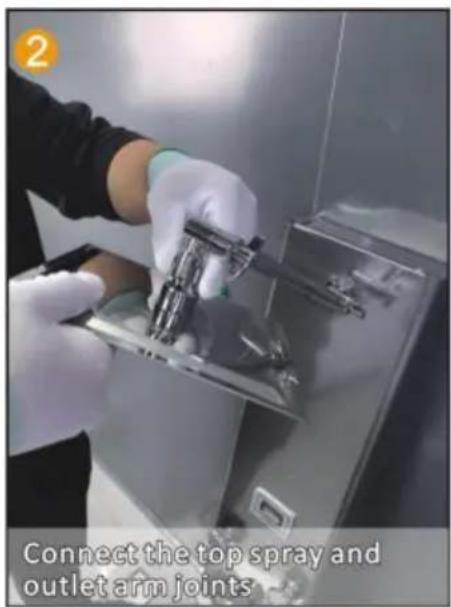

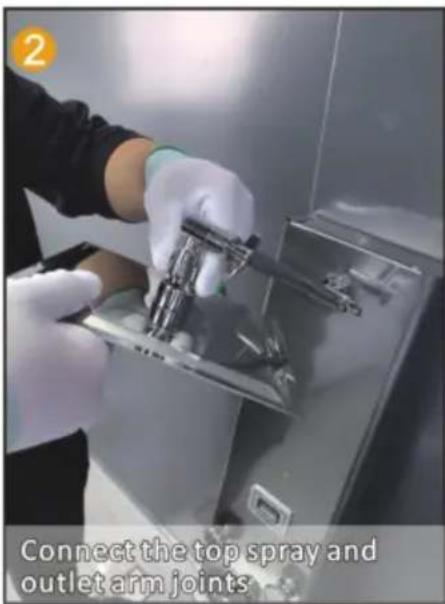

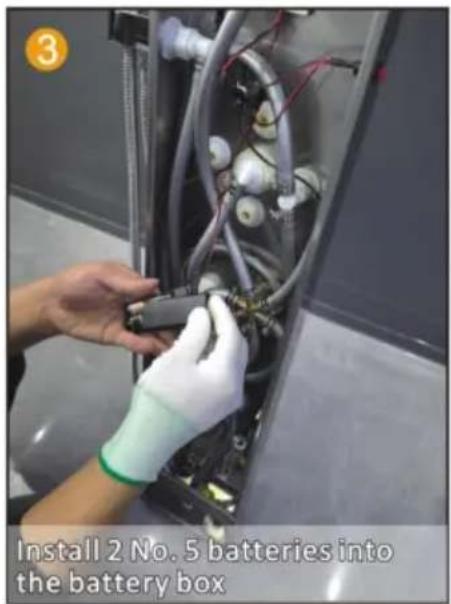

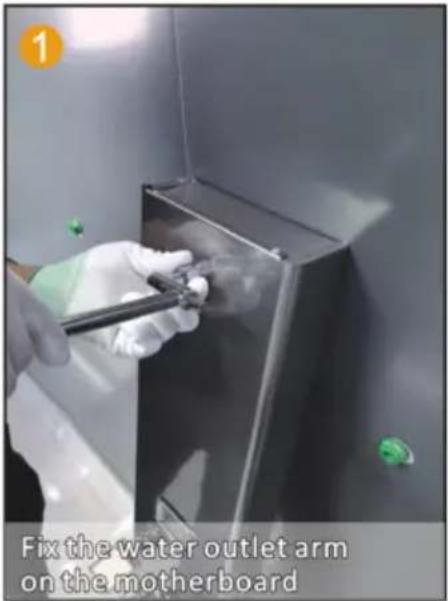

MODEL 7009FL

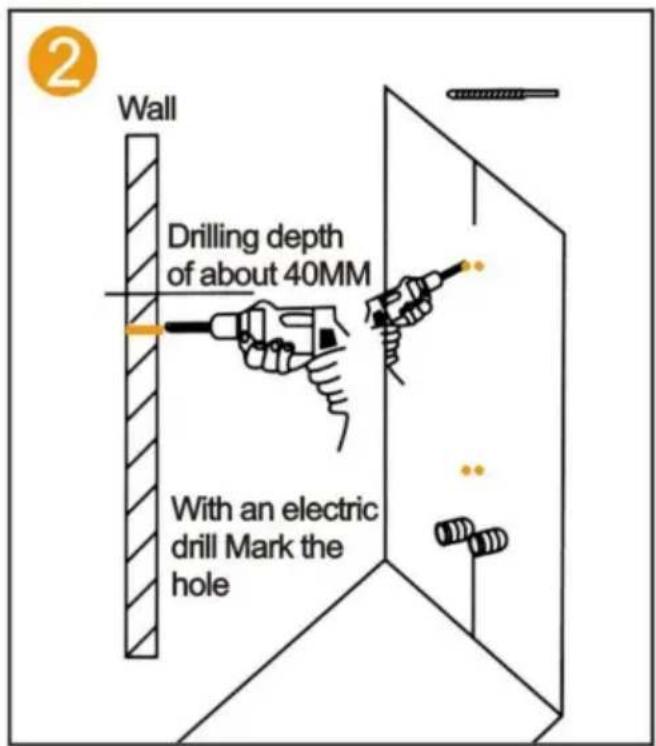

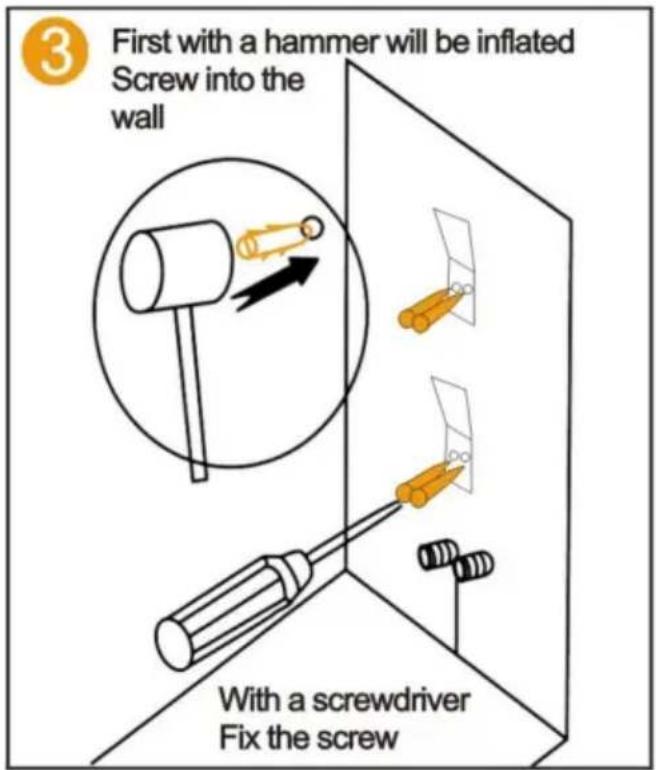

INSTALLATION STEPS (GENERAL)

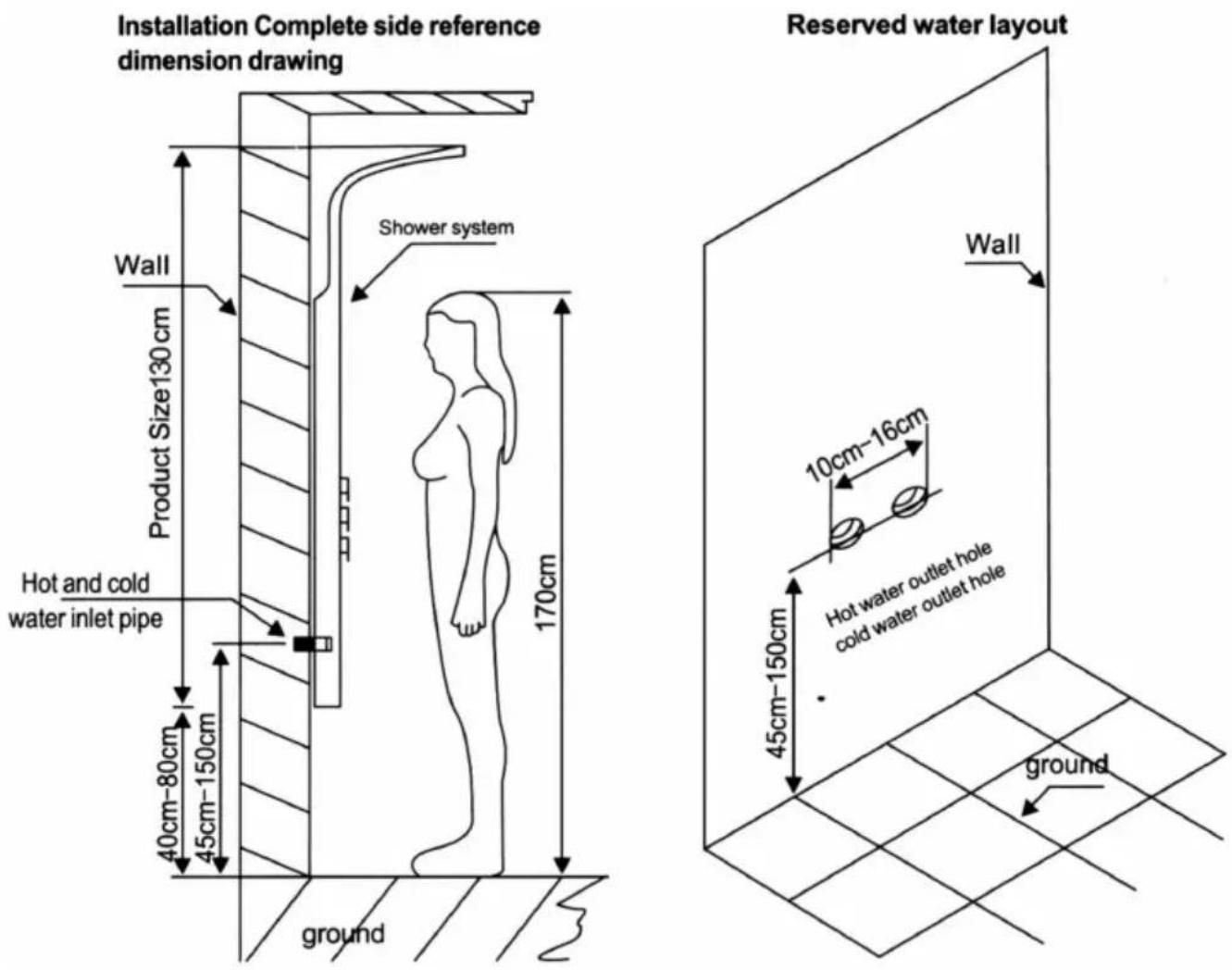

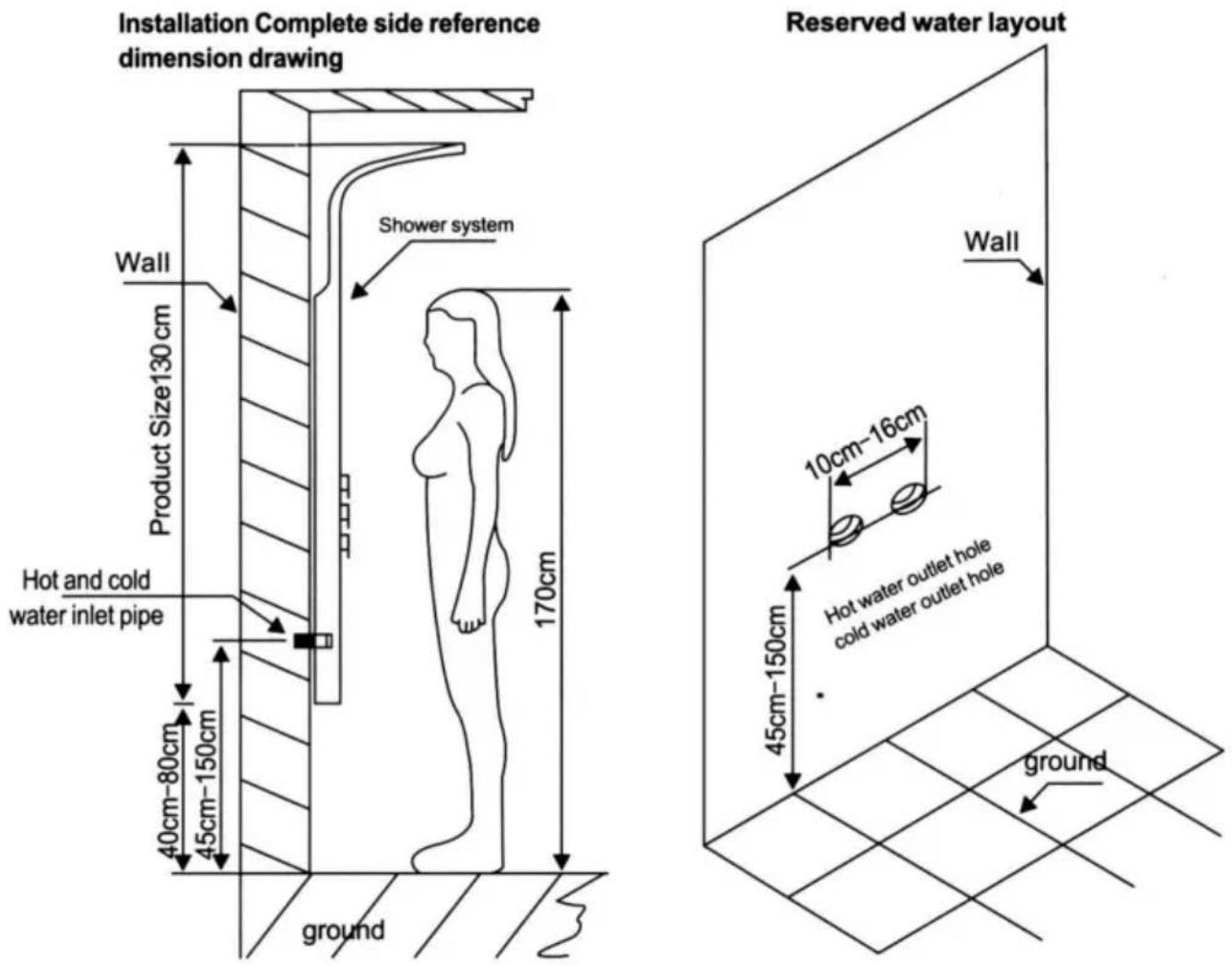

Installation Notes

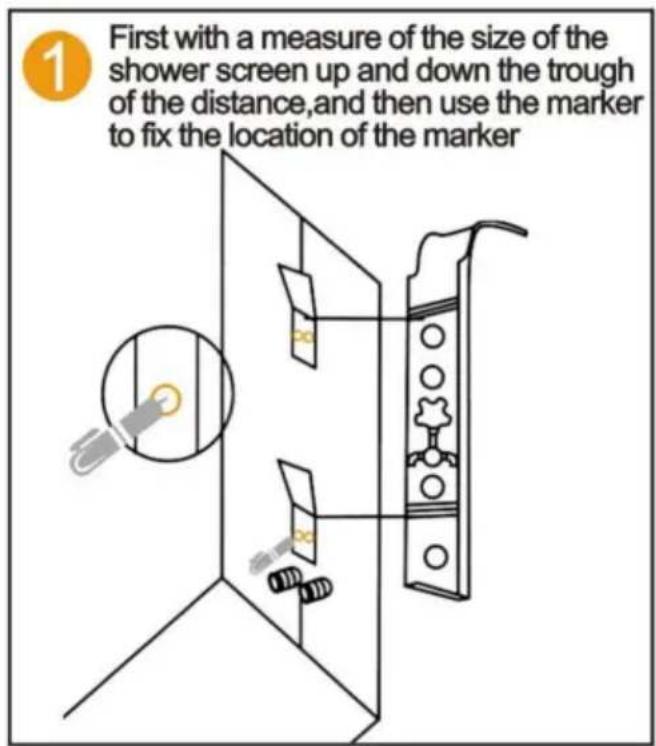

1. According to the height of the family height budget shower system installation height, measure the shower system on the back of the bar Distance, mark a wall, in the corresponding position of the tag fixed hanging iron (up and down one).
2. Connect the hot and cold water hoses (be sure to clean the filter and any debris from the wall to prevent clogging and ensure proper water flow).

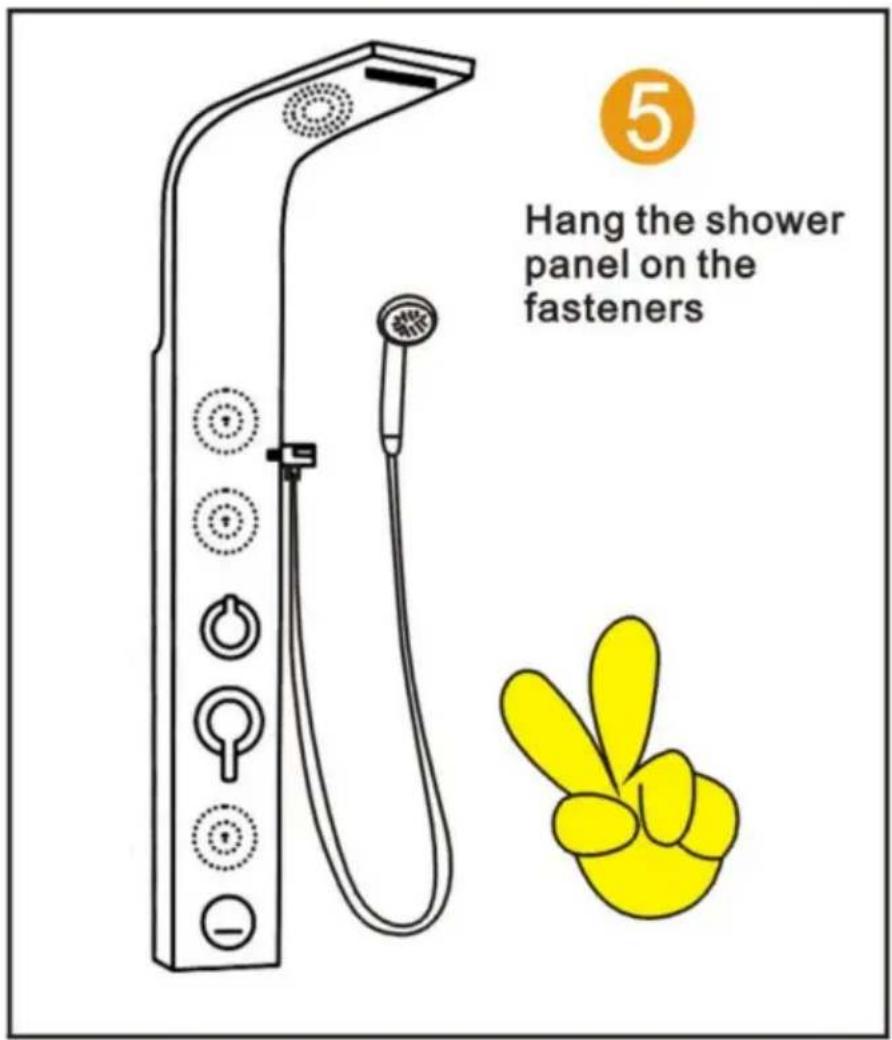

3. Hang the shower system on the wall, clamping the upper and lower brackets into the two mounting plates (Note: After mounting the shower system on the wall, the main unit should be close to the wall without shaking; no need to use additional glass glue or tools to secure it).

Stainless steel shower system maintenance methods:

1. Regularly clean the product to keep its appearance bright and clean;
2. Clean the surface with water or a mild detergent and wipe it with a soft cloth.
3. Note: Clean the hidden parts of the product; timely cleaning ensures the product's longevity.

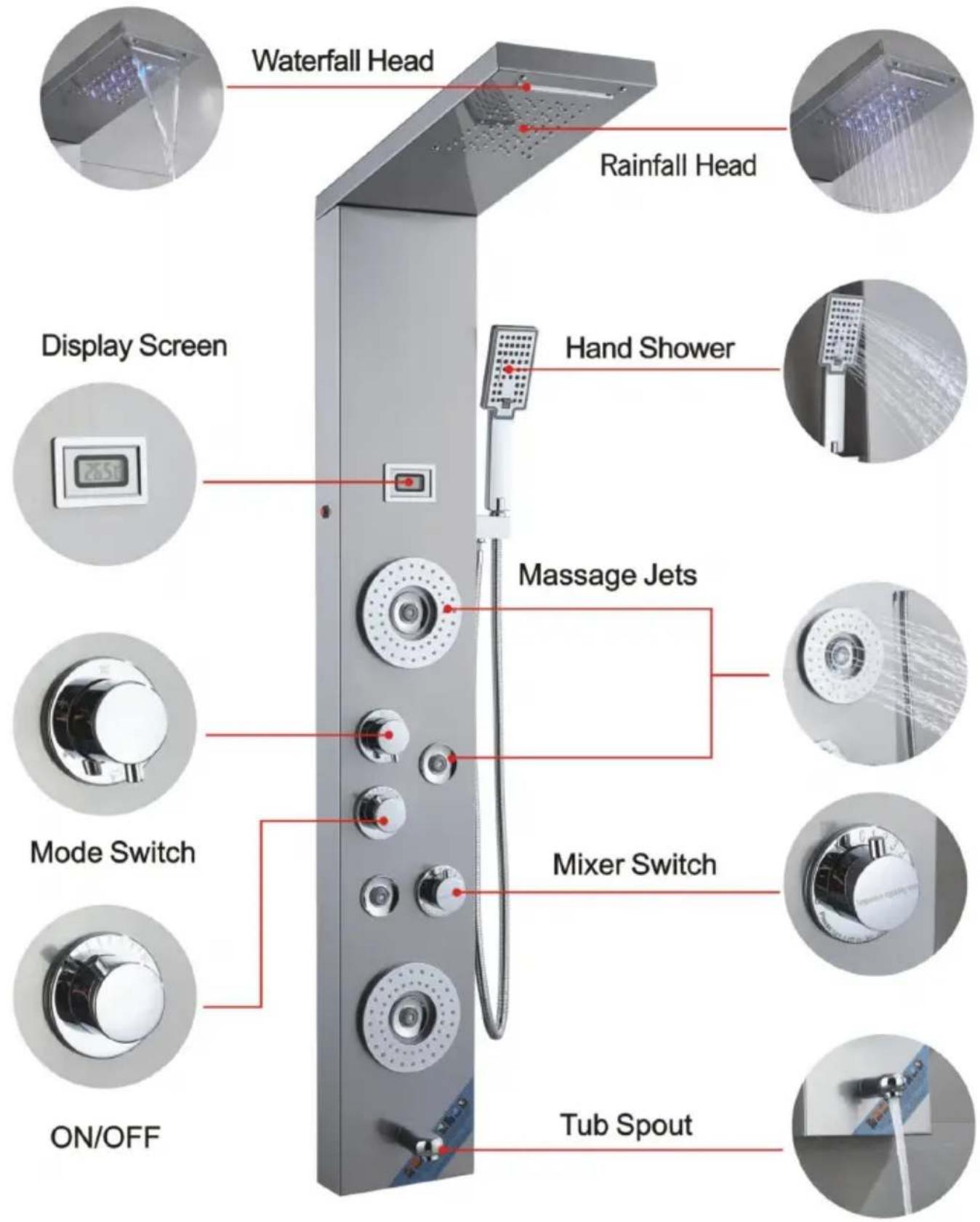

SHOWER PANEL SERIES INSTALLATION DIAGRAM

8015FL

6002FL

8039FL

8009FL

8004FL

7009FL

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the PVC pipe from the top opening to pierce out.

Route the LED light wire along the hole and insert it into the motherboard.

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 8004FL

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires, thread through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Spray socket with hexagonal nut handle, fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 7009FL

INSTALLATION STEPS (GENERAL)

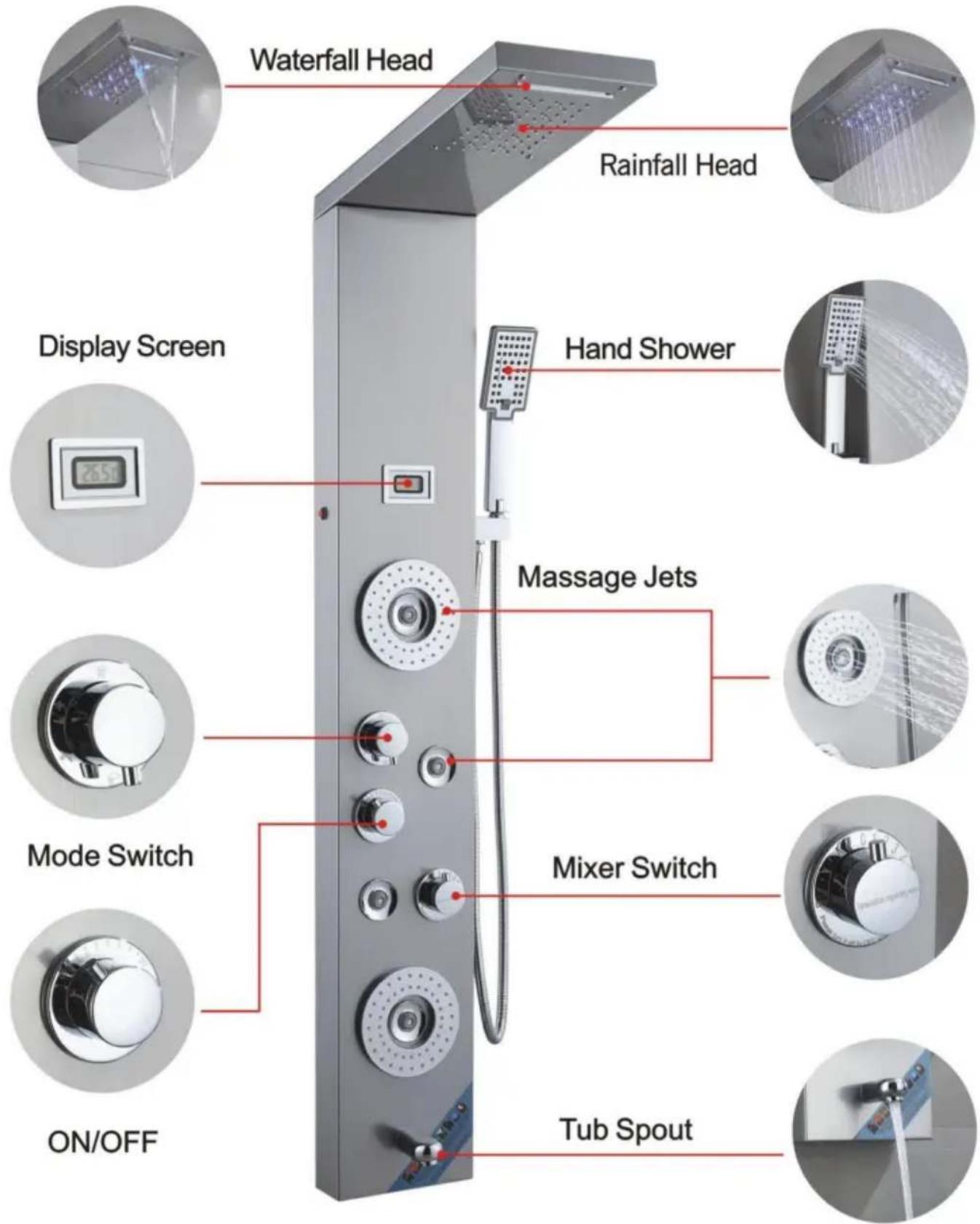

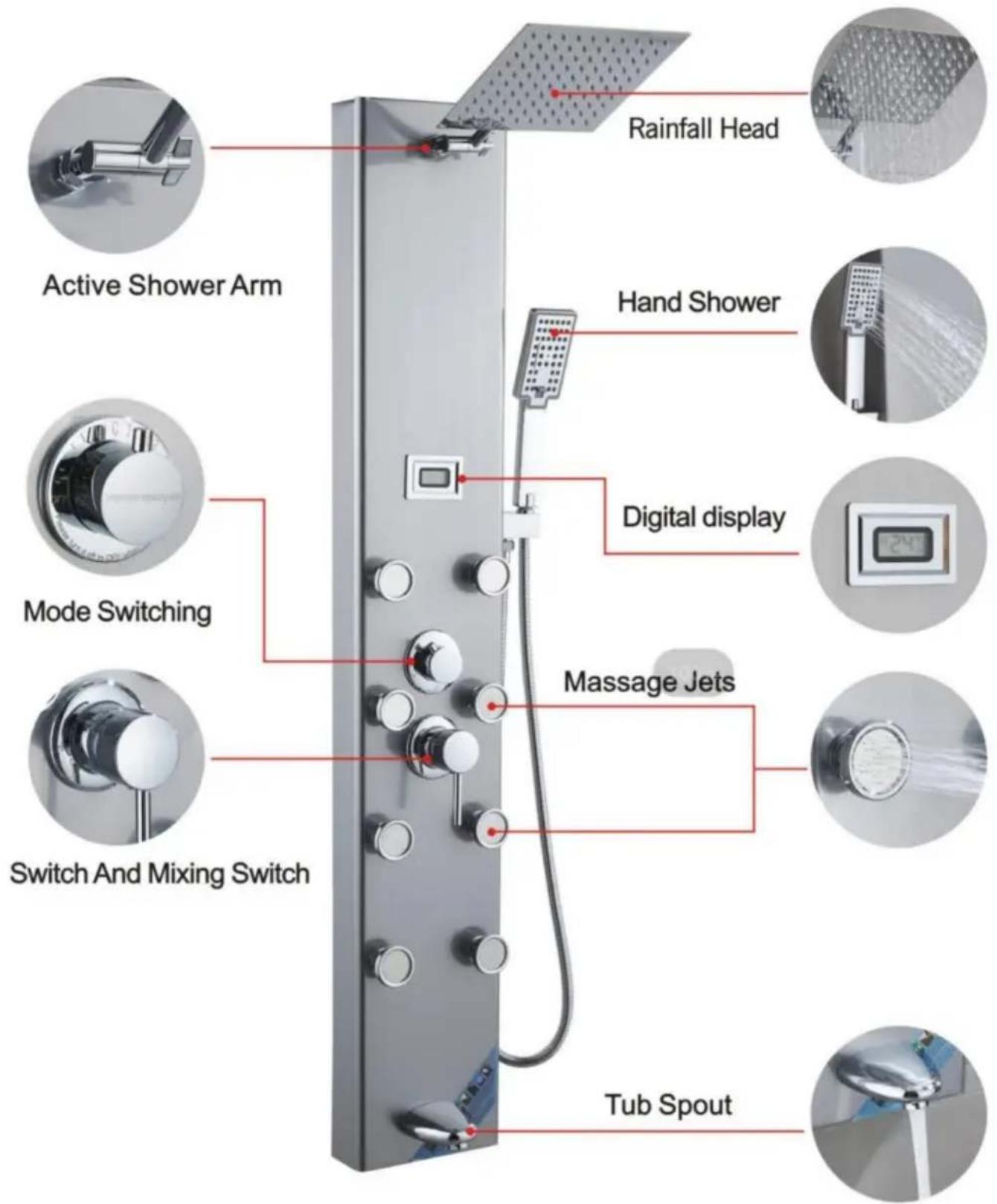

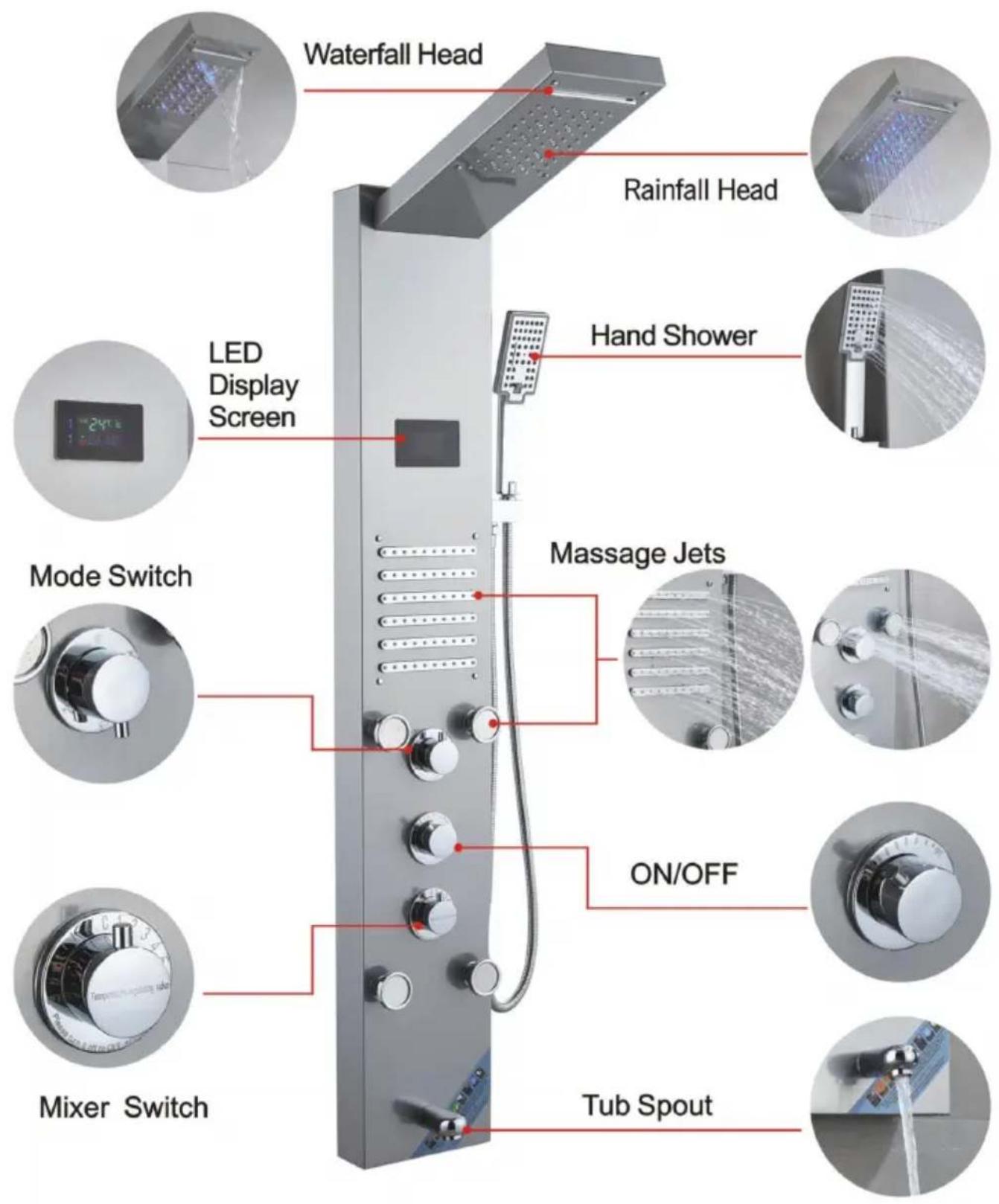

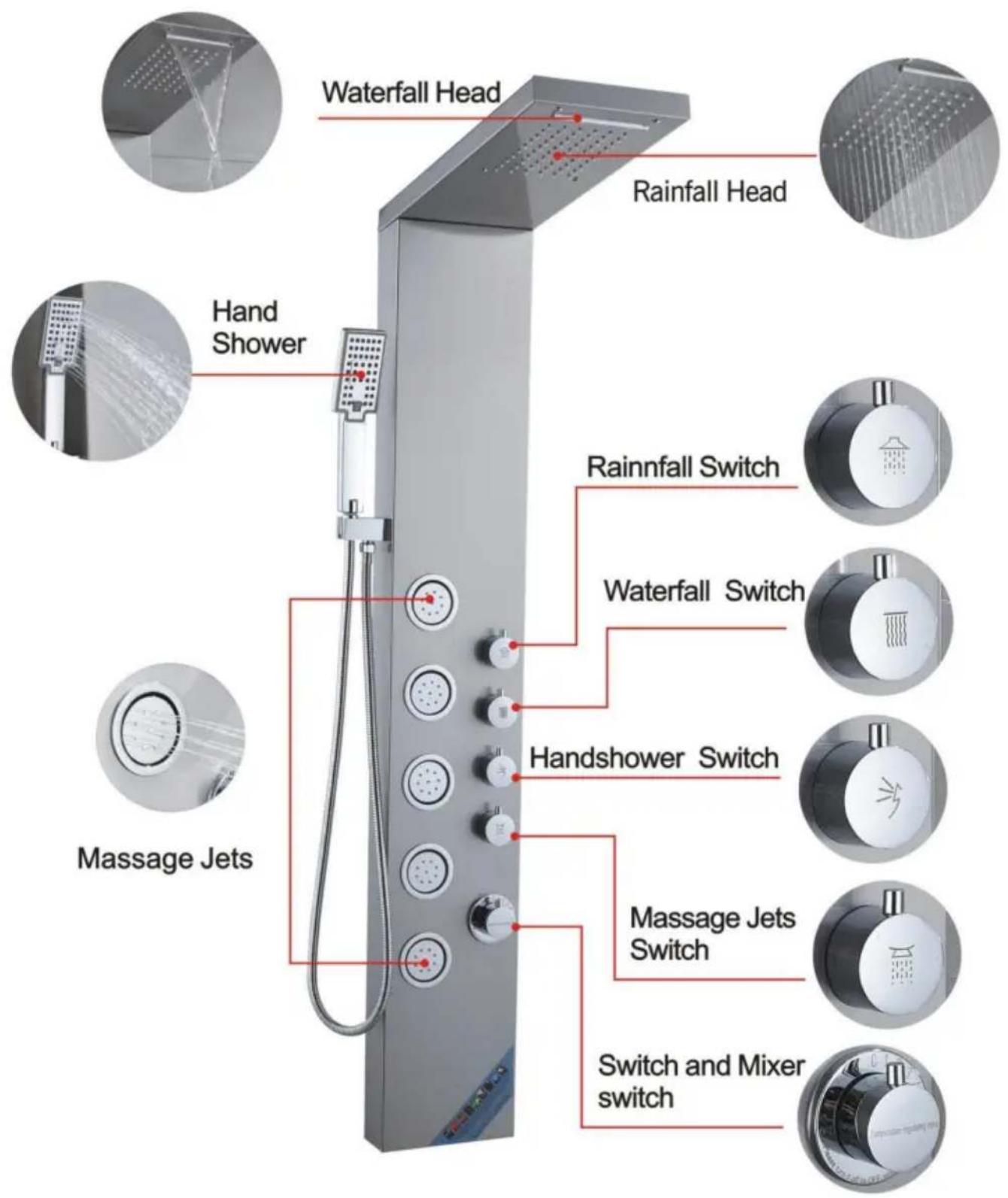

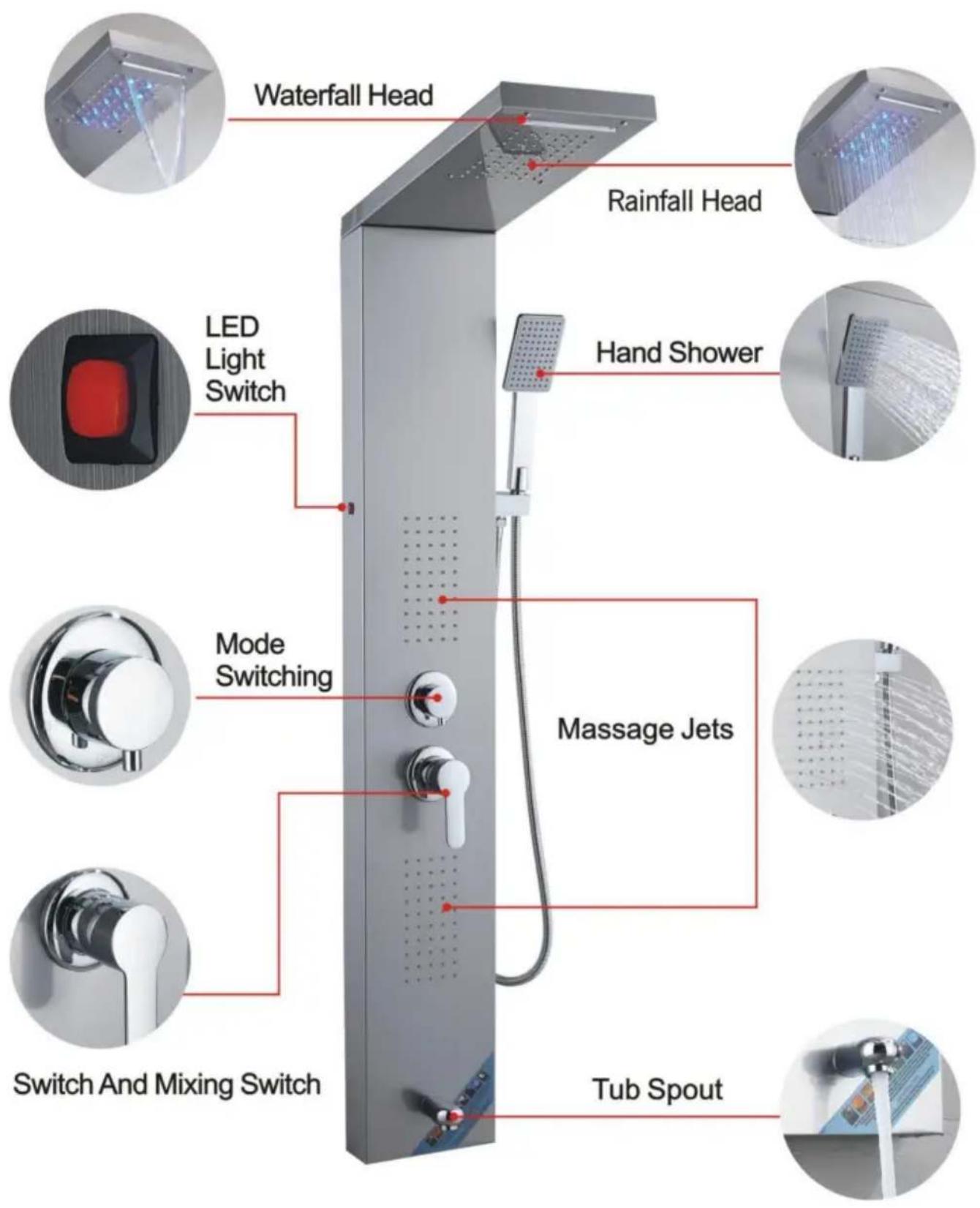

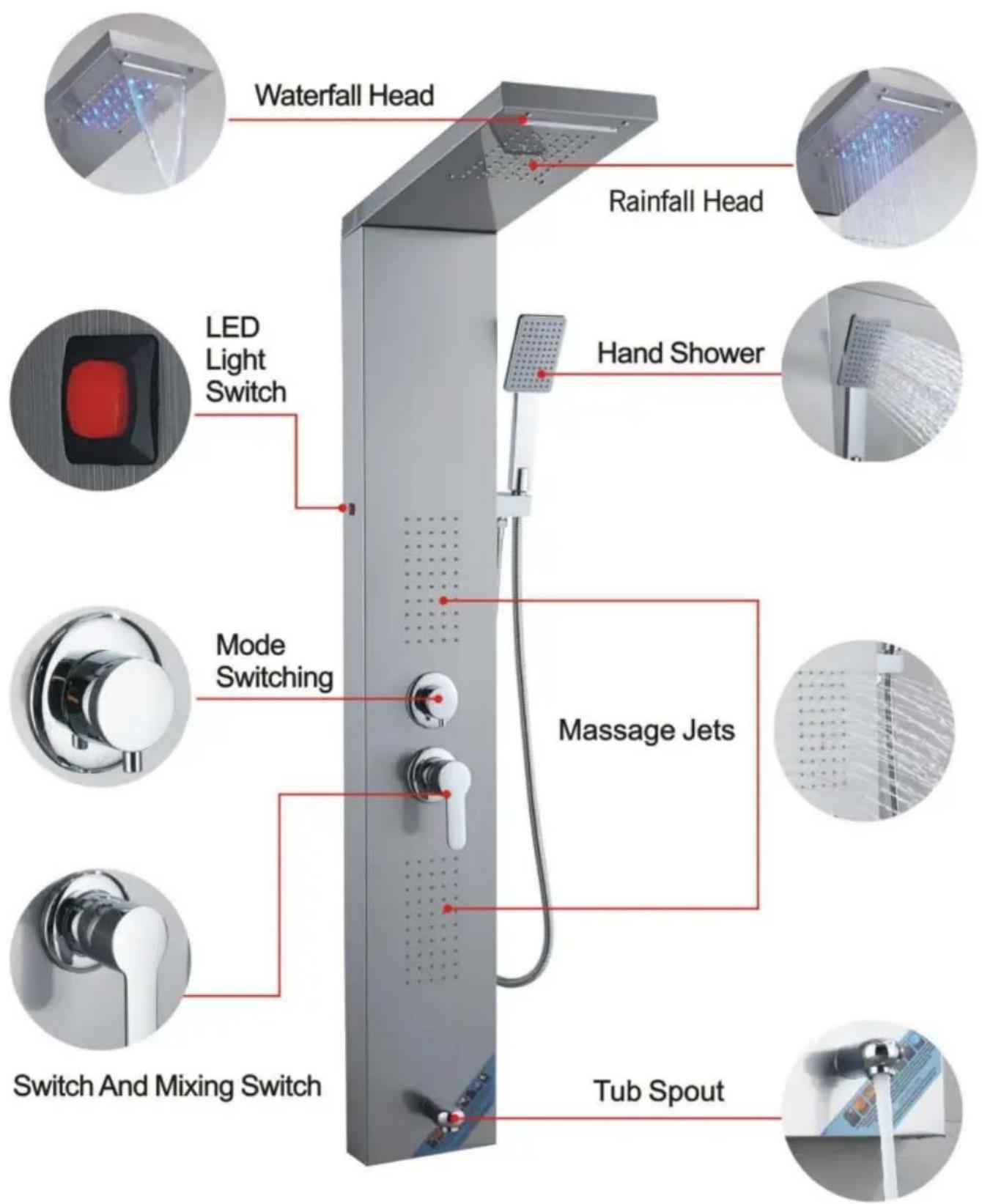

INTRODUCTION OF FUNCTIONS

8015FL

INTRODUCTION OF FUNCTIONS

6002FL

INTRODUCTION OF FUNCTIONS

8039FL

INTRODUCTION OF FUNCTIONS

8009FL

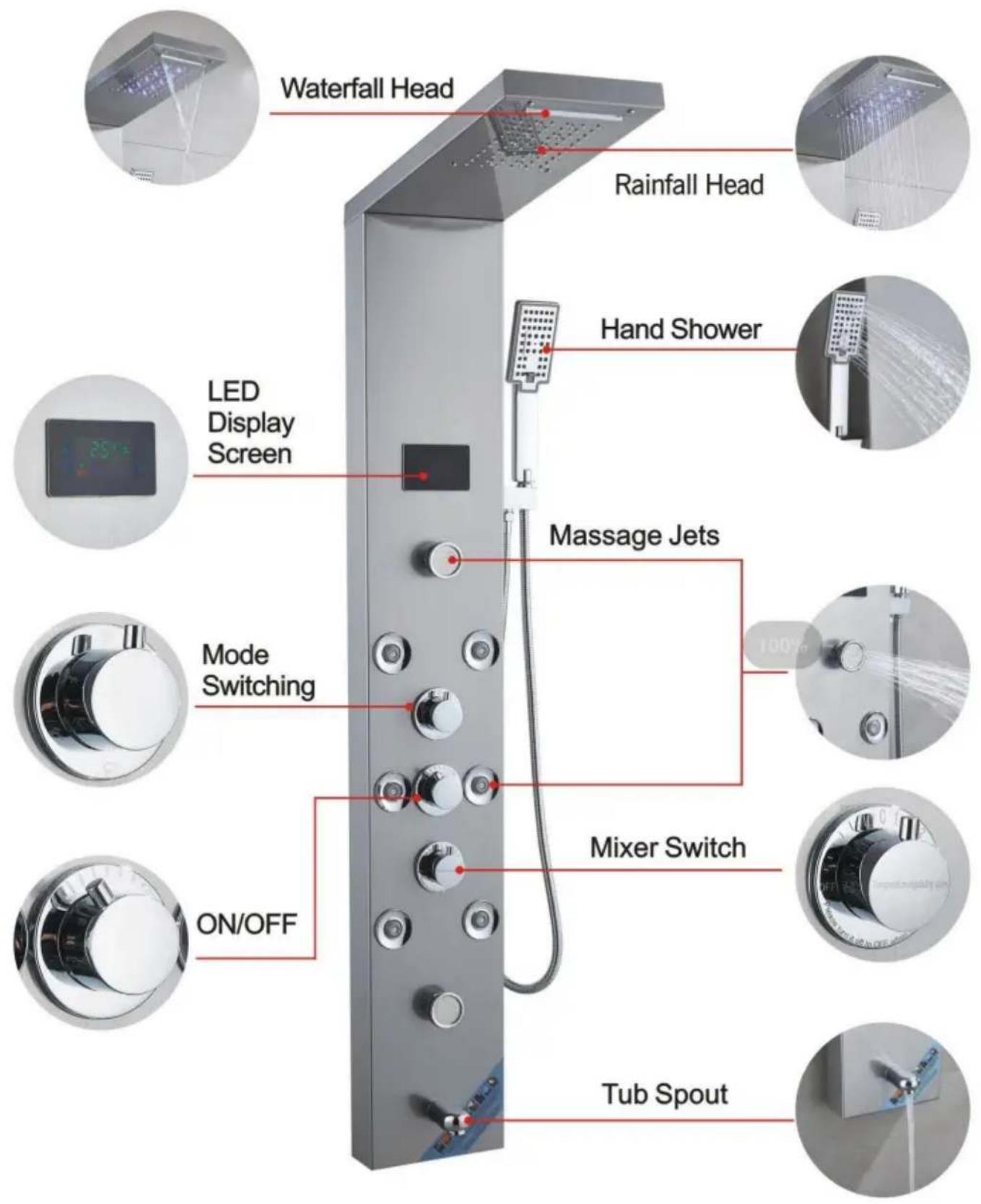

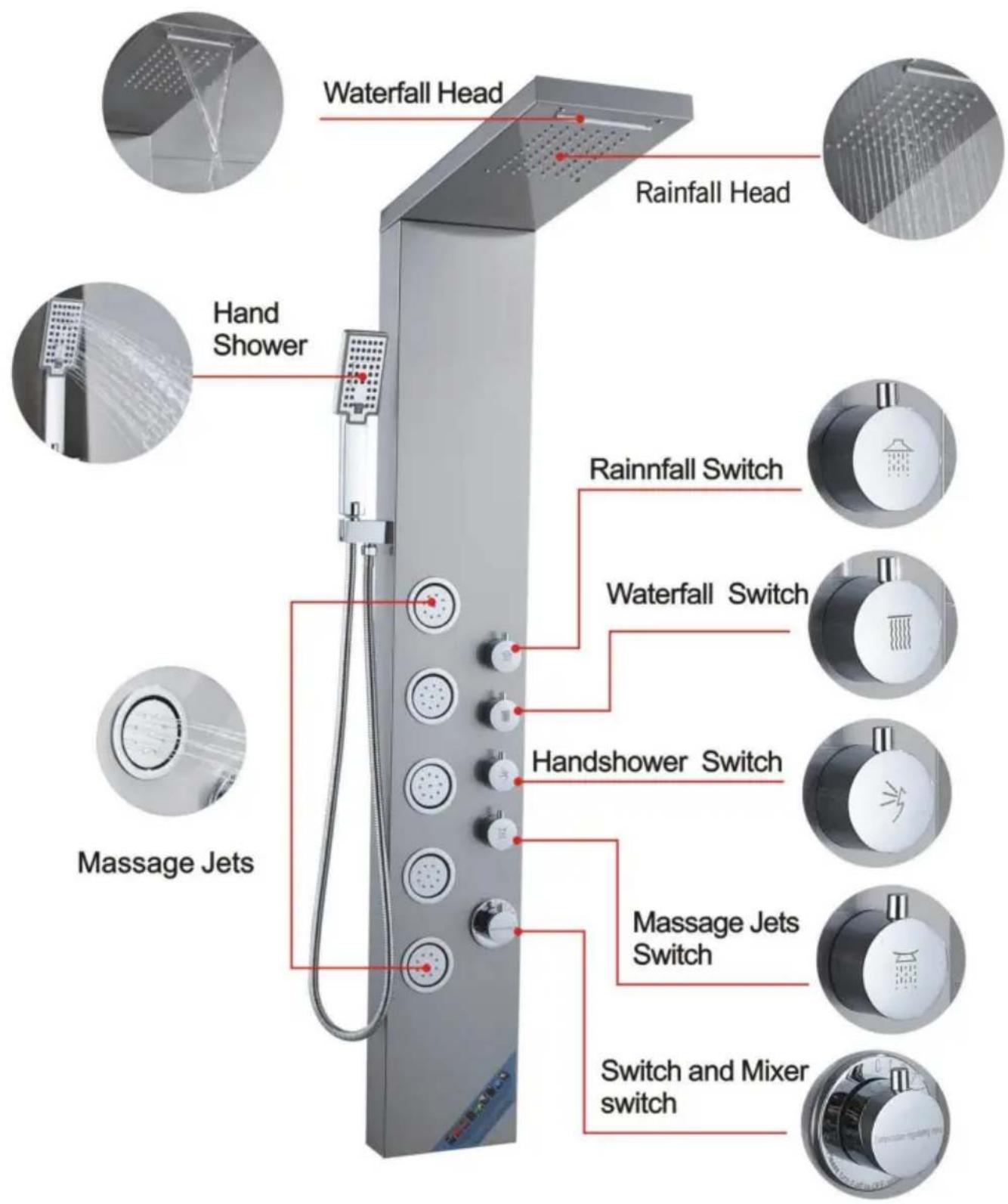

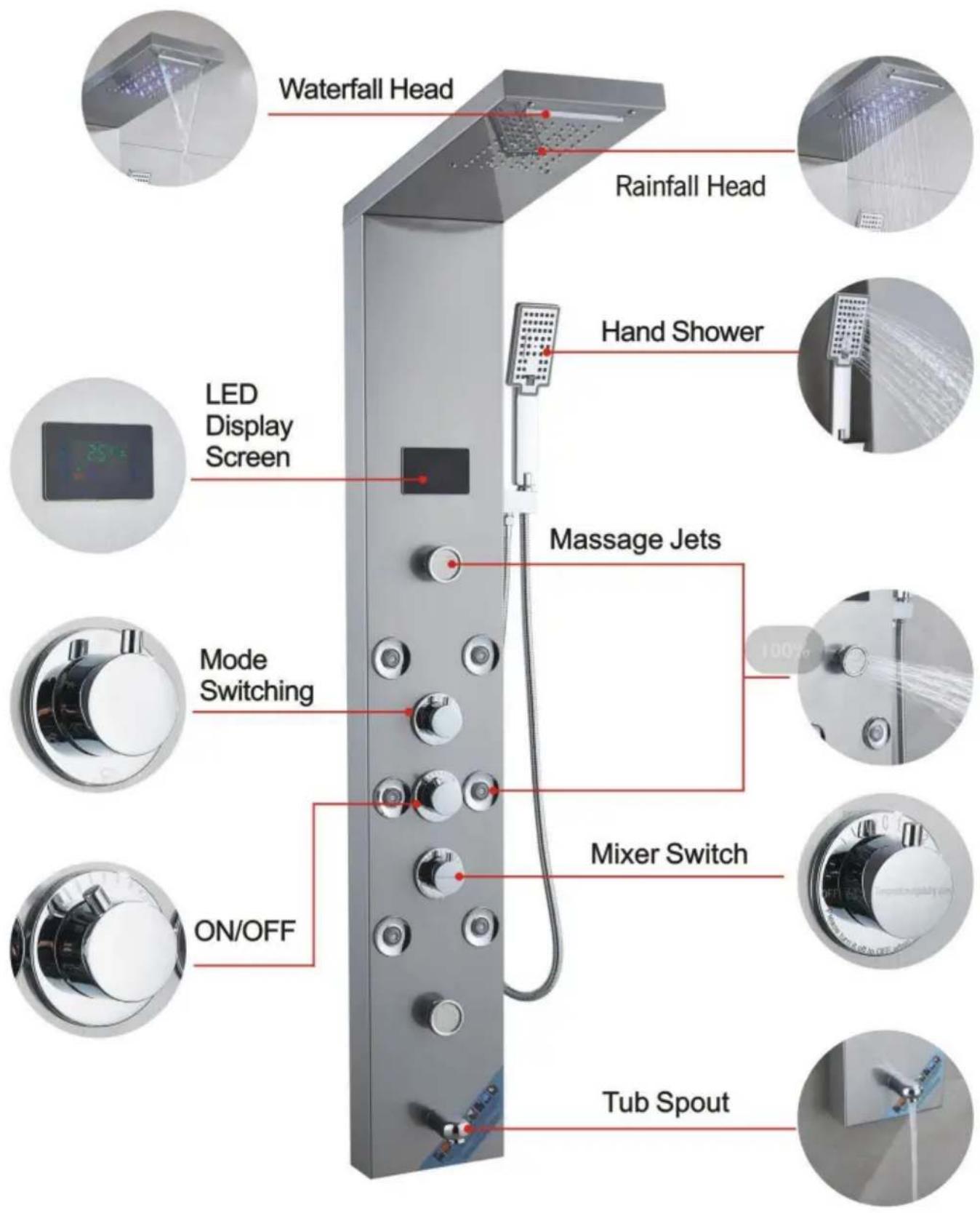

INTRODUCTION OF FUNCTIONS

8004FL

INTRODUCTION OF FUNCTIONS

7009FL

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: 8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

Insert the PVC pipe from the top opening to pierce out.

Route the LED light wire along the hole and insert into the motherboard.

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 8004FL

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires, threading them through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle, fixed on the panel.

Spray socket with hexagonal nut handle, fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODELL 7009FL

INSTALLATION STEPS (GENERAL)

Installation instructions

INSTALLATION DIAGRAM OF THE SHOWER PANEL SERIES

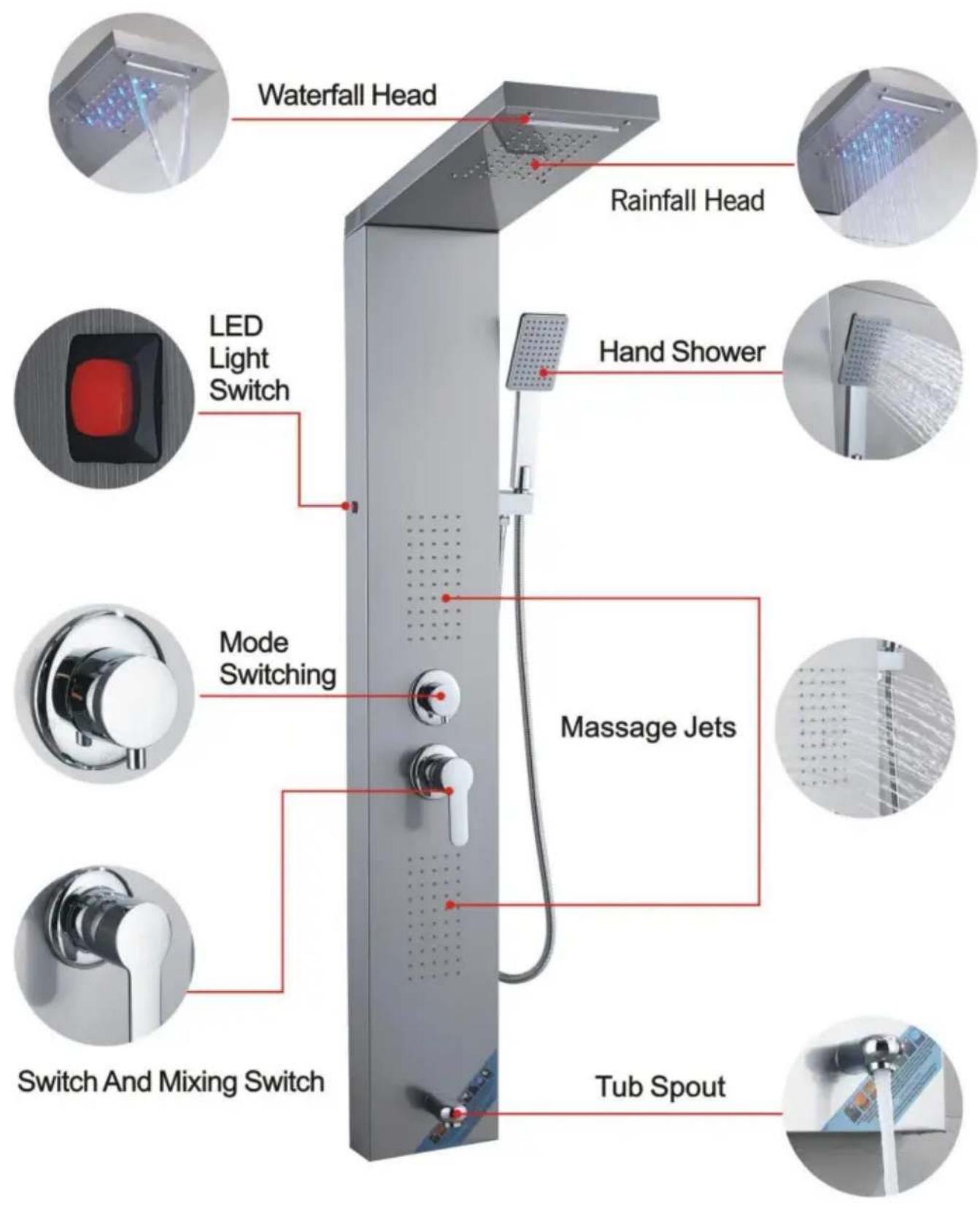

FUNCTION INTRODUCTION

8015FL

FUNCTION INTRODUCTION

6002FL

FUNCTION INTRODUCTION

8039FL

FUNCTION INTRODUCTION

8009FL

FUNCTION INTRODUCTION

8004FL

FUNCTION INTRODUCTION

7009FL

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the PVC pipe from the top opening to pierce out.

Route the LED light wire along the hole and insert into the motherboard.

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires thread through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle, fixed on the panel.

Spray socket with hexagonal nut handle. Fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 7009FL

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the PVC pipe from the top opening to pierce out.

Route the LED light wire along the hole and insert into the motherboard.

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires thread through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Spray socket with hexagonal nut handle. Fix the 4-point rubber on the panel and spray it by hand. Inside the joint of the seat.

Connect the water outlet connector and hand spray. Seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 7009FL

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Insert the PVC pipe from the top opening to pierce out.

Route the LED light wire along the hole. Insert into the motherboard.

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts.

Fix the PVC pipe with a throat clamp on the top spray joint.

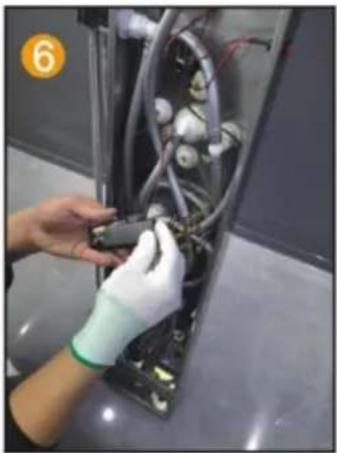

Connect the LED light cable and power supply line.

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 8004FL

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires, thread them through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Spray socket with hexagonal nut handle, fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 7009FL

INSTALLATION STEPS (GENERAL)

FUNCTION INTRODUCTION

8015FL

FUNCTION INTRODUCTION

6002FL

FUNCTION INTRODUCTION

8039FL

FUNCTION INTRODUCTION

8009FL

FUNCTION INTRODUCTION

8004FL

FUNCTION INTRODUCTION

7009FL

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

SHOWER PANEL TOWER

MODEL: 8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

NEED HELP? CONTACT US!

INSTALLATION INSTRUCTIONS

Model	8015FL 6002FL 8039FL 8009FL 8004FL 7009FL
Montage Type	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren
Verbinding Draad	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functies	VierModi	VijfModi	ZesModi	ZesModi	ZesModi	VijfModi
Baduitloop	×	ÿ	ÿ	ÿ	ÿ	ÿ
Temperatuur e Weergave	×	×	ÿ	ÿ	ÿ	ÿ
LED lamp	×	ÿ	ÿ	ÿ	ÿ	×
Stroom	×	Droge cel (DC3V)	Droge cel (DC3V)	Hydro Stroom (AC6V)	Hydro Stroom (AC6V)	Droge cel (DC3V)
Hand Douche	3-instellingen	1-instellingen	3-instellingen	3-instellingen	3-instellingen	3-instellingen
Finish	Vingerafdrukvrij douchesysteem van geborsteld nikkel
Materiaal	Roestvrij staal, messing, PVC, ABS

PARTS LIST

MODEL		8015FL8039FL8009FL	6002FL	8004FL	7009FL
M6 nut		4pcs	4pcs	0pcs	0pcs
M6 * 10 screw		4pcs	4pcs	0pcs	0pcs
Hose Clamp		2pcs	2pcs	2pcs	0pcs
M4 * 10 screw		0pcs	0pcs	2pcs	0pcs
Brass shower arm		0pcs	0pcs	0pcs	1pcs
Single function handheld shower		0pcs	1pcs	0pcs	0pcs
Panel cotton bag		1pcs	1pcs	1pcs	1pcs
Top spray cotton bag		1pcs	1pcs	1pcs	0pcs
Three function handheld shower		1pcs	0pcs	1pcs	1pcs
1.5 meter hand spray hose		1pcs	1pcs	1pcs	1pcs
Hand spray seat		1pcs	1pcs	1pcs	1pcs
1/2 right angle adapter		2pcs	2pcs	2pcs	2pcs
4-point rubber		2pcs	2pcs	2pcs	2pcs
Self tapping screw		4pcs	4pcs	4pcs	4pcs
Fastener		2pcs	2pcs	2pcs	2pcs
Grommet		1pcs	1pcs	1pcs	1pcs
Hexagon nut		1pcs	1pcs	1pcs	1pcs

ASSEMBLY INSTRUCTIONS

MODEL 8015FL/6002FL/8039FL/8009FL

Insert the PVC pipe from the top opening to pierce out

Route the LED light wire along the hole, insert into the motherboard

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Fix the PVC pipe with a throat clamp on the top spray joint

Connect the LED light cable and power supply line

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 8004FL

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires thread through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Spray socket with hexagonal nut handle. Fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 7009FL

INSTALLATION STEPS (GENERAL)

USER MANUAL

FUNCTION INTRODUCTION

8015FL

FUNCTION INTRODUCTION

6002FL

FUNCTION INTRODUCTION

8039FL

FUNCTION INTRODUCTION

8009FL

FUNCTION INTRODUCTION

8004FL

FUNCTION INTRODUCTION

7009FL

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: 8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

PRODUCT INTRODUCTION

Insert the PVC pipe from the top opening to pierce out

Route the LED light wire along the hole and insert into the motherboard

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Fix the PVC pipe with a throat clamp on the top spray joint

Connect the LED light cable and power supply line.

Install 2 No. 5 batteries to charge the pool box.

Point the switch of the battery box towards ON.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle fixed on the panel.

Put the 4-point rubber into the hand spray inside the joint of the seat.

Connect the water outlet connector and hand spray seat joint.

Connect the hand spray hose to the handheld one shower head.

MODELL 8004FL

Insert the top spray into the motherboard inside the hole.

Use 2 M4 screws to secure the main fixed plate and top spray.

Connect PVC pipes and LED light wires thread through the hole.

Fix the PVC pipe with a throat clamp on the top spray joint.

Connect the LED light cable and power supply line.

Insert the hand spray nozzle into the panel and install the gasket.

Spray socket with hexagonal nut handle, fixed on the panel.

Spray socket with hexagonal nut handle. Fix the 4-point rubber on the panel and spray it by hand inside the joint of the seat.

Connect the water outlet connector and hand spray to the seat joint.

Connect the hand spray hose to the handheld shower head.

MODEL 7009FL

INSTALLATION STEPS (GENERAL)

FUNCTION INTRODUCTION

8015FL

FUNCTION INTRODUCTION

6002FL

FUNCTION INTRODUCTION

8039FL

FUNCTION INTRODUCTION

8009FL

FUNCTION INTRODUCTION

FUNCTION INTRODUCTION

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
