8009FL - Shower column Vevor - Free user manual and instructions

Product type	Shower column
Brand	Vevor
Model	8009FL
Materials	Stainless steel, brass, PVC, ABS
Finish	Brushed nickel fingerprint-resistant
Power supply	Hydroelectric (AC 6V)
Temperature display	Yes
LED light	Yes
Number of shower modes	6 modes
Bathtub spout	Yes
Handheld shower	Yes, 3 settings
Fixed shower head	Yes
Water inlet connection	G1/2"
Installation type	Wall-mounted
Approximate height	1200 mm
Approximate width	200 mm
Approximate weight	5 kg
Warranty	Technical support and electronic warranty certificate (www.vevor.com/support)
Maintenance and cleaning	Clean regularly with water or mild detergent, wipe with a soft cloth
Safety	Use gloves during installation, check seal tightness, do not use if damaged
Spare parts and repairability	Available via Vevor after-sales service (www.vevor.com/support)

Frequently Asked Questions - 8009FL Vevor

How to install the Vevor 8009FL shower column?

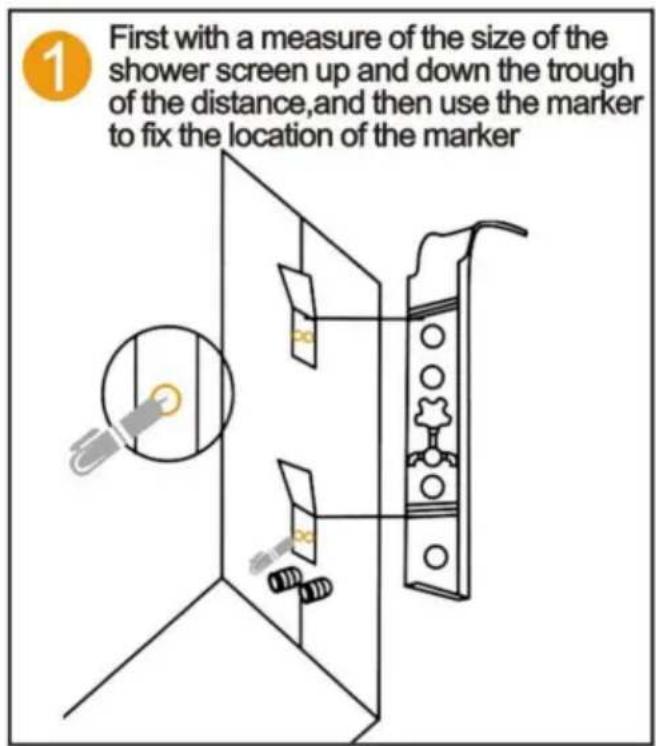

Measure the installation height, mark the positions on the wall, fix the brackets, connect the hot and cold water pipes (G1/2 connection), hang the panel and tighten the screws. Ensure the seals are tight and the pipes are not bent. Wear gloves to avoid cuts.

What is the power supply of the 8009FL column?

The column operates with a hydroelectric power supply (AC 6V). It does not require batteries or mains connection. The water drives an internal generator that powers the display and LED.

How to clean and maintain the shower column?

Clean the surface regularly with water or mild detergent, then wipe with a soft cloth. Avoid abrasive products. A quick cleaning after each use extends the product's lifespan.

What to do in case of water leakage?

Check that all seals are properly tightened. Make sure the inlet connections (red and blue) are well connected. If the leak persists, replace the sealing gaskets or contact Vevor support.

Does the shower column work with low water pressure?

Yes, but the recommended minimum pressure is 0.5 bar. Too low pressure may reduce the effectiveness of the shower modes and the LED display. Check that the internal pipes are not bent.

How to change the battery of the 8009FL column?

The 8009FL model uses a hydroelectric power supply, so there is no battery to change. The energy is produced by the water flow. If the display or LED does not work, check the water flow.

Is the LED light replaceable?

The LED is integrated and not user-replaceable. In case of failure, contact Vevor after-sales service for repair or replacement under warranty.

What are the materials of the shower column?

The column is made of brushed stainless steel, brass, PVC, and ABS. The brushed nickel finish resists fingerprints.

How to adjust the water temperature?

The temperature is adjusted via the mixer of your installation (not supplied). The digital display shows the water temperature in real time. Adjust the hot and cold water to achieve the desired temperature.

What are the dimensions of the 8009FL shower column?

The approximate dimensions are: height 1200 mm, width 200 mm, depth 100 mm. Please consult the manual for exact measurements before drilling.

USER MANUAL 8009FL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHOWER PANEL TOWER

MODEL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOWER PANEL TOWER

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

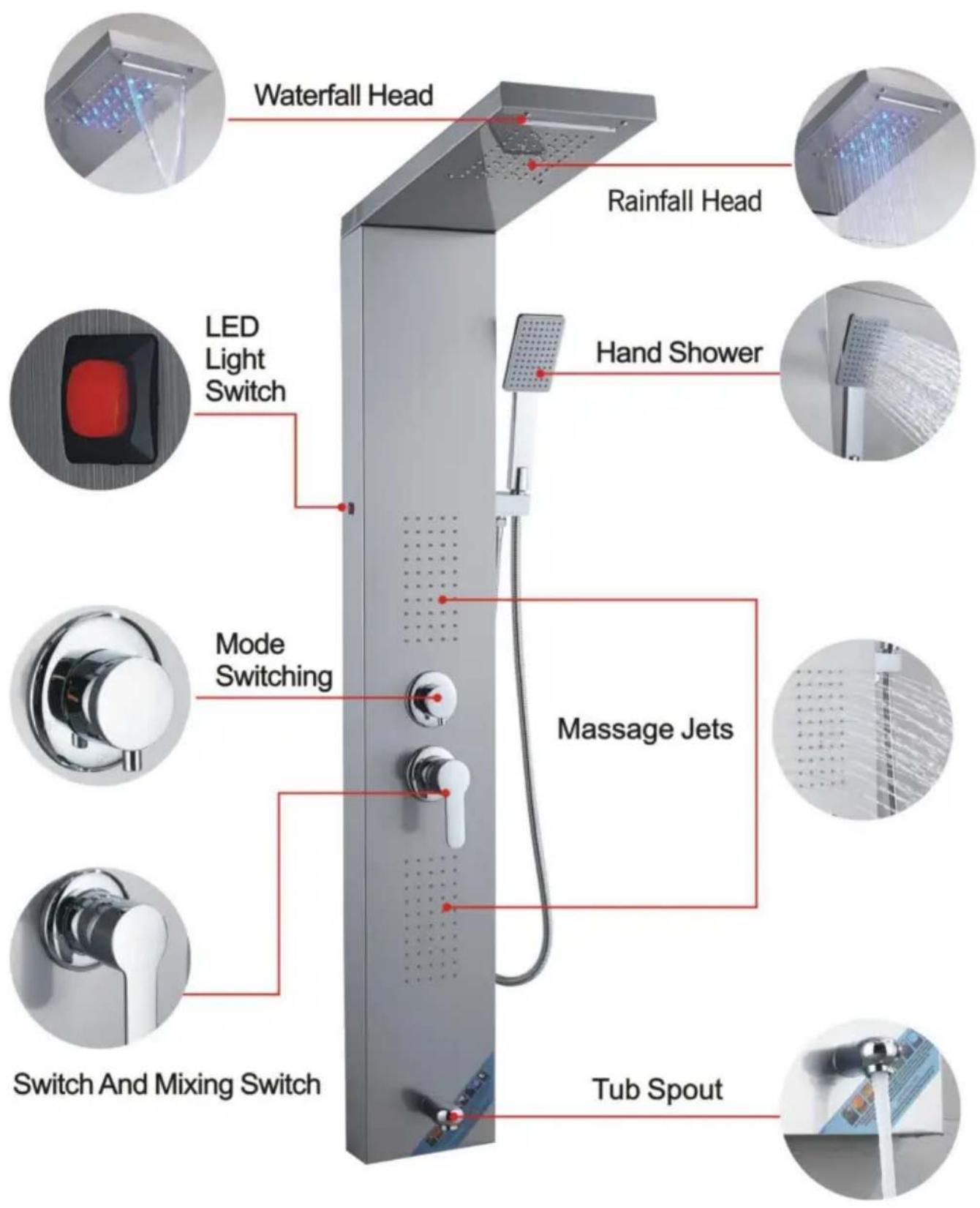

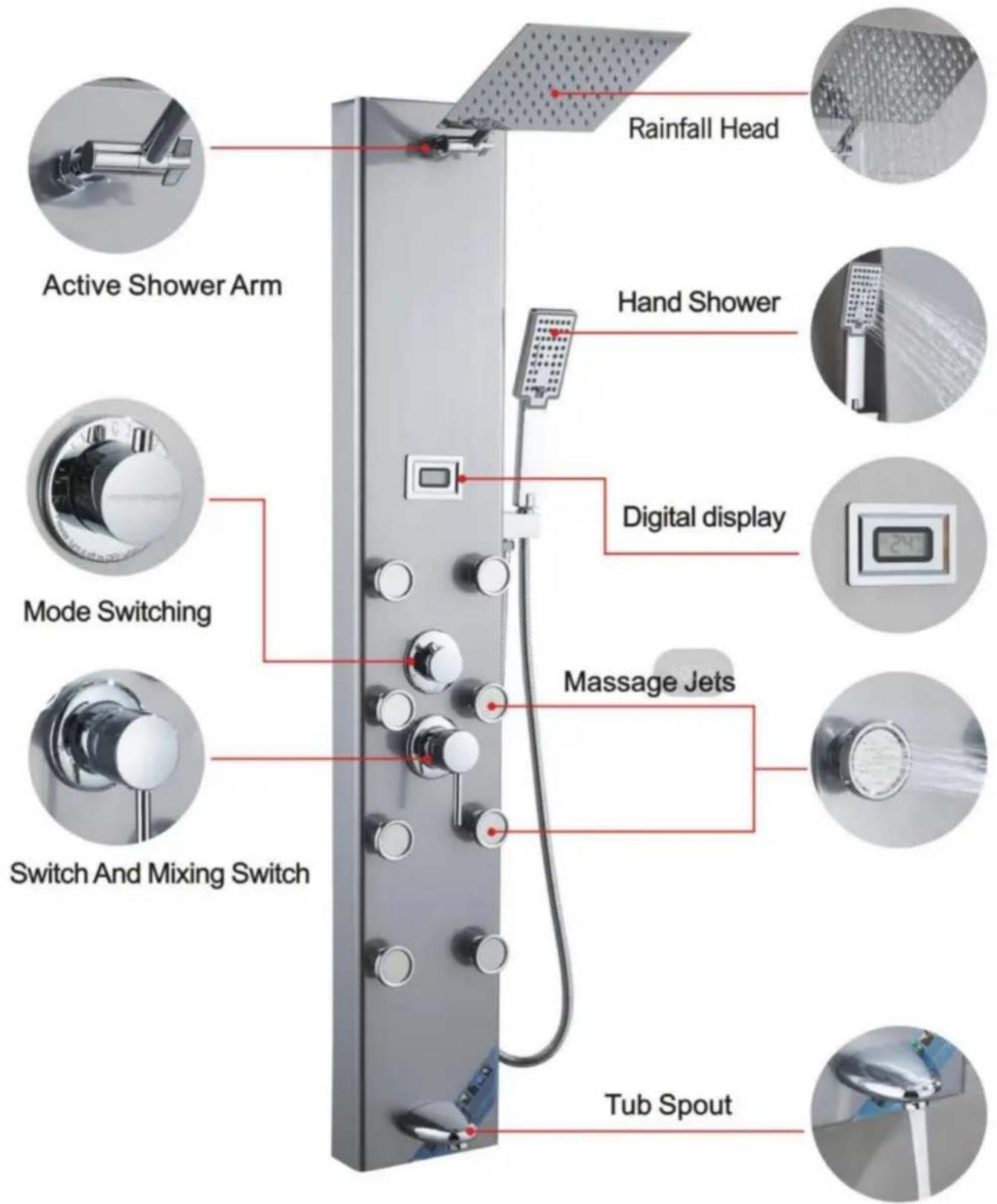

PRODUCT INTRODUCTION

Warning-To reduce the risk of injury, user must read in manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices.

Warning Tips:

1. During the installation process, it is best to wear gloves to prevent sharp
   corners on the panel from scratching the palm of the
2. When installing the shower, ensure that all joints a tightened to avoid water leakage.
3. Ensure that the red and blue water inlet pipes inside the panel are in a folded state to avoid affecting water pressure.
4. When the shower is not in use, please close the switch valve of the sh

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product are not expressly approved by the party. Responsibility for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules. These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

INSTALLATION INSTRUCTIONS

Model	8015FL	6002FL	8039FL	8009FL	8004FL	7009FL
Mounting Type	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount
Connection Thread	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functions	Four Modes	Five Modes	Six Modes	Six Modes	Six Modes	Five Modes
Tub Spout	×	√	√	√	√	√
Temperature Display	×	×	√	√	√	√
LED Lamp	×	√	√	√	√	×
Power	×	Dry Cell (DC3V)	Dry Cell (DC3V)	Hydro Power (AC6V)	Hydro Power (AC6V)	Dry Cell (DC3V)
Hand Shower	3-Setting	1-Setting	3-Setting	3-Setting	3-Setting	3-Setting
Finish	Fingerprint-free Brushed Nickel shower system
Material	Stainless Steel, Brass, PVC, ABS

PARTS LIST

MODEL		8015FL8039FL8009FL	6002FL	8004FL	7009FL
M6 nut		4pcs	4pcs	0pcs	0pcs
M6 * 10 screw		4pcs	4pcs	0pcs	0pcs
Hose Clamp		2pcs	2pcs	2pcs	0pcs
M4 * 10 screw		0pcs	0pcs	2pcs	0pcs
Brass shower arm		0pcs	0pcs	0pcs	1pcs
Single function handheld shower		0pcs	1pcs	0pcs	0pcs
Panel cotton bag		1pcs	1pcs	1pcs	1pcs
Top spray cotton bag		1pcs	1pcs	1pcs	0pcs
Three function handheld shower		1pcs	0pcs	1pcs	1pcs
1.5 meter hand spray hose		1pcs	1pcs	1pcs	1pcs
Hand spray seat		1pcs	1pcs	1pcs	1pcs
1/2 right angle adapter		2pcs	2pcs	2pcs	2pcs
4-point rubber		2pcs	2pcs	2pcs	2pcs
Self tapping screw		4pcs	4pcs	4pcs	4pcs
Fastener		2pcs	2pcs	2pcs	2pcs
Grommet		1pcs	1pcs	1pcs	1pcs
Hexagon nut		1pcs	1pcs	1pcs	1pcs

ASSEMBLY INSTRUCTIONS

MODEL 8015FL/6002FL/8039FL/8009FL

Close-up of hands installing a cable or wire component on a metal frame (no text or symbols visible)

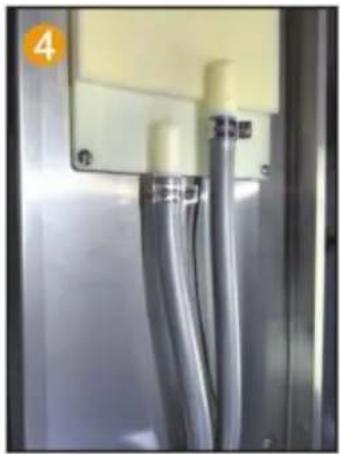

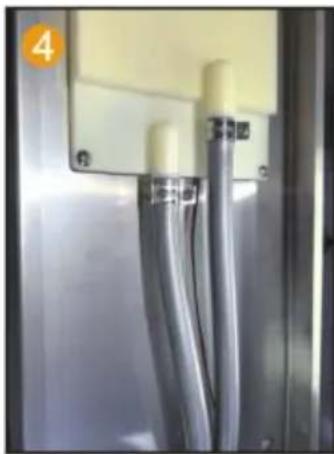

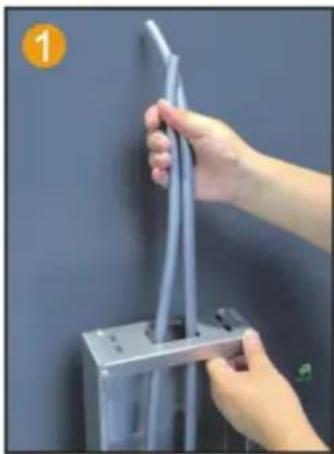

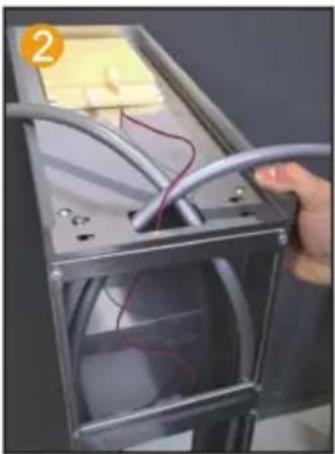

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic cable with wires inside a metal enclosure (no visible text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolt holes (no visible text or symbols)

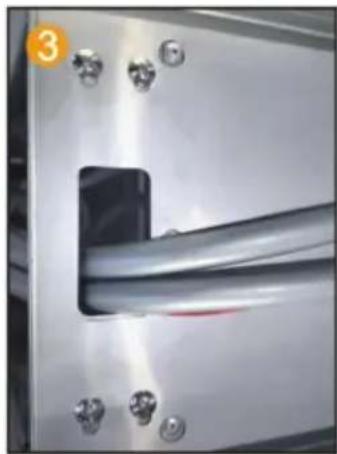

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of a metallic shelf with white insulation and coiled tubing, no visible text or symbols

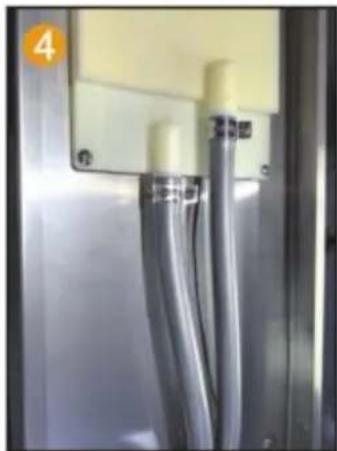

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of hands using a tool to adjust or install a cable or wire inside an electrical enclosure (no visible text or symbols)

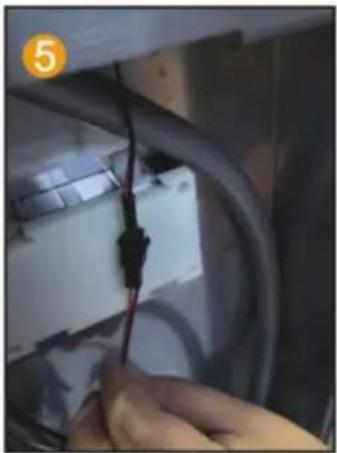

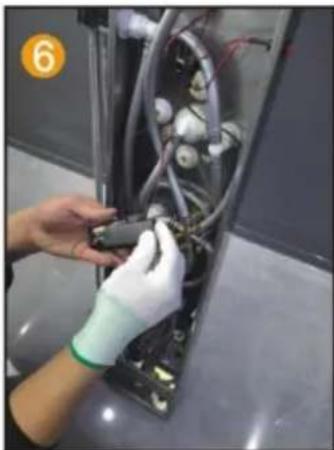

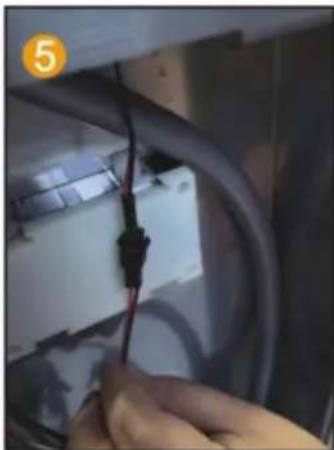

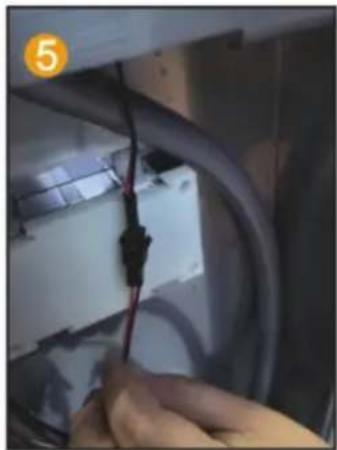

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

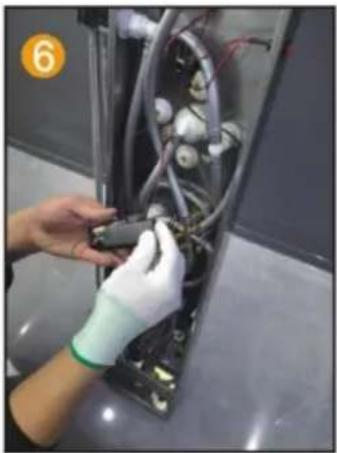

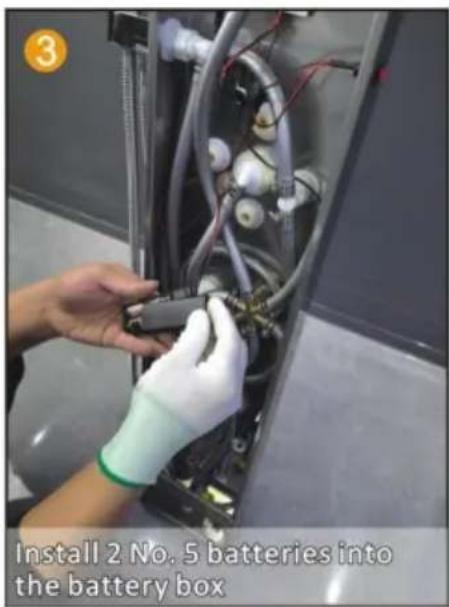

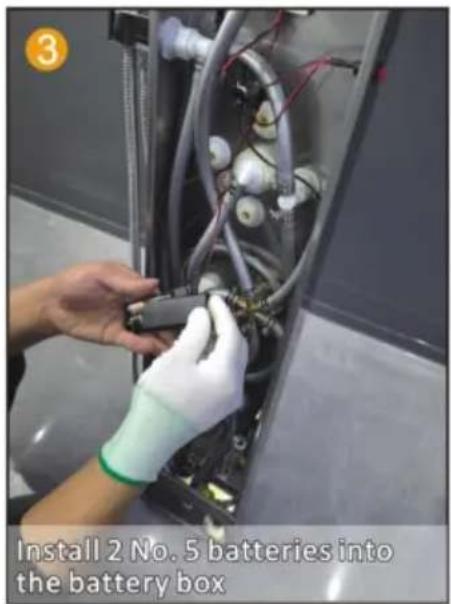

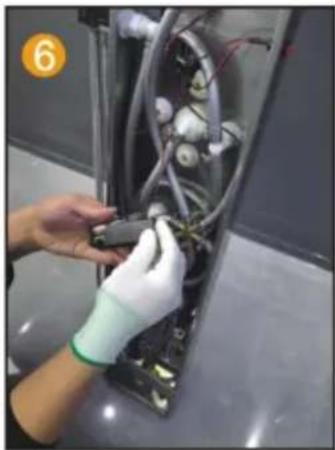

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic device with wires, next to mechanical components (no visible text or symbols)

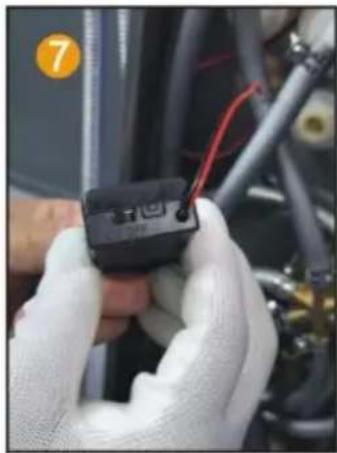

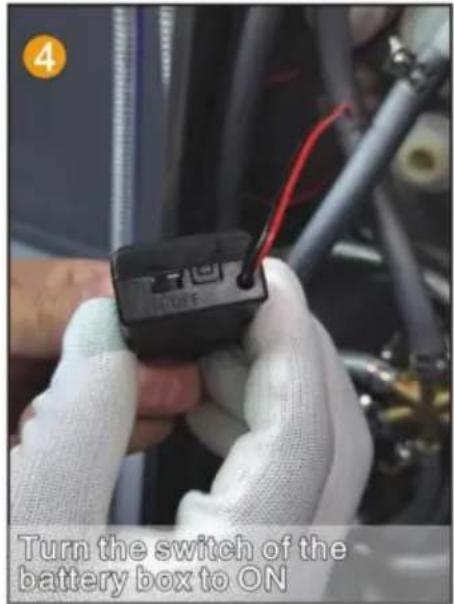

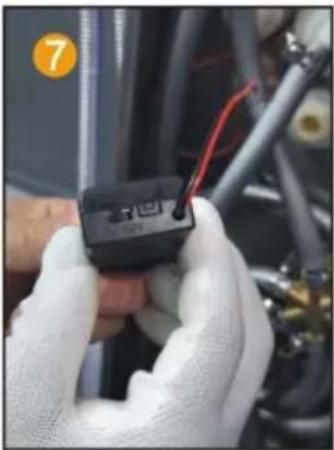

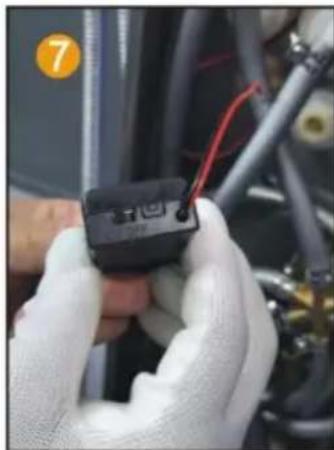

Point the switch of the battery box towards ON

Close-up of a metallic connector with red wires attached, no visible text or symbols

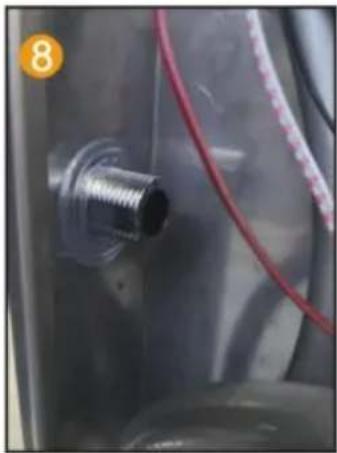

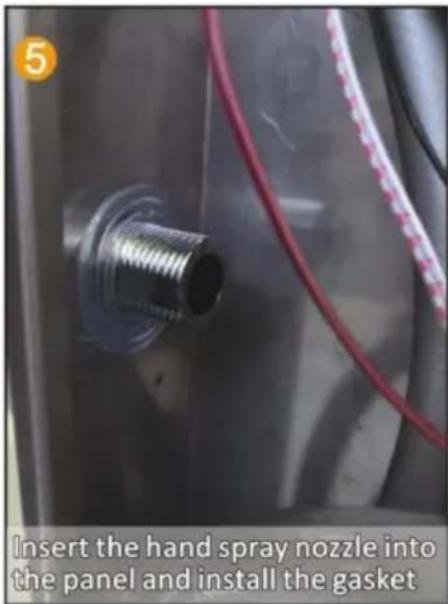

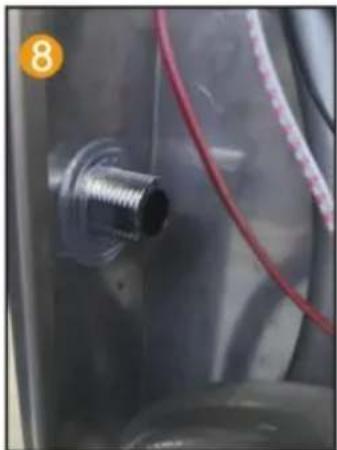

Insert the hand spray nozzle into the panel And install the gasket

Close-up of a metallic industrial electrical panel with wiring and connectors (no visible text or symbols)

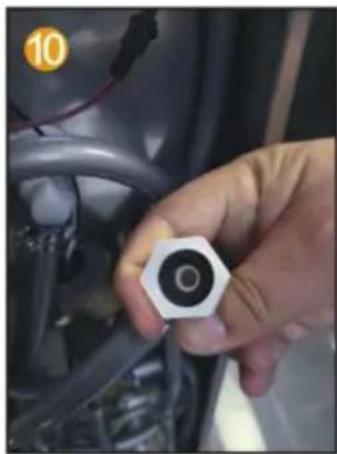

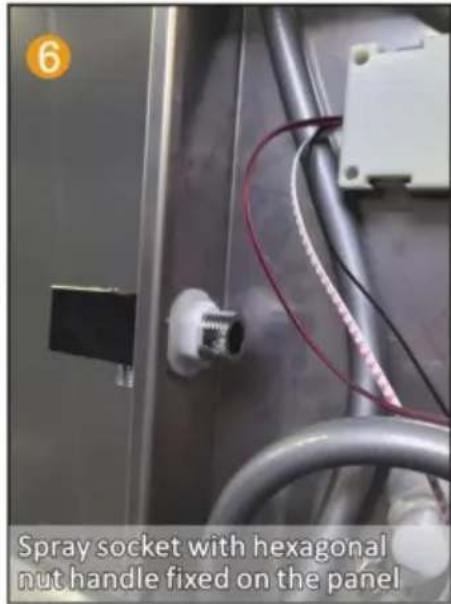

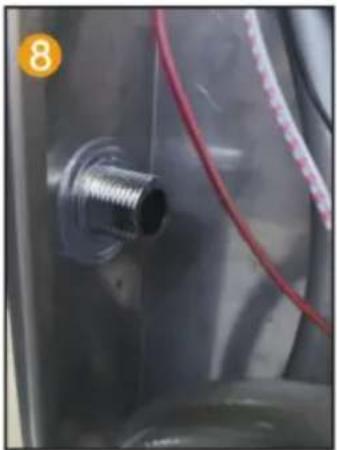

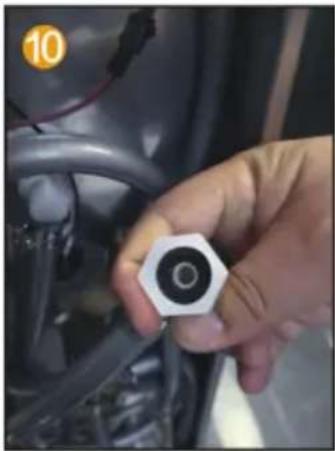

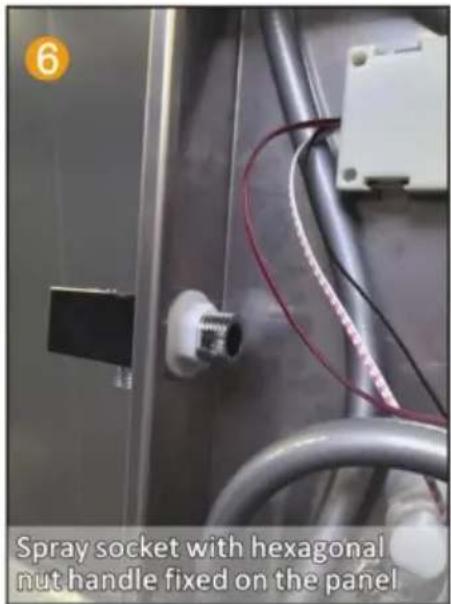

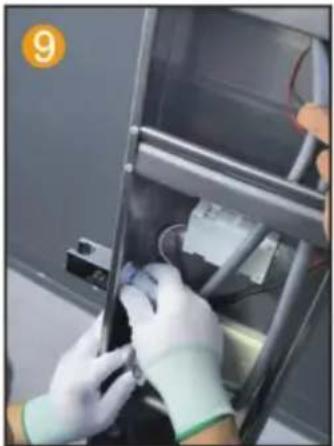

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal nut component, no visible text or symbols

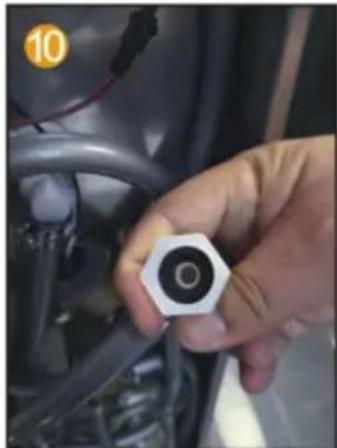

Put the 4-point rubber into the hand spray Inside the joint of the seat

Close-up of a medical or laboratory setup with blue plastic connectors and tubing (no visible text or symbols)

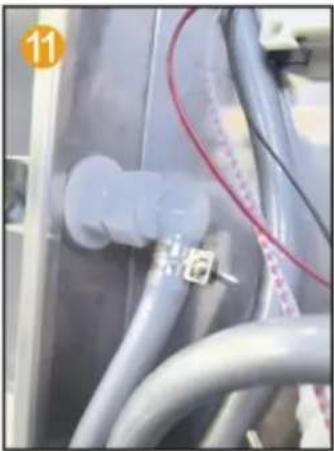

Connect the water outlet connector and hand spray Seat joint

Close-up of a mechanical component with threaded fasteners and a vertical opening (no visible text or symbols)

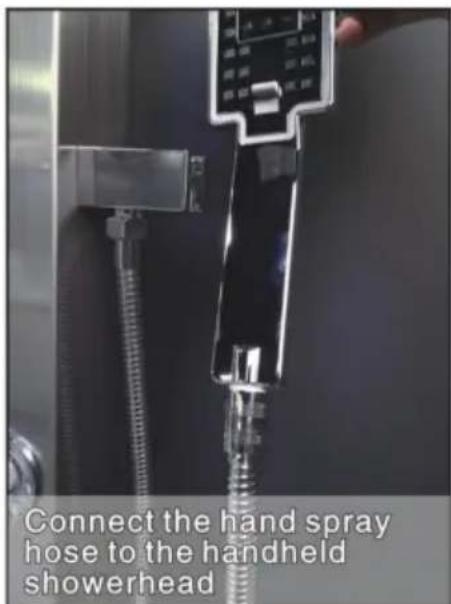

Connect the hand spray hose to the handheld one shower head

MODEL 8004FL

Interior view of a stainless steel appliance with a digital display and control panel (no visible text or symbols)

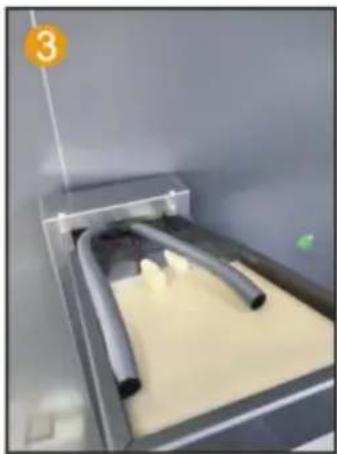

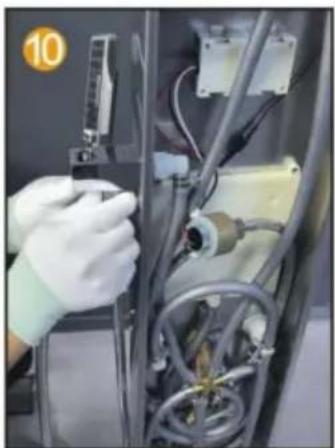

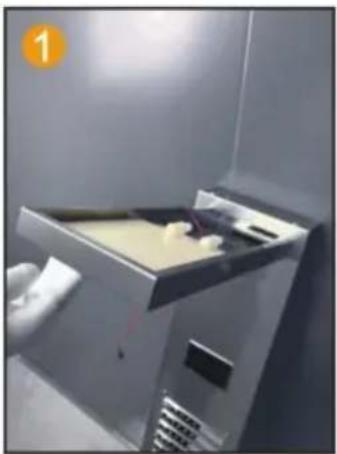

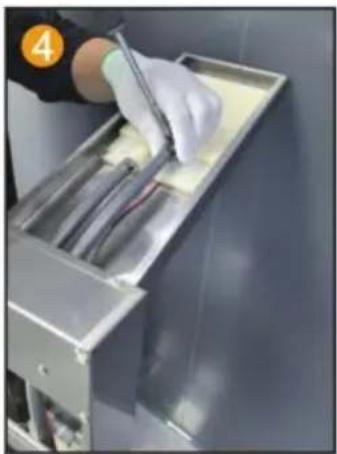

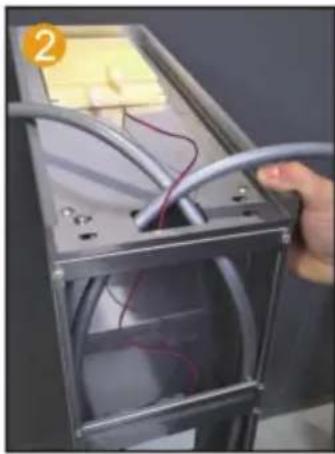

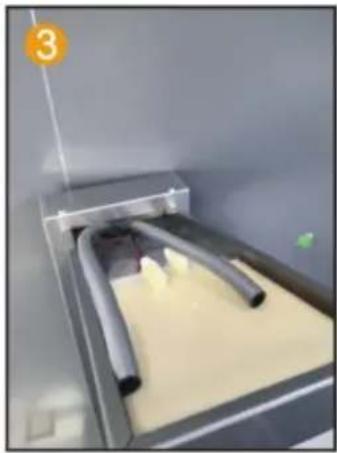

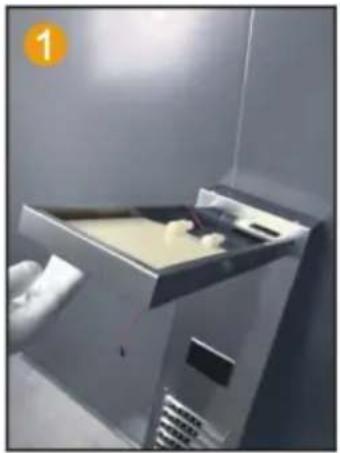

Insert the top spray into the motherboard inside the hole

Person in gloves handling a device with wires and components (no visible text or symbols)

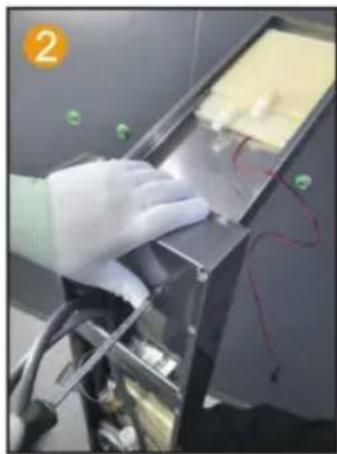

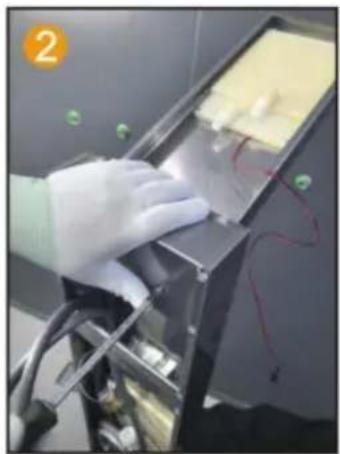

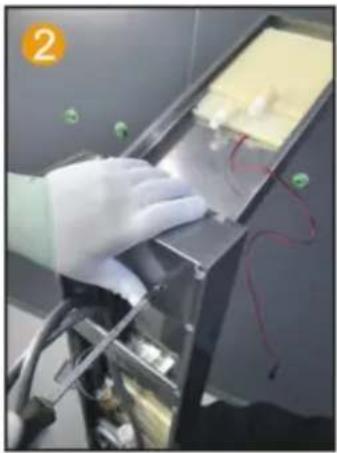

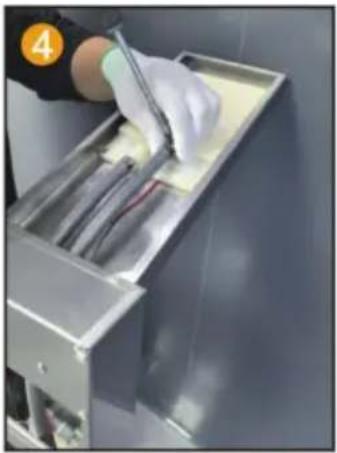

Use 2 M4 screws to secure the main Fixed plate and top spray

Close-up of a laboratory setup with two tubes inserted into a container, no visible text or symbols

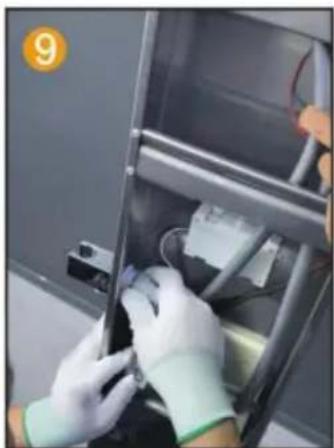

Connect PVC pipes and LED light wires Thread through the hole

Close-up of a gloved hand using a tool to clean or inspect internal components (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

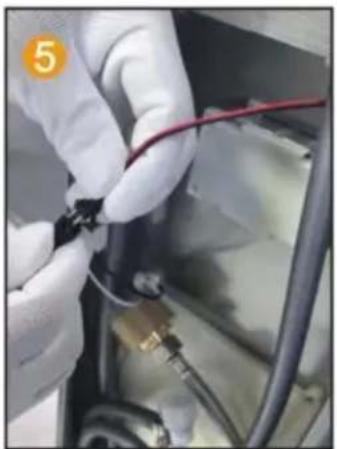

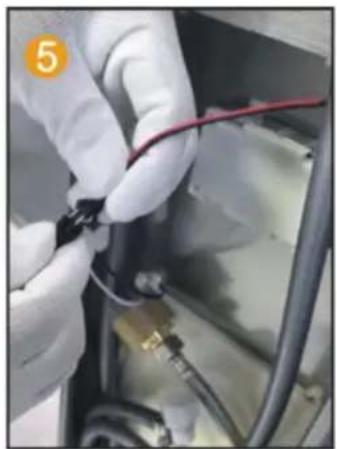

Connect the LED light cable and power supplyline

Close-up of a metallic connector with threaded shaft and red cable, no visible text or symbols

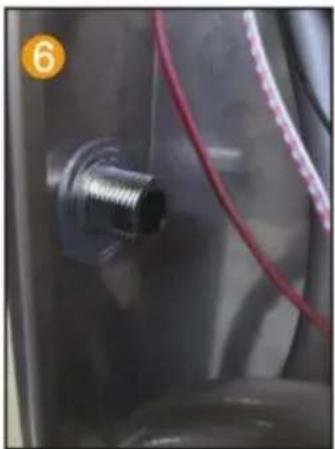

Insert the hand spray nozzle into the panel and install the gasket

Close-up of a metallic industrial electrical panel with visible wiring and connectors (no text or symbols)

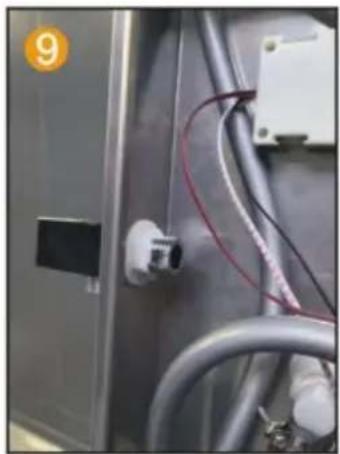

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of hands holding a small mechanical component inside a transparent enclosure (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves installing or adjusting a mechanical component inside a stainless steel enclosure (no visible text or symbols)

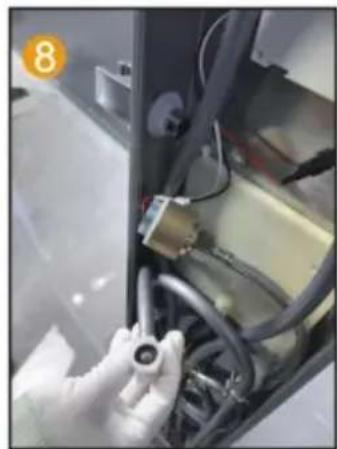

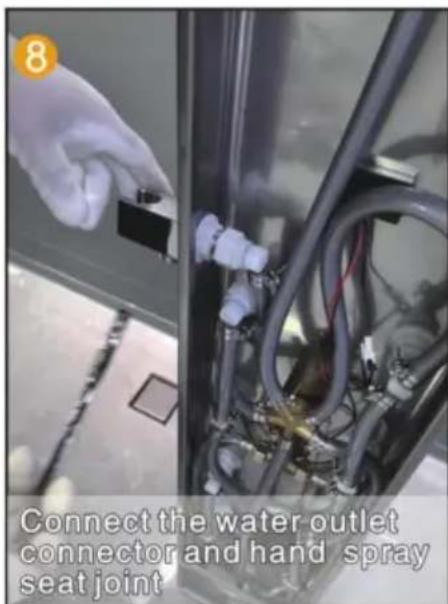

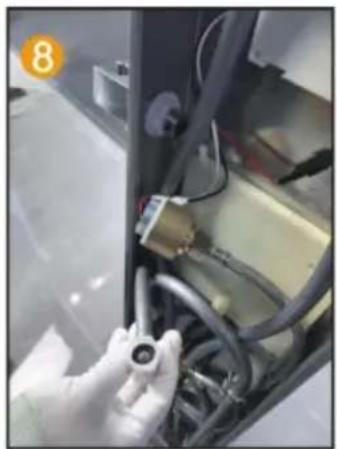

Connect the water outlet connector and hand spray Seat joint

Person in gloves handling industrial equipment with visible pipes and components (no text or symbols)

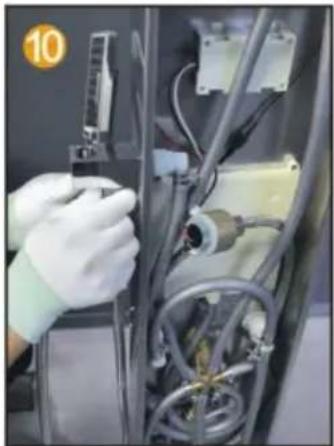

Connect the hand spray hose to the handheld one shower head

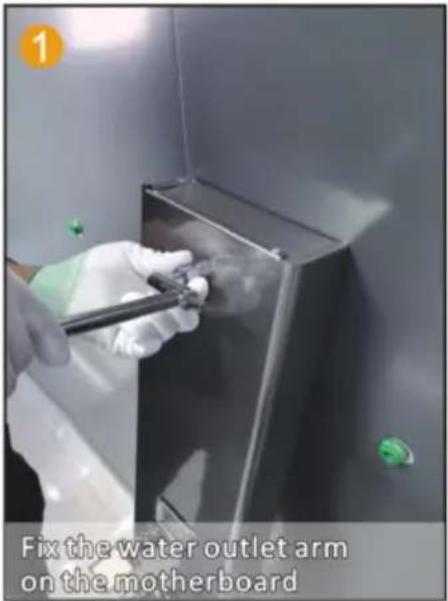

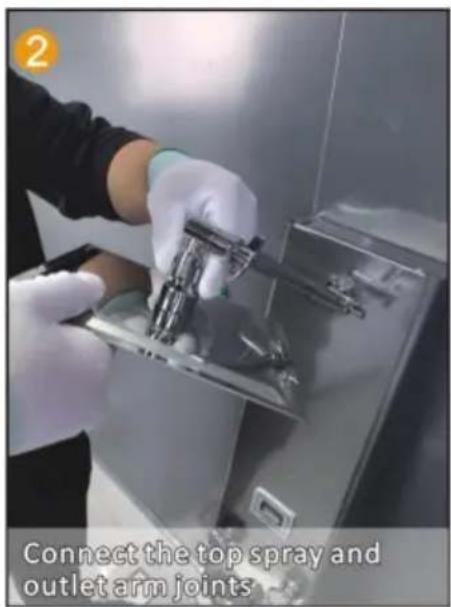

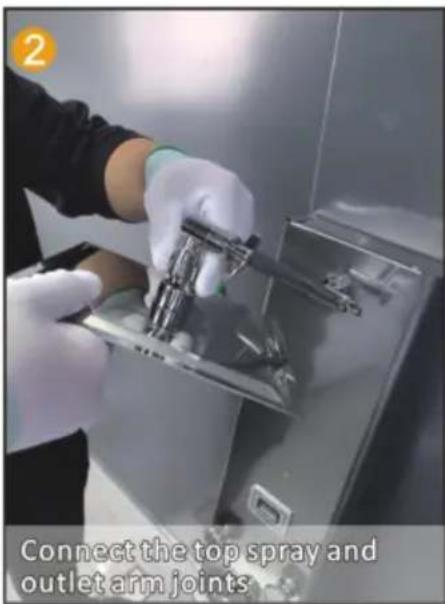

MODEL 7009FL

INSTALLATION STEPS (GENERAL)

Installation Notes

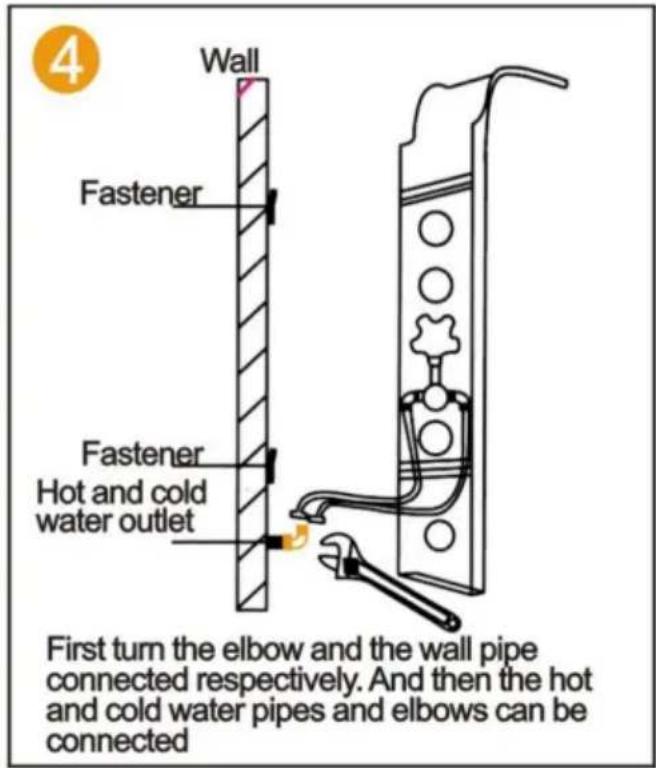

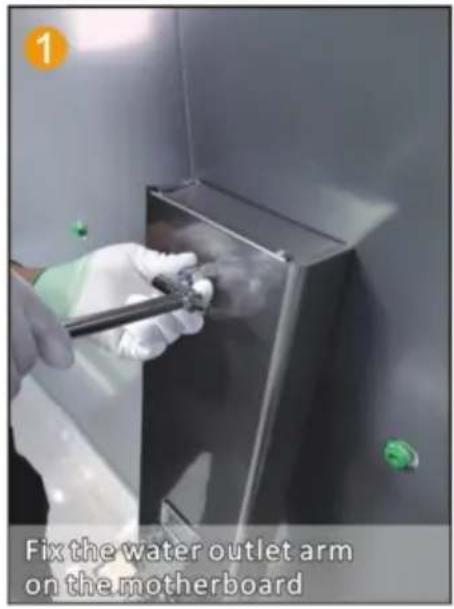

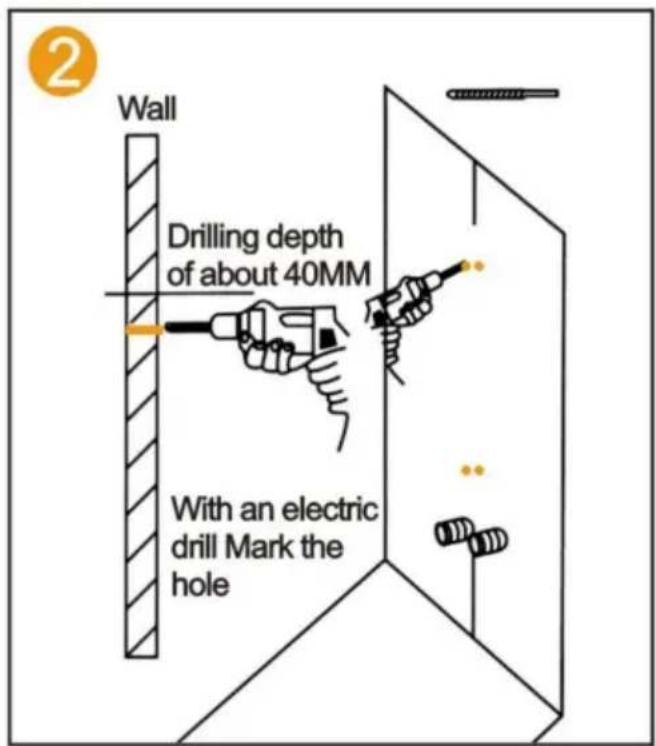

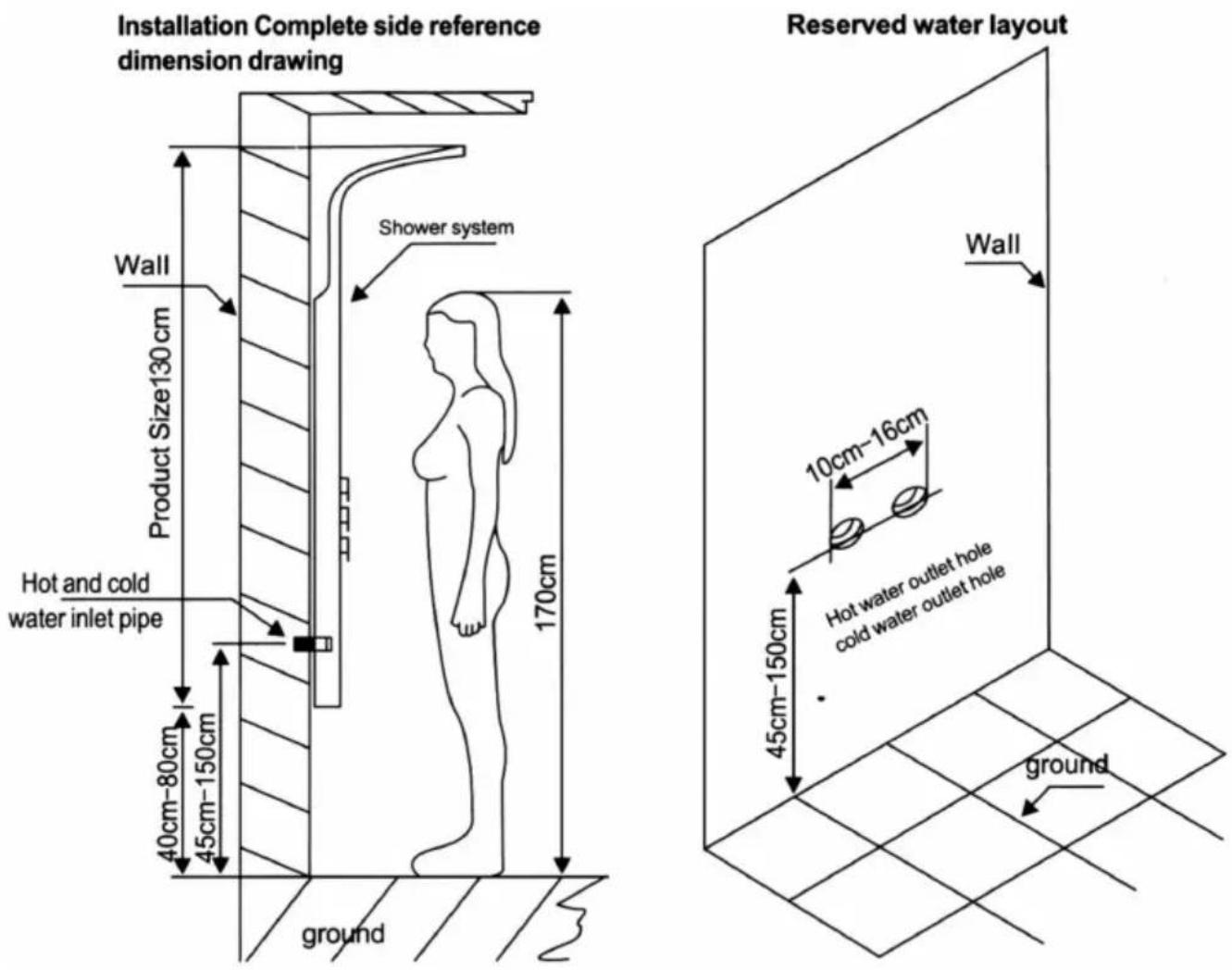

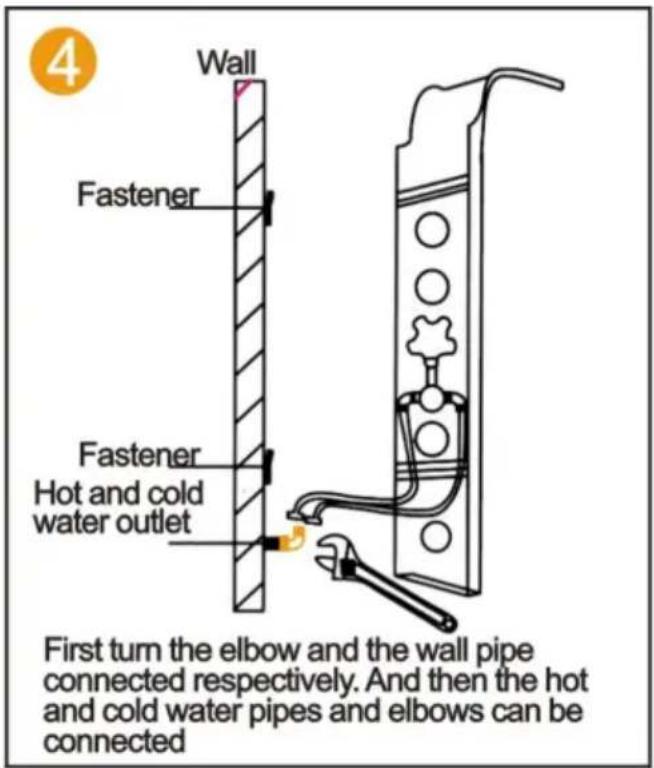

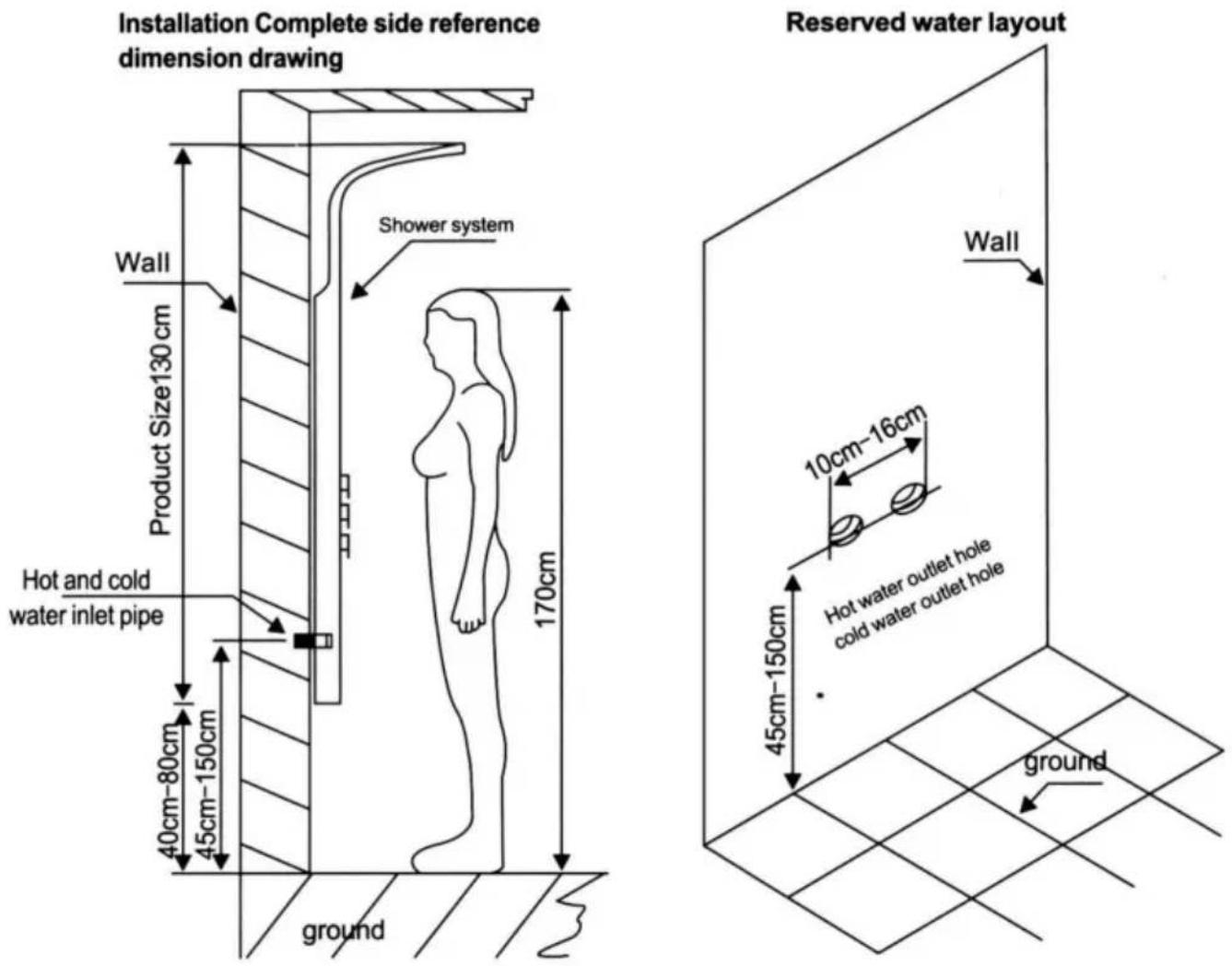

1. According to the height of the family height budget shower system installation height, measure the shower system on the back of the bar Distance, mark a wall, in the corresponding position of the tag fixed hanging iron (up and down one).
2. Connect the hot and cold water hose (be sure to clean the magazine and dirt in the wall Scale so as not to block, affect the water effect).

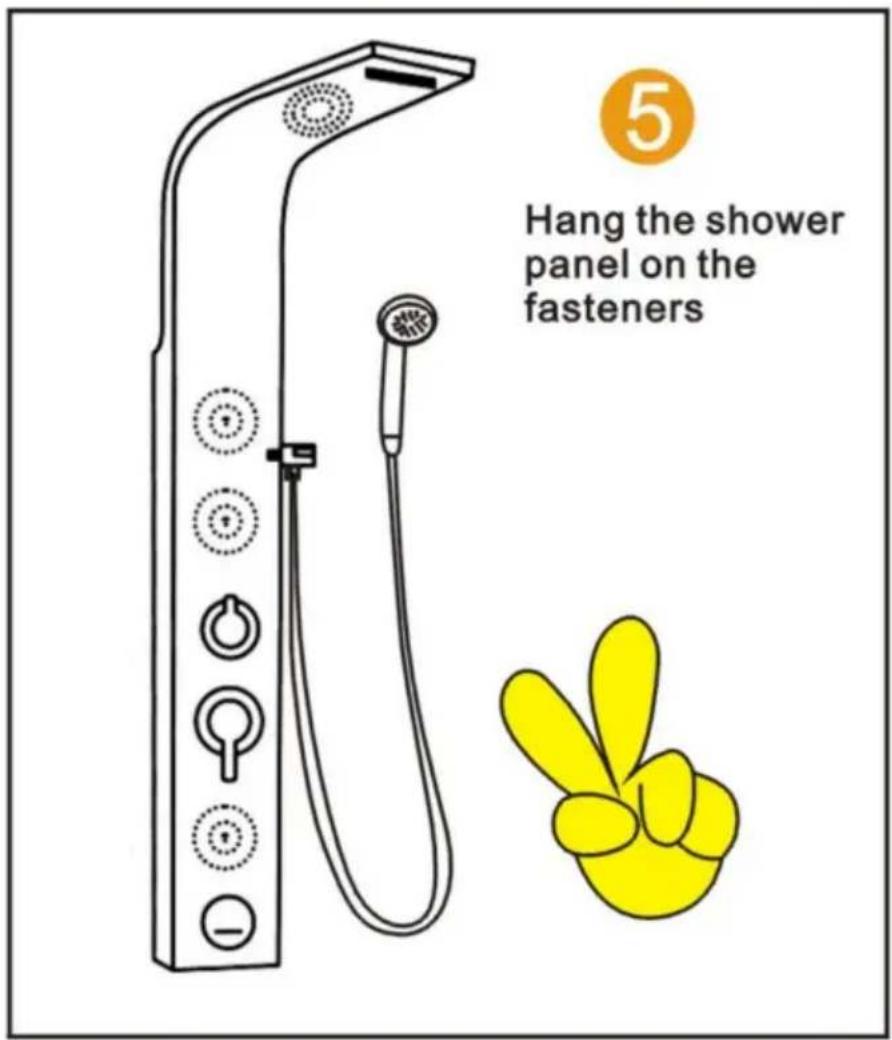

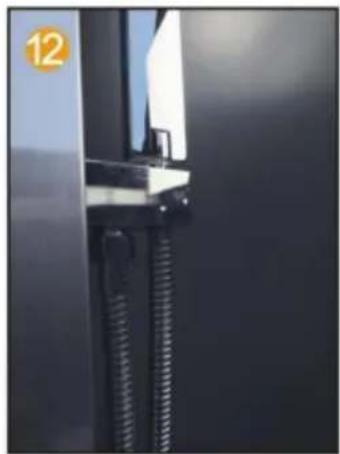

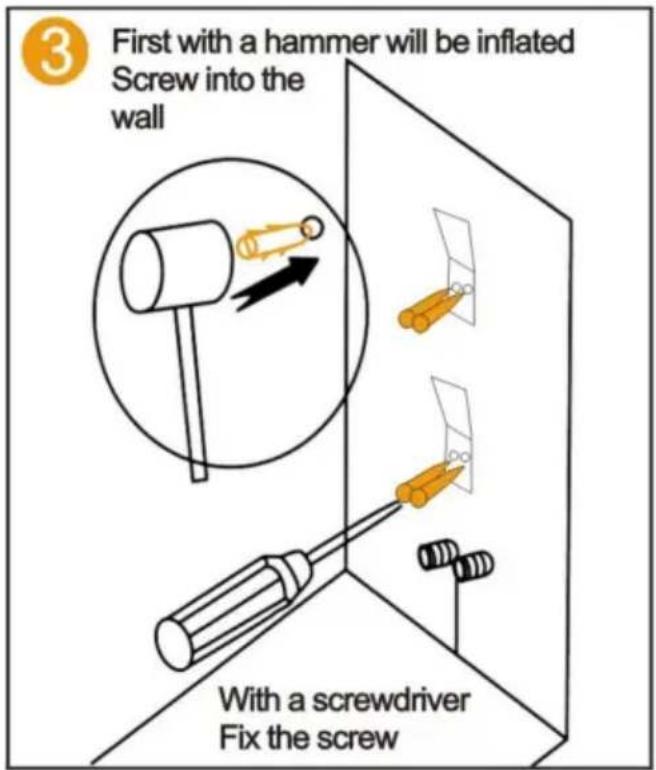

3. Shower system hanging on the wall, the upper and lower two cards were clamped in two hanging pastes (Note: shower After the system wall, the main close to the wall is not shaking, do not need to use another glass glue and tools fixed).

Stainless steel shower system maintenance methods:

1. Regular cleaning of the product in order to keep its appearance bright an clean;
2. Clean the surface with water or a mild detergent and wipe it with a soft
3. Note that the clean product of the hidden position, timely cleaning can make products lasting.

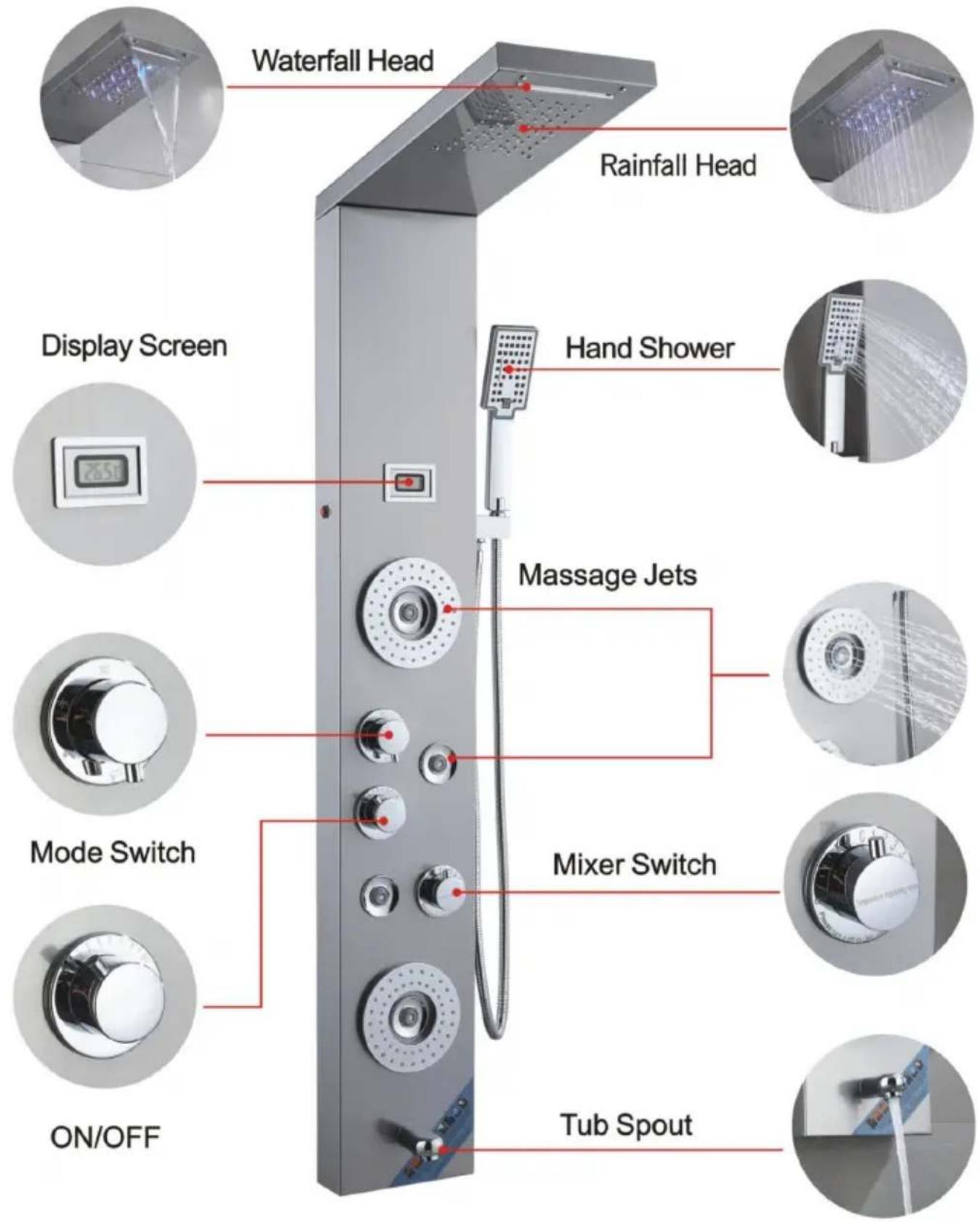

SHOWER PANEL SERIES INSTALLATION DIAGRAM

8015FL

6002FL

8039FL

8009FL

8004FL

7009FL

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

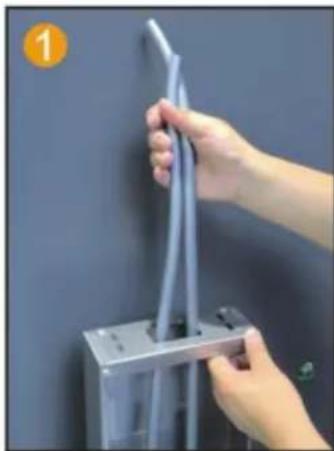

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a central rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

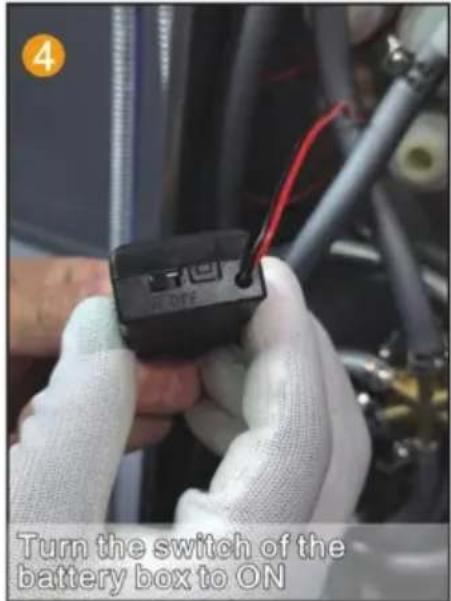

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and cap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

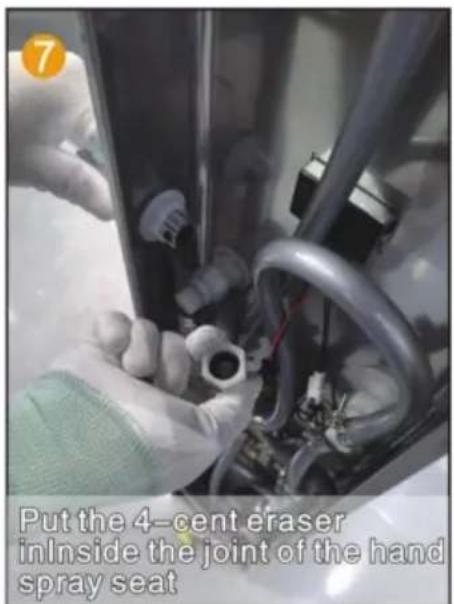

Put the 4-point rubber into the hand spray Inside the joint of the seat

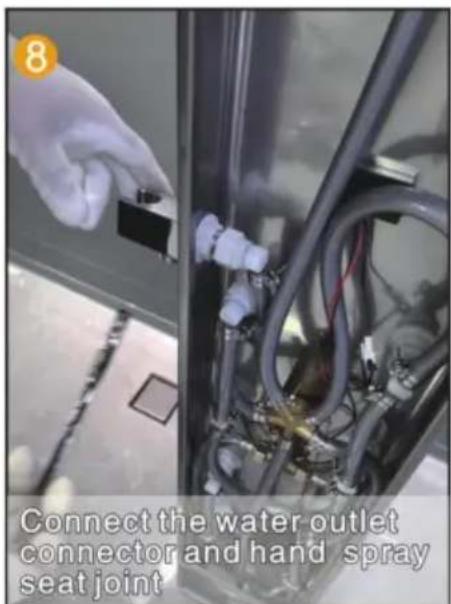

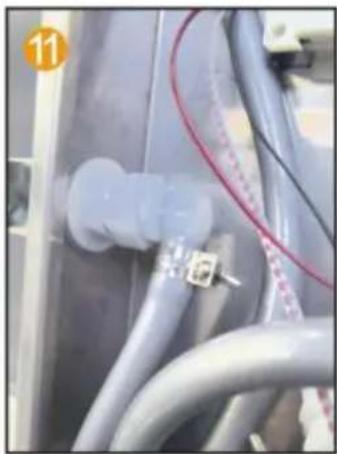

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODÈLE 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in gloves operating a control panel with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a tray holding a white substance, no visible text or symbols.

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

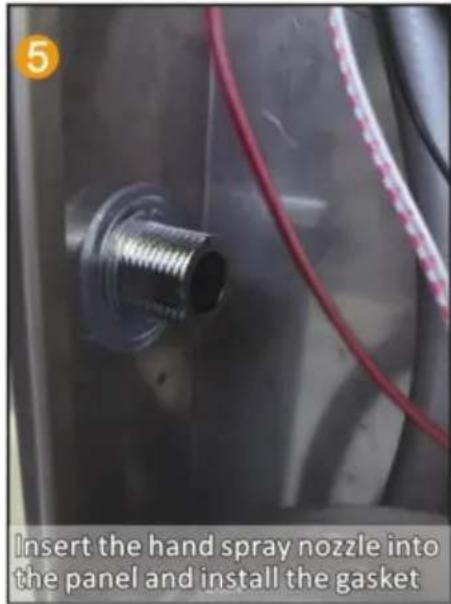

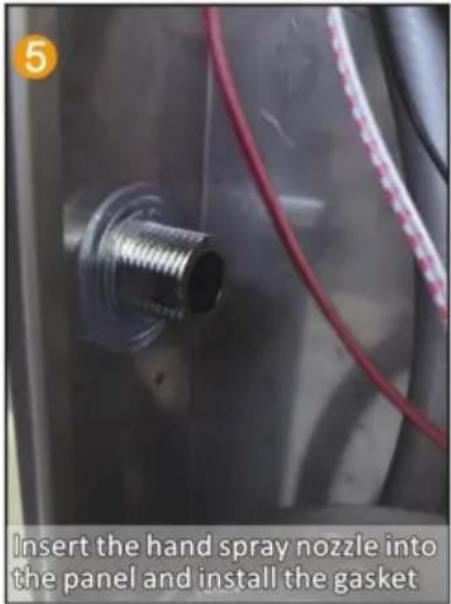

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODÈLE 7009FL

ÉTAPES D'INSTALLATION (GÉNÉRAL)

INTRODUCTION DES FONCTIONS

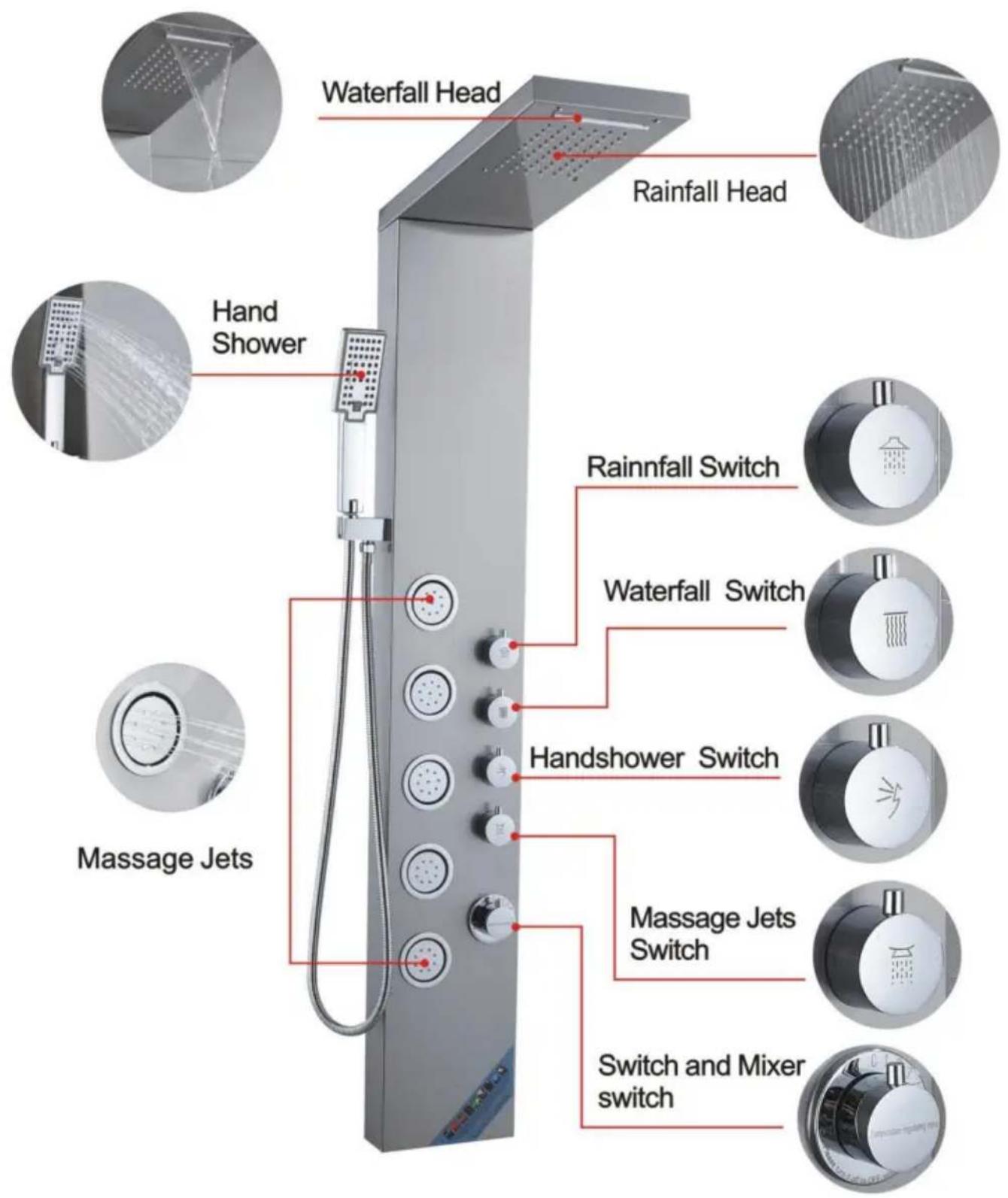

8015FL

INTRODUCTION DES FONCTIONS

6002FL

INTRODUCTION DES FONCTIONS

8039FL

INTRODUCTION DES FONCTIONS

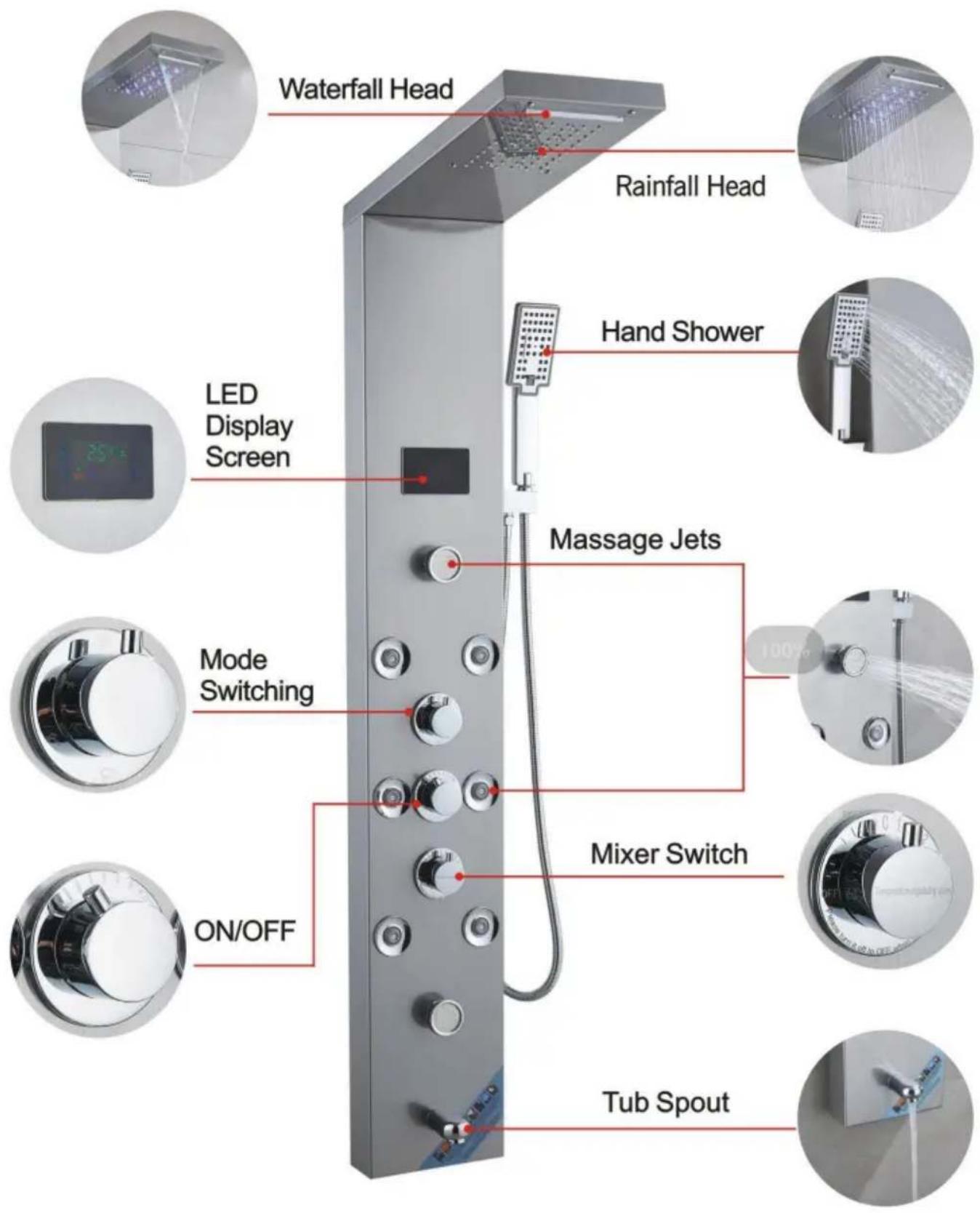

8009FL

INTRODUCTION DES FONCTIONS

8004FL

INTRODUCTION DES FONCTIONS

7009FL

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and cap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODELL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves operating a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELL 7009FL

INSTALLATIONSSCHRITTE (ALLGEMEIN)

Installationshinweise

INSTALLATIONSDIAGRAMM DER DUSCHPANEEL-SERIE

FUNKTIONSEINFÜHRUNG

8015FL

FUNKTIONSEINFÜHRUNG

6002FL

FUNKTIONSEINFÜHRUNG

8039FL

FUNKTIONSEINFÜHRUNG

8009FL

FUNKTIONSEINFÜHRUNG

8004FL

FUNKTIONSEINFÜHRUNG

7009FL

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a central rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and cap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial electrical equipment with visible wiring and components (no text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector with a circular end, against a dark vehicle or car interior (no visible text or symbols)

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves operating a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of a metallic industrial electrical panel with wiring and connectors (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELLO 7009FL

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODELO 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in gloves operating a control panel with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a cable with a red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELO 7009FL

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and cap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODEL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in gloves operating a control panel with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODEL 7009FL

KROKI INSTALACJI (OGÓ LNE)

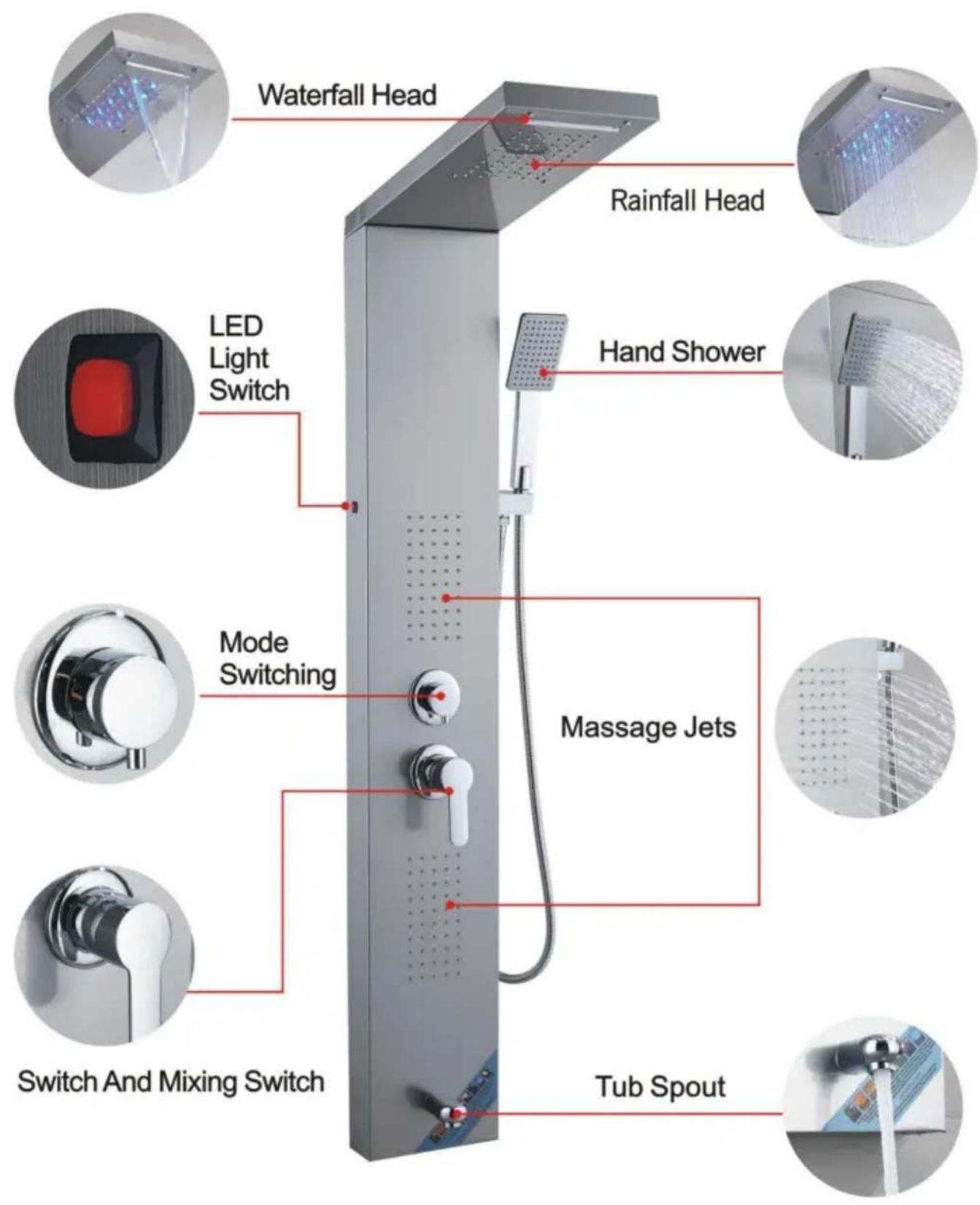

WSTEP FUNKCJI

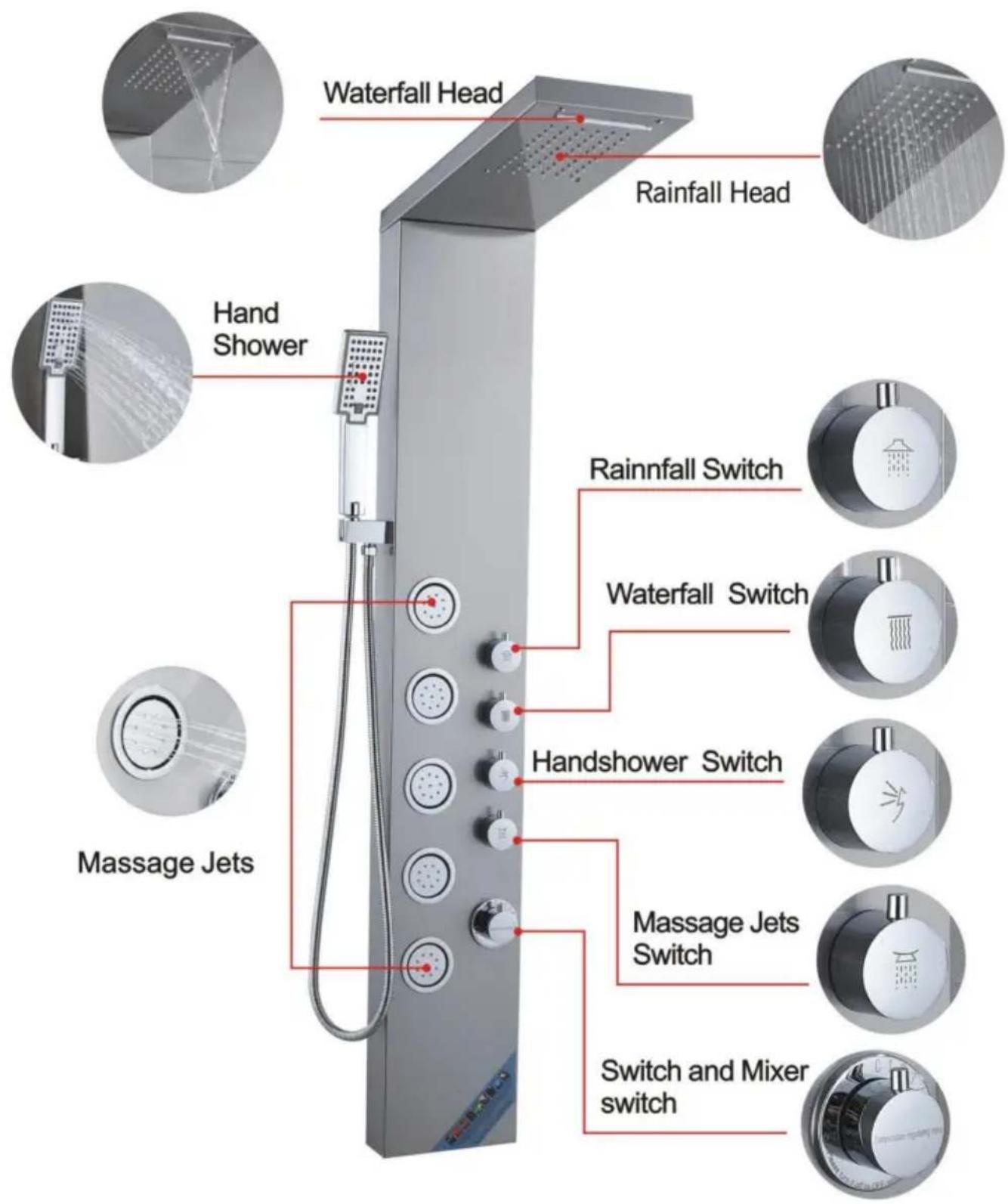

8015FL

WSTEP FUNKCJI

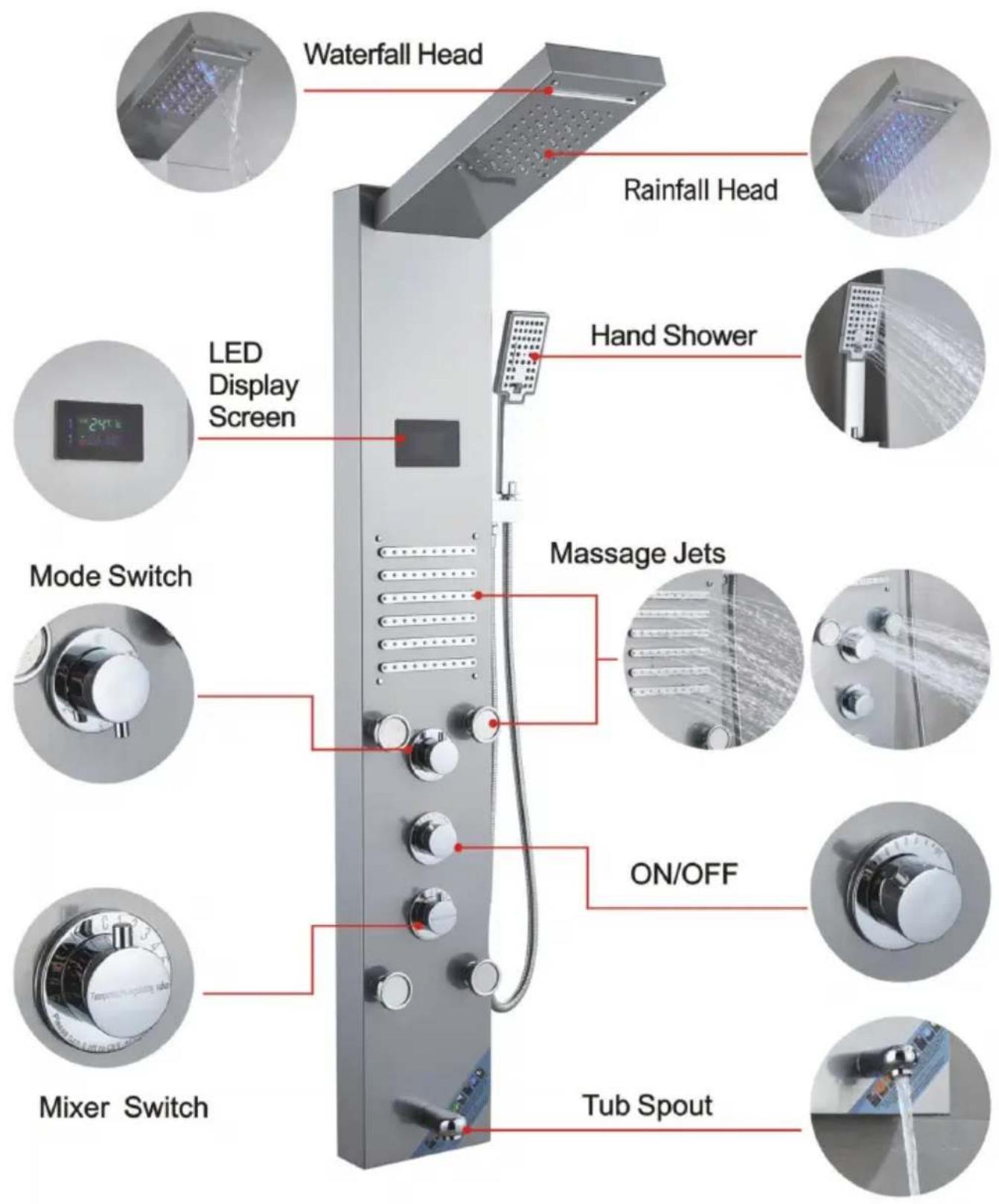

6002FL

WSTEP FUNKCJI

8039FL

WSTEP FUNKCJI

8009FL

WSTEP FUNKCJI

8004FL

WSTEP FUNKCJI

7009FL

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

DOUCHE PANEEL TOREN

MODEL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Model	8015FL 6002FL 8039FL 8009FL 8004FL 7009FL
Montage Type	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren
Verbinding Draad	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functies	VierModi	VijfModi	ZesModi	ZesModi	ZesModi	VijfModi
Baduitloop	×	ÿ	ÿ	ÿ	ÿ	ÿ
Temperatuur e Weergave	×	×	ÿ	ÿ	ÿ	ÿ
LED lamp	×	ÿ	ÿ	ÿ	ÿ	×
Stroom	×	Droge cel (DC3V)	Droge cel (DC3V)	Hydro Stroom (AC6V)	Hydro Stroom (AC6V)	Droge cel (DC3V)
Hand Douche	3-instellingen	1-instellingen	3-instellingen	3-instellingen	3-instellingen	3-instellingen
Finish	Vingerafdrukvrij douchesysteem van geborsteld nikkel
Materiaal	Roestvrij staal, messing, PVC, ABS

ONDERDELEN LIJST

MODEL		8015FL8039FL8009FL	6002FL	8004FL	7009FL
M6 nut		4pcs	4pcs	0pcs	0pcs
M6 * 10 screw		4pcs	4pcs	0pcs	0pcs
Hose Clamp		2pcs	2pcs	2pcs	0pcs
M4 * 10 screw		0pcs	0pcs	2pcs	0pcs
Brass shower arm		0pcs	0pcs	0pcs	1pcs
Single function handheld shower		0pcs	1pcs	0pcs	0pcs
Panel cotton bag		1pcs	1pcs	1pcs	1pcs
Top spray cotton bag		1pcs	1pcs	1pcs	0pcs
Three function handheld shower		1pcs	0pcs	1pcs	1pcs
1.5 meter hand spray hose		1pcs	1pcs	1pcs	1pcs
Hand spray seat		1pcs	1pcs	1pcs	1pcs
1/2 right angle adapter		2pcs	2pcs	2pcs	2pcs
4-point rubber		2pcs	2pcs	2pcs	2pcs
Self tapping screw		4pcs	4pcs	4pcs	4pcs
Fastener		2pcs	2pcs	2pcs	2pcs
Grommet		1pcs	1pcs	1pcs	1pcs
Hexagon nut		1pcs	1pcs	1pcs	1pcs

MONTAGE-INSTRUCTIES

MODEL8015FL/6002FL/8039FL/8009FL

Close-up of hands installing a cable or wire on a metal frame against a dark wall (no text or symbols visible)

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic electrical box with wires and cables (no visible text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a central rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial piping and valves in a control room (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable inserted into a container (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a small black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a mechanical component with a threaded fitting and red cable, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial electrical equipment with visible wiring and connectors (no text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

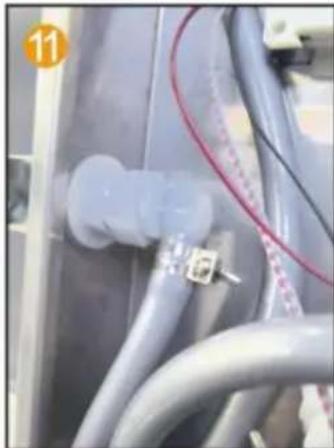

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with coiled metal components, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODEL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in gloves operating a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODEL 7009FL

INSTALLATIESTAPPEN (ALGEMEEN)

gebruikshandleiding

FUNCTIE INLEIDING

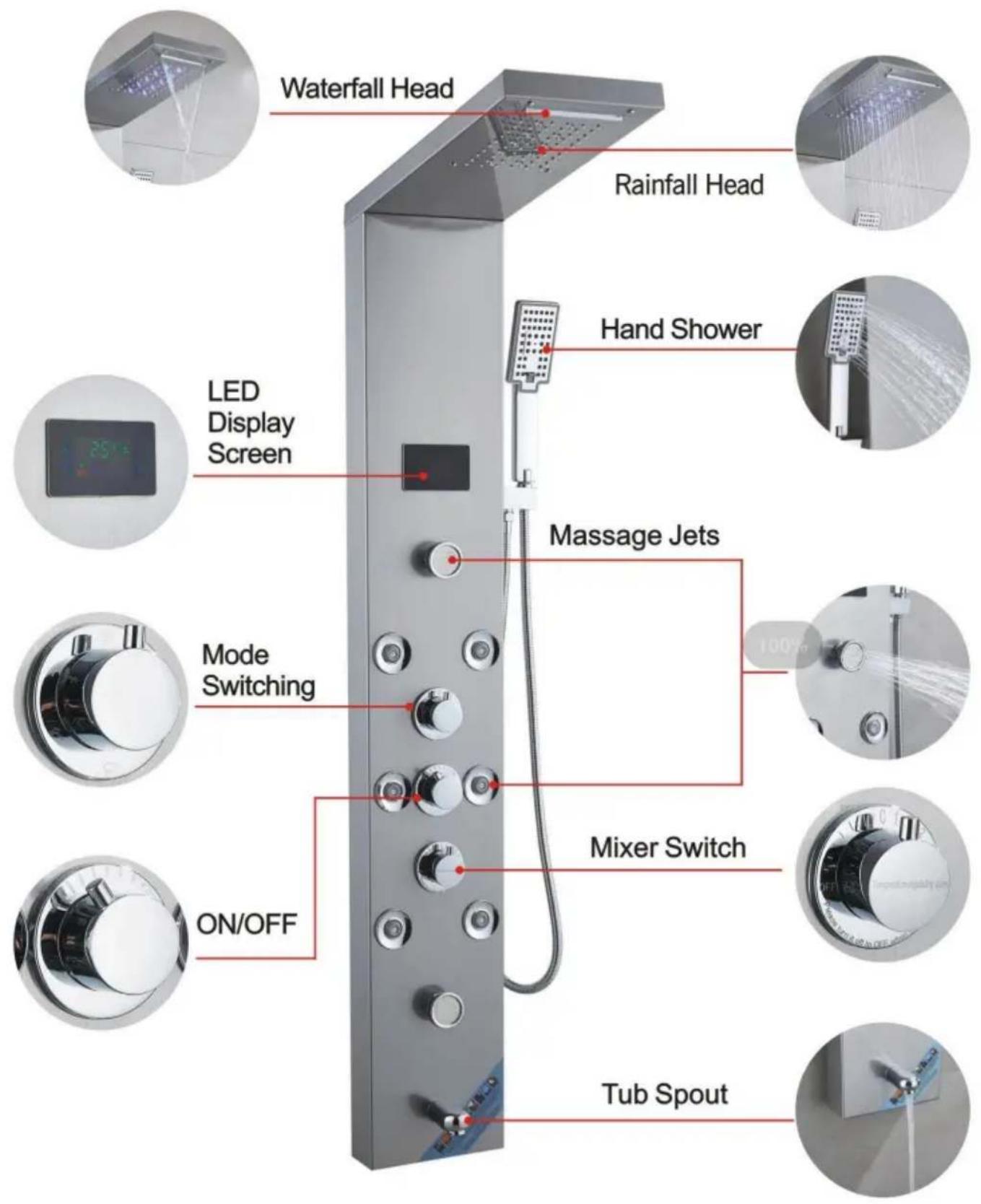

8015FL

FUNCTIE INLEIDING

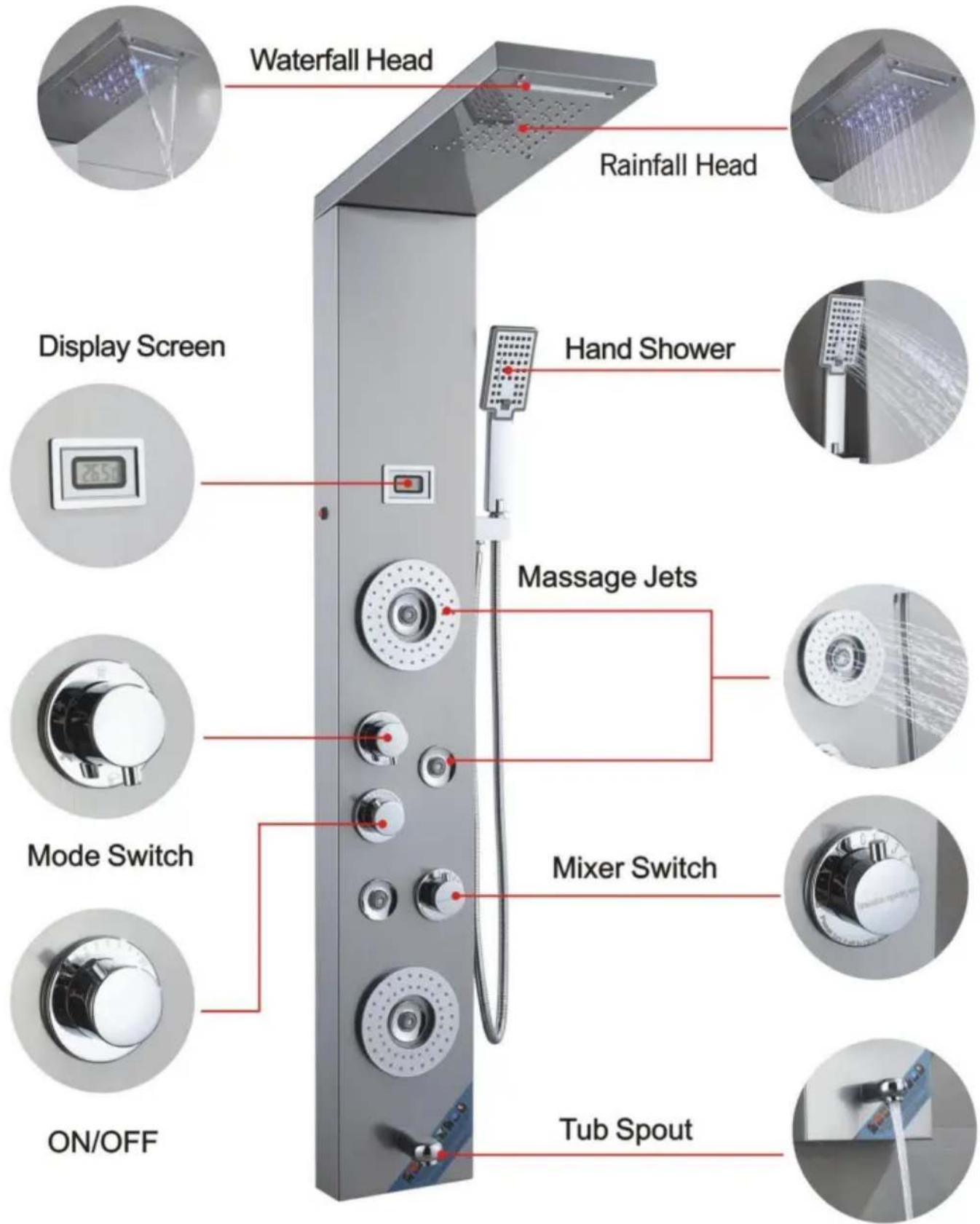

6002FL

FUNCTIE INLEIDING

8039FL

FUNCTIE INLEIDING

8009FL

FUNCTIE INLEIDING

8004FL

FUNCTIE INLEIDING

7009FL

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

PRODUKT INTRODUKTION

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a central rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector with a circular end, against a dark vehicle or car interior (no visible text or symbols)

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODELL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves operating a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELL 7009FL

INSTALLATIONSSTEG (ALLMÄNT)

FUNKTION INTRODUKTION

8015FL

FUNKTION INTRODUKTION

6002FL

FUNKTION INTRODUKTION

8039FL

FUNKTION INTRODUKTION

8009FL

FUNKTION INTRODUKTION

8004FL

FUNKTION INTRODUKTION

7009FL

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
