OIL FREE AIR COMPRESSOR

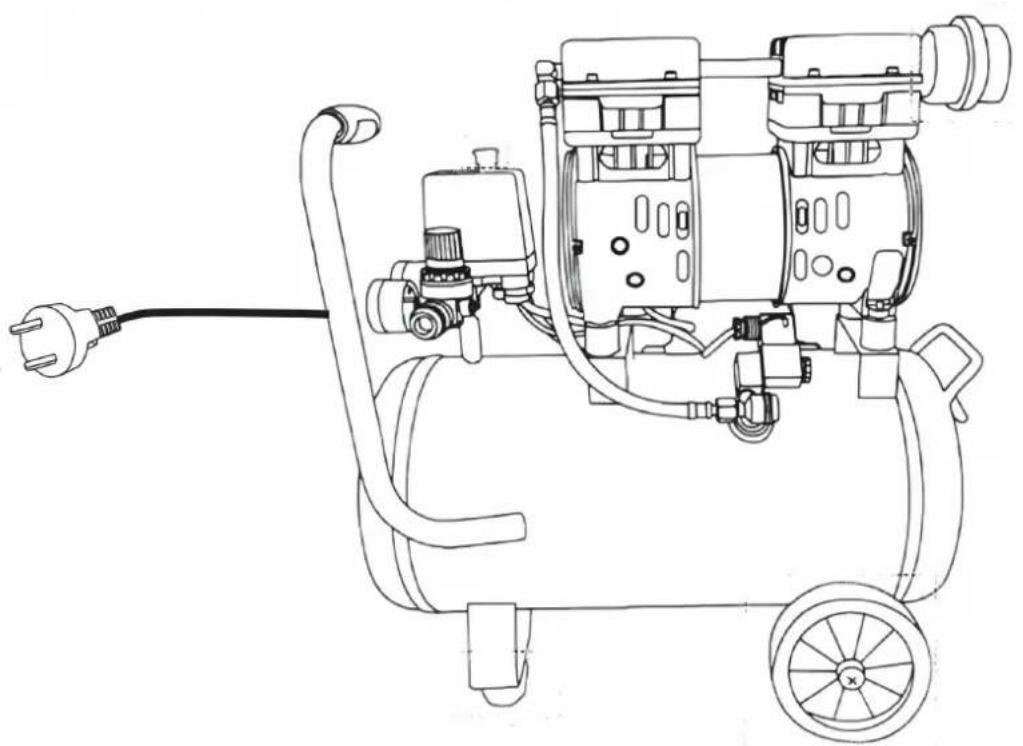

Line drawing of an air compressor with attached power outlet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care operating. VEVOR reserves a clear interpretation of our user manual. appearance of the product shall be subject to the product you receive forgive us that we won't inform you again if there are any technology updates on our product.

1. Introduction

Working Principle, Performance Characteristics and Uses

Oil free air compressor [rated voltage 110/(220±10%/380/415).The single-phase motor drives crankshaft connecting rod directly, making the piston reciprocate in the cylinder compression. In this case, the exhaust valve will be open and close automatically. When the pressure of the compressed down to the rated discharge pressure 0.8MPa, the switch automatically shutdown by one-way valve the gas tank. When the pressure down to the certain value, the switch will be open automatically. A compressor is sealed, the noise is reduced when operating.

The series of air compressor are with the features of low noise and fuel consumption, small vibration, small power consumption, stable performance, safety and reliability. It can be used in laboratories, tire inflation, pharmaceutical, food processing, airbrush painting, chemical analysis.

ren sewing machines, shoe machines and dry cleaners,gas supply,and can also be used in instrumentation, printing machinery and other equipment in small air consumption, electrical, plumbing and other maintenance of the ideal tool for cleaning dust.

2. SAFETY

Dangerous by electric Starting automatically without any waning

Mustn't open the valve before fixing air flexible pipe

Dangerous of high Temperature Cut off Electricity

Tum on electricity

Note / Remark.

Caution / Warning.

Read this material before using this product. Failure to do so can result in serious injury. Save This Manual.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep assembly area clean and well lit.
3. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
4. Weight capacity and other product capabilities apply to properly and completely assembled product on

ELECTRICAL SAFETY-TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING

• The power supply environment of this product must have a good grounding device, must use a three plug, and with a well-grounded three-hole socket to ensure good grounding of this product.
• Before powering this product, please make sure that the power supply you provide can meet the input information marked near the power input port of this product.
• Do not share the socket with other electrical appliances, in case the voltage is unstable sometimes, in damage to the product.
• When maintaining/repairing or cleaning the product, please be sure to unplug the power cord to ensure the product is completely powered off before operation.
• Regularly check whether the power cord and power plug are damaged, and make sure that the pow not squeezed by other items.

3. Quality Assurance

When you receive the compressor, please check whether it matches the model and specification you ordered. whether the machine and accessories are damaged during transportation. If there is any shortage or damage, pl contact the seller in time to solve.

From the date of delivery, quality assurance period is one year. Due to the failure of manufacturing quality, the company will be in strictly accordance with the following warranty for the users.

3.1 Quality Assurance is only valid in the following circumstances:

3.1.1 When operating and maintenance the product, users are according to "Manual" normatively.
3.1.2 Manufacturing number, logo is without dismantling, forging.
3.1.3 The product failures are not caused by improper use, as well as factors arising from force majeure.
3.1.4 The user need to use the parts of the seller's when maintenance.
3.1.5 This product is no need to add the oil, and the media of the product is air.

3.2 Quality assurance requirements:

3.2.1 The user can not change the use, structure and performance of the product.
3.2.2 The Company will not take responsibility if improper use or loss caused to third parties.

1. Technical parameters

Model	Power(W/HP)	Voltage(V/Hz)	Exhaust Volume(L/min)	Pressure(Bar)	Tank(L)	Weight(Kg)
550-9L	550/0.75	110/220/240/380/415 50/60	110	8	9	16
750-9L	750/1		165	8	9	17
550-18L	550/0.75		110	8	18	18
750-18L	750/1		165	8	18	19
850-18L	850/1.1		165	8	18	20.5
1500-18L	1500/2		220	8	18	27.2
750-20L	750/1		165	8	20	19.5
550-25L	550/0.75		110	8	25	20
750-25L	750/1		165	8	25	21
550-30L	550/0.75		110	8	30	21.8
750-30L	750/1		165	8	30	22.8
850-30L	850/1.1		165	8	30	23
980-30L	980/1.3		180	8	30	22.8
1100-30L	1100/1.5		200	8	30	27.8
750-35L	750/1		165	8	35	27
550-40L	550/0.75		110	8	40	26
750-40L	750/1		165	8	40	27
850-40L	850/1.1		165	8	40	27
1500-45L	1500/2		220	8	45	43
550-50L	550/0.75		110	8	50	27
750-50L	750/1		165	8	50	28
1100-50L	1100/1.5		200	8	50	38
1500-50L	1500/2		220	8	50	39
550-2-50L	550*2=1100/1.5		220	8	50	62
750-2-50L	750*2=1500/2		330	8	50	64
980-2-50L	980*2=1960/2.6		360	8	50	40.6
1500-60L	1500/2		220	8	60	49
550-3-70L	550*3=1650/2.2		330	8	70	54
1500-2-70L	1500*2=3000/4		440	8	70	64
550-3-80L	550*3=1650/2.2		330	8	80	59
750-3-90L	750*3=2.2/3		495	8	90	63
1100-2-90L	1100*2=2200/3		400	8	90	66
1500-2-90L	1500*2=3000/4		440	8	90	75
750-3-100L	750*3=2250/3		495	8	100	65
750-3-120L	750*3=2250/3		495	8	120	73
1100-3-180L	1100*3=3300/4.5		600	8	180	134
1500-3-180L	1500*3=4500/6		660	8	180	136
750-4-180L	750*4=3000/4		660	8	180	133
1100-4-180L	1100*4=4400/6		800	8	180	170
1500-4-180L	1500*4=6000/8		880	8	180	172
1100-5-230L	1100*5=5500/7.5		1000	8	230	188
1500-5-230L	1500*5=7500/10		1200	8	230	190
YM550	550/0.75		110	8	/	9
YM750	750/1		165	8	/	10
YM850	850/1.1		165	8	/	10
YM980	980/1.3		180	8	/	13
YM1100	1100/1.5		200	8	/	19
YM1500	1500/2		220	8	/	20

5. Operating Instructions

Please read these instructions carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and other people by observing all safety information. Failure to con with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

5.1. Install foot cushion, wheel and silenc
5.2. The air compressor connected to the power through the plug.
5.3. Turn pressure switch with "ON" state on the power then machine could start. not, please reduce the air tank pressure below the 0.5Mpa.
5.4. Turn pressure switch with "OFF", c the electricity it will stop to work normal
5.5. With a safety valve in the pressure switch.

When the air tank pressure exceeds 0.9 the safety valve will be warned with hu and discharge pressure automatically. When arises this condition, please check and

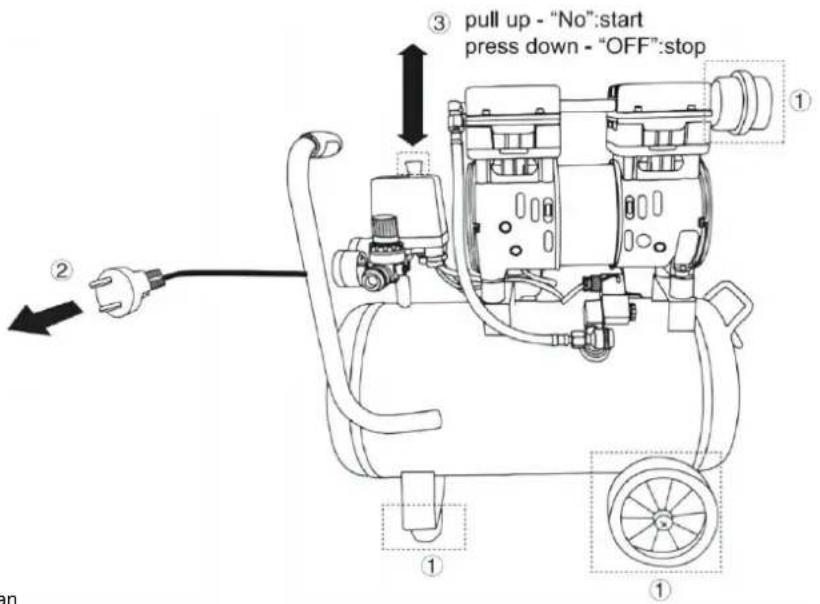

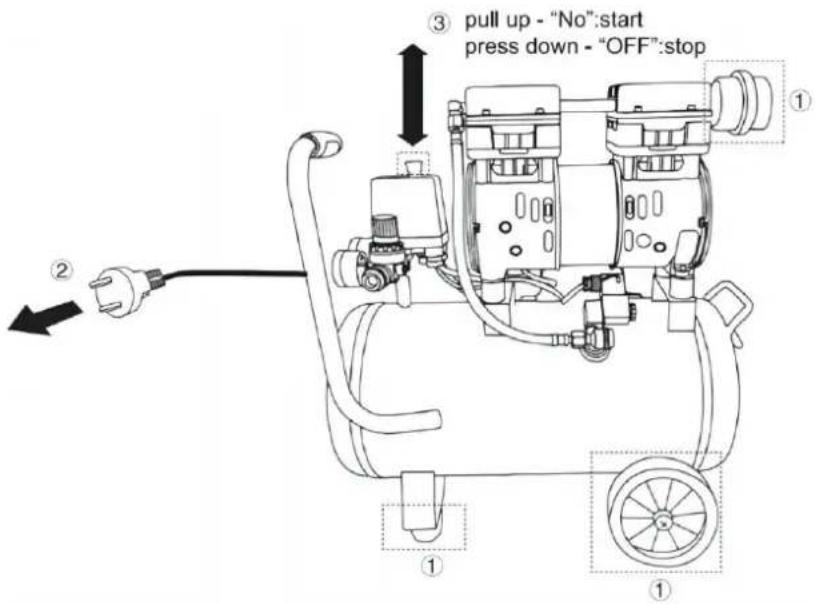

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

the pressure switch, make sure its working pressure without exceeding the rated one

5.6. Once daily off-working. please pull the thimble of separator by finger, ensured to exhaust all the water

from it completely.(Maybe some customer have brought the air compressor without oil-separator, so it's unneces for them to comply with above mentioned requirements.)

5.7. The discharged air pressure could be adjusted by the knob on the AR2000 or AFR2000 regulator, with the max 0.8Mpa, It's depend on air tank pressure.

5.8. If need adjust the working pressure of the pressure switch. please remove the pressure switch shell, Use a screwdriver to turn the bolt M6. The clockwise to increase the working pressure, and vice versa. The max shutdown pressure is 0.8Mpa. Note: Please cut off the power supply before adjust.

6. Electrical schematic diagram

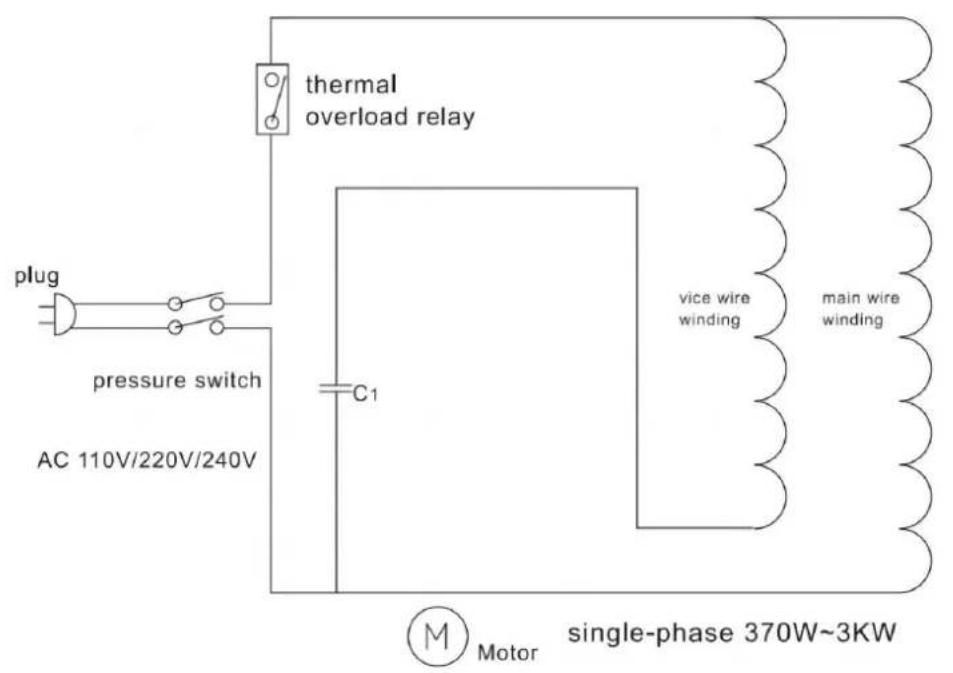

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

7. Usage Claim

7.1. Please install the silencer to the air inlet on the head of the air compressor before starting. After installing the silencer, the noise will be greatly reduced.
7.2. Workplace of air compressor should be dry, clean, well-ventilated
7.3. Air compressor can not touch water, can not be put in open-air place, can not be used in flammable, explosive, corrosive, and multi-dust environment.
7.4. Air compressor should be placed in vertical and hard ground.
7.5. The supply voltage should not lower than 10% or higher than 10% of rated voltage. For the sake of security the air compressor should be grounding.
7.6 Please do not touch the components such as the host, the exhaust pipe, such as one-way valve in high temperature when revolving or after operating to prevent scalding.
7.7. please keep the cross section of electrical cable ≥slant2 m^2 , and with the proper length, should not be too long, otherwise it will not drive the machine or trip.
7.8. The product is a gas source for the pneumatic tools and equipment, mustn't point the discharged air to person and animals.
7.9. Before connecting to the power, please make sure that the machine is switched off. Please press the red switch not pull the plug directly when closing the machine.
7.10. Collision and inversion is strictly prohibited. Please take measures to prevent the air compressor to forces and the state of the mobile, or even safety-related incidents occurred.
7.11. In order to ensure continuous operation of air compressor, air compressor should install cooling fan to the host, the machine should not be running for more than two hours.

8. Maintenance/ Service

Special Attention: In order to avoid any injury, all the maintenance should be operated under out off conditions and make sure no any pressure in the tank.

8.1. Please keep the clean of the air compressor by professional staff. The underground is prohibited to use the machine.
8.2. The sewage in the gas tank will be released, at least once a month. The pressure within the tank should be less than 0.1 MPa.
8.3. Please check the sensitive of safety valve regularly. When pressure inside the gas tank reaching 0.5 \~0.8MPa, please pull the ring on safety valve. If safety valve can easily exhaust, and the stem can be immediately. The safety valve is qualified.
8.4. Please replace the flutter of the silencer after operating 500 hours.
8.5. Gas tank pressure test shall be done every year. If there are serious rust, bumps or pressure test failed, the gas tank should be disposed.
8.6. Please discharge the air inside the gas tank before moving the air compressor.

9. Troubleshooting

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

1. Exploded drawing of compressor head and name of component

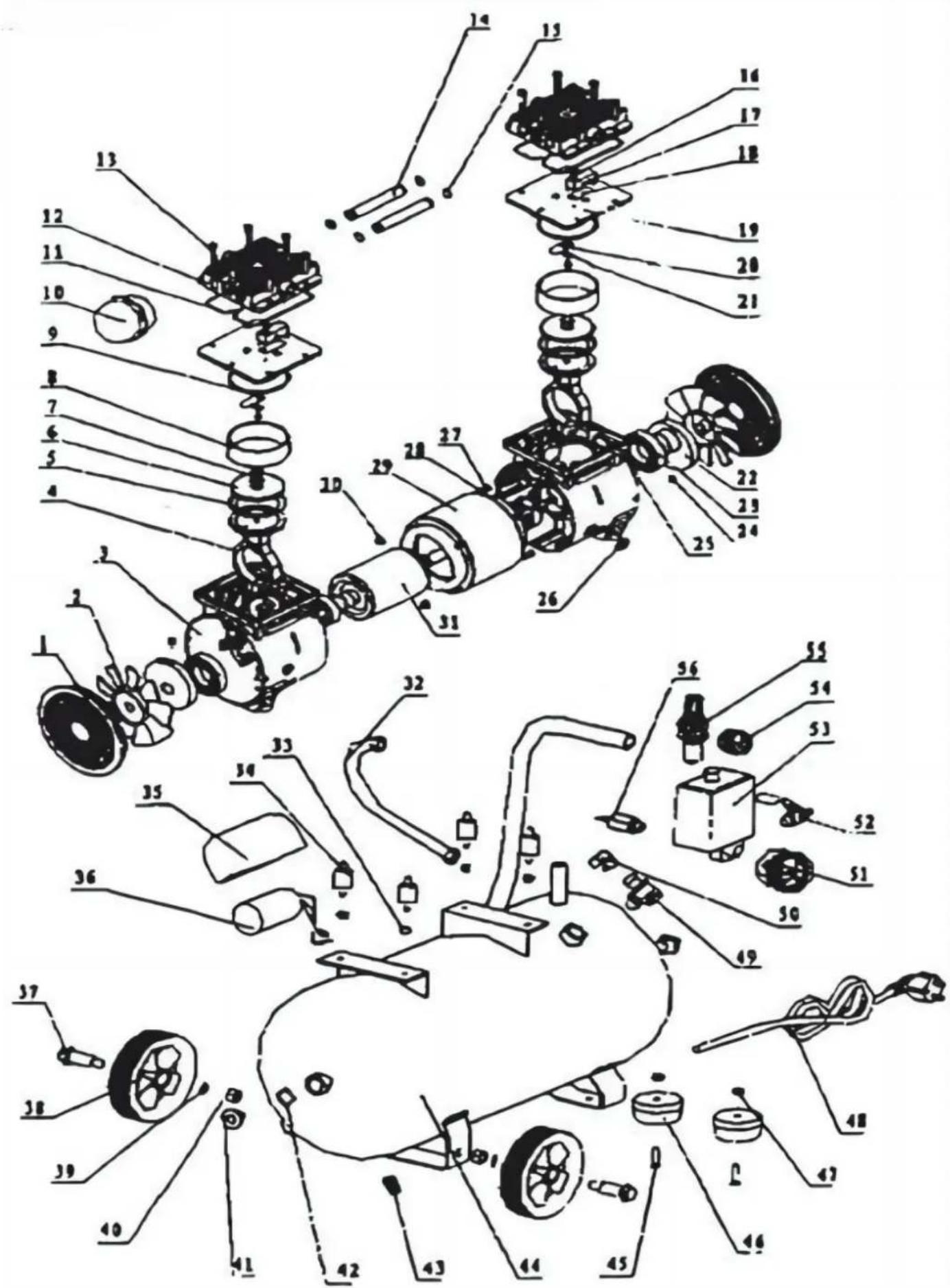

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Warranty

1. This warranty shall only cover claims for damage due to a fault in the product's manufacture
2. If a warranty claim is made, the party entitled to warranty cover must present the proof of purchase including the purchase date.
3. Customer's satisfaction is always the motivation of our brand growth. We promise to help you solve issues. Please just let us know if you need help.

OUR SERVICE TEAM PROMISES TO REPLY TO YOUR MESSAGE WITHIN 24H.

12. Scope of Warranty

1. We guarantee that VEVOR products are produced in accordance with iso9001 Quality Management procedures and are free of manufacturing defects for the period of warranty.
2. This warranty covers faults in the products due to manufacturing defects within 1 year from date of purchase. After inspection by sales representative, defective products will be replaced or repaired with equivalent goods free of charge.
3. Any warranty claim made during warranty period shall not extend the overall warranty coverage period
4. Warranty periods: Warranty claim date

13. CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a w bin crossed through indicates that the product requires separate refuse collection in the European U This applies to the product and all accessories marked with this symbol. Products marked as such not be discarded with normal domestic waste, but must be taken to a collection point for recycling and electronic devices.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamong CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions Presto

United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of an air compressor with attached power outlet (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

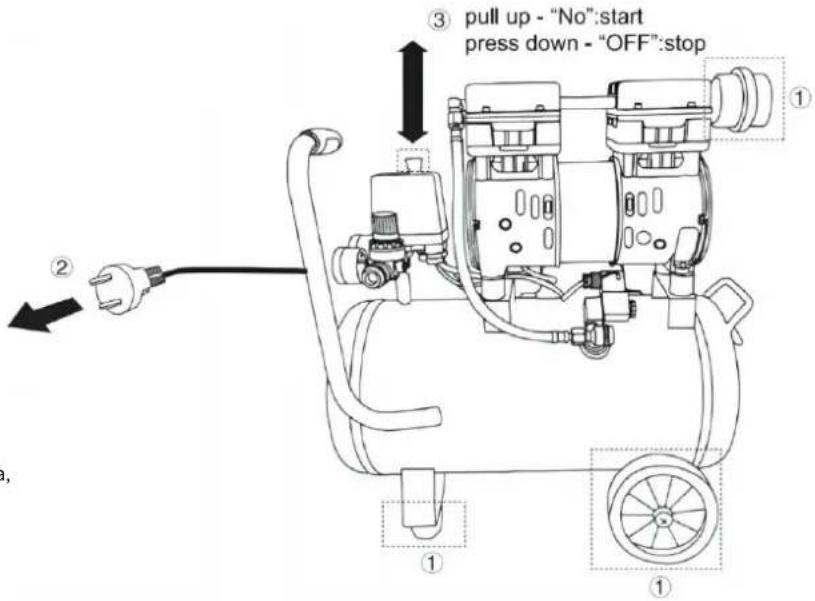

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Garantie

Line drawing of an air compressor with attached power outlet (no text or symbols)

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

7. Nutzungsanspruch

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Gewährleistung

Einheit 5 Albert Edward House, The Pavilions Preston,

Line drawing of an air compressor with attached power outlet (no text or symbols)

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Garanzia

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA

DEL REGNO UNITO

Gruppo Pooledas Ltd

Unità 5 Albert Edward House, The Pavilions Preston,

Regno Unito

Line drawing of an air compressor with attached power outlet (no text or symbols)

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

7. Reclamo de uso

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Garantía

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Grupo Pooledas Ltd.

Line drawing of an air compressor with attached power outlet (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Gwarancja

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIELKIEJ BRYTANII

Grupa Pooledas Ltd.

Jednostka 5 Dom Alberta Edwarda, Pawilony Preston,

Line drawing of an air compressor with attached power outlet (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

7. Gebruiksclaim

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Garantie

Line drawing of an air conditioning unit with attached power outlet (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

thermal overload relay plug pressure switch AC 110V/220V/240V C1 vice wire winding main wire winding M Motor single-phase 370W~3KW

③ pull up - "No":start press down - "OFF":stop ① ② ① ①

Trouble Phenomenon	Reason	Approach
The machine can not work	1、It is not electrified2、Fuse broken3、The switch is cut off4、Overload protector is in state of protection5、The switch is damaged or wire is broken off	1、Check the plug, switch, and fuse。2、Replace fuse3、Press the switch and check4、Restart the machine after the motor is cool(waiting for 15 minutes)5、Connecting with the reliable service center.
There is the sound of electric current. but the machine can not work or run in very slow speed	1、Voltage is too low2、Motor is short circuit or open circuit3、One-way valve or pressure switch is damage.	1、Check the voltage, not less then 10% of rated voltage2、Connecting with the reliable service center
Fuse and circuit breaker is broken repeatedly. Note: do not make the wire too long.	1、The fuse is not proper, or current overloaded2、One-way valve or pressure switch is damage.	1、Check and replace with the proper fuse. Please do not connect to the other electrical equipment, and use a separate circuit。2、Connecting with the reliable service center
Overload protector cut off the electricity repeatedly	1、Voltage is too low2、Ventilation is poor, temperature is high	1、Check the voltage, not less then 10% of rated voltage。2、Put the air compressor in a well-ventilated place
The pressure drops when turning off the compressor	1、Connecting is loose, leakage2、Drainage valve is open3、One-way valvet is leakage	1、Check and use seal gasket on the leakage place2、Tightening the drainage valve3、Removing and inspecting the one-way valveWarning! Please discharge the air within the gas tank, then remove the one-way valve
The gas discharged contains a large number of water	1、There is a lot of water in the gas tank2、temperature or humidity is too high	1、Discharge the water in the gas tank2、Move the air compressor to a low temperature place, or use oil-water separator
The air compressor keep running	1、The pressure switch is damaged2、There is leakage3、There is dirty on the one-way valve	1、Replace the pressure switch2、Check and Solve3、Clean the dirty
The air compressor is vibrating	1、Fixed bolts loose。2、Rubber gasket is lost or damaged	1、Fix the bolts2、Replace the gasket
Output pressure lower than normal	1、Drainage valve is open2、Inlet air filter is plugging3、Connection of gas is leak4、Cylinder head gasket or valve gasket is damaged.5、The piston or cylinder is worn out	1、Tightening the drainage valve2、Cleaning or replacing the filter3、Fastening the bolts to connect the gas4、Replace of gasket5、Replace the piston or cylinder
The magnetic valve leaks	1、The magnetic valve leaks during the compressor operation, then the magnetic valve is damaged2、The magnetic valve leaks after the air compressor stop, not the solenoid valve is damaged, it's the check valve that's blocked by something dirty	1.Replace magnetic valve2.Remove the nut on the check valve, take out the spool, clean up the dirt, and then put it back

Exploded view diagram of a mechanical assembly with numbered parts for identification

number	name	quantity
1	wind cover	2
2	left fan	2
3	left case	1
4	connection rod	2
5	piston leather cup	2
6	pressing plate	2
7	Hexagon socket head cap screws M6X20	2
8	cylinder	2
9	cylinder sealing circle	2
10	silencer	1
11	cylinder head sealing circle	2
12	cylinder head	2
13	bexagon socket head cap screws M5X50	12
14	connection pipe	2
15	connection pipe sealing circle	2
16	pan head screws with cross recess M4X6	2
17	limiting stopper	2
18	air outlet calve clack	2
19	valve plate	2
20	air intake valve clack	2
21	metal gaset	2
22	crankshaft	2
23	bearing	2
24	hexagon socket set screwa withflat point M8*10	2
25	right case	1
26	lap hoop	1
27	hexagon socket head cap screwsM5*150	4
28	flat gasket	4
29	stator	1
30	holding screws	4
31	rotor	1
32	high pressure soft tube	1
33	holding screws M6	4
34	shock-relief gasket	4
35	metal capacitor	1
36	capacitor	1
37	wheel axle	2
38	wheel	2
39	flate gasket	2
40	wheel axle holding screws	2
41	observing hole	2
42	0 ring for observing hole	2
43	drainage valve	1
44	air tank	1
45	washer holding screws	2
46	big foot washer	2
47	foot washer holdingscres cap	2
48	power cable	1
49	check valve	1
50	magnetic valve	1
51	Y50 pressure gauge	1
52	ball valve	1
53	pressure switch	1
54	Y40 pressure gauge	1
55	pressure adjustable oil water separator	1
56	safety valve	1

11. Garanti

Enhet 5 Albert Edward House, The Pavilions Preston,

Storbritannien

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Linkenheim-Hochstetten, Tyskland
