USER MANUAL FB-2065/8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

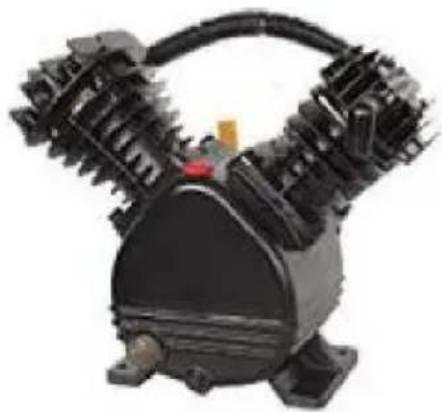

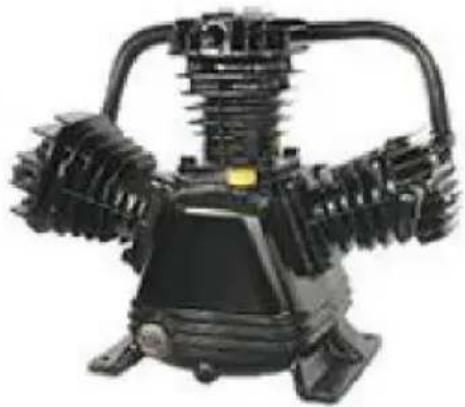

Oil Lubricated Air Compressor Pump

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Oil Lubricated

Air Compressor Pump

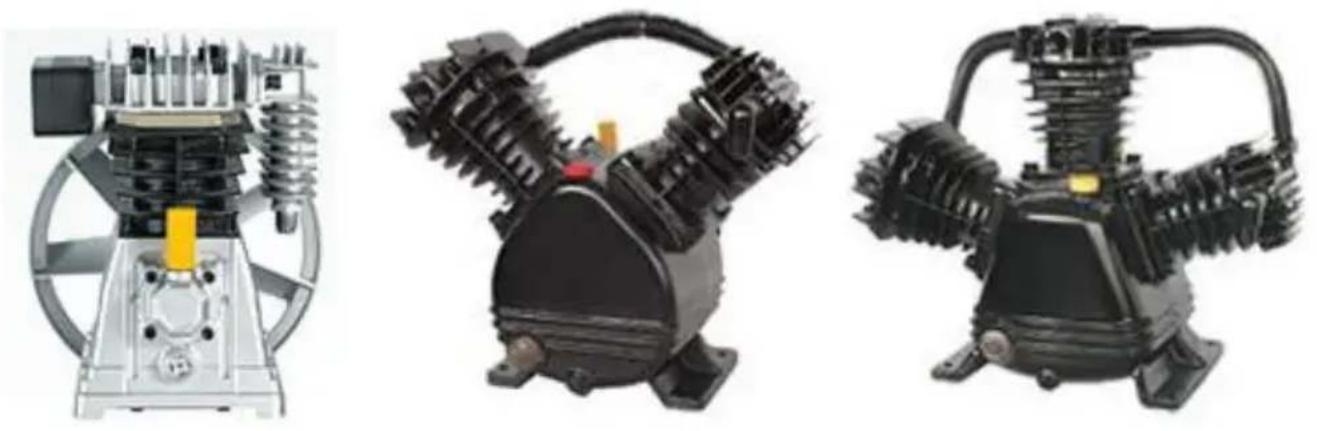

The pictures are for reference only, please refer to the actual pro for accuracy:

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www. vevor. com/support

This is the original instruction, please read all manual instruct carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject product you received. Please forgive us that we won't inform if there are any technology or software updates on our produ

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment This manual is for customer service to make better. Written with this equipment.Hope the company's products and services to bring you the canal courtesy.

Important reminder

For your own safety, before assembling and using such products, you must find this manual to clarify the unique operation, application, and possible problems of this equipment.

Describe

The oil lubricated air compressor pump is specially designed for various oil lubricated air compressors. These compressors provide power for spray guns, impact wrenches, and other tools. These devices must operate in the presence of lubricating oil. The compressed air from the equipment will contain moisture a half the application requires dry and clean air, please install a water filter, air and oil-water separator.

Safety signs

In this operating manual and on the machine, safety symbols and warning we are used to convey important safety information. This section will help you enhance your understanding of these safety symbols and warning words.

▲DANGER!

Danger indication Emergency situations, if not avoided, can lead to death or serious injury.

▲ WARNING!

Warning indicator A potentially dangerous situation, if not avoided, can lead to death or serious injury.

▲CAUTION!

Caution indicates a hazardous situation, which, if not avoided, MAY result in m or moderate injury.

▲ NUTICE!

Notice indicates important information that if not followed, MAY cause damage equipment.

Unpicking

After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Make sure to tighten fittings, bolts, etc, before putting unit into service.

▲ WARNING!

Do not operate unit if damaged during shipping. Handling or use. Damage may result in bursting and cause injury or property damage.

▲ DANGER!

Breathable Air Warning

This compressor is not equipped and should not be used "as is " to supply breathing quality air.

For any application of air for human consumption, the air compressor will need be fitted with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas

Specification Association Commodity G7.1-1966.OSHA 29 CFR 1910.134. and/or Canadian Standards Associations (CSA)

GENERAL SAFETYINFORMATION

Due to the use of air compressors and other components (material pump spr guns, filters, lubricators, hoses, etc.), which form a high-pressure pumping system the following safety measures must always be followed:

1. Carefully read all manuals included with this product to thoroughly familiarize yourself with the control and correct use of the equipment.
2. Comply with all local electrical and safety regulations, as well as the National Electrical Code (NEC) and Occupational Safety and Health Act (OSHA) in the United States.
3. Only people familiar with these safety operating rules can use the compression

4. Keep visitors away and never allow children to enter the work area.

5. When operating pumps or devices, please wear safety glasses and use her protection.

6. Do not stand or use the pump or device as a handle.
7. Before each use, check the compressed air system and electrical component for signs of damage, deterioration, weakness, or leakage. Repair or replace defective items before use.
8. Check all fasteners for tightness at regular intervals.

▲WARNING!

Equipment and control devices can generate arcs, igniting flammable gases or vapors. Do not operate or repair in or near flammable gases or vapors. It is prohibited to store flammable liquids or gases near the compressor.

▲CAUTION!

Even if the unit stops, the compressor components may still be hot.

1. Keep your fingers away from the running compressor, as moving quickly a overheating components can cause injury and/or burns.

2. If the equipment begins to vibrate abnormally, please stop the engine/motor and immediately check the cause. Vibration is usually a warning of a malfunction. To reduce the risk of fire, the exterior of the engine/motor should be kept for solvents, or excessive lubricating grease.

SPRAYING PRECAUTIONS

▲WARNING!

Do not spray flammable materials in vicinity of open flame or near ignition s including the compressor unit.

1. Do not smoke when spraying paint, insecticides, or other flammable substances.

2. Use a face mask/respirator when spraying and spray in a well ventilated to prevent health and fire hazards.

3. Do not spray paint or other spraying materials directly onto the compress. Place the compressor as far away from the spraying area as possible to mix the accumulation of excessive spray on the compressor.

4. When spraying or cleaning with solvents or toxic chemicals, follow the instructions provided by the chemical manufacturer.

ASSEMBLY

1. As this product is an independent air compressor pump, please make sure check the product's specifications before installation and use to avoid incorrect matching and problem points.
2. Before installation, please pay attention to checking whether the performance parameters of the motor matched with the installation of the air compressor meet the requirements, and confirm whether the rated working pressure of the storage tank matches the rated working pressure of the air compressor pump.
3. During installation, please ensure that the air compressor pump is securely to the rack board with bolts. If it is not securely fixed, there is a risk of the compressor pump flying out and injuring people.
4. After the installation and fixation of the air compressor pump, please use corresponding size of the main wheel. If the incorrect main wheel is used, the may be differences in the performance of the main engine and other unknown risks.
5. Before starting use, please add an appropriate amount of lubricating oil to inlet of the air compressor pump. The amount of oil can be observed through mirror, and the oil level should exceed the red line of the oil mirror by 1-2r

Close-up of a mechanical component with a red centerline and concentric circular features (no text or symbols visible)

1. After powering on and starting to use, please pay attention to checking for abnormal vibrations in the air compressor pump. If there are any abnormal vibrations, the installation and accessories need to be rechecked until they are repaired.

2. The lubricating oil of the air compressor pump should be replaced with no after the initial 50 hours or one week of operation. After that, the new oil is replaced every 300 hours. For harsh operating environments, the new oil should be replaced every 150 hours, and the oil should be replenished every 36 h operation (observe the oil level indicator). The oil level should be checked da ensure the lubrication effect of the air compressor.

MAIN TECHNICAL DATA

Model	SL-265/8	DF-290T/12.5	DF-265/8	DF-190T/12.5
Rated power	3HP	10HP	3HP	5.5HP
Compression level	First level compression	Two-stage compression	First level compression	Two-stage compression
Rated working pressure	116Psi/8bar	180Psi/12.5bar	116Psi/8bar	180Psi/12.5bar
Number of cylinders	Two	Three	Two	Two
External dimensions	L270×W310×H320mm10.6×12.2×12.6 inch	L500×W330×H410mm19.7×13×16.15 inch	L360×W260×H320mm14.2×10.2×12.6inch	L430×W300×H390 mm16.9×11.8×15.3 inch
Installation dimensions	L142×W136 mm5.6×5.35 inch	L252×W160 mm9.92×6.3 inch	L172×W90 mm6.77×3.54 inch	L260×W138 mm10.24×5.43 inch
Wheel Diameter	Φ265 mm10.43 inch	Φ340 mm13.38 inch	Φ240 mm9.45 inch	Φ340 mm13.38 inch

Install

Position

It is very important to install the compressor in a clean and well ventilated | The minimum gap between the compressor and the wall is 18 inches, as ob can obstruct the airflow, and the surrounding air temperature should not exceed 100 ° F.

TROUBLESHOOTING CHART

Symptom	Possible Cause (s)	Corrective Action
Wrong direction of operation	Motor wiring error	Change wiring
Intense vibration	1. Excessive exhaust pressu2. The rotational speed is t high3. V-belt misalignment or lo flywheel4. Deformation of crankshaft	1. Reduce exhaust pressure2. Reduce the speed3. Reinstall and adjust4. Send to the factory for repair replacement
Abnormal noise during rotation	1. Loose valve seat2-piston impact cylinder head3. Wear of connecting rod bearing alloy4. Loose belt pulley or whe key	1. Tighten the valve seat again2. Thickened lining3. Replace the bearing alloy4. Tighten the lock again
Reduced exhaust volume	1. Air filter blockage2. The valve group is dam or not properly positioned3. Piston replacement or cylinder wear4. Loose transmission belt	1. Clean the air filter2. Replace the valve assembly3. Replace the piston ring4. Readjust the tightness of the conveyor belt
Excessive consumption of lubricating oil	1. Excessive lubricant filling2. Wear of piston rings3. Cylinder wear	1. Drain excess lubricating oil2. Replace the piston rings3. Replacement

Correct Disposal

This product is subject to the provision of european Directive 2012/19 The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. Th applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must taken to a collection point for recycling electrical and electronic devices.
