HORIZONTAL AIR COMPRESSOR

MODEL: FB750D0-10C18/FB750D0-10C30

FB1500D0-10C40/FB1500D0-10C60/FB1500D0-20C80

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HORIZONTAL AIR

COMPRESSOR

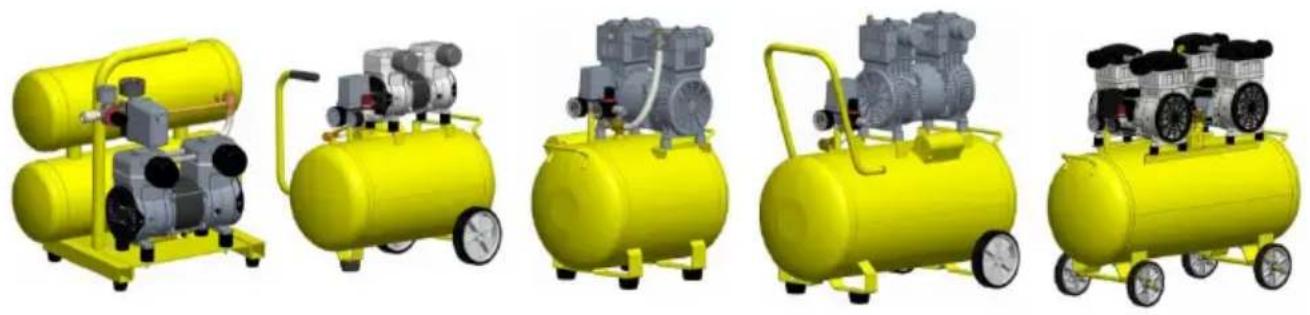

Appearance pictures (different models may have differences in appearance, please refer to actual product or website information accuracy)

Five yellow industrial air conditioners with different engine modes and wheels, shown from different angles (no text or labels visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www. vevor. com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your product if there are any technology or software updates on our product

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment This manual is for customer service to make better. Written with this equipment.Hope the company's products and services to bring you the canal courtesy.

Important reminder

For your own safety, before assembling and using such products, you must find this manual to clarify the unique operation, application, and possible problems of this equipment.

Describe

The oil-free compressor is designed specifically for self-service users in various household and automotive operations. These compressors provide power for spray guns, impact wrenches, and other tools. These devices can operate with oil. The compressed air from the device will contain moisture. If the application requires dry air, please install a water filter or air dryer.

Safety signs

In this operating manual and on the machine, safety symbols and warning we are used to convey important safety information. This section will help you enhance your understanding of these safety symbols and warning words.

▲DANGER!

Danger indication Emergency situations, if not avoided, can lead to death or serious injury.

▲WARNING!

Warning indicator A potentially dangerous situation, if not avoided, can lead to death or serious injury.

▲CAUTION!

Caution indicates a hazardous situation, which, if not avoided, MAY result in m or moderate injury.

▲ NUTICE!

Notice indicates important information that if not followed, MAY cause damage equipment.

Unpicking

After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Make sure to tighten fittings, bolts, etc, before putting unit into service.

▲ WARNING!

Do not operate unit if damaged during shipping. Handling or use. Damage may result in bursting and cause injury or property damage.

▲ DANGER!

Breathable Air Warning

This compressor is not equipped and should not be used "as is " to supply breathing quality air.

For any application of air for human consumption, the air compressor will need befitted with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas Specification Association Commodity G7.1-1966.OSHA 29 CFR 1910.134. and/or Canadian Standards Associations (CSA)

GENERAL SAFETYINFORMATION

Due to the use of air compressors and other components (material pump spr guns, filters, lubricators, hoses, etc.), which form a high-pressure pumping system the following safety measures must always be followed:

1. Carefully read all manuals included with this product to thoroughly familiarize yourself with the control and correct use of the equipment.
2. Comply with all local electrical and safety regulations, as well as the National Electrical Code (NEC) and Occupational Safety and Health Act (OSHA) in the United States.
3. Only people familiar with these safety operating rules can use the compre

4. Keep visitors away and never allow children to enter the work area.

5. When operating pumps or devices, please wear safety glasses and use her protection.

6. Do not stand or use the pump or device as a handle.
7. Before each use, check the compressed air system and electrical component for signs of damage, deterioration, weakness, or leakage. Repair or replace defective items before use.
8. Check all fasteners for tightness at regular intervals.

▲WARNING!

Equipment and control devices can generate arcs, igniting flammable gases or vapors. Do not operate or repair in or near flammable gases or vapors. It is prohibited to store flammable liquids or gases near the compressor.

▲CAUTION!

Even if the unit stops, the compressor components may still be hot.

1. Keep your fingers away from the running compressor, as moving quickly a overheating components can cause injury and/or burns.

2. If the equipment begins to vibrate abnormally, please stop the engine/motor and immediately check the cause. Vibration is usually a warning of a malfunction. To reduce the risk of fire, the exterior of the engine/motor should be kept from solvents, or excessive lubricating grease.

▲DANGER!

Do not attempt to repair or modify the fuel tank! Welding, drilling, or other modification can weaken the tank, leading to tank rupture or

explosion damage. Be sure to replace worn or damaged fuel tanks.

▲WARNING!

Never remove or attempt to adjust safety valve. Keep safety valve free from and other accumulations.

▲WARNING! Drain liquid from tank daily

1. Tanks rust from moisture build-up, which weakens the tank. Make sure to tank regularly and inspect periodically for unsafe conditions such as rust forms and corrosion.

2. Fast moving air will stir up dust and debris.which may be harmful. Release slowly when draining moisture depressurizing the compressor system.

SPRAYING PRECAUTIONS

▲WARNING!

Do not spray flammable materials in vicinity of open flame or near ignition s including the compressor unit.

1. Do not smoke when spraying paint, insecticides, or other flammable substances.
2. Use a face mask/respirator when spraying and spray in a well ventilated to prevent health and fire hazards.
3. Do not spray paint or other spraying materials directly onto the compress Place the compressor as far away from the spraying area as possible to mix the accumulation of excessive spray on the compressor.
4. When spraying or cleaning with solvents or toxic chemicals, follow the instructions provided by the chemical manufacturer.

ASSEMBLY

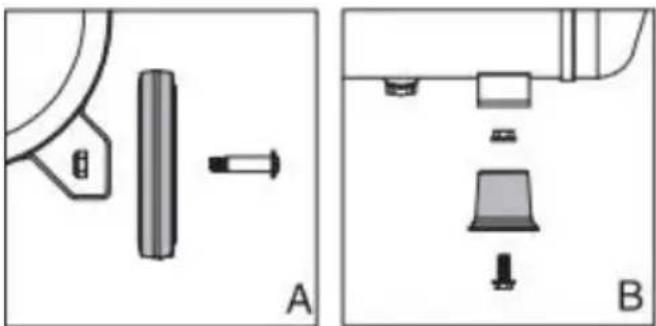

WHEEL ASSEMBLY

Different product accessories are different, mainly divided into wheels and foot pads. Please check the accompanying accessory package before installation ar install the corresponding wheels and foot pads according to the following diag

Diagram showing two mechanical components labeled A and B, with no visible text or symbols.

MAIN TECHNICAL DATA

Model	Working voltage	Rated power	Rated current	Pressure Range	Air displacement	SPEED
FB750D0-10C18	220-240 /50Hz	1.0HP	3.2A	6-8Bar	2.0CFM@90Psi	2800RPM
FB750D0-10C30	220-240/50Hz	1.0HP	3.5A	6-8Bar	2.0CFM@90Psi	2800RPM
FB1500D0-10C40	220-240/50Hz	2.0HP	7.5A	6-8Bar	5.3CFM@90Psi	1400RPM
FB1500D0-10C60	220-240/50Hz	2.0HP	7.5A	6-8Bar	5.3CFM@90Psi	1400RPM
FB1500D0-20C80	220-240/50Hz	4.0HP	15.0A	6-8Bar	10.6CFM@90Psi	1400RPM

Model	Working voltage	Rated power	Rated current	Pressure Range	Air displacement	SPEED
FB750D0-10C18	120V/60Hz	1.0HP	6.5A	90-120 Psi	2.2CFM@ 90Psi	3450RPM
FB750D0-10C30	120V/60Hz	1.0HP	6.5A	90-120 Psi	2.2CFM@ 90Psi	3450RPM
FB1500D0-10C40	120V/60Hz	2.0HP	13.5A	95-125 Psi	5.3CFM@ 90Psi	1700RPM
FB1500D0-10C60	120V/60Hz	2.0HP	13.5A	95-125 Psi	5.3CFM@ 90Psi	1700RPM
FB1500D0-20C80	220V/60Hz	4.0HP	15.0A	95-125 Psi	10.6CFM@ 90Psi	1700RPM

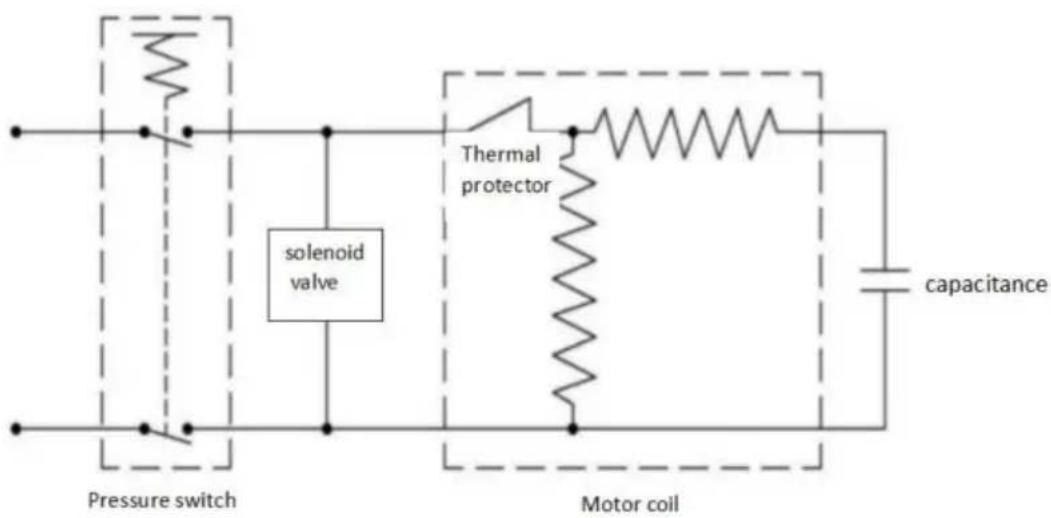

Electrical schematic diagram

solenoid valve Thermal protector Pressure switch Motor coil capacitance

Install

Position

It is very important to install the compressor in a clean and well ventilated | The minimum gap between the compressor and the wall is 18 inches, as ob can obstruct the airflow, and the surrounding air temperature should not exceed 100 °F.

▲CAUTION!

Do not locate the compressor air inlet near steam, paint spray, sandblast area, any other source of contamination, This debris will damage the motor.

ELECTRICAL INSTALLATION

▲ WARNING!

All wiring and electrical connections should be carried out by qualified electric installation must comply with local regulations and national electrical regulations

▲CAUTION!

Never use an extension cord with this product. Use additional air heating instead of an extension cord to avoid power loss and permanent damage, Use of an extension cord voids the warranty.

▲DANGER!

Improper use of grounding plug can result in a possible risk of electric shock!

▲DANGER!

Do not use a grounding adapter with this product!

1. If repair or replacement of cord or plug is necessary, do not connect grow wire to either flat blade terminal. The wire with insulation having an external surface that is green (with or without yellow stripes) is the grounding wire.

▲WARNING!

Never connect green (or green and yellow) wire to a live terminal.

1. Check with a qualified electrician or serviceman if grounding instructions are completely understood, or if in doubt as to whether product is properly ground

Do not modify plug provided; if it will not fit outlet, have proper outlet installed qualified electrician.

▲WARNING!

• Local electrical wiring codes differ from area to area. Source wiring, plug a protector must be rated for at least the amperage and voltage indicated motor nameplate, and meet all electrical codes for this minimum.
• Use a slow blow fuse or a circuit breaker.

OPERATION

Pressure Switch-Auto/Of Switch-In the AUTO position, the compressor shuts c automatically when tank pressure reaches the maximum preset pressure. In the OFF position.the compressor will not operate. This switch should be in the O position when connecting or disconnecting the power cord from the electrical or when changing air tools.

Regulator-The regulator controls the amount of air pressure released at the outlet.

Safety valve-This valve automatically releases air if the tank pressure exceeds the preset maximum.

Discharge Tube-This tube carries compressed air from the pump to the check valve. This tube becomes very hot during use. To avoid the risk of severe I never touch the discharge tube.

Check Valve-A one-way valve that allows air to enter the tank, but prevents the tank from flowing back into the compressor pump.

Handle-Designed to move the compressor.

▲WARNING!

Never use the handle on wheeled units to lift the unit completely off the gro Drain Petcock-This valve is located on the bottom of the tank. Use this valve drain moisture from the tank daily to reduce the risk of corrosion.

Reduce tank pressure below 10 psi, and then drain moisture from tank daily avoid tank corrosion. Drain moisture fir om tank by opening the drain petcock located underneath the tank.

LUBRICATION

This is an oilless product and DOES NOT require lubrication to operate.

BREAK-IN PROCEDURE

▲CAUTION!

Do not attach air chuck or other tool to open end of hose until start-up has completed and unit checks ok.

IMPORTANT: Do not operate compressor before reading instructions or damag may result.

1. Turn regulator fully clockwise to open air

2. Turn switch to OFF position and plug in cord.

3. Turn switch to AUTO position and run 130 minutes to break in the pump parts.

4. Turn regulator knob fully counterclockwise.Compressor will build to maximum preset pressure and shut of.

5. Turn regulator knob clockwise to cause a bleed off. Compressor will restart at a presi pressure.

6. Turn regulator knob counterclockwise to off the air and turn switch to off position.

7. Attach chuck or other tool to open end of hose. Turn the regulator on. In AUTO position, the compressor pumps air into the tank. It shuts off automatic when unit reaches its maximum preset pressure. In the OFF position. the press switch cannot function and the compressor will not operate. Make sure switch OFF positionconnectingwhen01disconnecting power cord from electrical outlet.

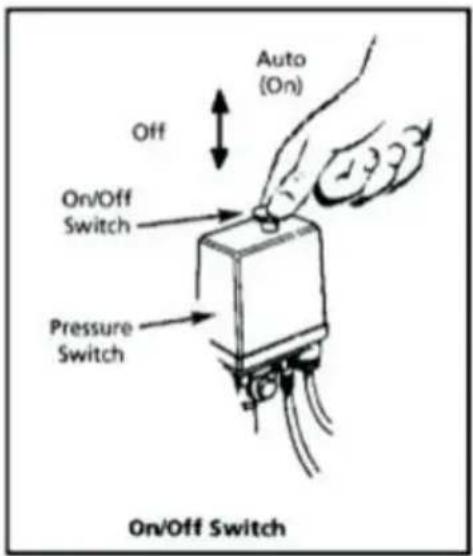

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Figure 4

NOISTUREIN COMPRESSED AIR

Moisture in compressed air will form into droplets as it comes from an air compressor pump. When humidity is high or when a compressor is in continuous use for an extended period of time, this moisture will collect in the tank. With

using a paint spray or sandblast gun.this water will be carried from the tank through the hose, and out of the gun as droplets mixed with the spray mate IMPORTANT: This condensation will cause water spots in a paint job, especially when spraying other than water based paints. If sandblasting, it will cause the sand to case and clog the gun rendering it ineffective. A filter in the air line (MP3105), located as near to the gun as possible, will help eliminate this mo

SAFETY VALVE

▲WARNING!

Do not remove or attempt to adjust the valve! This valve should be checked under pressure occasionally by pulling the ring hand. If air leaks after ring has been re or valve is stuck and cannot be actuate ring, it MUST be replaced.

REGULATOR KNOB (figure 5)

1. This knob controls air pressure to an air-operated tool or paint spray gun.
2. Turn clockwise to increase air pressure
   outlet. When desired pressure is reached, locked with nuts.
3. To lower air pressure at outlet, turning counterclockwise.
4. Turn fully counterclockwise to shut off flow of air completely then push kr down.

TANK PRESSURE GAUGE

Gauge shows pressure in tank indicating compressor is building pressure prop

MAINTENANCE

▲WARNING!

Disconnect power source then release all pressure from the system

before attempting to install, service, relocate or perform any maintenance

Check compressor often for any visible problem sand follow maintenance procedures each time compressor is used.

1. Pull ring on safety valve and allow it to snap back to normal position.

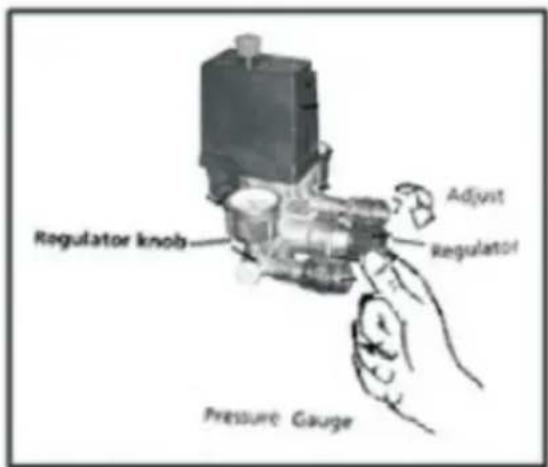

Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

▲WARNING!

Safety valve must be replaced ifit cannot be actuated or it leaks air after rir released.

1. Turn compressor off and release pressure from system, Drain moisture from tank by opening drain cock underneath tank.
2. Clean dust and dirt from motor, tank, and airlines and pump cooling fins compressor is still OFF.

IMPORTANT: Position the device away from the spraying area, as the hose prevent excessive spraying from clogging the filter.

LUBRICATION

This is an oil-free compressor that requires no lubrication.

▲CAUTION!

This compressor is equipped with an automatic reset thermal overload protection, which will shut off motor if it becomes overheated,

If thermal overload protector shuts motor OFF frequently, look for the following causes.

1. Low voltage.
2. Clogged air filter.
3. Lack of proper ventilation.

▲CAUTION!

If the thermal overload protector is activated, the motor must be allowed to down before starting. The motor will automatically restart without warning if let the power socket and the unit is turned on.

Storage

1. When not in use, store the hoses and compressor in a cool and dry pla
2. Moisture in the drainage tank.
3. Disconnect the hose and hang the open end downwards to allow water to

TROUBLESHOOTING CHART

Symptom	Possible Cause (s)	Corrective Action
The compressor	1. No electricity	1. Is it plugged in? Check for
cannot run	2. Brown fuse3. Circuit breaker disconnected4. Thermal overload open circuit5. The pressure switch is broken	fuses/circuit breakers or motor overload2. Replace the blown fuse3. Reset and determine the ca of the problem4. After the motor cools down, will restart5. Replacement
Symptom	Possible Cause (s)	Corrective Action
The motor hums but cannot operate or runs slowly	1. Check valve defective or not loaded2. Poor contact and low c voltage3. Motor winding short circ or open circuit	1. Replacement or repair2. Check the connection. If usi an extension plug, clear it and check the circuit with a voltmet3. Replace the motorDanger: Do not disassemble the check valve when there is air the fuel tank; Air release tank
Be careful when the fuse burns out/the circuit breaker trips repeatedly! Do no use extension cords with this product	1. Incorrect fuse size, circu overload2. Check valve defective or not loaded	1. Check if the fuse is correct use a delay fuse. Disconnect o electrical appliances from the circuit or operate the compress on its own branch circuit2. Do not disassemble the che valve when there is air in the tank during replacement or repAir release tank
Thermal overload protector repeatedly loses power	1. Low voltage2. Clogged air filter3. Lack of proper ventilation/room temperature too high4. Check valve malfunction5. Compressor valves failed	1. Eliminate extension cord, check with voltmeter2. Clean filter (see Maintenance section)3. Move compressor to well ventilated area4. Replace5. Replace valve assembly
Knocking sound, noise, excessive vibration	1. Loose bolts and uneven fuel tank2. Defective bearings on eccentric or motor shafts3. Worn or scored cylinders piston rings	1. Tighten the gasket box bolts horizontal position2. Replacement3. Replace or repair as necess
Troubleshooting Chart (Continued) Symptom	Possible Cause (s)	Corrective Action
The oil tank pressure drops when the compressor is turned off	1. Loose drain cock2. Check valve leakage3. Loose connection of pressure switch or regulator	1. Tightening2. Disassemble the check valve assembly, clean or replace it3. Check all connections with s and aqueous solution and tight them tightly
The continuous operation of the compressor results in a discharge volume below normal/low discharge pressure	1. Excessive air usage and compressor too small2. The intake filter is block3. Pipeline leakage (on the machine or in external systems)4. Damaged inlet valve5. Wear of piston rings	1. Reduce usage or purchase through higher air delivery (SCF2. Cleaning or replacement3. If necessary, replace the lea parts or tighten them4. Replace the compressor valve5. Replace the piston and cylin
Excessive moisture in discharge air	1. Excessive water in tank2. High humidity	1. Drain tank2. Move to area of less humid use air line filter
Compressor runs continuously and safety valve opens as pressure rises	1. Defective pressure switch2. Defective safety valve	1. Replace switch2. Replace safety valve with genuine replacement part
Excessive starting	Excessive condensation in	Drain more often
and (auto start) stopping	tank
The unloader on the pressure switch is leaking air	Check valve stuck in an o position	Remove and replace check valv

Correct Disposal

This product is subject to the provision of european Directive 2012/19

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. Th

applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must taken to acollection point for recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Five yellow industrial air conditioners with different engine and motor profiles, shown from different angles (no text or labels visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram showing a mechanical component with a cylindrical shaft and a separate arrowhead, labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a mechanical device with no text or symbols

PRINCIPALES DONNÉES TECHNIQUES

Modèle VITESSE	Fonctionnement tension Gammouvoir	Noté	Noté actuel	Pression	Air déplacement
FB750D0-10C18	220-240	1.0HP	3.2A	6-8 bars	2,0CFM@90psi/50 Hz	2800 tr/min
FB750D0-10C30	220-240/50 Hz	1.0HP	3,5A	6-8 bars	2,0CFM@90psi	2800 tr/min
FB1500D0-10C40	220-240/50 Hz	2.0HP	7,5A	6-8 bars	5,3 pi3/min90psi	1400 tr/min
FB1500D0-10C60	220-240/50 Hz	2.0HP	7,5A	6-8 bars	5,3 pi3/min90psi	1400 tr/min
FB1500D0-20C80	220-240/50 Hz	4.0HP	15,0 A	6-8 bars	10,6 pi3/min90psi	1400 tr/min

solenoid valve Thermal protector capacitance Pressure switch Motor coil

Installer

Position

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Figure 4

Valve Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

▲ATTENTION!

A/S YH Consulting Limited Bureau 147, Centurion

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

REPRÉSENTANT

DE LA CE

E-CrossStu GmbH

Five yellow industrial air conditioners with different engine and wheels, shown from different angles (no text or symbols visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

Technical diagram showing a mechanical component with a cylindrical shaft and a separate arrowhead, labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a mechanical device with no text or symbols

solenoid valve Thermal protector capacitance Pressure switch Motor coil

Installieren

Position

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Abbildung 4

Adjust Regulator knob Pressure Gauge

Figure 5:

ÿWARNUNG!

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Five yellow industrial air conditioners with different engine and motor profiles, shown from different angles (no text or labels visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

Technical diagram showing two views (A and B) of a mechanical component with no visible text or symbols

DATI TECNICI PRINCIPALI

Modello	Lavorando	Valutato energia	Valutato attuale	Pressione Allinearevoltaggiopostamento	Aria	VELOCITÀ
FB750D0-10C18	220-240/50Hz	1,0 CV	3,2A	6-8 bar	2,0CFM@90 Psi	2800 giri/min
FB750D0-10C30	220-240/50Hz	1,0 CV	3,5 A	6-8 bar	2,0CFM@90 Psi	2800 giri/min
FB1500D0-10C40	220-240/50Hz	2,0 CV	7,5 A	6-8 bar	5,3 CFM@90 Psi	1400 giri/min
FB1500D0-10C60	220-240/50Hz	2,0 CV	7,5 A	6-8 bar	5,3 CFM@90 Psi	1400 giri/min
FB1500D0-20C80	220-240/50Hz	4,0 CV	15.0A	6-8 bar	10,6 CFM@90 Psi	1400 giri/min

Modello	Lavorando voltaggio	Valutato energia	Valutato attuale	Pressione Allineare	Aria spostamento	VELOCITÀ
FB750D0-10C18	120 V/60 Hz 1,0	CV 6,5 A		90-120 Psi	2,2 CFM@ 90 Psi	3450 giri/min
FB750D0-10C30	120 V/60 Hz 1,0	CV 6,5 A		90-120 Psi	2,2 CFM@ 90 Psi	3450 giri/min
FB1500D0-10C40	120 V/60 Hz 2,0	CV 13,5 A		95-125 Psi	5,3 CFM@ 90 Psi	1700 giri/min
FB1500D0-10C60	120 V/60 Hz 2,0	CV 13,5 A		95-125 Psi	5,3 CFM@ 90 Psi	1700 giri/min
FB1500D0-20C80	220V/60Hz 4,0	CV 15,0 A		95-125 Psi	10,6 CFM@ 90 Psi	1700 giri/min

Schema elettrico

solenoid valve Thermal protector capacitance Pressure switch Motor coil

Installare

Posizione

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Figura 4

Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

ÿATTENZIONE!

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147, Centurion

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Five yellow industrial air conditioners with different engine configurations, shown from different angles (no text or labels visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

Technical diagram showing a mechanical component with a cylindrical shaft and a separate arrowhead, labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a mechanical device with no text or symbols

DATOS TÉCNICOS PRINCIPALES

Modelo	Laboral	Calificado fuerza	Calificado actual	Presión RangoVoltaje	Aire desplazamiento	VELOCIDAD
FB750D0-siglo XIX	220-240 /50 Hz	1.0HP	3.2A	6-8 bares	2.0CFM@ 90 psi	2800RPM
FB750D0-10C30	220-240/50 Hz	1.0HP	3.5A	6-8 bares	2.0CFM@90 psi	2800RPM
FB1500D0-10C40	220-240/50 Hz	2.0HP	7.5A	6-8 bares	5.3 pies cubicos por minuto a90 psi	1400 RPM
FB1500D0-10C60	220-240/50 Hz	2.0HP	7.5A	6-8 bares	5.3 pies cubicos por minuto a90 psi	1400 RPM
FB1500D0-20C80	220-240/50 Hz	4.0HP	15,0 A	6-8 bares	10,6 pies cubicos por minuto a90 psi	1400 RPM

solenoid valve Thermal protector capacitance Pressure switch Motor coil

Instalar

Posición

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Figura 4

RUIDO EN AIRE COMPRIMIDO

Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

▲¡ADVERTENCIA!

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Five yellow industrial air conditioners with different engine configurations, shown from different angles (no text or labels visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical diagram showing a mechanical component with a cylindrical shaft and a separate arrowhead, labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a mechanical device with no text or symbols

GŁÓWNE DANE TECHNICZNE

solenoid valve Thermal protector capacitance Pressure switch Motor coil

Zainstalować

Pozycja

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Rysunek 4

Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

OSTRZEŻENIE!

C/O YH Consulting Limited Biuro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Five yellow industrial air conditioners with different engine configurations, shown from different angles (no text or labels visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram showing two views (A and B) of a mechanical component with no visible text or symbols

solenoid valve Pressure switch Thermal protector Motor coil capacitance

Installeren

Positie

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Figuur 4

Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

ÿWAARSCHUWING!

PROBLEEMOPLOSSINGSSCHEMA

C/O YH Consulting Limited Kantoor 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Five yellow industrial air conditioners with different engine modes and wheels, shown from different angles (no text or symbols visible)

High flow supply

Oil-free

Low noise

Low vibration

Low temperature rise

high pressure

High speed silenced motor

Four protection

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical diagram showing two views (A and B) of a mechanical component with no visible text or symbols

HUVUDSAKLIGA TEKNISKA DATA

Modell HASTIGHET	Arbetssätt spänning	Betygsatt driva	Betygsatt nuvarande	Tryck Räckvidd	Luft förflyttning
10C18	220-240FB7/50Hz	50D0-1,0 hk	3.2A	6-8 Bar	2.0CFM@90Psi	2800 RPM
FB750D0-10C30	220-240/50Hz	1,0 hk	3,5A	6-8 Bar	2.0CFM@90Psi	2800 RPM
FB1500D0-10C40	220-240/50Hz	2,0 hk	7,5A	6-8 Bar	5.3CFM@90Psi	1400 RPM
FB1500D0-10C60	220-240/50Hz	2,0 hk	7,5A	6-8 Bar	5.3CFM@90Psi	1400 RPM
FB1500D0-20C80	220-240/50Hz	4,0 hk	15,0A	6-8 Bar	10.6CFM@90Psi	1400 RPM

Modell	Arbetssätt spänning	Betygsatt driva	Betygsatt nuvarande	Tryck Räckvidd	Luft förflyttning	HASTIGHET
FB750D0-10C18	120V/60Hz 1,0HP 6,5A			90-120 Psi	2.2CFM@ 90Psi	3450 RPM
FB750D0-10C30	120V/60Hz 1,0HP 6,5A			90-120 Psi	2.2CFM@ 90Psi	3450 RPM
FB1500D0-10C40	120V/60Hz 2,0HP 13,5A			95-125 Psi	5.3CFM@ 90Psi	1700 RPM
FB1500D0-10C60	120V/60Hz 2,0HP 13,5A			95-125 Psi	5.3CFM@ 90Psi	1700 RPM
FB1500D0-20C80	220V/60Hz 4,0HP 15,0A			95-125 Psi	10.6CFM@ 90Psi	1700 RPM

solenoid valve Thermal protector capacitance Pressure switch Motor coil

Installera

Placera

Auto (On) Off On/Off Switch Pressure Switch On/Off Switch

Figur 4

LJUD I TRYCKLUFT

Regulator knob Adjust Regulator Pressure Gauge

Figure 5:

ÿWARNING!

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
