USER MANUAL YD-127-6L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE AIR COMPRESSOR

Model: YD-127-6L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major bran

Model: YD-127-6L

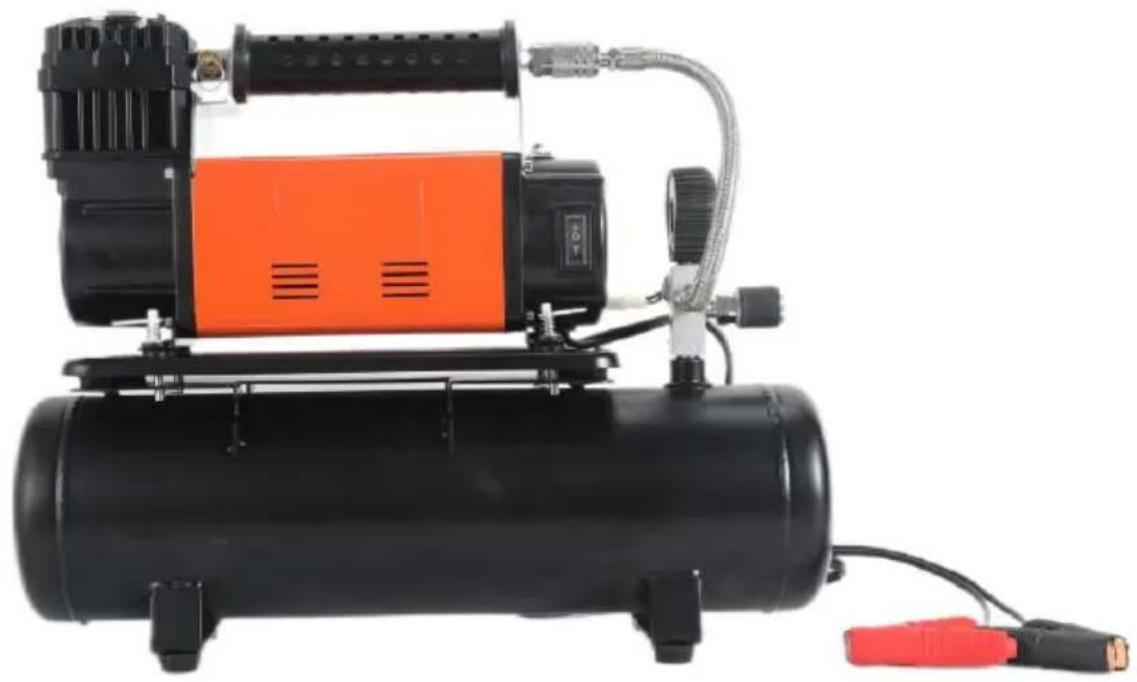

Black and orange air compressor with attached hose and power cord (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instru manual carefully.

CORRECT DISPOSALThis product is subject to the European Directive 2012/19 provision. The symbol showing a wheelie bin crossed thro indicates that the product requires separate refuse collection European Union. This applies to the product and all acces marked with this symbol. Products marked as such may n discarded with normal domestic waste, but must be taken collection point for recycling electrical and electronic devic

Thank you for buying our products. After opening the product packaging, check whether the product is in good condition, whether the accessories are complete and whether the power can be normally powered on after the boot.

Specification Parameters

Model	YD-127-6L
Rated Voltage	DC12-13.8V
Flow(CFM)	6.35
Inflation current	45A
Barometer	150PSI digital display meter

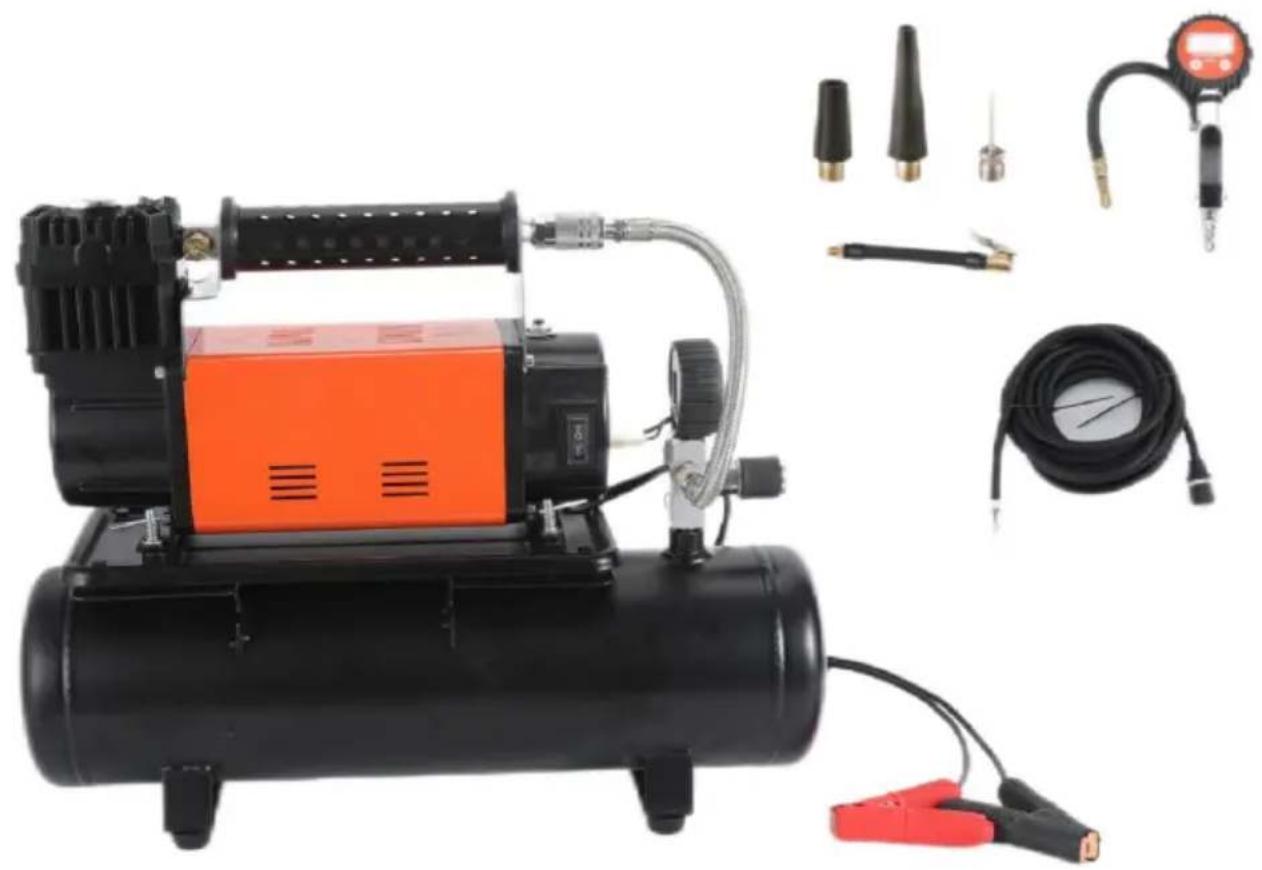

PACKAGE INCLUDES

Product photo of an air compressor with attached sensors and tubing (no visible text or symbols)

CAUTION

TO REDUCE RISK OF ELECTRICAL SHOCK OR ELECTROCUTION

1. Do not disassemble. Do not attempt to repair or make any modifications. to qualified service agency for service & repairment.
2. Do not use this product in an area where it can fall or be pulled into v other liquids.
3. Do not try to retrieve this product if it has fallen into liquid.
4. Use this Air Compressor with 12V DC system ONLY (12V Vehicle Battery be used with engine on)
5. This product should never be left unattended during use.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

WARNING- To reduce the risk of burns, electrocution, fire, or injury to persons:

1. An appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by, on, or ne children or individuals with certain disabilities.
3. Use this appliance only for its intended use as described in this manual. not use attachments not recommended by the manufacturer.
4. Keep the cord away from heated surfaces. Do not wrap the cord around appliance.
5. Never block the air openings of the appliance or place it on a soft surfa such as a bed or couch, where the air openings may be blocked. Keep the openings free of lint, hair, and the like.

WARNING:

1. Never allow children to operate Air Compressor. Please keep close supervi of the Air Compressor when children are around.
2. Air Compressor will become very hot during use and will remain hot for time after use. Do not touch any part of Air Compressor with bare hands (r include ON/OFF switch)
3. Do not use this product near flames or where explosive or aerosol product being used.
4. Do not operate this product where oxygen is thin.5. Do not pump anything is not inflatable objects.
5. Never use this product while tired or drowsy.
6. Never point any air nozzle or spray air sprayer at any part of the body.
7. Wear safety glasses or goggles when operating Air Compressor.
8. Use only in ventilated areas.

WARNING:

• This device is designed for use by professionals properly trained in its use
• If you have any pre-existing medical conditions, consult a doctor before us
• Use this product for its intended use only.
• This product should never be operated by or in close proximity to children
• An appliance should never be left unattended when plugged in.
• Do not tilt device while in operation.
• Do not touch any part of the device that is hot.
• Never attempt to disassemble or repair the product yourself.
• If the supply cord is damaged, it must be replaced by the manufacturer, i service agent or similarly qualified persons in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined

turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

INSTRUCTION

PLEASE READ AND FOLLOW THE OPERATING INSTRUCTIONS CAREFULLY TO ASSURE

THAT YOU WILL ENJOY THE CONVENIENT USE OF AIR COMPRESSOR.

1. Always operate Air Compressor no exceed the maximum pressure rating. 1 maximum pressure rating of this Air Compressor is 150 PSI.
2. This model is equipped with Auto Overheat Protection. This is designed to protect the Air Compressor from overheat causing permanent damage to Air Compressor. The thermal overload protector will self-activate when the internal temperature rises to certain degree. To restart the Air Compressor, turn the switch to OFF("O"), allowing the Air Compressor to cool about 15 minutes. Y can then resume usage of the Air Compressor by turning it on.
3. Please note that you may experience a slight delay (around 0.5s) of the Compressor motor starting while the Air Compressor is pressurized. This is no malfunction.
4. It is strongly recommended that you keep the vehicle's engine running while using the Air Compressor, so the performance of the Air Compressor can be enhanced. also to prevent your vehicle's battery from running out.

OPERATING INSTRUCTIONS

1. Before operating the air compressor, check that you are in a safe location away from busy roads and traffic, inspect the air compressor and accessories any sign of damage. If there are signs of damage, have a service repair professional replace/repair damaged part.

2. Remove the air compressor from the box and place it on a dry level sur near the 12 Volt vehicle battery or power source.

3. Connect the 8 meter rubber air hose to the air compressor using the qui connect fitting.

4. Choose whether you want to use the screw type connector or the thumb adaptor. The screw type connector is already attached to the air hose and is ready for use. If you choose the thumb lock connector, simply screw the end the thumb lock adaptor into the screw type connector on the air hose and e a good seal is made. The thumb lock adaptor is now ready to connect.

5. Check the power switch is in the off position before connecting to battery compressor does not start straight away.

6. Connect the RED battery clamp to your 12 Volt vehicle battery or power source's POSITIVE (+) post. Connect the BLACK battery clamp to your 12 V vehicle battery or power source's NEGATIVE(-) post.

7. Test the connections and air flow by switching the mode to "I" or "11" o switch. ("I" is for air compressor with tank running,"II" is for air compressor w tank running,"O"is for OFF.) Direct the hose away from yourself or any person nearby when testing the air tank compressor.

8. Turn the switch to Air Tank(Switch: I) and the compressor will fill the tan volume before turning itself off when it reaches capacity. When the compressor builds up 114psi of pressure, it will automatically shut off. When the pressure reduces to 85psi the compressor will automatically restart.

9. Alternatively, you can use the air compressor without the tank by turning switch to 11.

10. To inflate the tire, connect the air hose to the tire by removing the valve equipped) from the tire valve system. Check that the tire valve system is clean and free from dirt.

. If using the screw type connector, screw the brass inflator onto the tire valve system. Make sure it is only screwed finger tight. DO NOT use any tool as may damage the inflator and/or the tire valve system.

.If using the thumb lock adaptor, using your thumb press and hold the lever firmly press onto the tyre valve system to create a good seal. Now release lever.

Inflate the tyre by switching 'I or II' the air compressor with the 'I/OFF/II' sw which is located on the body of the air compressor. Watch the pressure gau closely to monitor the tyre pressure. Once the correct or desired pressure has been reached, turn the air compressor '0FF'.

1. Remove the brass inflator or the thumb lock adaptor from the tyre valve system. Remember to refit the valve cap after you have completed the inflati process.

2. Disconnect the battery clamps from the 12 Volt vehicle battery or power source.

3. Allow the air compressor to cool completely before storing. Remember to store the air compressor in a dry location.

Use extra caution when inflating small objects such as bicycle tyres and sport balls. Pay close attention to the pressure gauge and be prepared to stop the compressor when the manufacturer's recommended pressure is reached.

SAFETY PRECAUTIONS

1. Always inflate tires to manufacturer's recommended tire pressure. Exercise extreme caution when driving with deflated tires.
2. Never exceed 30km/h when driving with partially inflated tires.
3. Never make sharp turns while driving with tires on low pressure.
4. Re-inflate tires before highway travels.
5. Use heat resistant minimum 200 PSI rated working pressure extension hose. Do not use aftermarket hoses with less than 200 Psi working pressure. Some aftermarket hoses may not be suitable for use due to heat and press generated by this type of Air Compressor.

MAINTENANCE AND REPAIRS

1. The Air Compressor is equipped with a permanently lubricated, maintenance-free motor. Never try to lubricate the Air compressor.
2. Air Compressor is also equipped with one washable filters under the black cover on the head. To clean: Remove the cover on the head and remove t (a foams and a felt). Filters should be washed with warm fresh water(no chemicals). Drip dry in shade before replacing back into Air Compressor.
3. Regularly clean dust and dirt from Air Compressor, its cooling fins and m housing.
4. All repairs should be performed by a qualified electrician only.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
