SS-PAC03B - Compressor Vevor - Free user manual and instructions

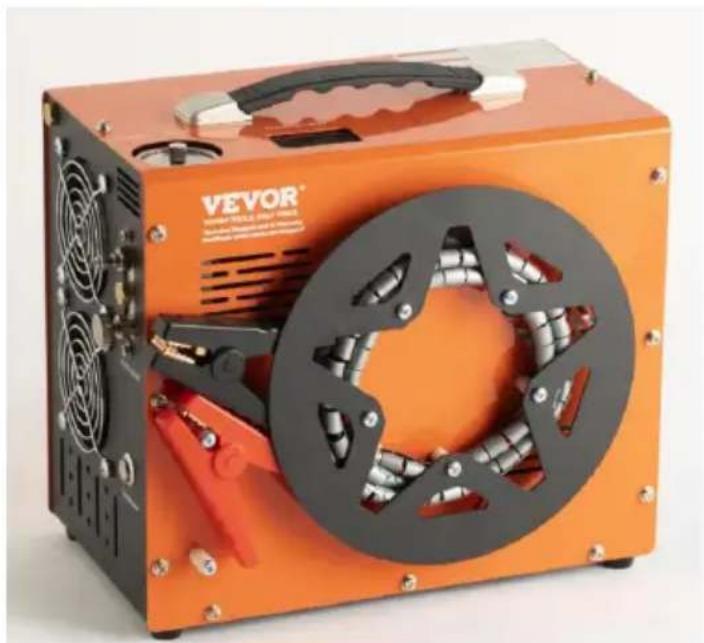

Product Type	Portable air compressor for PCP airguns
Brand	Vevor
Model	SS-PAC03A / SS-PAC03B
Power Supply	220 V AC (adjustable) or 12 V DC (vehicle battery)
Power	350 W
Maximum Pressure	300 bar (30 MPa / 4500 PSI)
Filling Capacity	Bottles up to 0.5 L (500 cc)
Automatic Shut-off System	Yes, adjustable pressure (stops at desired pressure)
Cooling	Built-in fan
Thermal Protection	Automatic shut-off at 85°C
Safety Timer	Automatic shut-off every 30 minutes
Error Code Display	E0 (temperature sensor), E1 (temperature >85°C), E2 (voltage <9.8 V), E3 (pressure button), E4 (time delay and pressure reached)
DC Power Supply	Cable with alligator clips (red positive, black negative)
AC Power Supply	Power cord with 3-pin plug
Included Accessories	Power cord, 8 mm connector, spare parts (O-rings), alligator clip, manual
Recommended Maintenance	Replace O-rings and clean every 50 fills or 50 hours of operation
Spare Parts Available	O-rings, filters, check valve
Repairability	User maintenance possible (O-rings, filters); no repairable parts inside main unit
Safety	Do not exceed the maximum pressure of the airgun; use in a well-ventilated area; children aged 8 and above under supervision
Compliance	FCC Part 15, WEEE directive 2012/19/EU
Warranty	Electronic warranty certificate included (VEVOR)

Frequently Asked Questions - SS-PAC03B Vevor

What power sources are possible for the Vevor SS-PAC03B compressor?

The compressor can operate on 220 V AC (adjustable) via the supplied power cord, or on 12 V DC from a vehicle battery via the cable with alligator clips.

What is the maximum pressure of this compressor?

The maximum pressure is 300 bar (30 MPa / 4500 PSI). Never exceed the recommended pressure for your PCP airgun.

How to use the automatic shut-off?

Manually turn the needle of the automatic shut-off system to the desired pressure (max 300 bar). The compressor will stop automatically when that pressure is reached.

What is the maximum filling capacity?

The compressor is designed to fill compressed air bottles up to 0.5 L (500 cc). Do not use for diving tanks larger than 500 cc.

How to maintain the compressor?

It is recommended to replace the O-rings and clean the internal parts every 50 fills of a 500 cc bottle or every 50 hours of operation. Consult the manual for disassembly steps.

What to do if the compressor overheats?

The compressor stops automatically if the temperature exceeds 85°C. Leave the cooling fan running until the device cools down, then restart by pressing the POWER button. It also stops every 30 minutes to prevent overload.

What do the error codes E0, E1, E2, E3, E4 mean?

E0: temperature sensor defective. E1: internal temperature above 85°C (automatic shutdown). E2: power supply voltage below 9.8 V. E3: pressure button defective. E4: working time reached and stop pressure attained.

Can the compressor be used by children?

Yes, children aged 8 years and older can use it under supervision, provided they have received instructions on safe use and understand the risks.

What accessories are supplied with the compressor?

The kit includes: a power cord, a DC cable with alligator clips, an 8 mm connector, a set of spare parts (O-rings), and the user manual.

How to use the car battery power supply?

Make sure the car engine is running. Connect the DC cable to the 12 V port of the compressor, then connect the red clip to the positive (+) terminal of the battery and the black clip to the negative (-) terminal. Then follow the same steps as for mains power supply.

USER MANUAL SS-PAC03B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PCP AIR COMPRESSOR

MODEL:SS-PAC03A/SS-PAC03B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:SS-PAC03A/SS-PAC03B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSAL This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electronic devices

IMPORTANT SAFEGUARDS

• Portable PCPAir Gun Compressor can operated with either 220v/110v (adjustable) power, or DC 12VVehicle power. Leads for both systems
• NEVER start the Portable compressor without first having started its cooling fan.
• The Portable compressor is designed to directly fill airguns with an integral cylinder or buddy-bottle air source up to 0.5 litres(500cc) volu should not be used for filling scuba tanks over 500cc. Any damage compressor or PCP airgun caused through incorrect operation or use not be covered by the warranty.
• The Portable compressor has a MAXIMUM charging pressure of 300E (4,500psi/30MPa) pressure. However, many PCP airguns will have a safe working(operating) pressure that is lower than this - So DO NOT OVER-CHARGE your PCP airgun.
• ALWAYS adhere to the airgun manufacturer's operating instructions when using the Portable compressor to charge your PCP airgun
• It is recommended that you observe the position of the needle on the pressure gauge of the PCP airgun and the unit pressure gauge at the

same time during charging. Ensure that the position does not exceed 300BAR(4500psi/30MPa). Stop blowing air when it reaches 280BAR(3750psi/28MPa)

• To avoid the unit overheating, always operate the compressor in a well ventilated space.

• Do not disassemble the main unit of the Portable compressor- there are no user-serviceable parts inside. However, the seals and the filter medium and filters in the hose assembly can be replaced with the spares provided.

• ALWAYS follow the rudimentary safety procedures when charging your PCP airgun.

• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2)This product must accept any interference received, including interference that may cause undesired operation.

WARNING:

Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note:

This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, These are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
  · Consult the dealer or an experienced radio/TV technician for assista

Product parameters

Model	SS-PAC03A/SS-PAC03B
Voltage:	DC 12V for car battery or AC 120V/230
Power:	350W
Inflation pressure	4500Psi / 30Mpa
Stop mode	AUTOSTOP
Cooling system	Built-in fan cooling
Accessories	power cord*1, 8mm Connector*1, Spare Parts Suit*1, Crocodile Pliers*1 Manual*1
Cooling method	Fan Cooled

Assembly Instructions

1.Connect the quick female coupler to your Airgun cylinder, Bottle or Airsoft products.	1.1
2.Connect another end foster to the output on the front of compressor via a male fitting. Make sure the foster coupling.	1.2
3.Connect the supplied AC pow cord to the right-hand side of main unit and connect the three-pin plug to the mains po outlet.	1.3
4.Manually rotate the needle of the automatic shut-off system the pressure you want. WARNING! NEVER overfill the maximum pressure of your cylinder and airgun. The maximum pressure this compressor is 300bar (30Mpa/4500PSI).	1.4
5. Press the Compressor button the top of the compressor to the cooling fan. ATTENTION! The fan must be running when the compressor is working.	1.5 2.0 3.0 4.0 5.0 6.0 7.0
6.Close the air bleed valve on front of the main unit by turni clockwise. It need only be fing tight.	1.6 2.0 3.0 4.0 5.0 6.0 7.0
7.Finally, press the Compressor button on the top of the main The compressor unit will audib start up and the charging pro will begin.	1.7 2.0 3.0 4.0 5.0 6.0 7.0

Using DC 12V Car Battery Power

8.INSure the car engine is runn Connect the supplied DC powe cable to the right side of the socket.

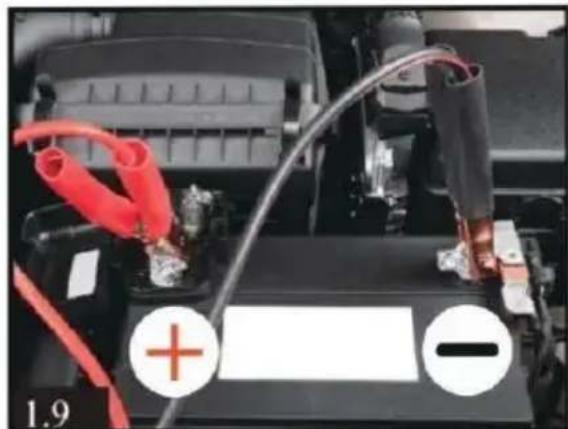

9.Connect the red clip at the end of this cable to the positi terminal of the car's12-volt batt Then connect the black clip to battery's negative (-) terminal. The rest operation is same a step 5

NOTE:

If the working temperature exceeds 80 degrees Celsius, the comp MUST be manually switched off, you can press the POWER butt make the compressor stop working. Keep the cooling fan left ru Restart the compressor function once the compressor has cooled The compressor will be auto shut-off every 30 minutes to preve overload and overheat.You can restart the compressor by pressir POWER button again if air filling not finished.

Routine Maintenance

Note: we suggest you can do maintenance by changing o-rings and clearing dirt every 50 pieces 500cc bottle filling or cumulative working hours.

Insure all power is disconnected before maintenance

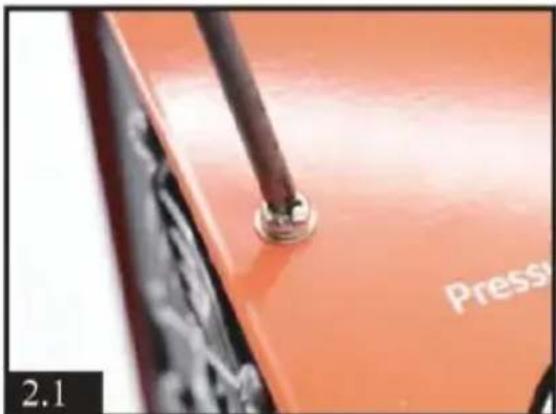

1. Loosen all 20 pieces screw on the cabinet. (9 pieces on front, 9 pieces on rear and pieces on top). Pick up the whole metal cabinet carefully and slowly. Be careful the internal wires.

2. Loosen the one-way valve (check valve) to see if o-rin spring damaged. Clean all d and assembly it back,which need to be tightened a bit.
3)Loosen the 2 pieces screw of condensation tube.
4. Loosen the another 2 pieces screws of condensation tube the other side.	2.4
5. Loosen the 4 pieces screw on the high-pressure cylinder	2.5
6. Take a look if the o-ring metal gasket damaged, clean all dirt.	2.6
7. Loosen the 4 pieces screw on the low-pressure cylinder.	2.7

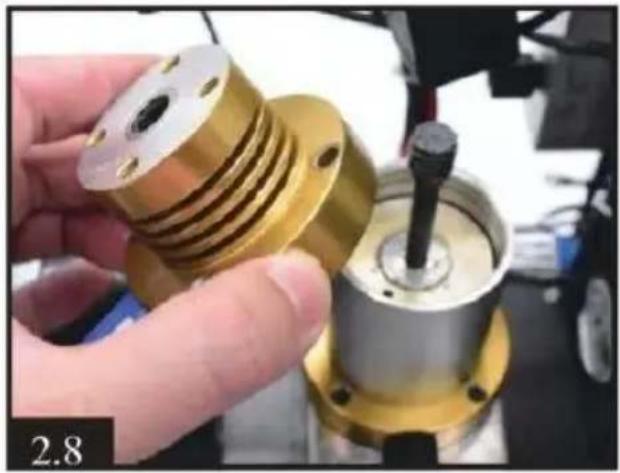

8) Take off the low-pressure cylinder, check .high-pressure piston is any damaged. You can add a little silicone or oil on piston o-ring.

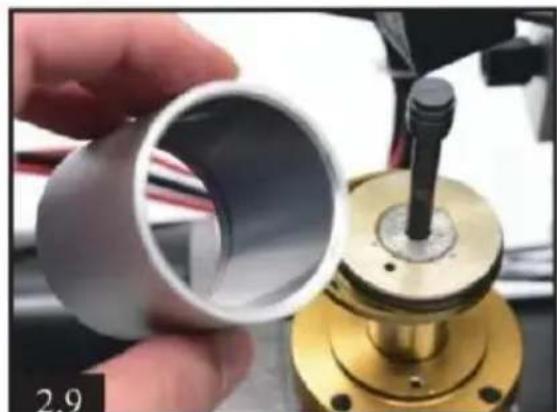

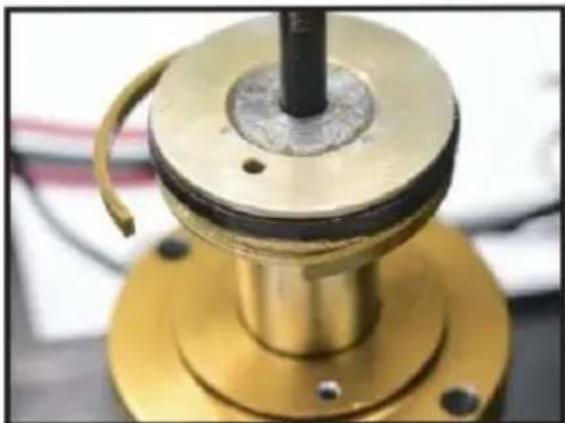

9.Take off the column metal part,clean dirt inside and check the low-pressure o-rings if any damaged. You can add a little silico motor oil on piston o-ring. It is normal if you find the light gray O-ring disconnected.

Assembly

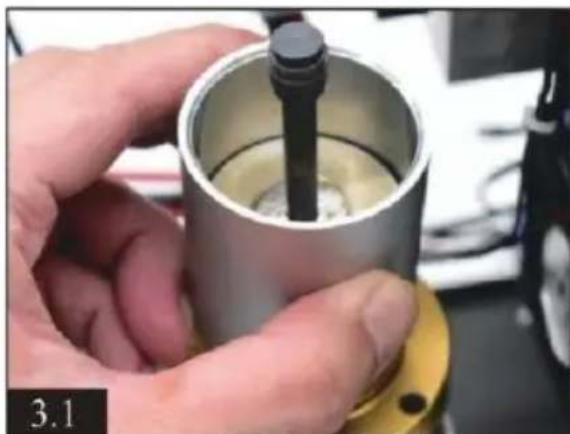

1.Setting the piston into the column metal part.Keep the bottom of the piston flush with column part. Make sure there no gaps between each parts.

2.Setting the low-pressure cylinder into the high-pressure piston.	3.2
3) Tighten 4 black screws.	3.3
4) Setting the high-pressure cylinder into the low-pressure piston. And tighten the4 screw	3.4

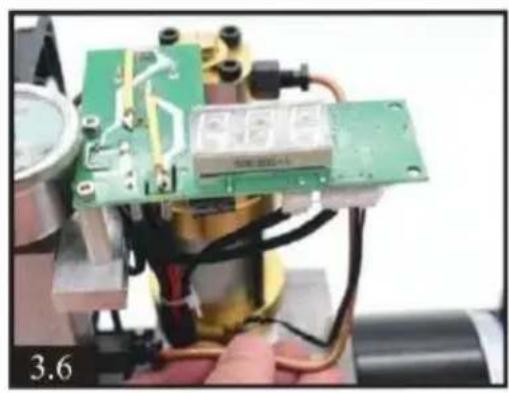

5) Install condensation tube or cylinder.	3.5

6) Install another condensation tube.

Troubleshooting

E0- The temperature sensor is faulty.
E1- Automatically stops when the temperature exceeds 85^ C .
E2- voltage is lower than 9.8V.
E3- The pressure button is faulty.
E4-Working time limit and pressure reach automatic stop.

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China
