YBTC-03 - Flat screen mount Vevor - Free user manual and instructions

USER MANUAL YBTC-03 Vevor

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STAND

MODEL:YBTC-03

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:YBTC-03

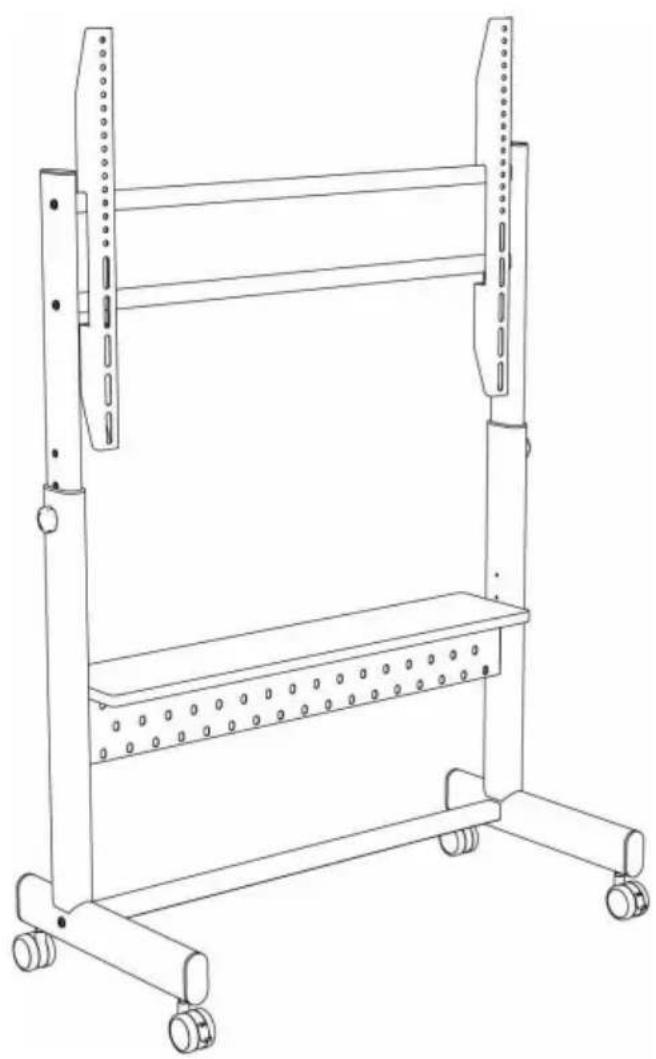

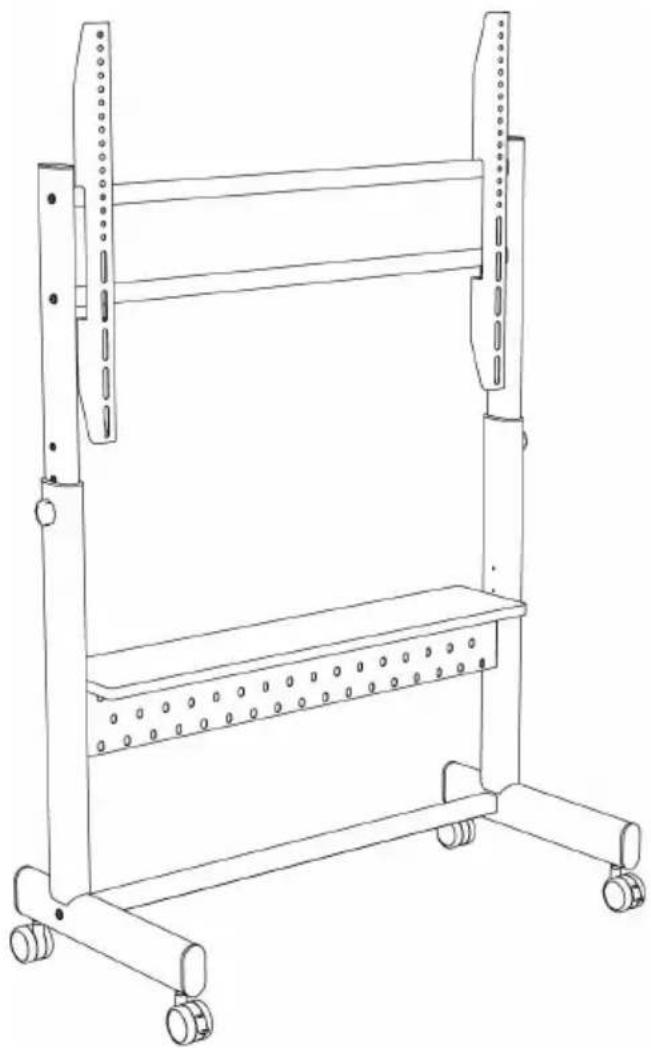

Line drawing of a mechanical support structure with wheels and a horizontal panel (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Before installation, please ensure that your TV stand mounting ho dimensions, and weight can meet the specifications and standards the TV stand. If you have any questions or questions about the instructions and warnings, please contact us for help..

Important:

1. When installing the support, please use professional safety devices and tools in accordance with the requirements of the assembly instructions. Improper installation may cause the TV to fall or serious injury.
2. Before installation, ensure that the support surface can safely support the weight of the device and all accessories.
3. Please do not exceed the intended load capacity, otherwise it may cause serious injury or property damage.
4. This product contains small parts, swallowing them may cause choking hazards. Please keep out of reach of children.
5. This product is only suitable for indoor use, outdoor use may cause product damage and personal injury risk.

Maintenance:

Please check the connection between the bracket and the TV periodic to ensure it remains stable, and verify that the screws have not loos fallen off due to long-term use (at least once every three months). If security risks are identified, replace or reinforce the parts promptly.

SAVE THIS MANUAL

PARTS LIST(TV STAND)

Install parts

(Be sure to check that the parts are complete before installation, and contact supplier if they are missing or damaged.)

A	M8*16 Gasket Pulley2pcs 2pcs 4pcs
B	M6*1211pcs
C	M6*12 Gasket4pcs 4pcs
D	Knob(M6*20)2pcs
E	Hex Key(M4) Hex Key(M5) Open End Wrench1pc 1pc 1pc

ASSEMBLY STEP

STEP1 (Install the Base)

Diagram of two vertical cylindrical objects with upward arrows indicating motion or force direction (no text or symbols)

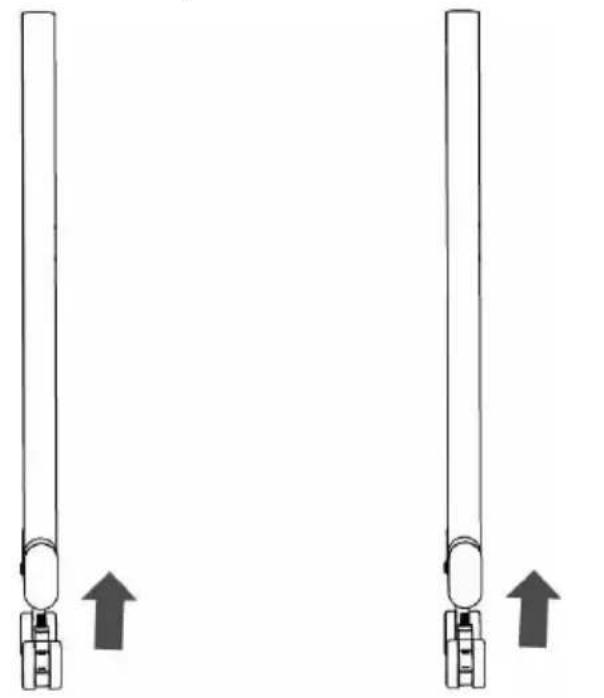

Assemble the lower post and pulley

Pulley Open End Wrench 4pcs

STEP2 (Install the Base)

A M8*16 A Gasket Hex Key 2pcs 2pcs

Simple line drawing of a mechanical lever system with two vertical posts and a central horizontal bar, no text or symbols present.

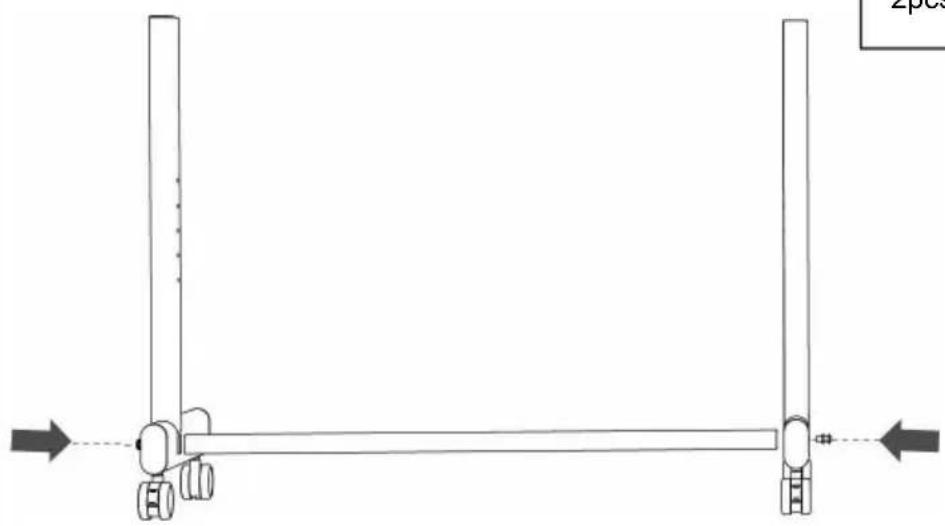

Install the base bar and base

STEP3 (Install the Base)

Shelf installation

B M6*12 Hex Key

11pcs

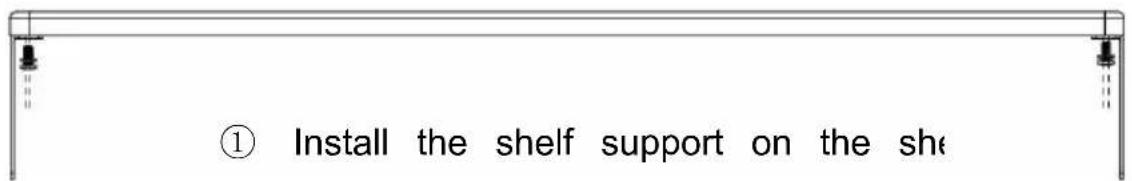

① Install the shelf support on the she

Pure diagram of a rectangular container with evenly spaced circular holes, no text or symbols present

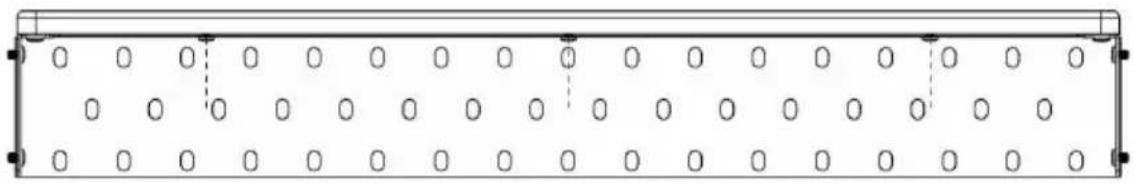

② Assemble the storage board and the cavity board tog

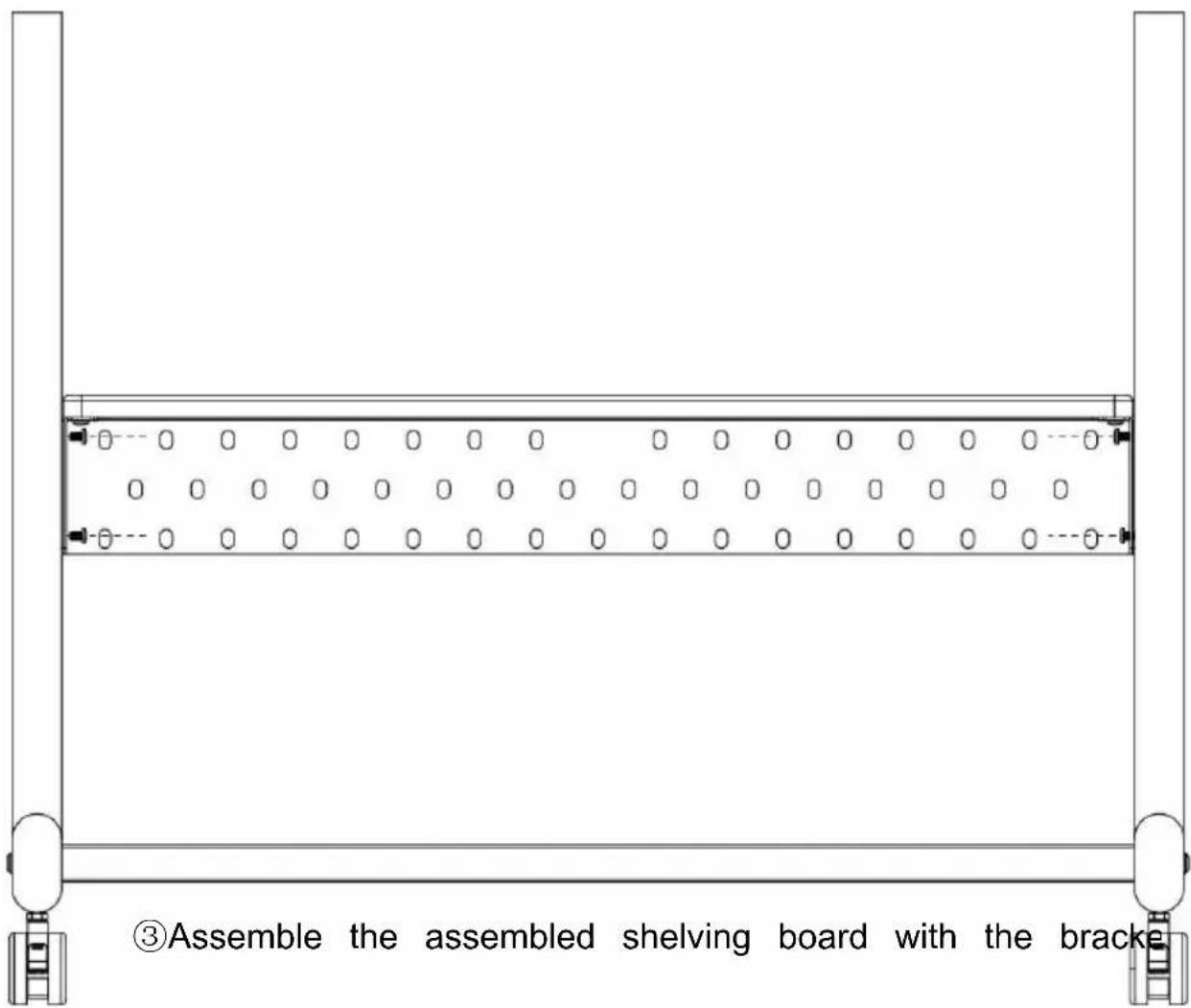

③Assemble the assembled shelving board with the bracket

STEP4 (Erection of Upper Column)

Install the base bar and base

C M6*12 C Gasket Hex Key

4pcs 4pcs

Simple line drawing of a vertical frame with horizontal bars and corner markers (no text or symbols)

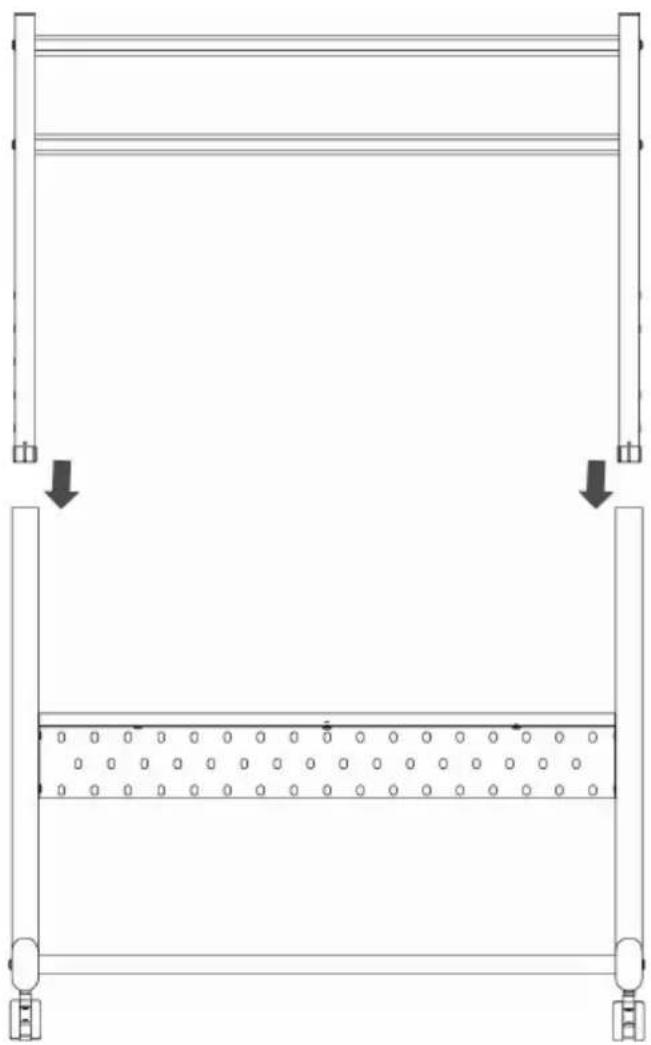

Insert the upper post into the lower po

Pure structural diagram of a frame with supports and arrows indicating forces or dimensions (no text or symbols)

STEP5 (Erection Of Upper Column)

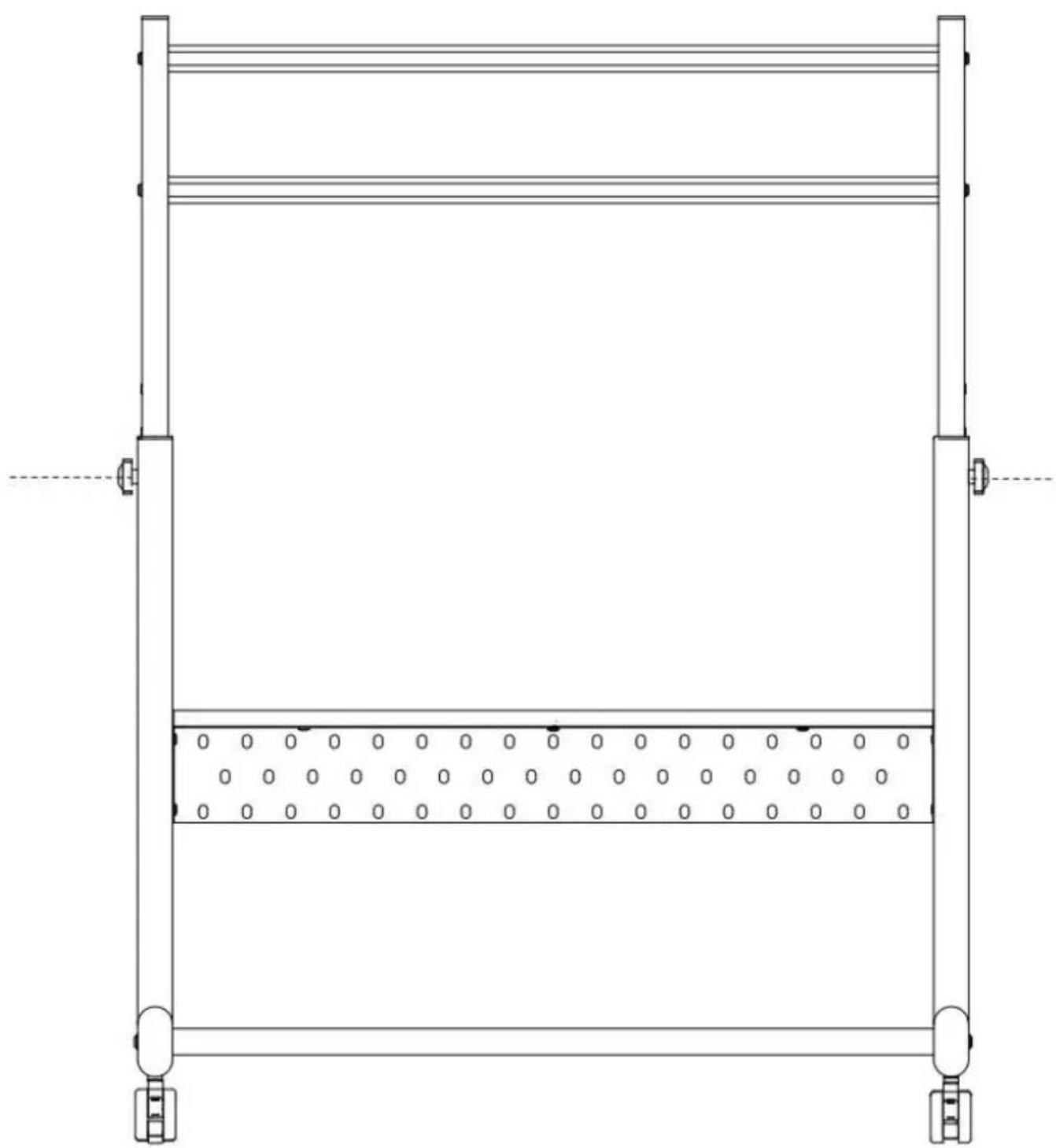

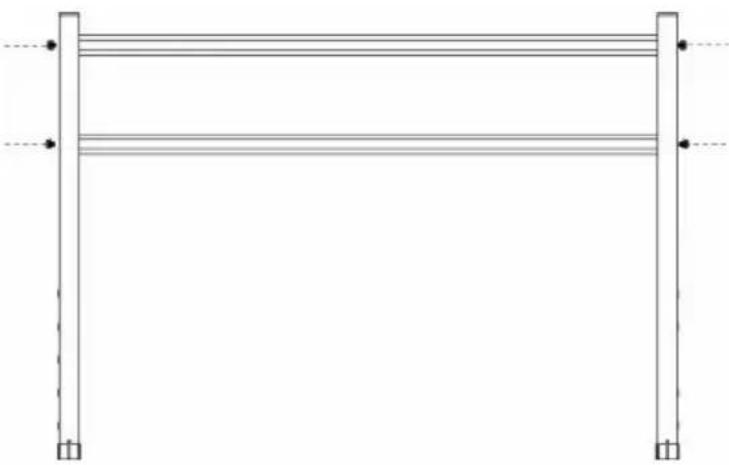

Install knobs

D M6*20

2pcs

Technical line drawing of a structural frame with supports and a central perforated component (no text or symbols)

PARTS LIST(TV SCREW FITTINGS

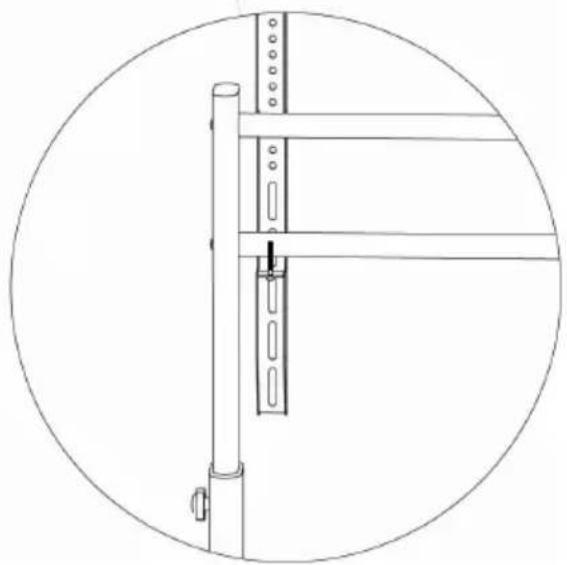

STEP6 (Hook Installation)

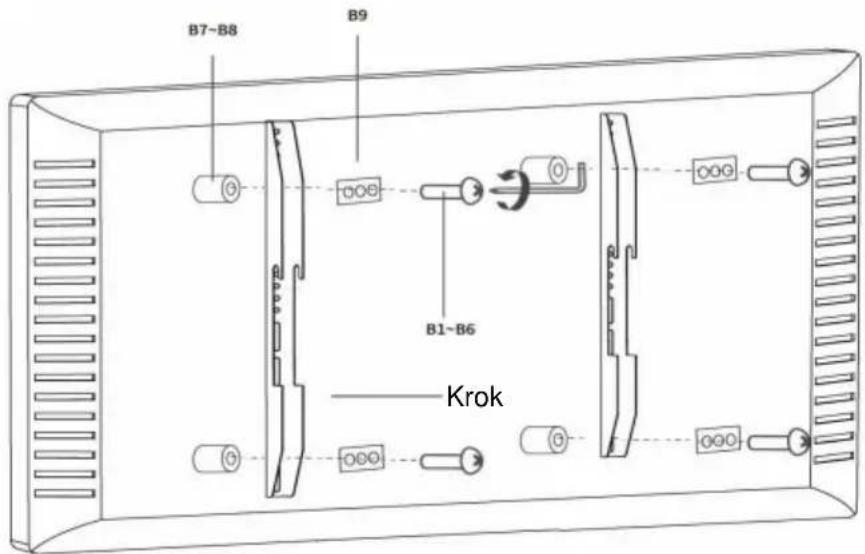

B7-B8 B9 B1-B6 Hook

Figure A

Figure B

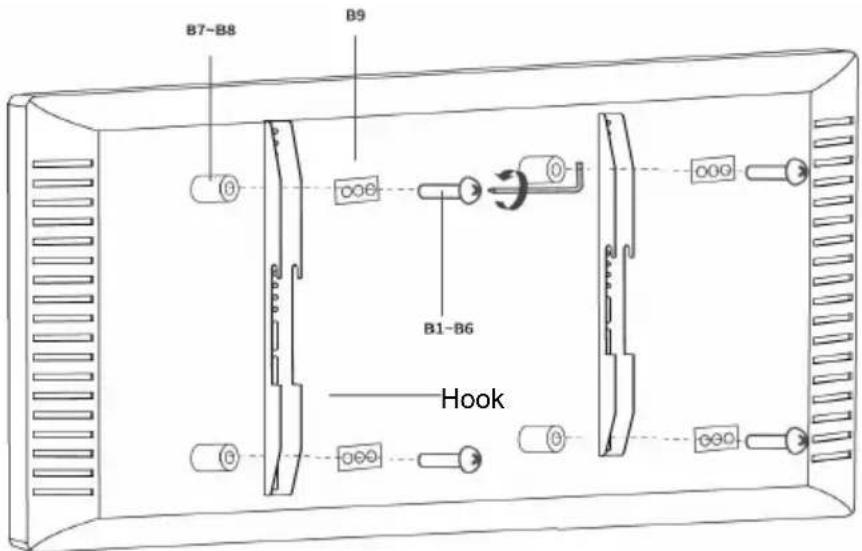

Install the TV heightening pad, which be installed in the middle of the hook the TV (as shown in Figure A) or ab the hook (as shown in Figure B) acc to the demand.

Note: The screws should not be too short or too long installing, and the long screws can be installed between hook and the TV.

When installing B1-B6 screws, use them according to the actual requirement. Select gaskets based on the screw type. Using increasing pad according to actual requirements or do not install them.

STEP7 (The TV is Mounted on the Panel)

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

Two stylized human figures holding a rectangular sign (no text or symbols)

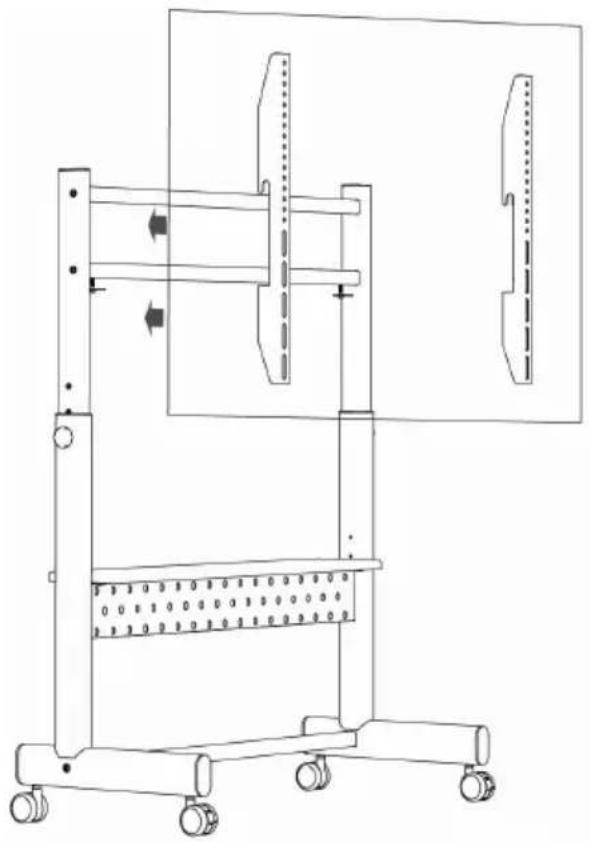

Hang the TV on the TV stand and tie the safety screws

Technical line drawing of a mechanical assembly with vertical supports and a circular outline (no text or symbols)

PRODUCT PARAMETER

Model	YBTC-03
Safe Loading Weight	Overall 250 LBSTV Position: 205 LBSPallet: 45 LBS
Product Size	995*463*(1578-1378)mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.
