USER MANUAL FSH25-G1 Vevor

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STAND

MODEL:FSH25-G1

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STANI

MODEL:FSH25-G1

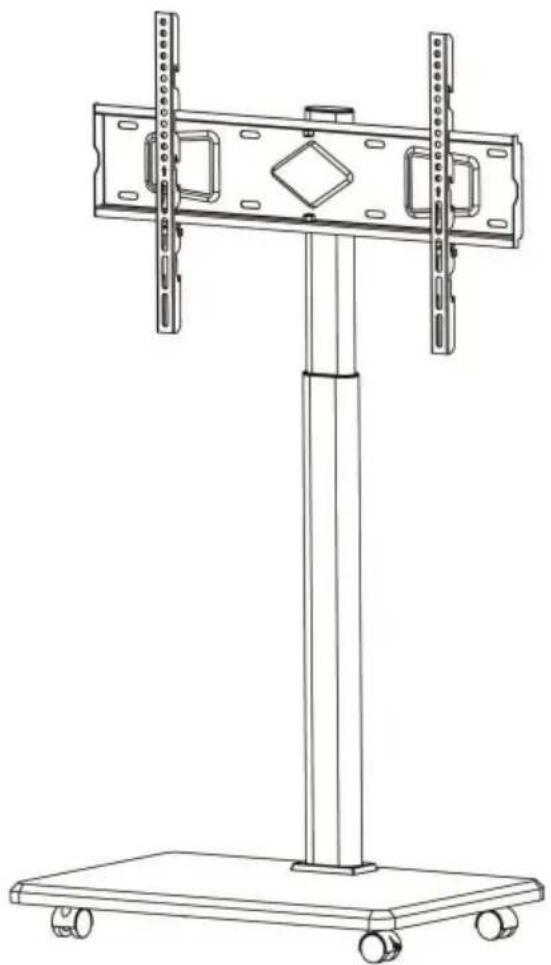

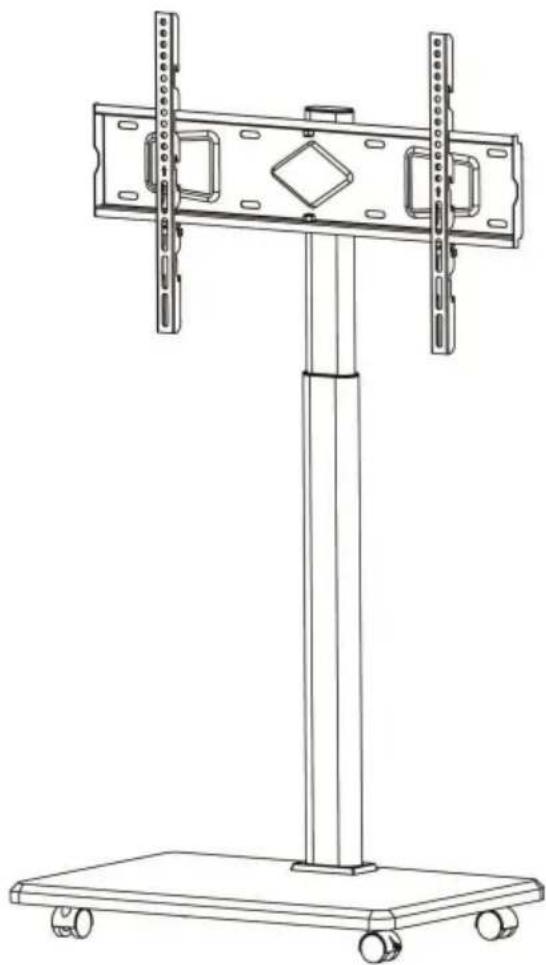

Technical line drawing of a mechanical support structure with vertical supports and wheels (no text or symbols)

100×100 100×400

100×200 200×400

200x200 300x400

200x300 400x400

300x300 400x600

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FSH25-G1

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Before installation, please ensure that your TV stand mounting ho dimensions, and weight can meet the specifications and standards the TV stand. If you have any questions or questions about the instructions and warnings, please contact us for help..

Important:

1. When installing the support, please use professional safety devices and tools in accordance with the requirements of the assembly instructions. Improper installation may cause the TV to fall or serious injury.
2. Before installation, ensure that the support surface can safely support the weight of the device and all accessories.
3. Please do not exceed the intended load capacity, otherwise it may cause serious injury or property damage.
4. This product contains small parts, swallowing them may cause choking hazards. Please keep out of reach of children.
5. This product is only suitable for indoor use, outdoor use may cause product damage and personal injury risk.

Maintenance:

Please check the connection between the bracket and the TV periodic to ensure it remains stable, and verify that the screws have not loos fallen off due to long-term use (at least once every three months). If security risks are identified, replace or reinforce the parts promptly.

SAVE THIS MANUAL

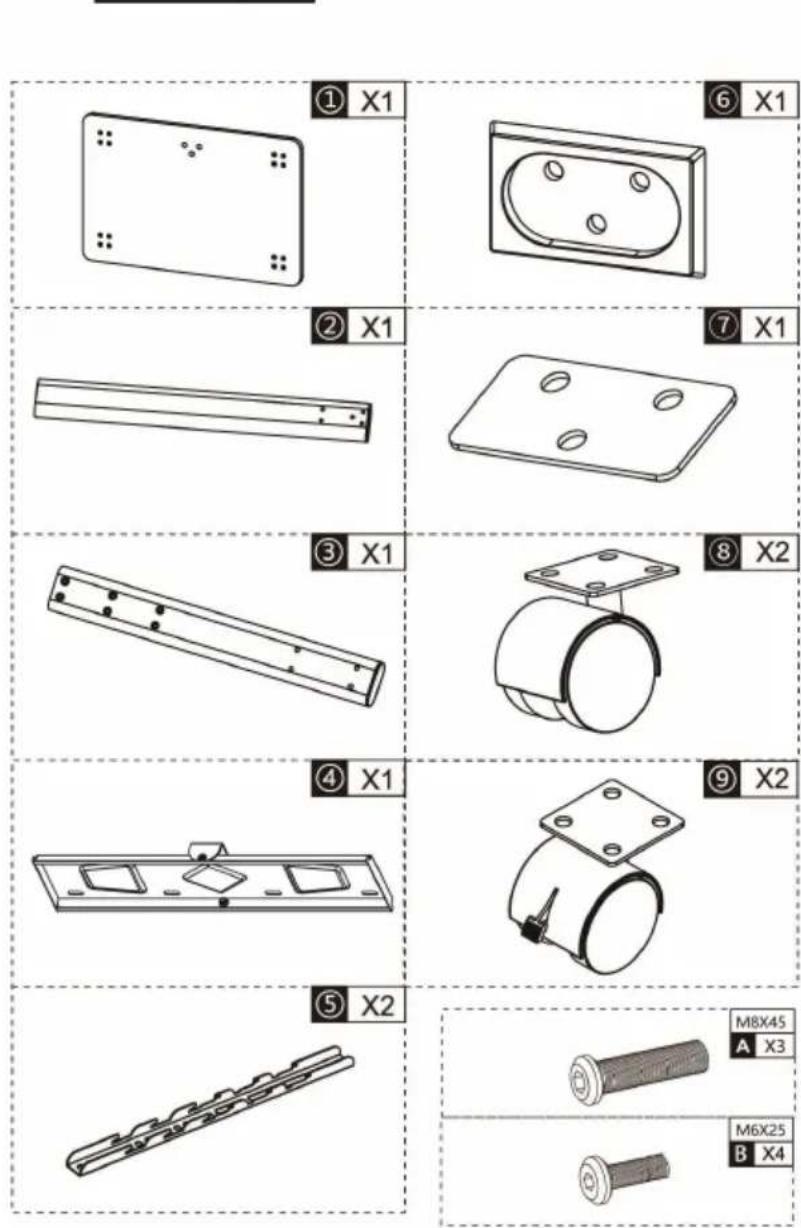

PARTS LIST

PART LIST

Plastic Washer

Steel Washer

M6X16X1.5
C X4

M6X40
D X4

EX2

FX2
M6X10
G X16

H X2

I X1
M5

I X1
M4

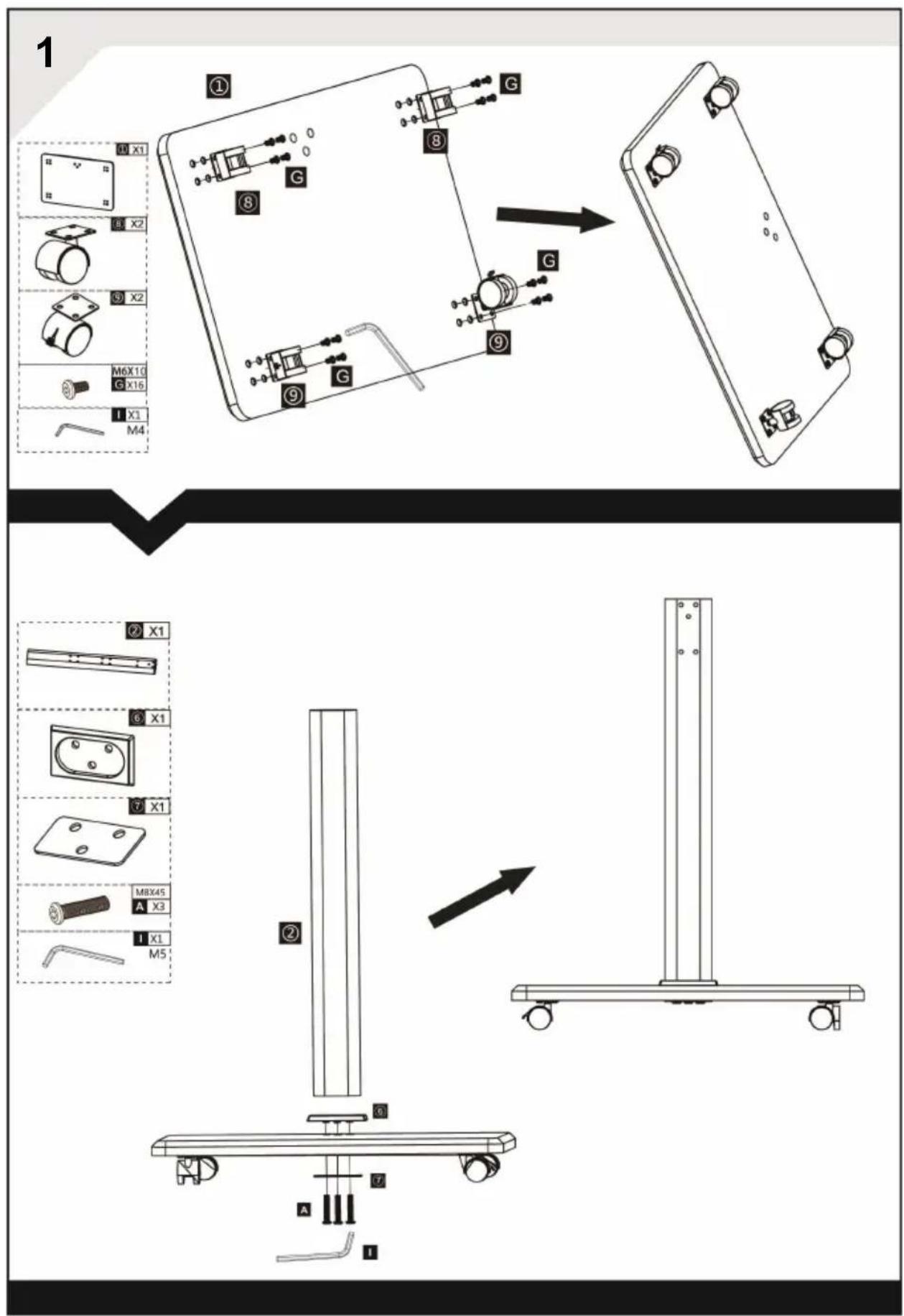

FOR TV INSTALLATION

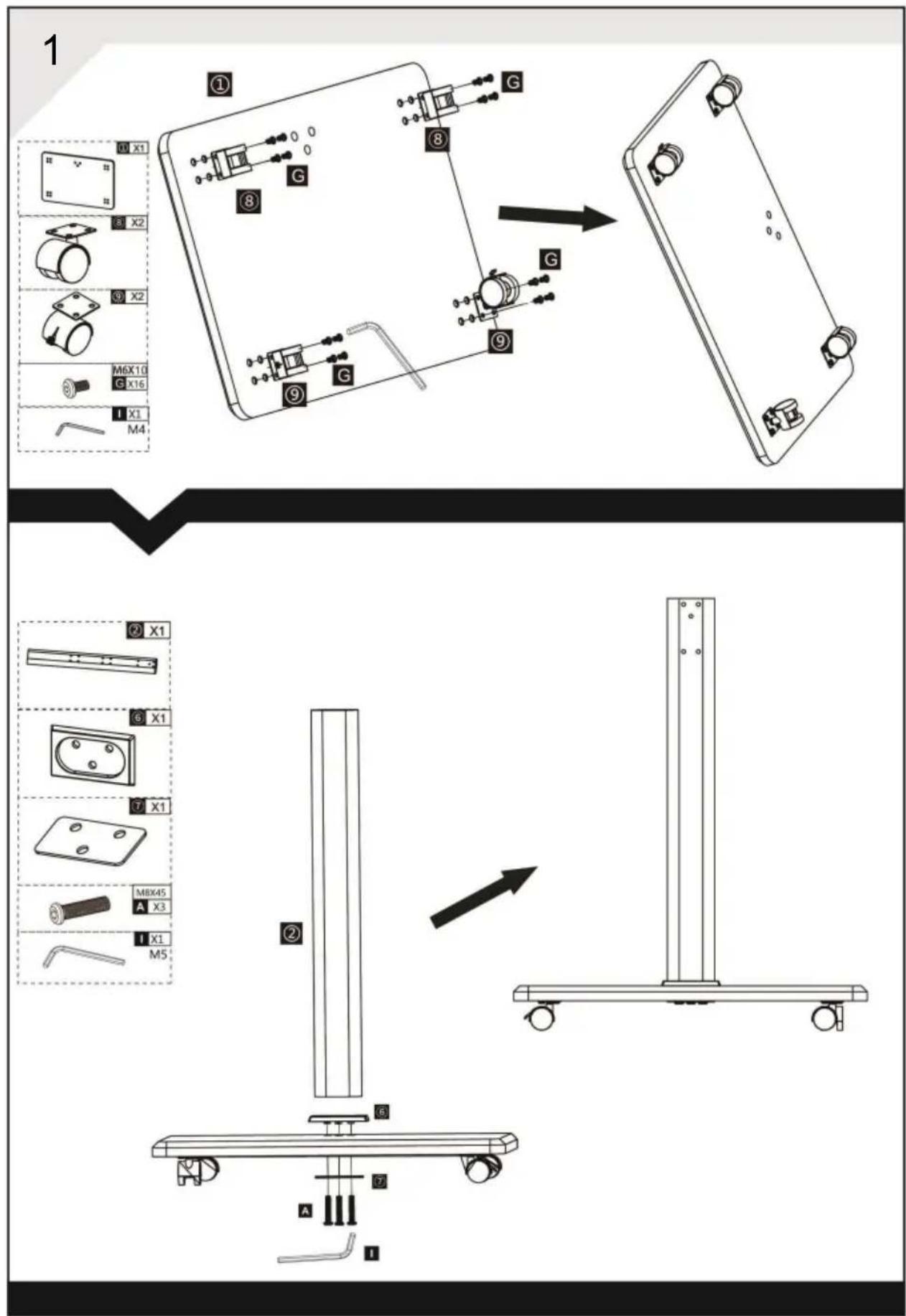

1 ① ⑧ G ⑧ X1 ⑧ X2 ⑧ X2 M6X10 G X16 I X1 M4. ⑨ G ⑨ ② X1 ⑥ X1 ⑥ X1 MBX45 A X3 I X1 M5. ② A 7 I

2

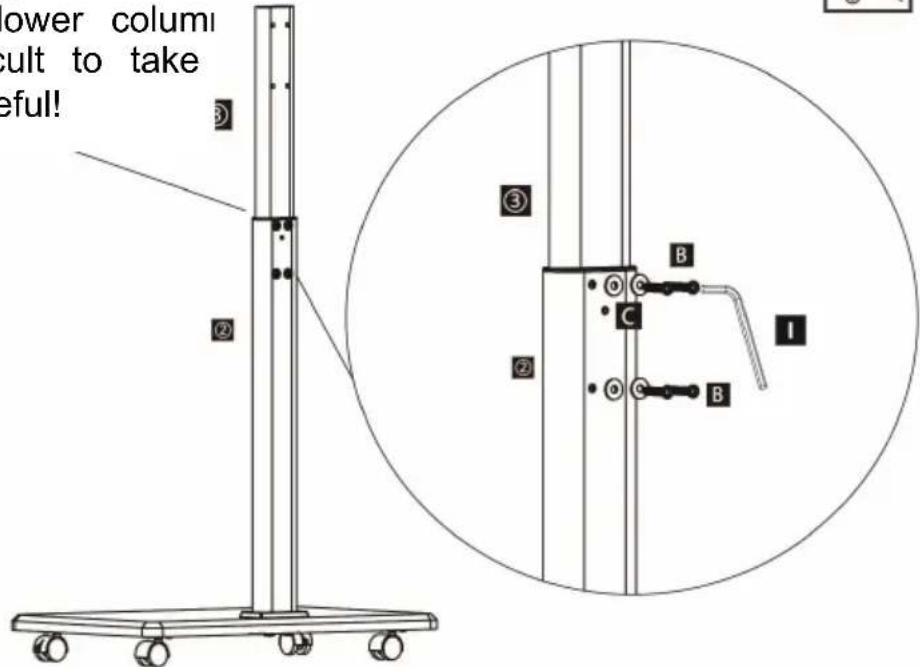

Note: If the upper column falls into the lower column it will be difficult to take please be careful!

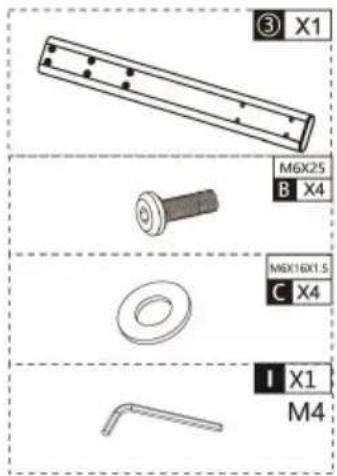

③ X1 M6X25 B X4 M6X16X1.5 C X4 I X1 M4

ower column cult to take eful! ③ ② ③ B C I ② B

NOT INCLUDED

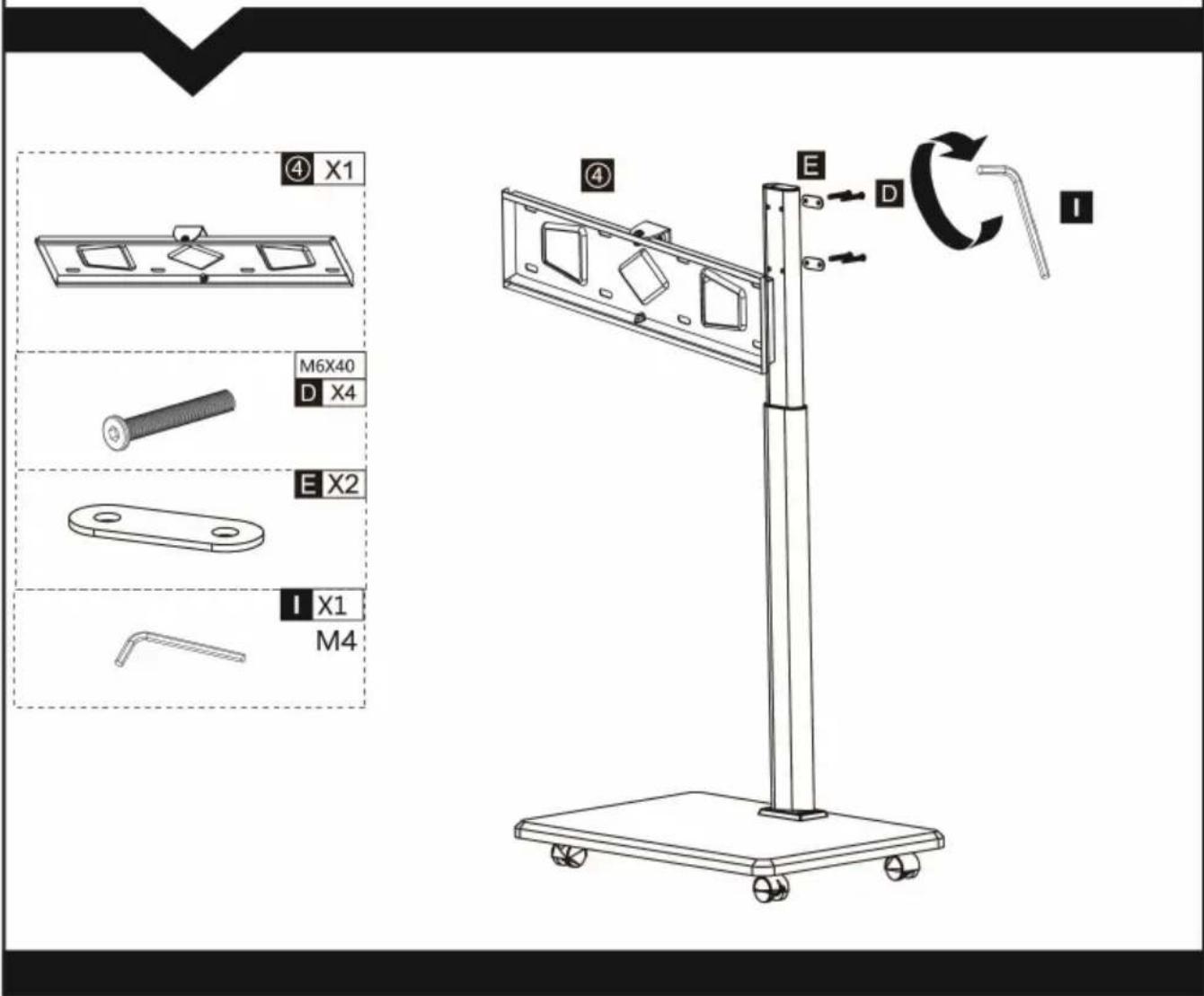

④ X1 M6X40 D X4 E X2 I X1 M4 ④ E D I

3

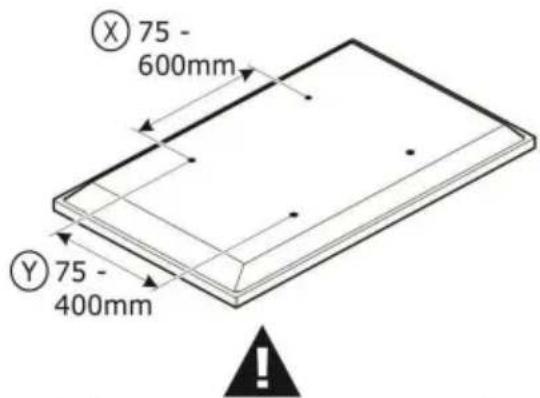

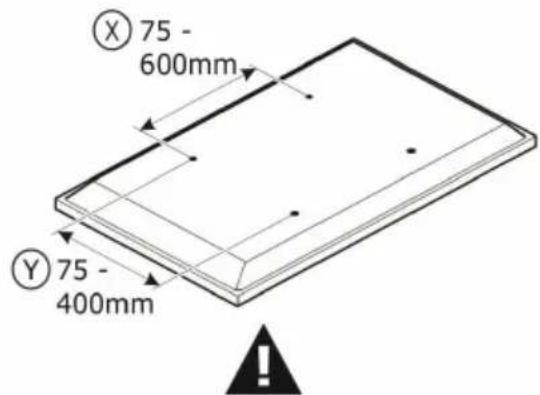

Measure the TV fixing holes Width and Height

X 75 - 600mm Y 75 - 400mm

If width Ⓕ is greater than 600mm or height ⬤ greater than 400mm STOP installation now and contact the customer help line

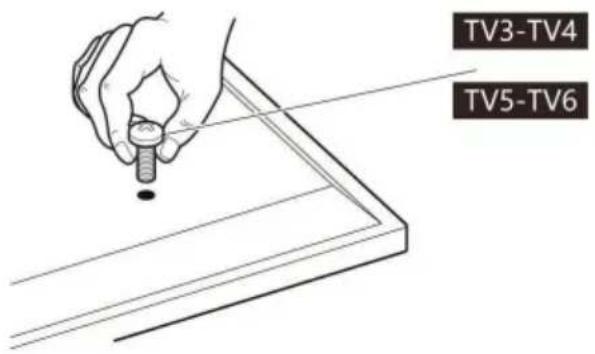

TV3-TV4 TV5-TV6

You are provided with 4 diameters of TV fixing screws, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with a central square and four corner holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes, no text or symbols present

WARNING

Please keep for future reference.

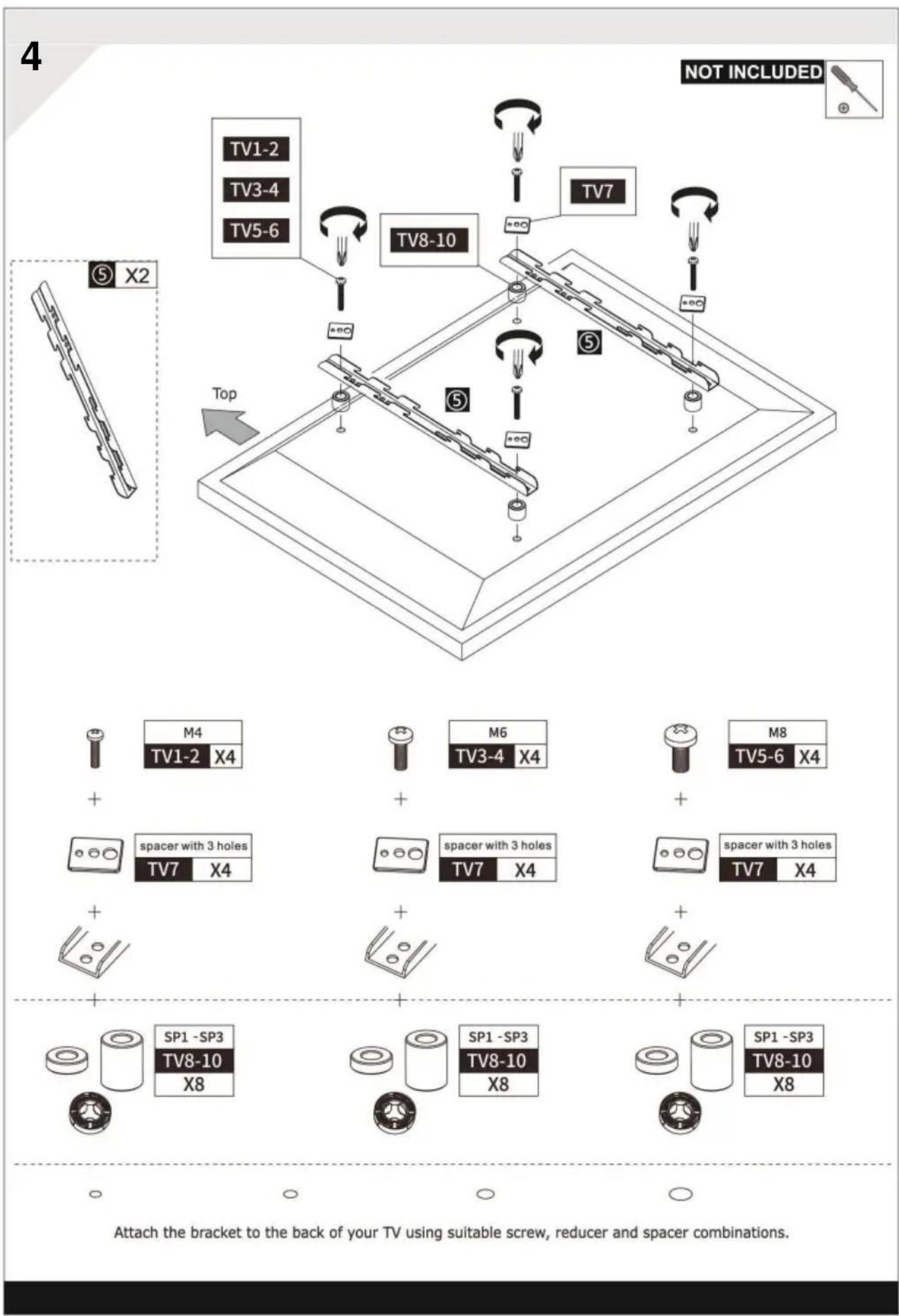

4 NOT INCLUDED TV1-2 TV3-4 TV5-6 TV8-10 TV7 ⑤ X2 Top ⑤ ⑤ M4 TV1-2 X4 + + M6 TV3-4 X4 + + M8 TV5-6 X4 spacer with 3 holes TV7 X4 spacer with 3 holes TV7 X4 spacer with 3 holes TV7 X4 SP1 -SP3 TV8-10 X8 SP1 -SP3 TV8-10 X8 SP1 -SP3 TV8-10 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

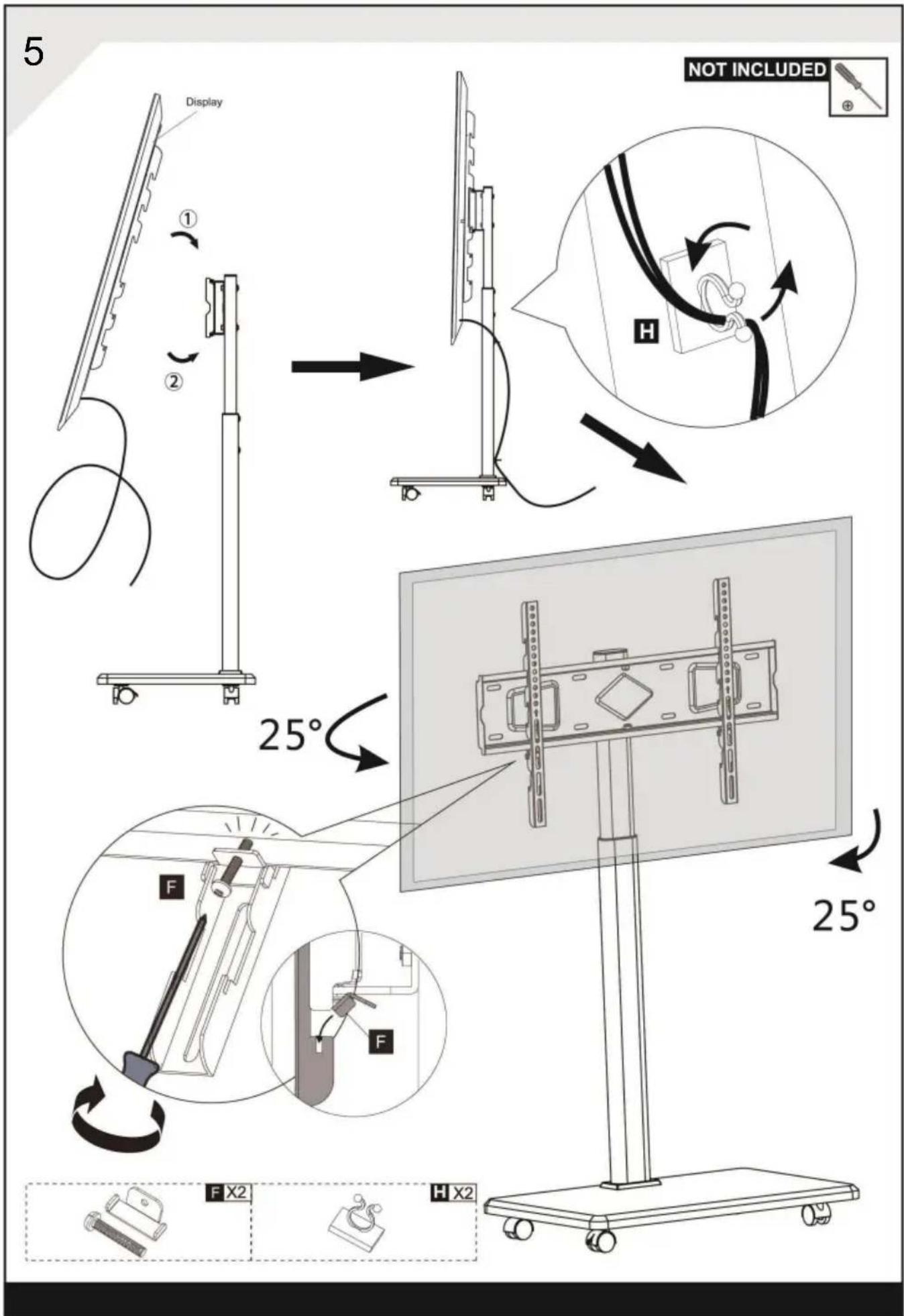

5 NOT INCLUDED Display ① ② H 25° F F X2 H X2 25°

Model	FSH25-G1
Safe Loading Weight	99 LBS
Product Size	660*380*(1145-1350)mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
