Multifunctional Weightlifting bed

MODEL: SJ7810

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SJ7810

Line drawing of a balance table with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

·Do not use it if you are pregnant

·Before beginning any exercise program consult your physician.

- Read all instruction before using this product.

- Keep children and pets away from sit-up bench while in use. Children should not use. The product. without adult supervision.

- Inspect and tighten all parts each time before using this sit-up bench

- Please clean this machine using damped wipes only.Do not use any cleansers.Please Consult with customer service if you have any questions

- This product should be placed on a flat surface when using. Place an anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

- Do not use it if it is not functional or parts are not well-assembled.

·If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

·Before use, always ensure that your product is positioned on a solid hard-flat surface.

- Store idle equipment out of reach of children and do not allow any unfamiliar with the equipment to use it. This tool is dangerous in the of untrained users.

- When using the product, the crowd of onlookers must keep adistan meters to avoid accidental injury.

Prohibition sign showing a person crossed out of a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

PLEASE NOTE : Some of the parts and hardwares listed on the pa may already pre-assembled

or installed on the unit. Read all instructions carefully before operating product. Retain this Users Manual for future reference.

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour sleep.
3. Please make exercise plans.

Part List

No.	Description	Qty	No.	Description	Qty
01	Main Frame	1	21	Foam Roller Tube 300mm	2
02	Front Upright	1	22	Locking Pin	1
03	Right Upright	1	23	Knob Bolt	3
04	Left Upright	1	24	Foam Roller 25mm	8
05	Base Tube	3	26	Spring Clip	3
06	Rear Cross Tube	1	27	Allen Bolt (M10x65 mm)	6
07	Backrest Adjustment Tube	1	28	Carriage Bolt (M10x65 mm)	6
08	Right Butterfly	1	29	Allen Bolt (M10x120 mm)	2
09	Left Butterfly	1	30	Bolt (M8x15 mm)	2
10	Handle bar	2	31	Hex Bolt (M6x15 mm)	6
11	Adjustable Upright Tube	2	32	Allen Bolt (M10x165 mm)	1
12	Arm Curl Frame	1	33	Hex Bolt (M6x40 mm)	4
13	Backrest Supporting Tube	2	34	Allen Bolt (M8x20 mm)	4
14	Arm Curl Cushion	1	35	Allen Bolt (M8x60 mm)	1
15	Backrest Cushion	1	36	Nylon Nut (M10)	15
16	Seat Cushion	1	37	Nylon Nut (M8)	3
17	Supporting Tube	1	38	Flat Washer (M10)	24
18	Leg Developer	1	39	Flat Washer (M8)	10
19	Arm Curl Bar	1	40	Flat Washer (M6)	10
20	Foam Roller Tube 310mm	2

Exploded Diagram

Please note that not all of the parts and hardware you see here will used while you are

assembling the machine because some of these are already pre-install

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
316PCS	321PC	334PCS	34[5GDS]6PCS
351PCS	36[OCT4]15PCS	373PCS	3824PCS
3910PCS	4010PCS

NOTE:

To avoid misalignment due to over-tightening, please do not use a w at this time.

Hand-tightening for now will help ensure easy assembly.

Wrench-tightening should be performed after all parts are assembled to ensure all nuts, bolts, and parts are tightly secured before use.

With the help of an assistant.

Assembly

Step 1:

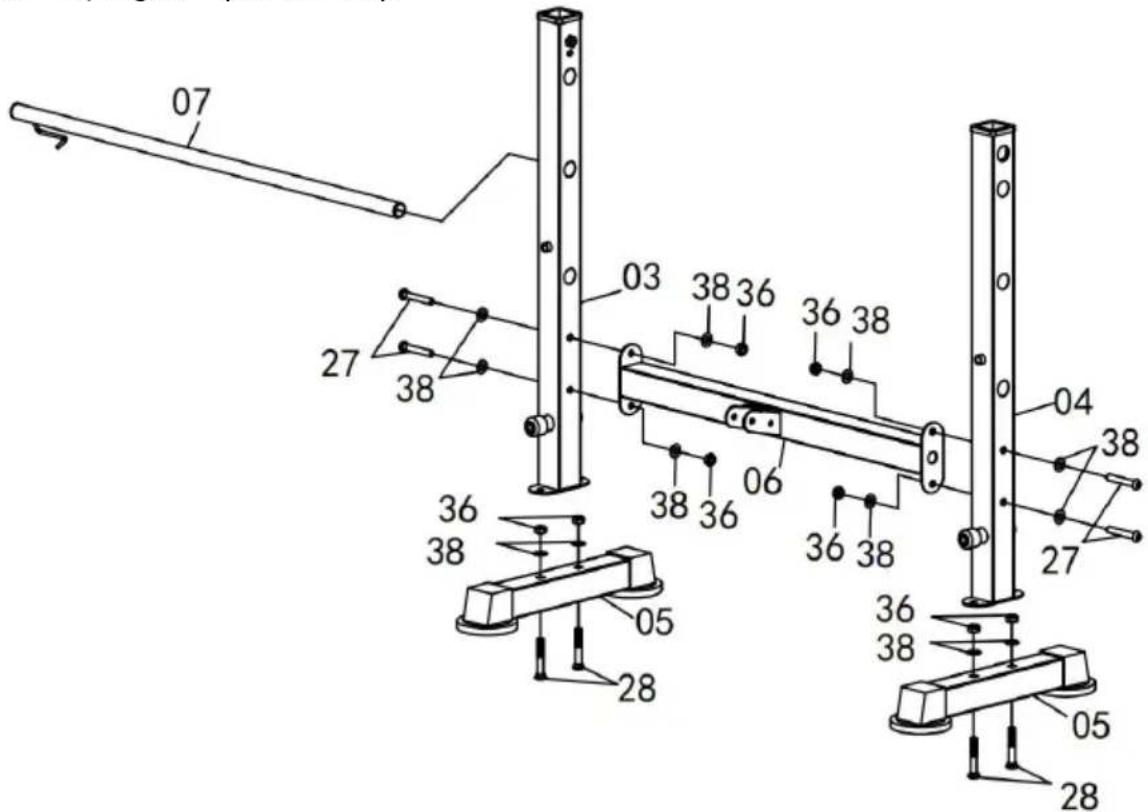

Attach the Left Upright (#04) to one Base tube (#05) by two Carriage (#28), two Flat Washers (#38) and two Nylon Nuts (#36). Repeat the process with the Right Support (#03).

Attach the Rear Cross Tube (#06) to the Left Upright (#04), secure Allen Bolts (#27), four Flat Washers (#38) and two Locknuts (#36). this process on the other side with the Right Support (#03).

Insert the Backrest Adjustment Tube (#07) to the hole of both Left a Right Upright (#04/#03).

07 27 38 03 38 36 36 38 04 38 36 38 36 38 27 36 38 05 28 05 28

Step 2:

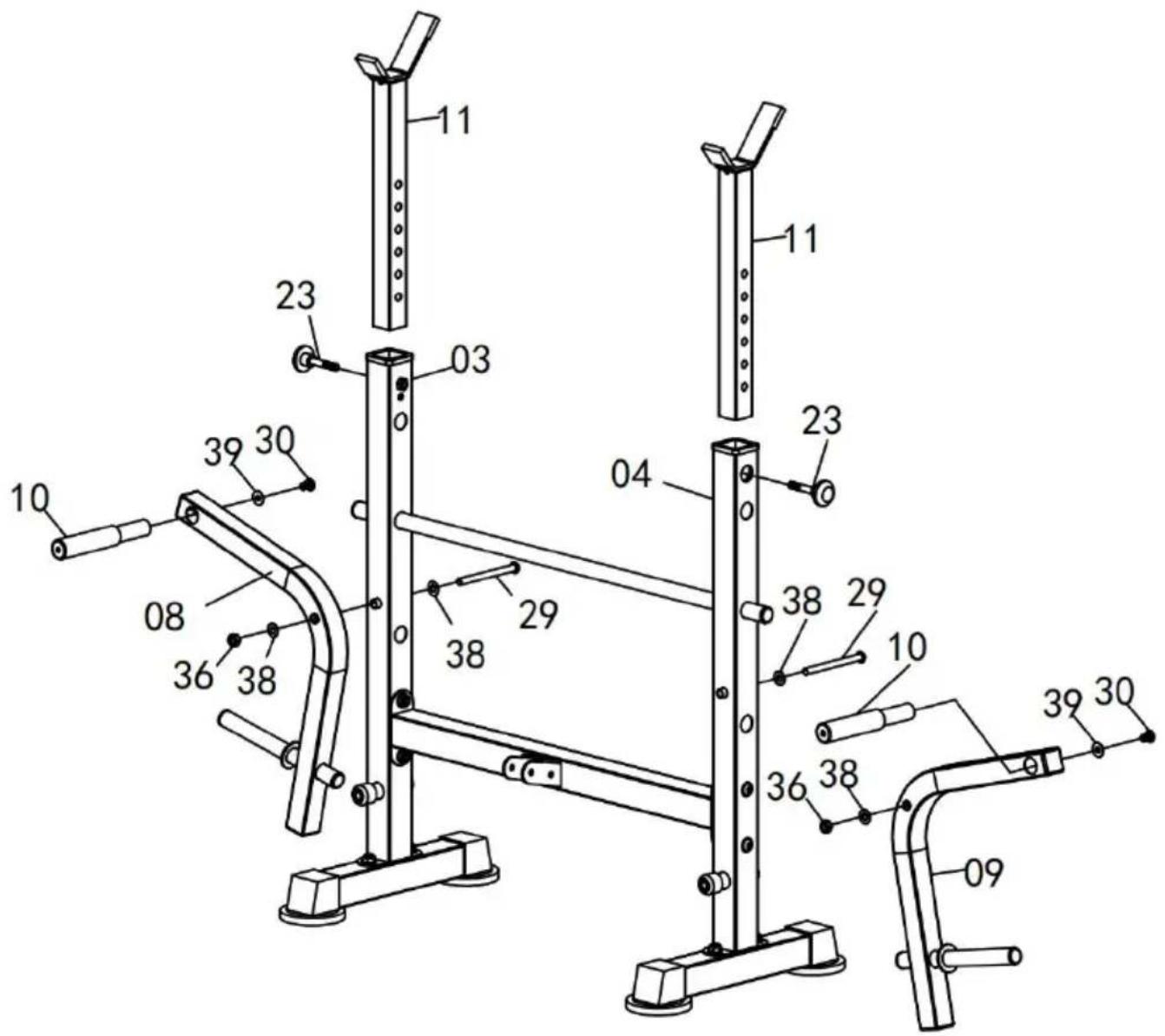

Insert the Adjustable Upright Tubes (#11) into the Left Upright (#04); Right Upright (#03) secure with two Knob Bolts (#23).

Attach the Left Butterfly (#09) to the Left Upright (#04). Secure them using one Allen Bolt (#29), two flat Washers (#38) and one Locknut (#36). Attach the Handle bar (#10) to the Left Butterfly (#09). Secure by using one Bolt (#30) and Flat Washer (#39). Repeat this process the Right Butterfly (#08).

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Step 3:

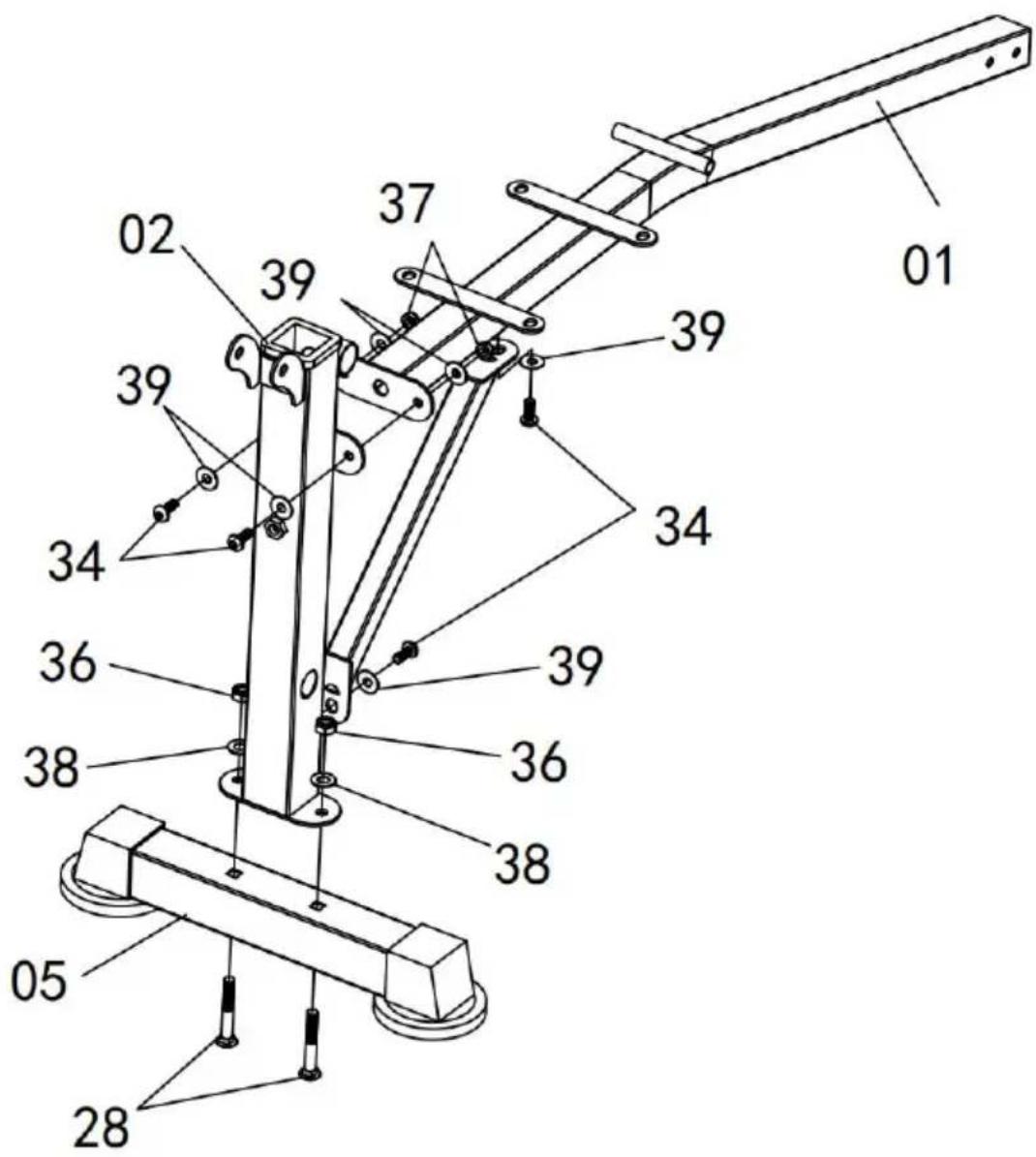

Attach the Front Upright (#02) to the Base tube (#05) and secure by two Carriage Bolts (#28), two Flat Washers (#38) and two Nylon Nuts (#36).

Attach the Front Upright (#02) to the Main Frame (#01) and secure using two Allen Bolts (#34), four Flat Washers (#39) and two Nylon N (#37).

Attach the Supporting Tube (#17) to the bottom of Main Frame (#01) the back of Front Upright (#02) using two Allen Bolts (#34) and two Washer (#39) as shown in the diagram below.

01 37 02 39 39 34 36 38 34 39 36 38 05 28

Step 4:

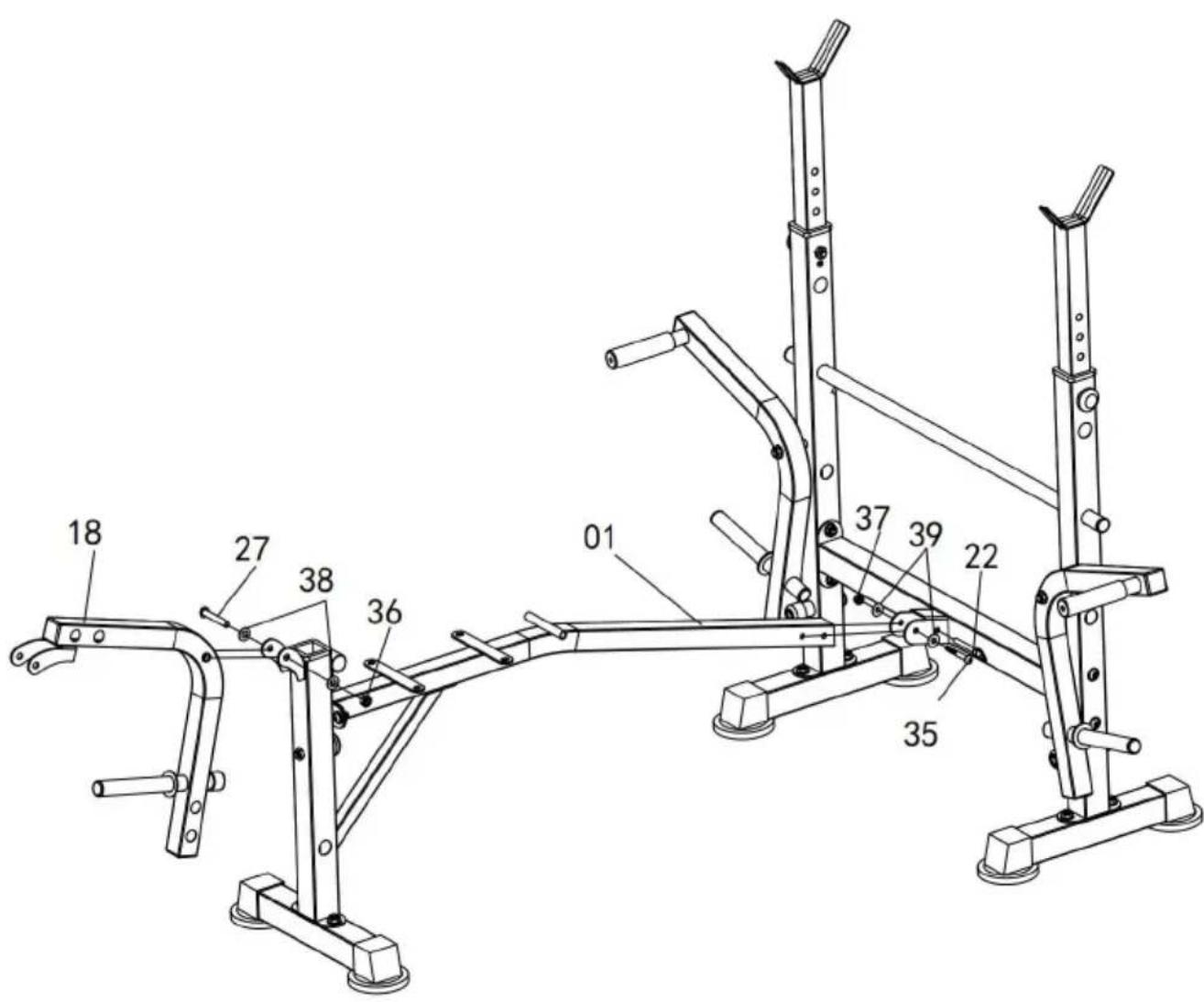

Attach the Main Frame (#01) onto the Rear Cross Tube (#06) using Allen Bolts (#35), two Flat Washers (#39) and one Nylon Nut (#37). insert the locking Pin(#22)

Attach the Leg Developer (#18) to bracket of Front Upright (#02). Set together using one Allen Bolt (#27), two Flat Washers (#38) and one Nut (#36)

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Step 5:

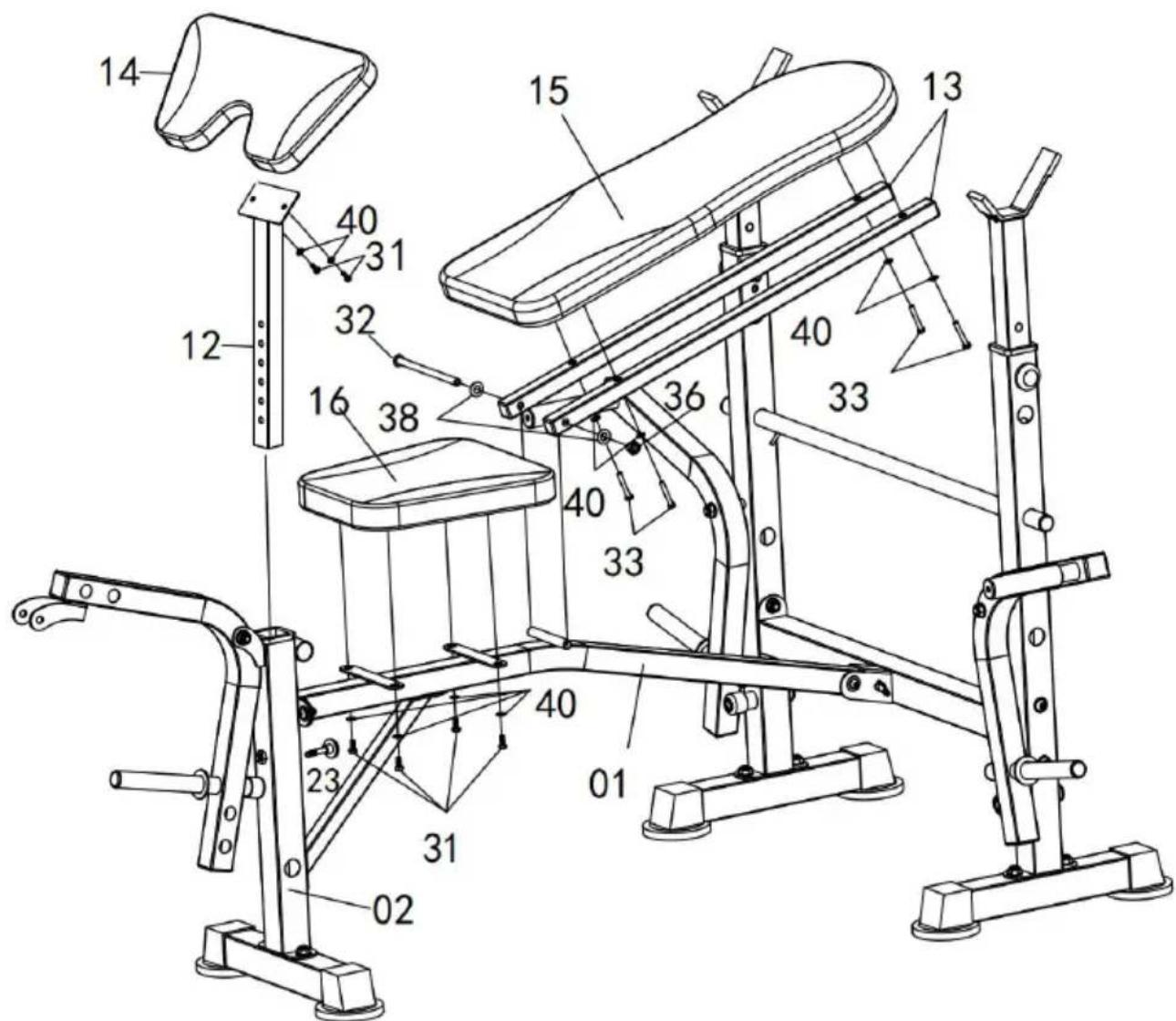

Attach the Backrest Supporting Tubes (#13) to the each side of the rod on Main Frame (#01) using one Allen Bolts (#32), two Flat Washes and one Nylon Nut (36) as shown in the diagram below.

Attach the Backrest Cushion (#15) gently onto the Backrest Supporting Tubes (#13) by four Hex Bolts (#33) and four Flat Washers (#40) Attach the Seat Cushion (#16) to the two plates on the Main Frame as shown in diagram. Secure them together by four Hex Bolts (#31) four Flat Washers (#40).

Attach the Arm Curl Cushion (#14) to the Arm Curl Frame (#12) using Hex Bolts (#31) and two Flat Washers (#40). Then insert to the From Upright (#02) secure with Knob Bolt (#23).

Technical diagram of a gym equipment with numbered components and measurement annotations

Step 6:

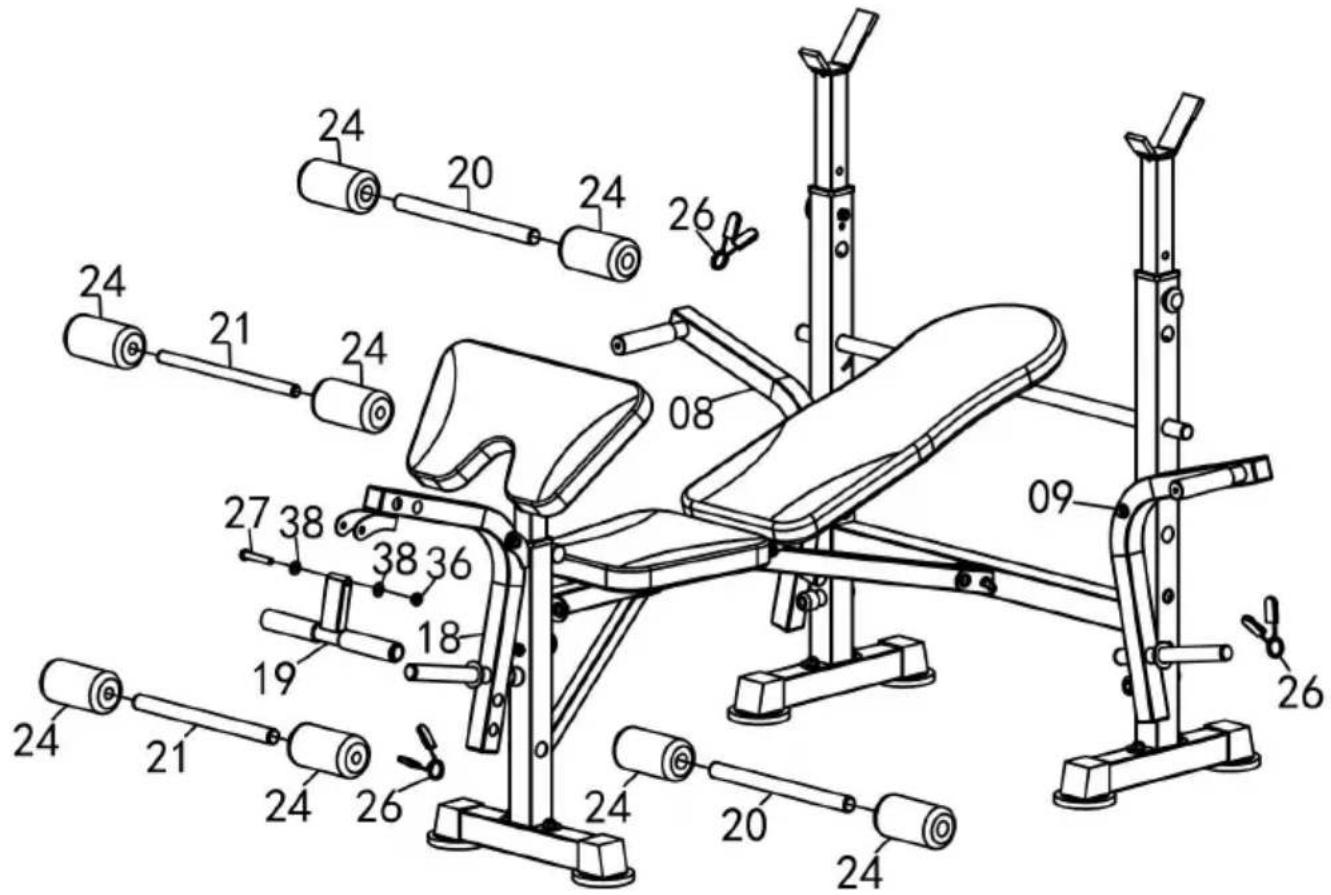

Attach the Arm Curl Handle Bar (#19) to the bracket of the Leg Dev (#18) using one Allen Bolt (#27), two Flat Washers (#38) and one N Nut (#36).

Insert two Foam Roller Tubes 310mm (#20) to the hole of the Front (#02), slide the Foam Rollers (#24) onto one end of Foam Roller Tu 310mm (#20).

Next, Insert two Foam Roller Tubes 300mm (#21) to the hole of the Developer (#18), slide the Foam Rollers (#24) onto one end of Foam Tubes 300mm (#21).

Attach the Spring Clips (#26) to the weight plate tube of Left/Right E (09/08) and butterfly (#18).

Technical diagram of a gym bench with numbered parts and labeled body parts

THE ASSEMBLY PROCESS IS NOW COMPLETE.

For your safety, Please tighten the screw and adjust it to the appropriate position.

Please visually and functionally inspect and test the unit after assemb complete.

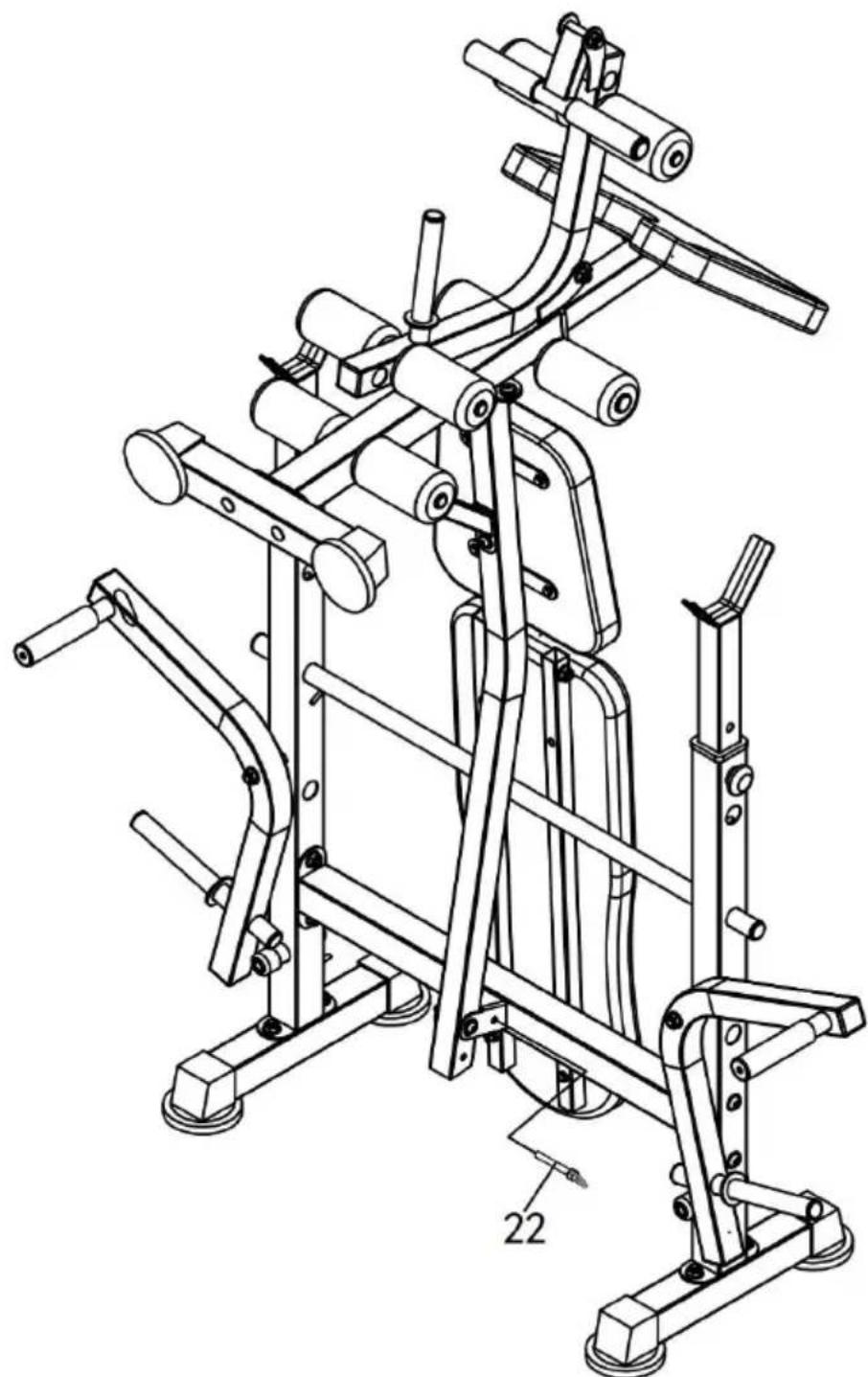

Step 7: The following figure shows the folded state of the product.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

NOTE :The Maximum Weight Capacity for this product is 660 lbs or 300kgs. Only one person should use this piece of equipment at one

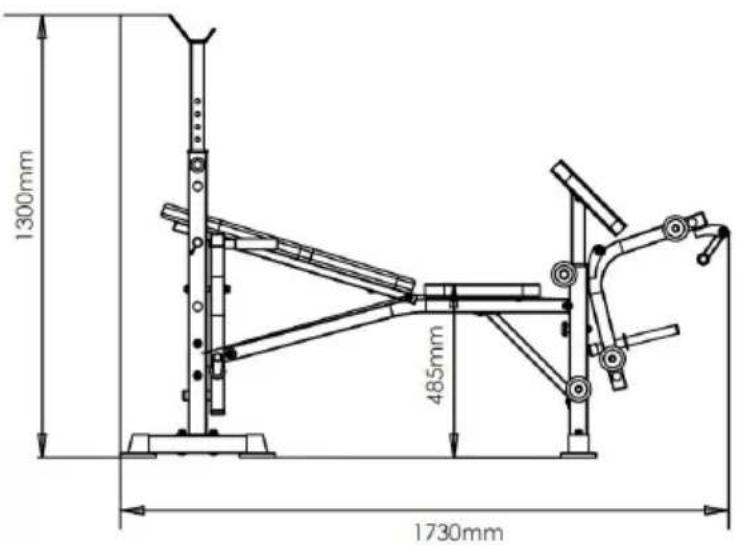

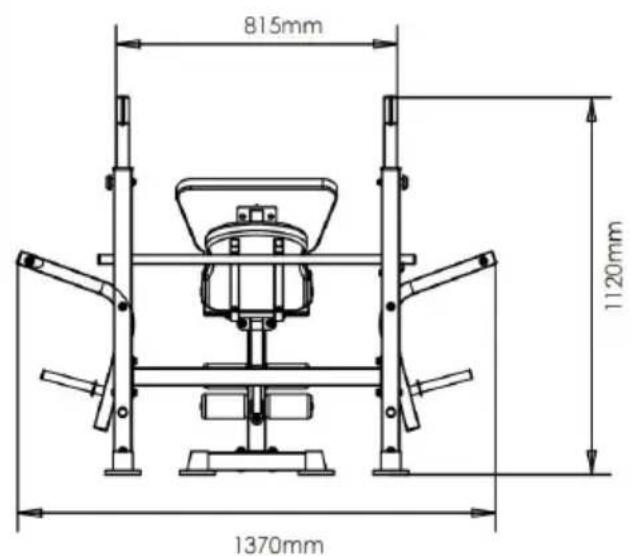

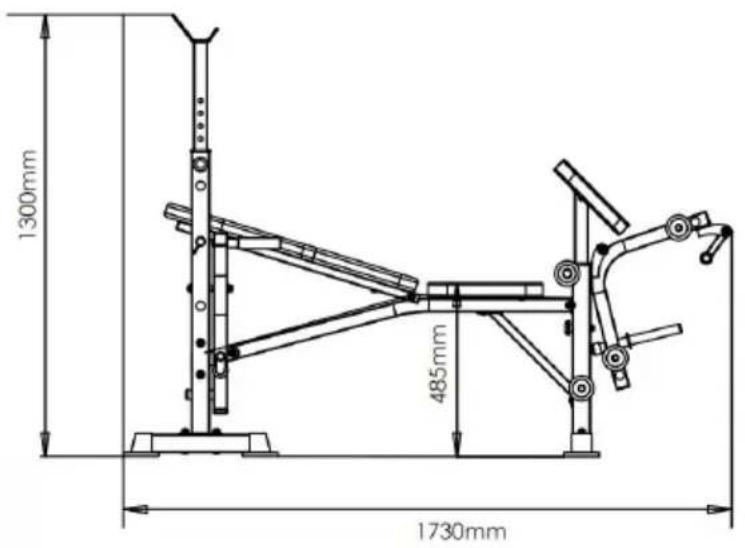

Product size chart

Line drawing of a balance exercise machine with no text or symbols

1300mm 485mm 1730mm

815mm 1120mm 1370mm

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tight the screws

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Weightlifting bed

MODÈLE : SJ78 10

Line drawing of a balance table with adjustable arms and legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Prohibition symbol of a person crossed out, no text or numbers present

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
31[7CK8]6PCS	321PC	334PCS	34[25HG]6PCS
351PCS	3615PCS	37[4ZW]3PCS	38[2YCB]24PCS
39[Y65S]10PCS	4010PCS

NOTE:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Étape 3 :

Two simple line drawings of vertical supports with circular holes, no text or symbols present

Étape 5 :

Technical diagram of a gym equipment with numbered components and labeled parts

Étape 6 :

Technical diagram of a gym bench with numbered parts and roller weights labeled for identification.

LE PROCESSUS D'ASSEMBLAGE EST MAINTENANT TERMINÉ.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Cleaning and disinfection

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

Line drawing of a balance table with adjustable arms and legs (no text or symbols)

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
316PCS	321PC	334PCS	346PCS
351PCS	3615PCS	373PCS	3824PCS
39[ZA0A]10PCS	4010PCS

NOTIZ:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Schritt 3:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Schritt 5:

Technical diagram of a gym equipment with numbered components and measurement annotations

Schritt 6:

Technical diagram of a gym bench with numbered parts and labeled body parts

DER MONTAGEVORGANG IST JETZT ABGESCHLOSSEN.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Cleaning and disinfection

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a balance table with adjustable arms and legs (no text or symbols)

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.[W2CB]1PC	4.[S7GH]1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
31[2XBY]6PCS	321PC	334PCS	34[XSHA]6PCS
351PCS	36[ZZYK]15PCS	373PCS	3824PCS
3910PCS	4010PCS

NOTA:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Fase 3:

Two simple line drawings of vertical support structures with circular holes, no text or symbols present.

Fase 5:

Technical diagram of a gym equipment with numbered components and measurement annotations

Fase 6:

Technical diagram of a gym bench with numbered parts and labeled body parts

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Cleaning and disinfection

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Multifunctional Weightlifting bed

MODELO: SJ78 10

Line drawing of a balance table with adjustable arms and legs (no text or symbols)

Prohibition sign showing a walking figure crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
31[50G7]6PCS	321PC	334PCS	346PCS
351PCS	36[0xCS]15PCS	37[2x6T]3PCS	3824PCS
3910PCS	4010PCS

NOTA:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Paso 3:

Two simple line drawings of vertical metal supports with circular holes, no text or symbols present.

Paso 5:

Technical diagram of a gym equipment with numbered components and labeled parts

Paso 6:

Technical diagram of a gym bench with numbered parts and roller weights labeled for identification.

EL PROCESO DE MONTAJE YA ESTÁ COMPLETO.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Line drawing of a balance beam exercise machine (no text or symbols)

Cleaning and disinfection

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

Line drawing of a balance table with adjustable arms and legs (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Prohibition symbol of a person crossed out, no text or numbers present

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
316PCS	321PC	334PCS	34[6WX6]6PCS
351PCS	3615PCS	37[24W3]3PCS	38[0587]24PCS
3910PCS	4010PCS

NOTATKA:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Krok 3:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Krok 5:

Technical diagram of a gym equipment with numbered components and labeled parts

Krok 6:

Technical diagram of a gym bench with numbered parts and labeled body parts

PROCES MONTAŻU ZOSTAŁ ZAKOŃCZONY.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Line drawing of a balance beam exercise machine (no text or symbols)

1300mm 485mm 1730mm

815mm 1120mm 1370mm

Cleaning and disinfection

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

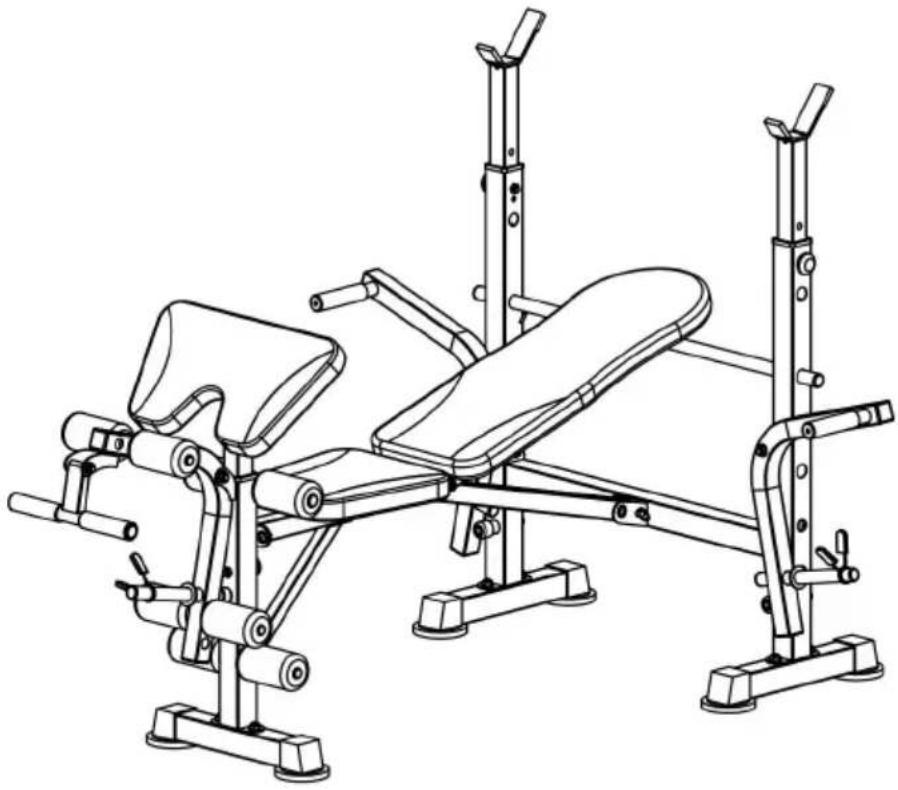

Multifunctional Weightlifting bed

MODEL: SJ78 10

Line drawing of a balance beam exercise machine (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Prohibition symbol of a person crossed out, no text or numbers present

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
316PCS	321PC	334PCS	346PCS
351PCS	36[AX2S]15PCS	373PCS	3824PCS
3910PCS	4010PCS

OPMERKING:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Stap 3:

Two simple line drawings of vertical support structures with circular holes, no text or symbols present.

Stap 5:

Technical diagram of a gym equipment with numbered components and measurement annotations

Stap 6:

Technical diagram of a gym bench with numbered parts and roller weights labeled for identification.

HET MONTAGEPROCES IS NU VOLTOOID.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Cleaning and disinfection

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a balance beam exercise machine (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Prohibition symbol showing a person crossed out of a diagonal line, enclosed in a circle (no text or numbers present)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Technical diagram of mechanical assembly with numbered components and dimension annotations

Part List

1.1PC	2.1PC	3.1PC	4.1PC
5.1PC	6.1PC	7.1PC	8.1PCS
91PC	102PCS	112PCS	121PC
132PCS	141PC	151PC	161PC
171PC	181PC	191PC	202PCS
212PCS	221PC	233PCS	248PCS
263PCS	276PCS	286PCS	292PCS
316PCS	321PC	334PCS	34[A5BY]6PCS
351PCS	3615PCS	373PCS	3824PCS
3910PCS	4010PCS

NOTERA:

Technical diagram of a mechanical exercise apparatus with numbered components for identification

Steg 3:

Technical diagram of a mechanical exercise frame with numbered components for identification

Steg 5:

Technical diagram of a mechanical exercise machine with numbered components and labeled parts

Steg 6:

Technical diagram of a gym bench with numbered parts and labeled body parts

MONTERINGSPROCESSEN ÄR NU AVSLUTAD.

Technical line drawing of a mechanical exercise machine with no visible text or symbols

Cleaning and disinfection

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support
