USER MANUAL ZM8008 Vevor

Affordable. Reliable. Home Improvement.

DIESEL HEATER

MODEL:ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODEL:ZM8008

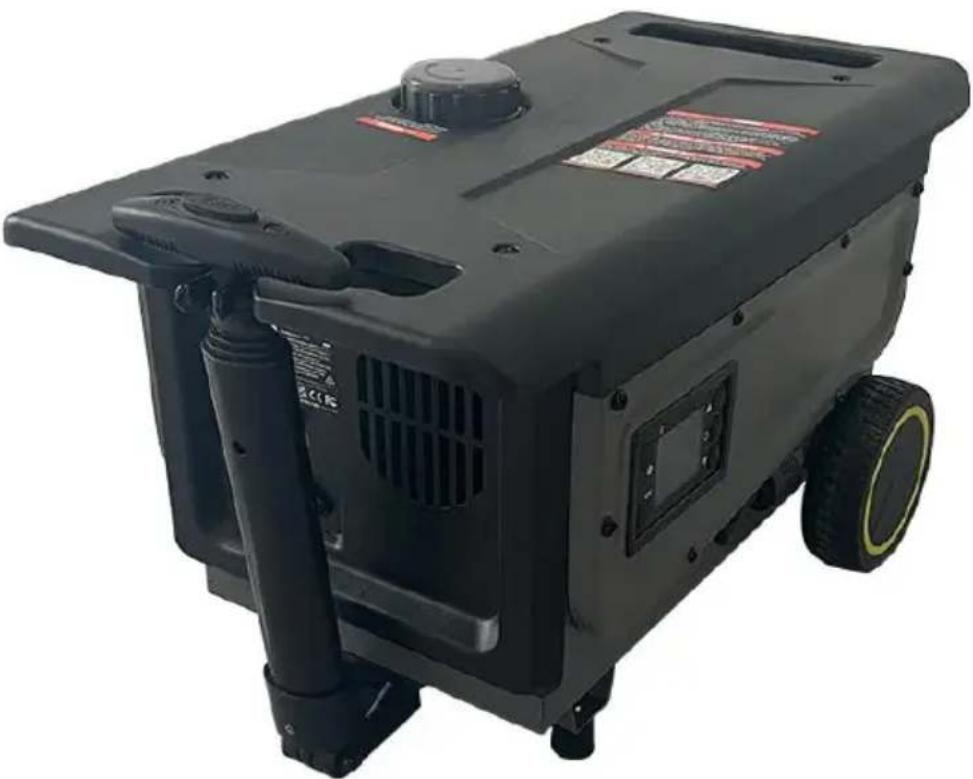

Black industrial gas generator with visible wheels and control panel (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendations shown below.
	CORRECT DISPOSAL: This product is subject to the provisi European Directive 2012/ 19/EC. The symbol showing a wh bin crossed through indicates that the product requires sepa refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Produ marked as such may not be discarded with normal domest waste, but must be taken to a collection point for recycling electrical and electronic devices.
	Warning: Toxic material. Take care to avoid coming into contact with toxic material.
	Warning: Flammable material. Take care to avoid causing fire by igniting flammable material.

Responsibility requirements:

·Vevor is not responsible for any issues arising from non-compliance with these instructions and the precautions included in these instructions. Similarly, the company shall not be held responsible for any issues arising from repairs conducted without professional maintenance or the use of original spare parts/accessories. This type of maintenance will result in the invalidation of the heater's type approval and its ECE type approval certifi

SAFETY INSTRUCTION

WARNING:

Read all safety warnings, instructions, illustrations, and specifications provided with this diesel heater. Failure to follow all instructions listed below may result in electric shock, fire, and /or serious injury.

1. The following measures shall not be adopted

2. Change the important component of the diesel heater.
   ●Make use of spare parts from other manufacturers without permission.

3. Disobey the instruction and guide during installation or operation.

4. Only allow using original attachments and spare parts during installation and maintenance.

5. The heaters shall not be used in places where they may form flammable or dust, for example:

6. Fuel depot
   •Carbon storehouse

7. Timber storehouse
   ●Granary and similar sites
   ●Diesel/petrol station

And keep away from fuel tanks, compression tanks, fire extinguishers, clothes, other flammable objects.

1. Do not use cigarette lighter for startup.
2. Do not use the heater in closed and/or unventilated places.
3. The heaters shall be turned off when filling fuel.
4. Do not cut off the electric power in operation.
5. If the fuel leaks or discharges from the fuel system of heaters, please cc VEVOR for repair.
6. Place the exhaust outlet outside to prevent any penetration of exhaust fun
7. In the process of work, it is forbidden to cut off the electric power direct stop the heater from working.
8. Seal all gaps between the mounting plate and the car body.
9. The machine will stop heating after over-temperature protection. Please do not power off. After the machine is naturally cooled and turned off, it can be restarted.

10. After turning off the machine, please do not immediately disconnect the power supply. It takes 3-5 minutes for the machine to stop working complete

11. After starting the machine for 3-5 minutes, it will work normally and heat. Please wait patiently.

12. When the heater is just started, the current is relatively high, so an ada with a voltage of 12V and a current of 15A or greater is required for the p supply.
13. This appliance can be used by children aged 8 years and above and p with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children s not play with the appliance. Cleaning and user maintenance shall not be don children without supervision.

17. WARNING: Flammable material

During installation/use, service, and disposal of the appliance, please pay attention that there should be no flammable substances around exhaust pipe. The temperature of the exhaust pipe is very high wh is working. Take care to avoid causing a fire by igniting flammable material.

Please strictly follow the following methods to correctly install insulation sleeve on the exhaust pipe and reduce surface temperature:

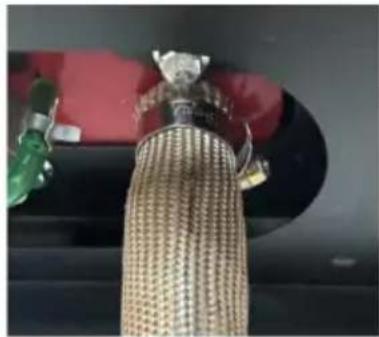

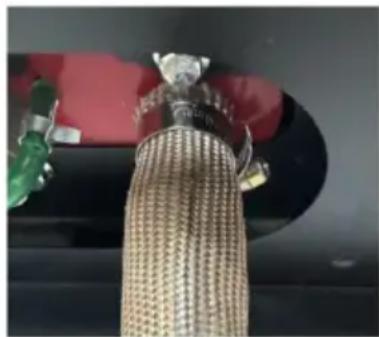

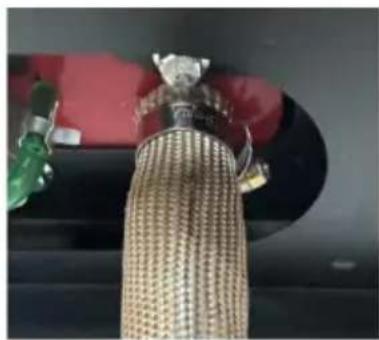

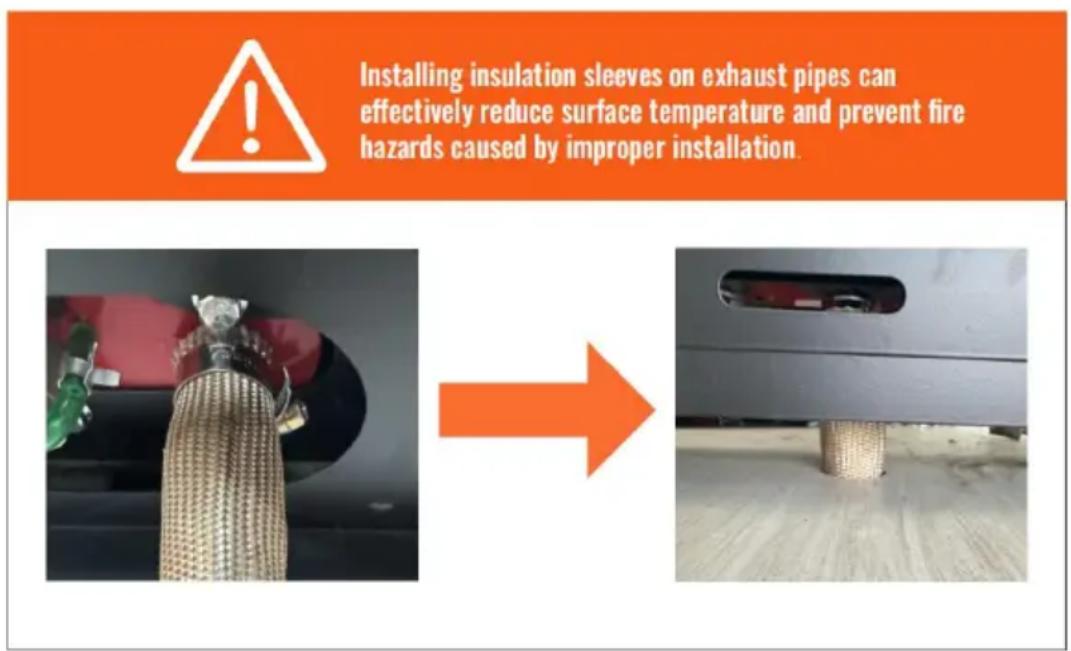

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

This installation diagram is only applicable to machines with model ZM8008.

18. WARNING: Toxic material

1. During installation/use, service, and disposal of the appliance, please install the appliance with space for ventilation to prevent carbon monoxide poisoning. Place the exhaust outlet outdoors to prevent exhaust gas from seeping in.

① To prevent the risk of carbon monoxide poisoning caused by improper installation, the product is equipped with a carbon monoxide alarm. When the carbon monoxide content in the enclosed space reaches 300ppm, the LCD sw will prompt CO to exceed the limit. When the content reaches 500ppm, an a will be triggered and the machine will be shut down. The leakage point need be checked and repaired immediately before starting up for use.

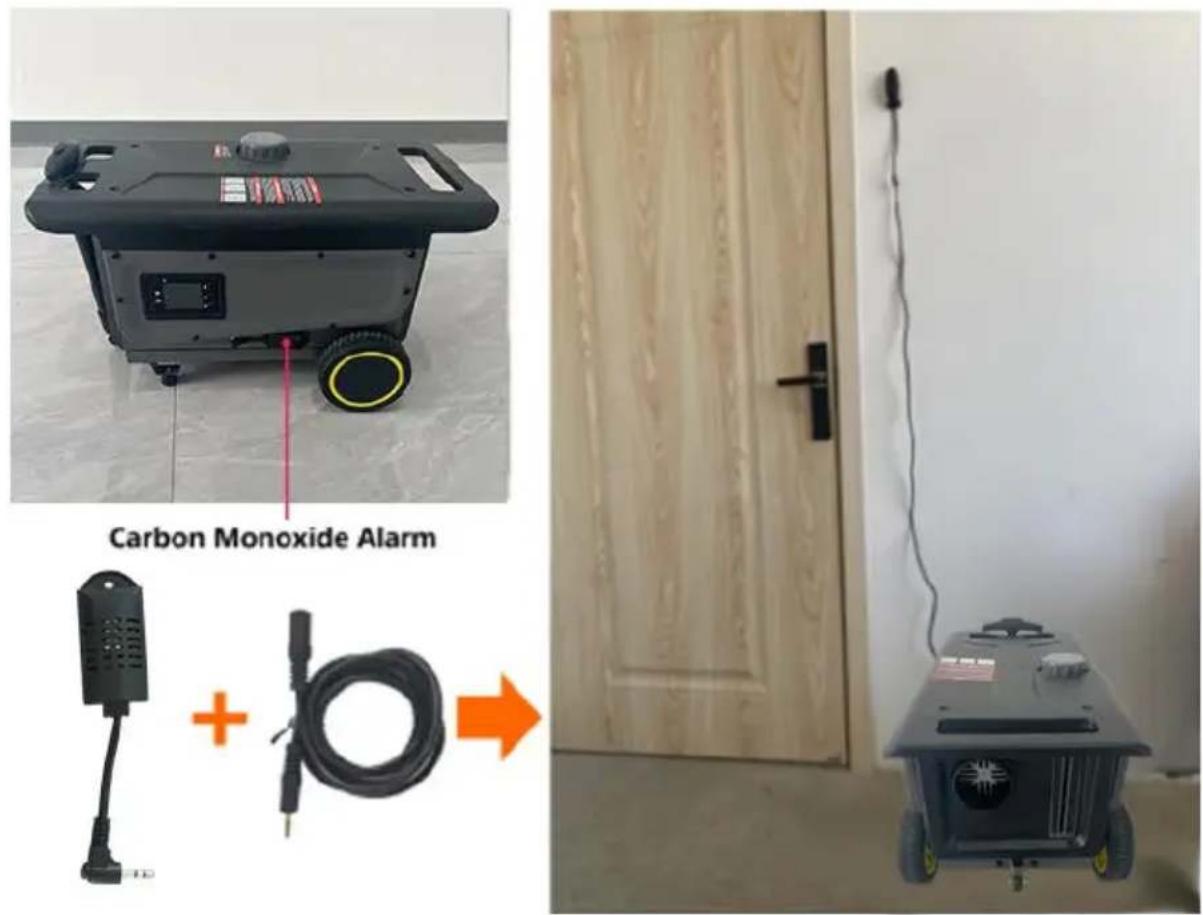

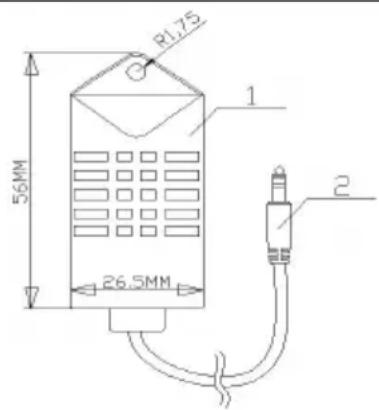

② The carbon monoxide alarm device is equipped with a 2m extension cable, which can install the probe in any position. It is not recommended to install far away from the diesel heater or too close.

Carbon Monoxide Alarm +

1. The fuel tank supplying fuel to the device shall meet the following requirements:

a) If there is a leak, the fuel should be discharged to the ground and must come into contact with the hot parts of the vehicle or load

b) The fuel tank containing gasoline should be equipped with an effective flar arrester at the fuel filling port, or a sealing device should be used to complete seal the opening

1. Space that cannot be used for heating and transporting dangerous goods.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product are not expressly approved by the party. Responsibility for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which I receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

PRODUCT FUNCTION

1. The diesel heater (hereinafter referred to as the heater) is independent of original engine system. It makes use of a 12-24V direct current to drive. The two kinds of control modes for the heater: Automatic control mode and Manual control mode. The heater adopts light diesel, which corresponds to the environmental temperature as fuel, and it can be started and operated normally a temperature of above 40N. The inhaled fresh air is heated to hot air through heat exchanger by the energy that comes from burning fuel, then blown to water, it is needed. This type of heater has the advantage of compact structure,

lightweight, high thermal efficiency, economy of electricity and fuel, and easy installation.

1. The heater gets rid of damage to the car caused by the sudden drop in temperature, improves the temperature inside the car, and preheats the engine coolant to avoid engine wear at low temperatures. Conducive to car interior thawing, car start, and car glass defrost fog.

INTERNAL STRUCTURE

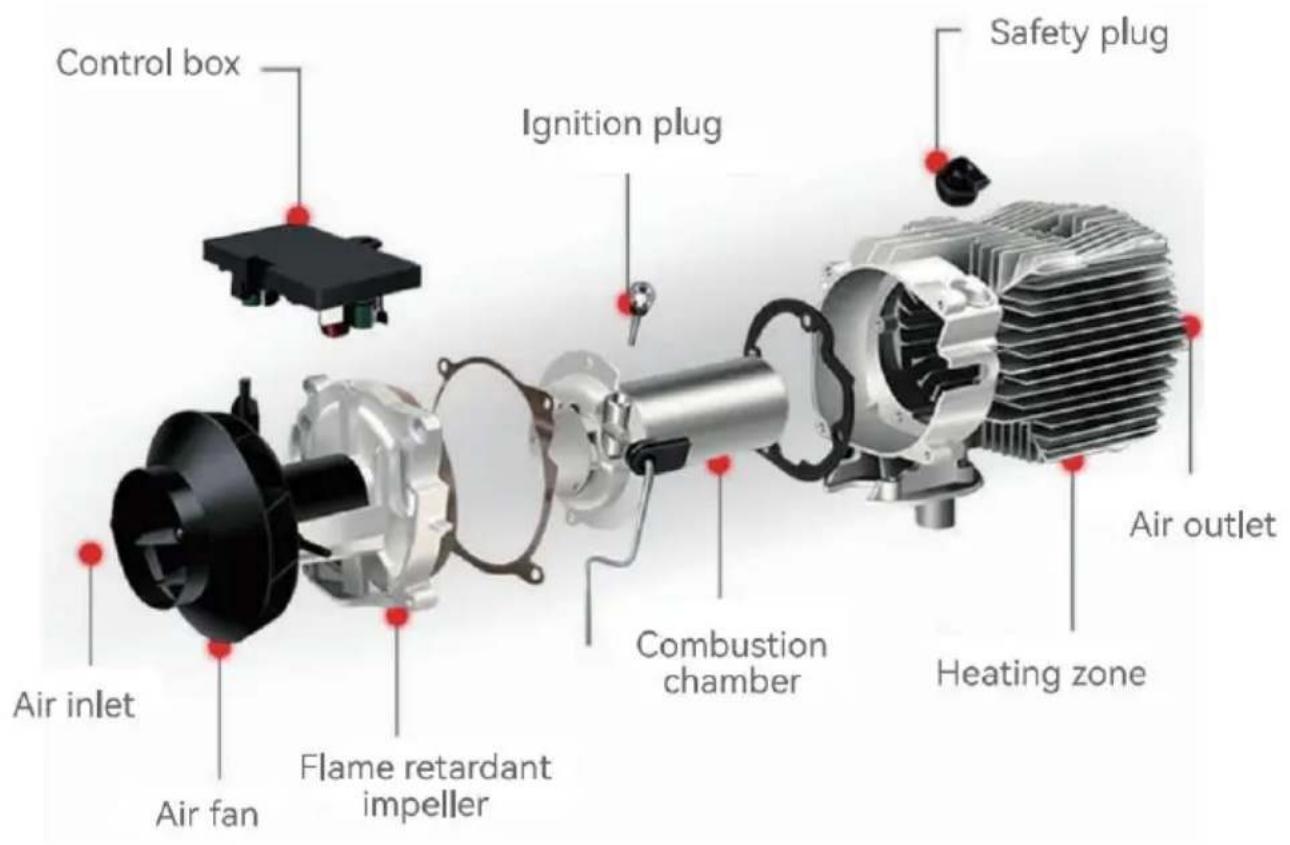

Control box Ignition plug Safety plug Air outlet Air inlet Air fan Flame retardant impeller Combustion chamber Heating zone

INSTALLATION POSITION

Truck 1 2 3 4

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

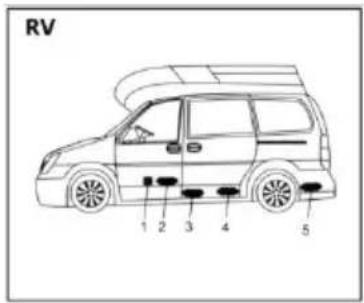

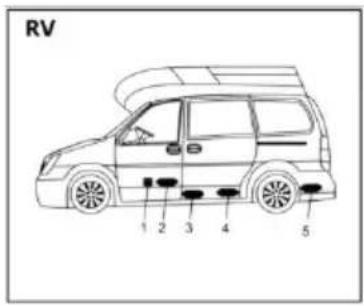

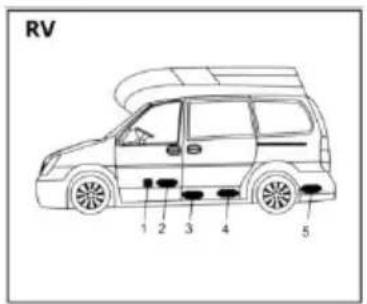

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

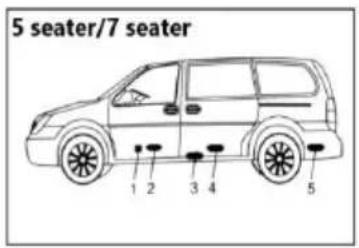

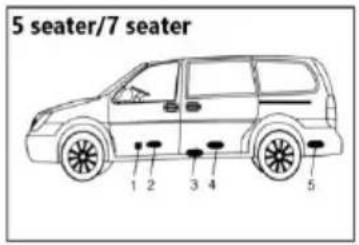

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the ca
3. Inside the protection box.

Interior view of a two-story garage with a small cart on the door (no text or symbols visible)

1. Installed in the garage against th wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around the exhaust pipe

Interior view of a room with white shelving units and a small device on the floor (no visible text or symbols)

1. Installed against the wall of the warehouse
2. There should be no foreign objects blc the front and rear air vents.
3. No flammable materials around the exh pipe

The installation of the machine requires professional personnel.

It is recommended to use high-grade diesel fuel when refueling the diesel heater. Other types of fuels, such a kerosene, vegetable oil, gasoline, waste oil, etc., cannot be used. Otherwise, the heater may have an unpleasant odor a malfunction during operation.

MODEL

Model	ZM8008
Appearance
Heating medium	Air
Fuel	Diesel
Ratings	DC12-24V/40W
Adapter	100-120V~, 50-60Hz, 12V/12A For US users100-240V~, 50-60Hz, 12V/12A For European us

PACKING LIST

Model		ZM8008
Main engine		1
Carbon monoxide module		1
Exhaust pipe		1
Blowpipe		1
Power cord		1
Remote control		1
Silencer with 1 fixing piece and 2 screw		1
Clamp		2
Pipe clip		2
Machine fixing screws		2
Liquid crystal switch		1
Rotary tuyere		1
User Manual		1
Extension line		1
Nut		2
Adapter		1
Quick connector		1
Protective sleeve		1
Funnel		1
Dust bag		1
Wheels		2

Refer to the installation diagram below and carefully read the precautions when installing or using:

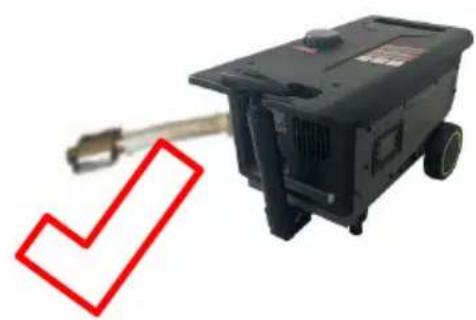

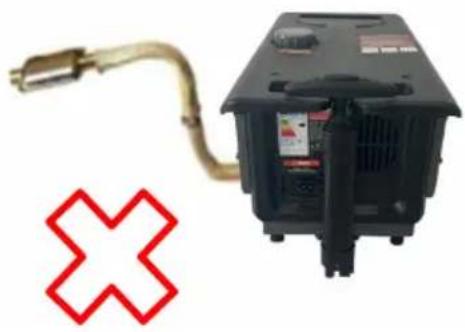

1. No Side Installation:

※ Side installation of the diesel heater will result in oil leaks inside the machine after a period of use, producing a large amount of smoke and carbon monol poisoning. During installation, leave a space of 10cm around the heater to enter good ventilation.

※ If installing the heater inside a building:

① With the heater placed indoors: Make holes in the wall for the exhaust p be placed outdoors. Pay attention to insulating the exhaust pipe as it can be very hot and could cause a fire.

② With the heater placed outdoors: It's necessary to extend the exhaust pipe avoid the exhaust from being sucked into the building from the back fan pos of the heater, which can lead to carbon monoxide poisoning.

Exterior view of a black electrical fuse with a red X symbol below (no text or symbols on the device itself)

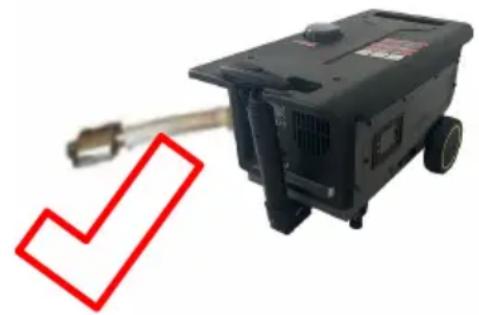

Black industrial machine with attached cable and a red checkmark pointing to it (no visible text or symbols)

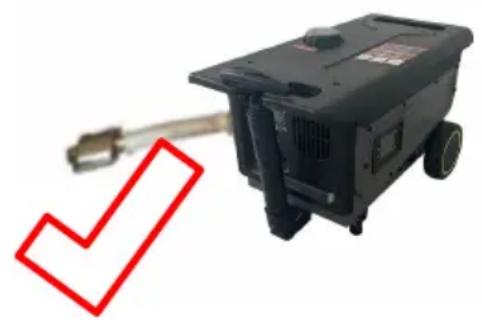

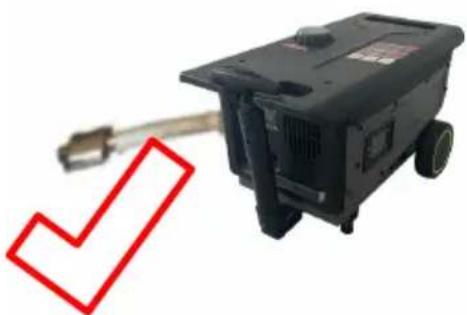

Incorrect Installation Direction Correct Installation Direction

2. Precautions for the power supply:

※ The power supply for the diesel heater must meet the following requirements:

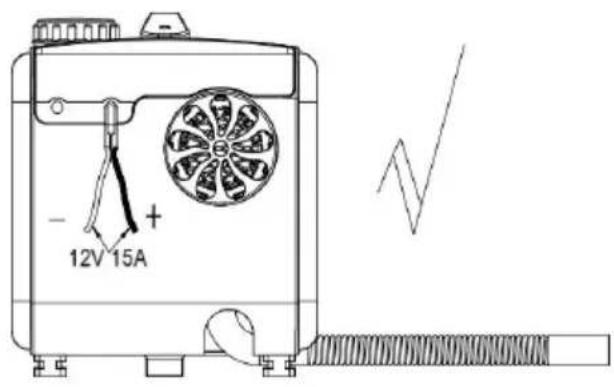

Voltage: 12V; Current: ≥12A, either from a direct power source or a battery. When powered by a battery, do not charge the battery while using the heater insufficient current can cause malfunction. Ensure a firm and secure connection to the battery. Using clamps for fixation can result in poor contact.

※When extending the power cable for the diesel heater, the wire diameter s be >2mm². Using a thin wire can lead to insufficient current, causing the heating to work. After connecting, use insulating tape to protect the connection and prevent electrical leakage, which might lead to fires.

※ Do not disconnect the power when the diesel heater is operating at high temperatures. This can cause backfire due to high temperatures. Repeatedly doing so can cause permanent damage. Solutions:

- If power is cut and you immediately turn on the heater: Wait until the intense heat of the heater has completely dissipated before turning it on for normal operation.

- If the heater is turned on a long time after a power cut: Incomplete comb inside may produce a large amount of smoke. Wait for the smoke to clear, the heater will automatically start and operate normally.

It is recommended to use high-grade diesel fuel when refueling t diesel heater. Other types of fuels, such as kerosene, vegetable gasoline, waste oil, etc., cannot be used. Otherwise, the heater r

have an unpleasant odor and malfunction during operation.

PRODUCT INFORMATION

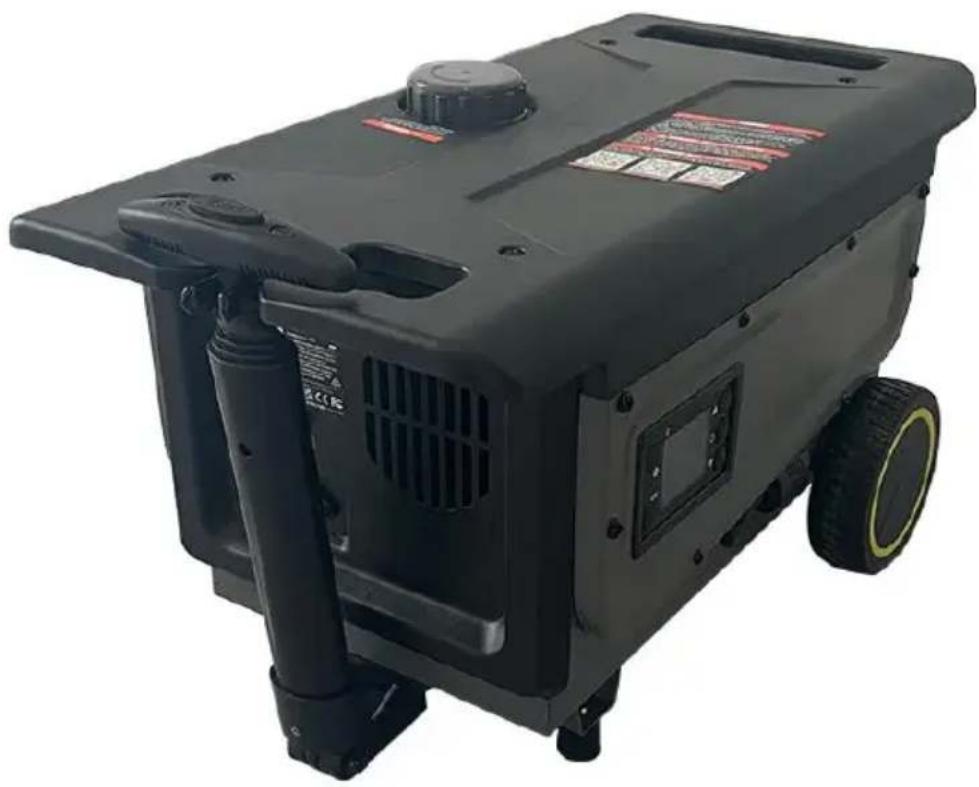

Model: ZM8008

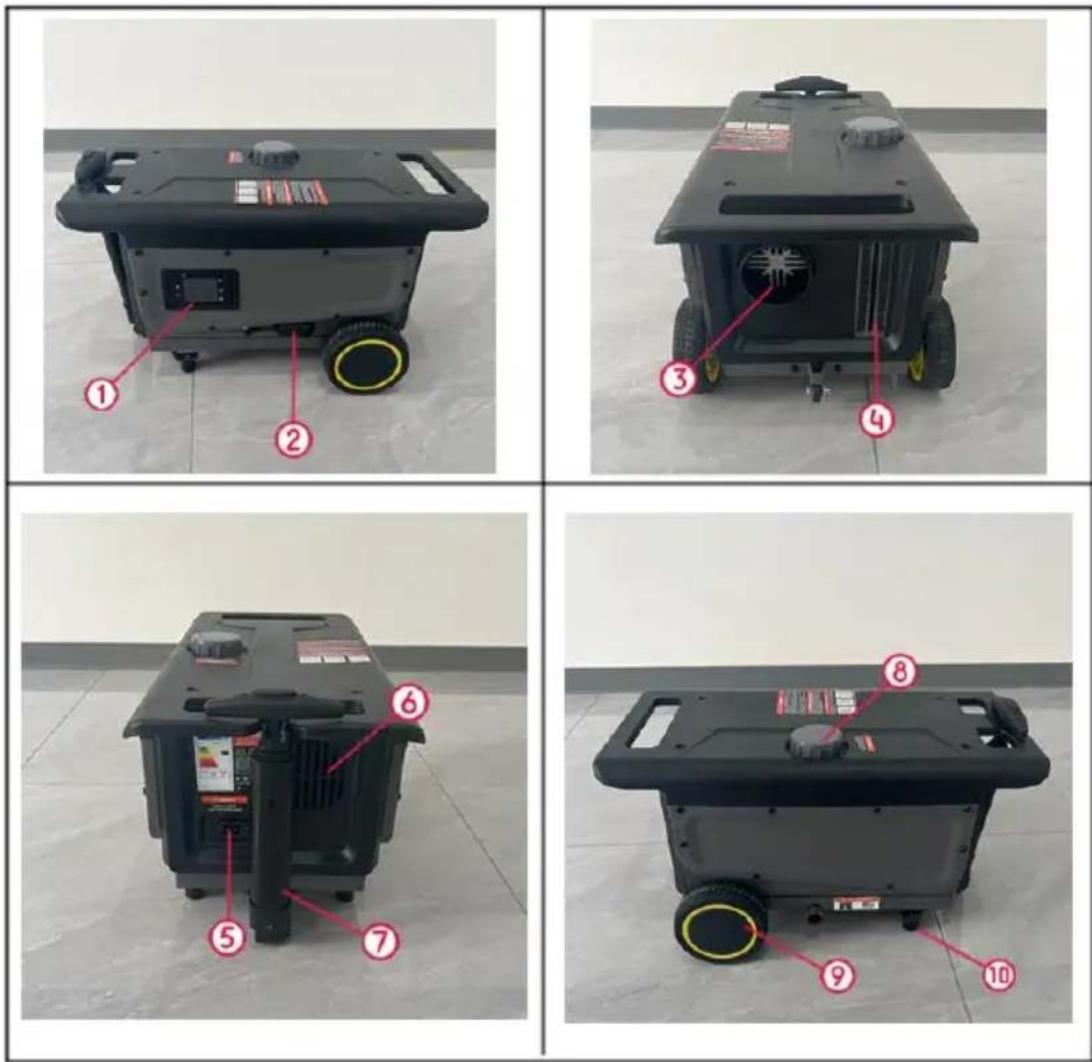

1	liquid crystal shutter	2	Carbon Monoxide Alarm
3	Outlet	4	Fuel tank scale
5	Power supply port	6	Air inlet
7	Tie rod	8	Fuel tank port
9	Wheel	10	Angle control wheels

INSTALLATION DIAGRAM

When the heater is just started, the current is relatively high, so an adap with a voltage of 12-24V and a current of 12A or greater is required for power supply.

ZM8008

DIESEL HEATER INSTALLATION DRAWING MODEL: ZM8008 Remote Control Diesel Heater APP AC-DC Adapter Liquid Crystal Switch Air Outlet Rotary tuyere Blowpipe Quick Connector Clamp Carbon Monoxide Alarm (To The Outside) Silencer Escape-Pipe (Combustion Emissions) Power Cord

QR code image containing a central pixelated dinosaur icon, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

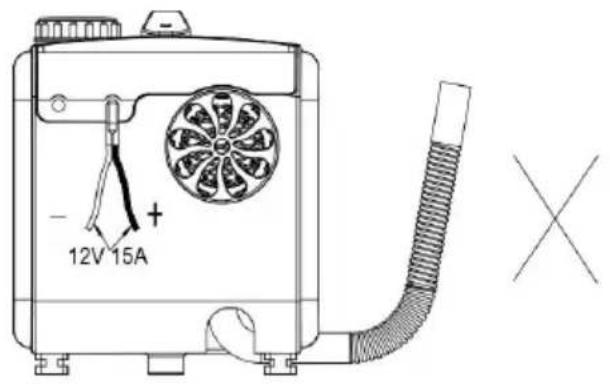

Warning:

1. The air inlet shall not be blocked, and keep the inlet open and clear.
2. Keep the exhaust pipe clear. The exhaust pipe outlet shall be kept away if anything flammable, and avoid heating and igniting the flammable goods and loading cargo on the ground.
3. To ensure optimal combustion, please remember that the smoke exhaust p cannot be placed upward, but must be placed horizontally or downward.

- 12V 15A + -

- 12V 15A + X

Panel operation instructions

Please refer to the instructions be for the LCD screen switch usage. To sync, scan the QR code on t right to watch the video.

QR code image with a small black silhouette logo in the center

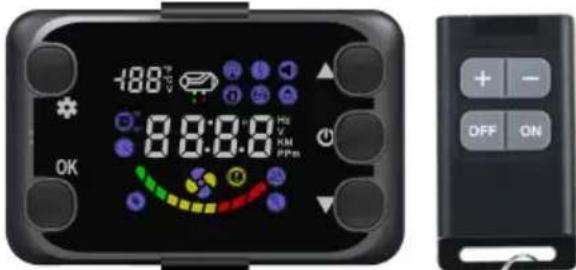

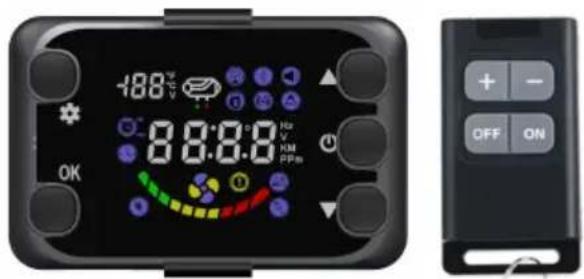

1. Knob-LCD switch [Bluetooth type]

-188 T OK 8:30:00 Hz V KM PPm OFF ON

Function	Parameter	Operation method	Specific operational steps
Power on	/	Long press the [power on/off button]	In the shutdown state, press and hold the power button for 2 sec to turn on and start heating. With the screen displays the H-number indicates that the device has be turned on and heated up
Shut-down	/	Long press the [power on/ off button]	In the power on state, long press the 'power on/off button' to display 'OFF' for shutdown. During the shutdown process, the button cannot be operated. Wait for the stop working and the language will announce that the heating will stop, which means the machine be completely shut down;Note: It is forbidden to forcefull cut off the power during the shutdown process, otherwise the internal heat will not be complete dissipated. A second startup will produce a large amount of smoke/heat that is not completely dissipated, which can easily damage the internal wind turbine the machine. At this time, it is necessary to wait for the internal combustion to be completely restored to normal.
Current time setting	24-hour clock system	Display in standby mode	After power on, the screen displays [Display Time] in standby mode, and automatically switches to [Display Time] in standby mode after power off.In standby mode, press and hold the [OK key] for 2 seconds to the time options [the time interfera flashes], press the [Power key]select hours and minutes, press [↑ key] & [↓ key] to adjust to current time, press the [OK key] enter the [Week options], press [↑ key] & [↓ key] to adjust to current week. Press the [OK key save and exitNote: The display time will automatically reset to zero after power failure, and there is no memory saving function.
Run time	99 hours and minutes	Display during work process	Automatically timed after startup, allowing real-time observation of working time.
Gear mode	Levels 1-6	↑ key] & [↓ key] to adjust the gear position	The default gear mode is on with the machine is powered on. Use [↑ key] & [↓ key] to adjust the size.
Gear/Temperature Switching	/	Long press the [Settings] button for 2 seconds	Default gear mode when turned long press the [Settings] button seconds to switch temperature mode.
Temperature - Celsius	0~40°C	Long press the [Settings] button for 2 seconds	In the power on state, long press the [Settings] button for 2 seconds to display Celsius degrees, and the [↑ key] and [↓ key] to adjust temperature.
Temperature - Fahrenheit	32~104°F	Long press the [Settings] button for 2 seconds	When the device is powered on press and hold the [Set] button seconds to display Celsius, and press and hold the [↑ key] and [Power] buttons for 2 seconds to switch to Fahrenheit. Use the [↑ and [↓ key] buttons to adjust the temperature.
Manual oil pump	/	Long press the [↑ key][↓ key] combination key for 3 seconds	In standby mode , press and he the [↑ key] & [↓ key] for 3 sec automatically pump oil, and it will stop automatically when you release the keys.Note: Observe the oil inlet at bottom of the machine and stop pumping oil until it reaches the position. Excessive pumping of o can cause excessive internal oil volume and failure to ignite.
Remote control matching	Effective distance ≤ 30m	Long press the [Power Button] & [↓key] for 2 seconds	In the off state, press and hold [Power Button] & [↓key] combination for 2S to display [HFR1], then press any button of the remote control to complete pairing process.Note: HFR1~HFR4 can be matched with four remote control for simultaneous operation.
Remote control function	Effective distance ≤ 30m	Factory default matching	[ON] - power button, [OFF] - po button, [+/-] - gear/temperature s

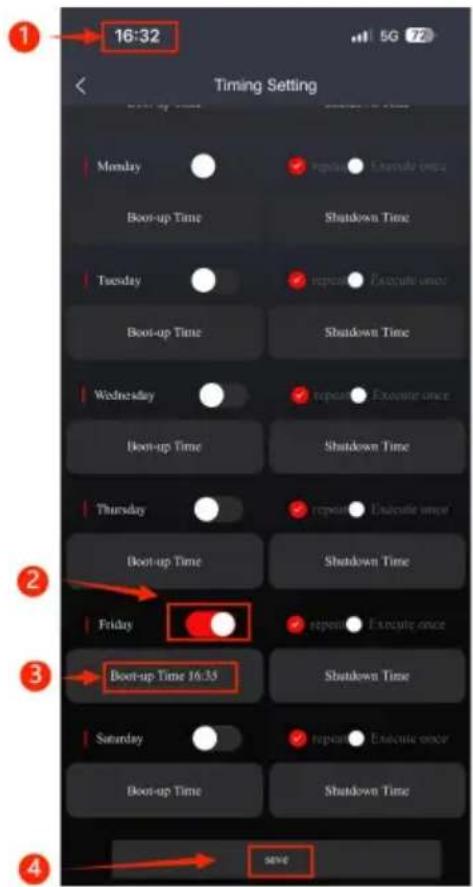

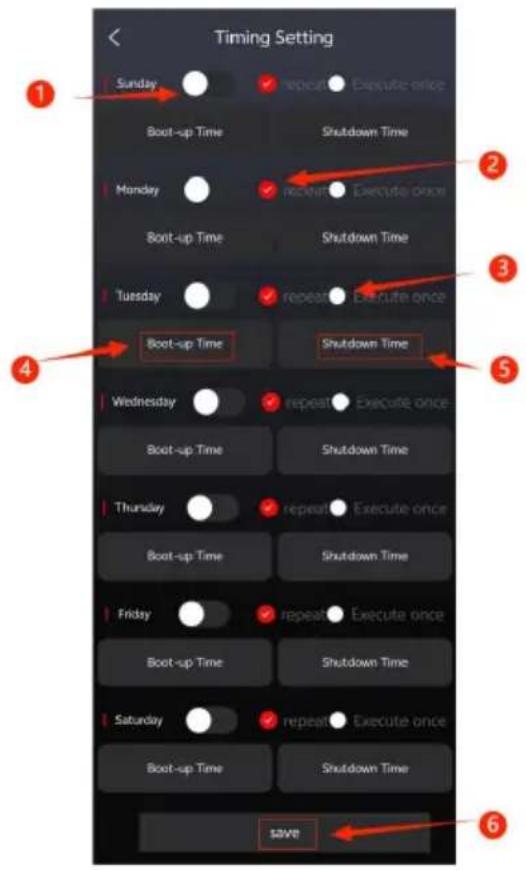

Timer setting	Maximum 23 hours and 59 minutes	Minimum running time of 1 minute	Setting sequence in standby mode current time setting → start time setting → timed operation time setting → timed function switch setting:1. After power on, the screen displays [display time] in standby mode, and automatically switches [display time] in standby mode a shutdown.In standby mode, press and hold the [OK key] for 2 seconds to the time option [time interface flashes], press the [power on/off key] to select hours and minutes press [↑key] & [↓key] to adjust the current time, press the [OK to enter the [week option], and press [↑key] & [↓key] to adjust the current week. Press [OK] to save and exit2.Start time setting: long press [OK] combination key for 2 sec to enter the time setting, press [↓] to set the hour and minute, press [Power button] to enter the hour and minute selection, press [OK] to confirm, and set the time shutdown time; press [↑] & [↓] to the hour and minute, short press [Power button] to enter the hour minute selection, press [OK] to confirm and save and exit after completion, the screen displays alarm clock when the standby m is set successfully.3. Timing function switch setting; When the timing function is start long press [↓] & [OK] combinatic key for 2 seconds to turn off the timing function, and when the all clock icon disappears on the screen, it is turned off successfulWarning: After the display time is set, set the start time and run time in sequence, such as: the current time is 15:10, set it to at 15:12 and run and shut down 15:17. Scheduled startup and shutdown need to be set at the same time and cannot run independently. Once the schedule startup and shutdown are set, the will be repeated every day. When not in use, turn off the schedule according to the method for canceling the schedule.
Basic Settings	/	In the startu state, press the [Power button] to enter the basic settings	In the power on state, press the Power button briefly to enter the basic settings and view information 01: Shell temperature [XX °C]; 0 Power supply voltage [P-12V]; 03 Carbon monoxide concentration [C000]; 04: Current gear [H-X]
carbon monoxide alarm	300ppm alarm, 500ppm alarm+shutdown	Short press [Power button]	In the power on state, press the Power button briefly to enter the basic settings and view information 03: Carbon monoxide value [C00 300ppm alarm, 500ppm alarm+shutdown;
Voice Announcements	/	English voice broadcast	There is a voice broadcast when turning on, turning off, or reporti fault codes.

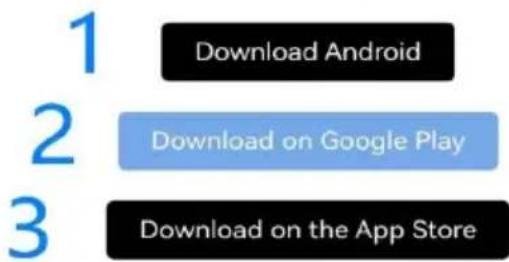

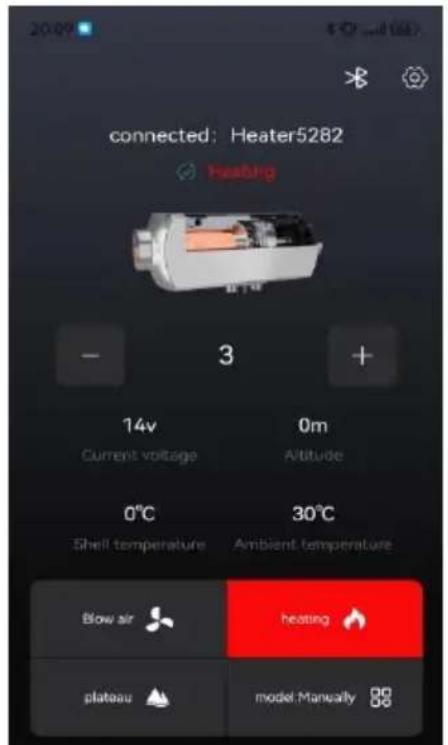

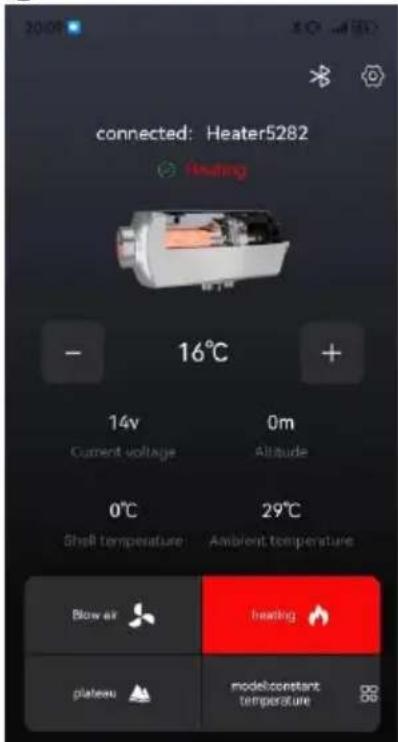

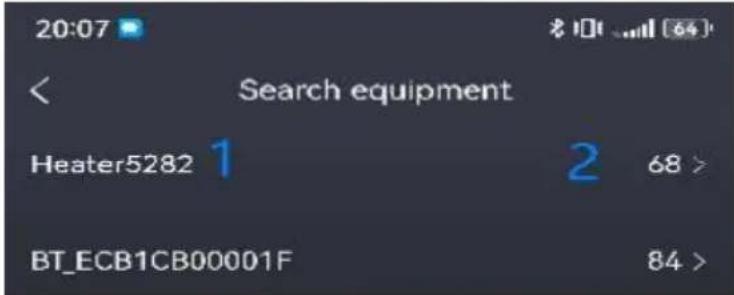

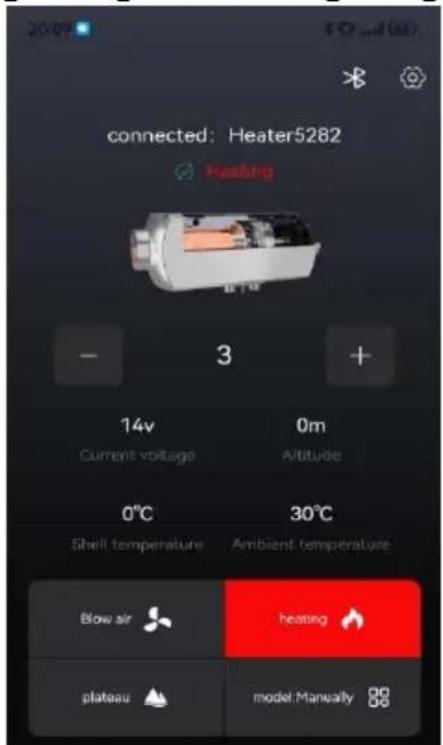

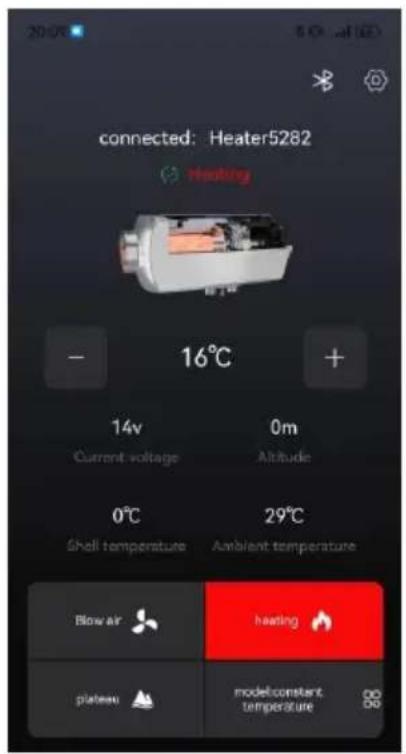

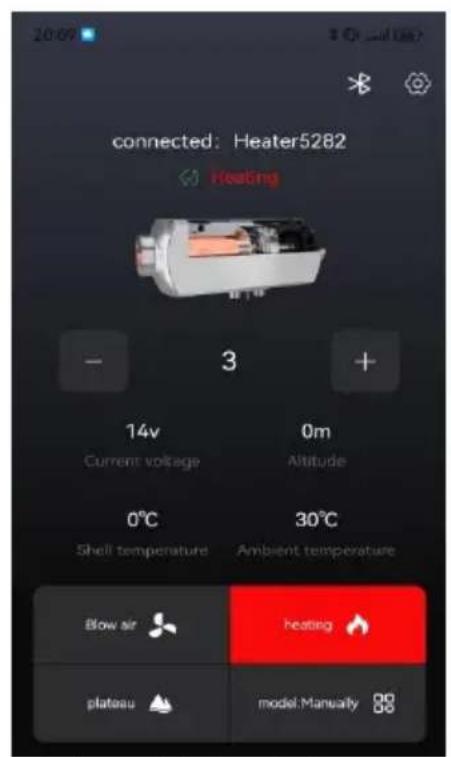

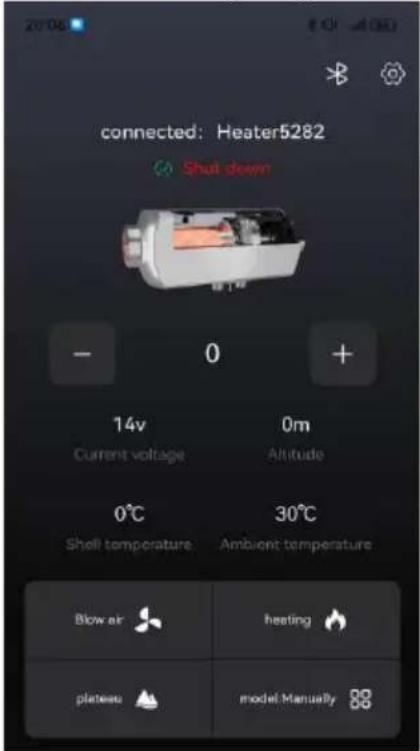

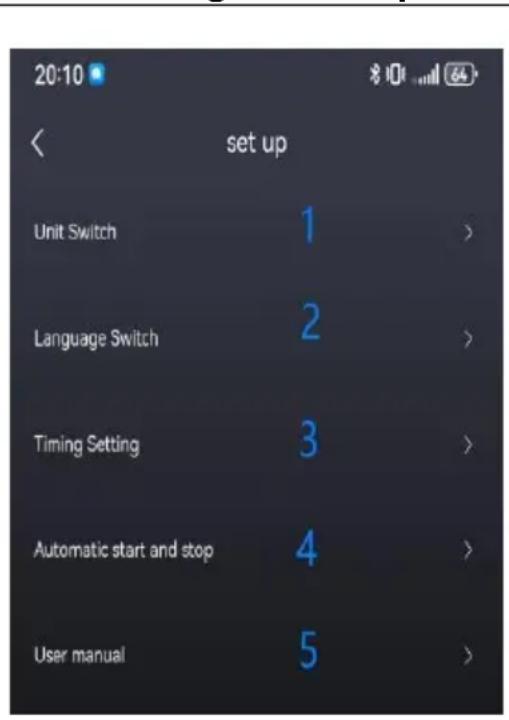

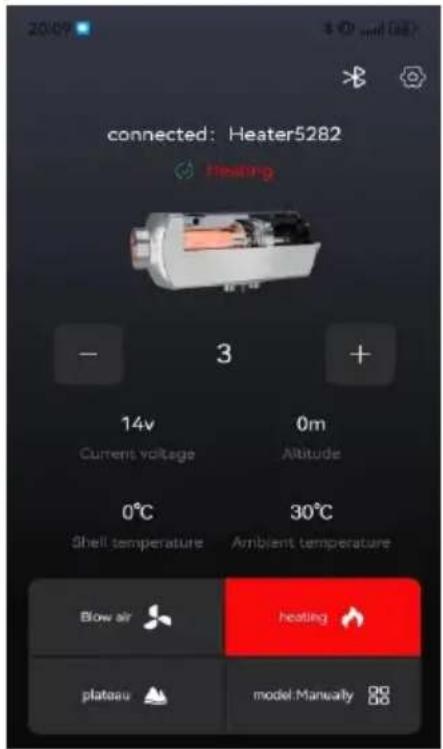

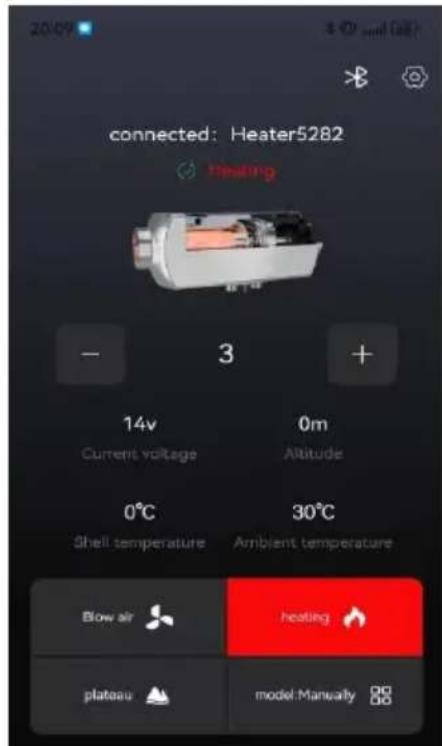

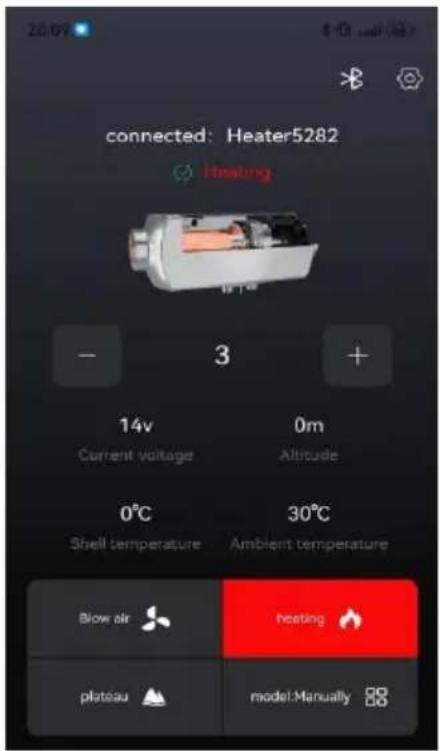

APP functions	Bluetooth effective distance ≤ 50m	Android&IOS systems	1. Search and download the corresponding app name "AirHeaterCC" on your mobile phone; Or scan the QR code b with your phone, click on the corresponding system download, and then follow the steps below connect and control the device v your phone. Please refer to the operating instructions on the APPinterface for detailed functions.2.When the heater is powered o short press the [OK] button to display the XXXX Bluetooth pairi code. After pairing is successful, connect the Bluetooth and use t APP to operate the heater.
Language Switching	Factory default English	Press and hold the [Se key and the [↑] key for two seconds	In standby mode, press and hold the [Settings] key and the [↑] ke two seconds to switch the langu 01: German [GE]; 02: Russian [03: Turn off language announcement [oF]; 04: English [EN]

Fault table

Fault alarm

Show the following figure, corresponding to the failure symbol flicker, and corresponding to the failure device icon flicker, display data as fault code, its meaning please refer to the fault table.

*Spark plug, oil pump, fan, sensor, power supply and other symbols, flicker indicates that the corresponding device is failing.

Fault table

Scan the QR code to view the troubleshooting method

Fault code	Cause of failure	solutions
E-02	Abnormal supply voltage and curren	1. Check the power supply equipment to ensure that the input voltage is 12V/24V the input current is ≥slant 15A, power: ≥slant 150W, there may be losses due to differences in installation wire diameter a length; 1 12V power supply: can be s under the conditions of minimum voltage 10V and minimum current 9.5A; 2 24V power supply: It can be started under t conditions of minimum voltage ≥slant 24V minimum current 4A Over voltage protection>32.8V reports E-02 fault.2. Power supply equipment selection: recommended for power supply, battery, adapter, etc. Input voltage: 12V/24V, in p current: ≥slant 15A, power: ≥slant 150W.3. Charging the battery with a heater is prohibited as a low battery current can it to malfunction;4. Prohibit the use of in-car cigarette li g for power supply, as low current cannot work;5. It is forbidden to use fixtures to fix connection between the battery and the wires, as poor contact can also cause malfunction. When extending the wire harness, attention should be paid to wir with a diameter of ≥slant 2mm ^2 to avoid voltage drop caused by thin wire diam and low voltage or current causing malfunction. If the wire harness does no work after being extended, measure the voltage and current at the power supply and the heater wire harness end.
E-03	Ignition plug malfunction	1. Check if the ignition plug is securely connected.2. Remove the ignition plug and inspect appearance for any defects such as bro wire harness, broken ignition plug head, oxidation, carbonization, etc.3. Replace with new ignition plugaccessories.
E-04	Oil pump malfunction	1. Check if the oil pump plug is loose, it and reinstall it to confirm.2. Confirm if there is any pumping source the oil pump. If there is no pumping source there may be impurities inside after repets tapping after disassembly.3. The oil pump has malfunctioned, please replace it.
E-05	Over Temperature Protection	The temperature sensor detects that if the surface temperature of the aluminum box ≥slant 280 ^ , it will provide over temperature protection. Pay attention to checking whether the inlet, outlet, and exhaust pipe are bent or too long, which affects the exhaust and prevents heat from dissipati
E-06	Wind turbine motor malfunction	1. Check if the motor rotor is stuck, if plug is loose, if the connection is incorrect etc. If it is stuck, use two screwdrivers move it parallel outward and return to normal.2. Check if the distance between the H sensor and the rotor magnet is too far, it cannot sense the rotor speed, causing E-06 fault code to be reported;3. Check if the induction magnet of the turbine is missing or has incorrect polar and adjust it to restore normal operation4. The motor and motherboard have malfunctioned. Please replace the motor motherboard.
E-07	Communication Failure	1. Check if the connection port of the re control switch is loose2. Check if the connecting wire (blue) of remote control switch is open circuited
E-08	Secondary ignition failure(Oil circuit malfunction)	The program will automatically detect whether there is an oil pump entering machine, perform 2 checks, and each c takes 4 minutes;1. Newly purchased machines need to fill with diesel in the fuel tank and wait for 2-3 minutes before starting the heating process. If there is no oil in the pipe of the new machine, it will start s2. Check if the diesel in the fuel tank been completely burned, and observe the fuel tank scale to confirm if the fuel is sufficient. If there is no fuel in the tank replenish it in a timely manner before starting the machine and heating it up normally.3. Refer to the troubleshooting method 10 fault code.
E-09	sensor fault	1. Check if the temperature sensor connection wire and connector are dama or loose, and if there is no signal dete the motherboard program due to signal interruption.2. Replace sensor accessories.
E-10	One ignition failure (Oil circuit malfunction)	1. Check if there is enough oil in the tank and oil pipe, if the oil pipe is b and if the oil pump is stuck.2. Check if the intake and exhaust p are unobstructed. Insufficient oxygen intake or poor exhaust can cause igni failure.3. Does the altitude exceed the calibr parameters? Insufficient oxygen intake can cause ignition failure;4. Referring to the E-02 fault code ch the ignition failed due to insufficient h from the low point spark plug of the supply voltage/current.
Installation Guide	The surface temperature of the exhaust pipe is around 752 °F, an attention should be paid to protection against flammable materials during installation	1. Please note that there are no flamm substances around the exhaust pipe and muffler hot air outlet, and insulation mat should be used for protection. It is forb to drill holes and install machines on w floors. The surface temperature of the exhaust pipe is around 752 °F.2. Prohibit the use of nonhigh temperatu resistant adhesives to avoid odor poison and be careful to avoid causing fires by igniting flammable materials.3. Installation position: 1 Reserve a 4- gap at the air inlet for smooth air intak Keep the bottom exhaust pipe at a dist of 2 inches from the ground, and preve fires when the exhaust pipe temperature high Do not bend the exhaust pipe excessively, as it may cause poor exha flow; 4 The exhaust duct is not easily long and multiple bends can cause heat be unable to be discharged, resulting in high temperature fault When refueling the fuel tank, do not let it flow onto the o shell, as it will flow along the inside of machine to the exhaust pipe position, causing smoke. Fill the fuel tank to a close to the fuel tank opening. Do not the intake pipe as it may cause insufficient oxygen and the heater to malfunction.
Accessories modification	Prohibit the use of non high temperature resistant materials and rubber seals that may cause odor and poisoning hazards	1. Extension of exhaust duct modification is recommended to purchase pipes made the same material or high-temperature resistant material, with a length controlle within 2 meters and no large angle ber to avoid overheating.2. Exhaust pipe modification and extensi It is recommended to purchase pipes m of the same material or high temperaturresistant stainless steel material, with a length controlled within 2 meters and no large angle bending. The pipes must be discharged downwards to the outside an cannot be bent upwards multiple times affect exhaust heat dissipation (the work temperature of the exhaust pipe reaches around 752 °F, and the installation position is prohibited from drilling holes in the wooden floor. Nonhigh temperature resist rubber seals are also prohibited, which cause odor and poisoning hazards).
Emitting white smoke	Abnormal power outage/excessive manual pump oil volume	1. Manually pump oil, if there is too m inside the machine, it will not ignite and white smoke. The correct way is to pur to the inlet position and stop. If the pu volume is too high, the oil pipe should unplugged and restarted 2-3 times to re normal operation before inserting the oil pipe; Or use a hair dryer to blow towa intake pipe for a period of time until it properly.2. Abnormal power outage during operate During normal operation, press the 'power on/off button' to display 'OFF' for shutdo During the shutdown process, the button cannot be operated. Wait for the fan to working before completely shutting down, and then disconnect the power supply. During the shutdown process, it is forbic to forcefully cut off the power. Otherwise internal heat will not be completely dissipated and a large amount of smoke be generated during the second startup. this time, it is necessary to wait for the internal to completely burn before return to normal.3. Refer to E-01/E-02 fault code troubleshooting.
Smoking	Insufficient oxygenintake or carbon deposition in the combustion chamber	1. Does the altitude exceed the calibratiparameters? Insufficient oxygen intake ca cause ignition failure and black smoke emission.2. Check if there is any blockage in th intake pipe causing insufficient oxygen intake.3. The small space at the air inlet pos leads to air intake obstruction.4. Refer to the E-01/E-02 fault code ch the low point of the power supply voltage/current has insufficient heat from ignition plug, resulting in ignition failure black smoke emission.5. Disassemble the internal combustion chamber of the machine to check for c deposits and replace the combustion chamber in a timely manner.
Smoke blue	Poor oil quality	Only high-grade diesel can be used, an use of mixed diesel, other types of oil, non-brand-new oil products is prohibited. winter, negative temperature diesel should be met;
Machine oil leakage	Oil tank/pipe damage, side installation (Side installation prohibited)	1. Check the appearance of the fuel ta pipe and whether the fuel tank nozzle i damaged or cracked, which may cause leakage.2. When filling the fuel tank with diesel careful not to pour it onto the machine casing. Otherwise, it will flow into the ir and smoke due to high internal heat du operation.3. The heater cannot be installed on th side. The oxygen hole oil on the ignitio side will flow out through the hole, and correct installation method is to have the intake/exhaust port facing downwards;4. Poor oil quality leads to blockage of ignition plug atomization network in the combustion chamber, causing ignition to out through the exhaust pipe. The ignitiplug atomization network and high-grade diesel should be replaced.
There is no oil or heat inside the machine	The oil pipe is be	Check if there are any bent positions in oil pipe that prevent air from supplying
Oil flowing through the exhaust pipe	Excessive pump of volume/blocked atomization network/abnormal voltage	1. Manually pumping oil, if there is too oil inside the machine, it will not ignite emit white smoke. If the combustion chamber is filled with excessive pumping it will flow out from the exhaust pipe; I correct way to pump oil to the inlet po and stop. If the pump oil volume is too the oil pipe should be unplugged and restarted 2-3 times to restore normal operation before inserting the oil pipe; C use a hair dryer to blow towards the in pipe for a period of time until it works properly.2. The ignition plug atomization net is blocked. After removing the ignition plug take out the internal atomization net and check for any blockage. It should be cl or replaced immediately.
Oil flowing inside the intake pipe	Incorrect installation direction/excessive manual pump oil volume	1. Manually pumping oil, if there is too oil inside the machine, it will not ignite emit white smoke. If the combustion chamber is filled with excessive pumping it will flow out from the intake pipe; The correct way to pump oil to the inlet po and stop. If the pump oil volume is too the oil pipe should be unplugged and restarted 2-3 times to restore normal operation before inserting the oil pipe; C use a hair dryer to blow towards the in pipe for a period of time until it works properly.2. The heater cannot be installed on thside. The oxygen hole oil on the ignition side will flow out through the hole, and correct installation method is to have the intake/exhaust port facing downwards.
The exhaust pipe temperature is too high and turns red	Combustion chamber malfunction	Immediately shut down, dismantle the aluminum body to check if the internal combustion chamber is sealed or replace combustion chamber.
abnormal sound	Poor exhaust flow	Foreign matter blockage in the exhaust affects the exhaust. It should be immedi shut down, and the exhaust pipe, muffle and exhaust port should be checked for blockage. If there is any blockage, it shall be cleaned and restored to normal operation.
Diesel odor	Oil leakage/fuel error	1. Only high-grade diesel can be used, the use of mixed diesel, other types of and non-brand-new oil products is prohibited. In winter, negative temperature diesel should be met, as other fuels may cause odors.2. Disassemble the machine casing to do for any oil leaks inside and replace the promptly.
Plastic smell	Use external accessories	1. Extension or modification requires the purchase of high-temperature resistant accessories. If the heater has high heat may produce unpleasant and pungent oo 2. Extend the pipe fittings without bendi being too long, as this can cause heat unable to dissipate and result in high in temperature and plastic odor.3. The working temperature of the exha pipe reaches around 752 °F. It is prohi to drill holes in the wooden floor or us high-temperature resistant rubber seals foinstallation, which may cause odor and poisoning hazards.
Maintenance	Smoking/insufficient heat	If black smoke or insufficient heat is fo during the operation of the heater for a period of time, it indicates that there is carbon deposition inside the combustion chamber and it needs to be cleaned or replaced in a timely manner.
Fuse burnt out	Short circuit power off inspection	1. Remove the fuse and check for dam If damaged, replace the fuse.2. Measure whether the positive and negative poles are short circuited. If the a short circuit, replace the motherboard is damaged.

CO CONTROLLER OPERATION INSTRUCTIONS

R1.75 56MM 26.5MM 1 2

Model: C21

①Sensor probe

②Link plug

Product specifications/parameters

1. To prevent the risk of carbon monoxide poisoning caused by improper installation, the product is equipped with a carbon monoxide alarm. When the carbon monoxide content in the enclosed space reaches 300ppm, the LCD sw will prompt CO to exceed the limit. When the content reaches 500ppm, an a will be triggered and the machine will be shut down. The leakage point need be checked and repaired immediately before starting up for use.

2. The carbon monoxide alarm device is equipped with a 2m extension cable which can install the probe in any position. It is not recommended to install far away from the diesel heater or too close.

Configuration Table - Model: C21
NO.	Function	Parameter	NO.	Function	Parameter
1	detection range	0-990ppm	7	operation temperature	-20~50°C
2	Detecting overload	2000ppm	8	Pressure Range	Standard atmospheric pressure ± 10%
3	repeatability	±3%	9	Supply Voltage	5.2V±0.5V
4	Response time (t90)	≤30 s	10	consumption	<10.0mA
5	Resolution ratio	≤5 ppm	11	Extension line	2m
6	Zero drift (-20~40 °C)	≤10 ppm	/	/	/

Emergency response methods for controller alarms

1. When the CO concentration within the detection range of the controller exceeds the limit, the switch will display a fault/the controller indicator light with flash, and the switch will automatically turn off the heater to avoid a continuous increase in CO concentration; Ventilation should be done immediately (if the environment is narrow and conditions permit, open the ventilation openings to create an open environment as much as possible. When the environment is or ventilation is inconvenient, it is recommended to increase ventilation equipment to accelerate air circulation and discharge CO gas), and personnel in the environment should evacuate immediately from the environment where the current CO concentration exceeds the standard;
2. If the installation and usage environment is correct, it is recommended that personnel return to the working area and restart to check the CO concentrati see if it meets the standards.

3. During the use of this product, it is important to maintain long-term air circulation and regularly check the concentration of carbon monoxide (international standard 50mg/m ^3 ≈ 40PPM) to ensure personal safety. If symptoms of carbon monoxide poisoning occur (such as dizziness, headache, nausea, etc.), one should immediately stay away from the source of pollution, breathe fresh air, and seek medical assistance.

4. This product uses electrochemical sensors, which are easily affected by low temperature and humidity interference, resulting in slight impact on detection accuracy. Therefore, to ensure your safety, please use this product objectively and reasonably. Its service life is affected by the environment, and the accuracy of the sensor is regularly tested. If the error is too large, please replace the 5. Even if a carbon monoxide alarm is installed, the room must be properly ventilated to prevent excessive CO emissions during sleep from not being dead with in a timely manner.

Precautions and usage specifications

1. Please do not open the product casing at will; Prevent external forces fro damaging the sensor;
2. Products should avoid contact with organic solvents (including silicone rubber and other adhesives), coatings, chemicals, fuel oils, and high concentration ga
3. The product should not be completely encapsulated with resin materials during use and storage, nor should it be immersed in an anaerobic environment for a long time, otherwise it will damage the performance of the sensor; Affe the detection accuracy of the product;
4. This product cannot be used for a long time in environments containing corrosive gases;
5. During installation and use, it is necessary to avoid vertical air intake from front;
6. The product air inlet must not be blocked or contaminated;
7. This product needs to be installed firmly and not subjected to excessive impact or vibration;
8. Do not use if the shell is damaged or deformed;
9. Prohibit long-term storage and use of this product in high concentration alkaline gases;
10. Please replace the controller with a new one in a timely manner when it reaches its expected service life;
11. Prohibit long-term storage and use of this product in high concentration alkaline gases;
12. Please replace the controller with a new one in a timely manner when it reaches its expected service life;

BLUETOOTH OPERATION

Search and download the corresponding APP name "AirHeaterCC";

Alternatively, scan the QR code below with your phone and click on the corresponding system to download, then follow the steps below to connect and control the device with your phone.

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

【1】Option is for Android system
【2】Option is Google Download
【3】Option is IOS system

1. Turn on the Bluetooth function of the phone, run the APP

program to enter the following interface:

3 Bluetooth equipment is not connected 4 Unknown 5 - 6 0 7 + 8 0 9 0 Current voltage Altitude 10 0 11 0 Shell temperature Ambient temperature 12 Blow air heating 14 plateau model unknown

1, Bluetooth link button,
2, Set buttons,
3,Bluetooth connection status,
4, Equipment status and fault description,
5,-key,
6, Set gear or temperature,
7,+key,
8, working voltage,
9, altitude,
10,Machine aluminum body temperature ,
11, Equipment ambient temperature ,
12, Ventilation button,
13, Heating button,
14, Plateau button,
15, Mode switching button。

2. Device connection via Bluetooth:

Press【Bluetooth link button】to enter the following page:

20:07 Search equipment Heater5282 1 2 68 > BT_ECB1CB00001F 84 >

30°C 7525

Select 1 as "Heater+Machine Code" (when the device is powered on, press the OK button on the switch panel to display it), (The machine code on the picture is for reference only, and the actual displayed machine code shall prevail.)

2 is the Bluetooth signal strength (as shown in signal 68 above, the smaller the value, the stronger the signal). If no device is found, check i are other phones already connected to this device (each device can only connected to one phone), or power on the device again and turn on the Bluetooth function of the phone before proceeding to the first step.

3. After successful linking, it will be displayed as shown in the following figure:

20106 connected: Heater5282 Shut down - 0 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20.09 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model.Manually

connected: Heater5282 Heating - 16°C + 14v 0m Current voltage Altitude 0°C 29°C Shell temperature Ambient temperature Blow air heating plateau modelconstant temperature

Shutdown status Power on status Power on status (manual mode) (temperature mode)

1) Power on operation

In shutdown mode, press the [heating button], The device is turned on for heating and displays the "power on status" as shown in the above picture. Press the [+] button to upshift the device, press the [-] button to downsh device, press the [mode switch] button to switch between manual/constant temperature mode (0-40 degrees), and press the [plateau button] button to switch between plateau/plain mode.

2) Shutdown operation

In the power on state, press the [heating button], and the device enters shutdown and cooling process, displaying "cooling in progress". The device can only be powered off after being cooled down and displaying the "shutdown status" as shown in the above picture.

3) Ventilation operation

In the shutdown state, press the ventilation button to turn on/off ventilat and adjust the fan speed by pressing [+] or [-] .

4. Set Page Description:

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

① Unit settings include: Fahrenheit, Celsius feet, meters.
② Language settings include: Chinese, English, Spanish, French, German, Italy, Poland, Netherlands, Sweden, Russian。
③ The timing function includes: Monday to Sunday, and can be set to start time, clo time, single time, and cycle mode.
④ Automatic start stop function: After being turned on, the machine works effectively in constant temperature mode (some devices not have this function).
⑤ The user manual includes fault codes and troubleshooting methods.

5. Timed page description:

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time save

【1】On/Off button

【2】loop execution

【3】 Execute once

【4】【5】Equipment on and off time

【6】Save.

16:32 Timing Setting Monday Boot-up Time Friday Saturday Boot-up Time Chuck up once Shutdown Time Chuck up once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck down once Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down Time Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCE Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TCC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC Chuck Down TSC

Set the startup time in the shutdown state, as shown in the left figure.

【1】 Current time

【2】 Open timer

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 10:40 Saturday Boot-up Time Shutdown Time save

Set the shutdown time in the power on state, as shown in left figure.

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save 11:30 connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature- Blow air heating plateau model constant temperature 88

1. Button on
2. Select the device startup temperat (3-10 °C)
3. Select device shutdown temperature (3-10 °C)
   4.Save
   5.(A-Automatic) Working in automatic power on/off mode, the required temperature can be adjusted by pressing the [+] and [-] buttons (0-)
4. The surrounding temperature of the equipment is the reference temperat 7. Automatic start stop is only effect when working in constant temperatu mode. The above diagram shows: s the temperature to 37 °C, turn on temperature to 5 °C, turn off the temperature to 5 °C, stop heating v the surrounding temperature of the equipment is 42°C, and turn on he when the surrounding temperature of the equipment is 32°C (the timed or function is also effective)°

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL CHAUFFAGE

MODÈLE : ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODÈLE : ZM8008

Black industrial gas generator with visible cooling fan and wheels (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a textured gold pendant with a diamond-shaped crown and green accents, displayed against a dark background (no visible text or symbols)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the ca
3. Inside the protection box.

Interior view of a simple garage with a small cart on the side (no text or symbols visible)

1. Installed in the garage against the wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around the exhaust pipe

Interior view of a room with shelves and a small electronic device, no visible text or symbols

1. Installed against the wall of the warehouse
2. There should be no foreign objects blc the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electrical fuse with a red X symbol below (no text or symbols on the device itself)

Black industrial water purifier with attached pipe and red checkmark (no text or symbols)

Sens d'installation incorrect Sens d' installation correct

Pure electrical circuit lines without any symbols

Remote Control

Diesel Heater APP

AC-DC Adapter

Rotary tuyere

Blowpipe

Quick Connector

Liquid Crystal Switch

(To The Outside)

Silencer

Escape-Pipe
(Combustion Emissions)

Power Cord

QR code image with a central pixelated bird logo, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

Avertissement :

- 12V 15A + X

Panel operation instructions

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

2010s connected: Heater5282 Shut down - 0 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20:09 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

connected: Heater5282 Heating - 16°C + 14v 0m Current voltage Altitude 0°C 29°C Shell temperature Ambient temperature Blow air heating plateau modeconstant temperature 00

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time SAVE

16:32 Timing Setting Monday Boot-up Time Tuesday Boot-up Time Wednesday Boot-up Time Thursday Boot-up Time Friday Boot-up Time 16:35 Saturday Boot-up Time BEVE 5G 720

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 16:40 Saturday Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature Blow air heating plateau model:constant temperature 88

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL HEIZUNG

MODELL: ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODELL: ZM8008

Black industrial gas generator with visible cooling fan, wheels, and control panel (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a textured gold pendant with a diamond-shaped crown and green gemstone, displayed against a dark background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the ca
3. Inside the protection box.

Exterior view of a modern garage with a small cart on the side (no signage or text visible)

1. Installed in the garage against the wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around the exhaust pipe

Interior view of a room with white shelving units and a small appliance on the floor (no visible text or symbols)

1. Installed against the wall of the warehouse
2. There should be no foreign objects blc the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electrical fuse with a red X symbol below (no text or symbols on the device itself)

Black industrial vacuum cleaner with attached hose and red checkmark (no text or symbols)

Technical diagram showing 10 numbered views of a portable gas generator device with labeled parts and components.

DIESEL HEATER INSTALLATION DRAWING MODEL: ZM8008 Remote Control Diesel Heater APP AC-DC Adapter Liquid Crystal Switch Air Outlet Rotary tuyere Blowpipe Quick Connector Clamp Carbon Monoxide Alarm (To The Outside) Silencer Escape-Pipe (Combustion Emissions) Power Cord

QR code image containing a central logo, likely linking to a digital resource or website.

For specific installation, please scan the QR code view the installation video

Warnung :

- 12V 15A + X

Panel operation instructions

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

3 Bluetooth equipment is not connected 4 unknown 5 - 6 0 7 + 8 0 Current voltage 9 Altitude 10 0 Shell temperature Ambient temperature 12 Blow air 13 heating 14 plateau 15 model unknown

2070s connected: Heater5282 Shut down - 0 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heeting plateau model Manually

20:09 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

connected: Heater5282 Heating - 16°C + 14v 0m Current voltage Altitude 0°C 29°C Shell temperature Ambient temperature Blow air heating plateau modeconstant temperature 00

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time save

【1】Ein-/Aus -Taste

16:32 Timing Setting Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time 16:35 Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time save

16:33 Timing Setting Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time End repeat Execute once Boot-up Time Shutdown Time 16:40 Saturday repeat Execute once Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save

11:30 connected: Heater5282 Hearing - 5 37°C + 13v Current voltage 0m Altitude 0°C Shell temperature 6 32°C Ambient temperature Blow air heating plateau 7 model:constant temperature

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL STUFA

MODELLO:ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODELLO:ZM8008

Black industrial gas generator with visible cooling fan, wheels, and control panel (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold pendant with diamond-shaped crown and textured body, displayed against black background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the c
3. Inside the protection box.

Exterior view of a modern garage with a cart on the side (no signage or text visible)

1. Installed in the garage against t wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around 1 exhaust pipe

Interior view of a room with white shelving units and a small electronic device (no visible text or symbols)

1. Installed against the wall of the warehouse
2. There should be no foreign objects blo the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electrical fuse with a red X symbol indicating cancellation or defect (no text or symbols on the device itself)

Black industrial water purifier with attached pipe and red checkmark (no text or symbols)

INSTALLATION DRAWING

MODEL: ZM8008

Remote Control

Diesel Heater APP

Pure electrical circuit lines without any symbols

AC-DC Adapter

Blowpipe

Quick Connector

Liquid Crystal Switch

(To The Outside)

Escape-Pipe (Combustion Emissions)

Power Cord

120 3 15:00 0000 00:00

QR code image containing a central pixelated dinosaur icon, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

Avvertimento :

- 12V 15A + X

Panel operation instructions

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

3 Bluetooth equipment is not connected 4 (unknown) 5 - 6 0 7 + 8 0 Current voltage 9 0 Altitude 10 0 Shell temperature Ambient temperature 12 Blow air 13 heating 14 plateau model unknown

20:06 connected: Heater5282 ✓ Shut down - 0 + 14v 0m Current voltage Altitude 0°C 30°C Shell temperature Ambient temperature Blow air heating plateau model Manually 98

20:09 $ Ok will OK? connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

2006 connected: Heater5282 Heating - 16°C + 14v 0m Current voltage Altitude 0°C 29°C Shell temperature Ambient temperature Blow air heading plateau model constant temperature

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time SAVE

16:32 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time Friday Boot-up Time 16:35 Saturday Boot-up Time Shutdown Time USE

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 16:40 Saturday Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature Blow air heating plateau model constant temperature 88

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL CALENTADOR

MODELO:ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODELO:ZM8008

Black industrial gas generator with visible cooling unit and wheels (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the c
3. Inside the protection box.

Interior view of a simple garage with a small cart on the door (no text or symbols visible)

1. Installed in the garage against t wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around 1 exhaust pipe

Interior view of a room with white shelving units and a small electronic device (no visible text or symbols)

1. Installed against the wall of the warehouse
2. There should be no foreign objects blc the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electrical fuse with a red X symbol below (no text or symbols on the device itself)

Black industrial pressure cooker with attached pipe and red checkmark (no visible text or symbols)

Pure electrical circuit lines without any symbols

AC-DC Adapter

Blowpipe

Quick Connector

Liquid Crystal Switch

(To The Outside)

Escape-Pipe (Combustion Emissions)

Power Cord

120 3 15:00 0000 20:00

QR code image containing a central pixelated dinosaur icon, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

Advertencia :

- 12V 15A + X

Panel operation instructions

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

1

Download Android

2

Download on Google Play

3

Download on the App Store

20:06 connected: Heater5282 Shin down - 0 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20/09 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20:09 connected: Heater5282 + - 16°C + 14v 0m Current voltage Altitude 0°C 29°C Shell temperature Ambient temperature Blow air heading plateau model constant temperature 06

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time SAVE

【1】 Botón de encendido /apagado Ejecución de bucle 【2】

16:32 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time Friday Boot-up Time 16:35 Shutdown Time Saturday Boot-up Time Shutdown Time BIVE

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 16:40 Saturday Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature Blow air heating plateau model constant temperature 88

1.Botón encendido

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL PODGRZEWACZ

MODEL:ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODEL:ZM8008

Black industrial gas generator with visible cooling unit and wheels (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold and silver decorative object with textured spherical body and small accessories (no visible text or symbols)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the c
3. Inside the protection box.

Interior view of a two-story garage with a small vehicle on the side (no visible text or symbols)

1. Installed in the garage against t wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around 1 exhaust pipe

Interior view of a room with shelves and a small electronic device (no visible text or symbols)

1. Installed against the wall of the warehouse
2. There should be no foreign objects blc the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electrical fuse with a red X symbol indicating cancellation or explosion (no text or symbols on the device itself)

Black industrial water purifier with attached pipe and red checkmark (no text or symbols)

DIESEL HEATER INSTALLATION DRAWING MODEL: ZM8008 Remote Control Diesel Heater APP AC-DC Adapter Liquid Crystal Switch Air Outlet Rotary tuyere Blowpipe Quick Connector Carbon Monoxide Alarm Clamp Power Cord (To The Outside) Silencer Escape-Pipe (Combustion Emissions)

QR code image containing a central pixelated logo with a dinosaur silhouette, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

Ostrzeżenie :

- 12V 15A + X

Panel operation instructions

QR code image with a small black bird logo in the center

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

2010m 10 -150 1 >2 3 Bluetooth equipment is not connected 4 unknown 5 - 6 0 7 + 8 0 Current voltage 9 0 Altitude 10 0 Shell temperature Ambient temperature 12 Blow air 13 heating 14 plateau model unknown

20:06 connected: Heater5282 Ships down - 0 + 14v Current voltage 0m Altitude 0°C Shelf temperature 30°C Ambient temperature Blow air heating plateau model Manually

2019 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Attitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20°C connected: Heater5282 Heating - 16°C + 14v Current voltage 0m Altitude 0°C Shell temperature Ambient temperature 29°C Blow air heating plateau modelconstant temperature

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time SAVE

16:32 Timing Setting Monday Boot-up Time Tuesday Boot-up Time Wednesday Boot-up Time Thursday Boot-up Time Friday Boot-up Time 16:35 Saturday Boot-up Time stop stop Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown Time shutdown T

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 16:40 Saturday Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature Blow air heating plateau model:constant temperature 88

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL VERWARMING

MODEL:ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODEL:ZM8008

Black industrial gas generator with visible cooling unit and wheels (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold-colored diamond pendant with a red gemstone, displayed against a dark background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the c
3. Inside the protection box.

Interior view of a simple garage with a small cart on the side (no text or symbols visible)

1. Installed in the garage against t wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around 1 exhaust pipe

Interior view of a room with shelves and a small electronic device, no visible text or symbols

1. Installed against the wall of the warehouse
2. There should be no foreign objects blc the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electric vehicle battery with a metal clamp and a red 'X' symbol (no text or symbols on the device itself)

Black industrial water purifier with attached pipe and red checkmark (no text or symbols)

DIESEL HEATER INSTALLATION DRAWING MODEL: ZM8008 Remote Control Diesel Heater APP AC-DC Adapter Liquid Crystal Switch Air Outlet Rotary tuyere Blowpipe Quick Connector Clamp Carbon Monoxide Alarm (To The Outside) Silencer Escape-Pipe (Combustion Emissions) Power Cord

QR code image containing a central pixelated logo with a dinosaur silhouette, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

Waarschuwing :

- 12V 15A + X

Panel operation instructions

QR code image with a small black silhouette logo in the center

1. Knop-LCD-schakelaar [Bluetooth-type]

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

1

Download Android

2

Download on Google Play

3

Download on the App Store

20:06 connected: Heater5282 Shot down - 0 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20/09 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20:09 connected: Heater5282 + - 16°C + 14v Current voltage 0m Altitude 0°C Shell temperature 29°C Ambient temperature Blow air heading plateau model constant temperature

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time SAVE

【1】Aan /uit- knop

【2】Iusuitvoering

16:32 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time Friday Boot-up Time 16:35 Saturday Boot-up Time Shutdown Time USE

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 16:40 Saturday Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature Blow air heating plateau model constant temperature 88

1.Knop aan

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL VÄRMARE

MODELL: ZM8008

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODELL: ZM8008

Black industrial gas generator with visible cooling fan, wheels, and control panel (no text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Detta installationsschema gäller endast maskiner med modell ZM 8008.

158. WARNING: Giftigt material

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger seat
3. 3 & 4 under the container.
4. In the trunk.

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passer room or baggage room of the vehicle. If it be installed, fix the heater under the unders of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the c
3. Inside the protection box.

Interior view of a simple garage with a small cart on the door (no text or symbols visible)

1. Installed in the garage against t wall
2. There should be no foreign object blocking the front and rear air vents
3. No flammable materials around 1 exhaust pipe

Interior view of a room with white shelving units and a small electronic device (no visible text or symbols)

1. Installed against the wall of the warehouse
2. There should be no foreign objects bld the front and rear air vents.
3. No flammable materials around the exh pipe

Exterior view of a black electrical fuse with a red X symbol indicating cancellation or disconnection (no text or symbols on the device itself)

Black industrial vacuum cleaner with attached cable and red checkmark symbol (no text or labels)

Technical diagram showing 10 sequential views of a portable gas purifier device with numbered parts labeled 1 through 10.

DIESEL HEATER INSTALLATION DRAWING MODEL: ZM8008 Remote Control Diesel Heater APP AC-DC Adapter Liquid Crystal Switch Air Outlet Rotary tuyere Blowpipe Quick Connector Clamp Carbon Monoxide Alarm (To The Outside) Silencer Escape-Pipe (Combustion Emissions) Power Cord

QR code image containing a central pixelated dinosaur icon, likely linking to a digital resource or webpage.

For specific installation, please scan the QR code view the installation video

Varning :

- 12V 15A + X

Panel operation instructions

QR code image with a small black silhouette logo in the center

1. Ratt-LCD-brytare [Bluetooth-typ]

-188 V OK 8.8.8.8 Hz V KM PPm OFF ON

Emergency response methods for controller alarms

Precautions and usage specifications

QR code image containing encoded data, no visible human-readable text

Download AirHeaterCC

Get the best experience on your mobile device!

1 Download Android

2 Download on Google Play

3 Download on the App Store

20:06 connected: Heater5282 Start down - 0 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20:09 connected: Heater5282 Heating - 3 + 14v Current voltage 0m Altitude 0°C Shell temperature 30°C Ambient temperature Blow air heating plateau model Manually

20°C 5 °C all (E) connected: Heater5282 Heating - 16°C + 14v Current-voltage 0m Altitude 0°C Shell temperature 29°C Ambient temperature Blow air heating plateau model constant temperature 00 00

20:10 set up Unit Switch 1 > Language Switch 2 > Timing Setting 3 > Automatic start and stop 4 > User manual 5 >

Timing Setting Sunday repeat Execute once Boot-up Time Shutdown Time Monday repeat Execute once Boot-up Time Shutdown Time Tuesday repeat Execute once Boot-up Time Shutdown Time Wednesday repeat Execute once Boot-up Time Shutdown Time Thursday repeat Execute once Boot-up Time Shutdown Time Friday repeat Execute once Boot-up Time Shutdown Time Saturday repeat Execute once Boot-up Time Shutdown Time SAVE

【1】På /Av- knapp

【2】 looputförande

【3】Kör en gång

16:32 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time Friday Boot-up Time 16:35 Shutdown Time Saturday Boot-up Time Shutdown Time shift

16:33 Timing Setting Monday Boot-up Time Shutdown Time Tuesday Boot-up Time Shutdown Time Wednesday Boot-up Time Shutdown Time Thursday Boot-up Time Shutdown Time End Boot-up Time Shutdown Time 16:40 Saturday Boot-up Time Shutdown Time save

11:30 Automatic start and stop Automatic start -stop switch 1 Power offset temperature - 5 + °C 2 Ship off the offset temperature - 5 + °C 3 4 save connected: Heater5282 Heating - 5 37°C + 13v 0m Current voltage Altitude 0°C 6 32°C Shell temperature Ambient temperature Blow air heating plateau model constant temperature 88

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
