USER MANUAL DG-K100 Vevor

Affordable. Reliable. Home Improvement.

KEROSENE HEATER

MODEL:DG-K70/DG-K100

VEVOR

Affordable. Reliable. Home Improvement.

KEROSENE HEATER

MODEL:DG-K70/DG-K100

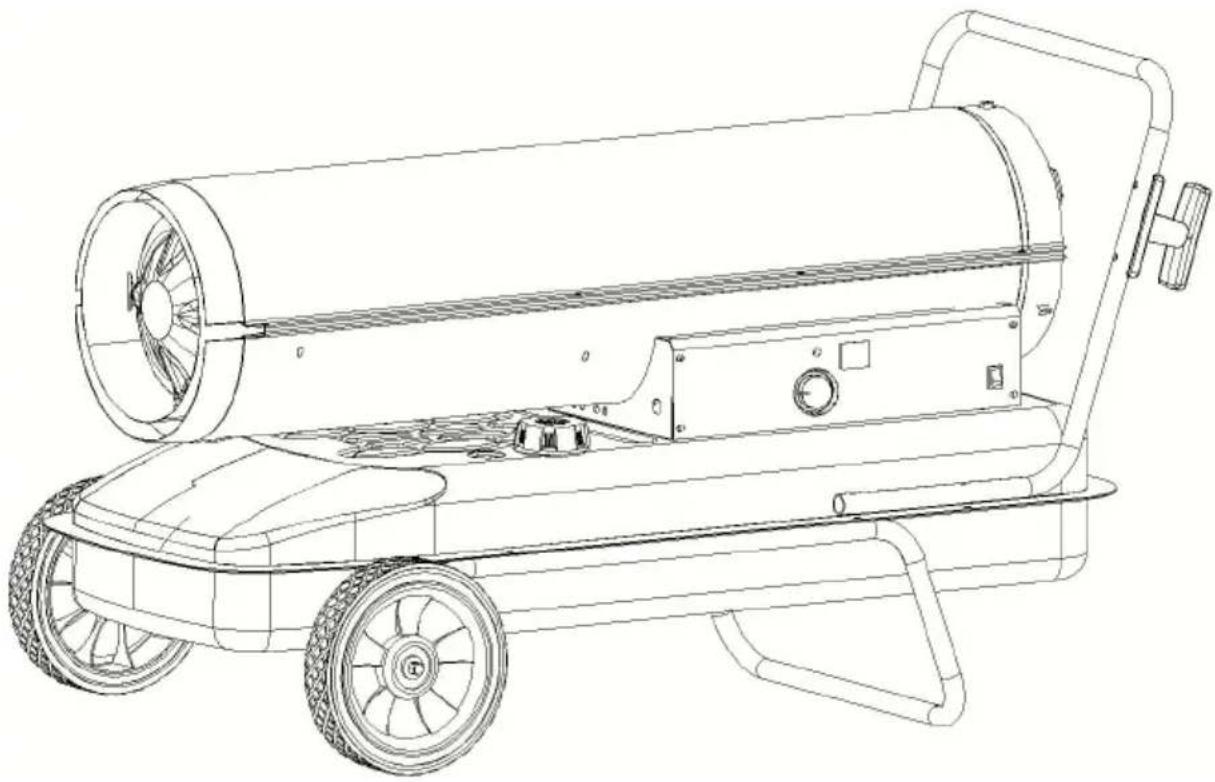

Line drawing of a portable electric heater with wheels and control panel (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

CONSUMER: Retain this manual for future reference.

IMPORTANT: Read and understand all of the directions in this manual before assembling, starting, or servicing the heater. Improve use of this heater can cause serious injury. Keep this manual reference. Not suitable for the use of wood floors or other combustible materials.

▲DANGER GENERAL HAZARD WARNING:

Be sure to comply with the instructions and warnings provided by heater, or death, serious bodily injury and property loss, or damage the hazards of fire, explosion, burn, asphyxiation, and carbon poisoning can result.

Only people who understand these instructions should use or se heater.

If you need heater information such as an instruction manual, I contact the dealer or manufacturer.

▲DANGER NOT FOR USE IN NON-ADEQUATELY VENTEILED ENCLOSED SPACES.

⚠ WARNING NEVER LEAVE THE HEATER UNATTENDED WHI BURNING OR WHILE CONNECTED TO A POWER SOURCE

⚠ WARNING Fire, burn, inhalation, and explosion hazard. Keep combustibles, such as building materials, paper, or cardboard, a distance from the heater, as these instructions recommend. Never the heater in spaces that contain products such as gasoline, so paint thinners, dust particles, volatile or airborne combustibles, or unknown chemicals. This is an unvented portable heater. It uses (oxygen) from the area in which it is used. Adequate combustio ventilation air must be provided. Refer to ventilation on Page 7.

WARNING

Do not operate this heater until you have read a

thoroughly understand these safety and operating instructions. Fail to comply with the precautions and instructions provided with this can result in death, serious bodily injury, property loss or damage, fire hazards, soot production, explosion, burns, asphyxiation or ca-sonoxide poisoning. Only persons who can read and understand instructions should use or service this heater. Not for use in the recreational vehicles.

WARNING

Electrical Safety The owner is responsible for checked

this electrical product before use to ensure it is safe. You must power cables, plugs, sockets, etc, for signs of wear or damage must ensure this electric shock risk is minimized by installing appropriate safety devices. The main distribution board should incorporate a residual current circuit breaker (RCCB). We also recommend that a residual current device be used (RCD). An Particularly important for mobile devices that are connected to a without an RCCB. Any fault rectification or electrical work, include connection of a plug, must be carried out by a qualified electric. You must also comply with electrical safety requirements, include Electricity at Work Act 1989, which requires portable electrical appliances used on business premises to be PAT tested annually

Health & Safety at Work Act 1974 places responsibility for the condition of electrical appliances upon owners. Power cables and should always be regularly inspected for safety. If in doubt about electrical safety, you must consult a qualified electrician.

Safety Information

▲DANGER Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

A Warning a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

▲CAUTION Indicates a potentially hazardous situation which, i

not avoided, MAY result in minor or moderate injury.

This is a Diesel(or Kerosene)(NO.1/Diesel or 1-K Kerosene) directed-forced air heater. It is primarily intended for temporarily heating buildir under construction, alteration, or repair. Directed-fired means that all of combustion products of the heater enter the heated space. This applies is rated at 98% combustion efficiency but does produce small amount carbon monoxide. Carbon monoxide is toxic.

ADANGE Carbon Monoxide poisoning may lead to death!

Humans can tolerate small amounts of carbon monoxide, and precaution should be taken to provide proper ventilation. According to this manual failure to provide proper ventilation can result in death. Early signs of carbon monoxide poisoning resemble the flu. Symptoms of improper ventilation are:

* Headache * dizziness * burning of the nose and eyes * nausea * dry mouth * sore throat *

For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used, 1-K kerosene has been refined to virtually eliminating contaminants, such as sulfur. Which can cause a rotten egg odor during the operation of the heater, However, #1 or #2 diesel may also be 1-K kerosene is not available. Be advised that these fuels do not be clean as 1-K kerosene, and care should be taken to provide more from ventilation to accommodate any added contaminants that may be added the heated space. Use of #1 or #2 diesel may result in more periodic maintenance.

⚠ WARNING Risk of indoor air pollution!

-Use this heater only in well-ventilated areas! Provide at least a three-square-foot (2800 sq cm) outside air opening for every 29KW/hr heater rating.

-Carbon Monoxide Poisoning. Early signs of carbon monoxide poisoning resemble flu-like symptoms such as headaches, dizziness, and/or nausea. If you have these symptoms, your heater may not be working properly. -Get fresh air at once! Have the heater serviced. Some people are affected by carbon monoxide than others. These include pregnant women

those with heart or lung problems, anemia, or those under alcohol or high altitudes.

⚠ WARNING Risk of burns / fire / explosion!

-NEVER use fuels such as gasoline, benzene paint thinners, or other compounds in this heater(RISK OF FIRE OR EXPLOSION)

-NEVER refill the heater's fuel tank while the heater is operating or: This heater is EXTREMELY HOT While in operation.

-Keep all combustible materials away from this heater.

-NEVER block the air inlet or air outlet of the heater.

-NEVER use ductwork in front or at the rear of the heater.

-NEVER move or handle the heater while still hot.

-NEVER transport a heater with fuel in its tank.

-If equipped with a thermostat, the heater may start anytime.

-ALWAYS locate the heater on a stable and level surface.

-ALWAYS keep children and animals away from the heater.

-Bulk fuel storage should be a minimum of 762cm from heaters, torch portable generators, or other ignition sources. All fuel storage should I accordance with federal, state, or local authorities jurisdiction.

-NEVER use this heater in living or sleeping areas.

-NEVER use this heater where flammable vapors may be present.

⚠ WARNING Risk of electric shock!

-Use only the electrical power (Voltage and frequency) specified on the model plate of the heater. Use only a local correct plug, grounded o and extension cord.

-ALWAYS install the heater so that it is not directly exposed to water rain, dripping water, or wind.

-ALWAYS unplug the heater when not in use.

Minimum clearance from combustibles:

Orientation	DG-K70	DG-K100
Top(cm)	125	125
Side(cm)	125	125
Front(cm)	250	250

Features

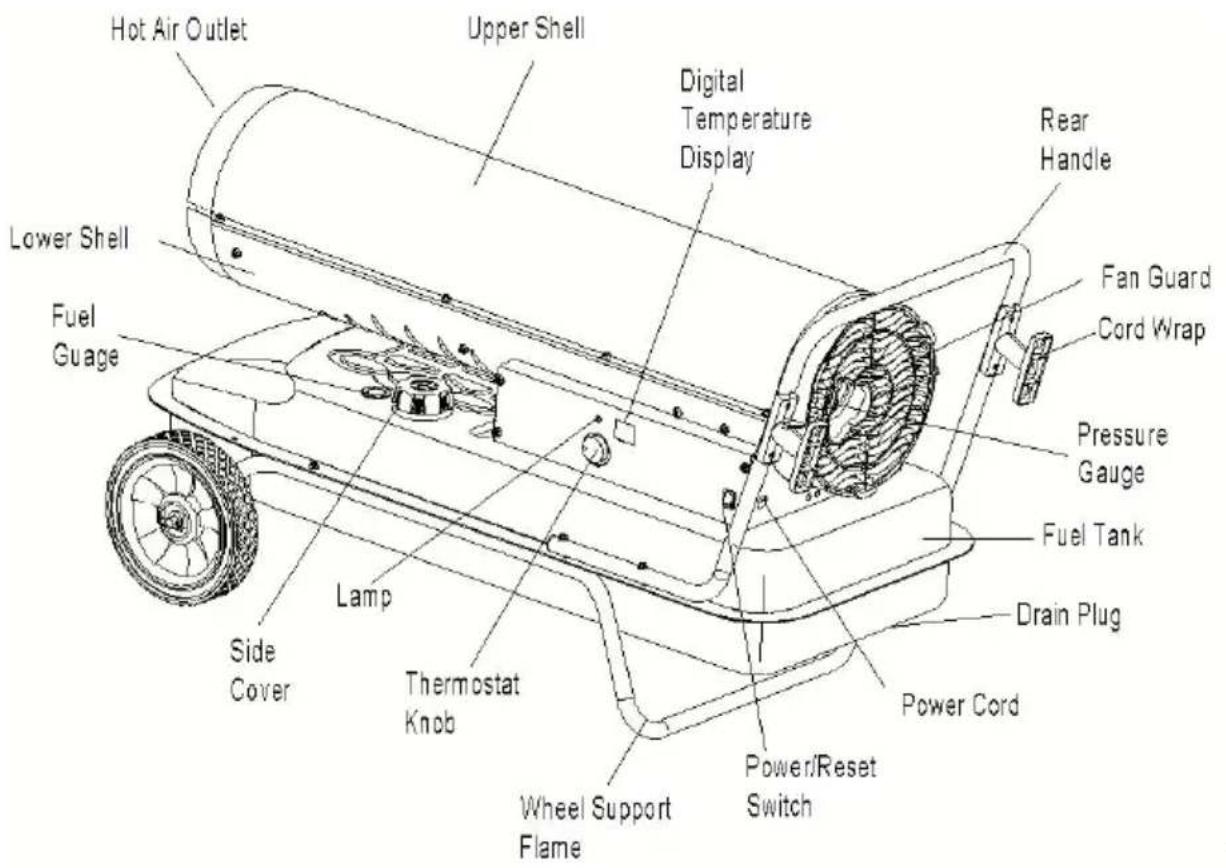

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Lamp Side Cover Thermostat Knob Wheel Support Flame Power/Reset Switch Pressure Gauge Fan Guard Cord Wrap Fuel Tank Drain Plug Power Cord

Fig.1

Specifications

Model	DG-K70	DG-K100
Heat Output (kW)	20	30
Fuel Consumption (L/Hr)	1.9	2.9
Fuel Tank Capacity (L)	19	38
Pump Pressure(kpa/psi)	31/4.5	34.5/5
Power Supply(V/Hz/A)	220-240/50/5	220-240/50/5
Phase	single	single

specifications subject to change without notice

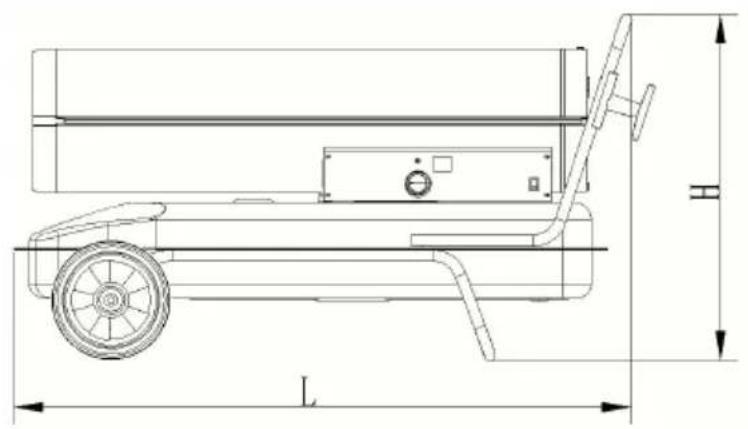

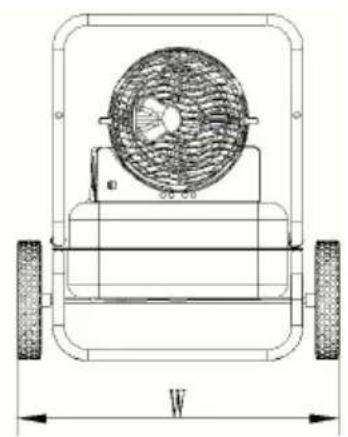

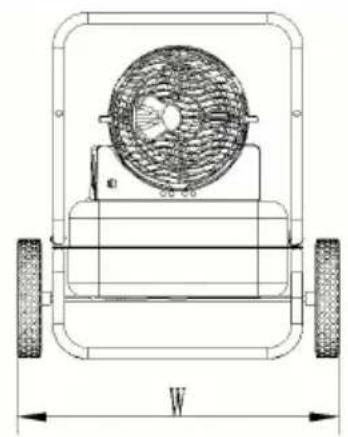

Technical line drawing of a wheeled cart with labeled dimensions L and H (no text or symbols beyond basic geometry)

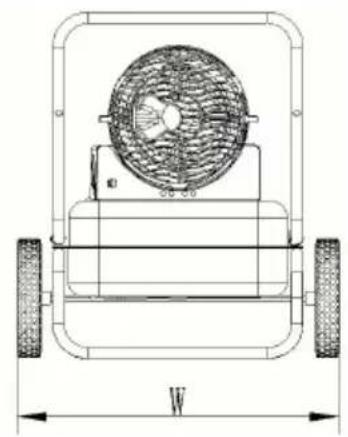

Technical line drawing of a mechanical fan assembly with dimension lines (no text or symbols)

Fig.2

Model	DG-K70	DG-K100
L(mm)	870	915
W(mm)	385	475
H(mm)	550	490

Unpacking

Remove the heater and all of the packing materials from the shipping carton.

NOTE: Save the box and packing materials for future storage.

Check the chart below to ensure you have all the parts required to assemble your heater.

Assembly

No.	Specifications	Picture	QTY
1	Wheel support frame		1pcs
2	Rear Handle		1pcs
3	Wheel		2pcs
4	Axle		1pcs
5	Cotter Pin		2pcs
6	Cord Wrap		2pcs
7	Screw (M5*42)		2pcs
8	Screw(M5*28)		8pcs
9	Nut(M5)		10pcs
10	Washer		2pcs
11	Manual		1pcs

Tool preparation

-Tools required: Medium Phillips screwdriver, 5/16' open end or adjustable wrench, needle nose pliers.

ASSEMBLING FRAME AND WHEELS

1.Slide the axle through holes in the wheel support frame.
2.Slide Wheels onto each axle, ensuring that the valve stem (if pneur is to the outside (see Fig.2)
3.Slide flat washers (L) onto the axle past the small hole. Insert the pin in the axle hole and bend the pin's legs with needle nose pliers secure.
4. Place the heater on the assembled frame, ensuring that the air inlet is by the wheels and that the mounting holes on the tank flange of heater align with the holes in the frame.
5.Take the rear handle, align the mounting holes with the correspondi

holes in the tank flange/wheel frame, slide a screw through the holes loosely attach a nut. Repeat for the other 2 holes, then fully tighten screws and nuts.

CAUTION

Do not operate heater without support frame fully asse to tank.

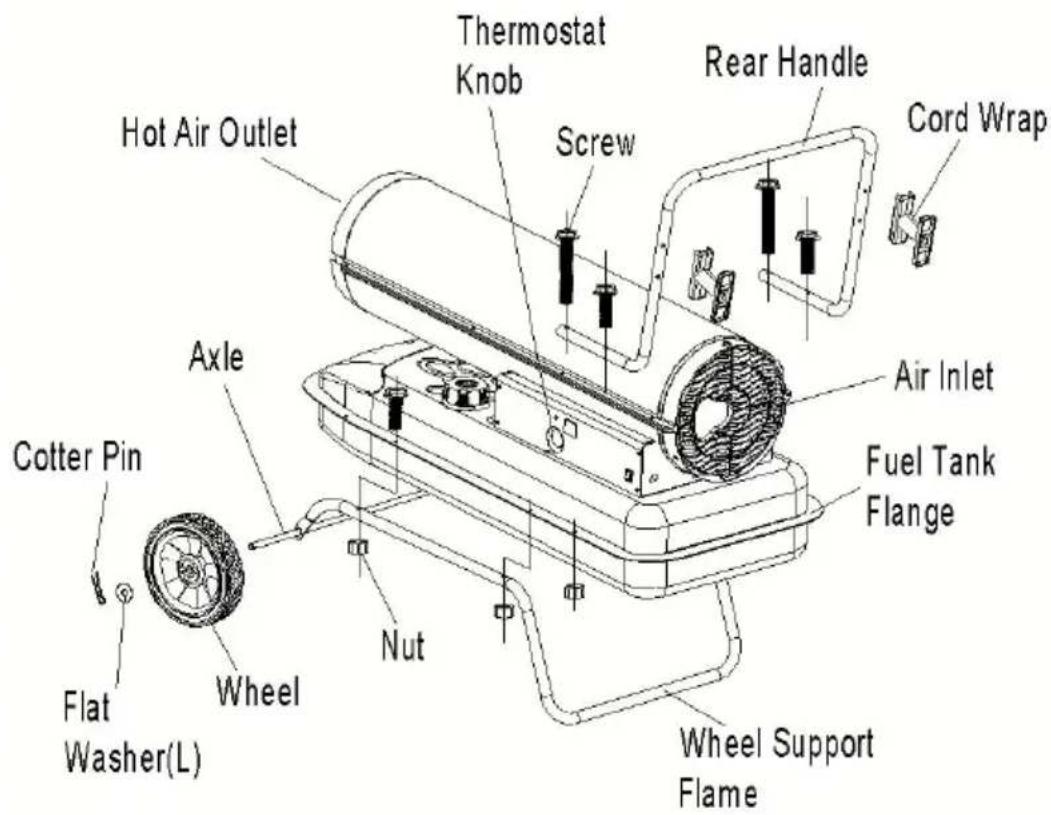

Hot Air Outlet Axle Cotter Pin Flat Washer(L) Wheel Nut Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Wheel Support Flame

Fig.3

Operation

Diesel (Or 1-K Kerosene)

For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. 1-K kerosene has been refined to virtually eliminating contaminants, such as sulfur, which can cause a rotten egg odor during operation of the heater. However, #1 or #2 Diesel may also be used as kerosene is not available. Be advised that these fuels do not burn as 1-K kerosene, and care should be taken to provide more fresh air ventilation to accommodate any added contaminants that may be added the heated space. Using diesel fuel can cause excess soot production

DO NOT use any fuel that is not approved above.

NOTE: Diesel (1-K Kerosene) should only be stored in a blue container that is clearly marked “Diesel (1-K Kerosene)”. Never store Diesel (1-Kerosene) in a red container. Red is associated with gasoline.

-NEVER store Diesel (1-K Kerosene) in the living space. Diesel (1-K Kerosene) should be stored in a well-ventilated area outside the living area.

-NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp stove fuel, paint thinners, or other oil compounds in this heater (THE ARE VOLATILE FUELS THAT CAN CAUSE A FIRE OR EXPLOSION)

-NEVER store Diesel (1-K Kerosene) in direct sunlight or near a sour of heat.

-NEVER use Diesel (1-K Kerosene) heat has been stored from one s to the next. It deteriorates over time.

OLD Diesel (1-K Kerosene) WILL NOT BURN PROPERLY IN THIS HEATER.

-Use diesel in the heater. 1-K Kerosene is a suitable substitute.

THEORY OF OPERATION

Fuel System: This heater is equipped with an air pump that operates of the electric motor. The pump forces air through the air line connects the fuel tank, drawing fuel to the nozzle in the burner head. Air also through the nozzle where it mixes with the fuel and is sprayed into combustion chamber in a fine mist.

Quick-Fire Ignition: A transformer sends high voltage to a two-prong spark plug. The spark ignition the fuel/air mixture as it is sprayed into combustion chamber.

Air System: A fan is turned by the heavy-duty motor, which forces around and into the combustion chamber, which is super-heated and forced out the front of the chamber.

Temperature Limit Control: This heater is equipped with a temperature limit control designed to turn it off should the internal temperature rise unsafe level. If this device activates and turns your heater off, it may

require service.

You can start your heater once the temperature falls below the reset temperature.

MODELS	Internal Shut-Off Temp. Plus/Minus 10 Degrees	Reset Temperature Plus/Minus 10 Degrees
DG-K70	176°F/80°C	176°F/80°C
DG-K100	176°F/80°C	176°F/80°C

Pure electrical circuit lines without any symbols

Simple line drawing of three connected circles forming a triangular shape (no text or symbols)

Fig.4 Temperature control switch

Electrical System Protection: The heater's electrical system is protect by a circuit breaker that protects the system components from damage, the heater fails, check the fuse first and replace it if necessary

FUSE TYPE:

DG-K70/DG-K100

KSD

Flame Sensor: The heater uses a photocell to see the flame in the combustion chamber. Should the flame extinguish, the sensor will stop electrical current, and the heater will shut off.

FUELING THE HEATER

⚠CAUTION NEVER FILL THE FUEL TANK INDOORS. ALWAYFILL FUEL TAHNK OUTDOORS.BE SURE THE HEATER IS ON LEVEL GROUND WHEN FUELIAND NEVER OVERFILL THE FUEL TANK.

⚠WARNING NEVER FILL THE FUEL TANK INDOORS. ALWAYFILL FUEL TAHNK OUTDOORS.BE SURE THE HEATER IS ON LEVEL GROUND WHEN FUELIAND NEVER OVERFILL THE FUEL TANK.

It is always a good idea to fire the heater outdoors for the first time allow any oils used in the manufacturing process to be burned off in environment. This is initial burn should last at least 10 minutes.

VENTILATION

Risk of indoor air pollution. Use heater only in well-ventilated areas. Always provide a fresh air opening in the heated space of at least 1 square feet(2800 sq.cm) for each 29kW/hr of heater output. Provide a larger opening if more heaters are required.

-a two-car garage door raised 15.24cm (6 inches)

-a single-car garage door raised 22.86cm (9 inches)

-TWO, 76.2cm (30 inches) windows raised 38.1cm(15inches)

TO START THE HEATER

1. Fill the tank with Diesel (1-K Kerosene) until fuel gauge point to
2. Be sure fuel cap is secure.
3. Plug power cord into the local correct plug. Grounded extension core plug extension cord into three prong 220-240VAC grounded outlet. The extension cord should be at least six feet (1.8 meters) long.

Extension cord wire size requirements are as follows:

-6 to 10 feet (1.8 to 3 meters), use 18 AWG wire.
-11 to 100 feet (3.4 to 30.4 meters), use 16 AWG wire.
-101 to 200 feet (30.8 to 61 meters), use 14 AWG wire.
4. Turn the thermostat control knob to the desired temperature setting. setting range is from 40^ F to 110^ F. Push the power switch to the position(Fig.5). The power indicator lamp and room temperature display (DG-K100 only) will light, and the heater will start.

NOTE: The room temperature display ( DG-K100 only ) will indicate following:

-When the room temperature is less than 0^ F, the display will show The thermostat may be set too low if the heater does not fire. Turn control knob to a higher setting until the heater fires; if the heater s not start, push the power switch to “OFF”, then back to “ON”. If the

still does not fire, see Troubleshooting Guide on page 18.

NOTE: The electrical components of this heater are protected by a fuse mounted on the PC board. If the heater fails to fire, check the fuse replace it if necessary. Also, check the power source to ensure the voltage is being provided to the heater.

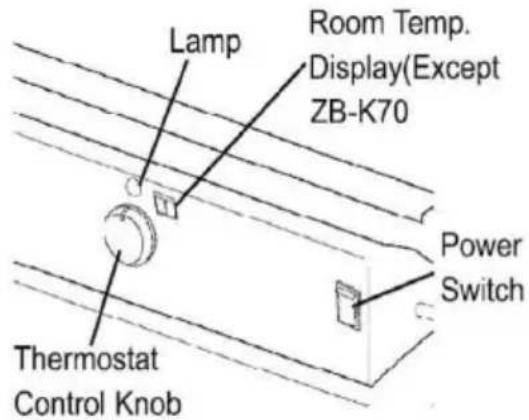

Lamp Room Temp. Display(Except ZB-K70) Power Switch Thermostat Control Knob

Fig.5. Control panel for all models

TO STOP THE HEATER

Simply turn the power switch to "OFF" position and unplug the power

TO RESTART THE HEATER

1. Wait 10 seconds after shutting off the heater.
2. Turn the power switch to "ON" position.
3. Be sure to follow all starting procedure precautions.

ELECTRICAL OUTLET

▲WARNING Shock Hazard!

-Never plug an appliance with more than a 5 amp rating into this or -Always keep the outlet covered when not in use.

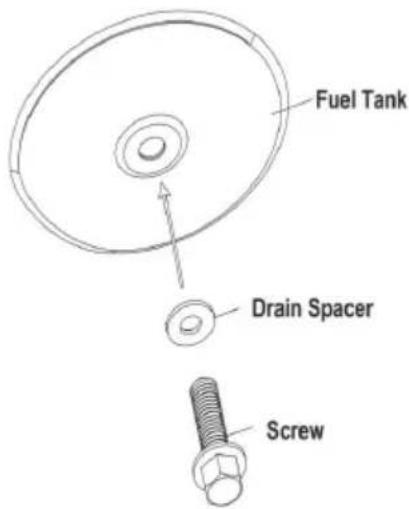

LONG TERM STORAGE

Drain Fuel Tank

1. For models DG-K70, drain fuel through the fuel cap opening using approved siphon. For models DG-K100, drain fuel through the Drain F at the bottom of the fuel tank.

2. To remove the Drain plug ( DG-K100). Pull the plug grip downward remove the seal head from the drain hole tank(see Fig.6).

3. Using a small amount of Diesel (1-K Kerosene). Rinse and swirl the Diesel (1-K Kerosene) inside of the fuel tank. Empty the tank fully.

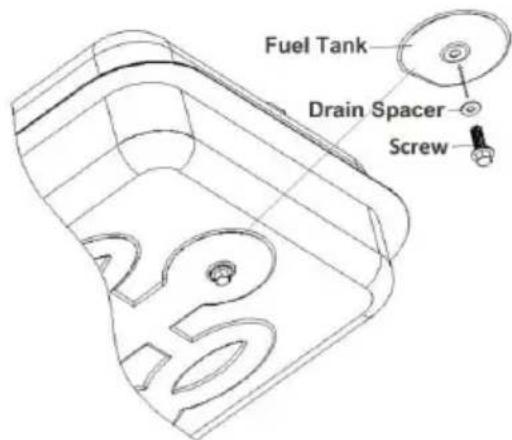

Fuel Tank Drain Spacer Screw

Fig.6 Drain Plug Removal . Pump pressure adjustment 4.To replace, push the drain head fully into the drain hole and secure pushing the seal cap fully into the head hole (see Fig.7)

IMPORTANT: Never store leftover Diesel (1-K Kerosene) over the summer. Using old fuel can damage your heater.

Store heater in a dry, well-ventilated area.

Be sure that the storage area is free of dust and corrosive vapors. the heater in the original shipping material. Keep the Users Manual in easily accessible place.

Fuel Tank Drain Spacer Screw

Fig.7 Drain Plug Reinstall

Maintenance

⚠ WARNING Never service heater while it is plugged in or while

Use only original equipment replacement parts. Using alternate or third-party components can cause unsafe operating conditions and will void your warranty.

We suggest following a maintenance schedule as follows:

FUEL/FUELTANK

Flush every 200 hours of operation or as needed. Do not use water the tank. Use fresh Diesel (1-K Kerosene) only.

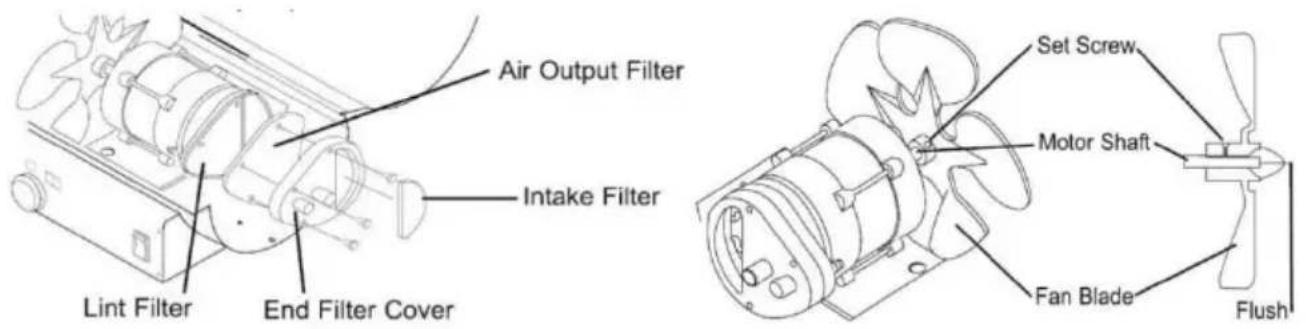

AIR FILTERS:

The air intake Filter should be replaced or washed with soap and was dried thoroughly every 500 hours of operation, or less, depending on conditions.

The output and lint Filter should be replaced every 500 hours of open or less, depending on conditions.

NOTE: Use of Diesel (1-K Kerosene) may require additional maintenar

Air Output Filter Intake Filter Lint Filter End Filter Cover Set Screw Motor Shaft Fan Blade Flush

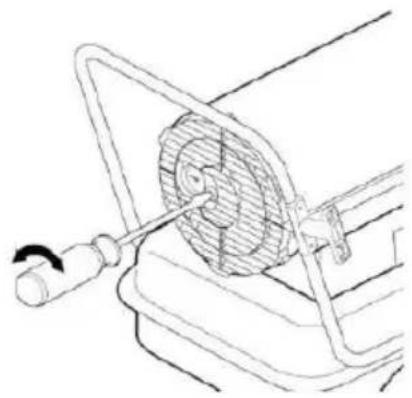

Fig.8 Filter Replacement Fig.9 Fan Replacement

FAN BLADES:

Blades should be cleaned at least once per heating season, depending on the condition. Remove all accumulated dust and dirt with a damp cloth bending any of the fan blades. Be sure the fan blades are dry before re-starting the heater. For Fan removal, see Fig.9

NOZZLES:

Nozzles should be cleaned or replaced at least once per heating sea. Contaminated fuel could make this necessary immediately.

To clean dirt from the nozzle, blow compressed air through the nozzl

It may be necessary to soak the nozzle in clean Diesel (1-K Kerosen) help loosen any particles.

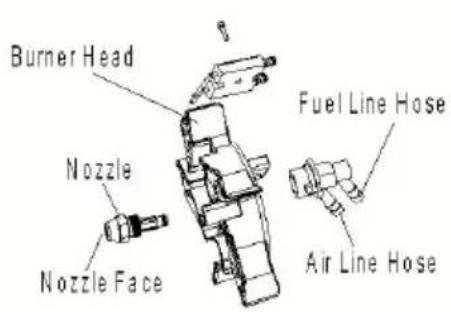

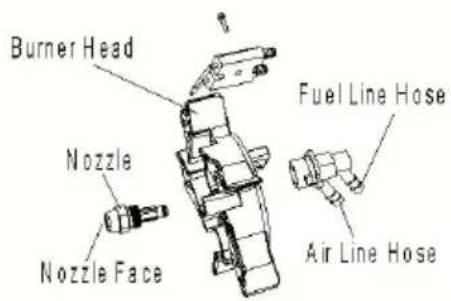

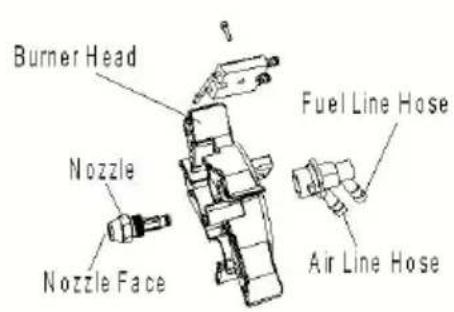

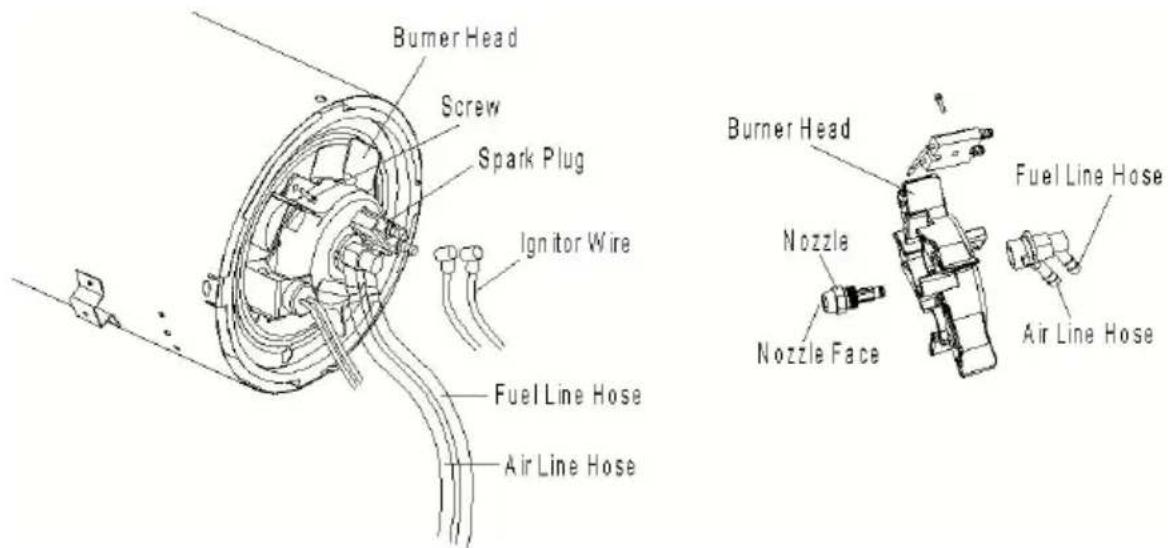

Burner Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Fig.10 Nozzle Replacement

NOTE: The use of Diesel (1-K Kerosene) may require additional maintenance. Using this heater without proper maintenance or with contaminated or old fuel may lead to improper combustion and possib soot production.

BE SURE FUEL USED IS APPROVED

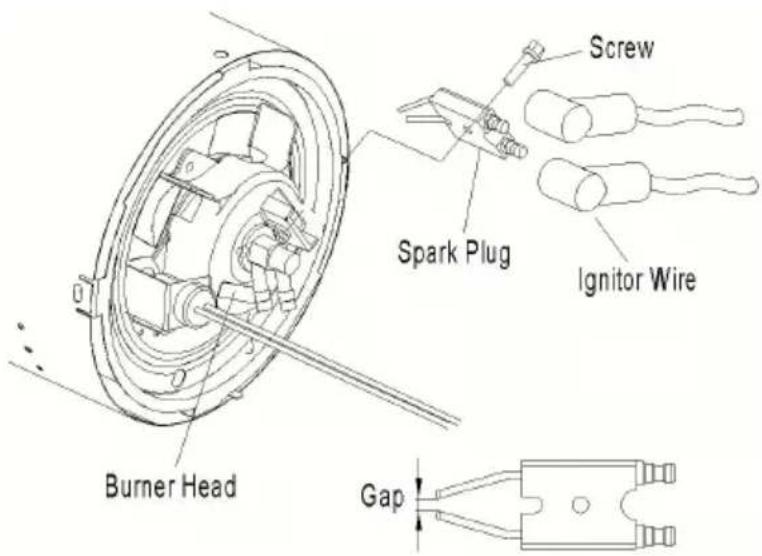

Clean and re-gap every 600 hours of operation or replace as needed removing the spark plug, clean the terminals with a wire brush. Re-ga terminals to 0.35 ~cm

Burner Head Spark Plug Screw Ignitor Wire Gap

Fig.11 Spark plug replacement

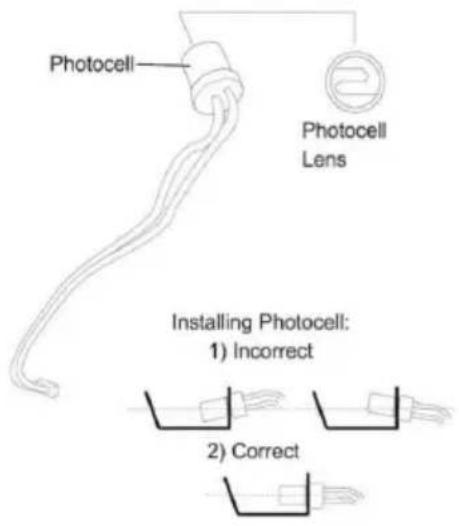

PHOTOCELL:

The Photocell should be cleaned at least once per heating season or depending on the condition.

Use a cotton swap dipped in water or alcohol to clean the lens of Photocell. Note the proper photocell position, as noted in Fig.12 and

Photocell Photocell Lens Installing Photocell: 1) Incorrect 2) Correct

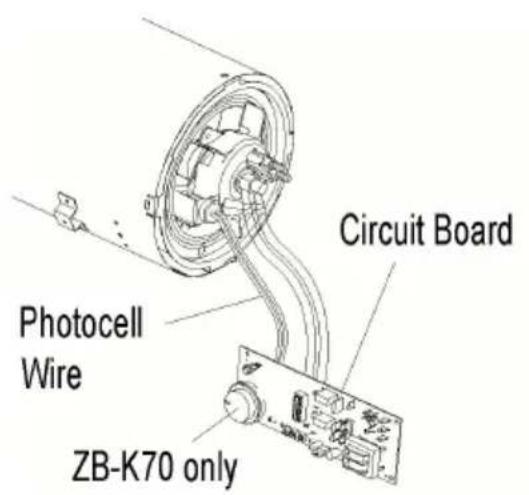

Circuit Board Photocell Wire ZB-K70 only

Fig.12 Photocell Positioning Fig.13 Photocell position for DG-K70

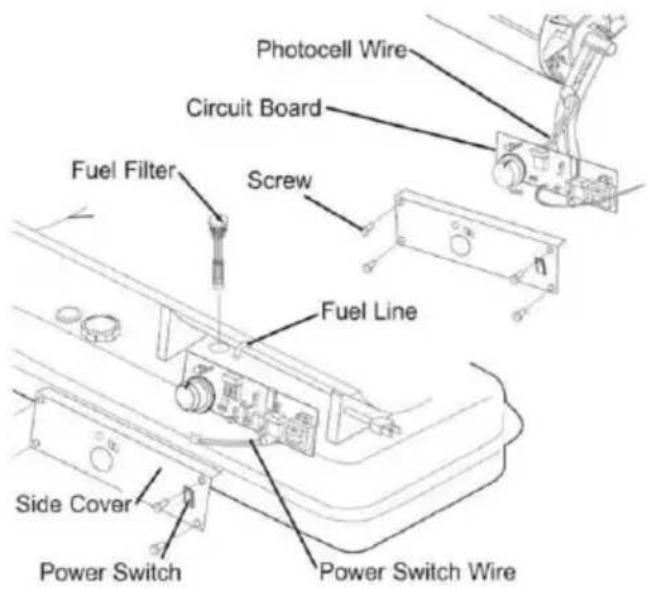

FUEL FILTER:

The fuel filter should be cleaned at least twice per heating season b rinsing it in clean Diesel (1-K Kerosene). Contaminated fuel could mal this necessary immediately (See Fig.14).

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Fig.14 Fuel filter replacement

NOTE: Please draw out the rubber plug directly to remove the fuel f

all models. The use of diesel may require additional maintenance. Improper maintenance can lead to poor combustion and soot productic

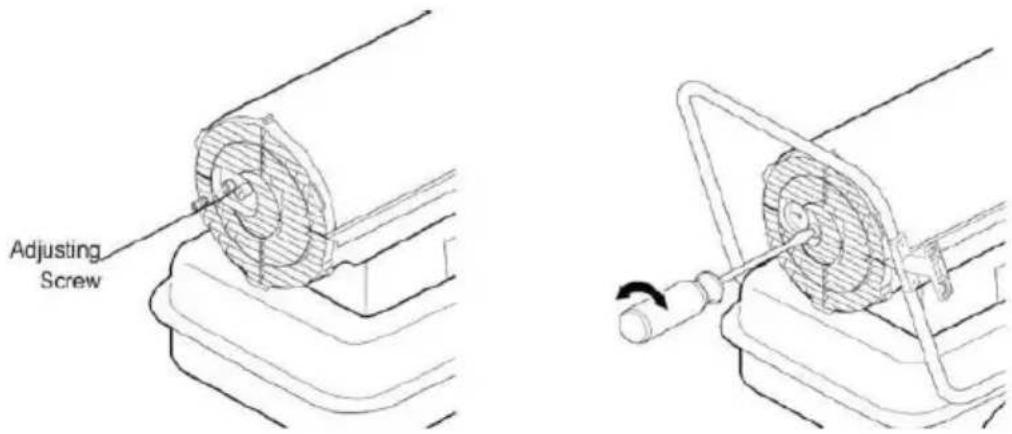

PUMP PRESSURE ADJUSTMENT:

While the heater is operating, turn the relief valve clockwise to increase Counterclockwise to decrease (see Fig.15). Use a flat-blade screwdriver turn the valve. The correct pump pressure is as follows:

Model#	Pump Pressure(kpa/psi)
DG-K70	31/4.5
DG-K100	34.5/5

Tolerance ± 10%

1. If the flame is dim, turn up the pressure.
2. If the flame comes out of the incendiary cylinder, reduce the pres. For the best pressure measurement, test with a full tank of fuel. Opt pressure occurs when the nose cone is cherry red and the heater has extending flames.

Adjusting Screw

Fig.15. Pump pressure adjustment

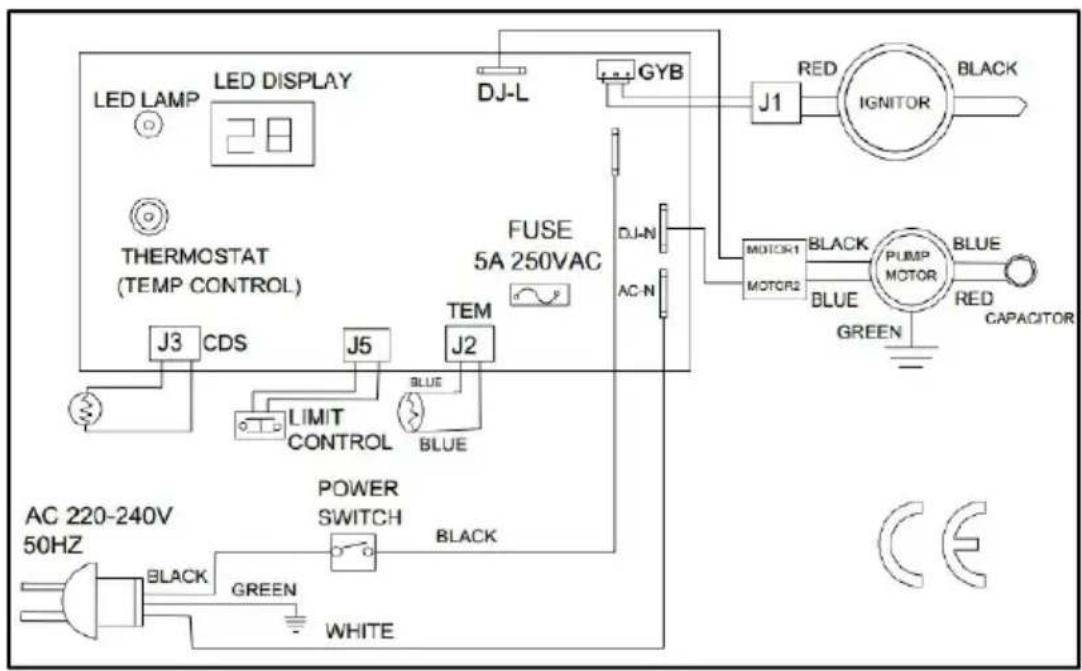

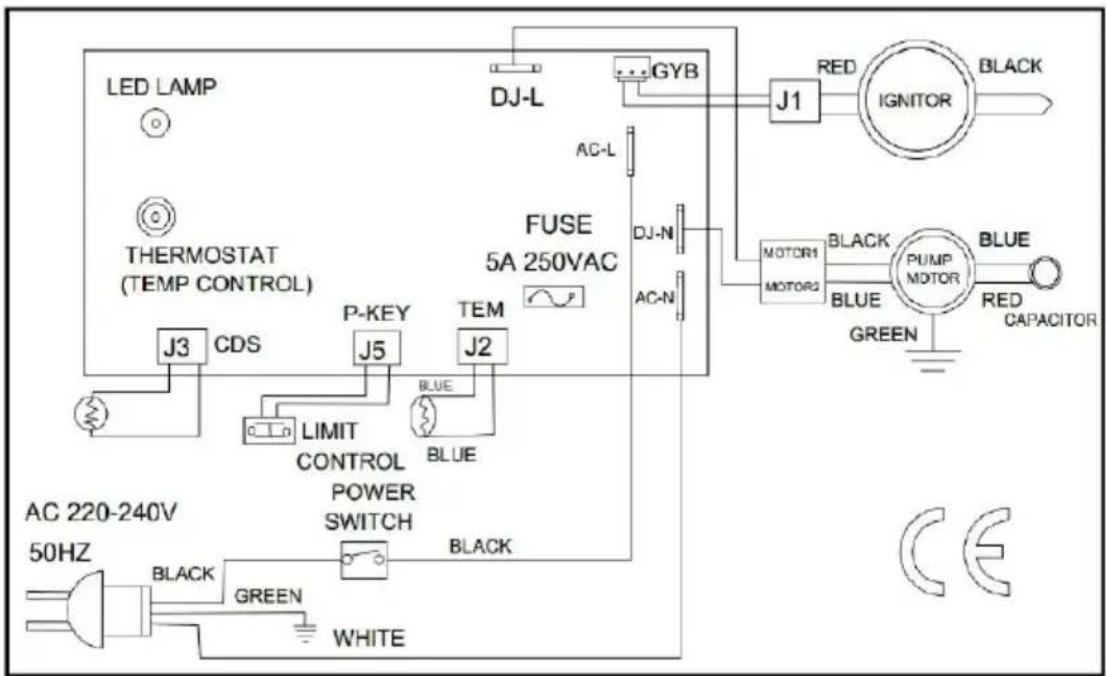

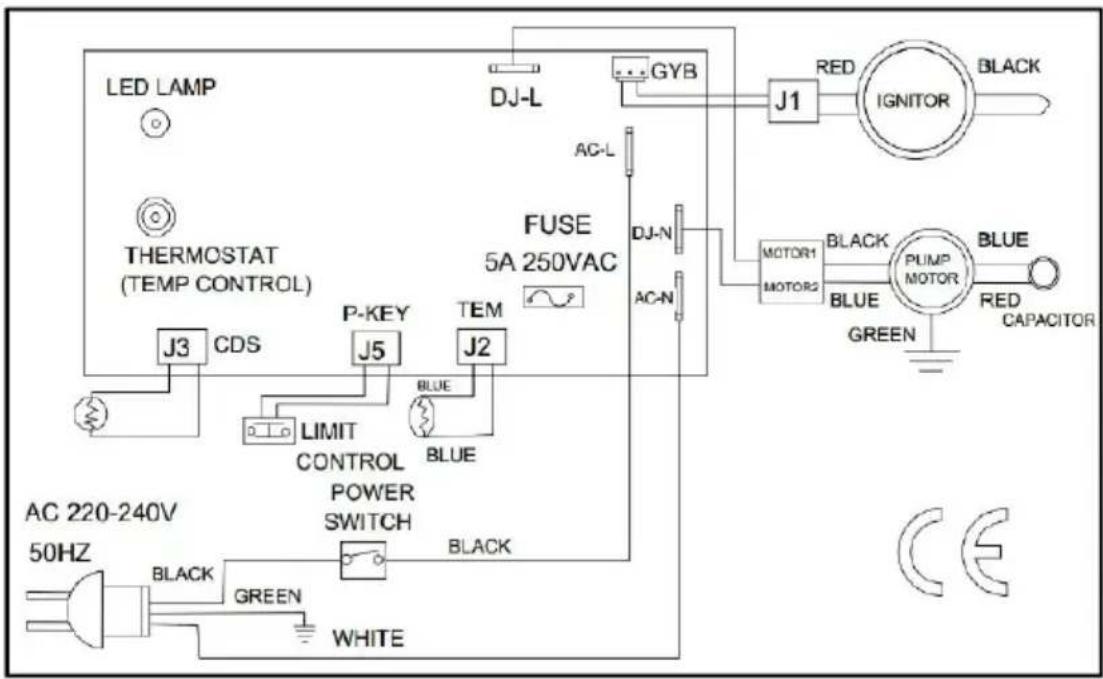

Wiring Diagrams

LED LAMP THERMOSTAT (TEMP CONTROL) J3 CDS P-KEY TEM J5 BLUE LIMIT CONTROL POWER SWITCH BLACK AC 220-240V 50HZ BLACK GREEN WHITE DJ-L GYB AC-L FUSE 5A 250VAC DJ-N AC-N J1 RED IGNITOR BLACK MOTOR1 BLACK PUMP BLUE MOTOR2 BLUE GREEN RED CAPACITOR CCE

Fig.16 Model DG-K70

LED LAMP LED DISPLAY 28 THERMOSTAT (TEMP CONTROL) J3 CDS J5 LIMIT CONTROL BLUE J2 FUSE 5A 250VAC TEM WHITE POWER SWITCH BLACK AC 220-240V 50HZ BLACK GREEN WHITE DJ-L GYB DJ-N AC-N RED IGNITOR BLACK MOTOR1 MOTOR2 PUMP MOTOR BLUE GREEN RED CAPACITOR

Fig.17 Models DG-K100

Troubleshooting Guide:

Problem	Possible Cause	Solution
Switch on heaters, the machine doesn't start work, the	1.Pump rotor or blad blocked2.Motor failure3.Motor connecting wire loose or fall off	1.Adjust the clearance between the rotor and outer ring2.Replace the motor3.Check the motor
display show ambient temperature . For example:"15" ,it means 16	4.Control board failure5.Wind leaf is distorted and stuck6.Voltage below level7.Setting temperature is lower than ambient temperature	connecting wire 4.Replace the control board 5.Replace the wind leaf7.Adjust the Voltage Adjust the setting temperature higher than ambient temperature.
Heater will not operate, or motor runs for short time,Lamp flickers and LED display shows"E1"(1flash)	1.No Diesel in fuel tank.2.Incorrect pump pressure.3.The connection between the fuel nozzle and air/fuel pipe is incorrect4.Dirty fuel filter.5.Dirty nozzle.6.Moisture in fuel/fuel tank.7.Ignitor wire not connected to spark plug.8.Carbon deposits on the ignition electrode9.Photocell break down10.Photocell connecting wire is loose or broken	1.Fill tank with fresh Diesel2.Adjust pump pressure (page20)3.Adjust the connection of /fuel pipe4.Clean/replace fuel filter (page 18) 5.Clean/replace nozzle (page 16-17) 6.Rinse out fuel tank with clean fresh Diesel (page14-15)7.Inspect all electrical connection (see wiring diagrams page (19-20)8.Replace Ignitor page 179.Replace or inspect photocell10.Adjust the position of the photocell bracket and fire viewing hole
1.Switch on heaters, the machine doesn't start work, the display shows "E2"2.The heater shutdown during normal	1.Temperature sensor failure 2.Temperature sensor loose or fractured connections	1.Replace the temperature sensor 2.Check temperature sensor connections or replace it
operation and display show "E2" (2flashes)
Lamp is flickering, and LED display shows “E3” (3flashes)	1.Overheating protection thermostat damaged2.overheating protection thermostat cable loosen or brea3.machine internal temp rise too high, overheating protection switches on, shut down automatically.	1.Replace thermostat2.Inspect or replace the connected cable3.Considering the machine's service life and safety self-protection, it is a norm phenomenon. Just restart it after cooling down
Poor combustion and / or exce soot production	1.Dirty input output c lint filter 2.Dirty fuel filterPoor quality of fuel Pump pressure is to high or too low	1.Clean/replace air filter (page 13) 2.Clean/replace fuel filter (page 13) 3.Be s fuel is not contaminated or old4.Use proper pressure (page14)
Heater does not turn on at the lamp Is not lit	1.Temperature limit sensor has overheated2.No electrical power 3.Fuse blown4.Improper electrical connection between Temperature Limit Sensor and Circuit Board	1.Push power switch to “O” and allow heater to cool for 10 minutes. Push switch be to “ON”2.Check power cord and extension cord to insure of proper connection, test pow supplyCheck/replace fuseInspect all electrical connection (see wiring diagrams page17)

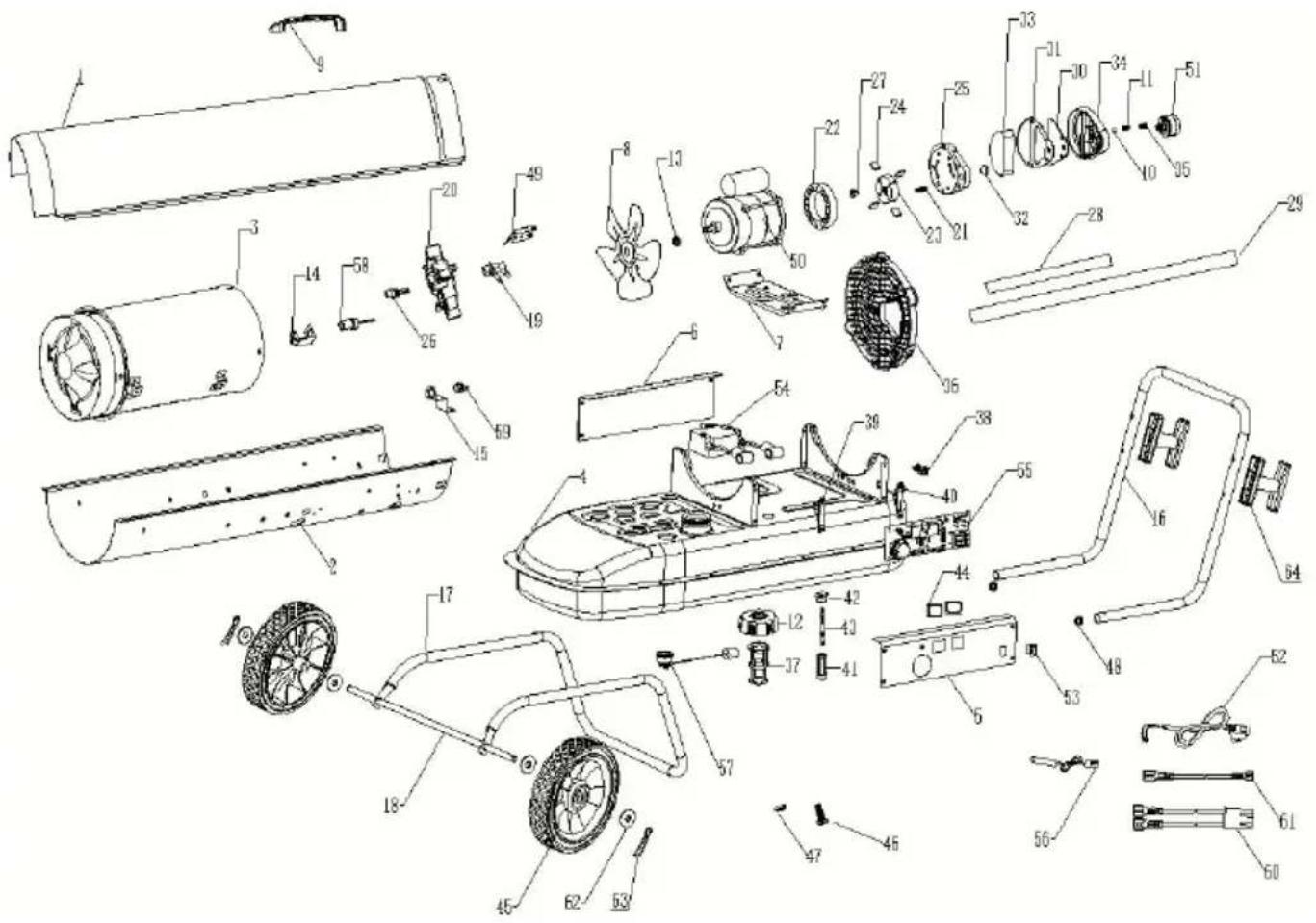

Exploding view:

Exploded view diagram of a portable electric scooter with numbered parts for identification

NO#	Part Name	(PART CODE FOR MODEL)		Qty
		DG-K70	DG-K100
1	Up Shell	DG20-010000	DG30-010000	1
2	Lower Shell	DG20-020000	DG30-020000	1
3	combustion chamber Assembly	K70-030000	K125-030000	1
4	Fuel Tank Assembly	K45-040000	K125-040000	1
5	Left side cover	K70-050000	K125-050000	1
6	Right Side Cover	K45-060000	K125-060000	1
7	Motor mounting bracket	K45-100000	K125-100000	1
8	Fan assembly	K45-110000	K125-110000	1
9	Handle	G10-010000		1
10	Ball	K215-121200	K215-121200	1
11	spring	K45-121300	K45-121300	1
12	Fuel Cap	K45-140000	K45-140000	1
13	Fan blade Aluminum base	K45-110101	K45-110101	1
14	Photo Cell bracket	K45-230000	K45-230000	1
15	Thermostat bracket	K45-250100	K45-250100	1
16	Rear Handle		K125-300000	1
17	wheel support Frame		K125-310000	1
18	wheel Axle	K45-320001	K125-320001	1
19	Nozzle seat	K45-070101	K45-070101	1
20	Burner head	K45-070200	K125-070200	1
21	Nipple	K45-070400	K45-070400	2
22	Pump Body	K45-120200	K100-120200	1
23	Rotor Kit	K45-120400	K100-120400	1
24	Blade	K45-120500	K100-120500	4
25	End pump cover	K45-120600	K45-120600	1
26	Nozzle	K70-070100	K100-070100	1
27	rotor kit insert	K45-120300	K45-120300	1
28	Fuel Line	K70-080000	K100-080000	1
29	Air Line	K70-090000	K100-090000	1
30	output filter	K45-120700	K45-120700	1
31	Gasket outlet filter	K45-120800	K45-120800	1
32	lint filter	K45-120900	K45-120900	1
33	filter kit	K45-121000	K45-121000	1
34	End filter cover	K45-121100	K45-121100	1
35	Adjustment Screw	K45-121400	K45-121400	1
36	Fan Guard	K45-130000	K125-130000	1
37	Fuel filter #1	K45-140100	K45-140100	1
38	Power Cord clip	K45-160000	K45-160000	1
39	Left PCB bracket	K45-190100	K45-190100	1
40	Right PCB bracket	K45-190200	K45-190200	1
41	Fuel Filter #2	K45-220100	K125-220100	1
42	Seal sleeve	K45-220200	K45-220200	1
43	Fuel Filter #2 connecting pipe	K45-220300	K125-220300	1
44	windows display		K125-280000	1
45	wheel		K125-330001	2
46	Drain Screw		BG06002DBX	1
47	Drain Spacer		K125-410000	1
48	handle plug		K125-390000	2
49	Spark plug kit	K45-070300	K45-070300	1
50	Motor	DG20-120100	DG30-120100	1
51	Air pressure Guage		K125-121500	1
52	Power cord	K45-150000	K45-150000	1
53	Power Switch	K45-170000	K45-170000	1
54	Ignitor	DG20-180000	DG20-180000	1
55	PCB	K70-200001	K125-200100	1
56	Temperature Sensor	K45-200120	K45-200120	1
57	Fuel Guage	K45-210000	K125-210000	1
58	Photo Cell	K45-240000	K45-240000	1
59	Thermostat	K45-250200	K45-250200	1
60	connecting line for Thermostat	K45-250300	K45-250300	1
61	connecting line for power cord	K45-290000	K45-290000	1
62	spacer		K125-350000	2
63	Split Pin		BG06001DBX	2
64	Cord Wrap		K125-370000	2

VEVOR

Affordable. Reliable. Home Improvement.

CHAUFFAGE AU KÉROSÈNE

MODÈLE : DG-K70/DG-K100

VEVOR

Affordable. Reliable. Home Improvement.

KEROSENE HEATER

MODÈLE : DG-K70/DG-K100

Line drawing of a portable electric heater with wheels and control panel (no text or symbols)

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Lamp Side Cover Thermostat Knob Wheel Support Flame Power/Reset Switch Pressure Gauge Fan Guard Cord Wrap Fuel Tank Drain Plug Power Cord

Fig. 1

Caractéristiques

Technical line drawing of a wheeled cart with labeled dimensions L and H (no text or symbols beyond basic geometry)

Technical line drawing of a front-mounted fan with side wheels and height dimension labeled (no text or symbols beyond basic geometry)

Figure 2

Modèle	DG - K 70	DG -K1 00
L (mm)	8 7 0	9 15
L (mm)	385	475
Hmm)	550	4 90

Déballage

Hot Air Outlet Axle Cotter Pin Flat Washer(L) Wheel Nut Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Wheel Support Flange

Fig.3

Opération

Pure electrical circuit lines without any symbols

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Burner Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Fig.10 Ajutage Remplacement

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Adjusting Screw

Exploded view diagram of a smart airship with numbered components for identification

Affordable. Reliable. Home Improvement.

PETROLEUMHEIZUNG

MODELL: DG-K70/DG-K100

MODELL: DG-K70/DG-K100

Line drawing of a portable electric heater with wheels and control panel (no text or symbols)

▲DANGER ALLGEMEIN GEFAHR WARNUNG:

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Lamp Side Cover Thermostat Knob Wheel Support Flame Power/Reset Switch Power Cord Pressure Gauge Fuel Tank Drain Plug Fan Guard Cord Wrap

Abb.

1

Technische Daten

Technical line drawing of a wheeled cart with labeled dimensions L and H (no text or symbols beyond basic geometry)

Technical line drawing of a mechanical fan assembly with mounting base and side wheels (no text or symbols)

Abb . 2

Modell	DG - K 70	DG -K1 00
L (mm)	8 7 0	9 15
B (mm)	385	475
Hmm)	550	4 90

Auspacken

Hot Air Outlet Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Axle Cotter Pin Flat Washer(L) Wheel Nut Wheel Support Flame

Abb . 3

Betrieb

Pure electrical circuit lines without any symbols

Simple line drawing of three connected circles forming a triangular shape (no text or symbols)

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Burner Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose

Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Adjusting Screw

Exploded view diagram of a toy car with numbered parts for identification

NEIN #	Teilename	(TEILECODE FÜR MODELL)		Menge
		DG-K70	DG-K100
1	Shell	DG20-010000	DG30-010000	1
2	Untere Schale	DG20-020000	DG30-020000	1
3	Brennkammermontage	K70-030000	K125-030000	1
4	Kraftstofftankbaugruppe	K45-040000	K125-040000	1
5	Linke Seitenabdeckung	K70-050000	K125-050000	1
6	Rechte Seitenabdeckung	K45-060000	K125-060000	1
7	Motorhalterung	K45-100000	K125-100000	1
8	Lüfterbaugruppe	K45-110000	K125-110000	1
9	Handhaben	G10-010000		1
10	Ball	K215-121200	K215-121200	1
11	Frühling	K45-121300	K45-121300	1
12	Tankdeckel	K45-140000	K45-140000	1
13	Lüfterflügel Aluminiumbasis	K45-110101	K45-110101	1
14	Fotozellenhalterung	K45-230000	K45-230000	1
15	Thermostathalterung	K45-250100	K45-250100	1
16	Hinterer Griff		K125-300000	1
17	Radträgerrahmen		K125-310000	1
18	Radachse	K45-320001	K125-320001	1
19	Düsensitz	K45-070101	K45-070101	1
20	Brennerkopf	K45-070200	K125-070200	1
21	Nippel	K45-070400	K45-070400	2
22	Pumpenkörper	K45-120200	K100-120200	1
23	Rotorsatz	K45-120400	K100-120400	1
24	Klinge	K45-120500	K100-120500	4
25	Pumpendeckel abschließen	K45-120600	K45-120600	1
26	Düse	K70-070100	K100-070100	1
27	Rotor-Kit-Einsatz	K45-120300	K45-120300	1
28	Kraftstoffleitung	K70-080000	K100-080000	1
29	Luftlinie	K70-090000	K100-090000	1
30	Ausgangsfilter	K45-120700	K45-120700	1
31	Dichtung Auslassfilter	K45-120800	K45-120800	1
32	Flusenfilter	K45-120900	K45-120900	1
33	Filtersatz	K45-121000	K45-121000	1
34	Endfilterabdeckung	K45-121100	K45-121100	1
35	Einstellschraube	K45-121400	K45-121400	1
36	Lüfterschutz	K45-130000	K125-130000	1
37	Kraftstofffilter Nr. 1	K45-140100	K45-140100	1
38	Netzkabelclip	K45-160000	K45-160000	1
39	Linke Leiterplattenhalterung	K45-190100	K45-190100	1
40	Rechte Leiterplattenhalterung	K45-190200	K45-190200	1
41	Kraftstofffilter Nr. 2	K45-220100	K125-220100	1
42	Dichtungshülse	K45-220200	K45-220200	1
43	Verbindungsrohr für Kraftstofffilter Nr. 2	K45-220300	K125-220300	1
44	Windows-Anzeige		K125-280000	1
45	Rad		K125-330001	2
46	Ablassschraube		BG06002DBX	1
47	Abflussabstandshalter		K125-410000	1
48	Griffstecker		K125-390000	2
49	Zündkerzensatz	K45-070300	K45-070300	1
50	Motor	DG20-120100	DG30-120100	1
51	Luftdruckmesser		K125-121500	1
52	Netzkabel	K45-150000	K45-150000	1
53	Netzschalter	K45-170000	K45-170000	1
54	Zündgerät	DG20-180000	DG20-180000	1
55	Leiterplatte	K70-200001	K125-200100	1
56	Temperatursensor	K45-200120	K45-200120	1
57	Tankanzeige	K45-210000	K125-210000	1
58	Fotozelle	K45-240000	K45-240000	1
59	Thermostat	K45-250200	K45-250200	1
60	Anschlussleitung für Thermostat	K45-250300	K45-250300	1
61	Anschlussleitung für Netzkabel	K45-290000	K45-290000	1
62	Abstandshalter		K125-350000	2
63	Splint		BG06001DBX	2
64	Kabelaufwicklung		K125-370000	2

VEVOR

Affordable. Reliable. Home Improvement.

STUFA A CHEROSENE

MODELLO: DG-K70/DG-K100

MODELLO: DG-K70/DG-K100

Line drawing of a portable electric heater with wheels and a cylindrical body (no text or symbols)

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Side Cover Lamp Thermostat Knob Wheel Support Flame Power/Reset Switch Pressure Gauge Fuel Tank Drain Plug Power Cord

Figur
a 1

Specifiche

Technical line drawing of a wheeled cart with labeled dimensions (L, H) and no visible text or symbols.

Technical line drawing of a front-mounted fan with side wheels and height dimension (no text or symbols)

Figura 2

Hot Air Outlet Axle Cotter Pin Flat Washer(L) Wheel Nut Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Wheel Support Flame

Figura 3

Operazione

Pure electrical circuit lines without any symbols

Simple line drawing of three connected circles forming a triangle (no text or symbols)

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Bumer Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose

Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Figura 14 Filtro del carburante one

Adjusting Screw

Exploded view diagram of a smart airship with numbered components for identification

Affordable. Reliable. Home Improvement.

Line drawing of a portable electric heater with wheels and a cylindrical body (no text or symbols)

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Side Cover Lamp Thermostat Knob Wheel Support Flame Power/Reset Switch Pressure Gauge Fuel Tank Drain Plug Power Cord

Figur
a 1

Presupuesto

Modelo	DG -K70	DG -K 100
Salida de calor ( kW	20	30
Consumo de combustible (L /h)	1.9	2.9
Tanque de combustible Capacidad ( L )	19	38
Presión de la bomba ( / psi )	31/4.5	34.5/5
Fuente de alimentación (V/Hz/A)	220-240 / 5 0/	220-240 / 5 0
Fase	soltero	soltero

Technical line drawing of a wheeled cart with labeled dimensions L and H (no text or symbols beyond basic geometry)

Technical line drawing of a front-mounted fan with side wheels and height dimension (no text or symbols)

Figura 2

Modelo	DG - K 70	DG -K1 00
Largo (mm)	8 7 0	9 15
Ancho (mm)	385	475
Mmm)	550	4 90

Desembalaje

Hot Air Outlet Axle Cotter Pin Flat Washer(L) Wheel Nut Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Wheel Support Flame

Figura 3

Operación

Diésel ( o queroseno 1-K)

Pure electrical circuit lines without any symbols

Figura 4 Interruptor de control de temperatura

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Burner Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose

Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Figura 14 Filtro de combustible azo

Adjusting Screw

Exploded view diagram of a toy car with numbered parts for identification

Affordable. Reliable. Home Improvement.

GRZEJNIK NAFTOWY

MODELE: DG-K70/DG-K100

MODELE: DG-K70/DG-K100

Line drawing of a portable electric heater with wheels and control panel (no text or symbols)

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Lamp Side Cover Thermostat Knob Wheel Support Flame Power/Reset Switch Pressure Gauge Fan Guard Cord Wrap Fuel Tank Drain Plug Power Cord

Rys.

1

Specyfikacje

Technical line drawing of a wheeled cart with labeled dimensions L and H (no text or symbols beyond basic geometry)

Technical line drawing of a mechanical fan assembly with mounting base and side wheels (no text or symbols)

Rys . 2

Hot Air Outlet Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Axle Cotter Pin Flat Washer(L) Wheel Nut Wheel Support Flame

Rys . 3

Działanie

Diesel ( lub nafta 1-K)

Pure electrical circuit lines without any symbols

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Bumer Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose

Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Adjusting Screw

Exploded view diagram of a smart airship with numbered components for identification

Affordable. Reliable. Home Improvement.

KEROSINEKACHEL

MODEL: DG-K70/DG-K100

VEVOR

Affordable. Reliable. Home Improvement.

KEROSENE HEATER

MODEL: DG-K70/DG-K100

Line drawing of a portable electric heater with wheels and control panel (no text or symbols)

▲DANGER ALGEMEEN GEVAAR WAARSCHUWING:

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Lamp Side Cover Thermostat Knob Wheel Support Flame Power/Reset Switch Power Cord Pressure Gauge Fuel Tank Drain Plug Fan Guard Cord Wrap

Afbe

elding 1
Specifications

Model	DG -K70	DG -K 100
Warmteafgifte ( kW )	20	30
Brandstofverbruik (L /uur)	1.9	2.9
Brandstoftank Inhoud ( I )	19	38
Pompdruk ( kpa / psi)	31/4.5	34,5/5
Voeding (V/Hz/A)	220-240 / 5 0/	220-240 / 5 0/
Fase	enkel	enkel

Technical line drawing of a wheeled cart with labeled dimensions (L, H) and no visible text or symbols.

Technical line drawing of a front-mounted fan with side wheels and height dimension (no text or symbols)

Figuur 2

Model	DG - K 70	DG -K1 00
Lengte (mm)	8 7 0	9 15
Breedte (mm)	385	475
Hoogte (mm)	550	4 90

Uitpakken

Hot Air Outlet Axle Cotter Pin Flat Washer(L) Wheel Nut Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Wheel Support Flame

Afbeelding 3

Operatie

Diesel ( of 1-K kerosine)

Pure electrical circuit lines without any symbols

Simple line drawing of three connected circles with a connecting line (no text or symbols)

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Burner Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose

Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Adjusting Screw

Line drawing of a mechanical device with a fan and lever (no text or symbols)

Exploded view diagram of a toy car with numbered parts for identification

NEE#	Onderdeelnaam	(ONDERDEELCODE VOOR MODEL)		Aantal
		DG-K70	DG-K100
1	Omhoog Shell	DG20-010000	DG30-010000	1
2	Onderste schelp	DG20-020000	DG30-020000	1
3	verbrandingskamer montage	K70-030000	K125-030000	1
4	Brandstoftankmontage	K45-040000	K125-040000	1
5	Linker zijdeksel	K70-050000	K125-050000	1
6	Rechter zijdeksel	K45-060000	K125-060000	1
7	Motormontagebeugel	K45-100000	K125-100000	1
8	Ventilatormontage	K45-110000	K125-110000	1
9	Hendel	G10-010000		1
10	Bal	K215-121200	K215-121200	1
11	lente	K45-121300	K45-121300	1
12	Tankdop	K45-140000	K45-140000	1
13	Ventilatorblad Aluminium basis	K45-110101	K45-110101	1
14	Fotocelbeugel	K45-230000	K45-230000	1
15	Thermostaatbeugel	K45-250100	K45-250100	1
16	Achterste handgreep		K125-300000	1
17	wielondersteuning Frame		K125-310000	1
18	wielas	K45-320001	K125-320001	1
19	Mondstukzitting	K45-070101	K45-070101	1
20	Branderkop	K45-070200	K125-070200	1
21	Nippel	K45-070400	K45-070400	2
22	Pomplichaam	K45-120200	K100-120200	1
23	Rotorkit	K45-120400	K100-120400	1
24	Blad	K45-120500	K100-120500	4
25	Eindpompdeksel	K45-120600	K45-120600	1
26	Mondstuk	K70-070100	K100-070100	1
27	rotor kit insert	K45-120300	K45-120300	1
28	Brandstofleiding	K70-080000	K100-080000	1
29	Luchtvaartmaatschappij	K70-090000	K100-090000	1
30	uitgangsfilter	K45-120700	K45-120700	1
31	Pakking uitlaatfilter	K45-120800	K45-120800	1
32	pluizenfilter	K45-120900	K45-120900	1
33	filterkit	K45-121000	K45-121000	1
34	Eindfilterdeksel	K45-121100	K45-121100	1
35	Afstelschroef	K45-121400	K45-121400	1
36	Ventilatorbescherming	K45-130000	K125-130000	1
37	Brandstofffilter #1	K45-140100	K45-140100	1
38	Stroomkabelclip	K45-160000	K45-160000	1
39	Linker PCB-beugel	K45-190100	K45-190100	1
40	Rechter PCB-beugel	K45-190200	K45-190200	1
41	Brandstofffilter #2	K45-220100	K125-220100	1
42	Afdichtingshuls	K45-220200	K45-220200	1
43	Brandstofffilter #2 verbindingsbuis	K45-220300	K125-220300	1
44	vensters weergeven		K125-280000	1
45	wiel		K125-330001	2
46	Afvoerschroef		BG06002DBX	1
47	Afvoerafstandhouder		K125-410000	1
48	handgreep plug		K125-390000	2
49	Bougieset	K45-070300	K45-070300	1
50	Motor	DG20-120100	DG30-120100	1
51	Luchtdrukmeter		K125-121500	1
52	Stroomkabel	K45-150000	K45-150000	1
53	Aan/uit-schakelaar	K45-170000	K45-170000	1
54	Ontsteker	DG20-180000	DG20-180000	1
55	printplaat	K70-200001	K125-200100	1
56	Temperatuursensor	K45-200120	K45-200120	1
57	Brandstofmeter	K45-210000	K125-210000	1
58	Fotocel	K45-240000	K45-240000	1
59	Thermostaat	K45-250200	K45-250200	1
60	verbindingsleiding voor thermostaat	K45-250300	K45-250300	1
61	aansluitkabel voor netsnoer	K45-290000	K45-290000	1
62	afstandhouder		K125-350000	2
63	Splitpen		BG06001DBX	2
64	Snoerwikkeling		K125-370000	2

VEVOR

Affordable. Reliable. Home Improvement.

FOTOGENVÄRMARE

MODELL: DG-K70/DG-K100

VEVOR

Affordable. Reliable. Home Improvement.

KEROSENE HEATER

MODELL: DG-K70/DG-K100

Line drawing of a portable electric heater with wheels and control panel (no text or symbols)

Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Lower Shell Fuel Guage Side Cover Lamp Thermostat Knob Wheel Support Flame Power/Reset Switch Pressure Gauge Fan Guard Cord Wrap Fuel Tank Drain Plug Power Cord

Bild 1

Specifikationer

Technical line drawing of a mechanical cart with labeled dimensions L and H (no text or symbols beyond basic geometry)

Technical line drawing of a mechanical fan assembly with labeled dimensions (no text or symbols)

Bild g.2

Modell	DG - K 70	DG -K1 00
Längd (mm)	8 7 0	9 15
B (mm)	385	475
H(mm)	550	4 90

Uppackning

Hot Air Outlet Thermostat Knob Screw Rear Handle Cord Wrap Air Inlet Fuel Tank Flange Axle Cotter Pin Flat Washer(L) Wheel Nut Wheel Support Flame

Bild 3

Drift

Diesel ( eller 1K fotogen)

Pure electrical circuit lines without any symbols

FÖR ATT STARTA VÄRMARE

Fuel Tank Drain Spacer Screw

Fuel Tank Drain Spacer Screw

Burner Head Screw Spark Plug Ignitor Wire Fuel Line Hose Air Line Hose Burner Head Nozzle Nozzle Face Fuel Line Hose Air Line Hose

Burner Head Spark Plug Screw Ignitor Wire Gap

Photocell Wire Circuit Board Fuel Filter Screw Fuel Line Side Cover Power Switch Power Switch Wire

Adjusting Screw

Line drawing of a mechanical device with a fan and lever (no text or symbols)

Bild 15. Justering av pumptrzyck

Ledningar Diagram

LED LAMP THERMOSTAT (TEMP CONTROL) FUSE 5A 250VAC J3 CDS P-KEY TEM J5 BLUE LIMIT CONTROL POWER SWITCH BLACK AC 220-240V 50HZ BLACK GREEN WHITE DJ-L GYB AC-L DJ-N AC-N J1 RED IGNITOR BLACK MOTOR1 MOTOR2 PUMP MOTOR BLUE GREEN RED CAPACITOR BLACK

Exploded view diagram of a toy car with numbered parts for identification

INGA #	Delnamn	(DELKOD FÖR MODELL)		Anta I
		DG-K70	DG-K100
1	Upp Shell	DG20-010000	DG30-010000	1
2	Nedre skal	DG20-020000	DG30-020000	1
3	förbränningskammaraggregat	K70-030000	K125-030000	1
4	Bränsletankmontering	K45-040000	K125-040000	1
5	Vänster sidokåpa	K70-050000	K125-050000	1
6	Höger sidokåpa	K45-060000	K125-060000	1
7	Motorfäste	K45-100000	K125-100000	1
8	Fläktaggregat	K45-110000	K125-110000	1
9	Hantera	G10-010000		1
10	Boll	K215-121200	K215-121200	1
11	fjädra	K45-121300	K45-121300	1
12	Tanklock	K45-140000	K45-140000	1
13	Fläktblad Aluminiumbas	K45-110101	K45-110101	1
14	Fotocellfäste	K45-230000	K45-230000	1
15	Termostatfäste	K45-250100	K45-250100	1
16	Bakre handtag		K125-300000	1
17	hjulstödram		K125-310000	1
18	hjulaxel	K45-320001	K125-320001	1
19	Munstyckssäte	K45-070101	K45-070101	1
20	Brännarhuvud	K45-070200	K125-070200	1
21	Nippel	K45-070400	K45-070400	2
22	Pumphus	K45-120200	K100-120200	1
23	Rotorsats	K45-120400	K100-120400	1
24	Blad	K45-120500	K100-120500	4
25	Ändpumpkåpa	K45-120600	K45-120600	1
26	Munstycke	K70-070100	K100-070100	1
27	rotorsatsinsats	K45-120300	K45-120300	1
28	Bränsleledning	K70-080000	K100-080000	1
29	Flygledning	K70-090000	K100-090000	1
30	utgångsfilter	K45-120700	K45-120700	1
31	Packning utloppsfilter	K45-120800	K45-120800	1
32	luddfilter	K45-120900	K45-120900	1
33	filterkit	K45-121000	K45-121000	1
34	Ändfilterlock	K45-121100	K45-121100	1
35	Justeringsskruv	K45-121400	K45-121400	1
36	Fläktskydd	K45-130000	K125-130000	1
37	Bränslefilter #1	K45-140100	K45-140100	1
38	Nätsladdklämma	K45-160000	K45-160000	1
39	Vänster kretskortsfäste	K45-190100	K45-190100	1
40	Höger kretskortsfäste	K45-190200	K45-190200	1
41	Bränslefilter #2	K45-220100	K125-220100	1
42	Tätningshylsa	K45-220200	K45-220200	1
43	Bränslefilter #2 anslutningsrör	K45-220300	K125-220300	1
44	Windows-skärm		K125-280000	1
45	hjul		K125-330001	2
46	Avtappningsskruv		BG06002DBX	1
47	Avloppsdistans		K125-410000	1
48	handtagsplugg		K125-390000	2
49	Tändstiftssats	K45-070300	K45-070300	1
50	Motor	DG20-120100	DG30-120100	1
51	Lufttrycksmätare		K125-121500	1
52	Nätsladd	K45-150000	K45-150000	1
53	Strömbrytare	K45-170000	K45-170000	1
54	Tändare	DG20-180000	DG20-180000	1
55	PCB	K70-200001	K125-200100	1
56	Temperatursensor	K45-200120	K45-200120	1
57	Bränslemätare	K45-210000	K125-210000	1
58	Fotocell	K45-240000	K45-240000	1
59	Termostat	K45-250200	K45-250200	1
60	anslutningsledning för termostat	K45-250300	K45-250300	1
61	anslutningsledning för strömsladd	K45-290000	K45-290000	1
62	distans		K125-350000	2
63	Delad stift		BG06001DBX	2
64	Sladdlindning		K125-370000	2
