Product Type	Weight Bench (Weightlifting Bench)
Brand	Vevor
Model	SJ7820
Maximum Capacity	272 kg (600 lb)
Main Material	Steel
Simultaneous Users	1 person
Folding	Yes, via latch 21
Adjustments	Adjustable backrest and seat
Included Accessories	2 straps, 1 seat cushion, 1 backrest cushion, foam handles
Usage Surface	Hard, flat, and non-slip floor
Cleaning	Damp cloth, no harsh cleaners
Maintenance	Check and tighten screws every 3 months
Safety	Consult a doctor before any exercise program; keep children and pets away
Technical Support	www.vevor.com/support
Spare Parts	Available via Vevor customer service

Frequently Asked Questions - SJ7820 Vevor

How to assemble the SJ7820 weight bench?

Follow the assembly steps in the manual: attach the rear uprights to the base tubes, insert the support tube, attach the adjustable uprights, then assemble the front frame and armrests. Tighten manually first, then with a wrench once fully assembled.

What is the maximum weight capacity?

The maximum capacity is 272 kg (600 lb). Only one person at a time can use the equipment.

How to adjust the backrest inclination?

The backrest is adjustable via the adjustment tube (12) and adjustment piece (13). Use the locking pins (21) to secure the desired position.

Can I fold the bench for storage?

Yes, the product can be folded. Use latch 21 after folding to lock it in the folded position.

How to maintain my bench?

Clean the surface with a damp cotton cloth. Check the screws every 3 months and tighten if necessary. Do not use harsh cleaners.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support. The parts list is provided in the manual.

What are the safety precautions?

Consult a doctor before any exercise. Do not use if pregnant. Wear appropriate clothing. Keep children and pets away. Inspect the equipment before each use.

What should I do if I feel pain during exercise?

Stop exercising immediately. Consult your doctor before resuming if you have chest pain, nausea, dizziness, or lack of range of motion.

Is the bench stable on the floor?

Use the bench on a solid, hard, and flat surface. Place a non-slip mat under the machine if necessary to prevent slipping.

Is there a warranty?

Check www.vevor.com/support for the electronic warranty certificate and technical support.

USER MANUAL SJ7820 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Basic payment Weightlifting bed

MODEL:SJ7820

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SJ7820

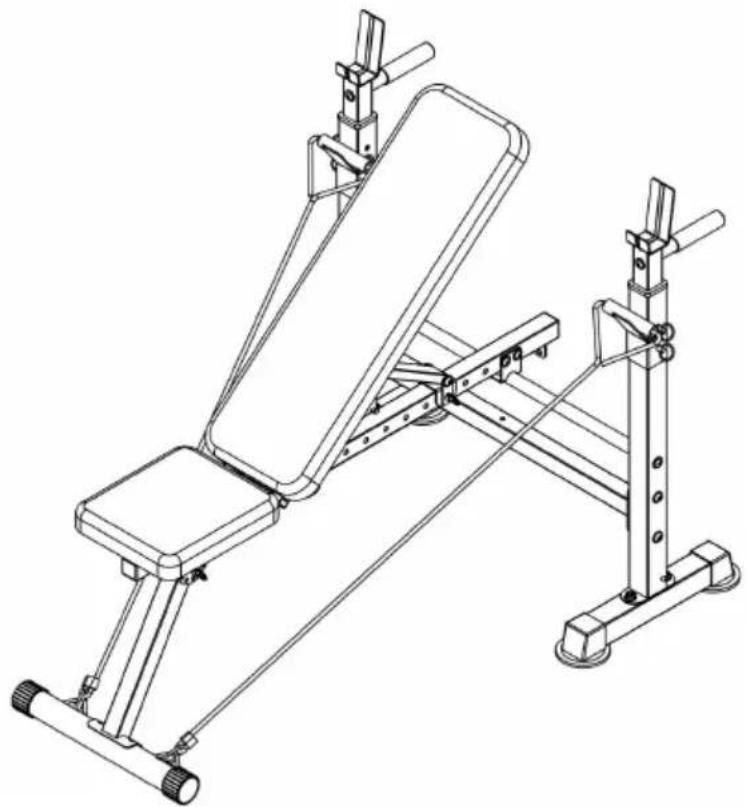

Technical line drawing of a bench presser machine (no text or symbols present)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

·Do not use it if you are pregnant

·Before beginning any exercise program consult your physician.

- Read all instruction before using this product.

- Keep children and pets away from sit-up bench while in use. Children should not use. The product. without adult supervision.

- Inspect and tighten all parts each time before using this sit-up bench

- Please clean this machine using damped wipes only.Do not use any cleansers.Please Consult with customer service if you have any questions

- This product should be placed on a flat surface when using. Place an anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

- Do not use it if it is not functional or parts are not well-assembled.

·If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

·Before use, always ensure that your product is positioned on a solid hard-flat surface.

- Store idle equipment out of reach of children and do not allow any unfamiliar with the equipment to use it. This tool is dangerous in the of untrained users.

- When using the product, the crowd of onlookers must keep adistan meters to avoid accidental injury.

Prohibition symbol of a person crossed out with a diagonal line, enclosed in a circle (no text or numbers present)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour sleep.
3. Please make exercise plans.

Part List

No	Description	Qty	No	Description	Qty
01	Rear Base Tube	2	19	Foam Grip	2
02	Rear Upright	2	20	Lock Pin Φ10x65mm	4
03	Rear Cross Tube	1	21	Lock Pin Φ8x65mm	2
04	Adjustable Upright Tube	2	22	Allen Bolt M10x65mm	6
05	Main Frame Supporting Tube	1	23	Allen Bolt M10x165 m	2
06	Handle Bar	2	24	Allen Bolt M8x40 m	8
07	Weight Rest	2	25	Flat Washer M8	18
08	Main Frame	1	26	Allen Bolt M8x20 mm	4
09	Front Upright	1	27	Flat Washer M10	20
10	Front Base Tube	1	28	Nylon Nut M10	12
11	Backrest Supporting Tube	2	29	Carriage Bolt M10x65mm	4
12	Backrest Adjustable Tube	1	30	Allen Bolt M8x55mm	2
13	Adjustable Piece	1	31	Nylon Nut M8	4
14	Round End Cap 50mm	2	32	Carriage Bolt M8x65mm	2
15	End Cap 38x38mm	2	33	Rope	2
16	End Cap 25x25mm	8	34	Seat Cushion	1
17	Square End Cap 50x50mm	4	35	Backrest Cushion	1
18	Spacer	2	36	Round End Ca 25mm	2

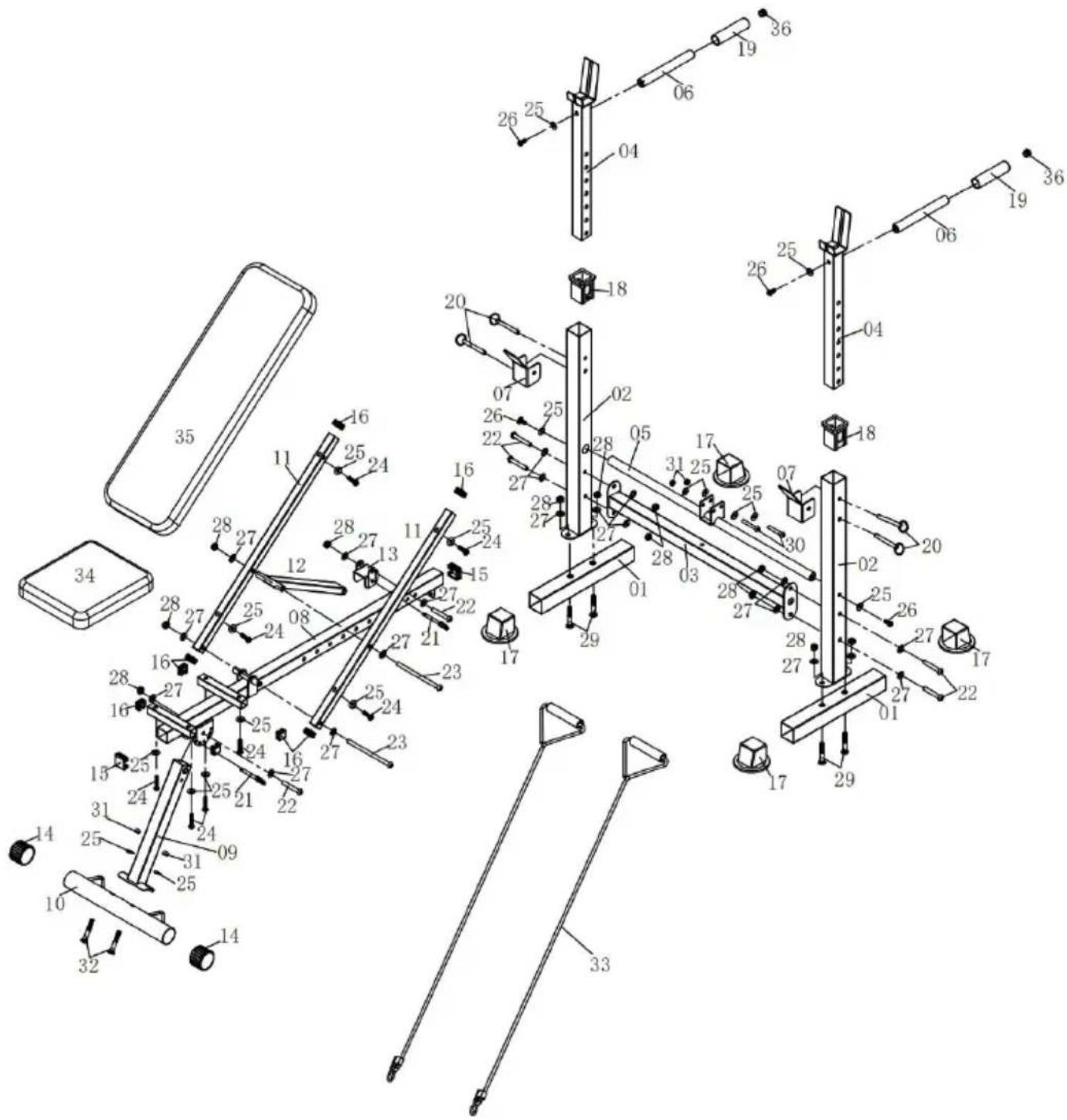

Exploded Diagram

Please note that not all of the parts and hardware you see here will used while you are

assembling the machine because some of these are already pre-install

Technical diagram of a mechanical assembly with numbered components and labeled parts

Part List

1.2PCS	2.2PCS	3.1PC	4.2PCS
5.1PC	6.2PCS	7.2PCS	8.1PCS
91PC	101PC	112PCS	121PC
131PC	142PCS	152PCS	168PCS
174PCS	182PCS	192PCS	204PCS

Part List

212PCS	226PCS	232PCS	248PCS
2518PCS	264PCS	2720PCS	28[H47Z]12PCS
294PCS	302PCS	314PCS	322PCS
332PCS	341PC	351PC	362PCS

NOTE: To avoid misalignment due to over-tightening, please do not use wrench at this time.

Hand-tightening for now will help ensure easy assembly.

Wrench-tightening should be performed after all parts are assembled to ensure all nuts, bolts, and parts are tightly secured before use.

With the help of an assistant.

Assembly

Step 1:

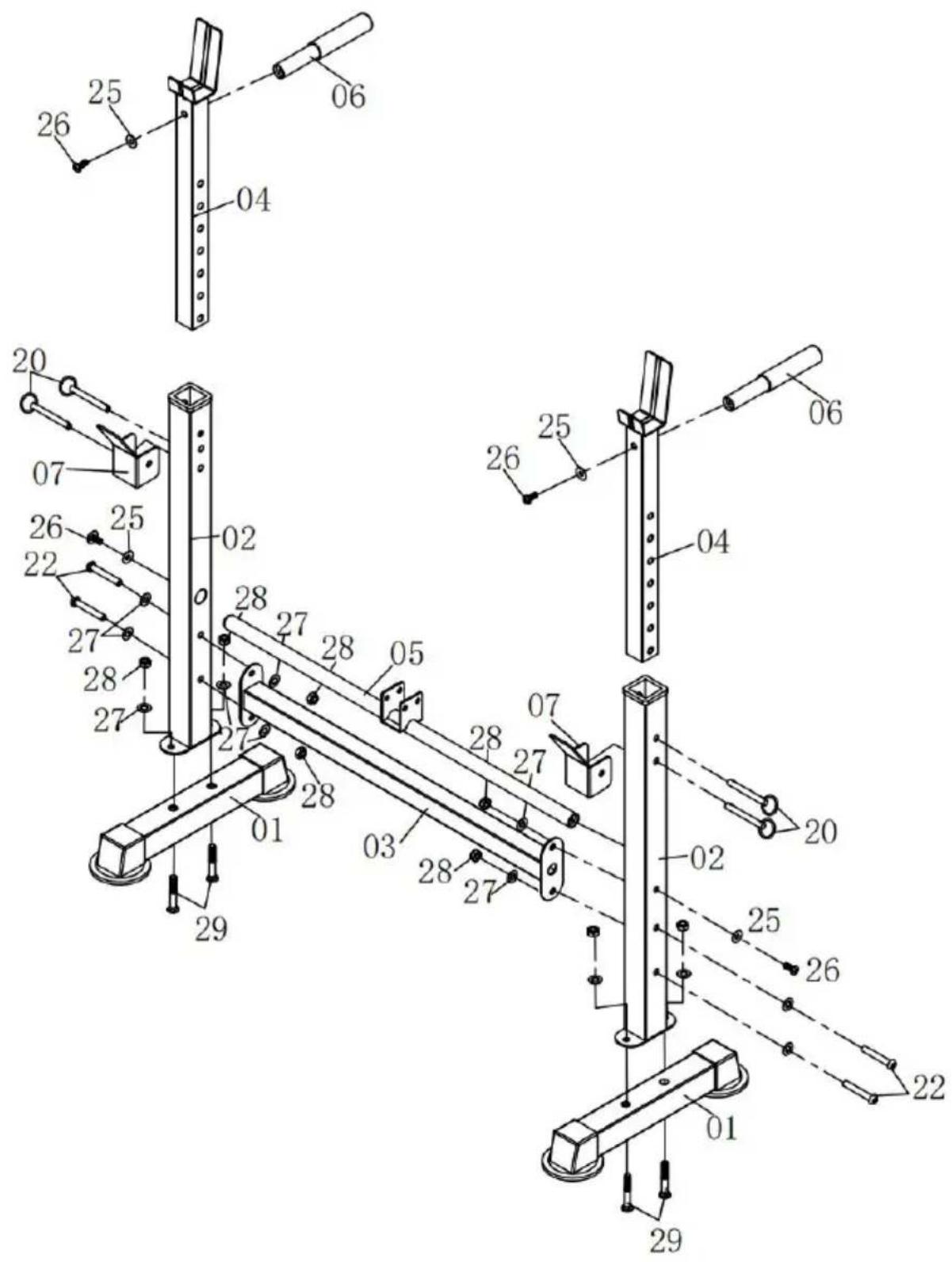

A) Attach two Rear Uprights (02) to two Rear Base tubes (01) total Carriage Bolts (29),

four Flat Washers (27) and four Nylon Nuts (28).

B) Insert Main Frame Supporting Tube (05) to the hole of two Rear Uprights (02), secure them by

using two Allen Bolts (26) and two Flat Washers (25) from outside.

C) Attach the Rear Cross Tube (03) to Rear Uprights (02), secure with four Allen Bolts (22),

eight Flat Washers (27) and four Nylon Nuts (28).

D) Insert Adjustable Upright Tubes (04) to Rear Uprights (02), choose appropriate hole

position then insert the Lock Pin (20), attach the Weight Rest (07) to Uprights (02) then insert the Lock Pin (20). Attach the Handle Bar (06) the Adjustable Upright Tubes (04) using one Allen Bolts (26) and one Washers (25). Repeat this process on the other side.

Technical diagram of a mechanical assembly with numbered components and structural details

Step 2:

A) Attach the Front Upright (09) to Front Base Tube (10) by using the Carriage Bolts (32), two Flat Washers (25) and two Nylon Nuts (31) the Front Upright (09) to the front side of Main Frame (08) using or Bolts (22), two Flat Washers (27) and one Nylon Nut (28), then inse Lock Pin (21)
B) Insert the Backrest Adjustable Tube (12) to Adjustable Piece (13) one Allen Bolts (22), two Flat Washers (27) and one Nylon Nuts (28).

Technical diagram of a mechanical linkage system with numbered components and assembly details

Step 3:

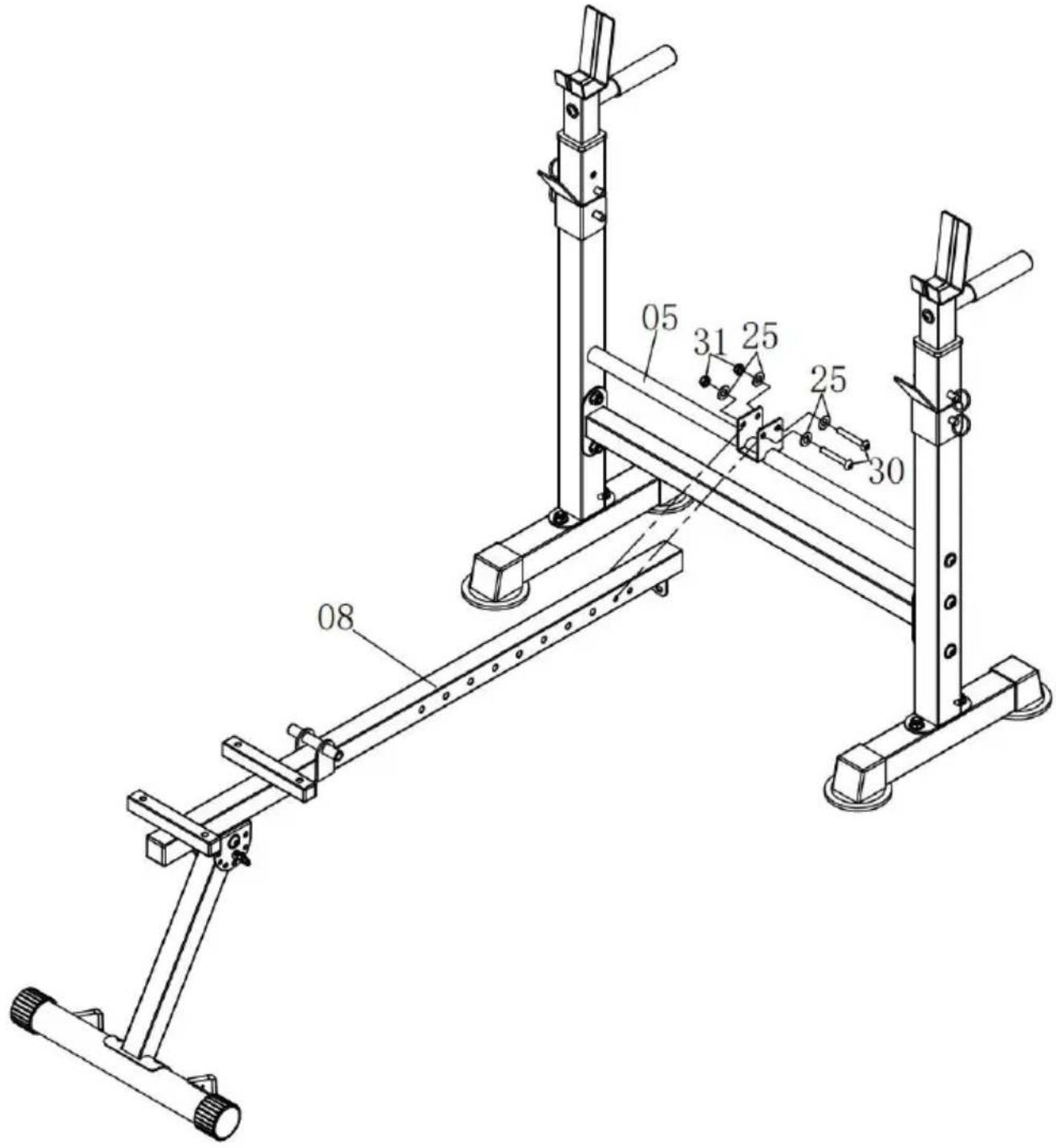

Attach rear side of Main Frame (08) to Main Frame Supporting Tube using two Allen Bolts

(30), four Flat Washers (25) and two Nylon Nuts (31).

05 31 25 25 30 08

Step 4:

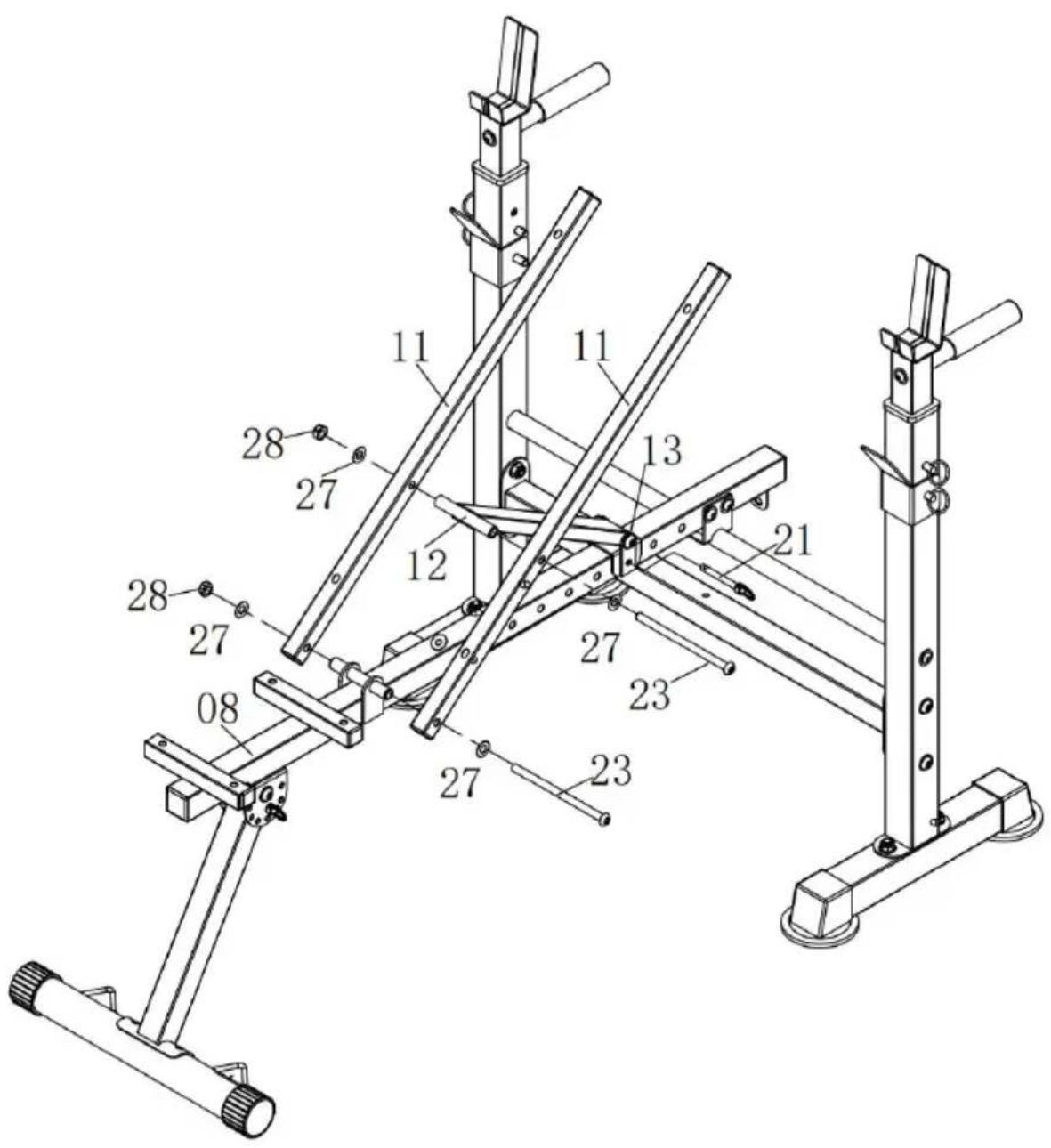

Attach two Backrest Supporting Tubes (11) to the welded rod of Mair Frame (08) secure by

one Allen Bolt (23), two Flat Washers (27) and one Nylon Nut (28).

Place the Backrest Adjustable Tube (12) in the middle of the Backrest Supporting Tubes (11) and insert one Allen Bolt (23), two Flat Washes and one Nylon Nut (28) to fix.

Attach the Adjustable Piece (13) to the hole of Main Frame (08) using Pin (21)

Technical diagram of a mechanical assembly with numbered components for identification

Step 5:

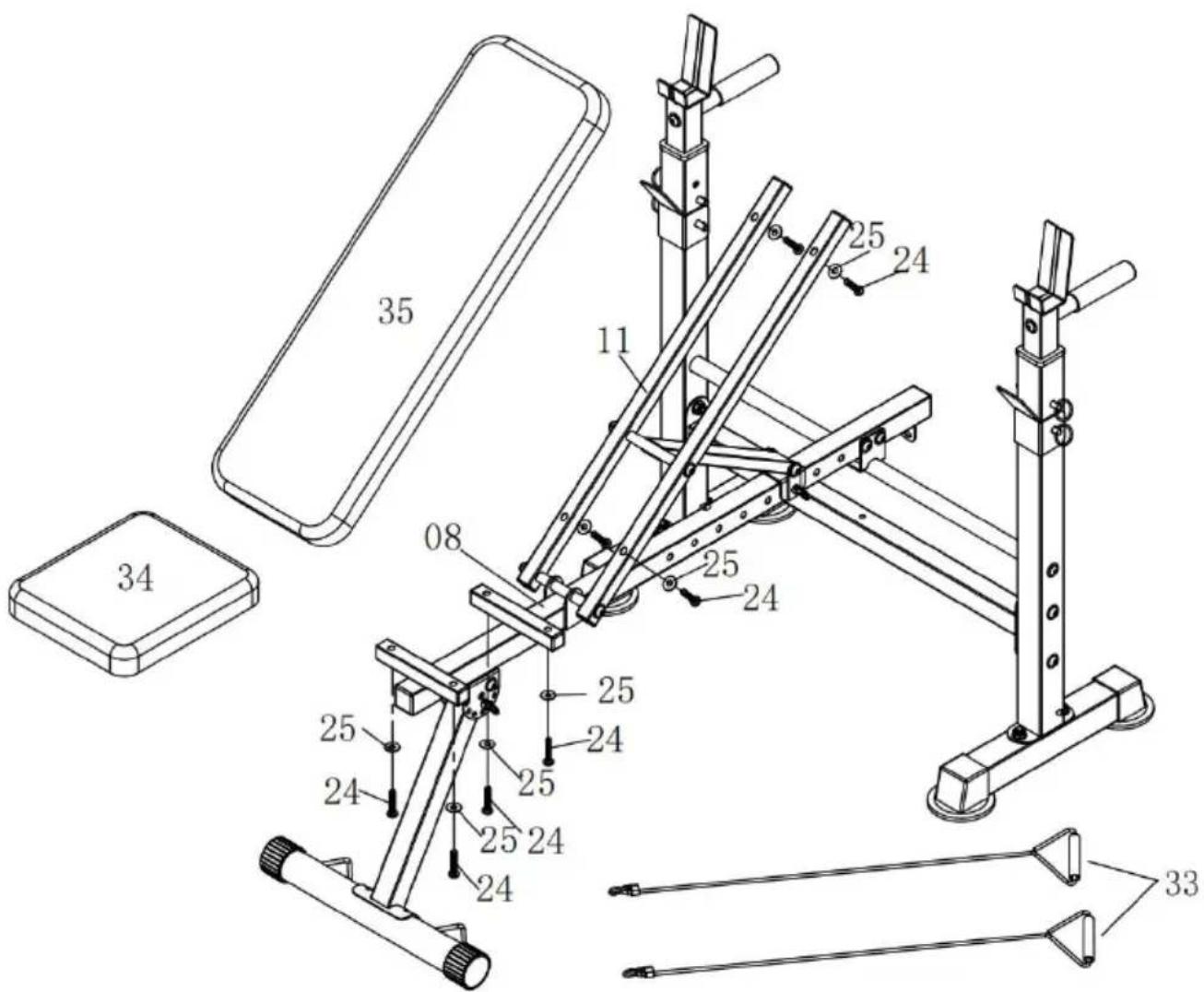

Attach the Seat Cushion (34) to the Main Frame (08) by using four Bolts (24) and four Flat Washers (25).

Attach the Backrest Cushion (35) to the Backrest Supporting Tubes (1 using four Allen Bolts (24) and four Flat Washers (25).

Attach two Ropes (33) to the Front Base Tube (10).

35 11 25 24 08 25 24 25 24 25 24 24 33 34

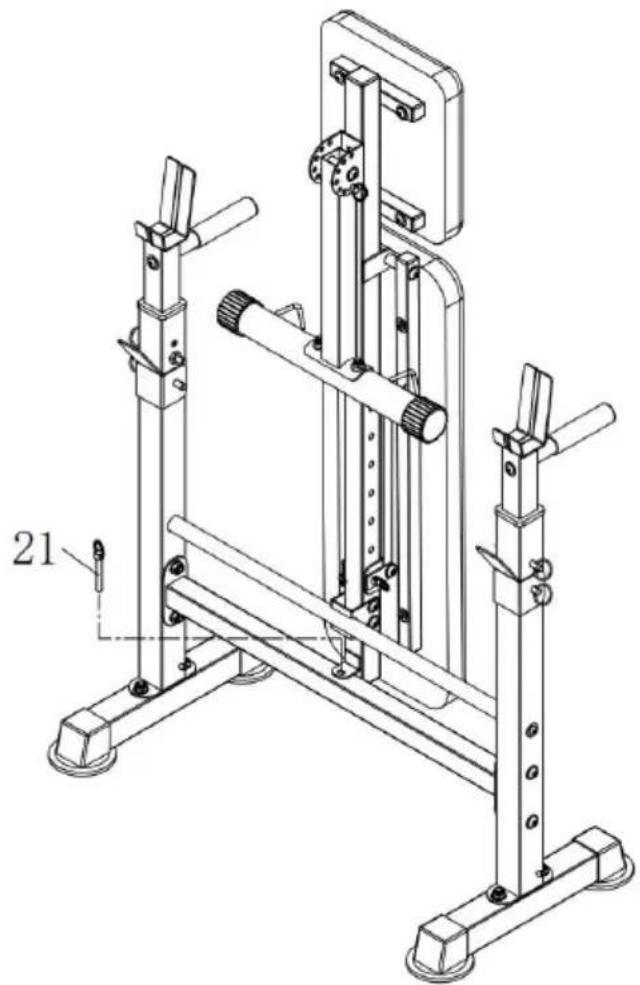

THE ASSEMBLY PROCESS IS NOW COMPLETE.

For your safety, Please tighten the screw and adjust it to the appropriate position.

Please visually and functionally inspect and test the unit after assemb complete.

Step 6: The following figure shows the folded state of the product, v can be locked by latch 21 after folding

Technical line drawing of a mechanical exercise frame with vertical supports and a central roller, labeled with number 21 (no text or symbols on the diagram itself)

NOTE : The Maximum Weight Capacity for this product is 600 lbs o 272kgs. Only one person should use this piece of equipment at one

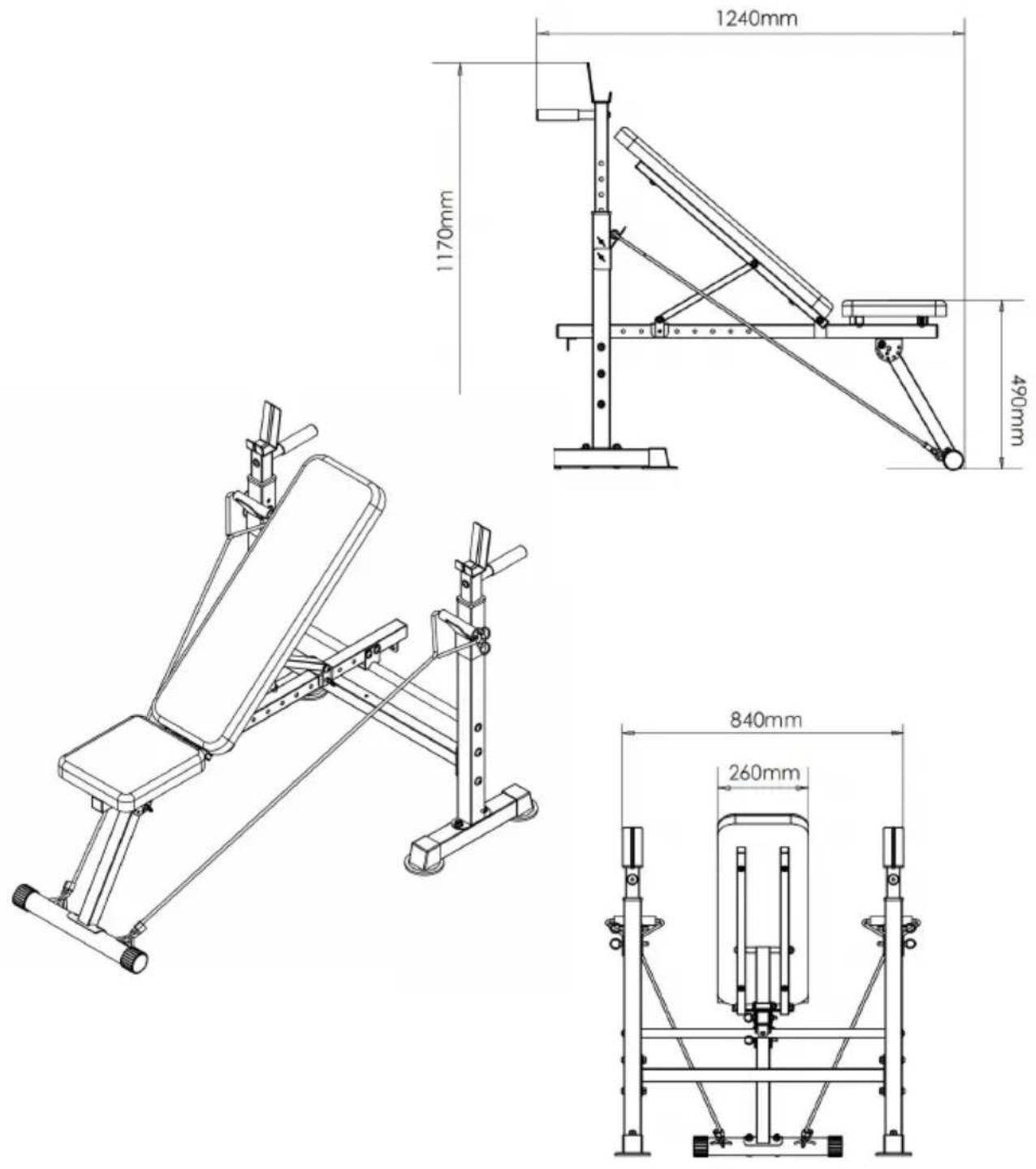

Product size chart

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tight the screws

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
