USER MANUAL OK888-DD730 Vevor

Technical Support and E-Warranty Certificate www. vevor. com/support

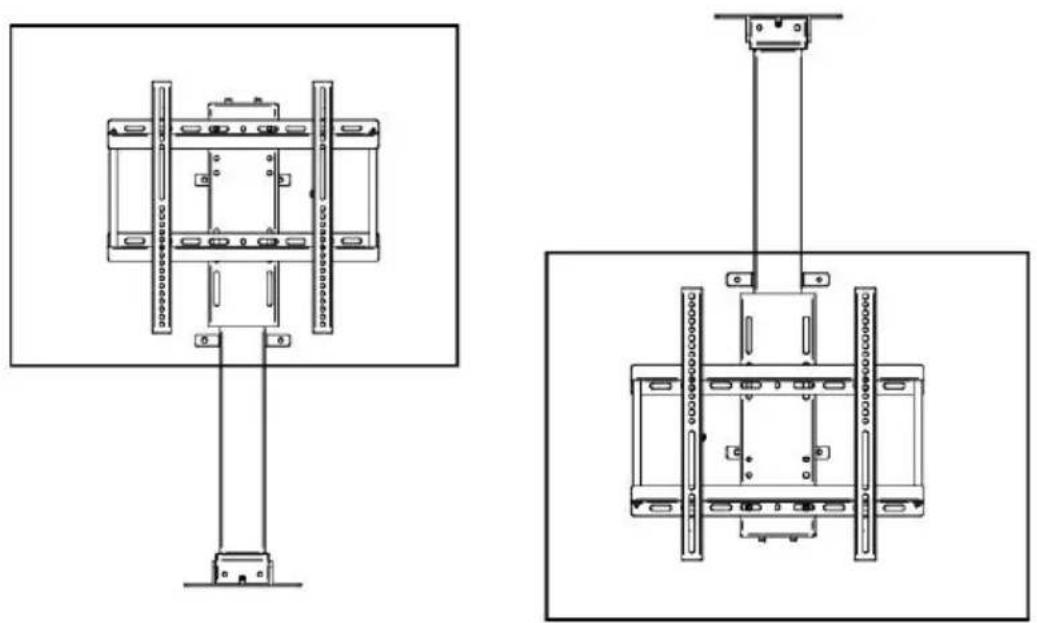

TV LIFT

USER MANUAL

MODEL: OK888-DD730

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:OK888-DD730

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european 2012/19/EU. The symbol showing a wheelie bin crosse through indicates that the product requires separate ret collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal d waste, but must be taken to acollection point for recy electrical and electronic devices.
	Compliance is a CE security certification.

IMPORTANT SAFEGUARDS

Please read and understand this entire manual before

attempting to assemble, operate or install the product. Fail

to follow all instructions listed below may result in electric shock, fire serious injury.

WARNING:

1. The load added onto the actuator must be less than or equal to rated load of actuator.
2. Please use the 29V DC power adapter.
3. All actuators have duty cycle, they cannot work all the time without stopping.
4. The actuator is not completely waterproof, please do not immerse water directly.
5. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

ATTENTION

1. Please ensure that the screws and nuts are tightened during install. For your safety, the product must be used in the specified size and limits.
2. Ensure that the wall's quality and load-bearing capacity are sufficient installation. The manufacturer is not responsible for any consequences arising from improper installation.
3. If installing in glass or glass curtain wall, foam brick, marble, fiber board, please consult a professional installer before installation. Otherwise the manufacturer is not responsible for any consequences caused by improper installation!

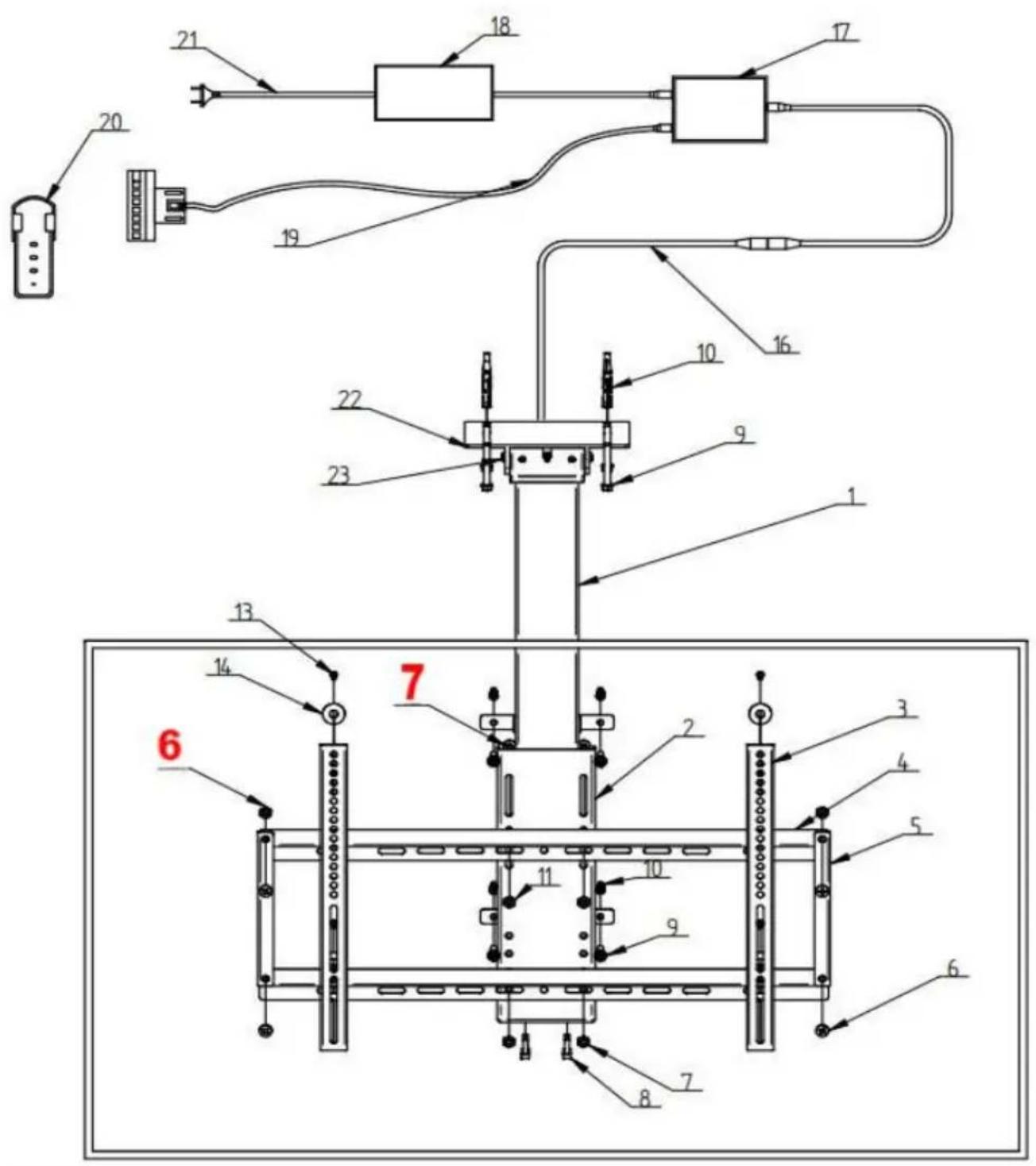

PARTS LIST

Technical schematic diagram of a mechanical or electrical device with numbered components and labeled parts

NO.	Name	Qty
1	Lift Column Control Component	1
2	Tv Mounting Bracket	1
3	TV stand (vertical)	2
4	TV stand (horizontal)	2
5	Tv Stand Connecting Rod	2
6	M8*12	4
7	M8*16	4
8	M6*20(Installed And Fixed)	4
9	M7*70	8
10	Φ7 x Φ10 x 60mm	8
11	M8 Nut	4
13	M6*16	4
14	Φ8*Φ17*1.7	4
16	Border Line	1
17	Controller	1
18	Power Adapter	1
19	Manual Control Wire	1
20	Remote Control	1
21	Power Cord	1
22	Fixed Iron	2
23	M6*12	4

ATTENTION

1. Please ensure that the screws and nuts are tightened during install. For your safety, the product must be used in the specified size and limits.
2. Ensure that the wall's quality and load-bearing capacity are sufficient installation. The manufacturer is not responsible for any consequences arising from improper installation.
3. If installing in glass or glass curtain wall, foam brick, marble, fiber board, please consult a professional installer before installation. Otherwise the manufacturer is not responsible for any consequences caused by improper installation!

INSTRUCTIONS

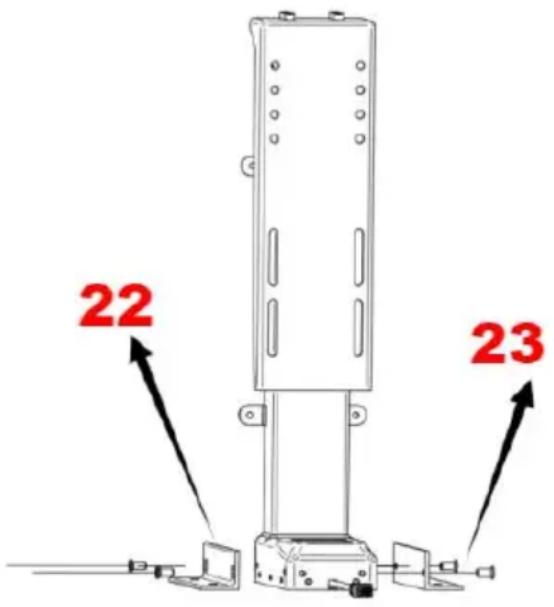

STEP 1 Install The Fixed Iron Sheet

Align the fixing iron plate with the holes on both sides of t and secure it with four screws.

22 23

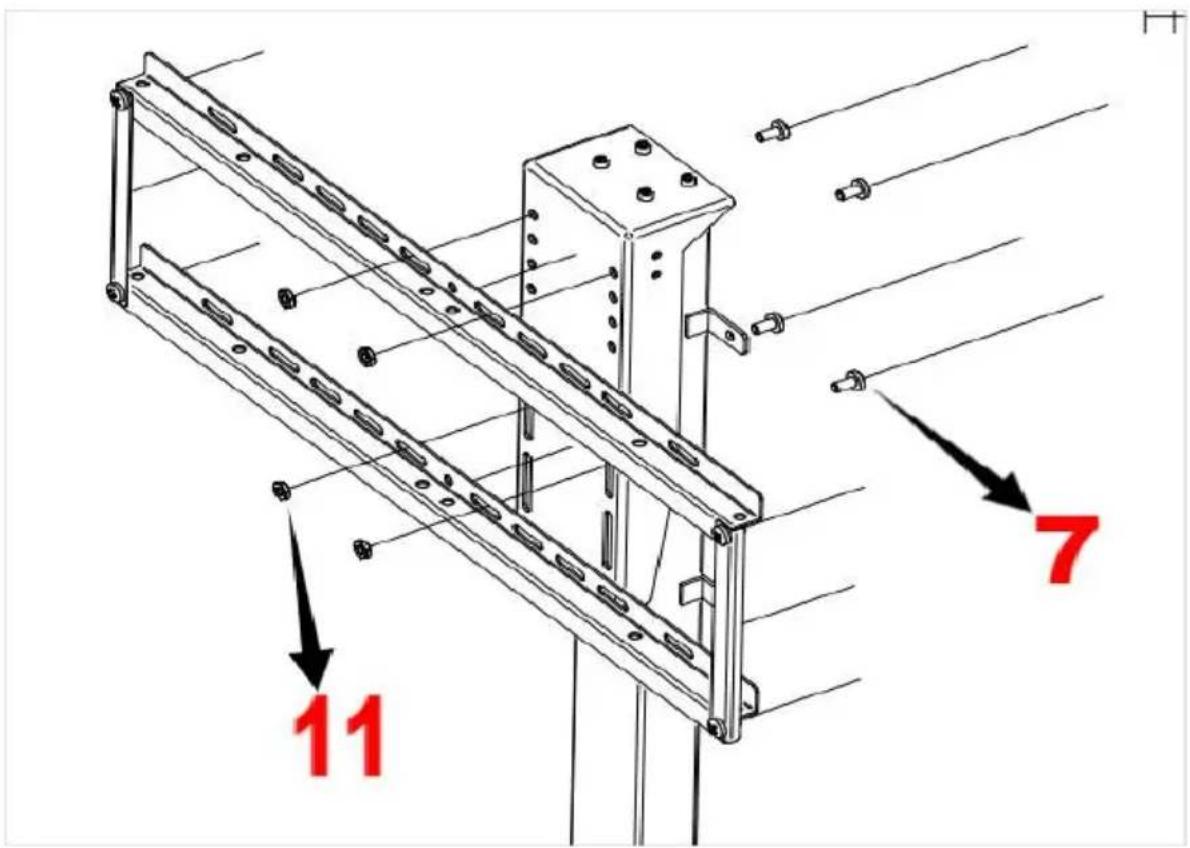

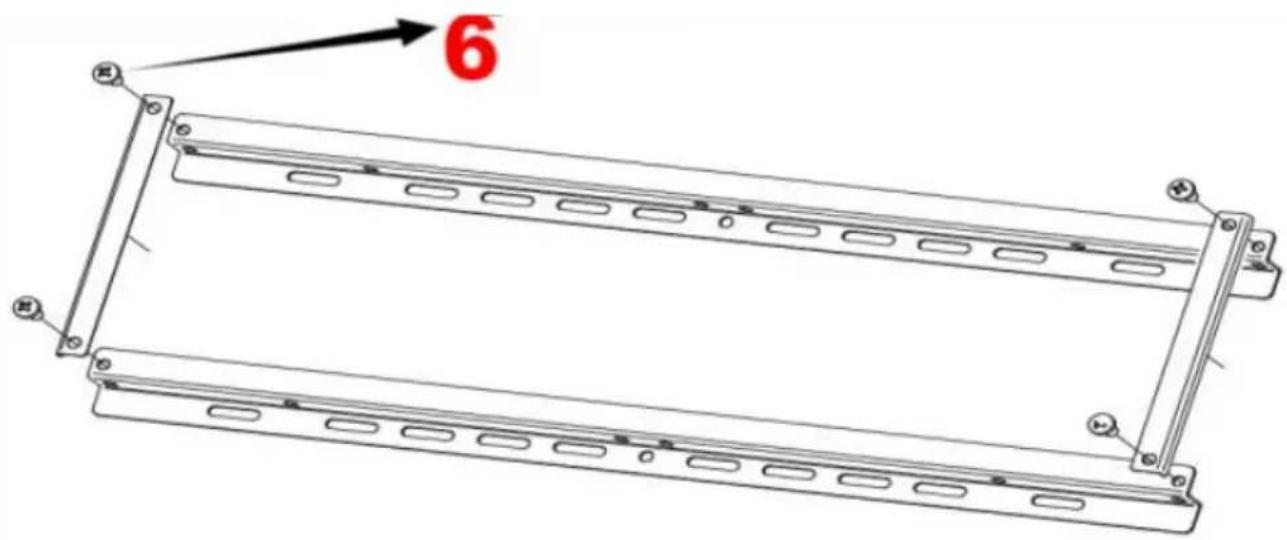

STEP 2 Assemble the hanger

① Align the holes at both ends of the TV pylon connecting the holes at both ends of the pylon (transverse) and fix their four screws.

6

② Connect the assembled pylon to the pylon panel at the f the column body through bolts and nuts.

11 7

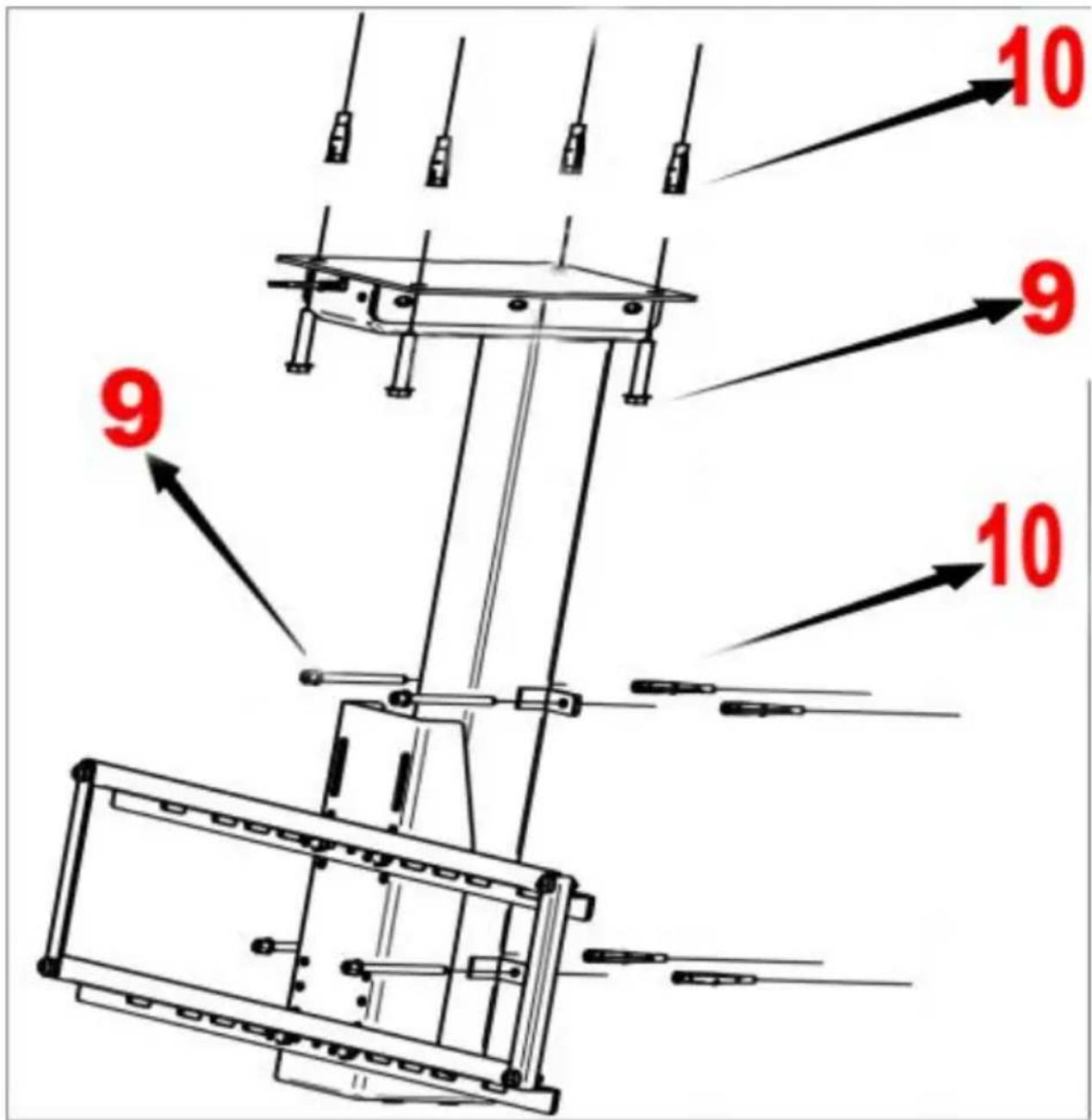

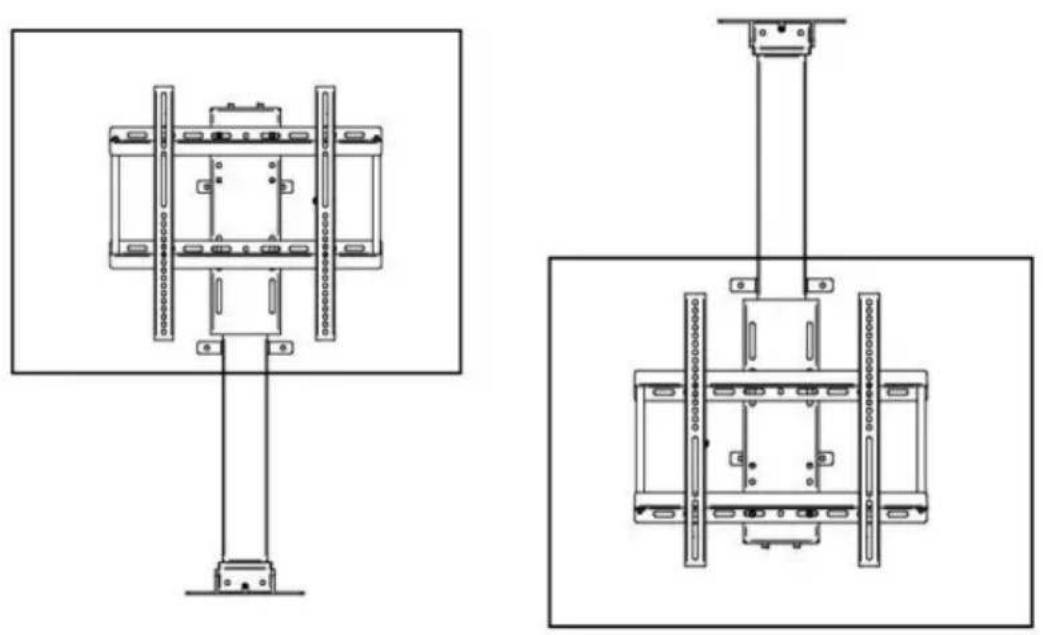

STEP 3

① Place the base of the column in the position to be install and drill holes, place the expansion tube in the hole, and in expansion screw through the fixing hole of the base of the secure the main column.

② Mark the hanging ear holes on both sides of the main co-punch holes, and then use expansion tubes and expansion s fix them.

10 9 10 9 10

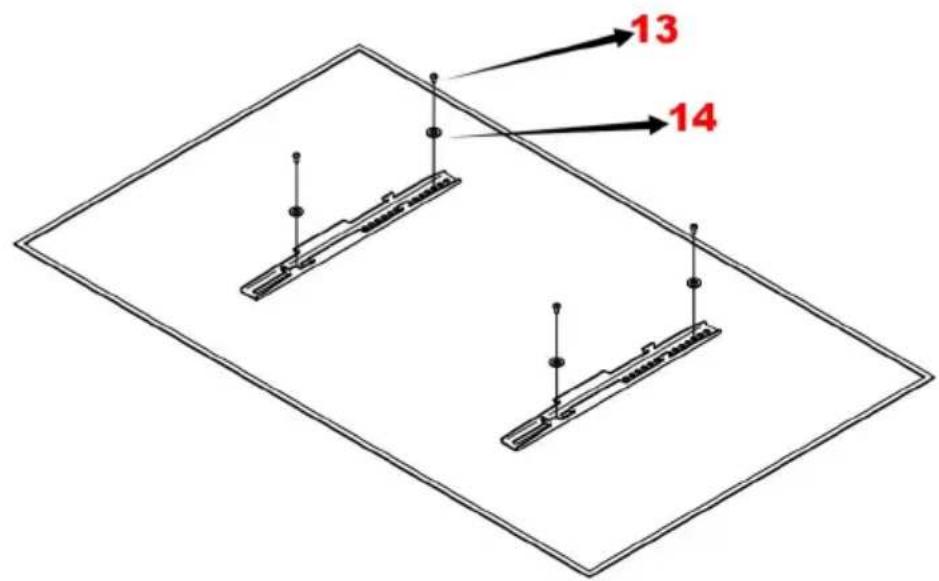

STEP 4

Install TV

① Align the appropriate holes of the two vertical hooks with on the back of the TV and fix the connection;
② Align the assembled TV and pylon with the appropriate h front pylon panel of the column and fix it by connecting b o nuts; Ensure that the bottom two screws of the vertical hook firmly fixed.

13 14

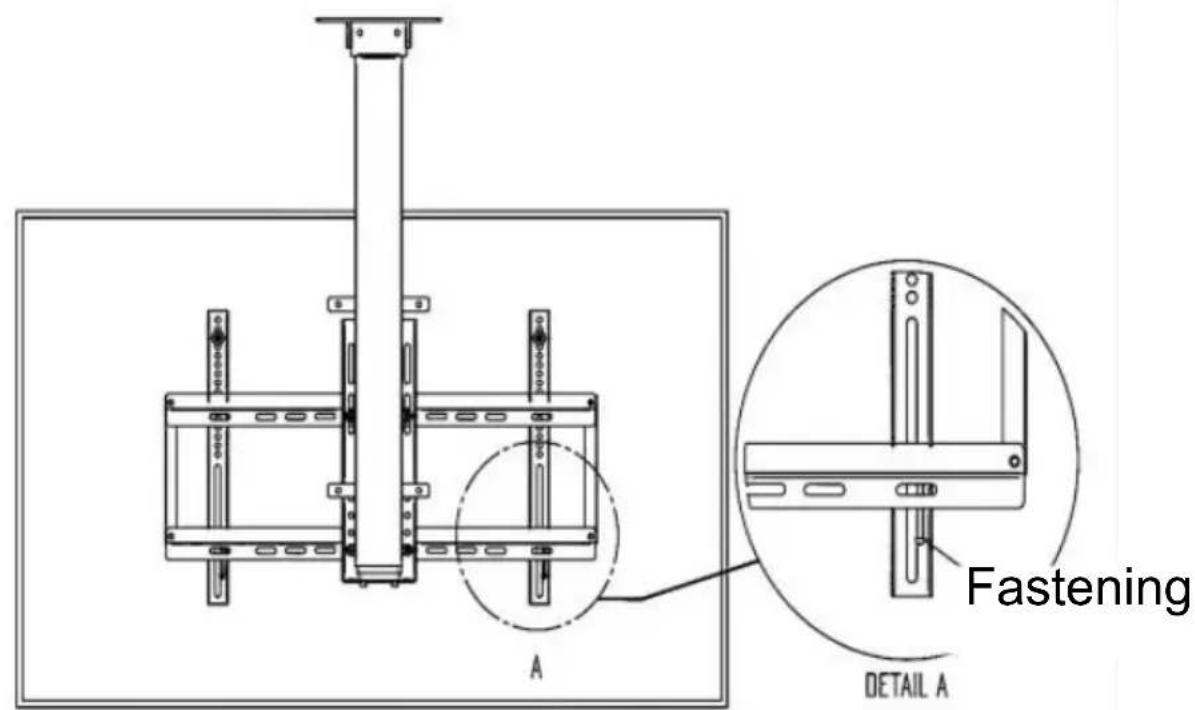

A Fastening DETAIL A

Indication Light Up Controller Pad Stop Down Up/Down Height Level Memory Function

Controller Instruction Manual

I. Function introduction

Intelligent single column controller has the following characteristics:

1. It can control two motors' output to achieve synchronous operation
2. Indicator light displays the fault, resetting;
3. Controlled by up and down buttons;
4. Wireless remote control(alternative).

II. System parameters

1.Input voltage:DC29V;
2.Input current: recommending above 1.8A and according to the load;
3.Maximum output voltage of mo interface:DC29V;
4.Maximum output current of mot interface:4A;
5. Operating temperature:0\~40℃
6. Working humidity:20\~90%;
7. Storage temperature:20\~70°C.

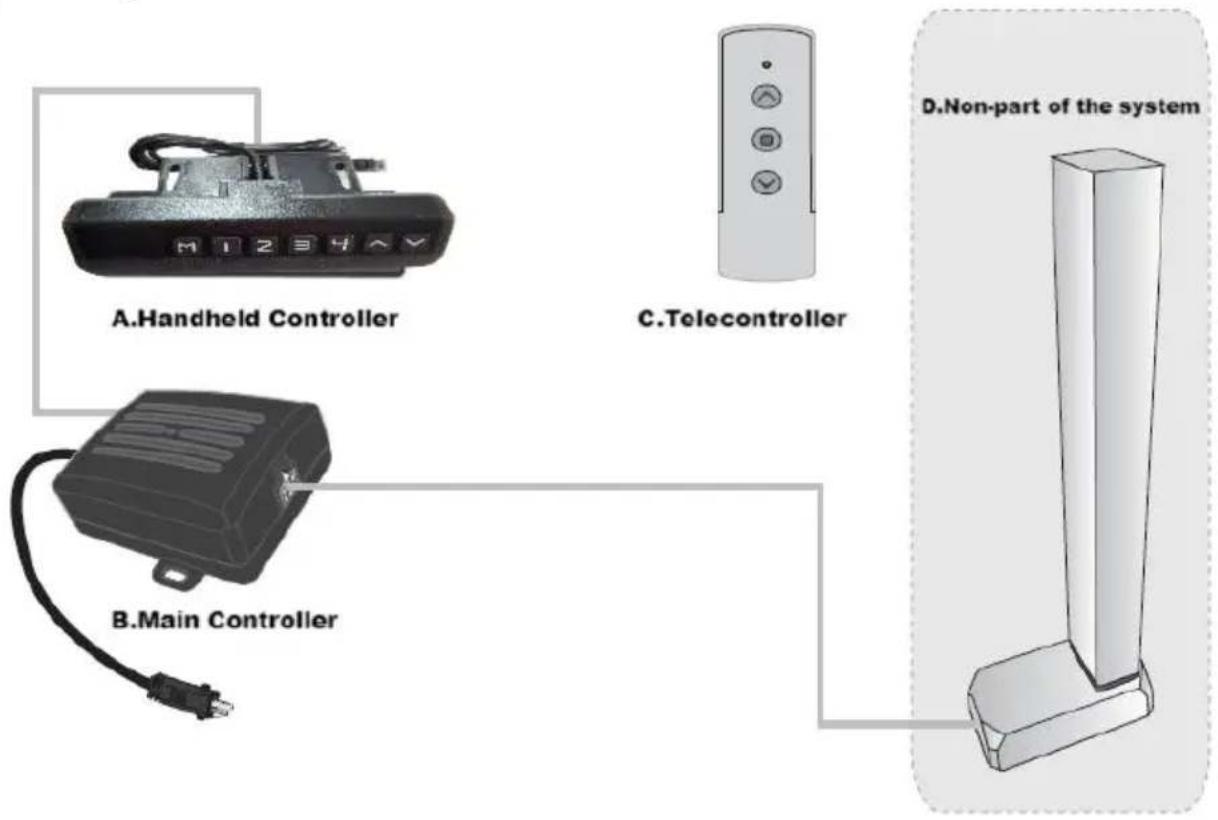

III. System connection

A.Handheld Controller C.Telecontroller B.Main Controller D.Non-part of the system

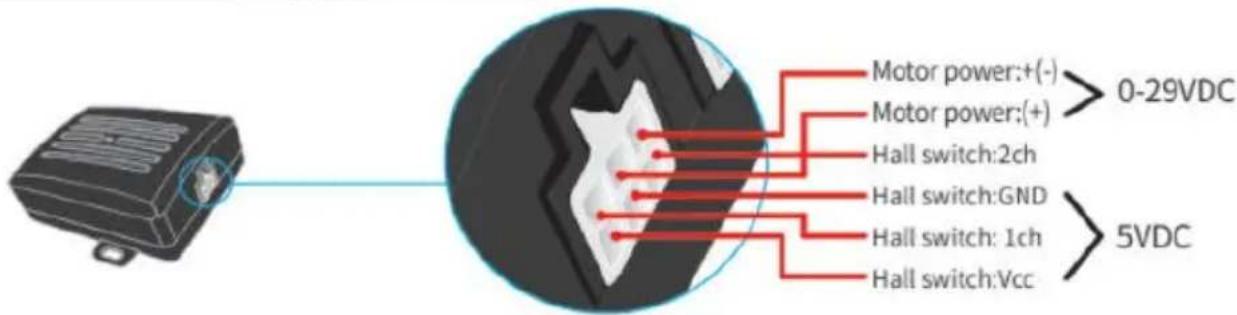

IV. Motor interfase plug definition:

Motor power:+(-) > 0-29VDC Motor power:(+) Hall switch:2ch Hall switch:GND Hall switch:1ch Hall switch:Vcc > 5VDC

V. Fault code and its treatment

1.Fault code Err1
When the manual controller shows Er1, it's a faErr1. It means there is something wrong withinterface channel (see the following picture). Fofexemple m otors are not connected in a positivHall signal board is not connected; Paper line,
After the problem is eliminated, presing the "dobutton more than 3 seconds to eliminate the fauthe machine returns to the reset state.

VI. System reset

1.Prompt resetWhen the manual controller indicator light alwa stays on (see the following picture), it means resetting. The whole system needs to reset mau
2.Line resetWhen the manual controller shows the minimu heigh ,pressing"down button" more than 5 seco and the indicator light is on .It means resetin
3.Releasing the hand and starting to reset system,after the manual controller indicator light i
4.Reset methodWhen the manual controller indicator light alwa stays on (see the following figure), pressing the button and do not release it.
The column may begin to shorten, and the speed could slow down. Of any other damage during operation; if there is any, stop immediately.
Column began to shorten,when resetting.

The column will rise 5\~10mm after a short time when it reach point.

After all arrive, rising a small distance.

When the manual controller indicator light is off(see the following picture), releasing the hand and end at resetting.

13 M 1234^V

VII.Preset target height

1.Preset target height quantity:The system provides 4 groups of preset height storage
2.Preset target height data erasure:The erasing function is not configured separately. When a new pa is set, the system automatically erases the old parameter.
3.Preset target height operation method:At any height (reset state, cannot perform this operation in error current height parameter can be preset to keys 1-4.
Example: 1Set the current height 83 to key No.
2Press the "M" key to display "SET"
3Within 2 seconds, press "2" before "SET" disapp
4The "S-2" preset is displayed. End, the previous display is restored.
5. Use the method of preset target height:At any height (reset state, cannot perform this operation in the w state), you can use keys 1-4 to quickly reach the preset target current height is already near the preset target height, no action performed.

VIII. Telecontroller operation

1. Matching window periodMatching window period is repowering after 3 seconds.There will be buzzing sound when the period ends.

2. Right codeIn matching window period, passing the "up button"longly and waiting long and 3 short intervals of buzzing sound, it means righting code

IX. Backtracking when encountering obstacles

In addition to the reset state, when working, the mechanical structure encounter a sudden changes from loading, which will cause the operation to carry out a fallback operation to prevent external sound of injury.

PRODUCT PARAMETERS

	Model	Safe Loading Weight	Input	Adapter input voltage	Region
1	OK888-DD730	120lbs	DC29V 1.8A	100-240V~50/60Hz	America
2					Europe
