Knife Sharpening Fixture

MODEL: PJ-1156

VEVOR

Affordable. Reliable. Home Improvement.

Knife Sharpening Fixture

MODEL:PJ-1156

Metal mechanical device with four cylindrical pins and screw holes, mounted on a flat base (no visible text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

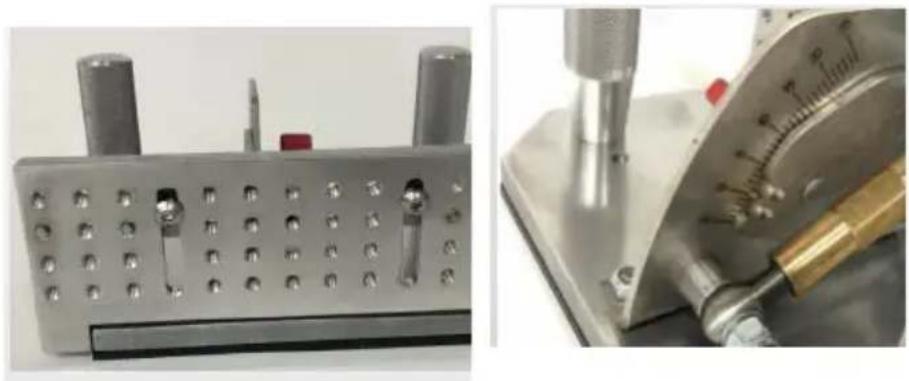

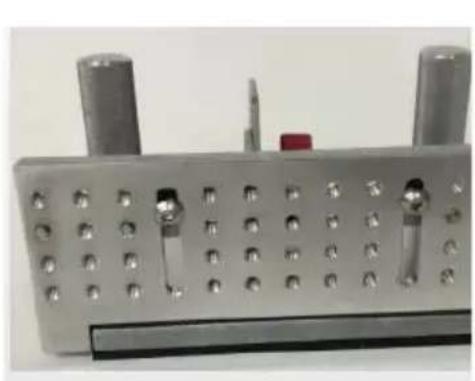

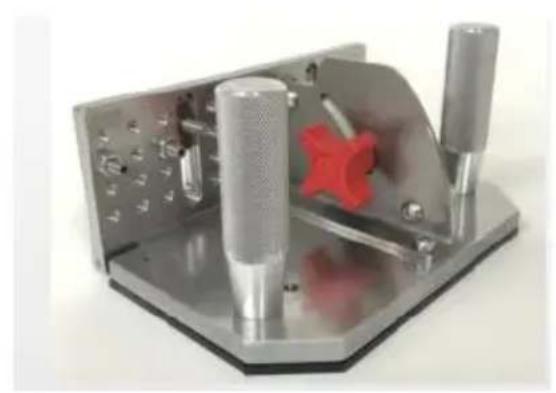

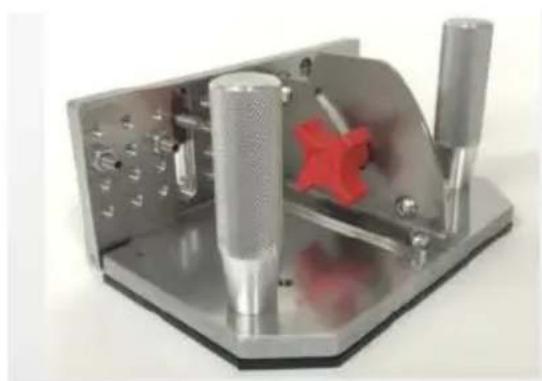

Angle Grind Guide-regular

Four-panel technical illustration of a mechanical device with metal components and a tool, showing assembly and inspection (no text or symbols)

.Front mounting plate measures 7-3/4'wide & stands 3-1/4" tall

.1/4-20 Tapped mounting holes

.2 slotted mounting points

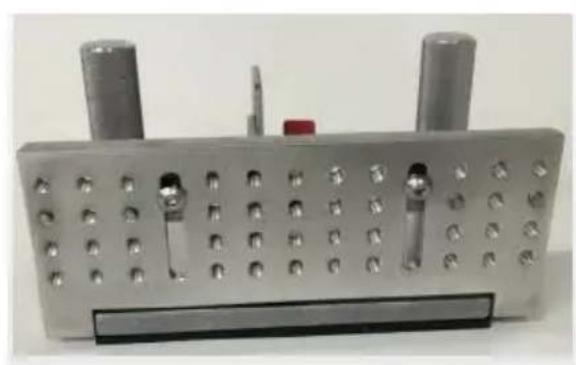

.Lasered stainless-steel protractor plate

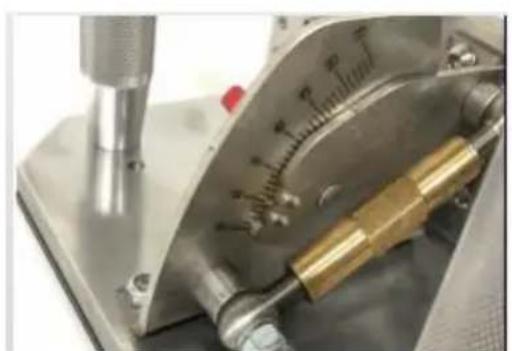

.Needle pointer can be adjusted with a screwdriver for absolute accuracy

.Zero play hinges

.Two aluminum knurled handles for secure grip & superior "feel"; handles are 3-1/2" tall

.150" ABS sheet on the bottom plate to provide an exceptionally

smooth sliding action when plunge grinding.Stainless-steel dog poi set screws which can be placed strategically along spine of blade

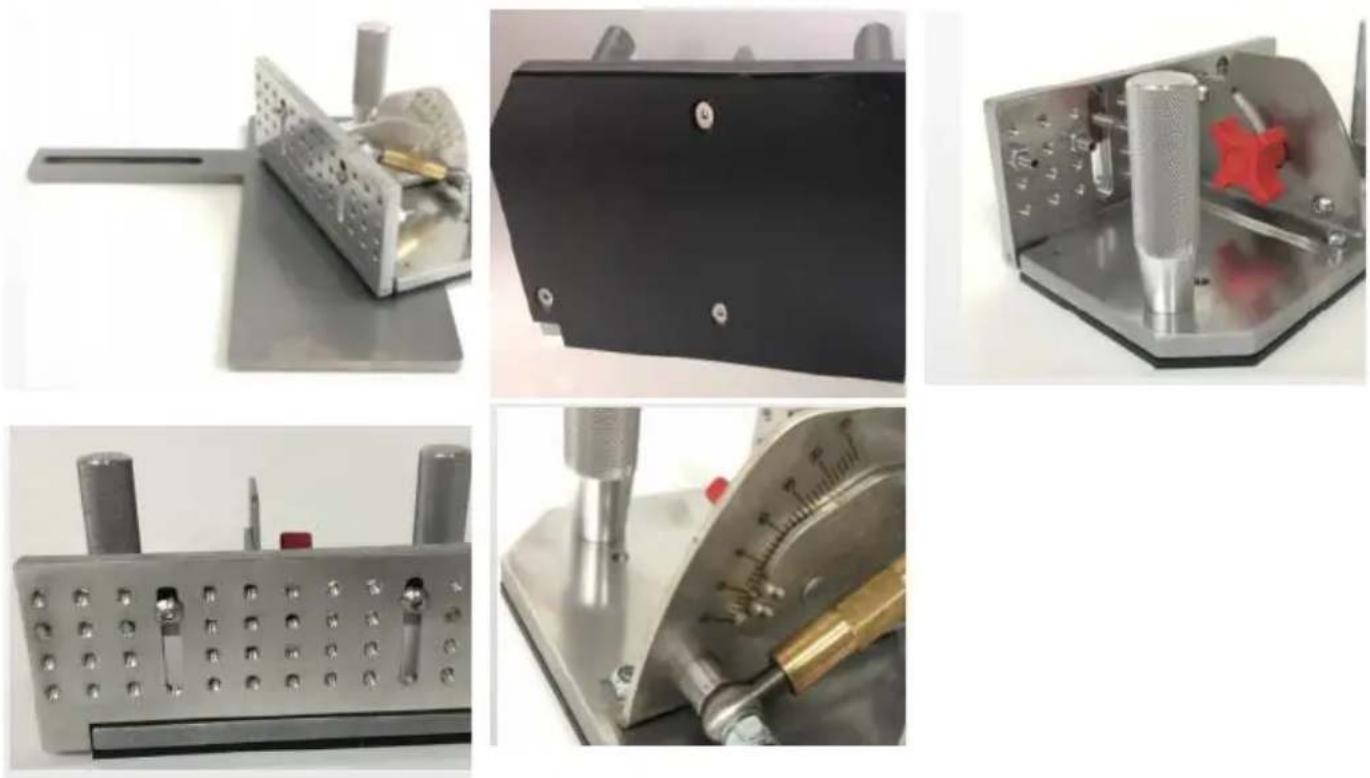

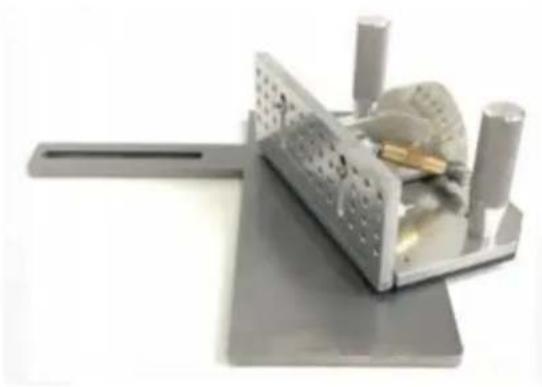

Angle Grind Guide-regular with Large Tool Rest

Metallic tray with perforated metal casing and cylindrical protrusions, mounted on a flat base (no text or symbols visible)

Black metal bracket with four circular holes and a small circular mark on top (no text or symbols visible)

Metallic mechanical device with two cylindrical components and a red star-shaped component on top (no visible text or symbols)

Metal dental implant holder with multiple cylindrical pins and a small tool inserted (no visible text or symbols)

Close-up of a mechanical testing device with a metallic dial and brass component (no visible text or symbols)

.Front mounting plate measures 7-3/4" wide &stands 3-1/4" tall
.1/4-20 Tapped mounting holes
.2 slotted mounting points

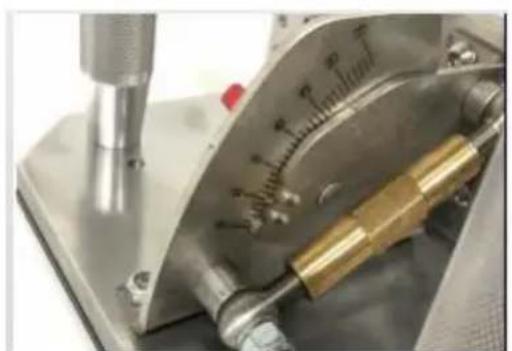

.Lasered stainless-steel protractor plate
.Needle pointer can be adjusted with a screwdriver for absolute

accuracy

.Super fine thread turnbuckle for absolute precision adjustments. Lock knob & turnbuckle combination assures zero movement. Zero play hinges

.Two aluminum knurled handles for secure grip &superior "feel"; handles are 3-1/2" tall

TOOL REST:

Solid steel tool rest, 3/8" thick unfinished steel This rest bolts di onto a 1.5"x1.5" main tooling arm, or to an extra tooling arm in bottom slot of the grinder

Angle Grind Guide-regular with Large Tool Rest

TOOL REST:

.Solid steel tool rest, 3/8" thick unfinished steel.

.This rest bolts directly onto a 1.5"x1.5" main tooling arm, or to extra tooling arm in the bottom slot of the grinder.

.The slot allows it to be moved closer to or further away from

.We leave the surface unfinished: sand it smooth or drill & tap if for your fixtures.

.The work surface measures 11-3/4" wide by 5-1/4" deep.

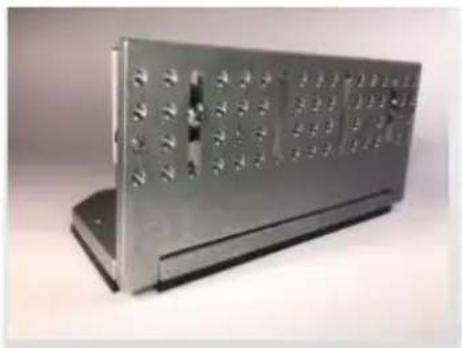

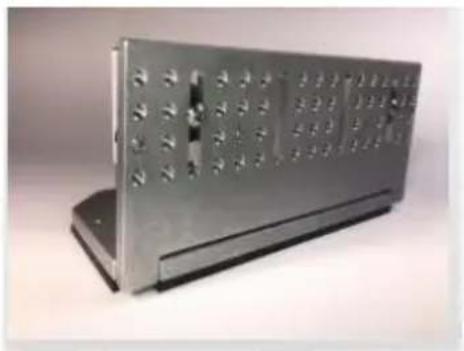

Angle Grind Guide -Large

3D rendered mechanical component with metallic parts and a mounted panel (no visible text or symbols)

Black rectangular electronic component with four metallic pins, placed on a plain white surface (no text or symbols visible)

Metallic electronic device with perforated panel and mounting base (no visible text or symbols)

Close-up of a metallic mechanical device with a brass cylindrical component and a dial indicator (no visible text or symbols)

.Front mounting plate measures 9-3/4" wide &stands 4" tall.

.1/4-20 Tapped mounting holes

.4 slotted mounting points

.Lasered stainless-steel protractor plate

.Needle pointer can be adjusted with a screwdriver for absolute accuracy

.Super fine thread turnbuckle for absolute precision adjustments

.Lock knob & turnbuckle combination assures zero movement

.Zero play hinges

.Two aluminum knurled handles for secure grip& superior "feel"; handle are 3-1/2" tall

.150" ABS sheet on the bottom plate to provide an exceptionally smc sliding action when plunge grinding.

.Stainless-steel dog point set screws which can be placed strategically along spine of blade

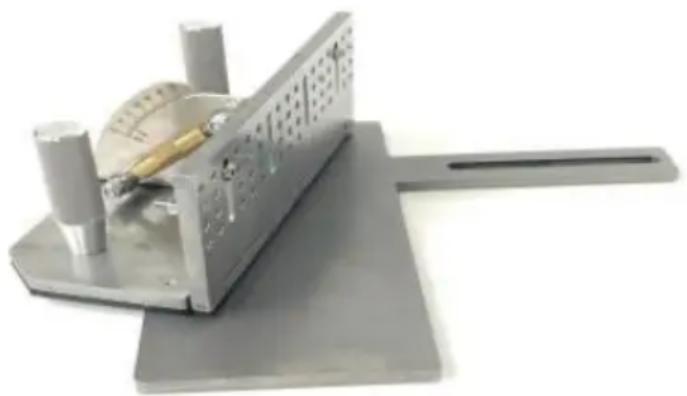

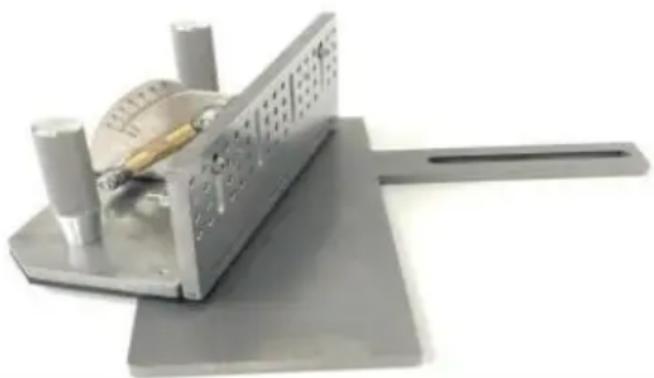

Angle Grind Guide (Large)& Large Tool Rest

.Front mounting plate measures 9-3/4" wide & stands 4 tall

.1/4-20 Tapped mounting holes

.4 slotted mounting points

.Lasered stainless-steel protractor plate

Metal mechanical device with a circular dial and cylindrical protrusions, mounted on a base (no text or symbols visible)

.Needle pointer can be adjusted with a screwdriver for absolute accuracy

.Super fine thread turnbuckle for absolute precision adjustments

.Lock knob & turnbuckle combination assures zero movement

.Zero play hinges

.Two aluminum knurled handles for secure grip & superior "feel"; hand are 3-1/2" tall.

.150" ABS sheet on the bottom plate to provide an exceptionally smc sliding action when plunge grinding.

.Stainless-steel dog point set screws which can be placed strategically along spine of blade.

Angle Grind Guide (Large)& Large Tool Rest

.TOOL REST:

.Solid steel tool rest, 3/8" unfinished steel.

.This rest bolts directly on 1.5"x1.5" main tooling arm, to an extra tooling arm in Bottom slot of the grinder.

Metal mechanical device with perforated base and cylindrical components, no visible text or symbols

.The slot allows it to be moved closer to or further away from the I. We leave the surface unfinished: sand it smooth or drill & tap it ea your fixtures. Also easy to weld angles or holding plates onto. The work surface measures 11-3/4" wide by 5-1/4"deep.

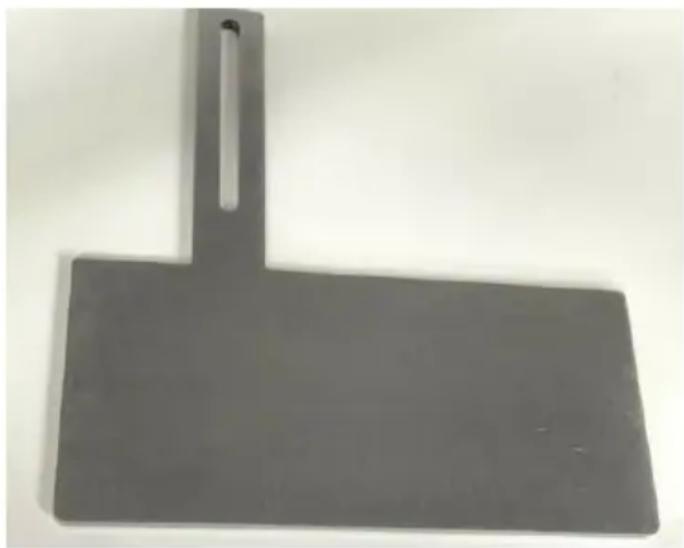

Belt Grinder Tool Rest Large

Metal L-shaped object with a hole, shown against a plain background (no text or symbols)

Solid steel tool rest, 3/8" thick unfinished steel. This rest bolts directly onto a 1.5"x1.5" main tooling arm, or to an extra tooling arm in the bottom slot of the grinder. The slot allows it to be moved closer to or further away from the belt. We leave the surface unfinished: sand it smooth or drill & tap it easily for your fixtures. Also

easy to weld angles or holding plates onto. The work surface measure 11-3/4" wide by5-1/4" deep. This rest works very well with our Grind Guides.
