JC-94D - Fridge Vevor - Free user manual and instructions

Product Type	Wine Refrigerator
Brand	Vevor
Model	JC-94D
Bottle Capacity	Up to 94 bottles
Dimensions (W x D x H)	Approximately 595 x 570 x 845 mm
Net Weight	Approximately 40 kg
Power Supply	220-240 V, 50 Hz
Temperature Range	5 °C to 18 °C (adjustable)
Cooling Zones	Dual zone: upper and lower chambers
Refrigerant	R600a (flammable)
Display	Digital LED with touch controls
Main Functions	Temperature control, auto lock, fault memory, LED lighting, forced defrost, ventilation
Number of Shelves	Multiple sliding shelves (adjustable)
Installation Type	Freestanding (not built-in)
Material	Steel, glass, plastic
Color	Black (typical)
Noise	Standard noise level (refer to manual)
Climate Class	N/ST (moderate to subtropical ambient temperature)
Safety	Child lock, overload protection, grounding
Maintenance	Regular cleaning of surfaces and door seal; automatic defrost
Repairability	Technical support via www.vevor.com/support; spare parts available on request
Warranty	Manufacturer's warranty (electronic certificate included)
Included Accessories	User manual, warranty certificate

Frequently Asked Questions - JC-94D Vevor

How to adjust the temperature of my Vevor JC-94D wine refrigerator?

Press the unlock button (long press for 2 seconds). Use the + and - buttons to set the desired temperature between 5°C and 18°C. The display flashes and auto-locks after 20 seconds of inactivity.

What to do if the screen displays 'EE'?

The 'EE' code indicates a problem with the temperature sensor (short circuit or disconnection). Cooling stops. Contact Vevor after-sales service to obtain a replacement sensor or repair.

How to clean the interior of my Vevor JC-94D?

Unplug the appliance. Remove bottles and shelves. Clean surfaces with a soft cloth dampened with warm water and mild detergent. Rinse and dry. Do not use abrasive cleaners or solvents.

Why is my wine refrigerator making noise?

A slight noise is normal (compressor, fan). Make sure the appliance is level and not in contact with furniture or walls. If the noise is excessive, refer to the 'Faults' section of the manual.

Can I use my Vevor JC-94D to freeze food?

No, this appliance is designed exclusively for wine storage. It does not allow food freezing.

How to change the display from Fahrenheit to Celsius?

Long press the 'Light / CF' button for 2 seconds to toggle between Fahrenheit and Celsius. The selected unit is displayed.

What to do if the appliance does not cool enough?

Check that the set temperature is correct, the door is properly closed, the appliance is not exposed to sunlight or near a heat source, and the ventilation openings are not obstructed. Leave a 10 cm space around the appliance.

How to unlock the buttons if they are locked?

Long press the unlock button (lock icon) for 2 seconds. The buttons unlock and you can change settings.

What type of refrigerant is used in the JC-94D?

The refrigerant is R600a (isobutane), a flammable gas. Avoid any flame or ignition source near the appliance. In case of a leak, ventilate the room.

Where can I find spare parts for my Vevor JC-94D?

Contact Vevor after-sales service at www.vevor.com/support. Provide the model and serial number. Parts such as shelves, handles, hinges, and sensors are available.

USER MANUAL JC-94D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FREESTANDING WINE REFRIGERATOR

MODEL:JC-94D&JC-208WD

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:JC-94D&JC-208WD

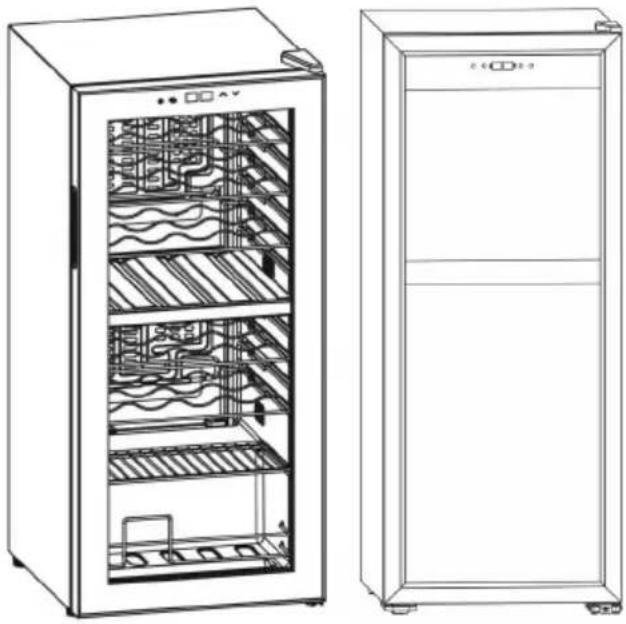

Line drawings of two different refrigerators, one open and one closed, showing internal shelf compartments (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES A OPERATING INSTRUCTION.

IMPORTANT SAFETY INSTRUCTIONS

√ WARNING√

To reduce the risk of fire, electrical shock, or when using your appliance, follow these basic precautions:

- Before using the appliance, please read this user manual to ensure you gain the maximum benefit from it.

WARNING:

1) This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of exper and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their saf 2) Children should be supervised to ensure that they do not play with appliance.
3) This appliance can be used by children aged from 8 years and ab and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders

the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

4) If the supply cord is damaged, it must be replaced by the manufacture of its service agent or similarly qualified persons in order to avoid a hazard.

5) To avoid a hazard due to instability of the appliance, it must be fi accordance with the instructions.

6) When positioning the appliance, ensure the supply cord is not trapped damaged.

7) Do not locate multiple portable socket-outlets or portable power support at the rear of the appliance.

8) Keep ventilation openings, in the appliance enclosure or in the built-structure, clear of obstruction.

9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

10) Do not damage the refrigerant circuit.

11) Do not use electrical appliances inside the drink storage compartment of the appliance, unless they are of the type recommended by the manufacturer.

12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

13) This appliance is intended to be used in household and similar applications such as

-staff kitchen areas in shops, offices and other working environments;

-farm houses and by clients in hotels, motels and other residential types environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

15) To avoid contamination of drink, please respect the following instructions:

-Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance.

-Clean regularly surfaces that can come in contact with drink and accessible drainage systems.

-Clean water tanks if they have not been used for 48 h; flush the v system connected to a water supply if water has not been drawn for days.

-If the refrigerating appliance is left empty for long periods, switch off defrost, clean, dry, and leave the door open to prevent mould develo within the appliance.

- Note: This appliance contains flammable refrigerant R600a and foam agent cyclopentane.

Please avoid contact fire when you transport and use it.

Please ask professional for servicing when the machine broke down.

Please send it to your local appointed disposal station when you disc

-Save these instructions-

During using, service and disposal the appliance, pay attention to symbol similar as left side, which located on rear of appliance (rear panel or compr and with yellow or orange color.It's risk of fire warning symbol. There are flammal materials in refrigerant pipes and compressor.Please be far away fire source during using, serv disposal.

INSTALLATION INSTRUCTIONS

- This appliance is designed to be free standing only, and should not recessed or built-in.

- Place your unit on a floor that is strong enough to support the ur is fully loaded. To level

your unit, adjust the leveling legs at the bottom of the unit.

- This appliance is not designed to be installed inside of a cabinet \

the front is covered by any type of door.

• Allow 10 cm of space between the top, the back and sides of the which allows the proper air circulation to cool the compressor and condenser.
• Locate the unit away from direct sunlight and sources of heat (stov heater, radiator, etc.).

Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

• Avoid locating the unit in moist areas.
• Plug the unit into an exclusive, properly installed-grounded wall outlet not under any circumstances cut or remove the third (ground) prong the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products center.
  • After plugging the Wine Chiller into a wall outlet, allow the unit to down for 2-3 hours before placing any items in the compartment.

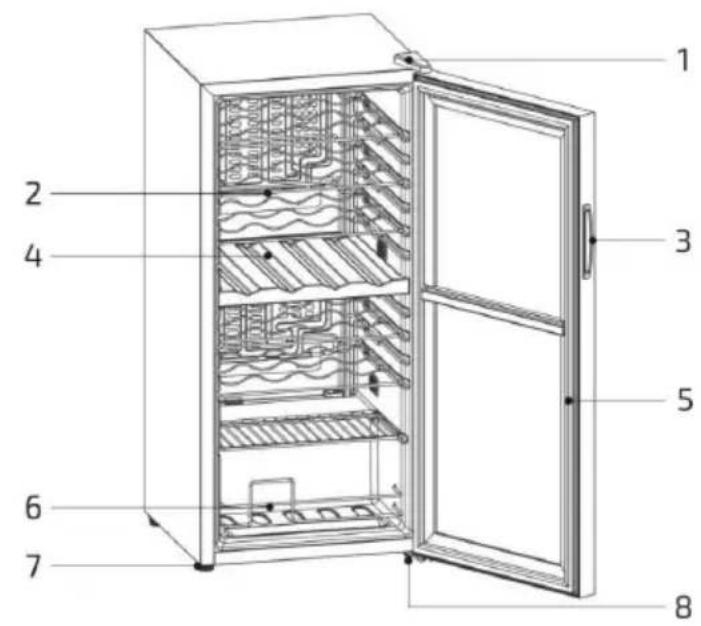

PARTS AND FEATURES

1 2 3 4 5 6 7 8

JC-94D

1: Upper Hinge
2:Shelves
3:Door Handle
4:Partitions
5:Door Gasket
6:Display Shelves
7:Adjust Foot
8:Bottom Hinge

Technical diagram of a multi-level refrigerator with numbered labels pointing to different compartments.

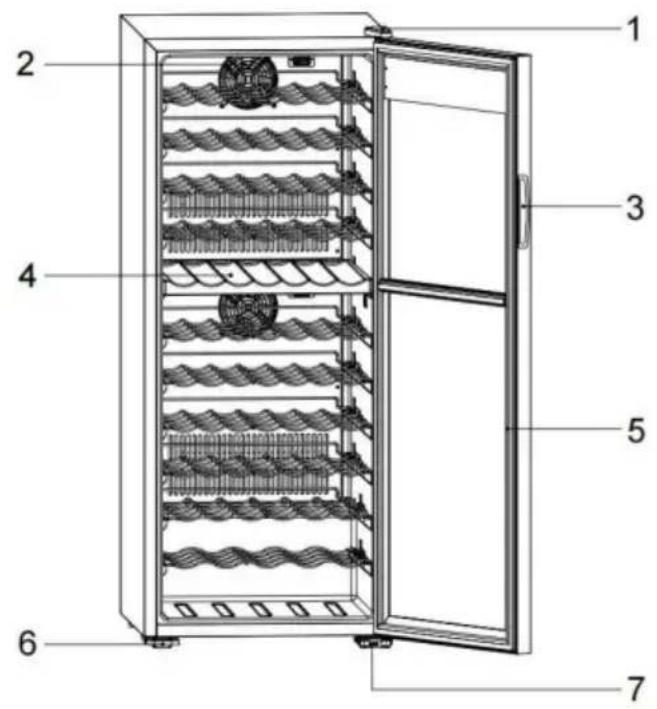

JC-208WD

1: Upper Hinge

2:Fan

3:Door Handle

4:Shelves

5:Door Gasket

6:Adjust Foot

7:Bottom Hinge

OPERATING YOUR UNIT

Setting the Temperature Control

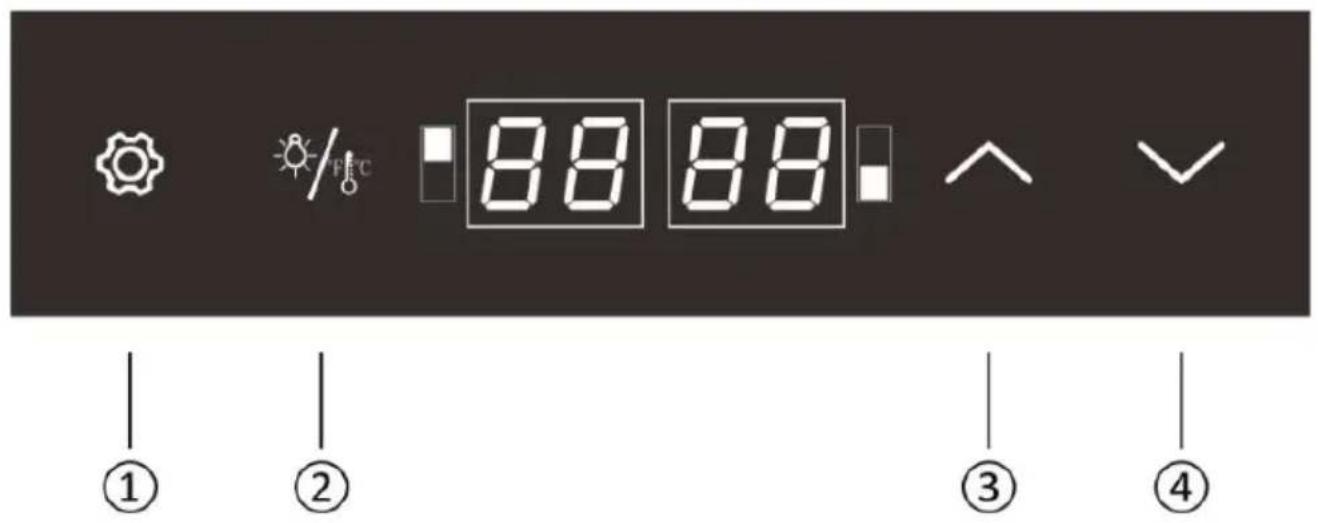

88 88 ① ② ③ ④

Key function

① Unlock key: short press to switch temperature or humidity setting state; long press for 2 seconds to unlock
② Light / CF key: short press to turn on or off the light; long press for 2 seconds to switch Fahrenheit or centigrade
③ Add key: temperature setting

④ Minus key: temperature setting

Automatic lock function

When all the key no operation for 20 seconds, the key will be locked automatically. After locking, the Increase key and Decrease key cannot operate. The unlock key and light / CF key operate normally

Automatic light off function

When all the key no operation for 10 minutes, the lamp will turn off automatically

Adjustable range

Upper room:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Lower chamber:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Display range

Temperature display range of control board: 0 \~ 37 °C / 32 \~ 99 Forced defrosting function

When the compressor works for 12 hours, the compressor will stop working for 30 minutes

Memory function

The control board is re-energized after each power-off, the temperature setting value,

Fahrenheit/Celsius state will be the same as before the power-off, and length of power-off time is not limited.

Display stability

In the Celsius state: When the temperature measured by the temperature probe is within ±1^ of the set temperature, the temperature display the set temperature value

In the Fahrenheit state: When the temperature measured by the temperature probe is within ±2^ F of the set temperature, the temp display will display the set temperature value

Error code

EE: "EE" is displayed when the temperature probe is short-circuited or disconnected, flashes, and cooling is stopped

LL: When the temperature measured by the temperature probe is low than 0 degrees Celsius, "LL" is displayed, flashing, and the cooling is stopped

HH: When the temperature measured by the temperature probe is high than 37 degrees Celsius, "HH" is displayed, flashing, and cooling is stopped

Forced defrosting function

When the compressor works for 12 hours, the compressor will stop working for 30 minutes

Memory function

When the control board is powered on again after each power failure temperature setting value and Fahrenheit / centigrade state will be the same as before, and the power-off time is not limited

Tips

• It is intended to be used exclusively for the storage of wine.
• This refrigerating appliance is not suitable for the freezing foodstuffs.
• The wine cooler is recommended to be designed at 12^ .
• The shelves placed in factory mode is the most efficient use of er the refrigerating appliances.
• The following combination of shelves is recommended for energy to used as efficiently as possible by the refrigeration unit.

GENERAL FAULT DESCRIPTION

If the product is not working properly, please check and handle account to the following methods. If the situation can not be changed, please contact the local after-sales service center in time, and be sure to put the model name and product number in detail.

The refrigerator doesn’t work
Is the power on?	Is the power supply voltage too I

It's noisy
Whether the ground is flat andwhethe product is placed stably.	I Is the product in contactexternal objects or walls

The internal temperature is not low
Improper setting temperature, please select the appropriate temperature	The door is no closed tightly o opened frequently, and the opening time is too long	Is the location exposed to direct sunlight o too close to th furnace and other heat sources	Poor heat dissipation, please check whether there i enough cooling space around the product

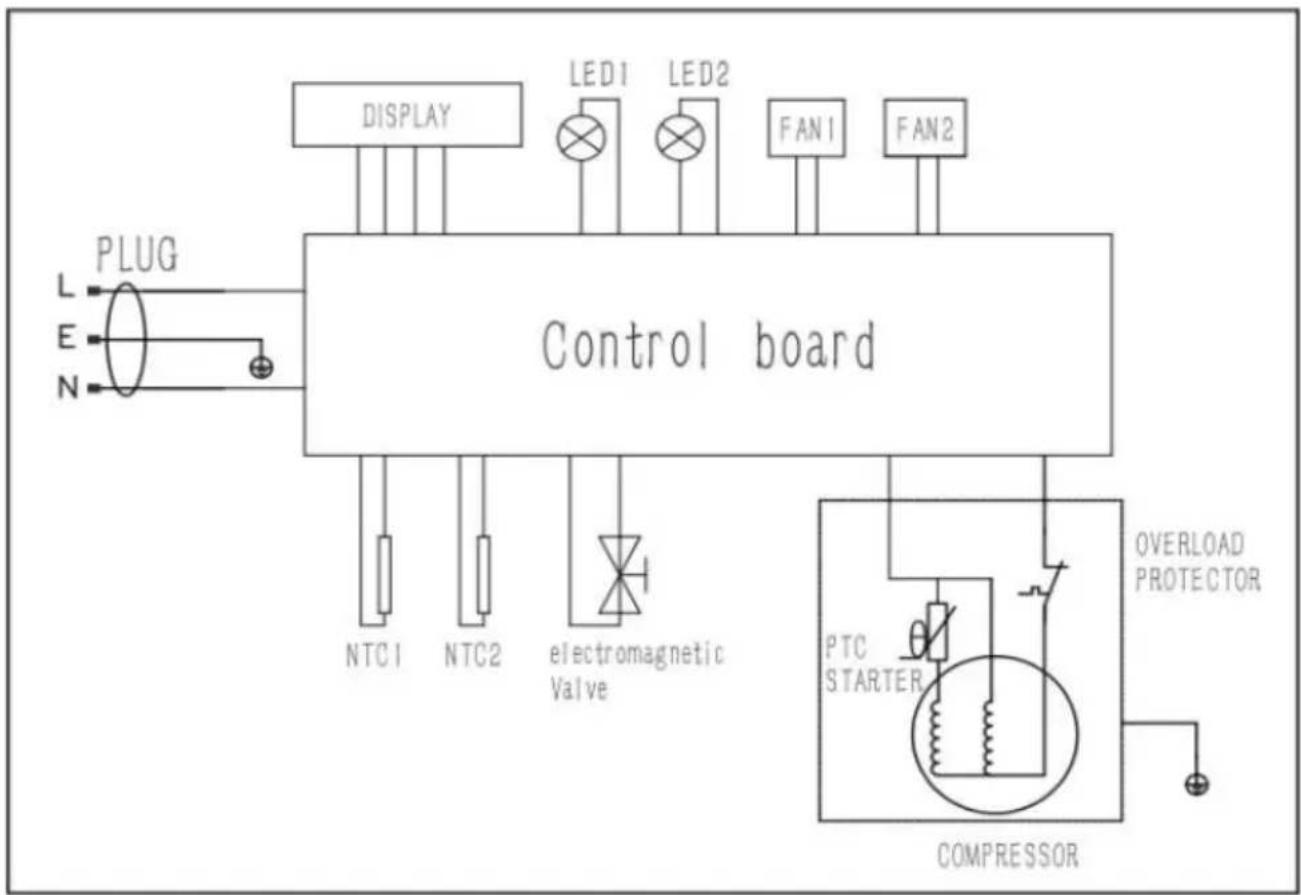

WIRING DIAGRAM

Correct disposal of this product

This symbol on the product, or in its packaging, indi that this product may not be treated as household w Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and elec equipment. By ensuring this product is disposed of c you will help prevent potential negative consequences the environment and human health, which could other be caused by the inappropriate waste handling of thi product. For more detailed information about the recy this product, please contact your local council, your household waste disposal service, or the shop where purchased the product.
