USER MANUAL MFA-20L-F Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE MINI FRIDGE

MODEL NUMBER: MFA-20L-F

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PORTABLE MINI FRIDGE

MFA-20L-F

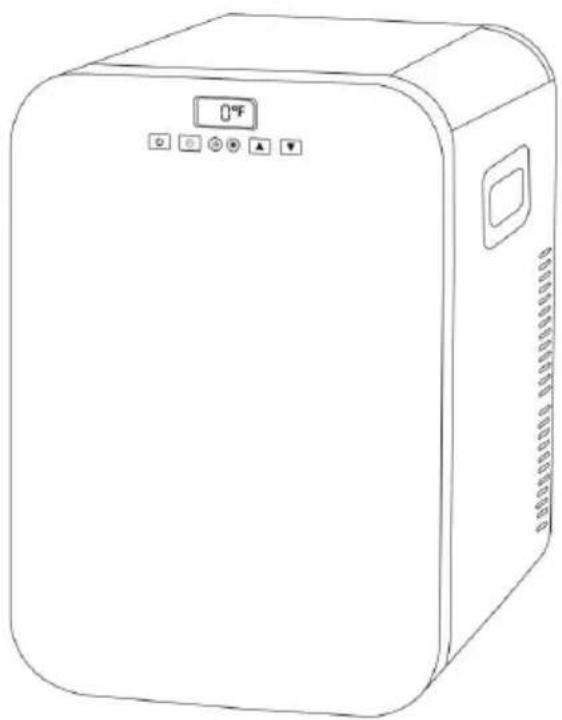

Line drawing of a rectangular appliance with control panel and temperature display (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully operating. VEVOR reserves clear interpretation of our user manual. Appearance of the product shall be subject to the product you receive forgive us that we won't inform you again if there is any technology updates on our product.

THERMOELECTRIC COOLER AND WARMER

Thanks for choosing our products and being our valued customer!

Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this electrical appliances. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE THESE INSTRUCTIONS for future reference.

WARNING:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
4. Suitable for camping use.
5. The appliance shall not be exposed to rain.
6. If the supply cord is damaged, it must be replaced by the manufacturer of service agent or a similarly qualified person in order to avoid a hazard.
7. This appliance is intended to be used in household and similar application as

-staff kitchen areas in shops, offices and other working environments;

-farm houses and by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

1. Please according to local regulations regarding disposal of the appliance for flammable blowing gas. Before you scrap the appliance, please take off the dc

to prevent children trapped.

Disposal information

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.

FCC statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PRODUCT CHARACTERISTICS

TEMPERATURE RETENTION - Our mini thermoelectric fridge is popular with travelers and drivers. It can keep food and drinks cool in the summer and winter.

STORE COSMETICS - It is popular with skincare lovers and travelers! Use it store and protect your skincare products. Save your time and extend the valid cosmetics.

UNMATCHED PORTABILITY - Carrying handle and small size makes it perfect travel or outdoor activities.

Applications

• For traveling - Its small size and sleek design makes it a perfect fit for personal spaces, offices, dorms, road trips, tailgating, commuting, and more.
• For Your Skincare - This mini fridge is the perfect addition to your daily routine for storing your favorite products.
• For Your Food or Drink - The 20 liter High Capacity Fridge fits up to twelve-seven 330ml soda/beer/drink cans! Help your products last longer and place them in their own little home to prolong their shelf life and ensure the t accumulate bacteria.

WARNING AND NOTICE

FOR THE PROPER OPERATION, PLEASE READ THE STATEMENT BELOW CAREFULLY BEFORE USING THE APPLIANCE.

1. To ensure optimal performance, prevent the fans from being stuck or blocke Stuck fans will overheat the unit and can pose a potential fire hazard.
2. Please confirm the sockets of the cords are tight. A loose socket will result in cords and sockets heating or malfunctioning and may possibly cause a fire.
3. Keep the unit away from flammable items and running water to prevent daily injury, and/or fire. It's not waterproof.
4. Make sure only to run your cooler/heater while your vehicle's engine is on you risk draining your vehicle's battery.
5. Don't attempt to open, break, or refit the appliance.
6. This unit ONLY works on DC12V, AC 120V/220-240V.
7. Don't switch the function of the cool/warm abruptly. Switch the function aft minutes of being OFF.
8. Do not drop or bang the unit.
9. Adult use and supervision only. Children should not play or damage the appliance as it may cause harm/injury.
10. This appliance is not intended for use by people with reduced physical se

and/or mental capabilities unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

1. Always keep ventilation openings clear of obstruction.
2. DO NOT use other electrical appliances inside the food storage compartment of the appliance.
3. If the power cords supplied with the cooler and warmer unit are damaged way, please contact the manufacturer.

Attachment: Outdoor or Indoor

When Car Power is Used (DC 12V, the appliance of products is subject types of cars)

Connect and insert the plug of DC power cord into the fridge and the socket car lighter.

DC Plug for Car

Simple line drawing of a mechanical component with a circular hole and connecting rod (no text or symbols)

When the Household Power is Used (AC 120V/220-240V)

Connect the AC power cord (household power cord) with the household socket the product.

AC Plug for Home

Diagram of a connector or cable assembly with two panels and connecting wires (no text or symbols)

Operation Guide

1. Insert the plug of the power cord into socket of the unit.
2. Insert and connect the respective plugs.

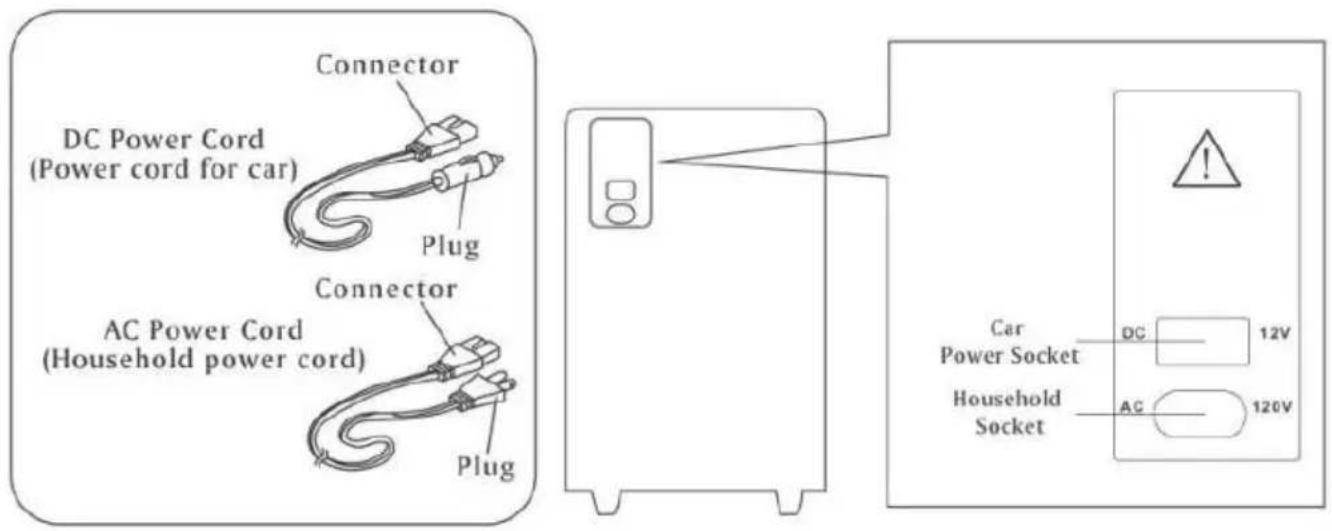

See as below:

Connector DC Power Cord (Power cord for car) Plug Connector AC Power Cord (Household power cord) Plug Car Power Socket DC 12V Household Socket AG 120V

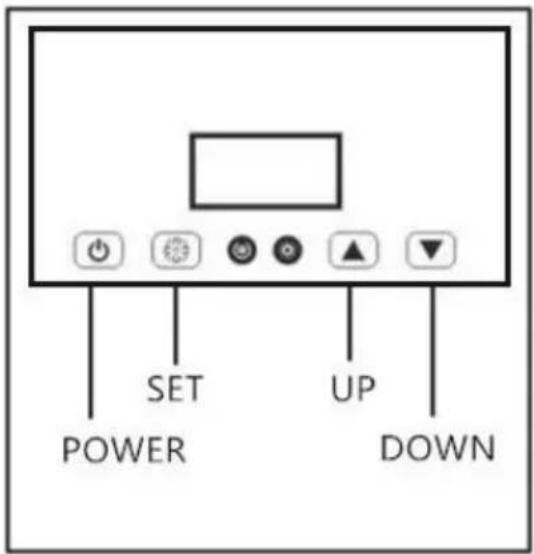

Operating Panel

1. Press the POWER button, power on and light on.

2. Press SET button, to set up the temperature.

3. Press or Change temperature.

4. Long Press POWER button for 3 seconds to turn off, light off too.

5. Press and hold the Set key for more than two seconds after the initial point to realize the display conversion between Celsius and Fahrenheit.

SET UP POWER DOWN

Technical Specifications

Model No.	MFA-20L-F	MFA-20L-F
Capacity	20L	20L
Voltage	AC 120V/60HzDC 12V	AC 220-240V/50 60HzDC 12V
AC Power	Cooling: 70WHeating: 60W	Cooling: 71WHeating: 60W
DC Power	Cooling: 55WHeating: 50W	Cooling: 55WHeating: 48W
TemperatureAdjustable	15.8-149°F	-9-65°C
Plug type	USA plugDC plug	EU plugDC plug

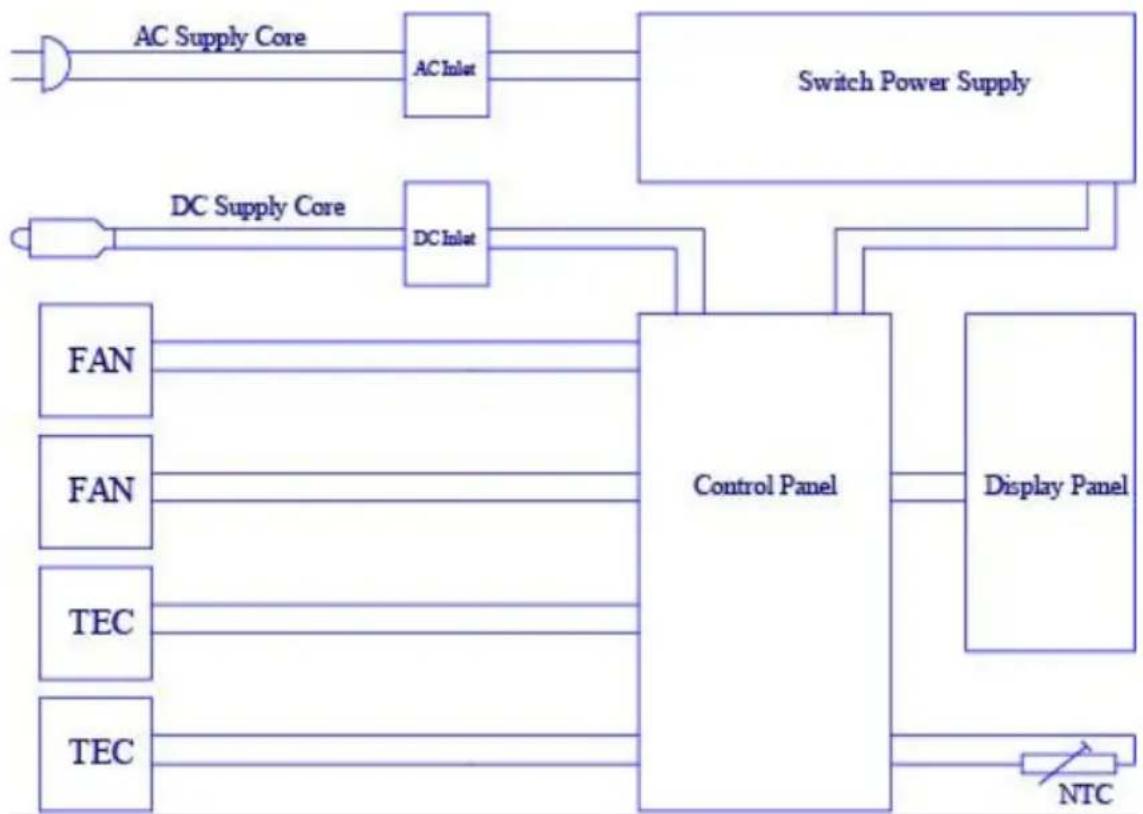

Electrical schematic

Attention

When the fridge works on Cold, if you want to change it to warm, please t power OFF and wait for 30 minutes. Then turn on the refrigerator to set up temperature for warming.

Frequently Asked Questions

1. Why are there water droplets inside my fridge?

A bit of water accumulation is completely normal in thermoelectric units and occur due to condensation dripping from stored products. To remove extra moisture, dry the inside with a soft cloth twice a week or place a desiccant inside the fridge to help minimize moisture.

2.Why is my fridge not cold enough?

The temperature of the fridge is determined by the temperature surrounding the outside of the fridge(it cools at approximately 68-77°F (20-25°C) lower than the outside temperature)
