USER MANUAL MFA-10L-C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE MINI FRIDGE

MODEL NUMBER: MFA-10L-C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MFA-10L-C

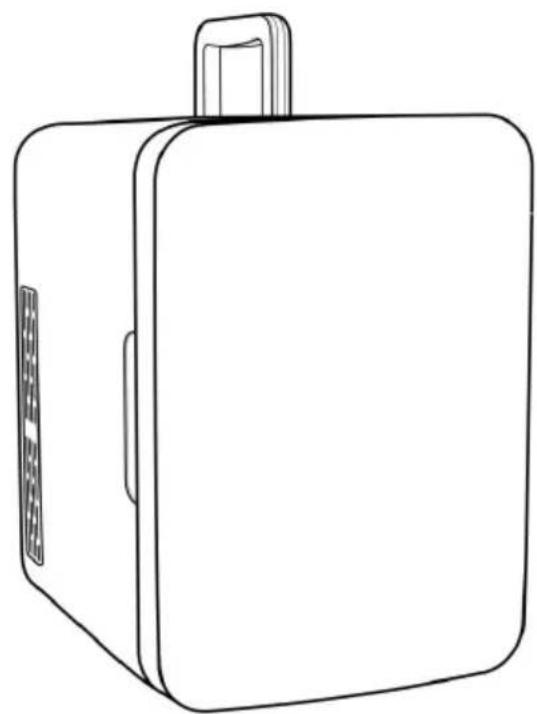

Line drawing of a simple suitcase with handle and side panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully operating. VEVOR reserves clear interpretation of our user manual. Appearance of the product shall be subject to the product you receive forgive us that we won't inform you again if there is any technology updates on our product.

THERMOELECTRIC COOLER AND WARMER

Thanks for choosing our products and being our valued customer!

Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this electrical appliances. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE THESE INSTRUCTIONS for future reference.

WARNING:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
4. Suitable for camping use.
5. The appliance shall not be exposed to rain.
6. If the supply cord is damaged, it must be replaced by the manufacturer of service agent or a similarly qualified person in order to avoid a hazard.
7. This appliance is intended to be used in household and similar application as

-staff kitchen areas in shops, offices and other working environments;

-farm houses and by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

1. Please according to local regulations regarding disposal of the appliance for flammable blowing gas. Before you scrap the appliance, please take off the dc

to prevent children trapped.

Disposal information

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.

FCC statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PRODUCT CHARACTERISTICS

TEMPERATURE RETENTION - Our mini thermoelectric fridge is popular with travelers and drivers. It can keep food and drinks cool in the summer and winter.

STORE COSMETICS - It is popular with skincare lovers and travelers! Use it store and protect your skincare products. Save your time and extend the valid cosmetics.

UNMATCHED PORTABILITY - Carrying handle and small size makes it perfect travel or outdoor activities.

Applications

• For Your Traveling - Its small size and sleek design make it a perfect fit anywhere; personal spaces, offices, dorms, road trips, tailgating, commuting, and more.
• For Your Skincare - This mini fridge is the perfect addition to your daily routine for storing your favorite products.
• For Your Food or Drink - The 10L High Capacity Fridge fits up to twelve 12-oz.soda/beer/drink cans! Help your products last longer and place them in own little home to prolong their shelf life and ensure they don’t accumulate bacteria.

Attachment: Outdoor or Indoor

Use Operation Guide

1. Make sure the switch at the side of the cooler and warmer is in OFF sta then insert the plug of the power cord into the socket of the unit.
2. Insert and connect the respective plugs.
3. Cooling: Set the power switch at the position of COLD. The green indicator be on, indicating that the unit is in cooling mode.
   4.Heating: Set the switch at the position of WARM. The red indicator will include the unit is in heating mode.

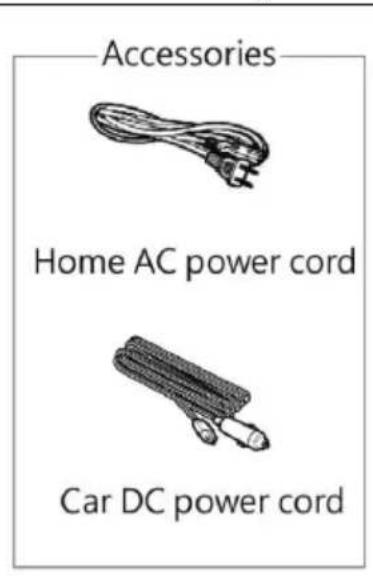

Accessories Home AC power cord Car DC power cord

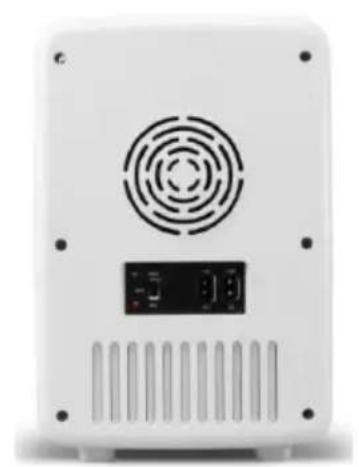

Front view of a white electronic device with a circular vent and digital display (no visible text or symbols)

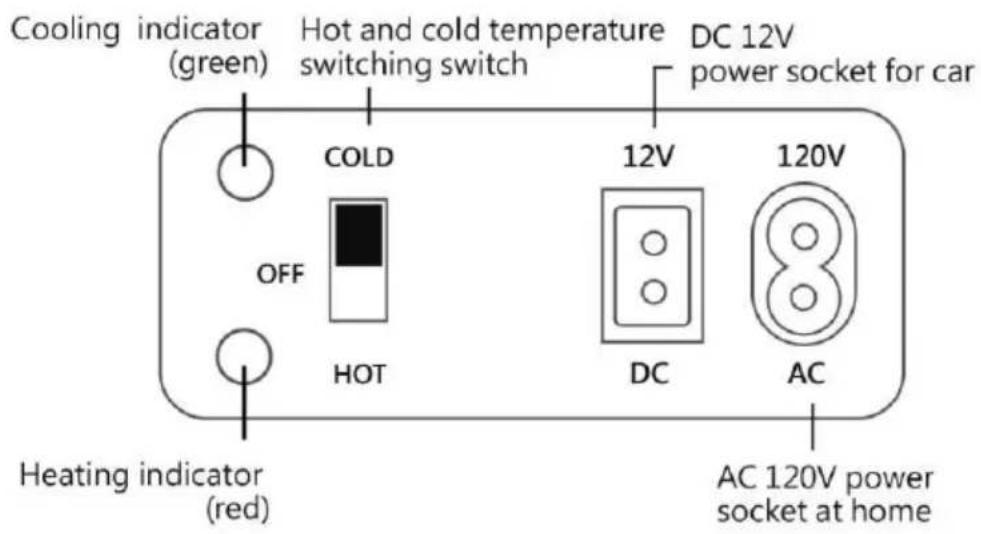

Cooling indicator (green) Hot and cold temperature switching switch DC 12V power socket for car COLD 12V 120V OFF HOT DC AC Heating indicator (red) AC 120V power socket at home

When Car Power is Used (DC 12V, the appliance of products is subject types of cars)

1. The car engine is required.

2. Turn the Cold/Warm switch to the right side.

3. Connect and insert the plug of DC power cord into the fridge and the soc the car lighter.

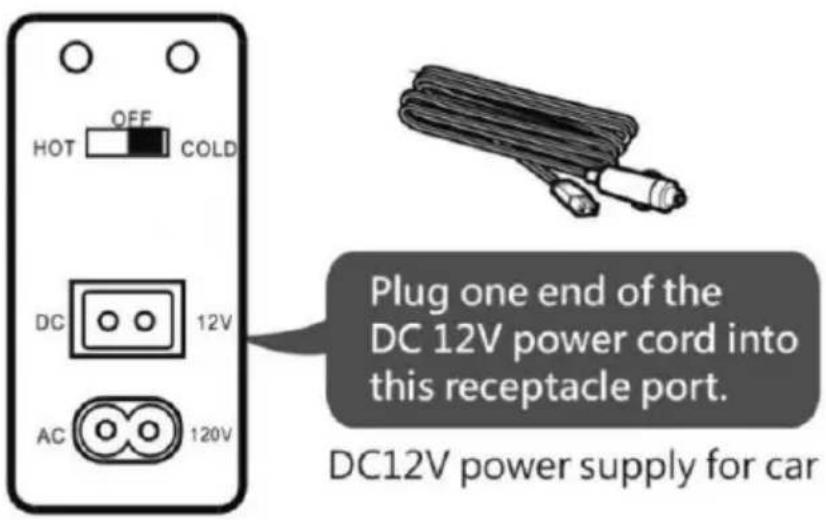

HOT OFF COLD DC 12V AC 120V Plug one end of the DC 12V power cord into this receptacle port. DC12V power supply for car

When the Household Power is Used (AC 120V/220-240V)

1. Turn the Cold/Warm switch to the right side.

Connect the AC power cord (household power cord) with the household sock

the product.

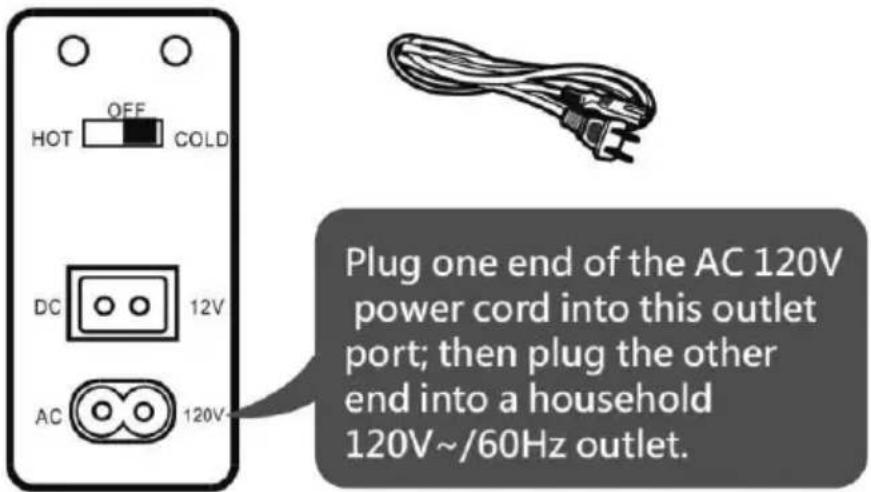

HOT OFF COLD DC 12V AC 120V Plug one end of the AC 120V power cord into this outlet port; then plug the other end into a household 120V~/60Hz outlet.

AC120V power supply for household

Technical Specifications

Model No.	MFA-10L-C	MFA-10L-C
Capacity	10L	10L
Voltage	AC 120V/60HzDC12V	AC 220-240V/50 60HzDC12V
AC Power	Cooling: 50WHeating: 45W	Cooling: 50WHeating: 45W
DC Power	Cooling: 45WHeating: 40W	Cooling: 45WHeating: 40W
Below ambient temperature	60.8-68°F	16-20°C
Heating temperature	113-131°F	45-55°C
Plug type	USA plugDC plug	EU plugDC plug

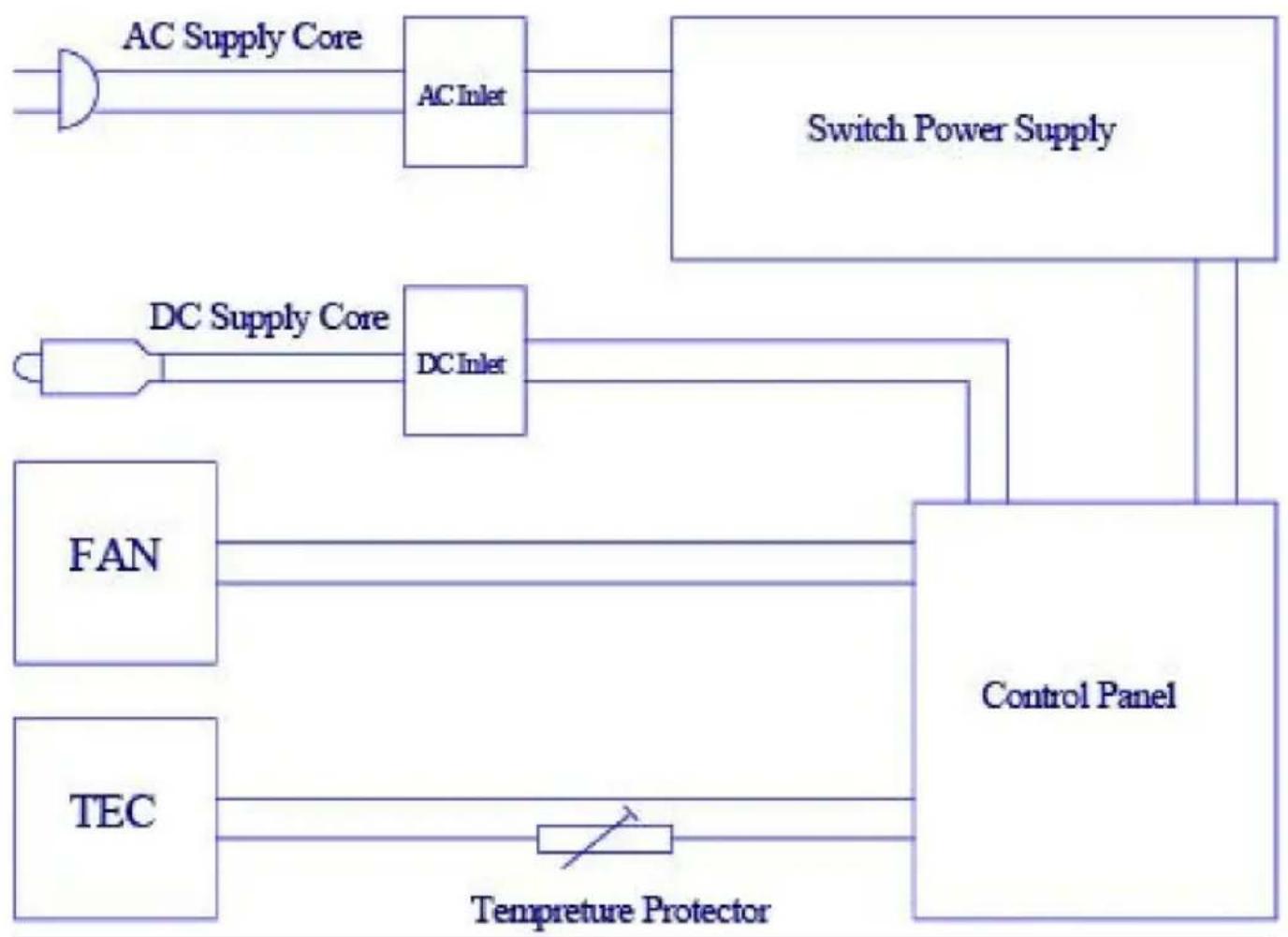

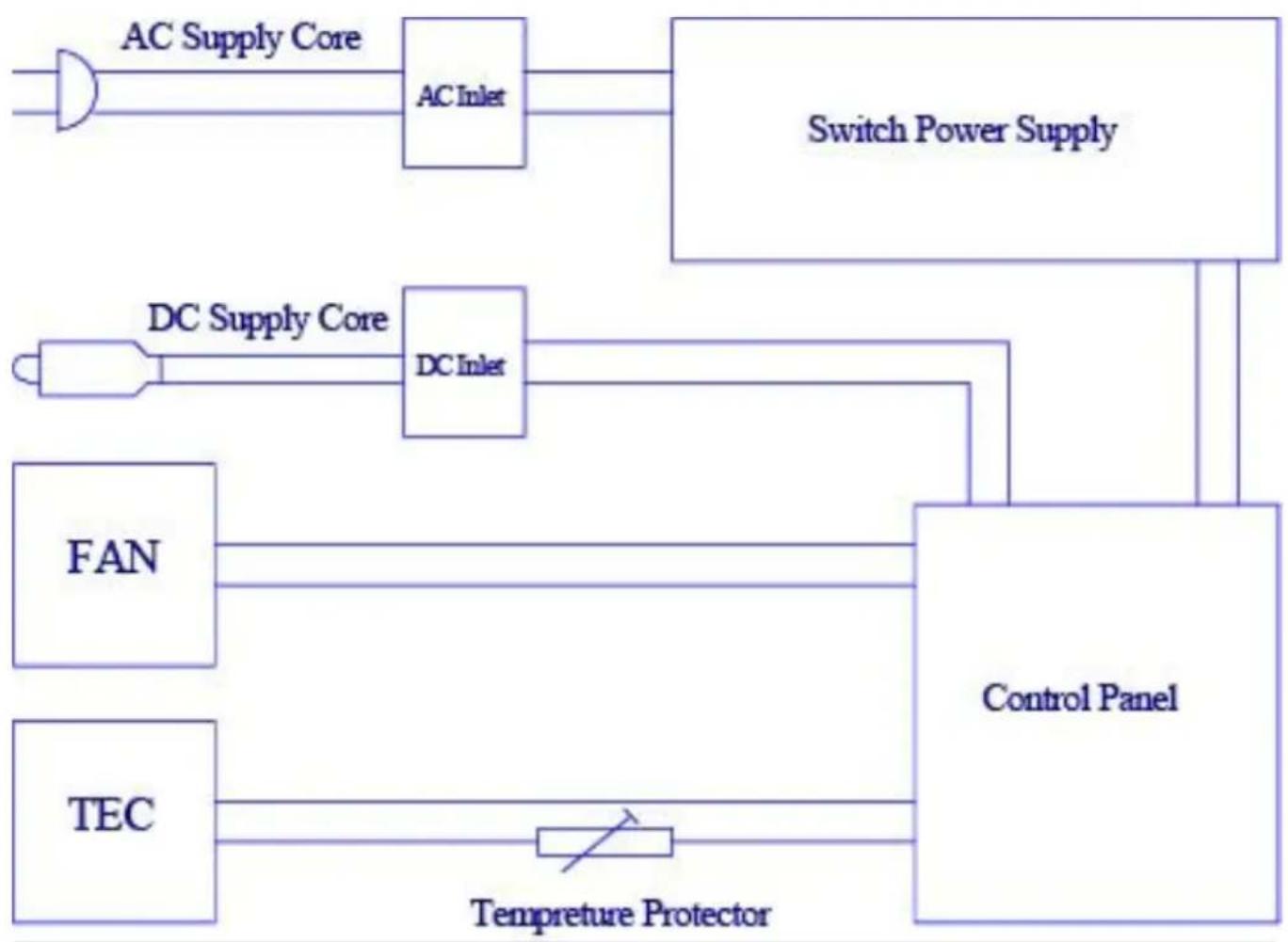

Electrical Schematic

Target Temperature

The temperature inside the refrigerator will not immediately reach the target temperature when it first starts to run.

Generally, it takes about 2 hours to reach the target temperature. The limit temperature of the refrigerator varies depending on the room temperature.

• When the room temperature is 77^ F(25°C), the temperature can be refrigerated to about 41-44.6° F(5-7°C).
• When the room temperature is 77^ F(25°C), the temperature can be kept warm to about 113 - 131^ F(45-55°C).
• The temperature inside the refrigerator is determined by the number of tim front door is opened and closed and the number of items stored in the refri
• When switching between refrigerator and keep warm function, please turn of the refrigerator temporarily for more than 1 hour.
• When switching between the keep warm function, the temperature inside the refrigerator will become hot, so please be careful of hot hands when opening front door to retrieve a tin can for keeping warm beverages (such as coffee) you open the front door to pick up the cans, let's note that they are hot.
• When using the cooling function, it is recommended to use it at a room temperature of 77^ F(25^ C) or below.

Ventilation and Heat Dissipation Precautions

Warning

• Never use in a car powered by 24V, or in a home powered by anything than 120V or 220-240V. It will cause malfunction and fire.
• This product should not be used in the presence of water, and avoid using high temperature to avoid malfunction, electric shock and other accidents.
• The decomposition, transformation, and high of the body and power cord \ lead to malfunction and fire.

Caution

• In summer, do not place the refrigerator in the car, trunk, or other high-temperature places to avoid this product.

• Do not place the refrigerator in the car and the trunk when the temperature high in the summer.

• When using the product in the car, be sure to turn on the engine, and engine is turned off, disconnect the DC power cord. Unplug the DC power c

• Unplug the power cord from the AC outlet or DC cigarette lighter outlet v product is not in use for a long time.
• Do not block the air inlet or the fluorine outlet, as this is the reason which does not cool or heat up.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple rectangular suitcase with a handle and side panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

CARACTÉRISTIQUES DU PRODUIT

Accessories Home AC power cord Car DC power cord

Front view of a white electronic device with a circular vent and control panel (no visible text or symbols)

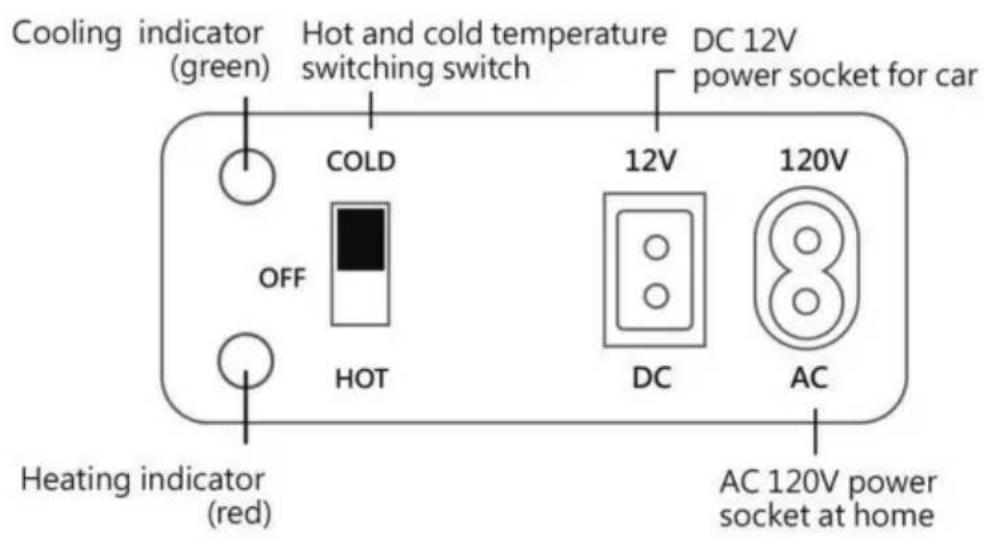

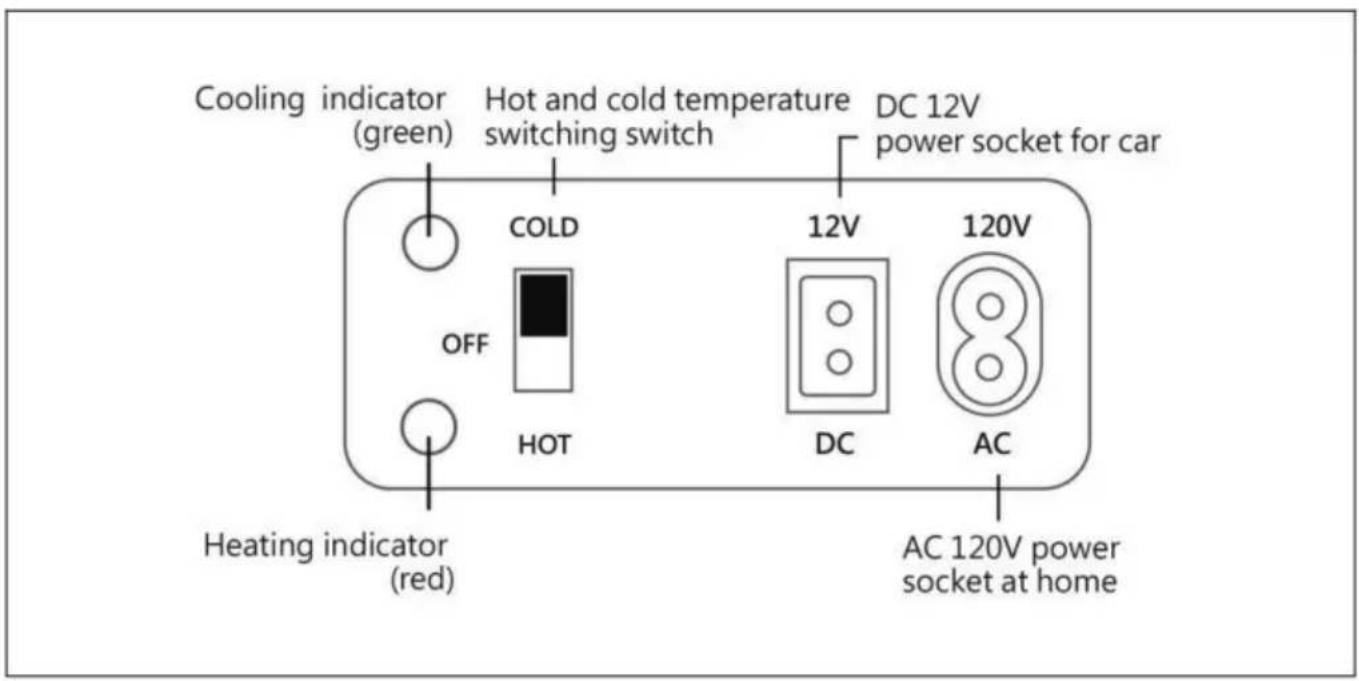

Cooling indicator (green) Hot and cold temperature switching switch DC 12V power socket for car COLD 12V 120V OFF HOT DC AC Heating indicator (red) AC 120V power socket at home
