THERMO FAST

FR THERMOMÈTRE AURICULAIRE 3 EN 1 NOTICE D'UTILISATION....4

EN 3 IN 1 AURICULAR THERMOMETER INSTRUCTION MANUAL .... 12

You have just bought this product and we thank you for your purchase. We hope you enjoy using the product. In order to be completely satisfied, we recommend that you read these directions carefully.

• Clean the thermometer with a soft, dry cloth.
• Clean the temperature probe with a cotton bud soaked in alcohol and dry immediately with a dry clean cotton bud. After cleaning, allow at least 20 minutes drying time before taking temperatures.
• Do not submerge the thermometer in water or any other liquid.
• Do not rinse the thermometer in water.
• Do not use water directly on the LCD screen.
• Store the thermometer in the dry, clean place.

• If the thermometer is not used for a long time, remove the batteries.

• Keep out of reach of children.

• Do not use this appliance for any other purposes than those for which it was designed (human body temperature).

• Use of this thermometer is for monitoring purposes only and is not intended as a diagnostic tool. Make sure that any unusual readings are communicated to your physician. Under no circumstances should you change your prescribed medicine doses.

• Store and use the thermometer in the same room.

• Do not use in areas where it may be subject to room temperature variations.
• Determine your normal temperature range by taking your temperatures when healthy. These readings can be used as a form of reference to compare with future readings when ill.
• Before taking a temperature, ensure that the forehead is free of hair and sweat, which may affect the reading. Also ensure that the probe is clean and undamaged.

EN

3 IN 1 AURICULAR THERMOMETER

• Do not take temperature within 30 minutes of eating, exercising, or taking a bath.
• Wait one minute between each temperature reading. Two consecutive readings may give slightly different measurements. Should this occur, take the average of the two.
• Do not attempt to disassemble the thermometer.
• Keep thermometer away from direct sunlight and store well away from any source of heat in a clean, dry location.
• Do not drop or break the thermometer. Do not use if broken. Do not disassemble.
• Don't use a mobile phone nearby when the thermometer is working or do not use in an area with possible electromagnetic interferences.
• If these recommendations are not respected, the readings may be inaccurate.
• Temperature will vary depending on the part of the body. This is why you should not compare rectal and forehead temperature readings, for example.
• Temperature will also vary depending on the person, age, and time of day.

BODY TEMPERATURE

Normal body temperature is a range. A person's normal temperature range tends to decrease with age. The following table shows normal temperature ranges by age:

0 – 2 years 36.4 – 38 °C 97.5 – 100.4 °F
3 – 10 years 36.1 – 37.8 °C 97.0 – 100.0 °F
11 – 65 years 35.9 – 37.6 °C 96.6 – 99.7 °F
> 65 years 35.8 – 37.5 °C 96.4 – 99.5°F

The range of normal temperature varies from person to person and can be influenced by many factors such as time of day, measure from different sites, level of activity, medications, emotion and so on. So we recommend that you practice with the Thermometer on yourself and family members when you are healthy. This way you know how the thermometer works and can feel more confident of the measurements you take when a family member is ill.

EN

3 IN 1 AURICULAR THERMOMETER

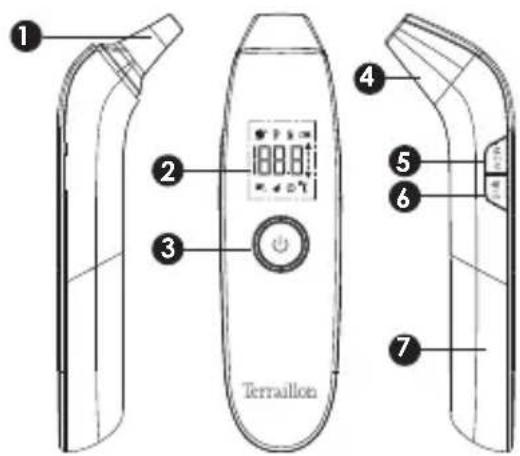

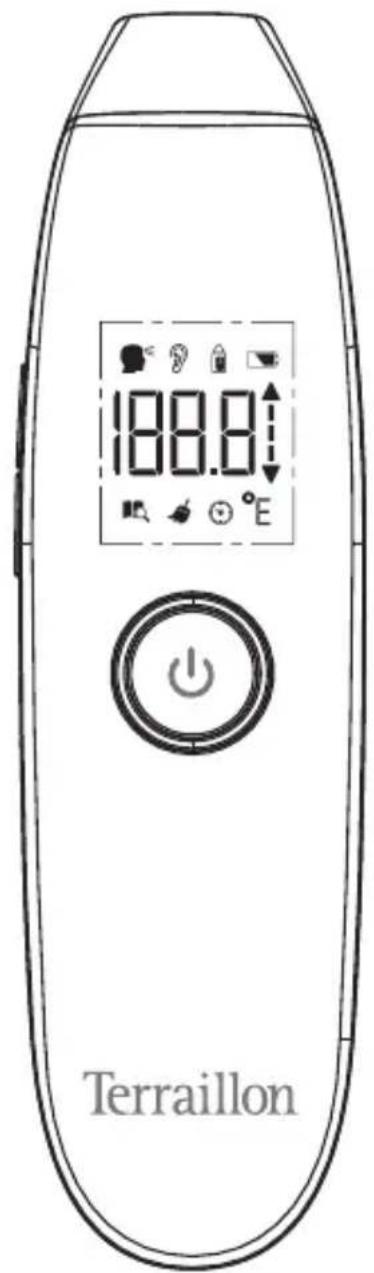

PRODUCT DESCRIPTION

1 2 3 188.8 4 5 6 7 Terraillon

Side view Side view Front view

1 Probe
② LCD screen
③ Start/stop button Taking a temperature
4 Infrared
5 20-reading recall button
6 Temperature mode button
⑦ Battery compartment

1 2 3 4 188.8 5 9 8 7 6 E

INSERTING & CHANGING BATTERIES

• To insert or change the 2 LR3 batteries (supplied with the thermometer), open the battery compartment by sliding off its cover, insert the batteries ensuring that the negative and positive ends are in the right place, and replace the cover before use.
• When the low battery indicator, appears on the LCD, or the thermometer does not function at all, you should replace new battery as soon as possible.

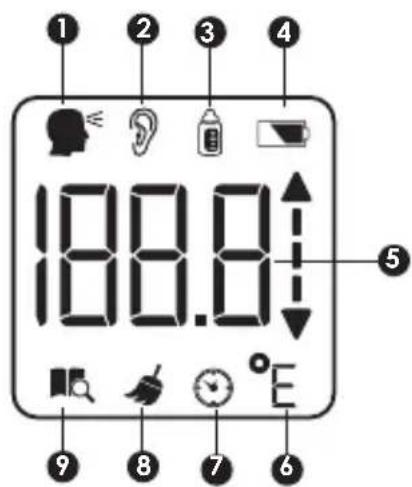

① Forehead temperature mode
② Ear temperature mode
③ Object temperature mode
4 Battery empty symbol
⑤ Temperature on LCD screen
6 Degrees °C, °F, E
7 Temperature taking recall
8 Clean probe symbol
9 Memory symbol

Terraillon.

EN

3 IN 1 AURICULAR THERMOMETER

CHOOSING THE TEMPERATURE MEASURING UNIT (C° OR F°)

- Press the on/off button to turn on the thermometer. You can switch between °C (Celsius) and °F (Fahrenheit) by holding down the [MEM] button.

USING THE PRODUCT

FOREHEAD TEMPERATURE

Remove the cap from the probe to take a temperature, in forehead or ear mode.

• Remove the probe cap.
• Press the mode button to select 'take forehead temperature'. (Check that the probe is clean before taking a temperature).
• Place the probe on the top of the temple.
• Press the ‘take temperature’ button and hold it down for 2 seconds.
• Keep the thermometer on your temple until you hear two beeps.
• Then remove the thermometer from the temple.
• The temperature will be displayed and the colour red or green depending on the result.
  • After 1 second, you can retake your temperature.
  • Temperature is automatically memorised.

The forehead temperature may be affected by external climatic conditions so, in case of doubt, do not hesitate to take the ear temperature.

Green: 38.0°C (100.4°F) \~ 42.9°C (109.3°F)

Red: 34.0°C (93.2°F) \~ 37.9°C (100.3°F)

CAUTION: External factors may influence forehead temperature particularly when an individual has:

• been exposed to very hot or very cold temperatures.
• been recently swimming or bathing.
• had their forehead covered.
  In these cases, let the individual stay away from the above scenario and station in a room for 30 minutes prior to talking a temperature.

EN

3 IN 1 AURICULAR THERMOMETER

TAKING A TEMPERATURE IN THE EAR

• Remove the probe cap.
• Press the mode button to select 'take ear temperature'. (Check that the probe is clean before taking a temperature).
• Place the probe in the ear canal.
• Press the ‘take temperature’ button and hold it down for 2 seconds.
• Keep the thermometer in your ear canal until you hear two beeps.
• Then remove the thermometer from the ear canal.
• The temperature will be displayed and the colour red or green depending on the result.

After 6 seconds, you can retake your temperature.

If you take the temperature in your right ear, the reading may be different from a temperature taken in your left ear. Therefore, you should always take your temperature in the same ear.

CAUTION:

In order to obtain a precise measurement, ensure the correct positioning of the probe in the ear so that the probe tip senses the heat from the eardrum. In order to do this, you can pull the ear to straighten the ear canal and slightly rotate the probe inside. (It is not recommended to use the ear function of the thermometer on a baby under 12 months old.)

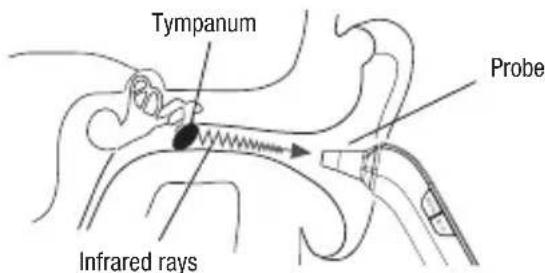

Tympanum Probe Infrared rays

Easy interpretation of the results

In both modes, if the temperature is lower or equal to 37.9^ C, the green light comes on for around 5 seconds. If the temperature is higher than 37.9^ C, the red light comes on.

• Temperature higher than 37.9^ - high temperature: the red light comes on.
• Temperature lower or equal to 37.9^ C - normal temperature: the green light comes on.

EN

3 IN 1 AURICULAR THERMOMETER

TAKING THE TEMPERATURE OF AN OBJECT

• Remove the probe cap.
• Press the mode button to select 'take temperature of an object'.
  • Always place the probe 1 to 5 cm from the object.
• Press the ‘take temperature’ button and hold it down for 2 seconds.
• Then remove the thermometer from the object.
• The temperature reading will be displayed.

CAUTION:

Make sure don't use this mode to measure body temperature.

CAUTION:

With object measurement, the current surface temperature of the object is displayed. It can be different from its internal temperature, especially if the surface is exposed to direct sunlight or a draught.

MEMORY

• There are a total of 20 memory data for recording forehead temperature measurements.
• The current measurement is always stored in the last storage space. When all storage spaces have been occupied, the oldest measurement is always deleted from the memory.

To display the last memorised result, press the memory recall button «MEM». The last temperature reading will appear along with the memory number.

To display the previous memorised results, press the memory recall button «MEM» again and the memory numbers will be displayed.

Then press the "Mode" button to return to temperature-taking mode.

Compare against your last reading.

The curve lets you see quickly if your temperature is higher or lower than your last reading.

Terraillon.

EN

3 IN 1 AURICULAR THERMOMETER

TROUBLESHOOTINGS

Troubles Checklists Counter measures
	The measured temperature is lower than 32.0°C/89.6°F or higher than 42.9°C/109.3°F Please check the operation method	Follow User's Manual for proper measurement.
	Hardware problem	Contact the retailer or customer services
	Operating temperature is out of the range	Use the thermometer in the range of operating conditions.
The measurement is not accurate or if there is any doubt on the measured result	Please check if the infrared sensor is clean or not	Clean the infrared sensor with cotton swab according to user manual
	Please check the measuring way is correct or not	Ensure you have read the manual and know how to use the thermometer properly.Please keep the thermometer and patient in the measuring room at least 30 minutes before usingPlease take the measurement indoorDo not held the thermometer in your hand too long. It could affect the accuracy
	Please check if there is low battery symbol on LCD	Change new battery

EN

3 IN 1 AURICULAR THERMOMETER

PROTECT THE ENVIRONMENT

Dispose of used batteries in a designed container so that they can be collected and recycled. Do not mix different types of batteries. Do not mix new and used batteries. After life, dispose of this product at a designated waste recycling point.

GUARANTEE

This product is guaranteed against defects in materials or manufacturing. During the guarantee period, any such defects will be replaced free of charge (proof of purchase must be shown in the case of a complaint under guarantee). The guarantee does not cover damage resulting from improper use or negligence. In the event of a claim, first contact the shop where you purchased the product.

Applied Standard.

• IEC/EN 60601-1 (Safety)
• IEC/EN 60601-1-2 (EMC)

Keep these instructions in a safe place for future consultation.

DE

3-IN-1 OHRTHERMOMETER

3-IN-1 OHRTHERMOMETER

PRODUKTBESCHREIBUNG

1 2 3 188.8 4 5 6 7 Terrallon

3-IN-1 OHRTHERMOMETER

INNENOHRMESSUNG

3-IN-1 OHRTHERMOMETER

BESONDERE ANZEIGEN

Technical illustration of a battery pack and its internal components (no text or symbols)

IT

TERMOMETRO AURICOLARE 3 FUNZIONI IN 1

SCELTA DELL'UNITÀ DI MISURA (°C o °F)

TEMPERATURA CORPORAL

Two technical diagrams showing a device with internal components and a separate view of its battery pack (no text or symbols present)

Terraillon.

DE OÍDO 3 EN 1

TEMPERATURA CORPORAL

Power supply: DC 3V (2 x AAA battery)
Body measuring range: 32.0°C ~ 42.9°C (89.6°F ~ 109.3°F)
Forehead measuring accuracy: ±0.2°C(±0.4°F) for 35.0°C (95.0°F) ~ 42.0°C (107.6°F) ±0.3°C (±0.5°F) for other range
Object measuring range: -22°C ~ 80.0°C (+7.6°F ~ 176.0°F)
Object measuring accuracy: ±2.0°C(±4.0°F)
Displayed room temperature range: 5.0°C ~ 59.9°C (41.0°F~139.8°F)
Room temperature accuracy: ±1°C (±2°F)
Measure time: 1 second
Measure interval: 1 second
Dimension: 130.1(L)x45.0(W)x50.3(D)mm
Weight: About 72.0g (without battery)
Forehead and object operating condition: 15.0°C~40.0°C (59.0°F~104.0°F) with a relative humidity of 15%~85% Atmosphere pressure: 700hPa-1060hPa
Storage and transport condition: -20°C~55°C (-4°F~131°F) with a relative humidity of 15%~90% Atmosphere pressure: 700hPa-1060hPa

Service life: 2 years

Service life of the battery: With a new battery (Carbon) approx. 6 months based on the use frequency at 5 times/day

Caution:

This thermometer has been thoroughly tested and inspected to assure proper performance and operation!

NORMALIZED SYMBOLS

	Applied part of type BF (The applied part is the probe tip)
	Disposal in accordance with Directive 2012/19/EU (WEEE)
	Complies with the European Medical Device Directive (93/42/EEC) and amended by directive 2007/47/EC requirements. Notified body TÜV Rheinland (CE0197)
	The name and the address of the manufacturer
	The name and the address of the Authorized EC-representative in Europe
	Caution
	Refer to Instruction Manual
	The first number 2: Protected against solid foreign objects of 12,5 mm Φ and greater. The second number: Protected against vertically falling water drops when enclosure titled up to 15°. Vertically falling drops shall have no harmful effects when the enclosure is titled at any angle up to 15°, on either side of the vertical.

IMPORTANT INFORMATION REGARDING ELECTROMAGNETIC COMPATIBILITY(EMC)

With the increased number of electronic devices such as PC's and mobile (cellular) telephones, medical devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic interference may result in incorrect operation of the medical device and create a potentially unsafe situation. Medical devices should also not interfere with other devices.

In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to prevent unsafe product situations, the EN60601-1-2 standard has been implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. Medical devices manufactured by Shenzhen Dongdixin Technology Co., Ltd. conform to this EN60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: The use of accessories and cables other than those specified by manufacturer, with the exception of cables sold by manufacturer as replacement parts for internal components, may result in increased emission or decreased immunity of the device.

• The medical devices should not be used adjacent to or stacked with other equipment. In case adjacent or stacked use is necessary, the medical device should be observed to verify normal operation in the configuration in which it will be used.
• Refer to further guidance below regarding the EMC environment in which the device should be used.

Guidance and manufacturer's declaration – electromagnetic emissions
The thermometer are intended for use in the electromagnetic environment specified below. The customer or the user of these thermometer should assure that it is used in such environment.
Emissions test Compliance		Electromagnetic environment - guidance
RF emissions CISPR 11	Group 1	The thermometer use RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissions CISPR 11	Class B	The thermometer are suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissions IEC 61000-3-2	Not applicable
Voltage fluctuations/ flicker emissions IEC61000-3-3	Not applicable

Guidance and manufacturer's declaration – electromagnetic immunity
The thermometer are intended for use in the electromagnetic environment specified below. The customer or the user of these thermometer should assure that it is used in such environment.
Immunity test	IEC 60601 Test level	Compliance level	Electromagnetic environment – guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±6 kV contact ±8 kV air	±6 kV contact ±8 kV air	Floor should be wood, concrete, or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %.
Electrical fast transient/burst IEC 61000-4-4	Not applicable	Not applicable	Not applicable
Surge IEC 61000-4-5	Not applicable	Not applicable	Not applicable
Voltage dips, short interruptions and voltage variations on power supply IEC 61000-4-11	Not applicable	Not applicable	Not applicable
Power frequency (50/60 Hz) magnetic field IEC 61000-4-8	3 A/m 3 A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
The thermometer are intended for use in the electromagnetic environment specified below. The customers or the users of these thermometer should assure that it is used in such environment.
Immunity test	IEC 60601 Test level	Compliance level	Electromagnetic environment – guidance
Conducted RF IEC 61000 -4-6	Not applicable	3 V/m	Portable and mobile RF communications equipment should be used no closer to any part of the thermometer including cables, than the recommended separation distance calculated from the equation appropriate to the frequency of the transmitter. Recommend separation distance d = 1.2 d = 1.2 80 MHz to 800 MHz d = 2.3 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to he transmitter manufacturer and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters as determined by an electromagnetic site survey,
Radiated RF IEC 61000-4-3	3 V/m 80 MHz to 2.5 GHz
			a. should be less than the compliance level in each frequency range.b. Interference may occur in the vicinity of equipment marked with he following symbol:
Note1: At 80 MHz and 800 MHz, the higher frequency range applies.Note2: These guidelines may not apply in all situations.Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radio, AM and FM radio broadcast, and TV broadcast cannot be predicted the oretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the thermometer are used exceeds the applicable RF compliance level above, the thermometer should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the thermometer.b Over the frequency range 150 kHz to 80MHz, field strengths should be less than 3 V/m.Recommended separation distance between portable and mobile RF communications equipment and the thermometer
The thermometer are intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customers or the users of these thermometer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the thermometer as recommended below, according to the maximum output power of the communications equipment.
Output Power of Transmitter in Watt	Separation distance according to frequency of transmitter in meter
	150 kHz to 80 MHZ d = 1.2 √P	80 MHz to 800 MHZ d = 1.2 √P	800 MHz to 2.5 GHz d = 1.2 √
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.Note: At 80MHz and 800MHz, the separation distance for the higher frequency range appliesNote: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.

Model: TH1009N / THERMO DISTANCE

Shenzhen Dongdixin Technology Co., LTD.

No.3 Building XiliBaimang Xusheng Industrial

Estate 518108, Nanshan Shenzhen, China.

Shanghai International Holding Corp. GmbH (Europe)

Eiffestraße 80, 20537 Hamburg Germany

Terraillon.

Terraillon SAS France & Headquarters

1, rue Ernest Gouin

78290 Croissy-sur-Seine – France

16 Great Queen Street - Covent Garden

LONDON

WC2B 5AH

[e-mail]

Terraillon Asia Pacific Ltd

4/F, Eastern Centre

1065 King's Road

Quarry Bay – Hong Kong

Tel: [phone]

[e-mail]

Terraillon Corp USA
