USER MANUAL TVVR33803 ABUS

UK Local user interface instructions

ABUS Get up to get down Get down Get down

ARUS BASF ACTIVATION Start: User Name Address Payment Payment Method(s) Access Visitors Request to Use Show to be a personal copy (if any text is available, the code will be filled or not visible). The code will be read and displayed in this form.

EN Local user interface instructions

Original operating instructions in German. Keep for future use.

Version 04/2025

CE

Table of contents

1. Declaration of conformity.... 49
2. Explanation of symbols.... 50
3. Safety instructions....51
4. Intended use....52
5. Setup wizard.... 53
6. Live view....53

6.1 Main menu 55
6.3 Camera command....56
6.4 Display menu....56

1. Playback view.... 57

7.1 Camera selection 57
7.2 Calendar....57
7.3 Camera command....58
7.4 Playback control....58

Time representation Timeline 58

Timeline control 58

1. File search....59
2. System settings 60

9.1.1. System / General 60
9.1.2. System / Live view 62

General....62
Layout / Advertisements 63
Channel zero 63

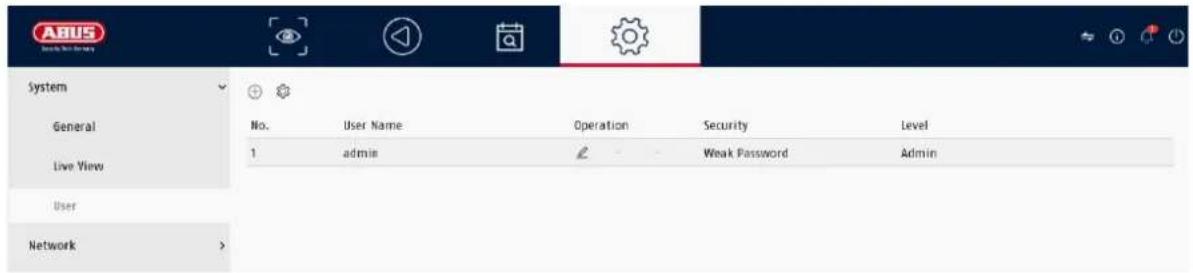

9.1.3. System / User 64

Add user....64
Change user....65
Delete user 65
NTP (Simple mode) 65

9.2. Network....66

9.2.1 TCP/IP 66
9.2.2 DDNS 67
9.2.3 NAT 68
9.2.4 NTP 68
9.2.5 Protocol server setting....69

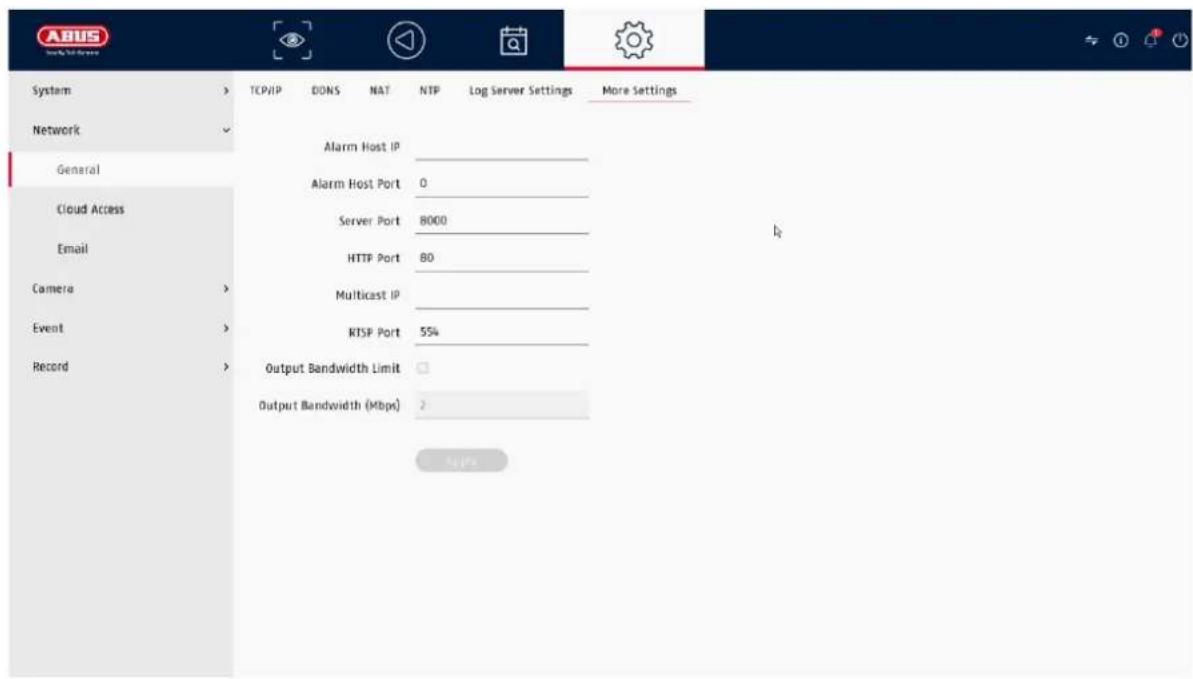

9.2.6 Further settings.... 69

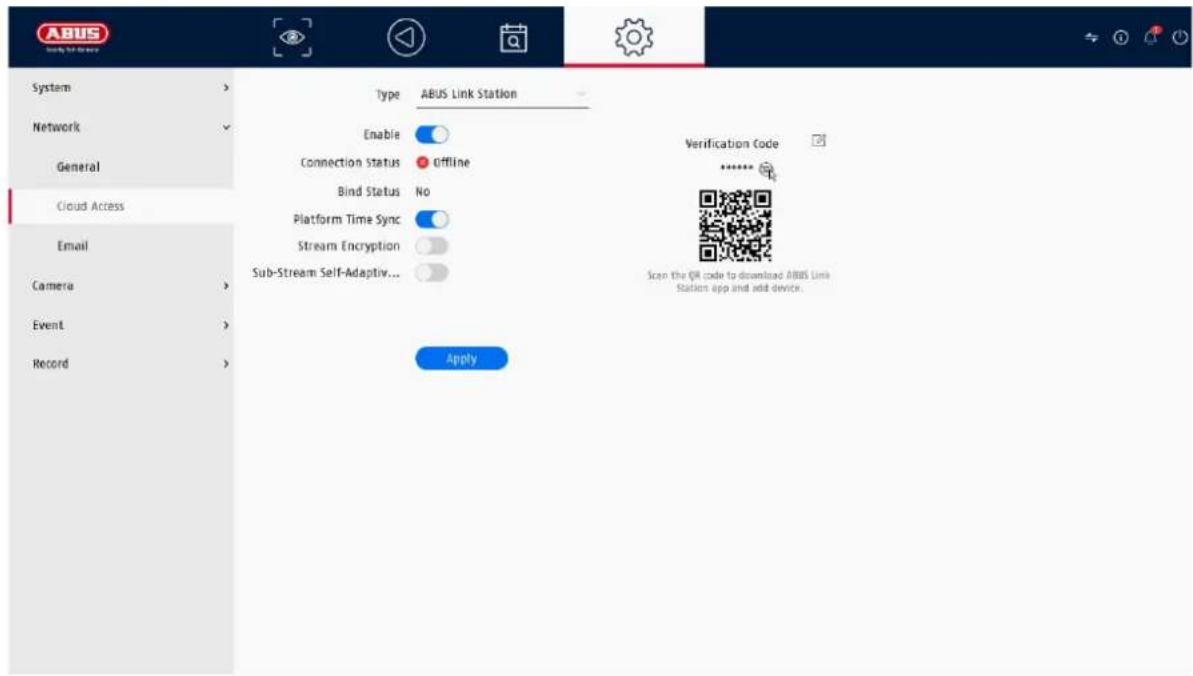

9.2.7 Cloud access / ABUS Link Station.... 70

9.2.8 E-mail 71

9.3. Camera 72

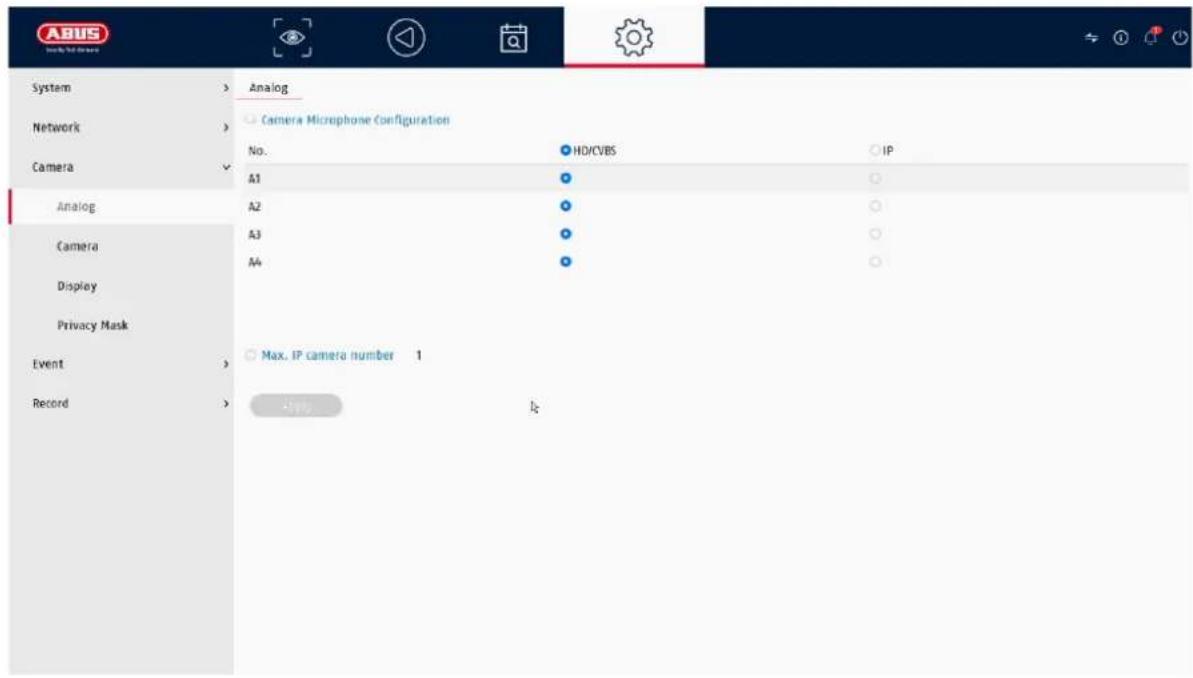

9.3.1. Camera - analog 72
9.3.2. Camera - IP camera.... 72
9.3.4. Private zone 74

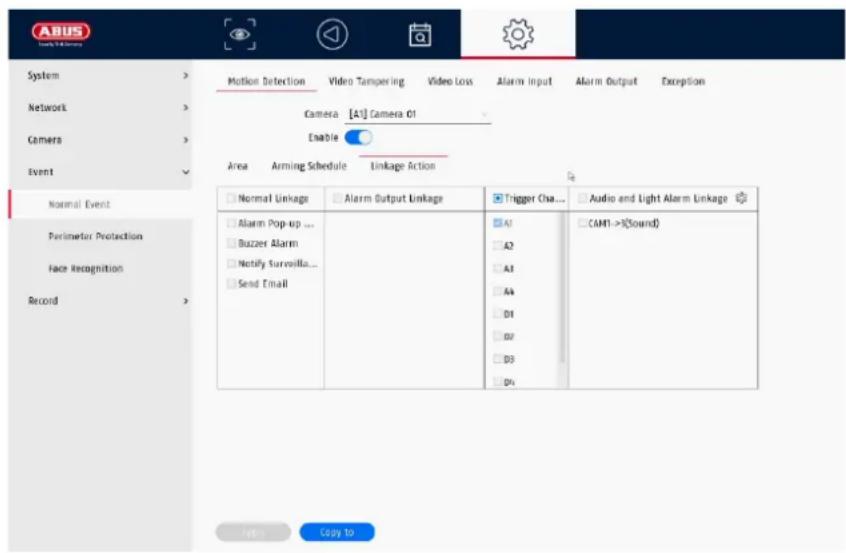

9.4. Event 74

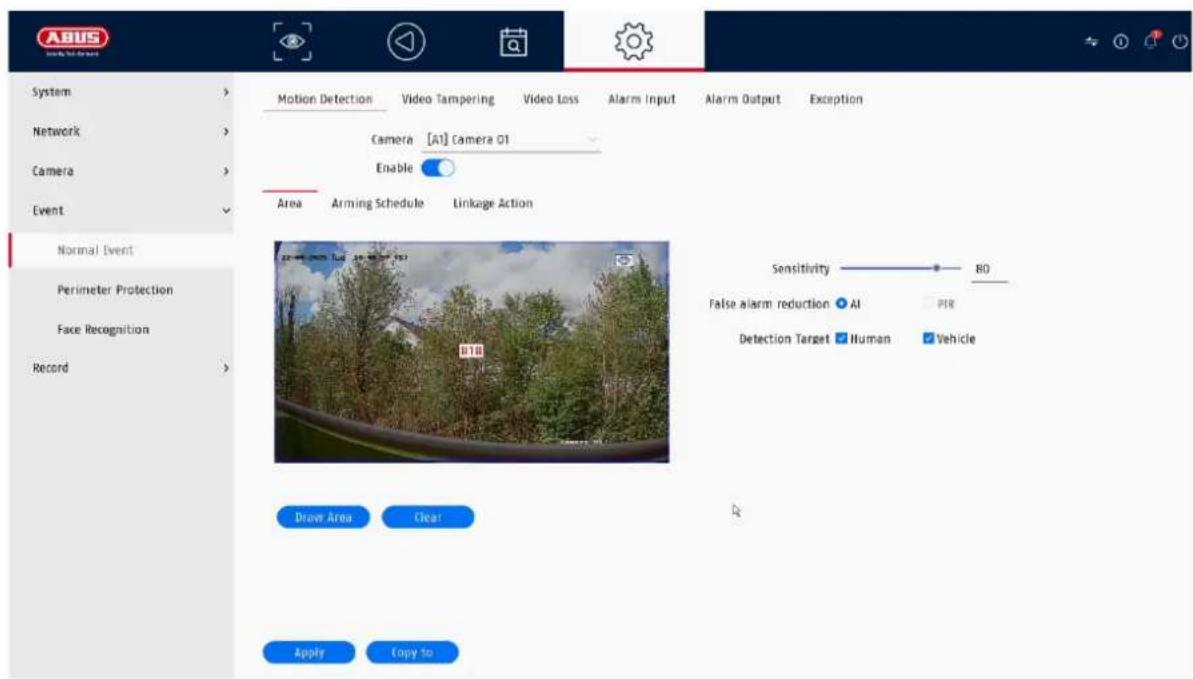

9.4.1. Normal event.... 75
9.4.2. Perimeter protection.... 76

9.5. Recording....77

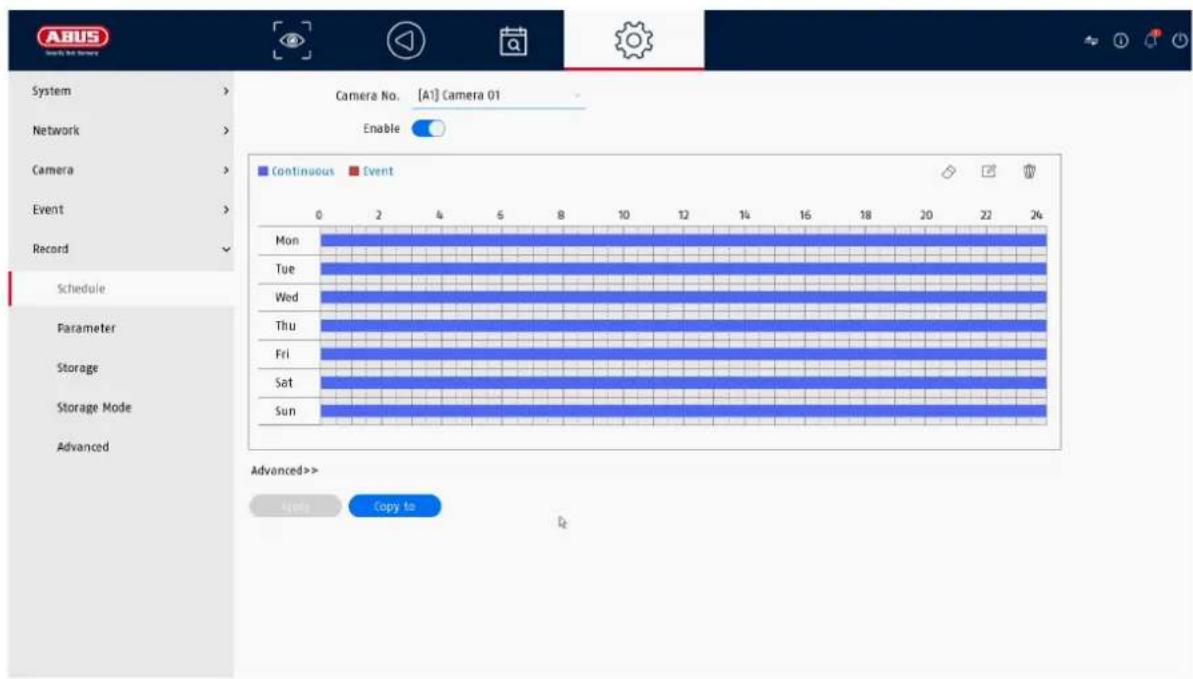

9.5.1. Schedule 77
Extended 77
9.5.2. Stream settings 78

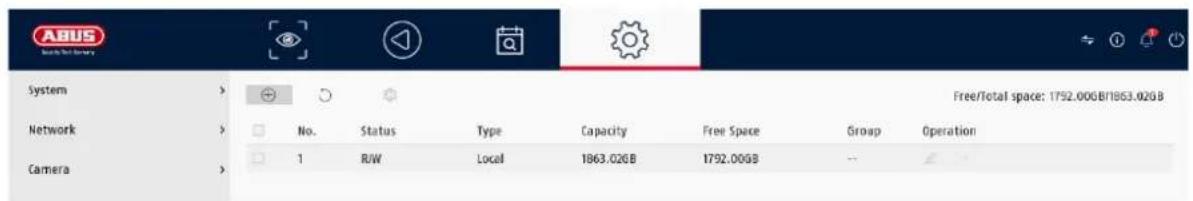

9.5.3. Memory 78
Add network drive....79

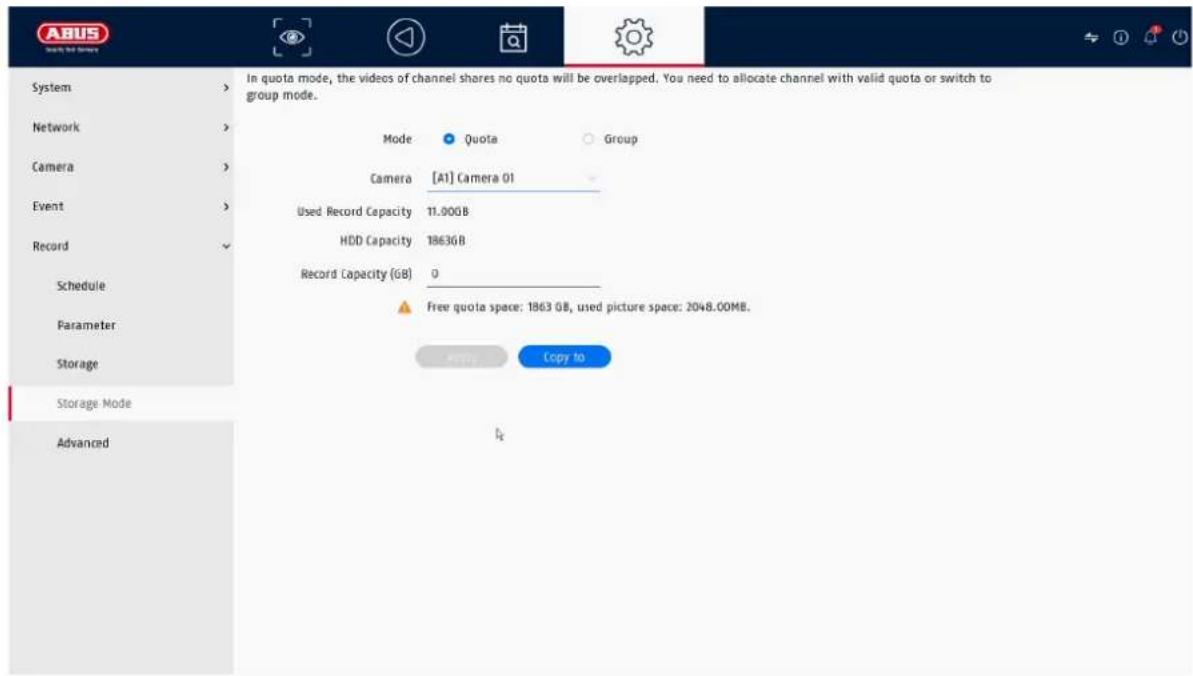

9.5.4. Storage mode....81
9.5.4.1. Mode: Contingent 81
9.5.4.2. Mode: Group....82

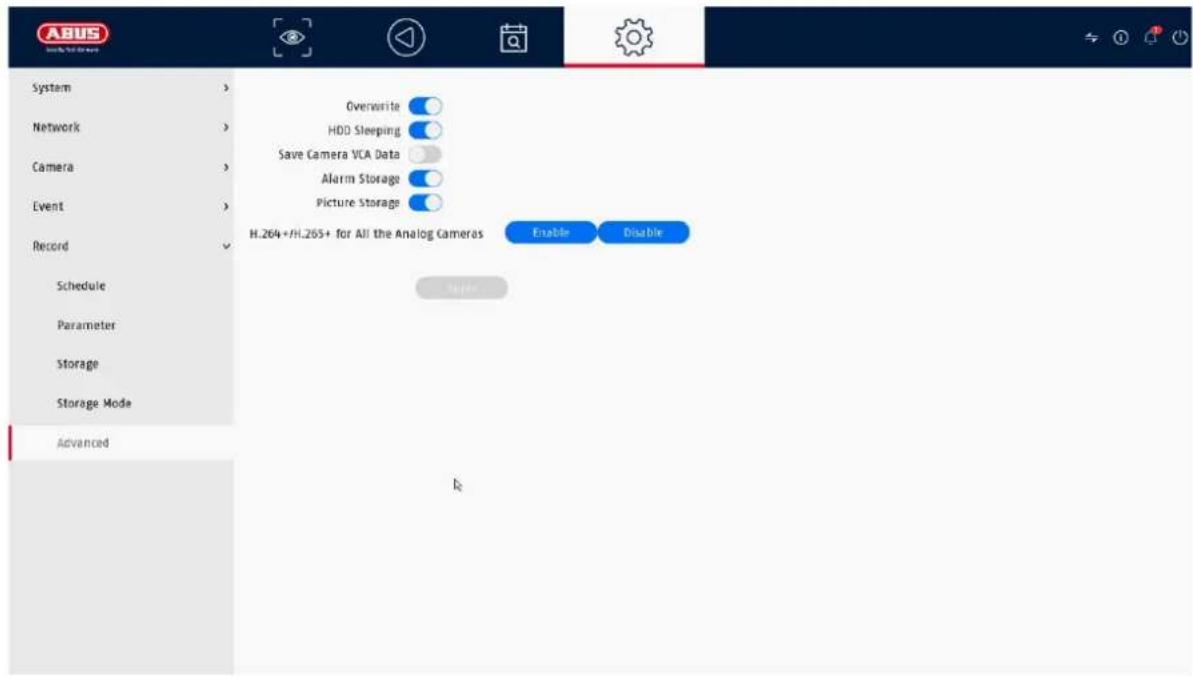

9.5.5. Advanced settings.... 82

1. Maintenance settings....84

10.1. System info....84

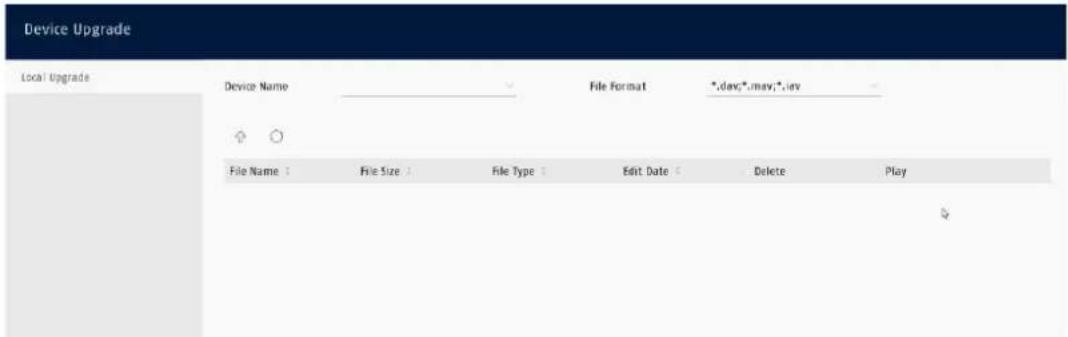

10.2. Firmware update.... 84
10.3. Restore / Reset 84

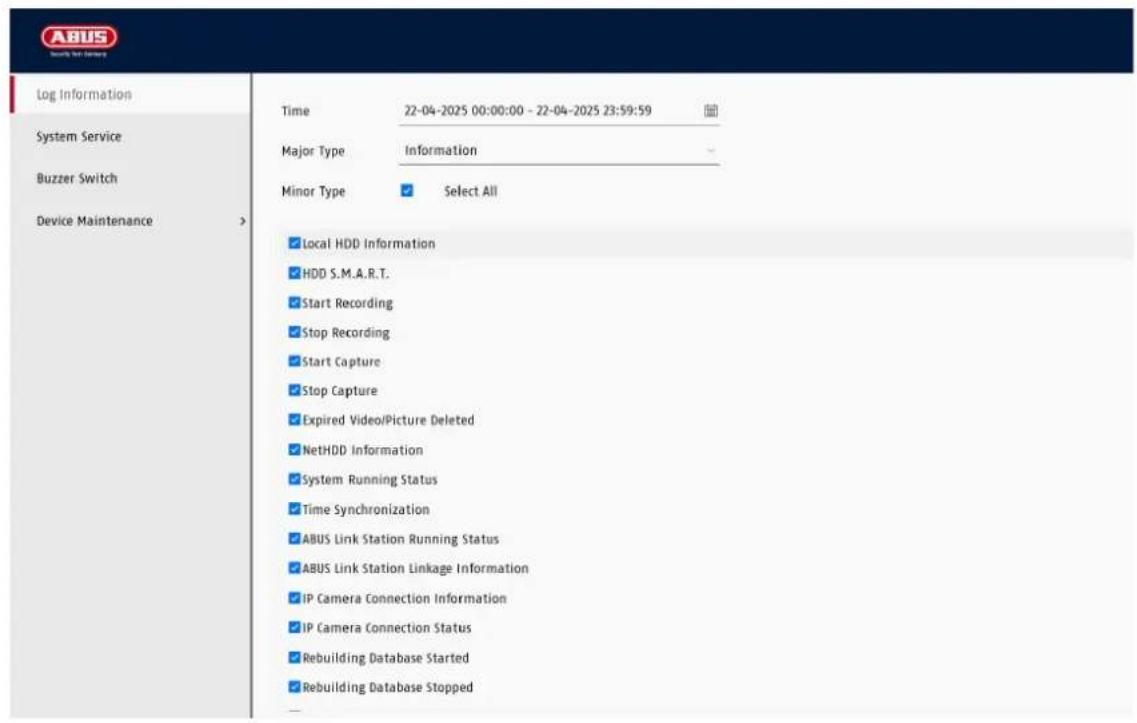

10.4. Logbook 85

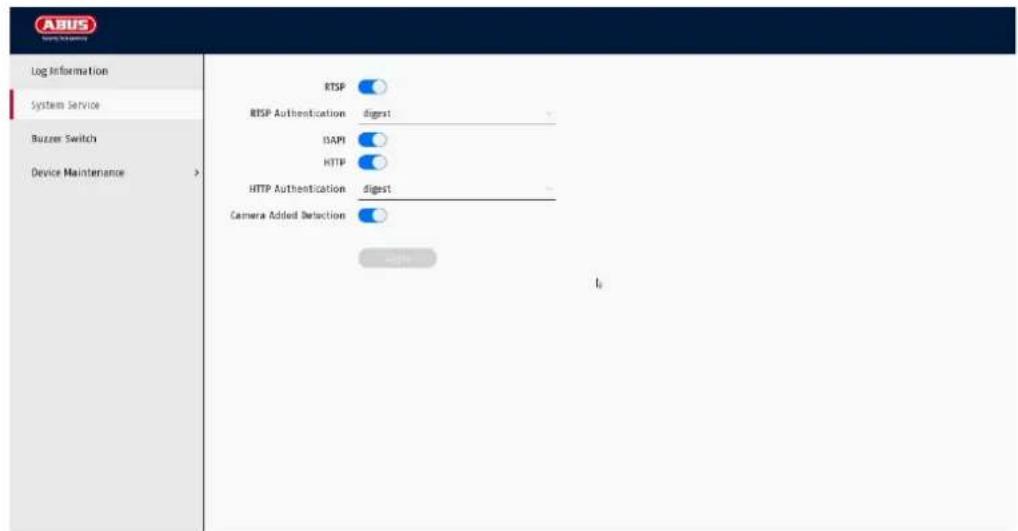

10.5. System maintenance 86

1. Maintenance and cleaning 87

11.1. Maintenance 87
11.2. Cleaning 87

1. Waste disposal 87
2. Technical data 88
3. Open Source license information 88

1. Declaration of conformity

ABUS Security Center hereby declares that the enclosed product complies with the following guidelines concerning the product:

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

RoHS Directive 2011/65/EU

The complete EU Declaration of Conformity can be obtained from the following address:

ABUS Security Center GmbH & Co. KG

Linker Kreuthweg 5

86444 Affing

GERMANY

www.abus.com/product/Artikelnummer

("Article number" in the link is identical to the article number

of the enclosed product)

Disclaimer

These operating instructions have been compiled with the utmost care. However, should you notice any omissions or inaccuracies, please let us know in writing at the address given on the back of the manual.

ABUS Security Center GmbH & Co. KG accepts no liability for technical and typographical errors and reserves the right to make changes to the product and operating instructions at any time without prior notice.

ABUS Security-Center is not liable or responsible for any direct or indirect consequential damages arising in connection with the equipment, performance and use of this product. No guarantee is given for the content of this document.

2. Explanation of symbols

	The symbol with the lightning bolt in the triangle is used when there is danger to the health, e.g. due to electric shock.
	An exclamation mark in the triangle indicates important information in these operating instructions that must be observed.
	This symbol can be found when you are to be given special tips and information on operation.

Important safety instructions

	Damage caused by failure to observe these operating instructions will invalidate the warranty. We accept no liability for consequential damage!
	We accept no liability for damage to property or personal injury caused by improper handling or failure to observe the safety instructions. In such cases, all warranty claims are void!

Dear customer, the following safety and hazard information is intended not only to protect your health, but also to protect the appliance. Please read the following points carefully:

• There are no serviceable parts inside the product. Disassembly also invalidates the approval (CE) and the guarantee/warranty.
  • The product can be damaged by falling from even a small height.
• Mount the product in such a way that direct sunlight cannot fall on the device's image sensor. Observe the installation instructions in the corresponding chapter of these operating instructions.
• The device is designed for indoor and outdoor use (IP66).

Avoid the following adverse ambient conditions during operation:

• Moisture or excessive humidity
• Extreme cold or heat
• Direct sunlight
• Dust or flammable gases, vapors or solvents
  • strong vibrations
  • strong magnetic fields, such as in the vicinity of machines or loudspeakers.
• The camera must not be installed on unstable surfaces.

General safety instructions:

- Do not leave the packaging material lying around carelessly! Plastic film/bags, polystyrene pieces etc. could become dangerous toys for children.

- For safety reasons, the video surveillance camera must not be given to children due to small parts that can be swallowed.

• Please do not insert any objects through the openings into the inside of the appliance
• Only use the additional devices/accessories specified by the manufacturer. Do not connect any incompatible products.
• Please observe the safety instructions and operating instructions for the other connected devices.
• Check the appliance for damage before commissioning; if this is the case, please do not operate the appliance!
• Observe the limits of the operating voltage specified in the technical data. Higher voltages can destroy the device and endanger your safety (electric shock).

3. Safety instructions

1. Power supply: Observe the information on the rating plate for the supply voltage and power consumption.

2. Overload

Avoid overloading mains sockets, extension cables and adapters, as this can lead to fire or electric shock.

1. Cleaning

Only clean the appliance with a damp cloth without using harsh cleaning agents. The appliance must be disconnected from the mains.

Warnings

All safety and operating instructions must be observed before using the device for the first time!

1. Observe the following instructions to prevent damage to the mains cable and mains plug:

- When disconnecting the appliance from the mains, do not pull on the mains cable, but grasp the plug.

- Ensure that the mains cable is as far away as possible from heating appliances to prevent the plastic sheathing from melting.

1. Follow these instructions. Failure to do so may result in an electric shock:

2. Never open the housing or the power supply unit.

3. Do not insert any metal or flammable objects inside the appliance.

4. To avoid damage caused by overvoltage (e.g. thunderstorms), please use overvoltage protection.

5. Please disconnect defective appliances from the power supply immediately and inform your specialist dealer.

When installing in an existing video surveillance system, make sure that all devices are disconnected from the mains and low-voltage circuits.

If in doubt, do not carry out the assembly, installation and wiring yourself, but leave this to a specialist. Improper and unprofessional work on the power grid or domestic installations not only poses a risk to yourself, but also to other people.Wire the installations so that the mains and low-voltage circuits always run separately and are not connected to each other at any point or cannot be connected due to a fault.

Unpacking

Handle the appliance with the utmost care when unpacking it.

If the original packaging is damaged, check the appliance first. If the appliance is damaged, send it back with the packaging and inform the delivery service.

4. Intended use

This recorder is used for indoor or outdoor video surveillance (depending on the model) in conjunction with a recording device or a corresponding display device (e.g. monitor or PC).

Any use other than that described above may result in damage to the product and other hazards. Any other use is not in accordance with the intended use and will invalidate the guarantee or warranty; all liability is excluded. This also applies if modifications and/or changes have been made to the product.

Read the operating instructions completely and carefully before using the product. The operating instructions contain important information for installation and operation.

5. Setup wizard

ABUS a buy buy

ABB ACTIVATION Get Active Show Forward Cancel Forward Product ID Amounts Sold The product is allowed to be used to create a product or service.

The setup wizard guides you through the necessary basic system settings. The recorder is then basically set up for recording and monitoring.

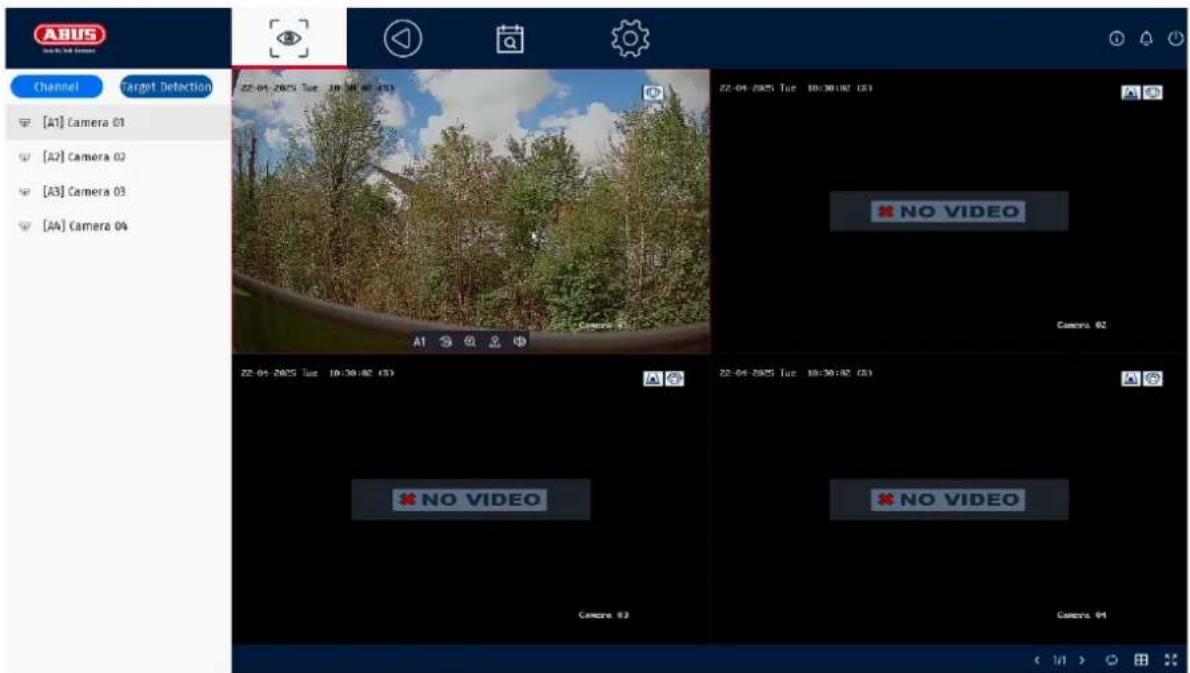

6. Live view

ABUS Target Detection Channel [AT] Camera 01 [A2] Camera 02 [A3] Camera 03 [AA] Camera 04 22-04-2005 Tue 18:30:00 (A) 22-04-2005 Tue 18:30:00 (B) NO VIDEO Camera 62 22-04-2005 Tue 18:30:00 (A) 22-04-2005 Tue 18:30:00 (B) NO VIDEO Camera 63 NO VIDEO Camera 64

The live view starts automatically when the device is switched on.

This view offers the option of displaying or executing live images and camera commands from all connected cameras on the recorder.

• By double-clicking the left mouse button, you can the respective camera image as a full screen or switch back to the original view.
• By clicking the right mouse button, you can hide and show the menu structure to display only the respective camera layout as a full screen.

The live view is divided into the following functional areas:

Main menu Selection of the configuration and operating menus
Camera menu Select and search for cameras
Camera command	Selection of the camera commands and actions of the selected camera. The red frame around the camera image shows that the camera is selected.The camera command bar appears at the bottom of the camera image.
Display menu Controlling the view on the local monitor
Admission status	In the live image, the current recording status is always displayed (top right) in the form of a colored R ("Record"). Each video channel can have one of the following three statuses:
	No symbol No recording programmed, no hard disk available, no event
	Event(e.g. on movement)
	Recording started

6.1 Main menu

Switches to the live view

Switches to the playback view

Switches to the file search

Switches to the menu for system settings

Switches to the menu for maintenance settings

Switching between simple mode / expert mode

Alarm information

Quick display of some important alarm events

Log out / shut down / restart

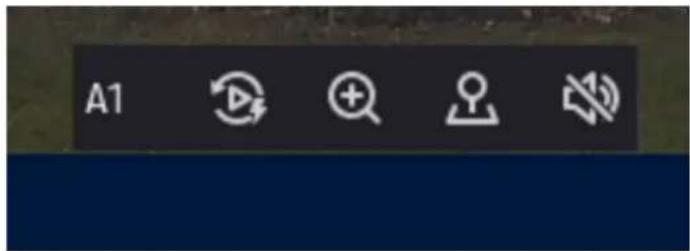

6.3 Camera command

	Display of the signal type and channel number (A1: analog channel 1)
	Starts playback of the last 5 minutes
	Opens the PTZ control
	Opens the digital zoom
	Switches audio on / off

A1

6.4 Display menu

	Switches between view pages
	Opens the selection of camera layouts
	Starts / ends the sequence display
	Opens and closes the full-screen view

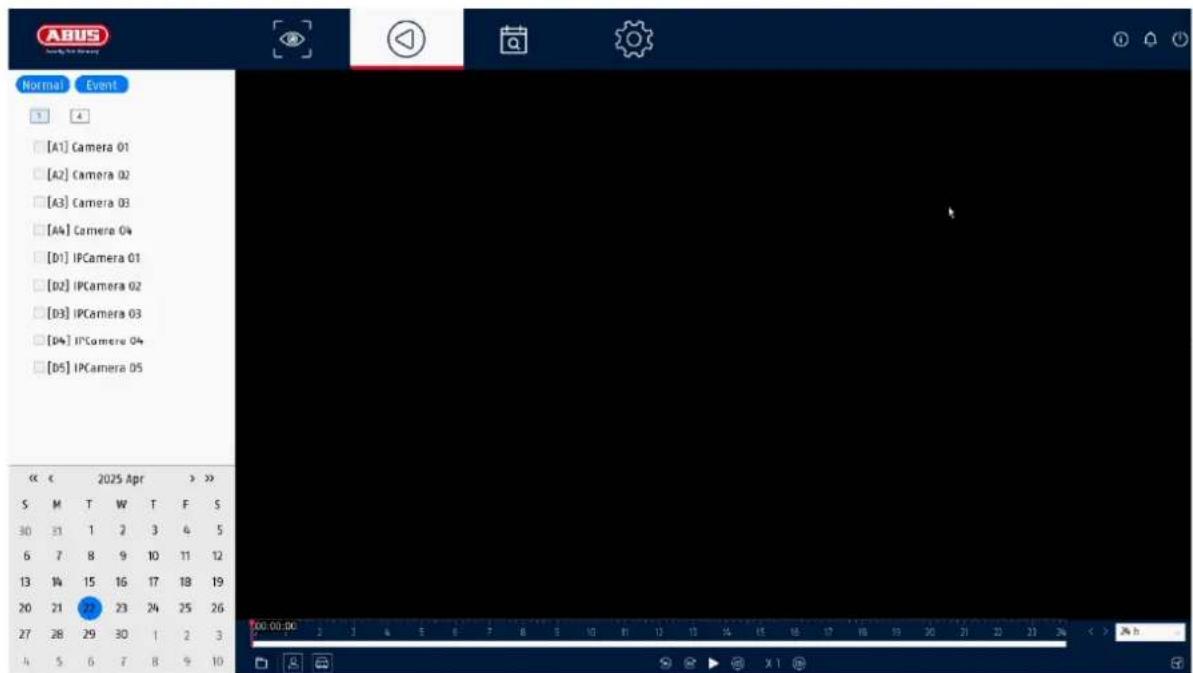

7. Playback view

ABUS Normal Event [A1] Camera 01 [A2] Camera 02 [A3] Camera 03 [A4] Camera 04 [D1] IPCamera 01 [D2] IPCamera 02 [D3] IPCamera 03 [D4] IPCamera 04 [D5] IPCamera 05 << 2025 Apr > >> S M T W T F S 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10

Playback enables the recorded video data from cameras to be played back on the recorder.

The playback view is divided into the following functional areas:

Camera selection	Selection of the cameras to be played back.
Calendar Selection of the date of the recorded data.
Camera command	Selection of camera commands and actions for the selected camera.
Playback control	Control and interaction during playback.

7.1 Camera selection

The camera list is used to select the recorded camera archives on the recorder. Several cameras can be played back simultaneously by clicking on the selection fields in the list.

7.2 Calendar

In the calendar, you can directly select the day for the recording to be searched. A triangular mark on the day means that recordings are available.

7.3 Camera command

		Display of the signal type and channel number (A1: analog channel 1)
		Resolution setting: Setting the image sharpening. The actual image resolution is not changed.
		Opens the digital zoom
		Switches audio on / off
		Add marker (tag)
		The recording file of the current playback position is locked. A locked file is not overwritten by the ring buffer.
		Trimming and exporting video sequences

7.4 Playback control

Then click on the timeline to start / resume playback at the desired time. Recordings are indicated by colored bars in the timeline. The color coding is as follows:

	Continuous recording
	Event recording (movement, event)

Time representation Timeline

The default setting for the display range of the timeline is 24 hours. The scaling of the timeline can be changed using the mouse wheel. To do this, hold the mouse pointer over the timeline and press the mouse wheel.

Timeline control

The following functions are available below the timeline:

	Jumps backwards for 30 seconds
	Jumps forward for 30 seconds
	Play and pause the recording forwards
	Reduces the playback speed
X1 Playback speed
	Increases the playback speed
	Opens and closes the full-screen view

8. File search

Video Search for saved videos via:- Period- Marking (tag)- Locking / Locked video sequences- Camera number

Image Search for saved single images via:- Period- Camera number

Event Search for saved videos via:- Event type (e.g. movement)- Period- Camera number

Human Search for saved videos via:- Human event type- Period- Camera number

Vehicle Search for saved videos via:- Event type License plate number- Period- Camera number- License plate designation

Each search menu then offers the option of viewing or exporting video files (USB export).

The event type must be supported by the selected camera or recorder.

Unsupported event types do not provide any search results.

9. System settings

All basic device settings are managed in the "System" menu.

Attention: Make sure that the date and time have been set correctly. An incorrect setting can lead to functional restrictions (e.g. with the app connection).

Subsequent changes can lead to data loss! Make sure you back up your data in good time.

9.1.1. System / General

ABUS Security Data Germany System Basic Settings DST Settings More Settings General Live View User Network > Camera > Event > Record > Language English Time Zone (GMT+01:00) Amsterdam, Br Date Format DD-MM-YYYY System Date Z2-04-2025 System Time 10:30:39 VGA/HDMI Resolution 1920*1080/60Hz(1080P)(Recc Video Quality Mode Standard (Defaulted) Mouse Pointer Speed Slow Fast Local Auto Login Wizard Apply

Language Select the menu language to be displayed
Time zone Select the time zone in which you are located
Date format Select how the date should be displayed:MM-DD-YYYY, DD-MM-YYYY, YYYY-MM-DD
Date Set the current date
Time Set the current time
VGA/HDMI resolution	Select the monitor resolution of the VGA and HDMI output
Video quality module Software-based blurring or overdrawing of the video display.
Speed of the mouse pointer	Sliding bar, low speed on the left, high speed on the right
Local automatic login Select the duration after which the menu is automatically closed: Never / 1 ... 30 minutes
Assistant Select whether the wizard should appear at system startup.
Activate summer time	Select whether the recorder should switch between summer and winter time.·Auto: Recorder changes automaticallyManual: Recorder changes based on the set start/end date
Device name You can	assign a name/description for the recorder here
No. Used to uniquely identify the recorder when using a control panel
Protocol menu Select the duration after which the menu is automatically closed: Never / 1 ... 30 minutes
Output Mode menu Selecting the active monitor interfaceAuto: Automatic selection, depending on which port is connected.HDMI/VGA: both outputs are active
Improved IPC mode When this mode is activated, more IP video channels can be connected in addition to the analog channels.TVVR33603: 2 IP cameras, up to 4 Mbit/s each, up to 6 MPxTVVR33803 4 IP cameras, up to 4 Mbit/s each, up to 8 MPxWhen this mode is activated, no motion detection function is available for the 4 analog video inputs.
1080p Lite mode The 1080p Lite mode improves the frame rate at 1080p resolution from 15 to 25 frames/sec. This is at the expense of the horizontal resolution (50% less).

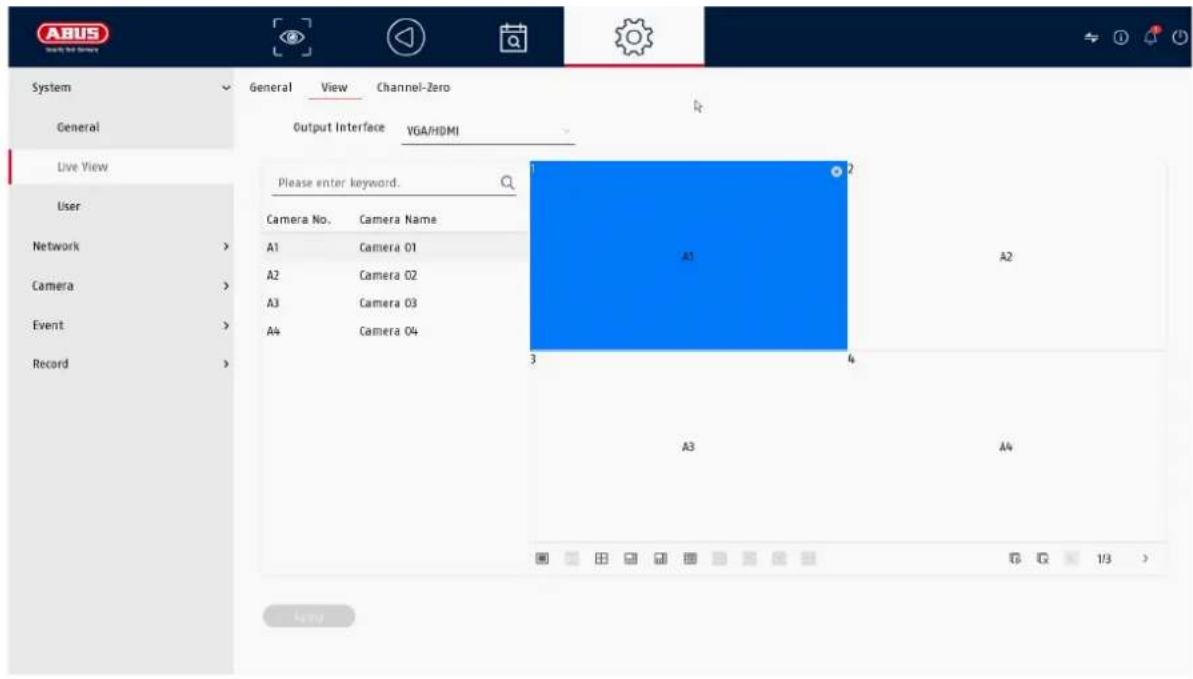

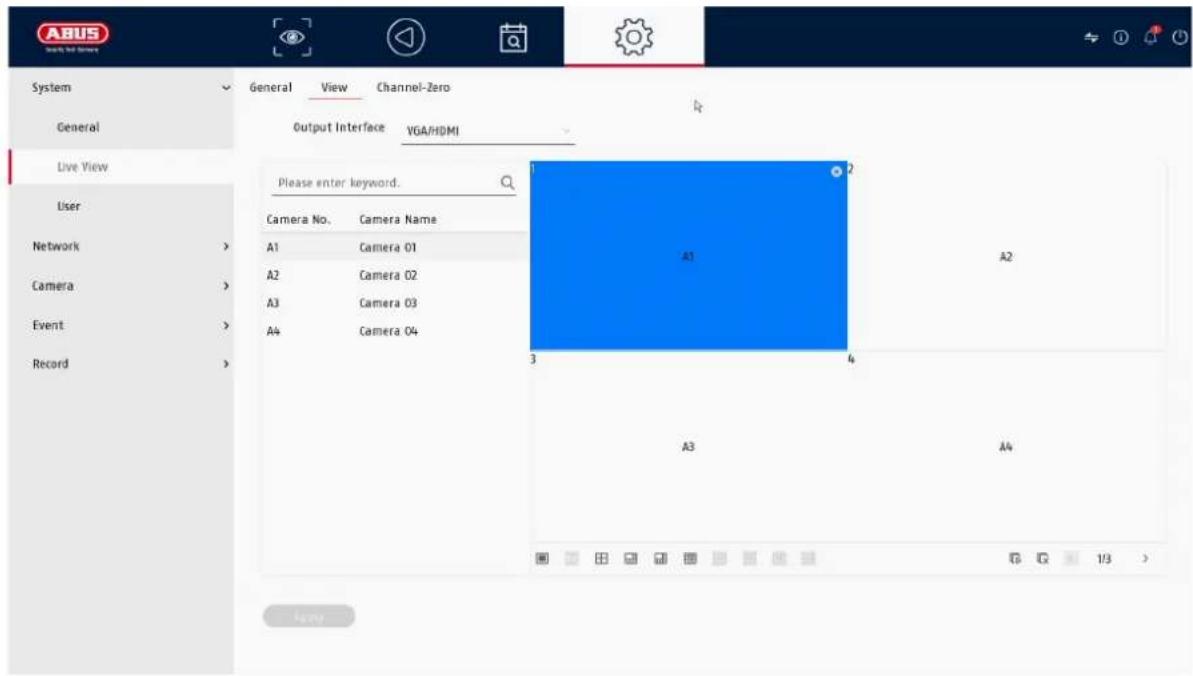

9.1.2. System / Live view

In the Live view menu, you define the behavior of the local image output on the recorder.

ABUS System General View Channel-Zero Output Interface VGA/HDMI Window Division 2 * 2 Auto-Switch Interval Close Alarm Pop-up Output VGA/HDMI Alarm Pop-up Delay 10s Audio Volume 1 5 3

General

Output menu Here you can select the connection on which the settings are to be changed
Window layout You can select the camera layout here:1x1, 2x2, 1+5, 1+7, 3x3, etc.
Automatic switching Here you can select the switching time between the individual cameras for sequence display
Alarm pop-up output Here you can define the monitor for the output of events
Alarm pop-up delay Here you can define how many seconds the event should be displayed on the assigned monitor
Activate audio Activates the audio output for the live view.
	VGA: if this option is selected, the audio is output via the cinch sockets on the rear of the recorder
	HDMI: if this option is selected, the audio is output via the HDMI interface
Volume You can ad just the volume here

Layout / Advertisements

System General View Channel-Zero Output Interface VGA/HDMI Please enter keyword. Camera No. Camera Name A1 Camera 01 A2 Camera 02 A3 Camera 03 A4 Camera 04 A5 A2 3 4 A3 A4 1/3 > Record

Here you can define the camera layout for the selected monitor.

Note: Pay attention to possible limitations in the live view with regard to the local decoder performance of the recorder.

Channel zero

After activating this function, an additional channel is available in the web interface of the recorder which combines the first 4 analog channels in a quadrant image.

9.1.3. System / User

ABUS System General Live View User Network No. User Name Operation Security Level 1 admin Weak Password Admin

User administration takes place in the "Users" menu.

		Add user
		Change user
		Delete user

Add user

To add a user, click on the "+" symbol.

User name Choose a unique name
password Choose a password
	Note: change passwords regularly, use combinations of letters, numbers etc., write down passwords in a safe place.
Confirm Confirm the password
User authorization Select the authorization level of the user.
	IMPORTANT:More rights can be set for theOperatorlevel than for theGuestlevel.

Change user

To change the settings for a user, first select a user and then click on the "Change" icon.

The following changes can be made:

• User name
• password
• User authorization

Delete user

To delete a user, first select a user and then click on the "Delete" icon.

NTP (simple mode)

The menu is available in simple mode (switch via the control bar at the top right). The Network Time Protocol (NTP) is used for automatic time synchronization via the network or Internet.

Activate Activate the	NTP function on the recorder here
Interval (min.) Select	the interval for synchronization here
NTP server Enter the	IP address of the NTP server here
NPT port Enter the port of the NTP server here

Exception (simple mode)

Specific alarms can be set for certain exceptions. The following exceptions can be monitored.

• HDD (hard disk) full
  • HDD (hard disk drive) error
  • Network disconnected
• IP conflict
• Illegal registration
• Recording error

The following alarms can be triggered due to exceptional circumstances:

• Audio warning (buzzer, local on the device)
- Notify CMS
- Send e-mail

9.2. Network

ABUS System > TCP/IP DONS NAT NTP Log Server Settings More Settings Network General Cloud Access Email Camera > Event > Record > Select NIC LAN1 NIC Type 10M/100M Self-adaptive DHCP (IPv4) IP Address 192 . 168 . 0 . 16 Subnet Mask 255 . 255 . 255 . 0 Default Gateway 192 . 168 . 0 . 1 MAC Address Bc:11:cb:0f:3f:b3 MTU(Bytes) 1480 Default Route LAN1 Auto Obtain DNS Preferred DNS Server 192.168.0.1 Alternate DNS Server 6.8.8.8

The complete network configuration of the recorder is carried out in the "Network" menu. The recorder must at least be physically connected to the network using a network cable. To ensure smooth network operation, we recommend continuous Gbit cabling between the recorder, camera and switch.

Note

The correct network settings are essential for integrating network cameras and accessing the recorder using remote software (browser, ABUS CMS, Link Station App).

9.2.1 TCP/IP

Settings for the local network and selection of the network mode are defined here.

NIC type Set the transmission speed of the built-in network card here.Select "Self-adaptive" so that the recorder automatically determines the best possible speed.
Activate DHCP Activate the checkbox if you assign the IP addresses in the network dynamically via DHCP.DHCP active: The following input fields are disabled as the parameters are obtained from DHCP.Note:If you assign the IP addresses manually, make sure that DHCP is not active (no tick in the checkbox')
IPv4 address Enter the IP address of the network device in the network for manual assignment here
IPv4 subnet mask	Enter the subnet mask of the network device in the network for manual assignment here
IPv4 standard gateway	Here you enter the IP address of the gateway in the network for manual assignment, normally the IP address of the router
MAC address Hardware address of the built-in network card
MTU (bytes) Describes the maximum packet size of a protocol.
Preferred DNS server	IP address of the domain name server, normally the IP address of the router
Alternative DNS server	Alternative IP address of the DNS server
Obtain DNS server address automatically	Obtains the correct DNS server address automatically from the DHCP server

9.2.2 DDNS

The DDNS function is used to update host names or DNS entries

Activate	Activate DDNS synchronization here
DDNS type Select the DDNS service provider here
Server address	Enter the IP address or host name of the DDNS provider here
Device domain name	If necessary, enter the sub-domain of the device here
Status	Display of the DDNS status
User name Enter the user name of your DDNS account here
password Enter the password for your DDNS account here

If you want to use ABUS-Server for remote access, proceed as follows:

1) To be able to use the ABUS DDNS function, you must first set up a free account at http://www.abus-server.com. Please refer to the FAQs on the website.
2) Before activating the ABUS server DDNS function, please set up your ABUS devices correctly in the ABUS server with the respective MAC address.
3) Activate the DDNS function
4) Enter the user name and password of your ABUS server account
5) Click on "Save."

The NVR will now connect to the ABUS server account. This process can take up to 2 minutes. The ports are now automatically transmitted and updated in the ABUS server at regular intervals.

For external access to be possible and the port scan of the ABUS server to determine the "green" status, the respective ports must be enabled or forwarded in the router/firewall.

9.2.3 NAT

Network Address Translation (NAT) is used to separate internal and external networks.

ATTENTION: It is recommended to leave the AutoUPnP function set to "Manual". (assignment type).

(UPnP) activate Activate the checkbox to enable visibility in an IP network. If this function is activated, port forwarding is automatically entered in the router for all network ports (if UPnP is active in the router).If UPnP is activated, the network ports configured by UPnP (if ABUS DDNS is active) are transmitted to the ABUS server.

Assignment type With the "Manual" setting, the network ports can be set manually using the "Edit" button.With the "Auto" setting, the recorder checks for free network ports on the router and sets the port numbers according to a random pattern.

9.2.4 NTP

The Network Time Protocol is used for automatic time synchronization via the network.

Activate NTP: Activates the NTP function on the recorder

Interval (min.): Defines the interval for synchronization.

NTP Server: NTP server address

NPT Port: NPT Port

9.2.5 Protocol server setting

In this menu it is possible to send log information to a "Sys Log Server".

9.2.6 Further settings

ASUS System > TCP/IP DONS NAT NTP Log Server Settings More Settings Network General Cloud Access Email Camera > Alarm Host IP Event > Alarm Host Port 0 Record > Server Port 8000 HTTP Port 80 Multicast IP RTSP Port 554 Output Bandwidth Limit Output Bandwidth (Mbps) >

Alarm Host IP	Network address of the CMS station
Alarm Host Port Port of your CMS station (default: 7200)
Server Port Port for data communication to ABUS CMS and iDVR App / ABUS LINK STATION APP (normal connection via IP) (Standard: 8000)
HTTP Port Port of the web server (default: 80)
Multicast IP	You can also enter the multicast IP here to minimize traffic. The IP address must match the one in the video surveillance software.
RTSP port Specify the RTSP port (default: 554)

9.2.7 Cloud access / ABUS Link Station

ABUS Link Station Type ABUS Link Station Enable Connection Status Offline Bind Status No Platform Time Sync Stream Encryption Sub-Stream Self-Adaptiv... Apply Verification Code Scan the QR code to download ABUS Link Station app and add device.

The ABUS Link Station service allows simple and uncomplicated remote access, e.g. via a mobile device (without port forwarding).

Note: An Internet connection is mandatory to use this service.

Activate Activate checkbox to use the service.
	After activation, a menu appears to enter the "Verification Code" for the first time and agree to the terms of use of the service.
Stream encryption	Here you can activate the encryption of data transmission.
Verification code You	can define the verification code here. This is requested by Remote when the connection is established to prevent access by unauthorized third parties. (If stream encryption is activated)
Status Shows whether the recorder is connected to the ABUS Link Station service
ABUS Link Station account status	Shows whether the recorder is connected to an ABUS Link Station user account

In the "ABUS Link Station" app, you can easily add devices by scanning the QR code of the device. You will find this QR code in the scope of delivery or you can use the QR code displayed here in the menu.

9.2.8 E-mail

These option settings are only available in simple mode (switch via the control bar at the top right).

ASUS System Network General Cloud Access Email Camera Event Record Server Authentication User Name Password SMTP Server Custom SMTP Server SMTP Port 25 SSL/TLS Attached Picture Sender Sender's Address Select Receivers Receiver 1 Receiver Receiver's Address Svio Test

In the event of an alarm, the device can send a message by email. Enter the email configuration here.

Server authentication	Activate checkbox if authentication on the server is required/necessary
User name Enter the user name of your e-mail account here
password Enter the password from your e-mail account here
Sender Enter the sender's name here
Sender address Enter the e-mail address associated with the e-mail account here
Select recipient Here you can select up to 3 different recipients and then enter their e-mail addresses
Receiver Enter the name of the recipient here
Recipient address Enter the e-mail address of the recipient here
Attach picture Activate checkbox if camera images are to be sent as photo files in addition to the e-mail
Interval Select a trigger time between 2 and 5 seconds here. The images are only sent when motion has been detected over the defined period.
SMTP Server Enter the SMTP server address of the e-mail provider here
SMTP Port Ente r the SMTP port of the e-mail provider here
Activate SSL/TLS Activate 'Checkbox' to activate e-mail encryption

9.3. Camera

9.3.1. Camera - analog

In this menu, you can specify for the first 4 channels whether the channel is to be assigned to an analog HD camera (connection via the rear) or an IP camera (integration via the Ethernet).

The "Improved IPC mode" option can also be activated in the advanced settings, which makes it possible to integrate up to 2 or 4 additional IP cameras (TVVR33603 / TVVR33803).

System Analog Network Camera Microphone Configuration No. HD/CVBS IP A1 A2 A3 A4 Analog Camera Display Privacy Mask Event Max. IP camera number 1 Record +Input k

9.3.2. Camera - IP camera

If a channel is defined as an IP channel, the connection data for the IP camera can be entered here.

ABUS Add Device List Number of IP channels: 0 of 1 available Network Camera Name Enter camera name Camera... IP Address Camera Name Status Protocol Operation Security Analog Camera Display Privacy Mask Event Record Online Device List Free bandwidth: 72Mbps No. IP Address Status Operation Protocol Management Port Device Model Serial No. 1 192.168.0.22 ABUS 10080 2 192.168.0.60 ABUS 8000 IPCB42510A IPCB42510A201810 3 192.168.0.53 ABUS 8000 IPCB42515A IPCB42515A20180E 4 192.168.0.244 ABUS 45000 5 192.168.0.52 ABUS 8000 IPCA54581B IPCA54581B202207 6 192.168.0.60 ABUS 8000 IPCC16510 IPCC1651020274

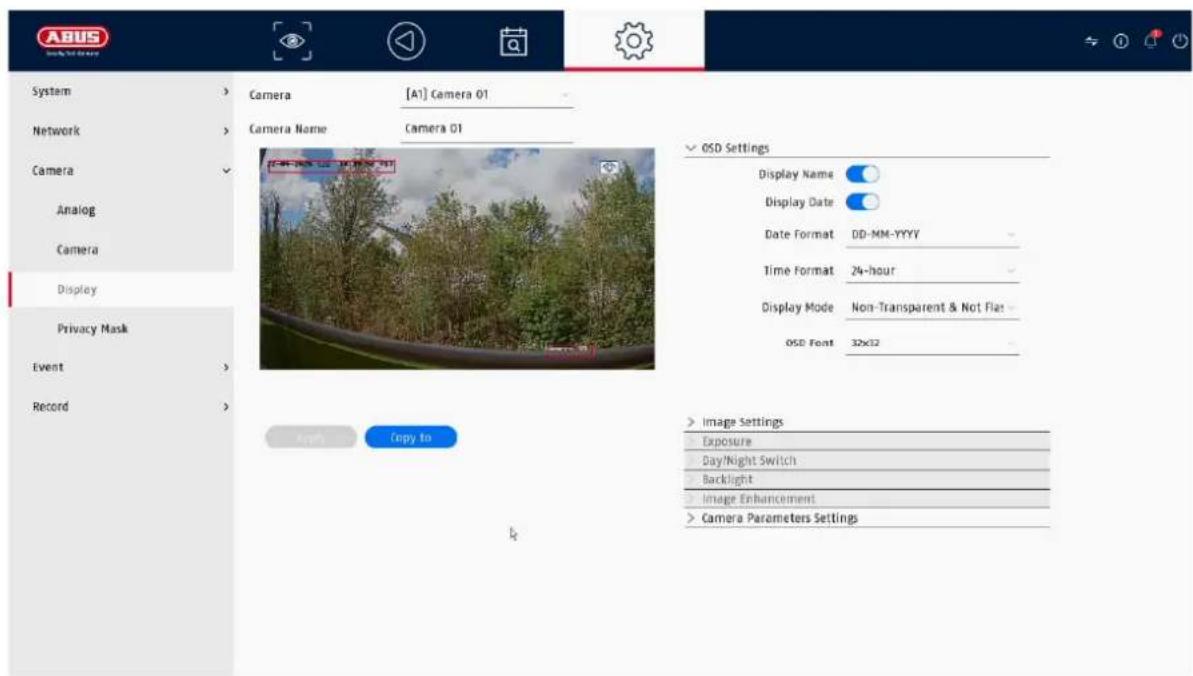

9.3.3. Displays / Camera settings

ASUS Sound Set Survey System Network Camera Analog Camera Display Privacy Mask Event Record Camera [A1] Camera 01 Camera Name Camera 01 OSD Settings Display Name Display Date Date Format DD-MM-YYYY Time Format 24-hour Display Mode Non-Transparent & Not Flat OSD Font 32x32 Copy to Image Settings Exposure Day/Night Switch Backlight Image Enhancement Camera Parameters Settings

Here you have the option of making individual settings for the camera display for each camera. The camera name and date & time can be positioned directly in the displayed live image.

Please note: The selection of setting options may vary depending on the camera model used.

For more information on the settings, please refer to the camera operating instructions.

Camera Select the camera to be set
Camera name	You can chan ge the name of the camera here
OSD Here you	can select what is to be displayed in the camera image and in which format:Name, date, day of the week
Image Here you	can adjust the brightness, contrast and saturation of the image.Depending on the installation of the camera, it may be necessary to make the following settings:Corridor mode: Rotates the image by 90°Mirror mode: Tilts or mirrors the image.
Exposure You	can ad just the camera's exposure time here
Day/night switching	Here you can adjust the behavior of the day/night switchover and activate/deactivate SMART-IR.
Backlight	Here you can adjust the WDR behavior of the camera
Image enhancement	Here you can adjust the digital noise reduction (DNR) of the camera

9.3.4. Private zone

Here you can create up to 4 privacy zones per camera. By clicking on the "Activate" checkbox, you can create and delete the privacy zone directly in the live image displayed.

9.4. Event

System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera C1 Enable Area Arming Schedule Linkage Action Normal Linkage Alarm Output Linkage Trigger Cha... Audio and Light Alarm Linkage Alarm Pop-up ... Buzzer Alarm Notify Surveyilla... Send Email A1 A2 A3 A4 D1 D2 D3 D4 CAM1->?(Sound) Copy to

In the "Event" menu, you define which reactions are to be triggered in the event of an event (e.g. motion detection).

For some events, it is necessary to define an area, sensitivity and schedule (when this event should be monitored). You can also select the following "linking actions" in response to the event.

Full screen monitoring	Displays the triggered camera as a full screen on the local monitor. (Configuration of the full screen output under "System" / "Live view")
Audio warning Starts a warnin g tone on the recorder
CMS / Link Station Push	Sends a push message to the ABUS CMS or ABUS Link Station app
Send e-mail Sends an e-mail (the recipients + SMTP must be set up first)
Trigger alarm output Not supported

The "Trigger channel" defines which cameras are triggered and recorded in the event.

9.4.1. Normal event

The following events can be set up in the "Normal event" menu:

ASUS System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera O1 Enable Area Arming Schedule Linkage Action Sensitivity BD False alarm reduction ● AI PER Detection Target ✓ Human ✓ Vehicle Drive Area Clear Apply Copy to

Motion detection The	recorder only processes motion detection within the camera (IP camera) or carries out motion detection itself with human/vehicle detection (analog cameras).If a live image from the camera is displayed in this dialog, you can configure the camera's motion masks directly.Note: The displayed settings for motion detection are basic settings. Detailed settings may be offered in the web interface of the IP camera.
Sabotage monitoring	The tamper monitoring function monitors the brightness value of the selected camera. If the lens is covered, the trigger is activated.
Video loss The video	loss function monitors the selected camera for image loss. If the camera can no longer be reached via the network, the trigger is activated.
Alarm input Onl	y supported for IP cameras with alarm input.
Alarm output Onl	y supported for IP cameras with alarm output.
Exception The Exception function defines the behavior of the recorder for warning messages and system events.

9.4.2. Perimeter protection

The setting pages for intelligent or VCA events are loaded and displayed dynamically depending on the connected IP camera. For analog cameras, the tripwire function (line crossing detection) or the intrusion detection function (area monitoring with delayed triggering) is performed by the recorder.

Note: For more information on the settings in the IP cameras, please refer to the camera operating instructions.

Tripwire:

Direction-dependent analysis of the crossing of a line (max. 1 line). The analysis can also differentiate between people and vehicles. Maximum and minimum sizes of the objects to be detected can be set. Schedule programming possible. Alarm pop-up, acoustic alarm, ABUS CMS notification, e-mail dispatch, recording possible.

Intrusion Det: Analysis of entry into an area. The alarm can be triggered X seconds after entry (limit value setting). The analysis can also differentiate between people and vehicles. Maximum and minimum sizes of the objects to be detected can be set. Schedule programming possible. Alarm pop-up, acoustic alarm, ABUS CMS notification, e-mail dispatch, recording possible.

9.5. Recording

9.5.1. Schedule

Camera No. [A1] Camera 01 Enable Continuous Event Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 0 2 4 6 8 10 12 14 16 18 20 22 24 Advanced>> Made Copy to

In this menu, you define the schedule and the triggers for recording videos or pictures.

First activate the schedule, click on a trigger and then hold down the left mouse button and drag in the weekly calendar to define the desired times.

Continuous	Continuous continuous recording
Event	Each type of event (movement or VCA events) is recorded
None	There is no recording
Edit	Here you can edit the settings in list form

The following settings can be made by clicking on the "Advanced" button.

Extended

Record audio	Activates audio recording (if the camera provides an audio signal and the stream is set to "Video & Audio")
Pre-alarm	Activate the pre-alarm recording hereNote: Depending on the system configuration and number of cameras, a storage time of up to 10 seconds can be achieved.
Post-alarm	Select the duration for the post-alarm storage for event recordings
Stream type	The 1st and 2nd video streams are always recorded
Procedure (days)	Specify how many days the recordings should be kept before they are overwritten

9.5.2. Stream settings

ARIS System Network Camera Event Record Schedule Parameters Storage Storage Mode Advanced Camera [A1] (camera 0) Main Stream Sub-Stream Camera Resolution 1520*1080(1000V)zrs Main Stream(continuous) Main Stream(Event) Stream Type Video & Audio Video & Audio Radio Source Auto Auto Resolution 1320*1080(1000V) 1520*1080(1000V) Bitrate Type Variable Variable Video Quality Medium Medium Frame Rate 15fps 15fps Max. Bitrate Mode General General Max. Bitrate(Kbps) 1536 1536 Recommend 1992~2520(Kbps) 1992~2520(Kbps) Max. Average Bitrate(Kbps) 1942 3972 Video Encoding R.265 R.265 Enable H.265+ Powered by H.265 Pro Copy No

Here you can adjust the video parameters for stream 1 and 2.

Note: For more information on the settings, please refer to the camera operating instructions.

9.5.3. Memory

ABUS System > Free/Total space: 1752.00GB/1853.02GB Network > No. Status Type Capacity Free Space Group Operation Camera > 1 R/W Local 1863.02GB 1792.00GB --

Here you can configure local or network-based storage media and view their status.

Add	Add network drive
Initialize	Initialize (format) memory
Repair database	Rebuilds all databases, the files are not deleted.
Total Displays the	total memory space
Available	Displays the total free memory space

Attention: Before you can make recordings with the device, the built-in hard disk must be "initialized". All hard disk data will be deleted during initialization!

No. Number of installed hard disks / added NAS drives

Capacity	Displays the storage space in GB
Status Shows the current status of the hard disks:Not initializedNormalFaultySleeping (=standby)
Properties	Displays the access status of the hard disk:Read only: Write protectionReading/writing: Reading and writing
Type Displays the connection type of the hard disk:Local: Device hard diskNAS: Network hard disk (NFS)IP SAN: iSCSI Volume
Memory	Displays the free memory space
Group	Shows which group the hard disk is assigned to

Editing

You can change the group assignment and access status hereHDD No.: Internal numbering of the hard disksR/W: In this mode, video data is written to the hard disks and can also be read (default setting)Read only: In this mode, no video data is written to the data carrier. This setting is helpful if you want to prevent the data from being overwritten after an event.Redundant: In this mode, video data is saved redundantly on all data carriers with the "Redundant" setting. To do this, the "Redundant" button must be set in the "Recording→ Parameters→ Further settings" menu.Group: Assignment of the hard disk to an HDD group

Delete

Deactivate / activate hard disk

Attention: If only one hard disk is installed and it has the status "Read only", the device cannot make any recordings!

Add network drive

Click on "Add" to add a network drive.

Attention: It is recommended to use a separate volume on the NAS for each NVR, as multiple use could lead to problems.

Network drive Choose between 8 network drives.
Type	• NAS: Your network storage must support the NFS file system for this setting.• IP SAN: Your network storage must support the iSCSI protocol for this setting.

IP address Enter the IP address of the network storage device here.

Directory Click on "Search" to select the path or enter it directly.

9.5.4. Storage mode

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced In quota mode, the videos of channel shares no quota will be overlapped. You need to allocate channel with valid quota or switch to group mode. Mode Quota Group Camera [A1] Camera 01 Used Record Capacity 11.00GB HDD Capacity 1863GB Record Capacity (GB) 0 ▲ Free quota space: 1863 GB, used picture space: 2048.00MB. Copy to Copy to

In this menu, you set the storage mode of the recorder. Two different storage modes are available to either distribute video data to all hard disks or to enable specific write operations to individual data carriers.

9.5.4.1. Mode: Contingent

In this mode, the video data is written distributed over the total number of all connected data carriers.

Camera Select the camera
Video memory used	Currently used video memory on the data carrier network
Used image memory	Currently used image memory on the data carrier network
HDD capacity (GB)	Shows the total storage space in GB
Reserved memory "Video"	Set the maximum recording size for video on the data carrier network per camera
Reserved memory "Pictures"	Set the maximum recording size for images on the data carrier network per camera

9.5.4.2. Mode: Group

In this mode, the video data can be written specifically (also redundantly) to selected data carriers. The data carriers are organized in "groups" for this purpose. A group must contain at least one HDD.

Record to HDD group	Select the HDD group
Camera	Select which cameras should record on the currently selected group

Note: To make settings for the HDD group, click on "Edit" in the "Storage\Storage device" menu for the respective hard disk.

9.5.5. Advanced settings

Here you can make general settings for all installed hard disks.

Overwrite	Specify whether older recordings should be overwritten when the hard disk is full.
Hard disk hibernation	When this function is activated, hard disks that are idle go into standby mode.
Saving the camera's VCA data	If the video content analysis data (VCA) comes from the camera, this can also be saved in the recorder.
H.264 / H.265 DynGOP for all analog cameras	Activation of the H.264+ or H.265+ option for all analog channels to save bandwidth or storage space.The DynGOP or "+" variant of video signal compression is particularly effective if the image content changes little over time.

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced Overwrite HDD Sleeping Save Camera VCA Data Alarm Storage Picture Storage H.264+/H.265+ for All the Analog Cameras Enable Disable 完毕

10. Maintenance settings

In this menu, you can export and import important status information and configuration data and reset the recorder to factory settings.

10.1. System info

This menu displays various information about the system, cameras, recording, alarm, network and storage media.

10.2. Firmware update

Device Upgrade Local Upgrade Device Name File Format *.dev;*.mov;*.dev File Name: File Size File Type Edit Date Delete Play

Here you can update the recorder with the latest firmware.

Here you can reset the settings of the recorder, reset the recorder completely to factory settings or set the recorder back to "inactive".

10.4. Logbook

Log Information System Service Buzzer Switch Device Maintenance Time 22-04-2025 00:00:00 - 22-04-2025 23:59:59 Major Type Information Minor Type Select All Local HDD Information HDD S.M.A.R.T. Start Recording Stop Recording Start Capture Stop Capture Expired Video/Picture Deleted NetHDD Information System Running Status Time Synchronization ABUS Link Station Running Status ABUS Link Station Linkage Information IP Camera Connection Information IP Camera Connection Status Rebuilding Database Started Rebuilding Database Stopped

All interactions and events are recorded in the logbook. Here, entries can be filtered and displayed according to specific criteria.

10.5. System maintenance

Various protocol settings can be made in this menu.

Log Information System Service Buzzer Switch Device Maintenance RTSP RTSP Authentication digest ISAPI HTTP HTTP Authentication digest Camera Added Detection OK I

11. Maintenance and cleaning

11.1. Maintenance

Regularly check the technical safety of the product, e.g. damage to the housing.

If it can be assumed that safe operation is no longer possible, the product must be taken out of service and secured against unintentional operation.

It can be assumed that safe operation is no longer possible if

• the device shows visible damage,
• the device no longer works

Please note:

The product is maintenance-free for you. There are no components inside the product for you to check or maintain, never open it.

11.2. Cleaning

Clean the product with a clean, dry cloth. For heavier soiling, the cloth can be lightly moistened with lukewarm water.

Make sure that no liquids get into the appliance.

Do not use chemical cleaners, as this could damage the surface of the housing and the screen (discoloration).

12. Waste disposal

Attention: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic equipment. This symbol means that, in the interests of environmental protection, the appliance must be disposed of at the end of its service life in accordance with the applicable legal regulations and separately from household or commercial waste. The old appliance can be disposed of at official collection points in your country. Follow the local regulations when disposing of the materials. For more details on take-back (also for non-EU countries), please contact your local administration. Separate collection and recycling conserves natural resources and ensures that all regulations for the protection of health and the environment are observed when recycling the product.

13. Technical data

The technical data of the individual cameras is available at www.abus.com via the product search.

14. Open Source license information

We would also like to point out at this point that the network surveillance camera contains open source software, among other things. Please read the open source license information enclosed with the product.

ABUS ANALOG HD VIDÉOSURVEILLANCE

TVVR33603 ENREGISTREUR HYBRIDE À 6 CANAUX

TVVR33803 ENREGISTREUR HYBRIDE À 8 CANAUX

Directive RoHS 2011/65/EU

ACTIVATION OK Cancel Cancel OK Cancel Cancel Cancel Cancel

System General View Channel-Zero Output Interface VGA/HDMI Please enter keyword. Camera No. Camera Name A1 Camera 01 A2 Camera 02 A3 Camera 03 A4 Camera 04 A5 A2 3 4 A3 A4 1/3 > Layer

ABUS System General Live View User Network No. User Name Operation Security Level 1 admin Weak Password Admin

ABUS System > Network General Cloud Access Email Camera Event Record Type ABUS Link Station Enable Connection Status Offline Bind Status No Platform Time Sync Stream Encryption Sub-Stream Self-Adaptiv... Apply Verification Code * Scan the QR code to download ABUS Link Station app and add device.

ASUS System Network General Cloud Access Email Camera Event Record Server Authentication User Name Password SMTP Server Custom SMTP Server SMTP Port 25 SSL/TLS Attached Picture Sender Sender's Address Select Receivers Receiver 1 Receiver Receiver's Address Sears Test

ABUS System > Analog Network > Camera Microphone Configuration Camera Analog Camera Display Privacy Mask Event > Max. IP camera number 1 Record > < img src="box123c2450800000000000000000000000000000000000000000000000000000000000000000000000 No. HD/CVBS IP A1 A2 A3 A4

System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera O1 Enable Area Arming Schedule Linkage Action Sensitivity 80 False alarm reduction ● AI PER Detection Target ● Human ● Vehicle Drive Area Clear Apply Copy to

Camera No. [A1] Camera 01 Enable Continuous Event Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 0 2 4 6 8 10 12 14 16 18 20 22 24 Advanced>> Help Copy to

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced Camera [A1] Camera 01 Main Stream Sub-Stream Camera Resolution 1920*1080(1080P)zps Main Stream(Continuous) Main Stream(Event) Stream Type Video & Audio Video & Audio Radio Source Auto Auto Resolution 1920*1080(1080P) 1920*1080(1080P) Bitrate Type Variable Variable Video Quality Medium Medium Frame Rate TSfps TSfps Max. Bitrate Mode General General Max. Bitrate(Kbps) 1536 1536 Recommend 1992~2520(Kbps) 1992~2520(Kbps) Max. Average Bitrate(Kbps) 1942 1942 Video Encoding H.265 H.265 Enable H.265+ Powered by H.265 Pro Entry Copy to

ASUS Search Not Summary System > Netw or Camera > No. Status Type Capacity Free Space Group Operation 1 R/W Local 1863.026B 1752.00GB Free/Total space: 1752.00GB/1863.02GB

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced In quota mode, the videos of channel shares no quota will be overlapped. You need to allocate channel with valid quota or switch to group mode. Mode Quota Group Camera [A1] Camera 01 Used Record Capacity 11.00GB HDD Capacity 1863GB Record Capacity (GB) 0 ▲ Free quota space: 1863 GB, used picture space: 2048.00MB. Copy to Copy to

Device Upgrade Local Upgrade Device Name File Format *.dev;*.mov;*.dev File Name : File Size : File Type : Edit Date : Delete Play

Log Information System Service Buzzer Switch Device Maintenance Time 22-04-2025 00:00:00 - 22-04-2025 23:59:59 Major Type Information Minor Type Select All Local HDD Information HDD S.M.A.R.T. Start Recording Stop Recording Start Capture Stop Capture Expired Video/Picture Deleted NetHDD Information System Running Status Time Synchronization ABUS Link Station Running Status ABUS Link Station Linkage Information IP Camera Connection Information IP Camera Connection Status Rebuilding Database Started Rebuilding Database Stopped

Log Information System Service Buzzer Switch Device Maintenance RTSP RTSP Authentication digest ISAPI HTTP HTTP Authentication digest Camera Added Detection +/-

ABUS a buy buy

ABB ACTIVATION Get Active Show Forward Cancel Forward Product ID Amounts Sold The product is allowed to be used to create a product or service.

ABUS Security Data Germany System Basic Settings DST Settings More Settings General Live View User Network > Camera > Event > Record > Language English Time Zone (GMT+01:00) Amsterdam, Br Date Format DD-MM-YYYY System Date Z2-04-2025 System Time 10:30:39 VGA/HDMI Resolution 1920*1080/60Hz(1080P)(Recc Video Quality Mode Standard (Defaulted) Mouse Pointer Speed Slow Fast Local Auto Login Wizard Apply

Lay-out / Advertenties

System General View Channel-Zero Output Interface VGA/HDMI Please enter keyword. Camera No. Camera Name A1 Camera 01 A2 Camera 02 A3 Camera 03 A4 Camera 04 A1 A2 3 4 A3 A4 1/3 > Record Home

ABUS System General Live View User Network No. User Name Operation Security Level 1 admin Weak Password Admin

ABUS System > Network General Cloud Access Email Camera Event Record Type ABUS Link Station Enable Connection Status Offline Bind Status No Platform Time Sync Stream Encryption Sub-Stream Self-Adaptiv... Apply Verification Code * Scan the QR code to download ABUS Link Station app and add device.

ASUS System Network General Cloud Access Email Camera Event Record Server Authentication User Name Password SMTP Server Custom SMTP Server SMTP Port 25 SSL/TLS Attached Picture Sender Sender's Address Select Receivers Receiver 1 Receiver Receiver's Address Svio Test

System Analog Network Camera Microphone Configuration No. HD/CVBS IP A1 A2 A3 A4 Max. IP camera number 1 Record

9.3.2. Camera - IP-camera

System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera C1 Enable Area Arming Schedule Linkage Action Normal Linkage Alarm Output Linkage Trigger Cha... Audio and Light Alarm Linkage Alarm Pop-up ... Buzzer Alarm Notify Surveyilla... Send Email A1 A2 A3 A4 D1 D2 D3 D4 CAM1->(%Sound) Copy to

System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera 01 Enable Area Arming Schedule Linkage Action Sensitivity 80 False alarm reduction ● AI PIR Detection Target ✓ Human ✓ Vehicle Draw Area Clear Apply Copy to

Camera No. [A1] Camera 01 Enable Continuous Event Mon Tue Wed Thu Fri Sat Sun Advanced>> Made Copy to

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced Camera [Alt] Camera 01 Main Stream Sub-Stream Camera Resolution 1920*1080(1080P)R25 Main Stream(Continuous) Main Stream(Event) Stream Type Video & Audio Video & Audio Audio Source Auto Auto Resolution 1920*1080(1080P) 1920*1080(1080P) Bitrate Type Variable Variable Video quality Medium Medium Frame Rate TSPS TSPS Max. Bitrate Mode General General Max. Bitrate(Kbps) 1536 1536 Recommend 1992~2920(Kbps) 1992~2920(Kbps) Max. Average Bitrate(Kbps) 1942 1942 Video Encoding H.265 H.265 Enable H.265+ Powered by H.265 Pro Copy Copy to

ABUS System Network Camera No. Status Type Capacity Free Space Group Operation 1 R/W Local 1863.026B 1792.00GB --

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced In quota mode, the videos of channel shares no quota will be overlapped. You need to allocate channel with valid quota or switch to group mode. Mode Quota Group Camera [A1] Camera 01 Used Record Capacity 11.00GB HDD Capacity 1863GB Record Capacity (GB) 0 ▲ Free quota space: 1863 GB, used picture space: 2048.00MB. Copy to Copy to

Device Upgrade Local Upgrade Device Name File Format *.day;*.may;*.lev File Name : File Size : File Type : Edit Date : Delete Play

Log Information System Service Buzzer Switch Device Maintenance > Time 22-04-2025 00:00:00 - 22-04-2025 23:59:59 Major Type Information Minor Type Select All ✓ Local HDD Information ✓ HDD S.M.A.R.T. ✓ Start Recording ✓ Stop Recording ✓ Start Capture ✓ Stop Capture ✓ Expired Video/Picture Deleted ✓ NetHDD Information ✓ System Running Status ✓ Time Synchronization ✓ ABUS Link Station Running Status ✓ ABUS Link Station Linkage Information ✓ IP Camera Connection Information ✓ IP Camera Connection Status ✓ Rebuilding Database Started ✓ Rebuilding Database Stopped —

Log Information System Service Buzzer Switch Device Maintenance RTSP RTSP Authentication digest ISAPI HTTP HTTP Authentication digest Camera Added Detection +/-

ABB AABB ACTIVATION Get Active Show Forward Cancel/Forward Product ID Amount Card The product is allowed to use the product name or address. Please click any action to confirm the product name or address.

ABUS Security Data Germany System Basic Settings DST Settings More Settings General Live View User Network > Camera > Event > Record > Language English Time Zone (GMT+01:00) Amsterdam, Br Date Format DD-MM-YYYY System Date 22-04-2025 System Time 10:30:39 VGA/HDMI Resolution 1920*1080/60Hz(1080P)(Recc Video Quality Mode Standard (Defaulted) Mouse Pointer Speed Slow Fast Local Auto Login Wizard Apply

System General View Channel-Zero Output Interface VGA/HDMI Please enter keyword. Camera No. Camera Name A1 Camera 01 A2 Camera 02 A3 Camera 03 A4 Camera 04 A1 A2 3 4 A3 A4 1/3 > Record

ABUS System General Live View User Network No. User Name Operation Security Level 1 admin Weak Password Admin

Brugeradministration finder sted i menuen "Brugere".

ABUS System Network General Cloud Access Email Camera Event Record Type ABUS Link Station Enable Connection Status Offline Bind Status No Platform Time Sync Stream Encryption Sub-Stream Self-Adaptiv... Apply Verification Code * Scan the QR code to download ABUS Link Station app and add device.

ASUS System Network General Cloud Access Email Camera Event Record Server Authentication User Name Password SMTP Server Custom SMTP Server SMTP Port 25 SSL/TLS Attached Picture Sender Sender's Address Select Receivers Receiver 1 Receiver Receiver's Address Svio Test

System Analog Network Camera Microphone Configuration No. HD/CVBS IP A1 A2 A3 A4 Max. IP camera number 1 Record

9.3.2. Kamera - IP-kamera

System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tempering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera 01 Enable Area Arming Schedule Linkage Action Normal Linkage Alarm Output Linkage Trigger Char... Audio and Light Alarm Linkage Alarm Pop-up ... Buzzer Alarm Notify Turnwalla... Send Email A1 A2 A3 A4 D1 D2 D3 D4 CAM1->$(Sound) Easy to

ASUS System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera O1 Enable Area Arming Schedule Linkage Action Sensitivity 80 False alarm reduction AI PTR Detection Target Human Vehicle Drive Area Clear Apply Copy to

Camera No. [A1] Camera 01 Enable Continuous Event Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 Advanced>> Made Copy to

ARIS System Network Camera Event Record Schedule Parameters Storage Storage Mode Advanced Camera [A1] (camera 0) Main Stream Sub-Stream Camera Resolution 1520*1080(1000V)zrs Main Stream(continuous) Main Stream(Event) Stream Type Video & Audio Video & Audio Radio Source Auto Resolution 1320*1080(1000V) 1520*1080(1000V) Bitrate Type Variable Variable Video Quality Medium Medium Frame Rate 15fps 15fps Max. Bitrate Mode General General Max. Bitrate(Kbps) 1536 1536 Recommend 1892~2520(Kbps) 1892~2520(Kbps) Max. Average Bitrate(Kbps) 1442 1442 Video Encoding H.265 H.265 Enable H.265+ Powered by H.265 Pro Copy to

Her kan du justere videoparametrene for stream 1 og 2.

ABUS System > Free/Total space: 1752.00GB/1853.02GB Network > No. Status Type Capacity Free Space Group Operation Camera > 1 R/W Local 1863.02GB 1792.00GB --

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced In quota mode, the videos of channel shares no quota will be overlapped. You need to allocate channel with valid quota or switch to group mode. Mode Quota Group Camera [A1] Camera 01 Used Record Capacity 11.00GB HDD Capacity 1863GB Record Capacity (GB) 0 ▲ Free quota space: 1863 GB, used picture space: 2048.00MB. Copy to Copy to

Device Upgrade Local Upgrade Device Name File Format *.dev;*.mov;*.dev File Name: File Size File Type Edit Date Delete Play

Log Information System Service Buzzer Switch Device Maintenance Time 22-04-2025 00:00:00 - 22-04-2025 23:59:59 Major Type Information Minor Type Select All Local HDD Information HDD S.M.A.R.T. Start Recording Stop Recording Start Capture Stop Capture Expired Video/Picture Deleted NetHDD Information System Running Status Time Synchronization ABUS Link Station Running Status ABUS Link Station Linkage Information IP Camera Connection Information IP Camera Connection Status Rebuilding Database Started Rebuilding Database Stopped

Log Information System Service Buzzer Switch Device Maintenance RTSP RTSP Authentication digest ISAPI HTTP HTTP Authentication digest Camera Added Detection OK

9.3.2. Telecamera - Telecamera IP 246

9.3.4. Zona privata 248

9.4. Evento 248

ABB SALAD ACTIVATION Date: 03/01/2023 Status: Format: Color: Product ID: Password: The password will be required to access the password to your account. Yes, would need to access your password to your account. No valid access is required.

System General View Channel-Zero Output Interface VGA/HDMI Please enter keyword. Camera No. Camera Name A1 Camera 01 A2 Camera 02 A3 Camera 03 A4 Camera 04 A1 A2 3 4 A3 A4 1/3 > Layer

ABUS System General Live View User Network No. User Name Operation Security Level 1 admin Weak Password Admin

Porta NPT: Attacco NPT

9.2.7 Accesso al cloud / ABUS Link Station

ABUS System > Network General Cloud Access Email Camera Event Record Type ABUS Link Station Enable Connection Status Offline Bind Status No Platform Time Sync Stream Encryption Sub-Stream Self-Adaptiv... Apply Verification Code * Scan the QR code to download ABUS Link Station app and add device.

ABUS System > Network General Cloud Access Email Camera > Event > Record > Server Authentication User Name Password SMTP Server Custom SMTP Server SMTP Port 25 SSL/TLS Attached Picture Sender Sender's Address Select Receivers Receiver 1 Receiver Receiver's Address Says Test

System Network Camera Analog Camera Microphone Configuration No. HD/CVBS IP A1 A2 A3 A4 Max. IP camera number 1 Record

9.3.2. Telecamera - Telecamera IP

System Network Camera Event Normal Event Perimeter Protection Face Recognition Record Motion Detection Video Tampering Video Loss Alarm Input Alarm Output Exception Camera [A1] Camera C1 Enable Area Arming Schedule linkage action Trigger Cha... Audio and Light Alarm Linkage Alarm Pop-up ... Buzzer Alarm Notify Surveille... Send Email A1 A2 A3 A4 D1 D2 D3 D4 CAM1 -> )(sound) Apps Copy to

Camera No. [A1] Camera 01 Enable Continuous Event Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24 0 2 4 6 8 10 12 14 16 18 20 22 24 Advanced>> Made Copy to

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced Camera [Alt] Camera 01 Main Stream Sub-Stream Camera Resolution 1920*1080(1080P)R25 Main Stream(Continuous) Main Stream(Event) Stream Type Video & Audio Video & Audio Audio Source Auto Auto Resolution 1920*1080(1080P) 1920*1080(1080P) Bitrate Type Variable Variable Video quality Medium Medium Frame Rate TSPS TSPS Max. Bitrate Mode General General Max. Bitrate(Kbps) 1536 1536 Recommend 1992~2920(Kbps) 1992~2920(Kbps) Max. Average Bitrate(Kbps) 1942 1942 Video Encoding H.265 H.265 Enable H.265+ Powered by H.265 Pro Entry Copy to

ABUS System Network Camera No. Status Type Capacity Free Space Group Operation 1 R/W Local 1863.02GB 1792.00GB --

System Network Camera Event Record Schedule Parameter Storage Storage Mode Advanced In quota mode, the videos of channel shares no quota will be overlapped. You need to allocate channel with valid quota or switch to group mode. Mode Quota Group Camera [A1] Camera 01 Used Record Capacity 11.00GB HDD Capacity 1863GB Record Capacity (GB) 0 ▲ Free quota space: 1863 GB, used picture space: 2048.00MB. Copy to Copy to

Device Upgrade Local Upgrade Device Name File Format ",dev",*.mov",.dev File Name : File Size : File Type : Edit Date : Delete Play

Log Information System Service Buzzer Switch Device Maintenance Time 22-04-2025 00:00:00 - 22-04-2025 23:59:59 Major Type Information Minor Type Select All Local HDD Information HDD S.M.A.R.T. Start Recording Stop Recording Start Capture Stop Capture Expired Video/Picture Deleted NetHDD Information System Running Status Time Synchronization ABUS Link Station Running Status ABUS Link Station Linkage Information IP Camera Connection Information IP Camera Connection Status Rebuilding Database Started Rebuilding Database Stopped

Log Information System Service Buzzer Switch Device Maintenance RTSP RTSP Authentication digest ISAPI HTTP HTTP Authentication digest Camera Added Detection OK
