USER MANUAL TVVR36301 ABUS

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

QUICKGUIDE FÜR IP- REKORDER

Scope of delivery 24

Warnings 25

Connections 26

Tips for camera installation 28

Hardware installation 29

Software set-up 31

App setup 36

Instructions + software 38

Nederlands

Security Tech Germany

Dansk

Indhold i kassen 78

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cable and rectangular device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

TVVR36701:

Security Tech Germany

Line drawing of a security camera connected to a mounted device via cables (no text or symbols present)

Security Tech Germany

Security Tech Germany

1

Abus Special Setup Options Before Start

WIZARD User Name admin Password Credit Password Camera Activation Password Passworded Email Access

ABUS WIZARD User name shtml Password Garden Password Camera Activation Password Reserved Email © 2016-01

ABUS WIZARD User Name admin Password Codine Password Camera Activation Password Powered Email 4th Anniversary Edition Add User

WIZARD 2. To Certifications Wizard? File | IP Address | Retailers | Guide | Project | Vargang | Software | Desktop/Getaway

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

Einrichtung App

https://www.abus.com/product/TVWR36301

https://www.abus.com/product/TVVR36701

Soft ware:

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

QUICK START GUIDE FOR

IP RECORDER

This quick-start guide describes the initial installation steps for your IP recorder.

Detailed information can be found in the user guide on the website www.abus.com

ABUS

Dear Customer,

Thank you for purchasing one of our products. This product complies with current European and national regulations.

Conformity has been proven, and all related certifications are available from the manufacturer on request: ABUS Security Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing, GERMANY.

To ensure that this standard is maintained and that safe operation is guaranteed, you are obliged to observe the stipulations set out in this user guide. Read the entire user guide before putting the product into operation, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved. If you have any questions, please contact your specialist dealer.

SCOPE OF DELIVERY

TVVR36301:

• 4-channel recorder
• 12 V power supply unit
- Wireless USB mouse
- 1 m network cable
• Hard disk drive connection cable
- Screws for hard disk drive
- Safety Information
- Quick start guide

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

TVVR36701:

• 8-channel recorder
• 12 V power supply unit
- Wireless USB mouse
- 1 m network cable
• Hard disk drive connection cable
- Screws for hard disk drive
- Safety Information
- Quick start guide

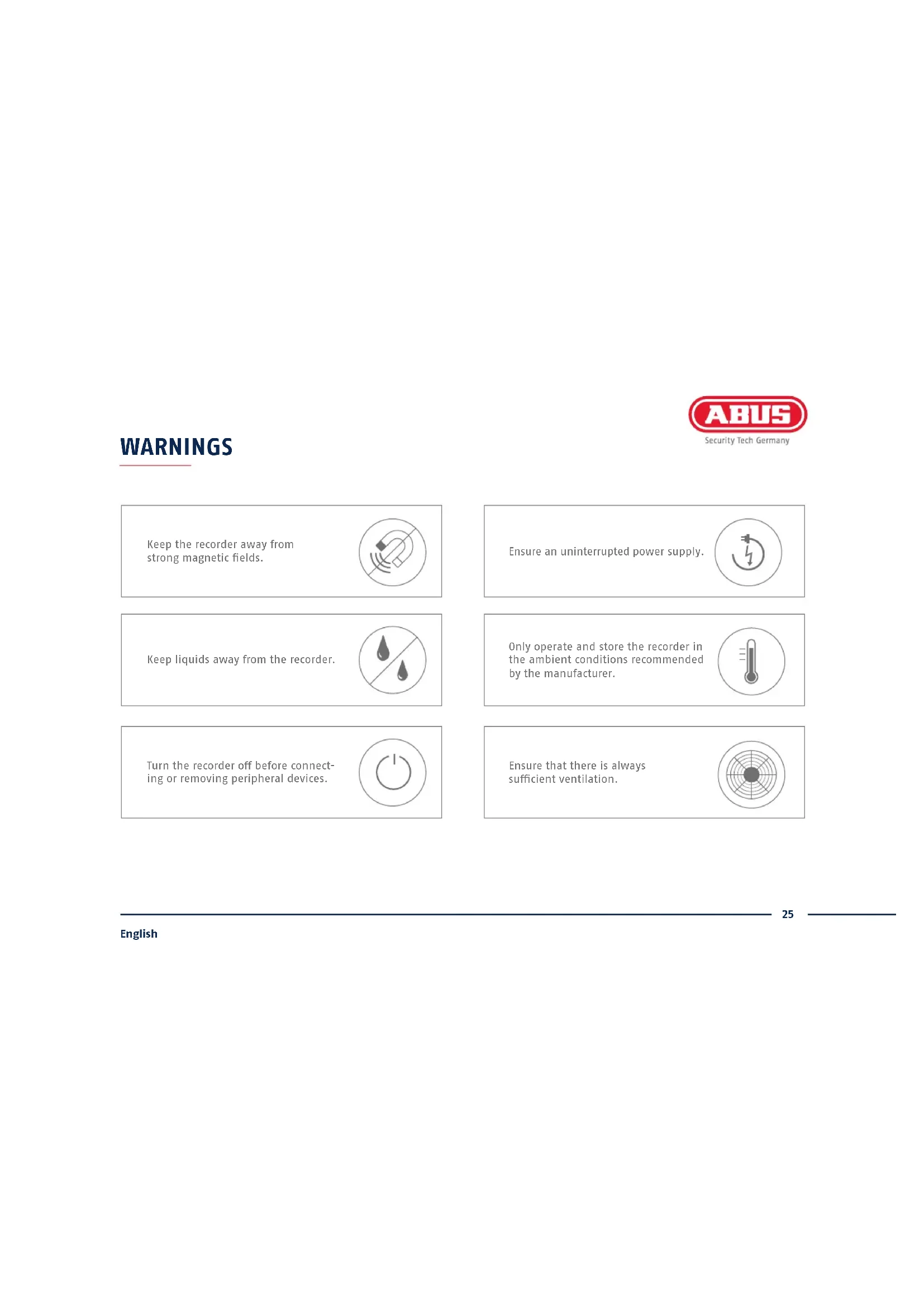

WARNINGS

Security Tech Germany

Keep the recorder away from strong magnetic fields.

Ensure an uninterrupted power supply.

Keep liquids away from the recorder.

Only operate and store the recorder in the ambient conditions recommended by the manufacturer.

Turn the recorder off before connecting or removing peripheral devices.

Ensure that there is always sufficient ventilation.

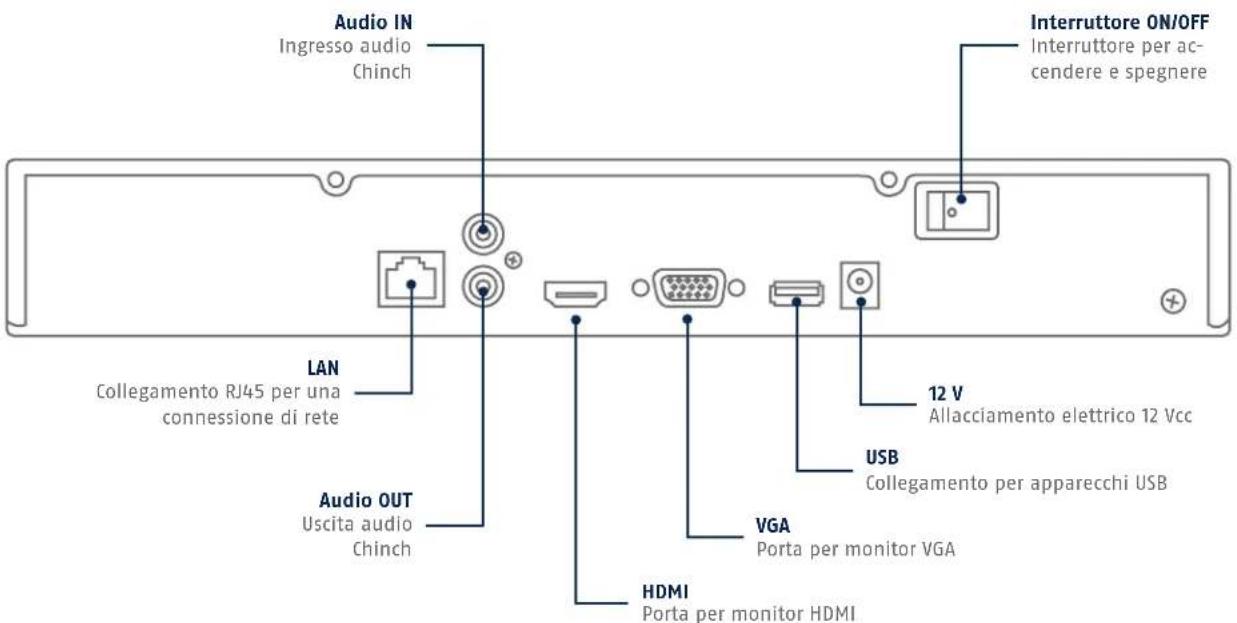

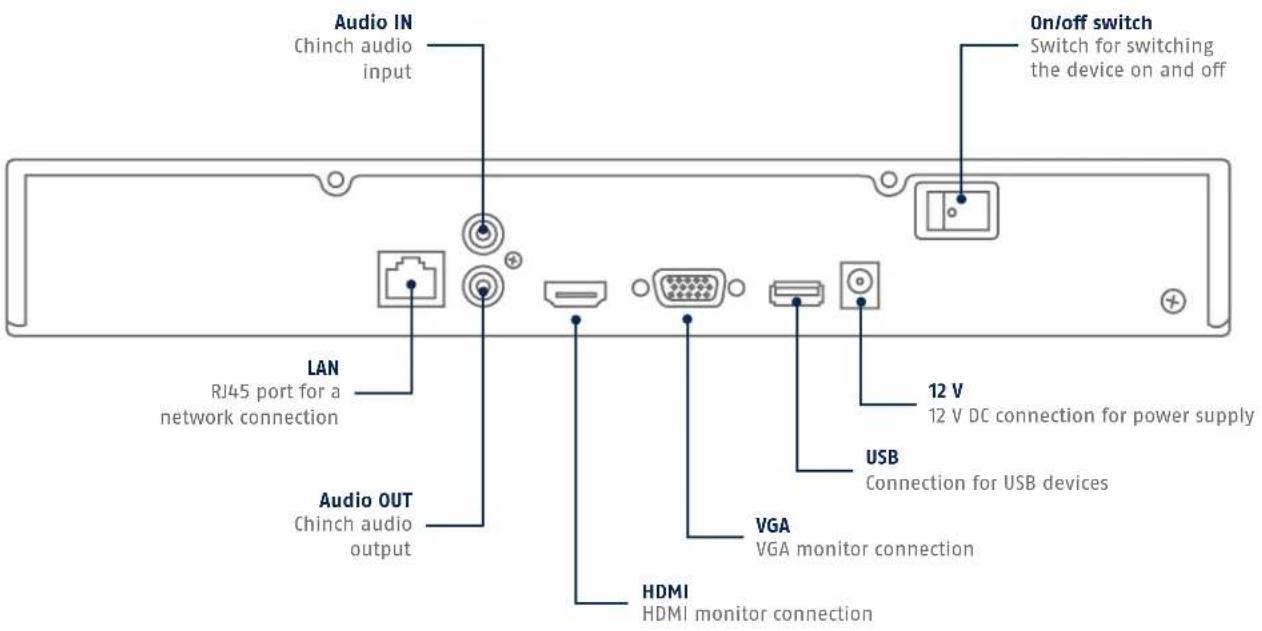

CONNECTIONS

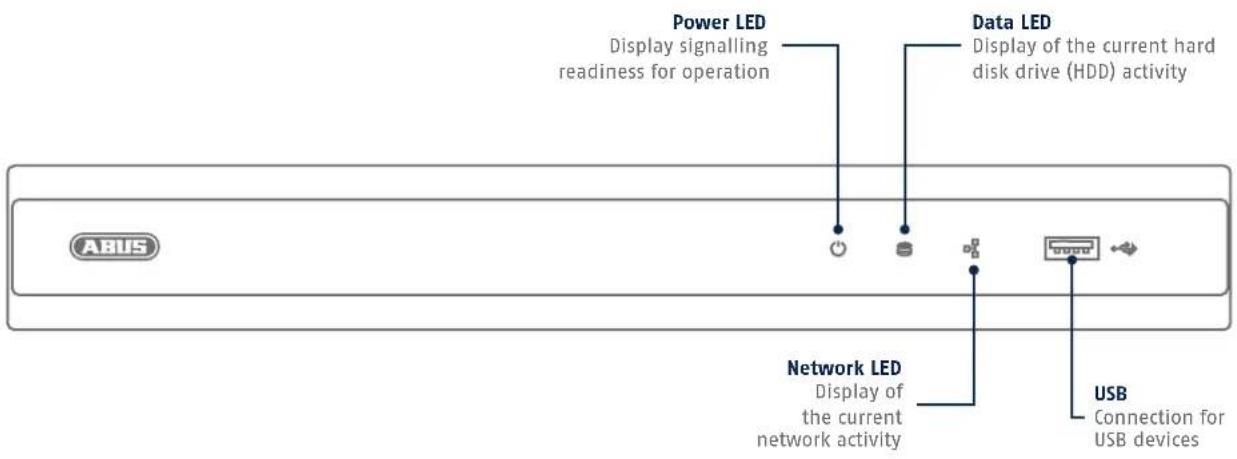

Power LED Display signalling readiness for operation Data LED Display of the current hard disk drive (HDD) activity Network LED Display of the current network activity USB Connection for USB devices

Security Tech Germany

Audio IN Chinch audio input On/off switch Switch for switching the device on and off LAN RJ45 port for a network connection Audio OUT Chinch audio output 12 V 12 V DC connection for power supply USB Connection for USB devices VGA VGA monitor connection HDMI HDMI monitor connection

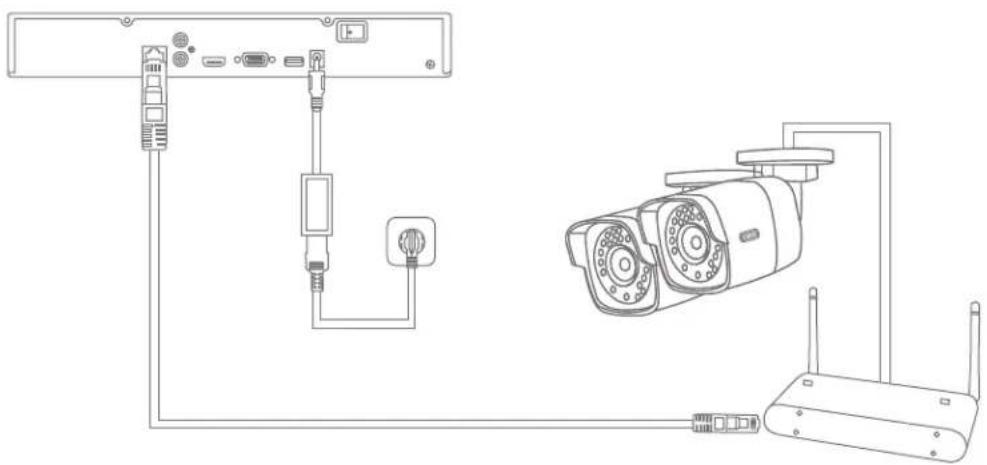

TIPS FOR CAMERA INSTALLATION

Line drawing of a security camera connected to a mounted device via cables (no text or symbols present)

Connect the recorder to the power supply and connect it to your home network via the network cable. Connect the power to the cameras and connect these to your home network too. You can then add the cameras in the software set-up.

HARDWARE INSTALLATION

Security Tech Germany

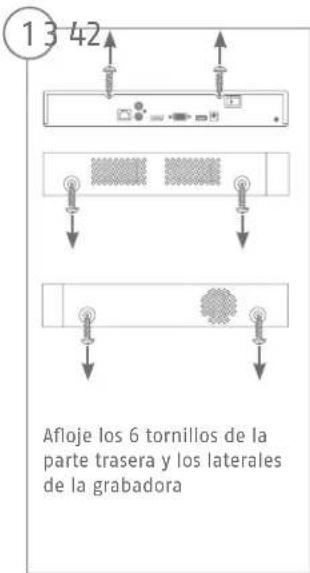

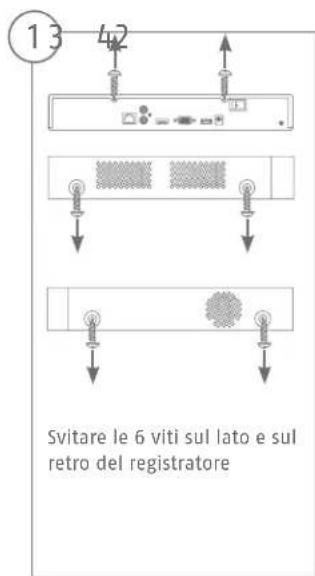

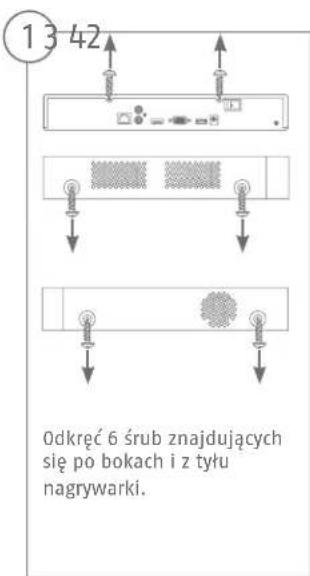

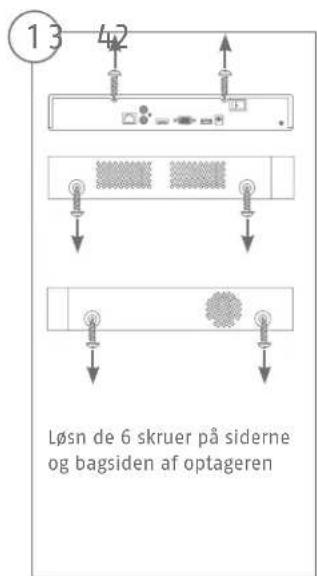

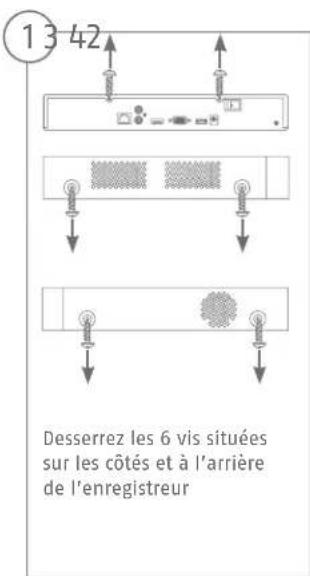

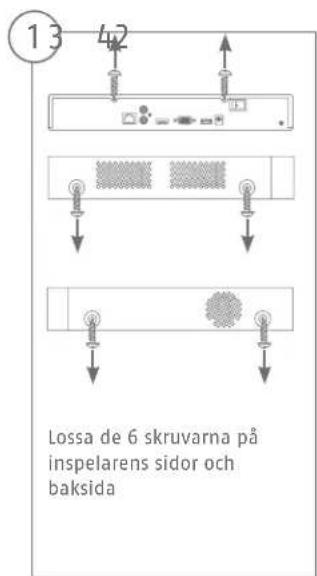

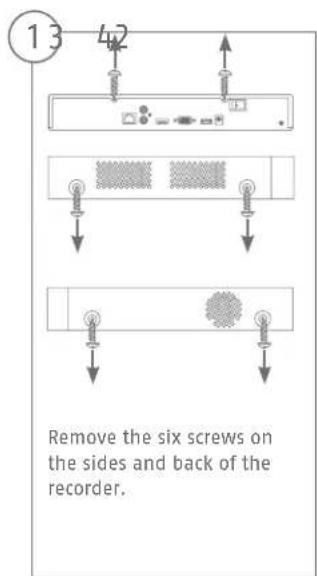

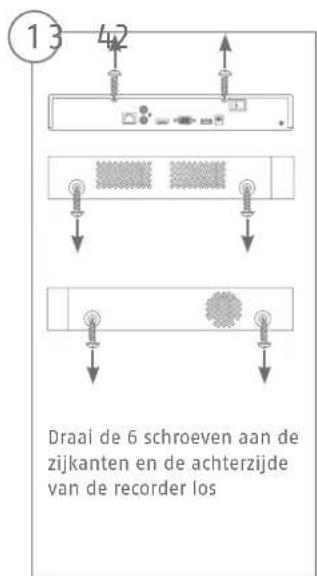

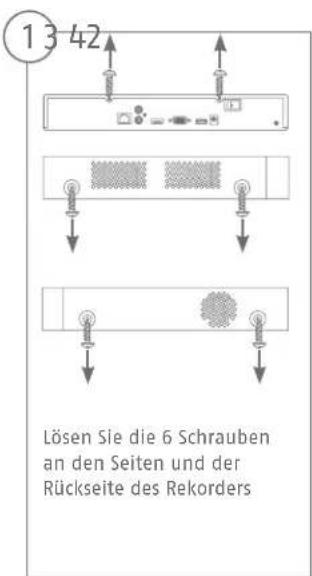

13 42 Remove the six screws on the sides and back of the recorder.

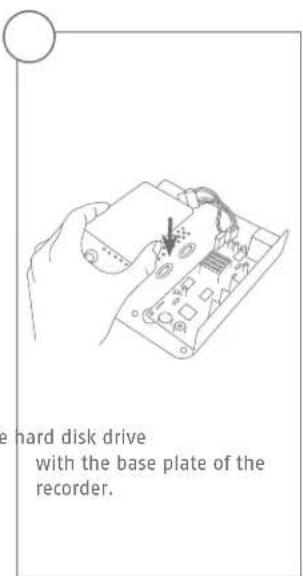

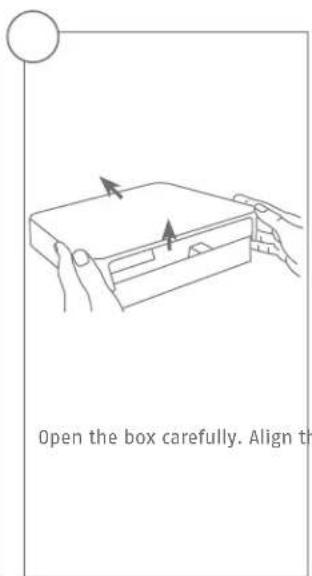

Open the box carefully. Align th

e hard disk drive with the base plate of the recorder.

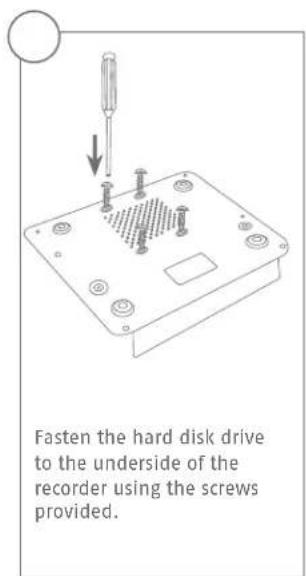

Fasten the hard disk drive to the underside of the recorder using the screws provided.

Line drawing of hands inserting a device into a control panel (no text or symbols)

Connect the hard disk drive to the motherboard with the data cable (small connector) and the power cable (large connector).

6785

Line drawing of hands holding a rectangular device with arrows indicating motion or force (no text or symbols)

Now place the box along the guide rails over the base plate of the recorder.

Then secure the box and the base plate with the six screws.

Hand holding a pen pointing to a toolbar with icons (no text or symbols visible)

Connect the power supply unit and switch the recorder on using the on/off switch.

SOFTWARE SET-UP

Security Tech Germany

1

Abus Login mask: 8027 OK

Select the desired language and click "Apply".

2

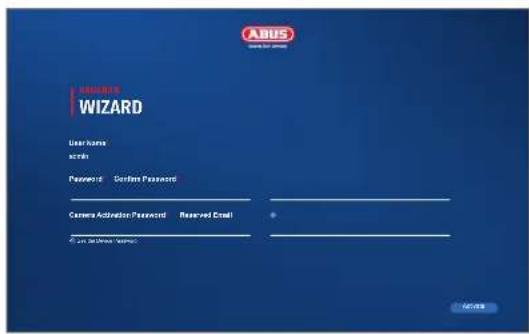

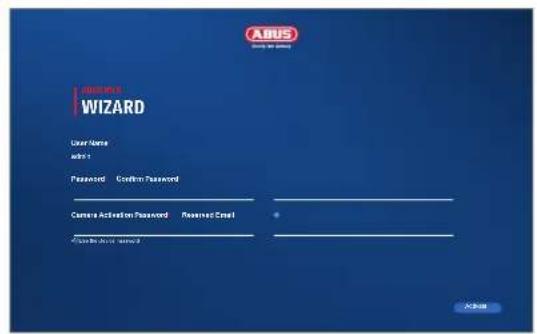

WIZARD User Name admin 1 Password Password Password Camera Activation Password Powered Email © Auto Web Services 2 ASUS

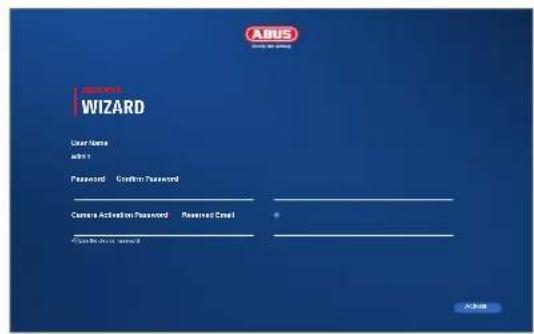

In the field "password" enter a password for the admin user. The password must meet the specified minimum requirements. Recommendation: Use a password that is as complex as possible and is classified as "strong".

Admin password:

3

ABUS WIZARD User name scrib Password Gender Password Camera Activation Password Reserved Email © ABUS WIZARD

Re-enter the password to confirm it. Make a note of the password in the quick start guide as well and keep it in a safe place. The admin password can only be reset by ABUS technical support.

4

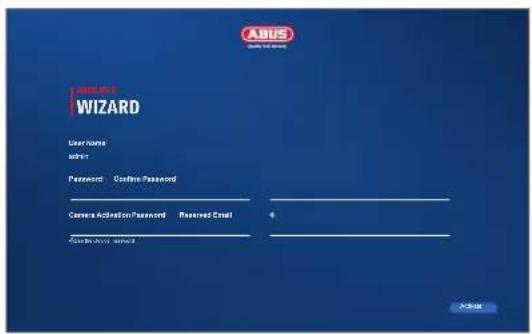

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Powered Email Search Book Senes 2 +

You should also enter the activation password for the cameras here. If you activate a camera via the recorder, the recorder uses this password for it. Then click on "OK". The device is now activated and all of its functions can be used.

5

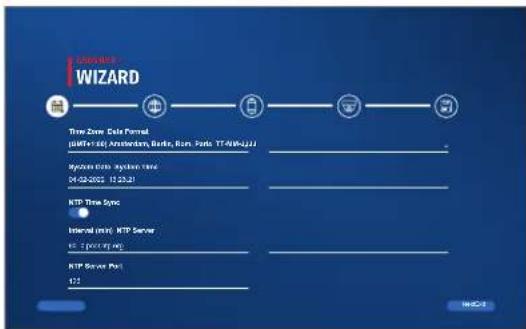

Time Zone Data Portal (AMR+134) Amsterdam, Berlin, Rome, Paris 17:08:22:21 MTP Server Port 04-02-2003 11:23:21 MTP Server Sync Internal (main) MTP Server 16.2 (post- Coding) MTP Server Port 425

Set the time zone, date, date format and system time. Close the screen by clicking "Next".

6

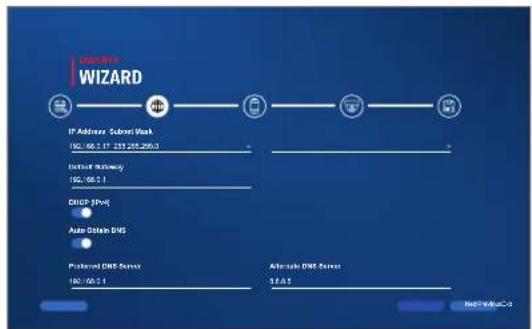

WIZARD IP Address Subnet Mask 190.166.2.17 233.225.205.0 Internet Release 190.166.2.1 DHSP [IPv] Auto Obtain DNS Preferred DNS Server 190.166.2.1 Alternate DNS Server 3.6.5 Nethttp://www.wizard.com

If you wish the address data to be automatically assigned, tick the "Enable DHCP" checkbox. The addresses will then be automatically assigned by your router (where supported).

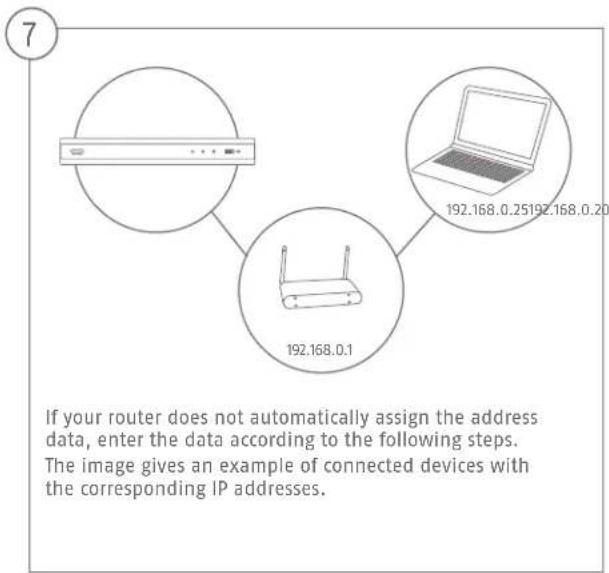

7 If your router does not automatically assign the address data, enter the data according to the following steps. The image gives an example of connected devices with the corresponding IP addresses.

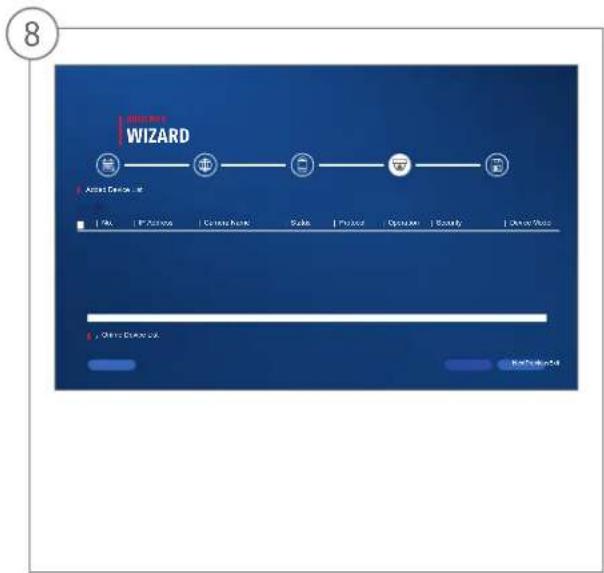

Microsoft WIZARD Add Device 8 PK | PC Options | Options Name | Style | Project | Options | Security | Other Goods Add Devices 8 OK/Cancel Add

Security Tech Germany

⑨

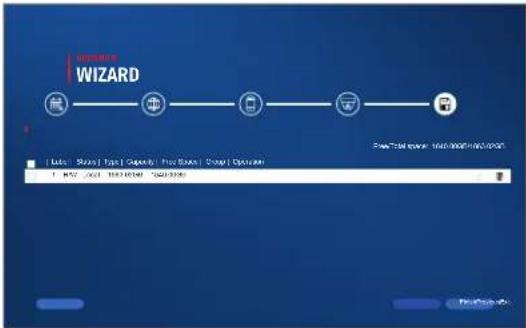

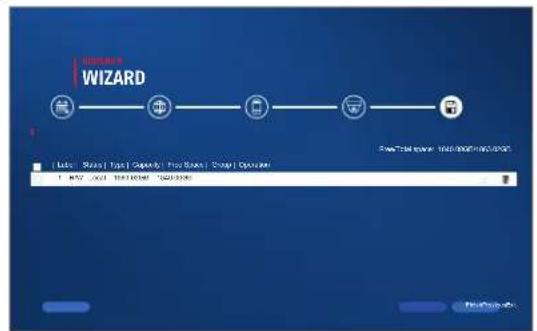

WIZARD File | Status | Type | Capacity | Free Stock | Group | Options OK OK Cancel Cancel

APP SETUP

1

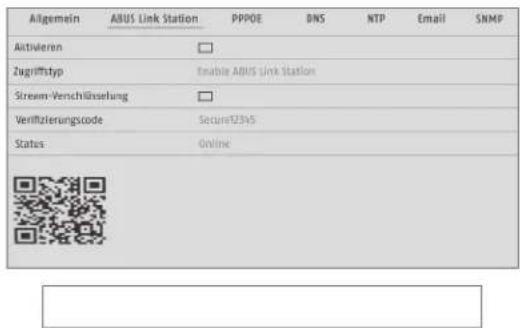

Allgemein ABUS Link Station PPPOE DNS NTP Email SNMP Activieren □ Zugriffstyp Enable ABUS Link Station Stream-Venschlüsselung □ Verifizierungscode Secure12345 Status Online

Activating ABUS Link Station

• Navigate to the network settings in your local interface and open the ABUS Link Station settings.
• Activate the ABUS Link Station function and click on "Save settings".
• The status should now show as "online". If "offline" is still shown, check that the recorder is connected to a network with internet access.
• Now assign a verification code for the connection. You can write down the code you used here, then keep the quick guide in a safe place.
• Leave the web interface open. The QR code and verification code shown are required to set up the recorder in the app.

Please note: The ABUS Link Station connects your recorder to your smartphone via the cloud service. You do not need to reconfigure your router for this. If you do not want to use the cloud service, you can follow an alternative app setup procedure in the recorder's instruction manual.

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

App setup

• Download the "ABUS Link Station" app from the iOS App Store or Google Playstore and open it.
• Create an account for remote access by clicking on "Log in" and then on "Register an account".
• Activate the account using the verification code sent to you by email.
• Click on "Add device" and scan the QR code from the recorder's local interface.
• After the recorder has been found, enter the recorder's verification code. The recorder has now been added to your account.
• If you experience problems during setup, please go to our support website: https://support.abus-sc.com/

INSTRUCTIONS + SOFTWARE

Instructions:

instructions for operating the online and recorder interfaces can be found under the "Downloads" tab at the following link:

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Soft ware:

1 ABUS Central Monitor Station (CMS) allows you to monitor, control and manage the video data from your ABUS recorder on your PC:

ABUS IP Installer to find your recorder in the network, to check for and install fi rmware updates and to download instruction manuals and quick start guides directly to your PC:

https://www.abus.com/var/ImagesPIM/d110001/medias/common/23/ABUS-IP-Installer_V9.5.3.zip

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

GUIDE DE DÉMARRAGE RAPIDE POUR ENREGISTREUR IP

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

AVERTISSEMENTS

Security Tech Germany

Line drawing of a security camera connected to an electronic device via cables (no text or symbols present)

Security Tech Germany

Line drawing of hands inserting a device into a control panel (no text or symbols)

Line drawing of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Diagram showing three labeled setups of a server rack with screw, battery, and indicator lights, indicating mounting or status changes.

Hand holding a pen icon with an arrow pointing to a toolbar (no text or symbols visible)

Security Tech Germany

1

Abus Login: 96247 OK

WIZARD User Name admin 1 Password Password Password Camera Activation Password Powered Email © Auto Web Server 2 ASUS www.asus.com

ABUS WIZARD User name scrib Password Gender Password Camera Activation Password Reserved Email © ABUS WIZARD

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Powered Email Search Book Senes 2 +

Microsoft WIZARD File Edit View Tools Options Format Tools Search Options 1. MNT Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick New Text file: 1234-0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

Confi guration de l'application

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Logiciel :

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

QUICKGUIDE VOOR

IP-RECORDER

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

TVVR36701:

Security Tech Germany

Line drawing of a security camera connected to a mounted device via cables (no text or symbols present)

Security Tech Germany

Line drawing of hands inserting a device into an open circuit board (no text or symbols)

Line drawing of a mechanical device with arrows indicating force or movement (no text or symbols)

Diagram showing three labeled setups with screw and indicator lights, likely illustrating a mechanical or electrical setup.

Hand holding a device interface with icons and a pointing arrow (no text or symbols)

Security Tech Germany

1

Abus Login: 96247 OK

WIZARD User Name admin 1 Password Password Password Camera Activation Password Powered Email © User By: 2016 - 2017

ABUS WIZARD User name admin Password Gender Password Camera Activation Password Reserved Email © 2018 ABUS Wizard

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Powered Email Search Book Senes 2 +

Time Zone Data Portal (AM/F+134) Amsterdam, Berlin, Rome, Paris 17:08:22:21 My Computer System Server 04-02-2003 11:23:21 NTP Time Sync Internal (main) NTP Server 16.2 (post running) NTP Server Port 425 WISC-9

Security Tech Germany

⑨

Microsoft WIZARD [ Luts | Stocks | Types | Capex | Prod Stocks | Change | Options ] 1 M57 Jock T64 K50 P62 S30 X50

ABUS Link Station activeren

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

Confi guratie app

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Soft ware:

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

KVIKGUIDE TIL IP-OPTAGER

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

TVVR36701:

Security Tech Germany

Line drawing of a security camera connected to an electronic device via cables (no text or symbols present)

Security Tech Germany

Line drawing of hands inserting a device into an open circuit board (no text or symbols)

Line drawing of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Diagram showing three labeled setups of a server rack with screw, socket, and indicator lights, indicating mounting or status changes.

Hand holding a device interface with icons and arrows, no visible text or symbols

Security Tech Germany

1

Abus Login page: 8027 OK

WIZARD User Name admin 1 Password Password Password Camera Activation Password Powered Email © USB Web Services 2 ASUS

ABUS WIZARD User name admin Password Gender Password Camera Activation Password Reserved Email © 2018-03-04 (www.wizard.com) © 2018-03-05 (www.wizard.com)

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Reserved Email Access to Web Server 2 +

Security Tech Germany

9

Microsoft WIZARD [ Luts | Stocks | Types | Capex | Prod Stocks | Change | Options ] 1 M57 Jock T64 K50 P62 S30 X50

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

Opsætning app

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Soft ware:

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

GUIDA RAPIDA PER

REGISTRATORE IP

Simple diagram with a rectangular box containing three labeled boxes and a vertical line, likely representing a UI or status bar.

Simple line drawing of a cable and rectangular device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a coiled cable or connector with two connectors (no text or symbols)

Safety Instructions

Quick Guide

AVVERTENZE

Security Tech Germany

Security Tech Germany

Line drawing of a security camera connected to a mounted device via cables (no text or symbols present)

Security Tech Germany

Line drawing of hands inserting a device into an open circuit board (no text or symbols)

Line drawing of hands holding a rectangular device with arrows indicating motion or force (no text or symbols)

Diagram showing three labeled setups for server rack or rack-mounted device, with screw and indicator lights indicating positions.

Hand holding a pen icon with an arrow pointing to a device panel (no text or symbols visible)

Security Tech Germany

1

ABUS 139/456-2027 Abus

Selezionare la lingua desiderata e fare clic su „Applica“.

2

ABUS WIZARD User Name admin 1 Password Confirm Password Camera Activation Password Reserved Call © User-Device Services 2 Access

ABUS WIZARD User Name admin Password Garden Password Camera Activation Password Reserved Email © 2018-03-06 - 03:06

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Reserved Email Access to Web Server 2 +

Microsoft WIZARD [ Luts | Stocks | Types | Capex | Prod Stocks | Change | Options ] 1 M57 Jock T64 K50 P62 S30 X50

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

Confi gurazione app

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Soft ware:

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

KRÓTKI PRZEWODNIK DO NAGRYWARKI IP

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

Security Tech Germany

Line drawing of a security camera connected to a router via cables (no text or symbols)

Security Tech Germany

Line drawing of hands inserting a device into an open circuit board (no text or symbols)

Line drawing of a mechanical device with arrows indicating force or movement (no text or symbols)

Diagram showing three labeled setups with screw and indicator lights, likely illustrating a mechanical or electrical setup.

Hand holding a pen pointing to a toolbar with icons (no text or symbols visible)

Security Tech Germany

1

ABUS 139/458-2027 Abus

ABUS WIZARD User Name admin 1 Password Confirm Password Camera Activation Password Reserved Call © User-Device Services 2 Access

ABUS WIZARD User name scrib Password Gender Password Camera Activation Password Reserved Email © ABUS WIZARD

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Powered Email Search Book Senes 2 +

Microsoft WIZARD File Edit View Tools Options Format Tools Search Options 1. MNT Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick New Text file: 1234-0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Oprogramowanie:

Security Tech Germany

ABUS

TVVR36301/TVVR36701

SNABBGUIDE FÖR IP-INSPELARE

Simple line drawing of a rectangular frame with no text or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

TVVR36701:

• 8-kanals inspelare
• 12 V-nätdel
- Trådlös USB-mus
• 1 m nätverkskabel
• Hårddiskkabel
• Hårddiskskruvar
• Säkerhets instruktioner
- Snabbguide

WARNINGAR

Security Tech Germany

Line drawing of a security camera connected to a mounted device via cables (no text or symbols present)

Security Tech Germany

Line drawing of hands inserting a device into an open circuit board (no text or symbols)

Line drawing of hands holding a rectangular device with arrows indicating motion or force (no text or symbols)

Hand holding a pen pointing to a toolbar with icons (no text or symbols visible)

Security Tech Germany

1

Abus Login page: 8027 OK

WIZARD User Name admin 1 Password Password Password Camera Activation Password Powered Email © USB Web Services 2 ASUS

ABUS WIZARD User name schrift Password Garden Password Camera Activation Password Reserved Email © 2018 ABUS Wizard

ABUS WIZARD User Name admin Password Password Password Camera Activation Password Powered Email Search Book Senes 2 +

Security Tech Germany

9

Microsoft WIZARD [ Luts | Stocks | Types | Capex | Prod Stocks | Change | Options ] 1 M57 Jock T64 K510 1243 3398 SWEETEN INDEX / USD/USD IN USD/JPY File Edit View Help

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

Ställa in appen

Security Tech Germany

ABUS

TVVR36301 / TVVR36701

GUÍA RÁPIDA DE LA

GRABADORA IP

Simple line drawing of a rectangular frame with no text or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible broadband cable with connector ends (no text or symbols)

Safety Instructions

Quick Guide

ADVERTENCIAS

Security Tech Germany

Line drawing of a security camera connected to a mounted device via cables (no text or symbols present)

Security Tech Germany

Line drawing of hands inserting a device into an open circuit board (no text or symbols)

Line drawing of a hand holding a rectangular device with arrows indicating motion or force (no text or symbols)

Diagram showing three labeled setups with screw and indicator lights, likely illustrating a mechanical or electrical setup.

Hand holding a device interface with icons and arrows pointing to a button (no text or symbols visible)

Security Tech Germany

1

ABUS 139/456-2027 Abus

ABUS WIZARD User Name admin 1 Password Confirm Password Camera Activation Password Reserved Call © User-Device Services 2 Access

ABUS WIZARD User name admin Password Gender Password Camera Activation Password Reserved Email © 2018-03-04 (January) Access

ABUS WIZARD User Name Password Password Password Camera Activation Password Password Email Access to Web Server 2 Add OK

Microsoft WIZARD File Edit View Tools Options Format Tools Search Options 1. MNT Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick Quick New Text file: 1234-0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Security Tech Germany

2

ABUS

iOS Apple App Store

Android Google Play Store

https://www.abus.com/product/TVVR36301

https://www.abus.com/product/TVVR36701

Soft ware:

Security Tech Germany

Security Tech Germany

abus.com
