USER MANUAL Poolrunner Twin Steinbach

cs Cistic bazenu.. 89

s1 Cistilnik bazena. 123

Package contents/components

Fixing screw
2 Top part
3 Handle
Bottom part
5 Floating cable
6 Plastic filter bag, 2x

Filter unit, 2x
8 Control unit
9 Buoyancy aid, 4x
10 Safety rope
Fleece filter bag, 2x

Instruction manual (not shown)

Contents

Overview 2

Package contents/components 20

General Information 22

Explanation of Symbols 22

Safety 22

Unpacking and checking the package contents 24

Description. 25

Description of the pool cleaner. 25

Functions of the control unit. 25

Operation 26

Cleaning the pool 26

Switching off the device 29

Cleaning. 30

Cleaning the device 30

Storage 31

Troubleshooting 32

Technical data. 34

Spare parts. 35

Declaration of Conformity 36

Disposal 36

General Information

Read and keep the operating instructions

These operating instructions are part of the "Twin Pool Runner" pool cleaner (in the following also called "device"). They contain important information about start-up and operation.

Read the operating instructions and especially the safety instructions carefully before using the device. Non-observance of these operating instructions can lead to severe injuries or

damage to the device.

Keep the operating instructions for further use. If you pass on the device to a third party, you must pass on these operating instructions as well.

Intended use

This device is exclusively intended for the maintenance cleaning of private foil pools with a foil thickness of >0.4 mm (0.02 in)

• and a smooth and level floor without any obstacles (such as folds, floor drains, steps or stairs),
  level, smooth and vertical walls (e.g. pools without top ring) and whose water level is below the edge of the pool (no overflow pools, for example).

The cleaning performance may be limited in pools made of alternative materials (such as fiberglass, stainless steel or tiles) due to the surface structure.

The device is not suitable for the removal of large sediment quantities that occur in pools with biological water treatment (such as eco swimming pools or natural pools).

This product is exclusively intended for private use and not suited for the commercial sector. Only use the device as described in these operating instructions. Any other use is considered inappropriate and may lead to material damage or even injury. The device is not a toy.

The manufacturer or retailer will not assume any liability for damage caused by inappropriate or incorrect use.

Explanation of Symbols

The following symbols are used in these operating instructions, on the device or on the packaging.

Here you will find useful additional information.

Risk of damage!
Do not open the packaging with sharp or pointed objects, such as cutters

Safety

The following signal words are used in these operating instructions.

This signal symbol/word denotes a hazard with an average risk level that could lead to death or severe injury if it is not avoided.

This signal symbol/word denotes a hazard with a low risk level that could lead to mild or moderate injury if it is not avoided.

This signal word provides a warning about potential material damage.

WARNING!

Risk of electric shock!

Faulty electric installation or excess mains voltage can cause an electric shock.

• Only connect the power cable if the mains voltage of the socket matches that on the type plate.
• Only connect the power cable to an easily accessible socket so that you can quickly disconnect it in the case of a fault.
• Only connect the power cable to a grounded socket.
• Operate the device only at an outlet with a protective contact and a fuse with max. 16A.
• The device must be powered via a residual current device with a rated residual current of at most 30mA .
• Do not operate the device if it has visible damage or if the power cable/the power plug is defective.
• Do not open the device; leave repairs to an expert. Contact the service address on the back of the instruction manual for this purpose. All liability and warranty claims will be void in the case of arbitrary repairs, improper connection or wrong operation.
• Never touch the power cable with wet hands.
• Never pull the power cable out of the socket by the cable; always hold it by the plug.
• Never use the power cable as a carrier handle.
• Keep the device and the power cable away from naked flames and hot surfaces.
• Do not place any objects on the power cable.
• Do not bury the power cable.
• Route the power cable such that no one can trip over it.
• Do not kink the power cable and do not place it over sharp edges.
• Do not use the device during a thunderstorm. Switch it off and pull the power cable out of the socket.
• Always switch off the device and disconnect it from the power supply if you are not using the device, when cleaning it or in the case of a fault.
• Only components that meet the original device data must be used for repair. There are electric and mechanical components in this device that are indispensable for hazard protection.
• Only use spare parts and accessory parts supplied or recommended by the manufacturer. All warranty claims will be void when using third-party components.
• Do not operate the device with an external timer or a separate remote system.

NOTICE!

• Only use the supplied control unit that matches your device.
• Never let the device run outside of the water as this can cause damage even after a short time.

Safety instructions for persons

WARNING!

Danger to children and persons with reduced physical, sensory or mental capacities (such as partially disabled persons/older persons with reduced physical and mental capacities) or persons lacking experience and knowledge (such as older children).

Improper handling of the device can lead to severe injury or damage to the device.

Only allow others to access the device after they have read and comprehended the entire manual or have been instructed about the intended use and the associated risks.

• Never let persons with reduced physical, sensory or mental capacities (such as children or drunk people) or a lack of experience and knowledge unsupervised near the device.
• Never allow children and persons with limited physical, sensory or mental capacities or persons lacking the respective experience and knowledge to operate the device.
• Do not let children clean or service the device.
• Children are not allowed to play with the device or with the power cable.
• Do not operate the device when impaired (e.g. under the influence of drugs, alcohol or medication).

WARNING!

Risk of injury through insufficient qualification!

Insufficient experience or skills for handling the required tools and insufficient knowledge of regional or normative regulations for the required work can lead to severe injuries or material damage.

• Assign all work whose risks you cannot estimate due to insufficient personal experience to a qualified expert.

Unpacking and checking the package contents

WARNING!

Packaging materials pose a risk of suffocation!

Catching your head in the packaging foil or swallowing other packaging materials can cause death. There is a higher risk for children and mentally challenged persons who cannot estimate the hazard potential due to lack of knowledge and experience.

• Prevent children and mentally challenged persons from playing with the packaging materials.

Description

Description of the pool cleaner

The battery-operated pool cleaner cleans the bottom and the walls of your pool for maintenance.

Cleaning rollers dislodge the accumulated biofilm.

The removable filter unit 7 filters suspended deposits and floating substances out of the water.

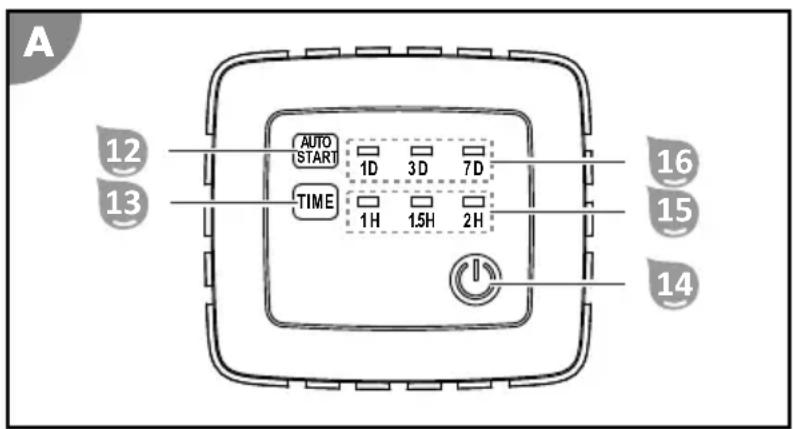

Functions of the control unit

Autostart function 12 16

Use this function to set the automatic start of operation. It serves for regular maintenance cleaning if you are not going to use the pool for a longer time.

With active autopost function, the pool cleaner remains in the water. It must therefore only be used when it is certain that no one will enter the pool during use. Take the pool cleaner out of the pool before swimming again!

Use the AUTOSTART button to switch between the cleaning intervals. Before and after the start of operation, the lit LED 16 indicates the currently selected mode. If no cleaning interval is active, all LEDs blink or none of the LEDs of the LED display blink 16.

• 1D repeats cleaning daily.
• 3D repeats cleaning every 3 days.
• 7D repeats cleaning every 7 days.

Time function 13.15

Use this function to set the running time.

Use the TIME button 13 to switch between the running times. After the start of operation, the LED indicator 15 indicates the currently selected and active mode by blinking.

• 1H stops cleaning after 1 hour.
• 1.5H stops cleaning after 1.5 hours.
• 2H stops cleaning after 2 hours.

ON/OFF function 14

Use this function to switch the device on and off.

Use the ON/OFF button 14 to switch between the following functions:

• ON switches the device on and starts cleaning at the same time.
  OFF stops cleaning and switches the device off at the same time.

Operation

WARNING!

Do not operate while swimming! Mortal danger!

Hair or clothing can be sucked in or trapped by the cleaning element, hold persons under water and, in extreme cases, prevent them from resurfacing.

• Never operate the device while there are persons in the pool.
• Prevent any access to the pool as long as the device is in operation.

WARNING!

Risk of electric shock!

Risk of electric shock if the control unit drops into the filled pool while it is connected to the power supply.

Pull the power plug out of the socket before lifting the device out of the pool.

WARNING!

Risk of electric shock!

Handling the power plug with wet hands can lead to an electric shock.

• Never touch the power plug with wet hands.

NOTICE!

A lawnmower can damage a cable placed on the ground.

• Route the cable so that it cannot be damaged by a lawnmower or similar device.

NOTICE!

High temperatures can damage the control unit.

• Do not cover the control unit.
• Place the control unit in the shade, if possible.

Check the following before each use:

Is there visible damage on the device?
- Is there visible damage on the control elements?
- Do all individual parts function?
- Are the accessories in perfect condition?
- Are all cables in perfect condition?

Do not start up a damaged device or damaged accessories. Have them checked by the manufacturer or its customer service or a qualified service technician.

Cleaning the pool

Observe the following before cleaning your pool:

• Remove any cover or film from the pool.
• Remove obstacles (such as a ladder) from the pool.
• Switch off the filter system at least one hour before the start of cleaning so that particles in the water can settle on the floor.
• Never let the device run outside of the water as this can cause damage even after a short time.

Proceed as follows to clean your pool:

1. Select the filter bags according to the type of soiling.
2. Insert the filter units.

3. Place the device in the pool.

4. Connect the control unit to the device and the power supply.

5. Select the desired autostart function. See section "Functions of the control unit".
6. Start the cleaning program and adapt the battery runtime to the size of your pool. See section "Functions of the control unit".

Selecting the filter bag

The device is supplied with filter bags with different degrees of fineness.

Select the right filter bag according to the degree of soiling or carry out a rough and then a fine cleaning.

coarse soiling

Plastic filter bag (black) for insects and leaves

fine soiling

Fleece filter bag (white) for pollen and sand

NOTICE!

Filter bags pulled on top of each other can lead to overheating of the motor.

• Never pull more than one filter bag over the filter unit.

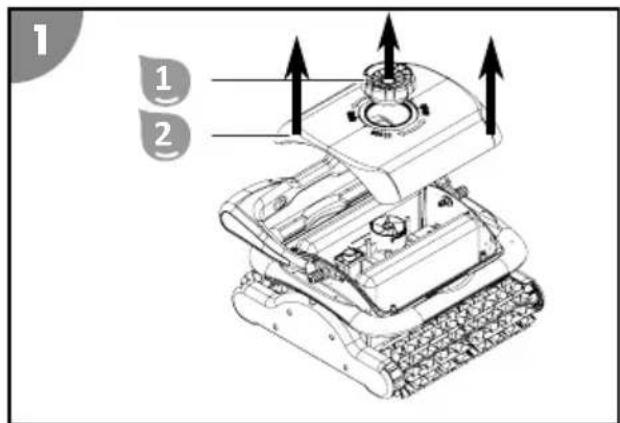

Inserting the filter units

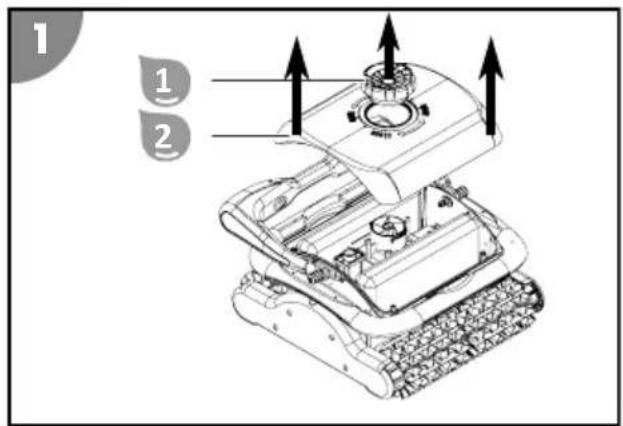

1. Unscrew the fixing screw 1
2. Take the top part off.

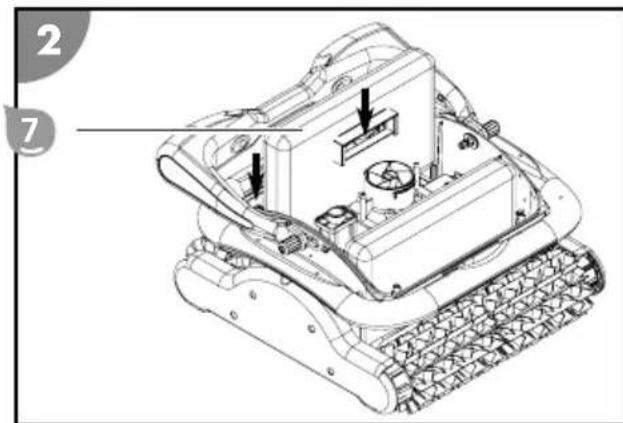

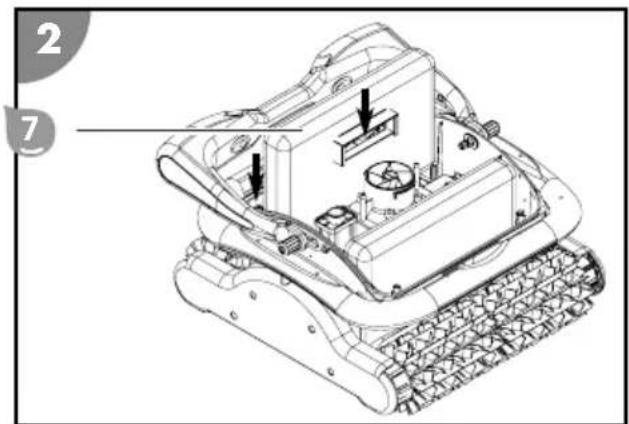

3. Slide the filter units into the device along the guide rails all the way to the stop.

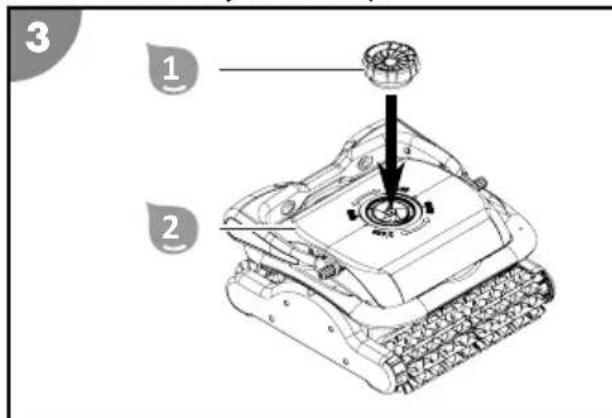

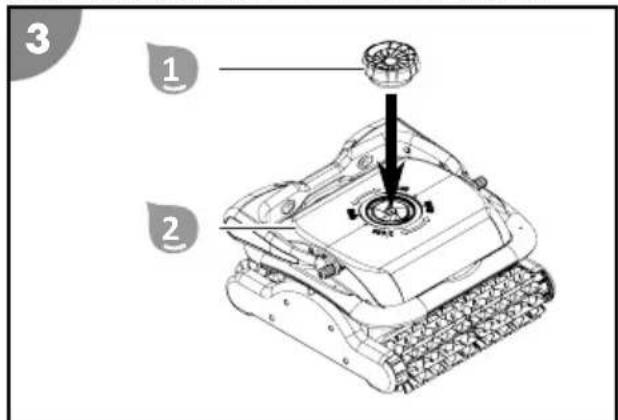

4. Replace the top part 2 and screw it down again with the fixing screw 1.

The filter units are inserted.

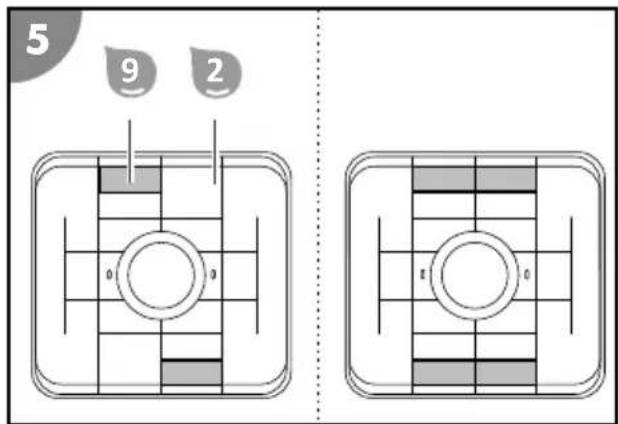

Installing the buoyancy aids

1. Unscrew the fixing screw

1. Take the top part 2 off.

1. Stick two of the self-adhesive buoyancy aids diagonally opposite each other on the inside of the top part 2. Should the device still not float sufficiently, stick on two additional buoyancy aids next to the ones already installed.
2. Replace the top part 2 and screw it down again with the fixing screw 1.

The buoyancy aids are installed.

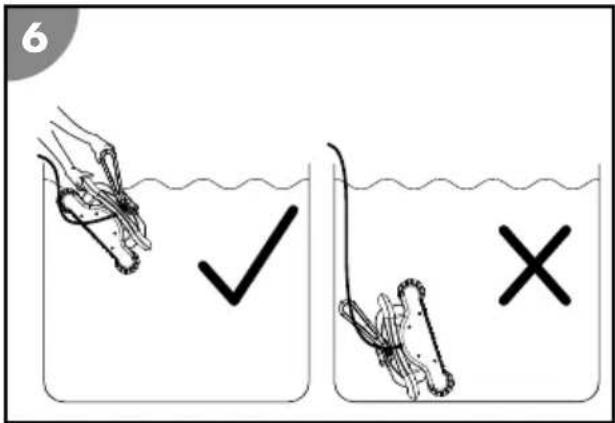

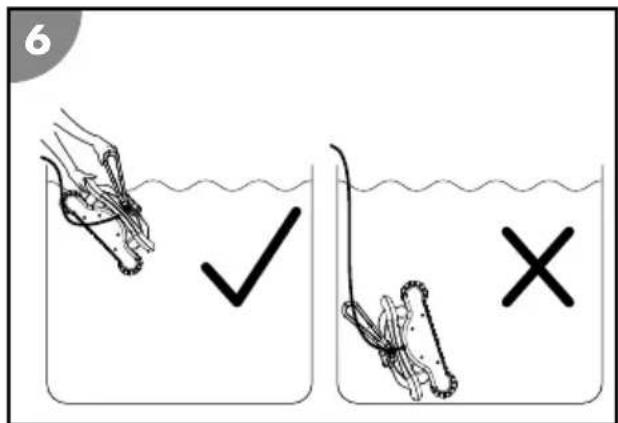

Placing the device in the pool

1. Completely unroll the floating cable 5 and place it next to the pool without twisting.
2. Hold the device by the handle 3 and lower it slowly into the water (tipped slightly forward) until all the air has escaped.
3. Let the device sink to the bottom while you slowly feed more floating cable 5 to lower the device in a controlled manner. Make sure that the device lands on the bottom of the pool on its underside and that cleaning can start without obstruction towards the center of the pool.

The device is in the pool.

Connecting the control unit

1. Only let as much of the floating cable into the water so that the device can reach all the spots in the pool.

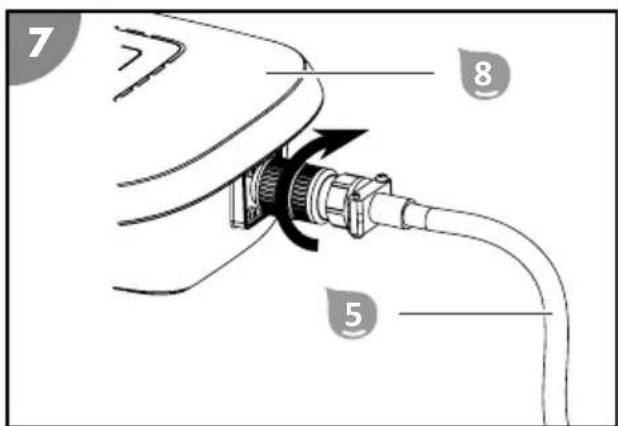

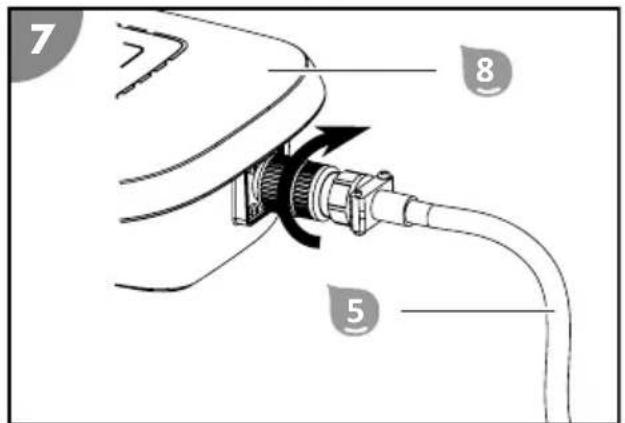

2. Connect the plug of the floating cable in the right position to the control unit and screw the connection together.

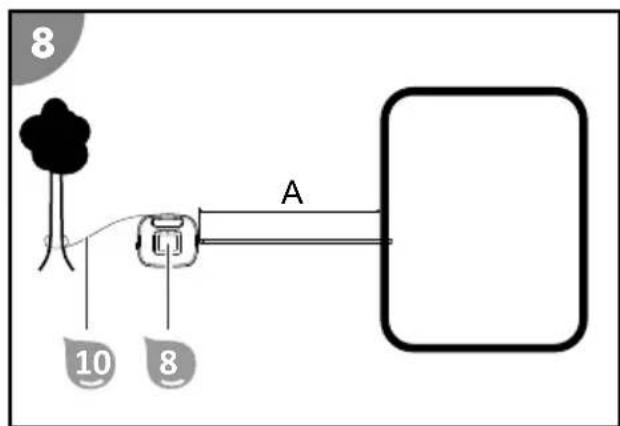

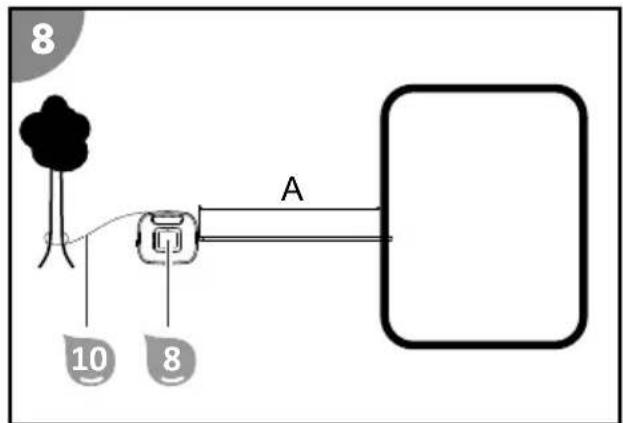

3. Attach the control unit 8 at a distance of at least A = 3.5 m to the pool with the safety rope so that it cannot be pulled into the water.
4. Connect the power plug to a grounded socket.

The control unit is connected.

Starting cleaning

1. Press the AUTOSTART button on the control unit.

The indicator shows the setting of the last selected autostart function. All LEDs of the autostart function blink if periodical cleaning has not been selected.

1. Select your desired autostart function by pressing the AUTOSTART button.
2. Press the ON/OFF button on the control unit.

Adapt the cleaning time to your pool size if necessary.

Cleaning has started, the indicator indicates the settings of the last selected cleaning program and the battery runtime LED starts to blink.

Switching off the device

Proceed as follows to switch off the device:

1. Switch off the device after the end of the cleaning program.
2. Disconnect the control unit from the power supply and the device.
3. Lift the device out of the pool.
4. Clean the filter units and the device.
5. If you use the autostart function, place the device in the pool again and connect the control unit to the power supply.

Stopping cleaning

Cleaning stops automatically once the set running time has expired.

All cleaning time LEDs blink.

Terminating the cleaning early

1. Press the ON/OFF button.

The control unit is switched off, all LEDs are off.

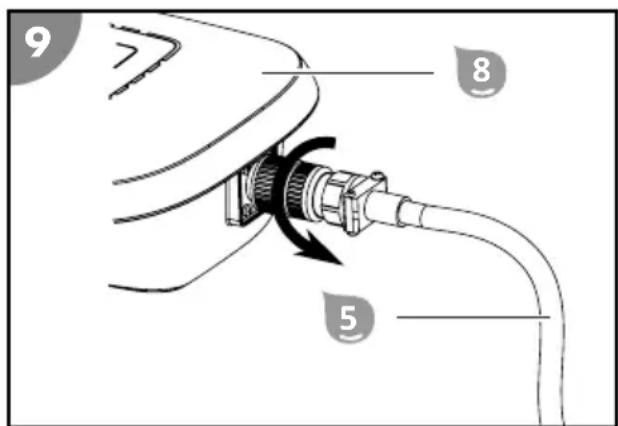

Disconnecting the control unit

1. Disconnect the power plug from the grounded socket.
2. Undo the screw fitting of the plug on the control unit 8 and pull of the floating cable 5.

The control unit is disconnected.

Lifting the device out of the pool

1. Slowly pull the device by the floating cable handle 3.

towards the water surface until you can reach the

1. Slowly lift the device out of the water and hold it above the water surface.

After 10 to 15 seconds, most of the water that has collected in the housing has drained back into the pool.

1. Set down the device next to the pool.

The device is lifted out of the pool.

Clean the device after each use to ensure continued trouble-free operation.

Cleaning

Only clean the device with a standard bathroom cleaner, clear tap water and a lint-free cloth. Aggressive cleaning agents can damage the device. Dry the device with a lint-free cloth.

Cleaning the device

1. Remove and clean the filter units.
2. Rinse the device and the floating cable after each use with plain tap water inside and out. The device is clean.

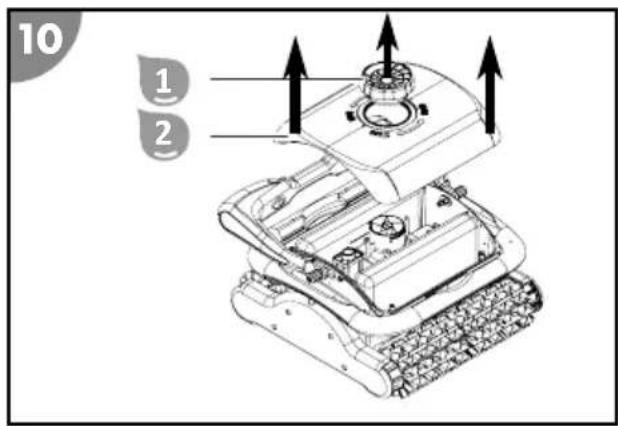

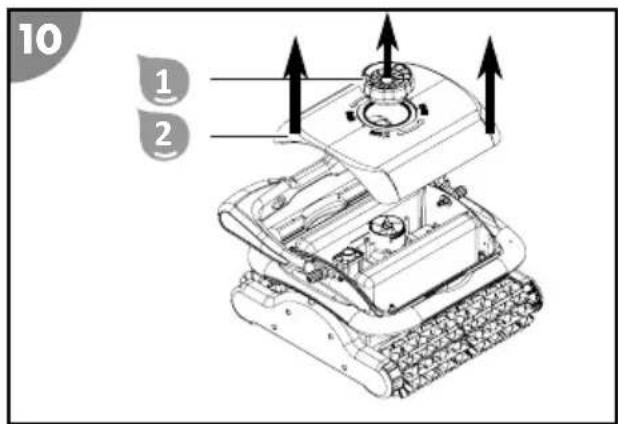

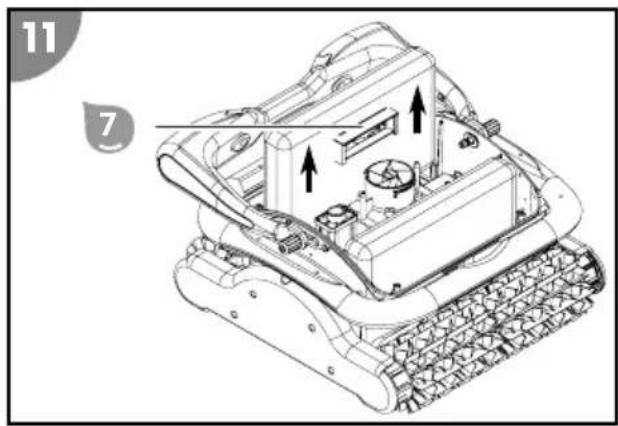

Removing the filter units

1. Unscrew the fixing screw 1
2. Take the top part off.

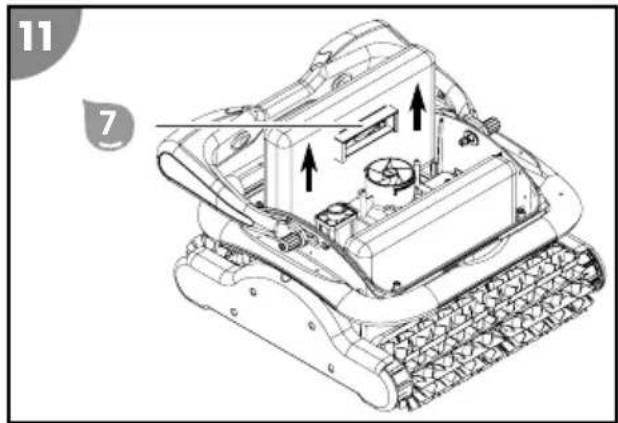

3.Pull the filter units 7 straight up and out of the device.

The filter units are removed.

Cleaning the filter units

1. Open the Velcro hook-and-loop strap of the filter bags 6 or 11 and pull them off the filter units 7.
2. Thoroughly rinse the filter units 7 and the filter bags 6 or 11 with plain tap water.
   3.Pull the cleaned filter bags 6 or 11 over the filter units (note the position of the recess) and close the hook-and-loop strap.

The filter units are cleaned.

Storage

1. Thoroughly clean the device (see section "Cleaning").
2. Let all parts dry completely.
3. Then store the device and its accessories in a dry and frost-free place (≥ +5^) without direct sunlight.

Troubleshooting

Fault description Cause Remedy
1H+1.5H blink and a signal sounds The pump is overloaded. Stop the device	and check if the wheel is blocked by a foreign object.
1.5H+2H blink and a signal sounds The drive motor is overloaded. Check the drive belt.	drive belt.
1H+2H blink and a signal sounds The device is out of the water. Stop the device, immerse it in water and start the device again.	immense it in water and start the device again.
The cable is twisted or tangled. The cable was not completely detached.	Switch off the device, disconnect the cable and untangle it.
The cable in the water is too long. Pull	the excess cable length out of the water. The cable in the water should only be long enough so that the device can reach all spots in the pool.
The device becomes stuck on the drain grate.	Switch off the filter system of the pool.
The device cannot reach all spots. The control unit was wrongly positioned.	Position the control unit so that the device can easily access all spots.
The water circulation of the pool is switched on.	Switch off the filter system of the pool.
The cable is too short. Let a sufficient length of cable into the pool so that the device can reach all spots in the pool. Observe the minimum distance of the control unit to the pool.	length of cable into the pool so that the device can reach all spots in the pool. Observe the minimum distance of the control unit to the pool.
The device does not completely move up the wall.	The filter is clogged. Clean the filters.
	Algae grows on the walls. Manually pre-clean the pool walls.Investigate and remedy the cause of algae growth (e.g., pH value). Use the pool cleaner more frequently.
	The water temperature is too high or too low.	Operate the device at water operating temperature (see section "Technical data").
	The drive belt or the cleaning rollers are worn.	Check the drive belt and cleaning rollers for wear and replace them if necessary.
	The device is too light and topples. Switch off the device and let all the air escape.
	The pH value and the chlorine quantity are not properly set.	Adjust the pH value and the chlorine value to the correct value (see section "Technical data").
	The device has too little buoyancy. Attach additional buoyancy aids (part of the package contents; see section "Installing the buoyancy aids").
The device does not function. The control unit is not completely plugged in.	Check the plug connection of the power cable and the control unit.
	The control unit needs a different voltage than the local one.	Contact customer service.
The device does not sink. There is air in the device. Switch off the device and let all the air escape.	Set the correct salt content. See section "Technical data".
The device rises to the surface. The device climbs too high or there is air trapped in the device.	Switch off the device and let all the air escape.
	Set the correct salt content. See section "Technical data".
The drive belt tears off. There are foreign objects in the drive.	Contact customer service.

If the problem cannot be solved, contact the customer service listed on the last page.

Technical data

POOL CLEANER CONTROL UNIT

Model: HJ2042 Cable length to the device: 18 m (29 ft)

Item number: 061025 Rated power: 200 W

Width of cleaning element: 361 mm (14 inches) Operating voltage and 220-240 V~, 50 Hz

frequency:

Speed: max. 12 m/min (39 ft/min) Output voltage: 20 V =

Immersion depth: max. 2.0 m (6.5 ft.) Safety class: IPX5

Filter mesh: 100 m POOL

Safety class: IPX8 Pool size - floor area: max. 50m^2 (108 sq. ft.)

App control not available Salt content in water (salt < 0.5%

electrolysis):

Ambient temperature: 10^ to 40^ (50°F to Water temperature: 10^ to 35^ (50°F to

104°F) 95°F)

Spare parts

061955 - Stabilizer handle
099117 - Fixing screw
099118 - Top part
4 099119 - Filter unit
061954 - Collision protection
099123 - Cleaning roller
099124 - Bottom part
099125-Bearing
061961 - Drive wheel
099129 - L-shaped drive belt

099128 - Side cover
099127-Cable
099134 - Plastic filter bag, black
099135 - Fleece filter bag, white
099133 - Control unit for 061025
099131 - Drive motor
099130 - Filter pump
099132 - S-shaped drive belt
061976 - Motor unit (061025)
099122 - Propeller
099121 - Water outlet

Declaration of Conformity

Steinbach International GmbH hereby declares that the device meets the following directives:

2014/35/EU (EN 60335-1:2012+A11:2014; EN 60335-2-41:2003+A1:2004+A2:2010; EN 62233:2008)
2014/30/EU (EN 55014-1:2006+A1:2009+A2:2011; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013)

You can request the complete text of the EU Declaration of Conformity from the address stated at the end of this instruction manual.

Disposal

Disposing of the packaging

Sort the packaging before you dispose of it. Dispos of paperboard and cardboard with the recycled paper service and wrappings with the appropriate collection service.

Disposing of used appliances

Applicable in the European Union and other European countries with separate collection systems for recyclable materials.

Used appliances do not belong in the household waste!

If the device can no longer be used, each consumer is obligated by law to drop off used appliances separate from the household waste at a municipal collection point. This ensures that used appliances are recycled properly and negative effects on the environment are avoided. Therefore electrical appliances are marked with the above symbol.

1. Pritisnite tipko ON/OFF.

Krmilna enota se bo izklopila in vse LED lucke bodo ugasnile.

Onachoct ot TOKOB ydap!

HenpaBnHnT MoHTax Ha eNeKtpoObOpyDbaHeTo IIN ppeKaJIeHO BnCOKOTO MpeKOB HAnpeKeHne MORaT Da IOBeDaT DO TOKOB yIap.

• Cbpxkete 3axpaHbaunia KabeI cmo aKO MPexKOBTo HnpeXeHne Ha KOHTaKTHaTa KYTNcB0TBETCTBa Ha INOpMaunra Tbpxy TINOBATA TaBeNa.
• Cbbp3BaIte 3axpaHbAunKa6eI cAmo KbM IecHO IOCTbneH KOHTaKT, 3a Da MoKeTe 6bp30 da ro N3KJIOnHTe OT eJNEKtpnueckata Mpeka B Cnyuay Ha abapna.
• Cbbp3BaIte 3axpaHbIaIyKaIeI cAmO KbM 3a3EmeH KOHTaKT TIN Uyko.
• 3no3BaTe yCTpoIcTBOTO cMo BkIOueHO B IeNCEJHa KytTn TIN ,WyKO" CbC 3aUntEH KOHTaKT C npedna3ntel nohe 16A.
• YcTpoIcTBOTTO TpRA6Ba Da 6bJe CHa6DeHOC HOMINHaJIeH OCTaTBueH TOK He NObeYe OT 30 mA Upe3 yCtpoIcTBO 3a OCTaTBueH TOK (RCD).
  He BbBexJaTe yCTPOcTBOTo B EKcnnoataaun npn HauNue Ha BUnmN uetn nn DepeKeTeh 3axpaHbau Ka6eJ.
• He OTbaprnte camn yctpoNCTBOTO, OCTaBeTe peMOHTa da 6bJe n3BbPweH OT CneuajnCTn. 3a ueTae cBbpxete C aDpeca Ha cepBn3a, NocOueH Ha rbp6a Ha PbkOBODCTBOTO. B cnuyaH hA camoCToTeJIHO n3BbPweH peMOHTn, HeppaBnHc CBbp3BaHe IIN He npabunHa eKcnIooatauia, O T oxbaTa Ha rapaHcTna I OTROBOPHOCTTA Ce n3KnIOyBat BCNUKNraPAHcNOHH INpeTEHcUN.
• Hnkora He xBaaauTe 3axpaHbuaaKa6eI C BnaXn pbue.
• Hnkora He n3KJIouBaIte 3axpaHbAunia Ka6eI ype3 dbpnaHe 3a Ka6eIa, a XBaauTe BnHaIg 3a IeIceJa.
• Hnkora He n3noJ3BaIte Cbbp3BaunKa6eJ KaTo DpbXka.
  -ДрькTe yctpoiCTBOTOи CBbp3BaIЯ KaBeI dJIeY OT OTKpNT OIbH I ropeuN IOBbpXHOCTN.
• He nocTaBnTe HnKaBn IpeMeTn BbPxy Cbbp3Baunr Ka6eJ.
  He BkonabaIte 3axpaHbuaaKa6eI.
• PpokapaiTe Cbbp3Baunna Ka6e TaKa Ye da He npedn3BnKBa cnIbBaHe.
  He orbBaIte Cbbp3Baunna Ka6e n He ro noctabraTe Bbpxy octpn p60be.
  He n3noJ3BaIte yctpoinCTBOTo npn 6ypra. N3KJIIOUeTe ro n i3DbpnaTe 3axpaHbaunKa6en OT KOHTaTa.
  BnHa n3KJIIOUBAIte n OTCTpaHRAIte yCTPOIcTBOTO OT eNEKTPuYeCKaTa MpeKa B cnYuA, Ye CbIaIrT He Ce N3NoJ3Ba, NoUcTBA NIN Bb3HnKHe NOBpeDa.
• Пи ремоHTи могат да ce ИЗПОЛ3ВaT само чаТи, кOnTO OTROBapRT ha ПьрBOHaчАнHITe XapakTePepnCTnKn Ha yCTpoiCTBOTO. B TOBa yCTpoiCTBO ce hamipaT eIeKTPnueckn IMexaHnUHn ChATo, KOnTO ca 6e3ycIOBHO Heo6xOДmN 3a 3aIITaTa OT n3TOUHNuHa ONaCHOCTN.
• I3noJ3BaIte cAmo pe3epBn uactn n npHaIeXHocTn, KOntO ca doCTaBeHn nn npenOpbuaHn OT npOn3BOIDTeJI. Pn n 3noJ3BaHe Ha aactn Ha dpyr n npOn3BOIDTeJIOTnadat BcKaBn rapaHIOHHn ppeTeHm.
• He n3noJI3BaIte yCTpoINCTBOTo C BbHsEe TaIMep INIIN OTDeJIHa CnCTema 3a DnCTaHcIOHNO ynpabJIeHne.

YKA3AHNE!

• ɪnənɪ3Baɪte cʌmɒ BkʌhʊeHŋB dɔctaBkɑtæ n iɒdxdərʒ 3a BaʊeTo ycTpoɪCTBO 6JIOK 3a ynpaBnEHHe.
• Hnkora He octabraye ypea da pa6OTn n3BbH BODaTa, Tb' Kato TOBa MoKe da IOBeDe cIeK kpaTko BpeMe do NOBpeNi.

PPEyPExKdEHNIE!

Onachoctn 3a deca n Iuca c HamaJeHn 0n3nueckn, ceTbHN nn yMCTBeHn cnocoboctn (hanpimep Iuca c qactnHn yBpejdaHna, no-Bb3paCTHn Iuca c orpaHnueHn 0n3nueckn n MeHTaHn Cnooc6HOCTn) nIi JInCa Ha ONIT n 3HaHna (hanpimep no-roJemn deca).

HenpaBnHaTa pa6Toa c yCTpoiCTBOTo MOKe npuHH TeKKn HapaHbAHn NIn UeTn Ha yCTpoiCTBOTo.

• Pa3peweTe DoCTbI Ha dpyrN Iuca do yctpoiCtBOTo eDba CneI KaTO ca npoeyn HAnbJIHO n ca pa36paJI N CMNCbJa Ha HAcTOraIcTO pBkoBOdCTBO IIN Ca IHCTpyKTIpaHn 3a CbO6pa3eHa c PpeDHa3HaueHHeNo To YNOTpeBa n CBbp3aHInTe C TOBA ONaCHOCTN.
• Hnkora He octabraye Xopa c HamaJeHn 3nueckn, CetNBn IyMCTBeHn cnoc6HOCTn (HaNP. Deua nIIN PnRHN Xopa) nIIN JInca Ha ONIT N 3HaHna (HaNP. Deua) B 6IIN3OCT Do yCTPOINCTBOTO 6e3 NaD3Op.
  Hnkora He no3BOJBAuTe Ha deca nn JIcA C HamaJeHN qn3UeCKN, CETNBHn JINm YMCTBEHN cNoCObHOCTn nn JIi IInca Ha ONIT n 3HaHna Da n3NOJ3BAT yCTPOJCTBOTO.
  He donyckaIte nouchTbaHeto I noDpBkKaTa da Ce n3BbPWBaT OT deca.
  -Да He ce donycka deca da irpaT cypea nI npscbeHnTeJHHa Ka6eI.
  He n3noJ3BaIte yCtpoiCTBOTO, aKo He ce yUbCTBaTe Do6pe (Ha np. noB Bb3dEiCTBneTo Ha HApKOTnU, anKOxOJI nn MeDnKaMeHTN).

PPEyPPEXDEHNE!

Onachoct OT hapaHbAhe B pe3yIaT Ha Iunca Ha KBaJIncKaIaIa!

IINCBaU ONIT NIIyueHn np6bopaBeHe C Heo6xOdHMn IHCTpymeHTN IINCBAuN 3HaHn OTHOCHOpeNoHaJIHn IINI HOpMaTUBHn pa3npoe6n 3a Heo6xOdHMn IpOceNoHaJIHn DeHocTN MoKe Da IOBeDe Do Ha-NceNo3Hn HapaHbAHn IINI MaTePnaJIHn UeTI.

• Bb3naraTe BCNUKn pa60Tu, cHnTo pncOBe He MoXeTe Da npeceHnTe Ype3 DocTaTbueHJIuEh ONIT, Ha KBaIINΦuNcIpaHN CneuaJIInCTn.

Pa3oNaKOBaHe n npOBepKa Ha o6XBaTa Ha doCTaBkaTa

PPEyPExKdEHNIE!

OnachocT O3aDywaBaHe Upe3 onakOBbyeH MaTepnan!

O6xbaaHTo Ha rnaBata B onakOBbUHO fOpNo IIN NOrIbShaHeTo Ha dpYn ONaKOBbUHN MaTePnAn MoKe Da IOBeDe DO CmbpT Upe3 3aDyUbaHe. CneuAnHO 3a Deua, KaKTO n Xopa C yMCTBeHn YBpeXdAnH, KOINT B pe3yJITat Ha JInca Ha 3HaHn I ONIT He MORaT da PpeeHrT PnCKOBte, NOPaDN KoETo B Ta3N Bpb3ka CbIeCTByBa NOBUnHe PnCKOB NOTeHcuaI.

• YBepete ce, che c onakobbHnmaTePnaJI He cn irpaT deca n Xopa C yMCTBeHNyBpeKdAHn.

Onncahne

OncaHne Ha ypeDa 3a nouchTbaHe Ha 6aceHH

UpeBt 3a NouchBaHe Ha 6aceHn, KOIto pa60Tu C 6aTeepn, N3BbPwBa TekyuO NouchBaHe Ha noDa nCTeHnte Ha Baun HAnbJIneH 6aceH.

NoctBaunrBaanKaHa ypea OTCpaHbA 6noHaJIeN.

CbaIeMnT fHITbpeH 6JOK 7 cHITpnpa pa3TBOpEHte OTnaRaHn I cycneHnPaHnTe TBbpN nactuO T BOdaTa.

Функции Ha 6лoka 3a упраВлени

Функця abTomatnHc cTapTnpaHe 1216

Функцят haCTpoIbBa aBOMaTHUHOTcTAPtnpaHe Ha ekCnIOaTaIyra.ИЗнOL3Ba ce 3a peIOBHO NOДьрЖаIo NOYNCtBaHe, aKO ПЛуВиЯTбaceH He ce ИЗПОЛ3Ba пe3пpeДВИДМ, NO-ДьЛьгпepINOd OT Bpeme.

Pn aKTHBnA yHKnra 3a aBTOMaTNUHO CTapTnpaHc-yyHKnna ypeIbT 3a nouNCTBaHe Ha baceHN OCTaba BbB BOdaTc. CJeIOBATEJHO TMAOKe Da ce n3noJ3Ba cAmo KOrato e rapaHTnpaHO, Ye HNKo He BIn3a B baceHa. YpeIbT 3a NoUcTbaHe Ha baceHN Tp8Ba Da ce MaxHe OT baceHa ppei NOBTOPAuaBnB baceH!

ByToHbT AUTOSTART 12 npEbkIIOUBA MeKdy INHTepBaIInTe Ha NoOuNCTBaHe. CBeTOdNOdHnT HNDKaTOP 16 nOKa3Ba npEiN i CNeD CTapTnpaHE Ha EKCIIIOaTaUry, Ype3 NOCToRHHo CBeTeHe, AKTyaHNo N36paHnIPEkIM. AKO HMa aKTHBnPAn INHTepBaIHa NoOuNCTBaHe, BCNUK CBeTOdNOOn MmRa T IIN HNTO eINH OT CBeTOdNOdHnI HA CBeTOdNOdHnI INDkaTOp He CBET16.

• 1D noBtapn nouHCTBaHHeTo exeHHeBHO.
• 3D noBtapra nouchTbaHTo Ha BCEKn 3 dHn.
• 7D noBtapra nouchctBaHeto Ha BCEKn 7 dHn.

BpeMeBa yHKcna 1315

Функцята HabstpoBa npOdbIKNITeHOCTTa Ha pa6oTa.

Bytoh TIME 13 npeBknHouBa MeKdy pa3nHHTe HAcTpoEHn BpeMeHa 3a npoDbJxHtEnHOCTTa Ha pa6ota. CBeToIOHnT INDnKaTOp 15 noka3Ba cIeD CTapTnpaHe Ha ekCnloatauia aKtyaIHO N3bpaHn peKIM n aKTNBHtE peKIMu Ype3 MuraHe.

-1H npekpaTBA nouchTaBHeTo cIeI 1 yac.
- 1.5H npekpaTbA nouchTbaHeTo cJeI 1,5 Yaca.
- 2H npekpaTbBa nouchTbaHeTo cJe 2 yaca.

Функцьвкн./иЗк. 14

Onachoct OT TOKOB ydap!

Ako BkIIOeHnT B eNEKTPnuCeKaTa MpeXa 6Iok 3a ynpaBHeHne nAdHe B HAnbJIHeHnBaceH, TOBa 1e DOBeDe Do eNEKTPnuCeKn TOKOB ynap.

• ɪədʒpnaɪte MpexOBnɪa ðeɪncelɪ OT KɔntaɪkTa npeɪdi NaɪsBaʌnɪte ypeɪda OT bæseɪHa.

PPEyPExKDEHNE!

Onachoct OT TOKOB ydap!

ДOKOCBaHTo Ha МржOBия с мokрп рьце може ддовед do TOKOB ydap.

• Hnkora He DoKocBaIe MpeXOBnI c MoKpn pbce.

YKA3AHNE!

Kocayka 3a TpeBn nloos Moke da nobpeyn noIoxen Ka6eJ.

• NocTabeTe Ka6eJIte TaKa, Ye Da He 6bDaT NOBpeHn OT ppeMHaHe Ha Kocayka 3a TpeBn PLOUuN dP. yCTpOJCTBa.

YKA3AHNE!

BnCOKI Tempeatpy MoarT da npuHrT nobPeDa B 6Joka 3a ynpabJIeHne.

He nokpmbaTe 6noka 3a npabneHne.
- No Bb3MOXHOCT NOCTaBeTe 6noka 3a ynpabHeHne Ha cHka.

PpeiBcKa ynoTpe6a npOBepTe cJeHTo:

• IMa JIN BvDmN UeTn NO yCTpoiCTBOTO?
• IMa Jn BnDnMn UeTn no eJemeHNTte 3a ynpabJIeHne?
• NocoueHa Jn e fynkzra Ta Ha OTdeHNHe Yactn?
  -ПинадлжноТеВбупpeMuСьсToHneЛиca?
• Bcunkn ka6eJn nn ca B 6e3ynpueHNO cbctOarHne?

He BbBexdaIte B ekCnloataunia NOBpeDeHo ycTpoiCTBO n npHaJdNexKHOCTn. OcTaBeTe 3a npOBepKa n peMOHT OT npOn3BOIDNTeJI,OTdeJa 3a o6CnyXBaHe Ha KJIneHTn IJI N KBaJIncpUpaH CneUaJIInCT.

Почистван На басян.

Ipei n oocmbaHe Ha 6aceHa, obpheTe BnMaHne Ha cJeHOTo:

• Otrpahe Te eBentyaHn NOKpTna, pecn. fOJna ot 6aceHa.
• OtctpaheTe npenTCTBnTa (Hanp. cTbI6a) ot 6aceHa.
• BkIIOHe ΦNITpnpaUaTa CnCTema NoHe Yac IpeDn HauAnoTo Ha NOuNCTBaHETO, 3a Da MOraT 3aMbpcraBaHnra Ta BbB BODaTa Da ce YTaT Ha DbHOTo.
• HnKora He octabryte ypea da pa6OTn n3BbH BODaTa, TbN KaTO TOBa MOKe da IOBeJe cJeI KpaTko BpeMe Do NOBpeNi.

Pn nouctbahe Ha Baunna BaceH npoeDnpaTe, KaKTo cneDbA:

1.Изберетe Фиntьрнata Top6ичka соред Вида Ha 3amьсяBaHeTo.
2. NocTabete enemEnTte Ha qntbphn6NOK
3. NocTaBeTe ypeDa B 6aceHnHa.
4. CbpxkeTe 6Joka 3a ynpablenHe cypea n 3axpaHbaHeTo.
5.Изберете Ланота Функция 3a abTomatnHc CTaptnpaHe. ВжTe rnaBa "Функции Ha 6LoKa 3a ynpabBneHne".
6. CtaptnpaIte nporpamata 3a nouCTBaHe n perynpaTe npOdbJnxTeHocTtHa pa6oTa cnopei rolemnHa Ta Baunr 6aceH. BxTe rnaB "ФyHKunn Ha 6Joka 3a ynpabNeHne".

H36op Ha qnntbpa TOp6uKa

YpeIbT ce doCTabc c fHITbprn TOp6uKc cpa3IuHa fHITpnpaua cnoCo6hoct.

I36epete noxodiaata fnnTbpha Top6nka cnopeBnda Ha 3ambpcaBaHeTo nII pBO n3BbPseTe rpy6o, a cneD TOBa fHNO NOHCTBAHe.

rpy6n 3ambpcnteJIi

nIaTmacObaΦNtBpHa Top6uKa (UepHa) 3a HaceKOMn JInCTa

ΦHn3aMbpcnteJI

fHITbPHa Top6nka OHTbKaH TeKCTnI (6yla) 3a CBeTeH npaWeu n IraCbK

YKA3AHNE!

Hacnoxehn edHa Bbpxy dpyra fntbphn Topbuk MoarT da IOBeaT do nperepaHe Ha Dbratela.

• Hnkora He noctabrai Te nobuee ot eHa fntbpha Top6nka Bbpx fntbphna 6nok.

NoctabrHe Ha eIeMeHTnte Ha qnntbphn6Jok

1.Pa3BnTeΦHKcnpaunTe BnHTOBe 1.
2. CbaJeTe roPHaTa yact 2
3. BkapaIte enemeHTnte Ha qnntbphna 6JOK
4. NocTaBete roPHaTaaCT 2 nI y3aBHTeTe OTHOBO CnKcnpaunBnHT

Enemehmume Ha qunmbpHu 6nok ca nocmaeHu.

B ypeDa nO DbJxHnHaTa Ha BODaUHTe Do ynp.

MOHTIpaHe Ha npncnocO6neHna 3a yBeJIuHaBaHe Ha noDEMHaTa cnla

1.Pa3BnTeΦHKcnpaUte BnHTOBe 1.
2. CbaJeTe roPHaTa yact 2

1. 3aeneTe DBe ot cAmo3aenBaunte Ce npncnoc6nneHna 3a yBEnuHaBaHe Ha NOEmHaTa Cnla 9 DnArOHaJHo OTKbM BbTpeuHaTa CtpaHa Ha roPHaTa Yact 2. Ako CNeT ToBa yPeBbT BCE OSe IMa npekaneHO MaIka NOpemHa Cnla, Do Beue NOCTaBeHnTe MOHTnpaIe DBe DOnbHnTeHN H npncnoc6nneHna 3a yBEnuHaBaHe Ha NOEmHaTa 9 Cnla.
2. NocTabete rophaTa yact 2 n 3aBnHTeTe OTHOBCnKcnpaunBnHT

PpucnocobneHuraMa 3a yBenuuabeHe Ha nOedmHaMa cuna ca MoHmuPaHu.

IocTabrHe Ha ypeDa B 6aceHa

1. Pa3BnTe nnaBauJna Ka6e 5 HanbHNO rno nocTabeTe do 6aceHa 6e3 da e ycyKaH.
2. XbaheTe 3npaBO ypeNa 3a pbkoXBAtkata 3 n Iro NotoneTe 6abHO (NEKO HAKNOHeH Hanpei) BBB BODaTa DO nbJHo N3nyckaHe Ha Bb3dyxa.
   3.OctaBeTe ypeBbT da NtBHe KbM DbHOTo, KaTO 6abHO NOdaBaTe PnaBaUmaKa6eI 5, 3a Da KOHTpOJIpaTe NOTbBAHeTO.

YBepete ce, ye donHaTa cTpaHa Ha ypeDa DOKOCBa DbHOTo Ha baceHa, nYe NOUcTBaHETo MOKe Da 3aNoUHe 6e3npenrTCTBeHO B NocOka KbM ueHTbPa Ha baceHa.

Ypeobm nocmaee H 6aceuHa.

Cbbp3BaHe Ha 6Joka 3a ynpabNeHne

1. IOTone Te nlaBau nja Ka6eJI 5 BB BODaTa DOTOJKOBA, Ye ypeDbT Da DOCTnRa BCNUK TOuKN B 6aceHa.
2. CbpxKeTe 5 B npaBnHO nOxKeHne c 6Ioka 3a ynpabHeHne 8 3aBnHTe CbeDnHEHNEto.
3. 3akpenete 6noka 3a ynpabHeHne 8 Ha pa3ctOHaH-MAkO A=3,5 M OT baceHa c npedna3HO Bbxke 10, 3a Da CE npeODTbpaTN N3TeIJIHeTO My BB BODaTa.
   4.CbpxkTeMpexKOBnIeNcENKbM KOHTAKT TIN,uyko"

Bnokb m 3a ynpaeHue e c8bp3aH.

CTapTnpaHe Ha noUncTaBHeTo

1. HatncheTe 6yToHa AUTOSTART Ha 6Joka 3a ynpabJeHne.

Nóukamopb m noka3a Hacmpoukama Ha nocneDHO u36paHama fynKcua 3a aemomamuHcmapupane. BcuKu cbeMoDuOHa fynKcuaMa 3a aemomamuHc mapupane Muazam, kozamo He e u36pao nepuoduho noucmeane.

2.Изберете BaшатЯ Зелану Функця 3a abTomatuHо CTapTupaHe Upe3 HaTnckaHe Ha 6byToHa AUTOSTART.
3. HatncheTe 6yToHa ON/OFF Ha 6Ioka 3a ynpabneHne.
Pru Heo6xOIMOCr peYnpaTte npOdbknteHocCTTa Ha pa60ta cnpraMo pa3Mepa Ha Baunr
6aceHn.

NoucmeaHemo e cmapmuHo, uHukamopb m noka3ea hacmpoukume Ha nocneho u36paHama npoepama 3a noucmeaHe u ceemoduodume 3a npobjxumenHocmna Ha pa6oma 3anoyeam da Muazam.

I3Bexdahe Ha ypeDa ot ekcnnoataun

3a da n3BeDeTe ypeDa oT ekCnIooatauia, npOeDnpaIte, kaKTo cJeDbA:

1. Cnei npnKIOUbaHe Ha nporpaMaTa 3a nouchBaHe n3KnIOUe Te ypeHa.
2. Pa3eDInHeTe 6Ioka 3a ynpabJIeHnE O T 3axpaHbAHeTo n UpeJa.
   3.ИЗвадеууpeаOTбасина.
3. NoucTeTe eIeMeHTnte Ha cHNTbPHn 6JOK n ypeJa.
4. Ako n3noJ3BaTe fynKcIyraTa 3a aBtOMaTnUHO CTapTnpaHe, NOCTaBeTe CneT TOBa ypeDa OTHOBO B 6aceHn N CBpKeTe 6noka 3a ynpabHeHne CypeDa N 3axpaHbAHeTo.

PpekpaTbaHe Ha nouHCTBaHTo

IpouecbT Ha nouchBaHe npKIOUba aBTOMaTHUHO cJeI n3TuHa He Ha HAcTPOEHaTa IpoJbJXHTeHOC T ha pa6ota.

Bcuku cbe moodu ha uhdukamopume 3a npoobnxkumelhocmma Ha pa6oma Muam.

PpeKdEbpemEHn ppekpaTBAHe Ha nouchTaBeTo

1. HaTnchTe 6yToH ON/OFF.

Bnokb m 3a ynpaaeneHue e u3Knioyeh, Kozamo u3zacham 8cuuku cbemoduodHu uHDukamopu.

Pa3eINHBAHe Ha 6Ioka 3a ynpabnHe

1.ИЗКЛЮЧЕТМРЕХОВНИЦЕСЕН OT KOHTAKTA TП .шУКО".

1. Pa3BnIe BnHTOBOTo CbeINHeHne Ha IeKepaHa 6JOKa 3a ynpabNeHne 8 n N3dbpnaTe PnabaunKa6eJ 5.

Bnokb m 3a ynpaeHue e pa3eduHc.

I3BaXdAne Ha ypea oT 6aceHa

1.C NOMOHTa Ha nnaBauinKa6en 6abHO n3TeTne ypeDa 5 KbM BOHaTa NOBbpxHOCT, DOKATo DOCTHHeTe PbKOXBaTKaTa 3.
2.БаноидьрnaiteуpedaOTBOdaT3aДржkaTnTO3aDpBXTeHaNOBbpxHOCTTHa BOdaTa. CneI 10-15 cekyni noBeyeTo OT cb6paNaTate B KOpnyca BOda ce OTTuHa O6paTHO B6aceHa.
3. NocTabete ypea do baceuHa. Ypebme u3baeden om baceuHa.

IouncTbaIte ypea cneB BcraKa ynoTppeBa, 3a da cTe cnrypHn, ye ue npoDbJkaBa da cyHKcuOHnp npabINHO.

Почистванe

IOnucTBaIte ypeDa c OsnKHOBeH npenapat 3a 6aHn, YnCTa Teuaa Boga n Kbpna, KOrTO He octabra BJIacNHKn. ArpeCunBHTe NOcHbNTBaU nPepapatm Morat da nobpejrt ypeDa. IOncyuweTe ypeDa C Kbpa, KOrTO He OCTABRA BlanHKn.

NouchteBaHe Ha yCTpoNCTBOTO

1.CBaIeTe INOuNCTeTe eJIeMeHTInTe Ha fNJTbPHn6JIOK.
2. PpomBaIte ypea n pnaBauunra KaBeJ cJeD BCa KaNoTpe6a C 6nCTpa TeuAua Boda. Ypebme noucmeH.

CbaJha enemeHTte Ha qnTbphna 6JOK

1.Pa3BnTeΦHKcnpaunTe BnHTObe 1.
2. CbaIeTe roPHaTa YacT 2

1. ⅢBaTe eIemEnTHe Ha cHnTbPHn8 6Jok OTypea, 7 n3TerIyKn rN dIpeKTHo Harope. EIeMeHmume Ha cHnMbPhu8 6Jok ca u3BaDeHu.

NouctBaHe Ha eIeMeHTte Ha qnItbphna 6JIOK

1. OTbOpTe cAmo3aJenBaUHTe JeHTN BeJIkpO HaФHbPHaTa TOp6nUka 6 nIIN 11Я N3IbPNaTcOT eJEMeHTNe HaФHITbPnHn6JOK7.
   2.ПомиTe Do6pe eJemeHTte Ha qnTbphnB 6IOK7 nФHnTbPhaTa TOp6uHa Ka 6IIN 11 C 6ncTpTa TeuaBa BOda.
2. N3TeIeTe NoocteHaTa QnITbPHa Top6uKa 6 IIN1 npn Cna3BaHe Ha NOIOKeHneTo Ha BnB6HaTHnHaTnHaN eIeMeHTnte Ha QnITbPn8 6NoK 7 n 3aTBOpTe CaMO3aJIenBaUNTe JeHTN BeIKpo.

Enemehmume Ha qunmbphua 6nok ca noucmehu.

CbXpaHHe

1. NouncTeTe ⅢaTeHNO yCTpoNCTBOTO (BnKTe rnaBa "NouctBaHe").
2. OctaBeTe BCnUKN YacTn Da N3cbXHaT HAnbNHO.
3. Cne ToBa npnbepeTe yctpoNCTBOTo n HceroBnTe npHnAdJIeXHOCTn Ha cyxo 3aunTeHOOT 3ampb3BaHe MRCTO (≥ +5^) ,6e3 npraKa CbHueBa CBETnHa.
