| Product type | Ice maker |
| Brand | Gorenje |
| Model | IMDW1500B |
| Ice cube size | Small (S) or Large (L) selectable |
| Water tank | With MAX mark, drain via plug |
| Functions | ON/STANDBY, size selection, automatic stop when full, water shortage indicator |
| Cooling type | Compressor |
| Rated voltage | 220-240 V ~ 50 Hz |
| Cleaning | Soft damp cloth, diluted white vinegar |
| Installation precautions | Let stand upright for 2 hours before use, at least 15 cm free space around |
| Warranty | International warranty certificate |
| Use | Household use only |
| Safety | Automatic stop when basket full or water shortage, compressor protection |
Frequently Asked Questions - IMDW1500B GORENJE
User questions about IMDW1500B GORENJE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ice Maker in PDF format for free! Find your manual IMDW1500B - GORENJE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IMDW1500B by GORENJE.
USER MANUAL IMDW1500B GORENJE

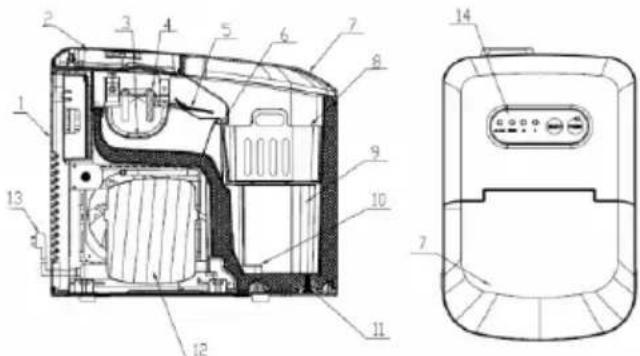

General description:
- Rear wall
- Front panel
- Water tank
- Evaporator unit
- Ejection blade
- Ice amount sensor
- Transparent cover
- Ice basket
- Water tank
- Filter
- Water drain plug
- Compressor unit
- Power cord
- Control panel
Important:
Before using the appliance for the first time, carefully read this instruction manual and save it for future reference. Also save the warranty statement.
Attention: Before connecting the appliance to the power mains, make sure it rests for at least 2 hours. Failure to do so may result in compressor failure.
The appliance should be transported in an upright position.
Danger
Make sure the appliance is standing in an upright position on a level surface, and that there is at least a 15-centimetre clearance between the appliance and other objects and walls adjacent to it, to allow adequate ventilation. Do not cover the ventilation slots. Do not move or
cover the appliance during operation. Do not touch the appliance with wet hands. Do not submerge the appliance in water or any other liquid.
After use and before cleaning, disconnect the appliance from the power mains.
Do not wash the appliance with water hotter than 80°C.
Warning
Before connecting the appliance to the power mains, make sure the voltage indicated on the bottom of the appliance matches the voltage of the power mains in your home.
Do not use the appliance if the plug, power cord, or any other component is damaged.
If the power cord is damaged, it may only be replaced by Gorenje,
Gorenje's authorized service and repair center, or an adequately trained professional.
This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way and if they understand the hazards involved.
Do not let the children play with the appliance.
Do not leave the appliance to operate unattended. If you leave the room
where the appliance is located, disconnect the appliance from the power mains.
Attention: The appliance is intended solely for personal household use.
Do not use the appliance outdoors. Keep the appliance away from sources of heat such as cookers, ovens or heaters. Do not expose the appliance to direct sunlight. Do not use the appliance in a room with high humidity. Do not use spare parts by other manufacturers unless they are expressly recommended by Gorenje. In case of use of such non-original attachments or accessories, the warranty shall be void.
Before switching on the appliance, make sure all components are correctly installed.
Always disconnect the appliance from the power mains after use.
Attention: Only use clean water without any additives for making ice cubes.
This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment - WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.
Preparation for use
- Remove the packaging.
- Clean the appliance as instructed in the section "Cleaning".
- Fill the water tank up to the MAX marking with clean uncontaminated water. Water in the tank should not reach the ice basket.
Fill the appliance with water at room temperature.
Use
Upon first use, it is recommended for hygienic reasons to discard the ice cubes made from the first two cycles.
After connecting the appliance to the power mains, the indicator on the POWER button will flash in red. Flashing of the indicator means that the appliance is in standby mode. Press the
button to start the appliance. The indicator will be lit continuously. If you press the POWER button at any time during operation, the appliance will switch back to standby mode and the indicator will start flashing.
Use the SELECT button to choose the size of the ice cubes. The indicators above S (small) and L (large) indicate the selected option.
If the indicator above the ICE FULL sign is lit, the ice basket is filled to capacity. When the maximum amount of
ice has been reached, the appliance will switch to standby mode. Remove the ice from the basket to restart it.
If the indicator above the ADD WATER sign is lit, there is not enough water in the water tank. When there is not enough water in the water tank, the appliance will switch to standby mode.
To restart the appliance, remove the ice basket and add water up to the MAX sign and press POWER.
Depending on the temperature of the environment and water, the first ice cubes may be smaller.
Due to rapid freezing of the water, the cubes may appear cloudy or opaque. This is a result of the air trapped inside the ice and it does not affect the quality of the ice.
After the appliance has been switched to standby mode, wait for at least 3 minutes before starting its operation. Failure to do so may result in compressor failure.
Replace the water in the water tank at least every 24 hours.
To prevent the development of mould and bacteria, we recommend leaving the cover open after use (7).
Cleaning
Before cleaning the appliance, stop its operation and disconnect it from the power mains.
Do not clean the appliance with scouring pads, caustic or corrosive cleaners, or aggressive liquids such as alcohol, gasoline, or acetone.
Clean the appliance with a soft damp cloth. Do not submerge the unit in water, and do not clean it under running water or in a dishwasher.
Ice basket: Clean the basket with lukewarm water and some liquid detergent; then rinse and dry thoroughly.
Water tank: Use the drain (11) to empty the water tank.
Appliance interior and exterior (housing): Clean the appliance interior and exterior with a soft damp cloth. A diluted mixture of water and vinegar may be used.
Troubleshooting
| Trouble | Possible reason | Solution |
| The indicator above the POWER button will not light up. | There is no voltage in the power mains. The appliance is not connected to the power mains. | 1. Check if there is voltage in the power mains. 2. Connect the appliance to the power mains. 3. Internal appliance components have failed. Call Gorenje's customer service. |
| Indicator above the ICE FULL sign is on. | Ice basket is full. | 1. Remove the ice from the basket. 2. Internal appliance components have failed. Call Gorenje's customer service. |
| Indicator above the ADD WATER sign is on. | There is not enough water in the water tank. | 1. Add water up to the MAX sign and press the POWER button. 2. Internal appliance components have failed. Call Gorenje's customer service. |
| All indicators are flashing. | Ice is preventing the water tank from moving. | 1. Switch the appliance to standby mode and remove the ice cubes blocking the water tank. 2. Internal appliance components have failed. Call Gorenje's customer service. |
| Although the ice basket is full, the ICE FULL indicator will not light up and the appliance will not switch off. | The sensors only start to operate after three finished cycles. There is no signal for the sensor. | 1. Disconnect the appliance from the power mains. Empty the ice basket and reconnect the appliance after 3 minutes. 2. Powerful light is disturbing the signal reception Move the appliance away from the source of light. 3. Internal appliance components have failed. Call Gorenje's customer service. |
Environment
After the expiry of its useful life, do not discard the appliance with common household waste. Take it to an authorized recycling center. This will help preserve the environment.
Warranty and repair:
For more information or in case of problems, please visit the Gorenje website at www.gorenje.com or contact Gorenje customer service in your country (phone numbers are listed in the International Warranty Sheet). If there is no such center in your country, please contact the local Gorenje dealer or Gorenje's small domestic appliance and personal care appliance department.
For personal use only!
GORENJE
WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.
We reserve the right to modifications.

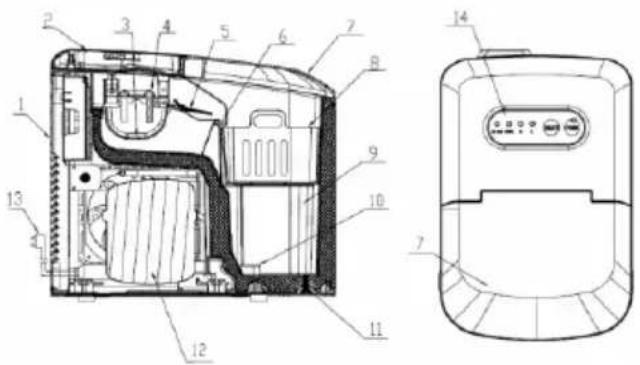

General description:
= POWER = SELECT = L (large) = S (small) FULL = ICE FULL = ADD WATER
= POWER = SELECT = L (large) = S (small)
FULL = ICE FULL
= ADD WATER
The appliance is switched on by pressing the «POWER» («BOIL») button. The indicator will light up.
The indicator indicates that the appliance is in the boiling mode. Press the button to start the appliance. The indicator will light up. You can press the «POWER» («BOIL») button at any time during operation; it will switch to the boiling mode and the indicator will light up.
Use the SELECT («SELECT») button to select the size of ice cubes. The indicators S (small) and L (large) indicate
the selected parameter.
The indicator light
labeled «ICE FULL» («ICE FULL»)
indicates that the ice
container is full. After reaching the maximum amount of ice, the appliance will switch to the boiling mode. Remove the ice from the container to continue operation of the appliance.
The indicator light labeled «ADD WATER» («ADD WATER») indicates insufficient water in the reservoir. If there is
not enough water in the reservoir, the appliance will switch to the boiling mode. To resume operation, remove the ice cube tray and fill the reservoir with water up to the «MAX» («MAXIMUM LEVEL») mark and press the «POWER» («BOIL») button.
Depending on the water and air temperature, the first batch of ice cubes may be smaller.
Replace the water in the cube container if it becomes cloudy or opaque. Take care not to spill it on the device and do not affect its operation.
Before first use, run the device in idle mode for about 3 minutes. Failure to follow this rule may lead to compressor failure.
Replace the water in the reservoir every 24 hours.
To fill the water after use and to prevent bacteria after using the device, it is recommended to leave the lid open (7).
Cleaning
Before cleaning the device, turn it off and disconnect it from the power supply.
Do not use abrasive sponges, caustic or aggressive agents, or solvents for cleaning the device. For cleaning, use a soft, damp cloth. Do not immerse the device in water and do not wash it under running water or in a dishwasher.
Brush for the device. The brush should be washed with warm water and a mild detergent; then rinse and dry.
Water reservoir. Use the drain valve (11) to empty the water reservoir.
Internal and external parts of the device (body). To clean the internal and external parts of the device, use a soft, damp cloth. You can use a diluted solution of water and detergent.
Troubleshooting
Do not allow children to play with the device!
Do not leave the device running unattended.
When leaving the room, disconnect from the power supply.
Attention! The device is intended for household use only.
If the water level in the tank is insufficient, the ADD WATER indicator lights up. If there is not enough water, the appliance stops automatically.
To resume operation, remove the basket, add water up to the MAX mark, and press the POWER button.
Depending on the water temperature and the ambient temperature, the first ice cubes may be smaller.
Due to rapid freezing, the ice cubes may be cloudy. This is caused by air bubbles in the freezing water and does not affect the quality of the ice.
Before turning on the appliance, let it stand for a while so that the refrigerant settles. This will help avoid compressor damage.
Change the water in the reservoir every 24 hours. To prevent the growth of mold and bacteria, it is recommended to leave the transparent lid open after use (7).
Cleaning
Before cleaning, turn off the appliance and disconnect it from the power supply (remove the plug from the socket).
For cleaning the appliance, do not use rough sponges or aggressive cleaning agents such as alcohol, gasoline, or acetone.
Clean the appliance with a soft, damp cloth. Do not immerse the appliance in water, do not rinse it with water, and do not put it in the dishwasher.
Ice basket: wash the basket with warm water and a small amount of mild detergent, then let it dry.
Water reservoir: drain the water through the spout (11).
Inner and outer surfaces: wipe the inner and outer surfaces with a soft, damp cloth and a small amount of vinegar.
Troubleshooting
| Hencnpabnoctb | Bo3moxhna prunuHa | YcTpanenHe |
| He 3aoropaeTc индikatop habd knokoi POWER. | Het naprjKeHnB В злeKTPoCeTn. Прi6Op He poJKnIOUeH K ЗлeKTPoPHTaHInO. | 1. ПрOBeRbTe, ecTb li нanprrjKeHne B cTeN. 2. ПОДКlIOUHte leDoreHepaTOp K ЗлeKTPoPHTaHInO. 3. Onda n3 DeTalae prinbopa BvIaJa n3 cTpor.ОбpatNTeCb B aBTOPI3OBaHNbI cepBICNHcI cHTPr. |
| СbeTITcS индikatop ICE FULL. | Kop3iHa dЯ пьda пОннa. | 1. OCSbO6OHTe Kop3iHy dЯ nIbDa. 2. Onda n3 DeTalae prinbopa BvIaJa n3 cTpor.ОьрATeCb B aBTOPI3OBaHNbI cepBICNHcI cHTPr. |
| СbeTITcS индikatop ADD WATER. | B pe3eRbUape dЯ BODbI нEDOCTaTOUHbI урOBeHb BODbI. | 1. ДолeJeT BoVу do OTMeTkn MAX i нakmite KhoNkpy POWER. 2. Onda n3 DeTalae prinbopa BvIaJa n3 cTpor.ОьрATeCb B aBTOPI3OBaHNbI cepBICNHcI cHTPr. |
| Bce INDikatopbl miraJOT. | ЛeD прЕЯТСТВуET пОворчИВaHIO Notka C BODоJ. | 1. ВькLIOUHte prinbop и ИЗВLEKeTke Ky6iKNi пьda,КOTopbIe БLOKUPryOT loTOK. 2. Onda n3 DeTalae prinbopa BvIaJa n3 cTpor.ОьрATeCb B aBTOPI3OBaHNbI cepBICNHcI cHTPr. |
| HecMOTPra Na PONHUY KOP3iHu lbda AnDikatop ICE FULL He roptt, n prinbop He BvIKIOUaTeTc. | CehCop нauHHaET pa6OtaT bTolbKo Чepe3 Trp TcIaKla. CehCop He pacNo3HaET cINHaJ. | 1. OTKlIOUHte prinbop otЭлeKTPoCeTn (IЗВLEKeTbe BIVKy n3 po3eTkn). OсвОБODITE KOP3iHu Дяльda n Chepe3 Trp MInHyTbI ChOBA ВКlIOUHte prinbop. 2. rapKII cSBET прелЯTcTByET прEHMy cINHaJa. ОТОВИньTe prinbop OTИСТОУНКa CBeTa. 3. Onda n3 DeTalae prinbopa BvIaJa n3 cTpor.ОьрATeCb B aBTOPI3OBaHNbI cepBICNHcI cHTPr. |
Ambient temperature
It must not be disposed of as household waste. It should be taken to the appropriate collection point for electronic and electrical equipment for subsequent recycling. By following the disposal rules, you will help prevent
potential harm to the environment and human health.
Warranty and Service
If a malfunction occurs, contact an authorized service center. You can find the list of authorized service centers in the brochure "Warranty Obligations" and on the website www.gorenje.com.
For household use only!
GORENJE WISHES YOU PLEASURE IN USING THE APPLIANCE!
The manufacturer reserves the right to make changes!
Importer: Gorenje LLC, 119180 Moscow, Yakimanskaya nab., 4, bldg. 1

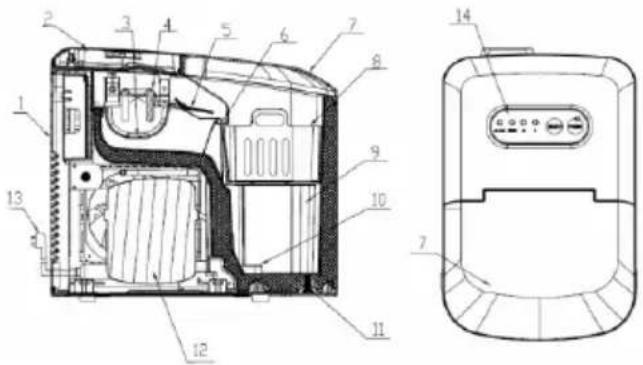

Description of the appliance:
1. Back wall 2. Front panel 3. Water tank 4. Evaporator 5. Fan blade 6. Humidity sensor 7. Transparent lid 8. Water outlet 9. Water tank 10. Filter 11. Water outlet spout 12. Compressor 13. Power cord 14. Control panel
Important:
Before using the appliance for the first time, read the instruction manual carefully and keep it for future reference. Keep the original packaging.
Attention: Before connecting the appliance to the electrical mains, make sure it has been at rest for at least 2 hours. Otherwise, the compressor may malfunction.
The appliance must be transported in a vertical position.
Danger
Place the device in a vertical position, top of the device up, at a distance of at least 15 cm between it and other objects or walls, to ensure good ventilation. Do not cover the ventilation openings.
Do not place or cover the device during operation. Do not use the device with wet hands. Do not immerse the device in water or other liquids. Before cleaning, unplug the device from the electrical outlet.
Do not immerse the device in water, especially if it is hotter than 80°C.
Warning
Before connecting the device to the electrical outlet, make sure that the voltage indicated on the rating plate matches the voltage of the electrical outlet in your home. Do not use the device if the plug, power cord, or any other component is damaged.
If the power cord is damaged, it must be replaced by Gorenje, an authorized Gorenje service center, or a similarly qualified person.
This device can be used by children aged 8 years and above, as well as by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning safe use of the device and understand the hazards involved. Children must not play with the device.
Do not allow children to play with the device.
Do not leave the device operating unattended. If you leave the room where the device is located, unplug it from the electrical outlet.
Attention: The device is intended solely for household use.
Do not use the device outdoors. Keep the device away from heat sources such as stoves, ovens, or heaters. Do not expose the device to direct sunlight. Do not use the device in rooms with high humidity. Do not use spare parts from other manufacturers unless they are specifically recommended by Gorenje. In case of using such non-original parts or accessories, the warranty becomes invalid. Before turning on the device, make sure all components are correctly installed. After use, unplug the device from the electrical outlet.
Attention: For making ice cubes, use only clean water without additives.
This device is marked in accordance with European Directive 2012/19/EC regarding the disposal of used electrical and electronic equipment (WEEE). The directive sets the requirements for the collection and treatment of waste electrical and electronic equipment in force in the European Union.
Instructions for use
- Remove the packaging. 2. Clean the device according to the instructions in the "Cleaning" section.
- Fill the water tank up to the MAX mark with clean water. Do not fill the water tank above the MAX mark.
Fill the appliance with water at room temperature.
Use
For first use, according to hygiene principles, it is recommended to discard the first two batches of ice cubes.
After plugging the appliance into the mains, the ON/OFF button and the indicator light will illuminate. The light
of the indicator means that the appliance is in standby mode. Press the button to start the appliance. The indicator light will stay on continuously. If you press the button at any time during operation, the appliance will switch back to standby mode and the indicator light will start to flash.
Use the SELECT button to choose the size of the ice cubes. The indicators above S (small) and L (large) show the selected size.
If the indicator above the symbol FULL is lit, the ice basket is full. When the maximum amount of ice is reached, the appliance will switch to standby mode. Remove the ice to restart the appliance.
If the indicator above the symbol ADD WATER is lit, there is enough water in the tank. When there is enough water in the tank, the appliance will switch to standby mode. To restart
the appliance, remove the ice basket and add water up to the MAX mark, then press the ON/OFF button.
Depending on the ambient temperature and the water temperature, the first batch of ice cubes may be smaller.
Due to rapid freezing of the water, the cubes may appear matte. This is a result of the freezing process and does not affect the quality of the ice.
After the appliance has switched to standby mode, wait at least 3 minutes before starting operation. Otherwise, the compressor may be damaged.
Change the water in the tank at least every 24 hours.
To prevent the growth of mold and bacteria, it is recommended to leave the lid open after use (7).
Noucmeane
Do not use the appliance if the power cord or the plug is damaged.
Do not use the appliance with abrasive, aggressive or corrosive cleaning agents, or with flammable liquids such as alcohol, benzene or acetone.
Clean the appliance body with a damp cloth. Do not immerse the appliance in water and do not rinse it under running water.
Coffee maker: Clean the coffee maker with water and a mild cleaning agent, then rinse thoroughly and dry.
Water tank: Use the water tank cap (11) to empty the water tank.
Interior and exterior parts (body) of the appliance: Clean the interior and exterior parts with a damp cloth. A mild solution of water and vinegar may be used.
Troubleshooting
| ПюбLEM | Възможнадрочиа | Рechениe |
| Инданкаторьтпад 6утонаЗХPAHBAHE He CBETN. | Наянанржение Великийческatablempexа. УретгТпсЕУБКЛЮЧЕНБKMpeяктуческatablempexа. | 1. Пюверete далима Напржение Великийческatablempexа.2. CBьржete урEDA KBМ eльктуческatablempexа.3. Вътrewни Компоенти на урEDA не павOTЯ поади И envзправноct.Обадete се на центыра за обсCityЖВаHe на клиеньл Na Gorenje. |
| Инданайт豌пд знaka Пьлно С Лем с Bretи. | Кошницата за лесе пьлно. | 1. Изва对接е леса о Т кошницата. 2. Въ tradeуни КOMПОЕНТУ на урда на pботяглоради Иизэрпавноct. Овадete с на чентыраз за облухвахе на Клиеньи на Gorenje. |
| Инданайт豌пд знaka ДовавETE BOДA с Bretи. | Наяma достаюно вoda в розервога. | 1. Добаве т boда до знaka MAX и наочс悔е бунota 3AXPAHBAHE. 2. Въ tradeуни КOMПОЕНТУ на урда на pботяглоради Иизэрпавноct. Овадete с на чentsыраз за облухвахе на Клиеньи на Gorenje. |
| Всучки Иnd мигат. | Легьт почни розервога за boда на с meсти. | 1. Р痹евские урда в ржим ГOTOBHOCТ и оТстане лесенITE Кубчета, сожиралу розервога за boда. 2. Въ tradeуни КOMПОЕНТУ на урда на pботяглоради Иизэрпавноct. Овадete с на чentsыраз за облухвахе на Клиеньи на Gorenje. |
| Въ tradeу谁能 Кошницата за лесе пьлно, Иnd кд ICE FULL He CBETи и урда豌t не се ИЗКлочьа. | Сенистуся за пьочьд на рботя спед лесд лесьлд.Сенистуся не пьочьд спед. | 1. Изва对接е урда о Ельке рines checkа мржka. Изbrazelete КОшницата за леси в Вй_COЧеу урда оTOBOСпд 3MinHytN. 2. Сенина сvetлina на hapшава приеманоюп на спогал. Пrelмец对接е урда наарочу оТ ИЗToHнka на CBETина. 3. Въ tradeуни КОшницата на урда не пботяглоради Иизэрпавноct. Овадete с на чentsыраз за облухвахе на Клиеньи на Gorenje. |
Environment
After the appliance has reached the end of its service life, do not dispose of it with regular household waste. Take the appliance to a designated recycling point. This will help protect the environment.
Warranty and service:
For more information or in case of problems, please consult the Gorenje website www.gorenje.com or contact the Gorenje customer service center in your country (the phone numbers are listed in the international warranty). If there is no such center in your country, please contact the local Gorenje dealer or the Gorenje department for small household appliances and kitchen appliances.
For household use only!
GORENJE THANKS YOU FOR CHOOSING OUR APPLIANCE.
We reserve the right to make changes.
Description
FULL = FULL OF ICE
= ADD WATER
FULL = ICE FULL (PLOT ME AKULL)
= ADD WATER (SHTONI UJEE)
When the appliance is connected to the power supply, the indicator on the POWER button will flash red. The indicator turning on means that the appliance is in standby mode.
- GENERAL DESCRIPTION
- IMPORTANT
- DANGER
- WARNING
- PREPARATION FOR USE
- USE
- CLEANING
- TROUBLESHOOTING
- ENVIRONMENT
- WARRANTY AND REPAIR
- GORENJE
- WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE
- AMBIENT TEMPERATURE
- WARRANTY AND SERVICE
- DESCRIPTION OF THE APPLIANCE
- ATTENTION: THE DEVICE IS INTENDED SOLELY FOR HOUSEHOLD USE
- INSTRUCTIONS FOR USE
- NOUCMEANE
- DESCRIPTION
Brand : GORENJE
Model : IMDW1500B
Category : Ice Maker
