USER MANUAL WGG78A MBM

INSTALLATIONS AND USE INSTRUCTIONS

GRILL À EAU

MANUEL D'INSTALLATION ET D'UTILISATION

PARRILLA DE AGUA

Rumore aereo ≤ 70 dB

RISCHIO RESIDUO DI USTIONE PER FUORIU- SCITA MATERIALE /

RISCHIO RESIDUO DI ESPLOSIONE /

Tale rischio sussiste con:

AND SAFETY INFORMATION

1. POSITIONING AND HANDLING

2. POWER SUPPLY CONNECTIONS

3. OPERATIONS

FOR COMMISSIONING

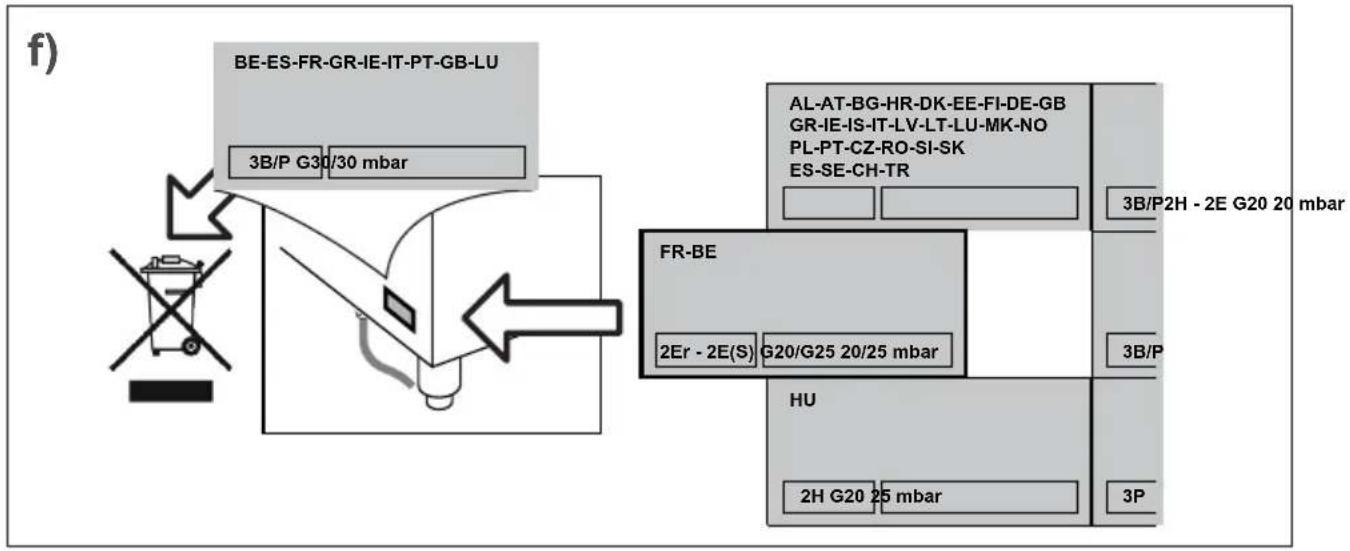

1. GAS TYPE CHANGEOVER

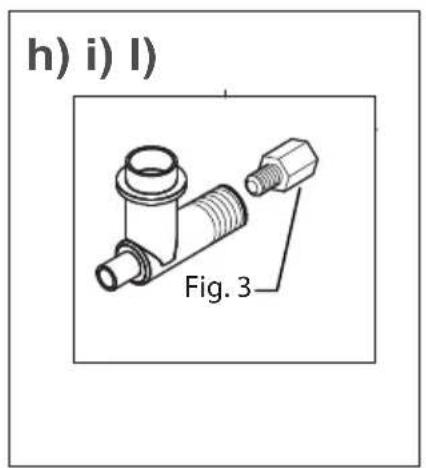

2. REPLACING COMPONENTS

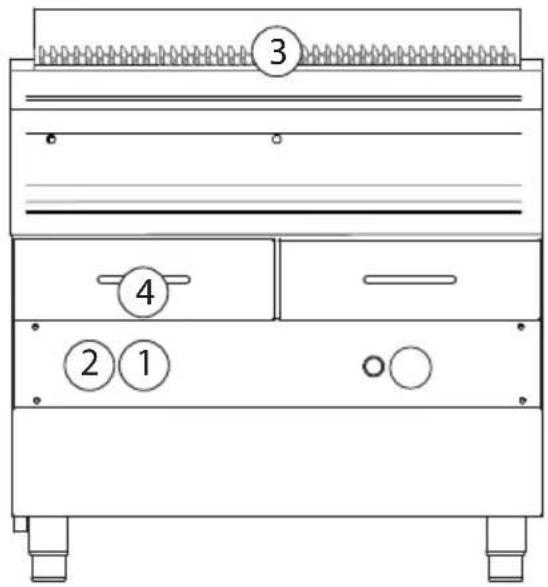

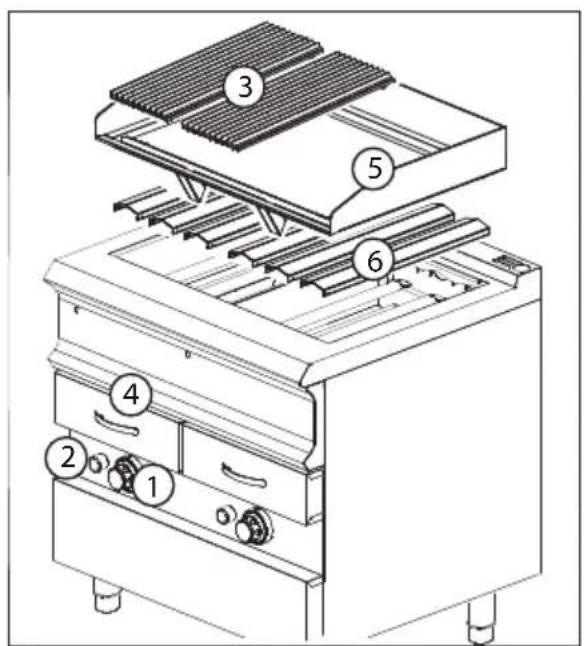

3. INSTRUCTIONS FOR USE

4. MAINTENANCE

5. WASTE DISPOSAL

6. TECHNICAL DATA / IMAGES

DESCRIPTION OF PICTOGRAMS

Danger indications. Immediate hazardous situation which could result in serious injury or death. Possibly dangerous situation that could cause serious injury or death.

High voltage! Caution! Danger of death! Non-observance can cause se-injury or death

Pericolo Risk of high temperatures, non-compliance may result in serious injury ath.

Danger of leakage of high-temperature materials, non-observance can cause serious injury or death.

Danger of crushing of limbs during handling and / or positioning, non-compliance may result in serious injury or death.

Prohibition indications. Unauthorised persons (including children, disabled individuals and people with limited physical, sensory and men-

tal abilities) are prohibited from performing any procedures. Children being supervised not to play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Prohibition for the heterogeneous operator to perform any type of operation (maintenance and/or other) that should instead be carried out by a qualified and authorised technician. Prohibition for the homogeneous operator to perform any type of operation (maintenance and/or other) without having first read the entire documentation specifics.

Obligation indications.

Obligation to read the instructions before carrying my work.

Obligation to exclude the power supply upstream of the appliance whenever it is necessary to operate safely.

Obligation to use safety goggles.

Obligation to use protective gloves.

Obligation to use a pro- tective helmet.

Obligation to use safety shoes.

Other indications. Indications to implement the correct procedure, non-comance may cause a dangerous

Advice and suggestions to ensure the correct usage cedure.

"Homogeneous" Operator (Qualified Technician). Expert operator authorised andling, transporting, instal-

ling, servicing, repairing and scrapping the appliance.

"Heterogeneous" Operator (Operator with limited skills and tasks). Person comprised and employed to operate the appliance with guards, capable of performing the tasks.

Earthing symbol

Symbol for attachment to the Equipotential system

Obligation to respect the regulations for waste disposal.

GENERAL AND SAFETY INFORMATION

1.

FOREWORD / This document has been drawn up in the mother language of the manufacturer (Italian).

The information it contains is for the sole use of the operator authorised to use the appliance in question.

Operators must be trained concerning all aspects regarding functioning and safety. Special safety prescriptions (Obligations-Prohibitions-Dangers) are carried in a specific chapter concerning these issues. This document cannot be handed over to third parties to take vision of it without written consent by the manufacturer. The text cannot be used in other publications without the written consent of the manufacturer.

The use of: Figures/Images/Drawings/Layouts inside the document, is purely indicative and can undergo variations. The manufacturer reserves the right to modify it, without being obliged to communicate his acts.

PURPOSE OF THE DOCUMENT /

Every type of interaction between the operator and the appliance during its entire life cycle has been carefully assessed both during designing and while drawing up this document. We therefore hope that this documentation can help to maintain the characteristic efficiency of the appliance.

By strictly keeping to the indications it contains, the risk of injuries while working and/or of economical damage is limited to a minimum.

HOW TO READ THE DOCUMENT /

The document is divided into chapters which gather by topics all the information required to use the appliance in a risk-free way. Each chapter is divided into paragraphs; each paragraph can

have titled clarifications with subtitles and descriptions.

KEEPING THE DOCUMENT / This document and the rest of the contents of the envelope, are an integral part of the initial supply. It must therefore be kept and used appropriately during the entire operational life of the appliance.

ADDRESSEES / This document is drawn up as follows:

- Homogeneous operator / Expert operator authorised for handling, transporting, installing, servicing, repairing and scrapping the equipment.

- Generic operator / Person authorised and employed to operate the appliance with guards active, capable of performing routine tasks.

OPERATOR TRAINING

PROGRAM / By specific request, it is possible to carry out a training course for users, installers and technicians, following the procedures indicated in the order confirmation.

PRE-ARRANGEMENTS DEPENDING ON CUSTOMER /

Unless different contractual agreements were made, the following normally depend on the customer:

• setting up the rooms (including masonry work, foundations or channelling that could be requested);
• smooth, slip-proof floor;
• pre-arrangement of installation place and installation of equipment respecting the dimensions indicated in the layout (foundation plan);
• pre-arrangement of auxiliary services adequate for requirements of the system (e.g. electrical mains, gas network, drainage system);
• pre-arrangement of electrical system in compliance with regulatory provisions in force in the place of installation;
• sufficient lighting, in compliance with standards in force in the place of instal-

lation;

• safety devices upstream and downstream the energy supply line (residual current devices, equipotential earthing systems, safety valves, etc.) foreseen by legislation in force in the country of installation;
• earthing system in compliance with standards in force;
• pre-arrangement of a water softening system, if needed (see technical details).

CONTENTS OF THE SUPPLY / The supply vary depending on the order. • Appliance • Lid/s • Metallic rack/s

- Rack support grid • Pipes and/or wires for connections to energy sources (only when indicated in work order).

• Gas type change kit supplied by yhe manufacturer

INTENDED USE / This device is intended for professional use. The use of the appliance treated in this document must be considered "Proper Use" if used for cooking or regeneration of goods intended for alimentary use; any other use is to be considered "Improper use" and therefore dangerous.

These appliances are intended for commercial activities (e.g. restaurant kitchens, canteens etc) and in commercial companies (e.g. bakeries etc.) but not for the continuous food production.

The appliance must be used according to the foreseen conditions stated in the contract within the prescribed capacity limits carried in the respective paragraphs.

Only use original accessories and spare parts supplied by the manufacturer to maintain regulatory compliance.

ALLOWED OPERATING

CONDITIONS / The appliance has been designed to operate only inside of rooms within the prescribed technical and capacity limits. The following indications must be observed in order to attain ideal operation and safe work

conditions. The appliance must be installed in a suitable place, namely, one which allows normal running, routine and extraordinary maintenance operations. The operating area for maintenance must be set up in such a way that the safety of the operator is not endangered. The room must also be provided with the features required for installation, such as:

• maximum relative humidity: 80%;
- minimum cooling water temperature > + 10 °C ;
- the floor must be anti-slip, and devices positioned perfectly level;
- the room must be equipped with a ventilation system and lighting as prescribed by standards in force in the country of the user;
- the room must be set up for draining greywater, and must have switches and gate valves which cut all types of supply upstream the appliance when needed;
- The walls/surfaces immediately close/contact to the appliance must be fireproof and/or isolated from possible source of heat

TEST INSPECTION AND WARRANTY / Testing: the equipment has been tested by the manufacturer during the assembly stages at the site of the production plant. All certificates related to the testing performed will be delivered to the customer upon request. Guarantee: the warranty is 12 months from the date of invoicing of the equipment, this period cannot be extended. It covers the faulty parts only. Carriage and installation charges are for the buyer's account. Electric components, accessories as well as other removable parts are not covered by the guarantee. Labor costs relating to the intervention of authorized by the manufacturer at the customer's premises, for removal of defects under warranty are charged to the dealer. Excluded are all tools and supplies, possibly supplied by the manufacturer together with the ma-

chines. Damage occurred in transit or due to incorrect installation or maintenance can't be considered. Guarantee is not transferable and replacement of parts and appliance is at the final discretion of our company. The Manufacturer is responsible for the equipment in its original configuration and only for original spare parts replacement. The manufacturer declines all responsibility for improper use, for damages caused as a result of operations not covered in this manual or not authorized in advance by the manufacturer.consideration in this manual or without prior authorisation of the manufacturer himself.

THE WARRANTY TERMINATES IN CASE OF / • Damage caused by transport “ex works” (EXW) and / or by handling, should this event occur, the customer must inform the retailer and the carrier (eg. via e-mail and / or website) and write down on the copies of the transport documents what It’s happened. The technician authorized to install the appliance will evaluate the damage and decide if the installation can be carried out. The warranty also terminates in the presence of: • Damage caused by incorrect installation. / • Damage caused by parts worn due to improper use. / • Damage caused by use of non-original spare parts. / • Damage caused by incorrect maintenance and/or lack of maintenance. / • Damage caused by failure to comply with the procedures described in this document.

AUTHORISATION / Authorisation refers to the permission to operate an activity intrinsic to the appliance. Authorisation is given to anyone who is responsible for the appliance (manufacturer, purchaser, signer, dealer and/or location owner).

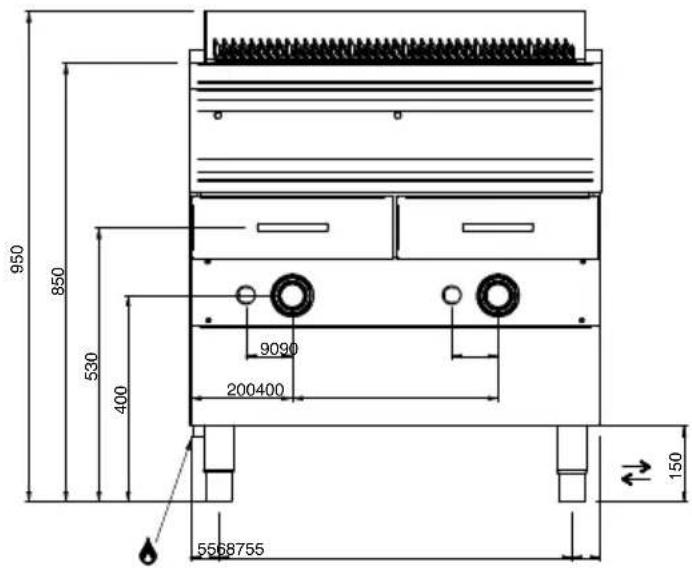

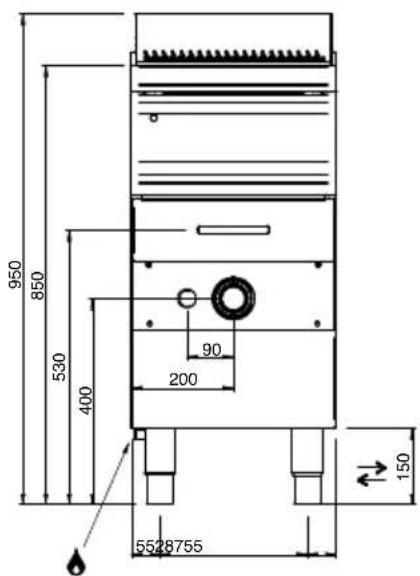

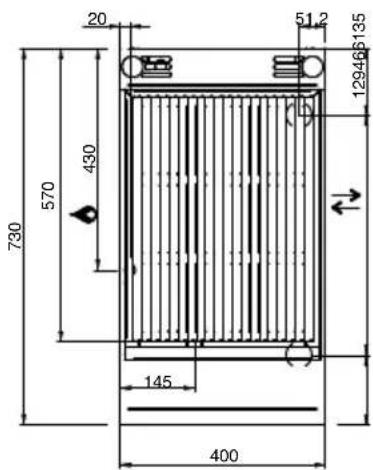

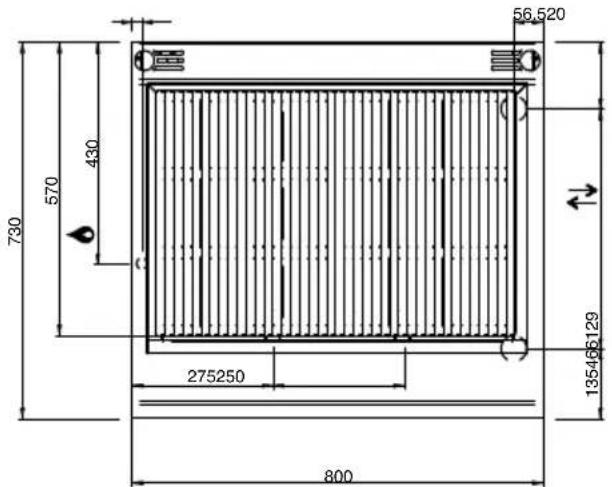

TECHNICAL DATA and IMAGES / The section is at the ending of this manual.

Every technical change has an effect on the operation or safety of the appliance and must therefore be performed by technical personnel of the manufacturer or by technicians who are formally authorised by the same. Failure to do so exempts the manufacturer from any liability for for any possible resulting modifications or damage.

Upon arrival, check the integrity of the appliance and its components (e.g. power cord), prior to use. In the presence of faults do not start the appliance and contact the nearest service centre.

Read the instructions before acting.

Wear protective equipment suitable for the operations to be performed. As far as personal protective equipment is concerned, the European Community has issued Directives which the operators must comply with. Noise ≤ 70 dB.

It is forbidden the installation of stand alone equipment WITHOUT anti-tip kit (ACCES-). TOP versions excluded.

Before making the connections check the technical data shown on the rating plate of the appliance and the technical data in this manual. It is strictly forbidden to tamper with or remove the plates and pictograms applied to the equipment.

Disconnect all supplies, if present (e.g. water - gas - electrical) upstream the appliance whenever you need to work in safe conditions.

Connect the appliance if present, in the sequence of the gas network, then to the gas network. Ensures are no leaks then proceed the connections to the mains.

The appliance is not designed to work in an explosive atmosphere and as such its installation and use is categorically cited in such environments.

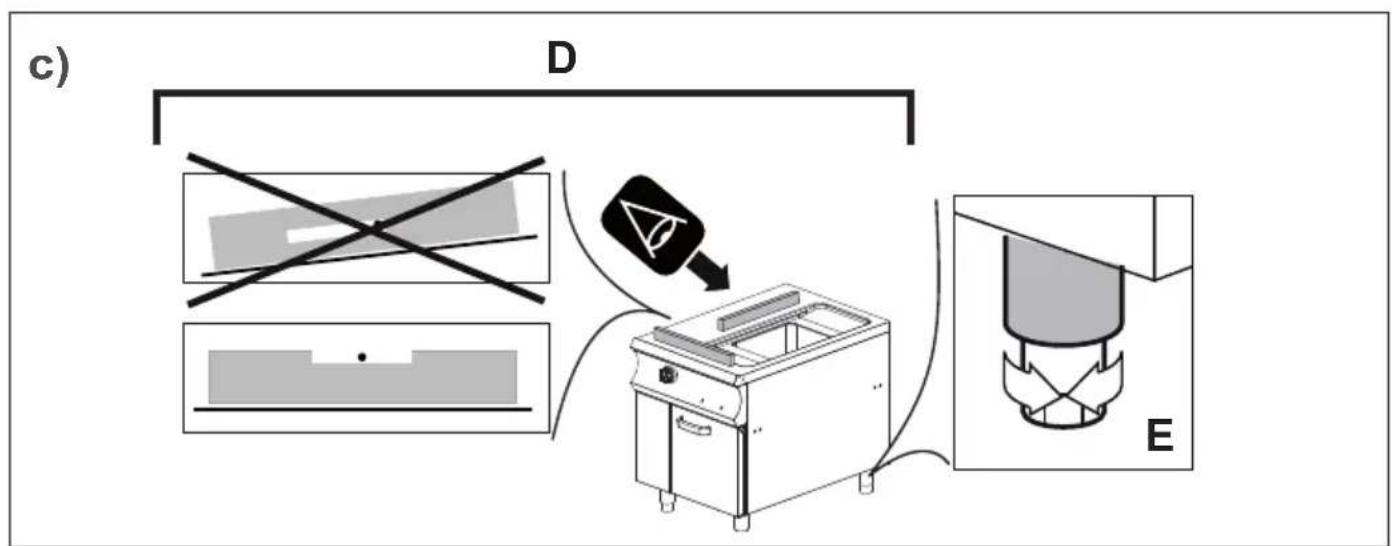

Position the entire structure, respecting the installation dimensions and characteristics indi- in the specific chapters of this ual.

The appliance is not intended for recessed installation. / The appliance must be used in a ventilated area. / The appliance have free drainage (not hinder impeded by foreign bodies).

The gas equipment must be installed beneath an extraction hood whose system must have cations in compliance with the t regulations in the country of use.

Once the appliance is connected to the power and drain sources, it must remain static in the place of use and maintenance. Incorrect connection may be danger.

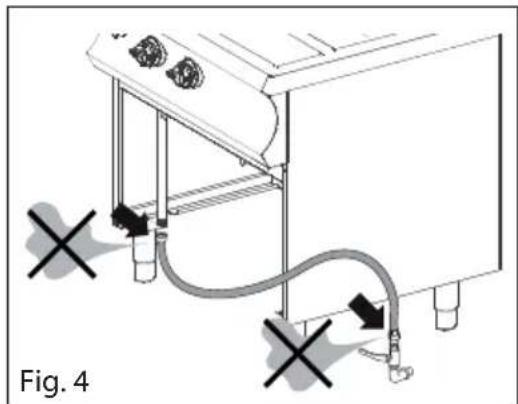

Drainage of the appliance must be conveyed into the grey water discharge network in an open s” unsiphoned formation.

The appliance must only be used for the purposes indicated. Any other use must be con- ed "IMPROPER" and therefore manufacturer declines all liability my consequent damage to per-

sons or property.

Particular safety prescriptions (obligation-prohibitions-danger) are detailed in the specific chapter concerning these issues.

Do not obstruct the heat extraction and/or dissipation openings.

Do not leave flammable objects or material near the appliance.

Disconnect all sup- plies if present (e.g. water - gas - electrical) upstream the appliance whenever you need to work in safe conditions.

Whenever it is necessary to operate inside the appliance (connections, commissioning, checking operations, etc.) prepare for the necessary operations (removal of panels, elimination of supply) in compliance with the safety conditions.

DUTIES AND QUALIFICATIONS REQUIRED OF OPERATORS

Prohibition for the homogeneous operator to perform any type of operation (maintenance and/or other) without having first read the entire documentation.

The information contained in this document is for the use of the qualified technical operator who is authorised for: handling, installation and maintenance of the appliance in question.

The operating instructions have been

drawn up for the “Generic” operator (Operator with limited responsibilities and tasks). Person authorised and employed to operate the appliance with guards active and capable of performing routine maintenance (cleaning the appliance).

The operators who use the appliance must be trained in all aspects concerning its func-g and safety features. They therefore interact using appro-methods and instruments, lying with required safety stand-

The “Generic” operator must operate on the appliance after the technician has completed operation (transportation, fixing cal, water, gas and drain con-ns).

WORK AREAS

AND HAZARDOUS ZONES /

To better define the scope of intervention and the relevant work zones, the following classification is provided:

- Dangerous zone: any zone within and/or in proximity to a machine in which the presence of an exposed person constitutes a risk in terms of the health and safety of such a person;

- Exposed person: any person that is found wholly or partly in a dangerous zone.

Maintain a minimum distance from the appliance when operating in such a way as to avoid endangering the safety of the operator in case of unexpected circumstances.

The following are also danger zones / · All the work areas within

the appliance • All the areas protected by appropriate safety and protection systems such as safety photocell photoelectric curtains, protective panels, interlocked doors, protective casing.

• All the zones within the control units, electrical cabinets and junction boxes.
• All the zones around the appliance in operation when the minimum safety distances are not being respected.

EQUIPMENT REQUIRED FOR INSTALLATION /

The authorised technical operator, in order to perform the installation operations correctly, must respect the following requirements:

• 3 and 8 mm screwdriver
• Adjustable pipe wrench
• Gas use tools (hoses, gaskets etc.)
• Electrician's scissors
• Water use tools (hoses, gaskets etc.)
• 8 mm hex socket wrench
• Gas leak detector
• Tools for electric use (cables, terminal blocks, industrial sockets etc.)
• 8 mm nut driver
• Complete installation set (gas etc.)

In addition to the tools listed, an equipment lifting device is required. This equipment must comply with all the regulations relating to lifting equipment.

INDICATION ON RESIDUAL

RISK / Even though the rules for “good manufacturing practice” and the provisions of law which regulate manufacturing and marketing of the product have been implemented, “residual risks” still remain which, due to the very nature of the appliance, it has not been possible to eliminate. These risks include:

RESIDUAL RISK OF ELECTROCUTION/This risks remains when intervening on live electrical and/or electronic devices.

RESIDUAL RISK OF BUR- NING / This risks remains when unintentionally coming contact with materials at high eratures.

RESIDUAL RISK OF BURNS DUE TO LEAKING OF MATE- RIAL / This risks remains when unintentionally coming into contact with materials at high temperatures. Containers that are too full of liquids or solids that during warming change morphology (changing from a solid to a liquid), can, if used incorrectly, cause burns. During operations, the containers used must be placed on easily visible levels.

RESIDUAL RISK OF CRU- SHING LIMBS / This risk exists where there is accidental contact between the parts during positioning, transportation, storage and assembly.

RESIDUAL RISK OF EXPLOSIONS / This risk remains when:

• there is smell of gas in the room;
- appliance used in an atmosphere containing substances which risk exploding;
• using food in closed containers (such as jars and cans), if they are not suitable for the purpose.

RESIDUAL RISK OF FIRE / This risk exists by flammable liquids / material use

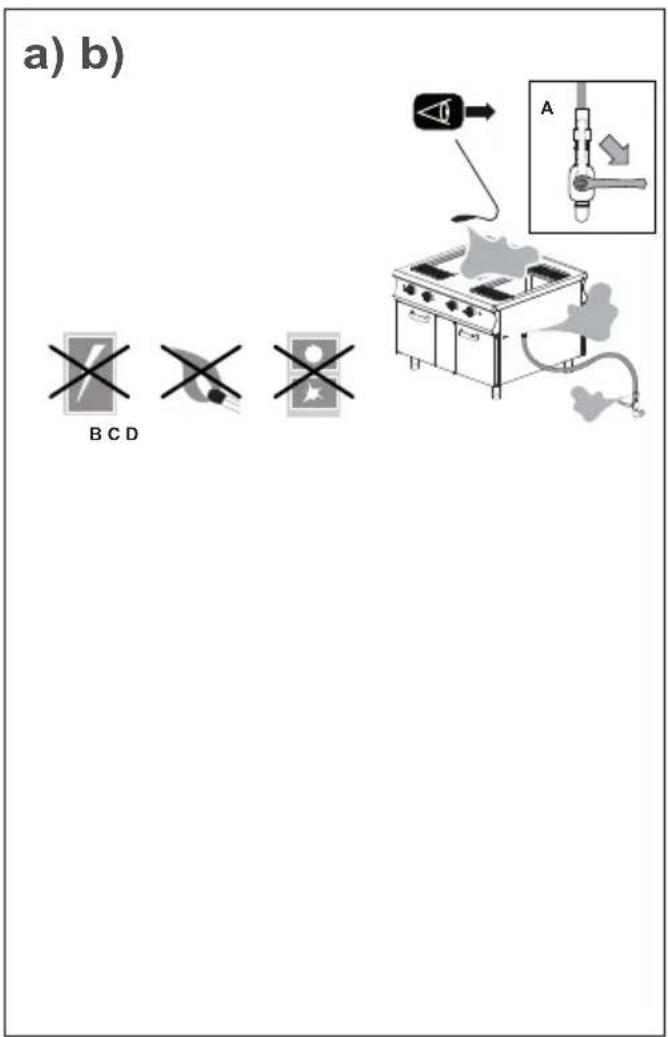

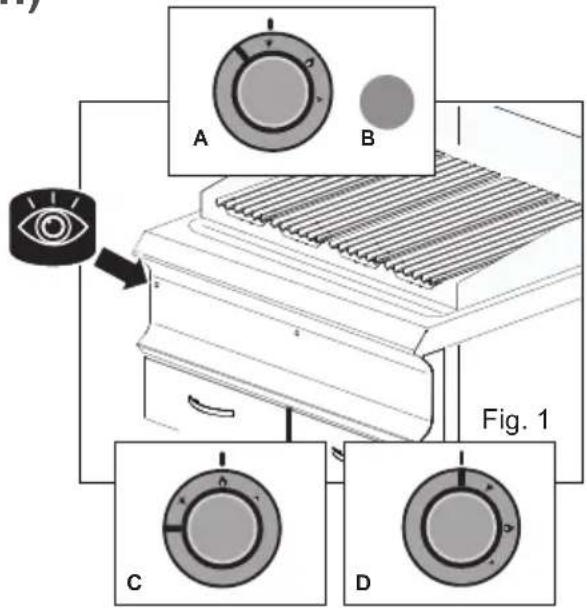

OPERATIONAL MODE FOR A SMELL OF GAS IN THE ENVIRONMENT - see SECTION IMAGES - REFERENCES a)

If there is a smell of gas in the environment, it is mandatory to urgently implement the procedures described below.

• Immediately stop the gas supply (Close the network tap, detail A).
• Ventilate the room immediately.
• Do not operate any electrical de-

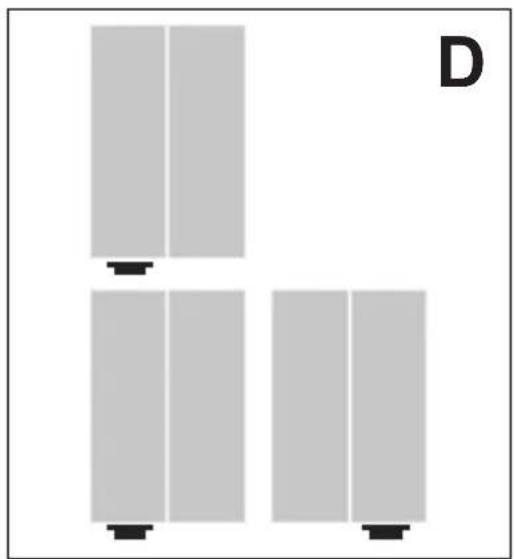

vice in the environment (Detail B-C-D).

• Do not operate any device which could produce sparks or flames (Detail B-C-D).
• Use a means of communication that is external to the environment where there is a smell of gas to

POSITIONING AND HANDLING

3.

warn the relevant entities (electricity operator and/or fire-fighters).

Before proceeding with the operations, see “General safety information”.

OBLIGATIONS - PROHIBITIONS - ADVICE

Upon receipt, open the machine packaging and ensure that the machine and accessories have not been damaged during transportation. Where this is found to be the case, notify the carrier immediately and do not proceed with installation but contact the qualified and authorised personnel.

The manufacturer is not liable for damage caused during transportation.

HANDLING SAFETY /

Failure to follow the instructions reported below could result in exposure to the risk of serious injury.

The operator authorised for the handling and installation operations of the appliance must prepare, if necessary, a "safety plan" in order to ensure the safety of the persons involved in the operations. In addition, they must follow and strictly and scrupu-

Iously implement the laws and regulations relating to mobile sites.

Ensure that the lifting means adopted have capacity that is adequate for the loads to be lifted and are in a good state of maintenance.

Perform the handling operations using lifting means with a capacity appropriate to the weight of the appliance increased by 20%.

Follow the directions on the packaging and/or on the same appliance before handling.

Check the centre of gravity of the load before lifting the appliance.

Lift the appliance to a minimum height from the ground in order to ensure its handling.

Do not stand or pass under the appliance during lifting and handling.

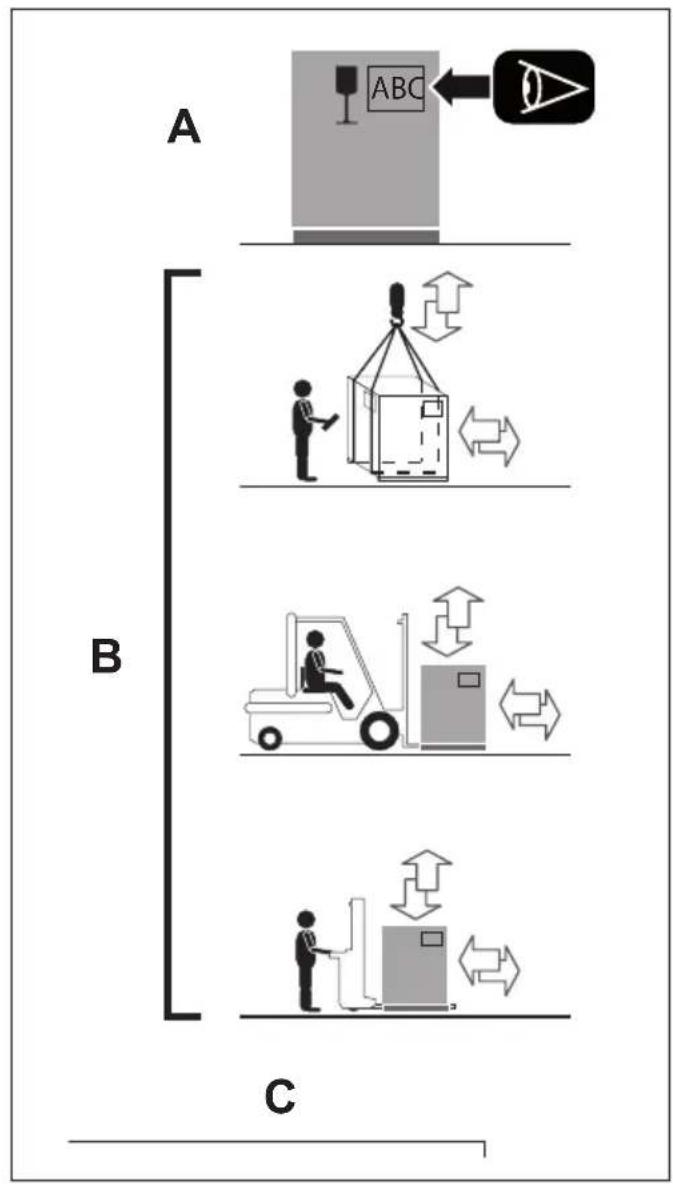

HANDLING - TRANSPORTATION / - see SECT. IMAGES - REF. b).

The orientation of the packed appliance must be maintained according to the instructions given by the pictograms and lette-

ring on the outer packaging.

1. Position the lifting means paying attention to the centre of gravity of the load to be lifted (detail B-C).
2. Lift the appliance enough to move it.
3. Place the appliance on the site chosen for final positioning.
   4.

STORAGE / The storage methods of the materials must include pallets, containers, conveyors, vehicles, tools and lifting devices that are suitable to prevent damage due to vibration, impact, abrasion, corrosion, temperature or other conditions that might arise. The parts stored should be periodically checked to detect possible deterioration.

DISPOSAL OF PACKAGING

Disposal of the packing materials is the responsibility of the recipient that should proceed in accordance with the laws in force in the country of installation of the appliance.

1. Remove in sequence the upper and lower corner protectors;
2. Remove the protective material used for packaging;
3. Lift the appliance as necessary and remove the pallet;
4. Place the appliance on the ground;
5. Remove the means used for lifting;
6. Clean the area of operations from all the material removed;

Having removed the packaging, there should not be any signs of tampering, dents or other anomalies. Where evidence of these is found, immediately notify the customer service.

REMOVAL OF PROTECTIVE MATERIALS / The appliance is protected on the exterior surfaces with a covering of adhesive film which must be removed manually after positioning of the appliance. Carefully clean the appliance, externally and internally, manually removing all the material used to protect the parts.

Be careful not to damage stainless steel surfaces. No not use corrosive products, abrasive material or tools.

Do not use pressurised direct water or steam cleaners jets for cleaning operations

Carefully read the indications contained on the labels of the products used. Wear protective ment suitable for the operations to reformed (see the protection inform shown on the package label).

Rinse the surfaces with tap water and dry them with an absorbent cloth or other non-abrasive material.

CLEANING AT COMMISSIONING /

Apply the cleaning liquid using normal spray over the entire surface of the co-oking chamber and manually thoroughly clean the entire surface using a non-abrasive sponge.

Afterwards rinse the cooking chamber with drinking water.

Let the liquid containing detergent and/or other impurities flow off into the drain hole.

Having successfully completed the operations described, carefully wipe the cooking chamber with a non-a-brasive cloth. If necessary, repeat the operations described above for a new cleaning cycle.

Also clean with detergent and water the parts removed and clean them.

With the operations completed, place the parts removed in the appropriate housings of the various pieces of equipment.

LEVELLING AND SECURING - see SECTION IMAGES - REF c).

Position in the work place (see opera-

tion and environmental limit conditions permitted), previously made suitable, of the appliance.

The tasks of levelling and securing include: adjustment of the appliance as a single independent unit.

Place a spirit level on the structure (detail D).

Adjust the levelling feet (detail E) according to the indications provided by the level.

Perfect levelling is achieved by adjusting level and feet on the width and depth of the appliance.

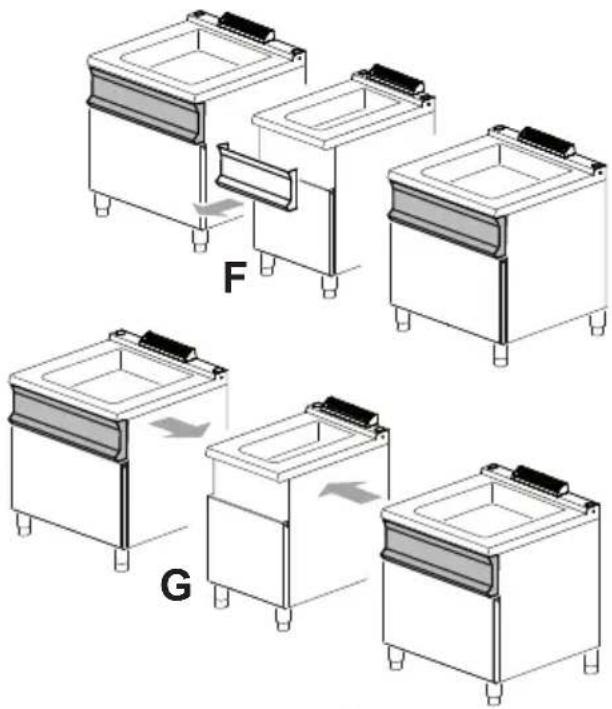

"SERIES" ASSEMBLY / see SECT. IMAGES - REF. d).

In the models provided, remove the knobs and unscrew the screws for the fixing of the panel (detail F).

Flammable walls / The minimum distance of the appliance from the side walls must be 10 cm and from the rear wall must be 20 cm. If it is lower, insulate the walls close to the appliance with fireproof and / or insulating treatments.

Install the appliances so as to exclude any accidental contact

with high temperature surfaces,

including hot combustion fumes coming out of the chimney (see identification with High temperatures warning label and description on page 2), to people who transit and / or operate within the work environment.

To place the equipment adherent each other perfectly (part G). Level the equipment as described above (detail E).

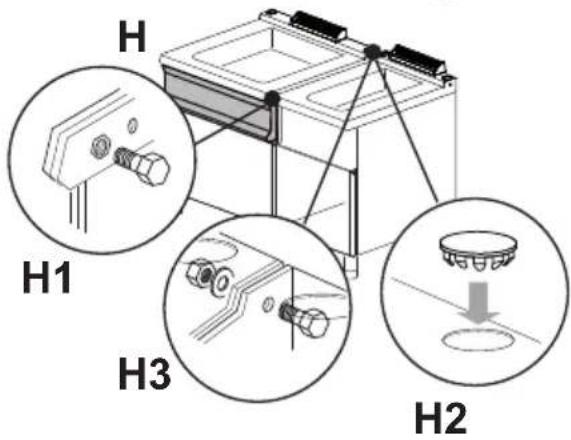

Insert the screws in their housings and lock the two structures with the locking nuts (part H1-H3).

Replace the protective caps between the devices (part H2).

Repeat, if necessary, the sequence of leveling and fixing operations for the remaining equipment.

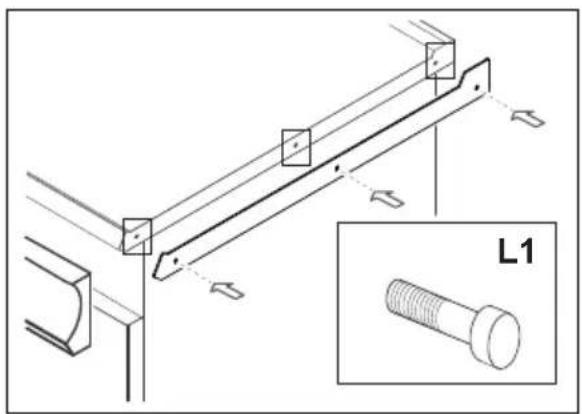

INTRODUCTION OF TERMINAL (OPTIONAL) see SECT. IMAGES - REF. d). / In order to introduce the terminal, position it and fix it with the equipped screws provided (detail L1).

Once the described operations have been carried out, position again the panels and knobs of the different appliances in the respective housings.

POWER SUPPLY CONNECTIONS

4.

Before proceeding with the operations, see “General safety information”.

These operations must be performed by qualified and authorised operators, in accord-with the laws in force and using appropriate materials described.

Generally, the appliance is delivered without electric mains supply cable, without s for connection to the water,

drainage and gas networks.

GASPOWER CONNECTIONS - see SECT. IMAGES - REF. e).

Features of the installation site / The premises for installation of the appliance (type A1 under hood) must be equipped with features such as:

Air premises according to the provisions required by the local regulations in force. The extraction hood above the appliance must be in operation during use of the appliance itself.

The distance between the appliance and the filter of the extraction hood must be at least 20 cm.

Once the appliance is connected to the power and drain sources, it must remain static (fixed) in the place of use and maintenance.

A safety valve must be installed on the network upstream of the main supply line. It must be easily identifiable and accessible by the operator (Fig. 3)

To make the connection to the mains, it is necessary to have a hose conforming to the local law in force and with the characteristics specified in EN ISO 228-1 or EN 10226-1 / -2.

The gas supply pipe must comply with local regulations in force and must be periodically reviewed and/or replaced in accordance with local conformities in force, by authorized personnel.

hose is used, it must comply with the local regulations ; they must not be longer than 2 meters and must not touch parts of the equipment subject to high temperatures.

The outlet from the appliance is "male" type and 1/2"G. The connection pipe must be of "female" type and 1/2 "G as described by local standards.

The pipes must be screwed firmly to their attachment points.

Conduct a test to ensure that there are no gas leaks once the network gate valve is open (Fig. 4).

Do not connect the appliances to networks containing gas with carbon monoxide or other toxic components Upon completion of the operations describe, close the network gate valve (Fig. 3).

If it is necessary to replace the nozzle to conform to another type of gas supply, see the procedure described in the Operations for commissioning (see chapter 5).

GAS TYPE CHANGE - see SECT. IMAGES - REF. f)

The appliance comes from the factory with setting to the type of power indicated on the plate.

Any other configuration that changes the parameters set must be authorized by the manufacturer or by its representative.

The transformation from one type of power to another must be performed by qualified technical personnel authorized to perform the operation in question. The correct procedure to be implemented for the transformation is described in the relevant manual.

Injectors - By Pass - Pilot injectors - Apertures - and anything necessary for any gas transforon must be requested directly in the manufacturer.

At the end of the transformation from one type of power to another, change the label on the appliance with new the parameters reported on the adhesive document provided.

Two plates may need to be replaced in certain cases (oven equipment), one outside near gas attachment and one inside image reference f).

GENERAL WARNINGS

Operators have a duty to familiarise themselves adequately, using this manual before performing any intervention, adopting the specific safety requirements to make every kind of human-computer interaction safe.

Any technical modification that affects the operation or safety of the machine must only be carried out by the technical personnel of the manufacturer or by technicians that are formally authorised by the manufacturer. Failure to do so exempts the manufacturer from any liability for for any possible resulting modifications or damage.

Even after appropriate familia- risation, upon the first use of the appliance, in any case simulate a number of test operations to save more rapidly the main functions of the appliance, e.g. start-up, shut-down, etc.

The appliance is provided already tested by the manufacturer and fitted with the type of gas and electrical supply specified on the rating plate applies.

In case of supply with LPG gas (Butane or Propane) at 50 mbar, a pressure stabilizer 50 mbar must be installed upstream of the appliance.

FIRST COMMISSIONING START

UP / Upon completion of the operations of positioning and connection to the power sources, perform a series of operations such as:

1. Cleaning away of the protective materials (oils, grease, silicones, etc.) inside and outside of the cooking chamber

(see section 3 / Removal of protective materials).

1. General checks and controls such as: Check opening of switches & network gate valves (e.g. water, electricity, gas when applicable); Checking of drains; Checking and monitoring of the external fumes/vapour extraction; Checking and monitoring of the protection panels (all the panels must be fitted correctly).

PRESSURE DETECTION GAS INLET

If the measured pressure is lower than the 20% compared to the nominal pressure (ex. G20 20 mbar ≤ 17 mbar) suspend the installation and contact the gas distribution service.

If the measured pressure is higher than the 20% compared to the nominal pressure (ex. G20 20 mbar ≤ 25 mbar) suspend the installation and contact the gas distribution service.

The constructor firm does not recognise the machines warranty in case the gas pressure is lower or higher than the values above described.

Make sure there are no gas leaks

After controlling the pressure and type of gas supply intervention may be required, such as: 1. Replacement of the nozzle (in the case where the type of network gas is different from that for which the appliance is preset- see chapter 6).

DESCRIPTION OF STOP MODES

Generally, in stoppage conditions caused by faults and emergencies, in the event of imminent danger, it is mandatory to close all the locking devices on the supply

lines upstream the appliance (Water-Gas-Ele).

STOPPAGE DUE TO FAULTY OPERATIONS

Safety component / STOP: In situations or circumstances which can be dangerous, a safety thermostat is triggered, automatically stopping heat generation. The production cycle is interrupted until the cause of the fault is resolved.

RESTARTING: After the problem that triggered the safety thermostat is resolved, the authorised technician can restart the appliance by means of the specific controls.

COMMISSIONING FOR INITIAL START-UP

When commissioning the appliance and when starting it after a prolonged stop, it must be thoroughly cleaned to eliminate all residue of extraneous material (see chapter 3 / Removal of protective materials).

DAILY ACTIVATION

1. Check the cleanliness and hygiene of the appliance.
2. Make sure that the room exhaust system works properly.
3. When necessary, plug the appliance into the appropriate socket.
4. Open the network locks upstream the appliance (Gas - Water - Electric).
5. Make sure that the water drain (if present) is not clogged.
   Proceed with the operations described in "Starting production".

In order to free air in the pipes, open the network lock, turn the knob of the appliance while pressing it

in the piezoelectric position, place a flame (match or the likes) on the pilot light and wait for it to ignite.

DAILY DECOMMISSIONG / Upon completion of the operations described above:

1. Close the network locks upstream the appliance (e.g. Water - Gas - Electric).
2. Make sure that the drain cocks (if present) are "Closed".
3. Check the cleanliness and hygiene of the appliance.

PROLONGED DECOMMISSIONING

/ In case of prolonged inactivity, perform all the procedures described for daily putting out of service and protect the parts most exposed to oxidation as indicated below:

1. Use lukewarm water with a bit of soap to clean the parts;
2. Rinse the parts thoroughly, without use pressurised direct water or steam cleaners jets for cleaning operations;
3. Dry the surfaces carefully using non-abrasive material;
4. Wipe a non-abrasive cloth lightly soaked with food-safe Vaseline oil over all of the stainless steel surfaces in order to create a protective film.

For appliances with doors and rubber gaskets, leave the door slightly ajar to let it air out and spread protective talcum powder on the rubber gasket surfaces.

Periodically air the appliances and rooms.

To make sure that the appliance is in perfect technical conditions, arrange for service at least once a year by an authorised technician of the assistance service.

UPSTREAM DYNAMIC PRESSURE CONTROL / See gas inlet pressure detection.

INJECTOR PRESSURE CON- TROL

If the measured pressure is lower than the 20% compared to the entry pressure, suspend the installation and contact the authorized customer care service

If the measured pressure is higher than the entry pressure, suspend the installation and contact the authorized customer care service

UPSTREAM DYNAMIC PRESSURE CONTROL / See Gas inlet pressure detection.

INJECTOR PRESSURE CON- TROL

If the measured pressure is lower than the 20% compared to the entry pressure, suspend the installation and contact the authorised customer care service

If the measured pressure is higher than the entry pressure, suspend the installation and contact the authorised customer care service

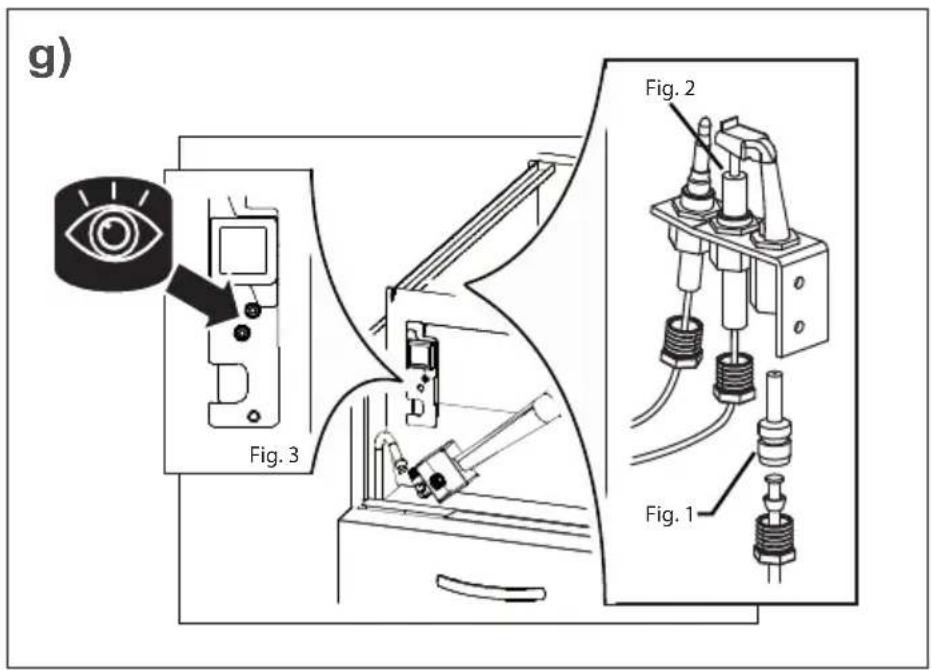

REPLACEMENT OF PILOT BURNER INJECTOR - SEE ILLUSTRATIONS SECT. - REF. g)

1. Close the shut-off valve upstream of the appliance.
2. Remove the grids, splash guards and burner guards at the pilot unit.
3. Remove the panel. Unscrew the pilot unit (Fig. 3) and pull it out from above
4. Unscrew the nut and remove the pilot injector (the injector is attached to the double cone).
5. Replace the pilot injector (Fig. 1) with that which corresponds to the selected

gas as indicated in the Reference table. 6. Screw back the parts, pilot unit and put all removed parts back in place.

Check the gas seal with the special tools

REPLACEMENT OF PILOT BURNER INJECTOR - SEE ILL SECT. - REF. h)

1. Close the shut-off valve upstream of the appliance.
2. Remove the panel
3. Unscrew the injector (Fig. 3).
4. Replace the injector with the one for the gas / see Reference table.
5. Screw the new injector into its seat.

Check the gas seal with the special tools

MAIN BURNER ADJUSTMENT - SEE ILL SECT. - REF. i)

To adjust the primary air:

Close the shut-off valve upstream of the appliance.

Unscrew the locking screw (Fig. 1).

Where required, set the distance (X) mm of the bushing for the selected gas (see reference Gas table).

Lock the bushing with the screw and affix a tamper-evident seal over it

ADJUSTMENT OF MINIMUM THERMAL RANGE - SEE ILL SECT. - REF. I)

In the provided models, the reduced thermal range is obtained with the "sized" by-pass minimum screw (Fig. 2), screwed hard (see reference Gas Table).

Open the shut-off valve upstream of the equipment.

In case of screw replacement put a tamper-evident seal on it at the end of the detection process

Before proceeding see chap. 2

1. Remove the panel and the knobs

REPLACING THE TAP

1. Unscrew the gas inlet and outlet connections
2. Unscrew the thermocouple and pilot
3. Reassemble the new tap
4. Check the idle screw (see Technical Data Tables)
5. Restore the connections

REPLACING THE THERMOCOUPLE

1. Unscrew the thermocouple from the tap
2. Unscrew the thermocouple from the pilot
3. Reassemble the new thermocouple and tighten the connections

REPLACING THE SPARK PLUG

1. Disconnect the high voltage spark

plug cable

1. Unscrew the nut
2. Reassemble the new spark plug
3. Connect the high voltage cable

REPLACING THE PIEZOELECTRIC

1. Disconnect the cable from the piezoelectric igniter
2. Remove the igniter to be replaced
3. Reassemble the new piezoelectric igniter

REPLACING THE BURNER

1. Unscrew the gas connections
2. Remove screws
3. Pull out the burner
4. Fit the new burner
5. Fasten and connect

When placing the removed parts back, do not invert their position

INSTRUCTIONS FOR USE

8.

LOCATION OF MAIN COMPONENTS - see SECT. IMAGES - REF. m)

The layout of the figures is purely indicative and can undergo variations.

1. Burner adjustment knob (see Knobs, keys and indicator light modes and functions)
2. Piezoelectric button
3. Cooking grill.
4. Container for water and cooking oil/grease collection.
5. Splash guard
6. Burner protection

KNOBS, KEYS AND INDICATOR LIGHT MODES AND FUNCTIONS / SEE ILL SECT. - REF. m). The description is purely

indicative and can undergo variations.

① GAS CONTROLKNOB. Functions:

1. Igniting the pilot light and burner
2. Adjusts the flame (minimum - maximum)
3. Turns the appliance off

② PIEZOELECTRIC BUTTON (GAS). Performs one function:

1. When pressed, it produces the spark to ignite pilot light.

STARTING PRODUCTION

Before proceeding with the operations, see “General safety information / Residual risks” Before proceeding with these

operations, see "Daily activation".

When loading the product into the appliance and unloading it, there is a residual risk of being burnt; this risk can occur coming into unintentional contact with: hob - cooking compartment - recipients or material processed.

For ideal cooking, pour 5.5 litres of water in each container. Fill periodically to maintain the nce of water.

IGNITION - see ILLUSTRATIONS sect. - REFERENCE n)

The appliance must be ignited after having filled the drawer with water. Do not ignite dry (DRAWER MUST NOT BE

EMPTY).

• Turn while holding the knob in the piezoelectric position (Fig.1/A), simultaneously press the piezoelectric button (Fig.1/B) several times until the pilot light is ignited.
• Release the knob after about 20" and check to make sure the pilot light remains lit.

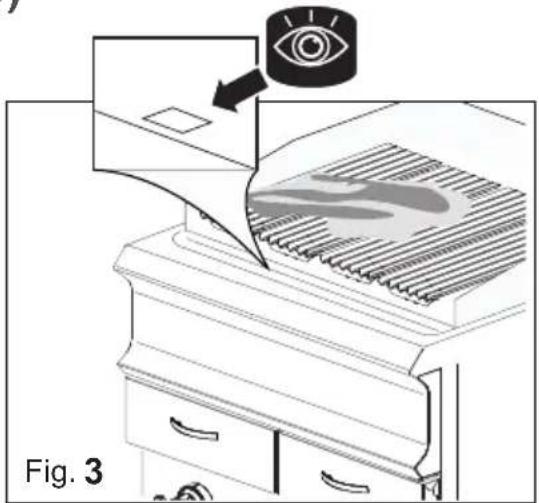

The pilot light can be seen through the hole on the panel (Fig.1).

When the pilot light has been lit, turn the knob to the desired position (Fig.1/C).

In the dual control (2 thermostat knobs) each knob acts on the operation of two grills (detail D)

LOADING/UNLOADING THE PRODUCT - see ILL sect. - REF n)

Do not use saucepans or other containers to process (cook) food on the grill Wait until the desired temperature is reached before

putting food on the grill

Do not use greasy and/or flammable condiments. Danger naked flames

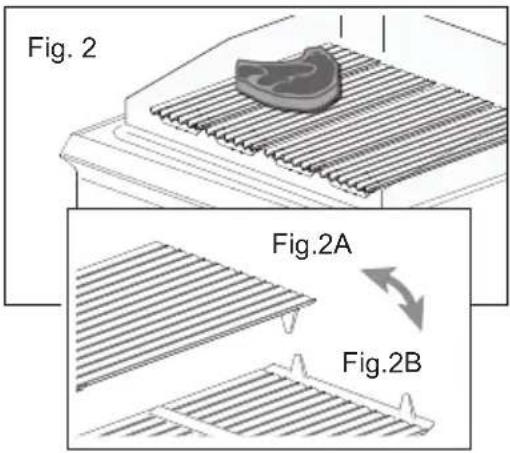

The grill can be used in two ways - see ILLUSTR sect. - REF n):

1. Method A - see Fig. 2A

2. Method B - see Fig. 2B - Lean food cooking

3. When the set temperature is reached, load the product to be cooked directly onto the cooking grill (Fig. 2).

4. When the product is cooked, unload it with the appropriate utensils and put it in a place prepared beforehand.

After the product has been unloaded, load it once again or else perform the operations described in "Deactivation".

DEACTIVATION - see ILL. - REF. o)

At the end of the work cycle, turn the knobs on the appliance to "Zero".

The appliance must be cleaned regularly and every incrustation or food deposit removed. See tenance" chapter.

If present, the indicator lights must be off at the end of the work cycle.

Check the cleanliness and hygiene of the appliance; see "Maintenance".

Close the network locks upstream the appliance (Gas/Water/Electric).

Wait for the temperature of the grill to cool down, so that the operator is not burnt.

Check to make sure the drain piping has no obstructions (Fig.3)

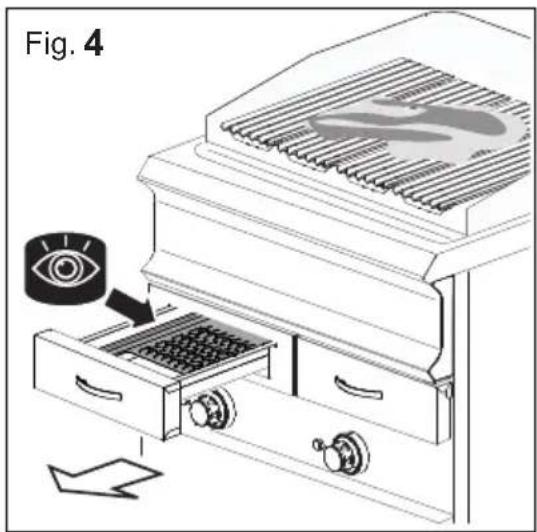

Take the containers out of their housing and clean them if necessary (Fig. 4 - see Maintenance)

In the burnt liquids drain there is still a residual risk of burns. This risk can occur with accidental contact with oil/water treated at high temperatures.

Before proceeding with the operations, wait for the temperature of the liquid to cool down.

The capacity of the collection container is limited, always

monitor it closely when draining.

For safe handling, don't fill the collection container more than 3/4 full, remove it from its seat, empty it and then put it back in place.

Empty the container in compliance with waste disposal procedures in force in the country where the appliance is used and reposition the emptied recipient in its housing (Fig. 5).

EN

MAINTENANCE

9.

OBLIGATIONS - PROHIBITIONS - ADVICE

Before proceeding see chapters 2 and 5.

If the appliance is connected to a flue, the exhaust pipe must be cleaned according to that foreseen by specific regulatory provisions of the country (contact your installer for information).

The appliance is used to prepare food products. Keep the appliance and the surrounding area constantly clean. Failure to keep the appliance in ideal hygienic conditions could cause it to deteriorate quickly and create dangerous situations.

Filth deposit built up near heat sources can burn during normal use of the appliance and create dangerous situations. The appliance must be cleaned regularly and every incrustation or food deposit removed.

The chemical effect of salt and/or vinegar or other acid substances can in the long run cause the inside of the hob to corrode during cooking. At the end of the cooking cycle of such substances, the appliance must be washed thoroughly with detergent, abundantly rinsed and carefully dried.

Be careful not to damage stainless steel surfaces. No not use corrosive products, abrasive material or sharp tools.

The liquid detergent for cleaning the hob must have certain chemical features: pH greater than 12, without chlorides/ammonia, viscosity and density similar to water. Use non-aggressive products for cleaning the inside and outside of the appliance (use detergents on the market for cleaning steel, glass and enamel).

Carefully read the indications carried on the labels of the products used. Wear protective equipment suitable for the operations to be performed

(see the protective equipment carried on the package label).

In the event of prolonged inactivity, besides disconnecting the supply lines, you must thoroughly clean all the inside and outside parts of the appliance.

Wait for the temperature of the appliance and all its parts to cool off, so that the operator is not burnt.

DAILY CLEANING

Wait for the temperature of the grill to cool down, so that the operator is not burnt. Do not use pressurised or direct water jets or steam cleaners.

1- Lift the cooking grills and use a non-abrasive sponge to clean them thoroughly, use slightly soapy lukewarm water.

2- Apply the cleaning liquid using normal spray over all steel parts and manually thoroughly clean the entire surface using a non-abrasive sponge. Dry the surfaces using non-abrasive material

Take the protection off the container to facilitate cleaning - see ILL sect. - REF p).

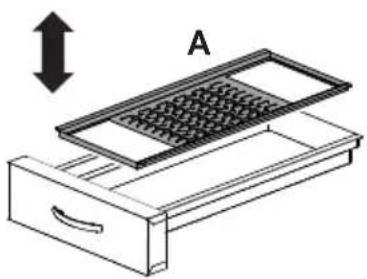

3- Remove, empty and carefully wash the containers and their liquid collection accessories (see Detail A). After cleaning, dry them thoroughly

4- Carefully put all removed parts back in their housing, taking care not to reverse the assembly sequence.

If necessary, repeat the operations described above for a new cleaning cycle.

GRILLS: To remove any incrustations, use a non-abrasive sponge and mild detergent liquid. Clean the grills with a damp cloth.

Humidity residue deposited on the grills can damage the appliance and cause the grills to wear fly.

In order to eliminate every residual of moisture on the grills, to ward off any early wear, once the cleaning operations are over, h the appliance on for approximately 10'.

CLEANING FOR PROLONGED

DEACTIVATION / See chapter 5 / Daily decommissioning / Prolonged decommissioning. Air out the appliances and rooms regularly

SUMMARISED TABLE: OPERATION - FREQUENCY

Before proceeding with the operations, see chap.2 "Duties and qualifications"

Should a problem occur, the generic operator performs the first search and, if qualified, eliminate cause of the problem and re-s the appliance correctly.

If the problem cannot be resolved, turn the appliance off, disconnect it from the electrical s and shut all the supply valves. contact authorized customer ce.

The authorized maintenance technician intervenes when the generic operator was not able to point the cause of the problem, or never restoration of correct operation of the appliance entails executing actions for which the generic operation is not qualified.

OPERATION FREQUENCY
	Cleaning appliance Daily
	Cleaning parts in contact with foodstuff, hotplates and container	Daily
	Cleaning at commissioning Upon arrival after installation
	Greasing the gas taps In case of need
	Checking / Replacing gas supply pipes	In case of need
	Checking internal parts Every 6 months / Yearly

TROUBLESHOOTING

Whenever the appliance does not work properly, try to solve the less serious problems using this table.

FAULT POSSIBLE CAUSE INTERVENTION
Heating is not regulatedThe appliance does not warm up	· The burner does not work properly	· Clean burner and nozzle
The gas appliance does not turn on	· Gas valve shut.· Air inside pipes· Faulty piezoelectric igniter	· Open the gas valve· Repeat the ignition operations· Replace the piezoelectric
Uneven cooking	· No water in the containers	· Add water to the containers

If the problem cannot be resolved, turn the appliance off, disconnect it from the electrical mains and shut all the supply valves. Then contact authorized customer service.

DEACTIVATION AND SCRAPPING OF APPLIANCE

Obligation of disposing of materials using the legislative procedure in force in the counhere the appliance is scrapped

In compliance with Directives (see n. 0.1 Section), relating to the reduction of use of hazardous substances in electrical and electronic equipment, as well as waste disposal. The symbol of the barred waste bin carried on the appliance or its packaging indicates that the product at the end of its useful life it must be disposed of separately from other waste.

Differentiated waste collection of this appliance at the end of its life is organised and implemented by the manufacturer. The user who wishes to get rid of this appliance must contact the manufacturer and follow the instructions received to separately dispose of the appliance at the end of its life. An appropriate collection and dispatching of exhausted appliances to environmentally compatible recycling, treatment and disposal plants helps to prevent damaging effects on health and environment and also guarantees that the component parts of exhausted appliances are effectively recycled or reused. Holders of exhausted appliances who dispose of them illegally will be prosecuted. Specialised personnel is in charge of deactivation and scrapping of the appliance.

The decommissioning and dismantling of the appliance must be carried out by qualified personnel, either mechanical or electrical, that must wear appropriate personal protective equipment such as protective clothing appropriate to the operations to be performed, protective gloves, safety shoes, head gear and goggles.

Before commencing dismantling of the appliance, ensure around the appliance a space's large enough and arranged ch a way as to allow all moves without risk.

The following are necessary:

• Disconnect the power supply.
• Disconnect the appliance from the mains.
• Remove the electrical cables exiting the appliance.
• Close the water inlet tap (mains valve) from the mains supply.
• Disconnect and remove the pipes from the appliance water system.
• Disconnect and remove the grey water discharge pipe.

After this operation, a wet area around the appliance form and therefore, before nuing with operations, dry wet areas.

After restoring the operational area as described:

• Remove the protective panels.
• Disassemble the appliance in its main parts.
• Separate the parts of the appliance according to their nature (e.g. metals, electrical parts etc.) and deliver them to recycling centres.

WASTE DISPOSAL

During operation and maintenance, do not disperse pollu-oils, grease, etc.) into the envi-ent and perform differentiated e disposal depending on the position of the different materials in compliance with relevant laws ce.

Illegal waste disposal will be prosecuted by laws in force in the territory where the violation has been ascertained.

TABLE DES MATIÈRES

1-2. INFORMATIONS GÉNÉRALES SUR LA SECURITE
3. MISE EN PLACE ET MANUTENTION
4. RACCORDEMENTSAUX SOURCES D'ENERGIE
5. OPÉRATIONS POUR LA MISE EN SERVICE
6.CHANGEMENTTYPLOGIE DE GAS

1. REMPLACEMENT DES COMPOSANTS
2. INSTRUCTIONS POUR L'UTILISATION
   9.MAINTENANCE
3. ÉLIMINATION
4. DONNÉES TECHNIQUES / IMAGES

DESCRIPTION DES PICTOGRAMMES

- Kit installation complet (ele, gaz etc.)

OBLIGATIONS - INTERDICATIONS - CONSEILS - RECOMMANDATIONS

SÉCURITÉ POUR LA MANUTENTION

CHANGEMENT DE TYPE DE GAZ - V. SECT. ILLUSTRATIONS - RÉFÉRENCE f).

REPLACEMENT INJECTEUR BRÛLEUR PILOTE - V. SECT. IL- LUSTRATIONS - RÉF. g)

REPLACEMENT DU ROBINET

REEMPLACEMENT DU THER- MOCOUPLE

REPLACEMENT DE LA BOUGIE

ALLUMAGE - v. sect. ILLUSTRATIONS - RÉFÉRENCE n)

OBLIGATIONS - INTERDICTIONS - CONSEILS - RECOMMANDATIONS

STOP WEGENS STORING WERKING.

Veiligheidscomponent / STOP:

Utelukk enhver form for forsyning (for eks. gass -

UTBYTTING AV TENNPLUGG

INFORMATION ON NEW GAS DUTCH The appliance was configured for the appliance category K (I2K) and is suitable for the use of G and G+ distribution gases according to the specifications as included in the NTA 8837:2012 Annex D with a Wobbe index of 43.46 – 45.3 MJ/m3 (dry, 0°C, upper value) or 41.23 – 42.98 (dry, 15°C, upper value). This appliance can moreover be converted and/or be calibrated for the appliance category E (I2E). This therefore implies that the appliance “is suitable for G+ gas and H gas or is demonstrably suitable for G+ gas and can demonstrably be made suitable for H gas” within the meaning of the “Dutch Decree of 10 May 2016 regarding amendment of the Dutch Gas Appliances Decree and the Dutch Commodities (Administrative Fines) Act in connection with the changing composition of gas in the Netherlands as well as technical amendment of some other decrees.

1. I diametri degli ugelli sono espressi in 1/100mm – The diameter of the nozzles are indicated in 1/100mm - Le diamètres des gicleur sont exprimés en 1/100mm - Diameter der Düsen ist in 1/100mm angegeben – Los diámetros de las boquillas se indican en 1/100mm.

2. RDA: Regolazione dell'aria primaria; Primary air regulation; Réglage del'air primaire; Primärlufteinstellung; Regulación de la entrada del aire.

/ 700 - TECHNICAL DATA

AT / Austria	EE / Estonia	IS / Iceland	PL / Poland
AL / Albania	ES / Spain	IT / Italy	PT / Portugal
BE / Belgium	FI / Finland	LT / Lithuania	RO / Romania
BG / Bulgaria	FR / France	LV / Latvia	SE / Sweden
CH / Switzerland	GB / UK	LU / Luxembourg	SI / Slovenia
CY / Cyprus	GR / Greece	MK / Macedonia	SK / Slovakia
CZ / Czech Rep.	HR / Croatia	MT / Malta	TR / Turkey
DE / Germany	HU / Hungary	NL / Netherlands
DK / Denmark	IE / Ireland	NO / Norway

IT, IE, GR, GB, ES, PT, BG, CZ, DK, FI, EE, SE, HR, LT, LU, LV, NO, PL, RO, SI, SK, TR, AL, MK, CH
Modelli – Models WGG74 WGG78
Tipo – Type A1
Potenza nominale - Nominal thermal power	(kW)		8,5 17
Consumo gas - Gasconsumption	G20 m	^3/h	0,899 1,798
	G30/G31 kg/h		0,670/0,660 1,340/1,320
Bruciatore principale - Main burner	G20 20 mbar*		205L 205L
R.D.A.-X mm 22,5 22,5
BY PASS-∅-1/100mm 130 130
Bruciatore pilota - Pilot burner (max 0,25 kW)	G20 20 mbar*		36	36
Bruciatore principale - Main burner	G30/G31 28-30/37 mbar* G30/G31 30/30 mbar* G31 37 mbar*		150K	150K
R.D.A.-X mm			18	18
BY PASS-∅-1/100mm			85	85
Bruciatore pilota Pilot burner (max 0,25 kW)	G30/31 28-30/37 mbar* G30/G31 30/30 mbar* G31 37 mbar*		19	19

INGRESSO ACQUA / WATER INLET ∅ M 1/2"

ATTACCO EQUIPOTENZIALE / EQUIPOTENTIAL

ALIMENTAZIONE ELETTRICA / POWER SUPPLY

SCARICO ACQUA / OLII WATER / OILS DRAIN

REGOLAZIONE PIEDINI / FEET ADJUSTMENT (h 0/+50) / TOP VERSION (h 0/+5)

950 850 530 400 90 200 150 5528755

950 850 530 400 9090 200400 5568755 150

20 51.2 129466135 730 570 430 145 400

56,520 430 730 570 275250 800 135466129

INSTALLAZIONE / INSTALLATION

a) b) B C D A

c) D E

d)

Diagram showing six different kitchen or storage units labeled F and G, illustrating a stepwise process with arrows indicating movement.

H H1 H3 H2

L1

e)

1/2" G Fig. 1 1/2" G Fig. 2 Fig. 3

Diagram of a kitchen appliance with tubing and valve, labeled Fig. 4 (no text or symbols on diagram itself)

g) Fig. 3 Fig. 2 Fig. 1

Technical line drawing of a mechanical component labeled Fig. 2 (no text or symbols on the diagram itself)

m)

3 4 2 1

① ②

Technical diagram of a gas stove with numbered components for identification

n)

A B Fig. 1 C D

Four gray rectangular blocks arranged in a V-shape with black base markers, labeled 'D' in top-right corner (no text or symbols on blocks)

Fig. 2 Fig.2A Fig.2B

o)

Diagram showing a device with an eye interacting with a rack of blades, labeled Fig. 3 (no text or symbols on the diagram itself)

Fig. 4

Fig. 5

Diagram illustrating recycling, waste sorting, and recycling with labeled icons

p)

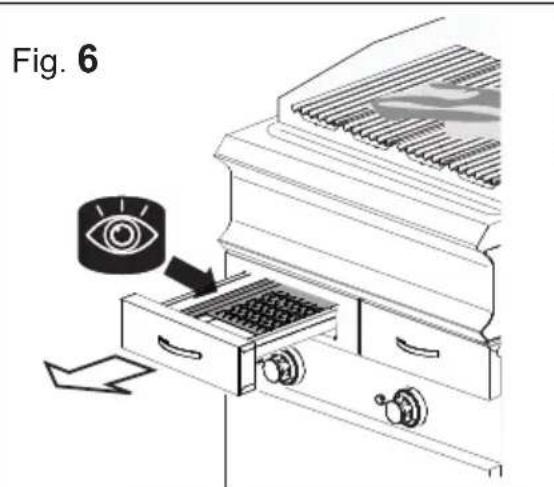

Fig. 6

Diagram of a mechanical device with a grid-patterned top component and an arrow indicating upward motion (no text or symbols)
