USER MANUAL Freedom Lit II HAMA

Line drawing of a pair of white headphones with adjustable arm brackets (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these 2 instructions in a safe place for future reference 3 you sell the device, please pass these operating 4 instructions on to the new owner.

Controls and displays

§. + button
2. - button
3. Microphone
4. Multi-function button (MFB)
5. Status LED
6. Audio input (3.5 mm)
7. USB-C connection

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes

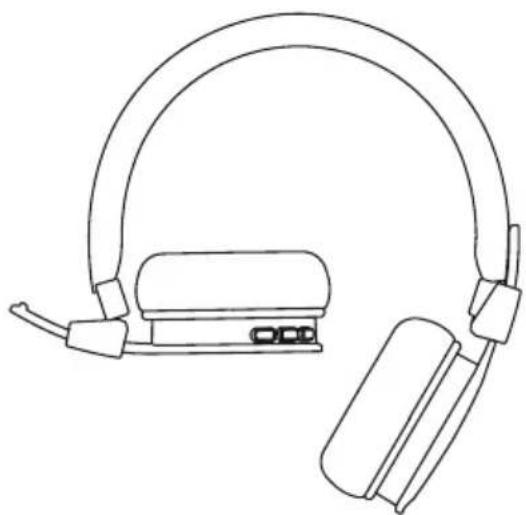

2. Package contents

1x "Freedom Lit II" Bluetooth-ear headphones
1x USB-C charging cable
1x quick guide
1x warning and safety instructions

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

3. Safety instructions

• The product is intended for private, non-commercial use only
- Use the product only for the intended purpose.
• Children should be supervised to ensure that they do not play with the product
- Do not use the product in areas in which electronic products are not permitted
- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts
- Do not open the device or continue to operate it becomes damaged
- Do not bend or crush the cable.
- Do not drop the product and do not expose any major shocks.
- Dispose of packaging material immediately in accordance with the locally applicable regulations.
- Do not modify the product in any way. Doing so voids the warranty
- Protect the product from dirt, moisture and overheating and use it in dry environments only
- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight
- Only use the article under moderate climatic conditions.
- As with all electrical products, this device should be kept out of the reach of children
- Do not operate the product outside the power limits specified in the technical data
- Do not use the product in a damp environment and avoid splashing water
- While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.
- The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations
- Do not incinerate the battery or the product.
- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.
- Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB connections to charge the product.
• Do not use defective chargers or USB ports y and do not attempt to repair .them
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).
  Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

- This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, as the pacemaker's proper function could be affected.

- Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
• Always keep the volume at a sensible level. Loud volumes, even over short periods, can cause hearing loss.
• Using this product limits your perception

of ambient noise You should

therefore not driveor operate machinerywhile using them

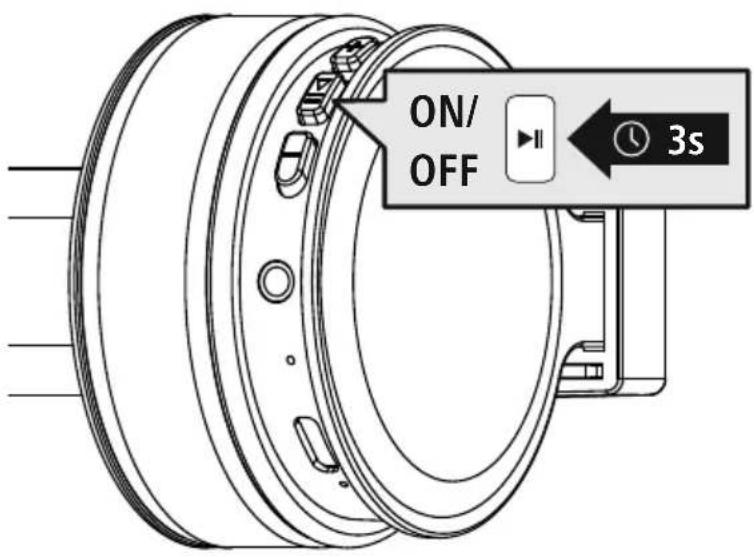

4. Switching on/off

Press the MFB button (4) for approx. 3 seconds until you hear "Power on".

To switch off, press the MFB button (4) for approx. 3 seconds until you hear "Power off" and the LED then goes out.

ON/ OFF 3s

Note - Automatic switch-off of the headphones

The headphones are equipped with an automatic switch-off mechanism there is no connection to your device within 5 minutes, they switch off automatically.

5. Charging

Fully charge the headphones once before using them for the first time.

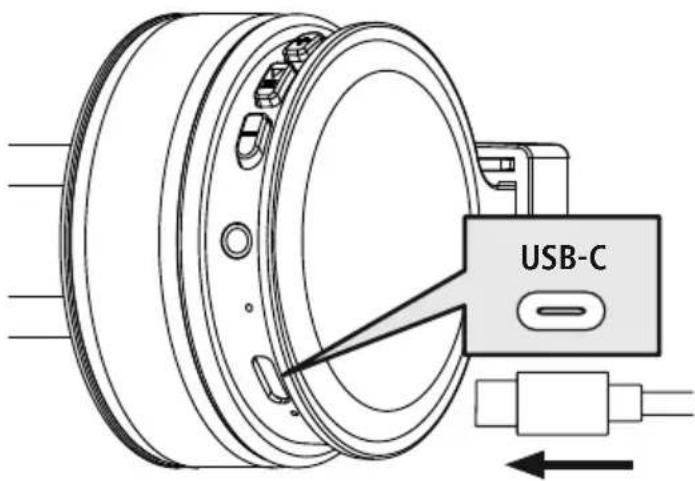

1 Switch off the headphones and connect them

Ensure that the headphones are switched off before charging them.

Connect the USB charging cable included to the charging socket (7). Connect the free plug on the USB-C charging cable to a suitable USB chargedo this, consult the operating instructions for the USB charger you are using.

USB-C

2 Charging process for the headphones

The LED (5) lights up solid red during the charging process.

Once the charging process is complete, the LED (5) goes out.

It can take up to 3 hours for the battery to be fully charged.

3 Battery capacity

When the headphone battery capacity is low, the LED (5) flashes red and a signal tone is heard

Note

During the charging process, the Bluetooth connection is automatically disconnected.

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth activated.
- For more information, please refer to the operating instructions of your device.

The headphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Switch the headphones on using the MFB key (4).

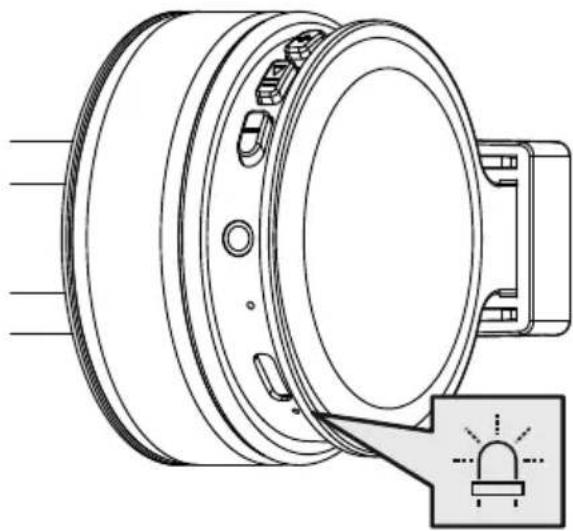

1 Check the status of the status LED (5) and the signal tone

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

If the LED (5) is flashing alternately and you hear "Pairing":

5s red + blue

Headphones searching for a Bluetooth connection.

If the LED (5) is flashing and you hear "Connected":

10s blue

The headphones are already paired with a Bluetodelice.

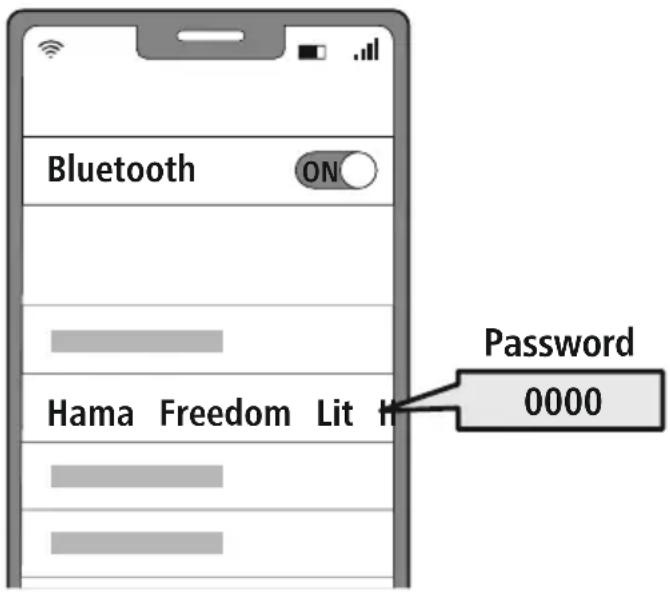

2 Search using your device for the headphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows Hama Freedom Lit II

Select Hama Freedom Lit II and wait until the headphones are shown as connected in your device's Bluetooth® settings.

Bluetooth ON Password 0000 Hama Freedom Lit H

Note - Bluetooth@password

Some devices require a password in order to connect to another Bldevioth

- If your device requests a password to connect to the headphones, enter 0000.

3 Disconnecting the Bluetooth connection

Disconnect the headphones via your device's Bluetoothings.

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Voice assistant function

Siri/Google

Press the MFB button (4) three times to initiate communication with your Siri or Google Assistant. As soon as you hear a signal tone, your voice assistant is ready to assist you

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your mobile phone

Make a call

Dial the number directly via your device to make a call

2 Accept a call

Press the MFB button (4) to accept an incoming call

Reject a call

Press and hold the MFB key (4) for around 2 seconds or use your device to reject an incoming call.

4 End a call

During the call, press the MFB button (4) once to end the call

5 Last number redial

Press the MFB button (4) twice to redial the last number.

7.4 Audio playback

Note

Please note that this function is only possible when a B function is active.

1 Start playback on your device.

2 Play / Pause

Press the MFB button (4) once to pause or start audio playback.

3 Next track

Press the + button (1) once to skip to the next track.

4 Previous track

Press the -button (2) once to skip to the previous track.

7.5 Volume control

1 Increase volume

Press and hold the + button (1) for 2 seconds to increase the volume. Once the maximum volume is reached, the announcement "beep beep" is heard.

2 Reduce volume

Press and hold the — button (2) for 2 seconds to reduce the volume. Once the minimum volume is reached, you will hear "beep beep".

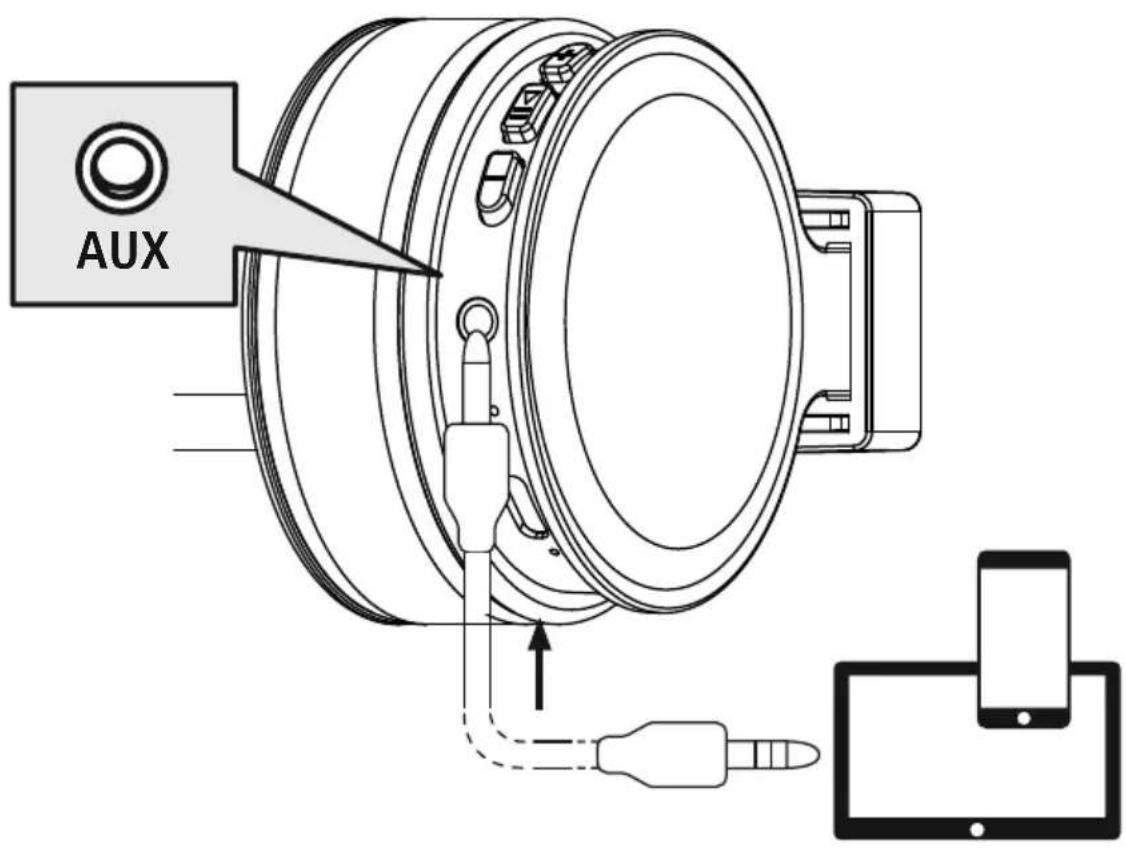

7.6 Audio playback via an audio cable (not included in the package contents)

In addition to the connection via Bluetooth you can also connect these headphones using an AUX cable. To do this, plug one end into the device and the other end into the audio input (6). When the audio cable is inserted, the Bluetooth connection is automatically disconnected. The headphones now function like cabled headphones.

AUX

1. Technical data

Bluetooth®headphones
Impedance headphones / microphone	32Ω / < 2.2kΩ
Frequency headphones / microphone	20 Hz - 20kHz / 50 Hz - 8kHz
Sensitivity Headphones / microphone	98dB / -42dB
Range Max. 10 m
Bluetooth® technology v5	.3
Profiles HFP V1.7 / A2DP V1.3	/ AVRCP V1.6
Transmission frequency 2	.4 - 2.48GHz
Rechargeable battery Li-Po 3.7V
Battery capacity 245mAh
Power consumption Max	. 180 mA
Charging voltage max. 5 V USB
Total weight 120	g
Standby / music / talk time	max. 185 h / 15h / 15h

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here:.www.com

12. Recycling information

Note on environmental protection:

After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies:

Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as

batteries to the designated public collection points or to the point of sale at the end of their service lives.

Detailed information on this topic is defined in the national laws of the respective country. This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.

13. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184196, 00184197, 00184198, 00184199] is in compliance with Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the following Internet address:

www.hama.com->00184196, 00184197, 00184198, 00184199->Downloads.

Frequency band(s) 2402MHz - 2480MHz

Maximum radio-frequency power transmitted 2,5 mW E.I.R.P.

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and front-mounted buttons (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section showing a warning symbol (no text or labels present)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Remarque - Assistant Google

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Technical line drawing of a mechanical component with a warning symbol (no text or labels)

Bluetooth ON Password Hama Freedom Lit 11

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Wanneer de led (5) afwisselend knippert en "Pairing" klinkt:

5s red + blue

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

Technical line drawing of a mechanical component with a warning symbol (no text or labels)

Icon showing a phone with a clock and '2s' next to a play button, likely indicating a 2-second call or notification.

Icon set showing a telephone handset, a hand gesture labeled '1x', and a play button, likely representing speed or notification.

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with no text or symbols on the device itself

Technical line drawing of a mechanical component with a highlighted section showing a warning symbol (no text or labels present)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with no text or symbols on the device itself

Technical line drawing of a mechanical component with mounting bracket and warning symbol (no text or labels)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and front-mounted buttons (no text or symbols)

Technical line drawing of a mechanical component with mounting bracket and warning symbol (no text or labels)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

Technical line drawing of a mechanical component with a highlighted warning symbol (no text or labels)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with no text or symbols

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Ked' LED dióda (5) striedavo bliká a zaznie "Pairing":

5s red + blue

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Diagram showing playback control icons including left arrow, hand icon labeled '1x', and minus sign

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and front-mounted buttons (no text or symbols)

Technical line drawing of a mechanical component with mounting bracket and warning symbol (no text or labels)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

3. Указания за безопасност

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Icon showing a telephone handset with an '1x' speed indicator next to a play button, likely representing a messaging or communication service.

Diagram showing a phone with a 'X' symbol, a clock icon labeled '2s', and a play button, likely representing a 2-second call or notification.

Diagram showing a call with a phone icon, a hand pointing to '1x', and a play button symbol.

Icon set with telephone handset, hand gesture, and 2x speed indicator next to play button

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with no text or symbols

Technical line drawing of a mechanical component with mounting holes and a warning symbol (no text or labels)

Bluetooth ON Password Hama Freedom Lit 11

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

Technical line drawing of a mechanical component with a highlighted warning symbol (no text or labels)

User interface buttons including playback, refresh, and navigation with a 1x multiplier indicator

Technical diagram of a mechanical component with numbered parts labeled 1 through 7

Line drawing of a pair of hardcover headsets with adjustable straps and a front-mounted connector (no text or symbols)

Technical line drawing of a mechanical component with a highlighted warning symbol (no text or labels)

Icon set showing a phone with signal symbol, a hand gesture labeled '1x', and a play button icon

Icon showing a phone with a 'X' symbol, a clock icon labeled '2s', and a play button, suggesting a 2-second call time.

Diagram showing a call with a phone icon, a hand gesture labeled '1x', and a play button symbol.

Icon set showing a phone with signal symbol, a globe icon labeled '2x', and a play button symbol
