OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE

OPERATING THIS UNIT AND RETAIN FOR

FUTURE REFERENCE

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

• Read and keep these instructions.

• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Make sure there is enough free space around the product for ventilation.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product contains batteries covered by the European Directive 2006/66/EC,

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Compliance

This product complies with the radio interference requirements of the Europe Community.

CLASS 1 LASER PRODUCT

This apparatus includes this label.

Technical specifications:

• Power supply: 230V\~50Hz
• Max consumption: 30W
- Input sensitivity: LINE IN 700MV
- Speaker impedance: 6 ohms
- S/N (A): 86db
• THD(1kHz,1W): 0.5%
• Frequency response:20Hz-20KHz
- Bluetooth frequency band: 2402-2480MHz
• FM frequency: 87.5-108.00MHz
• DAB frequency: 174.928MHz-239.200MHz
• Total music output: 10W X2

What's in the box

Check and identify the contents of your package:

• 1 Main unit
  • 1 Remote control
• 1 User manual
• 1 Indoor antenna
• 1 Line in cable
• 1 AC power cable

Getting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safe.

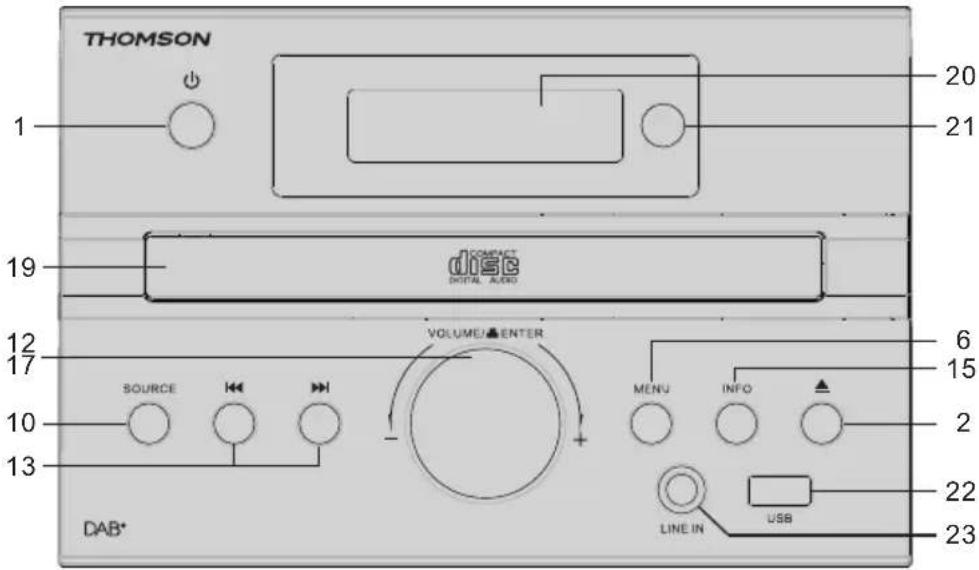

Description of Parts

1 2 3 4 5 6 7 8 9 10 SOURCE THOMSON MIC122DABBT 11 12 13 14 15 16 17 18

THOMSON 1 20 21 19 COMPACT DIGITAL AUDIO VOLUME ENTER 6 15 12 17 SOURCE MENU INFO ▲ 2 10 13 DAB* LINE IN USB 22 23

24 25 26 FM ANT 750 SPEAKERS THOMSON CD/MP3/USB Micro System Model: MIC1220ABBT Frequency: 7MB8.8-126MHz Power supply: AC 230V~50 fr USB: 5W=0.5A Consumption: 40Watts Output power: 10W x 2 Manufactured: Aug 2008 POWER: NT10A10W S.A. SPX Power: 20W x 14.21W x CPU Power: 4A-PWR LEQ/W/Cable Phone: www.equers.cn Mode: +C1Hz CLASS 1 LASER PRODUCT APPARELL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 CAUTION APPROFESSIONAL DISCUITING APPROFESSIONAL DISCUITING SERNO./AP SERIE

1) Standby/Power on switch

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

2) Open or close the disc tray
3) Mute the sound

To cancel, press the button again.

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.
• Before connecting the AC power cord, ensure you have completed all other connections.

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

Auto standby

When playing media from a connected device, the Tower automatically switches to standby if:

• No button is pressed for 10 minutes,
• No audio from a connected device for 10 minutes.

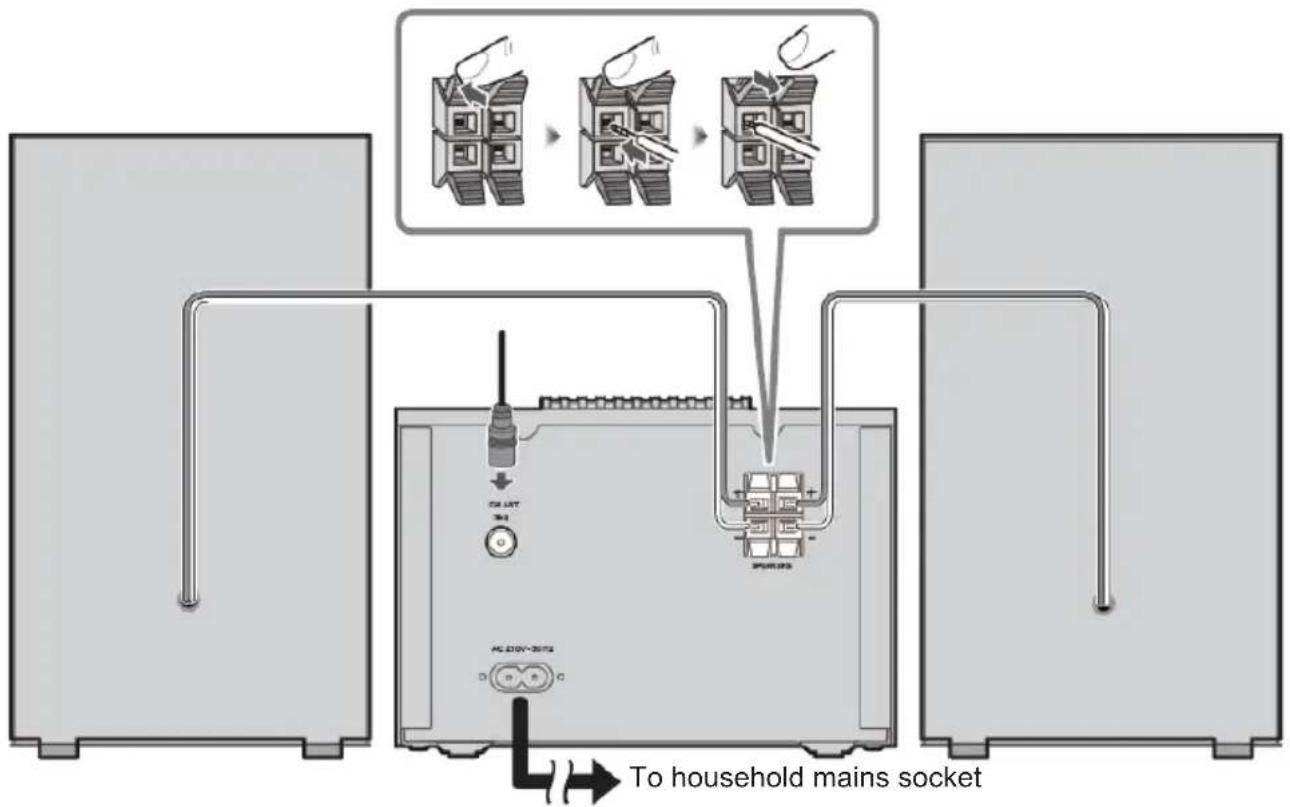

Connecting up

1. Connect the FM/DAB indoor antenna.
2. Place the antenna where reception is best.
3. Connect the AC mains lead only after all the other connections have been made.


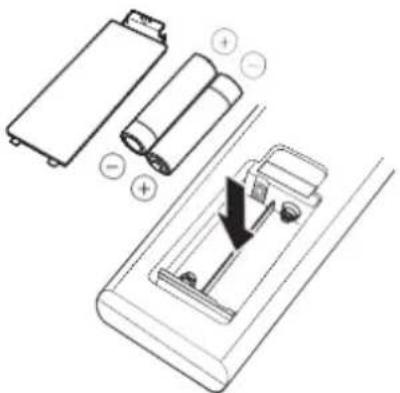

Preparing the remote control

Requires 2 AAA batteries

Diagram showing battery components and a mechanical device with a downward arrow indicating motion (no text or symbols)

Use alkaline or manganese battery.

Install the battery so that the poles (+ and -) align with those in the remote control.

Close the battery compartment.

Note: dispose of properly. Batteries contain chemical substances, so they last a long time. Remove the battery if you are not going to use the remote control for a long time.

WARNING: Danger of explosion if the batteries are not inserted correctly.

Clock and timers

Setting the clock

After the unit is plugged into a mains supply or following a mains power failure, the display will show "0:00" on the LCD display. The unit should be in standby mode to set the current clock.

1. Press the [TIME] button. The digits for the display will blink.
2. Press the ▲/▼ button repeatedly until the correct hour is set. Press [ENTER] to confirm the hour setting.
3. The minute digits on the display will blink.
4. Press the ▲ / ▼ button repeatedly until the correct minute is set. Press [ENTER] to confirm the minute setting.

Setting the alarm

This unit can be used as an alarm clock. The Bluetooth device, USB and FM are activated to play at a preset time.

1. Press to switch the unit to standby mode.
2. Make sure that you have set the clock correctly.
3. Press the [ALARM] button in shutdown mode. The display will flash ON to select alarm setting, and the display will blink.
4. Press [ENTER] to confirm. The time display will blink.
5. Press the /▲button repeatedly to set the hour. Press [ENTER] to confirm.
6. Press /▲to▼set the minutes.
7. Press [ENTER] to confirm, and then press ▲/▼ to select CD/DAB/FM/USB status. Press [ENTER] to confirm.
8. The volume turns up from 0 to 20 gradually.
9. Press the [ALARM] button in shutdown mode. The display will flash ON to select the alarm setting, and the display will blink.
10. Press ▲ to select OFF to cancel the alarm.

Snooze

1. Press to set the alarm; it re-sounds after 9 minutes.

Sleep timer

1. Press the [SLEEP] button. The display will blink. Press the button until the display shows the minute you want to set. You can set 90/60/45/30/15 minutes.
2. It blinks three times to confirm, and then returns to the previous interface. If you want to cancel the sleep mode, press OFF. After blinking three times, sleep mode will cancel.

Playing the media

Disc

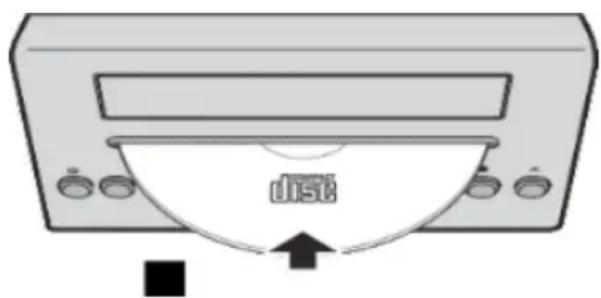

Play a disc

1. Press [SOURCE] repeatedly to select DISC source.
2. Insert a disc with the printed side facing upward.
3. Play starts automatically, if not, press .▶
4. Press the [VOL+/VOL-] to adjust the volume.

Pause / resume play

• During play, press to pause/resume play.
• During play, long press the I button to fast forward/rewind.

Skip to a track

For CD:

1. Press /|←→select another track.
2. Press the [VOL+/VOL-] to adjust the volume.

dnsé

For MP3 disc:

1. Press /▲to▼select an album or a folder.
2. Press /I◄e select a track or a file.
3. Press the [VOL+/VOL-] to adjust the volume.

USB

Reduce the volume and connect the USB device to the USB port.

Hold the main unit when connecting or disconnecting the USB device.

1. Press [SOURCE] repeatedly to select "USB". The USB will play automatically.
2. Press the /▲to select the folder. Press the / to ▶te track.
3. Press the [VOL+/VOL-] to adjust the volume.

Bluetooth®

You can connect and play an audio device wirelessly through Bluetooth®

Preparation

• Switch on the Bluetooth® feature of device and put the device near the system.

• Read the device's operating instructions for details.

• Press [SOURCE] repeatedly to select the Bluetooth mode; "PAIRING" blinks,

• Select "MIC120DABBT/MIC122DABBT/MIC125DABBT" from the Bluetooth menu of the device. If prompted for a passkey, input "0000".

The device connects with this system automatically after pairing is complete.

The name of the connected device is shown for a few seconds.

1. If this system is connected to a Bluetooth device, press and hold ▶II to disconnect it, until [NO BT] is shown.
2. Start playback on the device.
3. Press drop to shiptracks.
4. Press [VOL+/VOL-] or rotate the VOLUME knob to adjust the volume.

Audio in

You can play music from an external audio device such as an MP3 player through this unit.

Line in Jack (Requires a 3.5mm cable)

1. Connect a 3.5mm cable to the Line in jack on the top panel. Connect the other end of the 3.5mm cable to an MP3 player or other audio device.
2. Press the [SOURCE] button repeatedly to select Line In mode.
3. Use the controls on the connected device to begin playing audio.

DAB radio

Carefully extend the telescopic aerial

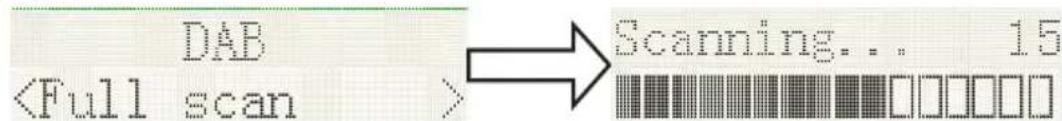

Auto scan

1. Press [SOURCE] to select "DAB MODE". If this is the first time the unit has gone into DAB Mode, it will automatically start an 'Auto Scan' to search for available stations. (Once DAB mode has been used before, the MIC120DABBT/MIC122DABBT/MIC125DABBT will automatically select the previously played station)

2. Press the [ENTER] key. It will automatically start auto scan to search for available stations. During the scanning process, the lower line of the display shows a bar-graph indicating the progress of the scan.

DAB Scanning... 15

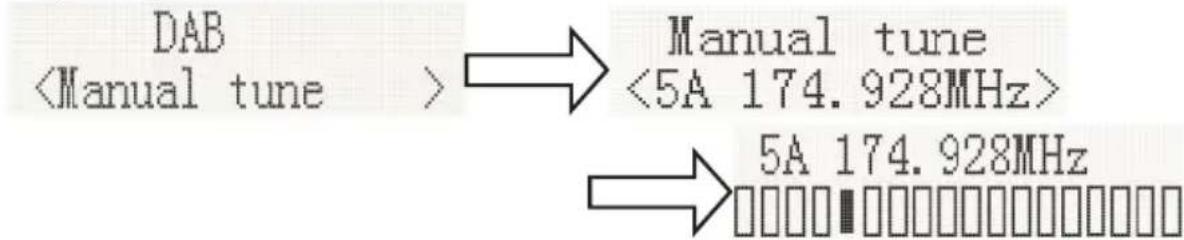

Manual scan

1. Press [SOURCE] on the main unit to select "DAB MODE".

2. Press |◀◀ or ▶▶| to select "Manual tune". Press the [ENTER] key to access the DAB frequency selection.

3. Press do ◆◆◆ go ◆◆ the desired channel. The graph will indicate the signal strength.

4. Press [MENU] or to exit scan.

DAB → Manual tune <5A 174.928MHz> → 5A 174.928MHz

1. If no stations are found, please ensure the aerial is extended and test the reception by doing another auto scan in a different location.

DRC (Dynamic range control)

Dynamic Range Control (also known as DRC) is a technology used to help make quieter sounds easier to hear in a noisy environment.

1. Under DAB mode, press |◀◀ or ▶▶| to select "DRC". Press the [ENTER] key and "*" will be displayed on the top right.
2. Press MENU to confirm the setting. The display will return to normal.

DRC OFF - DRC is switched off, Broadcast DRC will be ignored.

DRC LOW - DRC level is set to 1/2 that sent by broadcaster.

DRC HIGH - DRC level is used as sent by broadcaster.

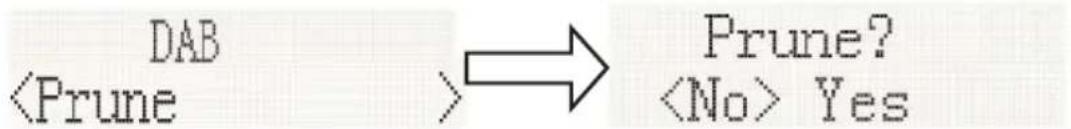

Prune (To remove stations which are listed but unavailable)

Under DAB mode, press ◀◀ or ▶▶ show the submenu" Prune". Press the [ENTER] button to access the Prune option.

DAB Yes

System (DAB)

Under DAB mode, press ◀◀◀ sh▶▶the "SYSTEM" submenu. Press the ENTER button to enter the system setting.

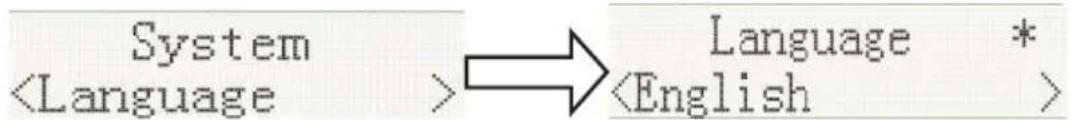

1. Language

Press [ENTER] to set the language. The source language is English and the selected language will have "*" displayed on the top right.

It's available in a choice of "Deutsch", "Italiano", "Français".

System (Language > Language *

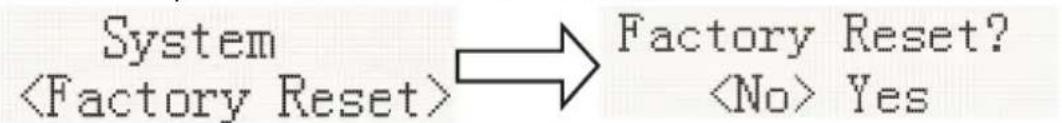

2. Factory Reset

Press [ENTER] for factory reset. If you wish to perform the reset operation, push |◀◀ or ▶▶| until "YES" is highlighted on the display and press [ENTER]. A full reset of your radio will be performed. All presets and station lists will be erased.


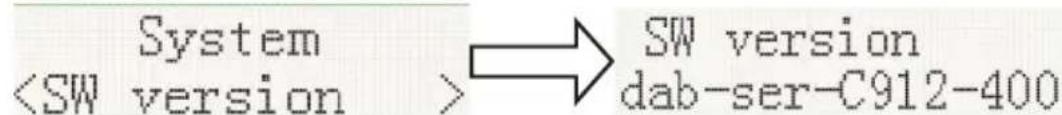

3. SW Version

Press [ENTER] to view the DAB software version. Press [Menu] o▶▶. The display will return to normal.

System SW version dab-ser-C912-400

*If no buttons are pressed after 30 seconds, the display will return to normal.

Preset

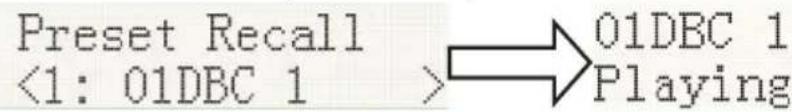

1. Preset recall

Under DAB mode, press ◀◀ or ▶▶ select "Preset recall", then press [ENTER] to tune to the station stored in the preset memory.

Preset Recall <1: 01DBC 1 >→01DBC 1 Playing

Note: If you have not previously stored a preset station and the preset button is pressed, "Empty preset" will be displayed.

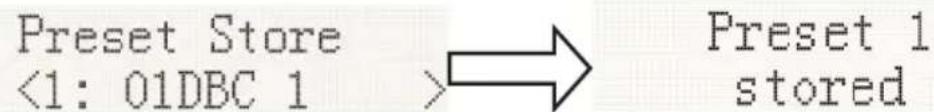

2. Preset Store

You may store your preferred DAB stations to the pre-set station memories. There are 20 memory presets in your radio. Presets are remembered by your radio in the event of a power failure.

The procedure for setting presets and using them to tune stations is the same for DAB modes:

Under the DAB mode, select the desired wave band. Press ▲ / ▼ You can view the stored stations. Press ◀ to ≈te to the required station as previously described, and then press [ENTER] for the desired pre-set number to which you wish to store the station. Press [ENTER] to confirm.

Preset Store <1: 01DBC 1 > Preset 1 stored

FM Radio

Carefully extend the telescopic aerial fully

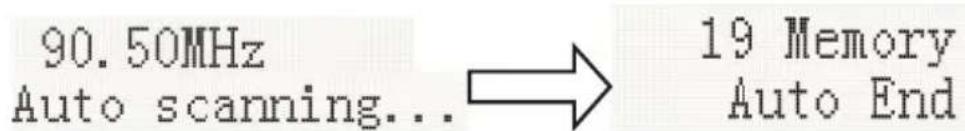

Auto scan

1. Press [SOURCE] to select "FM Mode"

2. Long Press ▶ key. Your radio will scan and stop automatically when it finds a station of sufficient strength.

3. After a few seconds the display will update. The display will show the station frequency. If the signal is strong enough and the station has RDS data present then the radio will display the station name.

4. To find other stations, press and hold the button as before.

5. To scan the FM band in the opposite direction (high frequency to low frequency), press the ▶▶I button and hold for 2 seconds.

6. When the waveband end is reached your radio will recommence tuning from the opposite waveband end.

90.50MHz Auto scanning... 19 Memory Auto End

Manual scan

1. Press [SOURCE] on the main unit to select "FM Mode".

2. Select FM mode as previously described if required.

3. Press |◀◀ or ▶▶▶ to tune to a station. With each press, the frequency will go up or down by 50 kHz.

4. When the waveband end is reached the radio will recommence tuning from the opposite waveband end. If no stations are found, please ensure the aerial is extended and test the reception by doing another auto scan in a different location.

Menu

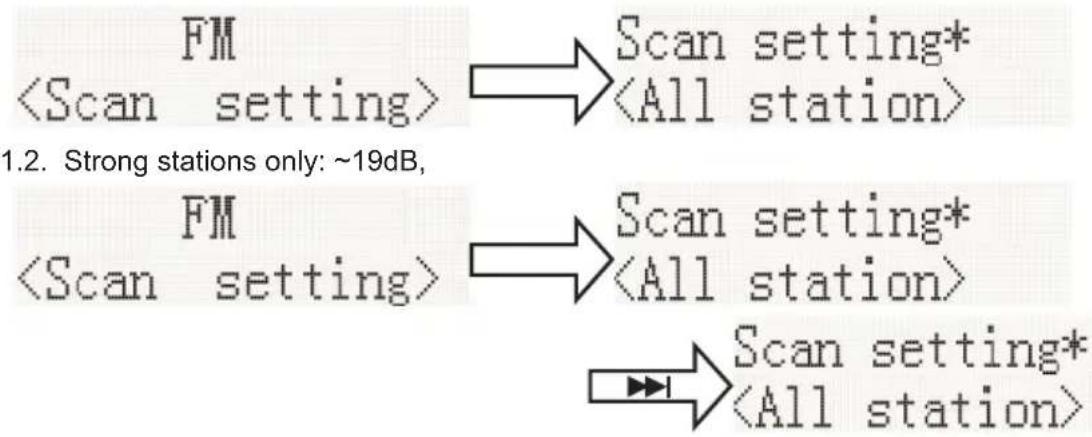

1. Scan setting

Under FM mode, press [MENU] to enter the FM menu setting, then press◀◀ or ▶▶ select [Scan setting], then press [ENTER] for the sensitivity setting:

1.1. All stations:\~ 15dB


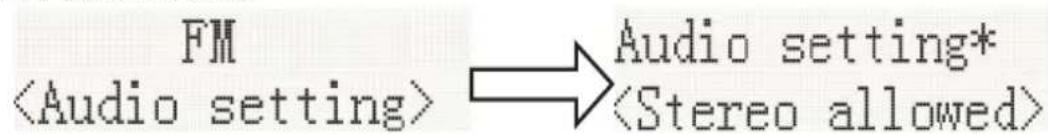

2. Audio setting

2.1. Stereo allowed

FM

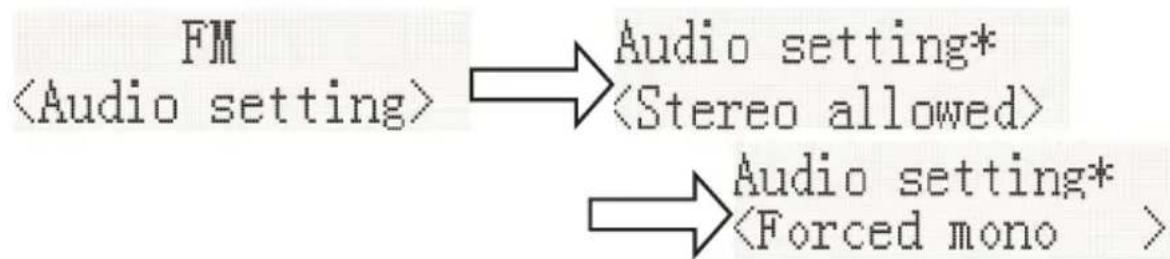

2.2. Forced mono

2.3. System (FM system) same DAB system setting

3. PRESET:

3.1. Preset Recall (choose the station):

Press [ENTER] to tune to the station stored in the preset memory.

Preset Recall <1: 90.50MHz > → 90.50MHz St P1 [No RadioText]

3.2. Preset Recall (choose the station):

You may store your preferred FM stations to the pre-set station memories. There are 20 memory presets in your radio. Presets are remembered by your radio in the event of a power failure.

The procedure for setting presets and using them to tune stations is the same for DAB modes:

Under the FM mode, select the desired wave band. Press ▲/▼ to view the stored stations, press ◀◀◀ or ▶▶ tune to the required station as previously described, and then press [ENTER] for the desired pre-set number to which you wish to store the station. Press [ENTER] to confirm.

Preset Recall <1: 90.50MHz > → Preset 1 stored

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.

Additional information

• When the appliance does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can be switched back ON by using the POWER selector
• If an incoming call is received while the MIC120 system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends. Depending on the mobile phone, playback may sometimes stay paused after the end of the call.
• The word Bluetooth ^ , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
  • THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the MIC120 type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from date of purchase, except in countries of the European Economic Area which offer a longer warranty period. We strongly advise you to keep your receipt of purchase in order to prove the date of purchase of this product. A default product has to be returned to the point of purchase or the online store where it has been purchased. Warranty covers defects due to faulty materials or workmanship. If you are missing a part into the product when you unwrapped it, you may contact our technical support. The warranty doesn't cover irregular use.

SUPPORT

For any technical problem, please contact [e-mail]. Our Support Team is also available by chat via www.bigben-interactive.co.uk/support/ from Monday to Friday 9.00am till 6.00pm (GMT+1).

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396-466, rue de la Voyette - CRT2 59273

Fretin, France

www.bigben.eu

BELGIQUÉ, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

CLASS 1 LASER PRODUCT

Diagram of battery components with polarity indicators and a downward arrow indicating a process (no text or symbols present)

Use pilas alcalinas o de manganeso.

DAB → Scanning... 15

Búsqueda manual

System (Language > Language *

System → Factory Reset? Yes

3. Versión de SW

System SW version dab-ser-C912-400

90.50MHz Auto scanning... → 19 Memory Auto End

Búsqueda manual

FM

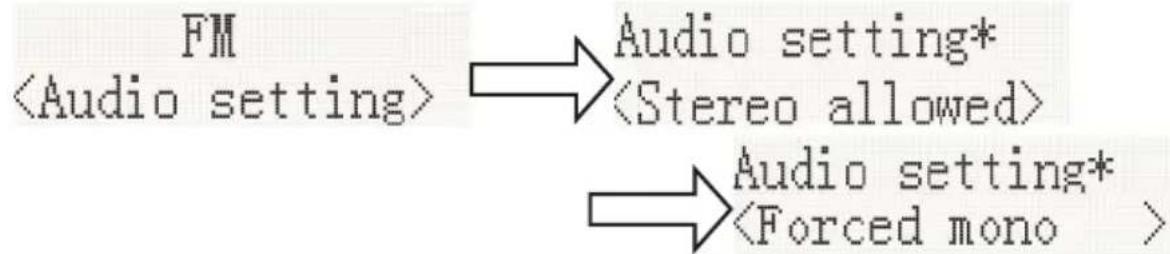

2.2. Solo mono

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA / PORTUGAL, [e-mail]

Tel.: [phone]

ITALIA, [e-mail] - Tel. : [phone]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE.

CLASS 1 LASER PRODUCT

Diagram showing battery components and a device with an arrow indicating a process (no text or symbols present)

DAB Scanning... 15

Ricerca manuale

System (Language > Language *

System SW version dab-ser-C912-400

Diagram showing recycling symbol, no disposal symbol, and a crossed-out bin with a minus sign

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern THOMSON audio recording device with two black speakers and a digital display (no visible text or symbols on the device body)

CLASS 1 LASER PRODUCT

7) Seleccionar as horas

Diagram showing battery components and a device with an arrow indicating a process (no text or symbols present)

Use pilhas alcalinas ou de manganésio.

DAB → Scanning... 15

Procura manual

System → Factory Reset? Yes

3. Versão SW

System SW version dab-ser-C912-400

Diagram showing recycling symbol, no disposal symbol, and prohibition sign with a trash can

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA / PORTUGAL, [e-mail]

Tel.: [phone]

ITALIA, [e-mail] - Tel. : [phone]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

BEDIENUNGSANLEITUNG

CLASS 1 LASER PRODUCT

Diagram showing battery components and a mechanical device with an arrow indicating motion (no text or symbols)

DAB → Scanning... 15

Manuelle Suche

System (Language > Language *

System SW version dab-ser-C912-400

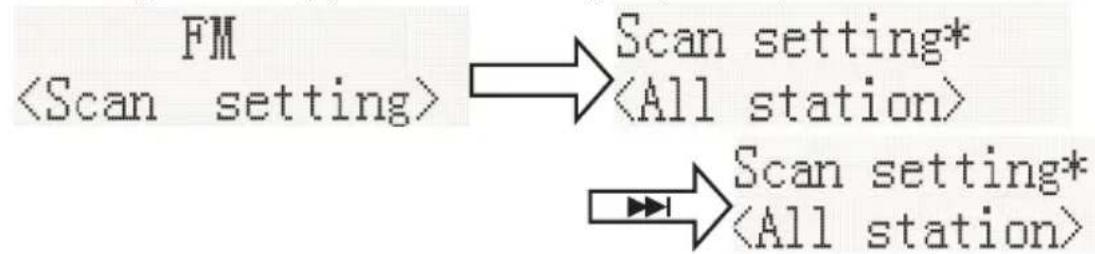

FM Scan setting*

1.2. Strong stations only (nur starke Sendersignale): \~19 dB,

FM

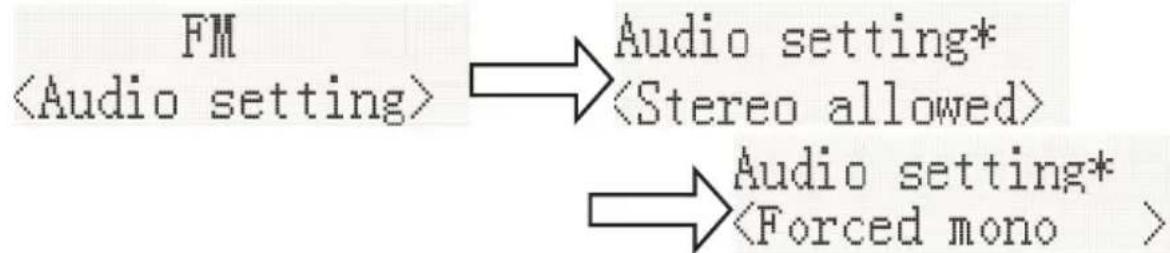

2.2. Forced mono (Immer Mono)

Three black-and-white symbols: a recycling curve, a crossed-out trash bin, and a blank rectangular bar (no text or labels)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

HANDLEIDING

LEES DEZE GEBRUIKSAANWIJZING VOLLEDIG DOOR ALVORENS DEZE EENHEID TE BEDIENEN, EN BEWAAR DIT BOEKJE VOOR UW ADMINISTRATIE.

CLASS 1 LASER PRODUCT

Dit apparaat bevat dit label.

24 25 26 FM ANT 75Ω SPEAKERS THOMSON CD/MP3/USB Micro System Model: MIC220ABBT Frequency: 75dB B-326VHz Power supply: AC 230V~90Hz USB: W=0.5A Consumption: 40Watts Output power: 10W X 2 Manufactured Aug 208 SKON: INTERACTIVE S.A. 3kV Flux de la Vajette C/I 1,2 Pads CIP: 4x 20Hz + 100μm Cuts Facts: www.bjgms.lnc Made in China CLASS 1 LASER PRODUCT APPARELL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 CAUTION ANALYSIS CHECKABLES DO NOT differ SUB NO. 2*#REFR

Diagram showing battery components and a mechanical device with a directional arrow (no text or symbols)

Installeer alleen alkaline of mangaan batterijen.

DAB Scanning... 15

Handmatig zoeken

System (Language > Language *

2. Fabrieksinstellingen terugzetten

System SW version dab-ser-C912-400

FM

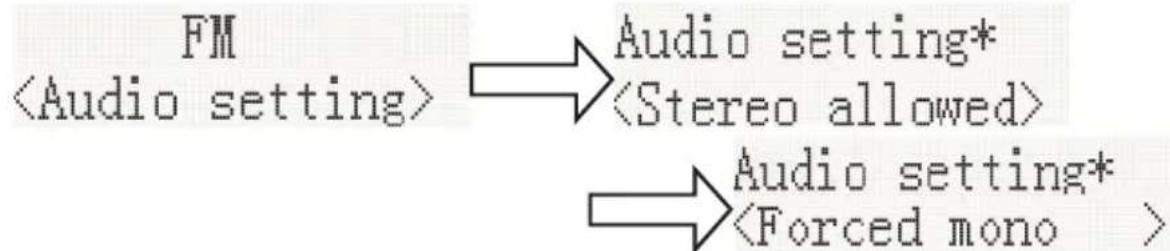

2.2. Alleen mono

Preset Recall (1: 90.50MHz > Preset 1 stored

Milieubescherming

Image showing recycling symbol and a crossed-out trash bin with prohibition signs

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation (no visible text or symbols on the device body)

ANVÄNDARMANUAL

LÄS DENNA ANVÄNDARMANUAL NOGA INNAN PRODUKTEN ANVÄNDS OCH SPARA FÖR FRAMTIDA BRUK.

CLASS 1 LASER PRODUCT

Denna apparat inkluderar denna etikett.

Tekniska specifikationer:

24 25 26 FM ANT 75Ω SPEAKERS THOMSON CD/MP3/USB Micro System Model: MIC220ABBT Frequency: 75dB B-326VHz Power supply: AC 230V~90Hz USB: W=0.5A Consumption: 40Watts Output power: 10W X 2 Manufactured Aug 208 SKON: INTERACTIVE S.A. 3kV Flux de la Vajette C/I 1,2 Pads CIP: 4x 20Hz + 100μm Cuts Facts: www.bjgms.lnc Made in China CLASS 1 LASER PRODUCT APPARELL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 CAUTION NEARINGS CHECK HAUNED DO NOT OPEN SUB NO. 2*#B##

Diagram of battery components with polarity indicators and a downward arrow indicating a process (no text or symbols present)

DAB Scanning... 15

Manuell sökning

System (Language > Language *

System SW version dab-ser-C912-400

FM Scan setting*

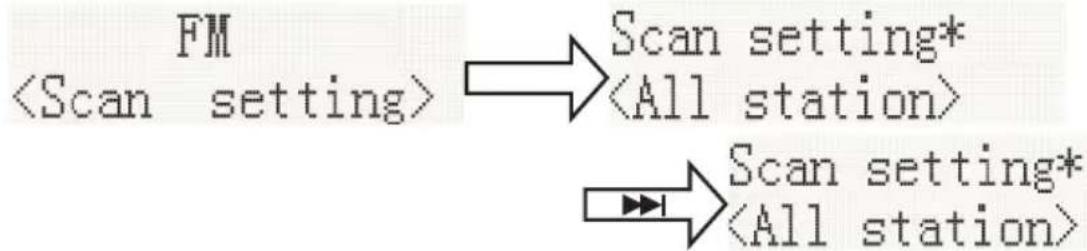

1.2. Endast stationer med stark signal: \~19 dB,

2. Ljudinställning

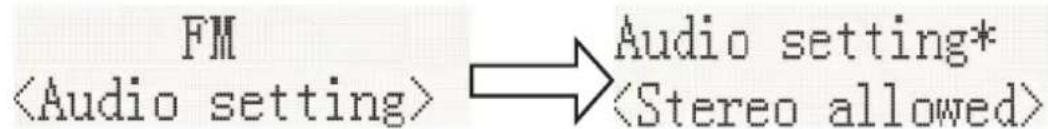

2.1. Stereo tillåten

FM

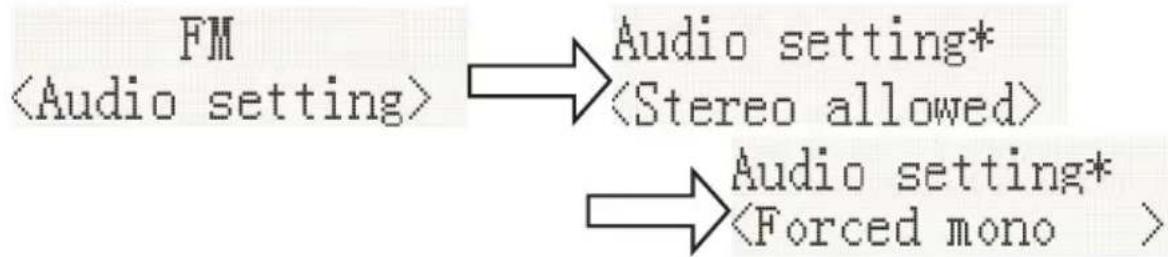

2.2. Tvinga mono

Preset Recall (1: 90.50MHz > 90.50MHz St P1 [No RadioText]

Diagram showing recycling symbol, no disposal symbol, and prohibition sign with a trash can

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

BETJENINGSVEJLEDNING

LÆS VENLIGST DENNE BRUGERVEJLEDNING OMHYGGELIGT IGENNEM F∅R BETJENING AF ENHEDEN, OG GEM DEN TIL EVT. SENERE BRUG.

CLASS 1 LASER PRODUCT

24 25 26 FM ANT 75Ω SPEAKERS THOMSON CD/MP3/USB Micro System Model: MIC220ABBT Frequency: 75dB B-326VHz Power supply: AC 230V~90Hz USB: W=0.5A Consumption: 40Watts Output power: 10W X 2 Manufactured Aug 208 SKON: INTERACTIVE S.A. 3kV Flux de la Vajette C/I 1,2 Pads CIP: 4x 20Hz + 100μm Cuts Facts www.dlgms-lnc Made in China CLASS 1 LASER PRODUCT APPARELLA LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 CAUTION ANALYSIS CHECKABLES DO NOT OPEN SUB NO. 2*#REF: CE ✓ ✓ ✓ ✓

Diagram showing battery components and a mechanical device with a downward arrow indicating motion (no text or symbols present)

Brug alkaline-mangan batteri.

DAB Scanning... 15

Manuel søgning

System SW version dab-ser-C912-400

1. Indstilling for scanning

I FM-tilstand trykkes på [MENU] for at gå ind i indstilling af FM, tryk derefter på ◀◀◀ eller ▶▶◀ for at vælge [Scan setting] (indstilling for scanning), tryk derefter på [ENTER] for indstilling af følsomhed:

FM

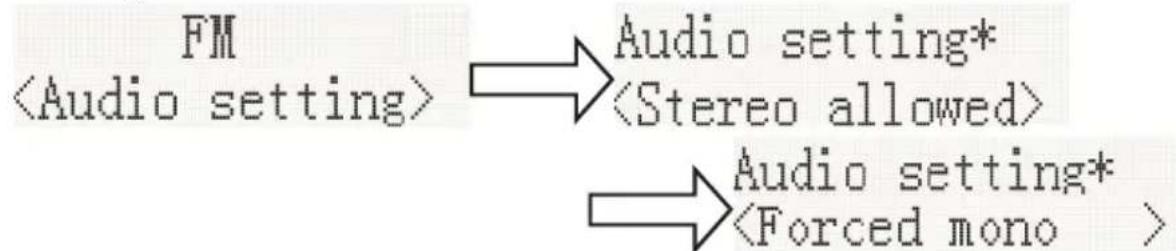

2.2. Tvunget mono

Preset Recall (1: 90.50MHz ) → Preset 1 stored

Miljøbeskyttelse

Two symbolic icons: a recycling symbol above and a crossed-out waste bin below, both without any text or labels.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

BRUKSANVISNING

LES DENNE BRUKSANVISNINGEN N∅YE F∅R DU

BETJENER APPARATET, OG OPPBEVAR DEN

TIL SENERE BRUK

CLASS 1 LASER PRODUCT

19) Innsettingsluke for CD

20) LCD-skjerm

21) Mottaksvindu for fjernstyring

Diagram of battery components with polarity indicators (no text or symbols)

Bruk alkalisk- eller manganbatteri.

DAB Scanning... 15

Manuell skann

System (Language > Language *

2. Factory Reset (fabrikktilbakestilling)

System SW version dab-ser-C912-400

2.3. System (FM-system) samme DAB-systeminnstilling

1. FORHÅNDSINNSTILLING:

Diagram showing recycling symbol, no disposal symbol, and prohibition sign with a battery icon

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

NÁVOD K OBSLUZE

PŘEČTĚTE SI POZORNĚ TUTO UŽIVATELSKOU PŘÍRUČKU PŘED TÍM, NEŽ TENTO PŘÍSTROJ UVEDETE DO PROVOZU A USCHOVEJTE SI JI PRO BUDOUCÍ POUŽITÍ.

CLASS 1 LASER PRODUCT

24 25 26 FM ANT 75Ω SPEAKERS THOMSON CD/MP3/USB Micro System Model: MIC220ABBT Frequency: 7588 B-326VHz Power supply: AC 230V~90Hz USB: W=0.5A Consumption: 40Watts Output power: 10W X 2 Manufactured Aug 208 SKON: INTERACTIVE S.A. 3kV Flux de la Vajette C/I 1,2 Fines CIP: 4x 20Hz + 100μm Cuts Fringe www.bjgms.lnc Made in China CLASS 1 LASER PRODUCT APPARELLA LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 CAUTION ANALYSIS CHECKABLES DO NOT OPEN SUB NO. 2*#REF: CE ✓ ✓ ✓ ✓

Diagram of battery components with polarity indicators (no text or symbols)

DAB Scanning... 15

System (Language > Language *

System SW version dab-ser-C912-400

Preset Recall (1: 90.50MHz ) → Preset 1 stored

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

HASZNÁLATI UTASÍTÁS

KÉRJÜK, A KÉSZÜLÉK MÜKÖDTETÉSE ELÖTT OLVASSA EL FIGYELMESEN EZT AZ ÚTMUTATÓT, ÉS ÖRIZZE MEG KÉSÖBBI TÁJÉKOZÓDÁS CÉLJÁBÓL.

CLASS 1 LASER PRODUCT

24 25 26 FM ANT 75Ω SPEAKERS THOMSON CD/MP3/USB Micro System Model: MIC'220ABBT Frequency: 7MHz 8.326MHz Power supply: AC 230V-90Hz USB: W=0.5A Consumption: 40Watts Output power: 10W X 2 Manufactured Aug 208 STOCK: INTERACTIVE S.A. 3M Ause de la Vajette C/F 7.2 Pack s CIP No: 20014 + USB Quantity Color France www.bjgms.lnc Made in China CLASS 1 LASER PRODUCT APPARELLA LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1 CAUTION ANALYSIS CHECKING ON MODELS SUB NO. 23P BENE

Diagram showing battery components and a mechanical device with a lightning bolt indicating motion (no text or symbols)

DAB Scanning... 15

Kézi keresés

System (Language > Language *

System → Factory Reset? Yes

3. Szoftververzió

System SW version dab-ser-C912-400

FM Scan setting*

2. Audiobeállítás

FM

Image showing recycling symbol and a crossed-out trash bin with a warning sign

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA / PORTUGAL, [e-mail]

Tel.: [phone]

ITALIA, [e-mail] - Tel. : [phone]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Exterior view of a modern audio workstation with black speakers and a digital display (no visible text or symbols)

INSTRUKCJA OBSŁUGI

PRZED UŻYCIEM URZĄDZENIA NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ OBSŁUGI. INSTRUKCJĘ NALEŻY ZACHOWAĆ NA PRZYSZŁOŚĆ.

CLASS 1 LASER PRODUCT

Diagram showing battery components and a mechanical device with a directional arrow (no text or symbols)

DAB Scanning... 15

Wyszukiwanie ręczne

System (Language > Language *

System SW version dab-ser-C912-400

FM Scan setting*

1. Ustawienie audio

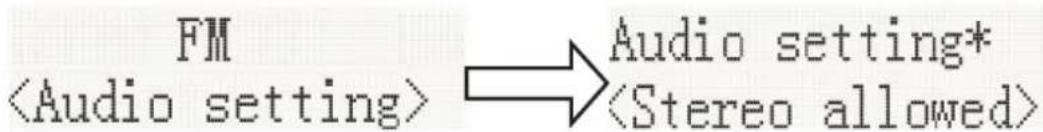

2.1. Stereo dozwolone

FM

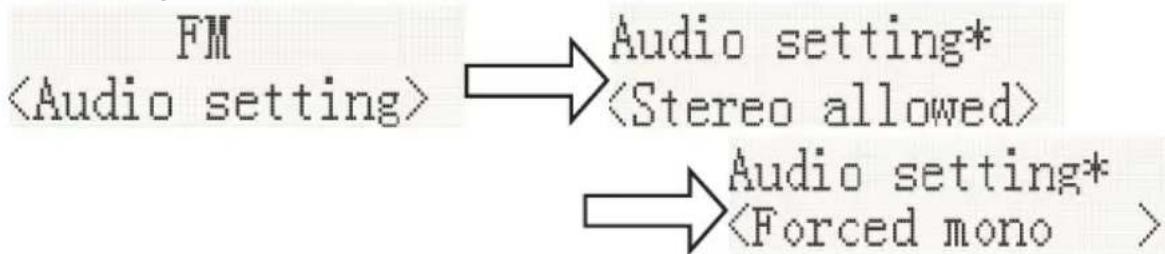

2.2. Mono wymuszone

Preset Recall (1: 90.50MHz > 90.50MHz St P1 [No RadioText]

Preset Recall (1: 90.50MHz > Preset 1 stored

Ochrona środowiska

Diagram showing a recycling symbol above a crossed-out trash bin and a prohibition sign below it.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm
