MIC255IDABBT - Hi-Fi System THOMSON - Free user manual and instructions

Brand	Thomson
Model	MIC255IDABBT
Product type	Hi-Fi system with CD player, DAB+/FM radio, Bluetooth, wireless charging
Power supply	AC 230 V ~ 50 Hz, 0.3 A
Maximum power consumption	40 W
Audio output power	15 W x 2 (stereo)
Speaker impedance	8 Ω
Radio frequency bands	FM 88.8 – 108 MHz, DAB/DAB+ 174 – 239 MHz
Supported audio formats	CD, CD-R/RW, MP3 (on CD or USB drive)
Connectivity	Bluetooth, USB (playback and charging 5V/2.1A), AUX input, line input, wireless charging (9V/1A), headphone jack
Functions	DAB/FM radio (20 presets), CD player, USB player, Bluetooth streaming, dual alarm, sleep timer, repeat, track programming, volume control, mute, equalizer (bass/treble), balance
Display	LCD screen with adjustable backlight (3 levels)
Remote control	Yes, with button cell battery (CR2032 included)
Backup power	2 AAA batteries (not supplied) for clock memory
Maintenance and cleaning	Unplug before cleaning. Use a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, heat or flames. Do not open the casing. Keep batteries out of reach of children.
Included accessories	Remote control, micro USB cable, line input cable, AUX cable, user manual

Frequently Asked Questions - MIC255IDABBT THOMSON

How to set the time and date on the Thomson MIC255IDABBT?

In standby mode, press the CLOCK button. Select the 12H/24H format with ◀◀/▶▶, then press ENTER. Set the hour, minutes, year, month and day with ◀◀/▶▶ and confirm each step with ENTER.

How to program an alarm?

In standby, press ALARM twice to set alarm 2 (or once for alarm 1). Follow the prompts to set the time, volume, source (CD/DAB/FM/USB/BUZZER) and duration. Confirm with ENTER.

How to connect my smartphone via Bluetooth?

Turn on the device and select Bluetooth mode via the SOURCE button. Enable Bluetooth on your phone, search for 'MIC250IDABBT/MIC256IDABBT' and connect. If prompted, use the password 0000. The screen displays 'Bluetooth connected'.

How to listen to DAB radio?

Extend the telescopic antenna. Turn on the device: it automatically switches to DAB mode. For automatic search, press ENTER. For manual search, use the SOURCE button to select DAB, then ◀◀/▶▶ to choose 'Manual tune' and adjust the channel.

How to program tracks on a CD?

When CD is stopped, press PROG. The screen shows 'P 01'. Use ◀◀/▶▶ to select the desired track, then press PROG to store it. Repeat up to 20 tracks. To play, press ▶II.

How to use the repeat function?

During CD playback, press REPEAT once to repeat the current track ('REPEAT ONE'), twice to repeat all tracks ('REPEAT ALL'). Press until 'REPEAT OFF' to deactivate.

What to do if the radio does not find stations?

Make sure the telescopic antenna is fully extended. Perform a new automatic search in a different location. Check that the frequency band is correct (FM 88.8-108 MHz, DAB 174-239 MHz).

How to use wireless charging?

Place your Qi-compatible smartphone on the wireless charging area located on top of the device. Charging starts automatically. The output is 9V/1A.

How to adjust volume and mute?

Turn the VOLUME knob on the device. On the remote control, use the VOL +/- keys. To mute, press MUTE; press again to restore sound.

How to clean the device?

Unplug the device before cleaning. Use a soft, damp, lint-free cloth. Do not use abrasive products or solvents. For the CD player, use a CD lens cleaner if necessary.

USER MANUAL MIC255IDABBT THOMSON

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT

Table des matières

Pour commencer 1

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

PRODUIT DE CLASSE II
COURANT CONTINU
COURANT ALTERNATIF
POURUSAGE INTÉRIEUR UNIQUEMENT

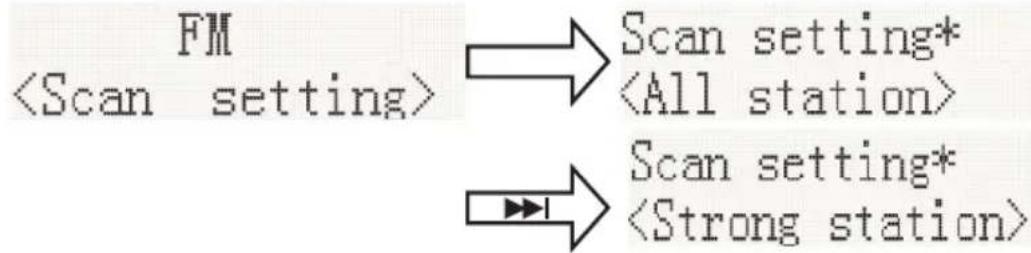

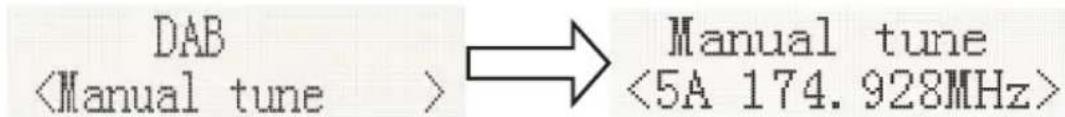

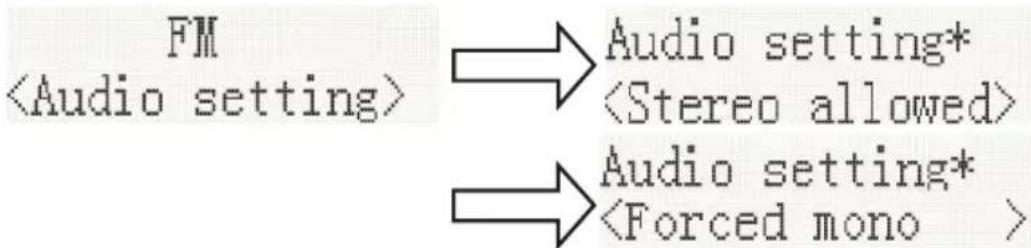

Recherche manuelle

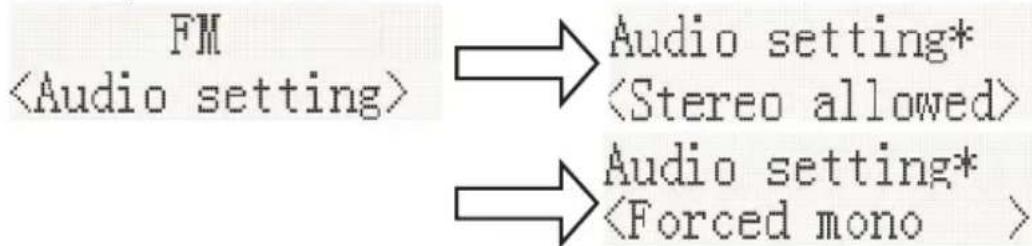

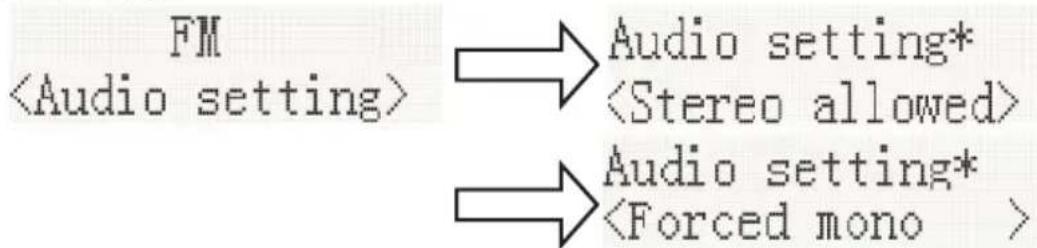

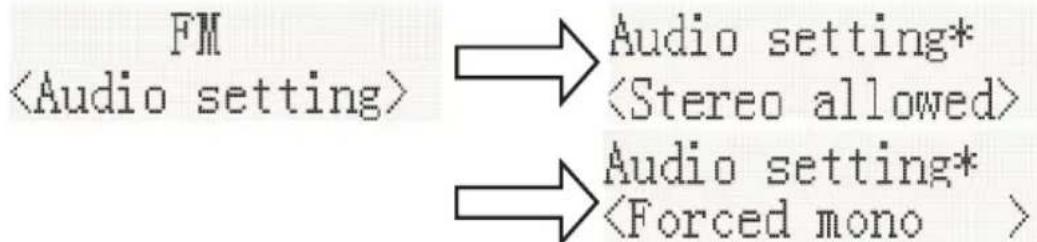

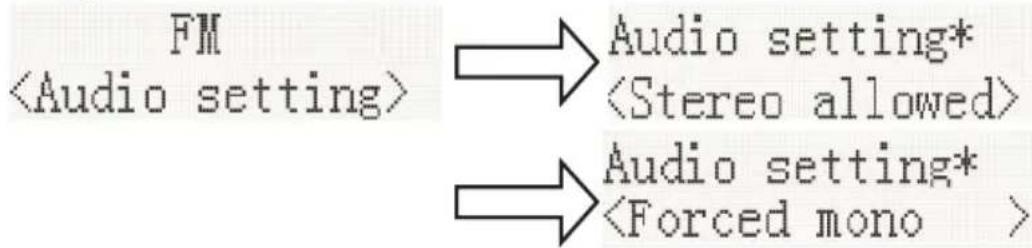

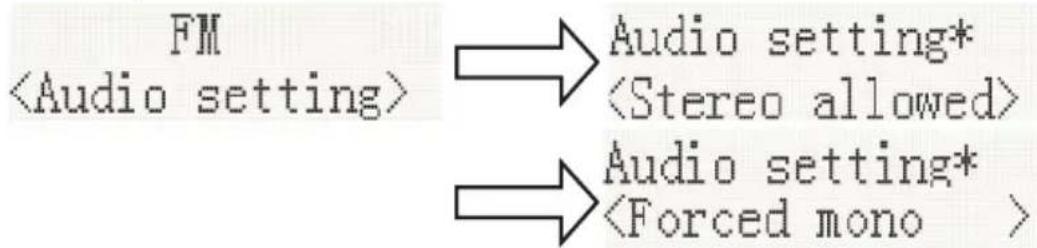

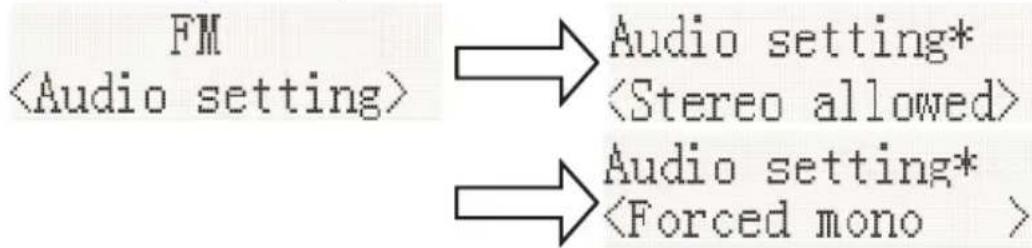

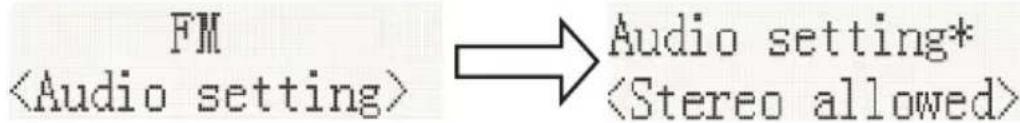

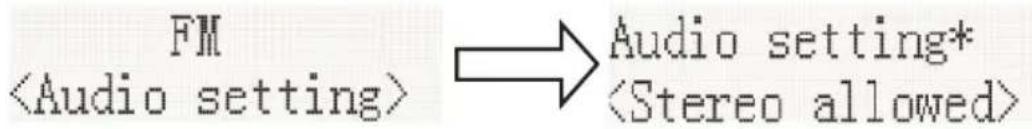

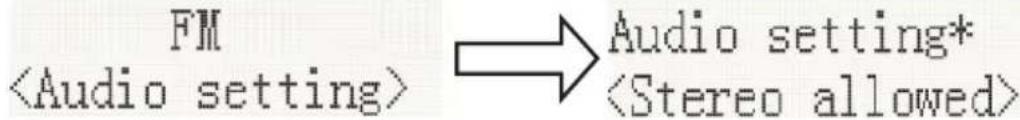

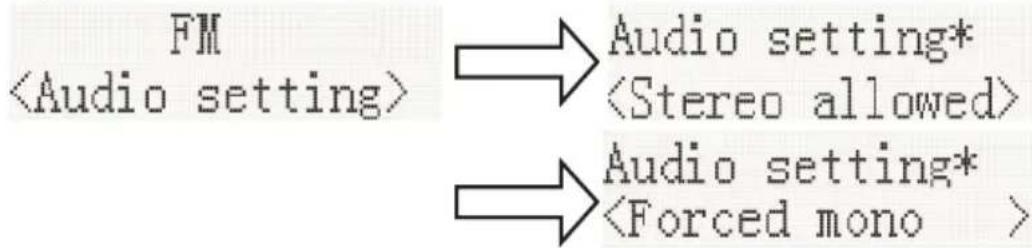

2.2. Mono forcé

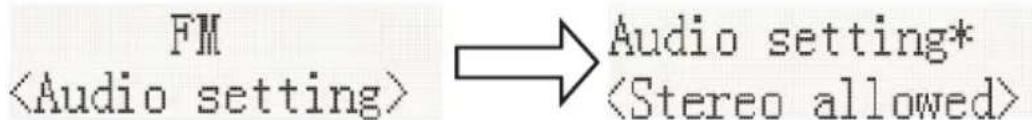


BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ AUDIO IN

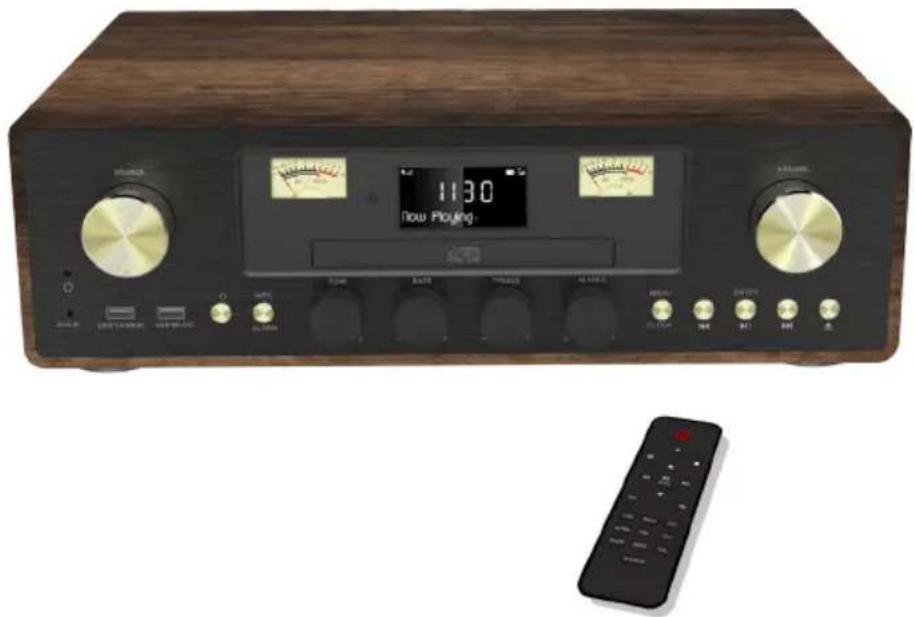

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE

OPERATING THIS UNIT AND RETAIN FOR

FUTURE REFERENCE

Contents

Getting Started 1

Safety and Notice 1

Care for your product 2

Care of the environment 3

What's in the box 3

Description of Parts 4

Remote 5

Power 5

Clock and Timers 6

DAB radio mode 7

Playing a compact disc (CD) 11

Remarks 15

Getting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power

• The apparatus shall not be exposed to dripping or splashing and no liquid-filled objects, such as vases, shall be placed on the apparatus.

• To ensure complete disconnection from the power input, the mains plug of the apparatus shall be disconnected from the mains.
• The mains plug of the apparatus must not be obstructed OR must be easily accessed during its intended use.
• Leave a minimum distance of 10 cm around the apparatus for sufficient ventilation
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources such as lighted candles should be placed on the apparatus
• Attention should be drawn to environmental aspects of battery disposal

• The apparatus should be used in moderate climates only.

• Read these instructions.

• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
2. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
3. Only use attachments/accessories specified by the manufacturer.
4. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
5. Unplug this apparatus during lightning storms or when unused for long periods of time.
6. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
7. Apparatus shall not be exposed to dripping or splashing.
8. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
9. Where the MAINS plug (or AC/DC adaptor) or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
10. Make sure there is enough free space around the product for ventilation.
11. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
12. The rating label is placed on the back side of apparatus.

CAUTION

Danger of explosion if the battery is incorrectly replaced.

Replace only with the same or equivalent battery type.

WARNING

Do not ingest the battery (chemical burn hazard)

The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

CLASS II MATERIAL
DIRECT CURRENT
ALTERNATING CURRENT
FOR INDOOR USE ONLY

The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.

The exclamation point within a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

What's in the box

Check and identify the contents of your package:

• Main unit
• Remote control
• User manual
• Micro USB cable
• Line in cable
• AUX in cable

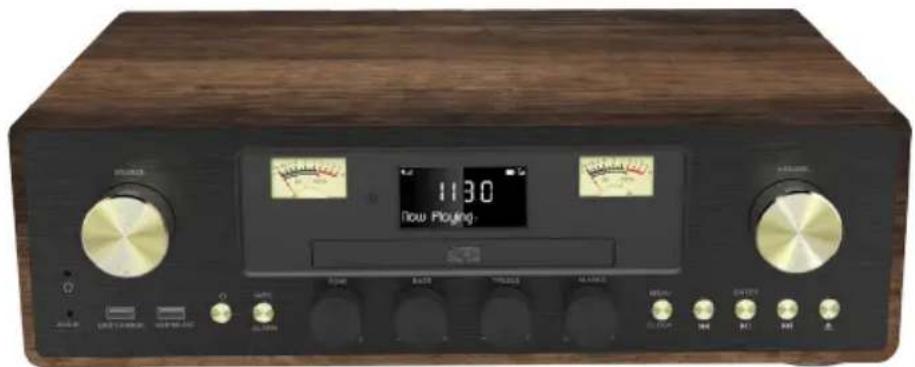

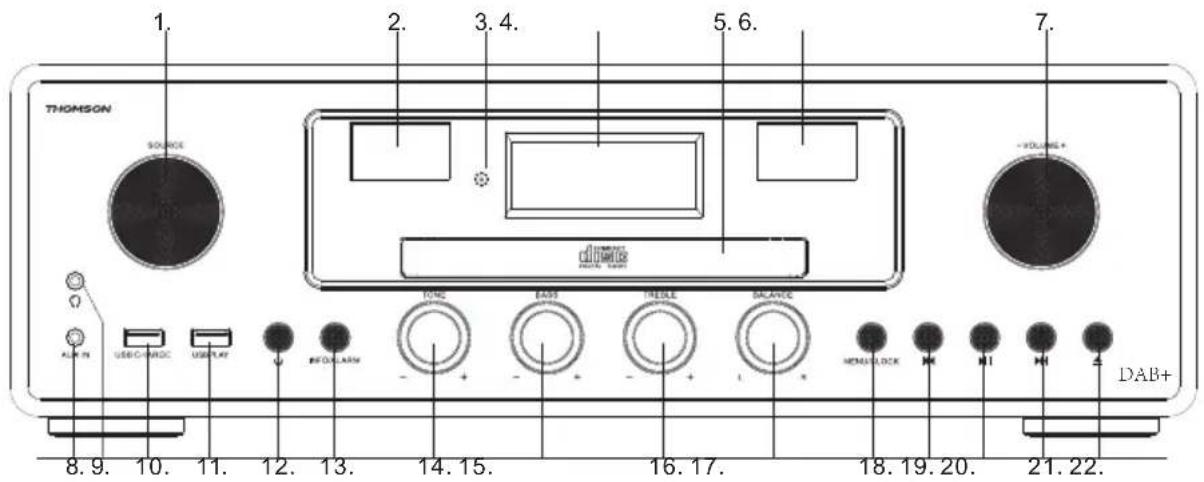

Description of Parts

1. source knob

- Turn this knob to source: DAB-FM-CD-USB-BT-LINE

1. VU meter

2. Remote receiver

3. LCD display

4. CD door

5. VU Meter

6. Volume knob

7. Line in jack

8. Earphone jack

9. USB charge port
10. USB slot
11. Power ON/OFF button
12. Info / Alarm
13. Tone adjust knob
14. Bass adjust knob
15. Treble adjust knob

16. Balance adjust knob

17. Menu / clock

18. Prev button
19. Play/Pause/Enter
20. Next button
21. CD Open/close button
22. FM ant

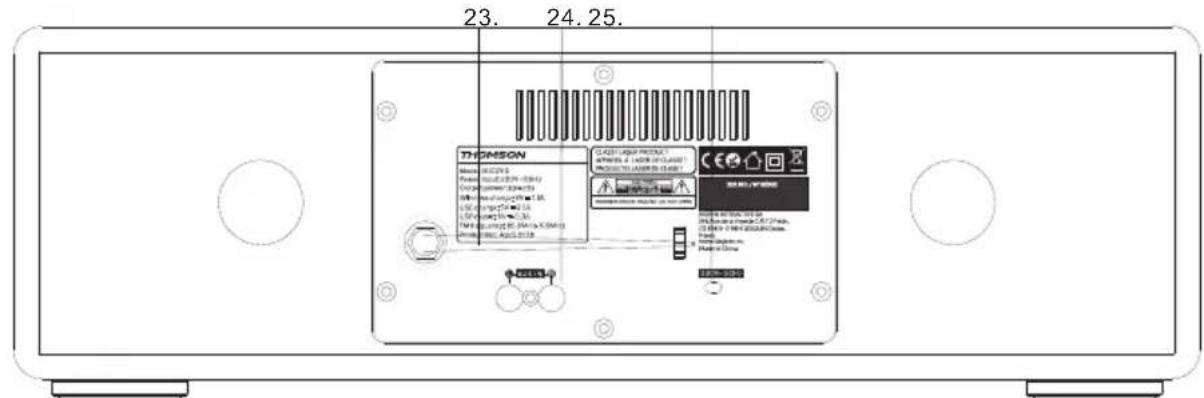

23. AUX in
24. AC power cable

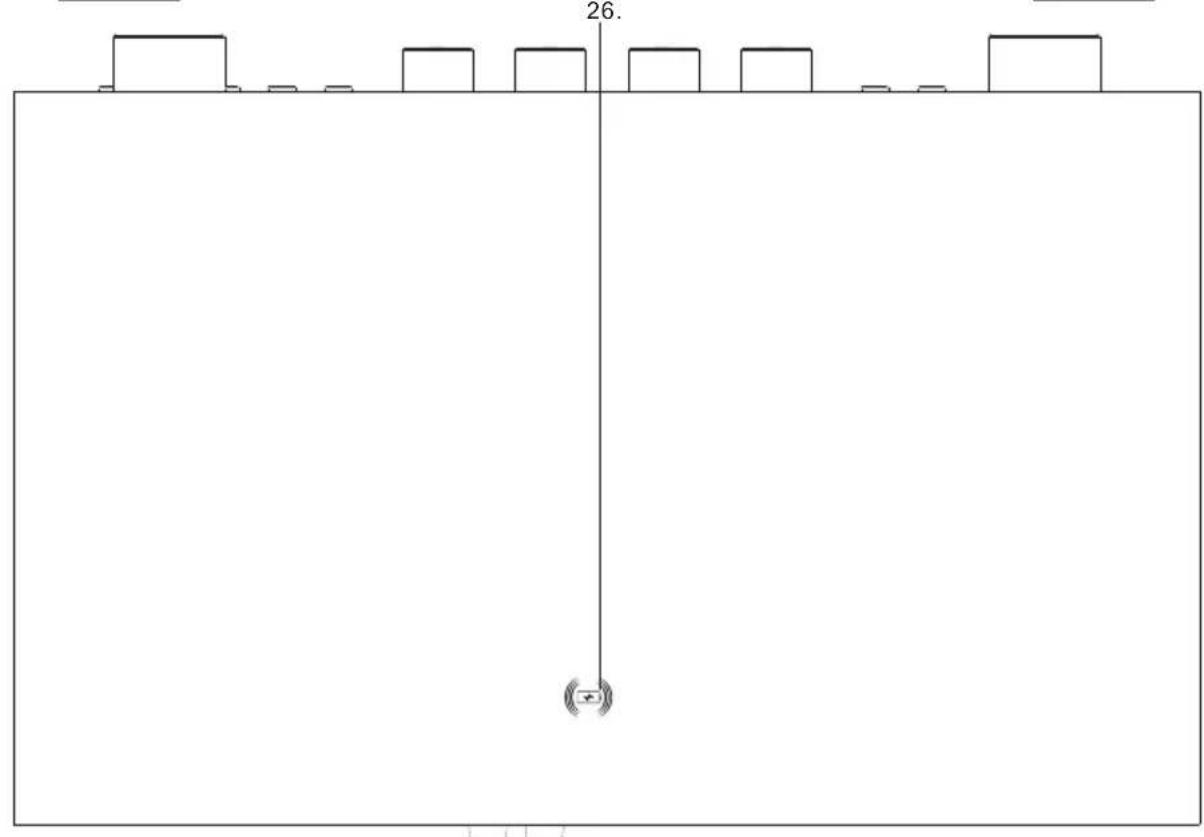

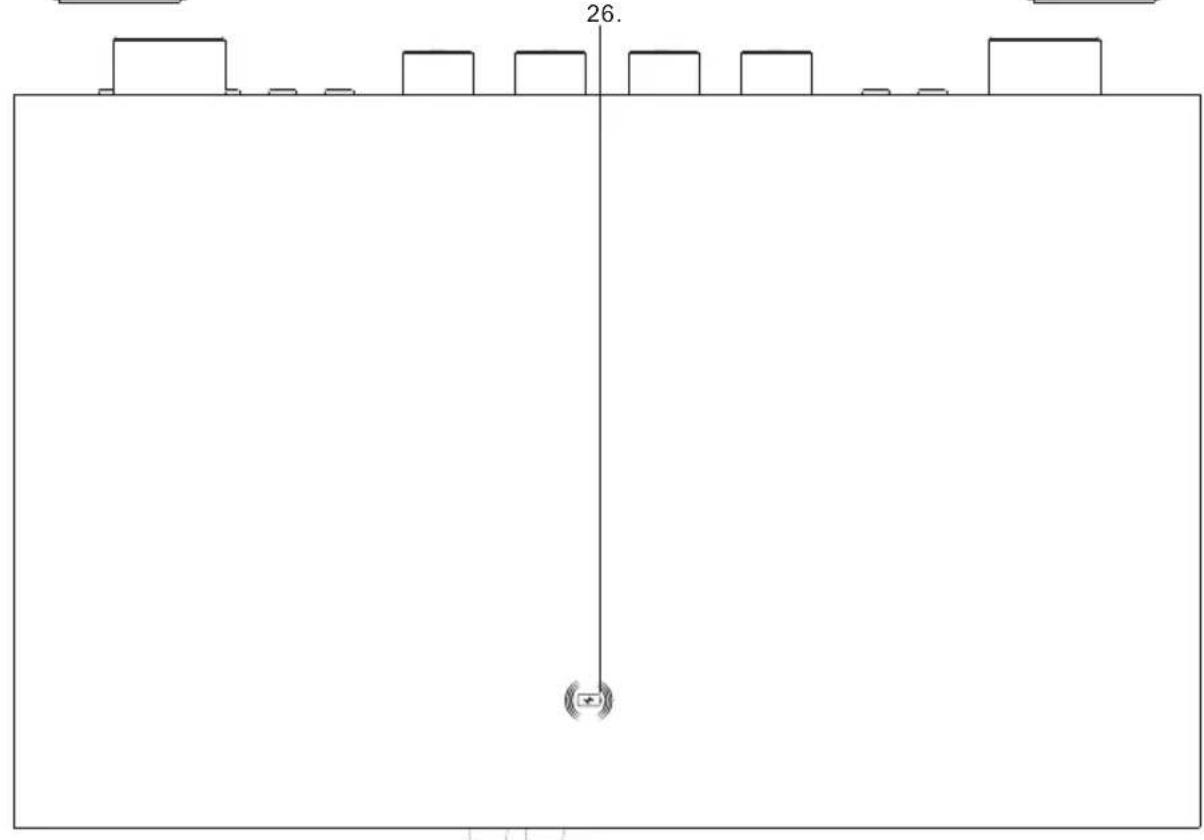

25. Wireless induction

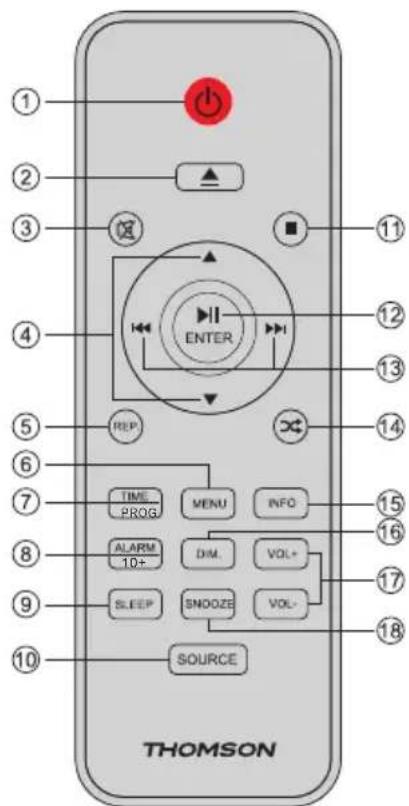

Remote

1. Power on/off
2. Open/ Close the CD door
3. Mute
4. UP/Down
5. Repeat
6. Menu
7. Time/Prog
8. Alarm/ 10+
9. Sleep
10. Source
11. Stop
12. Play/ Pause/ Enter
13. Prev/ Next
14. Random play
15. Info
16. Dimmer
17. VOL +/-
18. Snooze

Power

CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord
• Before connecting the AC power cord, ensure you have completed all other connections

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

Auto standby

When playing media from a connected device, the Tower automatically switches to standby if:

• No button is pressed for 10 minutes.
• No audio from a connected device for 10 minutes.

Battery power

• Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.
• Use batteries of the same type. Never use different types of batteries together.
• Do not throw the battery into the fire, or exposed to sunshine or the like.
• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor.

Unit power supply (mains 230V/50Hz)

Connect the power cable plug to the (230V) wall outlet.

Warning:

• Before using the unit, check that the local mains supply is compatible with the unit 230V (50Hz).
• Do not plug or unplug the power cable when your hands are wet.
• When planning not to use this unit for long periods of time (i.e. vacation etc.), disconnect the plug from the wall outlet.
• When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord in order to avoid shock risks caused by the damaged cable.

Operation

Press the POWER button to turn the unit ON/OFF.

Adjusting the volume

Rotate the Volume knob clockwise to increase the volume.

Rotate the Volume knob anti-clockwise to decrease the volume.

Check the display, which will confirm the volume setting.

Mute Function

Press the MUTE button on the remote control. The volume is muted and "Volume Muted" will appear on the LCD display. Press this button again to cancel the mute function.

Clock and Timers

Setting the clock and date

After the unit is plugged into a mains supply or following a mains power failure, the display will show the current time and date on the LCD display. The unit should be in standby mode to set the current clock.

1. Press the CLOCK button; "Time setup" is displayed. Press ENTER to confirm; "time wizard interval" is displayed.
2. Press |◀◀/▶▶| to select "24H" or "12H". Press ENTER to confirm. The hour digits on the display will blink.
3. Press |◀◀ / ▶▶▶ to set the hour; press ENTER to confirm. The minutes digits on the display will blink.
4. Press |◀◀ / ▶▶| to set the minutes; press ENTER to confirm. The year digits on the display will blink.
5. Press ◀◀/▶▶ to set the year; press ENTER to confirm. The month digits on the display will blink.
6. Press |◀◀/▶▶| to set the month; press ENTER to confirm. The day digits on the display will blink.
7. Press |◀/▶| to set the day; press ENTER to confirm. Press |◀/▶| to select "YES/NO"

Setting the alarm

Note: Check that the radio has the correct time and date before you set an alarm.

This unit may be used as an alarm clock. The Bluetooth device, CD/USB device or DAB/FM radio is activated to play at a preset time.

1. Press the POWER button to switch the unit to standby mode.
2. Make sure that you have set the clock correctly.
3. Press the ALARM button in shutdown state; press ALARM twice to set Alarm 2.

4. "Alarm 1 (or 2) Setup" is displayed. Press the ENTER button to select.

5. "Alarm 1 (or 2) Wizard On time" is displayed and the hour digits for the alarm will flash.

6. Press I/ repeatedly to set the hour. Press ENTER to confirm.

7. Press I/ to set the minutes. Press ENTER to confirm.

8. Press |◀◀/▶▶| to select the Alarm volume from 0 to 30. Press ENTER to confirm.

9. Press |◀◀/▶▶| to scroll to OFF/CD/DAB/FM/USB/BUZZER status. Press ENTER to confirm.

10. Press the ◀◀/▶▶ button to scroll to the alarm duration. You can choose from 15, 30, 45 and 60 minutes. Press the ENTER button to select. Press ◀◀/▶▶ to select YES and press ENTER to save the alarm.

11. The display will show the current time and Alarm 1 (or Alarm 2 or at the same time)

Snooze

1. Whenever the alarm (alarm 1, alarm 2) comes on, it can be temporarily suspended for a short period of approximately 9 minutes, by pressing the "SNOOZE" button once.

2. The alarm (alarm 1, alarm 2) will then automatically come on again after the 9-minute "snooze" period has ended.

3. And the "snooze" symbol will show on the display to remind you that the snooze function is active.

4. To deactivate the snooze, press and release the "POWER" key once.

Sleep Timer

1. Repeatedly press the SLEEP button; you can set 90/80/70/60/50/40/30/20/10 minutes. This is useful for falling asleep to music at night.

2. If you want to cancel the sleep mode, repeatedly press SLEEP to select OFF; the sleep mode will cancel.

Display Backlight

You can press the DIM button to adjust the display backlight brightness. There are 3 options available: High, Medium and Low.

DAB radio mode

Carefully extend the telescopic aerial.

Press the POWER button to turn on the unit, it will automatically go into DAB mode.

Auto Scan

1. Rotate the SOURCE knob to select "DAB MODE" (if unit not in DAB mode)

If this is the first time the unit has entered DAB Mode, it will automatically start an 'Auto Scan' to search for available stations. (Once DAB Mode has been used before, the unit will automatically select the previously played station)

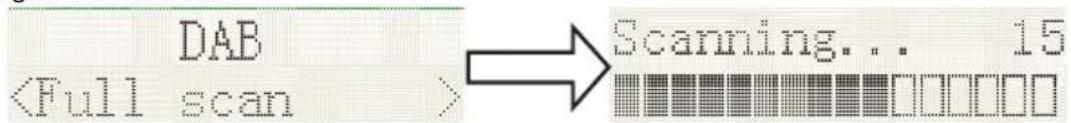

1. Press the ENTER button to automatically start auto scan to search for available stations.

During the scanning process, the lower line of the display shows a bar graph indicating the progress of the scan.

Manual Scan

1. Rotate the SOURCE key on the main unit to select "DAB MODE".

2. Press the [|◀◀] or [▶▶] button to select "Manual tune" and press the [ENTER] button to enter the service menu.

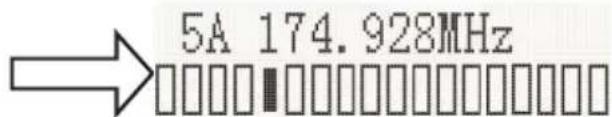

3. Press [ |◀◀ ] or [ ▶▶▶] to tune in the desired channel. The graph will indicate the signal strength.

4. Press MENU or [ ]← exit scan.

1. If no stations are found, please ensure the aerial is extended and test the reception by doing another auto scan in a different location.

DRC (Dynamic Range Control)

The Dynamic Range Control (also known as DRC) is a technology used to help make quieter sounds that are easier to hear in a noisy environment.

1. In DAB mode, press the ◀◀◀ or ▶▶◀ button to select "DRC". Press the ENTER button to display "*" to the top right.

2. Press MENU to confirm the setting. The display will return to normal.

DRC OFF - DRC is switched off, broadcast DRC will be ignored.

DRC LOW - DRC level is set to 1/2 that sent by broadcaster.

DRC HIGH - DRC level is used as sent by broadcaster.

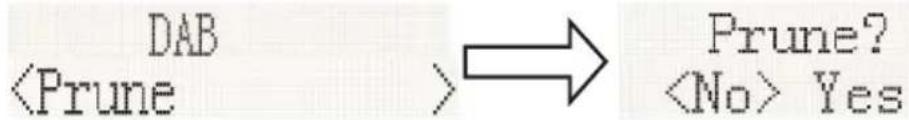

Prune (To Remove Stations That are Listed But Unavailable)

In DAB mode, press |◀◀ or ▶▶▶| to display the "Prune" submenu. Press the ENTER button to select the Prune option.

System (DAB)

In DAB mode, press |◀◀ or ▶▶▶| to show the "SYSTEM" submenu. Press the ENTER button to go to the system setting submenu.

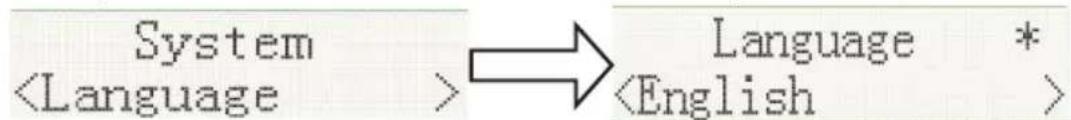

1. Language

Press ENTER to go to language selection; the default source language is English; the selected language will have “*” displayed at the top right.

Users may choose between "Deutsch", "Italiano" and "Français".

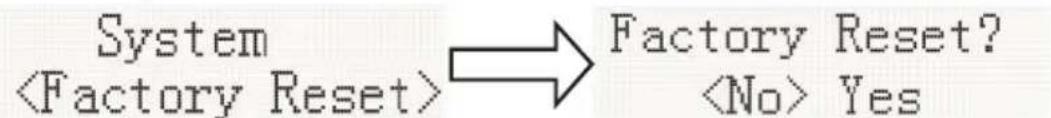

2. Factory Reset

Press ENTER to go to factory reset. If you wish to perform the reset operation, push or ▶ until "YES" is highlighted on the display and press. A full reset of your radio will be performed. All presets and station lists will be erased.

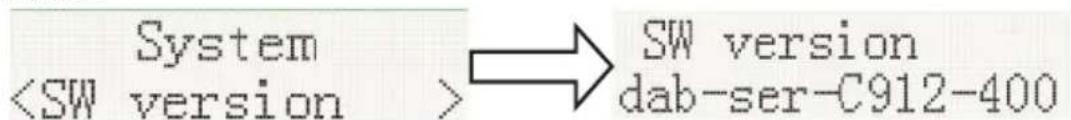

3. SW Version

Press ENTER to view the DAB software version. Press Menu or ▶▶▶1. The display will return to normal.

*If there are no operations after 30 seconds, the display will return to normal.

Preset

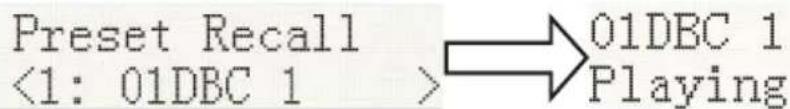

1. Preset Recall

In DAB mode, press ◄ to select "Preset Recall", then press [ENTER] to tune to the station stored in the preset memory.

Note: If you have not previously stored a preset station and the preset button is pressed, "Empty preset" will be displayed.

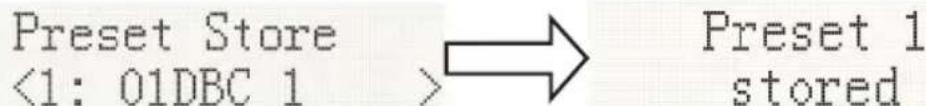

2. Preset Store

You may store your preferred DAB stations in the preset station memories. There are 20 memory presets in your radio. Presets are remembered by your radio in the event of a power failure.

The procedure for setting presets and using them to tune into stations is the same for DAB modes:

In DAB mode, select the desired wave band. Press [▲, ▼] to view the stored stations, press |◀◀ or ▶▶| to tune to the required station as previously described, and then press ENTER to select the desired preset number under which you will store the station. Press ENTER to confirm.

FM Radio

Carefully extend the telescopic aerial to its full length.

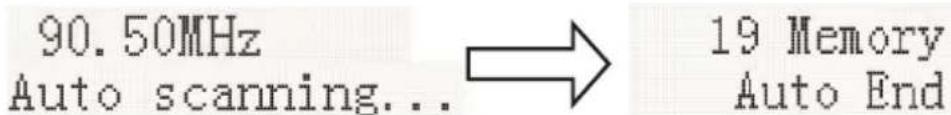

Auto Scan

1. Rotate the SOURCE knob to select "FM Mode".
2. Long press the ▶|| button, and your radio will scan and stop automatically when it finds a station of sufficient signal strength.
3. After a few seconds, the display will update. The display will show the station frequency. If the signal is strong enough and the station signal contains RDS data, then the radio will display the station name.
4. To find other stations, press and hold the I button as before.
5. To scan the FM band in the opposite direction (high frequencies to low frequencies), press the ▶ button and hold for 2 seconds.
6. When the waveband end is reached, your radio will recommence tuning from the opposite waveband end.

Manual Scan

1. Rotate the SOURCE knob on the main unit to select "FM Mode".
2. Select FM mode as previously described, if required.
3. Press ◀◀ or ▶▶ to tune to a station. Each press on the tuning button will change the frequency up or down by 100 kHz.
4. When the waveband end is reached, the radio will recommence tuning from the opposite waveband end. If no stations are found, please ensure the aerial is extended and test the reception by doing another auto scan in a different location.

Menu

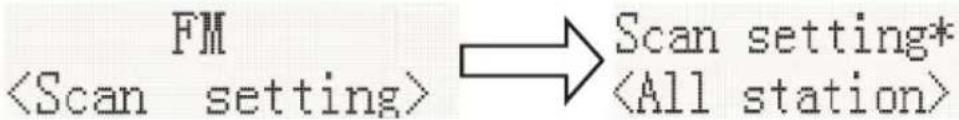

1. Scan Setting

In FM mode, press MENU, enter the FM menu setting, then press ◀◀◀ or ▶▶◀ to select [Scan setting], then press ENTER to select the sensitivity setting:

1.1. All stations: 15dB

1.2. Strong stations only: \~19dB,

1. Audio Setting

2.1. Stereo allowed:

2.2. Forced mono

2.3. System (FM system), same DAB system setting.

1. PRESET:

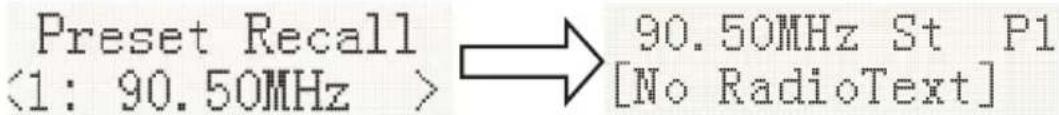

3.1. Preset Recall (Choose the Station):

Press ENTER to tune to the station stored in the preset memory.

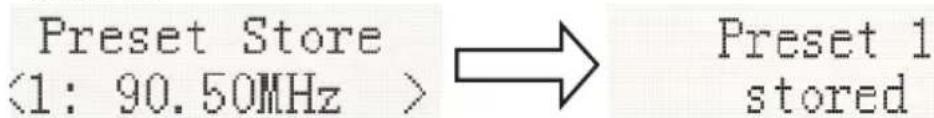

3.2. Preset Recall (Choose the Station):

You may store your preferred FM stations to the preset station memories. There are 20 memory presets in your radio. Presets are remembered by your radio in the event of a power failure.

The procedure for setting presets and using them to tune into stations is the same for DAB modes:

In FM mode, select the desired wave band. Press [▲, ▼] to view the stored stations, press |◀◀ or ▶▶▶| to tune to the required station as previously described, and then press ENTER to select the preset number under which you will store the station. Press ENTER to confirm.

Bluetooth Mode

You must follow several steps to connect your mobile phone:

1. Activate Bluetooth from your mobile phone (please refer to your phone's user manual)
2. Press the POWER button to turn on the unit.
3. Rotate the SOURCE knob to select the Bluetooth mode It will be ready to pair automatically.
4. Use your mobile phone to search for the Bluetooth device named "MIC250IDABBT" / "MIC256IDABBT".
5. Your mobile phone will find "MIC250IDABBT / MIC256IDABBT" and will present the option to connect or not. Please connect to it using the password "0000" (if any). When you are successfully connected, the Bluetooth indicator "Bluetooth connected" appears on the LCD display.

Automatically Connecting with Your Phone

Pairing is only needed the first time the unit and phone are used together. When the unit and phone have been paired once, they will automatically connect when the unit is on and Bluetooth is activated on the phone. The next time you power on, the unit will automatically connect to the most recently connected mobile phone.

Play from a Bluetooth Device

After successful Bluetooth connection, press the ▶|| button to play. Press the |◀| or ▶| button to skip the tracks backwards or forwards. To pause or resume play, press the ▶|button again. Press and hold the button ▶| to disconnect Bluetooth.

Playing a compact disc (CD)

NOTE: Never touch the laser lens inside the CD compartment. Clean the laser lens using a CD cleaner disc if it becomes dirty.

1. Press the POWER button to turn on the unit.
2. Rotate the SOURCE knob to select the CD function.
3. Press the ▲ button to open the CD door and insert a CD into the tray (with printed label side facing up).
4. Press the ▲ button again to close the CD DOOR and the disc will rotate for a few seconds, then play the 1st track automatically.
5. To temporarily stop playback, press the button, and to resume playback, press it again.
6. Press the button to STOP play.

PREVIOUS/NEXT TRACK

1. The ◀◀ and ▶▶ buttons are used to jump to a different track number or to scan disc tracks at high speed.
2. Press the ◀ button once to hear the beginning of the current track. Press it two or more times to hear previous tracks on the disc.
3. Press the button to hear the next track on the disc.
4. Press and hold the ◀◀◀ button. The current track will be scanned and move backwards to the previous track(s); When the desired track section is found, release the button and normal play will resume.
5. Press and hold the ▶▶| button; the current track will be scanned and move forward to the next track(s). When the desired track section is found, release the selected button and normal playback will resume.

REPEAT FUNCTION

The CD REPEAT button may be used to repeat a single track or repeat all tracks on a compact disc.

1. Press the REPEAT button once during playback; the "REPEAT ONE" sign will appear on the LCD display for about 2 seconds. The same track will be repeated over and over.
2. Press the REPEAT button a second time to repeat all tracks. The "REPEAT ALL" sign will appear on the LCD display for about 2 seconds.
3. To cancel REPEAT PLAY, press the REPEAT button repeatedly until "REPEAT OFF" appears on the LCD display for about 2 seconds.

PROGRAM FUNCTION

The Program feature may be used to program up to 20 tracks to play in a selected order.

1. While in the stop mode only (CD is not playing), press the PROG button, and the LCD display will show the wording "P 01" and "T 01" starts to flash.
2. Press the left button to allocate the desired track.
3. Press the PROG button to select and store the track into the memory.
4. Repeat step 2 to 3 to select up to 20 tracks.
5. To play the selected tracks (in the program mode), press the ▶II button.

6. Press the button to hear the previous programmed track or press the button to hear the next programmed track.
   Note: After all programmed tracks have been played, the CD player will return to the stop mode.

7. Press the Button to exit programmed play mode.

MP3 DISC SECTION

1. Press the POWER button to turn on the unit.
2. Rotate the SOURCE knob to select CD Mode.
3. Close the CD Door and the disc will rotate for a few seconds and then play the 1st track automatically.
4. Press the lock buttons to choose a track.
5. To temporarily stop playback, press the button; to resume, press the button again.
6. Press the button to stop play.

Note: Because MP3 discs have a large capacity, disc access times are a little longer.

Repeat Playing Function

Single track repeat

Press the REPEAT button once to repeat a single track. The display appears as "Repeat one".

Whole Disc Repeat

In Play mode, press the REPEAT button 2 times to repeatedly play all tracks on the disc. The display will show "Repeat All".

To cancel repeat play, press the REPEAT button repeatedly until the "Repeat off" sign appears.

PROGRAM PLAY

The tracks on the disc can be programmed to play in any order (up to 20 tracks can be programmed). Note: this can only be done while in Stop mode

1. Press the PROG button while in Stop mode. "P01" "F01" will appear on the display and "T001" will flash.
2. Press either the |◀◀ or ▶▶| button to select the desired tracks in the album, then press the PROG button to store in the memory.
3. The first track number is now stored in the memory, and the program number changes to "P02", waiting for your next selection.
4. Repeat Steps 1 – 3 to program additional tracks.

After programming is finished, press the ▶ button, and programmed play begins from the first programmed track. The player stops automatically after all programmed tracks have been played. (Press the ■ button twice to cancel the programmed tracks memory).

Playing Music via USB

This device has been developed using the latest technical advances in the USB field. However, given the wide range of USB storage device types that are currently on the market, we unfortunately cannot guarantee full compatibility with all USB storage devices. For this reason, in rare cases, there may be problems in playing back files from USB storage devices. This is not due to device malfunction.

1. Press the POWER button to turn on the unit.
2. Rotate the SOURCE knob to select the USB mode. 'USB' appears on the display.
3. Connect a USB storage device directly to the USB port. The display briefly shows the number of folders and then the total number of tracks. Playback will automatically start after a few seconds.
4. Operation of the control buttons is the same as for MP3 playback. Please refer to MP3 DISC SECTION operations as described previously.

NOTES:

• Always directly connect a USB storage medium to the USB port to prevent any malfunctions.
- The USB port is not designed for charging external devices.
- Important: Switch the device to a different operating mode before you remove the USB storage device.

Wireless Charger Function

Simply place your wireless charging device on the wireless charger area indicated on the top surface and charging will begin on contact.

Output power is 9V =1.1A

USB Charging (5V Out)

The USB port is designed for charging external devices, such as smart phones.

Output power is 5V =2.1A

AUX INPUT JACK

1. Press the POWER button to turn on the unit.
2. Rotate the SOURCE knob to select the Aux-In mode. 'Aux-In' will appear on the LCD display.
3. Connect the AUX connect wire from the AUX out jack of your personal player (e.g. portable MP3 player) to the AUX input jack.
4. Start playback from your personal player.

LINE INPUT JACK

1. Press the POWER button to turn on the unit.
2. Rotate the SOURCE knob to select the Line-In mode. 'Line-In' will appear on the LCD display.
3. Connect the Line in connect wire from the line out jack of your personal player (e.g. portable MP3 player) to the Line input jack.
4. Start playback from your personal player.

PHONE JACK

1. Rotate the Volume to set a low volume
2. Insert the headphones into the phone jack.

WARNING! Risk of hearing impairment

• Set a low volume on the playback device before connecting the headphones to the sound source.
• Avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

Note the following information: Only use the power supplies listed below.

Specification:

Power: AC230V\~ 50Hz 0.3A Remote control power source: 2 x AAA battery (not included) Frequency ranges: FM 88.8 – 108MHz DAB/DAB+ 174 - 239MHz

Max.consumption: 40W Speaker impedance: 8 ohms Total music output: 15W X 2

Remark: The maximum connection distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to avoid the connection being disturbed.

About the disks

	HandlingDo not touch the underside of disks.Hold disks by the edges to avoid leaving fingerprints on the surface.Any dust, fingerprints or scratches may cause a malfunction.Never affix a label or sticky tape to the disk.
	StoragePut disks back in their case after use.Never expose disks to direct sunlight or heat sources. Never leave disks inside a car parked in full sunlight.
	CleaningUse a clean, soft, lint-free cloth to clean the disk, working from the centre outwards in a straight line. Do not use solvents such as petrol, thinners, commercially available cleaners or antistatic sprays for vinyl disks.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.
- In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.
- If there is an incoming call while MIC250IDABBT / MIC255IDABBT / MIC256IDABBT is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)
- The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.
• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.
- You can find the information on the plate located at the back of the unit.

DECLARATION OF CONFORMITY

The undersigned, Bigben Interactive declares that the radio equipment of the MIC250IDABBT / MIC255IDABBT / MIC256IDABBT type complies with the 2014/53/EU directive.

The complete text is available at https://www.bigben-interactive.co.uk/support/

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin, CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB / CD / BLUETOOTH / FM

USB / ENTRADA DE AUDIO

Front view of a wooden audio recording device with digital display and control knobs (no readable text or symbols)

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

MATERIAL DE CLASE II
CORRIENTE CONTINUA
CORRIENTE ALTERNA
SOLO PARA USO EN INTERIORES

2. Restablecer ajuste de fábrica

2.2. Mono obligatorio:

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

IT

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB / CD / BLUETOOTH / RADIO FM

USB / INGRESSO AUDIO

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE

Indice

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

MATERIALE DI CLASSE II
CORRENTE CONTINUA
CORRENTE ALTERNATA
UTILIZZARE SOLO IN AMBIENTI CHIUSI

Ricerca manuale

2.2. Mono forzato

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

PT

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB / CD / BLUETOOTH / FM

USB / ENTRADA DE ÁUDIO

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

MATERIAL DE CLASSE II
CORRENTE CONTÍNUA
CORRENTE ALTERNADA
APENAS PARA USO INTERIOR

1. Manípulo da fonte

Procura manual

3. Versão SW

2.2. Mono forçado

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/CD/BLUETOOTH/UKW

USB/AUDIO-EINGANG

Front panel of a vintage electronic instrument with digital displays and rotary knobs (no readable text or symbols)

BEDIENUNGSANLEITUNG

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

Manuelle Suche

1.2. Strong stations only (nur starke Sendersignale): \~19 dB,

1. Audio-Einstellung

2.2. Forced mono (Nur Mono)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ AUDIO IN

Exterior view of a wooden audio workstation with digital display and control knobs (no readable text or symbols)

HANDLEIDING

GELIEVE DEZE GEBRUIKSAANWIJZING GOED DOOR TE NEMEN VOOR U HET TOESTEL IN GEBRUIK NEEMT EN BEWAAR HET ZODAT U HET LATER NOG KAN RAADPLEGEN

Inhoud

Aan de slag 1

BESCHERMINGSKLASSE II
GELIJKSTROOM
WISSELSTROOM
UITSLUITEND BESTEMD VOOR GEBRUIK BINNENSHUIS

Voeding (netstroom 230V/50Hz)

Handmatig zoeken

3. SW-versie

1.2. Alleen sterke stations: \~19dB,

1. Audio-instellingen

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ AUDIO IN

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

INSTRUKCJA OBSŁUGI

PRZED UŻYCIEM URZĄDZENIA NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ OBSŁUGI. INSTRUKCJĘ NALEŻY ZACHOWAĆ NA PRZYSZŁOŚĆ

Spis treści

Pierwsze kroki 1

MATERIAL KLASY II
PRĄD STAŁY
PRĄD PRZEMIENNY
TYLKO DO UŻYTKU W POMIESZ-CZENIACH

Wyszukiwanie ręczne

1. Ustawienie audio

2.1. Stereo dozwolone:

2.2. Mono wymuszone

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ AUDIO IN

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

NÁVOD K POUŽITÍ

PŘED POUŽITÍM SI PEČLIVĚ PŘEČTĚTE TUTO UŽIVATELSKOU

PŘÍRUČKU A USCHOVEJTE JI PRO

POZDĚJŠÍ POUŽITÍ.

Obsah

Začínáme 1

MATERIÁL TŘÍDY II
STEJNOSMĚRNÝ PROUD
STŘÍDAVÝ PROUD
POUZE PRO VNITŘNÍ POUŽITÍ

Ruční vyhledávání

3. Verze SW

1.2. Pouze silné stanice: \~ 19 dB,

1. Nastavení zvuku

2.2. Vynucené mono

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ AUDIO IN

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

BETJENINGSVEJLEDNING

LÆS VENLIGST DENNE BRUGERVEJLEDNING OMHYGGELIGT, F∅R DU BETJENER ENHEDEN, OG GEM DEN TIL EVT. SENERE BRUG.

Indholdsfortegnelse

Kom i gang 1

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

MATERIALE KLASSE II
JÆVNSTR∅M
VEKSELSTR∅M
KUN TIL INDEND∅RS BRUG

Manuel scanning

2. Nulstilling til fabriksstandarder

1. Indstilling for scanning:

1.2. Kun kraftige stationer: \~19dB

1. Lydindstilling

2.1. Stereo mulig:

2.2. Tvungen mono

2.3. System (FM-system), samme indstilling som for DAB-system.

1. FORINDSTILLING:

3.1. Annullering forindstilling (vælg stationen):

Tryk ENTER for at stille ind på stationen gemt forindstillingshukommelsen.

3.2. Annullering forindstilling (vælg stationen):

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/CD/BLUETOOTH/FM

USB/AUDIO IN

Front panel of a vintage electronic instrument with digital display and control knobs (no readable text or symbols)

HASZNÁLATI ÚTMUTATÓ

KÉRJÜK, A KÉSZÜLÉK MÜKÖDTETÉSE ELÖTT OLVASSA EL FIGYELMESEN EZT AZ ÚTMUTATÓT, ÉS ÖRIZZE MEG KÉSÖBBI TÁJÉKOZÓDÁS CÉLJÁBÓL

Tartalomjegyzék

Első lépések 1

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

II. OSZTÁLYÚ ANYAG
EGYENÁRAM
VÁLTAKOZÓ ÁRAM
CSAK BELTÉRI HASZNÁLATRA

Kézi keresés

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ AUDIO INN

Front view of a wooden audio recording device with digital display and control knobs (no readable text or symbols)

BRUKSANVISNING

LES DENNE BRUKSANVISNINGEN N∅YE F∅R DU BETJENER APPARATET, OG OPPBEVAR DEN TIL SENERE BRUK

Innhold

Komme i gang 1

KLASSE II-MATERIALE
LIKESTR∅M
VEKSELSTR∅M
KUN TIL INNEND∅RS BRUK

Manuell skann

2. Fabrikkinnstilling

1. Lydinnstilling

2.1. Stereo tillatt:

2.2. Tvunget mono

2.3. System (FM-system), samme innstilling for DAB-system.

1. FORHÅNDSINNSTILLING:

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

MIC250IDABBT

MIC255IDABBT

MIC256IDABBT

DAB/ CD/ BLUETOOTH/ FM

USB/ LJUDINGÅNG

Front panel of a vintage electronic instrument with digital displays and rotary knobs (no readable text or symbols)

DRIFTSINSTRUKTIONER

LÄS DENNA ANVÄNDARMANUAL NOGA INNAN PRODUKTEN TAS I BRUK OCH SPARA DEN FÖR FRAMTIDA BRUK

Innehåll

Komma igång 1

KLASS 2-MATERIAL
LIKSTRÖM
VÄXELSTRÖM
ENDAST FÖR INOMHUSBRAUK

Manuell sökning

1.2. Endast stationer med stark mottagning: \~19dB,

1. Ljudinställning:

2.2. Tvingad mono

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu
