USER MANUAL MDRD142FGE01 MIDEA

Empty rectangular frame with a small vertical gray bar on the left side and two corner supports at the bottom (no text or symbols)

Refrigerator

SINGLE DOOR SERIES

USER MANUAL

MDRD142FGE

LANGUAGES

EN English

DE Deutsch

IT Italian

FR French

ES Spanish

PT Portuguese

GR Greek

PL Polish

LV Latvian

SR Serbian

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SPECIFICATIONS 02

PRODUCT OVERVIEW 03

PRODUCT INSTALLATION 04

OPERATION INSTRUCTIONS 08

CLEANING AND MAINTENANCE 11

TROUBLESHOOTING 12

APPENDIX 13

SPECIFICATIONS

Product model MDRD142FGE
Rated Voltage/Frequency 220-240V~/50Hz
Rated Current 0.5A
Rated Lamp Power 10W
Total Volume 93L
Fresh Food Storage Compartment Volume 93L
Refrigerant, Amount R600a,24g
Overall Dimension (W x D x H) 472x450x860mm

PRODUCT OVERVIEW

Names of components

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

EN

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

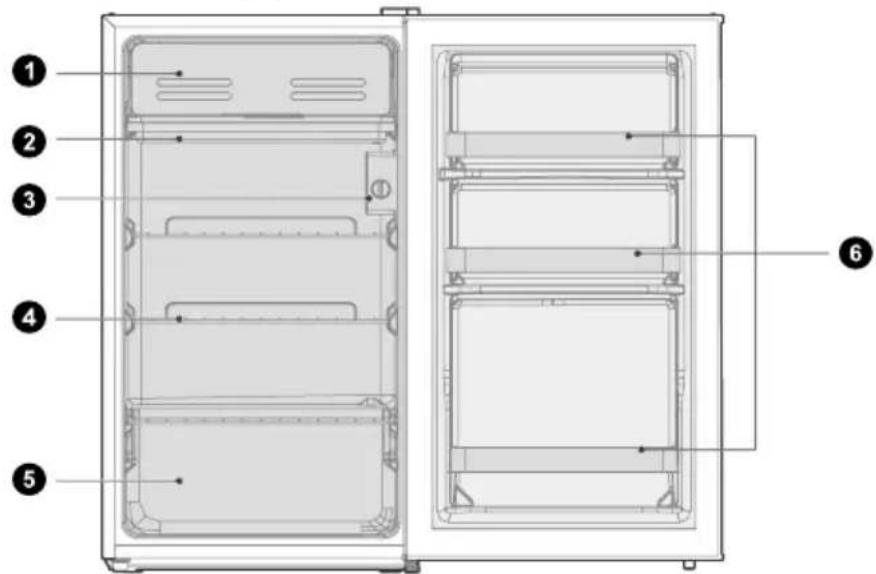

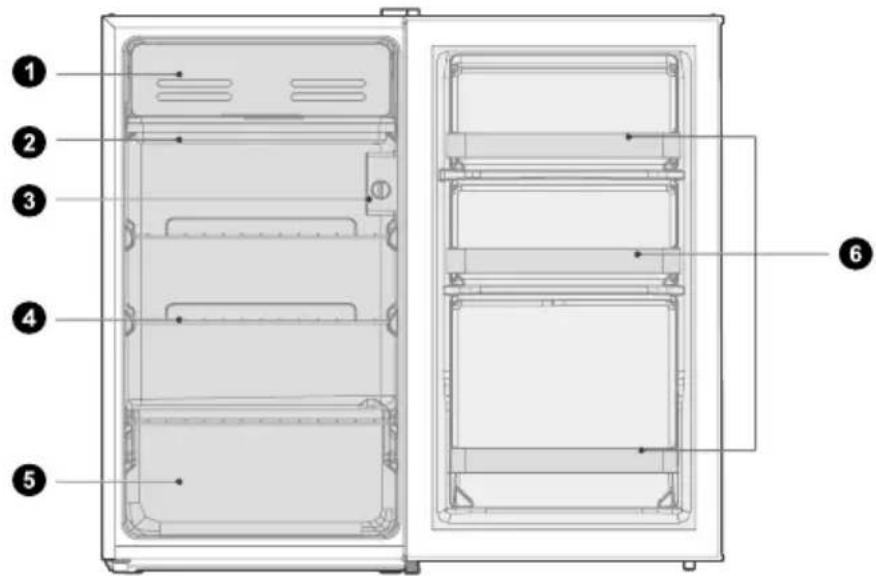

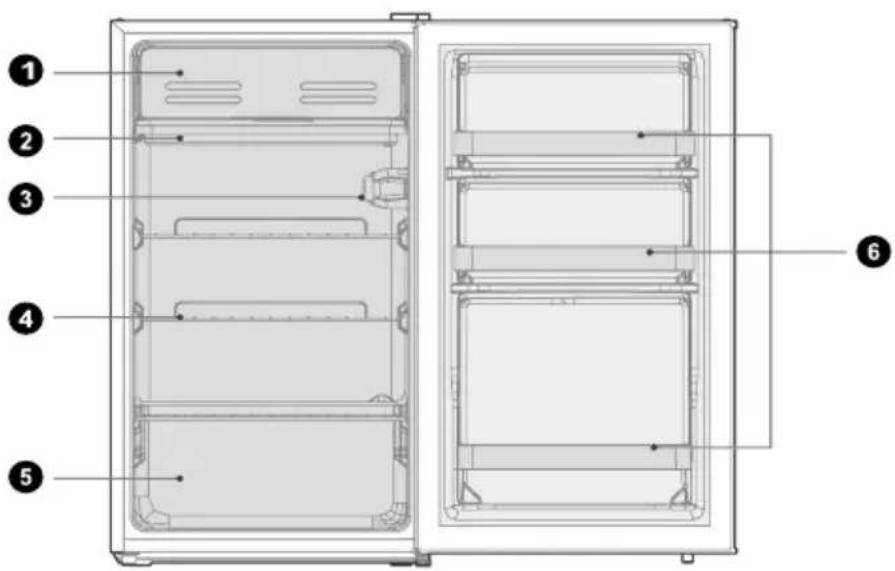

1 Little door

4 Shelf

2 Drain tray

5 Fruits and vegetables box

3 Temperature control knob

6 Door tray

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, this refrigerator is intended to be used at an ambient temperature range as specified in the following table.
• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.

Effective temperature range

- The product is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient temperature range °C
		IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

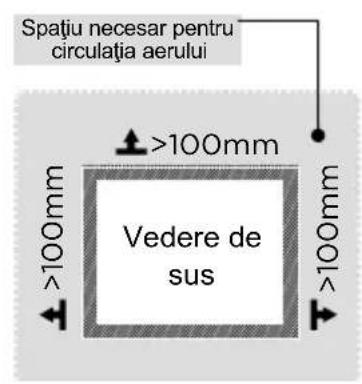

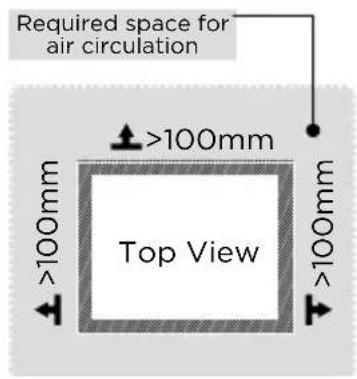

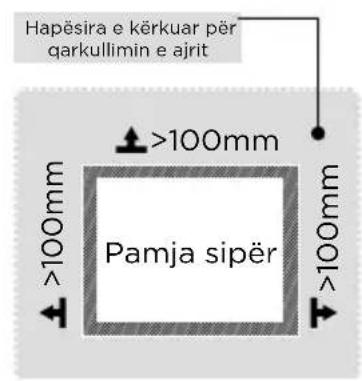

>100mm ≥100mm ≥100mm

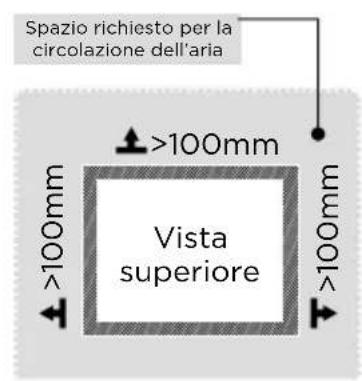

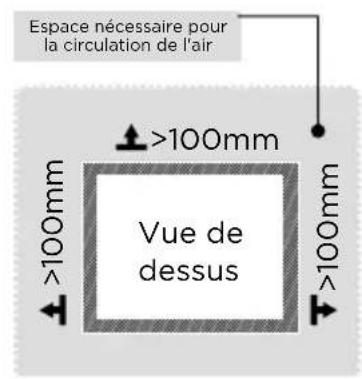

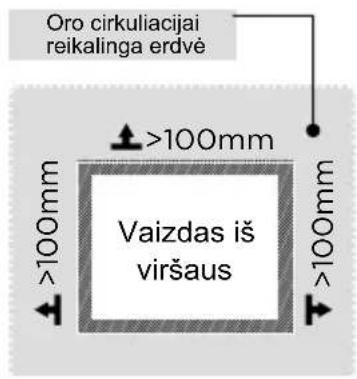

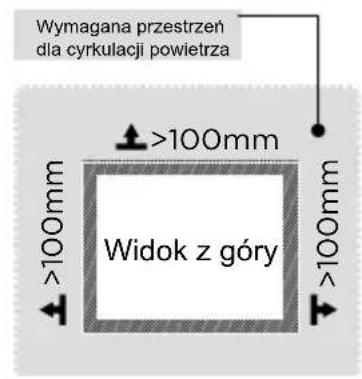

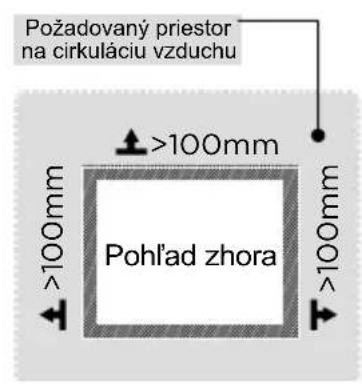

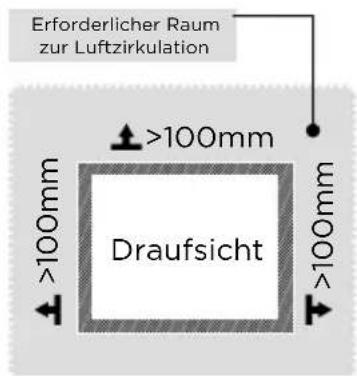

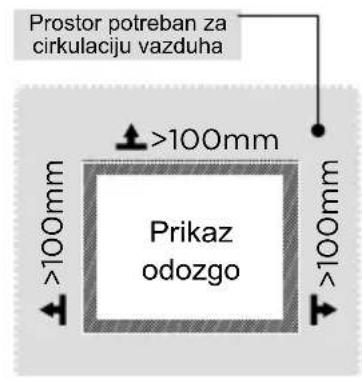

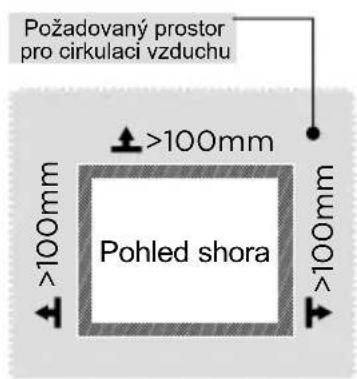

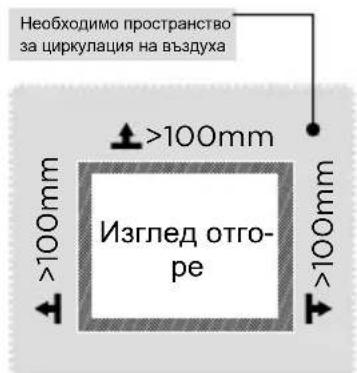

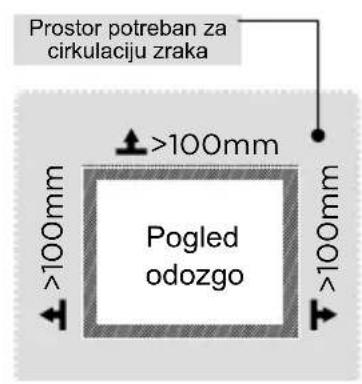

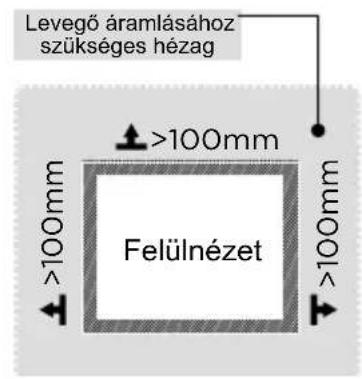

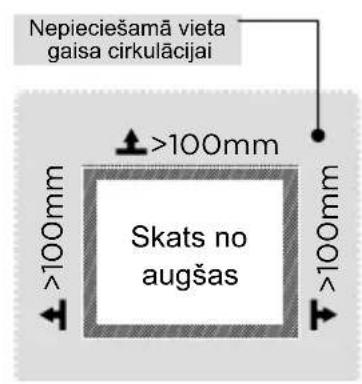

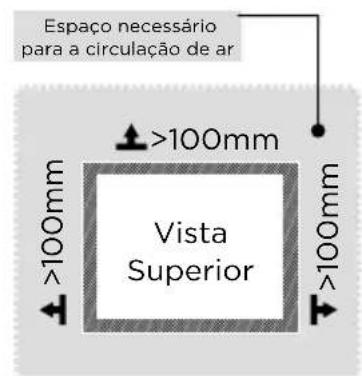

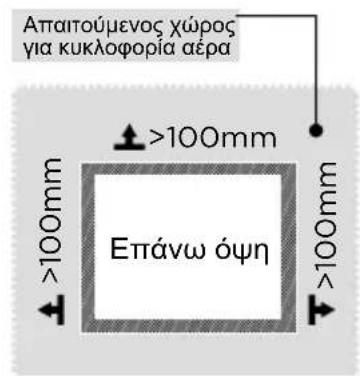

Required space for air circulation >100mm Top View >100mm >100mm

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

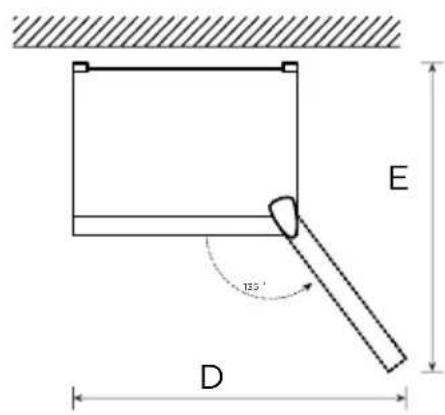

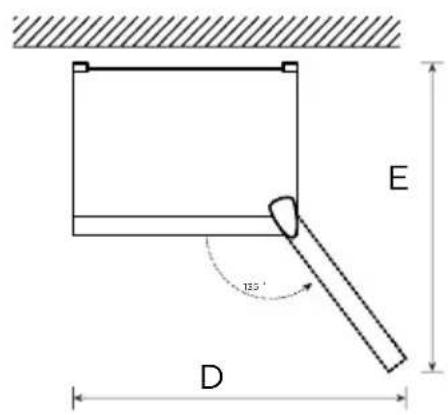

Space requirement diagram (when the door is open and when the door is closed)

E 155° D

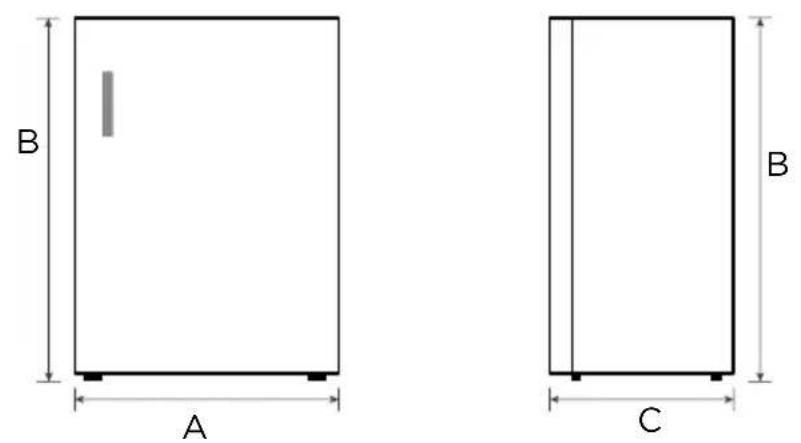

Width Overall Height Depth			Width doors open 135°	Depth doors open 135°
A B C D E
472 860 450 792 770

Notice: All dimensions in mm.

Door right-left change

List of tools to be provided by the user

		Cross screwdriver
		Putty knife / Thin-blade screwdriver
		Masking tape
		5/16” socket spanner

1. Power off the refrigerator, and remove all objects from the door trays.
2. Fix the door with tape.

Isometric line drawing of a structural joint or bracket (no text or symbols)

1

Hole cap Upper hinge cover Upper hinge 2

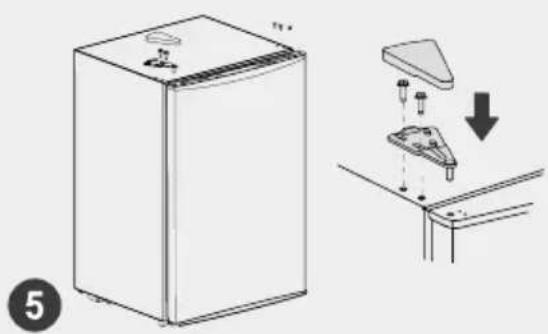

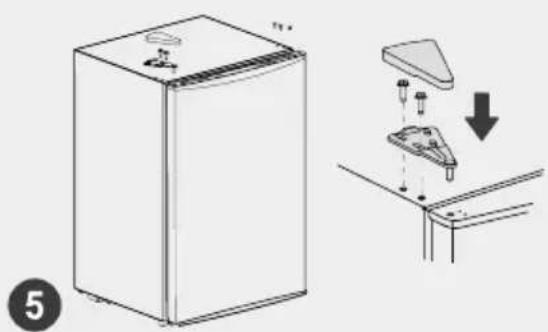

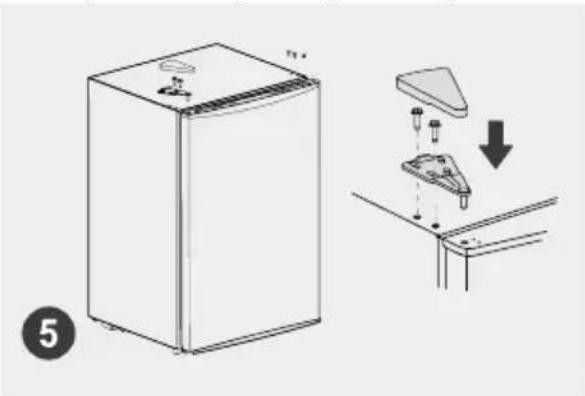

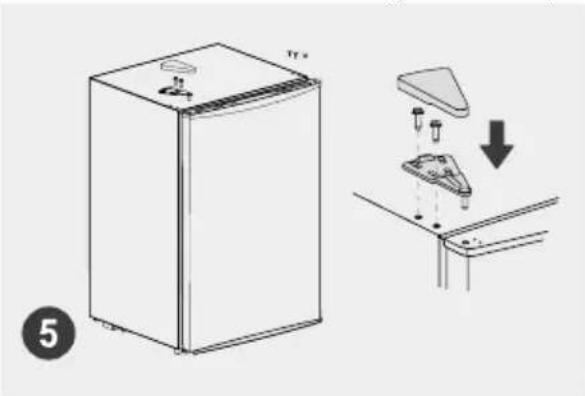

1. Dismantle the upper hinge cover, screws and upper hinge, and remove the plastic screw hole caps from the other side.

3 optobnormal

4

Simple line drawing of a rectangular object with a curved top and two labeled ends (no text or symbols)

1. dismantle the door and the bottom hinge assembly and adjustable foot, then assemble the bottom hinge assembly and adjustable foot on other side.

Line drawing of a refrigerator with a close-up view showing internal components and a downward arrow indicating a process (no text or symbols present)

1. Dismantle the stopper under the door then assemble the stopper on the other side.put the door on bottom hinge and assemble the upper hinge, upper hinge cover andplastic screw hole caps successively.

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.

Changing the Light (optional)

Replacement of incandescent lamps:

• Disconnecting the power supply before carrying out the bulb replacement, Hold and remove the light bulb cover.
• Dismantle the old bulb by unscrewing it counterclockwise, replace a new bulb (Max. 10W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly.
• Reassemble the light cover and re-connect your Fridge to the power supply.

ATTENTION

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and racks as shown in the illustration offers the most efficient use of energy and should therefore be retained as far as possible. All drawers and shelves should remain in the appliance to keep the temperature stable and save energy.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has already cooled down increases energy efficiency.
• Open the door only as briefly as necessary to minimize cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

Control panel

A

MAX MED

B

OFF NIW MAX MED

ATTENTION

The actual control panel may differ from model to model.

• Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower.
• Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher.
• The letter on the knob only represents the level, but does not mean the specific temperature, the "OFF" means stop working.
• Recommended gear: "MED"

NOTE: Please adjusting and using between "MAX" and "MIN".

- Drain tray is used for receiving water when defrosting. Please empty the water in the drain tray regularly in case the water overflowing into the cabinet.

ATTENTION

Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

Tips on storing food

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C .

Drain tray is used for receiving water when defrosting. Please empty the water in the drain tray regularly in case the water overflowing into the cabinet.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

Order	Compartments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge +2 ~ +8			Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)*-Freezer	≤-18		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer	≤-18		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer	≤-12		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer	≤-6		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
6 0-star -6 ~ 0			Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days).Partially encapsulated processed foods (non-freezable foods).
7 Chill -2 ~ +3			Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C.
8 Fresh food 0 ~ +4			Fresh pork, beef, fish, chicken, cooked food, etc.(Recommended to eat within the same day, preferably no more than 3 days)
9 Wine +5 ~ +20 Red wine, white wine, sparkling wine, etc.

ATTENTION

please store different foods according to the compartments or target storage temperature of your purchased.

CLEANING AND MAINTENANCE

Defrosting

• Power off the refrigerator.
- Remove the food from the refrigerator and place it properly to prevent food from melting.
- Clear the drain pipe (to use soft materials to prevent damage to the liner), prepare the water containers for defrosting.
- (Pay attention to clean the compressor compartment water draining tray, avoiding overflow to the ground).
- You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (to use plastic or wooden ice shovel, for avoiding damage to the liner or pipe).
- You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.
• After defrosting, put back the foods in cabinet, and power on the refrigerator.

ATTENTION

Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the refrigerant circuit.

Stop using

Power failure:

In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours. During the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse:

The appliance shall be unplugged and then cleaned. Please leave the doors open to prevent odor.

Moving:

Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

Foods can be preserved for a couple of hours even in summer in case of power failure, it is recommended to reduce the frequency of opening door.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·when the ambient temperature is high it is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Door can not be properly closed	·The door is stuck by food packages too much food is placed
	·The refrigerator is tiltedr.
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations
Hot housing	·Heat dissipation of the built-in condenser via the housing, which is normal when housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	·Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider channel.

Ordered part Provided by		Minimum time required for Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources Professional maintenance personnel		At least 7 years after the last model is launched on the market
Door handles Professional repairers and final users		At least 7 years after the last model is launched on the market
Door hinges Professional repairers and final users		At least 7 years after the last model is launched on the market
Trays Professional repairers and final users		At least 7 years after the last model is launched on the market
Baskets Professional repairers and final users		At least 7 years after the last model is launched on the market
Door gaskets Professional repairers and final users		At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

ATTENTION

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name.

The model name can be found on the rating label of the appliance.

Coldest zone in the refrigerator

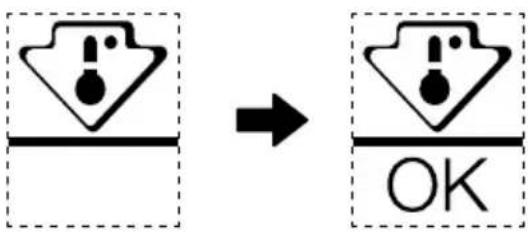

OPTIONAL: OK-temperature indicator

The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate “OK”.

Diagram showing a process step with warning symbols and an 'OK' button, indicating cancellation or completion.

To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

• To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.
• WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

• With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.
• When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.
• If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

VIELEN DANK

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

DE

A

Technical diagram of a multi-chamber refrigerator with numbered components and labeled parts

B

>100mm >100mm >100mm >100mm

Erforderlicher Raum zur Luftzirkulation >100mm Draufsicht >100mm >100mm

ACHTUNG

Isometric line drawing of a rectangular frame with vertical connectors and a central vertical bar (no text or symbols)

1

Upper Sching hinge covers Upper Sching Lochkappe

Simple line drawing of a rectangular object with a curved top and base, labeled with numbers 4 and 5 (no text or symbols on the object itself)

Diagram showing a process step with warning symbols and an 'OK' button, indicating cancellation or completion.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered components for identification

B

>100mm >100mm >100mm >100mm

Isometric line drawing of a structural frame with vertical supports and a base (no text or symbols)

be upper hinge power Tappo dei fori Upper hinge 2

Simple line drawing of a rectangular object with a curved top and two arrows below (no text or symbols)

Blank white image with no visible content, text, or symbols

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

INSTALLATION DU PRODUIT 04

GUIDE D'UTILISATION 08

NETTOYAGE ET ENTRETIEN 11

DÉPANNAGE 12

ANNEXE 13

SPÉCIFICATIONS

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

INSTALLATION DU PRODUIT

>100mm ≥100mm ≥100mm

Isometric line drawing of a structural joint or bracket (no text or symbols)

1

he upper hinge cover Bouchon de trou Charnière supérieure

Simple line drawing of a rectangular object with a curved top and arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a curved top and base, no text or symbols present.

Line drawing of a refrigerator with a close-up view showing internal components and a downward arrow indicating a process (no text or symbols present)

OFF MINI MAX MED

ATTENTION

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

ES

A

Technical diagram of a multi-chamber refrigerator with numbered components labeled 1 through 6

B

Illustration of five different types of screwdrivers and tools (no text or labels)

Isometric line drawing of a structural joint or bracket (no text or symbols)

1

Line upper hinge cover Tapa del agujero Upper hinge

2

Simple line drawing of a rectangular object with a curved top and base, no text or symbols present.

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

PT

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm >100mm >100mm >100mm

Isometric line drawing of a structural joint or bracket (no text or symbols)

1

A hensuper binge cover Tampa do orificio Dobradica superior H 2

Simple line drawing of a rectangular object with a curved top and base, no text or symbols present.

Line drawing of a refrigerator with a door panel and a close-up of its side panel showing internal components (no text or symbols)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered components labeled 1 through 6

B

1 Μικρή πόρτα

4 Páφι

>100mm >100mm >100mm >100mm

Illustration of five different types of screwdrivers and tools (no text or labels)

Σταυροκατσάβιδο

Isometric line drawing of a mechanical or structural component with no visible text or symbols

1

How power changes to the Edu power changes How power changes to the Edu power changes How power changes to the Edu power changes

2

Simple line drawing of a rectangular object with a curved top and two small arrows below (no text or symbols)

Line drawing of a refrigerator with a downward arrow indicating a drop or change, alongside a close-up of its interior components (no text or symbols)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a multi-chamber refrigerator with numbered components labeled 1 through 6

B

>100mm ≥100mm ≥100mm

Isometric line drawing of a rectangular block with vertical connectors and a central vertical line (no text or symbols)

1

3 Optional

4

Simple line drawing of a rectangular object with curved top and base, no text or symbols present

Line drawing of a refrigerator with an open lid and a close-up of its internal components (no text or symbols)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

PRODUKTA PÄRSKATS 03

PRODUKTA UZSTĀDĪŠANA 04

LIETOŠANAS INSTRUKCIJAS 08

TİRİŞANA UN APKOPE 11

PROBLÉMU NOVĚRŠANA 12

PIELIKUMS 13

SPECIFIKĀCIJAS

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm >100mm >100mm 100mm

Nepieciešamā vieta gaisa cirkulācijai >100mm >100mm Skats no augšas >100mm >100mm

UZMANIBU!

Isometric line drawing of a mechanical or structural component with no visible text or symbols

1

Augspar dinger penves Atveres Appserjänge vácins

2

3 optitionals

4

Simple line drawing of a rectangular object with a curved top and two small arrows below (no text or symbols)

Line drawing of a refrigerator with a close-up view showing the lid and base panel (no text or symbols)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

1 Mala vrata

4 Polica

2 Tacna za odvod

>100mm ≥100mm ≥100mm

Prostor potreban za cirkulaciju vazduha >100mm Prikaz odozgo >100mm >100mm

PAŽNJA

Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera.

Isometric line drawing of a mechanical or architectural component with vertical supports and a rectangular base (no text or symbols)

1

he pumopabingje cavre
2

Poklopac Uppen rupe

1. Uklonite poklopac gornje šarke, zavrtnje i gornju šarku, a zatim i plastične poklopce rupa za zavrtnje sa druge strane.

3 optional lab

1. Uklonite vrata, sklop donje šarke i prilagodljivu nožicu, a zatim postavite sklop donje šarke i prilagodljivu nožicu sa druge strane.

4

Simple line drawing of a rectangular object with a curved top and two small arrows below indicating direction (no text or symbols)

Diagram showing a refrigerator with a door and a small appliance, alongside a close-up of its base panel (no text or symbols present)

1. Demontirajte odbojnik ispod vrata, a zatim ga postavite sa druge strane. Stavite vrata na donju šarku i postavite redom gornju šarku, poklopac gornje šarke i plastične poklopce rupa za zavrtnje.

Stopice za nivelisanje

OFF MINI MAX MED

PAŽNJA

Stvarna kontrolna tabla se može razlikovati od modela do modela.

• Kada okrenete dugme za kontrolu temperature na MAX, unutrašnja temperatura frižidera postaje niža.
• Kada okrenete dugme za kontrolu temperature na MIN, unutrašnja temperatura frižidera postaje viša.
• Slovo na dugmetu predstavlja samo nivo, a ne određenu temperaturu; „OFF“ znači da uređaj ne radi.
• Preporučena opcija: „MED“

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Da bi se održavala ujednačena temperatura u ovoj oblasti, nemojte menjati položaj police. Kod frižidera sa protokom vazduha (uređaji sa ventilatorom ili modeli „bez zaleđivanja“) simbola najhladnije zone nema jer je temperatura unutrašnjosti svuda ista.

Indikator podešavanja temperature

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

1 Mala vrata
2 Plitica za odvod vode
3 Gumb za regulaciju temperature

4 Polica
5 Kutija za voće i povrće
6 Plitica u vratima

PAŽNJA

Gornja slika služi samo kao referenca. Stvarna konfiguracija ovisit će o fizičkom proizvodu ili izjavi distributera.

INSTALACIJA PROIZVODA

Upute za instalaciju

Za rashladne uređaje s klimatskim razredom

• Ovisno o klimatskom razredu, ovaj hladnjak namijenjen je uporabi unutar raspona temperature navedenih u donjoj tablici.
• Klimatski razred može se pronaći na natpisnoj pločici. Proizvod možda neće ispravno raditi na temperaturama izvan navedenog raspona.
• Klimatski razred naveden je na oznaci proizvoda.

Učinkovit temperaturni raspon

- Proizvod je konstruiran za normalan rad u temperaturnom rasponu koji je određen ocjenom razreda.

Razred Simbol		Raspon temperature okoline °C
		IEC 62552 (ISO 15502) ISO 8561
Prošireni umjereni SN + 10 do + 32 + 10 do + 32
Umjereni N + 16 do + 32 + 16 do + 32
Subtropski ST + 16 do + 38 + 18 do + 38
Tropski T + 16 do + 43 + 18 do + 43

Dimenzije i razmaci

- Premala udaljenost od susjednih elemenata može dovesti do smanjenja kapaciteta zamrzavanja i povećanja troškova električne energije. Prilikom postavljanja uređaja ostavite više od 100 mm slobodnog prostora od svakog susjednog zida.

>100mm >100mm >100mm >100mm

Prostor potreban za cirkulaciju zraka >100mm Pogled odozgo >100mm >100mm

PAŽNJA

Gornja slika služi samo kao referenca. Stvarna konfiguracija ovisit će o fizičkom proizvodu ili izjavi distributera.

Dijagram s podacima o potrebnom prostoru (s otvorenim i zatvorenim vratima)

B A

B C

E 125° D

HR

Širina	Sveukupna visina	Dubina	Širina vrata otvorenih 135°	Dubina vrata otvorenih 135°
A B C D E
472 860 450 792 770

Isometric line drawing of a mechanical or structural component with no visible text or symbols

1

he pumorabinge cawre
2

Poklopac Upper range rupe

1. Uklonite poklopac gornje šarke, vijke i gornju šarku, uklonite plastične poklopce otvora za vijke na drugoj strani.

Simple line drawing of a rectangular object with a curved top and two small arrows below indicating direction (no text or symbols)

Diagram showing a refrigerator with a lid and a mechanical component being inserted into a bracket (no text or symbols present)

1. Uklonite zaustavljač ispod vrata, a zatim ga postavite s druge strane. Postavite vrata na donju šarku i redom postavite gornju šarku, poklopac gornje šarke i poklopce rupa plastičnog vijka.

Nožice za niveliranje

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Kako biste osigurali temperaturu u tom području, nemojte mijenjati položaj police. Hladnjaci s hlađenjem pod pritiskom (opremljeni ventilatorom ili modeli bez inja), simbol najhladnije zone nije predstavljen jer je unutarnja temperatura homogena.

Postavka indikatora temperature

• Kao pomoć pri pravilnom postavljanju hladnjaka imate indikator temperature koji će pratiti prosječnu temperaturu u najhladnijoj zoni.
• UPOZORENJE: ovaj indikator namijenjen je isključivo radu s vašim hladnjakom, nemojte ga koristiti na drugom hladnjaku (najhladnija zona nije ista) ili za drugu namjenu.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm ≥100mm ≥100mm

Isometric line drawing of a mechanical or architectural component with vertical supports and a rectangular base (no text or symbols)

1

he up CsvartakaróUp kupak CsavartakaróUp up up up

2

Simple line drawing of a rectangular object with a curved top and two small arrows below (no text or symbols)

4

Diagram showing a refrigerator with a door and a mechanical component being inserted into a bracket (no text or symbols present)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

1 Vratca

4 Polica

2 Odvodni podstavek

5 Predal za sadje in zelenjavo

3 Gumb za uravnavanje temperature

6 Pladenj za vrata

POZOR

Isometric line drawing of a mechanical or architectural component with vertical supports and a rectangular base (no text or symbols)

1

hpokrov zgbinjega lova Pokrov za Uzmomlja teča luknjo 2

3 one pet oven

Simple line drawing of a rectangular object with a curved top and two small arrows below (no text or symbols)

Simple line drawing of a rectangular object with a curved top and two small arrows below indicating direction (no text or symbols)

1. razstavite vrata, sklop spodnjega tečaja in nastavljivo nogo, nato sestavite sklop spodnjega tečaja in nastavljivo nogo na drugi strani.

Line drawing of a refrigerator with a close-up view showing the interior portion of its side panel (no text or symbols present)

1. Razstavite ustavljač pod ohišjem vrat in nato sestavite ustavljač na drugi strani. Namestite vrata na spodnji tečaj in zaporedoma sestavite zgornji tečaj, pokrov zgornjega tečaja in plastične pokrovčke lukenj za vijake.

Izravnalne noge

Da se izognete vibracijam, mora biti enota poravnana.

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a multi-chamber refrigerator with numbered components labeled 1 through 6

B

>100mm >100mm >100mm >100mm

Isometric line drawing of a mechanical or structural component with no visible text or symbols

1

he upportainingsupervers

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

optional

Simple line drawing of a rectangular object with a curved top and two small arrows below indicating direction (no text or symbols)

4

Line drawing of a white rectangular refrigerator with lid and front panel (no text or symbols)

Diagram showing a mechanical assembly with a component and a downward arrow indicating motion (no text or symbols)

5

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm >100mm >100mm >100mm

Isometric line drawing of a mechanical or structural component with no visible text or symbols

1

he upper single cover Kapachka na topa capka Kapachka za Udprihinta otvor

2

Simple line drawing of a rectangular object with a curved top and two small arrows below (no text or symbols)

4

Diagram showing a refrigerator with a door and a mechanical component being inserted into a bracket (no text or symbols present)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm ≥100mm ≥100mm

Isometric line drawing of a structural frame with vertical supports and a base, no text or symbols present

havanna vinyuangelis Angos Uyutirhengis dangtelis

Simple line drawing of a rectangular object with a curved top and two arrows indicating direction (no text or symbols)

Line drawing of a refrigerator with a close-up view showing the exterior panel and door handle (no text or symbols)

Blank white image with no visible content, text, or symbols

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a multi-chamber refrigerator with numbered components labeled 1 through 6

B

INSTALIMI I PRODUKTIT

>100mm ≥100mm ≥100mm

Isometric line drawing of a mechanical or structural component with no visible text or symbols

1

Khw upper hinge cover Merd upper hinge Kapak rime

Simple line drawing of a rectangular object with a curved top and two labeled ends (no text or symbols)

Line drawing of a refrigerator with a close-up view showing internal components and a downward arrow indicating a process (no text or symbols present)

OFF MINI MAX MED

MBANI PARASYSH

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm >100mm >100mm >100mm

Isometric line drawing of a mechanical or architectural component with vertical supports and a rectangular base (no text or symbols)

1

he upyehbimg zavesu

Krytka Uppenlizinge otvoru

2

Line drawing of a refrigerator with open doors and internal shelves (no text or symbols)

opolitéméel

Simple line drawing of a rectangular object with a curved top and two small arrows below (no text or symbols)

4

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Diagram showing a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

5

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

A

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

B

>100mm ≥100mm ≥100mm

Požadovaný priestor na cirkuláciu vzduchu >100mm Pohl'ad zhora >100mm >100mm

UPOZORNENIE

Isometric line drawing of a structural frame with vertical supports and a base, no text or symbols present

he wyp orhine z over Upper otvoru Kryt otvoru Upper otvoru

optical 3

Simple line drawing of a rectangular object with a curved top and two arrows indicating direction (no text or symbols)

Line drawing of a refrigerator with a close-up view showing the exterior panel and door handle (no text or symbols)

1. Demontujte zarážku pod dvierkami a potom namontujte zátku na druhej strane. Nasad'te dvierka na spodný pánt a postupne namontujte horný pánt, kryt horného pántu a plastové uzávery otvorov na skrutky.

Vyrovnávacia noha

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

make yourself at home
