USER MANUAL GS2100BKV GORENJE

Line drawing of a handheld electric shaver with a conical base and top handle (no text or symbols)

GS2100BKV

INSTRUCTION MANUAL	EN	02
BEDIENUNGSANLEITUNG	DE	06
MANUEL D'INSTRUCTIONS	FR	11
MANUALE DI ISTRUZIONI	IT	16
MANUAL DE INSTRUCCIONES	ES	20
UPUTE ZA UPORABU	HR	24
NAVODILA ZA UPORABO	SI	28
MANUAL UDHËZIMI	SQ	32
UPUTSTVA ZA UPOTREBU	SRB	36
UPUTSTVA ZA UPOTREBU	BIH	40
MANUAL DE INSTRUCȚIUNI	RO	44
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ	RU	48
NÁVOD K OBSLUZE	CZ	53
HASZNÁLATI ÚTMUTATÓ	HU	57
INSTRUKCJA OBSLUGI	PL	61
NÁVOD NA POUŽITIE	SK	66
ПОСІБНИК З ЕКСПЛУАТАЦІЇ	UA	70
РЪКОВОДСТВО ЗА УПОТРЕБА	BG	75
MANUAL DE INSTRUÇÕES	PT	79
ПРИРАЧНИК ЗА УПАТСТВО	MK	83
облужджъзбопь სახეომდვანელ	KA	87
НЎСКАУЛЫҚ НЎСКАУЛЫ	KZ	93

SAFETY FIRST

When using your garment steamer, basic safety precautions should always be followed, including the following:

- Read all instructions before using this product. • This product has been designed for indoor, domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. • Always plug your appliance into a mains circuit with voltage between 220 \~ 240 V and into an grounded electrical socket. Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If using a mains extension lead, ensure that it is correctly rated (16A) with an ground, and is fully extended. • Completely unwind the power cord before plugging into socket. • Use appliance for its intended use only. • To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating steam button. • Never pull on the cord to disconnect the appliance from electrical outlet; instead, grab plug and pull to disconnect the appliance. • Do not allow cord to touch hot surfaces or come into contact with rough or sharp edges. Let the appliance cool completely down before putting away. Loop cord loosely around appliance when storing. • Always disconnect appliance from the electrical supply when filling with water or emptying when cleaning, when removing or refitting accessories and when not in use. • Care should be taken when using the appliance due to the emission of steam. • Do not operate appliance with a damaged cord or if appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance. Take it to the nearest approved service center for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electrical shock or injury to persons when the appliance is used. • Close supervision is necessary for any appliance being used by or near children. • Do not leave the appliance unattended while plugged in or while it is still hot. • Burns could occur from touching hot metal or plastic parts, hot water or steam. Use care when you empty a steam appliance. There may be hot water in the reservoir.

- If an extension cord is absolutely necessary, a cord with a 16A ampere rating shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over. • To protect against a risk of electric shock, do not immerse the appliance in water or other liquids. • Do not direct steam at people, animals or clothes while they are being worn. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. • The use of accessory attachments other than those provided by factory is not recommended and may result in fire, electric shock or personal injury. • The appliance must be rested on a stable surface. When placing the appliance on its base, ensure that the surface on which the base is placed is stable. • The appliance must not be used if it has been dropped, if there are visible signs of damage or if it is leaking. • Check the electrical power cord for sign and wear or damage prior to use. If he electrical power cord is damaged, it must be replaced at an approved service center to avoid any danger.

IMPORTANT PRECAUTIONS

BEFORE FIRST USE

• Some parts of the steam brush have been slightly greased and as a result, the iron may smoke slightly when switched on for the first time. It will not happen again after a few uses. • Before using for the first time remove any protective films or stickers from the sole plate and the cabinet.
• Plug in the power plug and the appliance is in standby state; Press the power switch to turn ON the whole appliance. Now steam is on low gear. Green low gear indicator is blinking which indicates heating and the pump does not work at this time for about 30 seconds. When indicator light stops blinking, indicates completion of heating. • With the power ON, press the steam button and the steam gear is switched to high and the low steam green indicator become high gear red indicator. Press the steam button again to switch to low. • Press and hold the power switch for 2seconds to turn OFF the appliance. The system switches to the standby state. • Automatic power off function will be executed if no button is pressed within 15 minutes. Appliance will go in Stand-by mode and stop heating. • Cleaning function: the pump has a cleaning prompt function after working for 5 hours. The display is alternating between green and red LED lights, press and hold for 6S to enter the cleaning function.

SPECIFICATIONS

MODEL	GS2100BKV
RATED POWER	2100 W
POWER SUPPLY	220-240 V
FREQUENCY	50/60 Hz

HOW TO FILL WATER TANK

- Remove plug from the wall socket before filling (or emptying) with water. • Hold the tank and pull the tank away from steamer in a straight line as possible. Do not twist tank while pulling out. - Turn tank upside down and gently remove silicone tank cover. • After filling tank with water, make sure silicone cover is well placed back on tank. • Put water tank back into its position on steamer. • NOTE: It is recommended to use distilled water. • NOTE: Do not use untreated tap water, water from clothes dryers, scented or softened water, rainwater, filtered, bottled, or boiled water, water from refrigerators, batteries or air conditioners as these may damage the appliance.

Line drawing of a portable hair dryer with no text or symbols

Line drawing of a handheld device with an arrow indicating left motion (no text or symbols)

Diagram of a robotic vacuum cleaner inside a circular housing, showing airflow direction (no text or symbols)

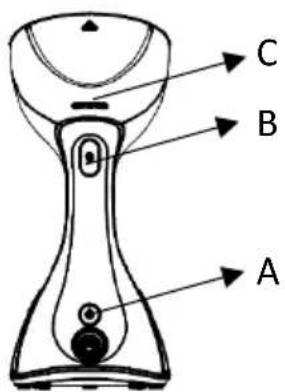

USING YOUR STEAMER

C B A

1. Turn ON appliance by pressing (A). Low gear Green light (C) will start blinking. Appliance is heating.
2. Once Green light (C) stops blinking, press (B). Pump will start working and you can start steaming in low gear. Press (B) again and you will enter high gear with indicating Red light (C).
3. Press (B) again and you will enter in Stand-by mode. You can cycle between these 3 (low, high, stand-by) modes by pressing (B).
4. Press and hold (approx. 1 second) Burst button in front of appliance for steam burst.in low or high gear.
5. Turn OFF appliance by holding (A) for 2 seconds.
6. You can use added Brush for smoothening fresh or stored clothes that needs additional care.

CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

Line drawing of a portable electric shaver with handle and base (no text or symbols)

Line drawing of a handheld device with an arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a medical device with an arrow indicating direction (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Line drawing of a portable electric shaver with handle and base (no text or symbols)

Line drawing of a handheld device with an arrow indicating left motion (no text or symbols)

Diagram of a device interior with a downward arrow indicating a component (no text or symbols present)

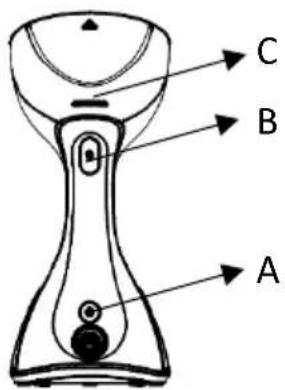

UTILISATION DE VOTRE DÉFROISSEUR

C B A

MISE AU REBUT CORRECTE DU PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a handheld electric shaver with a bulb and handle (no text or symbols)

Line drawing of a handheld device with an arrow indicating left motion (no text or symbols)

Diagram of a mechanical or electrical component inside a circular frame, showing internal components and an upward arrow (no text or symbols)

Diagram of a device interior with a downward arrow indicating a component (no text or symbols present)

USO DE

SU PLANCHA A VAPOR

A B C

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Line drawing of a portable hair dryer with a conical base and handle (no text or symbols)

Line drawing of a handheld device with an arrow indicating left motion (no text or symbols)

Diagram of a mechanical or electrical component inside a circular frame, showing internal components and directional arrows (no text or labels)

Diagram of a robotic device with a downward arrow indicating motion or force (no text or symbols present)

C B A

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Ova oznaka označava da se ovaj proizvod ne sme odlagati sa drugim kućnim otpadom širom EU. Da biste sprečili moguće štetne posledice po okolinu i ljudsko zdravlje usled nekontrolisanog odlaganja otpada, odgovorno ga reciklirajte kako biste podstakli trajnu ponovnu upotrebu materijalnih resursa. Da biste vratili uređaj koji ste koristili, koristite sisteme za povratak i naplatu ili se obratite prodavcu kod koga ste kupili proizvod.

SIGURNOST NA PRVOM MJESTU

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid rectangle below (no text or labels)

Ova oznaka označava da se ovaj proizvod ne smije odlagati s drugim kućnim otpadom širom EU. Da biste spriječili moguću štetu za životnu sredinu ili zdravlje ljudi od nekontrolisanog odlaganja otpada, odgovorno ga reciklirajte kako biste promovisali održivu ponovnu upotrebu materijalnih resursa. Da biste vratili korišteni uređaj, koristite sisteme za vraćanje i sakupljanje ili se obratite prodavaču kod kojeg je proizvod kupljen.

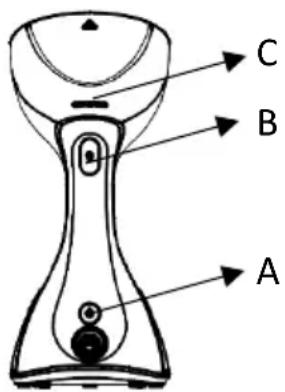

INSTRUCTIUNI DE SIGURANTĂ

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Line drawing of a portable electric shaver with handle and base (no text or symbols)

Line drawing of a handheld device with an arrow indicating left motion (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Four technical line drawings of a handheld device with internal components and directional arrows indicating movement (no text or symbols)

C B A

Symbol of a trash bin crossed with no text or labels, representing waste sorting or anti-poverty (no text present)

Symbol of a trash bin crossed with a diagonal line and a horizontal line, representing no waste or discharge (no text or labels)

Line drawing of a portable electric shaver with handle and base (no text or symbols)

Line drawing of a handheld device with an arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a device interior with a downward arrow indicating a component (no text or symbols present)

KORZYSTANIE Z PAROWNICY

C B A

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Line drawing of a portable electric shaver with handle and base (no text or symbols)

Line drawing of a handheld device with an arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a portable hair dryer with a conical base and handle (no text or symbols)

Line drawing of a handheld device with an arrow indicating direction (no text or symbols)

Diagram of a helmet with an arrow and gear mechanism, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technical line drawings of four different types of hair dryer devices, showing front, side, top, and back views with directional arrows (no text or symbols)

БУЛАНДЫРГЫШТЫ КОЛДАНУ

C B A
