Product Type	Electric Kettle
Brand	Xiaomi
Model	Electric Glass Kettle (MJDSH05FD)
Capacity	1,7 L
Rated Power	1850-2200 W
Rated Voltage	220-240 V~
Rated Frequency	50-60 Hz
Dimensions (L × W × H)	221 × 142 × 243 mm
Net Weight	1,1 kg
Body Material	Glass
Base Type	Separate base with connector
Automatic Shut-off	Yes, after boiling
Overheat Protection	Yes (dry boiling protection)
Keep Warm Function	No
Visible Water Level	Yes, transparent graduations
Lid Opening	Unlock button
Cleaning and Descaling	With white vinegar or descaling agent
Child Safety	Do not leave unattended
Warranty	Xiaomi limited warranty (see manual)
Package Contents	Kettle, base, user manual
Country of Manufacture	China
Standby Power Consumption	0 W

Frequently Asked Questions - Electric Glass Kettle Xiaomi

How to use the Xiaomi Electric Glass Kettle for the first time?

Before first use, boil water and discard it three times. Fill the kettle to the minimum level mark (at least), close the lid, place it on the base, then press the power button. After boiling, discard the water. Repeat the process two more times before consuming the water.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 liters. Do not exceed the maximum level mark to avoid boiling water spills.

How to clean limescale inside the kettle?

Pour 0.5 liter of white vinegar and let soak for at least 1 hour. Empty the vinegar, wipe off deposits with a damp cloth, then rinse by boiling clean water 4 to 5 times. Do not use steel wool or abrasive products.

Does the kettle turn off automatically?

Yes, the kettle turns off automatically once the water boils. The heating indicator light turns off and heating stops.

Can you heat anything other than water?

No, this kettle is designed only for boiling water. Do not use it to heat milk, noodles, tea, coffee, or any other liquid, as it could damage the appliance.

What to do if the heating indicator does not light up?

Check that the power outlet works, the plug is properly inserted, and use only the original base. If the problem persists, contact Xiaomi after-sales service.

Is the kettle suitable for people with reduced mobility?

Yes, but only under supervision or after receiving instructions on safe use. The appliance should not be used by children under 8 years of age without supervision.

How to avoid burns during use?

Never move the lid during boiling. Do not fill beyond the maximum level. Use the kettle on a stable surface, away from heat sources. Unplug it before moving or cleaning.

What is the warranty period?

The Xiaomi limited warranty covers hardware and manufacturing defects for the period stated in local legal terms. Visit the official Xiaomi website for details.

Can I repair the kettle myself?

No, any repairs must be carried out by a Xiaomi certified professional. Do not attempt to open or modify the appliance, as this will void the warranty and may pose a risk of electric shock.

USER MANUAL Electric Glass Kettle Xiaomi

Xiaomi Electric Glass Kettle User Manual · 01

Xiaomi Electric Glass Kettle User Manual · 09

Xiaomi Technology Netherlands B.V.

Prinses Beatrixlaan 582, 2595BM, The Hague, The Netherlands [e-mail]

UK REP.

Xiaomi Technology UK Limited

Davidson House, Forbury Square, Reading, Berkshire RG1 3EU

[e-mail]

Read this user manual carefully before use, and retain it for future reference.

Precautions

• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments; farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments. The appliance must not be immersed. The appliance is only to be used with the base provided.
• Do not let people who lack the physical, sensory, or intellectual ability or lack the experience or common sense to use this product without supervision or guidance.
• The surface of the heating element is subject to residual heat after use. Be careful.
• Avoid spillage on the base/connector.
• Use the appliance according to these instructions. Any misuse may cause potential injuries, electric shocks or other hazards.
• Never let children play with the kettle.
• Keep it away from children.
• When the kettle is empty, not in use, or when you are adding water in it, moving or cleaning it, or even when there is a problem with it, the kettle must be unplugged.
• Do not use this kettle on an inclined or unstable surface, and keep it away from heat sources so as to avoid damage to its plastic parts. Do not place the kettle adjacent to or on top of any electrical appliance.
• The kettle must only be used with a grounded power outlet with a rated current of 10A or above, and a rated voltage of 220 - 240V . Do not plug the kettle into a power outlet together with other electrical appliances. If no grounded power outlets are available, make sure to use a quality power strip that meets the kettle's specifications and is supplied by a qualified manufacturer.
• If the power cord is damaged or broken, it must be replaced by the manufacturer or after-sales service department to avoid safety hazards.
• Do not open the kettle's lid, pour water out, or add water while the kettle is operating.
• If the kettle is overfilled, then boiling water could splash out.
• This kettle can only be used for boiling water. Do not use it to heat other things such as seaweed, eggs, soy milk, tea leaves, milk, noodles. Otherwise, the kettle may fail to function properly. Do not add water above the maximum water level mark. Otherwise, hot water will overflow or spray out, causing the kettle to leak. When boiling water, the water in the kettle must be above the minimum water level mark so as to prevent boil-dry.
• Please remove the kettle from the base when adding water, and wipe away any excess water from the bottom of the kettle before placing it back onto its base.
• Do not place the kettle near heat sources such as cookers and stoves so as to avoid the risk of fire.
• Do not immerse the kettle in water. Do not tilt, shake, move, or tip the kettle when using it.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Note: When using the kettle for the first time, please boil water and empty the kettle for 3 times before drinking.

Warning: Don't move the kettle's lid while the water is boiling.

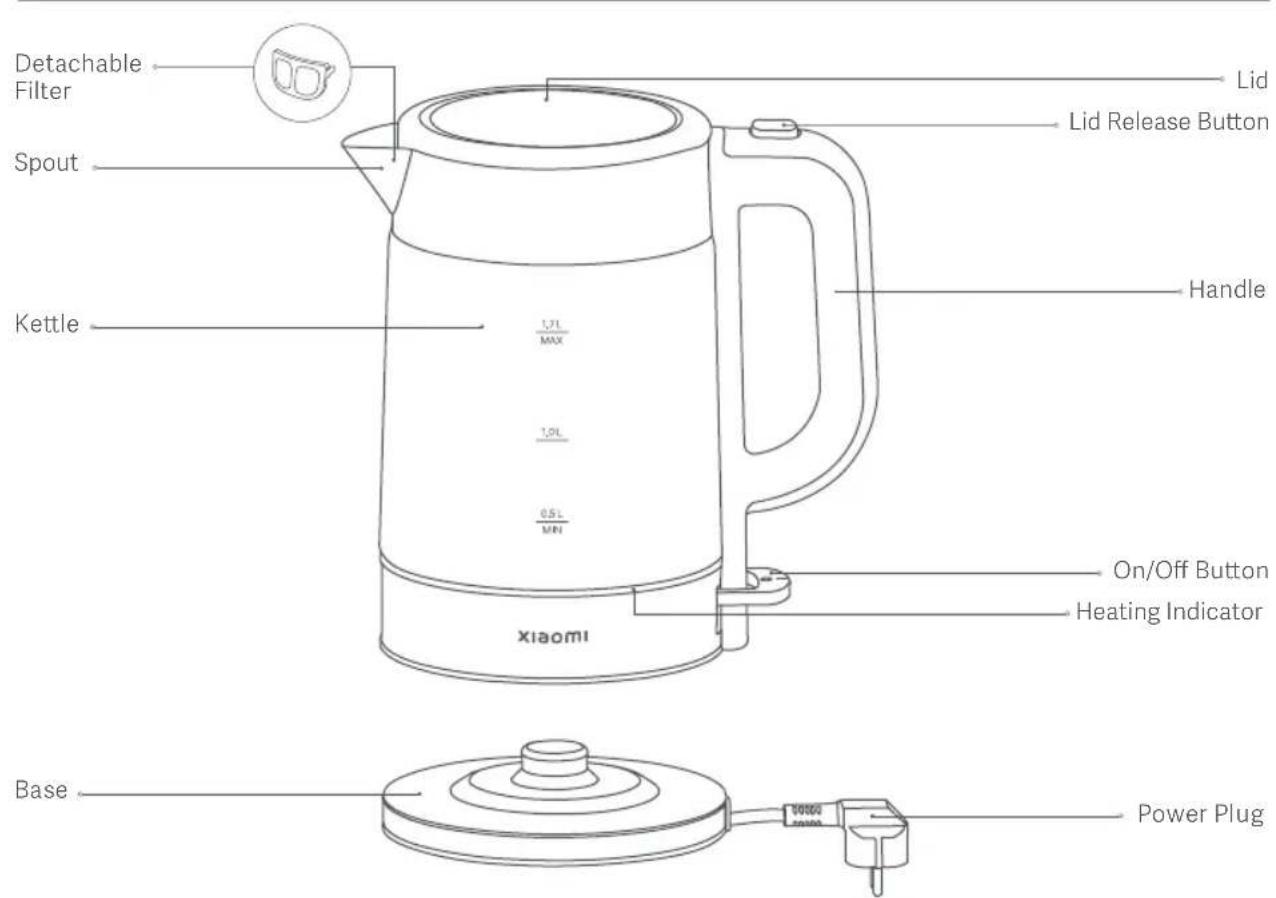

Product Overview Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

How to Use

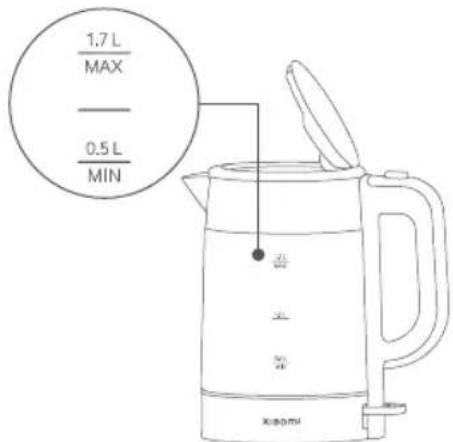

1. Press the lid release button to open the lid and add water to the kettle.

Warning: The water level must reach at least the minimum mark and must not exceed the maximum mark.

1. Press the on/off button. Then the heating indicator turns on and the kettle starts heating.

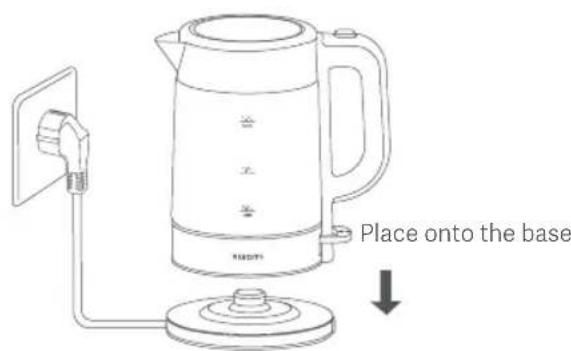

1. Fully close the lid, and place the kettle onto the base.

1. Once the water is boiling up, the heating indicator will turn off and the heating is stopped automatically.

Warning: Don't move the lid while the kettle is working to avoid getting scalded.

Cleaning & Maintenance

1. Add 0.5 L of food-grade white vinegar and leave to soak for at least 1 hour.
2. After pouring out the white vinegar, wipe out any remaining sediment with a damp cloth.
3. Add water (above the minimum mark and below the maximum mark) and pour it out after it boils, then rinse the kettle with clean water 4-5 times.
4. Use a dry cloth to clean the outside of the kettle. Keep the kettle in a dry, well-ventilated area, and protect it from dust, moisture, and insects.

Cautions:

• Make sure the kettle is unplugged and let it cool down before cleaning.
• Regularly remove limescale and sediment inside the kettle to extend its service life.
• If there is serious limescale buildup, please repeat the steps above. Do not use steel wool or any chemical or abrasive cleaning agents.
• Do not immerse the kettle or the base in water, and keep its exterior dry.
• To prevent damage to the appliance, do not use alkaline cleaning agents when cleaning; use a soft cloth and a mild detergent.

Specifications

Name	Xiaomi Electric Glass Kettle
Model	MJDSH05FD
Rated Voltage	220–240 V~
Rated Frequency	50–60 Hz
Rated Power	1850–2200 W
Capacity	1.7 L
Net Weight	1.1 kg
Item Dimensions	221 × 142 × 243 mm
Power Consumption Off mode: 0 W

Troubleshooting

Issues Possible Causes Solutions
The heating indicator does not light up.	Power outlet is damaged or doesn't make proper contact.	Replace power outlet.
	Power plug is not properly plugged in.	Properly plug in the power plug.
	Power plug is deformed.	Contact the after-sales service team.
	The base being used is not original.	Use the original base.
Boiled water overflows.	The maximum water level mark is exceeded.	Keep water within the required range.
The color changes or the limescale builds up inside the kettle.	The hardness of local water is higher.	Clean in time.
Kettle does not heat.	The on/off button is not pressed or gets stuck.	Press the on/off button again.
	Cables of internal terminal blocks are loosened or damaged.	Contact the after-sales service team.
	The thermostat is malfunctioning.	Contact the after-sales service team.
Water does not boil or not stop boiling.	The thermostat is malfunctioning.	Contact the after-sales service team.
	The kettle's lid is not properly closed.	Close the lid securely.
	There is too little water with water level below the minimum mark.	Keep water amount within the required range.

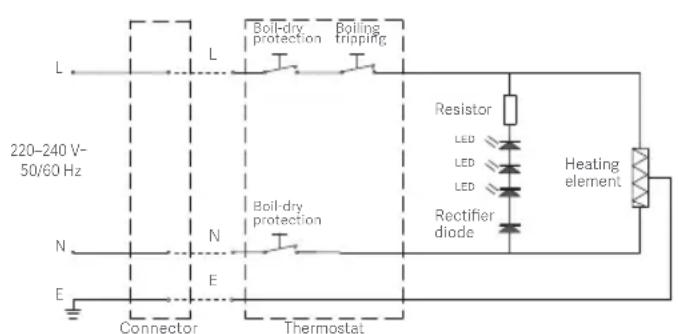

Circuit Diagram

WARRANTY NOTICE

THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY HAVE OTHER RIGHTS CONVEYED BY LAWS OF YOUR COUNTRY, PROVINCE OR STATE. INDEED, IN SOME COUNTRIES, PROVINCES OR STATES, CONSUMER LAW MAY IMPOSE A MINIMUM WARRANTY PERIOD. OTHER THAN AS PERMITTED BY LAW, XIAMI DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE. FOR A FULL UNDERSTANDING OF YOUR RIGHTS WE INVITE YOU TO CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.

1. LIMITED PRODUCT WARRANTY

Xiaomi warrants that the Products are free from defects in materials and workmanship under normal use and in accordance with the respective Product user manual, during the Warranty Period.

The duration and conditions related to the legal warranties are provided by respective local laws. For more information about the consumer warranty benefits, please refer to Xiaomi's official website https://www.mi.com/global/support/warranty/.

Xiaomi warrants to the original purchaser that its Xiaomi Product will be free from defects in materials and workmanship under normal use in the period mentioned above.

Xiaomi does not guarantee that the operation of the Product will be uninterrupted or error free.

Xiaomi is not liable for damages arising from non-compliance with the instructions related to the use of the Product.

2. REMEDIES

If a hardware defect is found and a valid claim is received by Xiaomi within the Warranty Period, Xiaomi will either (1) repair the product at no charge, (2) replace the product, or (3) refund the Product, excluding potential shipping costs.

3. HOW TO OBTAIN WARRANTY SERVICE

To obtain warranty service, you must deliver the Product, in its original packaging or similar packaging providing an equal degree of Product protection, to the address specified by Xiaomi. Except to the extent prohibited by applicable law, Xiaomi may require you to present proofs or proof of purchase and / or comply with registration requirements before receiving warranty service.

4. EXCLUSIONS AND LIMITATIONS

Unless otherwise stipulated by Xiaomi, this Limited Warranty applies only to the Product manufactured by or for Xiaomi and identifiable by the trademarks, trade name or "Xiaomi" or "Mi" logo.

The Limited Warranty does not apply to any (a) Damage due to acts of nature or God, for example, lightning strikes, tornadoes, flood, fire, earthquake or other external causes; (b) Negligence; (c) Commercial use; (d) Alterations or modifications to any part of the Product; (e) Damage caused by use with non-Xiaomi products; (f) Damage caused by accident, abuse or misuse; (g) Damage caused by operating the Product outside the permitted or intended uses described by Xiaomi or with improper voltage or power supply; or (h) Damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of Xiaomi.

It is your responsibility to backup any data, software, or other materials you may have stored or preserved on the product. It is likely that the data, software or other materials in the equipment will be lost or reformatted during the service process, Xiaomi is not responsible for such damage or loss.

No Xiaomi reseller, agent, or employee is authorized to make any modification, extension, or addition to this Limited Warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired.

Except as prohibited by laws or otherwise promised by Xiaomi, the after-sales services shall be limited to the country or region of the original purchase.

Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi's official seller are not covered by the present warranties. As per applicable law you may benefit from warranties from the non-official retailer who sold the product. Therefore, Xiaomi invites you to contact the retailer from whom you purchased the product.

The present warranties do not apply in Hong Kong and Taiwan.

5. IMPLIED WARRANTIES

Except to the extent prohibited by applicable law, all implied warranties (including warranties of merchantability and fitness for a particular purpose) will have a limited duration up to a maximum duration of this limited warranty. Some jurisdictions do not allow limitations on the duration of an implied warranty, so the above limitation will not be applied in these cases.

6. DAMAGE LIMITATION

Except to the extent prohibited by applicable law, Xiaomi shall not be liable for any damages caused by accidents, indirect, special or consequential damages, including but not limited to loss of profits, revenue or data, damages resulting from any breach of express or implied warranty or condition, or under any other legal theory, even if Xiaomi has been informed of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of special, indirect, or consequential damages, so the above limitation or exclusion may not apply to you.

7. XIAOMI CONTACTS

For customers, please visit the website: https://www.mi.com/global/support/warranty/.

The contact person for the after-sale service may be any person in Xiaomi's authorized service network, Xiaomi's authorized distributors or the final vendor who sold the products to you. If in doubt please contact the relevant person as Xiaomi may identify.

C E EAC

EU Declaration of Conformity

We, Yuyao City Fuda Electronic Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Manufactured for: Xiaomi Communications Co., Ltd.

Manufactured by: Yuyao City Fuda Electronic Co., Ltd.

(a Mi Ecosystem company)

Address: No. 187 Changyuan Road, Yuyao, Zhejiang 315400 P.R. China

For further information, please go to www.mi.com

For details of the importer, please refer to the box.

Production Date: See box

Made in China

User Manual Version: V1.0
