Product type	Aquarium water filter
Brand	Eden
Model	FIN 50
Application	Indoor aquarium keeping
Recommended aquarium volume	Up to 50 L
Maximum flow rate	240 L/h
Max delivery head	0.4 m
Filter volume	0.2 L
Dimensions (L x W x H)	85 x 47 x 120 mm
Weight	0.3 kg
Power supply	230 V, 50 Hz
Power consumption	5 W
Cable length	1.5 m
Allowable water temperature	+4 to +35 °C
Protection class	II (reinforced insulation)
Protection rating	IPX8 (continuous immersion up to 1 m)
Recommended residual current device	RCD 30 mA
Filter media	Filter foam and activated carbon
Flow regulator	Yes
Mounting	Suction cups
Usage	Indoor only
Maintenance	Clean with fresh water
Wear parts	Operating unit, filter elements, suction cups
Recycling	Do not dispose of with household waste
Symbols	Read the instructions, do not dispose of with household waste

Frequently Asked Questions - FIN 50 EDEN

Is this filter suitable for a 100 L aquarium?

No, this FIN 50 model is designed for aquariums up to 50 litres. For a larger volume, choose an appropriate model.

How to clean the filter?

Unplug the device, disassemble it without tools by pulling the parts apart. Clean the elements with clean water and a soft brush. Do not use any chemicals.

How often should the filter elements be replaced?

Replace the filter foam and activated carbon when the flow rate noticeably decreases or every 2-3 months depending on fouling.

Can the filter be used outdoors?

No, the device is designed for indoor use only. It must not be exposed to weather.

What to do if the filter does not start?

Check that the power outlet is live. If the unit is blocked, clean it. If the problem persists, contact customer service.

Is the power cable replaceable?

No, the cable cannot be replaced. If the cable is damaged, the device must be discarded.

What is the maximum delivery head?

The maximum delivery head is 0.4 m. Beyond that, the flow rate may decrease.

Can other filter media be used besides those supplied?

To ensure performance and safety, use only genuine Eden parts.

Is the filter noisy?

The filter is designed to be quiet thanks to its low power of 5 W and submerged operation.

How to correctly install the filter?

Attach the filter to the aquarium glass using the suction cups. Form a drip loop on the cable to prevent water from following the cable to the outlet. Then plug into an outlet protected by a 30 mA RCD.

USER MANUAL FIN 50 EDEN

Two black plastic industrial filter devices with side profiles and ventilation grilles (no text or symbols visible)

Original-Anleitung.

Sicherheitshinweise

Technical diagram of a device with numbered components and labeled parts, including a rotary knob and adjustment knobs.

EDEN FIN 50

Technical diagram of a mechanical device with numbered components and an inset photo of a battery pack.

BCT0001
BCT0018

Diagram of a mechanical device with three base sensors and a knob, no text or symbols present

EDEN FIN 50

Diagram of a device with four base sensors and a handle, no text or symbols present

BCT0010
BCT0019

Gerät ausstatten

EDEN FIN 25 Internal filter

1. 4. 2. 3. ~20 °C

BCT0011

BCT0012

Gerät montieren

Diagram of a cylindrical tank with water flowing through it, showing internal structure and directional arrows (no text or symbols)

BCT0013

Inbetriebnahme

Diagram of a cable being inserted into a socket, showing wire routing and a downward arrow indicating direction (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

BSE0003
BCT0014

EDEN FIN 25 Internal filter

Technical illustration of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

EDEN FIN 50 Internal filter

Exploded view diagram of a mechanical assembly with labeled components (no text or symbols)

BCT0015

BCT0016

Störungsbeseitigung

Electrical connection

• Only connect the unit if the electrical data of the unit and the power supply match.
• Only plug the unit into a correctly installed outlet.
• The device is to be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• Protect open plugs and sockets from moisture.

Safe operation

• Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe injuries or death by electrocution.
• Do not use the unit, if electrical lines or the housing are damaged.
• The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.
• Never pull on electric cables. In particular, never carry units on their cables.
• Route lines in such a way that they are protected from damage and do not present a tripping hazard.
• Never run the unit without water.
• Do not use the unit together with chemicals, food, flammable, explosive substances or other liquids aside from water.
• This unit can be used by children aged 3 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.
• Never carry out technical changes to the unit.
• Only use original spare parts and accessories.
• Should problems occur, please contact the authorised customer service or EDEN.

Intended use

Only use the product described in this manual as follows:

• Filter and circulate water.
• Indoors and for private aquarium-keeping purposes.
• While adhering to the technical specifications. (→ Technical data)

Product Description

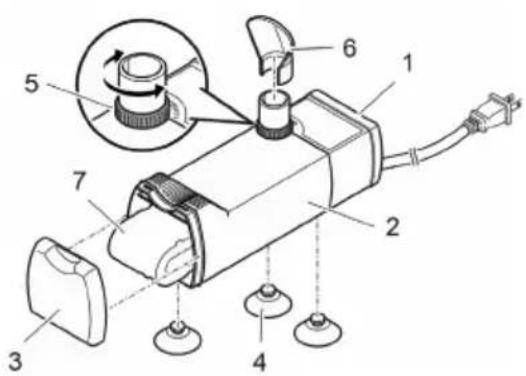

Overview

EDEN FIN 25

Technical diagram of a device with numbered components and labeled parts, including a rotary knob and cable connections.

EDEN FIN 50

BCT0001 BCT0018

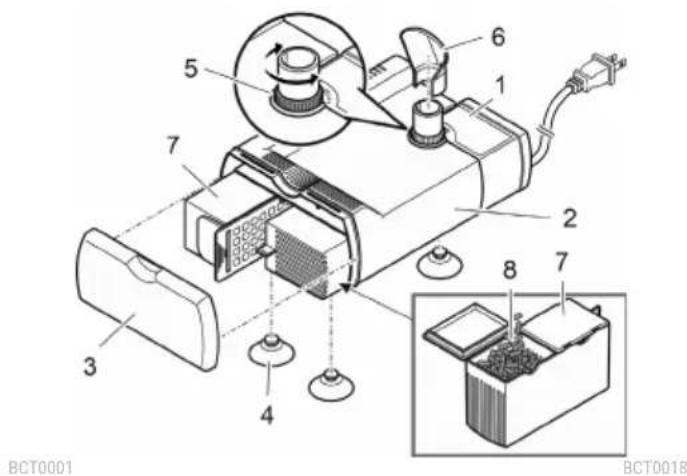

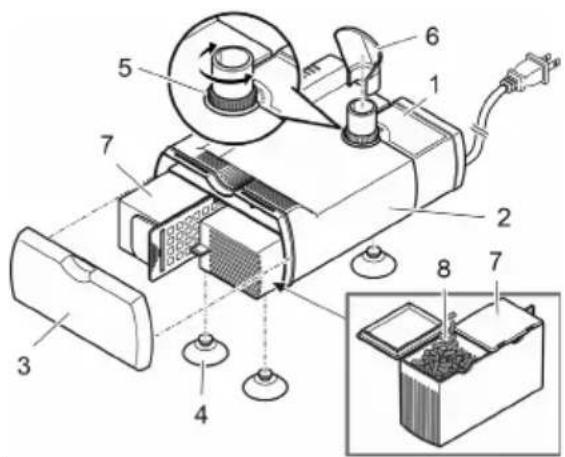

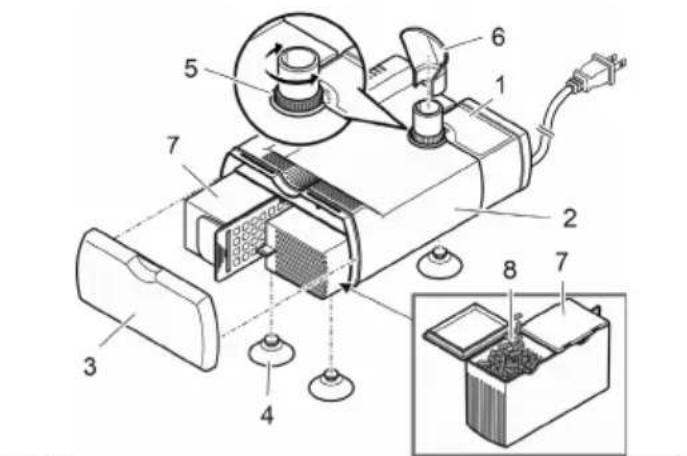

1	Pump casing
2	Filter housing
3	Filter cover
4	Suction cups
5	Flow controller
6	Water distributor
7	Foam filter
8	Carbon filter material

Symbols on the unit

The unit is protected against the results of permanent immersion in water to a depth of 1 m.

Protection class II, reliable electrical isolation from the mains by reinforced or double insulation.

Only use the unit in indoor spaces.

Do not dispose of the unit with normal household waste.

Read the operating instructions.

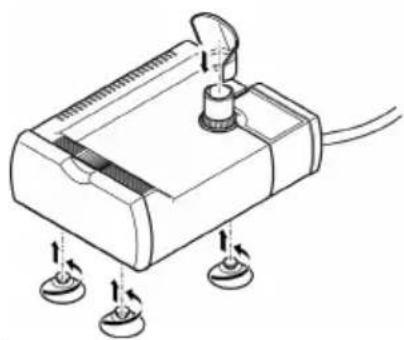

Assembly

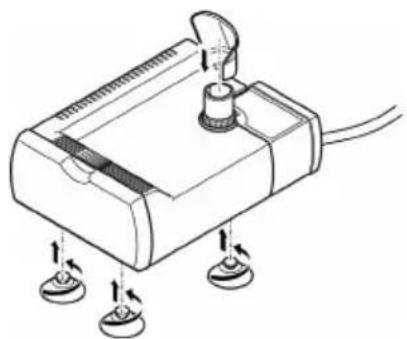

Reassembling the unit

EDEN FIN 25

Diagram of a mechanical device with three base sensors and a knob, no text or symbols present

EDEN FIN 50

Diagram of a device with four base sensors and a handle, no text or symbols present

BCT0010
BCT0019

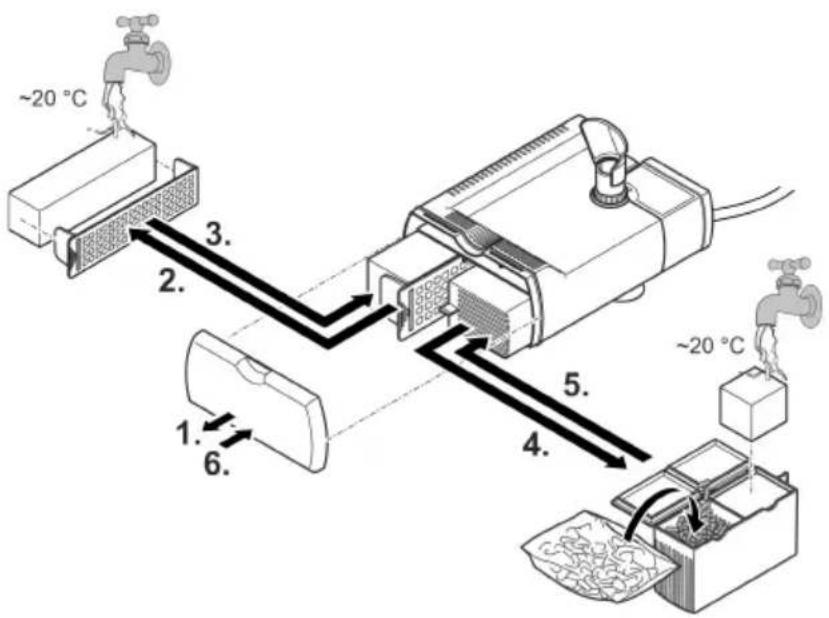

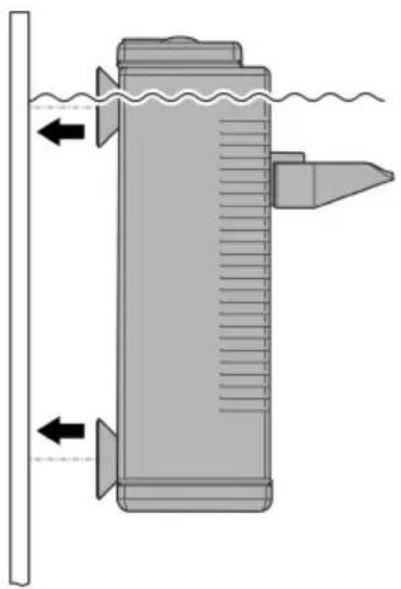

Filling the unit

EDEN FIN 25 Internal filter

1. 4. 2. 3. ~20 °C

BCT0011

EDEN FIN 50 Internal filter

EN

BCT0012

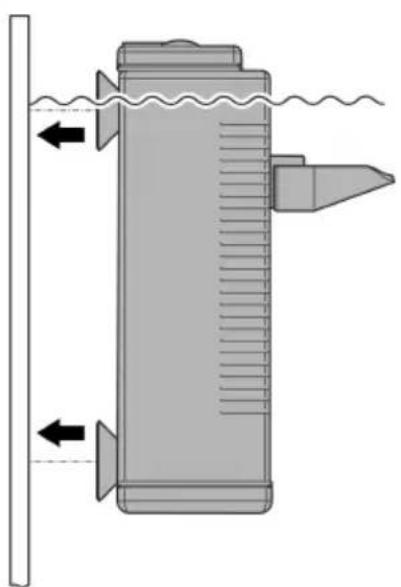

Installing the device

Diagram of a cylindrical tank with water flowing through it, showing internal structure and directional arrows (no text or symbols)

BCT0013

Commissioning/start-up

- Switching on: Plug the power plug into the outlet.

– The unit switches on immediately.
- Lay the mains cable so that a drip loop is formed and the lowest point is below the socket. This prevents dripping water from entering the socket.
- Set the desired flow rate.

- Switching off: Pull the power plug from the outlet.

Form a drip loop

Diagram of a cable being inserted into a socket, showing wire routing and a downward arrow (no text or symbols)

Set the flow rate

Diagram of a mechanical component with rotating arrows indicating rotation (no text or symbols)

BSE0003
BCT0014

Maintenance and cleaning

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

▶ Clean the device only with clear water and a soft brush or sponge.

i Clean the unit when its performance decreases noticeably.

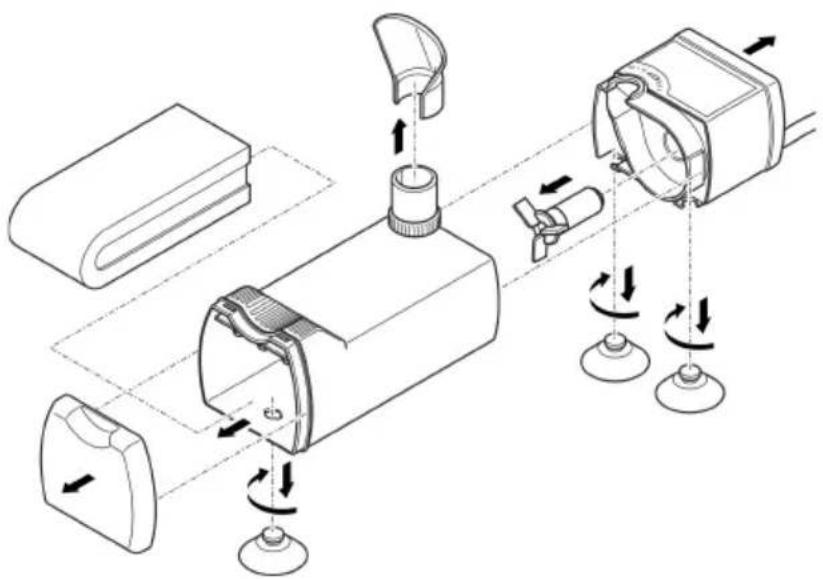

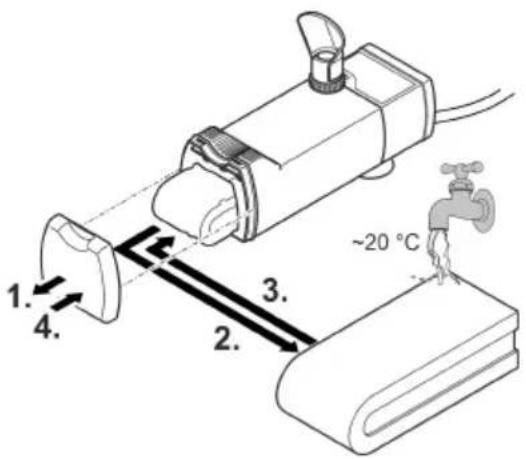

Dismantling the unit for cleaning and maintenance

The unit can be dismantled without tools by pulling it apart.

EDEN FIN 25 Internal filter

Technical illustration of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

EN

BCT0015

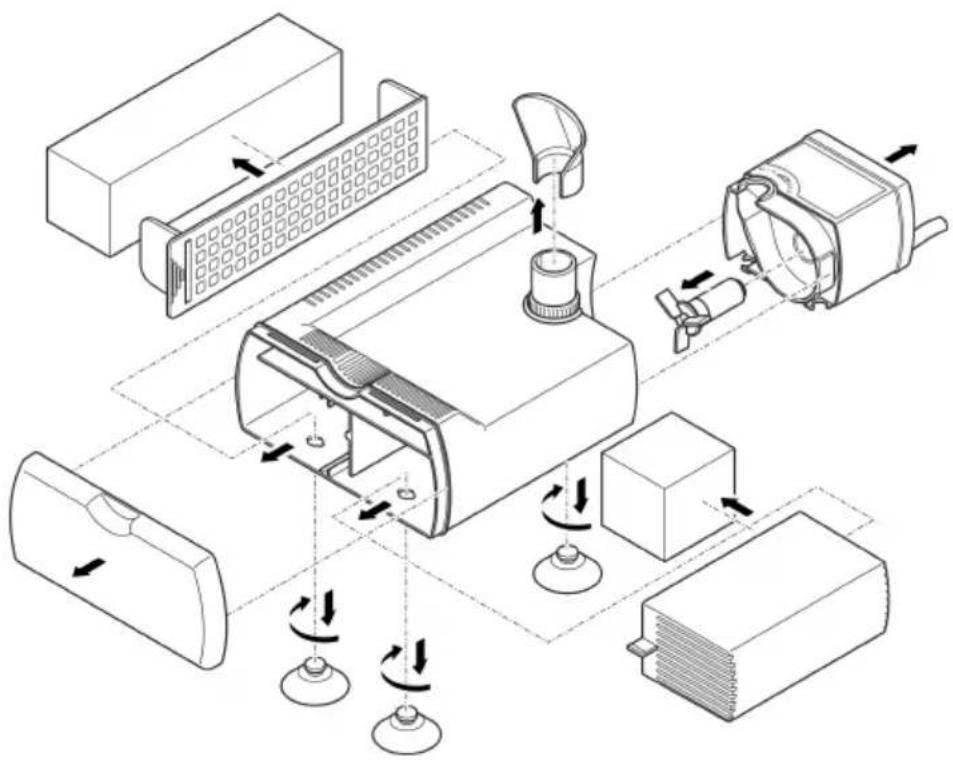

EDEN FIN 50 Internal filter

Exploded view diagram of a mechanical assembly showing components like a fan, motor, and housing (no text or labels)

BCT0016

Malfunction remedy

Malfunction	Cause	Remedy
The unit does not start up	No mains voltage	Check the mains voltage.
	Impeller unit blocked	Clean
Water flow insufficient	Regulator closed too far	Adjust regulator
	Filter housing or impeller unit soiled	Clean
	Impeller unit worn	Replace impeller unit
Insufficient filtering performance	Foam filter clogged	Clean
	Foam filter worn	Replace
	The activated carbon is exhausted.	Replace the activated carbon.

Technical data

EDEN FIN			25	50
Rated voltage of pump		AC V	230	230
Mains frequency of pump		Hz	50	50
Pump power consumption		W	5	5
Suitable for aquariums up to		l	25	50
Max. pump capacity		l/h	240	240
Max. pump head		m	0.4	0.4
Filter volume		l	0.1	0.2
Dimensions	Length	mm	43	85
	Width	mm	47	47
	Height	mm	120	120
Mains connection cable length		m	1.5	1.5
Permissible water temperature		°C	+4 ... +35	+4 ... +35
Weight		kg	0.2	0.3

Wear parts

• Impeller unit
• Filter media
• Suction cups

EN

Disposal

NOTE

Do not dispose of this unit with household waste.

▶ Dispose of the unit by using the return system provided for this purpose.
▶ Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
▶ Render the unit unusable by cutting the cables.
