USER MANUAL SEK 450 A1 SILVERCREST

Operating instructions

FR BE

CUISEUR À OEUFS

Mode d'emploi

CZ

VAŘIČ VAJEC

Návod k obsluze

SK

VARIČ VAJEC

Návod na obsluhu

DK

ÄGGEKOGER

GB/IE Operating instructions Page 1

DE/AT/CH Bedienungsanleitung Seite 15
FR/BE Mode d'emploi Page 31
NL/BE Gebruiksaanwijzing Pagina 49
CZ Návod k obsluze Strana 63
PL	Instrukcja obstugi Strona	77
SK	Návod na obsluhu	Strana 93
ES	Instrucciones de uso	Página	107
DK	Betjeningsvejledning	Side	123
IT	Istruzioni per l'uso	Pagina	137
HU	Használati utasítás	Oldal 153

A 1 2 3 4 5 6 7 8 9 10 11 SILVER CAST-TEA

B MAX 12 13

C 14

Contents

Introduction 2

Intended use 2

Package contents 2

Operating elements 2

Technical data....3

Warnings and symbols used .... 3

Safety information ....4

Preparations....7

Unpacking 7

Initial operation 7

Cable retainer 7

Preparing eggs 7

Boiling all eggs to the same firmness....8

Boiling eggs to different degrees of firmness ....10

Cleaning and maintenance .... 1

Cleaning the appliance 11

In the event of limescale 1

Cleaning the accessories 12

Storage 12

Disposal 12

Disposal of the appliance....12

Disposal of the packaging 12

Kompernass Handels GmbH warranty 13

Service 14

Importer 14

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for use exclusively in private households for cooking chicken eggs. It is not intended for use with other foods or other materials.

This appliance is intended solely for use in private households. Not for commercial use! The appliance is intended only for indoor domestic use.

WARNING – Danger if not used as intended!

The appliance may be hazardous if used for any other purpose and/or in any manner than the one intended.

▶ Use the appliance only for its intended purpose.
▶ Observe the procedures described in these operating instructions.

Claims of any kind for damages resulting from misuse, improper repairs, unauthorised modifications or the use of unauthorised spare parts are excluded.

The risk is borne solely by the user.

Package contents

The appliance is supplied with the following components as standard:

• Egg Cooker (lid, cooking insert, base)
  ● Measuring beaker with egg pick
• Operating instructions

i Note

▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Operating elements

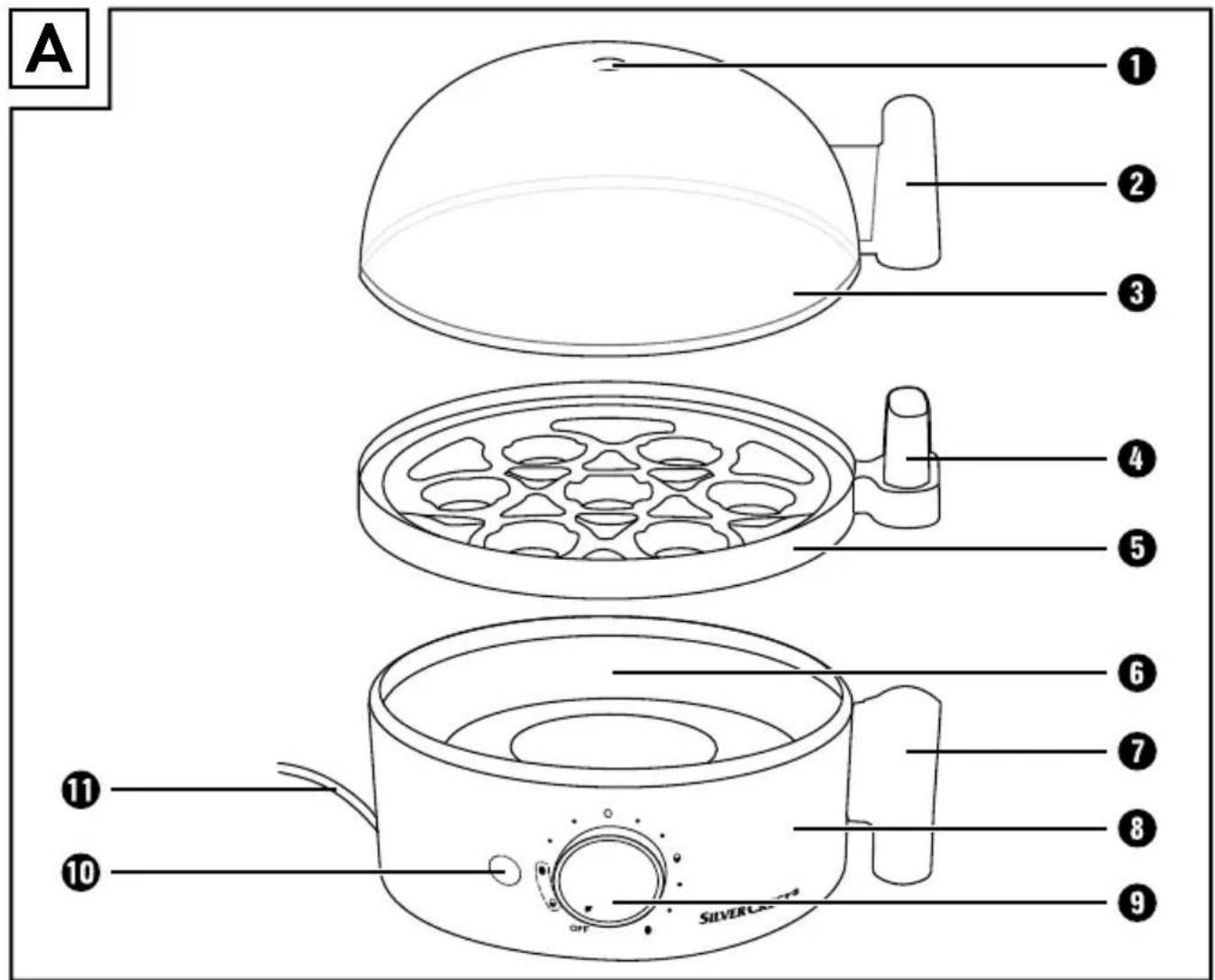

Figure A:

① Steam outlet
② Lid handle
3 Lid
4 Handle of the cooking insert
⑤ Cooking insert
⑥ Cooking bowl
⑦ Handle on the appliance base
8 Appliance base
9 Control dial (and ON/OFF switch)
10 Control lamp
⑪ Mains cable

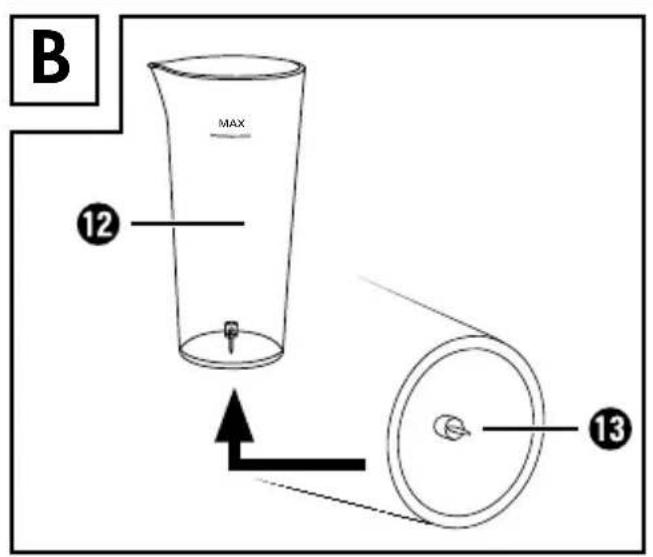

Figure B:

⑫ Measuring cup

⑬ Egg pick (built into the measuring cup ⑫)

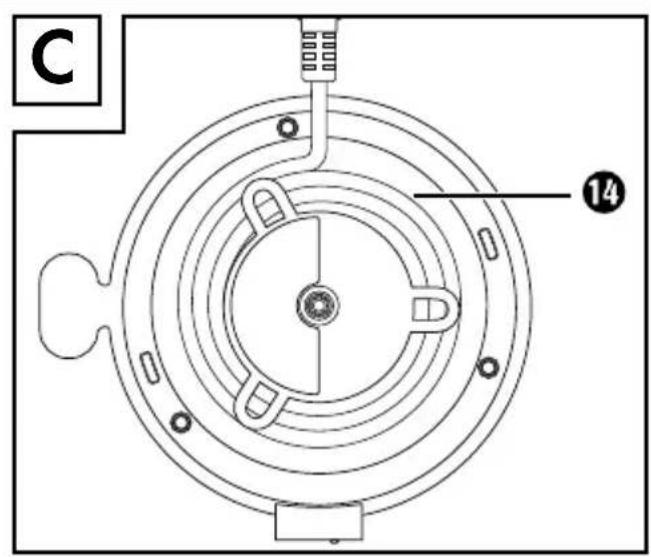

Figure C:

14 Cable retainer

Technical data

Power supply	220 - 240 V ~ 50/60 Hz
Power consumption 450 W
Capacity Max. 7 eggs

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

	DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation that will result in death or serious injury if not avoided.
	WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation that could result in death or serious injury if not avoided.
	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.

	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided.
	A note identifies additional information that facilitates the use of the appliance.
	AC current/voltage
	Do not immerse in water!
	Caution! Hot steam!
	Dishwasher-proof.
	All of the parts of this appliance that come into contact with food are food-safe.

Safety information

⚠️ DANGER – RISK OF ELECTRIC SHOCK!

■ The egg boiler may only be connected to a properly installed and earthed socket with a mains voltage of 220 - 240 V \~, 50 / 60 Hz.
■ Always remove the plug from the power socket before moving or filling the appliance, in the event of problems, before cleaning the appliance and when the boiler is not in use! Never pull on the mains cable ⑪; always pull directly on the plug itself. Never touch the appliance plug with wet or moist hands.

■ Never immerse the appliance in water or any other liquids! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation. Should the appliance ever fall into liquid, IMMEDIATELY remove the power plug from the socket. Please then contact the Service Hotline (see section Service).

■ Do not use the egg boiler if it is on a wet surface or if your hands or the appliance are wet.
■ Position the mains cable ⑪ so that it does not come into contact with hot or sharp-edged objects.
■ Use only easily accessible plug sockets so that you can unplug the appliance quickly in the event of a malfunction.
■ Do not kink or crush the mains cable ⑪ and do not wind it around the appliance.
■ Do not operate the egg boiler if the appliance, the mains cable ⑪ or the plug is damaged.

■ To avoid potential risks, if the appliance power cable ⑪ is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.

■ Always keep the egg boiler and the mains cable ⑪ and plug away from open flames and hot surfaces.

- Do not allow any liquid to run over the appliance's plug connections.

⚠ WARNING - RISK OF INJURY!

■ Never leave the appliance unattended during operation.

This appliance may be used by children aged 8 years or over, if they are supervised or have been told how to use the appliance safely and are aware of the potential risks. Cleaning and user maintenance tasks must not be carried out by children unless they are aged 8 years or over and are supervised. The appliance and its connecting cable must be kept away from children younger than 8 years old.

■ This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

■ Do not allow children to use the appliance as a plaything.

■ Children should be supervised to ensure that they do not play with the appliance.

■ CAUTION: Be careful with the egg pick 13 to prevent injuring yourself.

■ The surfaces of the appliance can become extremely hot during operation. Therefore, always hold the lid ③ and the cooking insert ⑤ by their handles ②/④ to remove them.
■ After use, the surfaces of the heating elements will still have some residual heat.
■ Use the appliance only for its intended purpose. Risk of injury if appliance is misused!

CAUTION! Hot steam escapes from the steam outlet ① and when you open the lid ③! Risk of scalding! Always open the lid ③ by lifting it by the handle ② and removing it to the side. Avoid contact between the escaping steam and your hand and arm. Do not remove the cooking insert ⑤ until the steam has completely dissipated.

ATTENTION! PROPERTY DAMAGE!

■ Do not use an external timer switch or a separate remote control system to operate the appliance.
■ Never leave the appliance unattended during operation.
■ Never place the appliance near sources of heat.
■ Never open the housing. If you do, it can no longer be assured that the appliance is safe, and the warranty will be invalidated.
■ Use only the accessory parts provided with the appliance. Never use the appliance without the cooking insert ⑤ and water in the cooking bowl ⑥.
- Allow the appliance and accessories to cool completely before cleaning and storing them.

i NOTE

■ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.

Preparations Unpacking

◆ Remove all parts of the appliance and the operating instructions from the box.

◆ Remove all packaging materials and any adhesive labels from the appliance.

WARNING - RISK OF SUFFOCATION!

▶ Do not allow children to play with packaging materials. Risk of suffocation.

Initial operation

Before starting to use the appliance, ensure that...

- the appliance, power plug and mains cable ⑪ are in perfect condition and...

- all packaging materials have been removed from the appliance.

1) Clean all parts of the appliance as described in the section entitled "Cleaning and care".

2) Unwind the mains cable ⑪ from around the cable retainer ⑭ and guide it through the recess on the edge.

3) Insert the plug into a suitable mains power socket.

The appliance is now ready for use.

Cable retainer

There is a cable retainer 14 on the base of the appliance. This retainer 14 allows you to adjust the length of the cable 11 to your requirements.

! ATTENTION - PROPERTY DAMAGE!

▶ Ensure that you always guide the mains cable ⑪ through the corresponding gap in the rear of the appliance base ⑧ for the sake of stability.

i Note

▶ Always wrap the mains cable ⑪ around the cable retainer ⑭. This reduces the length of the cable to a minimum, allowing you to guide the mains cable ⑪ through the gap in the appliance base ⑧.

Preparing eggs

1) Pick a hole in the bottom of the egg with the egg pick ⑬. This allows the air inside the egg to dissipate as it expands during boiling. It prevents the shell from bursting open. The hole you pierced previously should point upwards when you place the eggs in the cooking insert ⑤.

2) Place up to 7 eggs on the cooking insert ⑤ with the picked side up.

3) Fill the measuring cup ⑫ up to the MAX marking with tap water and tip this water into the cooking bowl ⑥.

4) Place the cooking insert ⑤ into the cooking bowl ⑥ and place the lid ③ on top.

Boiling all eggs to the same firmness

i Note

The preprogrammed cooking times relate to average-sized eggs (size M/L) at a temperature of around 7°C (refrigerator temperature).

1) Turn the control dial ⑨ to the position that corresponds to the desired hardness of the eggs. Use the setting range "1" (see fig. 1) with symbols and corresponding dots in front of it:

0 1 2 OFF

Fig. 1

The symbols have the following meanings:

Symbol	Meaning Range
● ●	Setting for soft-boiledeggs
	Setting for medium-boiled eggs
-	Setting for hard-boiledeggs

O OFF

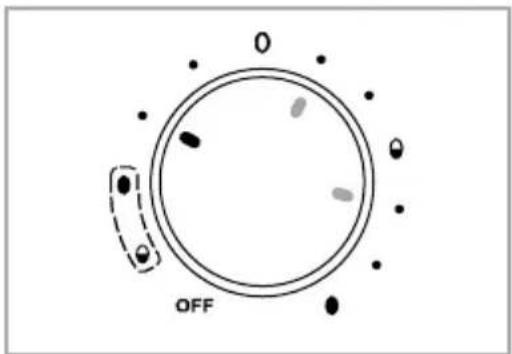

Fig. 2

Select the left dot of the range (see fig. 2), if

a) you want to boil less than 7 eggs or
b) the eggs are smaller than average (size S), or
c) the eggs are at room temperature and have not been taken out of the refrigerator.

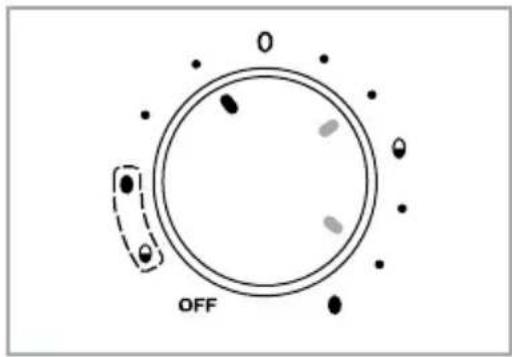

O OFF

Fig. 3

Select the middle dot of the range (fig. 3) if you want to cook 7 refrigerator-cooled eggs of medium size (size M/L).

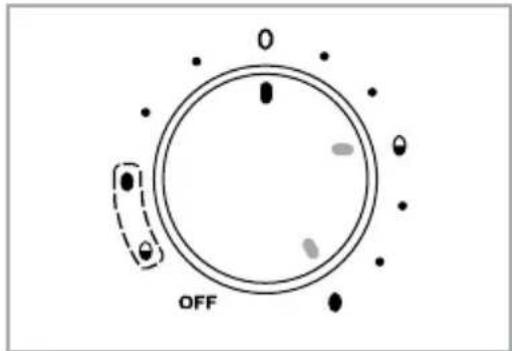

OFF

Fig. 4

Selecttheegg symbol of the range (fig. 4) f the eggs are larger than average (size XL).

The control lamp 10 lights up and cooking begins.

1) As soon as the eggs have reached the desired degree of hardness, a signal tone sounds. Turn the control dial ⑨ to the "OFF" position to switch off the appliance. The control lamp ⑩ goes out.
2) Carefully remove the lid ③ and the cooking insert ⑤ by its handle ④ from the cooking bowl ⑥.

WARNING - RISK OF SCALDING!

The steam and condensation on the inside of the lid ③ are hot. Avoid contact with this steam or water!

3) After cooking, shock the eggs in the cooking insert ⑤ in cold, flowing water to allow the shells to be removed more easily and so the egg does not continue cooking.

4) Pour any remaining water out of the cooking bowl ⑥ down the drain.

Boiling eggs to different degrees of firmness

You can boil eggs to two different degrees of firmness in the appliance. It will always reach the softest level first. For reliable results, all the eggs used must be of the same size and have the same starting temperature.

For the first cooking process, the setting range "1" with symbols and corresponding dots in front of it applies. For the second cooking process, the setting range "2" with symbols outlined by dashes applies (see fig. 1).

1) Prepare the eggs as described in the section "Preparing eggs".

2) Set the control dial ⑨ to the position that corresponds to the softest degree of hardness of the eggs (the setting range "1" applies, see fig. 1). The control lamp ⑩ lights up and cooking begins.

3) As soon as the eggs have reached the first, softer degree of hardness, a signal tone sounds. Turn the control dial ⑨ to the "OFF" position to switch off the appliance. The control lamp ⑩ goes out.

4) Take off the lid ③ and carefully remove the desired number of eggs (now boiled to the softer degree of hardness).

WARNING - RISK OF BURNS!

The boiled eggs are very hot! Be careful when handling hot eggs.

Shock the removed eggs under cold, flowing water.

5) Replace the lid ③ and turn the control dial ⑨ to the position of the symbols outlined by dashes (setting range "2", see fig. 1) corresponding to the desired hardness level for the eggs left in the appliance:

Symbol Meaning
	medium-boiled eggs in 2nd cooking process, after soft-boiled eggs in 1st cooking process
	hard-boiled eggs in 2nd cooking process, after medium-boiled eggs in 1st cooking process
	hard-boiled eggs in 2nd cooking process, after soft-boiled eggs in 1st cooking process

6) The control lamp 10 lights up and the second part of the combined cooking process begins.

7) As soon as the eggs have reached the second hardness level, a signal tone sounds again. Turn the control dial ⑨ to the "OFF" position to switch off the appliance. The control lamp ⑩ goes out.

8) Carefully remove the lid ③ and the cooking insert ⑤ by its handle ④ from the cooking bowl ⑥.

WARNING - RISK OF SCALDING!

The steam and condensation on the inside of the lid ③ are hot. Avoid contact with this steam or water!

9) After cooking, shock the eggs in the cooking insert ⑤ in cold, flowing water to allow the shells to be removed more easily and so the egg does not continue cooking.

10) Pour any remaining water out of the cooking bowl ⑥ down the drain.

Cleaning and maintenance ⚠️ DANGER – RISK OF ELECTRIC SHOCK!

▶ Before cleaning the appliance, disconnect the power plug from the mains power socket! Otherwise there is the risk of electric shock!

▶ Never open any parts of the housing. There are no serviceable parts whatsoever inside. When the housing is open, there is the risk of receiving a potentially fatal electrical shock.

Never immerse the appliance base 8 in water or any other liquid! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation.

WARNING - RISK OF INJURY!

▶ Allow the appliance to cool sufficiently before cleaning it. Risk of burns!

When cleaning the measuring cup 12, be careful of the egg pick 13. Risk of injury!

ATTENTION - PROPERTY DAMAGE!

▶ Do not use abrasive or caustic cleaning agents. These can attack the surface and damage the appliance beyond repair.

Cleaning the appliance

1) First disconnect the power plug from the power socket.
2) Allow the appliance to cool down.
3) Then clean the cooking bowl ⑥ and the surface of the appliance base ⑧ with a slightly damp cloth.
4) Always dry the appliance properly before using it again.

In the event of limescale

If limescale starts building up on the cooking bowl ⑥, proceed as follows to remove it.

1) Fill the measuring cup ⑫ one third full with lemon juice. Then fill the measuring cup ⑫ up to the MAX marking with water.
2) Tip this lemon juice solution into the cooking bowl ⑥.
3) Plug the mains plug into a suitable mains socket and turn the control dial ⑨ to the ○ position to switch on the appliance.

4) Allow the lemon juice to simmer for about 10 seconds.

5) Switch off the appliance by turning the control dial ⑨ to the "OFF" position.

6) Remove the plug from the mains power socket.

7) Allow the appliance and the lemon juice to cool down.

8) Tip out the lemon juice and wipe out the cooking bowl ⑥ with a damp cloth.

Cleaning the accessories

■ Wash the lid ^3 , the cooking insert ⑤ and the measuring cup ⑫ with washing-up liquid under flowing water.

Note

The cooking insert ⑤, lid ③ and measuring cup ⑫ are also dishwasher-proof. If possible, place the items in the upper basket of the dishwasher, taking care not to jam them.

Storage

• Allow the appliance cool down completely before putting it into storage.
• Wrap the mains cable ⑪ around the cable retainer ⑭.
  ■ Store the appliance in a dry location.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 466164_2404 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.163-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 466164_2404.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 466164_2404

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 16

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

SILVERCREST®

Table des matières

Introduction 32

Utilisation conforme .... 3 2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

SILVERCREST®

Inhoud

Inleiding 50

⚠ WAARSCHUWING – LETSELGEVAAR!

⚠ WAARSCHUWING - VERSTIKKINGSGEVAAR!

WAARSCHUWING - VERBRANDINGSGEVAAR!

⚠ WAARSCHUWING – LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod 64

! POZOR - HMOTNÉ ŠKODY!

! POZOR – HMOTNÉ ŠKODY!

! POZOR - HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep....78

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

SILVERCREST®

Obsah

Úvod 94

Určené použitie 94

Rozsah dodávky 94

Ovládacie prvky 94

Technické údaje 95

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción 108

Uso previsto 108

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduction 124

Anvendelsesområde 124

Pakkens indhold....1 24

Betjeningselementer....124

Tekniske data 125

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....138

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

SILVERCREST®

Tartalomjegyzék

Bevezető 154

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

PDF ONLINE www.lidl-service.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations
