Palace - Baby travel cot Chipolino - Free user manual and instructions

Product type	Baby playpen with changing mat and canopy
Brand	Chipolino
Model	Palace
Usage	Newborns and children up to 15 kg
Changing mat	Up to 12 months and 11 kg
Recommended mattress dimensions	Minimum 60 x 120 cm
Number of levels	2 levels (high and low)
Included accessories	Canopy, changing mat, cushion, travel bag, mounting tubes
Maximum supported weight (bed)	15 kg
Maximum supported weight (changing table)	11 kg
Wheels	2 wheels with parking brake
Material	Fabric, plastic and metal (not precisely specified)
Cleaning	Soft damp cloth with mild detergent; avoid abrasives, ammonia, bleach
Drying	Air dry before storage to avoid mold
Storage	Clean and dry place, away from sun, rain, humidity
Safety	Check locks before use; do not use if parts are broken
Assembly	By an adult only; delivered partially assembled, no tool required
Repair	Use approved spare parts; contact authorized service

Frequently Asked Questions - Palace Chipolino

What is the maximum weight supported by the Palace bed?

The playpen can support up to 15 kg. The changing mat is designed for a child up to 11 kg and 12 months.

How to assemble the bed for the first time?

Follow the illustrated steps in the manual: unfold the frame, attach the sides by locking the mechanisms, then insert the cushion. Make sure all locks are securely in place before use.

Can I use the second level of the bed?

Yes, the second level (higher) is intended for children who cannot yet sit up on their own. Use the lower level as soon as the child can sit up without assistance.

How to maintain and clean the bed?

Clean with a soft damp cloth and mild detergent. Do not use abrasive products, ammonia, or bleach. Dry completely before storing to prevent mold.

Does the bed come with a travel bag?

Yes, the product includes a travel and storage bag to facilitate folding and moving.

How to fold and store the bed?

First remove the canopy, changing mat and all accessories. Lift the center of the bed, unlock the sides, fold them. Place the cushion around, secure the velcros and store in the bag.

Can the wheels be locked?

Yes, the bed is equipped with two wheels with parking brake. Push the levers down to lock, lift them to release.

Can I use the changing mat separately from the bed?

No, the changing mat is designed to be used only mounted on this bed model. Do not use it separately.

What is the recommended mattress size for the bed?

The mattress must be at least 60 x 120 cm and its thickness must allow an interior height of at least 500 mm in low position and 200 mm in high position.

How to assemble the canopy?

Insert the long tubes into the corners of the bed, assemble the short and long cross tubes with the connectors, then attach the top of the canopy to the long tubes. Finally, place the canopy over.

USER MANUAL Palace Chipolino

IPEHOCIMA KOLJAPA / FOLDING COT / OSSZECSUKHATO BOLCSO / COT PLEGABLE / COT PIEGHEVOLE / ALTENDER COTF / CHARIOT PLIANT / POLJSKI KREVET / ITYANTO KOYTI / GAIOLA DOBRÁVEL / OPVOUWBAAR KINDERBED / SKLADACÍ POSTYLKA / ɑsusʒən lshmnn

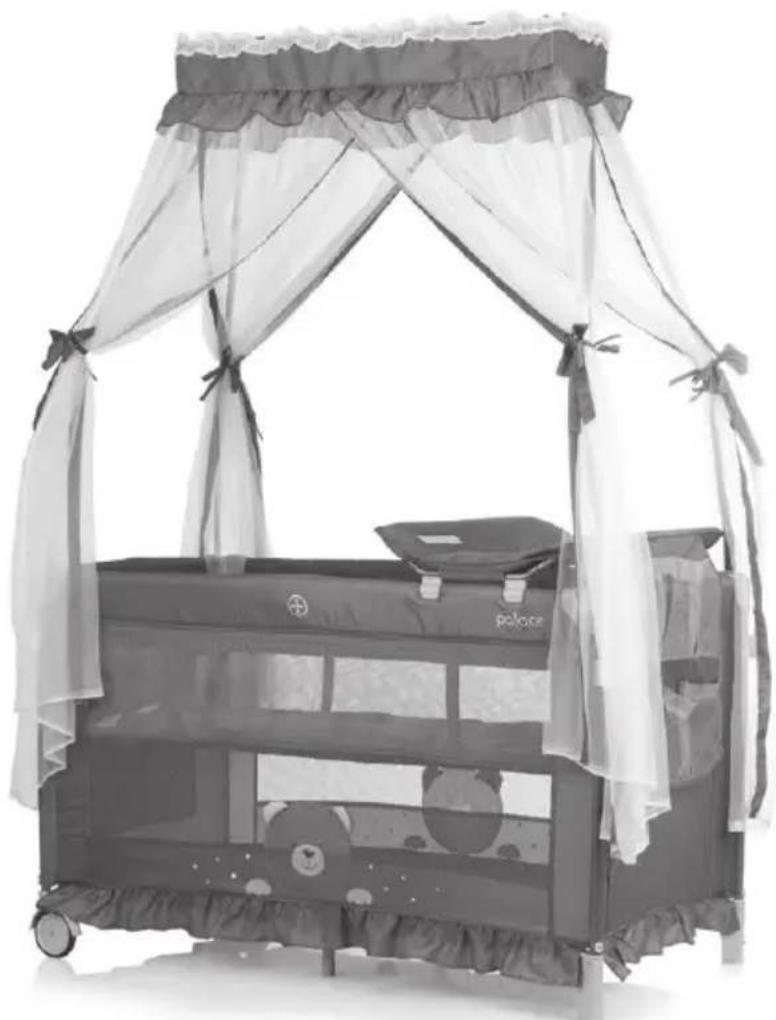

"PALACE"

chipolino

Проб Kentucky Home / item number / cikkszám/ número de ARTICLE / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθός προίντος / numărul produsului / numéro de produits / productnummer / cislo produktu / 3hmęgólub smągól:

KOSILU25xxx

ФИТР / FIGURES / ABRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ΦΙΟΥΡΕΣ / FIGURILE / FIGURES / FIGUREN / OBRÁZKY / Μηαγίσης

ФИТР / FIGURES / ABRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ΦΙΟΥΡΕΣ / FIGURILE / FIGURES / FIGUREN / OBRÁZKY / Μηαγίσης

ФИТР / FIGURES / ABRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ΦΙΟΥΡΕΣ / FIGURILE / FIGURES / FIGUREN / OBRÁZKY / Μηαγίσηδι

ФИТР / FIGURES / ABRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ΦΙΟΥΡΕΣ / FIGURILE / FIGURES / FIGUREN / OBRÁZKY / Μηαγήσηδι

TO ASSURE SAFE USAGE OF THIS PRODUCT

FOLLOW ALL WARNING, INSTRUCTIONS AND

RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

WARNING!

WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
WARNING! BE AWARE OF THE RISK OF OPEN FIRE AND OTHER SOURCES OF STRONG HEAT, SUCH AS ELECTRIC BAR, FIRES, GAS FIRES, ETC. IN THE NEAR VICINITY OF THE COT!
WARNING! DO NOT USE THE COT IF ANY PART IS BROKEN, TORN OR MISSING AND USE ONLY SPARE PARTS APPROVED BY THE MANUFACTURER. THE MANUFACTURER ACCEPTS NO RESPONSIBILITY FOR SAFETY IN THE EVENT THAT SPARE PARTS OTHER THAN THOSE ORIGINAL TO THE APPROVED TYPE OR RECOMMENDED BY THE MANUFACTURER ARE USED.
WARNING! DO NOT LEAVE ANYTHING IN THE COT OR PLACE THE COT CLOSE TO ANOTHER PRODUCT, WHICH COULD PROVIDE A FOOTHOLD OR PRESENT A DANGER OF SUFFOCATION OR STRANGULATION, E.G. STRINGS, BLIND/CURTAIN CORDS.
WARNING! DO NOT USE MORE THAN ONE MATTRESS IN THE COT! OBSERVE THE MARKINGS FOR THE PERMISSIBLE LEVEL OF THE MATTRESS!
WARNING! THE THICKNESS OF THE MATTRESS MUST BE SUCH THAT THE INTERNAL HEIGHT (FROM THE TOP SURFACE OF THE MATTRESS TO THE TOP EDGES OF THE SIDES AND HEADBOARD OF THE COT) IS AT LEAST 500 MM AT THE LOWEST POSITION ON THE BASE OF THE COT, AND AT LEAST 200 MM AT THE HIGHEST POSITION ON THE BASE OF THE COT (SEE PRODUCT MARKINGS).
WARNING! THE MINIMUM SIZE OF THE LENGTH AND WIDTH OF THE MATTRESS USED IN THE COT MUST BE SUCH THAT THE INTERNAL SPACE BETWEEN THE MATTRESS AND THE SIDES, OR BETWEEN THE HEADBOARD, DOES NOT EXCEED 30 MM!
WARNING! USE THE CHANGING MAT FOR A CHILD UP TO 12 MONTHS OLD AND WEIGHING UP TO 11 KG.

Use a mattress with minimum dimensions OF 60 × 120 cm.

DO NOT use the cot and/or changing mat for more than one child at a time!
DO NOT use the cot for a child who may climb or hang on it as they may tip it over, fall and injure themselves!
ALWAYS check that the locking mechanisms are fully engaged before use. Only then the cot IS ready for use.
Use the second level of the cot for children who can NOT sit up unaided and who cannot roll over or push themselves up with their hands and knees! Use the lowest level of the cot as soon as your child is old enough to sit up unaided!
DO NOT use the toy arch when your child can sit up unaided, roll over and/or push themselves up with their hands and knees!
All fixings must always be tightened. These fasteners should be checked regularly and tightened as necessary.
Use the cot for a child weighing no more than 15kg

Only an adult should assemble, unfold and fold the product!
Only place the cot on a flat and level surface!

Always activate the parking device on the wheels! USE THE WHEELS ONLY TO MOVE THE COT!
Do not allow children under 3 years of age to be present before you have fully assembled the product to avoid access to small and disassembled parts!
- Keep plastic packaging away from children to avoid the risk of suffocation!

ASSEMBLY AND FUNCTIONS

The cot is designed for newborn babies and toddlers weighing no more than 15kg

The changing mat is designed for a child up to 12 months old and weighing up to 11kg

IMPORTANT! The changing mat is safe to use when fitted to this model of cot and is not intended to be used as a separate product.

The product is delivered by the manufacturer partially assembled. No tools are required to complete assembly.

WARNING! Follow exactly the instructions and sequence for assembly and use from the text and illustrations enclosed in the instructions.
WARNING! CHECK THE SECURITY OF THE FIXING AFTER EACH OPERATION!
WARNING! The fixing of a position is in most cases accompanied by a clicking sound.
WARNING! Keep your hands from pinching when performing individual operations!

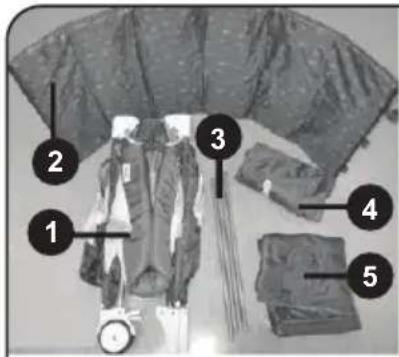

MAIN PARTS

1 - Folding cot.
2 - Cot level pad.
3 - Tubes for mounting the second level (4 pcs.).
4 - Carrying and storage bag.
5 - Base of the second level.

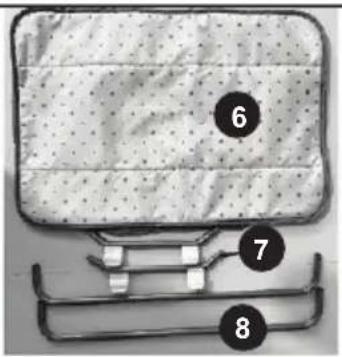

6 - Changing mat for the child.
7 - Short tubes with clamps for the changing pad (2 pcs.).
8 - Long tubes for the changing pad (2 pcs.).
9 - Long tubes on the tent (4 pcs.).
10 - Connecting elements for the tent tubes (4 pcs.).
11 - Short tubes for the tent (4 pcs.).
12 - Long cross tubes for the tent (2 pcs.).
13 - Short cross tubes for the tent (2 pcs.).

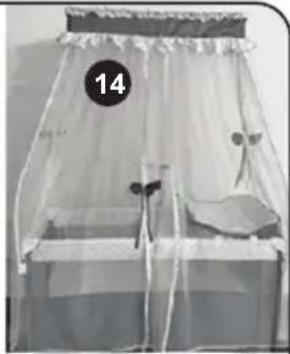

14 - Canopy.

1.UNFOLDING THE COT

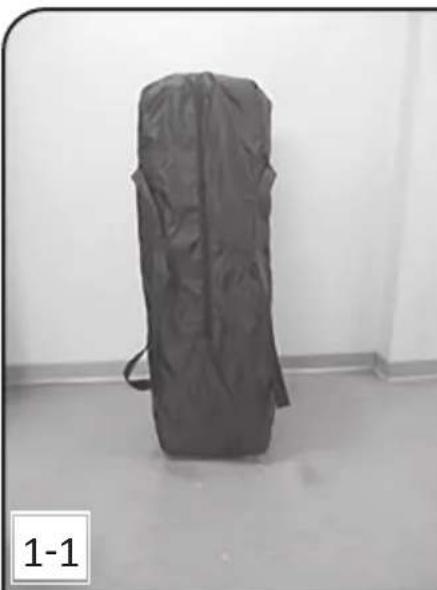

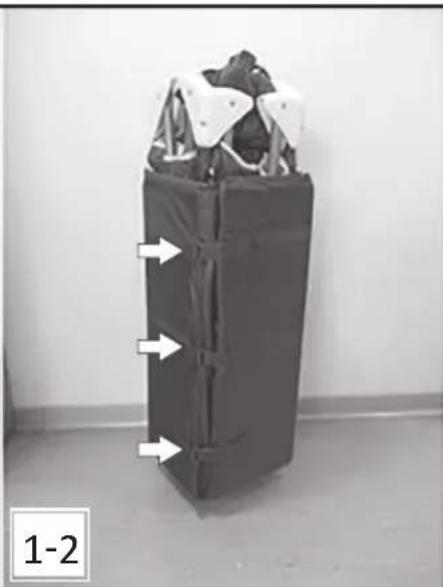

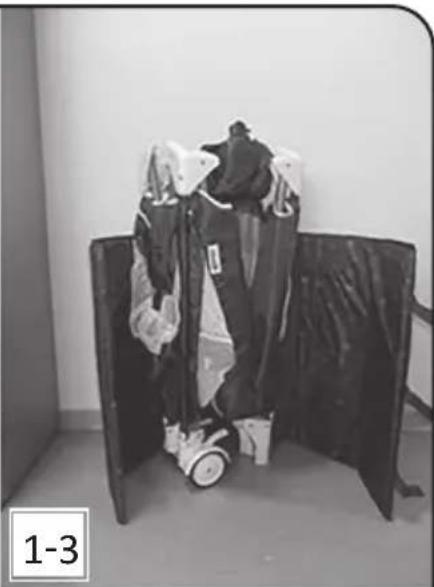

1-1, 1-2, 1-3 - Remove the cot from the carrying bag, peel off the velcro strips and remove and remove the level pad.

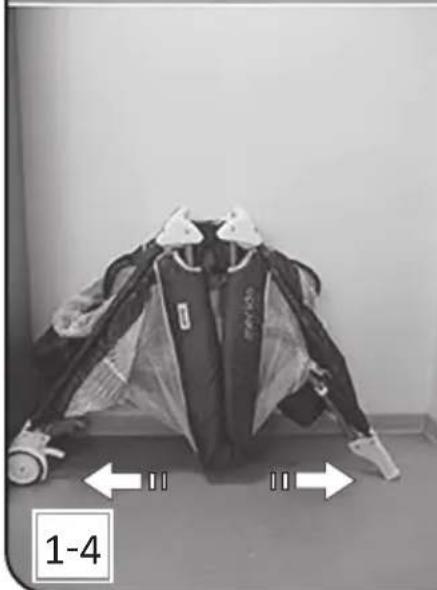

1-4 - Unfold the cot as shown in the figure.

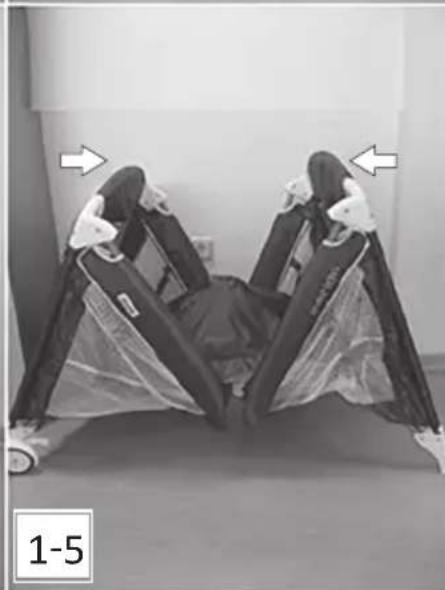

1-5 - Fix the short sides (snap/click).

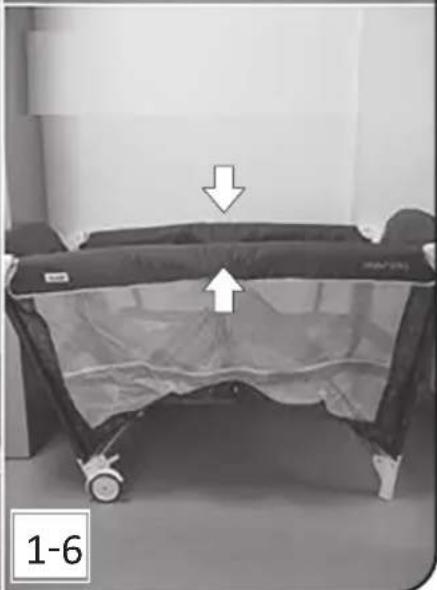

1-6 - Fix the long sides (snap/click).

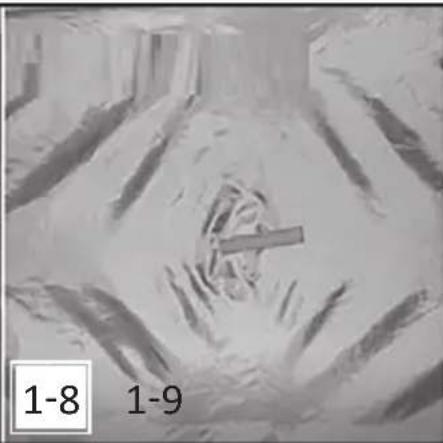

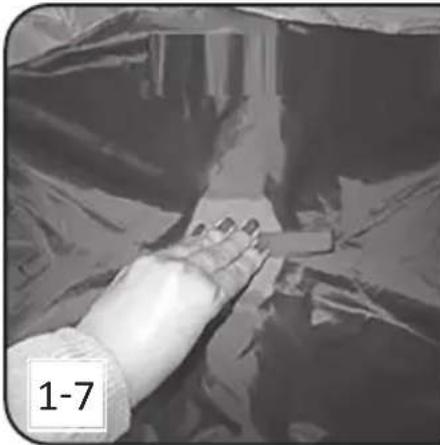

1-7 and 1-8 - Press down the center of the cot.
1-9 - The cot is unfolded.

IMPORTANT! Make sure the cot is fixed in the unfolded position!

2. FIRST (LOW) LEVEL OF THE COT

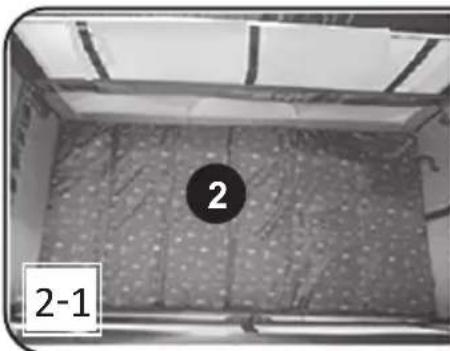

2-1 - Insert the pad (2).

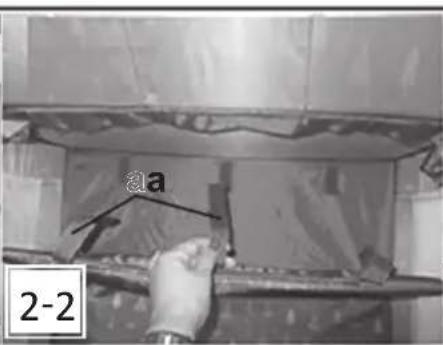

2-2 - Pass the Velcro strips through the holes and fix them to the bottom of the cot.

3. SECOND LEVEL OF THE COT

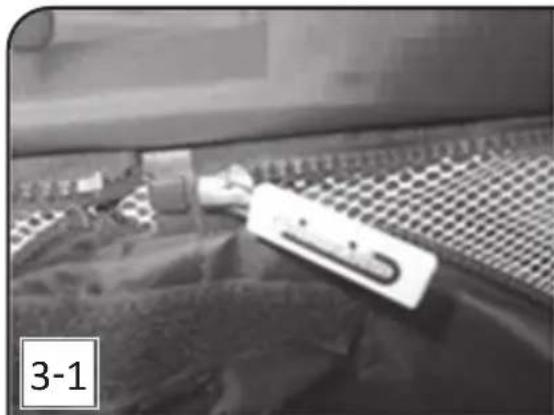

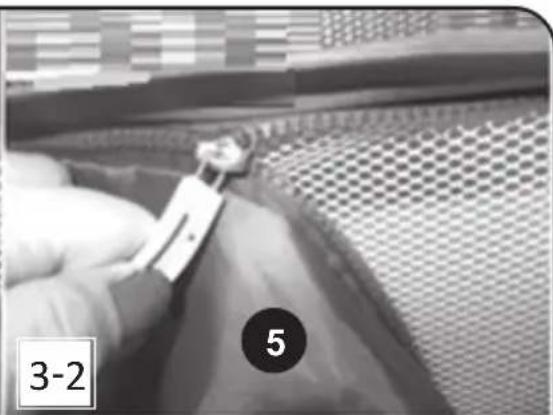

3-1 and 3-2 - Fasten the zipper of the second level (5) around the sides of the cot.

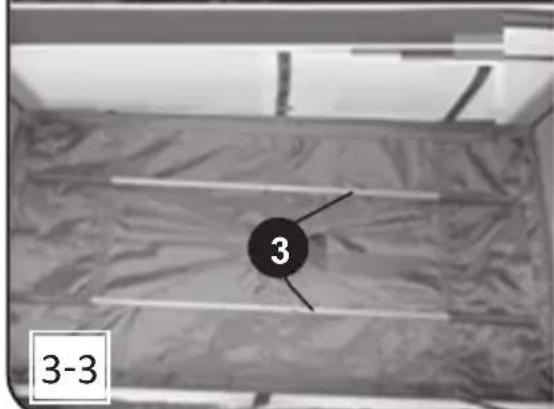

3-3 - Insert the tubes for the second level (3) and connect them two by two.

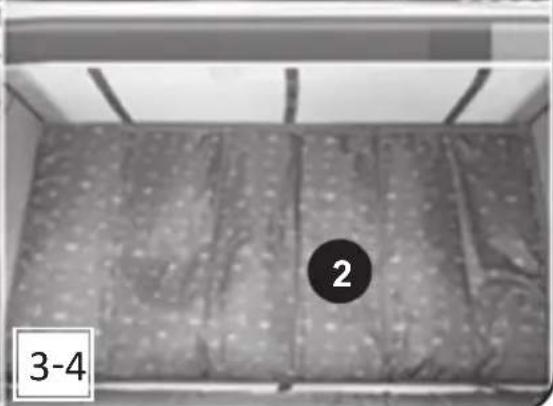

3-4 - Insert the pad (2).

4. CHANGING MAT

4-1, 4-2, 4-3 - Thread the long (a) and short (b) tubes through the corresponding holes of the damask (c).

4-4 - Press the pin (d) and insert the tubes into each other until the pin (d) shows through the hole.
4-5 - Assembled mat.

4-6 and 4-7 - Place the mat on the cot and press firmly until it locks.
4-8 - Assembled changing mat.

5. MESH CANOPY

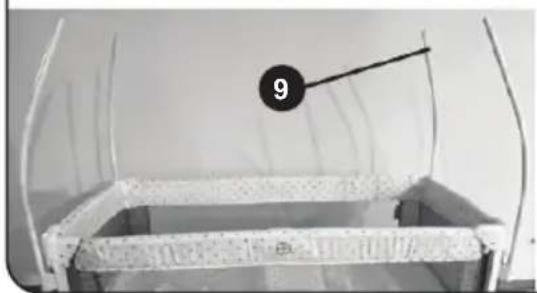

5-1 and 5-2 - Insert the long tubes (9) of the tent into the four corners of the pen as shown in the figures.

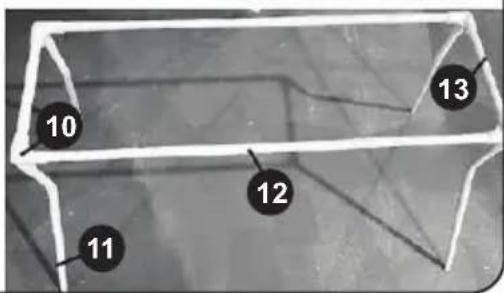

5-3 and 5-4 - Insert the short tubes (11), long cross tubes (12), and short cross tubes (13) into the connector (13) as shown in the figures.
5-5, 5-6, and 5-7 - Attach the assembled top of the tent to the long tubes (9). Press buttons (A) and insert the tubes from both parts of the tent into each other until the buttons show through the opening and you hear a "click/crack" sound.
5-8 - Place the canopy over the assembled tent as shown.

6. WHEELS WITH PARKING ADJUSTMENTS

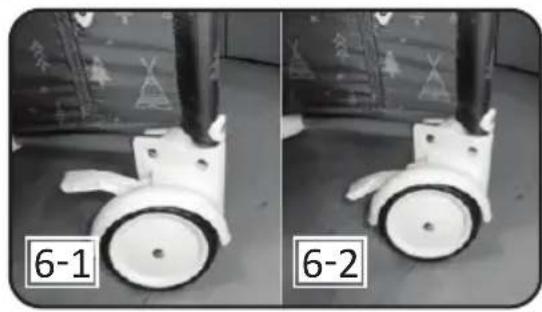

The basket has two wheels. Push the levers on both wheels down to keep the basket stationary (Figure 6-2). Lift the levers up to release the movement of the wheels (Fig. 6-1).

7. FOLDING AND PACKING

IMPORTANT! Before folding the bassinet, remove the canopy and tent, the changing pad, the level pad, the second level, and any other additional accessories.

7-1, 7-2, 7-3 - Pull up the center of the bassinet.
7-4 and 7-5 - Release the buttons on each side (under the upholstery) and fold the sides.

IMPORTANT! Do not apply unnecessary force if the sides do not fold the first time to avoid damaging them! Repeat the steps again.

7-6 - Place the level pad around the folded cot.
7-7 - Glue the Velcro strips.
7-8 - Place the cot in the carrying bag and fasten the zipper.

PREVENTIVE MAINTENANCE INSTRUCTIONS

Do not exert strong pressure on the adjustment and folding mechanisms to avoid damaging or breaking them.

Clean the upholstery, soiled plastic or metal parts of the product with a soft cotton cloth or sponge moistened with water or mild detergent.
Do not clean with harsh detergents containing abrasive particles, ammonia, bleach or alcohol.
After cleaning, always dry the basket and adjacent parts and allow them to dry before storing. Mold may appear on them if you store them damp.
Store the product in a clean and dry place.

Do not expose to the direct effects of the environment - sun, rain, humidity, or sudden temperature changes!

In case of problems related to normal operation, refer to authorized service centers for consultation or repair.
