Rover - Unspecified Chipolino - Free user manual and instructions

Product Type	Baby Stroller
Model	Rover
Brand	Chipolino
Recommended Age	0-36 Months
Maximum Weight Capacity	15 kg (33 lbs)
Dimensions (Open)	Approx. 90 x 60 x 100 cm
Dimensions (Folded)	Approx. 30 x 60 x 80 cm
Weight	Approx. 10 kg (22 lbs)
Power Source	None (Manual)
Main Functions	Reclining seat, adjustable canopy, swivel front wheels, foot brake, storage basket
Seat Recline Positions	Multiple (up to fully flat)
Canopy	Adjustable, with UV protection
Wheels	Four wheels, swivel front with lock
Brake System	Rear foot brake
Safety Harness	5-point harness
Compliance	EN 1888 safety standard
Cleaning Instructions	Frame: wipe with damp cloth; Fabric: hand wash cold, air dry
Spare Parts Availability	Contact Chipolino customer service or authorized dealers
Warranty	2 years (check local terms)
Country of Origin	China (typical)

Frequently Asked Questions - Rover Chipolino

How do I assemble the Chipolino Rover stroller?

Refer to the user manual for step-by-step instructions. Generally, attach the wheels, unfold the frame, and click the seat into place. Ensure all locks are securely engaged before use.

What is the maximum weight limit for the seat?

The Chipolino Rover is designed for children up to 15 kg (33 lbs). Do not exceed this weight to maintain safety and stability.

How do I clean the stroller fabric?

Remove the fabric parts if possible. Hand wash with cold water and mild soap. Air dry only. Do not use bleach or machine wash, as it may damage the material.

Can the stroller be used for newborns?

Yes, the Rover features a fully reclining seat suitable for newborns. Ensure the harness is properly adjusted and the child lies flat for safety.

How do I fold the stroller for storage?

First, lock the wheels. Then, pull the folding mechanism (usually a strap or button) while pushing the handlebar forward. It should collapse compactly. Refer to the manual for specific steps.

Is the stroller compatible with car seats?

The Chipolino Rover is not typically compatible with car seats unless specified. Check if your model has adapters available separately.

How do I adjust the canopy?

The canopy can be adjusted by pushing or pulling it forward and backward. Some models have a peek-a-boo window. Use the clips or zippers to extend coverage.

What should I do if a wheel is wobbly?

Check if the wheel is properly clicked into place. If it continues to wobble, contact Chipolino customer service for replacement parts or repair instructions.

Can I travel with this stroller on an airplane?

The folded dimensions are compact enough for most airline carry-ons, but check with your airline. It is recommended to place it in a travel bag to prevent damage.

How do I lock the front swivel wheels?

Locate the swivel lock lever on each front wheel (usually near the axle). Flip the lever to lock the wheel for straight movement. Flip back to allow swivel for maneuverability.

USER MANUAL Rover Chipolino

PLEASE READ CAREFULLY THIS INSTRUCTION MANUAL AND KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR KIDS' TOY TRICYCLE "ROVER"

ROVER

Black and white photo of a children's tricycle with wheels and seat (no text or symbols visible)

chisouilo

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:

CAUTION! WARNINGS!

✿ CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION!

CAUTION! THIS TOY HAS NO BRAKES!

CAUTION! THE TOY IS NOT SUITBALE FOR CHILDREN UNDER 3 YEARS!

CAUTION! USE FOR CHILDREN OLDER THAN 3 YEARS AND WEIGHT UP TO 25kg.

✿ CAUTION! DO NOT USE FOR CHILDREN OVER 25KG - DANGER OF OVERLOADING

THE TOY!

CAUTION! BEFORE USING THE TRICYCLE, TEACH THE CHILD THE CORRECT WAY TO USE

IT AND THE SAFETY RULES.

CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.

CAUTION! USE THE TOY ONLY DURING THE DAY ON EVEN PLAYGROUNDS AND AT A SAFE

DISTANCE FROM STREETS OR ROAD LANES FOR VEHICLES.

CAUTION! KEEP AWAY FROM FIRE OR OTHER HEAT SOURCES!

◆ Adult assembly required!

DO NOT allow presence of children under 3 years before assembly of the TOY is complete.

In this way, you will avoid their access to small or loose parts!

❖ The TOY is intended for one child at a time ONLY!

DO NOT let other children push the tricycle!

❖ The TOY is NOT suitable for running or skating!

Cease using the TOY if you find missing or damaged parts.

DO NOT let the child stand on the footrest or the seat to avoid injury.

The child must wear shoes when using the TOY!

DO NOT tie strings or accessories to the TOY in order to avoid the risk of suffocation.

DO NOT place more than 0.2 kg load in the front storage basket, and in the rear basket no more than 0.5 kg.

DO NOT put items or luggage in the handle bar or the parent handle in order to avoid risk of injury resulting from the toy's instability and tipping over!

DO NOT place items or heavy objects in the TOY or on it during storage or transportation to avoid damage to the frame.

DO NOT use another transport means to move the TOY by pulling it.

DO NOT allow the child using the TOY or other children around it to touch the wheels or put items in them.

❖ Use away from rivers, pools, stairs or hurdles!

Do not make changes or modifications to the TOY frame! If necessary, contact the retailer or an authorized service center for advice and repair.

Use only spare parts, which are approved by the producer and recommended by the distributor or company service! The producer revokes all responsibility in case parts different from the original ones have been used.

❖ Keep nylon packages away from children to avoid risk of suffocation!

PRODUCT FEATURES

This toy is suitable for children aged 3 up to 6 years and weight up to 25 kg. Its purpose is to create in the child initial skills to coordinate its arms and feet when riding a tricycle or bicycle.

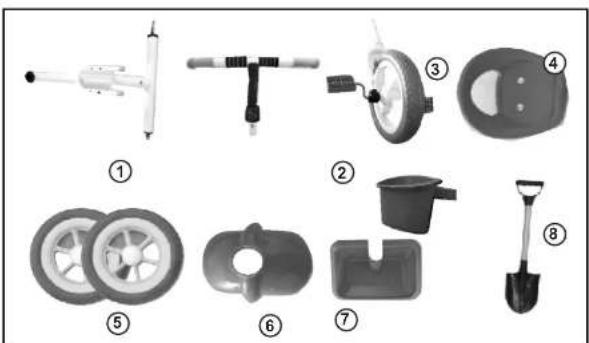

MAIN PARTS

Collection of eight types of bicycle wheel components, including a motor, steering wheel, and shovels (no text or labels visible)

1. Frame (1 pc)
2. Handlebar (1 pc)
3. Fork with front wheel (1 pc)

4. Seat (1 pc)

5. Rear wheel (2 pcs)

6. Mudguard (1 pc)
7. Front and rear basket (1 pc)
8. Shovel (1 pcs)

Note: The covers on rear wheels are not shown in the figure.

Please, make sure if these parts are in the package. Some of the parts may be pre-assembled by the manufacturer.

ASSEMBLY INSTRUCTIONS

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from

ASSEMBLY

1. ASSEMBLY OF MUD GUARD ON THE FRONT WHEEL.

2. ASSEMBLY OF THE FORK WITH FRONT WHEEL TO THE FRONT TUBE OF THE FRAME.

3. INSTALLING FRONT BASKET.

Place the front basket on the front tube of the frame (1). Insert the handlebar tube in the fork tube (2).

Fix it with the screw with plastic head (3).

1. INSTALLING THE REAR AXLE TO THE FRAME.

2. INSTALLING THE REAR WHEELS.

5-1 - Install each rear wheel on the rear axle.

5-2 - On each wheel place the washer and fix it with a nut.

5-3 - Install the cap on the rear wheels with pressure. When the cap is fixed you will hear a click.

1. INSTALLING THE SEAT.

Place the seat on the frame and fix it with screws and washers.

1. INSTALLING THE REAR BASKET

Remove the screw from rear part of the frame. Place the rear basket to the frame and fix it with a screw.

1. ASSEMBLED TRICYCLE

Fix the shovel on back side of seat backrest.

Two-step illustration of a bicycle steering wheel, showing the motion from angle 1 to angle 2 (no text or symbols)

Close-up of hands holding a black circular object with a pointed tip, labeled '5-1' (no other text or symbols visible)

Close-up of a hand using a screwdriver to adjust a black mechanical component (no text or symbols visible)

MAINTENANCE GUIDELINES

Periodically check the good working order of the tricycle parts.
Do not wash it and do not soak it in water. Use a soft damp cloth and water or neutral liquid detergent.
Do not use aggressive detergents, containing abrasive particles, ammonia, bleach or spirits.
◆ Regularly oil the moving parts.
Do not use on sand.
Do not store the tricycle in hot environment, in order to avoid the plastic parts from deforming.
Store the product in clean and dry place indoors. Do not expose to direct sunlight, moisture or harsh weather!
❖ Always let the tricycle to dry out fully before storing or using it, in order to avoid mold and rust.
- Contact your authorized dealer if consultation or repair is needed.

Materials used: plastic, metal.
