USER MANUAL Jazz Chipolino
PLEASE READ CAREFULLY THIS INSTRUCTION MANUAL AND KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE!

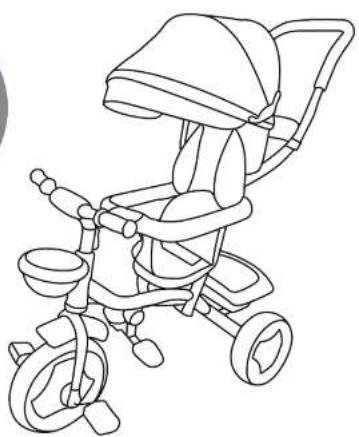

KIDS' TOY TRICYCLE „JAZZ“
JAZZ
FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:
CAUTION! WARNINGS!
CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION!
CAUTION! THIS TOY HAS NO BRAKES!
CAUTIONI THE TOY IS NOT SUITBALE FOR CHILDREN UNDER 1,5 YEARS!
CAUTION! USE FOR CHILDREN OLDER THAN 1.5 YEARS AND WEIGHT UP TO 25kg.
CAUTION! DO NOT USE FOR CHILDREN OVER 25KG - DANGER OF OVERLOADING
THE TOY!
CAUTIONI BEFORE USING THE TRICYCLE, TEACH THE CHILD THE CORRECT WAY TO USE
IT AND THE SAFETY RULES
CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.
CAUTION! USE THE TOY ONLY DURING THE DAY ON EVEN PLAYGROUNDS AND AT A SAFF
DISTANCE FROM STREETS OR ROAD LANES FOR VEHICLES.
CAUTION! KEEP AWAY FROM FIRE OR OTHER HEAT SOURCES!
CAUTION! TO AVOID THE DANGER OF INJURY ALWAYS REMOVE THE PUSH HANDLE
❖ Adult assembly required!
DO NOT allow presence of children under 3 years before assembly of the TOY is complete. In this
way, you will avoid their access to small or loose parts!
❖ The TOY is intended for one child at a time ONLY!
DO NOT let other children push the tricycle!
❖ The TOY is NOT suitable for running or skating!
Cease using the TOY if you find missing or damaged parts.
DO NOT let the child stand on the footrest or the seat to avoid injury
❖ The child must wear shoes when using the TOY!
DO NOT tie strings or accessories to the TOY in order to avoid the risk of suffocation.
DO NOT place more than 0.2 kg load in the front storage basket
DO NOT place more than 0.5 kg load in the rear storage basket.
DO NOT put items or luggage in the handle bar or the parent handle in order to avoid risk of injury
resulting from the toy's instability and tipping over!
DO NOT place items or heavy objects in the TOY or on it during storage or transportation to avoid
damage to the frame.
DO NOT use another transport means to move the TOY by pulling it.
DO NOT allow the child using the TOY or other children around it to touch the wheels or put
items in them
❖ Use away from rivers, pools, stairs or hurdles!
Do not make changes or modifications to the TOY frame! If necessary, contact the retailer or an
authorized service center for advice and repair.
Use only spare parts, which are approved by the producer and recommended by the distributor or
company service! The producer revokes all responsibility in case parts different from the original
ones have been used
❖ Keep nylon packages away from children to avoid risk of suffocation!
PRODUCT FEATURES
This is a functional TOY whose purpose is to create in the child initial skills to coordinate its arms and feet when riding a tricycle or bicycle.
IMPORTANT! Remove the parent handle when you are sure that the child can ride the tricycle on his own and unaided.
❖ Suitable for children older than 1.5 years with weight up to 25 kg
◆ Can be driven by the child using the pedals;
Can be pushed by an adult and the child lays his feet on the foot rest
- Two positions of the seat – forward facing and face-to-face mode;
Safety bumper;
Foot rest;
Adjustable canopy:
Safety harness
- Front and rear storage baskets

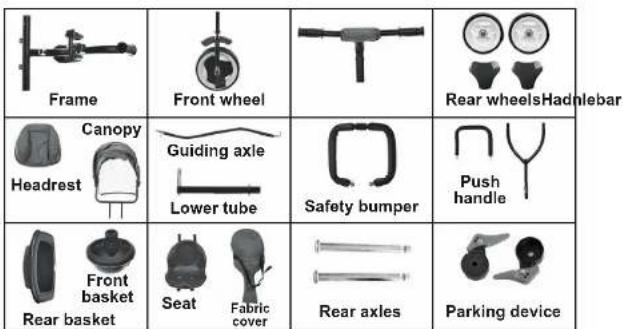

MAIN PARTS
ASSEMBLY INSTRUCTIONS
IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment! IMPORTANT! After each operation, make sure that you have followed the instructions correctly and the fixing is stable! CAUTION! Make sure all fixings are tight but not overtighten them. If some parts are loose this could cause disintegration of the tricycle and injury to your child.
ASSEMBLY
-
ASSEMBLY OF FRONT WHEEL TO THE FRONT TUBE OF THE FRAME.
-
ASSEMBLY OF THE HANDLEBAR TO THE FORK TUBE.
2-1 - Put the handlebar through the front basket and to the fork tube.
2-2 - Fix it by moving the red lever up.
- ASSEMBLY OF REAR WHEELS.
3-1 - Attach the parking device.
3-2 - Thread the rear axles in the rear wheel.
3-3 - Install the wheels to the rear tubes of the frame.
3-4 – Install the decorative covers.
-
ASSEMBLY OF LOWER TUBE TO THE FRAME.
-
ASSEMBLY OF PUSH HANDLE TO THE FRAME.
IMPORTANT! Make sure that the pins are showing through the handle openings and the handle is fixed.
- FIXING THE SEAT TO THE FRAME.
Put the seat and fix it with plastic washers.
-
ASSEMBLY OF SAFETY BUMPER TO THE SEAT.
-
ASSEMBLY OF FABRIC COVER TO THE SAFETY BUMPER.
Note: Put the lower part of the fabric cover over the safety bumper and close the bumper (8-2).
-
ASSEMBLY OF HEAD REST TO THE CANOPY.
-
ASSEMBLY OF CANOPY TO THE BACKREST.
-
ASSEMBLY OF REAR BASKET TO THE FRAME.
Fix the basket with screws.
- ASSEMBLY OF GUIDING AXLE.
Put the front end of the guiding axle to the fork and the rear end fix to the lower tube using washers.
- ASSEMBLED TRICYCLE.
FUNCTIONS
 | SEAT CAN BE ADJUSTED IN 2 POSITIONS:FORWARD (facing to the front) andREARWARD (facing to the back);Press the button and rotate the seat in the desired position. |
 | PARKING DEVICE |
 | UNFOLD ANDFOLD THE CANOPY |
 | CLOSING THE FOOTRESTTO THE FRAMEIMPORTANT! When directing the tricycle by the parent handle, use the footrest in unfolded position, and when the child is directing the tricycle by the pedals, fold the footrest to the frame. |
MAINTENANCE GUIDELINES
Periodically check the good working order of the tricycle parts.
Do not wash it and do not soak it in water. Use a soft damp cloth and water or neutral liquid detergent.
Do not use aggressive detergents, containing abrasive particles, ammonia, bleach or spirits.
- Regularly oil the moving parts.
Do not use on sand. Do not store the trivels in hot environment, in order to avoid the plastic parts from deforming
Do not store the incycle in hot environment, in order to avoid the plastic parts from deforming. Store the product in clean and dry place indoors. Do not expose to direct sunlight, moisture or
harsh weather!
◆ Always let the tricycle to dry out fully before storing or using it, in order to avoid mold and rust.
- Always let the cycle to dry out rally before storing or using it, in order to avoid hold and reset. Contact your authorized dealer if consultation or repair is needed
Materials used: plastic, metal, textile and textile filling—100% polyester.
JM-066-9 s / TRKJA020xxx
