USER MANUAL Baby Fitness Chipolino

Black and white photo of a toy car with animal-themed ornaments and accessories (no visible text or symbols)

Colorful toy car with cartoon animals and decorative elements, no visible text or symbols

This product is produced in conformity with the requirements of Toy Safety Directive 2009/48/EC of the European Parliament and the Council, the Regulation on Essential Requirements and Conformity Assessment of Toys, the Regulation on Conformity Marking and the European standards applicable to this product.

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THIS PRODUCT AND KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE.

IMPORTANT! MAIN WARNINGS!

• CAUTION! TO BE USED WITH A COMPANION AND ONLY UNDER ADULT SUPERVISION DUE TO RISK OF FALLING!
• CAUTION! STOP USING THE PRODUCT AS A PLAYMAT WHEN THE CHILD STARTS TO GET UP ON HIS HANDS OR KNEES AND STAND UP!
• CAUTION! CHILDREN WHO CANNOT WALK ALONE SHOULD NOT USE THE BABY WALKY!
• CAUTION! AVOID ACCESS TO STAIRS, STEPS OR OTHER UNEVEN SURFACES!
• CAUTION! REGULARLY CHECK ALL THE PARTS OF THE PRODUCT! DO NOT USE THE TOY IN CASE YOU FIND ANY DAMAGED, MISSED OR WORN OUT PARTS. ALL JOINTS MUST BE IN GOOD WORKING ORDER. NO CRACKS ON THE CONSTRUCTION.
• CAUTION! USE THE TOY AT HOME ONLY ON FLAT, HORIZONTAL AND SAFE SURFACES, AWAY FROM STAIRS OR OBSTACLES, HEAT SOURCES AND POOLS OF WATER!
• CAUTION! USE THE TOY ONLY AT ITS PURPOSE!
  • CAUTION! KEEP AWAY FROM FIRE!
• Unpacking and assemble of the TOY to be done ONLY by an adult!
• DO NOT attach to the TOY additional ties and accessories to avoid the risk of choking!
• When storing and transporting DO NOT place objects or heavy objects on the TOY to avoid damaging of the construction.
• Do NOT move the toy by pulling it with another transport means!
• DO NOT make changes or modifications to the TOY's construction! If necessary, contact your dealer or an authorized service for consultation and repair.
• DO NOT use spare parts and other components not supplied by the manufacturer! The manufacturer assumes no liability for the safety if spare parts other than those originally for the type approved or recommended are used.
• All packages must be kept away from children during unpacking and after that, to avoid risk of strangulation.

IMPORTANT! WARNINGS AND INSTRUCTIONS FOR USING BATTERIES

• Always secure the battery compartment with the cover after inserting the batteries.
- Do not allow children to access batteries and play with them!
- Only use batteries of the specified type and voltage.
- Do not use batteries of different type.
- Do not mix new ones with batteries already used.
- Keep the correct polarity.
- Remove damaged and exhausted batteries.
- Remove the batteries when you will not use the toy for long period.
- Do not dispose of batteries in open fire. Batteries should not be disassembled.

ATTENTION! Do not throw batteries with household waste, but only in the designated places.

MAIN FEATURES OF THE PRODUCT

MUSICAL BABY WALKY stimulates and supports the development of senses, coordination of movements and physical skills, recognition of colors, forms, sounds and melodies. The child can play with the toy sitting on the floor, while listening to fun music can learn to recognize different shapes and colors.

The toy is intended for use as:

• Playmat suitable for newborn and small babies (0+ months)
  • Musical toy suitable for children over 6 months (6+)
• Baby walky – for children over 12 months old (12+). Children who cannot still walk alone should not use the push toy.
• Panel with various toys.
• A musical toy "PIANO" that plays lights, sounds and melodies.
• Required batteries: 3 pieces, type AAA/1.5V (not included in the set).

INSTRUCTIONS FOR ASSEMBLY AND SAFE USE

ATTENTION! FOLLOW THOROUGHLY THE RECOMMENDATIONS AND CONSEQUENCE FOR USE OF THE PRODUCT IN THIS INSTRUCTION MANUAL!

ATTENTION! CHECK THE SECURITY OF FIXING AFTER PERFORMING ANY OPERATION!

ASSEMBLY OF BABY WALKY

Two mechanical arms with arrows indicating movement, labeled 'X2' (no text or symbols on the arms themselves)

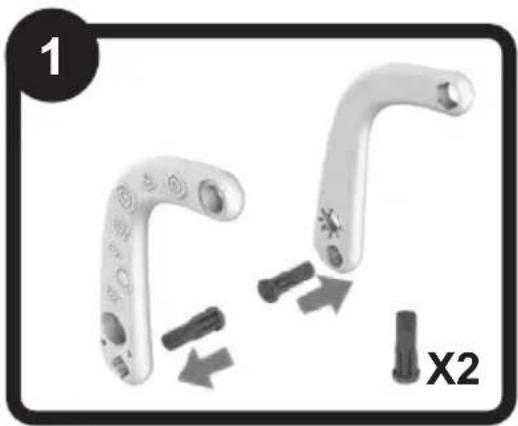

Insert the long axis through the corresponding openings of the support frames.

Mechanical component assembly diagram showing a lever mechanism with gears and buttons (no text or symbols)

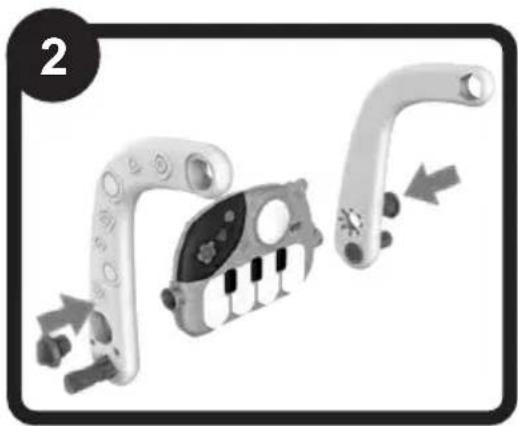

Place the musical panel with toy "PIANO" between the support frames and fix with the plastic screws.

Mechanical device with labeled parts and directional arrows indicating motion (no text or symbols)

Place the toy cross tube between the support frames and secure with the two plastic screws.

Two grayscale images of a handheld device with attached components, showing a close-up and a close-up assembly (no text or symbols)

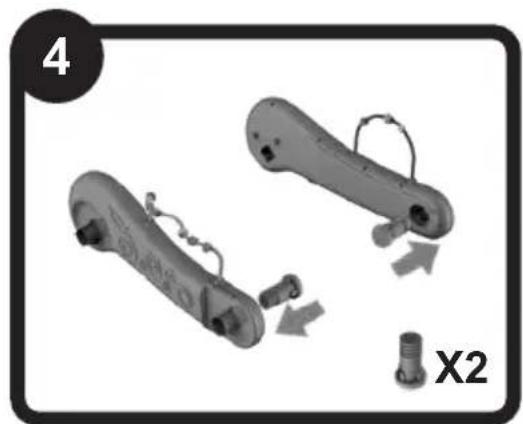

Thread the two short axis through the corresponding holes on the side bases.

Mechanical device with attached components and directional arrows indicating motion (no text or symbols)

Place the side bases on the corresponding sides of the support frames.

Black-and-white photo of a toy car with wheels and buttons, no visible text or symbols

Place the four wheels as shown in the figure and fix with the four plastic screws.

ASSEMBLY OF THE PLAYMAT

7

Mount the hanging toys and the mirror on the rings.

Illustration of a baby's play button with six cartoon animals holding up arrows (no text or symbols)

Mount the toys and the mirror on the crossbar as shown in the figure.

Illustration of a snowboard with motion arrows indicating speed (no text or symbols)

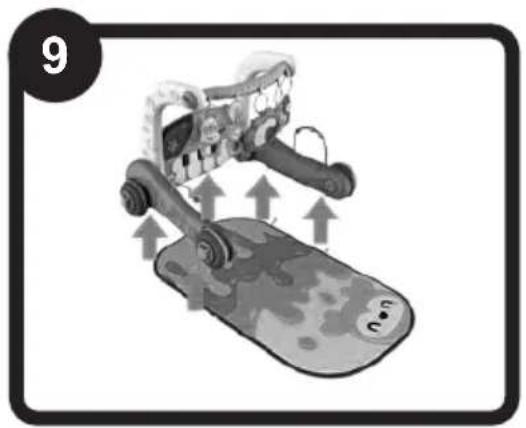

Fix the playmat with the five straps to the side bases and musical panel.

Illustration of a cartoon-style toy car with camouflage pattern and wheels, no text or symbols present

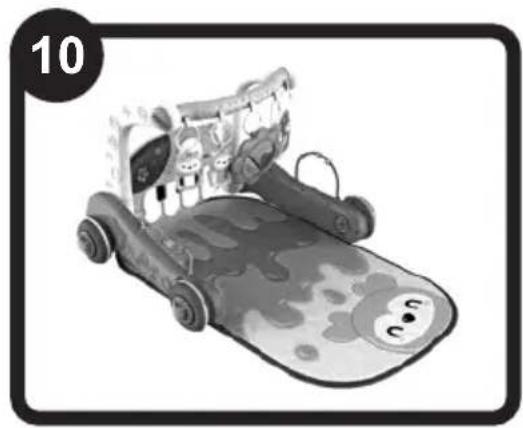

Assembled toy

BATTERIES

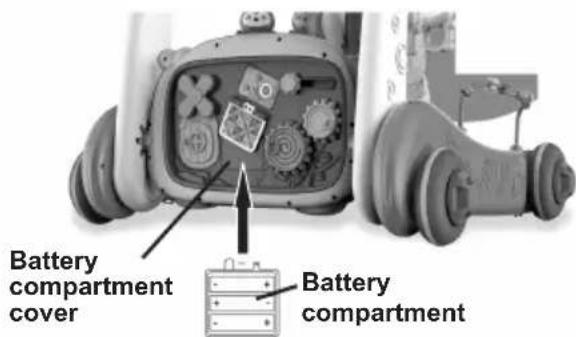

Battery compartment cover Battery compartment

Required batteries: 3 pcs type AAA /1.5V

To use the functions melodies and lights of the music toy „Piano“, unscrew the screw and remove the cover. Insert 3 pcs batteries type AAA/1,5V in the battery compartment observing the indicated polarity. Place the cover of the battery compartment and tighten the screw.

Move the switch for ON/OFF to position ON and use the functions of the piano.

FUNCTIOS

Drum Toy "PIANO" Mode switch ON/OFF switch Musical keys

• Toy „PIANO“ with melodies and lights
• Playmat
• Baby walky
• Gears
• Funny toys with different shapes

CARE AND MAINTENANCE

• Periodically check the good working order of the separate parts.
• Do not wash or immerse the TOY with water. Use a soft damp towel and a neutral detergent.
• Do not use aggressive detergents containing abrasive particles, bleach or spirit.
  • Regularly oil moving parts.
• Do not use on sandy terrains.
• Do not store the TOY in spaces with hot air or in proximity to warmth to prevent its deforming.
• Store the TOY in a clean and dry space. Do not let it under direct environmental influence – sun, rain, moisture or harsh temperature fluctuations!
  • After each cleaning leave the TOY to fully dry before storing or using it. Rust and mildew may appear if you store the product damp.
• The music box ("PIANO" toy) consists of fine electronic components. Avoid getting hit!
• In case of problems related to the normal use of the product, turn to authorized service for repair or advice.

Materials used: plastic, metal

MIKBAFI023MC / CH033721 / 6655

Producer: Made in China

Importer: CHIPOLINO LTD., 1 Goliamokonarsko Shosse Str,

Plovdiv, BULGAIRA, tel.: [phone], www.chipolino.com
