USER MANUAL Thermic 5H Lavor

Close-up of industrial machinery components with a white icon showing a water drop and a pipe fitting (no text or symbols visible)

EN · CAUTION! The engine is not provide with oil. It is necessary to fill the carter before starting the engine.

EN · CAUTION! Fill gas tank with unleaded gasoline. Do not use leaded gasoline.

Line drawing of a hand gripping a tool or device (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

III. USO DELLA LANCIA

Illustration showing two hands using a tool to lift a cable, with one hand holding the cable and the other extending (no text or symbols present)

Translation of the original instructions

SYMBOLS CAUTION

A caution is used to alert the user to fact that hazardous operating and maintenance procedures may result in damage to or destruction of equipment if not strictly observed.

NOTE

A note is used to give helpful information.

DESCRIPTION OF THE MACHINE

pag. 2, fig. A.

1-Engine

2-Suction hose

3-Water outlet

4-Water inlet + filter

5-Lance

6-High pressure hose

7-Gun

8-Nozzle holder

9-Nozzles

(Nozzle cleaning pin)

10-Accessory holder

11-Cable holder

12-Pump Oil Alarm

13-Thermal valve

14-Wheel

15-Stationary wheel

16-Pressure control

17-Pressure gauge

18-Garden hose optional-IF PRESENT

19-Quick release water inlet connector optional-IF PRESENT

20-Mounting

UNPACKING

After opening the package, check the entire unit.

- In case of problems with this unit do not use it until you have consulted an authorized service/

centre.

- Due to transport and packing dimension reasons, some accessories can be supplied disassembled; in this case the fitting has to be carried out following the instructions on this booklet.

- All possible harmful parts of the package (plastic bags, foamed polystyrene, nails etc.) should be kept out of children's reach.

SAFETY PRECAUTIONS

CAUTION: This manual has been drawn up for the user. The instructions concerning the engine are included in the booklet written by the manufacturer attached to this reply. Please carefully read the enclosed instructions that include important points about safety for the installation, usage and maintenance.

KEEP THIS BOOKLET HANDY FOR ANY FURTHER IN - FORMATION.

- CAUTION: This appliance is for outdoor use only.

- CAUTION: Always turn off the engine and water source on completion of every job.

- CAUTION: Never use the appliance if important parts of the appliance are damaged, e.g. safety devices, high pressure hose, gun, etc.

- CAUTION: This appliance has been designed for use with the detergent provided or the detergent specified by the manufacturer, such as a neutral shampoo based on biodegradable anionic surface active detergents. The use of other detergents or chemicals may put the appliance's safety at risk.

- CAUTION: Never use the appliance with people in the vicinity, unless they are wearing protective clothing.

- CAUTION: Do not direct the nozzle toward mechanical parts containing lubricant grease, as the grease will dissolve and spread over the surrounding ground. Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be deadly dangerous.

- CAUTION: High pressure jets may be dangerous if improperly used. Jets must never be pointed at people, animals, life electrical equipment or the appliance itself.

- CAUTION: The hoses, accessories and high pressure couplings are important for the appliance's safety. Use only hoses, accessories and couplings recommended by the manufacturer (it is extremely important to protect these components against damage

by avoiding their improper use and protecting them against bending, knocks and scratches).

- CAUTION: The gun is fitted with a safety catch. Whenever use of the machine is interrupted it is important to operate the safety catch to prevent accidental activation of the jet.

- Never point the jet at yourself or others to clean clothing or footwear.

- Never allow children or untrained people to use the appliance.

- Safety features: gun equipped with safety locking device, pump equipped with by-pass valve

- The safety button on the gun is not there to lock the lever during operation, but to prevent its accidental operation.

- CAUTION: Appliances not equipped with A.S.S. – Automatic Stop System: must not be left in operation for more than 2 minutes with the gun released. The recycled water heats up considerably, seriously damaging the pump.

- CAUTION: Switch the appliance off completely (master switch on OFF) whenever it is left unattended.

- CAUTION: Every machine is tested in its operating conditions, so it is normal for a few drops of water to be left inside it.

- CAUTION: Appliance with fluid under pressure. Keep a firm hold on the gun and be prepared to take the kickback pressure. Only use the high pressure nozzle provided with the appliance.

- CAUTION: The high pressure hose is designed and produced to withstand high pressures. To avoid damage, it must be handled with special care. Mis - use may lead to premature breakages or damage and cause the loss of warranty cover.

-16CAUTION: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

-17CAUTION: Children should be supervised to ensure that they do not play with the appliance.

- CAUTION: Never start the high-pressure cleaner without first completely unwinding the high-pressure hose.

- CAUTION: When winding and unwinding the pipe take care not to cause the high-pressure cleaner to overturn.

- CAUTION: Before unwinding or winding the hose, switch the machine off and release the pressure in the hose itself (switching off).

- CAUTION: Risk of scalding from engine exhaust. DO NOT TOUCH OR DO NOT PUT THE HOSE IN CONTACT WITH THE ENGINE EXHAUST.

- CAUTION: The use of ear protector is recommended.

- CAUTION: Do not use combustion engine powered

appliances indoors unless adequate ventilation is assessed by national labour authorities.

- CAUTION: Ensure that any exhaust emission are not in the vicinity of air intakes.

SUITABLE USE OF THE MACHINE

The appliance is intended for professional use. The appliance can be used for washing surfaces outdoors, whenever pressurised water is required to remove dirt.

Structural technologies have been studied to assure high reliability and safety levels, and long life. It is absolutely forbidden to use the machine in potentially explosive environments or areas. The working temperature must range between +5° and +50°C.

The housing shape has been studied to offer the maximum comfort of transport with suitable handle without any protrusions and dangerous corners.

The machine is supplied with a lance with gun, equipped with a handle to offer a practical working position; the shapes and the dimensions of the handle correspond to the safety norms in force.

It is forbidden to apply any protections or modifications on the spraying lance or to the washing nozzles.

The high pressure washer is suitable for washing with cold or warm water at a maximum temperature of 40^ C, higher temperatures can damage the pump.

The water you use for the washer must not be dirty, sandy or hold any corrosive chemical products, not to compromise the good functioning and the long life of the equipment.

With suitable optional accessories, it can be used for foaming and sanding-blasting, and for washings with a rotary brush for application to the gun.

CORRECT USE OF THE MACHINE

- CAUTION: The washer shall be placed on a safe and steady plane and in horizontal position.

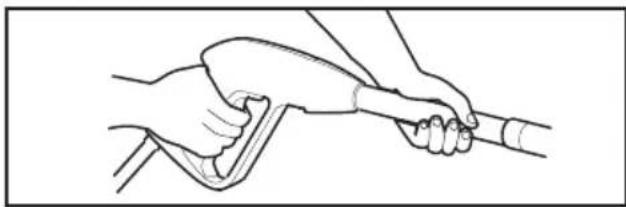

- CAUTION: Whenever you use the high pressure washer, we suggest to grip the gun in the right position, with one hand on the handle and the other hand on the lance.

EN

Line drawing of a hand gripping a tool or device (no text or symbols present)

- CAUTION: The water jet shall never be pointed to the machine.

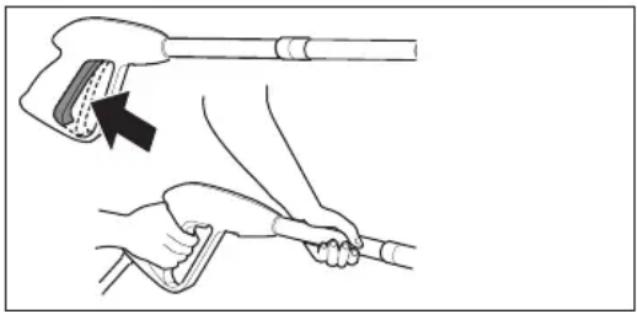

I. GUN SAFETY DEVICE

Whenever you need to stop the machine, it is necessary to use the safety lock Ⓟ, placed on the gun, in order to avoid fortuitous openings.

S

II. DETERGENT SUCTION

Plunge suction hose with filter into detergent tank. When you start the machine, the detergent suction is automatic when the adjusting head of the lance is rotate for low pressure operation (anti-clockwise).

- CAUTION: make use only of liquid detergent, do not absolutely use acid or too much alkaline products. We suggest you to make use of our products, which have been studied for the use with washer machines.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

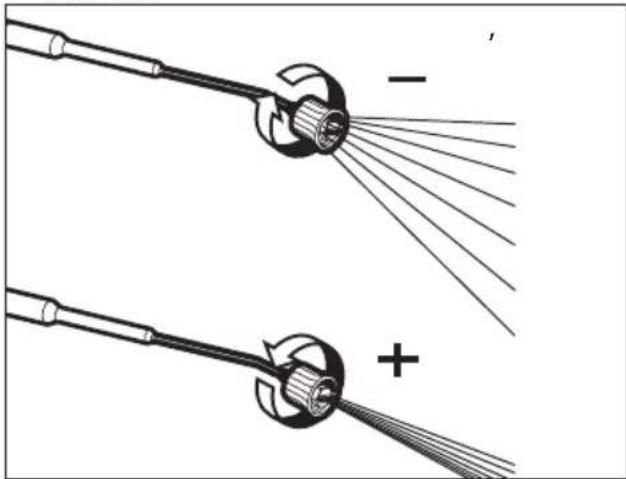

III. USE OF THE LANCE

The adjusting head allow you to select water jet 14

at low and high pressure. The pressure selection is carried out by rotating the adjusting head. To increase the pressure, rotate the adjusting head clockwise, to reduce the pressure rotate it anticlockwise.

IV. APPLIANCES PROVIDED WITH THERMAL VALVE

This device enables the machine's by-pass operation through automatic water discharge whenever it reaches a temperature of nearly 60^ and cooling working components.

- CAUTION: appliances that are not provided with this disposal must not operate for more than 2 minutes with released gun. Recycled water raises its temperature remarkably causing great damages to the pump.

MONTAGE

Study the series of photos shown below (fig.B):

OPERATING INSTRUCTIONS

• CAUTION! Do not run the engine with a high or low oil level as this can cause engine damage. If you have further questions regarding the engine, please refer to the engine's operating manual included with the unit.
• CAUTION! The engine is not provide with oil. It is necessary to fill the carter before starting the engine.

• CAUTION! Before starting the pump, check the oil level in the pump.
• CAUTION! If it is the first time that you use the machine or if you do not operate the machine for a long period,

it is necessary to connect, for some minutes, the suction hose, in order to let possible impurities go out, so that the nozzle gun will not become clogged.

- CAUTION! Fill gas tank with unleaded gasoline. Do not use leaded gasoline.

I. STARTING UP

WATER SUPPLY

Water supply connection - Additional safety information

WARNING: (symbol) machine not suitable connection to the potable water mains.

• CAUTION: Water that has flown through backflow preventers is considered to be nonpotable.

• CAUTION: Danger! Only clean or filtered water should be used for intake. The water intake should be at least twice the pump capacity.

• Minimum delivery rate: 15 l/min

• Maximum intake water temperature: 40°C
• Max inlet water pressure: 1Mpa

Place the cleaner as close as possible to the water supply.

Water supply from the water main

• Connect a supply hose (not included) to the water inlet of the unit and to the water supply.
• Open the water supply.

The cleaner can be connected directly to the mains drinking water supply only if the supply hose is fitted with a backflow preventer valve as per current regulations in force.

Make sure that the hose is at least ∅ 13mm and that it is reinforced.

Water supply from an open container

• Unscrew the coupling part for the water inlet.
• Screw the suction hose with filter (not included) onto the water connection of the unit.
• Hang the filter in the container.

• Vent the unit before operation.

• Unscrew the high-pressure line at the high-pressure outlet of the unit.

• Switch on the unit and let it run until water free of bubbles emerges at the high-pressure outlet.
• Switch off the unit and screw on the high-pres sure hose again.

Failure to comply with the above conditions causes serious mechanical damage to the pump and the loss of warranty cover.

1. Connect the high pressure hose to the unit's high pressure outlet.
2. Connect the high pressure hose to the spray gun. In - sert the spray wand of your choice into the wand extension. Press in against the spring tension and twist into the locked position. Insert the nozzle.
3. Connect garden hose to unit's water inlet

(Max 10 bar, 1 MPA, max t. 40°C).

1. Connect garden hose to the cold water source and turn water on completely.
2. Trigger the gun to eliminate trapped air, wait for a steady flow of water to emerge from the spray nozzle.

Illustration of a hand holding a tool with an arrow indicating the process (no text or symbols present)

- CAUTION! In order to assist the first startup, it is recommended to hold the trigger pressed during the pulling of the starter handle

NOTE:

Motor: see "owner's manual - general gasoline engine".

1. Start the engine.

- CAUTION: Do not allow pressure washer to idle for more than 2 minutes without switching off. Failure to do this could cause appliance to the malfunction.

II. STOP

In an emergency, push the engine switch to "OFF" to stall the engine. Stop it in normal in the following sequence:

- CAUTION: Turn off the machine when finished working.

- CAUTION: When the machine is switched off, always discharge the pressure hose, opening the gun.

MAINTENANCE

- CAUTION: Before to carry out any kind of maintenance to the washer machine, run the pressure down, take the water connection out.

I. LUBRICATION

EN

Motor: see "owner's manual - general gasoline engine".

High-pressure water pump: we recommend GEAR SYNTHETIC OIL ISO 150 - Oil capacity 60 gr.

II. WATER SUCTION FILTER CHECKING

Check periodically in order to avoid deposits clogging it.

Line drawing of a hand holding a cylindrical object with a separate cylindrical component attached (no text or symbols)

III. LONG STORAGE PERIOD

If you foresee/expect to keep the machine in environments where there is danger of ice/frost or if you don't use it for more than 3 months, we suggest to get the machine to intake an antifreeze before putting it away (similar to that used for cars).

Furthermore, at start-up, small leaks may occur from the pump; these will disappear after a few hours in operation. Up to 10 drops a minute are acceptable; in case of larger leaks contact an Authorised Service Centre.

TROUBLESHOOTING

Motor: see "owner's manual - general gasoline engine".

High-pressure water pump: SEE THE TABLE

REPAIRS - SPARE PARTS

For any further inconveniences, not mentioned in this booklet or any damages of the machine, we suggest you to go to an Authorized Assistance center for the repair or possible replacement of any original spare parts.

DISPOSAL (WEEE)

As the owner of electrical or electronic equipment, the law (in accordance with the EU Directive 2012/19/EU on waste from electrical and electronic equipment and the national laws of the EU Member States that have implemented this Directive) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of. Disposing of the product in the environment can cause great harm to the environment itself and human health.

The symbol in the figure indicates the urban waste containers and it is strictly prohibited to dispose of the equipment in these containers. Non-compliance with the regulationis spulated in the Directive 2012/19/EU and the decrees implemented in the various EU Member States is administratively punishable.

WARRANTY CONDITIONS

All our machines are subjected to strict tests and are covered against manufacturing defects in accordance with applicable regulations. The warranty is effective from the date of purchase.

The following are not included in the warranty: - Parts subject to normal wear. - Rubber parts, charcoal, filters and the accessories and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and installation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clogged nozzles and filter blocked due to limestones. This pressure cleaner is intended to be used for domestic and hobby work: the warranty does not cover any other different kind of use.

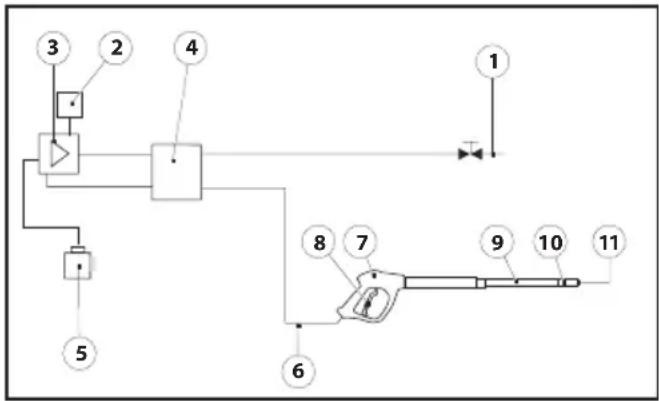

WATER DIAGRAM

1) Water supply

2) Thermal valve

3) High-pressure water pump
4) Internal by-pass valve
5) Cleaning agent container
6) High pressure hose
7) Gun
8) Gun trigger
9) Lance
10) Nozzle head
11) Nozze

FAULT CAUSE REPAIR
The pump doesn’t reach the necessary pressure	Water inlet filter is cloggedSuction/delivery valves are clogged or worn outLance nozzle incorrect or worn out	Clean the water inlet filterContact an authorised service centreCheck and/or replace
Fluctuating pressure Air intake	Valves dirty, worn out or stuckSealing worn out	Check that connections and locking ring are well tightenedContact an authorised service centreContact an authorised service centre
Water leaking from the pump	Sealing worn out	Contact an authorised service centre
Loss of pressure The nozzle	is worn outThe valves are dirty or blockedAdjusting valve seal is worn outSeals are worn outThe filter is dirty	Replace the nozzleContact an authorised service centreContact an authorised service centreContact an authorised service centreCheck and/or clean
Noise Air intake	Valves are worn out dirty or blockedBearings are worn outExtreme water temperatureThe filter is dirty	Check the intake pipesContact an authorised service centreContact an authorised service centreBring the temperature under 40°CCheck and clean
Water is in the oil O-rings (	water and oil) are worn out.High moisture in the air	Contact an authorised service centreReplace oil with double frequency that is suggested
Water leakage from the head	Seals are worn outO-rings seal system are worn out	Contact an authorised service centreContact an authorised service centre
Lance blocked	Nozzle is dirty	Clean nozzle with the pin included in the unit

FR

Line drawing of a hand gripping a tool or device (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

III. UTILISATION DE LA LANCE

Illustration of a hand holding a tool with an arrow pointing to a component, no text or symbols present

Line drawing of a hand holding a cylindrical object with a separate cylindrical component attached (no text or symbols)

III. REMISE EN ROUTE APRÈS UNE IMMOBILISATION PROLONGÉE

CONDITIONS DE GARANTIE

Line drawing of two hands gripping a tool or device (no text or symbols present)

Simple line drawing of a hand holding a padlock and a switch, with no text or symbols present.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands using a tool to lift a cable, showing the motion of the grip (no text or symbols present)

Line drawing of a hand holding a pen tip, projecting a cylindrical object into a wire (no text or symbols)

Line drawing of a hand gripping a tool or device (no text or symbols present)

Diagram illustrating a spray gun mechanism with labeled components and directional arrows indicating motion or force.

III. USO DE LA LANZA

Illustration of a hand holding a tool with an arrow pointing to a device component (no text or symbols present)

Line drawing of a hand holding a pen tip, projecting a cylindrical object into a wire (no text or symbols)

III. ALMACENAMIENTO DURANTE UN LARGO PERÍODO

Line drawing of two hands gripping a tool, no text or symbols present

Simple line drawing of a hand holding a padlock and lock, with an arrow labeled 'S' pointing to the padlock (no text or symbols beyond basic labels)

II. SCHOONMAAKMIDDEL AANZUIGING

Diagram showing two mechanical components with radiating lines, one emitting a spray and the other emitting a tool (no text or symbols)

Illustration of two hands using a tool to lift a cable, showing the grip and handle (no text or symbols present)

Line drawing of a hand holding a pen tip, projecting a cylindrical object into a wire (no text or symbols)

III. INWERKINGNEMING NA EEN LANGDURIGE PERIODE VAN STILSTAND

Line drawing of a hand gripping a tool or device (no text or symbols present)

Simple line drawing of a hand holding a padlock and a string, with no text or symbols present.

Diagram showing two mechanical components with labeled parts and directional arrows, possibly illustrating a motion or assembly process.

Illustration of a hand holding a tool with an arrow pointing to the handle (no text or symbols present)

Line drawing of a hand holding a cylindrical object with a separate cylindrical component inserted (no text or symbols)

III. PARADA PROLONGADA

Simple line drawing of a hand holding a padlock with an arrow labeled 'S' (no text or symbols beyond basic diagram)

II. POBÓR DETERGENTU

Diagram showing two mechanical components with arrows indicating direction of motion (no text or symbols)

IV. URZĄDZENIA Z ZAWOREM TERMICZNYM

Illustration of a hand holding a tool with an arrow pointing to a component, no text or symbols present

Line drawing of a hand holding a pen tip, projecting a cylindrical object into a wire (no text or symbols)

III. DŁUGI OKRES PRZECHOWYWANIA

Line drawing of a hand gripping a tool or device (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

III. POUŽITÍ STŘÍKACÍ TRYSKY

Illustration of two hands using a tool to lift a cable, showing the motion of the lever (no text or symbols present)

Line drawing of a hand holding a pen tip, projecting a cylindrical object onto a surface (no text or symbols)

Line drawing of a hand gripping a tool or device (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

III. SUUTINPUTKEN KÄYTTÖ

Illustration of a hand using a tool to lift a pipe, showing the process with an arrow indicating the motion (no text or symbols present)

Line drawing of a hand holding a pen tip, projecting a cylindrical object into a wire (no text or symbols)

III. PITKÄKESTOINEN VARASTOINTI

Line drawing of two hands gripping a tool or device (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion direction (no text or symbols)

Illustration of two hands using a tool to lift a pipe, showing the process with a magnified view (no text or symbols)

Line drawing of a hand holding a cylindrical object with a threaded tip, next to a separate cylindrical component (no text or symbols)

USTREZNA UPORABA STROJA

Line drawing of a hand gripping a tool or device (no text or symbols present)

Simple line drawing of a hand holding a padlock and a switch, with no text or symbols present.

II. SESANJE DETERGENTA

Sesalno cev s filtrom potopite v posodo za detergent. Ob zagonu motorja se detergent pri prehodu vode samodejno premeša z vodo.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

IV. NAPRAVE, DOBAVLJENE SKUPAJ S TOPLOTNIM VENTILOM

Illustration of a hand holding a tool with an arrow indicating force application (no text or symbols present)

Line drawing of a hand holding a threaded pipe with a separate cylindrical component inserted (no text or symbols)

III. DOLGOROČNO SHRANJEVANJE

Line drawing of a hand gripping a tool or device (no text or symbols present)

Simple line drawing of a hand holding a padlock and a finger with an arrow labeled 'S' (no text or symbols beyond basic diagram elements)

II. SUGNING AV RENGÖRINGSMEDEL

Diagram showing two mechanical components with spray patterns and directional arrows, no text or symbols present

III. ATT ANVÄNDA STRÅLRÖRET

Illustration of two hands using a tool to lift a pipe, showing the process with an arrow indicating the motion (no text or symbols present)

Line drawing of a hand holding a cylindrical object with a separate cylindrical component attached (no text or symbols)

III. LÅNGTIDSFÖRVARING

ODGOVARAJUĆA UPORABA STROJA

Stroj je namijenjen za a profesionalnu uporabu.

Line drawing of two hands gripping a tool or device (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

III. UPORABA ŠTRCALJKE

Illustration of two hands using a tool to lift a cable, showing the grip and handle (no text or symbols present)

-OPREZ! Kako biste olakšali prvo pokretanje, preporučuje se da prilikom povlačenja ručice pokretača držite pritisnut okidač pištolja.

NAPOMENA: Ukoliko je motor topao ili je temperatura okoline visoka, ne koristite čok.

1. Pokrenite motor.

Line drawing of a hand holding a pen tip, projecting a cylindrical object into a wire (no text or symbols)

III. SPREMANJE ZA DUŽE VREMENSKO RAZDOBLJE

Ukoliko predvidite/očekujete da ćete držati stroj u okruženjima gdje postoji opasnost od leda/zamrzavanja ili ako ga nećete koristiti više od 3 mjeseca, preporučujemo da uporabite antifriz prije spremanja stroja (poput onog koji se koristi u automobilima).

K (uncertainty) 2 dB (A)

Giancarlo Lanfredi (Legal Representative Lavorwash S.p.A.)
